Open AccessArticle
Appl. Sci. 2019, 9(8), 1592; https://doi.org/10.3390/app9081592

BIM-Based AR Maintenance System (BARMS) as an Intelligent Instruction Platform for Complex Plumbing Facilities

Department of Architecture, National Taiwan University of Science and Technology, 43, Section 4, Keelung Road, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Received: 9 March 2019 / Revised: 15 April 2019 / Accepted: 15 April 2019 / Published: 17 April 2019
(This article belongs to the Special Issue Augmented Reality: Current Trends, Challenges and Prospects)
  |
PDF [3449 KB, uploaded 17 April 2019]
  |     |

Abstract

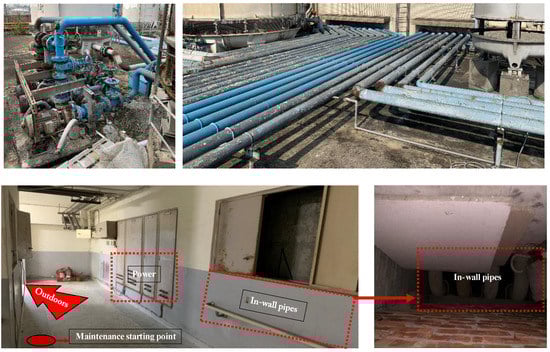

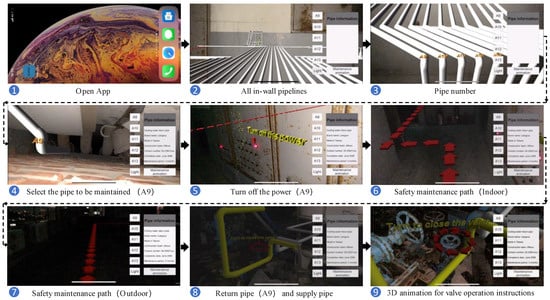

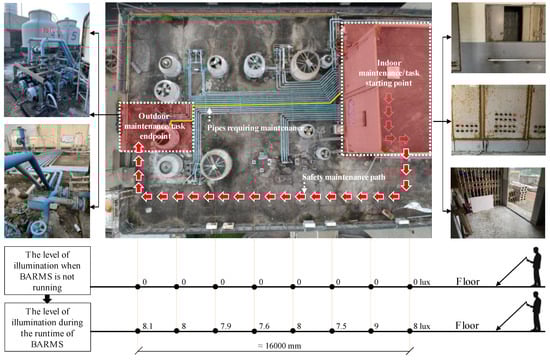

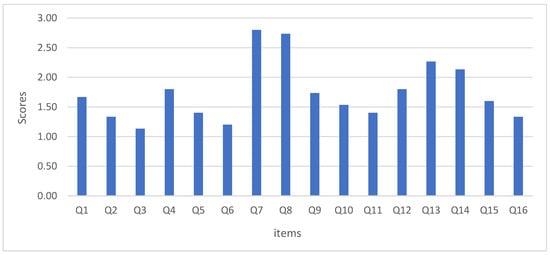

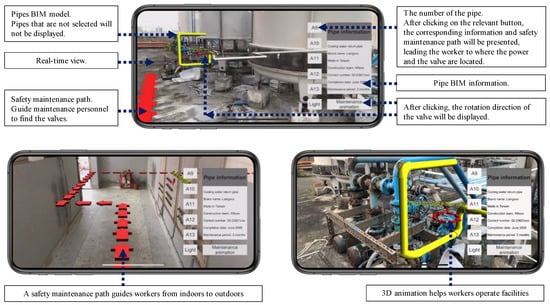

The traditional architectural design of facilities requires that maintenance workers refer between plumbing layout drawings and the actual facilities in complex, hidden, sealed in-wall, or low illumination environments. The purpose of a Building information modeling-based Augmented Reality Maintenance System (BARMS) in this study was to provide a smartphone-based platform and a new application scenario for cooling tower and pipe shutdown protocol in a real-world old campus building. An intelligent instruction framework was built considering subject, path, and actions. Challenges and solutions were created to monitor the subject and maintenance protocol while moving from inside to outside, between bright and dark environments, and when crossing building enclosures at roof level. Animated instruction using AR was interactive and followed the knowledge and management protocols of associated instruction aids. The results demonstrated a straightforward mapping of in-wall pipes and their connected valves, with practical auxiliary components of walking direction and path guidance. The suggested maintenance routes also ensured a worker’s safety. Statistical analysis showed a positive user response. View Full-Text
Keywords: markerless augmented reality; intelligent instruction; smartphone app; architectural facility maintenance; building information modeling markerless augmented reality; intelligent instruction; smartphone app; architectural facility maintenance; building information modeling
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
