# Helmet Design Based on the Optimization of Biocomposite Energy-Absorbing Liners under Multi-Impact Loading

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Certified Motorcycle Helmet

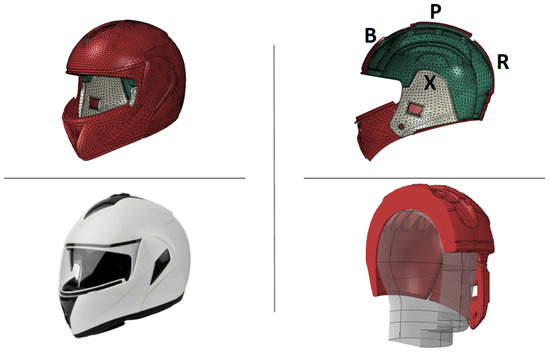

#### 2.1.1. Numerical Modelling

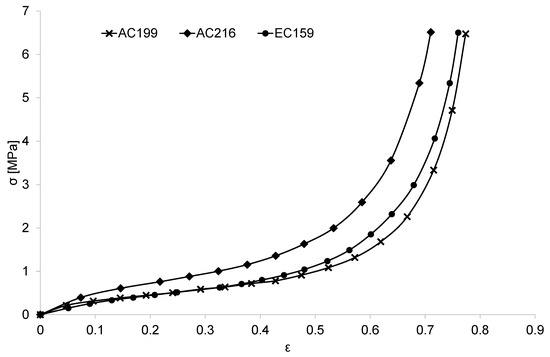

#### 2.1.2. Material Modelling

$p=-{\displaystyle \frac{1}{3}}\mathrm{tr}\left(\sigma \right)$ | is the pressure; |

$q=\sqrt{{\displaystyle \frac{3}{2}}\mathit{S}:\mathit{S}}$ | is the von Mises stress; |

$\mathit{S}=\sigma +p\mathbf{I}$ | is the deviatoric stress and I is the identity matrix; |

$B=\alpha A$ | is the size of the (vertical) q-axis of the yield ellipse; |

$A={\displaystyle \frac{{p}_{c}+{p}_{t}}{2}}$ | is the size of the (horizontal) p-axis of the yield ellipse; |

$\alpha =B/A$ | is the shape factor of the yield ellipse; |

${p}_{0}={\displaystyle \frac{{p}_{c}-{p}_{t}}{2}}$ | is the center of the yield ellipse on the p-axis; |

${p}_{c}$ | is the yield stress in hydrostatic compression (always positive); |

${p}_{t}$ | is the strength of the material in hydrostatic tension. |

#### 2.1.3. Comparison between EPS Liners and Agglomerated Cork Liners

#### 2.2. New Helmet and Its Optimization

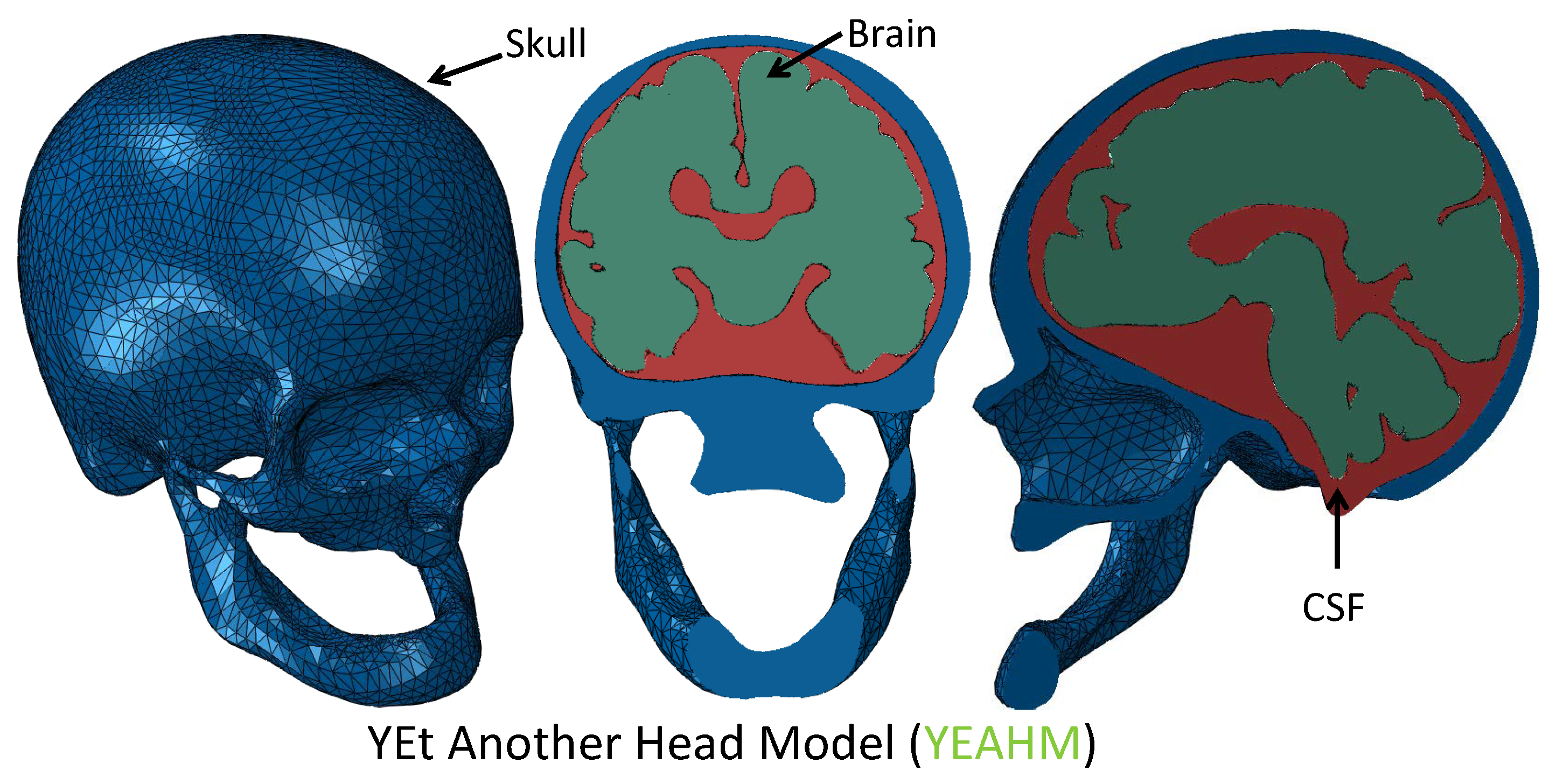

#### YEAHM, the Finite Element Head Model

## 3. Results

#### 3.1. Helmet Evaluation and Optimization Based on YEAHM Response

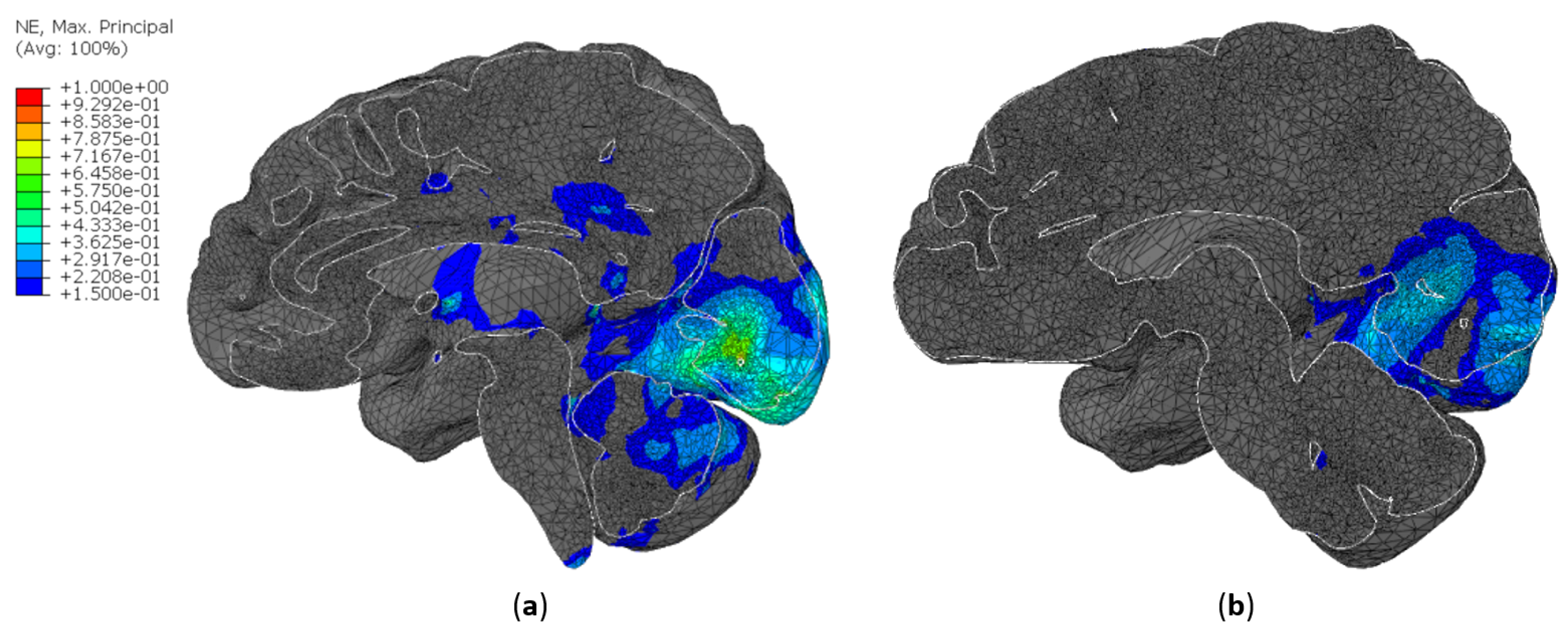

#### 3.2. Comparison between Agglomerated Cork and EPS

#### 3.3. Lighter 40 mm Thick Liners

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Blanco, D.H.; Cernicchi, A.; Galvanetto, U. Design of an innovative optimized motorcycle helmet. J. Sports Eng. Technol.
**2014**, 228, 95–110. [Google Scholar] [CrossRef] - Caserta, G.D.; Iannucci, L.; Galvanetto, U. Shock absorption performance of a motorbike helmet with honeycomb reinforced liner. Compos. Struct.
**2011**, 93, 2748–2759. [Google Scholar] [CrossRef] - Coelho, R.M.; Alves de Sousa, R.J.; Fernandes, F.A.O.; Teixeira-Dias, F. New composite liners for energy absorption purposes. Mater. Des.
**2013**, 43, 384–392. [Google Scholar] [CrossRef] - Fernandes, F.A.O.; Jardin, R.T.; Pereira, A.B.; Alves de Sousa, R.J. Comparing the mechanical performance of synthetic and natural cellular materials. Mate. Des.
**2015**, 82, 335–341. [Google Scholar] [CrossRef][Green Version] - Fernandes, F.A.O.; Tavares, J.P.; Alves de Sousa, R.J.; Pereira, A.B.; Esteves, J.L. Manufacturing and testing composites based on natural materials. Procedia Manuf.
**2017**, 13, 227–234. [Google Scholar] [CrossRef] - Goel, R. Study of an Advanced Helmet Liner Concept to Reduce TBI: Experiments & Simulation Using Sandwich Structures. Master’s Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 2011. [Google Scholar]
- KALI Sports, 2016. Available online: https://kaliprotectives.com/ (accessed on 10 November 2016).
- Morgan, D.E. Cone-Head Technology. 2007. Available online: http://www.coneheadhelmets.com.au/ (accessed on 17 December 2016).
- Ptak, M.; Kaczynski, P.; Fernandes, F.A.O.; Alves de Sousa, R.J. Assessing impact velocity and temperature effects on crashworthiness properties of cork material. Int. J. Impact Eng.
**2017**, 106, 238–248. [Google Scholar] [CrossRef] - Ptak, M.; Kaczynski, P.; Wilhelm, J.; Margarido, J.M.T.; Marques, P.A.A.P.; Pinto, S.C.; Alves de Sousa, R.J.; Fernandes, F.A.O. Graphene-Enriched Agglomerated Cork Material and Its Behaviour under Quasi-Static and Dynamic Loading. Materials
**2019**, 12, 151. [Google Scholar] [CrossRef] [PubMed] - Santos, P.T.; Pinto, S.; Marques, P.A.A.P.; Pereira, A.B.; Alves de Sousa, R.J. Agglomerated cork: A way to tailor its mechanical properties. Compos. Struct.
**2017**, 178, 277–287. [Google Scholar] [CrossRef] - Shuaeib, F.M.; Hamouda, A.M.S.; Wong, S.V.; Radin Umar, R.S.; Megat Ahmed, M.M.H. A new motorcycle helmet liner material: The finite element simulation and design of experiment optimization. Mater. Des.
**2007**, 28, 182–195. [Google Scholar] [CrossRef] - Gibson, L.J. Biomechanics of cellular solids. J. Biomech.
**2005**, 38, 377–399. [Google Scholar] [CrossRef] - Jardin, R.T.; Fernandes, F.A.O.; Pereira, A.B.; Alves de Sousa, R.J. Static and dynamic mechanical response of different cork agglomerates. Mater. Des.
**2015**, 68, 121–126. [Google Scholar] [CrossRef] - Kaczynski, P.; Ptak, M.; Wilhelm, J.; Fernandes, F.A.O.; Alves de Sousa, R.J. High-energy impact testing of agglomerated cork at extremely low and high temperatures. Int. J. Impact Eng.
**2019**, 126, 109–116. [Google Scholar] [CrossRef] - Fernandes, F.A.O.; Pascoal, R.J.S.; Alves de Sousa, R.J. Modelling impact response of agglomerated cork. Mate. Des.
**2014**, 58, 499–507. [Google Scholar] [CrossRef] - Bil, M.; Dobais, M.; Andrasik, R.; Bilova, M.; Hejna, P. Cycling fatalities: When a helmet is useless and when it might save your life. Saf. Sci.
**2018**, 105, 71–76. [Google Scholar] [CrossRef] - Lin, M.; Kraus, J. Methodological issues in motorcycle injury epidemiology. Accid. Anal. Prev.
**2008**, 40, 1653–1660. [Google Scholar] [CrossRef] [PubMed] - WHO. Global Status Report on Road Safety: Time for Action; The World Health Organization: Geneva, Switzerland, 2009; Available online: http://www.who.int/ (accessed on 14 February 2014).
- Fernandes, F.A.O.; Alves de Sousa, R.J. Motorcycle helmets—A state-of-the-art review. Accid. Anal. Prev.
**2013**, 56, 1–21. [Google Scholar] [CrossRef] [PubMed] - Pratellesi, A.; Turrin, S.; Haag, T.; Scippa, A.; Baldanzini, N. On the effect of testing uncertainties in the homologation tests of motorcycle helmets according to ECE 22.05. Int. J. Crashworthin.
**2011**, 16, 523–536. [Google Scholar] [CrossRef] - Tinard, V.; Deck, C.; Willinger, R. New methodology for improvement of helmet performance during impacts with regards to biomechanical criteria. Mater. Des.
**2012**, 37, 79–88. [Google Scholar] [CrossRef] - Vallée, H.; Thomas, C.; Sacreste, J.; Henry, C.; Tarriére, C.; Got, C.; Patel, A. Characteristics of objects struck by the head of moped riders or motorcyclists. In Proceedings of the IRCOBI Conference, Salon-de-Provence, France, 8–10 September 1981; pp. 176–183. [Google Scholar]
- Vallée, H.; Hartemann, F.; Thomas, C.; Tarriére, C.; Patel, A.; Got, C. The fracturing of helmet shells. In Proceedings of the IRCOBI Conference, Delft, The Netherlands, 4–6 September 1984; pp. 99–109. [Google Scholar]
- Fay, P.A.; Sferco, R.; Frampton, R. Multiple impact crashes consequences for occupant protection measures. In Proceedings of the IRCOBI Conference, Isle of Man, UK, 10–12 October 2001; pp. 1–12. [Google Scholar]
- Oliveira, N.L.B.; Sousa, R.M.C. Traffic Accidents with Motorcycles and their Relationship to Mortality. Rev. Latino-Am. Enfermagem
**2011**, 19, 403–410. [Google Scholar] [CrossRef] - Hansen, K.; Dau, N.; Feist, F.; Deck, C.; Willinger, R.; Madey, S.M.; Bottlang, M. Angular Impact Mitigation system for bicycle helmets to reduce head acceleration and risk of traumatic brain injury. Accid. Anal. Prev.
**2013**, 59, 109–117. [Google Scholar] [CrossRef][Green Version] - Farajzadeh Khosroshahi, S.; Tsampas, S.A.; Galvanetto, U. Feasibility study on the use of a hierarchical lattice architecture for helmet liners. Mater. Today Commun.
**2018**, 14, 312–323. [Google Scholar] [CrossRef] - POC Sports. 2016. Available online: http://www.pocsports.com/ (accessed on 17 August 2016).
- Cui, L.; Forero Rueda, M.A.; Gilchrist, M.D. Optimisation of energy absorbing liner for equestrian helmets. Part II: Functionally graded foam liner. Mater. Des.
**2009**, 30, 3414–3419. [Google Scholar] [CrossRef][Green Version] - Deck, C.; Baumgartner, B.; Willinger, R. Helmet Optimisation on head-helmet modelling. Struct. Mater.
**2003**, 13, 319–328. [Google Scholar] - Forero Rueda, M.A.; Cui, L.; Gilchrist, M.D. Optimisation of energy absorbing liner for equestrian helmets. Part I: Layered foam liner. Mater. Des.
**2009**, 30, 3405–3413. [Google Scholar] [CrossRef][Green Version] - Mills, N.J.; Gilchrist, A. Motorcycle helmet shell optimisation. In Proceedings of the Association for Advancement of Automotive Medicine Conference, Portland, OR, USA, 1992; pp. 149–162. [Google Scholar]
- Pinnoji, P.K.; Mahajan, P. Impact analysis of helmets for improved ventilation with deformable head model. In Proceedings of the IRCOBI Conference, Madrid, Spain, 14–16 September 2006; pp. 159–170. [Google Scholar]
- Pinnoji, P.K.; Haider, Z.; Mahajan, P. Design of motorcycle helmets: Computational fluid and impact dynamics studies. Int. J. Crashworthin.
**2008**, 13, 265–278. [Google Scholar] [CrossRef] - Fernandes, F.A.O.; Tchepel, D.; Alves de Sousa, R.J.; Ptak, M. Development and validation of a new finite element human head model: Yet Another Head Model (YEAHM). Eng. Comput.
**2018**, 35, 447–496. [Google Scholar] [CrossRef] - Horgan, T.J.; Gilchrist, M.D. The creation of three-dimensional finite element models for simulating head impact biomechanics. Int. J. Crashworthin.
**2003**, 8, 353–366. [Google Scholar] [CrossRef] - Kleiven, S. Predictors for traumatic brain injuries evaluated through accident reconstructions. In Proceedings of the 51st Stapp Car Crash Conference, 29–31 October 2007; pp. 81–114. [Google Scholar]
- Mao, H.; Zhang, L.; Jiang, B.; Genthikatti, V.V.; Jin, X.; Zhu, F.; Makwana, R.; Gill, A.; Jandir, G.; Singh, A.; et al. Development of a Finite Element Human Head Model Partially Validated with Thirty Five Experimental Cases. J. Biomech. Eng.
**2013**, 135, 111002. [Google Scholar] [CrossRef] - Sahoo, D.; Deck, C.; Willinger, R. Brain injury tolerance limit based on computation of axonal strain. Accid. Anal. Prev.
**2016**, 92, 53–70. [Google Scholar] [CrossRef] - Takhounts, E.G.; Ridella, S.A.; Hasija, V.; Tannous, R.E.; Campbell, J.Q.; Malone, D.; Danelson, K.; Stitzel, J.; Rowson, S.; Duma, S. Investigation of Traumatic Brain Injuries Using the Next Generation of Simulated Injury Monitor (SIMon) Finite Element Head Model. Stapp Car Crash J.
**2008**, 52, 1–31. [Google Scholar] - Zhang, L.; Yang, K.H.; King, A.I. Comparison of brain responses between frontal and lateral impacts by finite element modelling. J. Neurotrauma
**2001**, 18, 21–30. [Google Scholar] [CrossRef] [PubMed] - Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M. Head Injury Simulation in Road Traffic Accidents; Springer Briefs in Applied Sciences; Springer International Publishing: Cham, Switzerland, 2018; ISBN1 978-3-319-89926-8. ISBN2 978-3-319-89925-1. [Google Scholar] [CrossRef]
- Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M. Finite Element Head Modelling and Head Injury Predictors; Springer Briefs in Applied Sciences and Technology (9783319899251); Springer International Publishing: Cham, Switzerland, 2018; pp. 1–23. [Google Scholar] [CrossRef]
- Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M. Development of a New Finite Element Human Head Model; Springer Briefs in Applied Sciences and Technology (9783319899251); Springer International Publishing: Cham, Switzerland, 2018; pp. 25–39. [Google Scholar] [CrossRef]
- Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M. Validation of YEAHM; Springer Briefs in Applied Sciences and Technology (9783319899251); Springer International Publishing: Cham, Switzerland, 2018; pp. 41–58. [Google Scholar] [CrossRef]
- Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M. Application of Numerical Methods for Accident Reconstruction and Forensic Analysis; Springer Briefs in Applied Sciences and Technology (9783319899251); Springer International Publishing: Cham, Switzerland, 2018; pp. 59–98. [Google Scholar] [CrossRef]
- Fernandes, F.A.O.; Alves de Sousa, R.J. Finite element analysis of helmeted oblique impacts and head injury evaluation with a commercial road helmet. Struct. Eng. Mech.
**2013**, 48, 661–679. [Google Scholar] [CrossRef] - Fernandes, F.A.O.; Alves de Sousa, R.J.; Willinger, W.; Deck, C. Finite Element Analysis of Helmeted Impacts and Head Injury Evaluation with a Commercial Road Helmet. In Proceedings of the IRCOBI Conference—International Research Council on the Biomechanics of Injury, Gothenburg, Sweden, 11–13 September 2013; pp. 431–442. [Google Scholar]
- ECE Regulation 22.05. Uniform Provision Concerning the Approval of Protective Helmets and Their Visors for Driver and Passengers of Motor Cycles and Mopeds. United Nations. 2002. Available online: www.unece.org (accessed on 31 January 2019).
- U.S. Department of Transportation, Federal Motor Carrier Safety Administration, Standard No. 218, Motorcycle Helmets, Regulations Current to 29/02/2012. Available online: http://www.fmcsa.dot.gov/rules-regulations/administration/fmcsr/fmcsrruletext.aspx?reg=571.218 (accessed on 26 March 2012).
- ABNT (Associação Brasileira de Normas Tecnicas). Capacetes de Motocicletas e Similares; Technical Report NBR 7471:2001; ABNT: Rio de Janeiro, Brazil, 2001. [Google Scholar]
- Mills, N.J.; Wilkes, S.; Derler, S.; Flisch, A. FEA of oblique impact tests on a motorcycle helmet. Int. J. Impact Eng.
**2009**, 36, 913–925. [Google Scholar] [CrossRef][Green Version] - ABAQUS 6.10 Documentation; Hibbitt, Karlsson & Sorensen, Inc.: New York, NY, USA, 2010.
- Smith, T.; Pomerening, D. Theoretical Calculation of Helmet Thickness Necessary to Achieve 100 g for a 6.2 m/s Impact; Technical Report; Dynamic Research Inc.: Torrance, CA, USA, 2014. [Google Scholar]
- Fernandes, F.A.O.; Alves de Sousa, R.J. Head injury predictors in sports trauma—A state-of-the-art review. J. Eng. Med.
**2015**, 229, 592–608. [Google Scholar] [CrossRef] [PubMed] - Becker, E.B.; Anishchenko, D.V.; Palmer, S.B. Motorcycle Helmet Impact Response at Various Levels of Severity for Different Standard Certifications. In Proceedings of the IRCOBI Conference, Lyon, France, 9–11 September 2015. [Google Scholar]
- Brugger, O.; Bianchi, G.; Schulz, D.; Kisser, R.; Rogmans, W. Snow-Sport Helmets: Injury Prevention, Rate of Wearers and Recommendations; Swiss Council for Accident Prevention, EuroSafe Task Force Safety in Sports: Berne, Switzerland, 2010. [Google Scholar]
- DeMarco, A.L.; Chimich, D.D.; Gardiner, J.C.; Siegmund, G.P. The impact response of traditional and BMX-style bicycle helmets at different impact severities. Accid. Anal. Prev.
**2016**, 92, 175–183. [Google Scholar] [CrossRef] [PubMed] - Klug, C.; Feist, F.; Tomasch, E. Testing of bicycle helmets for preadolescents. In Proceedings of the IRCOBI Conference, Lyon, France, 9–11 September 2015. [Google Scholar]
- Post, A.; Karton, C.; Hoshizaki, B.; Gilchrist, M.D. Analysis of the protective capacity of ice hockey helmets in a concussion injury reconstruction. In Proceedings of the IRCOBI Conference, Berlin, Germany, 10–12 September 2014; pp. 72–80. [Google Scholar]
- Rice, T.M.; Troszak, L.; Ouellet, J.V.; Erhardt, T.; Smith, G.S.; Tsai, B.W. Motorcycle helmet use and the risk of head, neck, and fatal injury: Revisiting the Hurt Study. Accid. Anal. Prev.
**2016**, 91, 200–207. [Google Scholar] [CrossRef] [PubMed][Green Version] - Richter, M.; Otte, D.; Lehmann, U.; Chinn, B.; Schuller, E.; Doyle, D.; Sturrock, K.; Krettek, C. Head Injury Mechanisms in Helmet-Protected Motorcyclists: Prospective Multicenter Study. J. Trauma
**2001**, 51, 949–958. [Google Scholar] [CrossRef] [PubMed] - Rowson, S.; Duma, S. Development of the star evaluation system for football helmets: Integrating player head impact exposure and risk of concussion. Ann. Biomed. Eng.
**2011**, 39, 2130–2140. [Google Scholar] [CrossRef] - Gadd, C.W. Use of a weighted-impulse criterion for estimating injury hazard. In Proceedings of the 10th Stapp Car Crash Conference, New York, NY, USA, 8–9 November 1966; pp. 164–174. [Google Scholar]
- Bilston, L.E. Brain tissue mechanical properties. In Biomechanics of the Brain; Miller, K., Ed.; Springer: New York, NY, USA, 2011; pp. 69–89. [Google Scholar]
- Yang, J. Investigation of brain trauma biomechanics in Vehicle Traffic Accidents Using Human Body Computational Models. In Computational Biomechanics for Medicine: Soft Tissues and the Musculoskeletal System; Wittek, A., Nielsen, P.M.F., Miller, K., Eds.; Springer Science + Business Media: Cham, Switzerland, 2011. [Google Scholar]
- Ren, L.; Li, G.; Baumgartner, D.; Jiang, C.; Hu, Y. Development of a visco-hyperelastic constitutive law for brain tissue based on finite element simulation and optimization methodology. In Proceedings of the 9th International Conference on Measuring Technology and Mechatronics Automation (ICMTMA 2017), Changsha, China, 14–15 January 2017; pp. 279–282. [Google Scholar]
- Horgan, T.J.; Gilchrist, M.D. Influence of FE model variability in predicting brain motion and intracranial pressure changes in head impact simulations. Int. J. Crashworthin.
**2004**, 9, 401–418. [Google Scholar] [CrossRef][Green Version] - Nahum, A.M.; Smith, R.; Ward, C.C. Intracranial pressure dynamics during head impact. Proceeding of the 21st Stapp Car Crash Conference, New Orleans, LA, USA, 19–21 October 1977; pp. 339–366. [Google Scholar]
- Hardy, W.N.; Foster, C.D.; Mason, M.J.; King, K.H.; King, A.I.; Tashman, S. Investigation of head injury mechanisms using neutral density technology and high-speed biplanar X-ray. Stapp Car Crash J.
**2001**, 45, 337–368. [Google Scholar]

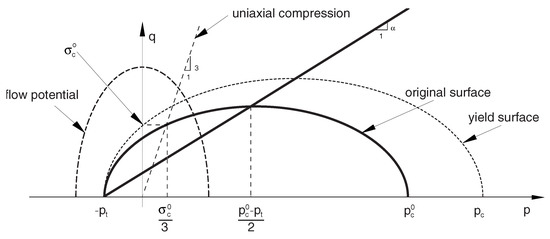

**Figure 2.**Crushable foam model with volumetric hardening: yield surface and flow potential in the p-q stress plane (adapted from [54]).

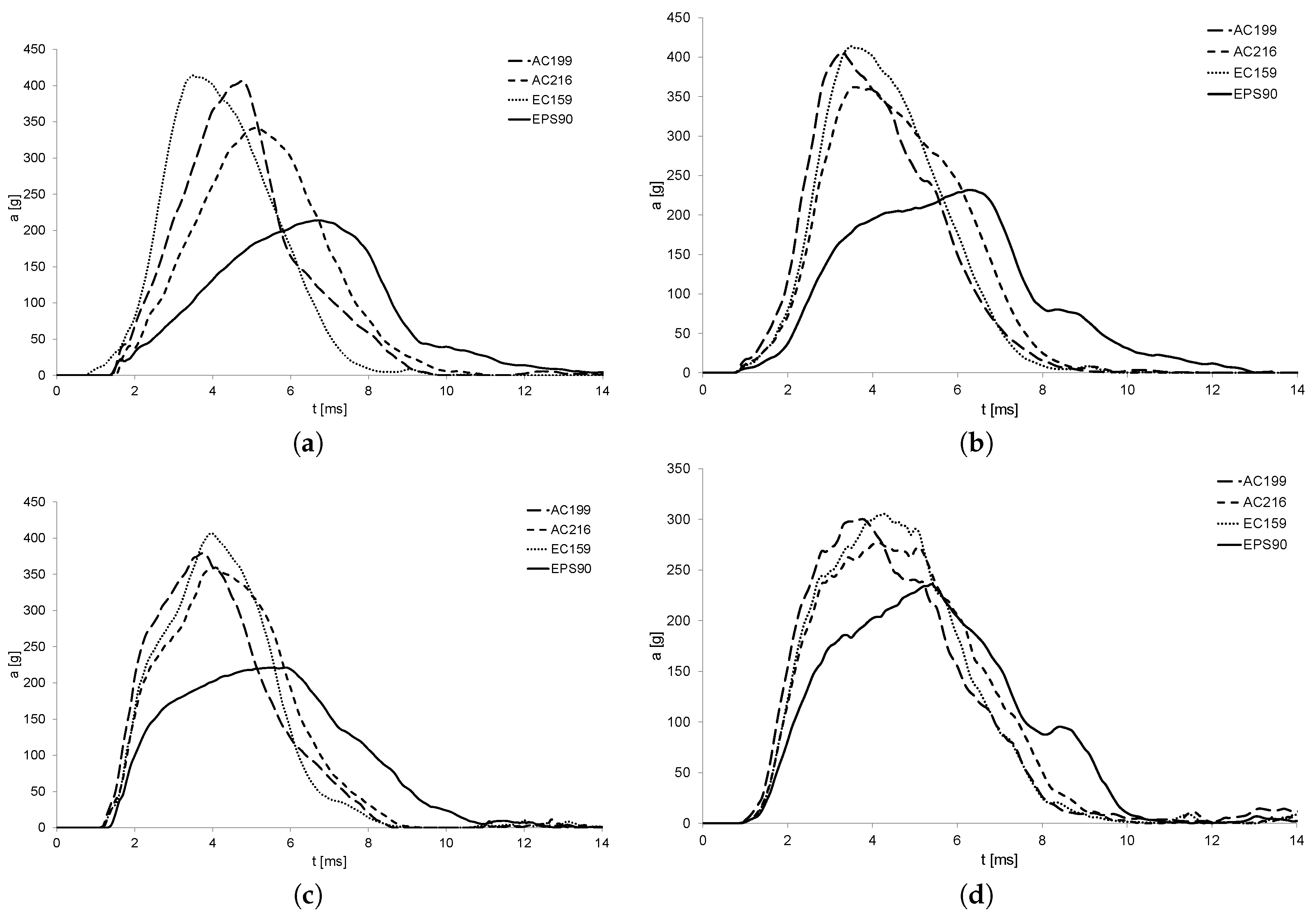

**Figure 4.**Acceleration measured in the headform’s COG - ECE 22.05 test conditions: (

**a**) Impact point B. (

**b**) Impact point P. (

**c**) Impact point R. (

**d**) Impact point X.

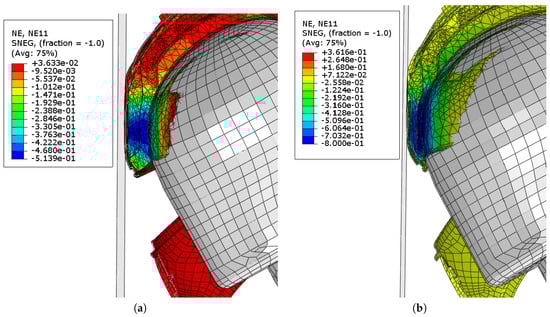

**Figure 5.**Sagitall cut view of the helmet-headform system at the moment of maximum deformation: (

**a**) AC216. (

**b**) EPS90.

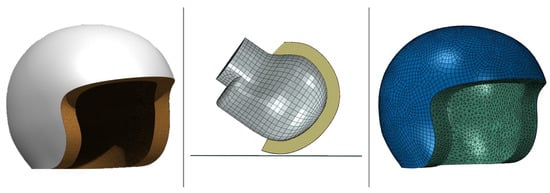

**Figure 6.**New jet helmet with constant thick liners: (

**left**) render with 40 mm thick agglomerated cork liner; (

**center**) Sagittal cut view of the FE model positioned for an impact at point B; (

**right**) FE model.

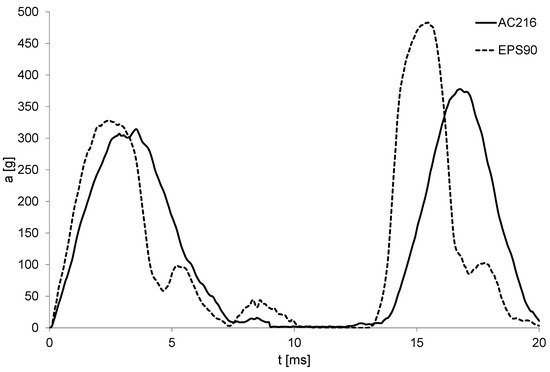

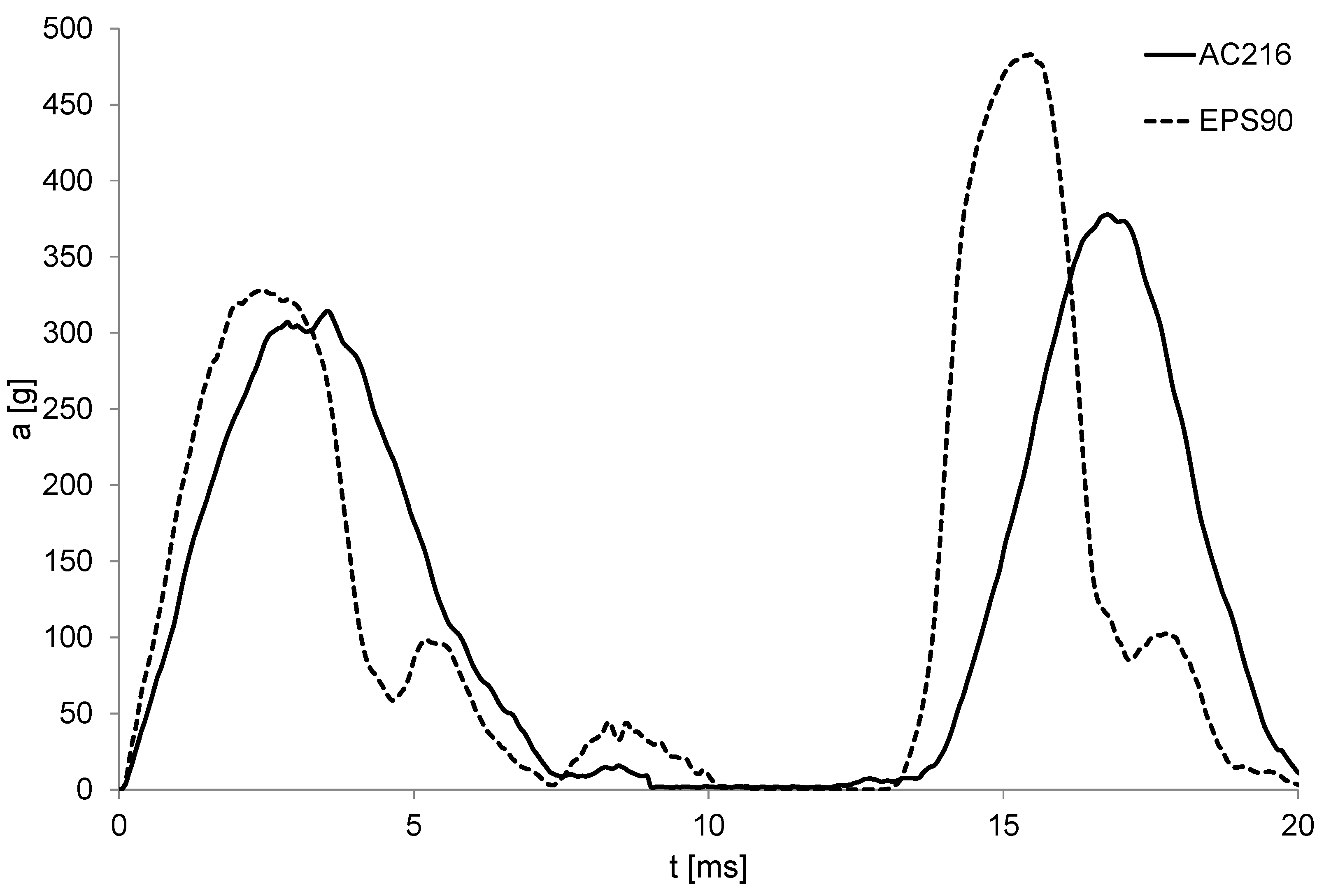

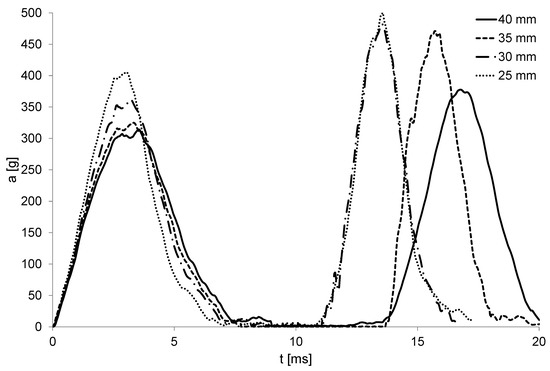

**Figure 8.**Acceleration-time history of double impacts performed with helmets composed of agglomerated cork liners with thicknesses ranging between 25 and 40 mm.

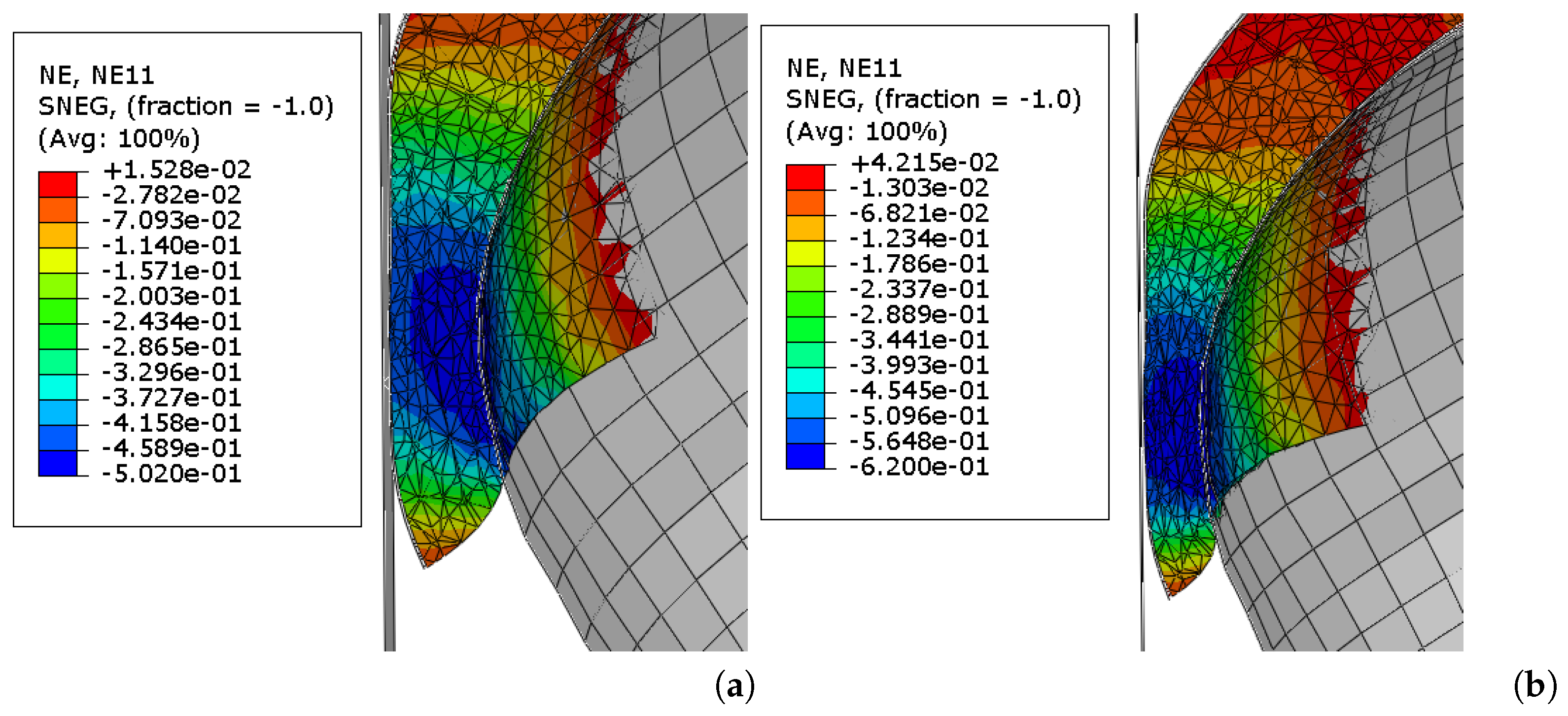

**Figure 9.**Maximum deformation of a liner with a thickness of 35 mm: (

**a**) First impact. (

**b**) Second impact.

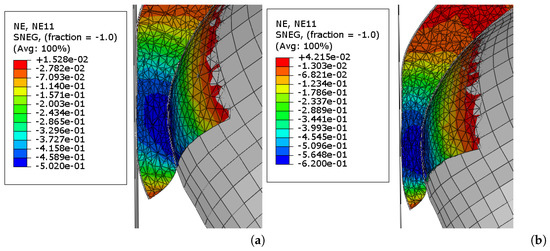

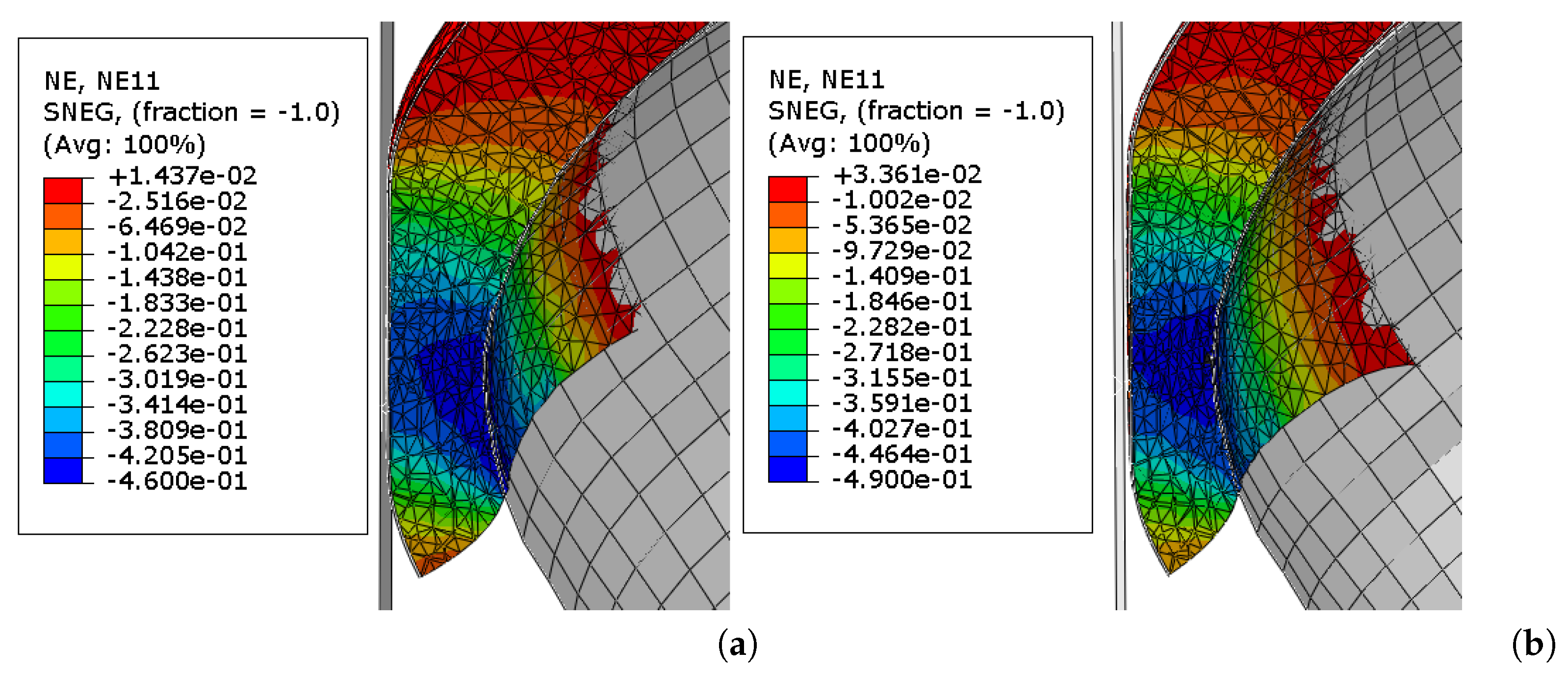

**Figure 10.**Maximum deformation of a liner with a thickness of 40 mm: (

**a**) First impact. (

**b**) Second impact.

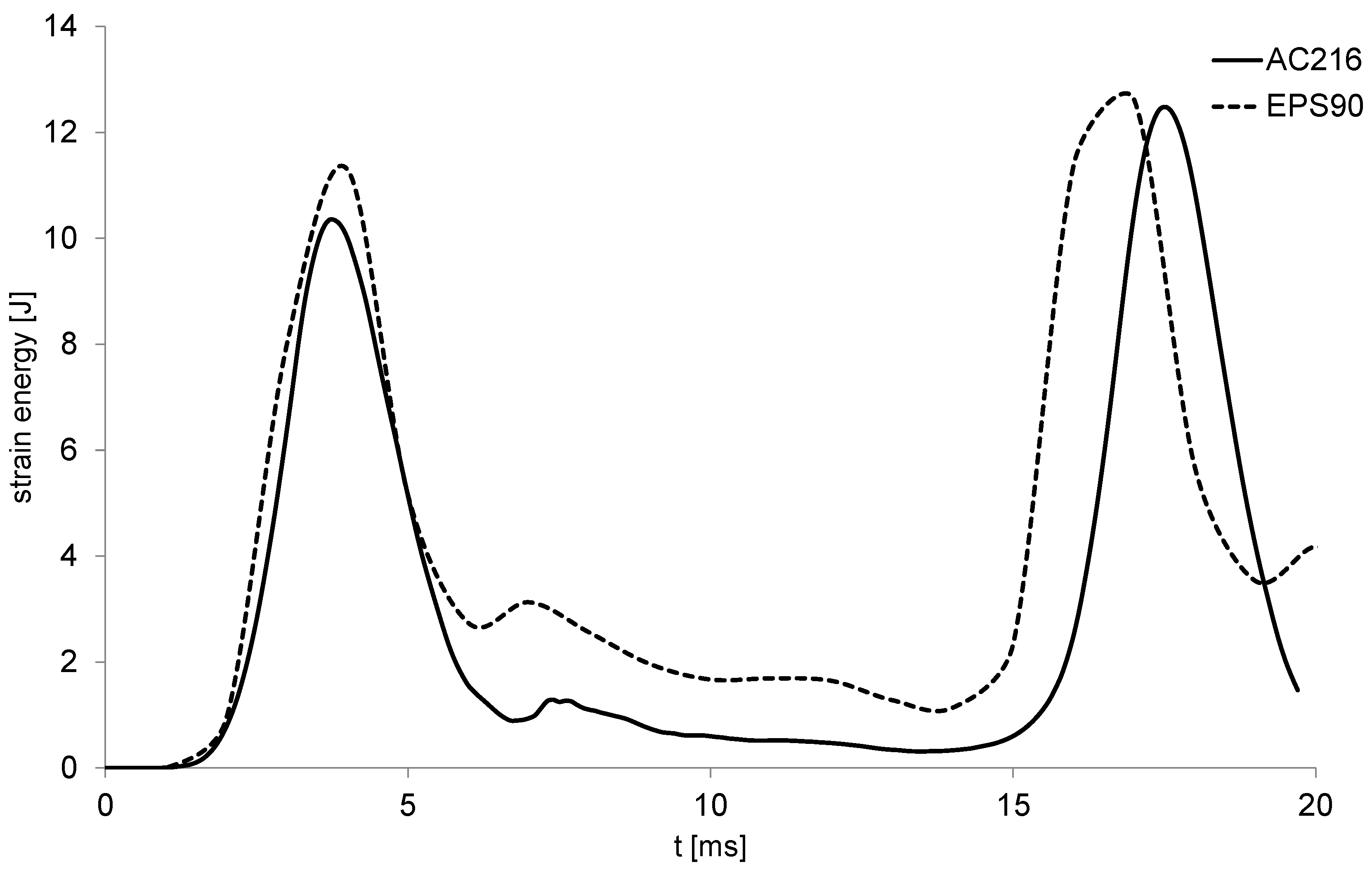

**Figure 12.**CSF strain energy history during the double impacts with both 40 mm thick AC and EPS solutions.

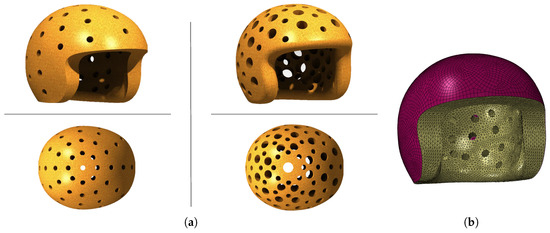

**Figure 14.**Lighter holed versions of the 40 mm thick cork liner: (

**a**) Left—render of the 15 mm diameter-holed version; Right—render of the 25 mm diameter-holed version. (

**b**) FE helmet model of the 15 mm diameter-holed version.

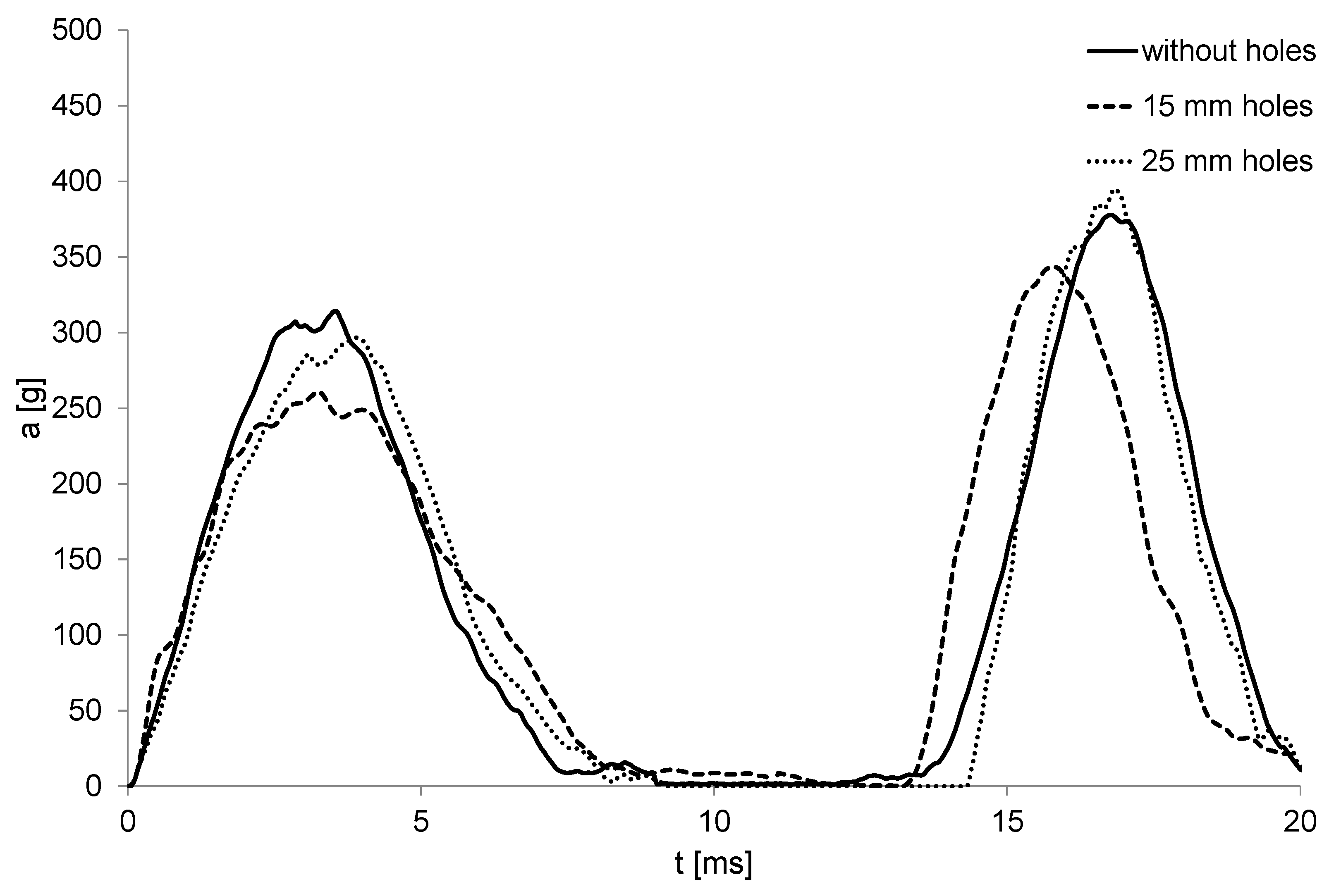

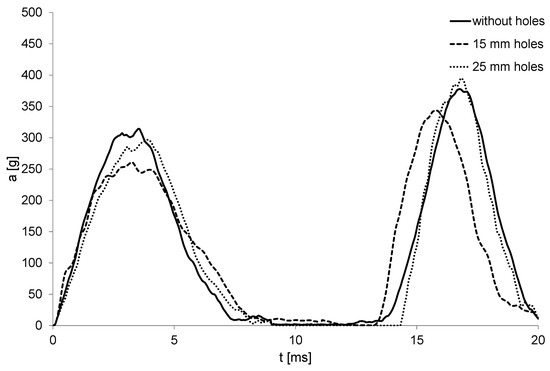

**Figure 15.**Comparison of the acceleration response between the solid and holed liner versions made of AC216.

Material | $\mathit{\rho}$ [kg/m${}^{3}$] | E [MPa] | $\mathit{\nu}$ | ${\mathit{k}}_{\mathit{t}}$ | k | r | m | $\mathit{\beta}$ |
---|---|---|---|---|---|---|---|---|

AC | 199 | - | 0 | - | - | 1.8 | 0.01 | 0.1 |

216 | - | 0 | - | - | 1.1 | 0.5 | 0.1 | |

EC | 159 | - | 0 | - | - | 1.01 | 0.3 | 0.1 |

EPS | 90 | 44 | 0 | 0.1 | 2.5 | - | - | - |

ABS | 1200 | 4000 | 0.37 | - | - | - | - | - |

Part | Number of Elements | Number of Nodes |
---|---|---|

Skull | 57257 | 14443 |

CSF | 98032 | 27499 |

Brain | 836328 | 153749 |

$\mathit{\rho}$ [kg/m${}^{3}$] | $\mathit{\mu}$ [MPa] | ${\mathit{\alpha}}_{1}$ | ${\mathit{D}}_{1}$ [MPa${}^{-1}$] | ${\mathit{g}}_{1}$ | ${\mathit{g}}_{2}$ | ${\mathit{\tau}}_{1}$ [s] | ${\mathit{\tau}}_{2}$ [s] |
---|---|---|---|---|---|---|---|

1040 | 0.012 | 5.0507 | 0.04 | 0.5837 | 0.2387 | 0.02571 | 0.02570 |

$\mathit{\rho}$ [kg/m ${}^{3}$] | ${\mathit{C}}_{10}$ [MPa] | ${\mathit{C}}_{01}$ [MPa] | ${\mathit{D}}_{1}$ [MPa ${}^{-1}$] |
---|---|---|---|

1000 | 0.9 | 1 | 0.9 |

$\mathit{\rho}$ [kg/m ${}^{3}$] | E [MPa] | $\mathit{\nu}$ |
---|---|---|

1800 | 6000 | 0.21 |

Impact | 25 mm | 30 mm | 35 mm | 40 mm |
---|---|---|---|---|

First | 405.5 | 361.5 | 324.7 | 314.1 |

Second | 499.9 | 482.2 | 470.6 | 377.7 |

Parameter | 25 mm | 30 mm | 35 mm | 40 mm |
---|---|---|---|---|

Strain | 0.5125 | 0.5250 | 0.4917 | 0.3833 |

von Mises stress [kPa] | 218.7 | 204.2 | 198.8 | 134.2 |

Pressure [kPa] | 745.8 | 823.3 | 846.7 | 691.7 |

CSF pressure [kPa] | 482.5 | 483.7 | 434.2 | 291.7 |

CSF strain energy [mJ] | 15506.2 | 15488.2 | 16219.8 | 12481.2 |

Impact | AC216 | EPS90 |
---|---|---|

First | 314.1 | 328.3 |

Second | 377.7 | 438.1 |

Criterion | EPS90 | AC216 |
---|---|---|

Strain | 0.5067 | 0.3833 |

von Mises stress [kPa] | 191.7 | 134.2 |

Pressure [kPa] | 840.9 | 691.7 |

CSF pressure [kPa] | 459.4 | 291.7 |

CSF strain energy [mJ] | 12611.5 | 12481.2 |

Without Holes | 15 mm Holes | 25 mm Holes |
---|---|---|

1.01 | 0.907 | 0.703 |

Impact | Without Holes | 15 mm Holes | 25 mm Holes |
---|---|---|---|

First | 314.1 | 260.8 | 296.8 |

Second | 377.7 | 343.6 | 395.0 |

Criterion | Without Holes | 15 mm Holes | 25 mm Holes |
---|---|---|---|

Strain | 0.3833 | 0.3514 | 0.5016 |

von Mises stress [kPa] | 134.2 | 91.7 | 182.9 |

Pressure [kPa] | 691.7 | 595.8 | 829.3 |

CSF pressure [kPa] | 291.7 | 291.2 | 401.4 |

CSF strain energy [mJ] | 12481.2 | 11975.9 | 19076.6 |
