When a spherical ball moves through the air, a long tangle of swirling air trails behind it [1
]. A turbulent flow causes to slow the ball down. This phenomenon emerges due to drag [4
]. At low speeds, the wake is large and the drag is high, while for a ball moving faster than a certain speed, the wake suddenly shrinks and the drag coefficient plummets. The rapid decrease in the drag force is known as drag crisis [4
]. The drag crisis occurs when the laminar flow of air in a boundary layer near the ball begins to separate and becomes turbulent [1
]. Competitive players can take advantage of the strange aerodynamic effects in volleyball games [4
]. The aerodynamic lift and drag forces can make a volleyball swerve up or down and/or side to side: lift acts in a direction perpendicular to motion and drag acts to directly oppose motion [5
]. Drag crisis is still a puzzling phenomenon in fluid mechanics [6
Ball trajectories are influenced entirely by gravity and aerodynamics [5
]. The aerodynamic forces are sensitive to the surface properties of balls. Surface modification in balls is therefore an important task: for instance, dimples on golf balls [5
]. A moving ball has a high-pressure area on its front side and leaves behind a turbulent wake region, resulting in lower pressure and higher drag. The drag force can be reduced by dimples on a ball when they induce a thin turbulent boundary layer of air on its surface and lower drag because turbulent boundary layer flow has a larger momentum than laminar boundary layer flow and thus delays separation [8
]. Dimples allow the smoothly flowing air to follow the ball surface a little farther around the back side and consequently reduce the drag force as the size of the wake decreases. The spinning action of a golf ball makes the air pressure on the bottom of the ball higher than on the top, generating pressure imbalance and an upward lift force on the ball [5
]. Since surface roughness plays a significant role in the turbulence dynamics near the surface, there are recent fruitful efforts for flow control through engineering surfaces [9
]. The aerodynamic drag force on a ball depends on its diameter, speed and surface roughness [14
]. The drag force can be smaller on a rough ball than a smooth ball, especially at speeds in ball sports [14
]. Zigzag paths (knuckleballs) have been reported for volleyballs with the typical ball velocity and the corresponding Reynolds number ∼4
]. Practically, aerodynamic modification through pattering surfaces is a plausible task to scientists and engineers [5
In this paper, we demonstrate how surface patterning modifies aerodynamic performance of volleyballs. Particularly we explain why aerodynamic characteristics along transverse and diagonal directions are different in conventional volleyballs with six panels and how isotropic aerodynamics is achieved through isotropic surface patterning with hexagons or dimples. This result gives insight into surface-mediated flight controls of projectiles through resisting fluid media.
As for surface patterns on volleyballs, we selected conventional and surface-modified volleyballs. Conventional volleyballs (Adidas AV514RB and Mizuno 9OV80027) and surface-modified volleyballs (Mikasa MVA200CEV and Molten V5M5000) were purchased commercially. Conventional and surface-modified balls had same diameters of 21 cm, same circumferences of 65∼67 cm and same weights of 260∼280 g, except for different surface panel numbers and patterns as: six-panel and smooth surface for conventional balls (Adidas AV514RB and Mizuno 9OV80027), while six-panel and hexagon-patterned surface (Molten V5M5000) and eight-panel and dimpled surface (Mikasa MVA200CEV) for surface-modified balls. For the wind tunnel experiments, a circuit flow-type wind tunnel (San Technologies Co., Ltd., Tochigi, Japan) was used at the University of Tsukuba. The maximum wind speed was 55 m/s, the blow out size was 1.5 × 1.5 m
and the wind speed and the turbulence distributions were controlled within ±0.5% and less than 0.1%, respectively. For the volleyball installed in the wind tunnel, the aerodynamic characteristics were measured with respect to the panel direction. The ball was supported from the back support that was made of a rod with 0.8 m length and 0.02 m width. The aerodynamic force of each ball was measured in the range of wind speeds (U
) from 7 to 35 m/s using a Sting-type 6-division detector (LMC-61256, Nissho Electric Works). The aerodynamic coefficients of the drag coefficient (
), the lift force coefficient (
) and the side force coefficient (
) were calculated as
, respectively. Here
is the density of air (
is the cross-sectional area of the volleyball (
for the diameter of the volleyball
0.21 m [15
]), and the D
, and S
quantities are the longitudinal, transverse and side components of the aerodynamic forces [6
Two intrinsic forces act on a ball moving through the air by competition of gravity and aerodynamics. The first force acts down on the ball, namely, the ball weight (), where m is the ball mass and 9.80 m/s is the constant magnitude of gravitational acceleration near the Earth surface. The second force is the drag force, whose direction is opposite the ball velocity. By considering that the x axis point along the horizontal and the y axis point vertically upward, the Newton’s second law is reduced to and where , and the dot signifies the time derivative. These relations can be numerically solved under appropriate initial conditions using a fourth-order Runge-Kutta algorithm. For the speed-dependent , a linear interpolation between experimental wind-tunnel data points was used. The drag coefficients of each ball taken from the wind tunnel experiments and the corresponding Reynolds numbers were obtained at the same initial speed of 15 m/s and the takeoff angle of 25.
The flight characteristics were investigated by measuring the landing point after being hit. The hitting robot aimed at the center of a non-rotating ball (e.g., float serve) at the typical ball speed of 15 m/s in real games [25
] with a target (1 × 1 m
) located on the floor 15 m away. The position at which the volleyball hits the floor was denoted as the landing point with its flight distance along the horizontal and lateral distances. Data analysis was performed from the landing point measurements from the repeated 30 throws for four balls and two panel directions for a total dataset of 240 throws.
3. Results and Discussion
The first question is why aerodynamic characteristics along transverse and diagonal directions are different in conventional volleyballs with six panels. Traditionally, volleyballs are assembled from a total of six panels with each panel formed using three rectangular panel sections for a total of 18 sections and these volleyballs have been used in international competitions over a long period of time, as demonstrated in Figure 1

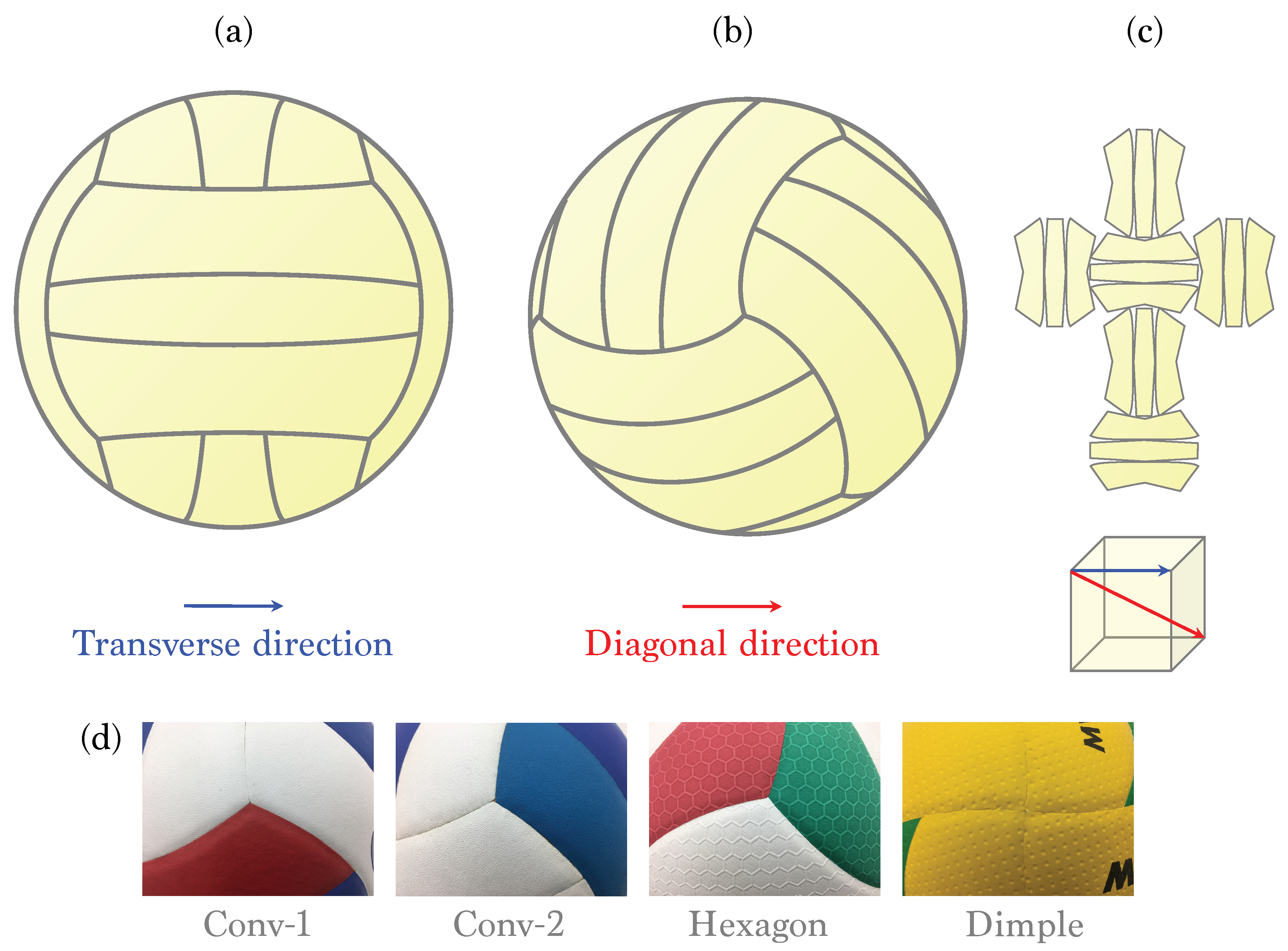

. Conventional volleyballs assembled with six panels inevitably have two different panel directions in the production process. The transverse panel direction is parallel to the panel sections [Figure 1
a] and the diagonal panel direction is perpendicular to the point where the three panels meet [Figure 1
b]. Assembling volleyballs is like folding a cube with six sides of a square [Figure 1
c]. The presence of two panel directions is supposed to be important for the anisotropic aerodynamic performance of volleyballs.

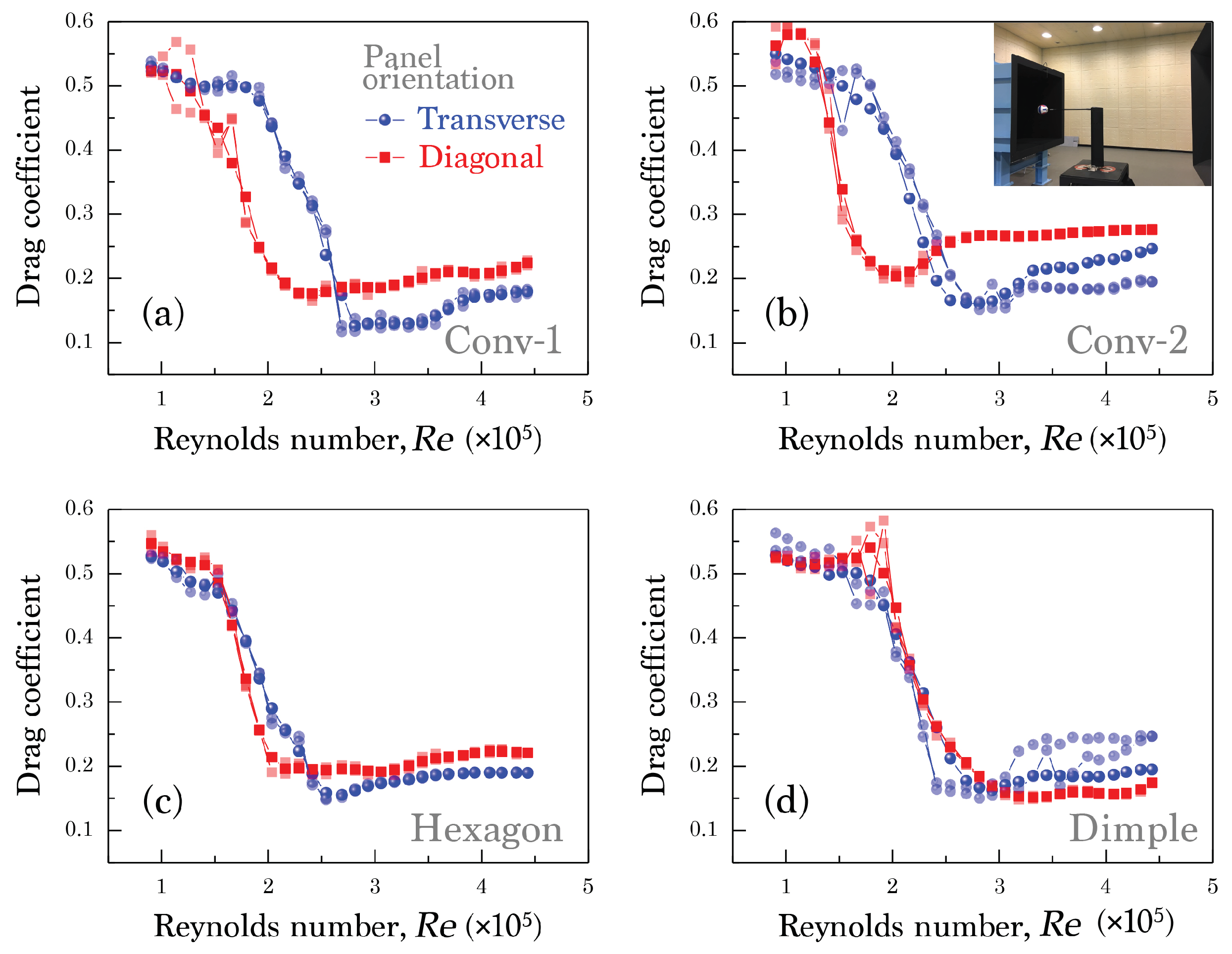

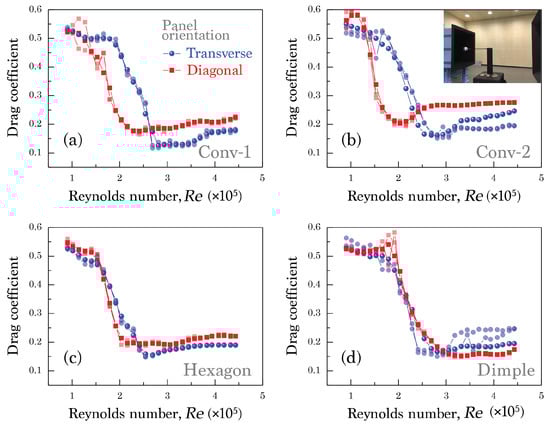

The aerodynamic characteristics of volleyballs are demonstrated in Figure 2
. The drag coefficients
with respect to the Reynolds number
were measured in the wind tunnel experiments. The
curves show that the drag crisis is dependent on the panel direction and the surface patterning. The different aerodynamic characteristics along the panel direction are verified for conventional balls: the drag crisis behaves differently between the transverse and the diagonal directions [Figure 3
a,b]. The prime cause of the aerodynamic anisotropy is the difference in the panel direction. In contrast, the surface-modified balls have less difference in the drag crisis regardless of the panel direction [Figure 3
c,d], which is due to the isotropic surface patterns with hexagons or dimples.
The critical Reynolds numbers
for the onset of the drag crisis are measured in Figure 2
is the critical ball velocity and
is the kinematic viscosity of the air (

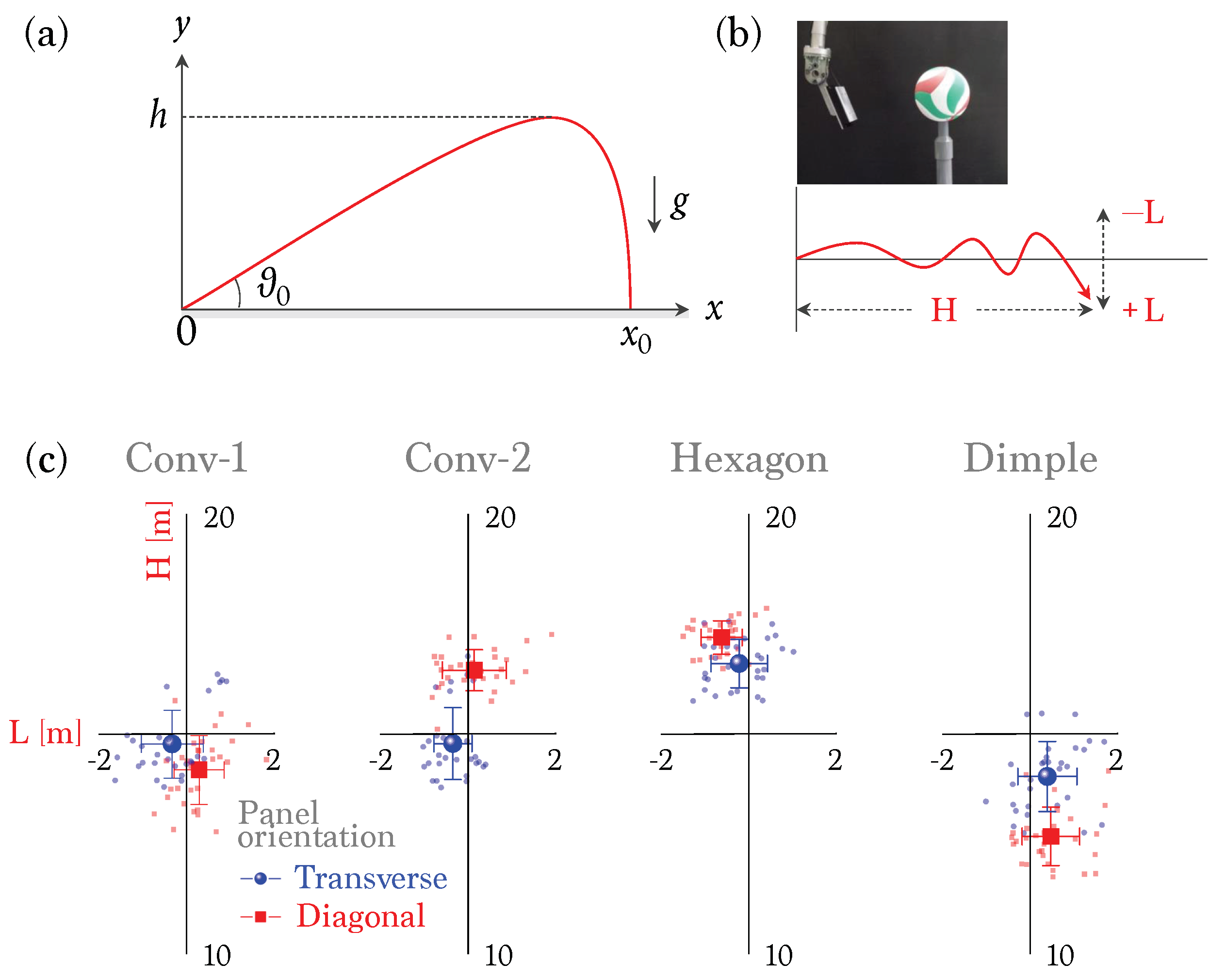

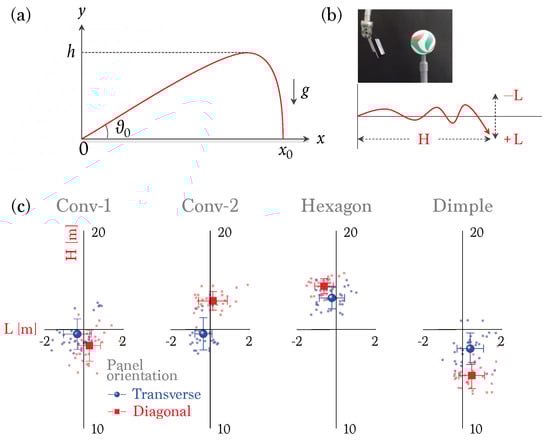

shows the flight characteristics of each ball taken from the lateral and horizontal landing positions. The longest flight distance (16.6∼17.2 m on average) is found in the Hexagon ball. Interestingly, the shortest flight distance (12.7∼14.1 m on average) is observed in the Dimple ball.
The aerodynamic anisotropy of volleyballs originates from the panel direction through the volleyball production process. Importantly, the aerodynamic anisotropy can be eliminated by the isotropic surface modification, for instance, by adopting the isotropic hexagonal patterns and the dimples. For the unmodified (Adidas and Mizuno) volleyballs, the aerodynamics is anisotropic, originating from the panel direction: the drag crisis behaves separately with the transverse and diagonal panel directions. As a result, their flight distances are relatively short. By adopting the surface modification with the isotropic patterns such as hexagonal patterns (Molten) and dimples (Mikasa), the modified volleyballs can have the improved aerodynamics. Their aerodynamic coefficients with respect to the Reynolds number behave almost identically regardless of the panel direction, their aerodynamic forces are stabilized and their flight distances can be controlled to have the longest distance (Molten) or the shortest distance (Mikasa).
The flight distance modification by surface pattern may be explained by the drag coefficients. The Dimple ball, which is currently used in international competitions (e.g., Olympics), has the shorter flight distance compared to the Hexagon ball, which exhibit the longest flight distance. At the ball velocity
) in the hitting robot tests, the drag coefficients for the Hexagon ball, estimated as
0.26∼0.34 from Figure 2
, are lower than those for the Dimple ball as 0.45∼0.50. The conventional balls show the intermediate
quantities as 0.25∼0.48 for the Conv-1 and 0.21∼0.43 for the Conv-2 balls. Interestingly, the hexagonal pattern in the Hexagon ball significantly reduces the critical
for the drag crisis, while the dimple pattern in the Dimple ball enhances the critical
for the drag crisis. Similar results were found in the dimpled soccer balls [27
] and the dimpled golf balls [28
]. We suppose that the drag enhancement by dimples is associated with the boundary-layer instability.
This study suggests that the critical
number for the drag crisis can be reduced or enhanced with the surface design in a volleyball. The relatively far or short flight of a ball can be controlled by the surface design of a ball. The lower the drag coefficient, the farther the flight of the ball. The design of the surface pattern can contribute to the drag reduction or the drag enhancement [29
]. The surface-modified balls exhibit the quite isotropic aerodynamics and the well-controlled flight distances.
In ball sports, the well-controlled flight trajectory of a ball would be useful to lure opponents and score [15
]. For instance, float serves are important skills for ace players and they utilize the knuckle effect of a ball, allowing a ball to fall suddenly or to have irregular flight paths using no- or slow-rotating while flying [25
]. Therefore, controlling the flight characteristics of a ball would be important to ball designers and players.

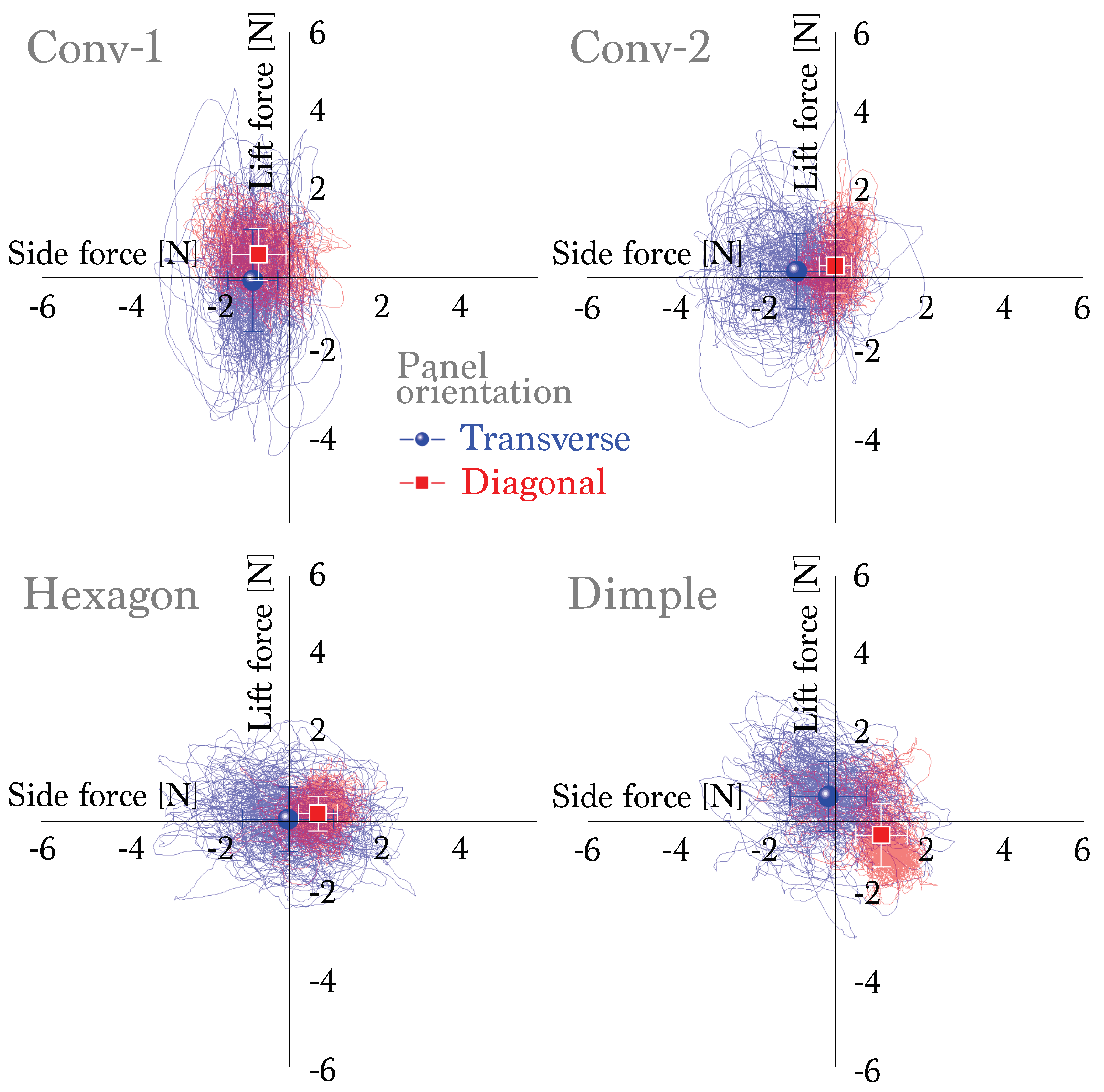

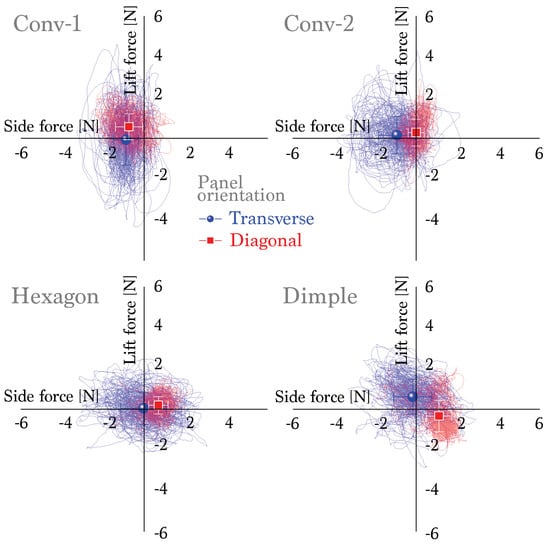

This work shows an answer for the hypothesis: from a comprehensive study on the aerodynamic singularity in volleyballs, the present work reveals how the isotropic surface modification can eliminate the aerodynamic anisotropy and reduce or enhance the drag coefficient. As described in Figure 4
, the results of lift and side forces show that the isotropy of the aerodynamics would be relevant to the isotropy of the surface pattern. The previous work is limited to identify difference in the critical Reynolds number or the drag coefficient between unmodified and modified volleyballs [19
]. Unmodified volleyballs assembled with traditional 18 sections and modified volleyballs with isotropic hexagonal patterns or isotropic dimples represent all feasible designs of volleyballs that are actually used in volleyball games. The main result would be generalizable beyond the specific brands of volleyballs.
Recently, significant changes were tried in design of the volleyball surface. At the 2008 Beijing Olympics, a surface-modified volleyball (Mikasa MVA200) with 8-sheet dimples was introduced as the official ball and in turn adopted in international competitions (e.g., FIVB World League and Olympics). Another volleyball (Molten V5M5000) with hexagonal protrusions on the ball surface was developed and used as the official ball in many league games, including the American League (USA Volleyball) and the National Collegiate Athletic Association (NCAA) League. Similar changes appear in footballs: the aerodynamic force applied to the ball changes significantly depending on the surface panel shapes and consequently affects the aerodynamic performance [16
]. Despite recent developments in design of volleyballs, aerodynamic validation has yet to be reported. For traditional volleyballs, a few reports were found on the numerical simulations [31
] and the experimental measurements of the flight trajectory or the vortex structure [26
]. For surface-modified volleyballs, a comprehensive understanding of the aerodynamic singularity is still lacking [35
]. The surface conditions of volleyballs are different for the tested volleyballs as demonstrated in Figure 2
. The aerodynamics and flight characteristics are analyzed from the wind tunnel experiments.
