Simultaneous In-Cylinder Flow Measurement and Flame Imaging in a Realistic Operating Engine Environment Using High-Speed PIV
Previous Article in Journal
Assessment of Crystallinity Development during Fused Filament Fabrication through Fast Scanning Chip Calorimetry
Open AccessCommunication

Enhanced Electrochemical Performance of Sb2O3 as an Anode for Lithium-Ion Batteries by a Stable Cross-Linked Binder

1
Collaborative Innovation Center of Nonferrous Metals of Henan Province, Henan Key Laboratory of High-Temperature Structural and Functional Materials, School of Materials Science and Engineering, Henan University of Science and Technology, Luoyang 471023, China
2
Henan Key Laboratory of Non-Ferrous Materials Science & Processing Technology, Henan University of Science and Technology, Luoyang 471023, China
3
School of Chemistry and Chemical Engineering, Yangzhou University, Yangzhou 225009, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Appl. Sci. 2019, 9(13), 2677; https://doi.org/10.3390/app9132677
Received: 26 May 2019 / Revised: 24 June 2019 / Accepted: 28 June 2019 / Published: 30 June 2019
(This article belongs to the Section Materials)

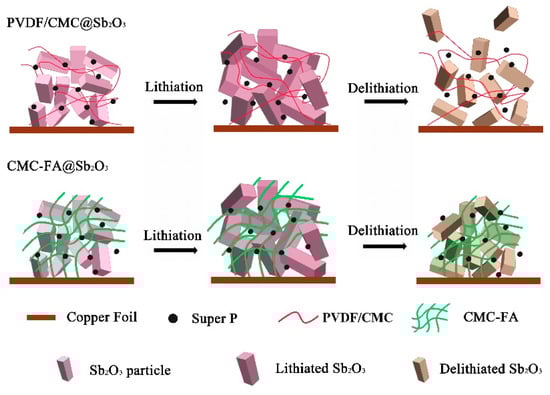

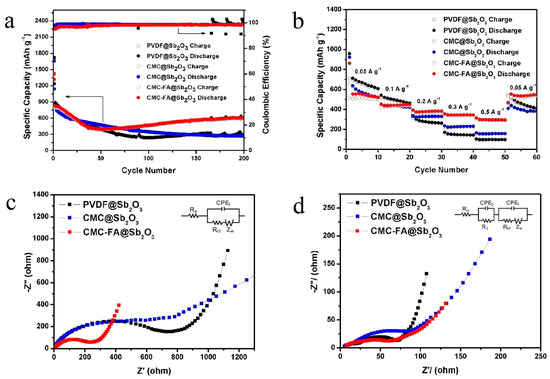

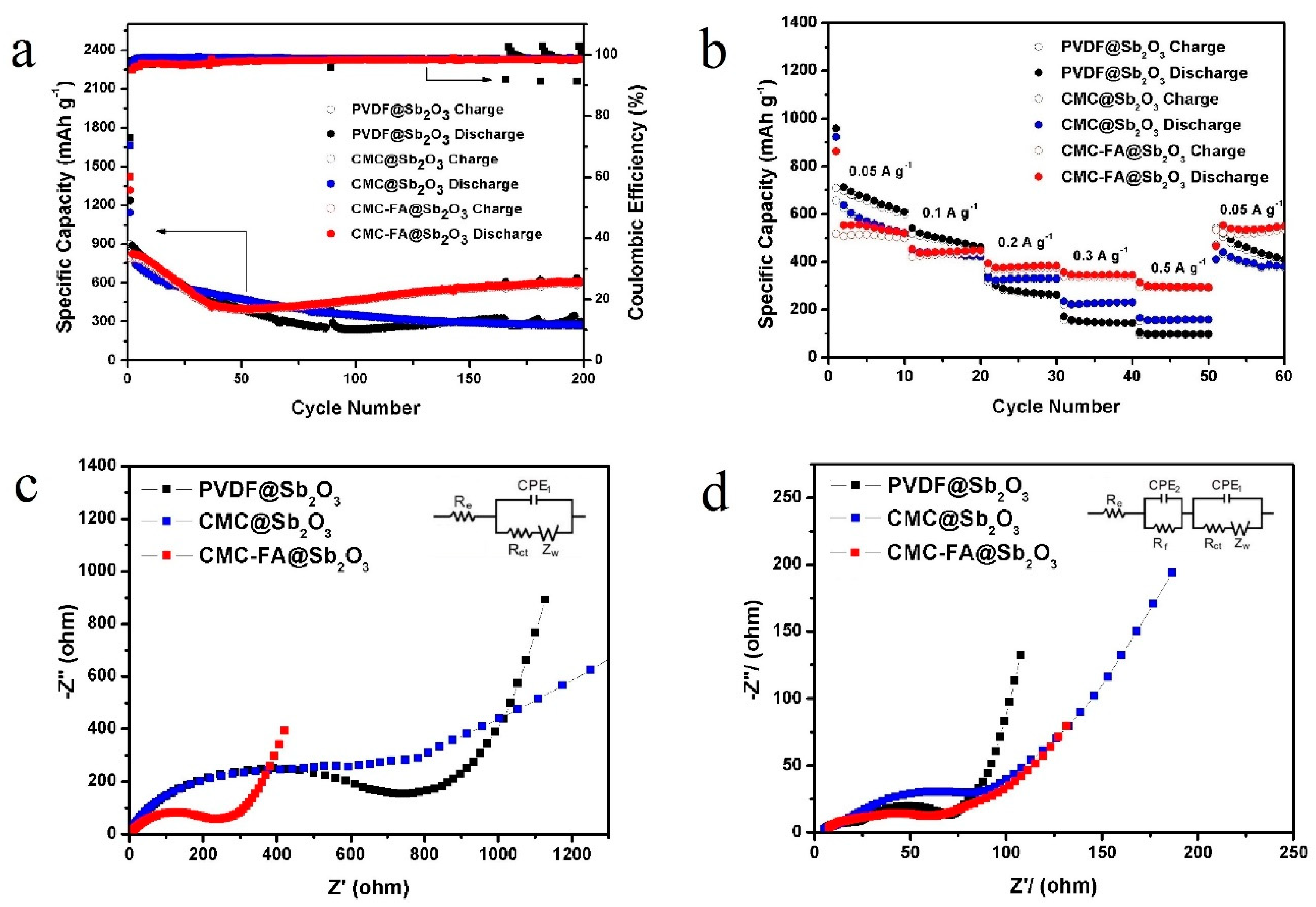

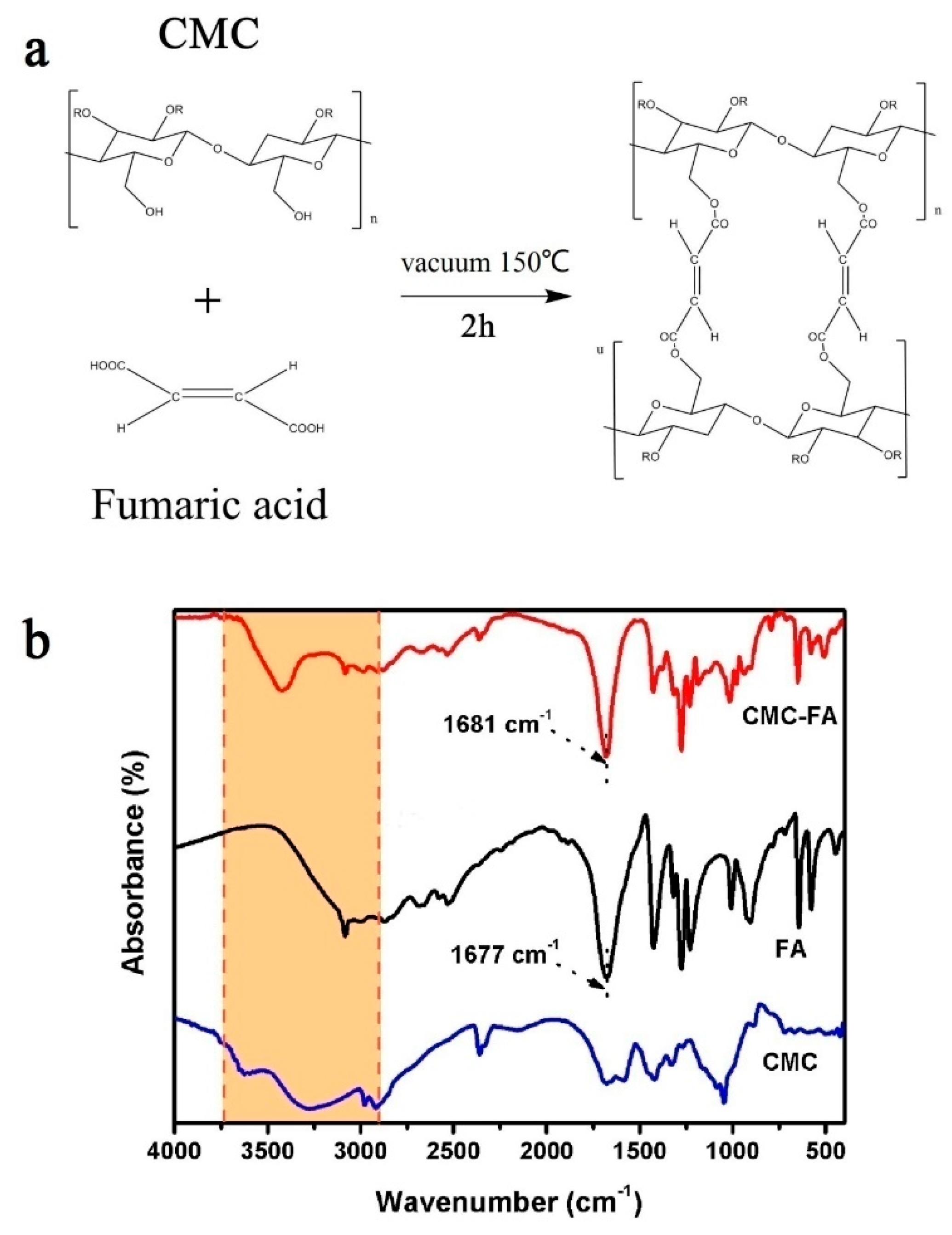

A binder plays an important role in lithium-ion batteries (LIBs), especially for the electrode materials which have large volume expansion during charge and discharge. In this work, we designed a cross-linked polymeric binder with an esterification reaction of Sodium Carboxymethyl Cellulose (CMC) and Fumaric Acid (FA), and successfully used it in an Sb2O3 anode for LIBs. Compared with conventional binder polyvinylidene fluoride (PVDF) and CMC, the new cross-linked binder improves the electrochemical stability of the Sb2O3 anode. Specifically, with CMC-FA binder, the battery could deliver ~611.4 mAh g−1 after 200 cycles under the current density of 0.2 A g−1, while with PVDF or CMC binder, the battery degraded to 265.1 and 322.3 mAh g−1, respectively. The improved cycling performance is mainly due to that the cross-linked CMC-FA network could not only efficiently improve the contact between Sb2O3 and conductive agent, but can also buffer the large volume charge of the electrode during repeated charge/discharge cycles. View Full-Text
Keywords: cross-linked binder; sodium carboxymethyl cellulose; fumaric acid; Sb2O3 anode; lithium-ion batteries cross-linked binder; sodium carboxymethyl cellulose; fumaric acid; Sb2O3 anode; lithium-ion batteries
Show Figures

Figure 1

MDPI and ACS Style

Liu, Y.; Wang, H.; Yang, K.; Yang, Y.; Ma, J.; Pan, K.; Wang, G.; Ren, F.; Pang, H. Enhanced Electrochemical Performance of Sb2O3 as an Anode for Lithium-Ion Batteries by a Stable Cross-Linked Binder. Appl. Sci. 2019, 9, 2677.
