# Equivalent Circuit Parameter Calculations and Characteristics Analysis of 2-DoF Direct Drive Induction Motor with a Slotted Solid Rotor

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introductions

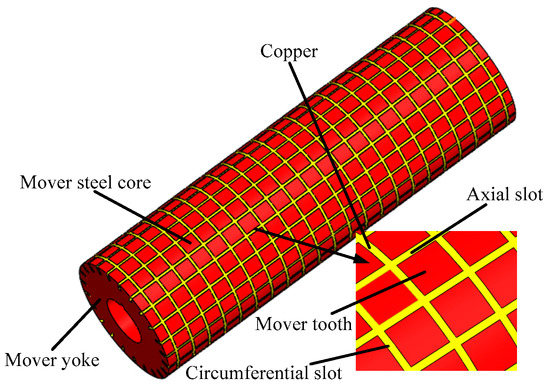

## 2. Structure and Parameters

## 3. Equivalent Circuit Parameters Calculation (Rotary Part)

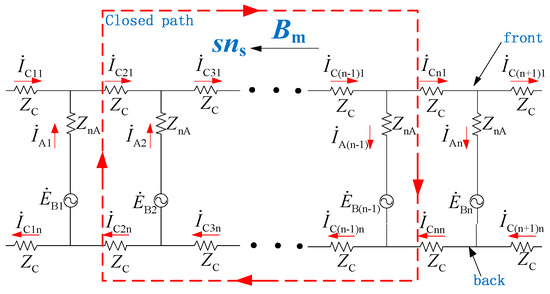

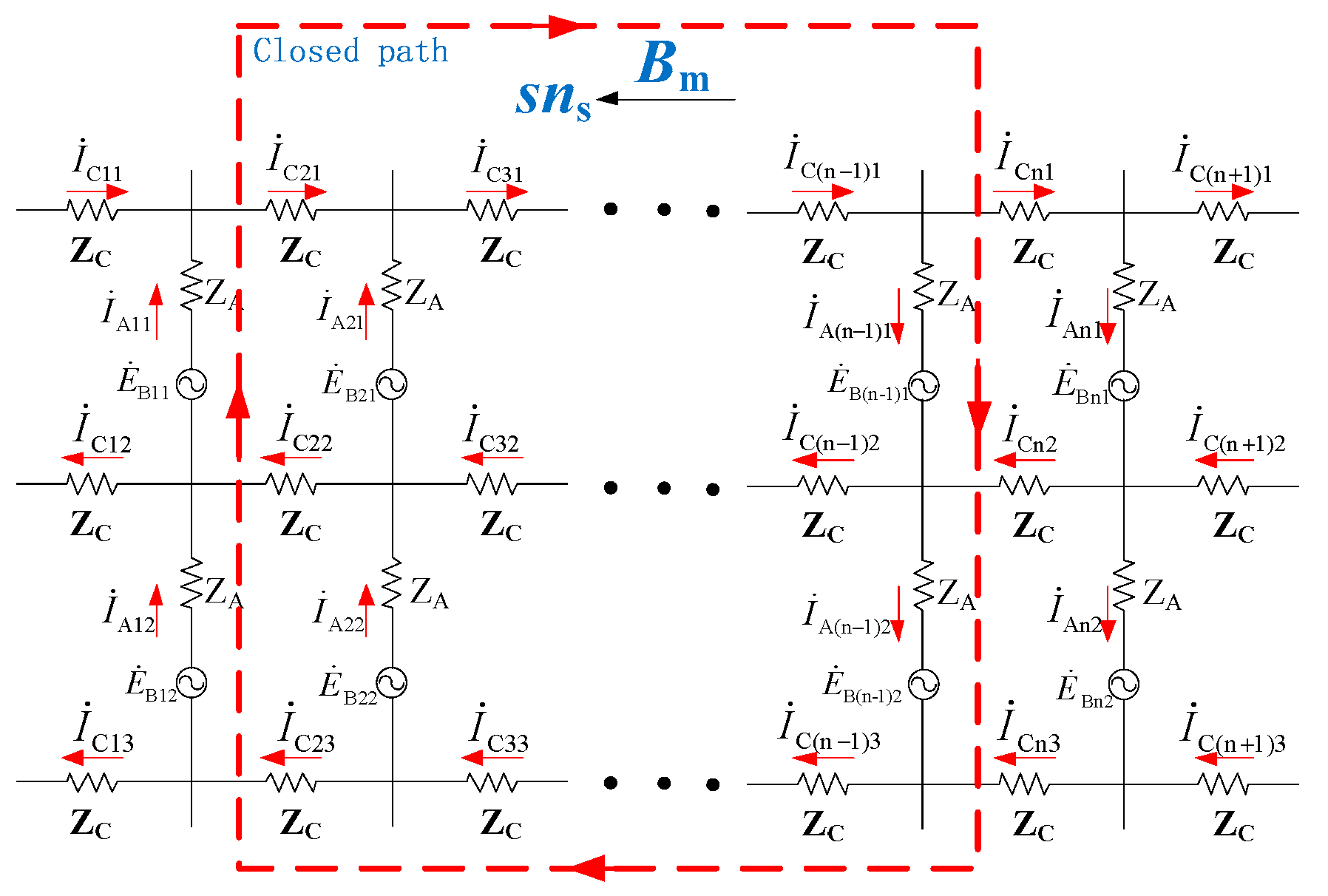

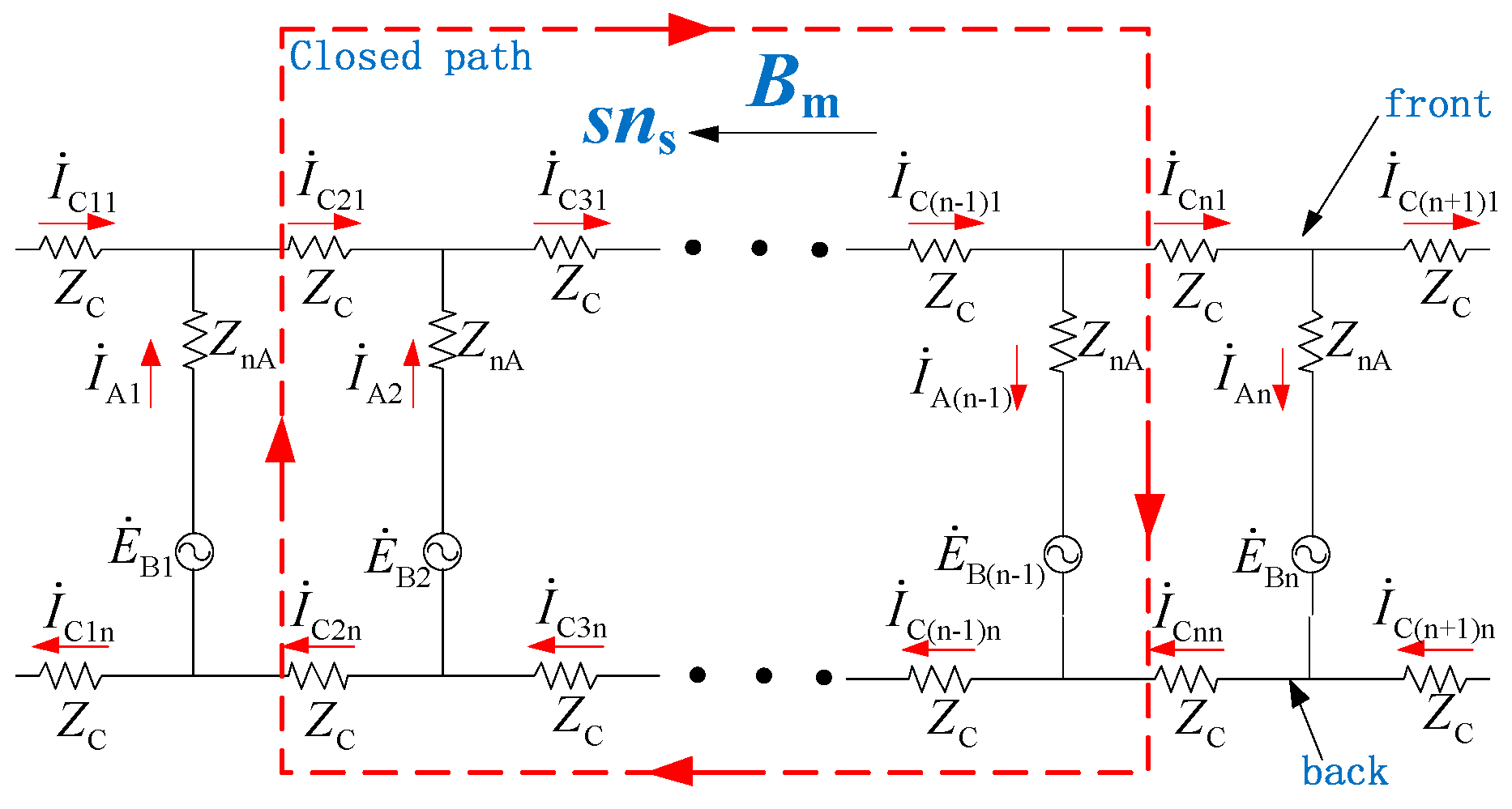

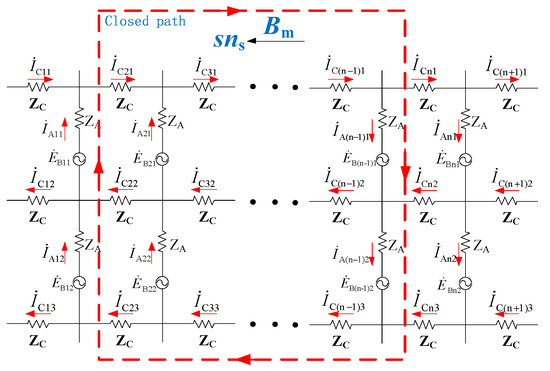

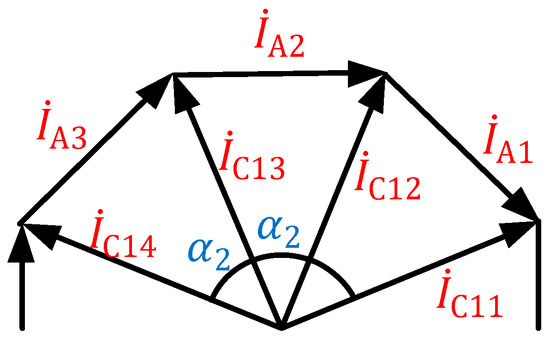

#### 3.1. Circuit Diagram and Currents Distribution in SSR

_{A}and Z

_{C}are the impedances of axial and circumferential slots, respectively. ${\dot{I}}_{Ann}$ and ${\dot{I}}_{Cnn}$ denote the currents in axial and circumferential slots, respectively. For the rotary part of 2DoFDDIM, in the circumferential slot between the two neighboring teeth in the axial direction, the induction current density is expressed by Ref. [9].

#### 3.2. Equivalent Circuit

#### 3.3. Rotor Parameters Calculation

- (1)
- The motor is supplied with balanced three-phase sinusoidal currents. The air gap flux density is constant in the axial direction.
- (2)
- The material primary core is isotropic, the permeability is infinite, and the conductivity is equal to zero.
- (3)
- The hysteresis, end, and saturation effects are ignored. The magnetic leakage in the rotor slots is neglected.
- (4)
- Each field includes a fundamental component, and the time curves of each field are sinusoidal.

#### 3.4. Excitation Reactance Calculation

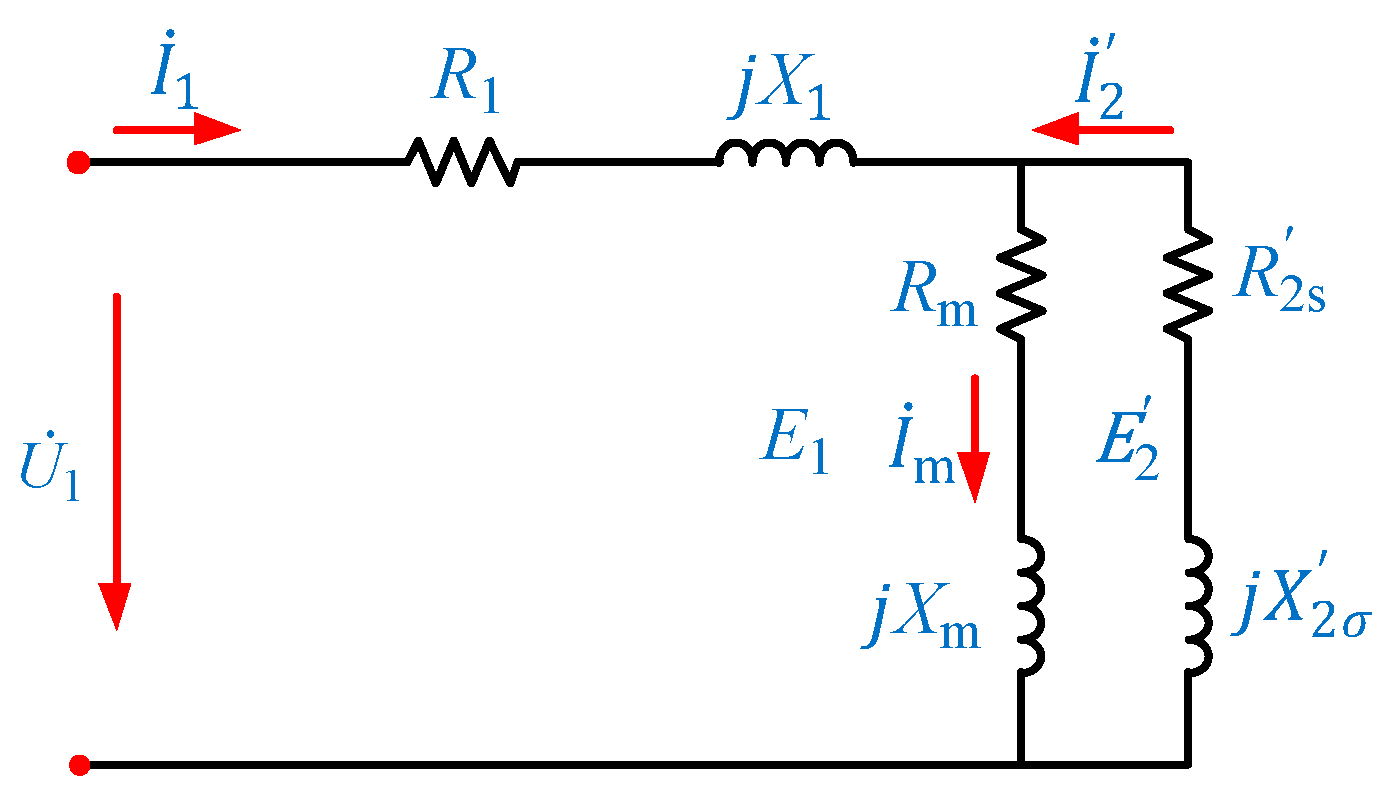

#### 3.5. Equivalent Circuit Establishment

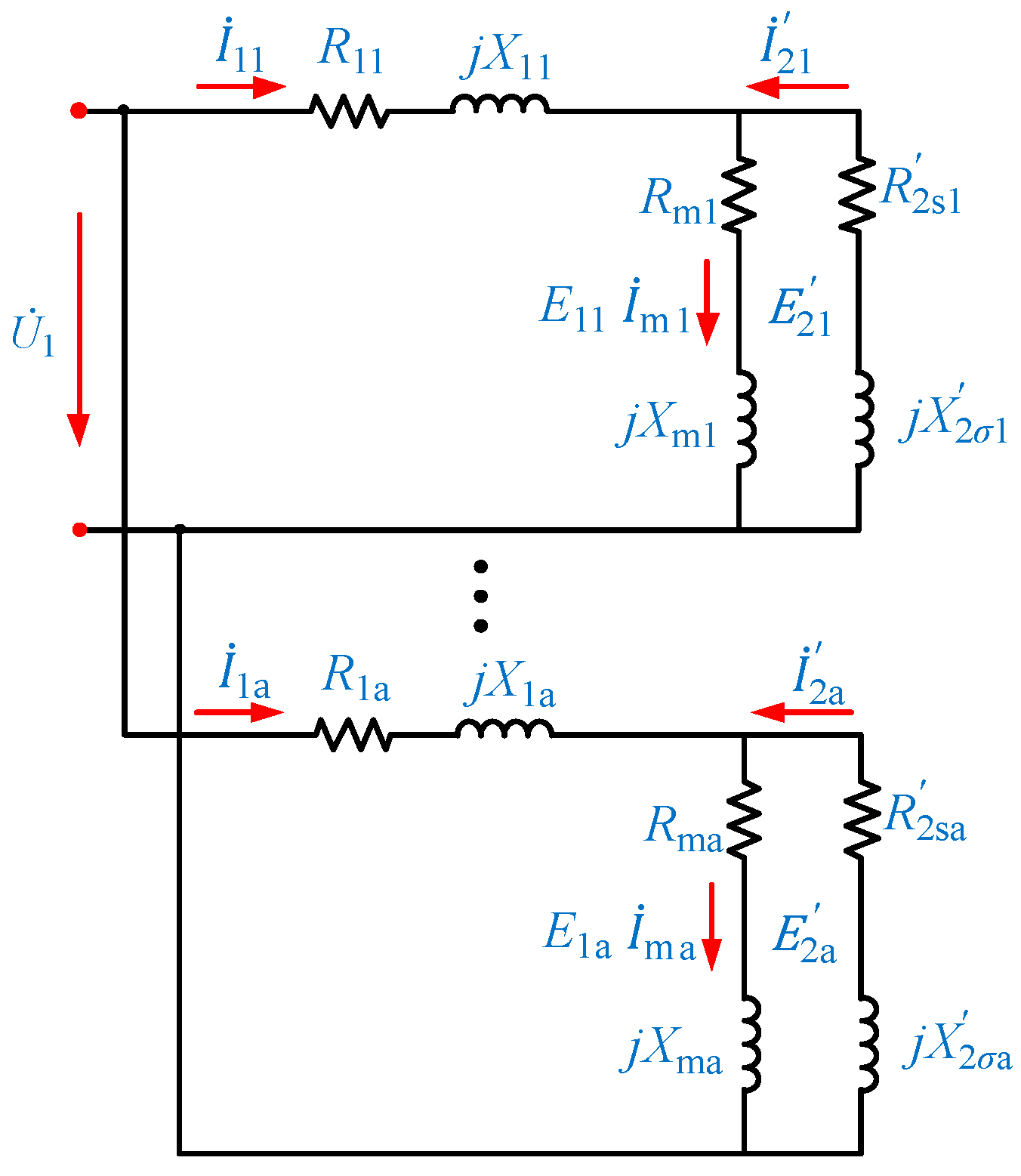

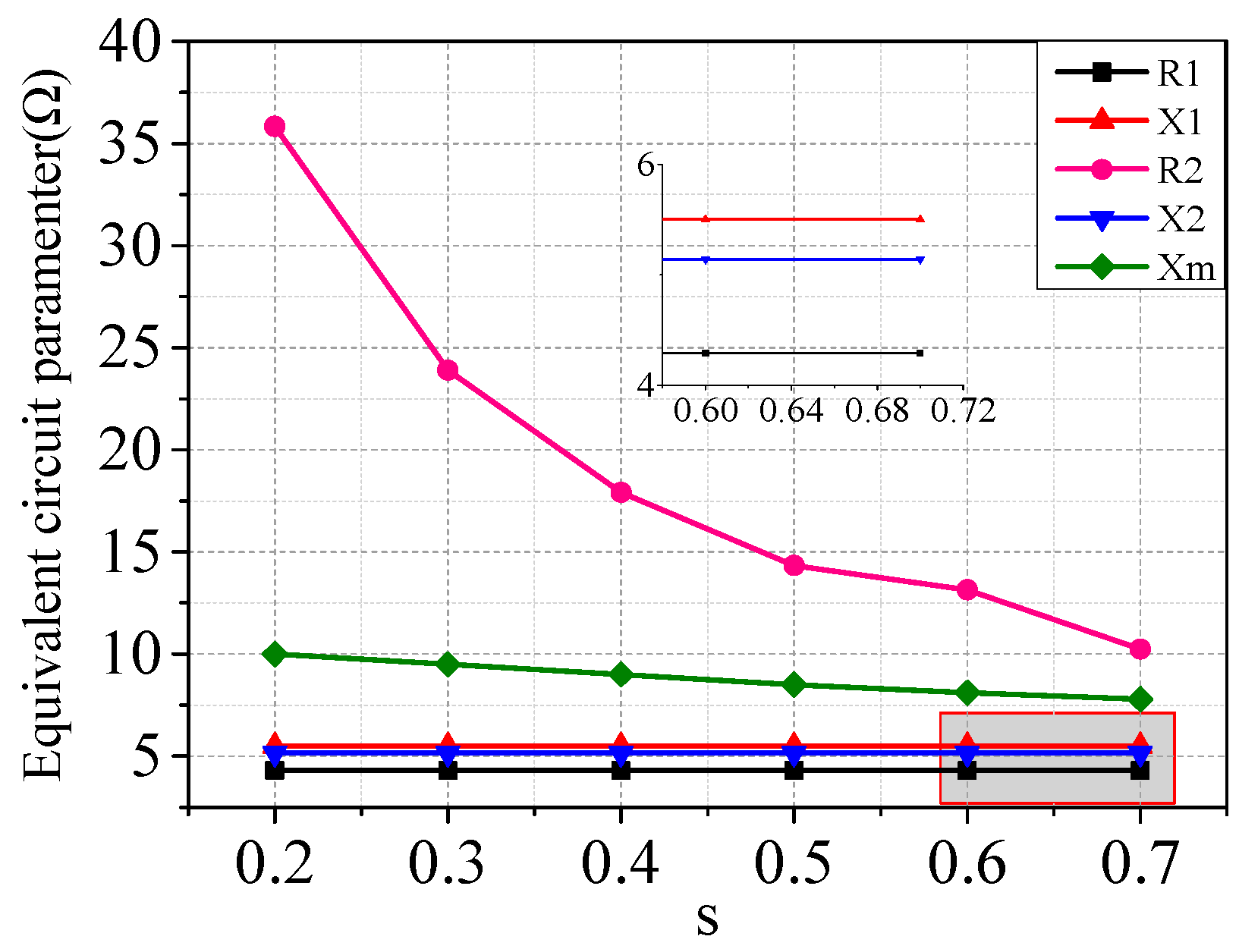

#### 3.6. Equivalent Circuit Parameter Calculation Results

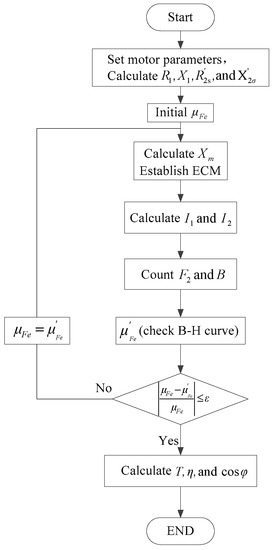

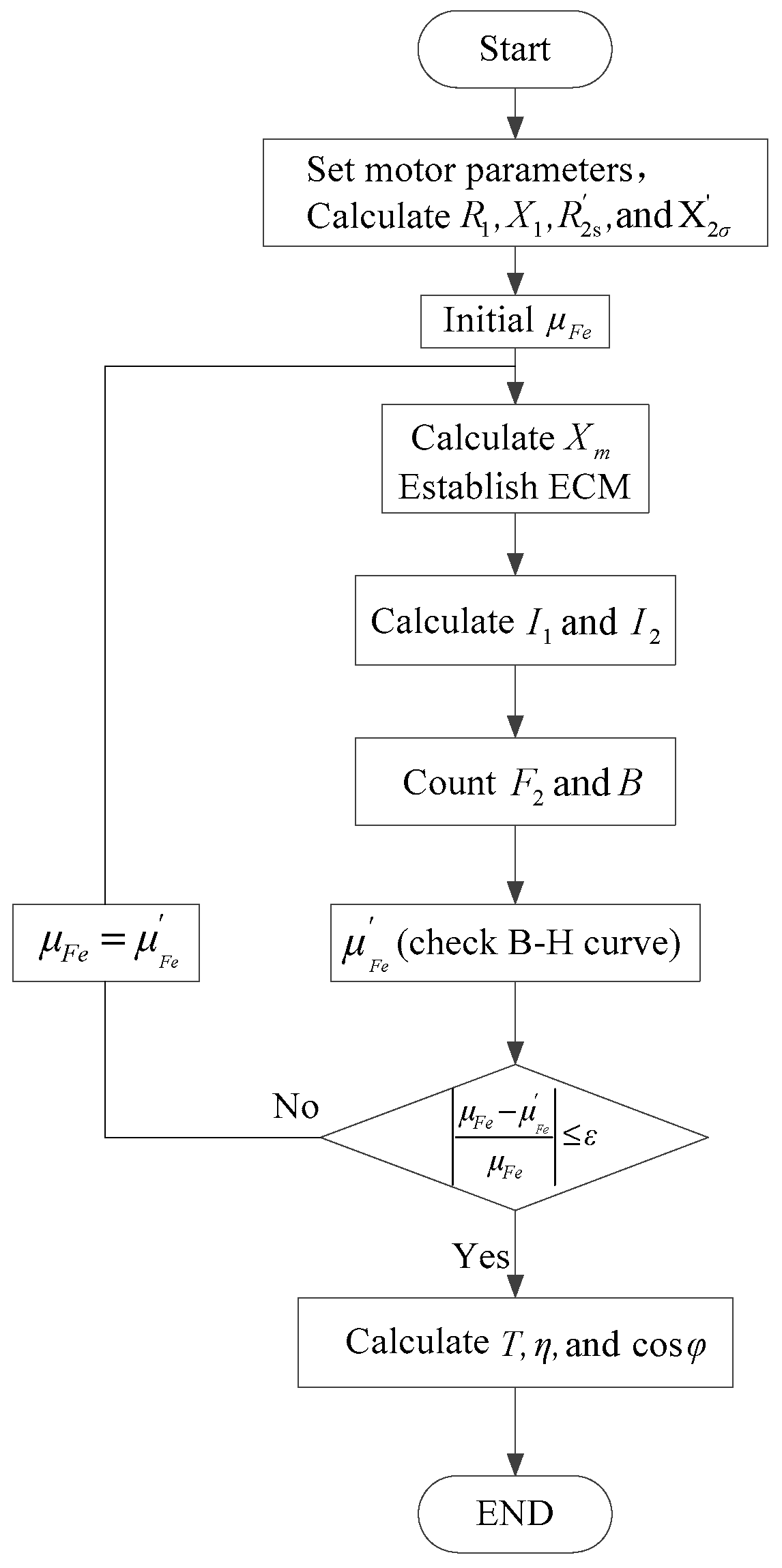

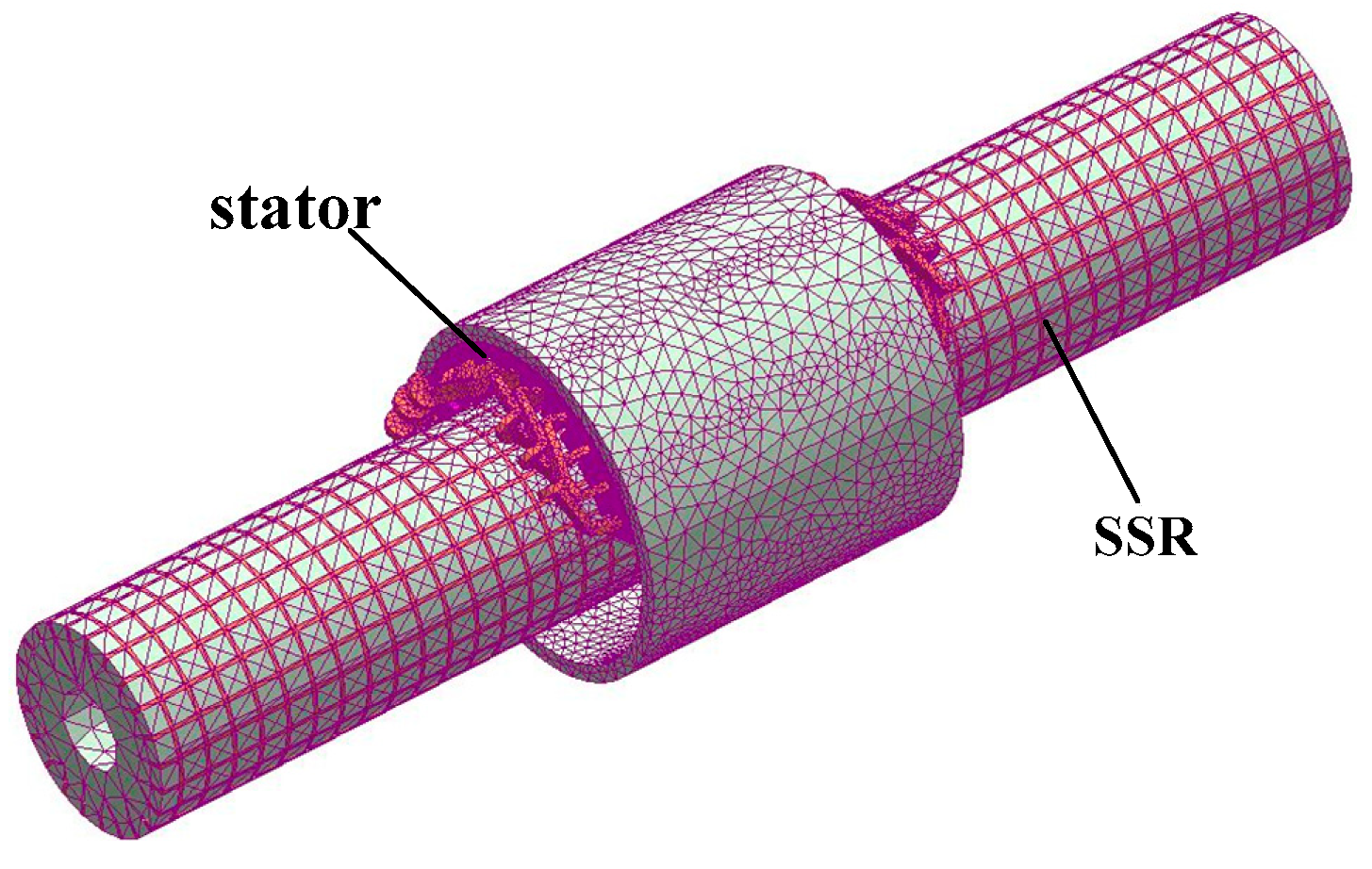

## 4. 3D Finite Element Analysis (Rotary Part)

## 5. Results Comparison and Characteristics Analysis

#### 5.1. The Rotary Part

- (1)
- Stator phase current:$$\begin{array}{r}{I}_{1}=\frac{{U}_{1}}{\sqrt{2}\left({Z}_{1}+{Z}_{2}^{\prime}\right)}\\ {Z}_{2}^{\prime}={R}_{2}^{\prime}+j{X}_{2}^{\prime}=\frac{{Z}_{2s}{Z}_{m}}{{Z}_{2s}+{Z}_{m}}\end{array}\}$$
- (2)
- Torque:$$T=\frac{{P}_{e}}{{\Omega}_{s}}=\frac{3{I}_{2}^{2}{R}_{2s}^{\prime}}{{\Omega}_{s}}$$
- (3)
- Efficiency:$$\eta =1-\frac{\sum p}{{P}_{1}}=1-\frac{\sqrt{3}\left({I}_{1}^{2}{R}_{1}+s{I}_{2}^{2}{R}_{2s}^{\prime}\right)}{{U}_{1}{I}_{1}}$$
- (4)
- Power factor:$$cos\text{\hspace{0.17em}}\varphi =\frac{R}{\left|Z\right|}=\frac{{R}_{1}+{R}_{2}^{\prime}}{\left|{Z}_{1}+{Z}_{2}^{\prime}\right|}$$

#### 5.2. The Linear Part

#### 5.3. Error Analysis

- (1)
- (2)
- According to Figure 5 and Equations (15) and (17), each equivalent circuit parameter will affect the currents, leading to variation of the analytical results of torque and power factor. During the calculation of rotor parameters, the rotor core impedance is assumed to be infinite. Neglecting the influence of rotor core impedance causes the calculation result of equivalent rotor impedance to be larger than the actual value. Although the saturation effect is considered in the calculation of excitation reactance, the rotor core relative permeability is determined by experience and the excitation reactance is not accurate enough. Thus, there are errors between the analytical and simulation values of the torque and power factor, as shown in Figure 12b,d and Figure 13b,d.
- (3)
- The phenomenon that the calculation values of efficiency are bigger than the simulation values is caused by ignoring the influences of harmonic effect and rotor core in ECM.

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Si, J.K.; Xie, L.J.; Hang, J.B. Mathematical Model of Two-Degree-of-Freedom Direct Drive Induction Motor Considering Coupling Effect. J. Electr. Eng. Technol.
**2017**, 12, 1227–1234. [Google Scholar] [CrossRef] [Green Version] - Si, J.K.; Xie, L.J.; Cao, W.P. Performance analysis of the 2DoF direct drive induction motor applying composite multilayer method. IET Electr. Power Appl.
**2017**, 11, 524–531. [Google Scholar] [CrossRef] [Green Version] - Si, J.K.; Feng, H.C.; Ai, L.W. Design and Analysis of a 2-DOF Split-Stator Induction Motor. IEEE Trans. Energy Convers.
**2015**, 30, 1200–1208. [Google Scholar] [CrossRef] [Green Version] - Si, J.K.; Ai, L.W.; Xie, L.J. Analysis on Electro-Magnetic Field and Performance Calculation of 2-DOF Direct Drive Induction Motor. Trans. China Electrotech. Soc.
**2015**, 14, 153–160. [Google Scholar] - Si, J.K.; Han, J.B.; Si, M. Optimization and characteristic analysis of 2-DOF direct drive induction motor. Electr. Mach. Control
**2015**, 19, 75–82. [Google Scholar] - Ho, S.L.; Niu, S.X.; Fu, W.N. A Novel Solid-Rotor Induction Motor with Skewed Slits in Radial and Axial Directions and Its Performance Analysis Using Finite Element Method. IEEE Trans. Appl. Supercond.
**2010**, 20, 1089–1092. [Google Scholar] [CrossRef] - Huang, Z.G.; Wang, S.M.; Sun, Y.G. Equivalent-circuit Parameter Calculations and Performance Analysis of Slit Solid Rotor Asynchronous Machines. Proc. CSEE
**2017**, 37, 1208–1215. [Google Scholar] - Kluszczynski, K.; Szczygie, M. How to convert a factory-manufactured induction motor into rotary-linear motor Part 1 Constructional issues. In Proceedings of the 15th International Workshop on Research and Education in Mechatronics (REM), Elgouna, Egypt, 9–11 September 2014. [Google Scholar]
- Wang, P.X.; Si, J.K.; Feng, H.C. Mover design and characteristics analysis of 2DoFDDIM. IET Electr. Power Appl.
**2018**, 12, 373–378. [Google Scholar] [CrossRef] - Tang, Y.M. Electric Machinery Fundamentals, 4th ed.; China Machine Press: Beijing, China, 2011. (In Chinese) [Google Scholar]
- Boglietti, A.; Cavagnino, A.; Lazzari, M. Computational Algorithms for Induction Motor Equivalent Circuit Parameter Determination—Part II: Skin Effect and Magnetizing Characteristics. IEEE Trans. Ind. Electron.
**2011**, 58, 3734–3740. [Google Scholar] [CrossRef] - Boglietti, A.; Cavagnino, A.; Lazzari, M. Computational Algorithms for Induction-Motor Equivalent Circuit Parameter Determination—Part I: Resistances and Leakage Reactances. IEEE Trans. Ind. Electron.
**2011**, 58, 3723–3733. [Google Scholar] [CrossRef] - Boglietti, A.; Cavagnino, A.; Lazzari, M. Algorithms for the computation of the induction motor equivalent circuit parameters—Part II. In Proceedings of the 2008 34th Annual Conference of IEEE Industrial Electronics, Orlando, FL, USA, 10–13 November 2008. [Google Scholar]
- Boglietti, A.; Cavagnino, A.; Lazzari, M. Algorithms for the computation of the induction motor equivalent circuit parameters—Part I. In Proceedings of the 2008 34th Annual Conference of IEEE Industrial Electronics, Orlando, FL, USA, 10–13 November 2008. [Google Scholar]
- Fu, F.L.; Tang, X.G. Asynchronous Motor Design Manual, 2nd ed.; China Machine Press: Beijing, China, 2006. [Google Scholar]

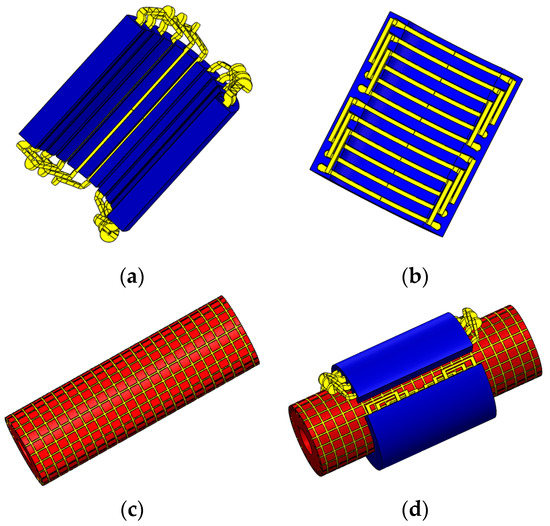

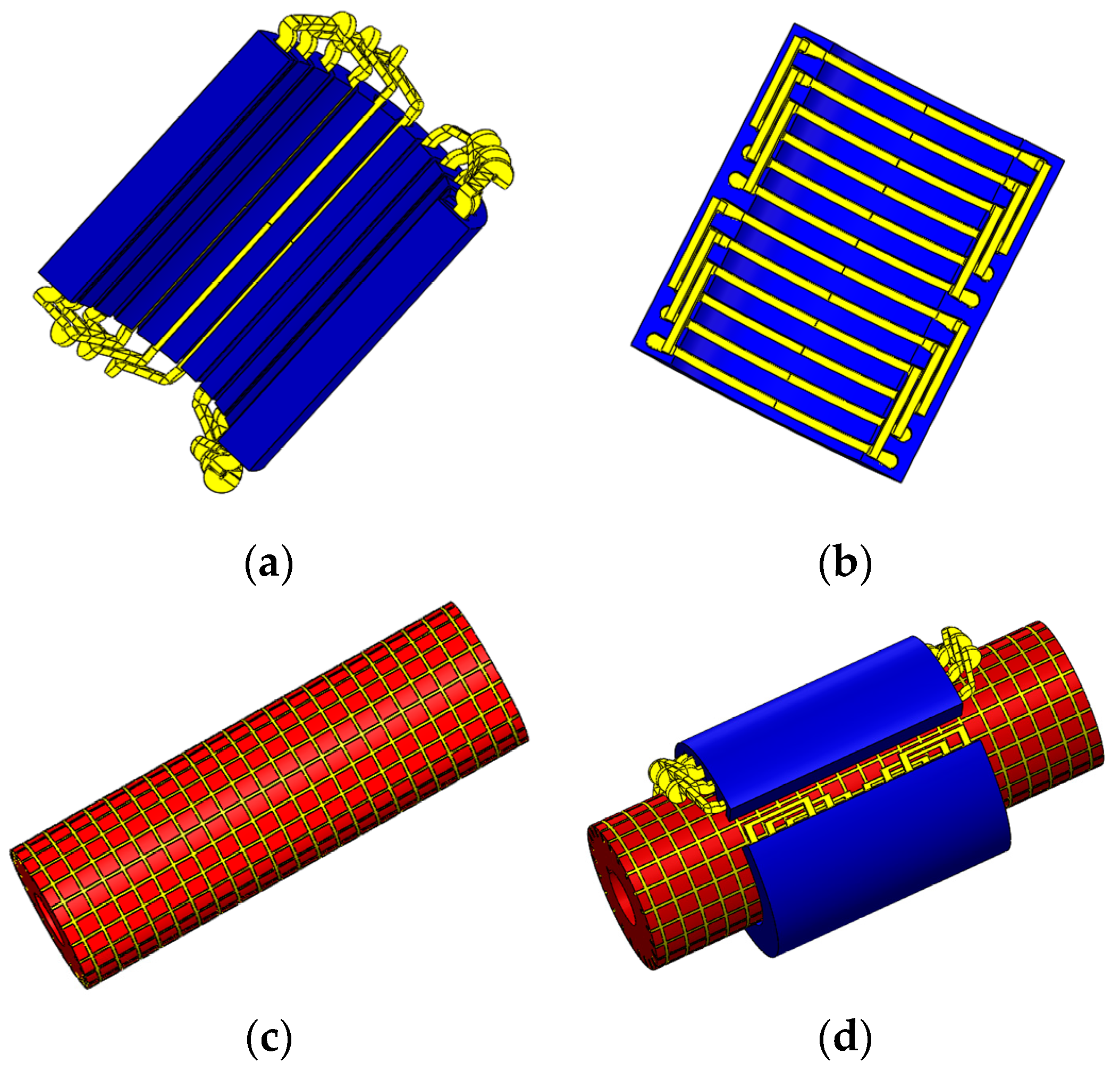

**Figure 1.**Structure of 2DoFDDIM: (

**a**) Rotary motion arc-shaped armature; (

**b**) Linear motion arc-shaped armature; (

**c**) SSR; (

**d**) Assembly of the 2DoFDDIM.

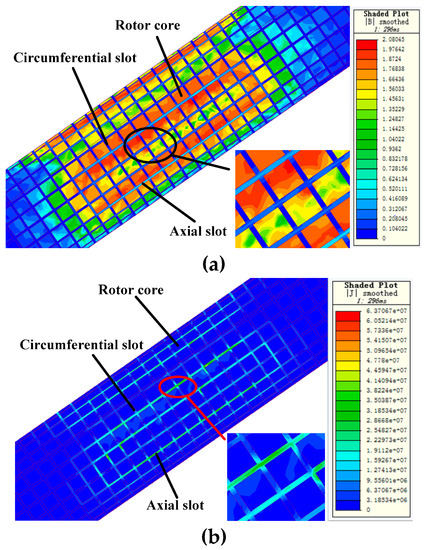

**Figure 11.**Magnetic field and eddy current field distributions: (

**a**) Magnetic field; (

**b**) Eddy current field.

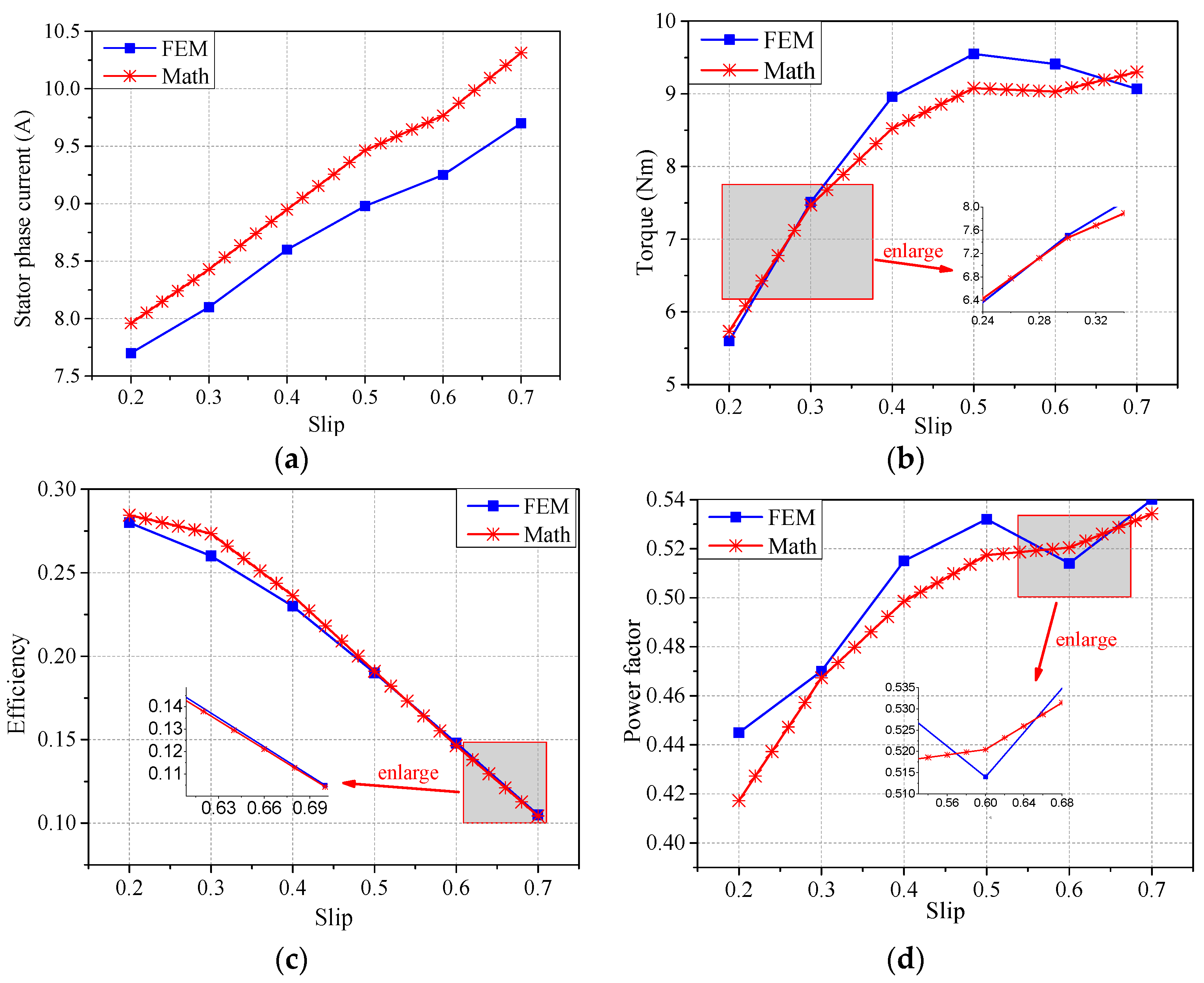

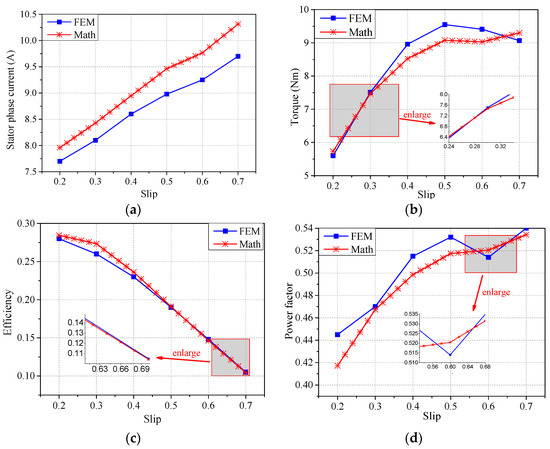

**Figure 12.**Characteristics of the rotary part: (

**a**) Stator phase current; (

**b**) Output torque; (

**c**) Efficiency; (

**d**) Power factor.

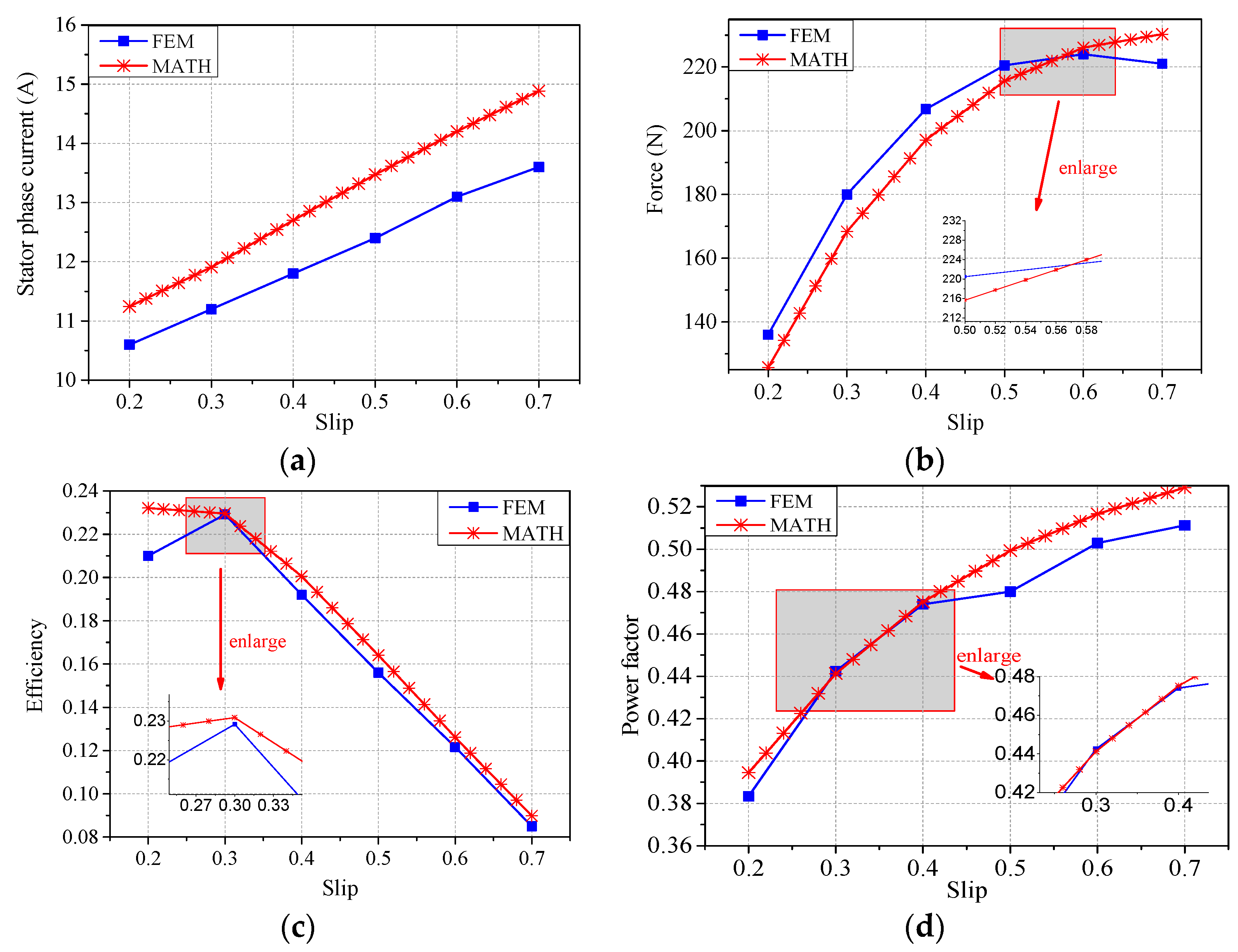

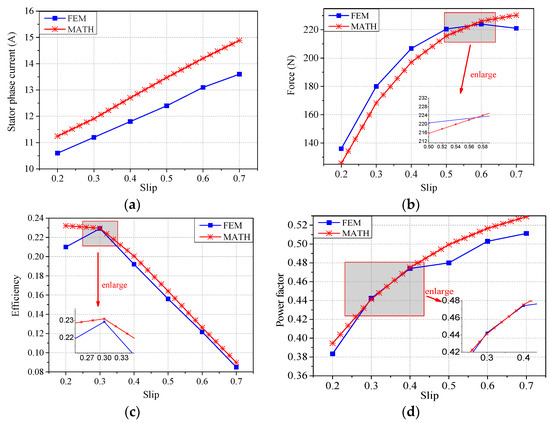

**Figure 13.**Characteristics of the linear part: (

**a**) Stator phase current; (

**b**) Force; (

**c**) Efficiency; (

**d**) Power factor.

Item | Values/Dimension | |
---|---|---|

Rotary Part | Linear Part | |

Rated voltage U_{1} (V) | 180 | 180 |

Supply frequency f_{1} (Hz) | 50 | 50 |

Pole pair p | 2 | 2 |

Stator inner diameter D_{si} (mm) | 98 | 98 |

Stator outer diameter D_{so} (mm) | 155 | 155 |

Stator axial diameter l_{ef} (mm) | 156 | 156 |

Air-gap thickness δ (mm) | 2 | 2 |

Number of slots | 12 | 12 |

Phase number | 3 | 3 |

Number of slots per pole per phase | 2 | 2 |

Number of turns per slot N | 90 | 90 |

Winding diameter d_{w} (mm) | 0.54 | 0.54 |

Circumferential radian (°) | 180 | 140 |

Items | Parameters |
---|---|

Rotor outer diameter Dro (mm) | 94 |

Rotor axial length Lr (mm) | 600 |

Slot width w (mm) | 2 |

Slot depth d (mm) | 7 |

Slot pitch L (mm) | 10.84 (axial) |

11.57 (circumferential) |

Slip | Stator Phase Current (A) | Output Toque (Nm) | ||||
---|---|---|---|---|---|---|

s | FEM | Math | Error | FEM | Math | Error |

0.2 | 7.70 | 7.96 | 3.38% | 5.62 | 5.73 | 1.96% |

0.3 | 8.04 | 8.43 | 4.07% | 7.51 | 7.47 | 0.53% |

0.4 | 8.61 | 8.95 | 4.07% | 8.96 | 8.53 | 4.80% |

0.5 | 8.96 | 9.46 | 5.35% | 9.55 | 9.08 | 4.92% |

0.6 | 9.26 | 9.77 | 5.51% | 9.41 | 9.03 | 4.04% |

0.7 | 9.70 | 10.3 | 6.19% | 9.07 | 9.30 | 2.54% |

Slip | Efficiency | Power factor | ||||
---|---|---|---|---|---|---|

s | FEM | Math | Error | FEM | Math | Error |

0.2 | 0.28 | 0.284 | 1.43% | 0.445 | 0.417 | 6.29% |

0.3 | 0.26 | 0.273 | 5.00% | 0.470 | 0.467 | 0.64% |

0.4 | 0.23 | 0.236 | 2.61% | 0.515 | 0.499 | 3.11% |

0.5 | 0.19 | 0.191 | 0.53% | 0.532 | 0.517 | 2.82% |

0.6 | 0.15 | 0.146 | 2.67% | 0.514 | 0.520 | 0.12% |

0.7 | 0.10 | 0.104 | 4.00% | 0.540 | 0.534 | 1.11% |

Slip | Stator Phase Current (A) | Output Toque (N) | ||||
---|---|---|---|---|---|---|

s | FEM | Math | Error | FEM | Math | Error |

0.2 | 11.2 | 10.6 | 5.35% | 136 | 125.7 | 7.57% |

0.3 | 11.9 | 11.2 | 5.88% | 180 | 168.3 | 6.50% |

0.4 | 12.7 | 11.8 | 7.09% | 207 | 197.1 | 4.78% |

0.5 | 13.5 | 12.4 | 8.15% | 220 | 215.6 | 2.00% |

0.6 | 14.2 | 13.1 | 7.75% | 224 | 226.1 | 0.94% |

0.7 | 14.9 | 13.8 | 7.38% | 221 | 230.3 | 4.21% |

Slip | Efficiency | Power Factor | ||||
---|---|---|---|---|---|---|

s | FEM | Math | Error | FEM | Math | Error |

0.2 | 0.219 | 0.232 | 5.94% | 0.383 | 0.395 | 2.53% |

0.3 | 0.229 | 0.230 | 0.44% | 0.442 | 0.441 | 0.23% |

0.4 | 0.192 | 0.200 | 4.17% | 0.474 | 0.475 | 0.21% |

0.5 | 0.156 | 0.164 | 5.13% | 0.480 | 0.499 | 3.96% |

0.6 | 0.122 | 0.126 | 3.28% | 0.503 | 0.517 | 2.78% |

0.7 | 0.085 | 0.090 | 5.88% | 0.511 | 0.529 | 3.52% |
