Appl. Sci. 2018, 8(1), 63; https://doi.org/10.3390/app8010063

Bloch Surface Wave Photonic Device Fabricated by Femtosecond Laser Polymerisation Technique

1
Faculty of Physics, Lomonosov Moscow State University, Moscow 119991, Russia
2
Institute of Physics, Mathematics and Informational Technologies, Center for Functionalized Magnetic Materials (FunMagMa), Immanuel Kant Baltic Federal University, Kaliningrad 236041, Russia
3
Frumkin Institute of Physical Chemistry and Electrochemistry, Russian Academy of Sciences, Moscow 119071, Russia
*
Author to whom correspondence should be addressed.
Received: 30 November 2017 / Revised: 29 December 2017 / Accepted: 30 December 2017 / Published: 4 January 2018
(This article belongs to the Special Issue Surface Waves on Planar Photonic Crystals)
Full-Text   |   PDF [3824 KB, uploaded 4 January 2018]   |

Abstract

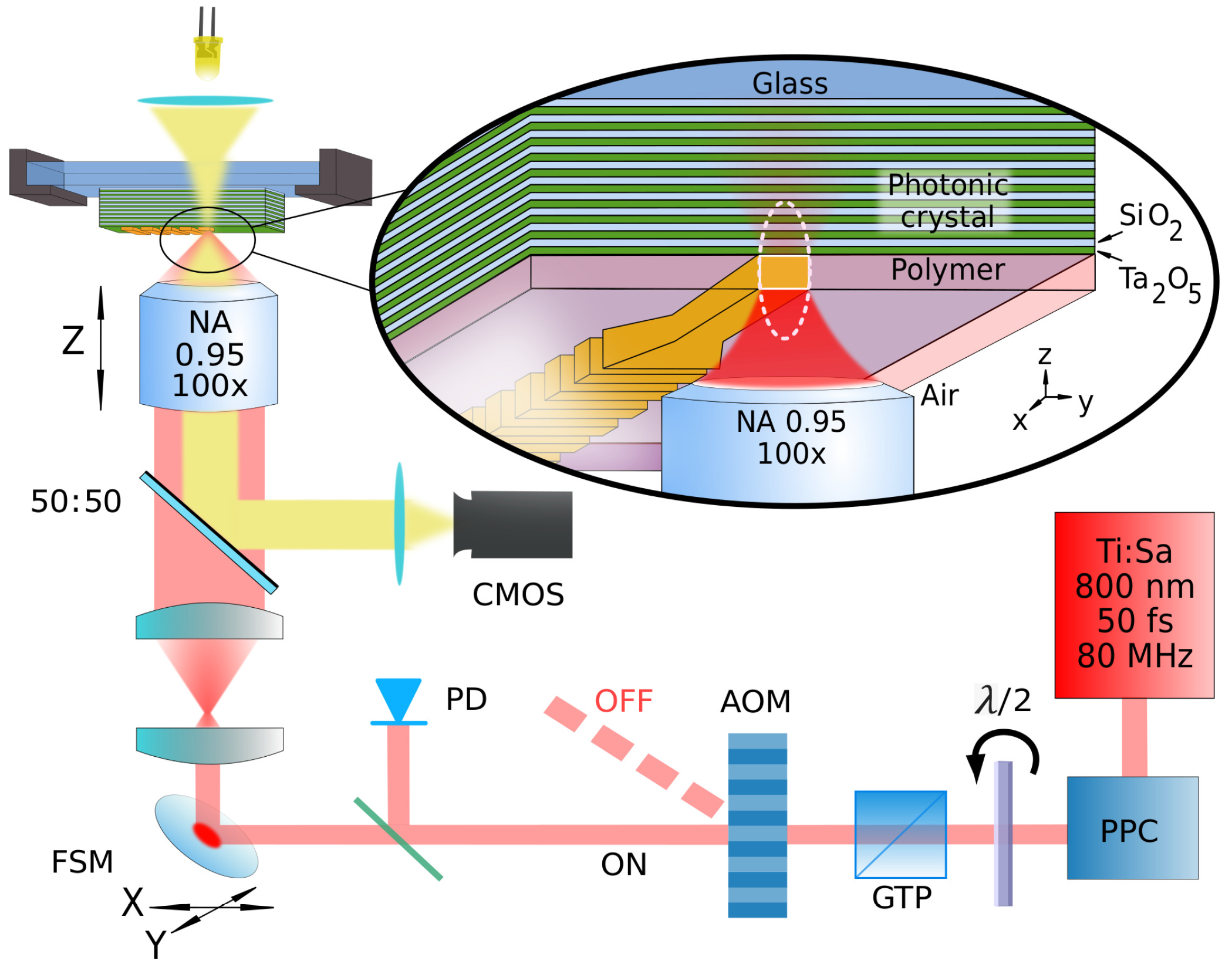

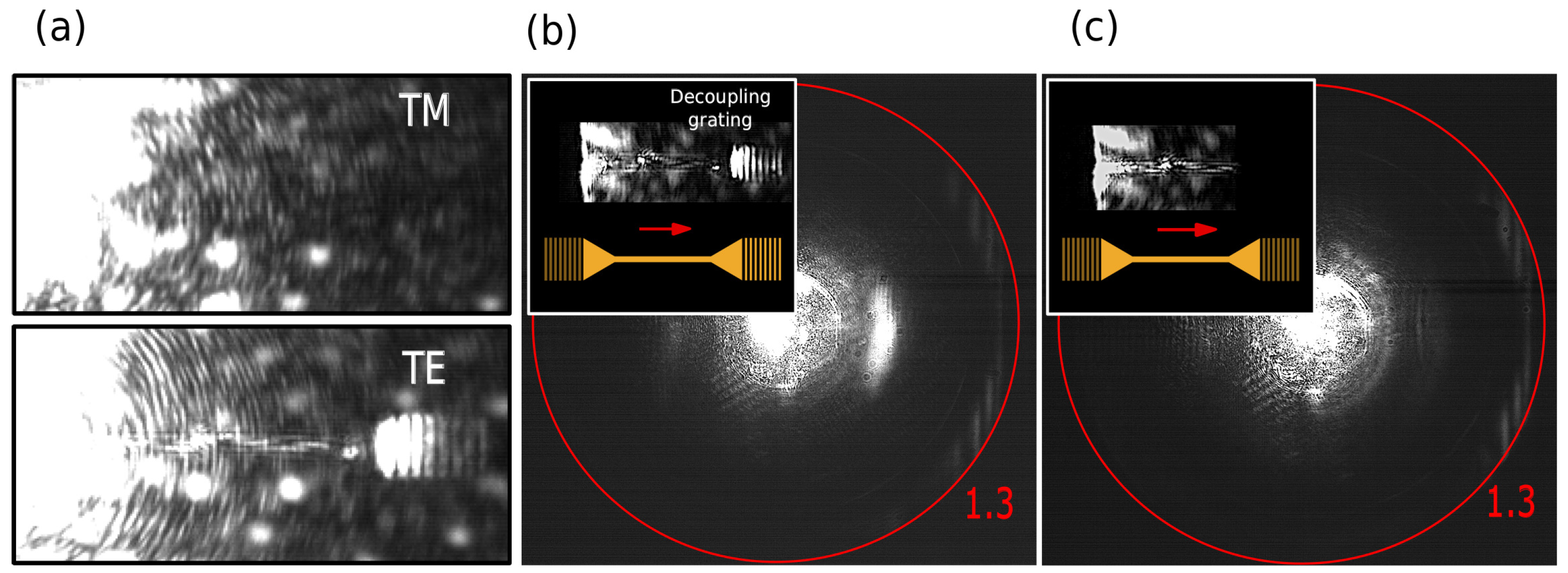

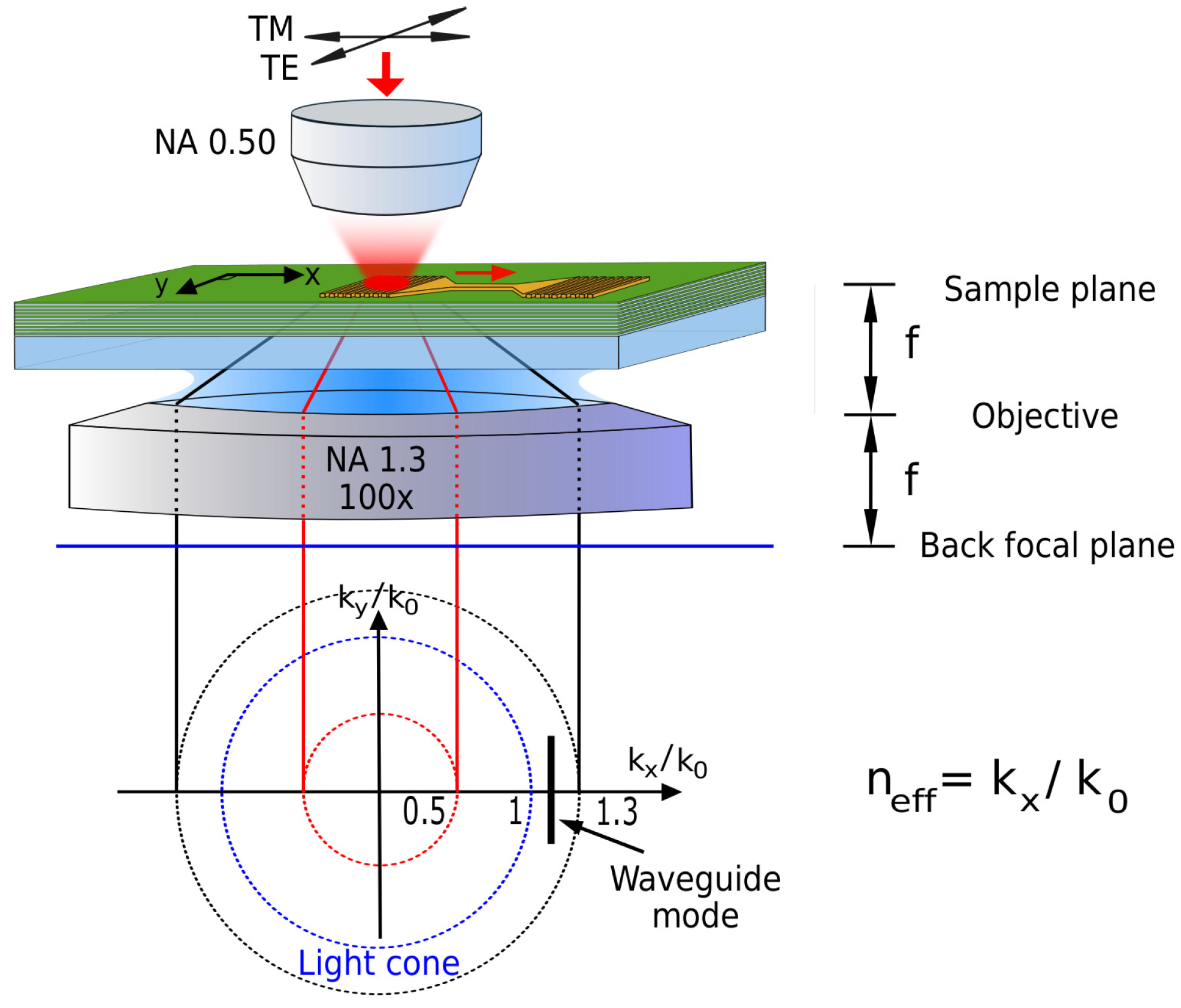

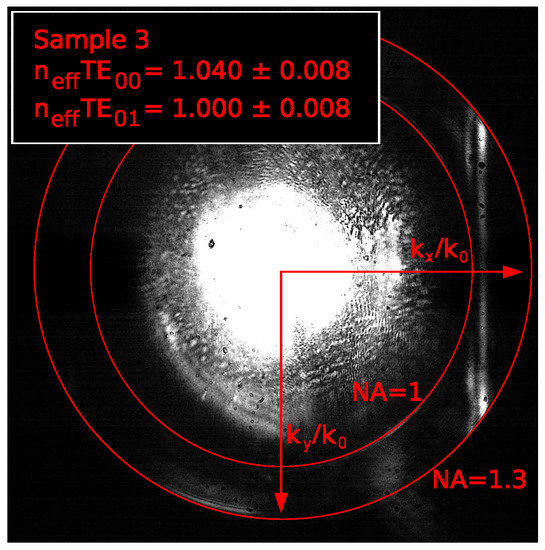

We applied femtosecond laser polymerisation technique to fabricate a novel Bloch surface wave integrated photonic device with a compact coupling scheme. The device consisted of a waveguide, coupling and decoupling gratings and focusing and defocusing triangles. We manufactured an array of devices with varying geometrical parameters of waveguide. Excitation and propagation of Bloch surface wave waveguide modes were studied by direct and back focal plane imaging. The obtained results prove that the maskless and flexible femtosecond laser polymerisation technique may be applied for fabrication of Bloch-surface-wave based integrated photonics. View Full-Text
Keywords: Bloch surface waves; two-photon absorption lithography; integrated photonics; leakage radiation microscopy Bloch surface waves; two-photon absorption lithography; integrated photonics; leakage radiation microscopy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Abrashitova, K.A.; Gulkin, D.N.; Safronov, K.R.; Kokareva, N.G.; Antropov, I.M.; Bessonov, V.O.; Fedyanin, A.A. Bloch Surface Wave Photonic Device Fabricated by Femtosecond Laser Polymerisation Technique. Appl. Sci. 2018, 8, 63.
