Ultralow Friction of ZrO2 Ball Sliding against DLC Films under Various Environments

Key Laboratory of Education Ministry for Modern Design and Rotor-Bearing System and School of Food Equipment Engineering and Science, Xi’an Jiaotong University, Xi’an 710049, China
Energy Systems, Argonne National Laboratory, Argonne, IL 60439, USA
Author to whom correspondence should be addressed.
Appl. Sci. 2017, 7(9), 938;
Received: 14 August 2017 / Revised: 4 September 2017 / Accepted: 5 September 2017 / Published: 12 September 2017
(This article belongs to the Section Mechanical Engineering)
PDF [7464 KB, uploaded 12 September 2017]

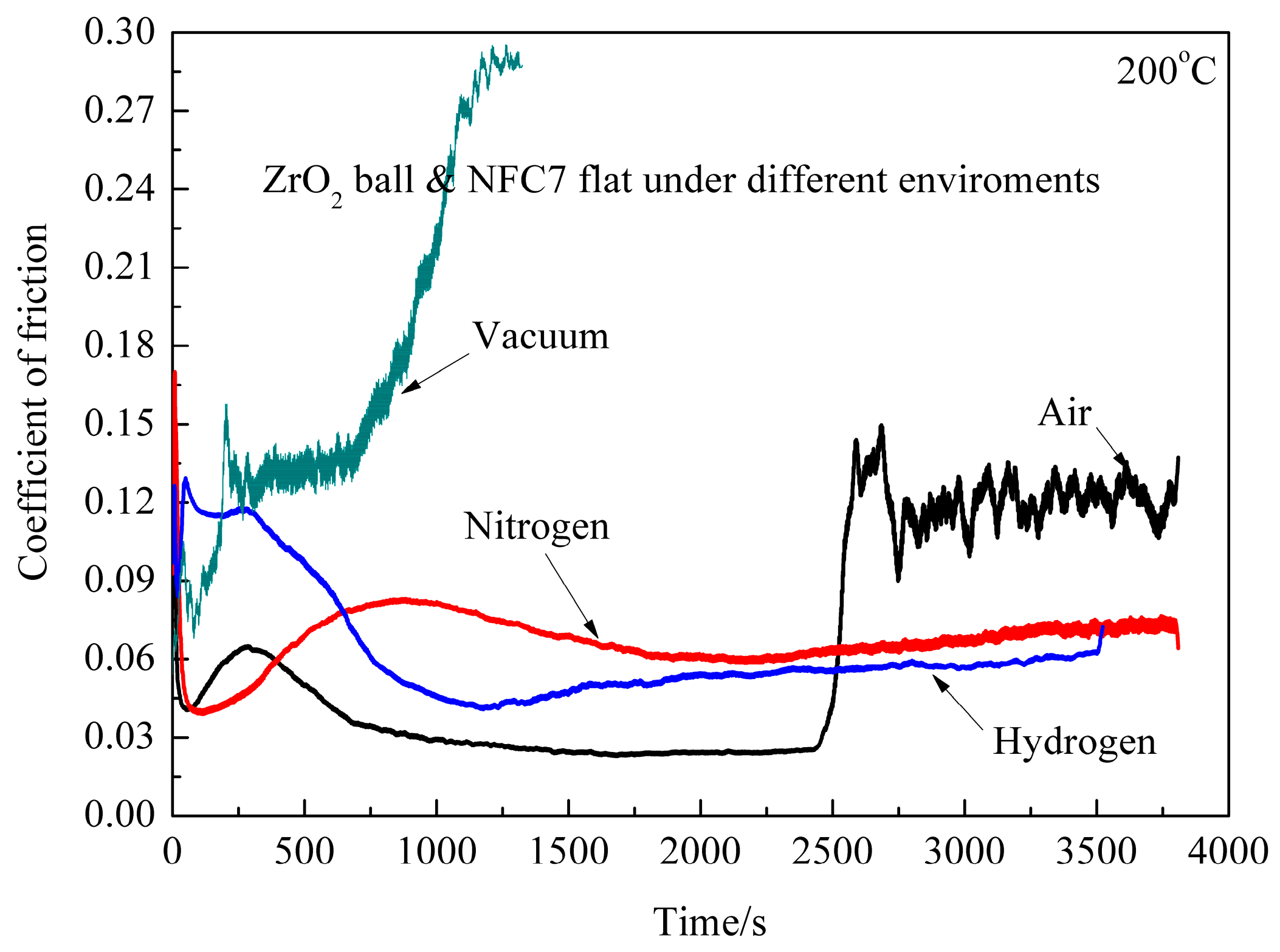

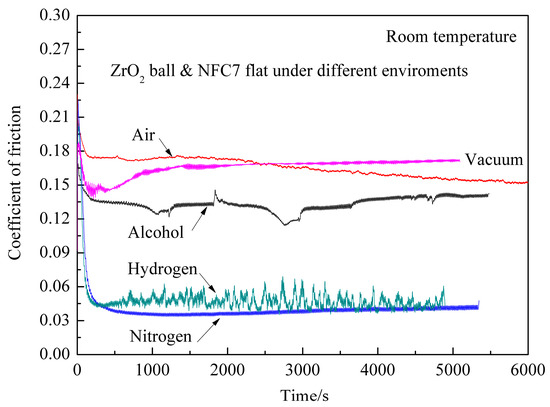

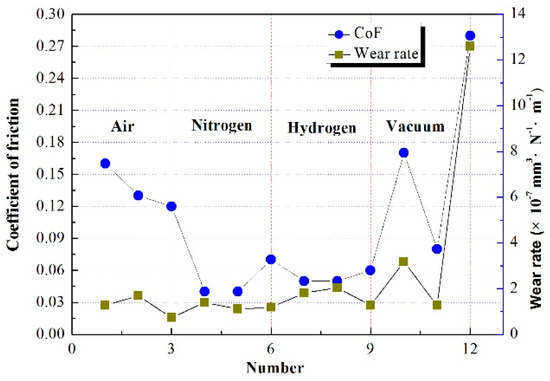

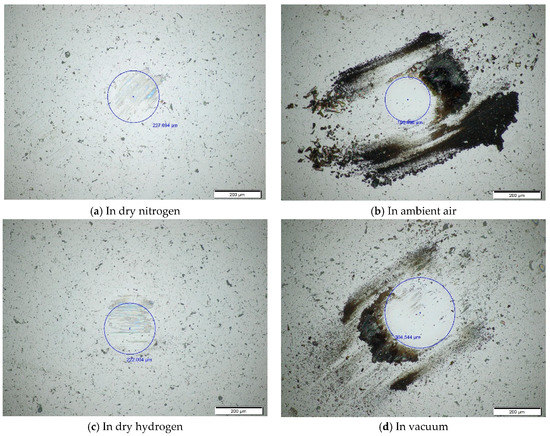

Ultralow friction is achieved by ZrO2 as the friction mate material for DLC (Diamond like carbon) films under various environments. Coefficient of friction (CoF) of ZrO2/DLC films is as ultra low as 0.02 in ambient air at the temperature of 200 °C, and 0.03, 0.04 and 0.05 in hydrogen, nitrogen and vacuum environments at the temperature of 100 °C, respectively. It is concluded that the transferred films are formed on the worn surface of ZrO2 ball and amorphous carbon films. Ultralow friction of the friction pair is related with hydrogen, which is derived from DLC films, hydrogen environment or the liberation hydrogen due to hydrothermal oxidation. The ultralow friction mechanism is attributed to the formation of hydrogenated amorphous carbon films on ZrO2 ball and the shielding action of hydrogen from DLC films and the transferred films simultaneously. View Full-Text
Keywords: DLC films; ZrO2; ultralow friction; transferred films; shielding DLC films; ZrO2; ultralow friction; transferred films; shielding

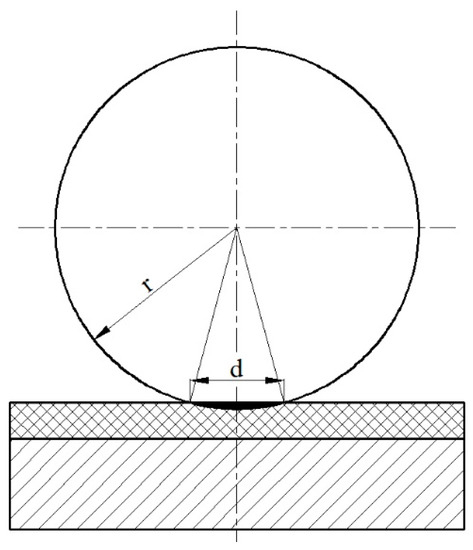

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Zeng, Q.; Erdemir, A.; Erylimaz, O. Ultralow Friction of ZrO2 Ball Sliding against DLC Films under Various Environments. Appl. Sci. 2017, 7, 938.
