# Day-Ahead Dispatch Model of Electro-Thermal Integrated Energy System with Power to Gas Function

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Concept of P2G

#### 2.1. Water Electrolysis

#### 2.2. Synthetic Natural Gas

#### 2.3. HCNG

## 3. Electro-Thermal Integrated Energy System with “P2G Function”

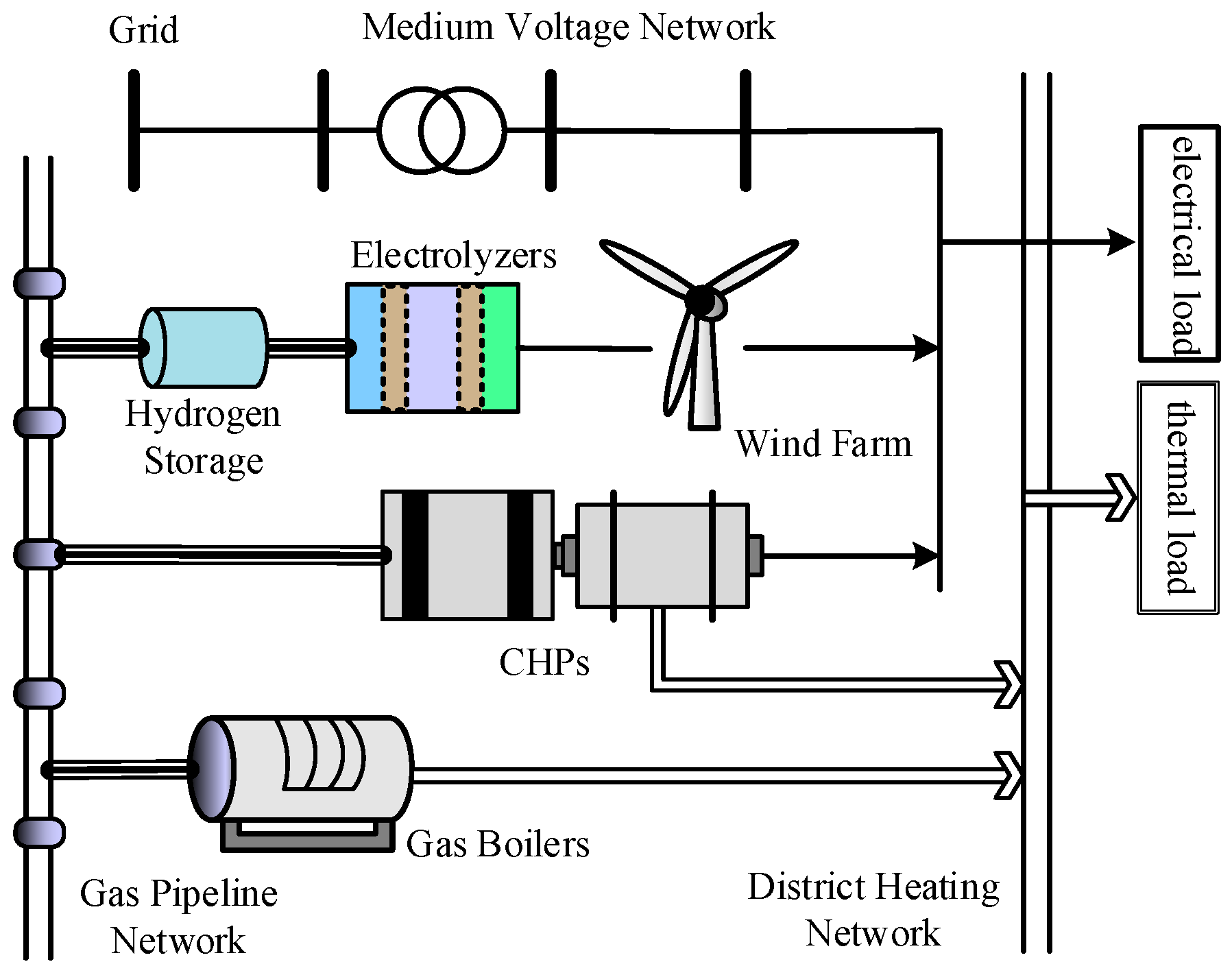

#### 3.1. Structure of the Integrated System

#### 3.2. Day-Ahead Dispatch Model of the Integrated System

_{2}production at period t. The gas boilers are using HCNG to produce heat. Equations (14) and (15) define the thermal power output of the natural gas part and the hydrogen part respectively. And Equation (16) sets the thermal generation limits.

#### 3.3. Solution Strategy

**x**= (x

_{1}, x

_{2}, ..., x

_{n}) to be solved as n particles without mass and volume. The position and velocity vectors of the ith particle of a two-dimensional search space can be represented as s

_{i}= (s

_{1}, s

_{2}, ..., s

_{n}) and v

**= (v**

_{i}_{1}, v

_{2}, ..., v

_{n}) respectively, After initialization, the particle tries to modify its position using the current velocity and the distance on the basis of the value of the evaluation function. The best previous position of a particle is recorded and represented as pbest. If the gth particle is the best among all particles in the group so far, it is represented as pbest = gbest. Before finding its optimal value, the particle updates its velocity and position by the following equations:

_{1}and c

_{2}are cognitive and social coefficients, rand

_{1}, rand

_{2}are random numbers between 0 and 1. The concept of time varying inertial weight was introduced in [17] per ω is given by

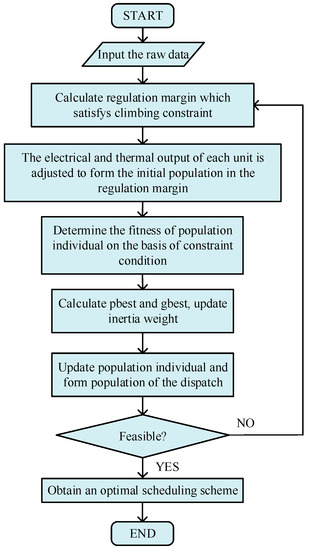

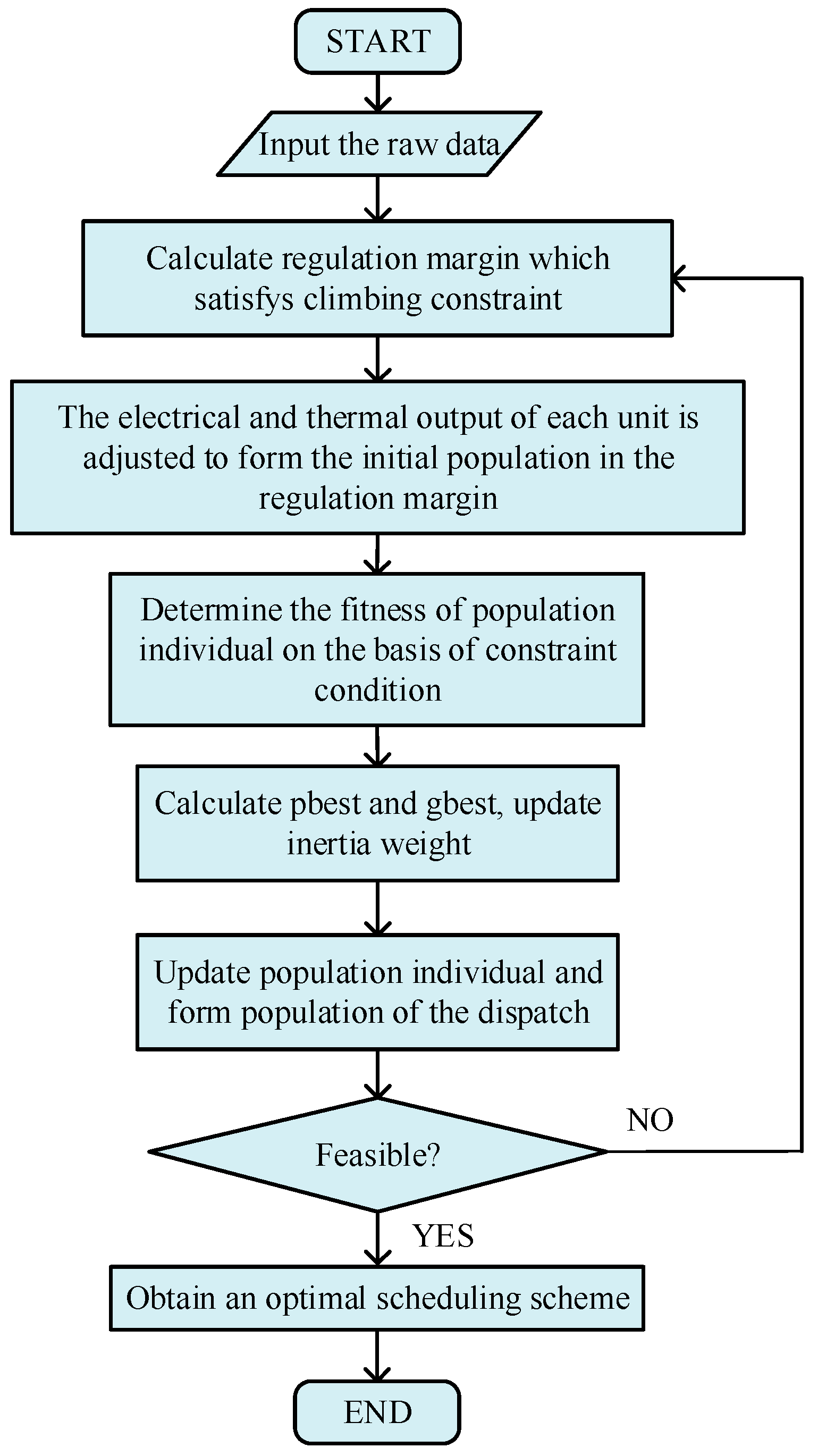

_{max}is the maximum number of iterations. Usually, the parameters are selected in the range of 0 to 4. The flowchart of the iterative algorithm is shown in Figure 3.

## 4. Simulation Results

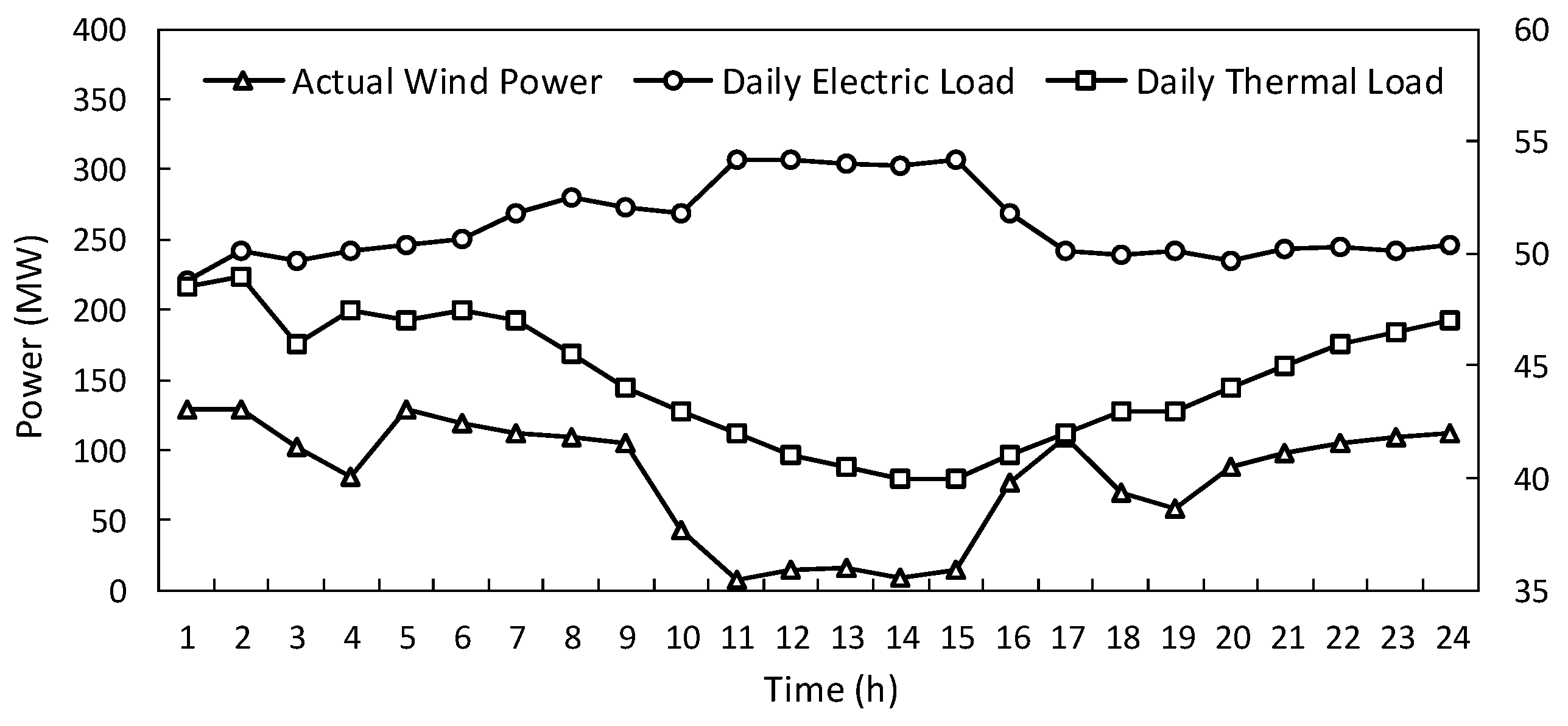

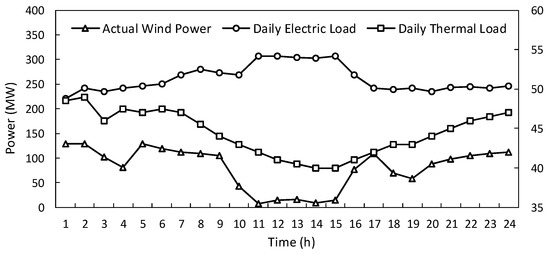

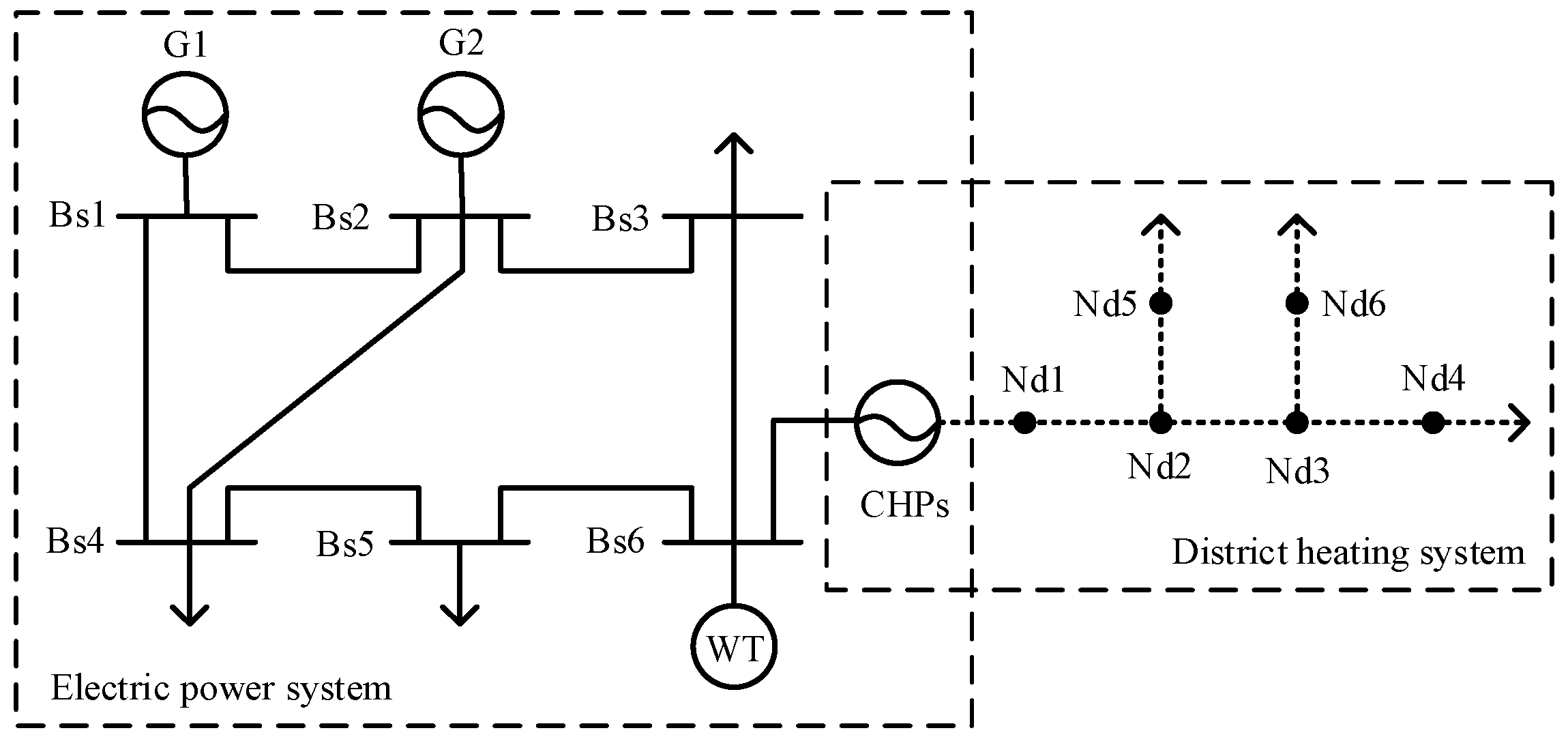

#### 4.1. Example Data

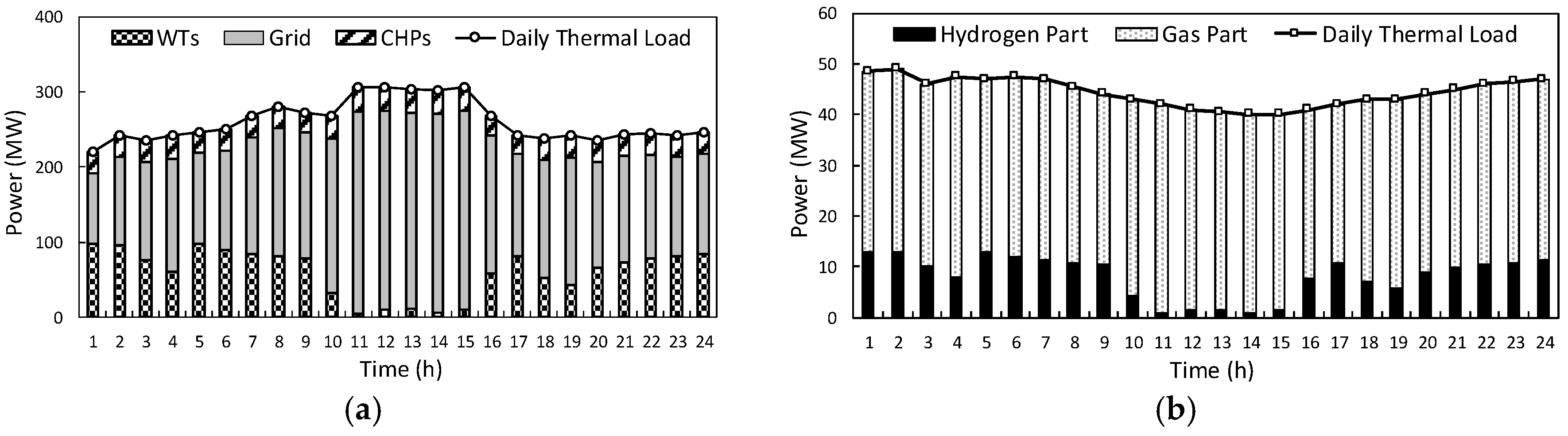

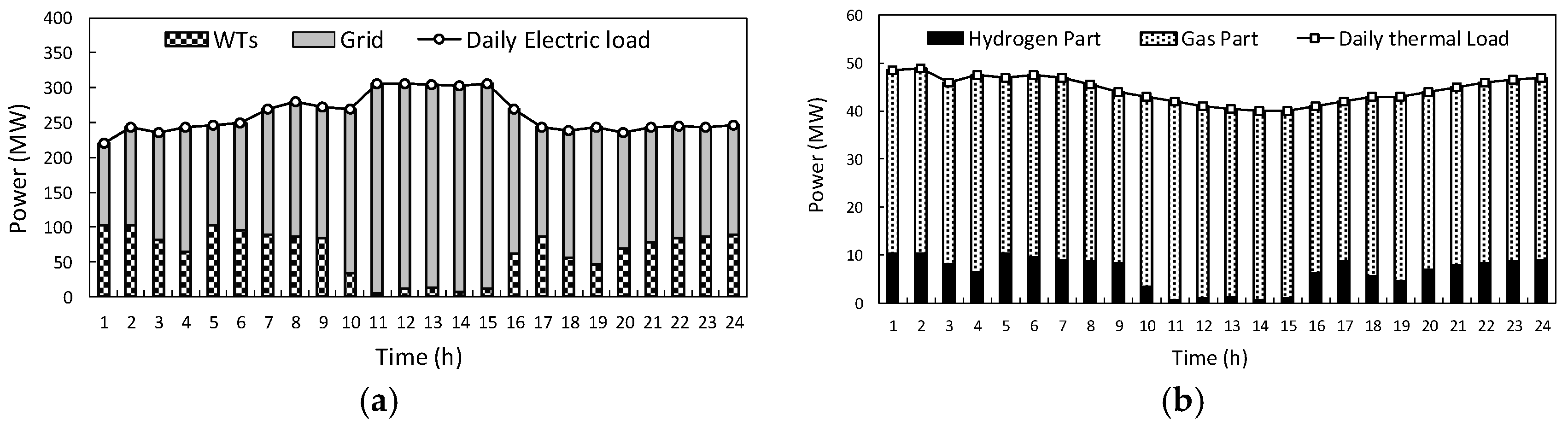

#### 4.2. Interpretation of Result

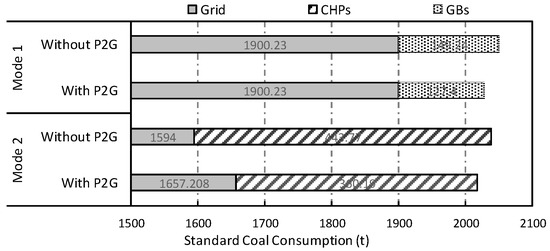

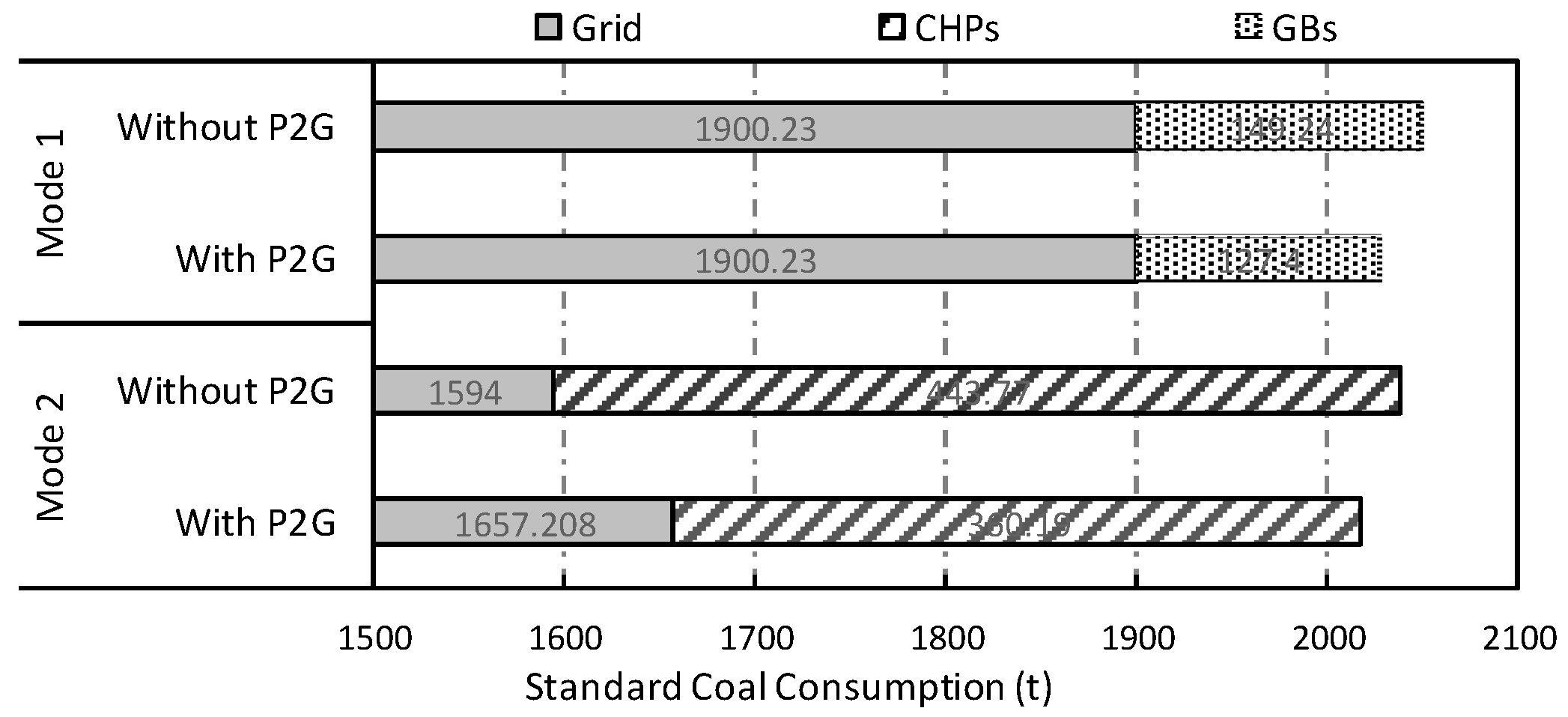

^{3}of hydrogen, which can be converted to 5 billion 414 million m

^{3}natural gas on an equal heat basis. At the same time, it will also reduce 10 million 210 thousand tons of the carbon dioxide of the combustion emission produced by the same volume of natural gas and save 65 million 740 thousand tons of the standard coal.

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Li, X.; Huang, Y.; Ma, S. Analysis on the influence factors of wind power accommodation. J. Power Energy Eng.
**2015**, 3, 162–169. [Google Scholar] [CrossRef] - Anne, S.B.; Machteld, B.; Ad, S. Impacts of large-scale intermittent renewable energy sources on electricity systems, and how these can be modeled. Renew. Sustain. Energy Rev.
**2014**, 33, 443–466. [Google Scholar] - Liu, Y.; Lund, B.; Mathiesen, V. Large-scale integration of wind power into the existing Chinese energy system. Energy
**2011**, 36, 4753–4760. [Google Scholar] [CrossRef] - Lu, J.; Zahedi, A.; Yang, C. Building the hydrogen economy in China: Drivers, resources and technologies. Renew. Sustain. Energy Rev.
**2013**, 23, 543–556. [Google Scholar] [CrossRef] - Harrison, K.W.; Kroposki, B.; Pink, C. Characterizing electrolyzer performance for use in wind energy applications. Presented at the IEEE American Wind Energy Association (AWEA) Wind power Annual Conference, Pittsburgh, PA, USA, 4–7 June 2006; pp. 7–8. [Google Scholar]
- Nastasi, B.; Basso, G.L. Power-to-Gas integration in the transition towards future urban energy systems. Int. J. Hydrog. Energy
**2017**, 42, 23933–23951. [Google Scholar] [CrossRef] - Castellani, B.; Morini, E.; Bonamente, E.; Rossi, F. Experimental investigation and energy considerations on hydrate-based biogas upgrading with CO
_{2}valorization. Biomass Bioenergy**2017**, 105, 364–372. [Google Scholar] [CrossRef] - Marjanovic, B.; Bongers, T.; Lichtinghagen, J. Influence of Power-to-Gas-technology on unit commitment and power system operation. In Proceedings of the 2017 6th International Conference on Clean Electrical Power (ICCEP), Santa Margherita Ligure, Italy, 27–29 June 2017; Volume 6, pp. 536–540. [Google Scholar]
- Clegg, S.; Mancarella, P. Integrated modeling and assessment of the operational impact of Power-to-Gas (P2G) on electrical and gas transmission networks. IEEE Trans. Sustain. Energy
**2015**, 6, 1234–1244. [Google Scholar] [CrossRef] - Li, C.; Goswami, D.Y.; Shapior, A. A new combined power and desalination system driven by low grade heat for concentrated brine. Energy
**2012**, 46, 582–595. [Google Scholar] [CrossRef] - Li, Z.G.; Wu, W.C. Combined heat and power dispatch considering pipeline energy storage of district heating network. IEEE Trans. Sustain. Energy
**2016**, 7, 12–22. [Google Scholar] [CrossRef] - European Union. Using the Existing Natural Gas System for Hydrogen; European Union: Brussels, Belgium, 2009. [Google Scholar]
- Kippers, M.J.; De, J.C.; Hermkens, R.G.M. International Gas Research Conference Proceedings; Curran Associates: North Miami Beach, FL, USA, 2011; pp. 32–37. [Google Scholar]
- Mcphy Energy Role in French Power-to-Gas GRHYD Programme. Fuel Cells Bull.
**2014**, 2, 9–10. Available online: http://www.sciencedirect.com/science/article/pii/S1464285914700549 (accessed on 28 February 2014). - Eberhat, R.C.; Shi, Y. Particle swarm optimization: Developments, applications and resources. Congr. Evolut. Comput.
**2002**, 1, 81–86. [Google Scholar] - Tyagi, G.; Pandit, M. Combined heat and power dispatch using Particle swarm optimization. In Proceedings of the 2012 IEEE Students’ Conference on Electrical, Electronics and Computer Science (SCEECS), Bhopal, India, 1–2 March 2012; pp. 1–4. [Google Scholar]
- Roy, R.K.; Paul, C.; Sultana, S. Oppositional teaching learning based optimization approach for combined heat and power dispatch. Int. J. Electr. Power Energy Syst.
**2014**, 57, 392–403. [Google Scholar] [CrossRef] - Saint, A.; Mancarella, P. Integrated electricity and heat active network management. In Proceedings of the IEEE Power Systems Computation Conference, Genoa, Italy, 20–24 June 2016; pp. 1–7. [Google Scholar]
- Chen, X.; Kang, C.; Malley, M.O. Increasing the flexibility of combined heat and power for wind power integration in China: Modeling and implications. IEEE Trans. Power Syst.
**2015**, 30, 1848–1857. [Google Scholar] [CrossRef] - Blarke, M. Towards an intermittency-friendly energy system. Appl. Energy
**2012**, 91, 349–365. [Google Scholar] [CrossRef] - Martinez, C.E.A.; Capudaer, T.; Mancarella, P. Flexible distributed multienergy generation system expansion planning under uncertainty. IEEE Trans. Smart Grid
**2015**, 19, 1–2. [Google Scholar] [CrossRef] - Dent, C.J.; Bialek, J.W.; Hobbs, B.F. Opportunity cost bidding by wind generators in forward markets：Analytical results. IEEE Trans. Power Syst.
**2011**, 26, 1600–1608. [Google Scholar] [CrossRef] [Green Version] - Ghorbani, N. Combined heat and power economic dispatch using exchange market algorithm. Int. J. Electr. Power Energy Syst.
**2016**, 82, 58–66. [Google Scholar] [CrossRef] - Yuan, R.; Ye, J.; Lei, J. Integrated Combined heat and system dispatch considering electrical and thermal energy storage. Energy
**2016**, 9, 474. [Google Scholar] [CrossRef] - The First Wind Power Hydrogen Project Settled in Hebei Province. Available online: http://www.ce.cn/cysc/ny/dl/201508/20/t20150820_6274841.shtml (accessed on 20 August 2015).

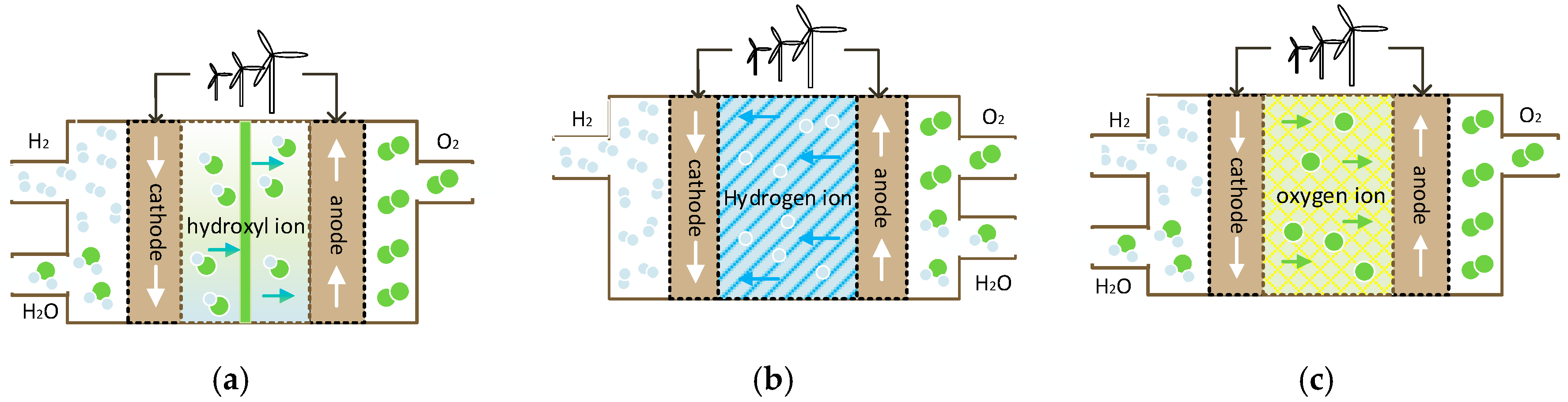

**Figure 1.**Diagrams of (
