# Backpack Process Model (BPPM): A Process Mining Approach for Curricular Analytics

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## Featured Application

**In this work, Process Mining techniques are used with a curricular analytics approach, to model the educational trajectories of engineering students during their first courses.**

## Abstract

## 1. Introduction

## 2. The Backpack Metaphor

## 3. Related Work in Process Mining

^{2}[33]. Both methodologies have a broad scope, covering the entire process management cycle [34]. Different authors have proposed domain-specific methodologies that take into account the particularities of each domain. For education, Maldonado-Mahauad et al. [35] adapted PM

^{2}, narrowing its scope from data extraction to model analysis. Johnson et al. [36] extended PM

^{2}to include domain-specific requirements in healthcare, in terms of ethics and participation of domain experts, among other things. Martin et al. [29] established that a process mining methodology in healthcare should highlight usability, in the building of domain-specific event logs and in the management of unstructured data. In manufacturing, Lorenz et al. [37] proposed a methodology with a scope that included the improvement of the processes.

^{2}, which is widely used, and its scope goes only from data extraction to model analysis. The main contribution of this work is not the sequence of stages in the methodology, but the approach used to understand the curricular trajectories through the backpack metaphor.

## 4. The Backpack Process Model (BPPM) Approach

#### 4.1. Data Extraction

- -
- s indicates the ID of the student who took the course
- -
- p the academic period when the course was taken
- -
- c the identifier of the course taken
- -
- g the final grade obtained
- -
- d the end date of the academic period.

#### 4.2. Event Log Generation

_{1}, b

_{2}, … b

_{n}>; and (2) a b

_{i}event is defined as the record of the group of failed courses that the student must retake at the end of academic period i. For example, for the student identified with s = 23 in Table 2, <AQ, Q, -> represents their backpack trajectory and graphically it can be seen in Figure 3. In his/her first academic period (for example, semester), this student had failed algebra (A) and chemistry (Q) and therefore must retake them. In their second period the student must still retake chemistry (either because the student took it and failed it again or because the student decided not to take the course in the second period) and finally, after the third academic period, the student does not have courses that should be retaken.

_{i}; b

_{i+1}; …; b

_{i+n}; …> where b

_{i}= b

_{i+1}= … = b

_{i+n}, will result in a case <… b

_{i:i+n}…>, where backpack b

_{i:i+n}ranges from period i to period i + n.

_{i:i+n}event was labeled with BP-j, where j represents the size of the backpack. For example, the case represented by <AQ, Q, RETENTION>, was replaced by <BP-2, BP-1, RETENTION> in the BPPM-S event log.

#### 4.3. Discovery

#### 4.4. Analysis

## 5. Application Case: First Engineering Courses

- (P1)
- BPPM trajectories ending either in retention or in dropout

- (P2)
- most frequent backpacks.

- (P3)
- size of the backpack.

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Viberg, O.; Hatakka, M.; Bälter, O.; Mavroudi, A. The current landscape of learning analytics in higher education. Comput. Hum. Behav.
**2018**, 89, 98–110. [Google Scholar] [CrossRef] - Banihashem, S.K.; Aliabadi, K.; Ardakani, S.P.; Delaver, A.; Ahmadabadi, M.N.; Ardakani, S.P.; Delavar, A. Learning Analytics: A Systematic Literature Review. Interdiscip. J. Virtual Learn. Med. Sci.
**2018**, 9. [Google Scholar] [CrossRef] - Gottipati, S.; Shankararaman, V. Competency analytics tool: Analyzing curriculum using course competencies. Educ. Inf. Technol.
**2018**, 23, 41–60. [Google Scholar] [CrossRef] - Hilliger, I.; De Laet, T.; Henríquez, V.; Guerra, J.; Ortiz-Rojas, M.; Zuñiga, M.Á.; Baier, J.; Pérez-Sanagustín, M. For Learners, with Learners: Identifying Indicators for an Academic Advising Dashboard for Students. In Proceedings of the European Conference on Technology Enhanced Learning. EC-TEL 2020: Addressing Global Challenges and Quality Education, Heidelberg, Germany, 14–18 September 2020; Lecture Notes in Computer Science. Alario-Hoyos, C., Rodríguez-Triana, M.J., Scheffel, M., Arnedillo-Sánchez, I., Dennerlein, S.M., Eds.; Springer: Cham, Switzerland, 2020; Volume 12315, pp. 117–130. [Google Scholar] [CrossRef]
- Ochoa, X. Simple Metrics for Curricular Analytics. In Proceedings of the 1st Learning Analytics for Curriculum and Program Quality Improvement Workshop, Sixth International Learning Analytics and Knowledge Conference (LAK), 25–29 April 2016; Available online: http://ceur-ws.org/Vol-1590/paper-04.pdf (accessed on 25 March 2021).
- Levander, L.M.; Mikkola, M. Core Curriculum Analysis: A Tool for Educational Design. J. Agric. Educ. Ext.
**2009**, 15, 275–286. [Google Scholar] [CrossRef] - Simanca, F.; Crespo, R.G.; Rodríguez-Baena, L.; Burgos, D. Identifying Students at Risk of Failing a Subject by Using Learning Analytics for Subsequent Customised Tutoring. Appl. Sci.
**2019**, 9, 448. [Google Scholar] [CrossRef][Green Version] - Mabel, Z.; Britton, T.A. Leaving late: Understanding the extent and predictors of college late departure. Soc. Sci. Res.
**2018**, 69, 34–51. [Google Scholar] [CrossRef] - Rawatlal, R. Application of Graph Theory to Analysing Student Success Through Development of Progression Maps. In Engineering Education for a Smart Society. GEDC 2016, WEEF 2016. Advances in Intelligent Systems and Computing; Auer, M.E., Kim, K.-S., Eds.; Springer: Cham, Switzerland, 2018; Volume 627, pp. 295–307. [Google Scholar] [CrossRef]
- Campbell, C.M.; Mislevy, J.L. Student Perceptions Matter: Early Signs of Undergraduate Student Retention/Attrition. J. Coll. Stud. Retention: Res. Theory Pr.
**2013**, 14, 467–493. [Google Scholar] [CrossRef] - Mason, C.; Twomey, J.; Wright, D.; Whitman, L. Predicting Engineering Student Attrition Risk Using a Probabilistic Neural Network and Comparing Results with a Backpropagation Neural Network and Logistic Regression. Res. High. Educ.
**2018**, 59, 382–400. [Google Scholar] [CrossRef] - Zúniga-Prieto, M.A.; Ortiz, M.; Ulloa, M.; Jiménez, A. Applying the LALA Framework for the adoption of a Learning Analytics tool in Latin America: Two case studies in Ecuador. In Proceedings of the Third Latin American Conference on Learning Analytics, Cuenca, Ecuador, 1–2 October 2020. In press. [Google Scholar]
- Moreno-Marcos, P.M.; Muñoz-Merino, P.J.; Maldonado-Mahauad, J.; Pérez-Sanagustín, M.; Alario-Hoyos, C.; Kloos, C.D. Temporal analysis for dropout prediction using self-regulated learning strategies in self-paced MOOCs. Comput. Educ.
**2020**, 145, 103728. [Google Scholar] [CrossRef] - Jivet, I.; Scheffel, M.; Specht, M.; Drachsler, H. License to evaluate: Preparing learning analytics dashboards for educational practice. In Proceedings of the 8th International Conference on Learning Analytics and Knowledge, Sydney, NSW, Australia, 5–9 March 2018. [Google Scholar] [CrossRef][Green Version]
- Cairns, A.H.; Gueni, B.; Fhima, M.; Cairns, A.; David, S.; Khelifa, N. Process Mining in the Education Domain. Int. J. Adv. Intell. Syst.
**2015**, 8, 219–232. Available online: http://www.iariajournals.org/intelligent_systems/tocv8n12.html (accessed on 25 March 2021). - Bogarín, A.; Cerezo, R.; Romero, C. A survey on educational process mining. Wiley Interdiscip. Rev. Data Min. Knowl. Discov.
**2017**, 8, e1230. [Google Scholar] [CrossRef][Green Version] - Salazar-Fernández, J.P.; Sepúlveda, M.; Munoz-Gama, J. Describing Educational Trajectories of Engineering Students in Individual High-Failure Rate Courses that Lead to Late Dropout. In Proceedings of the Second Latin American Conference on Learning Analytics, Valdivia, Chile, 18–19 March 2019; Available online: http://ceur-ws.org/Vol-2425/paper03.pdf (accessed on 25 March 2021).
- Munoz-Gama, J.; Maldonado-Mahauad, J.; Salazar-Fernández, J.P.; Bustamante, D.; Sepúlveda, M. Backpack Process Model (BPPM): Curricular Analytics through Process Mining. In Proceedings of the III Conferencia Latinoamericana de Analíticas de Aprendizaje, Cuenca, Ecuador, 1–2 October 2020. In press. [Google Scholar]
- Snyder, K.E.; Barr, S.M.; Honken, N.B.; Pittard, C.M.; Ralston, P.A.S. Navigating the First Semester: An Exploration of Short-Term Changes in Motivational Beliefs Among Engineering Undergraduates. J. Eng. Educ.
**2018**, 107, 11–29. [Google Scholar] [CrossRef] - Choi, Y. Student Employment and Persistence: Evidence of Effect Heterogeneity of Student Employment on College Dropout. Res. High. Educ.
**2018**, 59, 88–107. [Google Scholar] [CrossRef] - Geisinger, B.N.; Raman, D.R. Why They Leave: Understanding Student Attrition from Engineering Majors? Int. J. Eng. Educ.
**2013**, 29, 914–925. Available online: https://lib.dr.iastate.edu/abe_eng_pubs/607 (accessed on 25 March 2021). - Kuley, E.A.; Maw, S.; Fonstad, T. Engineering Student Retention and Attrition Literature Review. In Proceedings of the Canadian Engineering Education Association, Hamilton, ON, Canada, 31 May–3 June 2015; Available online: https://ojs.library.queensu.ca/index.php/PCEEA/article/view/5813/pdf (accessed on 25 March 2021).
- Bandura, A. Self-Efficacy: The Exercise of Control; W.H. Freeman: New York, NY, USA, 1997. [Google Scholar]
- Meyer, M.; Marx, S. Engineering Dropouts: A Qualitative Examination of Why Undergraduates Leave Engineering. J. Eng. Educ.
**2014**, 103, 525–548. [Google Scholar] [CrossRef] - Roldán-Riejos, A.M.; Úbeda-Mansilla, P. Metaphor use in a specific genre of engineering discourse. Eur. J. Eng. Educ.
**2006**, 31, 531–541. [Google Scholar] [CrossRef] - Lopes, L.L. Between Hope and Fear: The Psychology of Risk. In Advances in Experimental Social Psychology; Berkowitz, L., Ed.; Academic Press: Cambridge, MA, USA, 1987; Volume 20, pp. 255–295. [Google Scholar] [CrossRef]
- Arnold, K.E.; Pistilli, M.D. Course signals at Purdue: Using learning analytics to increase student success. In LAK ’12: Proceedings of the 2nd International Conference on Learning Analytics and Knowledge; ACM: New York, NY, USA, 2012; pp. 267–270. [Google Scholar] [CrossRef]
- van der Aalst, W. Process Mining: The Missing Link. In Process Mining: Data Science in Action; van der Aalst, W., Ed.; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar] [CrossRef]
- Martin, N.; De Weerdt, J.; Fernández-Llatas, C.; Gal, A.; Gatta, R.; Ibáñez, G.; Johnson, O.; Mannhardt, F.; Marco-Ruiz, L.; Mertens, S. Recommendations for enhancing the usability and understandability of process mining in healthcare. Artif. Intell. Med.
**2020**, 109, 101962. [Google Scholar] [CrossRef] - Utama, N.I.; Sutrisnowati, R.A.; Kamal, I.M.; Bae, H.; Park, Y.-J. Mining Shift Work Operation from Event Logs. Appl. Sci.
**2020**, 10, 7202. [Google Scholar] [CrossRef] - Van Der Aalst, W.M. A practitioner’s guide to process mining: Limitations of the directly-follows graph. Procedia Comput. Sci.
**2019**, 164, 321–328. [Google Scholar] [CrossRef] - Bin Ahmadon, M.A.; Yamaguchi, S. Verification Method for Accumulative Event Relation of Message Passing Behavior with Process Tree for IoT Systems. Information
**2020**, 11, 232. [Google Scholar] [CrossRef][Green Version] - van Eck, M.L.; Lu, X.; Leemans, S.J.J.; van der Aalst, W.M.P. PM^2: A Process Mining Project Methodology. In Advanced Information Systems Engineering; Zdravkovic, J., Kirikova, M., Johannesson, P., Eds.; Springer: Cham, Switzerland, 2015; pp. 297–313. [Google Scholar] [CrossRef][Green Version]
- Dumas, M.; la Rosa, M.; Mendling, J.; Reijers, H.A. Introduction to Business Process Management. In Fundamentals of Business Process Management; Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar] [CrossRef]
- Maldonado-Mahauad, J.; Pérez-Sanagustín, M.; Kizilcec, R.F.; Morales, N.; Munoz-Gama, J. Mining theory-based patterns from Big data: Identifying self-regulated learning strategies in Massive Open Online Courses. Comput. Hum. Behav.
**2018**, 80, 179–196. [Google Scholar] [CrossRef] - Johnson, O.A.; Dhafari, T.B.; Kurniati, A.; Fox, F.; Rojas, E. The ClearPath Method for Care Pathway Process Mining and Simulation. In Business Process Management Workshops; Springer International Publishing: Cham, Switzerland, 2019; Volume 342, pp. 239–250. [Google Scholar] [CrossRef][Green Version]
- Lorenz, R.; Senoner, J.; Sihn, W.; Netland, T. Using process mining to improve productivity in make-to-stock manufacturing. Int. J. Prod. Res.
**2021**, 1–12. [Google Scholar] [CrossRef] - Reimann, P.; Markauskaite, L.; Bannert, M. e-Research and learning theory: What do sequence and process mining methods contribute? Br. J. Educ. Technol.
**2014**, 45, 528–540. [Google Scholar] [CrossRef] - Zhou, X.; Zacharewicz, G.; Chen, D.; Chu, D. A Method for Building Service Process Value Model Based on Process Mining. Appl. Sci.
**2020**, 10, 7311. [Google Scholar] [CrossRef] - Salazar-Fernandez, J.P.; Sepúlveda, M.; Munoz-Gama, J. Influence of student diversity on educational trajectories in engineering high-failure rate courses that lead to late dropout. In Proceedings of the 2019 IEEE Global Engineering Education Conference (EDUCON), Dubai, United Arab Emirates, 9–11 April 2019; pp. 607–616. [Google Scholar] [CrossRef]
- Berti, A.; van Zelst, S.J.; van der Aalst, W. Process mining for python (PM4Py): Bridging the gap between process-and data science. arXiv
**2019**, arXiv:1905.06169. [Google Scholar] - Janssenswillen, G.; Depaire, B.; Swennen, M.; Jans, M.; Vanhoof, K. bupaR: Enabling reproducible business process analysis. Knowl. Based Syst.
**2019**, 163, 927–930. [Google Scholar] [CrossRef][Green Version] - Günther, C.W.; Rozinat, A. Disco: Discover Your Processes; BPM (Demos): Tallin, Estonia, 2012; Volume 940, pp. 40–44. Available online: http://ceur-ws.org/Vol-940/paper8.pdf (accessed on 25 March 2021).
- Geyer-Klingeberg, J.; Nakladal, J.; Baldauf, F.; Veit, F. Process Mining and Robotic Process Automation: A Perfect Match. In Proceedings of the International Conference on Business Process Management, Sydney, Australia, 9–14 September 2018; pp. 1–8, 124–131. Available online: http://ceur-ws.org/Vol-2196/BPM_2018_paper_28.pdf (accessed on 25 March 2021).
- Kember, D.; Leung, D.; Prosser, M. Has the open door become a revolving door? The impact on attrition of moving from elite to mass higher education. Stud. High. Educ.
**2021**, 46, 258–269. [Google Scholar] [CrossRef] - Rodríguez-Gómez, D.; Meneses, J.; Gairín, J.; Feixas, M.; Muñoz, J.L. They have gone, and now what? Understanding re-enrolment patterns in the Catalan public higher education system. High. Educ. Res. Dev.
**2016**, 35, 815–828. [Google Scholar] [CrossRef][Green Version] - Stump, G.S.; Husman, J.; Corby, M. Engineering Students’ Intelligence Beliefs and Learning. J. Eng. Educ.
**2014**, 103, 369–387. [Google Scholar] [CrossRef] - Suresh, R. The Relationship between Barrier Courses and Persistence in Engineering. J. Coll. Stud. Retent. Res. Theory Pr.
**2006**, 8, 215–239. [Google Scholar] [CrossRef] - Haag, S.; Collofello, J. Engineering undergraduate persistence and contributing factors. In Proceedings of the 38th Annual Frontiers in Education Conference, Saratoga Springs, NY, USA, 22–25 October 2008; pp. T4D-8–T4D-14. [Google Scholar] [CrossRef]
- Bernasconi, A. Inclusion Programs at Elite Universities: The Case of Chile. In Mitigating Inequality: Higher Education Research, Policy, and Practice in an Era of Massification and Stratification; Advances in Education in Diverse Communities; Emerald Publishing Limited: Bingley, UK, 2015; Volume 11, pp. 303–310. [Google Scholar] [CrossRef]
- Bose, R.J.C.; Mans, R.S.; Van Der Aalst, W.M. Wanna improve process mining results? In Proceedings of the 2013 IEEE Symposium on Computational Intelligence and Data Mining (CIDM), Singapore, 16–19 April 2013; IEEE: New York, NY, USA, 2013; pp. 127–134. [Google Scholar] [CrossRef]
- Salazar-Fernandez, J.; Sepúlveda, M.; Munoz-Gama, J.; Nussbaum, M. Curricular Analytics to Characterize Educational Trajectories in High-Failure Rate Courses That Lead to Late Dropout. Appl. Sci.
**2021**, 11, 1436. [Google Scholar] [CrossRef] - Sage, A.J.; Cervato, C.; Genschel, U.; Ogilvie, C.A. Combining Academics and Social Engagement: A Major-Specific Early Alert Method to Counter Student Attrition in Science, Technology, Engineering, and Mathematics. J. Coll. Stud. Retent. Res. Theory Pract.
**2021**, 22, 611–626. [Google Scholar] [CrossRef][Green Version] - Tariq, Z.; Khan, N.; Charles, D.; McClean, S.; McChesney, I.; Taylor, P. Understanding Contrail Business Processes through Hierarchical Clustering: A Multi-Stage Framework. Algorithms
**2020**, 13, 244. [Google Scholar] [CrossRef]

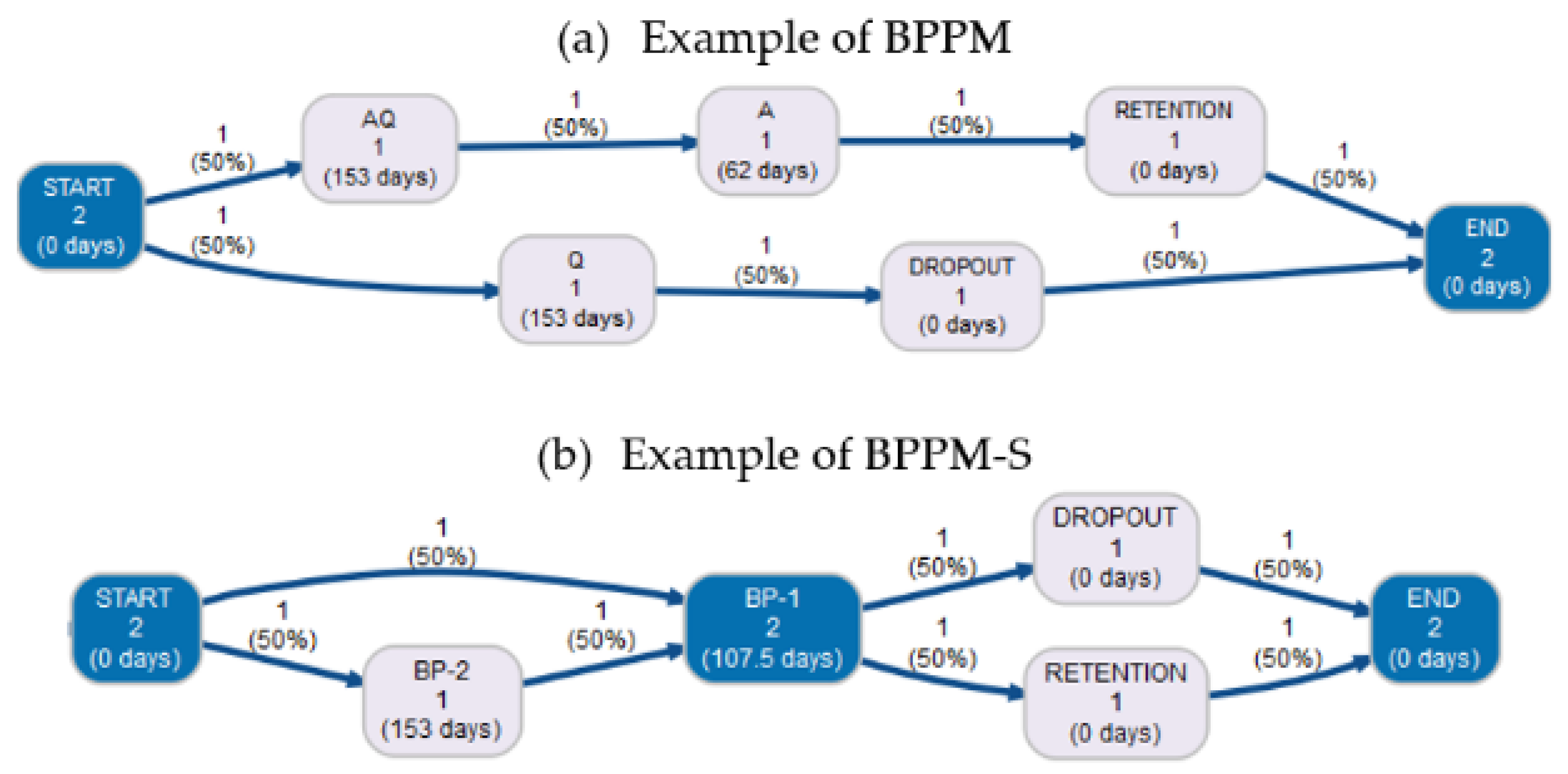

**Figure 1.**Example of educational trajectories, according to the BPPM and BPPM-S models. (

**a**) Shows an example of BPPM. (

**b**) Shows an example of BPPM-S. The darker color of the nodes represents a higher percentage of students who went through each state. The thickness of the arrows represents the percentage of students who had transitions between both states. All values are percentages in relation to the total number of students included in each model.

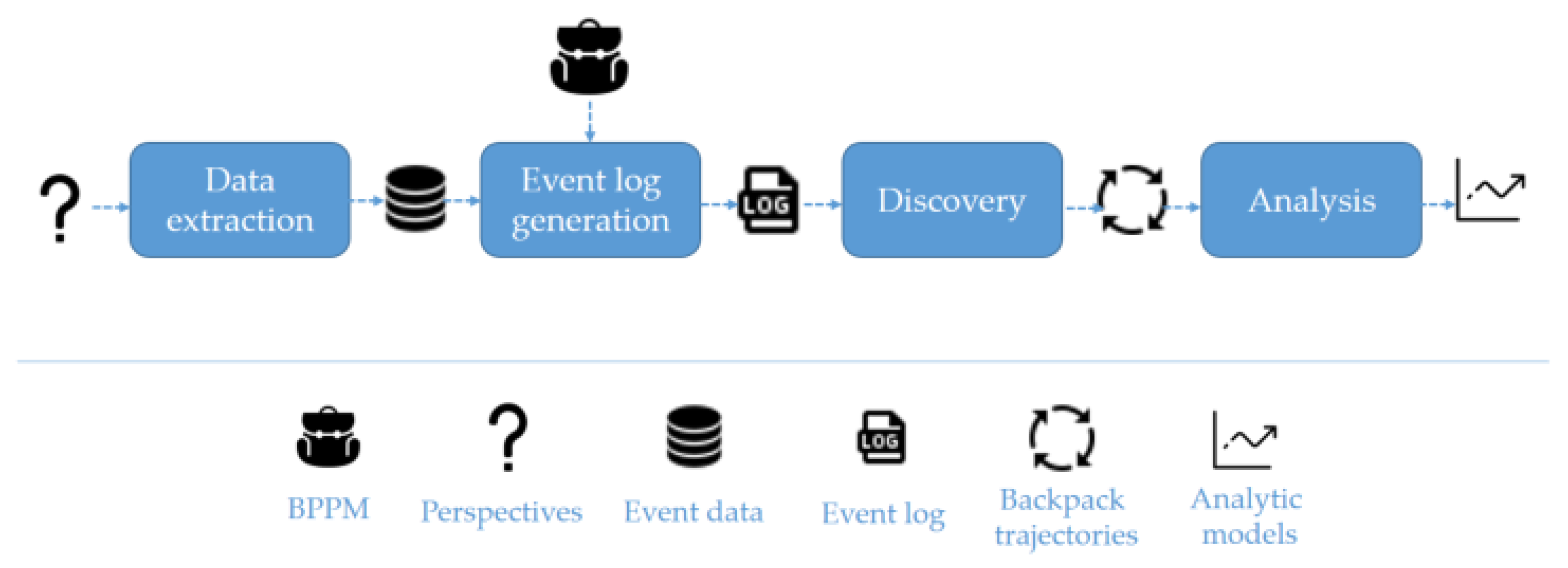

**Figure 2.**Stages for the generation of the process model, based on an adapted version of PM

^{2}methodology [35].

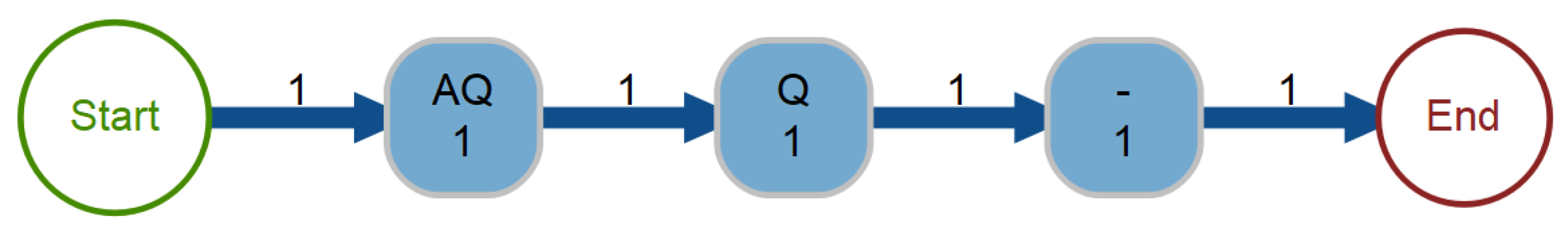

**Figure 3.**Graphical representation of the sequence of backpacks for the student with s = 23, shown as an example in Table 2, according to the BPPM model.

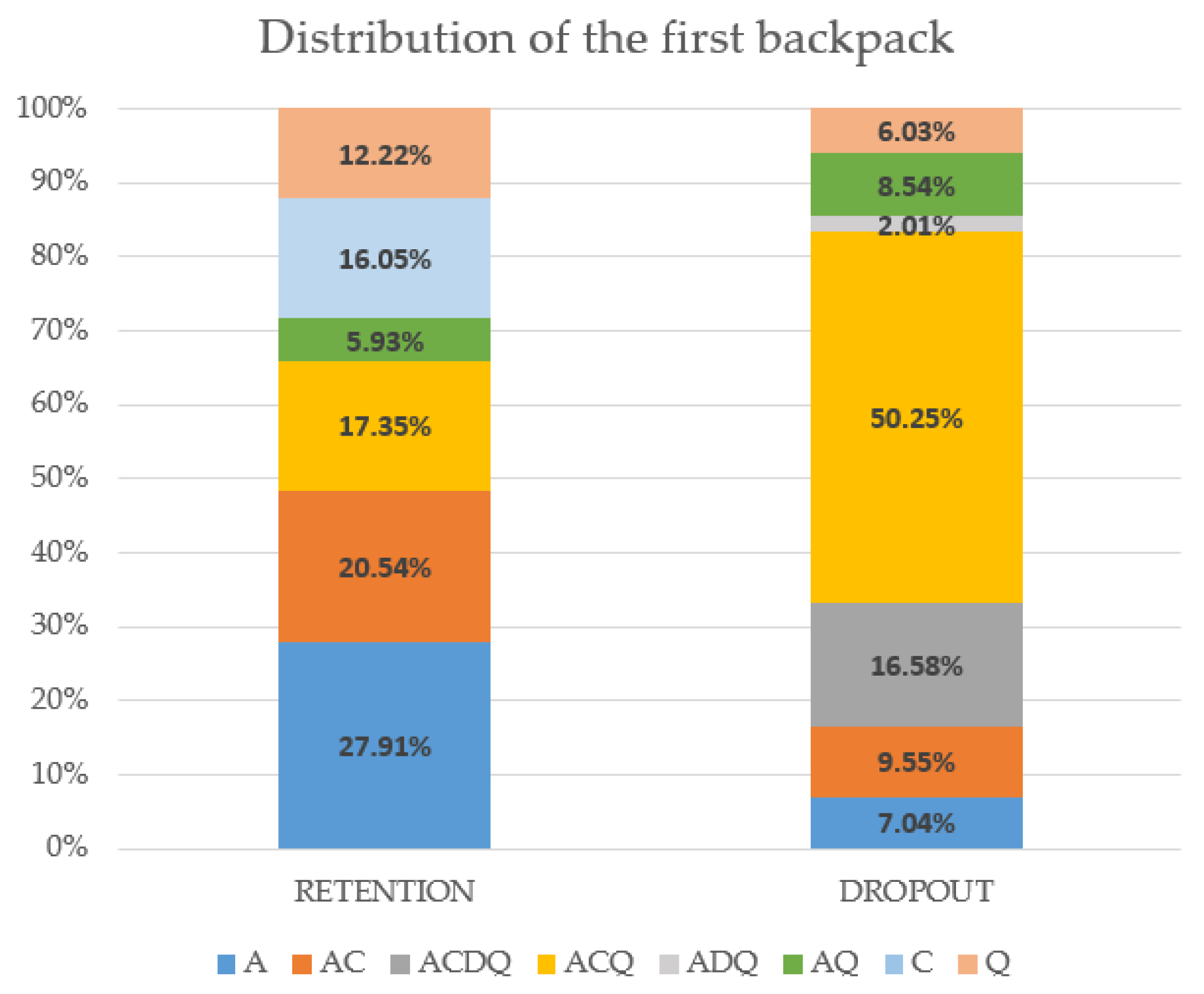

**Figure 4.**Percentage of educational trajectories, according to the BPPM model, that started with each backpack. The graph considers only the most frequent variants for each model, corresponding to 80% of the students. The RETENTION column considers only students who had a backpack and emptied it (1383 cases, seven more frequent variants). The DROPOUT columns consider only students who had a backpack, were not able to empty it and finally dropped out (199 cases, 13 more frequent variants).

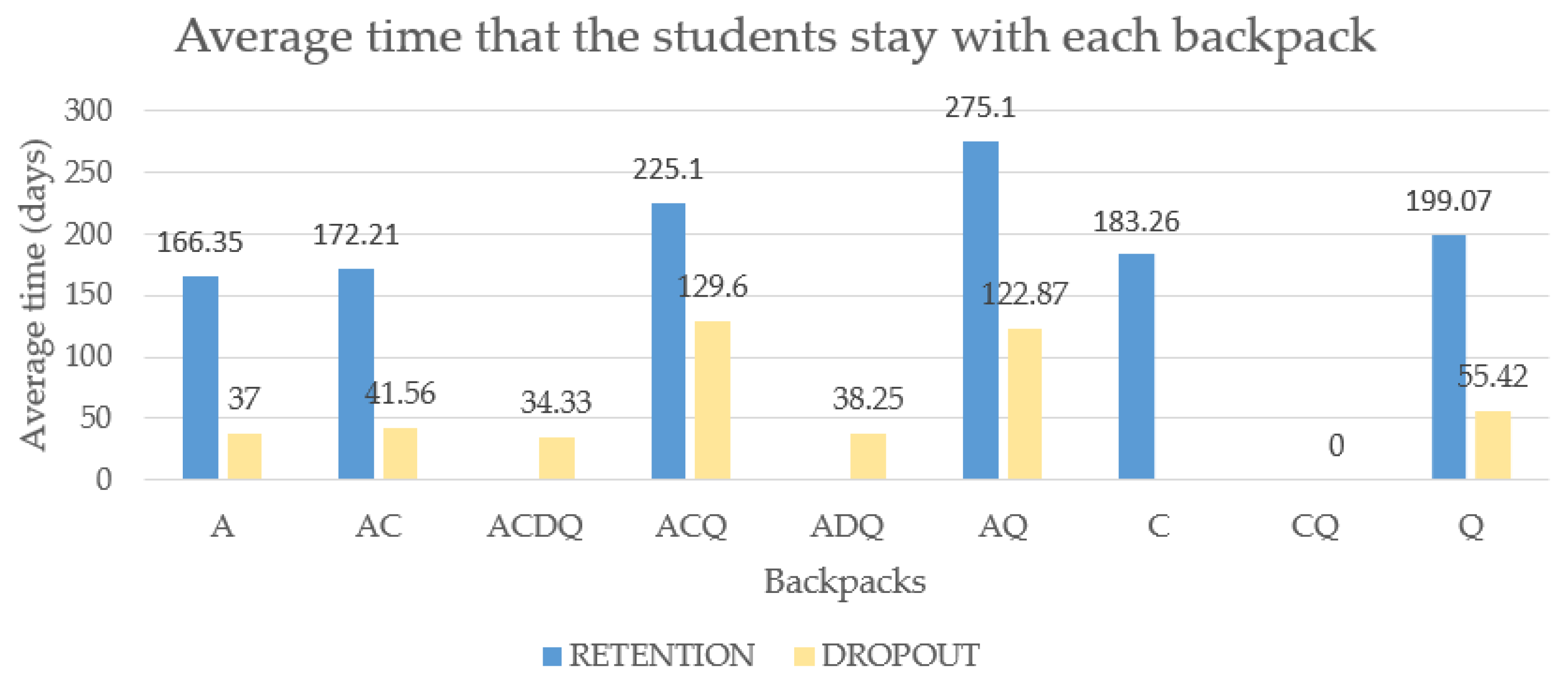

**Figure 5.**Average time (in days) that the students stay in each backpack. The graph considers only the most frequent variants for each model, corresponding to 80% of the students. The RETENTION columns consider only students who had a backpack and emptied it. The DROPOUT columns consider only students who had a backpack, were not able to empty it and finally dropped out.

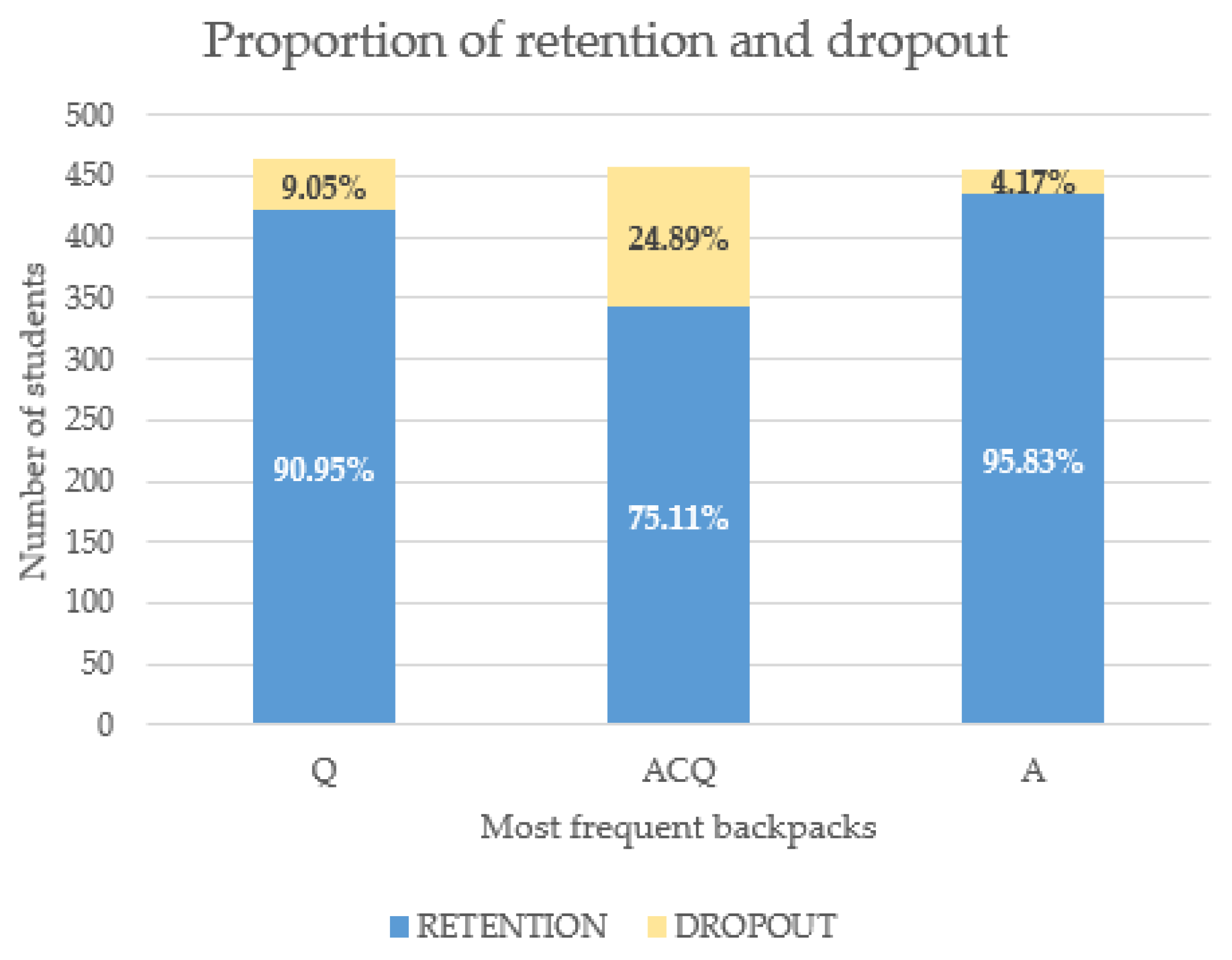

**Figure 6.**Proportion of educational trajectories, according to the BPPM model, that includes each one of the three most frequent backpacks (Q, ACQ and A) and end either in RETENTION or in DROPOUT.

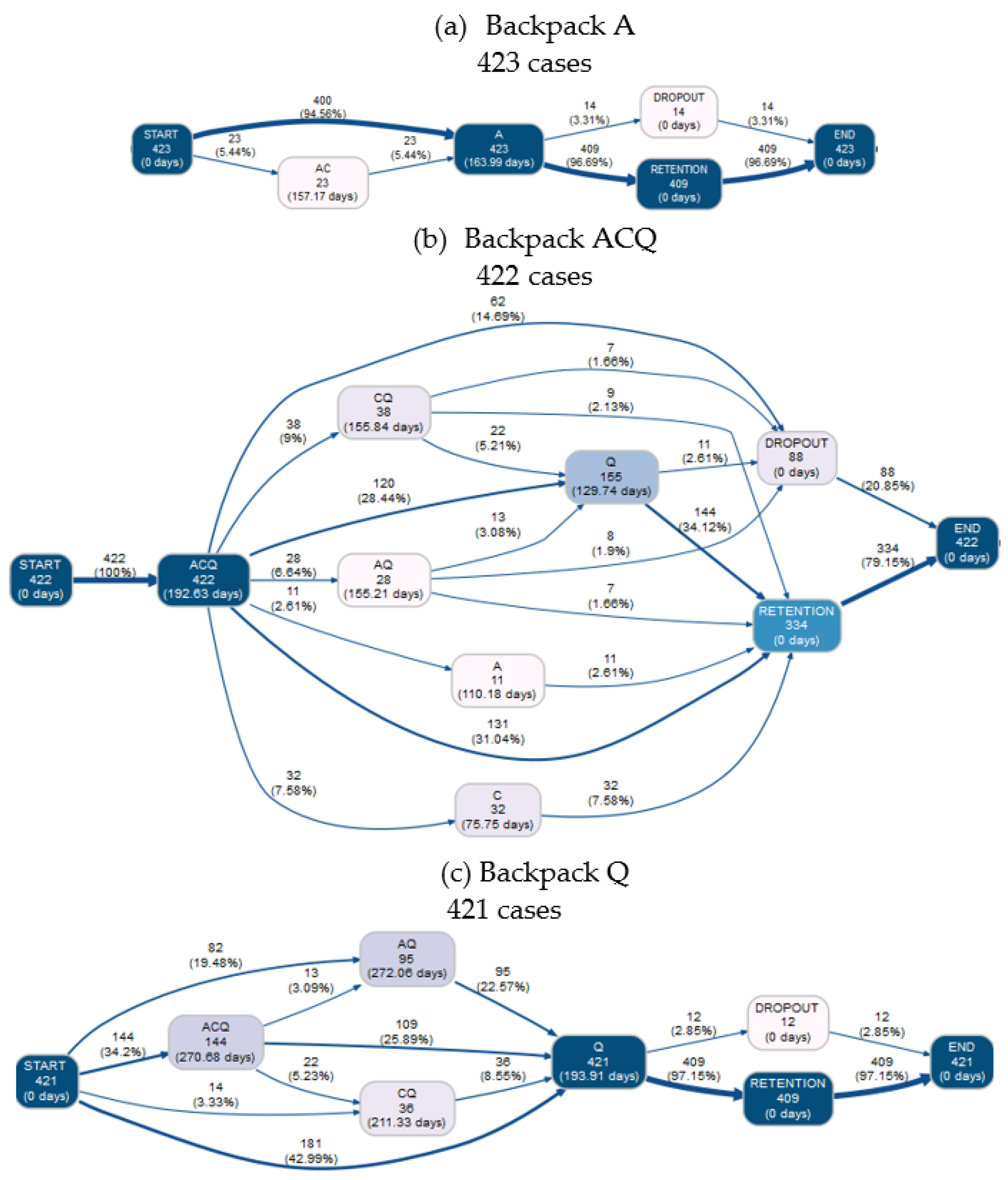

**Figure 7.**Educational trajectories, according to the BPPM model, which includes the three most frequent backpacks, showing only the most frequent variants, which correspond to 90% of the students in each case. (

**a**) Shows backpack trajectories that include the A backpack. (

**b**) Shows backpack trajectories that include the ACQ backpack. (

**c**) Shows backpack trajectories that include the Q backpack. The darker color of the nodes represents a higher percentage of students who went through a state. The thickness of the arrows represents the percentage of students who had transitions between both states. All values are percentages in relation to the total number of students included in each model.

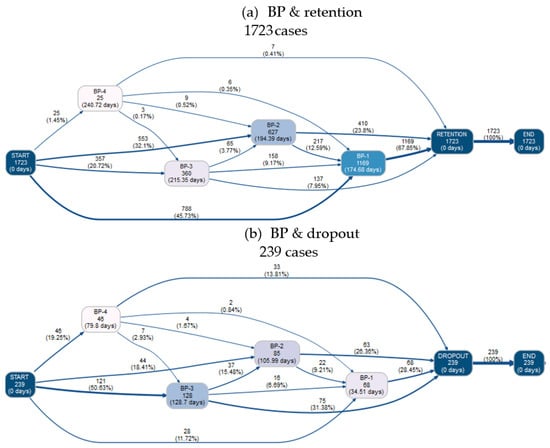

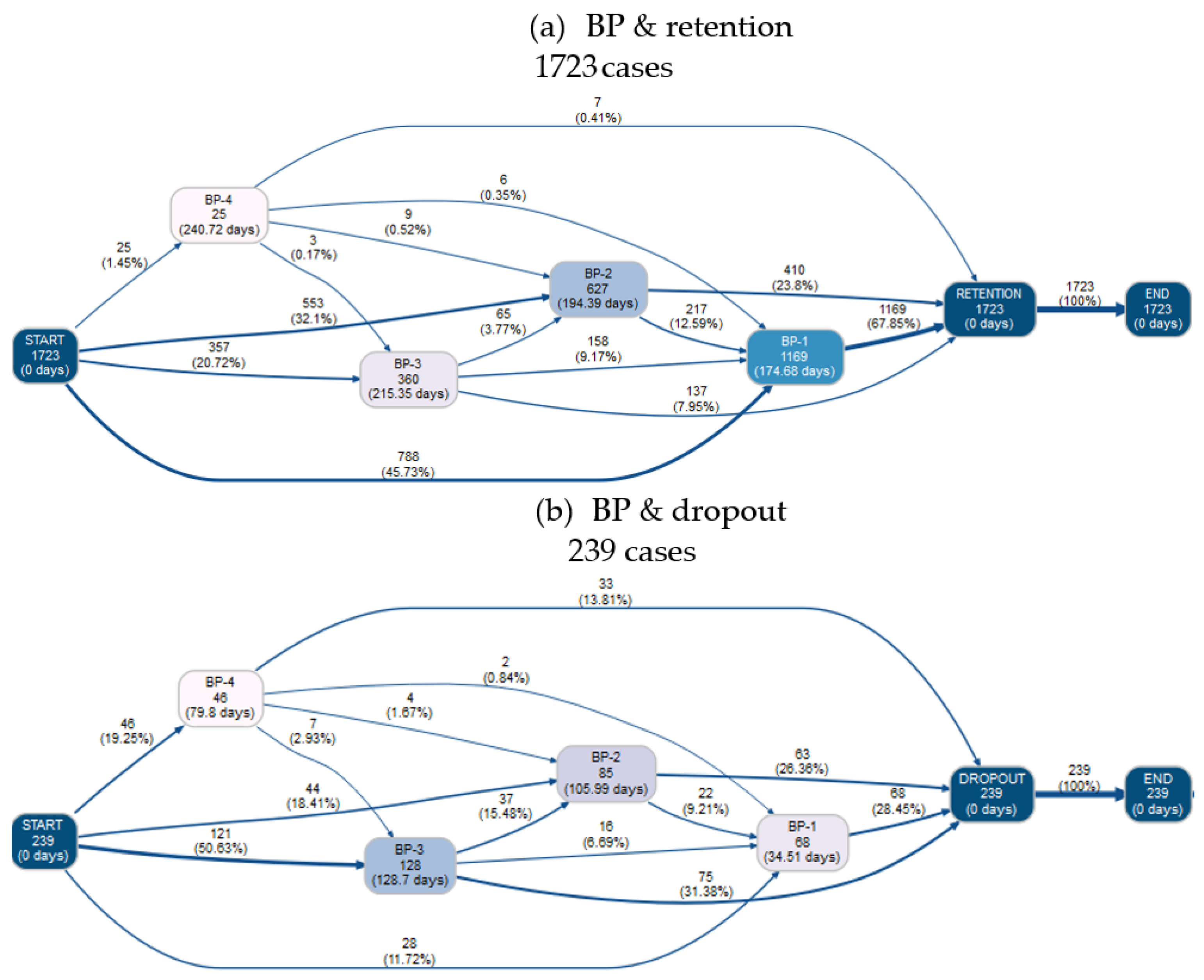

**Figure 8.**Educational trajectories, according to the BPPM-S model. (

**a**) Shows only students who had a backpack and emptied it. (

**b**) Shows only students who had a backpack, were not able to empty it and finally dropped out. The darker color of the nodes represents a higher percentage of students who went through a state. The thickness of the arrows represents the percentage of students who had transitions between both states. All values are percentages in relation to the total number of students included in each model.

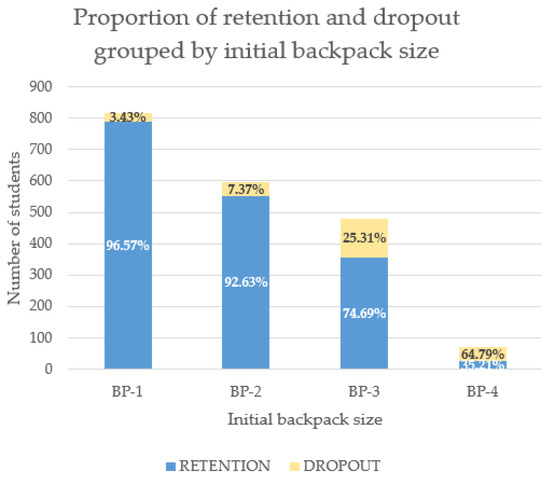

**Figure 9.**Number and proportion of students who, according to the BPPM-S model, either finished in RETENTION or in DROPOUT, grouped according to the initial backpack size.

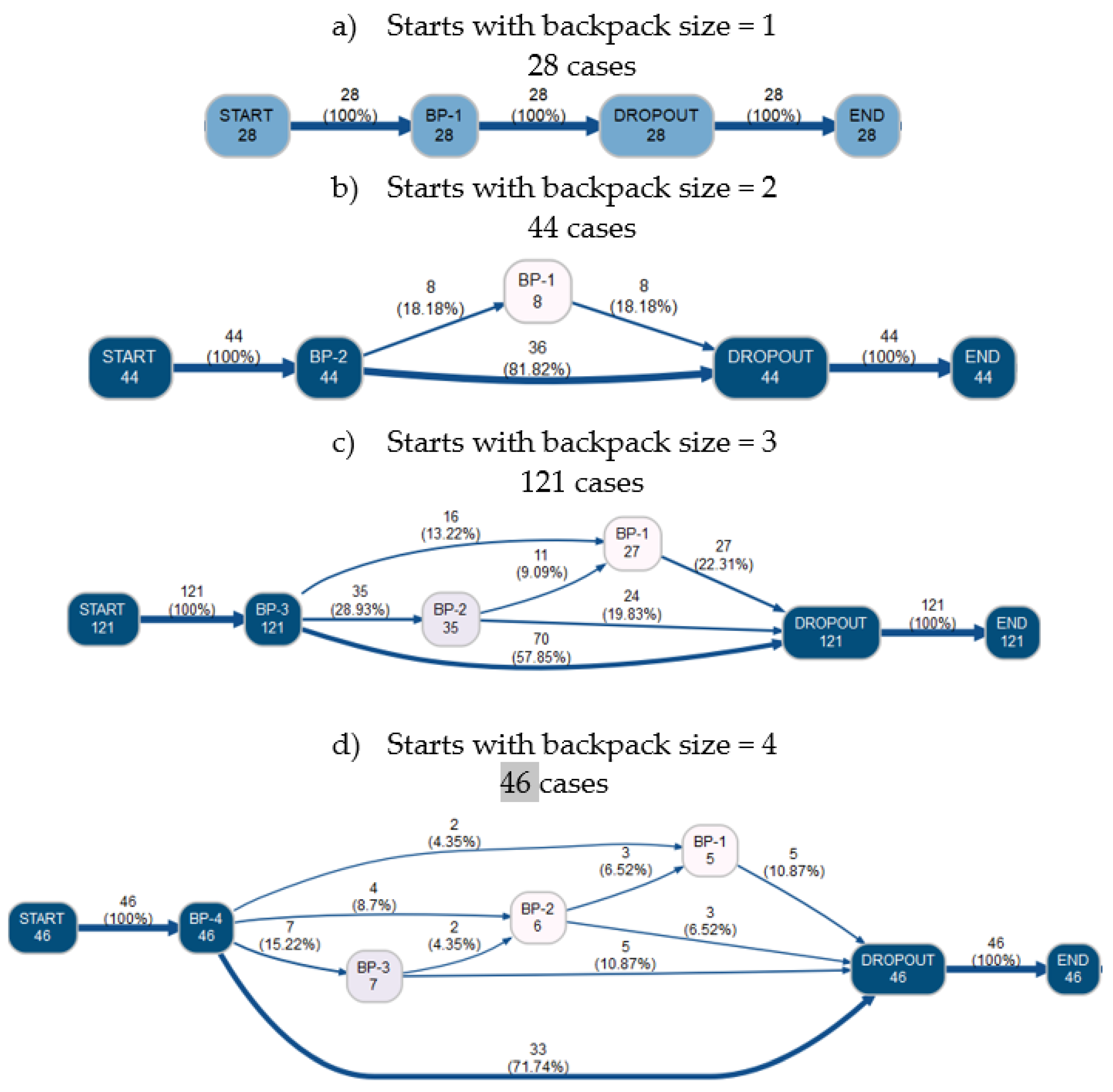

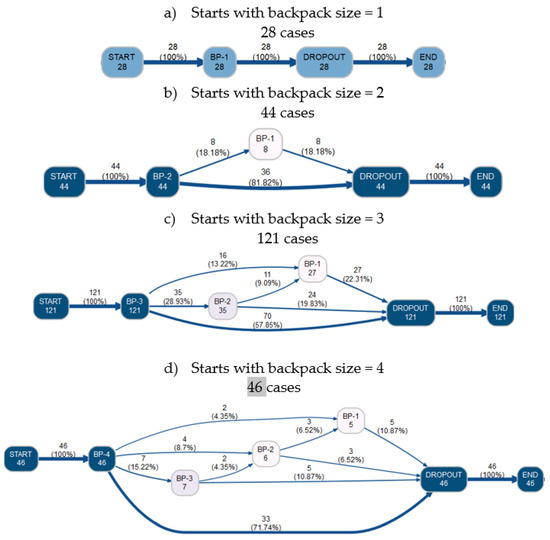

**Figure 10.**Educational trajectories that ended in DROPOUT, according to the BPPM-S model. (
