# Neural Networks—Deflection Prediction of Continuous Beams with GFRP Reinforcement

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- ACI Committee 440. Guide for the Design and Construction of Structural Concrete Reinforced with Fiber-Reinforced Polymer (FRP) Bars (ACI 440.1R-15); American Concrete Institute: Farmington Hills, MI, USA, 2015. [Google Scholar]
- CSA S806-12. Design and Construction of Buildings Components with Fiber-Reinforced Polymers; Canadian Standards Association (CSA): Toronto, ON, Canada, 2012. [Google Scholar]
- Baša, N.; Ulićević, M.; Zejak, R. Experimental Research of Continuous Concrete Beams with GFRP Reinforcement. Hindawi Adv. Civ. Eng.
**2018**, 2018, 6532723. [Google Scholar] [CrossRef] - Baša, N.; Vuković, N.K.; Ulićević, M.; Muhadinović, M. Effects of Internal Force Redistribution on the Limit States of Continuous Beams with GFRP Reinforcement. Appl. Sci.
**2020**, 10, 3973. [Google Scholar] [CrossRef] - Adeli, H.; Yeh, C. Perceptron learning in engineering design. Microcomput. Civ. Eng.
**1989**, 4, 247–256. [Google Scholar] [CrossRef] - Sodikov, J. Cost estimation of highway projects in developing countries: Artificial neural network approach. J. East. Asia Soc. Transp. Stud.
**2005**, 6, 1036–1047. [Google Scholar] - Wang, X.; Duan, X.; Liu, J. Application of Neural Network in the Cost Estimation of Highway Engineering. J. Comput.
**2010**, 5, 1762–1766. [Google Scholar] [CrossRef] - Wilmont, C.G.; Cheng, G. Estimating Future Highway Construction Costs. J. Constr. Eng. Manag.
**2003**, 129, 272–279. [Google Scholar] [CrossRef] - Wilmont, C.G.; Mei, B. Neural Network Modeling of Highway Construction Costs. J. Constr. Eng. Manag.
**2005**, 131, 765–771. [Google Scholar] [CrossRef] - Gunaydin, H.M.; Dogan, S.Z. A neural network approach for early cost estimation of structural systems of buildings. Int. J. Proj. Manag.
**2004**, 22, 595–602. [Google Scholar] [CrossRef][Green Version] - Mehmet, B.; Kazez, C.V. Bridge Damage and Repair Cost Estimates after a Hurricane. In THC 2010 Conference & Exhibition; UNEP: Montreal, QC, Canada, 2010. [Google Scholar]
- Atta-Asiamah, E. Estimation of the Cost of Building a Water Treatment Plant and Related Facilities for Kaw City, Oklahoma; Faculty of the Graduate College of the Oklahoma State University: Stillwater, OK, USA, 2005. [Google Scholar]
- Burrows, T.K.; Pegg, I.; Martin, J. Predicting Building Construction Duration. In 2005 ACCE International Transactions; ProQuest LLC: Ann Arbor, MI, USA, 2005; p. PS.14. [Google Scholar]
- Knežević, M.; Zejak, R. Neuronske mreže-primjena za izradu prognoznog modela eksperimentalnog istraživanja za vitke armirano-betonske stubove. Materijali i Konstrukcije
**2008**, 51, 41–56. [Google Scholar] - Lazarevska, M.; Knežević, M.; Cvetkovska, M.; Ivanišević, N.; Samardzioska, T.; Trombeva-Gavrilovska, A. Prognostički model za određivanje požarne otpornosti AB stubova. Građevinar
**2012**, 64, 565–571. [Google Scholar] - Dias, W.P.S.; Pooliyadda, S.P. Neural networks for predicting properties of concretes with admixtures. Constr. Build. Mater.
**2001**, 15, 371–379. [Google Scholar] [CrossRef] - Alshihri, M.M.; Azmy, A.M.; El-Bisy, M.S. Neural networks for predicting compressive strength of structural light weight concrete. Constr. Build. Mater.
**2009**, 23, 2214–2219. [Google Scholar] [CrossRef] - Mohammadhassani, M.; Nezamabadi-Pour, H.; Jumaatm, Z.; Jameel, M.; Arumugam, A.M.S. Application of artificial neural networks (ANNs) and linear regressions (LR) to predict the deflection of concrete deep beams. Comput. Concr.
**2013**, 11, 237–252. [Google Scholar] [CrossRef] - Muhammad, H. Neural networks applications in concrete structures. Comput. Struct.
**2003**, 81, 373–381. [Google Scholar] [CrossRef] - Al-Shather, L.M.; Redah, S.M. Prediction of shear strength of reinforced concrete beams using Artificial Neural Network and evaluated by Finite Element Software. Int. J. Sci. Eng. Res.
**2018**, 9, 34–42. [Google Scholar] [CrossRef] - Hong-Guang, N.; Ji-Zong, W. Prediction of compressive strength of concrete by neural networks. Cem. Concr. Res.
**2000**, 30, 1245–1250. [Google Scholar] - Oreta, A.W.C.; Kawashima, K. Neural Network Modeling of Confined Compressive Strength and Strain of Circular Concrete Columns. J. Struct. Eng.
**2003**, 129, 554–561. [Google Scholar] [CrossRef] - Mohammadi, E.; Behnood, A.; Arashpour, M. Predicting the compressive strength of normal and High-Performance Concretes using ANN and ANFIS hybridized with Grey Wolf Optimizer. Constr. Build. Mater.
**2020**, 232, 117266. [Google Scholar] [CrossRef] - Mansoura, M.Y.; Diclelib, M.; Leec, J.Y.; Zhanga, J. Predicting the shear strength of reinforced concrete beams using artificial neural networks. Eng. Struct.
**2004**, 26, 781–799. [Google Scholar] [CrossRef] - Naser, M.; Abu-Lebdeh, G.; Hawileh, R. Analysis of RC T-beams strengthened with CFRP plates under fire loading using ANN. Constr. Build. Mater.
**2012**, 37, 301–309. [Google Scholar] [CrossRef] - Mangalathu, S.; Jong-Su, J. Classification of failure mode and prediction of shear strength for reinforced concrete beam-column joints using machine learning techniques. Eng. Struct.
**2018**, 160, 85–94. [Google Scholar] [CrossRef] - Zhang, G.; Patuwo, B.E.; Hu, M.Y. Forecasting with Artificial Neural Networks: The State of the Art; Graduate School of Management, Kent State University: Kent, OH, USA, 1997. [Google Scholar]
- Brownlee, J. Machine Learning Mastery with Weka; Machine Learning Mastery: Victoria, Australija, 2016. [Google Scholar]
- Beljkaš, Ž.; Knežević, M.; Rutešić, S.; Ivanišević, N. Application of Artificial Intelligence for the Estimation of Concrete and Reinforcement Consumption in the Construction of Integral Bridges. Hindawi Adv. Civ. Eng.
**2020**, 2020, 8645031. [Google Scholar] [CrossRef] - Janičić, P.; Nikolić, M. Veštačka Inteligencija; Matematički fakultet Univerziteta u Beogradu: Beograd, Serbian, 2019. [Google Scholar]

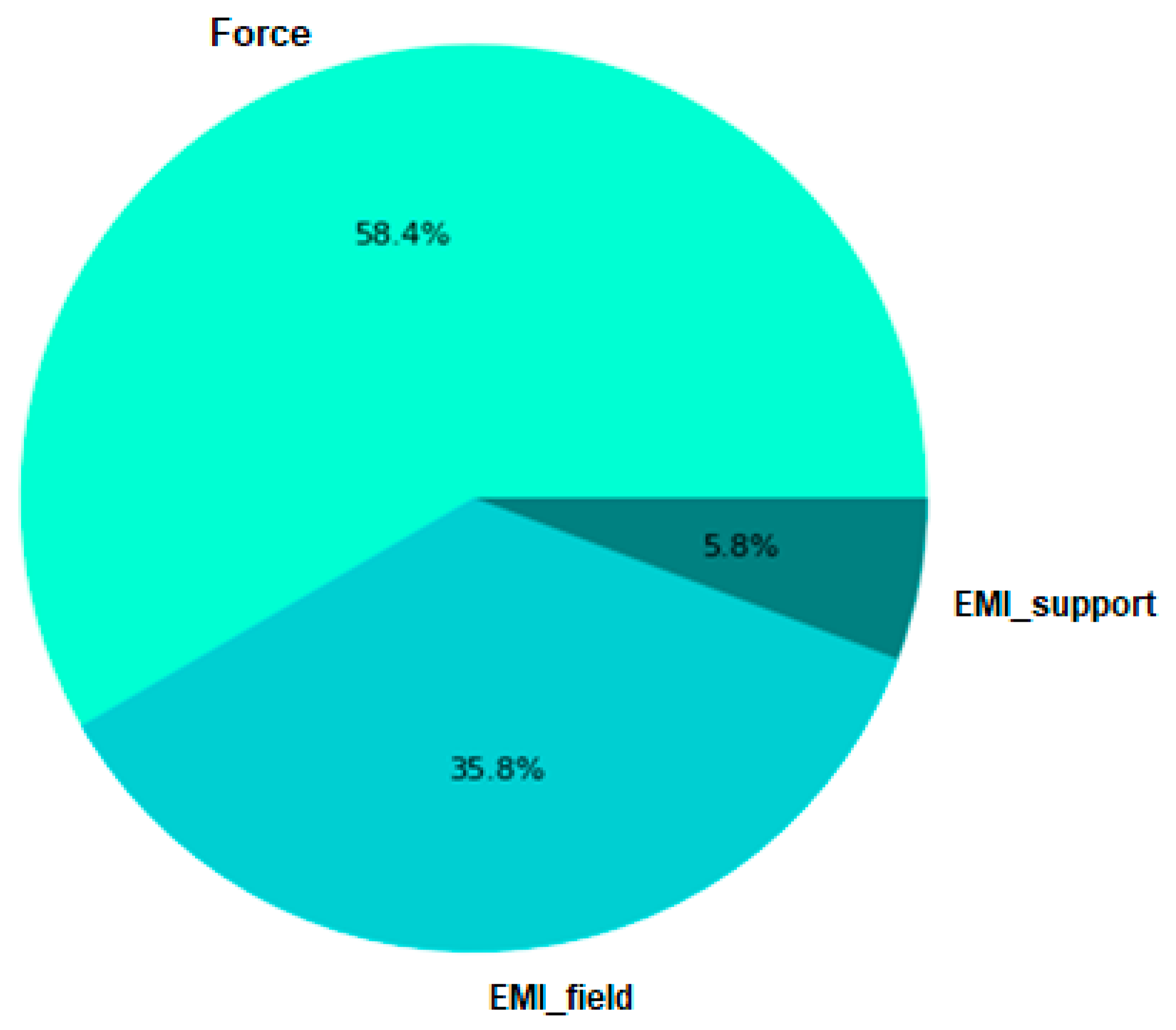

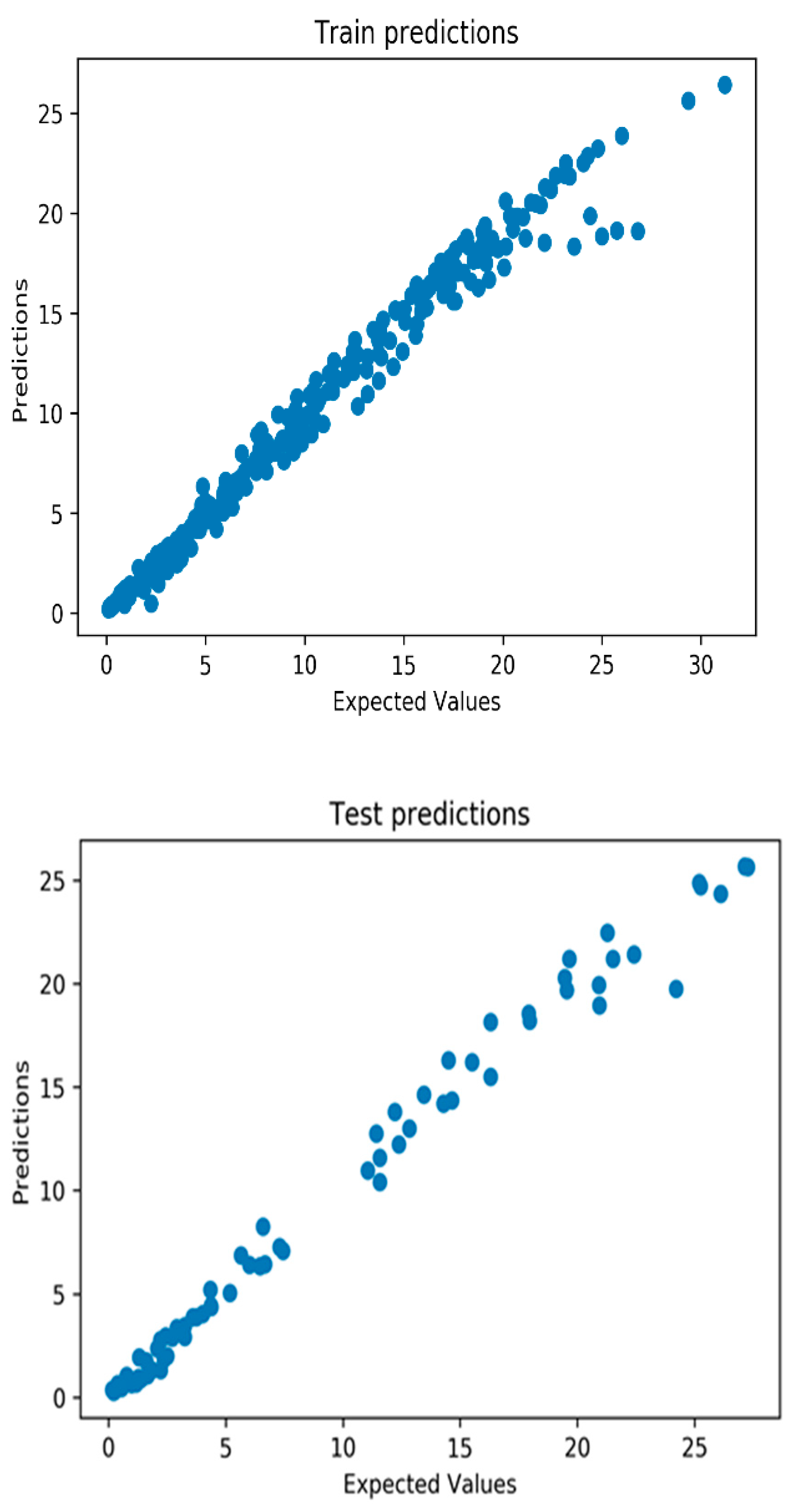

**Figure 6.**Relationship between deflections values obtained in experimental research and predicted deflections values from training and test sets.

**Table 1.**Some of the equations for calculating the deflection of continuous beams loaded with concentrated forces in the middle of the span.

Equation | Comment |
---|---|

$$\Delta =\frac{7}{768}\cdot \frac{P{L}^{3}}{{E}_{c}{I}_{e}}$$
| Equation derived from elastic analysis |

$${\Delta}_{\mathrm{max}}=\frac{P{L}^{3}}{48{E}_{c}{I}_{cr}}\left(\frac{5}{16}-\frac{15}{8}\left(1-\frac{{I}_{cr}}{{I}_{g}}\right)\cdot {\left(\frac{{L}_{g}}{L}\right)}^{3}\right)$$
| The deflection calculation according to CSA S806-12 [2] is based on the moment–curve ratio along the span |

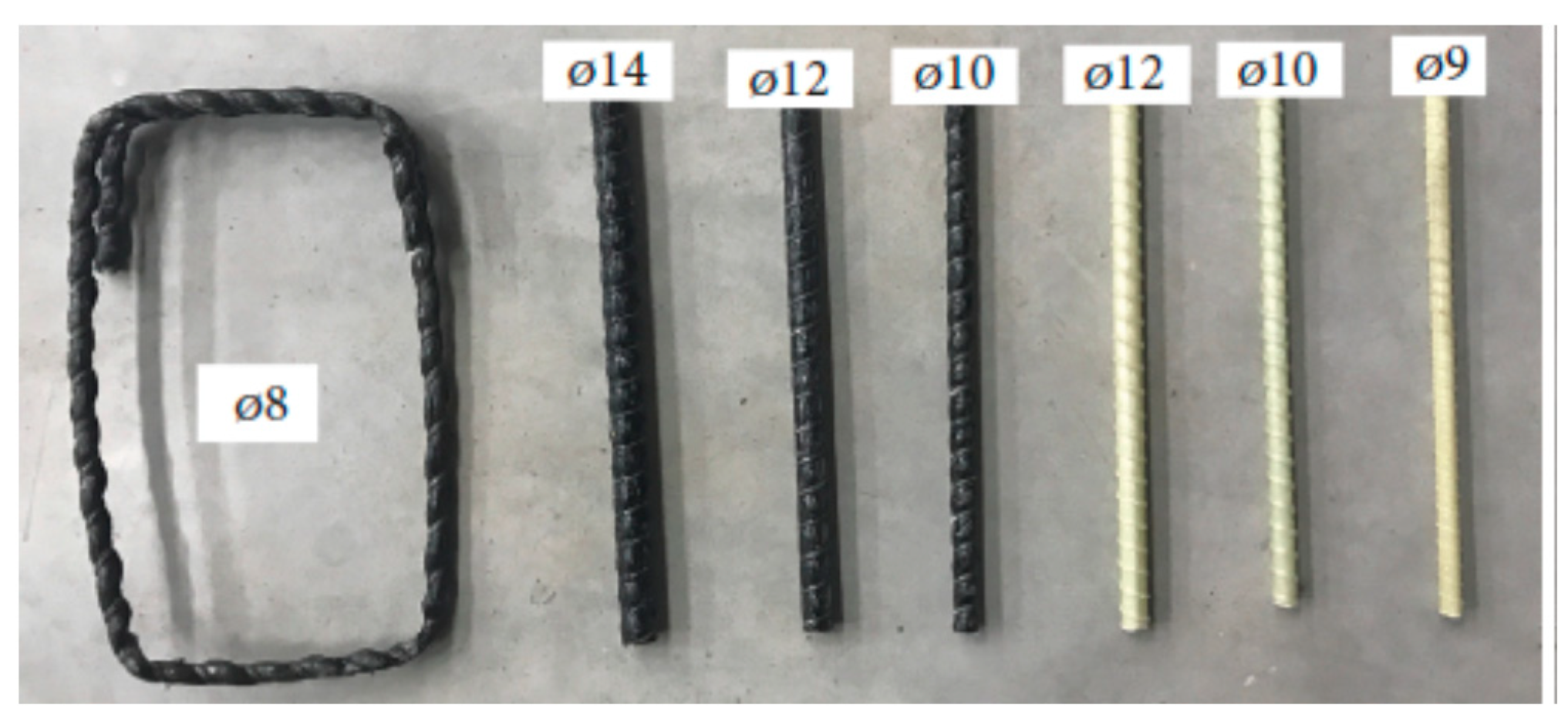

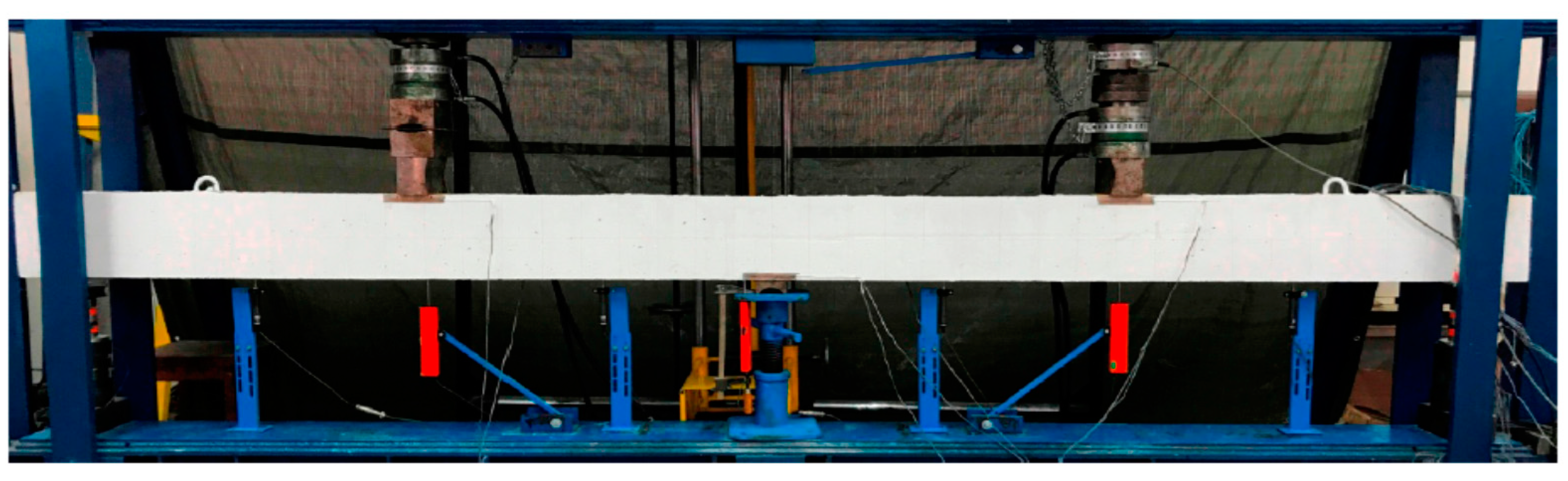

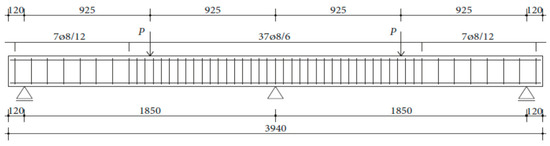

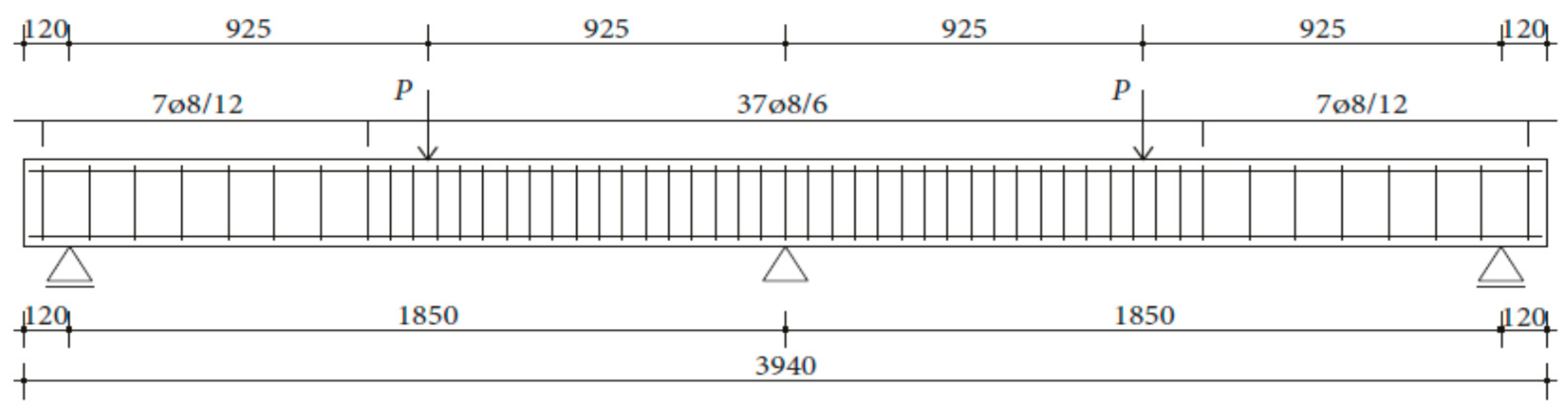

Beam | Longitudinal Reinforcement Support—Upper Zone | Longitudinal Reinforcement Midspan—Lower Zone | Reinforcement | Cross-Section |
---|---|---|---|---|

B1 | 3Φ14 | 2Φ12 + 1Φ10 | GFRP polyester—wrapped | |

B2 | 2Φ10 + 1Φ14 | 2Φ12 + 1Φ14 | GFRP polyester—wrapped | |

B3 | 2Φ10 + 1Φ12 | 2Φ14 + 1Φ12 | GFRP polyester—wrapped | |

B4 | 3Φ12 | 3Φ10 | GFRP polyester—wrapped | |

B5 | 2Φ9 + 1Φ12 | 2Φ12 + 1Φ9 | GFRP polyester—wrapped | |

B6 | 2Φ9 + 1Φ10 | 2Φ12 + 1Φ10 | GFRP polyester—wrapped | |

B7 | 3Φ7 | 2Φ6 + 1Φ7 | GFRP polyester—wrapped | |

B8 | 2Φ6 + 1Φ7 | 2Φ7 + 1Φ6 | GFRP polyester—wrapped | |

B9 | 4Φ12 | 2Φ10 + 2Φ9 | GFRP epoxy—ribbed (deformed) | |

B10 | 3Φ10 + 1Φ12 | 2Φ12 + 2Φ9 | GFRP epoxy—ribbed (deformed) | |

B11 | 3Φ9 | 3Φ12 + 1Φ10 | GFRP epoxy—ribbed (deformed) |

Input Data Number | Input Data Description | Data Type | Units of Measure | Min | Max | Mean Value |
---|---|---|---|---|---|---|

Input 1 | Force | numerical | kN | 5 | 137.75 | 55.571 |

Input 2 | Effective moment of inertia of the cross-section in the middle of the span | numerical | mm^{4} | 328.0033 | 19,531.25 | 2011.399 |

Input 3 | Effective moment of inertia of the cross-section above the support | numerical | mm^{4} | 290.1866 | 19,531.25 | 1965.198 |

Output Data Number | Output Data Description | Data Type | Units of Measure | Min | Max | Mean Value | |
---|---|---|---|---|---|---|---|

Output 1 | Deflection | numerical | mm | 0.11 | 31.20 | 9.703 | $\left(-\infty ,+\infty \right)$ |

Function | Mark | Explanation | Range |
---|---|---|---|

Identity | $x$. | ly in the output layer | $\left(-\infty ,+\infty \right)$ |

Rectified Linear units | $max\left(0,x\right)$ | Activation of neurons is transmitted directly as an output if it is positive, and if it is negative, 0 is transmitted. It has been proven to have 6 times better convergence compared to the hyperbolic tangent function. | $\left(0,+\infty \right)$ |

Hyperbolic tangent | $\frac{2}{\left(1+{e}^{-2x}\right)}-1$ | Activation of neurons is transmitted directly as an output if it is positive, and if it is negative, 0 is transmitted. | $\left(-1,1\right)$ |

Swish | $x\ast sigmoid\left(x\right)$ | A function that is nonlinearly interpolated between a linear and a ReLu function. | $\left(0,x\right)$ |

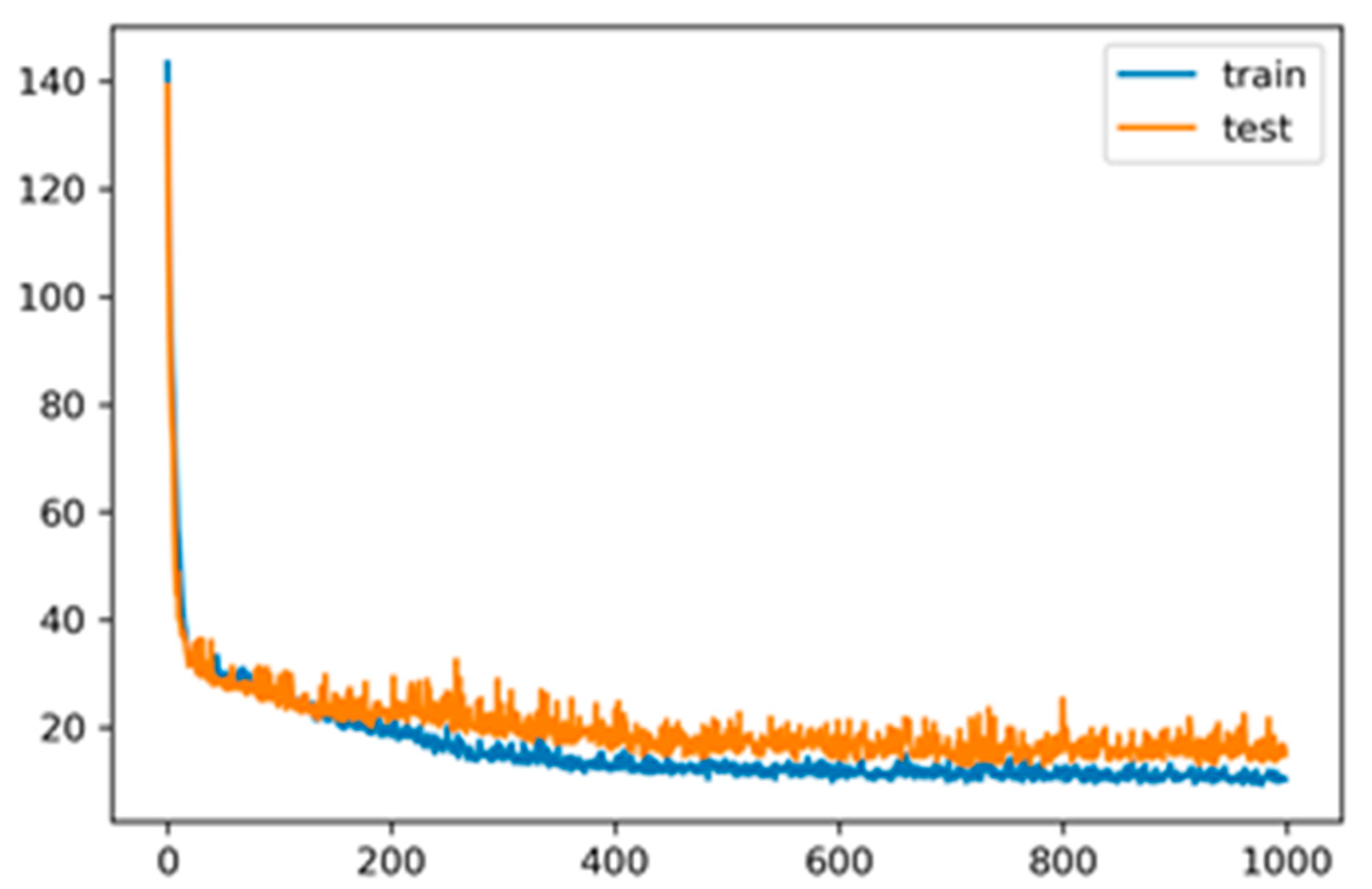

Model Name | Model Characteristics | Activation Function of Hidden Layers | Activation Function of Output Layer | MAPE Training Set [%] | MAPE Test Set [%] |
---|---|---|---|---|---|

NND4 | MLP 3-7-14-3-1 | ReLu | Identity | 9.89 | 13.40 |

NND5 | MLP 3-7-13-3-1 | Tanh | Identity | 13.82 | 13.55 |

NND6 | MLP 3-7-9-3-1 | Swish | Identity | 13.48 | 13.45 |

NND8 | MLP 6-7-7-3-1 | ReLu | Identity | 11.75 | 12.61 |

**Table 7.**Models of artificial neural networks for continuous beam deflection estimate (StandardScalar).

Model Name | Model Characteristics | Activation Function of Hidden Layers | Activation Function of Output Layer | MAPE Training Set [%] | MAPE Test Set [%] |
---|---|---|---|---|---|

NND1 | MLP 3-7-15-3-1 | ReLu | Identity | 10.62 | 21.34 |

NND2 | MLP 3-7-12-3-1 | Tanh | Identity | 14.61 | 11.83 |

NND3 | MLP 3-7-15-3-1 | Swish | Identity | 8.56 | 9.00 |

NND7 | MLP 3-7-8-3-1 | ReLu | Identity | 8.97 | 17.84 |

**Table 8.**Models of artificial neural networks with random choice of data for continuous beam deflection estimate (kFold-CrossValidation, k = 10).

Model Name | Data Scaling Procedure | Model Characteristics | Activation Function of Hidden Layers | Activation Function of Output Layer | MAPE [%] | σ [%] |
---|---|---|---|---|---|---|

NND9 | StandardScalar | MLP 3-7-13-3-1 | ReLu | Identity | 33.61 | 15.22 |

**Table 9.**Models of artificial neural networks with random choice of data for continuous beam deflection estimate (LOOCV).

Model Name | Data Scaling Procedure | Model Characteristics | Activation Function of Hidden Layers | Activation Function of Output Layer | MAPE Training Set [%] | MAPE Test Set [%] |
---|---|---|---|---|---|---|

NND10 | Min-Max | MLP 3-7-14-3-1 | ReLu | Identity | 11.05 | 13.50 |
