Ru(II)-Dppz Derivatives and Their Interactions with DNA: Thirty Years and Counting

Abstract

Transition metal complexes with dppz-type ligands (dppz = dipyrido[3,2-a:2′,3′-c]phenazine) are extensively studied and attract a considerable amount of attention, becoming, from the very beginning and increasingly over time, a powerful tool for investigating the structure of the DNA helix. In particular, [Ru(bpy)₂(dppz)]²⁺ and [Ru(phen)₂(dppz)]²⁺ and their derivatives were extensively investigated as DNA light-switches. The purpose of this mini-review, which is not and could not be exhaustive, was to first introduce DNA and its importance at a biological level and research in the field of small molecules that are capable of interacting with it, in all its forms. A brief overview is given of the results obtained on the Ru-dppz complexes that bind to DNA. The mechanism of the light-switch active in this type of species is also briefly introduced along with its effects on structural modifications on both the dppz ligand and the ancillary ligands. Finally, a brief mention is made of biological applications and the developments obtained due to new spectroscopic techniques, both for understanding the mechanism of action and for cellular imaging applications.

1. Introduction

DNA has a vital role in life—cells use DNA to store and communicate all information necessary for the evolution of life. Its replication and transcription are the key mechanism underlying all biological functioning.

DNA is essentially polymorphic, although its most common structure is the anti-parallel double helix (B-DNA) [1]. However, its existence in several conformations, which are indispensable for its functioning and for the regulation of its functions, makes DNA a difficult target for small molecules. Therefore, research aimed at developing small molecules capable of binding to and reacting with DNA in all its forms is in continuous development. In fact, over the last 30 years, research led to the synthesis and study of molecules that bind to DNA as both diagnostic probes and therapeutic agents [2,3,4].

Among many others, inspired by the discovery and pharmaceutical activity of the effective anticancer agent cisplatin [5,6,7], the search for metal complexes capable of interacting with DNA is increasingly flourishing. In particular, attention is often directed towards a large family of transition metal complexes, as these species are able to combine structural elements, such as defined and modulable coordination geometries with appropriate ligand stability/lability, and distinctive electrochemical and photophysical properties.

On the one hand, the negative charge of the DNA surface implicitly allows one to consider electrostatic attraction to all cationic complexes as a possible interaction; on the other hand, one can also imagine that appropriately designed ligands (with extensive planar surfaces) might allow the metal complex to fit between the base pairs of double-stranded DNA in the B form (i.e., bind by intercalation).

This type of reasoning makes it possible to justify, for example, the different types of interaction with DNA offered by [Ru(bpy)₃]²⁺ and [Ru(phen)₃]²⁺ [8,9]. In fact, while the former binds only weakly to DNA, the interaction of [Ru(phen)₃]²⁺ is much stronger, thanks to the presence of the phenanthroline ligand that allows for an at least partial intercalation into DNA base pairs, called semi-intercalation [10,11,12].

The initial interest was amplified by Barton′s research into the use of enantiopure forms of complexes like possible chiral probes for DNA [13,14,15]. Over time, it was realized that these were the photophysical and electrochemical properties of a given complex, that was achieved by appropriate ligand substitution, which actually expressed the great potential of these metal complexes as luminescent probes and photochemical reagents.

Furthermore, as well as allowing modulation of redox and implicitly photophysical properties, the design of appropriate ligands also provided a means of varying the character and strength of binding to nucleic acids.

In this review, rather than presenting a complete history of the development of metal complexes used as DNA binders, we focused on certain aspects of this class of compounds and, in particular, on the light-switch effect offered by the Ru(II) dppz derivatives [16].

2. DNA Structure

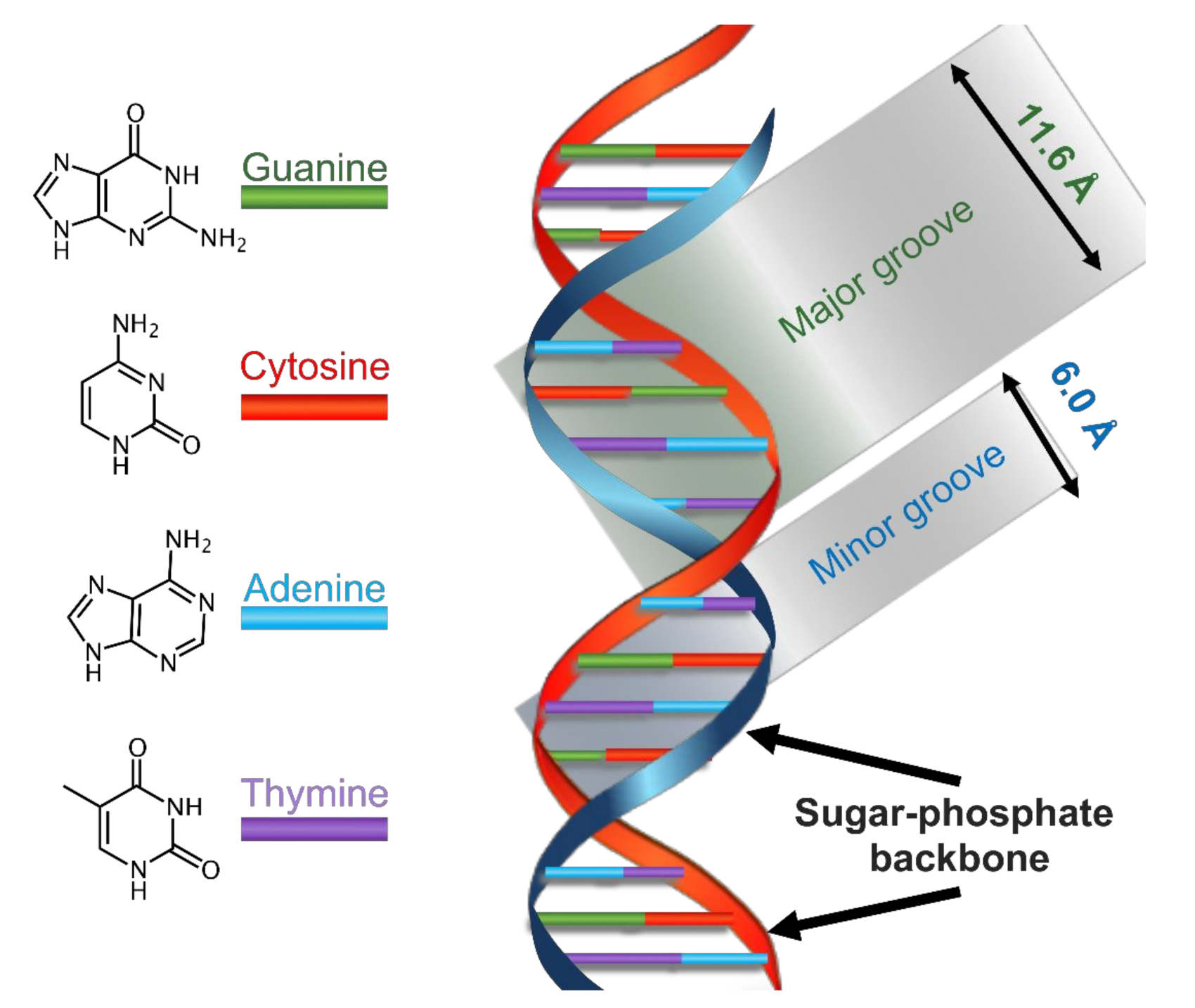

The classic 3D-model, proposed by Watson and Crick in 1953, describes the DNA (in B conformation) as two polynucleotide chains that coil around each other to form a right-handed double helix [17]. The two filaments of the DNA run in opposite directions to each other, so they are antiparallel, and according to the model, this is the reason such winding is present. In the center of the double helix there are nitrogenous bases, which keep the two chains bound by hydrophobic π-π interactions (which reduce the interaction with water molecules) and by the hydrogen bond between complementary bases, each of them belonging to a different chain. It is exclusively the interaction between a purine and pyrimidine derived base that grants the necessary distance so that a hydrogen bond can form—this can happen only by the A-T and G-C pairs.

Since hydrogen bonds are weak, it is relatively easy to break and form them again, like a zip, for example, due to the high temperature or mechanic interactions. As a consequence, in addition to the complementary bases, DNA molecules might be replicated such that all biological information contained within might be duplicated—such is the DNA replication [18].

It is quite well-known that G-C stability (three hydrogen bonds) is higher than that of A-T (two hydrogen bonds), therefore, the global stability of a DNA helix is related to the amount of G-C pairs, as well as the chain length.

The B form is the most common DNA conformation found within cells [19]. B-DNA winds up in a right-handed manner, see Scheme 1. There are approximately ten nitrogenous bases per turn, paired on the same plane and arranged perpendicularly to the DNA axis. The glycosidic bond between the 2-deoxyribose and the nucleobases shows anti-conformation. The stacking of the nucleobases leads to the formation of a major and a minor groove. In B-DNA, the major groove is 11.6 Å wide and the minor one is 6.0 Å wide—this difference leads to a different accessibility to the nitrogenous bases, depending on their position. Since on these grooves the nitrogenous bases are exposed to solvent, they might specifically interact with other species, without implicating modifications to the double helix. The majority of DNA-specific proteins interact with it right in one of the two grooves, especially into the major one because the sequence-specific recognition is greater in this groove.

3. DNA Binding

3.1. Interaction of Small Molecules with DNA

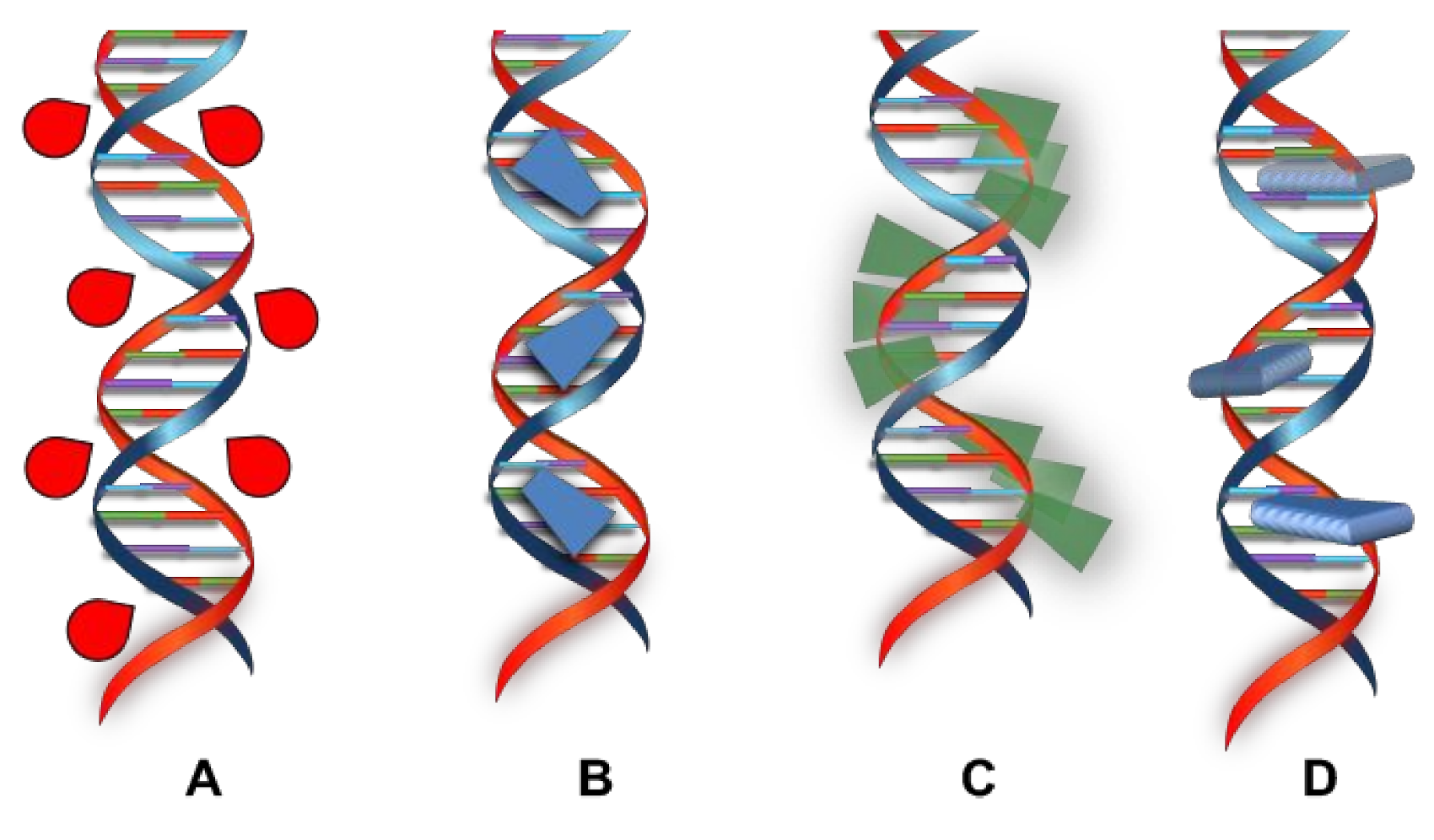

It is possible to distinguish two kinds of interactions with DNA—reversible and irreversible ones [20,21]. Irreversible interactions involve the formation of a covalent or coordination bond between a species and an atom site of the helix; such a linkage implicates the total inhibition of DNA processes (and the cell death as a consequence), if DNA repair systems, such as the NER (nucleotide excision repair) fail. Very often, the steric hindrance of species bound irreversibly might cause a distortion of the phosphate groups, which leads to negative effects on DNA transcription and replication, such as preventing the protein-complex identification [2,3,4].

Reversible interactions are usually less toxic than the irreversible ones. These can be classified into four types (see Scheme 2)—(i) external electrostatic interaction, (ii) groove binding, (iii) external self-aggregation, and (iv) intercalation.

The external electrostatic interaction (i) is due to the presence of the phosphate groups in the chain, because their negative charge might attractively interact above any positive ion. In particular, simple cations like alkaline ones associate with nucleic acids in the base of the density charge generated by the phosphate groups, resulting in a stabilization of the DNA itself. This association is called ‘condensation’, because the ions are associated to the overall charge of the biomolecule and not to specific sites, which remain capable of moving along the double helix. The typical DNA counterions are Na⁺ ions, which compensate most of the phosphate groups’ negative charge. The remaining charges are neutralized by other cations through the classic Debye-Huckel mechanism.

The groove binding (ii) occurs for species that have the right dimension and conformation to “lay down” in one of the grooves, which interact via electrostatic interactions, Van der Waals forces, and especially, hydrogen bonds [22,23]. The typical molecules that are able to make this kind of interaction have an appropriate length and flexibility, which might assume an optimal conformation. Usually, these molecules have several aromatic rings (like pyrroles, furans, or benzenes) that are bound to substituents that are capable of rotating around the bonds, letting them adapt to the double helix shape without significantly perturbing the DNA structure.

External self-aggregation (iii) occurs when molecules, especially aromatic planar species, stack along the external part of the double helix, forming dimers or even huge aggregates through a non-specific bond called external stacking. It is known that interactions of porphyrin and metal-porphyrin with DNA, lead to the formation of chiral supramolecular structures [24,25,26,27,28], Pt(II) organometal complexes coordinated by terpyridine [29,30] or Pt(II) complexes with extended aromatic ligands like dipyrido[3,2-a:2′,3′-c]phenazine or benzodipyrido[b:3,2-h:2′,3′-j]phenazine, in the case of low [DNA]/[complex] ratio, and consequently, the presence of few intercalative sites [31]. Pasternack et al. highlighted that the structure of intercalators influences the interaction type with DNA and might lead an external interaction to be preferred to an intercalation [32,33].

Intercalation (iv) is essentially a stacking interaction resulting from the insertion of a planar aromatic system between the base pairs of the DNA double helix, and is permitted by a significant overlap between π orbitals of the intercalative species and those of nitrogenous bases, forming a system stabilized by Van der Waals forces, hydrophobic interaction, and especially, π-π stacking [34,35].

This type of interaction was first proposed by Lerman [34] in order to rationalize his results on the high affinity for DNA of certain acridine derivatives. The combination of these structural modifications results in functional changes, and frequently, in the inhibition of DNA transcription and replication and repair processes, thus making the intercalators mutagens.

To permit this intercalation process, it is necessary that a “cavity” forms between the nucleobases, so they have to distance each other; this process causes the elongation of DNA [36,37,38,39]. Vertical separation between nucleobases (about 3.4 Å in the B-DNA) might increase from 1.8 to 4.5 Å per intercalated molecule when a huge aromatic molecule intercalates. The angle of rotation might vary from 11° to 48°, depending on the intercalator structure and the type of nucleotides involved [40]. The process causes distortions in the DNA structure that can be used to study DNA-molecule interactions by, for example, viscosity measurements [41] sedimentation studies [42], circular dichroism (CD) variations [36,37,38,39,40,43], and electrophoresis studies on circular DNA supercoil [44].

The intercalation model proposed by Lerman, however, did not take into account the possibility of the species to insert itself between nucleobases pairs, until a double helix saturation. Crothers introduced the neighbor exclusion model: [45,46] in case a molecule intercalates into a site, it distorts the vicinal ones, so that they would not be available to permit the intercalation of other molecules. Therefore the intercalation is anti-cooperative at adjacent sites, and therefore, only 50% of DNA sites can undergo an intercalative interaction. Moreover, it is also (highly) possible that the molecules do not occupy every other site, obstructing more than two of them; also, huge molecules might prevent this kind of interaction due their steric hindrance.

Several studies were conducted to understand whether there exists a specificity in the intercalative interactions related to the type or the sequence of the nucleobases involved. Some intercalators showed preferential interactions, but almost all of them interact aspecifically with the nucleobases.

At first it was believed that only small molecules, with a planar structure, could intercalate, but after several studies during the years a distinction between ‘classical’ and ‘non-classical’ intercalators was made. Classical intercalators are characterised by aromatic condensed rings and have positive charge(s) on the rings themselves or on the side chains.

Among non-classical intercalators there are compounds that have huge or polar (or charged) substituents on the opposite sites of the intercalating aromatic system [47]. These compounds need to insert at least one of the substituents between the nucleobases pairs to intercalate. Among these species there are known compounds like naphthalene bisimide and cationic porphyrins, which, although they are not supposed to intercalate, might interact efficiently with DNA through such an interaction [48]. Even if thermodynamically favorable, this interaction is kinetically unfavorable, and needs opening of the double helix (causing distortion or breaking of hydrogen bonds); such effect makes the DNA–molecule interaction slow.

The initial studies of the intercalative process involved simple organic molecules, but they were followed by studies focused on the interaction between DNA and metal complexes. The presence of a transition metal indeed provides several advantages, as described below [49,50,51,52,53,54].

• The presence of d orbitals grants more ways (bonds and geometries) such that the species might interact with DNA other than those of organic molecules.
• Steric and electronic properties can be modulated choosing opportune ancillary ligands.
• Bridging ligands of certain dimensions might modify the size of the intercalator.
• It is possible to take advantages from their spectroscopic, magnetic, redox, photophysical, and photochemical properties.

Since the antitumoral properties of cisplatin, square planar Pt(II) complexes were the first inorganic species whose interaction with DNA was studied. Lippard, in the ‘70s, demonstrated that Pt(II) complexes with heterocyclic aromatic ligands (like 2,2′:6′,2″-terpyridine) intercalate into the DNA [55]. It is worth noting that the geometry of Pt(II) complexes is compatible with the steric requisites for the intercalation process, and by modifying the bound ligands, it is possible for them to modulate their steric and electronic properties [56,57,58,59,60].

3.2. Ru(II) Complexes as Intercalators

In the last decades, more attention was given to metal complexes with an octahedral geometry, to verify if the species with high steric hindrance would intercalate and how this influences the process. In fact, ancillary ligands could prevent the insertion of small molecules between DNA adjacent base pairs.

Ru(II) complexes containing rigid aromatic rings (stable, inert, and soluble in water) were among the first classes of octahedral complexes studied [61,62].

One of these was [Ru(phen)₃]²⁺ species (phen = 1,10-phenanthroline) [63,64,65]. In this complex, each ligand has an aromatic planar structure that might interact with DNA; moreover, the three ligands give a chiral effect to the species. Chirality might have a relevant effect on the interaction process—according to Barton⁴, the intercalation is favored for Δ isomers of these kinds of complexes. This is due to the orientation of ligands in the Δ isomers, which interfere sterically less than those in Λ isomers, with the skeleton of DNA. Later studies by Chaires and Nordèn clarified that rather than intercalation, it is more correct to refer to this interaction as semi-intercalation, since there is only a partial insertion of a phenanthroline between the nucleobases, without the complete separation of the latter [10,11,12].

Taking enantioselectivity of Ru(II) tris-phenanthroline complexes as a starting point for designing probes that are able to recognize the double helix chirality, there were synthesized complexes that could selectively bind to DNA. For example, Λ isomers of metal complexes based on 4,7-diphenylphenanthroline (DIP) are efficient probes for Z-DNA [66,67]. [Ru(TMP)₃]²⁺ (TMP = 3,4,7,8-tetramethylphenanthroline) is, instead, a selective probe for A-DNA [68]. Methyl substituents, in fact, do not allow the complex to intercalate between nucleobases; it interacts with DNA through electrostatic and hydrophobic interactions. This complex is too huge to insert into a B-DNA minor groove, but can insert into the major one of A-DNA and, through photoactivation and subsequent generation of ¹O₂, can break the double helix.

However, the real research success in this field, and in fact, one of the most studied complexes is [Ru(bpy)₂(dppz)]²⁺ (dppz = dipyrido[3,2-a:2′,3′-c phenazine]); see Figure 1.

The dppz ligand possesses a large aromatic surface area, allowing extensive intercalation in the DNA base pairs. Most Ru polypyridine complexes based on this ligand bind strongly to the DNA duplex via the intercalation mechanism. One measure of the affinity of these interactions is the log K value (K= DNA binding constant). For the classic DNA intercalator ethidium bromide (EB), this value is >6, while for [Ru(bpy)₂dppz]²⁺, under the same experimental conditions, this value is >7 [69], demonstrating the high affinity of this ligand for DNA.

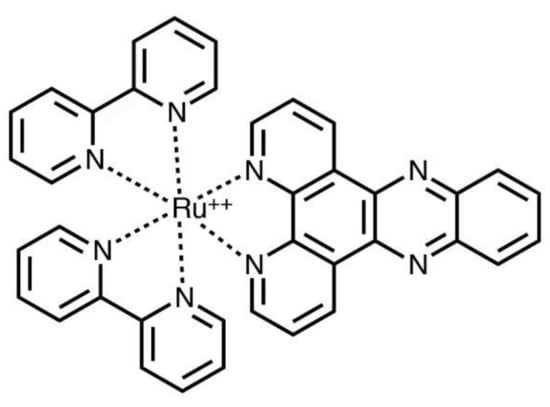

In 1990, Barton first reported that [Ru(bpy)₂(dppz)]²⁺ could serve as a luminescent DNA probe [70]. This species does not exhibit luminescence in aqueous solution at room temperature, but shows intense emission in the presence of DNA, due to the radiative decay of an MLCT excited state, once the complex intercalates into the base pairs [71]. In water solution, instead, the luminescence is quenched due to proton-transfer from water molecules to phenazine’s nitrogen atoms. Intercalation does not permit the interaction between water molecules and the Ru(II) complex, so the latter becomes luminescent.

This phenomenon is known as the ‘light-switch’ effect of DNA and is widely used to study the interaction of polypyridyl metal complexes with DNA.

Interaction of Ru(II) complexes with DNA usually generates an increase in luminescence intensity due to the reduced probability of:

• non-radiative decay, because the intercalated luminophore is surrounded by the DNA hydrophobic environment and is therefore protected from water-induced deactivation;
• intersystem crossing to the ³MC excited state, as the complex is caged into the double helix and its rigidity result is enhanced;
• O₂ luminescence quenching.

On the other hand, if there are photoinduced reactions between the metal complex and nucleobases, luminescence is quenched.

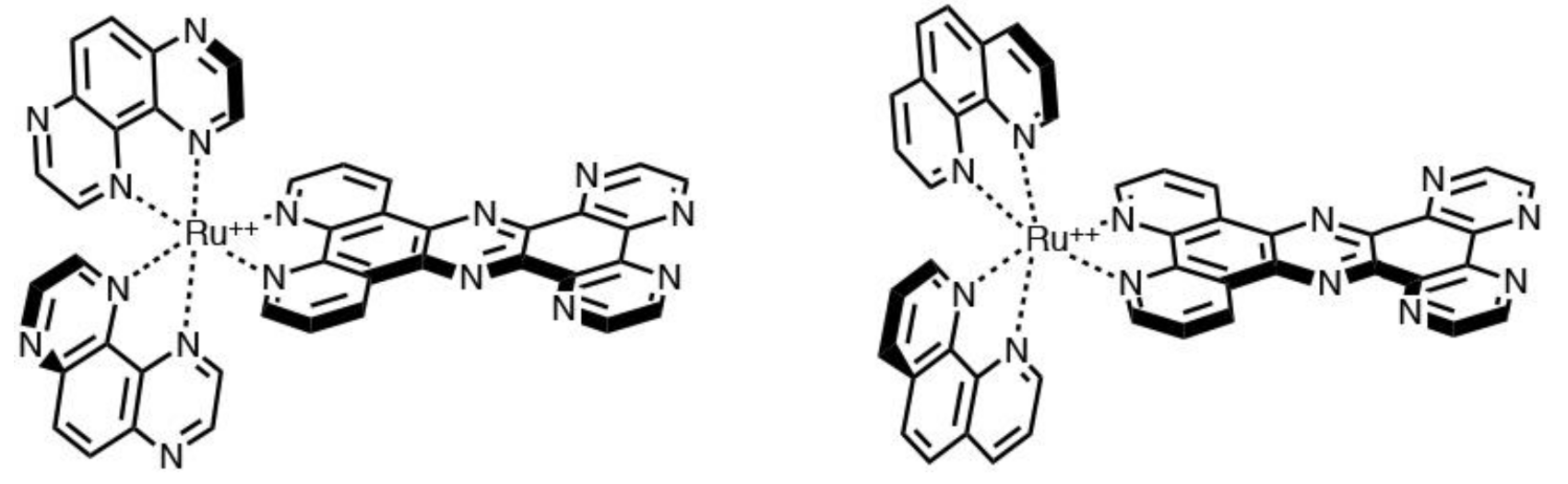

Similar to the [Ru(bpy)₂(dppz)]²⁺ species, the two Ru(II) complexes reported in Figure 2 behave as luminescent DNA probes; they are based on TAP (1,4,5,8-tetra-azaphenanthrene) and PHEHAT (1,10-phenanthroline[5,6-b]-1,4,5,8,9,12-hexa-azatriphenylene) ligands. Interestingly, in the presence of DNA, the behavior of these two complexes is different—the first complex acts as an ON–OFF molecular switch; the second one acts, instead, as an OFF–ON molecular switch [72].

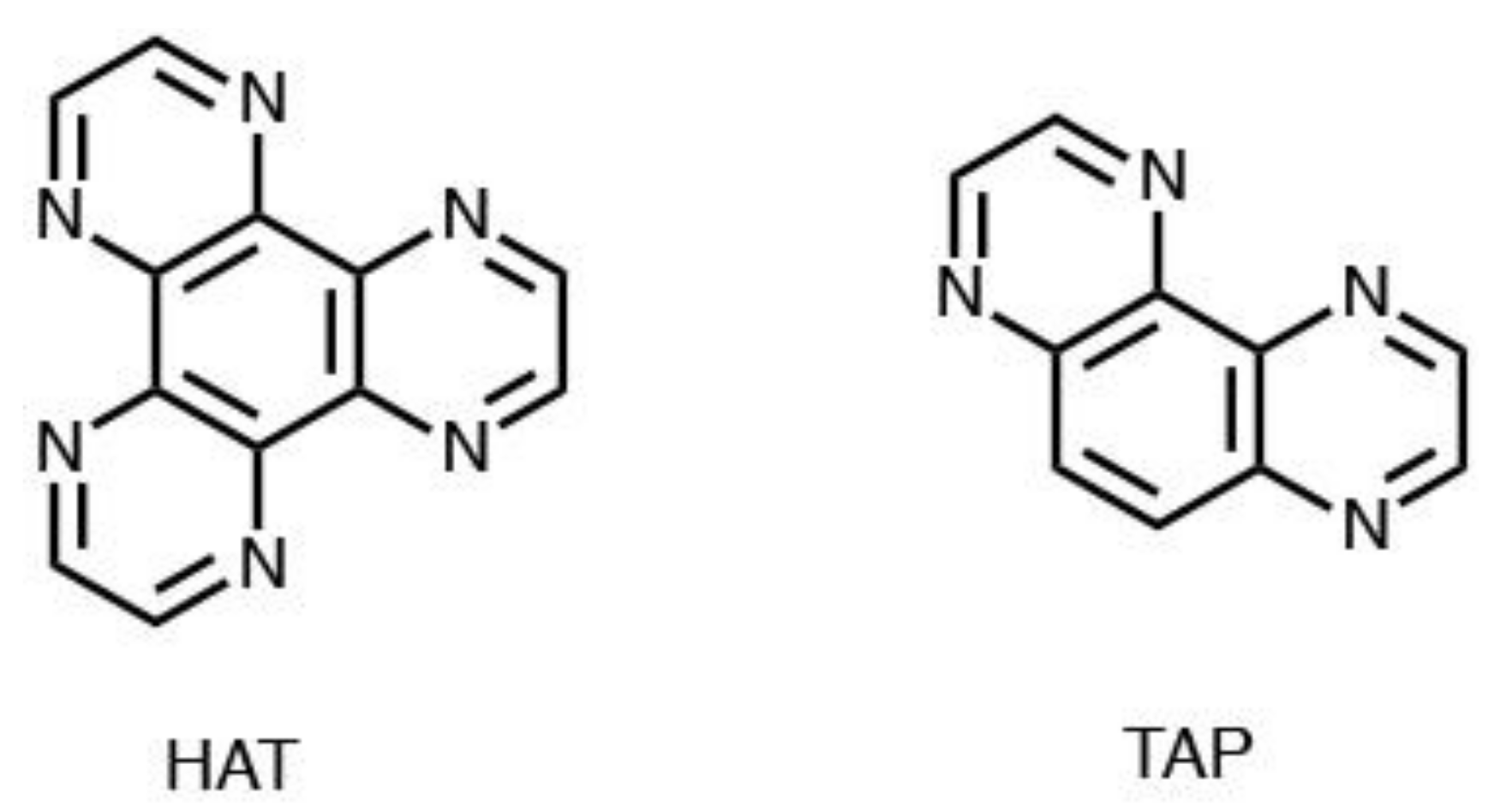

[Ru(TAP)₂(PHEHAT)]²⁺ is a photo-oxidant complex (the two TAP ligands give it a high reduction potential) and shows a great affinity for the DNA, thanks to the PHEHAT ligand, which can intercalate. DNA efficaciously quenches its luminescence due to the ‘electron transfer’ process with guanine; which is a ‘light-switch’ON–OFF’.

[Ru(phen)₂(PHEHAT)]²⁺ in water solution at room temperature does not exhibit any luminescence; the lone pairs present on nitrogen atoms in the PHEHAT ligand, interacting with water molecules, stabilize a non-emissive excited state. When the complex intercalates into DNA, the PHEHAT ligand is surrounded by the DNA hydrophobic environment and the stabilization by water molecules cannot happen. Therefore, the non-emissive excited state is not stabilized and the complex exhibits luminescence; which is called ‘light-switch OFF–ON’.

A wide variety of dppz-based complexes were designed, synthesized, and studied by modifying the bipyridine ancillary ligand or the dppz ligand [73,74,75,76,77,78], or changing the metal center to Re [79,80,81,82], Co [83,84], Cu [85,86], Rh [87,88,89,90], Os [91,92], Pt [31,93,94,95], and Ir [96,97,98] cations.

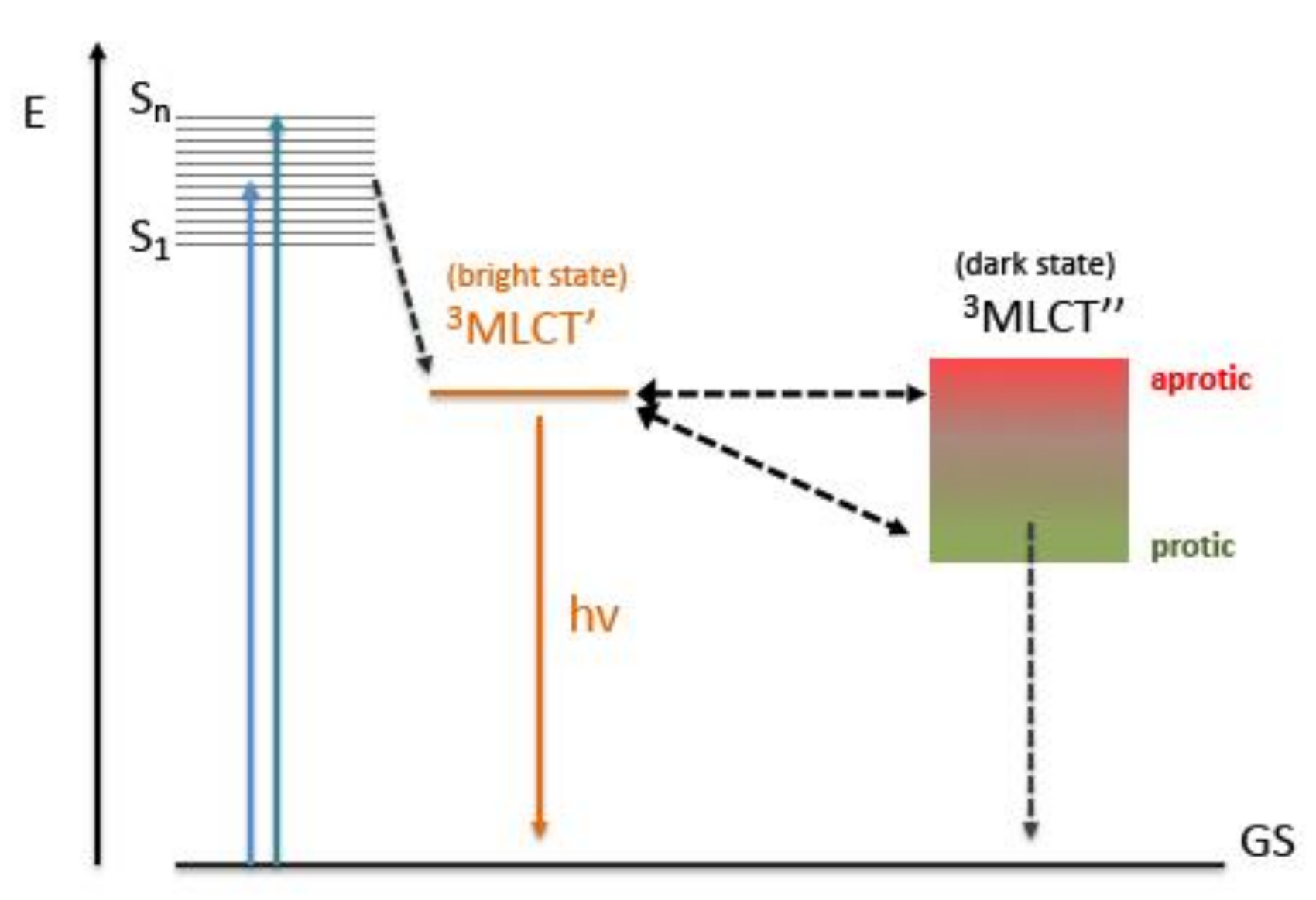

Many experiments were conducted in an attempt to rationalize and “observe” the light-switch mechanism. In the case of [Ru(phen)₂(dppz)]²⁺ [69], see Figure 3, the mechanism seems to occur in two distinct phases, the first involving intersystem crossing between the state called MLCT′ (bright state) and the one called MLCT″ and subsequently by non-radiative deactivation from the latter. The MLCT′ state represents the dominant state of [Ru(phen)₂(dppz)]²⁺ in aprotic organic solvent, and is the state that is initially populated in other solvents as well; see Scheme 3.

The MLCT” state (dark state), on the other hand, is a state involving the phenazine portion of dppz and its energy is a function of the solvent. In fact, by rationalizing the photophysical properties of [Ru(phen)₂(dppz)]²⁺ in a wide range of solvent environments, it can be inferred that both the polarity of the latter and the ability to form hydrogen bonds with the N atoms of the phenazine fragment govern the population of this dark state [48].

The light-switch behavior is also a function of temperature, which governs the extent of equilibration between the two states and thus the relative population. It was shown that the light-switch process results from a competition between energetic factors that promote the population of the dark state (MLCT″) and entropic factors that tend to favor the population of the bright state (MLCT″) [99,100,101,102,103,104].

3.3. Solvent Effects on the Photophysical Properties of the Ru-Dppz Complexes

The effect of the solvent on the spectroscopic and photophysical properties of the [Ru(phen)₂dppz]²⁺ complex was systematically studied for the first time by Murphy [105]. The studies carried out showed that the absorption spectra in water and in various non-aqueous solvents were very similar, while the emission energies, as well as the lifetime and quantum yield of luminescence, were extremely solvent-dependent. It was shown that there was no correlation between the maximum luminescence and the polarity of the solvent. In particular, as already pointed out, no emission was observed in water and trifluoroethanol. On the other hand, quantum yield and luminescence lifetime were particularly sensitive to solvent polarity.

Both of these quantities were reduced in high-polarity solvents, and this trend was correlated with the empirical quantity E_T, which reflected, to some extent, both a measure of the polarity of the solvent and its ability to make h-bond. Furthermore, studies carried out on [Ru(phen)₂dppz]²⁺ showed that k_nr (rate constants for non-radiative processes) was almost independent of solvent polarity, while all non-radiative constants were, and somehow became greater, as polarity increased.

The energy gap law that correlated the non-radiative constants with the difference in energy between the fundamental and excited luminescent states did not appear to be respected in this case, unlike what happened for example for the parent compound [Ru(bpy)₃]²⁺.

Contrary to the assumption that H-bonding to phenazine nitrogen atoms in the excited state was capable of activating non-radiative channels and thus quenching the emission, the improved correlation observed between ln(k_nr) and E_T, compared to the H-bond-donating capacity of the solvent alone [106], made it possible to highlight that the forces at play, and the mechanism, were subtler (or involve concomitant events) than predicted by early studies.

The light-switch phenomenon for this family of compounds was indeed closely related to the effect of the solvent on the two possible states, involving the metal and the bipyridine or phenazine moiety of the dppz. In two fundamental studies, it was shown that this effect resulted from a thermal equilibrium between these two excited states, one enthalpically favored (the state involving the phenazine fragment) and the other entropically favored. This behavior could be attributed to the fact that charge separation induced a rearrangement (and thus greater order) of the surrounding solvent [107].

The competition between the two different thermodynamic contributions results in a non-obvious inversion of the populations of excited states, as a function of solvent—the photoluminescent ³MLCT state essentially dominates in aprotic solvents (or in the presence of double-stranded DNA), while the CS state population becomes prominent in protic solvents [106].

3.4. Effects of Tuning the Photophyisical and Redox Properties

Modifications on complexes based on the dppz ligand are aimed at two main effects—the light-switch effect and DNA affinity [108].

The coordination geometry in the case of Ru(II) is that of an octahedral d6 and, therefore, in addition to the bidentate dppz ligand, four other coordination sites are available for the so-called ancillary ligands [109,110,111,112].

Modifications made to these ligands can result in important electronic effects that lead to changes in the photophysical and redox properties of these types of systems; see

Table 1. Absorption and photophysical properties, in MeCN and H₂O of the representative Ru-dppz complexes.

Complex	MeCN				H2O				Ref
	λabs/nm (ε/104 M−1 cm−1)	λem/nm	Φ/%	τair/ns (τAr/ns)	λabs/nm (ε/104 M−1 cm−1)	λemi/nm	Φ/%	τair/ns (τAr/ns)
[Ru(bpy)2(dppz)]2+	-	615	-	-	263 (11.7) 372 (2.18) 439 (2.0)	-	-	-	[70,71]
[Os(tpy)(pydppz)]2+	325 (5.05) 375 (2.21) 475 (1.46)	800	0.8	50	-	-	-	-	[91]
[Ru(acac)2(dppz)]	554 (9100)				Not soluble				[109]
[Ru(phen)3]2+	262 446	-	-	-	421 443 (2.0)	-	-	-	[113]

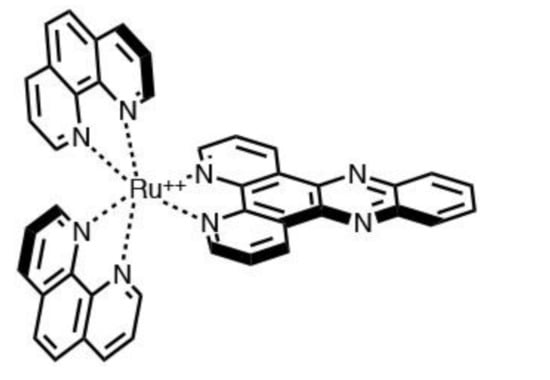

[Ru(phen)2(dppz)]2+	264, 276 sh 316, 352 360, 368, 440	630	2.1	180 (643)	264, 278 sh 318 sh, 358 sh 372, 440 (2.34)	-	-	-	[113]
[Ru(phen)2(PHEHAT)]2+	264, 278 sh 312 sh, 354 sh 370, 438	662	1.1	191 (262)	264, 276 sh 312 sh, 356 374, 440 (2.27)	-	-	-	[113,114]
[Ru(phen)2(HAT)]2+	262 420 480 sh	696	1.7	371 (776)	262 430 (1.44) 494 sh	-	-	-	[115]
[Ru(bpy)2(HAT)]2+	282 420 480 sh	703	1.6 a	- (620)	277 (5.90) 432 (1.0) 484 sh	742	6 × 10−3	- (104)	[115]
[Ru(HAT)3]2+	275 410 sh 436	587	0.9 a	- (89)	275 410 sh 440 (2.10)	596	0.013	- (145)	[115]
[Ru(TAP)3]2+	276 408 437	604	0.7	- (68)	276 (4.68) 408 (1.37) 437 (1.30)	602	0.014	- (223)	[116]
[Ru(bpy)2(TAP)]2+	280 428 472	679	4.2	- (980)	278 (7.61) 439 (1.24) 484	714	0.003	- (145)	[115]
[Ru(TAP)2(dppz)]2+		621	-	-	204 (9.08) 230 (5.93) 278 (10.4) 366 (1.45) 412 (2.23) 454 (1.58)	636	0.035	820 (1090)	[117]
[Ru(NH3)4(dppz)]2+	550	-	-	-	544 (0.26)	-	-	-	[118]
[Ru(bpy-COOMe)2(dppz)]2+	471 (1.95)	642	-	-	474	642	-	-	[119,120]
[Ru(bpy-COOH)2(dppz)]2+	-	-	-	-	463 (1.61)	624	-	-	[120]
[Ru(bpy)2(qdpq)]2+	284 (7.5) 362 (1.4) 390 (1.4) 564 (0.6)								[121,122,123]
[Ru(bpy)2(qdppz]2+	285 (10.33) 378 (1.86) 395 (1.85) 442 (1.66)								[121,122,123]
[Ru(tpy)(pydppz)]2+	306 (5.72) 325 (2.96) 475 (1.48)	698	0.021 a	-	-	-	-	-	[121,122,123]
[Ru(bpy)2(dppn)]2+	444 (1.35)	617	0.3	-	-	-	-	-	[124,125]
[(bpy)2Ru(tpphz)]2+	450 (19.7) 380 (33.9) 361 (24.1) 284 (133.0) 246 (76.4)	616	0.010		634		0.017		[126,127]

^a Argon-equilibrated solution.

.

An example of that is the use of primary amines or acetylacetonates that leads to complete non-emissive species, as in the case of [Ru(NH₃)₄(dppz)]²⁺ and [Ru(acac)₂(dppz)] [118,119], while the use of polypyridine ligands with ligand-centered (LC) states (which are much more stabilized species than phenanthroline or bipyridine and which become acceptors of the MLCT transition) leads to luminescence in both the presence and absence of DNA [120].

The affinity of these species for DNA can also be modulated by peripheral ligands. Polypyridine ligands modified with carboxylic acids, as in the case of [Ru(bpy-COOH)₂(dppz)]²⁺ lead to a greater selectivity of duplex DNA to single-stranded DNA than the corresponding esterified ligands ([Ru(bpy-COOMe)₂(dppz)]²⁺) [128]. This type of behavior is due to the fact that deprotonation of the acidic groups results in the formation of a formally neutral species that induces greater repulsion between the ancillary ligands and the DNA surface and leads to duplex selectivity.

The electronic effect of the ancillary ligands leads to a modulation of the redox potentials of these species, and as in the case of [Ru(tap)₂(dppz)]²⁺ [117], a photoinduced electron transfer process can occur with guanine, leading to the formation of a covalent bond between the species and the polynucleotide [109,110,111,112].

Substitution on the ancillary ligands is also important to manage the selectivity of the light-switch. Indeed, by incorporating methyl groups on the phenanthrolines of the [Ru(phen)₂(dppz)]²⁺ system, a highly specific probe for a DNA mismatch was obtained. The selectivity was shown to be due to a higher binding affinity towards the mismatched DNA, which results in a much higher luminescence lifetime when bound to a mismatch [129].

It is very interesting to point out that the electron transfer processes involving DNA and metal complexes also depend on the type of interaction and thus on whether the reagents are metallo-intercalators or groove-binding agents. It was shown that photoinduced electron transfer and charge recombination (back electron transfer) becomes more efficient across the DNA base stack. The efficiency and yield of these processes are also a function of the base sequence into which the metal-binding agent fits, due to the different redox potentials of the transition metal complexes and the different bases [130,131,132].

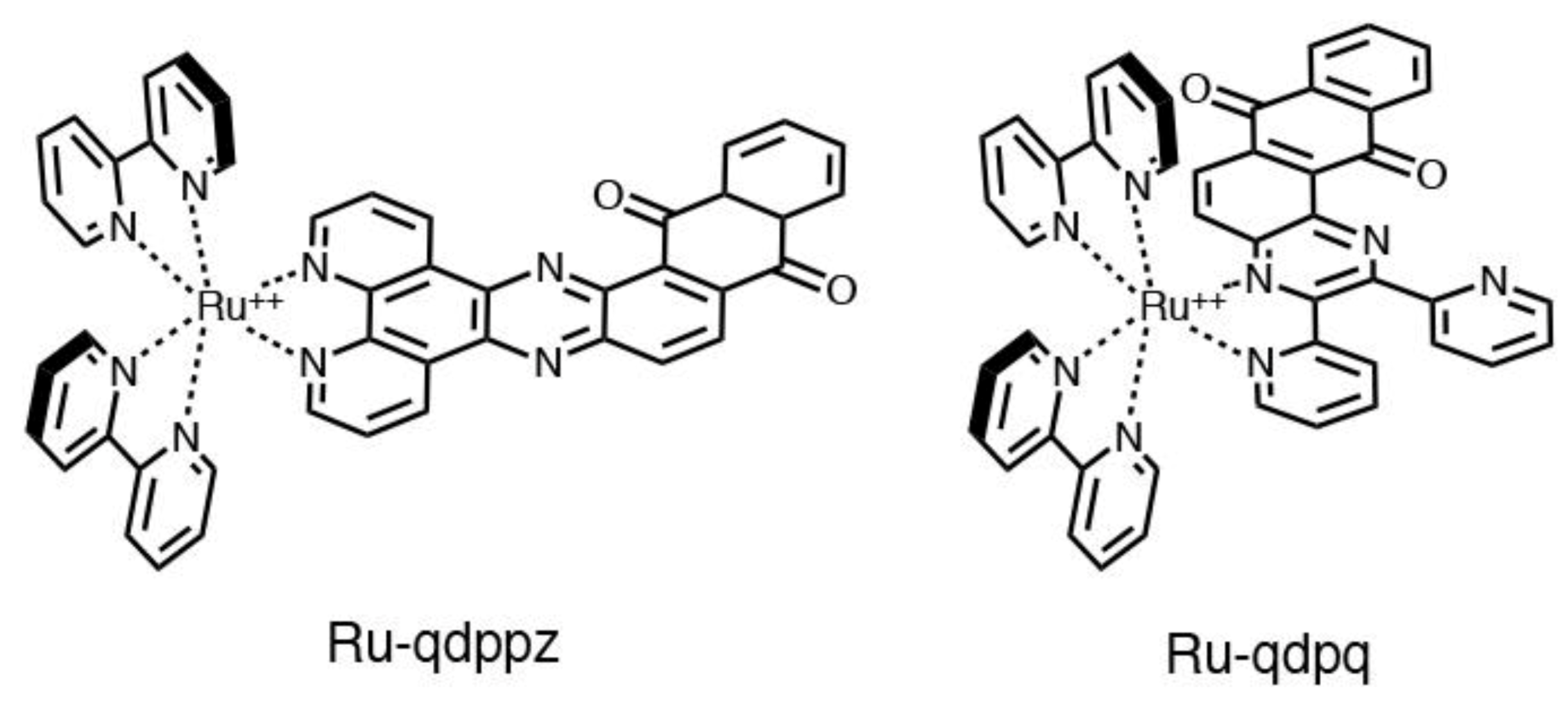

A particularly interesting effect of substitution on the photophysical, and in particular, the photochemical properties of the polypyridyl ruthenium complexes is obtained by using a dppz analogue, i.e., 1,4,5,8-tetraazafenanthrene (TAP) or 1,4,5,8,9,12-hexaazatriphenylene (HAT), see Figure 4 [133]. In the case of the homoleptic [Ru(TAP)₃]²⁺ complex, it was shown that this complex is capable of forming covalent photoadducts with DNA. The ability of this type of complexes to give photochemistry with DNA is a function of the oxidizing power of the complex and becomes scarce in the case of the complex containing two TAP or HAT ligands, to the point of being absent in the case of the mono-substituted [Ru(bpy)₂L]²⁺ complex (L = TAP or HAT) [134,135,136]. The interest in this type of research is fundamentally based on the selectivity of the photochemical action with adduct formation, which is attributed to the reaction of the radical products formed by the initial electron transfer and the subsequent proton transfer.

Both luminescence lifetime and time-resolved absorption spectroscopy confirmed that the excited states of these species were able to oxidize guanine, either as a free nucleotide (5-GMP) or in DNA, but not the other nucleobases.

It was also shown that the photo-oxidation of guanine by [Ru(TAP)₂(dppz)]²⁺, and in particular its isomer Λ, was a function of the nucleobase sequence. In fact, if bound to (CCGGATCCGG)₂ or (CCGGTACCGG)₂, its behavior was different. In the case of the TA sequence, the electronic transfer was not very efficient [137]. However, after irradiation with visible light, the TAP containing complexes, exhibited both photocleavage and formation of mono- and bi-adducts with DNA [138].

In particular, the photochemical product of [Ru(TAP)₃]²⁺ with 5-GMP was isolated and identified by demonstrating that the adduct was formed by a bond between the TAP ligand and the external NH₂ group of guanine. In the case of the [Ru(HAT)₂(phen)]²⁺ species, however, the photochemical reaction with 5-GMP resulted in the formation of a bond between HAT and the 6-O atom of guanine [139].

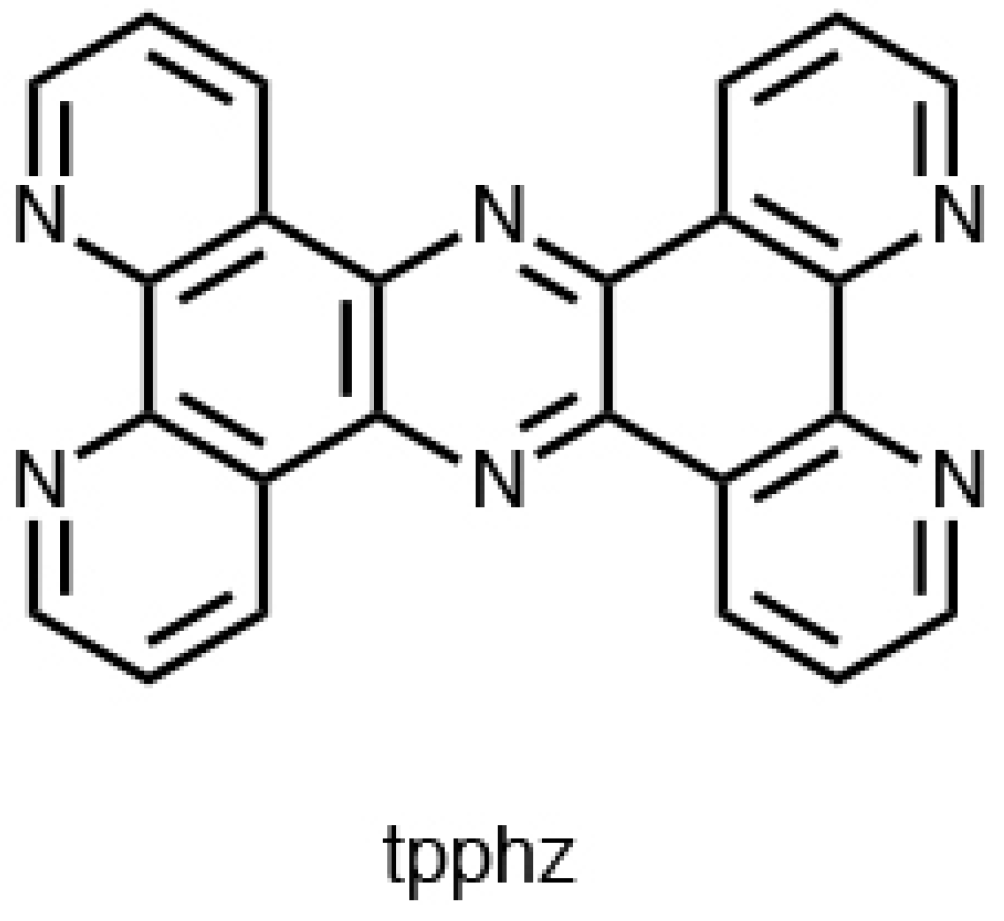

Similar behavior was observed with the [Ru(bpy)₂(tpphz)]²⁺ complex, see Figure 5 (tpphz = tetrapyrido[3,2-a:2′,3′-c:3″,2″-h:2‴,3‴-j]-phenazine). In particular, this species demonstrated that the light-switch ON effect could be cycled OFF and ON through the successive introduction of Co²⁺ and EDTA. The presence of a further chelating site on the dppz-like ligand results in the coordination of cobalt ions that affect the energy of the two ³MLCT state, promoting the population of the non-emissive state [126,127].

The interaction of these molecules with the particular structure of DNA was also studied.

Both [Ru(bpy)₂(dppz)]²⁺ and [Ru(phen)₂(dppz)]²⁺ were shown to induce the human single-stranded telomeric repeat 5′-AGGGTTAGGTTAGGG-3′(22AG) to fold into an intramolecular quadruplex [140,141]. In contrast, a cytosine-rich filament oligomer 5′-CCCTAACCCTAACTAACCCT-3′(22CT) could self-associate into an i-motif structure; see Scheme 4. In general, Ru-dppz-type complexes only weakly interact at the i-motif, making them somewhat selective for G-quadruplexes. This type of behavior was palpably attributable to the interaction of [Ru(phen)₂(dppz)]²⁺, which stacked on the ends of G-quadruplexes, while it might bind to the i-motif only by non-specific interaction [142]. Similar to the G-quadruplex DNA structures (containing essential guanine residues), i-motifs (intercalated motifs) consist of a fragment of oligodeoxynucleotides strands, mostly based on cytosine residues.

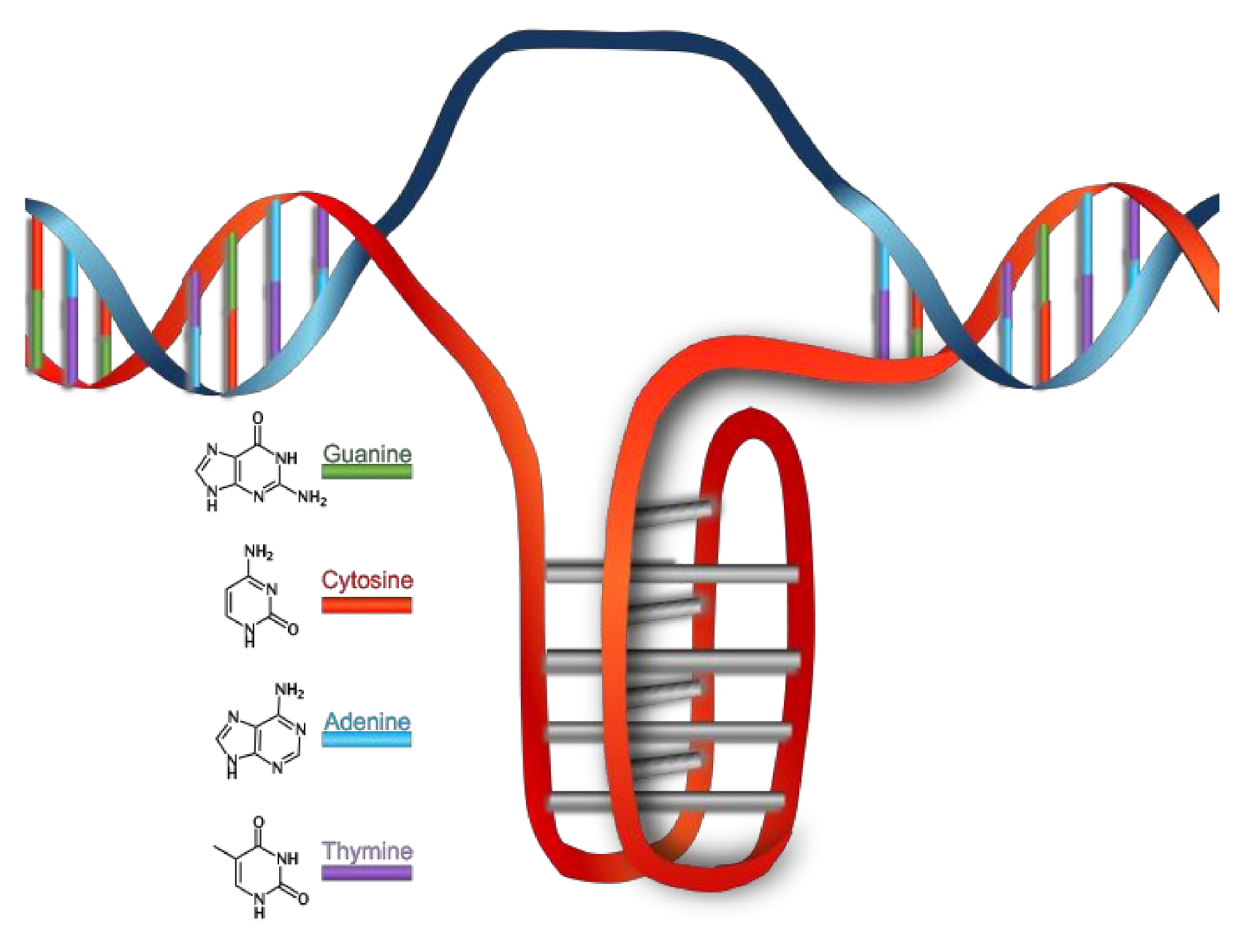

I-motif forming DNA was recently identified as a key step in the recognition and regulation of transcriptional proteins in cells. It was also present in many promoter regions of oncogenes [143,144].

Although the interaction seemed too weak to be studied in detail, recently, [Ru(phen)₂(dppz)]²⁺ was used to collect information on the binding sites to i-motif structures. IR transient spectroscopy made it possible to distinguish the presence of different bases in loops (as was shown for the human telomeric sequence), demonstrating that this archetype species, together with advanced spectroscopic techniques, has a great potential for identifying binding for biologically-relevant sequences [145,146].

The electronic effect becomes even more pronounced by making changes to the dppz ligand. Conjugation with an active redox fragment was able to activate photoinduced intramolecular electron transfer processes that led to the quenching of luminescence (e.g., Ru-qdppz and Ru-qdpq, see Figure 6). An external redox input (chemical or electrochemical) could modify the active redox fragment and restore the light-switch effect. This was the case, for example, with the quinone/hydroquinone pair. The former was, in fact, able to switch off the luminescence through a process of oxidative electron transfer involving the ³MLCT state characteristic of Ru-dppz. Electrochemical or chemical reduction of the quinone fragment restores luminescence, thus allowing dual-input operation of the molecular probe [121,123].

In general, the low luminescence quantum yield and short excited-state lifetimes led to less interest in ruthenium dppz complexes carrying the tridentate ligand tpy (tpy = 2,2′:6′,2″-terpyridyl) than in complexes based on bipyridine and phenanthroline ligands, despite the fact that the absence of a metal stereocenter eliminated the need to separate racemic mixtures typical of tris-bidentate systems.

However, it is important to emphasize that, when designing a system capable of targeting DNA in vivo, not only is the efficiency of the luminescence processes to be important, but also the range of emission, which must overlap with the optical therapeutic window, as much as possible.

The [Ru(tpy)₂]²⁺ complex (tpy = 2,2′:6′,2″-terpyridine), for example, is characterized by a short excited state and a low quantum yield, making it, in principle, unsuitable for photobiological applications [147,148].

However, it is possible to modulate the properties of this family of complexes by operating substitutions on the terpyridine ligands [149].

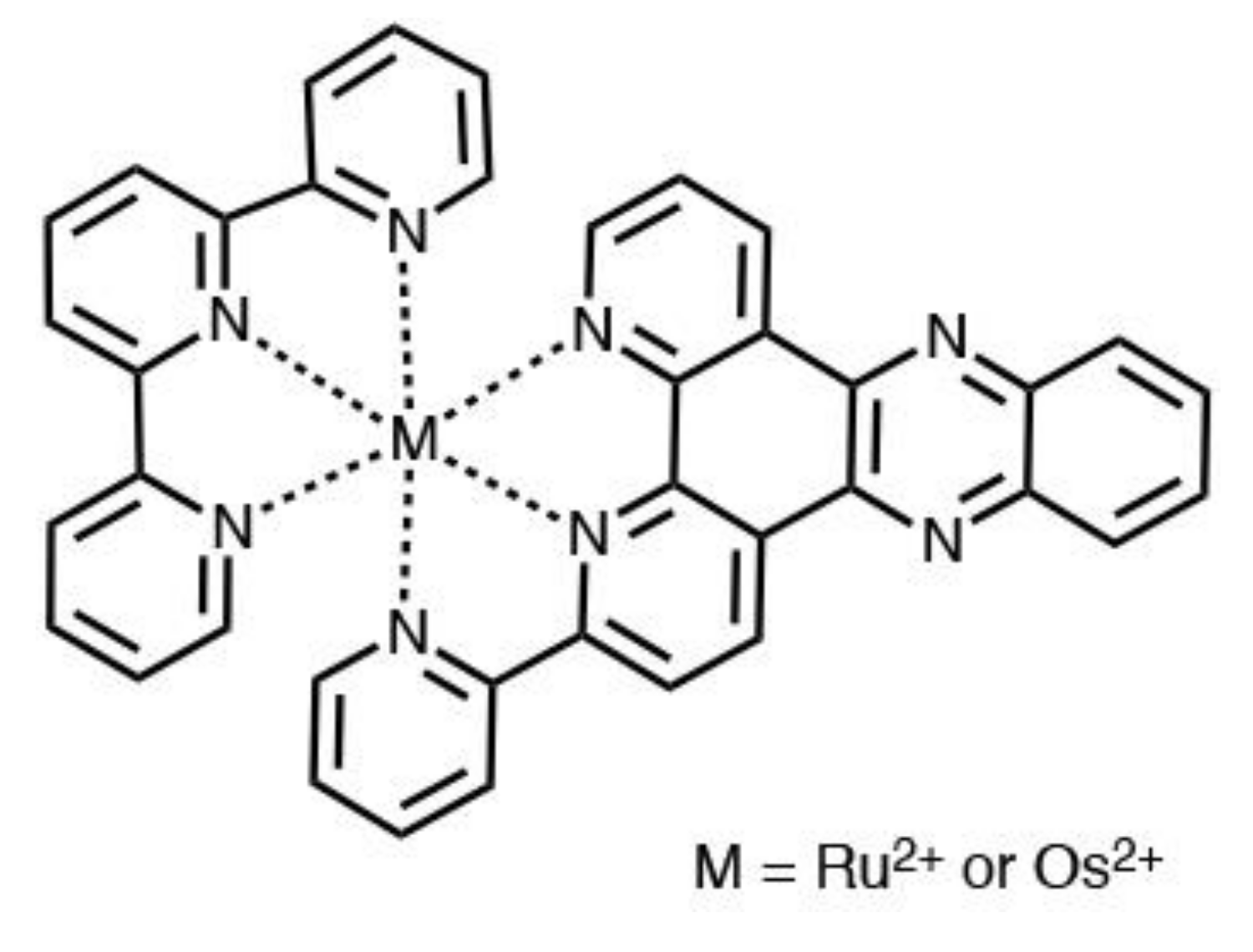

Turro et al. reported that the [Ru(tpy)(pydppz)]²⁺ species, based on a Ru(II)-terpyridine fragment and a tridentate dppz derivative known as pydppz (3-(pyrid-2′-yl)dipyrido-[3,2-a:2′,3′-c]phenazine), is capable of intercalating into DNA and behaving as a light-switch [149]. The photophysical properties of this complex, characterized by a weak emission centered at 698 nm in acetonitrile (τ = 5.4 ns and φ = 2.1 × 10⁻⁴), although more interesting than the model species [Ru(tpy)₂]²⁺, are not such as to warrant its use for photobiological applications.

Starting with these bases, and since it is known that (i) with the same ligands, Os(II) polypyridine complexes exhibit excited states with significantly lower energy than that of the analogous Ru(II) compounds, and that (ii) osmium compounds with tridentate ligands such as terpyridine possess excited states with a longer lifetime, the complex [Os(tpy)(pydppz)]²⁺, shown in Figure 7, was synthesized. This new species of Os(II) exhibits an absorption spectrum extending to 800 nm. Its emission characterized in aprotic organic solvent, by relatively high quantum yields and lifetimes in the order of hundreds of ns, is centered at 800 nm, and the complex represents the first example of an [Os(tpy)₂]-like species capable of intercalating into the DNA [91]. Moreover, it is also interesting to note that, despite the structural and chemical variation, it behaves as a true DNA OFF–ON light switch, like the analogous [Os(phen)₂(dppz)]²⁺ [150,151,152,153,154].

3.5. Few Examples of Applications: Cellular Imaging, Photodynamic Therapy (PDT), and Sensing

Studies carried out on cells, including cytoetric and imaging studies [155], showed that cellular uptake is generally a function of the integrity of the cell membrane and the nuclear membrane [156].

Species based on dppz were studied from a photophysical point of view in a variety of solvents, in the presence and absence of DNA [157,158]. Studies were also carried out on systems embedded in phospholipid vesicles [159,160], and in general, it was confirmed in the biological environment that these properties of Ru(II)-based complexes were highly dependent on the environment [161]. Recently, [Ru(bpy)₂(dppz)]²⁺ was studied for the first time in cells, using localized pump-probe spectroscopy, showing that the ultrafast dynamics of this species is a function of the position where the complex was internalized. The results obtained on a sample of fixed HepG2 cells clearly showed that it was necessary to have a good understanding of the dynamics of photoactive complexes in the actual target environment of the drug, so that the properties of the photodrug could be unambiguously correlated with its in vitro activity.

The DNA light-switching effect of the Ru-dppz complexes offers potential for use in fluorescent cellular imaging, particularly for nuclear staining with high-density DNA.

One of the key parameters for the use of these species at the cellular level is to optimize the cellular uptake process, especially, the crossing of the nuclear membrane [162].

In particular, research by Professor Barton′s group showed that a key parameter was the level of lipophilicity of the Ru-dppz photo-switch derivative obtained using different accessory ligands (bpy, phen, CO₂Et-bpy, …) [163,164,165]. However, this did not constrain absorption in the nuclear zone.

For example, in the case of the [Ru(DIP)₂(dppz)]²⁺ complex, confocal microscopy images of HeLa cells showed that this species is able to localize in the mitochondria or in the endoplasmic reticulum region, but not in the nuclear one [149].

When the lipophilicity of Ru-dppz complexes was modulated by the use of aliphatic chains on the ancillary ligands, cell imaging of fixed CHO-K1 cells revealed that the less lipophilic complex was preferentially localized within the nucleus, whereas, when the degree of lipophilicity became more pronounced, the light-switch essentially localised in the cell membrane. It was clear therefore that in a complex system such as the cellular one, it was difficult to find a univocal behavior, but the structural properties of these complexes must be dosed appropriately in order to convey them univocally [166,167,168].

One way to achieve this was to conjugate Ru-dppz like complexes with a nuclear targeting fragment such as the peptide D-octaarginine (D-R8) or the tetrapeptide RrRK, in which case nuclear localization was facilitated [124,125].

It is known that one of the key steps to increase the efficiency of the photosensitizers in DNA photocleavage is to bind, more or less strongly, to the DNA. Therefore, the use of intercalators was particularly studied in the field of PDT. However, [Ru(bpy)₂(dppz)]²⁺ showed negligible photocytotoxicity since, despite its high affinity for DNA, the singlet O₂ production efficiency was very low [169].

In order to intervene in this direction and improve the photosensitizing properties of Ru-dppz derivatives, Gasser designed a series of derivatives containing functional subunits on the dppz ligand [170,171], by maintaining the affinity for DNA, on the one hand but improving the photocytotoxicity values as PDT agents (improving the performance of the ³MLCT state), on the other hand.

The use of the dinuclear [Ru(bpy)₂tpphzRu(bpy)₂]⁴⁺ and [Ru(phen)₂tpphzRu(phen)₂]⁴⁺ molecular complexes as multifunctional biological imaging agent for DNA was reported. In particular, the efficiency of these species to “switch -on” nuclear DNA of living cells without requiring prior membrane permeabilization was demonstrated for both luminescence and transition electron microscopy [172].

Recently, a new derivative of [Ru(bpy)₂(dppz)], demonstrating a dramatic improvement in photobiological activity by introducing a pyrenyl substituent, was proposed [173]. The studies demonstrated that the population of an LC triplet state was much more performant in terms of singlet oxygen yield and potentially usable in clinical PDT applications.

In addition to DNA, Ru-dppz-type complexes are able to interact with proteins. One example is the heteroleptic ruthenium species based on the ligands 7,8-dimethyl dppz, 1,10-phenanthroline-4-carboxamide, and 5,6-dimethyl-1,10-phenanthroline [174], which is able to bind to acetylcholinesterase (AChE), exhibiting the typical light-switch behavior when binding to the hydrophobic domains of the protein. A further example is the more classic [Ru(bpy)₂dppz]²⁺, which is not photoluminescent in aqueous solution, even in the presence of monomeric amyloid beta (Aβ) (a peptide fragment containing 36–43 amino acids.) Monomeric Aβ self-assembles to form aggregates (amyloid fibrils) that are crucially involved in Alzheimer′s disease. In the presence of aggregates of Aβ fibrils, the photoluminescence of [Ru(bpy)₂dppz]²⁺ is recovered [175,176]. A further interesting application arises from the modification of Ru-dppz complexes by introducing an aptamer fragment into the system. Although the aptamers are single-stranded DNA oligonucleotides, they are able to fold into three-dimensional structures through base pairing. This process leads to protection of the dppz system from the solvent, which results in luminescence. More specifically, the system is applicable by exploiting the combination of the light switch effect with the selective ability of aptamers towards specific analytes. Recognition by the aptamers of a specific analyte (e.g., immunoglobulin E (IgM)) [177], abrin toxin [178], and ATP [179,180]) leads to the unfolding of its structure and the exposure of the dppz complex to the aqueous solvent, with consequent extinction of the luminescence.

4. Conclusions

Ru-dppz type complexes were extensively designed, synthesized, and studied. The combination of their photophysical properties and the peculiarities of the light-switch effect on DNA makes them powerful tools for analyzing the behavior of molecules of great biological impact. Despite the fact that the first example in this direction appeared more than 30 years ago, derivatives of Ru-dppz complexes are still of very wide interest, thanks to the possibility of crossing their characteristic and peculiar specificity towards biological material with a sharp and modulable light response. Over time, we progressed from simple interaction studies with DNA or specific sequences in vitro to direct applications, to investigate the selectivity of these molecules for different DNA structures, including B-form, Z-form, duplex, triplex, G-quadruplex, defective DNA, etc. Research in this field, together with the expansion and emergence of increasingly high-performance spectroscopic and microscopic techniques, continues to revive the applications of these apparently simple, but highly versatile molecular derivatives, in fields as diverse as cell nuclei imaging, photoactivatable, and DNA-targeted anticancer drugs, nucleic acid sequencing, protein aggregate recognition, and virus labelling. In only thirty years, there has been an ever-increasing number of applications that seem to be constrained only by the growth of experimental techniques of investigation and the imagination of researchers.
