Rolling Bearing Fault Diagnosis Based on Wavelet Packet Transform and Convolutional Neural Network

1
School of Mechanical Science and Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
2
School of Naval Architecture and Ocean Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2020, 10(3), 770; https://doi.org/10.3390/app10030770
Received: 31 December 2019 / Revised: 16 January 2020 / Accepted: 21 January 2020 / Published: 22 January 2020

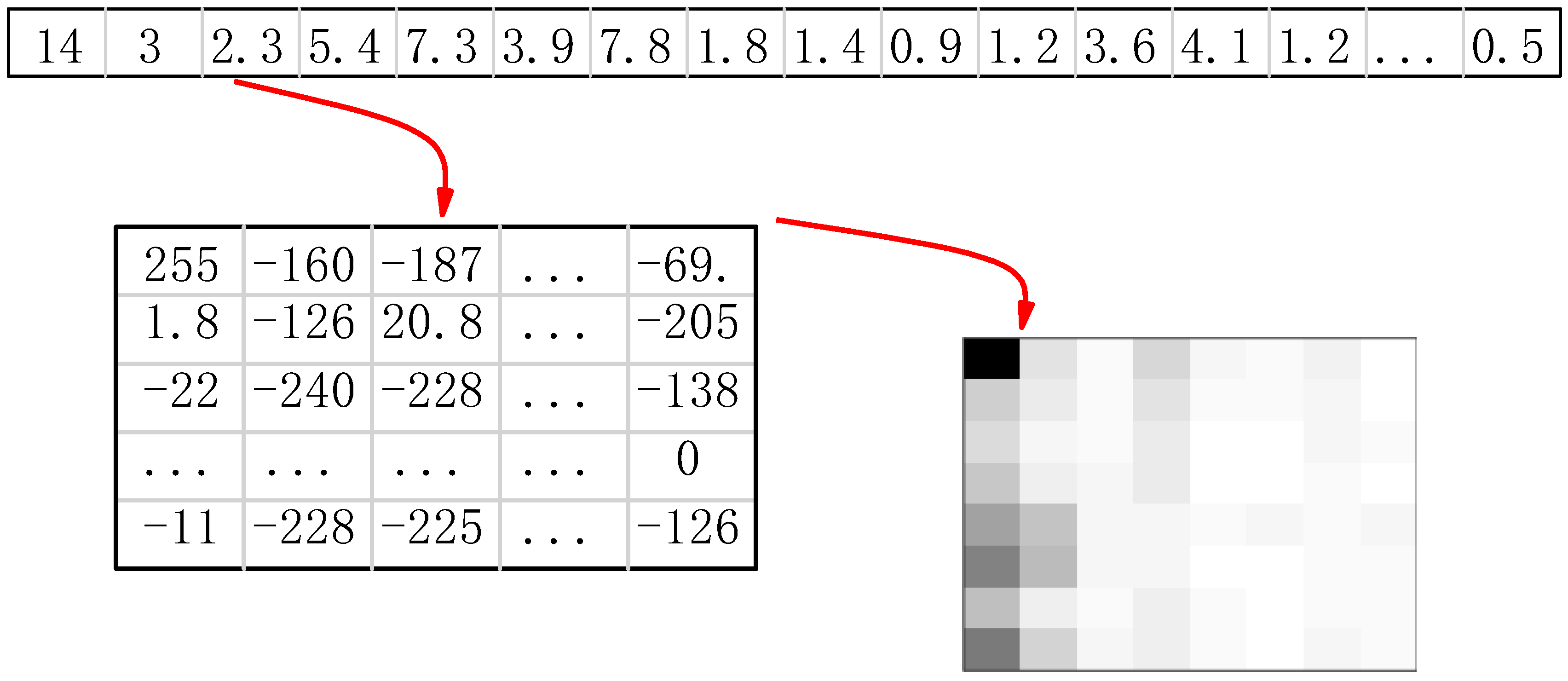

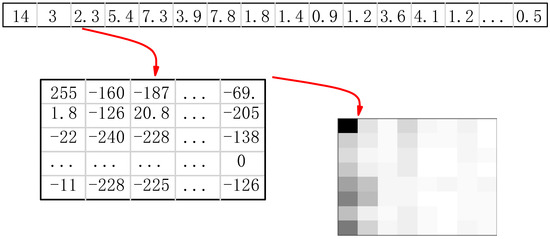

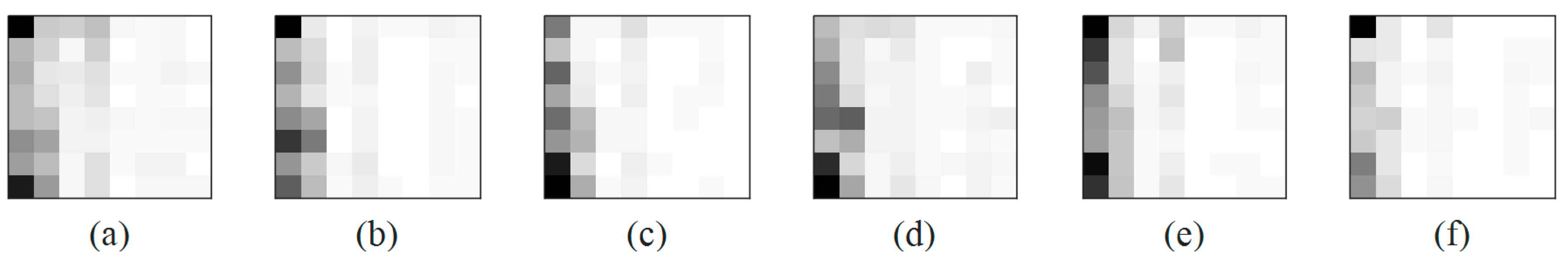

Timely sensing the abnormal condition of the bearings plays a crucial role in ensuring the normal and safe operation of the rotating machine. Most traditional bearing fault diagnosis methods are developed from machine learning, which might rely on the manual design features and prior knowledge of the faults. In this paper, based on the advantages of CNN model, a two-step fault diagnosis method developed from wavelet packet transform (WPT) and convolutional neural network (CNN) is proposed for fault diagnosis of bearings without any manual work. In the first step, the WPT is designed to obtain the wavelet packet coefficients from raw signals, which then are converted into the gray scale images by a designed data-to-image conversion method. In the second step, a CNN model is built to automatically extract the representative features from gray images and implement the fault classification. The performance of the proposed method is evaluated by a real rolling-bearing dataset. From the experimental study, it can be seen the proposed method presents a more superior fault diagnosis capability than other machine-learning-based methods. View Full-Text
Keywords: fault diagnosis; convolution neural networks; wavelet packet transform; data-to-image conversion; bearing fault diagnosis; convolution neural networks; wavelet packet transform; data-to-image conversion; bearing
Show Figures

Figure 1

MDPI and ACS Style

Li, G.; Deng, C.; Wu, J.; Chen, Z.; Xu, X. Rolling Bearing Fault Diagnosis Based on Wavelet Packet Transform and Convolutional Neural Network. Appl. Sci. 2020, 10, 770.
