A Coupled Effect Model of Two-Position Local Geometric Deviations on Subsonic Blade Aerodynamic Performance

by 1,2,*, 1,3, 1,2 and 1,2
1
Research Institute of Aero-Engine, Beihang University, Beijing 100191, China
2
National Key Laboratory of Science & Technology on Aero-Engine Aero-Thermodynamics, Beihang University, Beijing 100191, China
3
School of Energy and Power Engineering, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(24), 8976; https://doi.org/10.3390/app10248976
Received: 25 November 2020 / Revised: 10 December 2020 / Accepted: 10 December 2020 / Published: 16 December 2020
(This article belongs to the Special Issue Turbomachinery: Theory, Design and Application)
The coupled aerodynamic performance influence of multiple deviations in the blade profile is a complex phenomena. In this paper, a high-pressure compressor rotor blade mid-span profile is studied with the design of experiments (DOE), numerical simulation and surrogate model to analyze the influence of the deviations on the blade aerodynamic performance. The purpose of this work is to provide a new rapid evaluation approach for the blade aerodynamic performance under multiple geometric deviations influence. First, the Hicks-Henne function was used to model the local geometric deviations of the blade profile, and the blade aerodynamic performance was calculated by using the computational fluid dynamics tools. By analyzing the calculation results, the momentum thickness of the boundary layer, the deviations height and the distance between the deviations are combined into a coupled effect model. Then, the coupled effect model was used to rapidly evaluate the blade aerodynamic performance when the two-position local geometric deviations exist on the blade surface. Finally, the evaluated performance were compared with the results predicted by a high-precision surrogate model, which verifies the high accuracy of the coupled effect model in evaluating the positive incidence range of the blade profile. View Full-Text
Keywords: local geometric deviation; coupled effect model; compressor performance local geometric deviation; coupled effect model; compressor performance
Show Figures

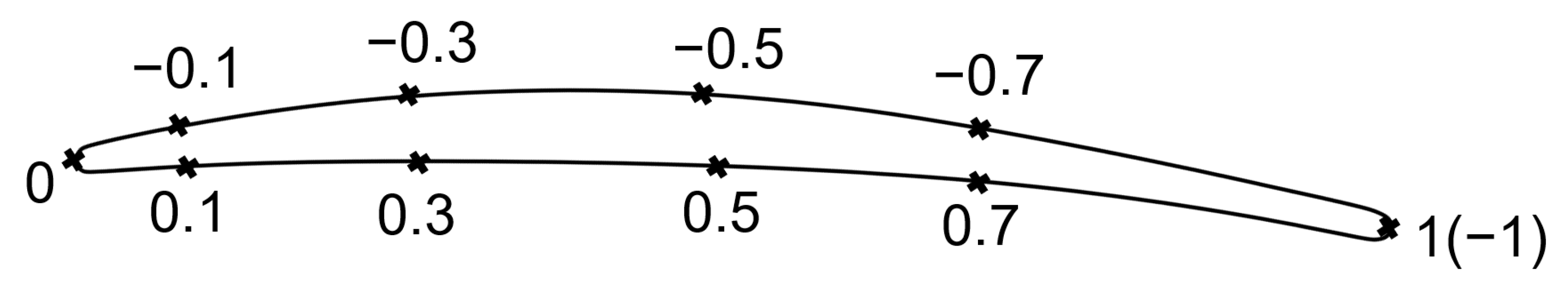

Figure 1
