PetriNet Editor + PetriNet Engine: New Software Tool For Modelling and Control of Discrete Event Systems Using Petri Nets and Code Generation

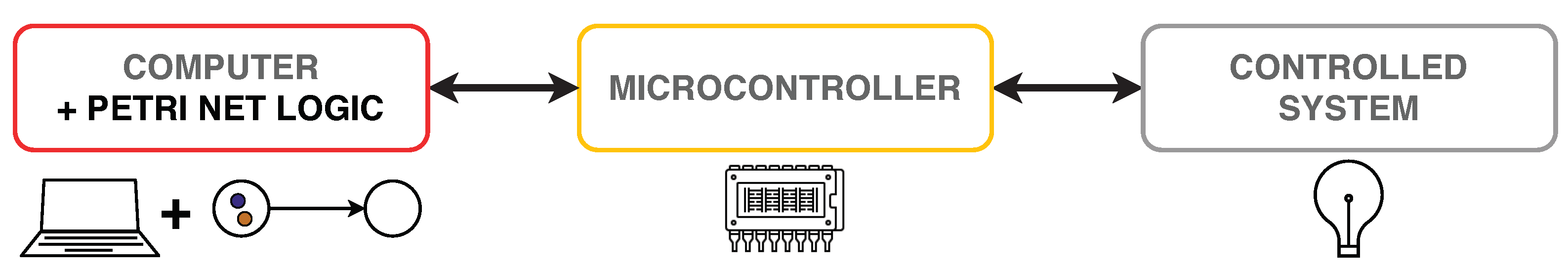

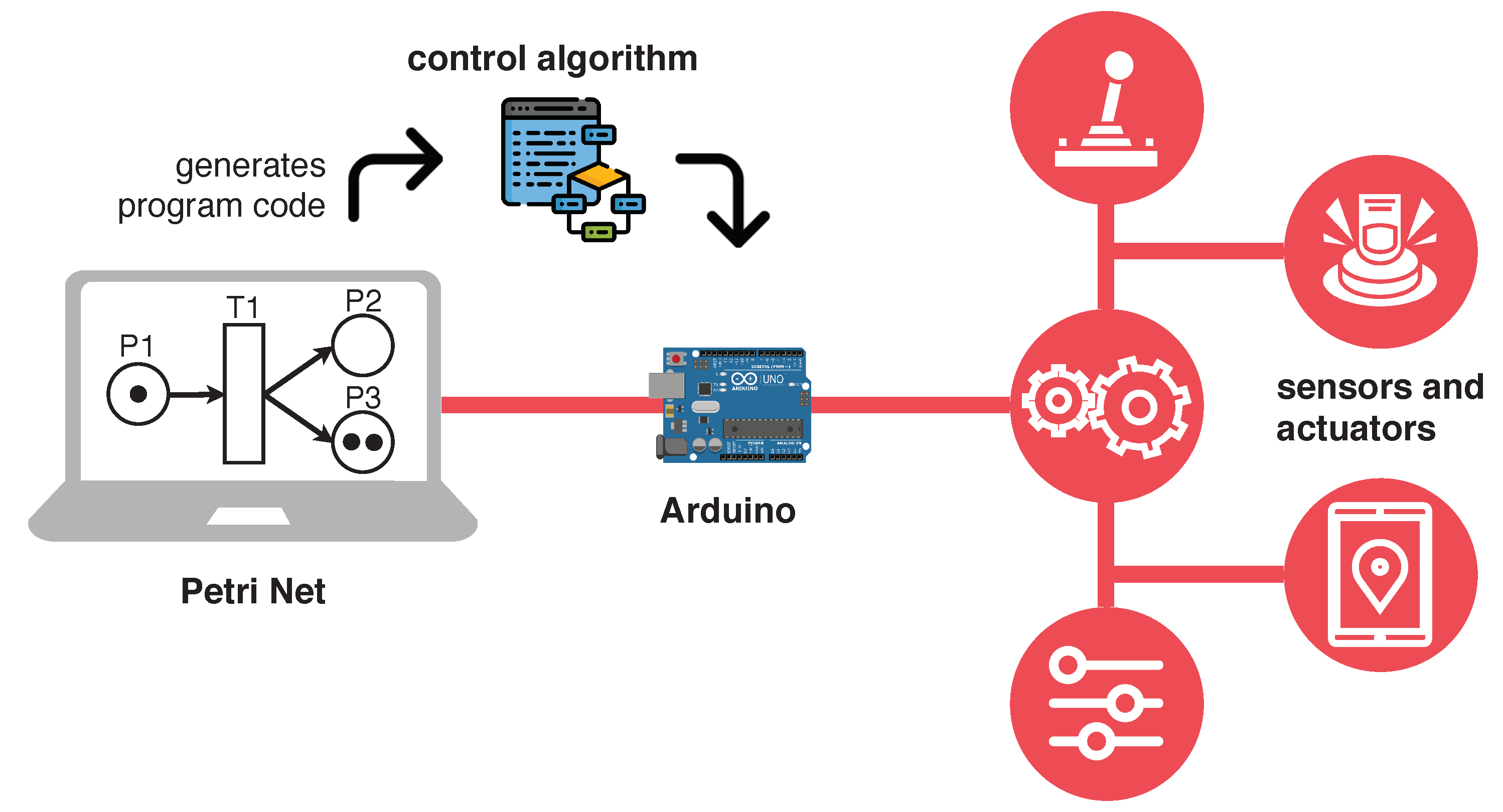

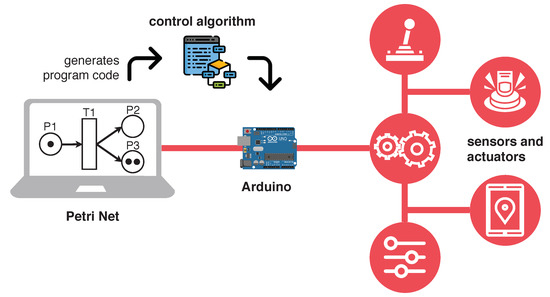

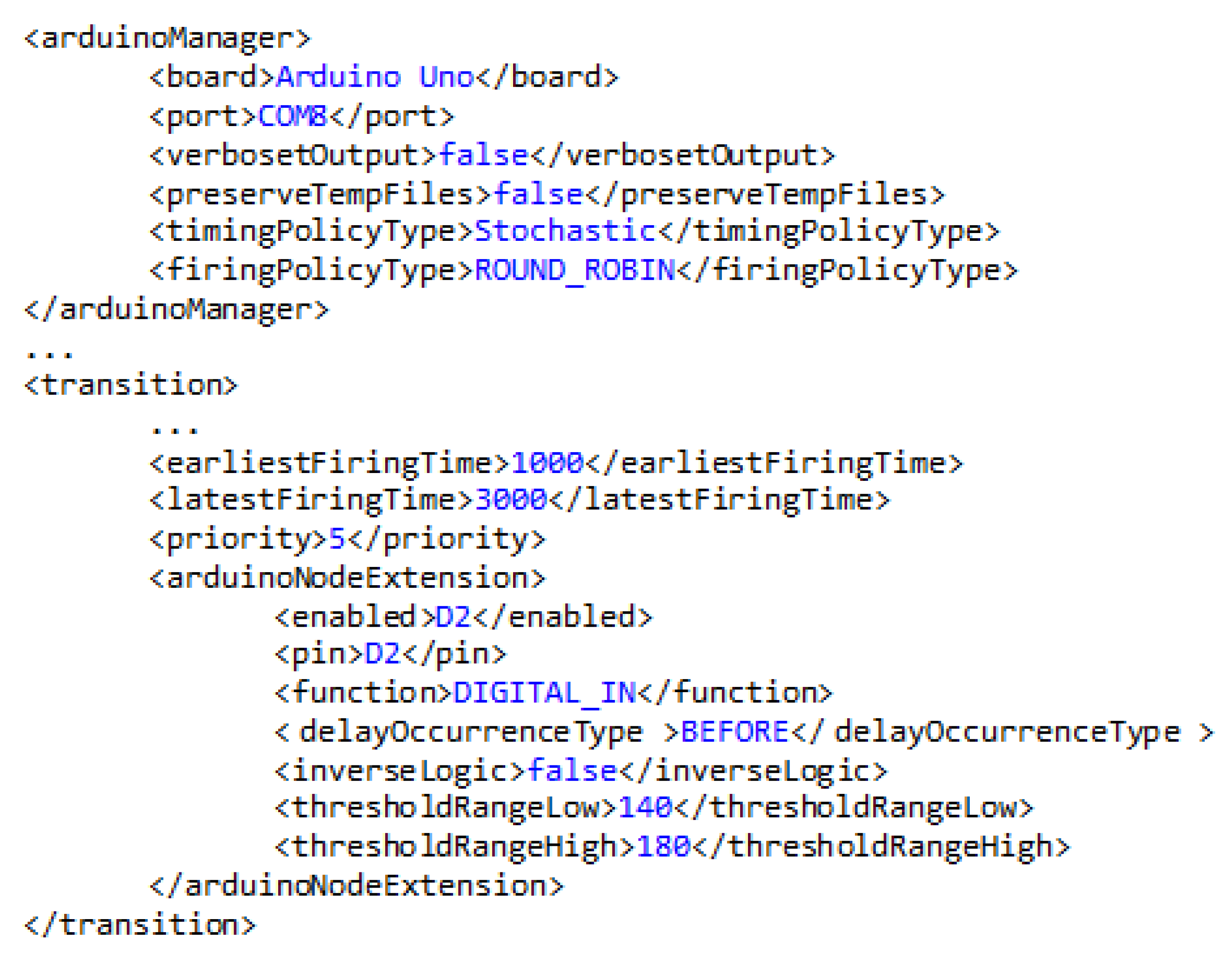

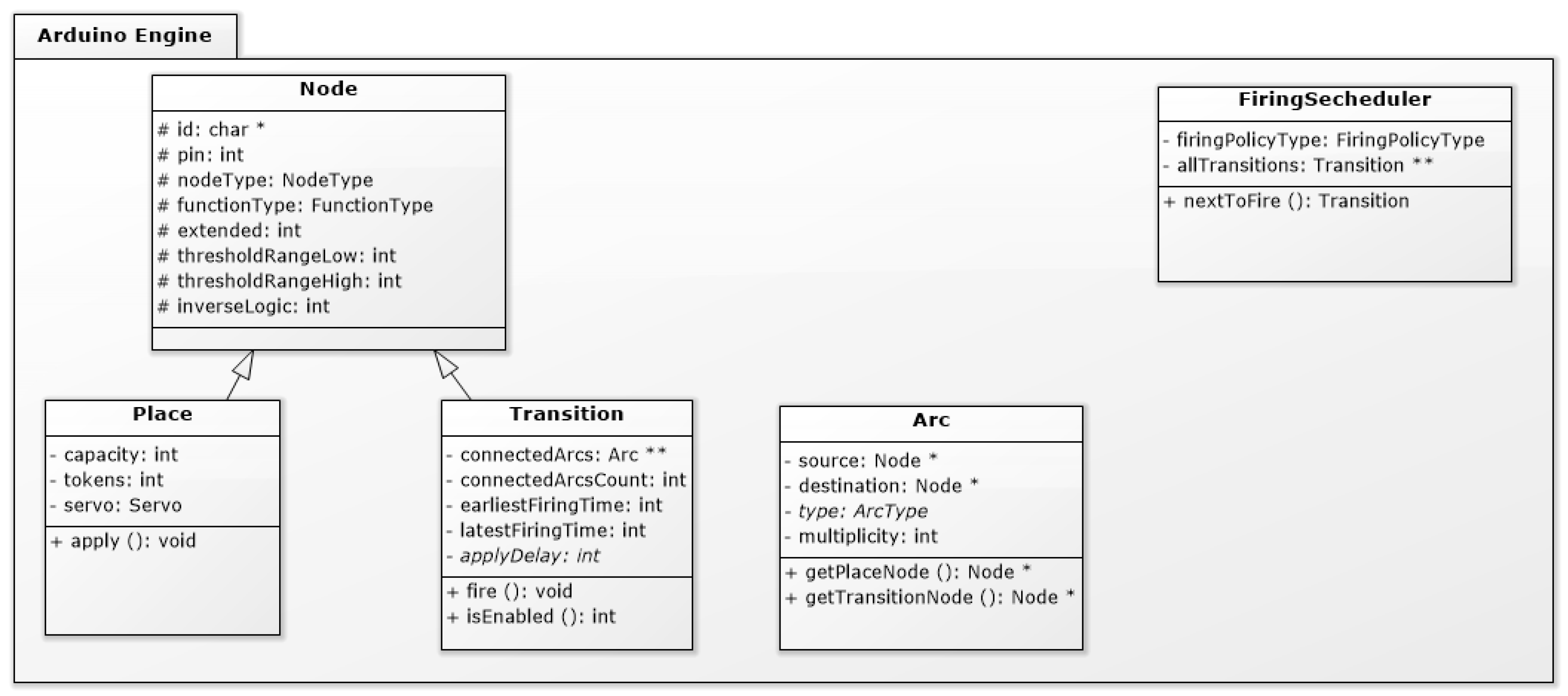

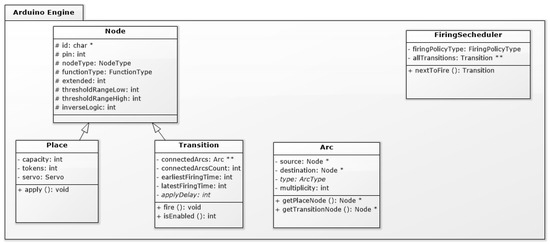

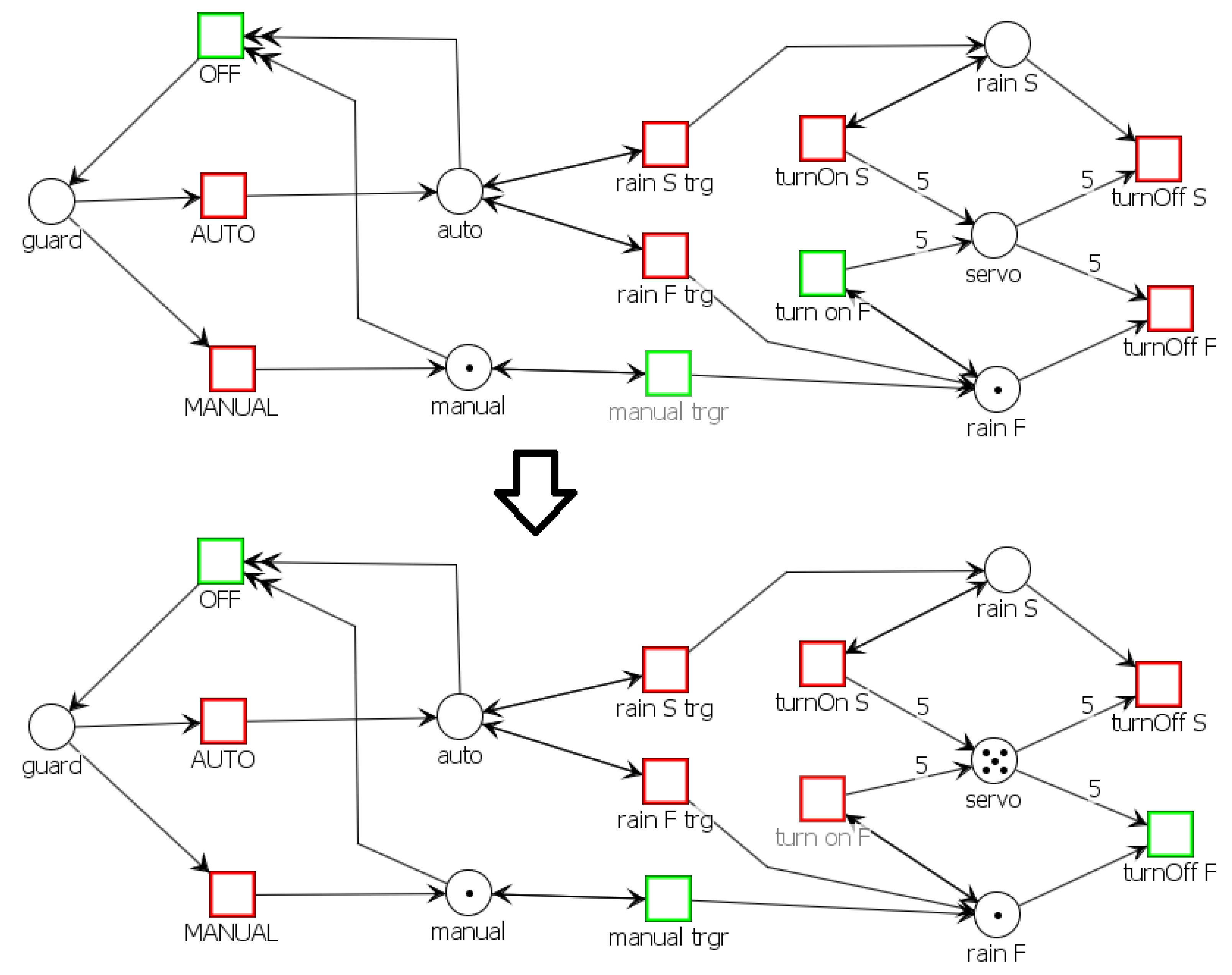

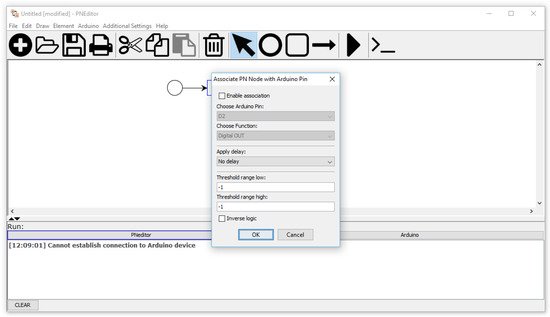

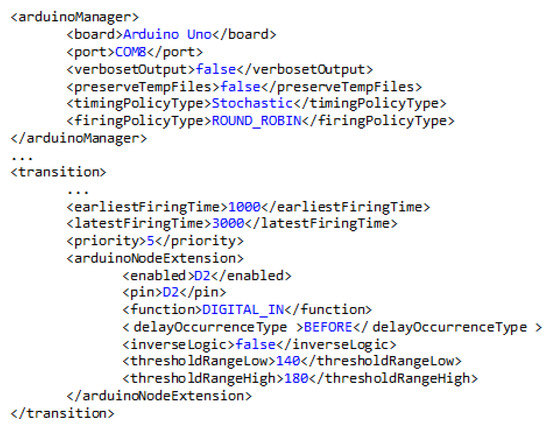

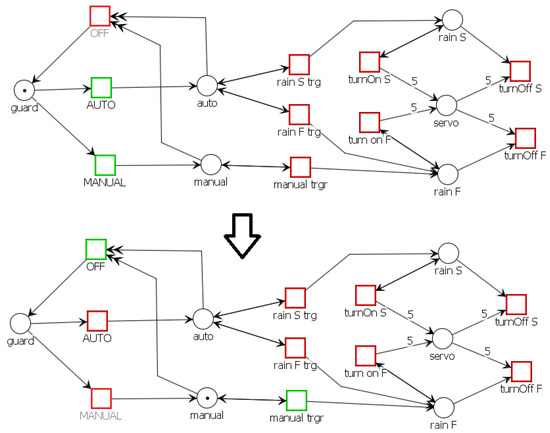

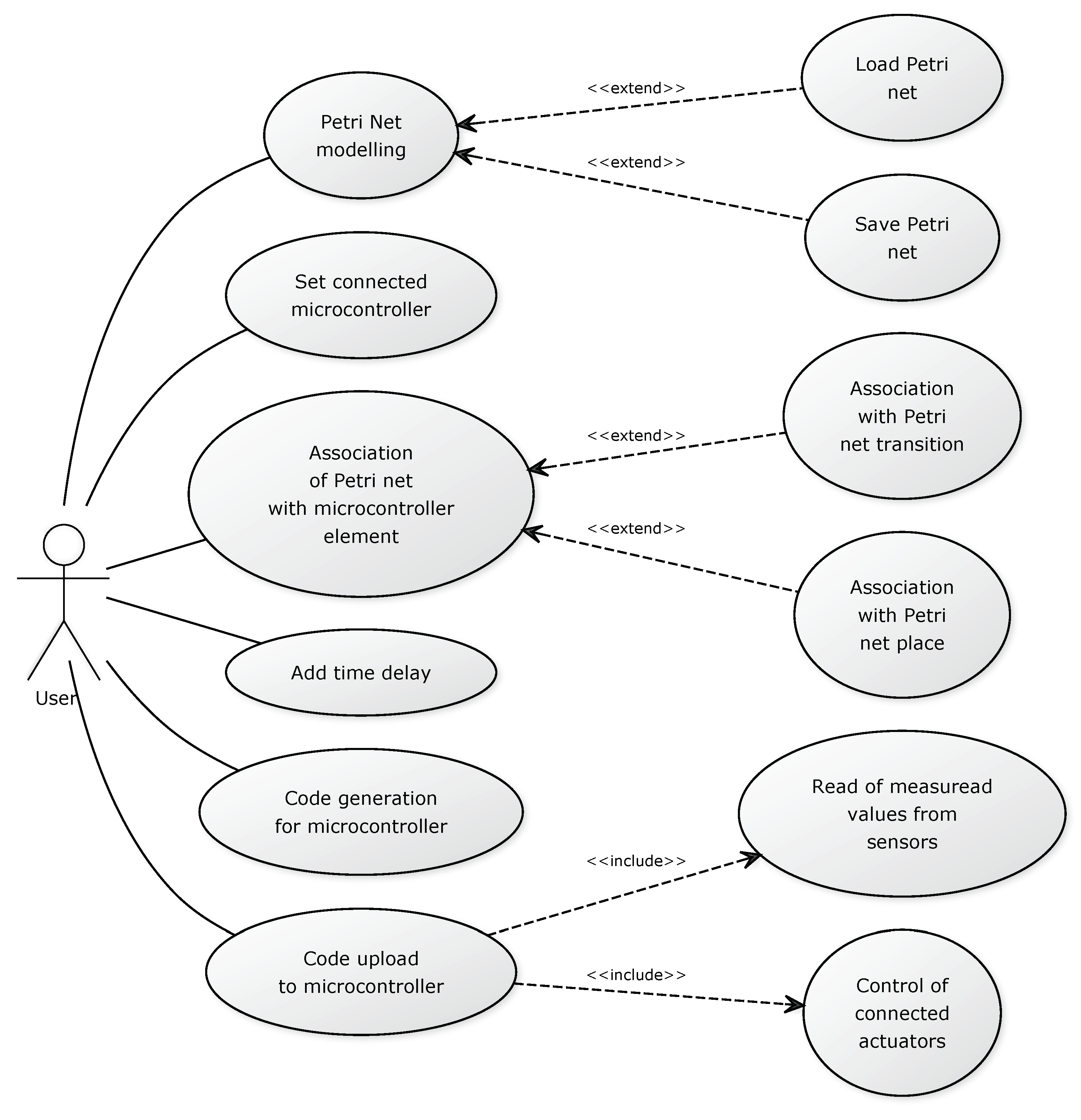

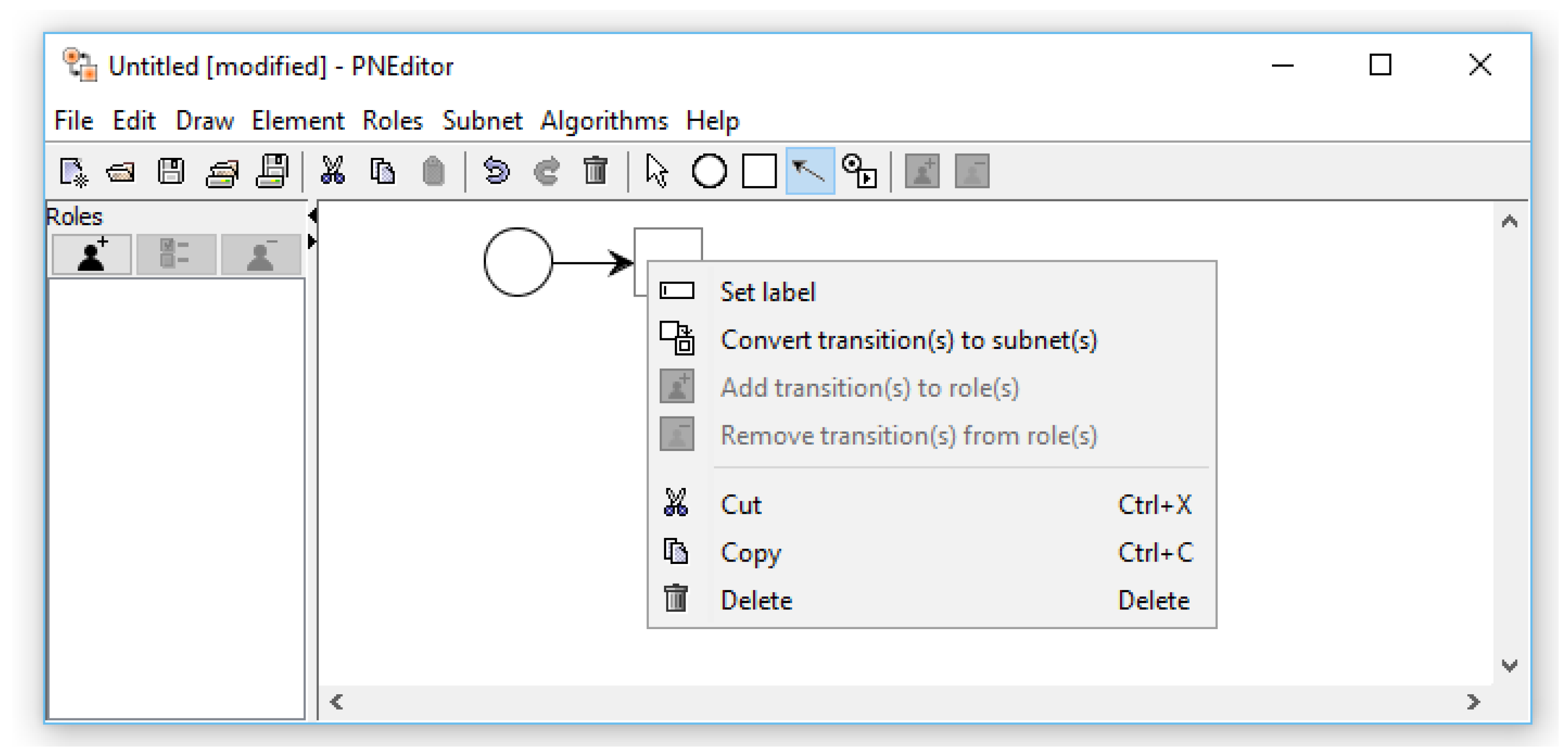

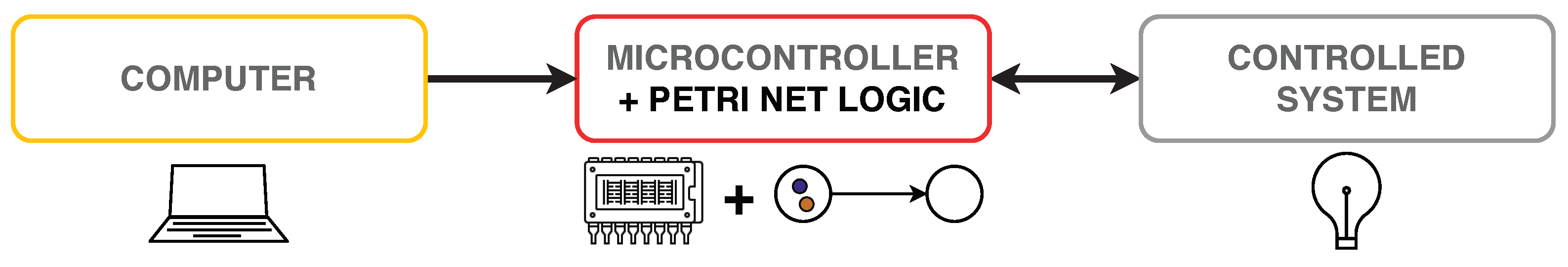

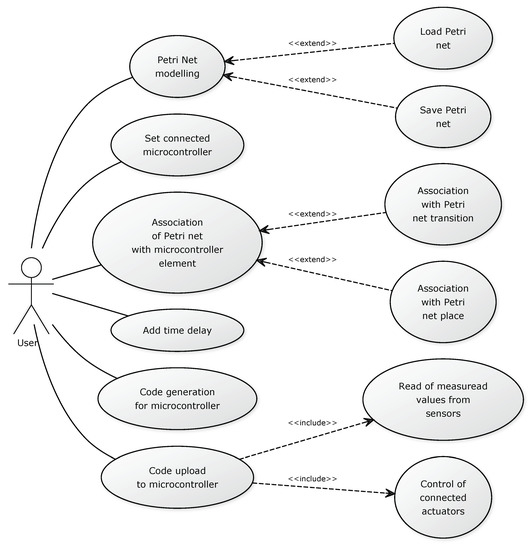

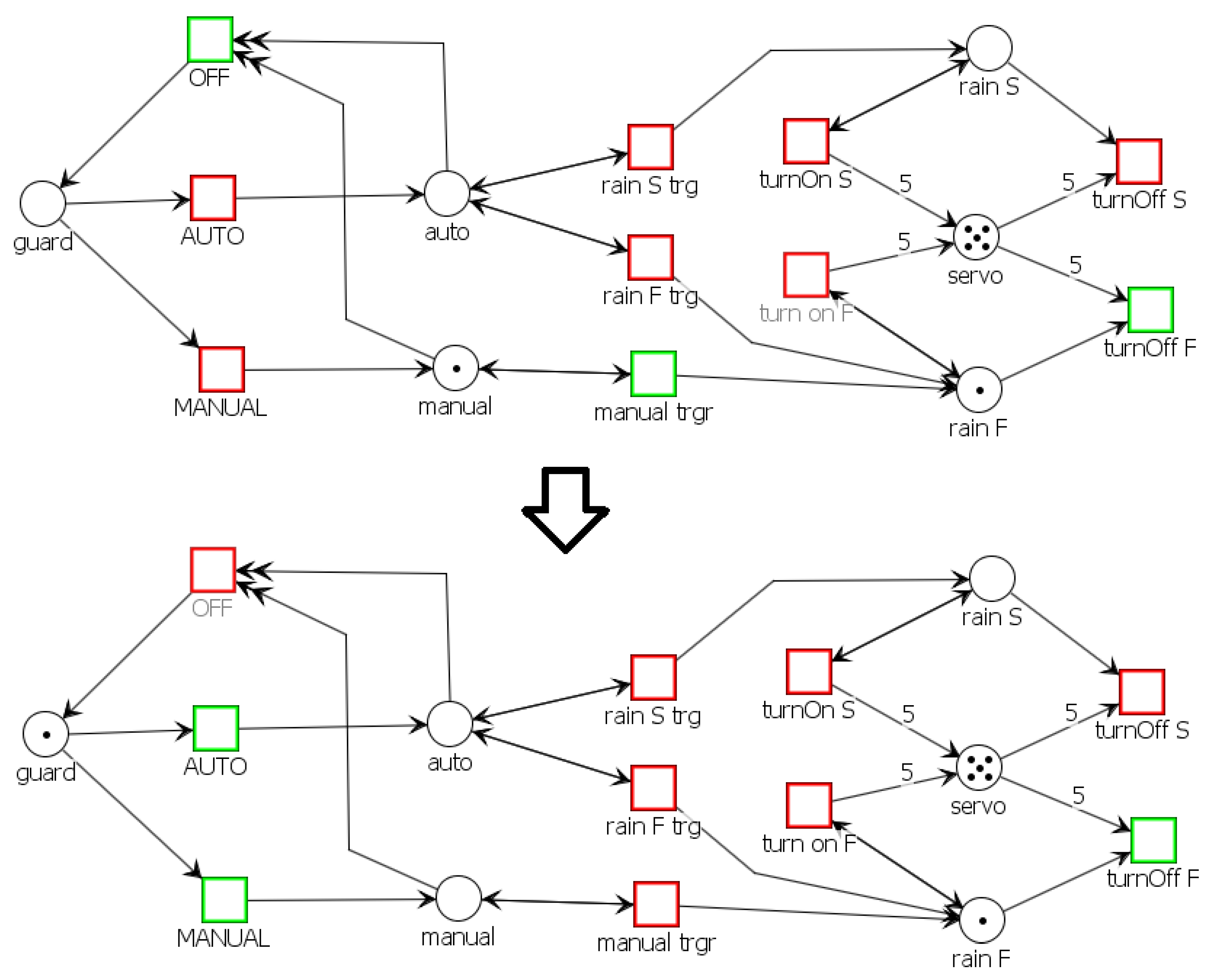

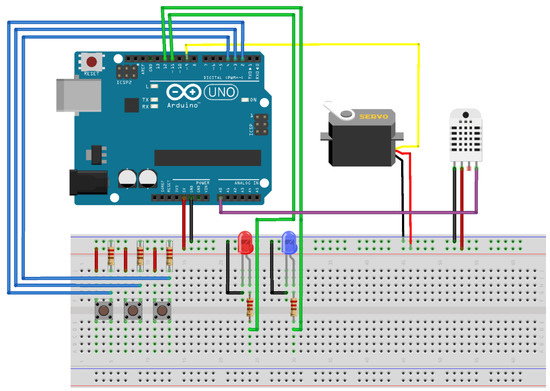

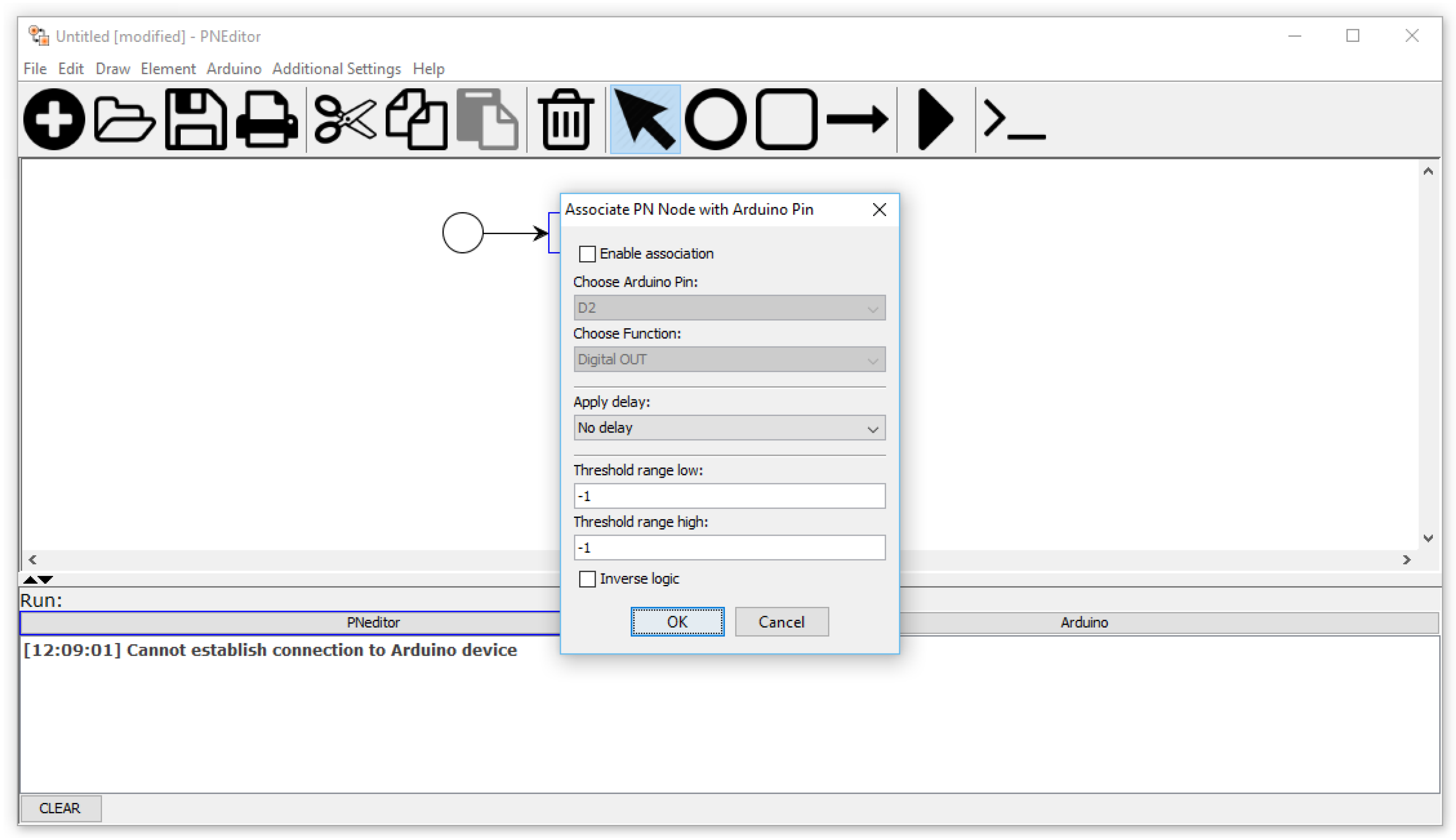

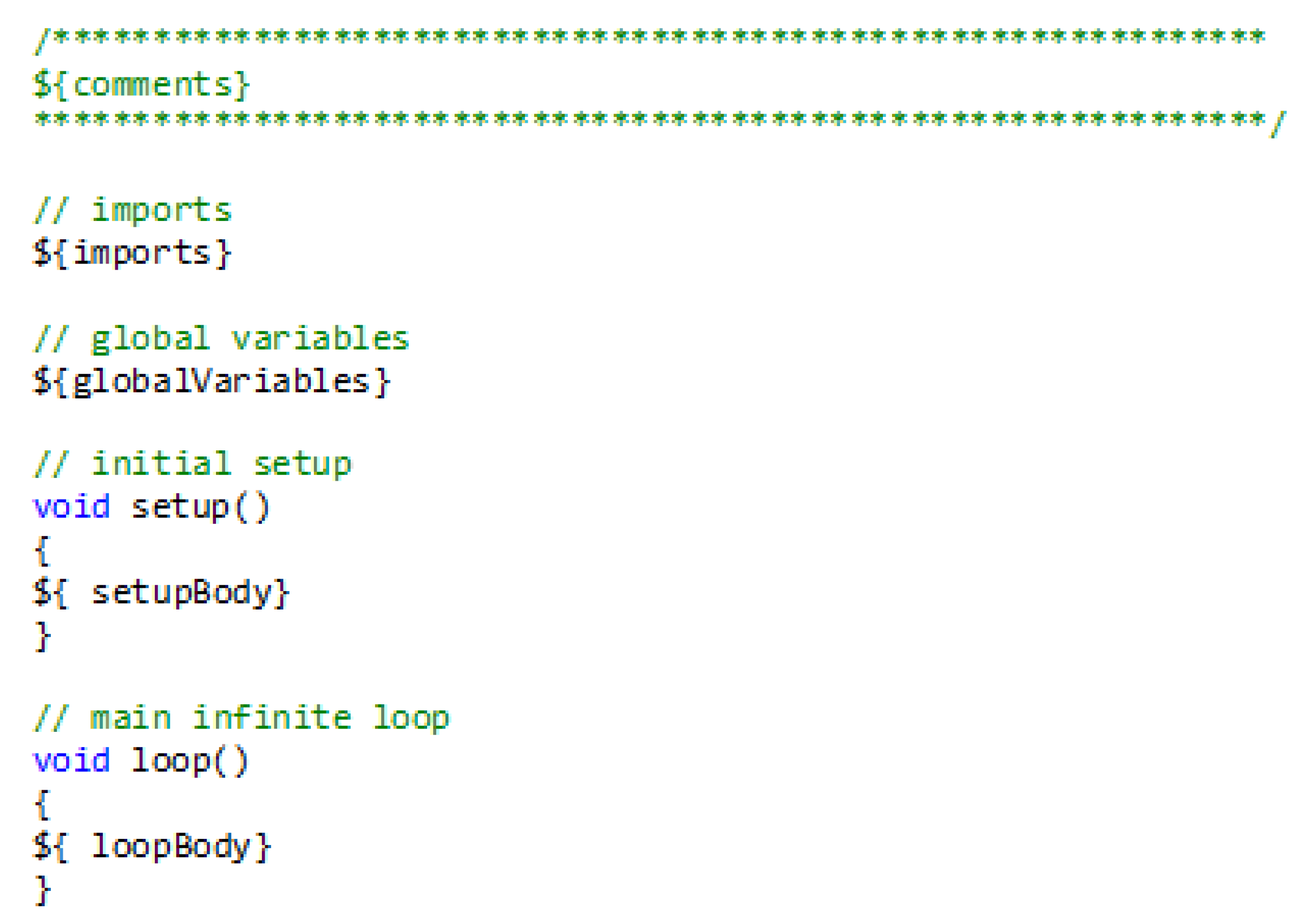

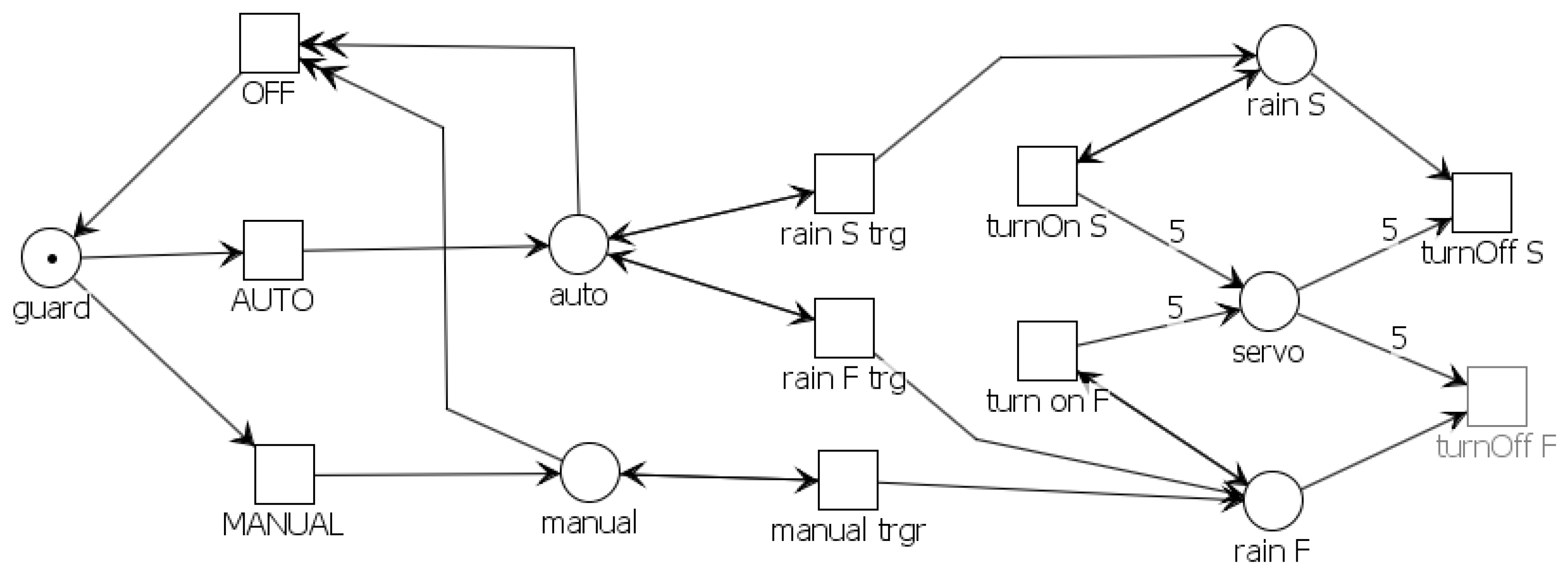

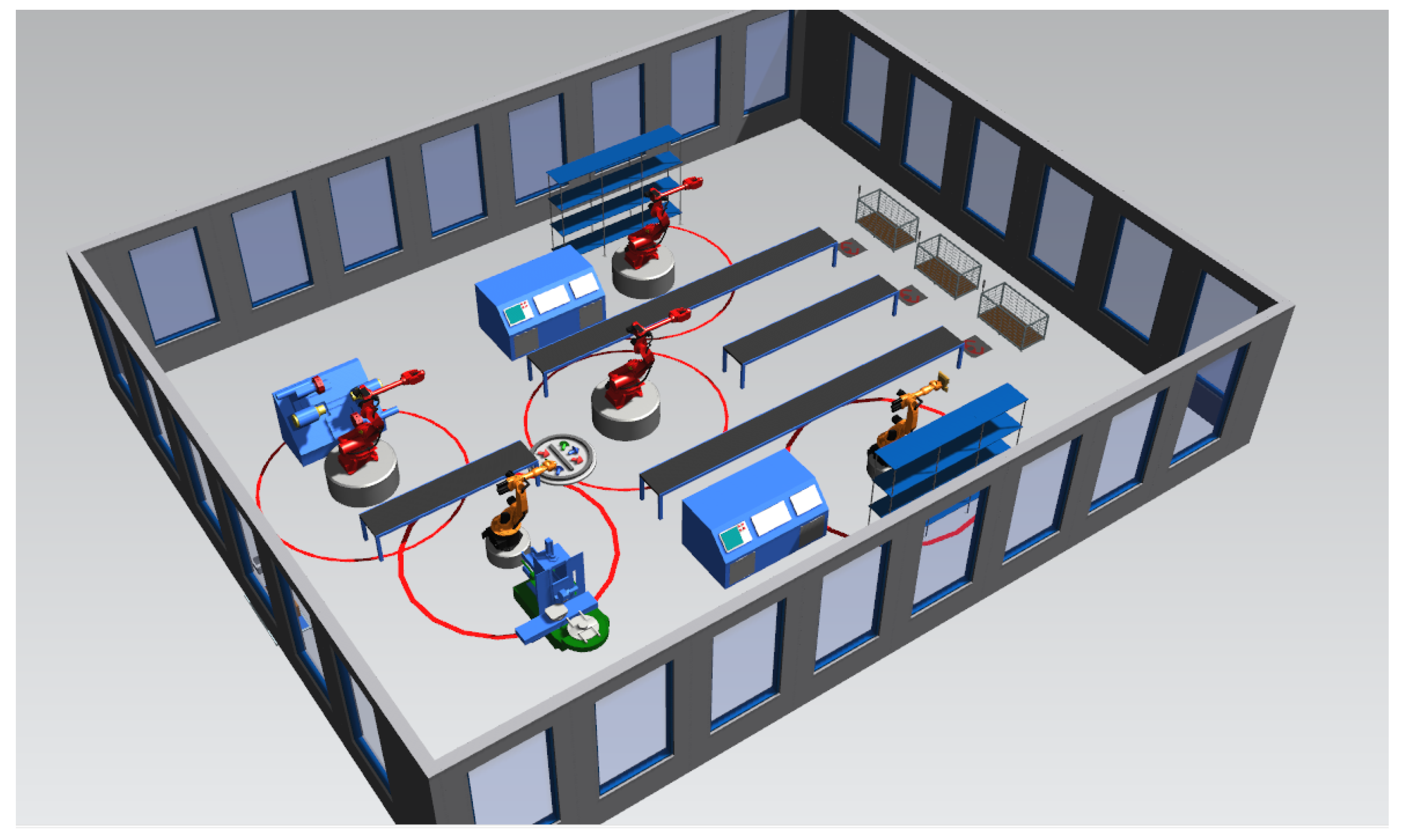

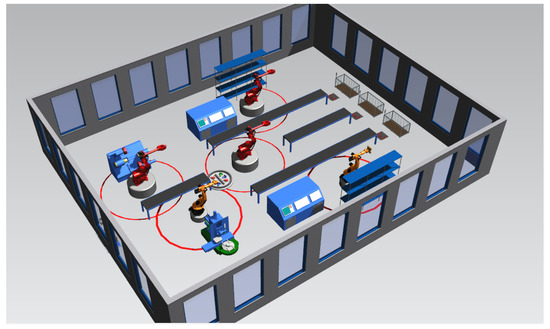

Petri nets are an important tool for creation of new platforms for digitised production systems due to their versatility in modelling discrete event systems. For the development of modern complex production processes for Industry 4.0, using advanced mathematical models based on Petri nets is an appropriate and effective option. The main aim of the proposed article is to design a new software tool for modelling and control of discrete event systems using Arduino-type microcontrollers and code generation techniques. To accomplish this task, a new tool called “PetriNet editor + PetriNet engine” based on Petri nets is proposed able to generate the code for the microcontroller according to the modelled Petri net. The developed software tool was successfully verified in control of a laboratory plant. Offering a graphical environment for the design of discrete event system control algorithms, it can be used for education, research and practice in cyber-physical systems (Industry 4.0). View Full-Text
