Milliwatt-Level Spontaneous Emission Across the 3.5–8 µm Spectral Region from Pr³⁺ Doped Selenide Chalcogenide Fiber Pumped with a Laser Diode

Featured Application

A candidate for the realization of a broadband mid-infrared spontaneous emission fiber source for biological and medical applications is demonstrated.

Abstract

A spontaneous emission fiber source operating in the mid-infrared (MIR) wavelength range from 3.5 to 8 µm is demonstrated for the first time at output power levels of at least 1 mW. The source is a Pr³⁺-doped selenide chalcogenide, multimode, glass fiber pumped with commercially available laser diodes operating at 1.470 µm, 1.511 µm and 1.690 µm. This MIR spontaneous emission fiber source offers a viable alternative to broadband mid-infrared supercontinuum fiber sources, which are comparatively complex and costly. The MIR emission wavelength range is significant for molecular sensing applications across biology and chemistry, and in medicine, agriculture, defense, and environmental monitoring.

1. Introduction

Mid-infrared (MIR) fiber sources have been the subject of extensive research in recent years. The main reason is the broad range of potential applications for such sources in fields of biomedical sensing, environmental monitoring, free space communication and so on [1,2,3,4,5]. When compared to other types of MIR light sources, fiber sources have advantages of good beam quality, compactness, reliability, and a simple construction [1,2,3,4,5]. Recently, continuous wave (CW) 3.92 µm laser action at room temperature has been observed in Ho³⁺-doped fluoroindate glass fibers [6] and photoluminescence beyond 4 µm in Dy³⁺-doped fluoroindate glass fibers [7]. Bearing in mind that it has taken 23 years to push the fiber lasing wavelength from 3.90 µm [8] only to 3.92 µm i.e., [6], to access longer wavelengths, beyond 4 µm, host glass materials with lower phonon energy are needed [5]. Potentially excellent candidate host glasses are chalcogenide-selenide glasses. Chalcogenide-selenide glass fibers have already proven their usefulness in the development of ultra-broadband MIR supercontinuum sources to 15 µm [9,10]. In addition, Raman lasers operating beyond 3.5 µm have been successfully realized in chalcogenide glass fibers [11]. However, the making of lanthanide ion-doped MIR fiber lasers beyond, 4 µm has so far proved elusive, despite large efforts. To date, spontaneous emission in the range 3–6 µm has been observed in chalcogenide glasses doped with Pr³⁺, Tb³⁺, Dy³⁺ or Nd³⁺ [12,13,14,15,16,17]. Also, PL (photoluminescence) in bulk chalcogenide glasses has been observed in the 7–8 µm region in Tb³⁺ and Pr³⁺, respectively, [18,19]. Recently, spontaneous emission between 7–9 µm has been reported in chalcogenide glass fibers doped with Tb³⁺ or Sm³⁺, respectively [20,21]. Nonetheless, the failure to achieve MIR laser action in chalcogenide glass fibers doped with lanthanides is in part, at least, due to residual loss around 4.6 µm wavelength because of Se-H extrinsic impurity in the glass host [22]. Still, rare earth ion-doped chalcogenide glass multimode fibers show great promise to act instead as MIR spontaneous emission fiber light sources. A MIR spontaneous emission fiber source comprises a rare earth ion-doped chalcogenide fiber, a pump laser and focusing optics. Importantly, in the case of spontaneous emission sources, a population inversion is not required. This is because the MIR light is produced via the spontaneous emission phenomenon. Work to date has shown their suitability in gas sensing [14,23,24,25,26]. Moreover, absorption bands arising from vibrational excitations relevant to biological and medical applications cover the wavelength range from 2.8 to 3.7 µm and from 5.7 to 7.3 µm [4] and both are covered by a MIR spontaneous emission fiber source. Further, most FTIR (Fourier transform infrared) spectrometers use as a MIR light source, a Globar. A Globar is silicon carbide rod of 5 to 10 mm width and 20 to 50 mm length that is electrically heated up to 1000 to 1650 °C. A Globar requires water-cooling and also special safety precautions. The MIR rare earth-doped spontaneous emission source developed in this contribution operates, on the other hand, at room temperature and is easy to handle.

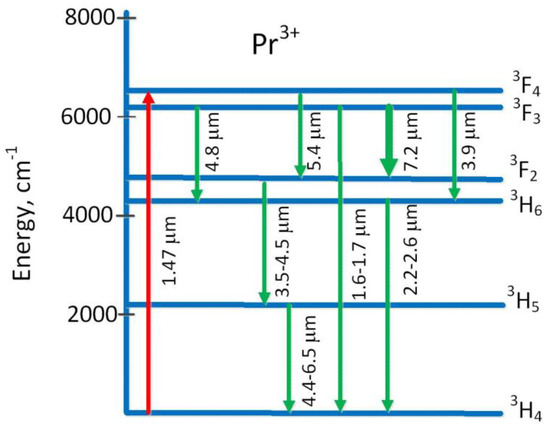

Praseodymium ion-doped, selenide host glasses exhibit strong absorption bands at 1.55 μm and 1.94 μm, which are suitable for pumping with readily commercially available, high power, and cost-effective laser diodes. A simplified, energy-level diagram of Pr³⁺ in chalcogenide glass with indicated possible emission paths for wavelengths above 3 µm is presented in Figure 1. Broadband MIR emission across the 3.5–6 μm wavelength range from Pr³⁺-doped chalcogenide glasses has already been reported by several research groups [12,13,27,28,29,30,31,32,33,34,35]. This MIR emission from Pr³⁺ ions can be attributed to emissions from several transitions that overlapped, including: (³F₄,³F₃)→(³F₂,³H₆), (³F₂,³H₆→³H₅ and ³H₅→³H₄). Results to date demonstrate the potential of Pr³⁺-doped chalcogenide fiber to be developed into MIR spontaneous emission sources. This is the subject of this paper.

Of relevance is the recent report on MIR emission from 6.5 to 8.5 µm in a Pr³⁺-doped bromide crystal [36], which is attributed to the ³F₃→³F₂ transition. Furthermore, this emission was exploited in realizing MIR lasing in Pr³⁺-doped crystalline materials, lasing at wavelengths: 7.2 µm (³F₃→³F₂), and 5.2 µm (³F₃→³H₆), respectively, in a Pr³⁺: LaCl₃ crystal. Such laser action utilizing the ³F₃→³F₂ transition exemplifies a true four-level laser system [37,38]. The maximum phonon energy of LaCl₃ is around 260 cm⁻¹, which is comparable to that of a chalcogenide selenide glass at 250–300 cm⁻¹ [39]. Despite the observation of spontaneous emission from the (³F₄,³F₃) degenerate levels to the ³H₄ ground state at ca. 1.6 µm wavelength, which have already been reported in a Pr³⁺-doped selenide chalcogenide glass [40,41,42,43,44], there is only very recent evidence for emission from this transition in the MIR region beyond 6.5 µm in the literature to date [19]; hence, this a focus of this contribution.

The motivation of this paper is the application of praseodymium ion-doped chalcogenide selenide glass fibers, pumped using near-infrared (NIR) laser diodes, as MIR light sources. The key factors considered here are power-scaling and a large emission spectral-bandwidth. Thus, in this contribution, it is demonstrated that an output power > 1 mW in the MIR wavelength region is achievable from multimode Pr³⁺-doped selenide chalcogenide fiber, under pumping using either 1.47 µm, 1.51 µm or 1.69 µm laser diodes. To the best of our knowledge, this is the largest output power achieved to date in a rare earth ion-doped chalcogenide fiber spontaneous emission source in the spectral region beyond 3 µm. These results clearly show the power scaling potential of the MIR spontaneous emission fiber source studied. Moreover, emission at ~7.2 µm, attributed to the ³F₃→³F₂ transition in the Pr³⁺ selenide chalcogenide fiber, is reported. To the best of the Authors’ knowledge, this is the first experimental demonstration of 7.2 µm emission in a Pr³⁺-doped chalcogenide fiber, demonstrating also that the spontaneous emission from a Pr³⁺ selenide chalcogenide fiber can stretch up to 8 µm. This is an important result from the point of view of realization of the first fiber laser beyond 4 µm, due to the fact that the transition centered at around 7.2 µm has the potential to operate as a four-level laser system [37].

2. Materials and Experimental Methods

1000 ppmw (parts per million by weight) Pr³⁺-doped Ge-As-Ga-Se glass rods were prepared using the melt-quenching method; more details can be found in [12,29]. In the experiment, an unstructured fiber approximately 450 µm in diameter and 70 mm long was used. The rare earth ion-doped chalcogenide glass multimode fiber fabrication is described in more detail in [12]. The experimental set-up for measuring the output power, photoluminescence (PL) spectrum and PL decay was similar to that described in [45]. The Pr³⁺-doped selenide-chalcogenide glass fiber was placed in an aluminum V-groove on a XYZ translation stage. The output PL power was measured in the spectral region above 3 µm by excitation of the Pr³⁺ fiber, using each of the three different laser diode pumping sources at NIR wavelengths of: 1.47 µm (SemiNex 4PN-127), 1.511 µm (SemiNex 4-PN-109) and 1.69 µm (QPC Laser PR-6017-0000). For achieving efficient collection of the PL signal from the fiber end, a lens with a short focal length and high numerical aperture (NA) is preferred. This is because, due to the high refractive index of the unstructured chalcogenide glass fiber, the emitted beam divergence is large [26]. Here, three different ways of collecting PL from the fiber end were tested. In the first case: (i) the output from the fiber end was collimated using a 1.87 mm focal length (NA  =  0.86) black diamond lens (Thorlabs), which was AR-(anti-reflection)-coated for the 3–5 µm range. In case (ii), a black diamond lens was again used but the beam was subsequently focused using a germanium aspheric lens, AR-coated for 3–12 µm, of focal length: 12.7 mm and NA = 1 (Edmund Optics Stock #89-607). In the case of (iii), a pair of germanium aspheric lenses, each of focal length: 12.7 mm, were used to collimate and then focus the light on the optical power meter detector. Germanium lenses also provided some optical filtering, with a cut-on around 2 µm, thus the pump signal was fully attenuated before reaching the power meter. The output power was measured using a sensitive thermal power meter (Thorlabs S401C) combined with a 3 µm cut-on long-pass filter. For measuring the PL spectra, a monochromator (MSH-150 Quantum Lot; focal length: 150 mm) operating with either a 4000-nm blazed: 150 line/mm, or a 9000-nm blazed: 100 line/mm, grating was used. The PL was collected from the fiber end using a pair of germanium aspheric lenses, AR-coated for 3–12 µm, of focal length = 12.7 mm and NA = 1. In this case, the pump beam was electronically chopped with a low frequency as the reference signal for a lock-in amplifier, in order to reduce any thermal background noise. The PL signal was detected in the spectral region spanning 3.0 to 9 µm, using a thermoelectrically cooled (to 200 K) MCT (mercury cadmium telluride) detector (Vigo System PVI-4TE-8), which was connected to a lock-in amplifier (Scitec Instruments Inc., Trowbridge, UK). In the measurements, one of three long pass filters was used: a long-pass filter with cut-on wavelength around 3 µm (Spectrogon 71M09339, Täby, Sweden), a long-pass filter with a cut-on wavelength around 3.6 µm (Edmund Optics, Barrington, USA) or a long-pass filter with a cut-on wavelength of 6.15 µm (Spectrogon 71M09001). The PL decay rates were measured at the fiber end using the MCT detector and directly modulating the pump lasers. The decay rates were measured at the wavelengths: 6.5 µm, 7 µm, and 7.4 µm. The time response of the detector and the preamplifier used in the PL decay measurements was < 3 µs. In order to select the measured wavelengths, a monochromator was used to act as a tunable bandpass filter. In all of the considered cases, the 6.15 µm filter was placed in front of the monochromator to remove the pump signal and any unwanted second order diffraction. The decay at around 1.6 µm wavelength was measured using an InGaAs photodiode, operating in the spectral range: 800–1700 nm (Thorlabs SM05PD5A, Newton, USA) coupled with a PDA200C photodiode amplifier. Note that the time response for the whole set-up was better than 5 µs. The time evolution of the fluorescence was recorded using a digital oscilloscope (PicoScope 5442A, Cambridgeshire, UK) coupled with a PC (personal computer). Averaging was applied to reduce the noise.

3. Experimental Results and Discussion

In this Section, the experimental results are discussed. First the results of the power measurements are presented, followed by a discussion concerning the recorded photoluminescence spectra and luminescence lifetimes.

3.1. Output Power Measurements from the Pr³⁺ Doped Spontaneous Emission Fiber Source

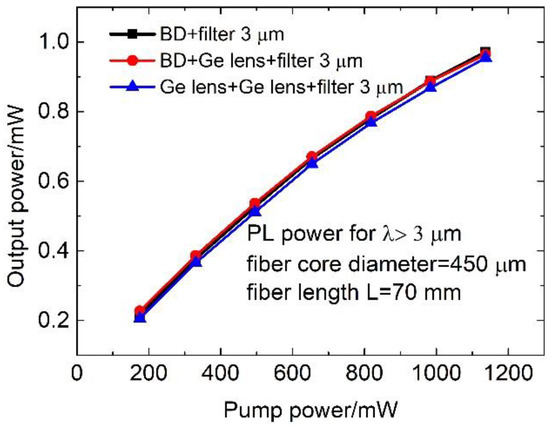

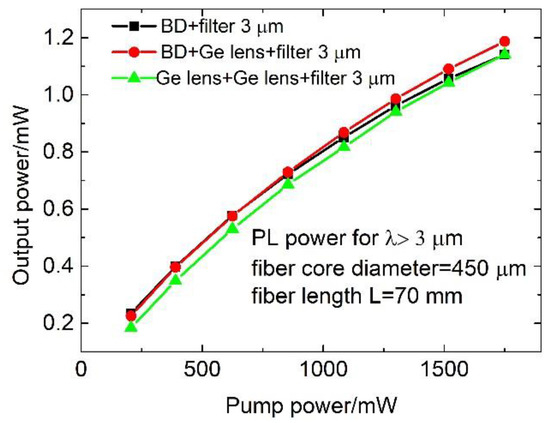

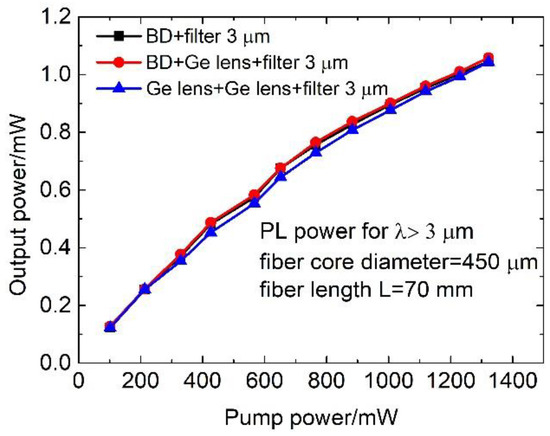

In this subsection, the results of the output power measurements from the Pr³⁺-doped selenide-chalcogenide glass fiber, under different pumping conditions, are presented. Figure 2 shows the measured dependence of MIR output power on the 1.47 µm pump power. In this case, the maximum measured output power in the spectral range 3–8 µm was around 1 mW. Measured results are very similar for all of the three different collection approaches described in Section 2, which suggests that the achieved results are repeatable and reliable. In this experiment, a 70-mm-long fiber was used. The pump absorption cross-section was around 1.7 × 10⁻²⁰ cm² at 1.47 µm and the Pr³⁺ concentration was 1000 ppmw (1.9 × 10¹⁹ cm⁻³) [29]; thus, 70 mm of fiber would have provided around 10 dB absorption of the 1.47 µm pump. A longer fiber length of ~150 mm was also tested but the measured MIR output power was lower than in the case of the 70-mm-long fiber sample, which most likely can be attributed to reabsorption of the MIR output signal, plus attenuation of the output signal due to intrinsic fiber loss. Figure 3 shows the measured dependence of the MIR output power on the 1.511 µm pump power. The results obtained for this second case were very similar to the first case when 1.47 µm pumping was used. This can be explained by the fact that the absorption cross-section of the Pr³⁺ ions at 1.511 µm is ~1.9 × 10⁻²⁰ cm², which is very similar to their absorption cross-section at 1.47 µm. Figure 4 presents the dependence of the output MIR power on the 1.69 µm pump power. It this case, more pump power was needed to achieve 1 mW output power, due to the lower value of the cross-section at this wavelength, i.e., 0.9 × 10⁻²⁰ cm² at 1.69 µm. Efficiency of approximately 0.1% implies that only a small fraction of the pump power feeds into the MIR beam collected at the end of the fiber. The remaining pump power either feeds into the generation of light at shorter wavelengths, dissipated via fiber loss, passed unabsorbed through the fiber and filtered out, or feeds into MIR emission radiated outside of the output lens aperture. To summarize these experiments, for all considered cases, a MIR output power of, at or above 1 mW was obtained. To the Authors’ best knowledge, this is the highest output power achieved from rare earth ion-doped chalcogenide fiber spontaneous emission sources in the spectral region above 3 µm. Such broadband sources can be widely applied, for example for gas spectroscopic detection [24,25,26]. Further, commercially available multimode laser diodes operating at wavelengths of 1.47 µm, 1.511 µm and 1.69 µm can generate output powers in the range of tens of Watts, so further power scaling of this MIR fiber spontaneous emission source is possible, considering that the pump powers used to obtain the results shown in Figure 1, Figure 2 and Figure 3 did not exceed 2 W. In this experiment, the pump power was limited below 2 W in order to avoid possible damage of the fiber sample [46].

3.2. Mid-Infrared Emission from the Pr³⁺ Doped Selenide-Chalcogenide Glass Fiber in the Spectral Region: 3.5–8 µm

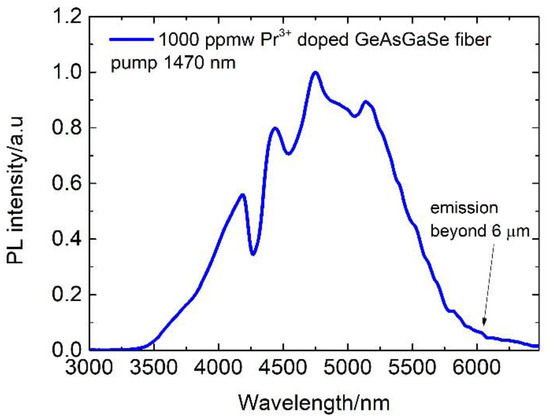

In this subsection, the experimental investigation of the PL properties of 1000 ppmw Pr³⁺-doped selenide-chalcogenide glass fiber is discussed. Figure 5 shows the room temperature mid-infrared emission bands of Pr³⁺-doped GeAsGaSe glass fiber recorded in the wavelength range 3–6.5 µm under excitation at 1.47 µm. The PL emission was collected from the fiber end using the MCT detector operating in the spectral region 3–9 µm, long pass filters with cut-on wavelengths of 3 µm and 3.5 µm, and a diffraction grating blazed at 4 µm. The recorded emission band is mainly associated with the (³F₂,³H₆)→³H₅ and ³H₅→³H₄ transitions (see Figure 1), however, emission from (³F₄,³F₃)→(³F₂,³H₆) can also contribute to the mid-infrared emission [12,19]. It can be clearly seen from Figure 5 that the emission at wavelengths longer than 6 µm is non-negligible. Therefore, in order to investigate emissions above 6 µm, a diffraction grating blazed at 9 µm and a long pass filter with cut-on wavelength of 6.15 µm were introduced into the set-up.

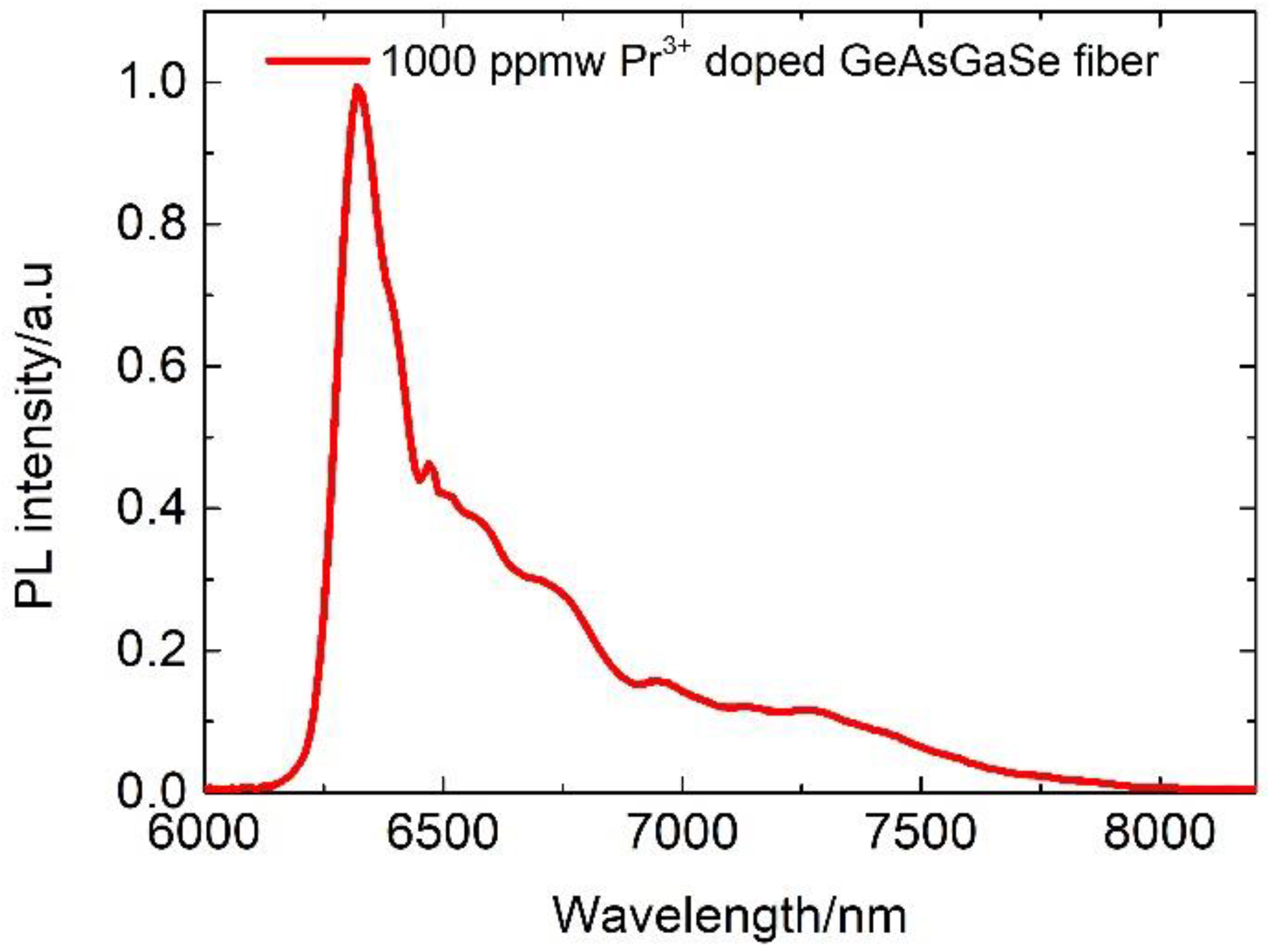

Figure 6 displays the room temperature mid-infrared emission of the 70-mm-long Pr³⁺-doped GeAsGaSe fiber in the wavelength range: 6.15–8 µm, under pumping at 1.47 µm. This emission band most likely can be attributed to the long tail of the ³H₅→³H₄ transition and to the emission from the ³F₃→³F₂ transition (see Figure 1). Recently, a similar emission in the spectral region 6–8.5 µm was measured in Pr³⁺-doped bromide crystals [36] and in the bulk glass: Pr³⁺-doped Ge-Ga-Se [19]. This emission was attributed to the ³F₃→³F₂ transition [19,36]. In order to investigate further the emission across the 6.1–8 µm spectral region in the Pr³⁺ selenide-chalcogenide glass fiber here, the PL decays at selected wavelengths were measured (see Figure 7).

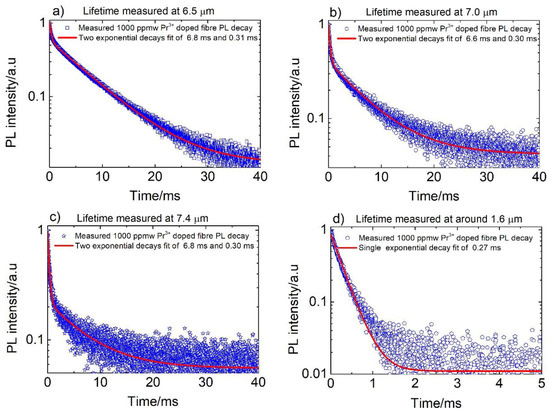

Figure 7 presents the PL decay characteristics at the output of a 70-mm-long Pr³⁺-doped Ge-As-Ga-Se glass fiber measured at: 6.5 µm (Figure 7a), 7 µm (Figure 7b), 7.4 µm (Figure 7c) and 1.6 µm (Figure 7d), under 1.47 µm excitation. In the measurement of PL lifetime, each presented decay plot was collected from a fiber sample and averaged over several hundred measurements to improve the signal-to-noise ratio. The measured PL decay at 6.5 µm was best fit by using a two-exponential function. The fast decay (τ₁ = 0.3 ms) can be attributed to the ³F₃→³F₂ transition whilst the slow decay τ₂ = 6.8 ms is most likely a contribution from the ³H₅→³H₄ transition. From the coefficients of the calculated fitting function, one can extract that the contributed intensities at 6.5 µm of the ³H₅→³H₄ and ³F₃→³F₂ transitions are in the ratio of approximately 1.3:1. In the case of the PL decay measured at 7 µm, a similar two-exponential behavior can be observed, but in this case the ³H₅→³H₄ and ³F₃→³F₂ transitions ’contributed intensities’ ratio was 1:1.7, while for the PL decay recorded at 7.4 µm, the ratio of contributed intensities between the ³H₅→³H₄ and ³F₃→³F₂ transitions was 1:5.3. Thus, these results show that, at longer wavelengths, the contribution from the ³F₃→³F₂ transition starts to dominate. In order to provide further evidence showing that the observed emission comes from the ³F₃ level, the emission at 1.6 µm wavelength was measured. The emission at 1.6 µm can be attributed only to the ³F₃→³H₄ transition and was successfully fit with a single exponential function with a lifetime of 0.27 ms. In comparison with the literature data of Pr³⁺-doped chalcogenide-selenide glasses, the measured lifetime of 0.27 ms for ³F₃ level obtained in this work is in good agreement with the measured lifetime of 0.25 ms for the ³F₃ level [15]. Thus, the measured fast decay at 7.4 µm and the decay measured at 1.6 µm have similar time constants. These results indicate that both emissions originate from the same ³F₃ manifold. To the Authors’ best knowledge, this is the first observation of 7.4 µm emission attributed mainly to ³F₃→³F₂ in a Pr³⁺ selenide chalcogenide fiber and supports the observation by Churbanov et al. of a similar emission in Pr³⁺-doped bulk selenide-chalcogenide glass [19]. It should be pointed out that, using this same transition, room temperature laser action at 7.2 µm in Pr³⁺: LaCl₃ was obtained [37]. It is well known that rapid thermalization takes place within each of the two pairs of closely-lying upper states [³F₄ with ³F₃] and [³F₂ with ³H₆] Pr³⁺ levels in the chalcogenide glass host, with occupancy in the two lower states of at least ~90% [15,16]. Thus, under pumping at 1.47 µm from the ground state to the ³F₄ level, most of the ions will immediately drop down to level ³F₃, whilst only a small fraction of ions will occupy the ³F₂ level. Therefore, a laser operating on the ³F₃→³F₂ transitions, in a selenide-chalcogenide glass host, should act as a true four-level laser system. Additionally, it is noted that the minimum loss in a selenide-chalcogenide glass has been recorded at approximately 6.6 µm, which further predestines the ³F₃→³F₂ transition for a successful realization of the first chalcogenide glass fiber laser operating at a wavelength exceeding 4 µm [47].

4. Conclusions

In this paper, mid-infrared spontaneous emission sources based on Pr³⁺-doped chalcogenide fiber were experimentally investigated. The experimental results obtained confirm that the developed spontaneous emission source made of Pr³⁺-doped chalcogenide fiber delivers maximum output power of at least 1 mW within the spectral region 3.5–8 µm under pumping employing easily commercially available laser diodes operating at 1.470 µm, 1.511 µm and 1.690 µm. Moreover, emission in the region 6.2–8.0 µm was measured for the first time in a Pr³⁺ chalcogenide selenide fiber, to the Authors’ best knowledge. Measured lifetimes at 7.4 µm and 1.6 µm confirm that the recorded emission originates from the ³F₃ level. This observation may also be an important step towards the first realization of mid-infrared fiber laser operating at wavelengths beyond 4 µm, because experimental results indicate that lasing based on the ³F₃→³F₂ transition could operate as a four-level laser system in a selenide-chalcogenide glass host.
