Experimental and Numerical Investigation of the Internal Temperature of an Oil-Immersed Power Transformer with DOFS

1
Hebei Provincial Key Laboratory of Power Transmission Equipment Security Defence, North China Electric Power University, Baoding 071003, China
2
State Key Laboratory of Alternate Electrical Power System with Renewable Energy Sources, North China Electric Power University, Baoding 071003, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(16), 5718; https://doi.org/10.3390/app10165718
Received: 31 July 2020 / Revised: 10 August 2020 / Accepted: 14 August 2020 / Published: 18 August 2020

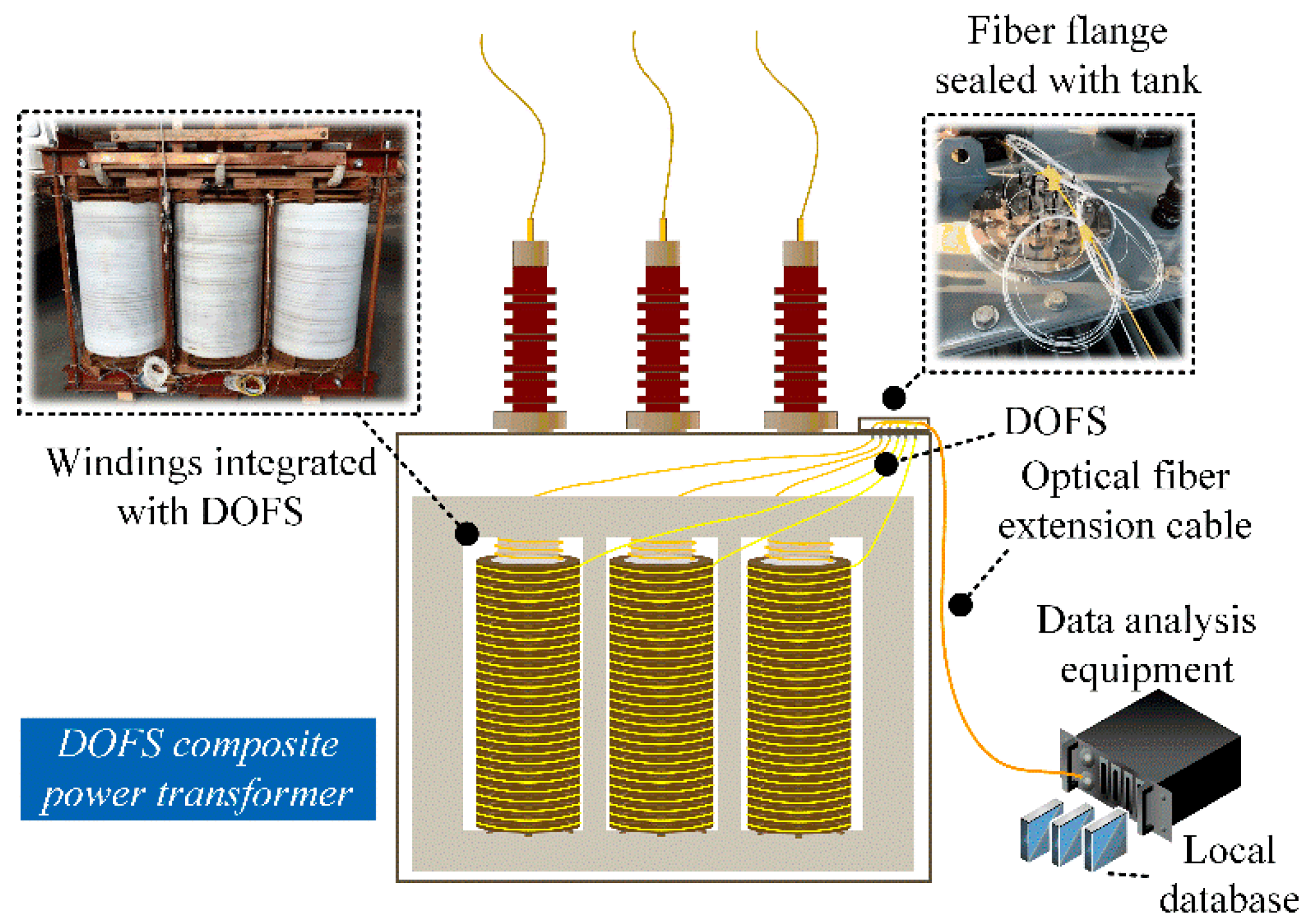

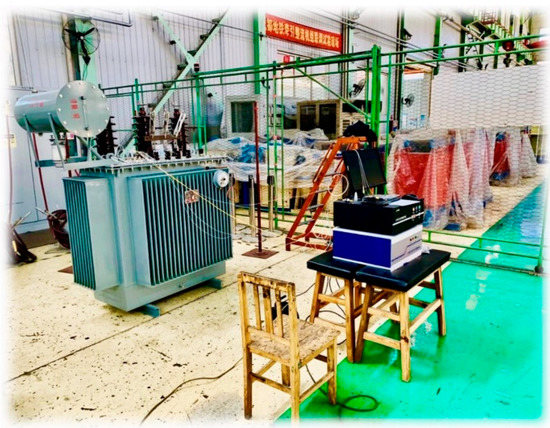

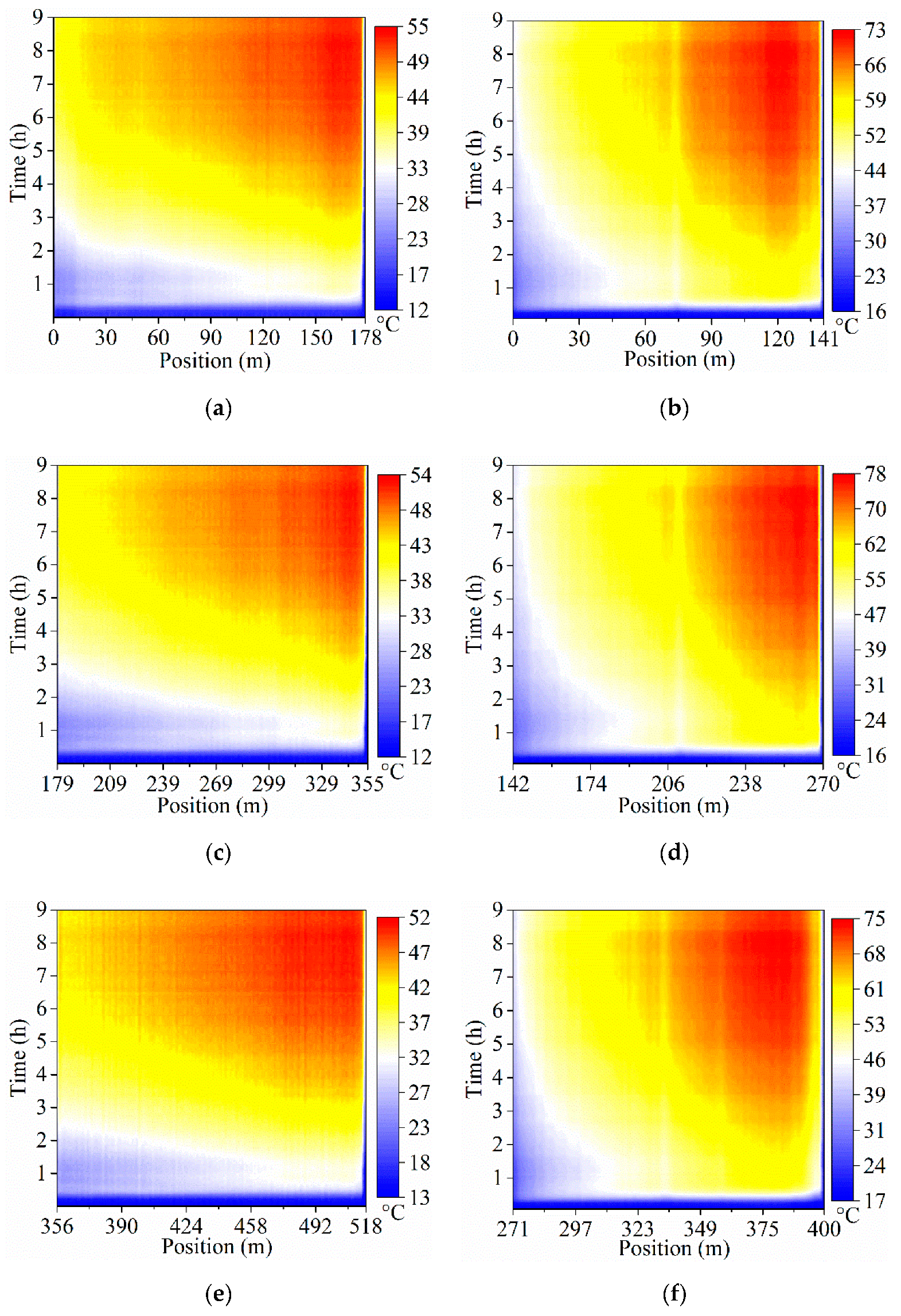

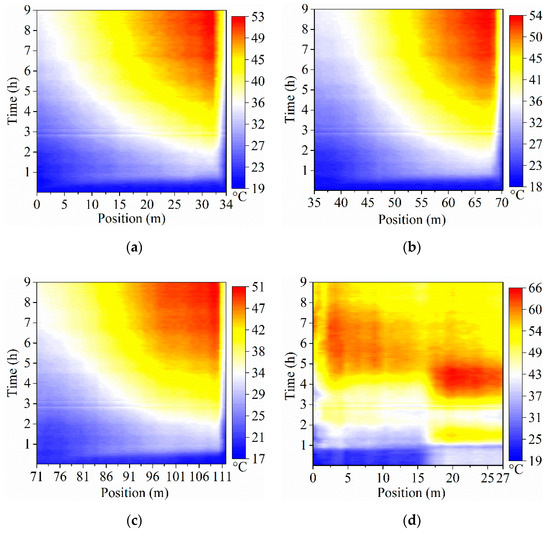

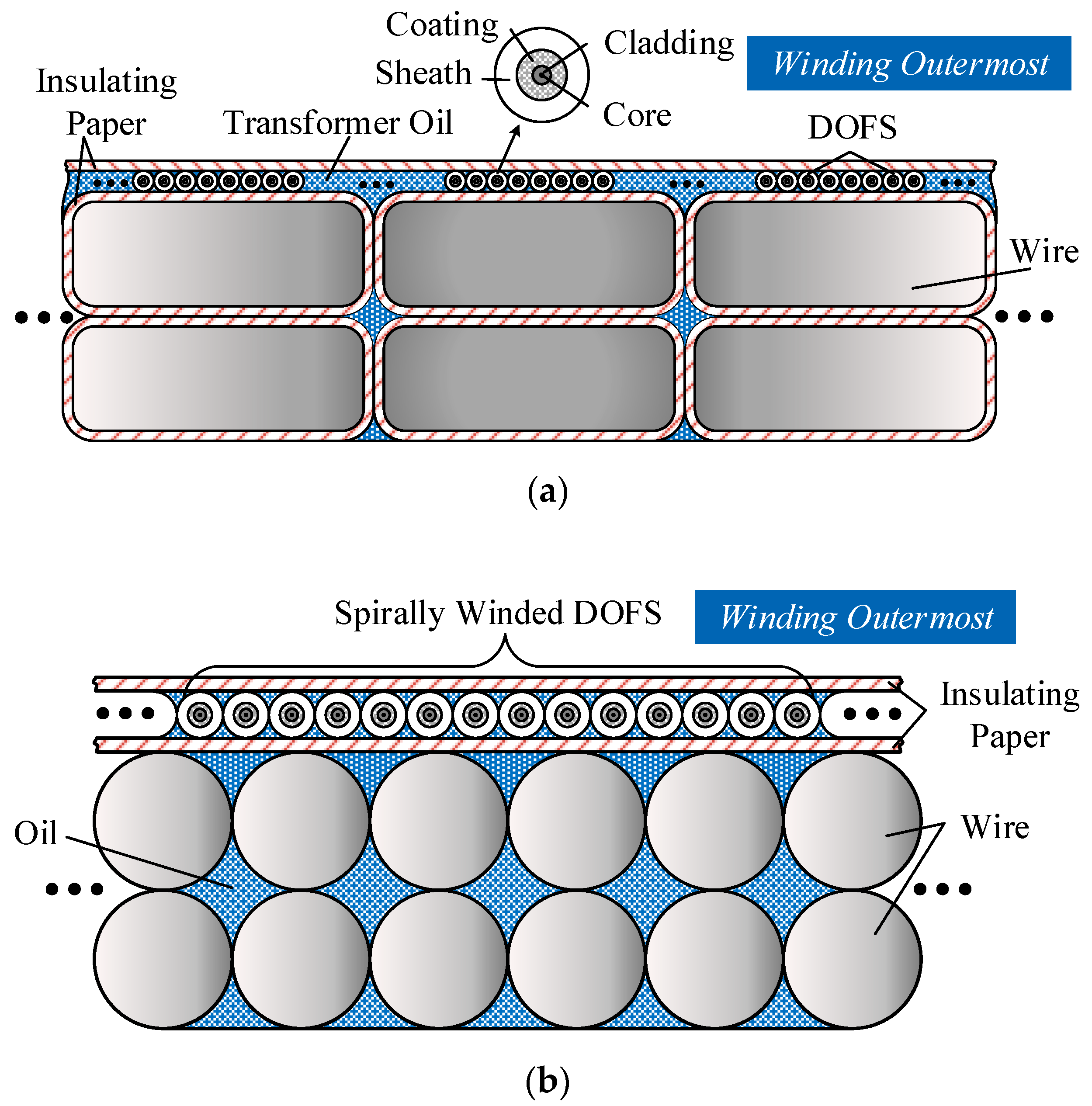

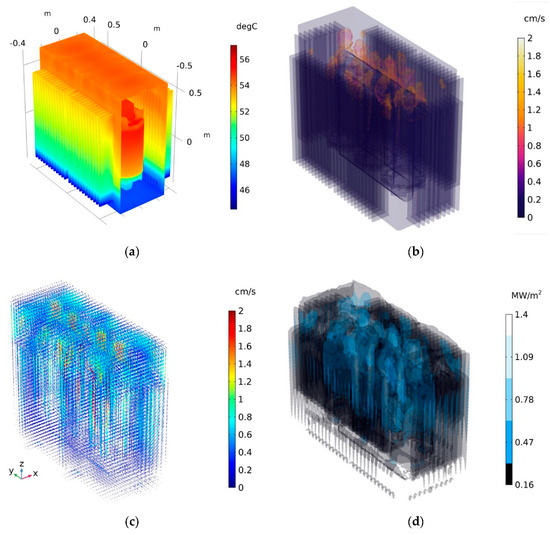

To accurately detect and monitor the internal temperature of an operating power transformer, the distributed optical fiber sensor (DOFS) was creatively applied inside an oil-immersed 35 kV transformer through high integration with the winding wire. On the former basis, the power transformer prototype with a completely global internal temperature sensing capability was successfully developed and it was also qualified for power grid operation through the ex-factory type tests. The internal spatially continuous temperature distribution of the operating transformer was then revealed through a heat-run test and the numerical simulation was also applied for further analysis. Hotspots of windings were continuously located and monitored (emerging at about 89%/90% height of low/high voltage winding), which were furtherly compared with the IEC calculation results. This new nondestructive internal sensing method shows a broad application prospect in the electrical equipment field. Also, the revelation of transformer internal distributed temperature can offer a solid reference for both researchers and field operation staff. View Full-Text
Keywords: condition monitoring; distributed optical fiber sensing; hotspot location; power transformer; Raman scattering; temperature detection condition monitoring; distributed optical fiber sensing; hotspot location; power transformer; Raman scattering; temperature detection
Show Figures

Figure 1

MDPI and ACS Style

Liu, Y.; Li, X.; Li, H.; Wang, J.; Fan, X. Experimental and Numerical Investigation of the Internal Temperature of an Oil-Immersed Power Transformer with DOFS. Appl. Sci. 2020, 10, 5718.
