Behaviors of Cellulose-Based Activated Carbon Fiber for Acetaldehyde Adsorption at Low Concentration

Abstract

The toxic nature of acetaldehyde renders its removal from a wide range of materials highly desirable. Removal of low-concentration acetaldehyde (a group 1 carcinogenic volatile organic compound) using an adsorbent of cellulose-based activated carbon fiber modified by amine functional group (A@CACF-H) is proposed, using 2 ppm of acetaldehyde balanced with N₂/O₂ (79/21% v/v) observed under continuous flow, with a total flow rate of 100 mL/min over 50 mg of A@CACF-H. The effective removal of the targeted acetaldehyde is achieved by introducing the functionalized amine at optimized content. The removal mechanism of A@CACF-H is elucidated using two-dimensional gas chromatography coupled with time-of-flight mass spectrometry (2D-GC TOF-MS), indicating the efficacy of the proposed acetaldehyde removal method.

1. Introduction

A great deal of attention has been paid to gaseous carbonyl chemicals with aldehyde species (acetaldehyde, CH₃CHO) due to associated adverse health effects. CH₃CHO is known as one of several “sick house gases”, found in furniture, decorating materials, and cigarettes, and is associated with the cooking and burning of fossil fuels at atmospheric conditions (20 °C, 1 atm) [1,2,3]. Moreover, CH₃CHO is listed as a group 1 carcinogenic and a mutagenic priority pollutant [4,5,6,7,8,9]. In addition, low level exposure of acetaldehyde can cause respiratory issues, such as throat irritation, shortness of breath, eye irritation, and chest tightness [10]. Therefore, indoor CH₃CHO content should be regulated and maintained below 0.03 ppm [9,11].

Condensation [12], recuperative and regenerative thermal oxidation [13], biofiltration [14,15], and catalytic oxidation and adsorption [16] are commonly applied techniques for eliminating volatile organic compounds (VOCs) such as CH₃CHO from the gas stream. Among these standard methods, adsorption delivers the best results in terms of efficiency, energy costs, and versatility to different kinds of VOCs [17]. Finding the optimal porous solid adsorbent is crucial for the commercial application of adsorption technique. Carbon materials, in the spite of some inherent disadvantages such as hygroscopicity and pore blocking, are recognized to have the most potential as a low-cost, high-efficiency adsorbent with good stability for VOC abatement [18]. In particular, activated carbon fiber (ACF) provides key advantages in terms of the adsorption process, due to a high specific surface area, low pressure drops, and suppressed mass transfer limitations [19,20]. Numerous results have been studied on ACFs in terms of the adsorption strength of ACFs with pore characteristics [21,22] and the adsorption capacity of VOCs onto ACFs depending on the polarity of VOC molecules [22,23,24,25,26]. Nevertheless, knowledge of the detailed molecular behavior of acetaldehyde adsorption over the ACFs or functionalized ACFs is still important. A recent report by Dumitrică allows us to consider the adsorption behavior of acetaldehyde over cellulose-based activated carbon fiber (CACF) and the removal mechanisms of acetaldehyde by the amine-functionalized CACF with suitable atomistic simulations from a molecular-level point of view [27].

The main aim of this study is to confirm the detailed adsorption behavior of low concentrations of acetaldehydes at the molecular level over amine-functionalized CACF-H (A@CACF-H). Therefore, this study is focused on investigating the adsorption behavior of low concentrations of acetaldehyde over cellulose-based ACF (CACF), heat-treated CACF (CACF-H), and A@CACF-H. Moreover, the detail reaction mechanism of acetaldehyde removal was also newly investigated with molecular level over A@CACF-H, using two-dimensional gas chromatography (2D-GC) coupled with TOF-MS.

2. Materials and Methods

2.1. Materials

The CACF obtained from East China University was synthesized as follows. The cellulose polymer fabricated as a felt type was stabilized and carbonized at 600 °C by the spraying of potassium phosphate under a nitrogen atmosphere. It was then activated by steam at 800 °C to give the microporous characteristics of the final product. As a preliminary investigation of the calcination effect, the CACF was heat-treated (CACF-H) from 300–1400 °C at a heating rate of 10 °C min⁻¹ for 1 h under N₂ at a flow rate of 100 mL min⁻¹ in an infrared image furnace. After calcination, the CACF-H was soaked in the aniline-ethanol solution for the functionalization of the amine on the CACF-H (A@CACF-H). This procedure was conducted for 24 h without stirring, at 30 °C, 1 atm. The volume concentration of the aniline-ethanol solutions varied from 1–10% v/v. Each sample was filtered and dried at 75 °C under vacuum conditions (0.1 MPa) for 24 h. For a precise comparison, phenol-resin-derived activated carbon (AC (MSP-20), Kansai Coke & Chemicals Co., Japan), activated charcoal (K-C), and non-porous quartz wool (QW) with an aniline soaking procedure were performed under the same conditions. The specific surface areas of pristine MSP-20, K-C, and QW were ca. 2000, 1900, and 0 m² g⁻¹, respectively. The elemental analyses were carried out using a carbon, hydrogen, and nitrogen (CHN) analyzer (MT-5, Yanako, Japan). The amount of oxygen content (O_diff.) was calculated by the subtraction of carbon, hydrogen, and nitrogen from 100% content. N₂ adsorption/desorption isotherms at 77 K were measured using a volumetric adsorption system (Belsorp-Max-S, BEL Japan Inc., Japan). The specific surface areas were obtained using α_s plots, and pore size distributions were obtained by non-localized density functional theory (NLDFT).

2.2. Experimental Apparatus

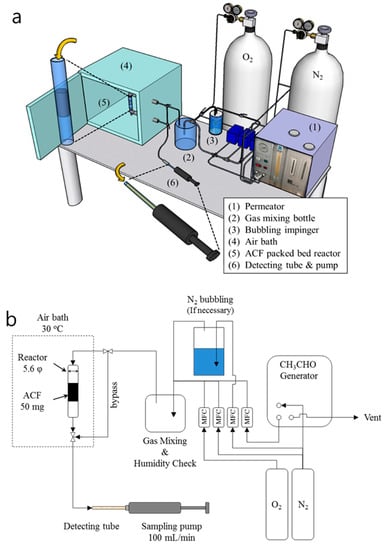

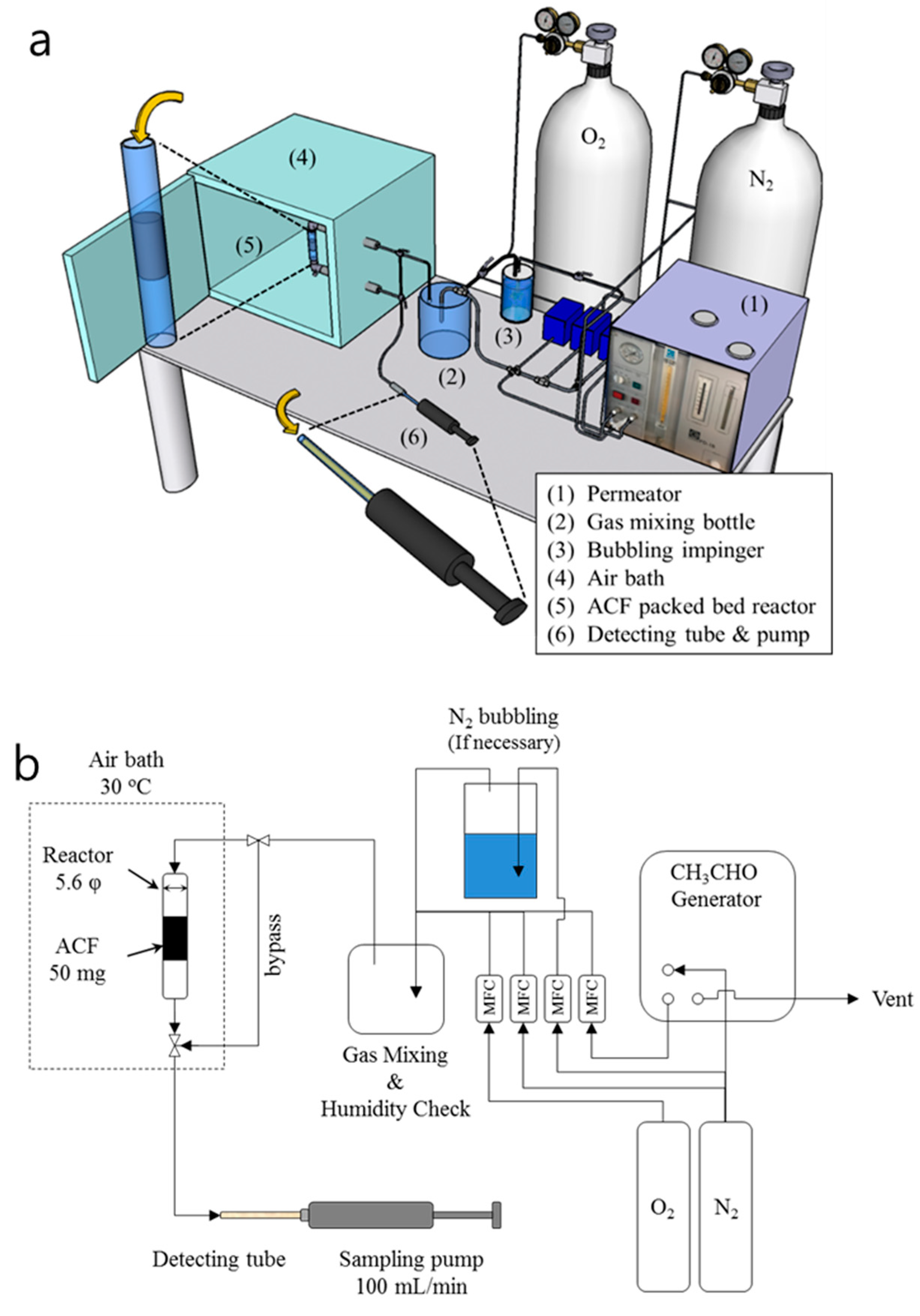

The experimental apparatus employed in acetaldehyde removal is represented in Figure 1. The acetaldehyde was generated using the permeation tube (P-92-1, GASTEC Co., Japan) at 35 °C in a permeator (PD-1B, GASTEC Co.), with N₂ flow set to 0.1 MPa and 200 mL/min. The generated acetaldehyde was then divided using 2 ppm of gaseous acetaldehyde balanced with pure N₂ standard gas was mixed with 79% v/v of N₂ and 21% v/v of O₂ at a total flow rate of 100 mL min⁻¹. A fixed atmosphere of 40% humidity was carefully controlled by N₂ bubbling. Each of the gases was controlled by the mass flow controller, and the mixed gas flowed into a packed glass tube with a diameter of 5.6 mm and a length of 50 mm. The adsorbents were fixed at 50 mg in a packing length of ≥25 mm. The exhausted gases were analyzed by pumping using the detecting tube (92L, GASTEC Co.) with a sampling pump (GV-100, GASTEC Co.) at 100 mL min⁻¹ [28]. The existence of acetaldehyde in the exhausted gases was confirmed by a color change in the detecting tube. The acetaldehyde reacted with hydroxylamine phosphate, which liberated phosphorus acid and aldoxime compounds. Liberated phosphoric acid reacts with a base to form phosphate and discolors reddish brown. The chemical stoichiometry is

3CH₃CHO + (NH₂OH)₃H₃PO₄ → 3CH₃HC=N-OH + 3H₂O + H₃PO₄

H₃PO₄ + base → phosphate (discoloring)

2.3. 2D-GC and TOF-MS

GC × GC (2D GC) was coupled with TOF-MS to analyze the chemical compounds of feeds and products over the adsorbents at the given conditions (

Table 1. GC × GC TOF-MS measurement conditions.

GC × GC System	1st column	BPX5 (30 m × 0.25 mm, 0.25 μm)
	2nd column	BPX50 (2 m × 0.10 mm, 0.1 μm) [cut in half]
	Oven temperature	90 °C (1 min) → [1 °C/min] 230 °C (0 min)
	Sample injection mode	Splitless
	Sample injection temperature	300 °C
	Flow	1.5 mL/min [constant flow]
	Modulation time	9 s
	Sample injection amount	1.0 μL
TOF-MS system	Ionization method	EI+
	Ionization condition	70 V, 300 μA
	Ion source temperature	350 °C
	Acquisition frequency	50 Hz (0.02 sec/spectrum)
	Mass range	m/z 50–700

). The 2D GC TOF-MS experimental setup consisted of 7890B GC and 7200B TOF-MS equipment, manufactured by Agilent Technologies. In the 2D GC system, two different columns were used in the gas chromatography. A non-polar column was used for the first column and a polar column was used for the second column, which were eluted in order of their boiling point and polarity, respectively. In the 2D-GC TOF-MS spectrum, the horizontal axis shows the boiling point and the vertical axis shows the polarity. In the first column, a capillary tube of 30 m in length and 0.32 mm in inner diameter (I.D.) is used, and the temperature is ramped by 5 °C/min. The sample separated from the first column is introduced into the second column after cooling and leaving left in a modulator.The second column opens the GC with the same modulation time employed for short columns (length: 2 m, I.D.: 0.18 mm). Since both columns are heated in the same oven, they are almost constant when the sample reaches the second column. The separated compounds are ionized, and these ions are accelerated by a constant voltage.

3. Results and Discussion

3.1. Preliminary Test for Acetaldehyde Removal

Before modifying the surface functional group with amine species over the adsorbents, preliminary tests are performed to compare the CACF with other commercials (Supplementary Data 1a). The breakthroughs for the conversion of acetaldehyde removal under the given conditions are in the following order: CACF (≈0.4 h) > K-C (≈0.15 h) > MSP-20 (≈0.05 h) > QW (≈0 h). In general, oxygen content is released as CO and CO₂ from carboxyl groups conjugated with ketone or quinone, carboxyl groups in non-aromatic or aromatic compounds, carboxyl anhydrides, and lactone structures [29,30,31]. Thus, better performance of acetaldehyde over CACF might be attributed to the relative abundance of oxygen content on the surface.

To introduce the amine functional group, CACF calcification was performed at various temperatures. The CACF that was calcined at 1100 °C (CACF-H) showed an optimized acetaldehyde removal performance (Supplementary Data 1b). In previous reports [29,30,31], the temperature of calcination was adequate for the heat treatment of ACF, being reasoned with the crystallinity and hydrophobicity. However, when CACF was calcined at 1400 °C its removal performance decreased, possibly due to the partial destruction of micropores and a rearrangement of the carbon structure into a graphitic structure.

3.2. Acetaldehyde Removal Performance of Functionalized Amine

In order to increase the acetaldehyde removal capability of CACF-H, an amine functional group using the primary chemical agent of aniline was introduced over CACF-H, where amine can also react strongly with aldehydes [32,33,34,35]. After introducing aniline on the CACF-H (A@CACF-H), all the parameters of pure character were decreased (

Table 2. Elemental composition and porosity characteristics of carbon materials.

Sample	Elemental Composition (%)				Specific Surface Area (m2 g−1)	Average Pore Width (nm)	Total Pore Volume (cm3 g−1)
	C	H	N	O(diff.)*
CACF	86.6	0.9	0.4	12.1	1525	0.77	0.58
CACF-H*	89.6	0.5	0.7	9.2	1368	0.81	0.55
A@CACF-H	87.7	1.6	3.8	6.9	445	1.24	0.26

CACF-H* denotes calcined at 1100 °C for 1 h. O_(diff.)* denotes differential amount.

) while the N content increased, indicating that the aniline was successfully loaded on the CACF-H surface.

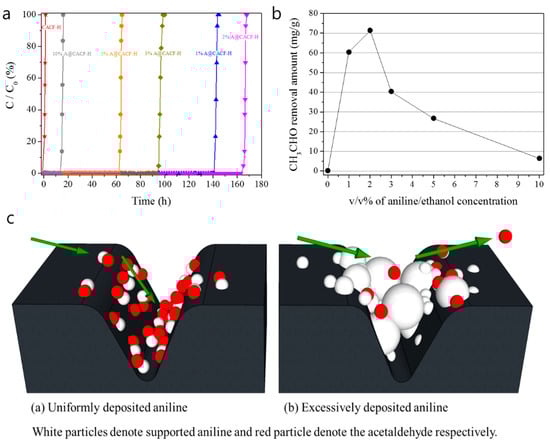

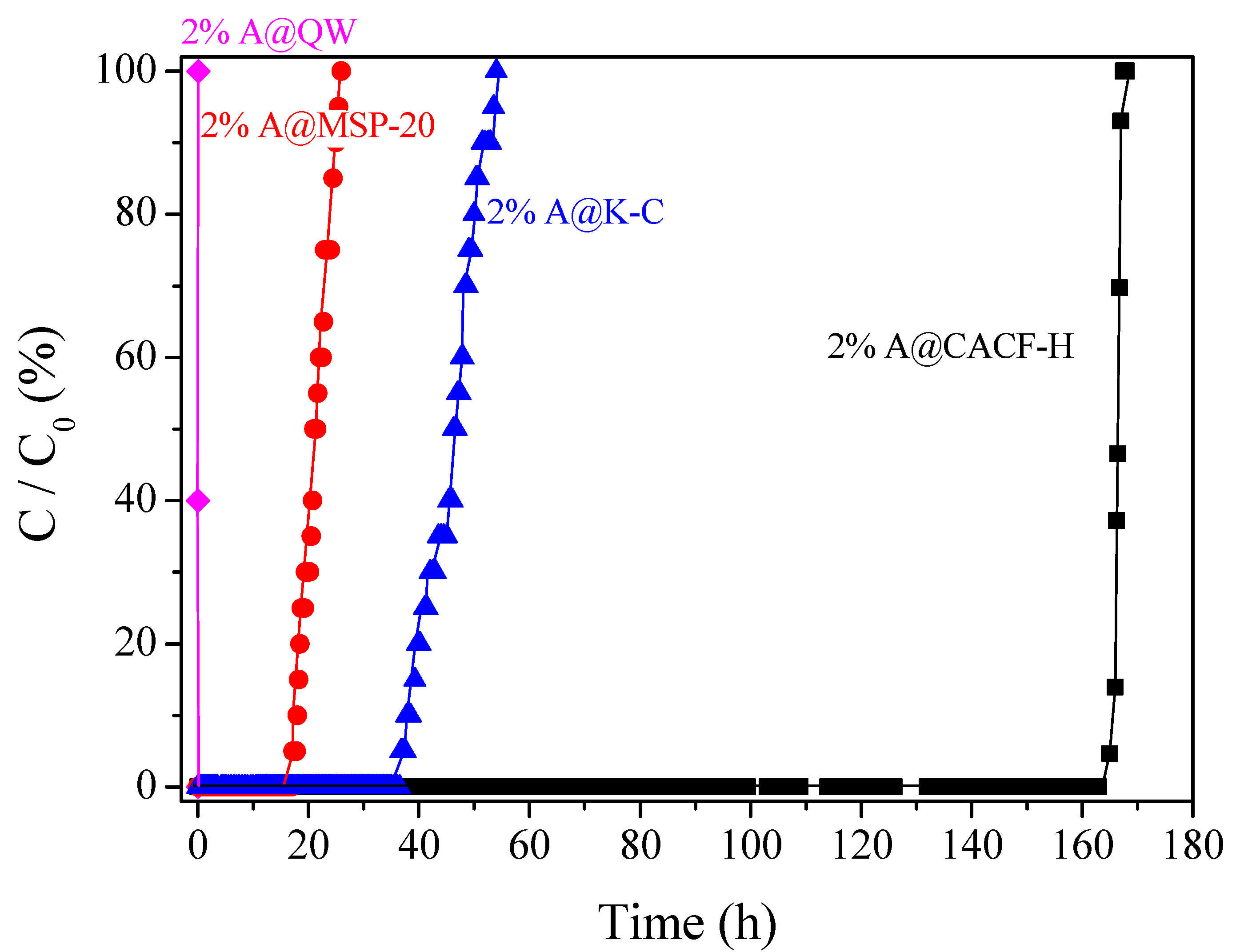

The breakthrough curves for the acetaldehyde removal of A@CACF-H with different aniline contents are presented in Figure 2a. All the A@CACF-H samples showed greatly increased acetaldehyde removal capabilities with longer breakthrough times than pristine CACF-H under the given conditions. As expected, removal capability was enhanced by increasing the aniline amount from 1% to 2%, where the 2% content A@CACF-H sample showed the highest amount of acetaldehyde removal among the tested samples. From the data for acetaldehyde removal, provided in Figure 2b, the removal capability of the 2% content A@CACF-H sample was almost 400 times larger than that of the pristine CACF-H, which reveals the effect of the N-functional group on acetaldehyde removal.

It is of note that samples with an aniline content above 2% exhibited a drastically reduced acetaldehyde removal capability.

Table 3. Elucidation of total removed amount and removal ratio of acetaldehyde by aniline supported CACF-H.

	Total Removed Amount [mg/g]	Breakthrough Time [h]	Supported Aniline Amount [%]	Supported Aniline Amount [mmol]	Total Removed Amount of Acetaldehyde [mmol]	Acetaldehyde Uptake Amount Ratio by 1 mol of Aniline
1% A@CACF-H	60.5	142	4.3	0.023	0.076	3.30
2% A@CACF-H	70.7	165	7.8	0.042	0.088	2.09
3% A@CACF-H	40.9	95	8.7	0.047	0.051	1.08
5% A@CACF-H	27.0	63	9.9	0.053	0.033	0.62
10% A@CACF-H	6.5	15	10.7	0.057	0.008	0.14

shows the amounts of aniline that are supported on the CACF-H samples by each aniline-ethanol solution in units of mmol. When the absolute amount of aniline present in a sample was more than 2%, the acetaldehyde uptake amounts decreased from 3.30 to 0.14 mol. This is because excess supported aniline may block the entrance of the micropores, as shown in Figure 2c, which inhibits the physisorption of acetaldehyde and its oxidation reaction. With the optimized amount of aniline, the supporting effect of aniline on removal capability is further confirmed by preparing and evaluating other porous carbons such as QW, MSP-20, and K-C, using the same treatment (Figure 3). The acetaldehyde removal capabilities of aniline-treated MSP-20 and K-C are, remarkably, increased by approximately 350 and 220 times, respectively. Although the N-functionalized QW showed almost no improvement due to its very low surface area, we found that the amine functional group from aniline enhanced the acetaldehyde removal for all other porous carbons. However, the A@CACF-H was still the best absorbent for acetaldehyde removal, which was confirmed by the removal capability trends of the non-treated carbons.

3.3. 2D GC TOF-MS Results

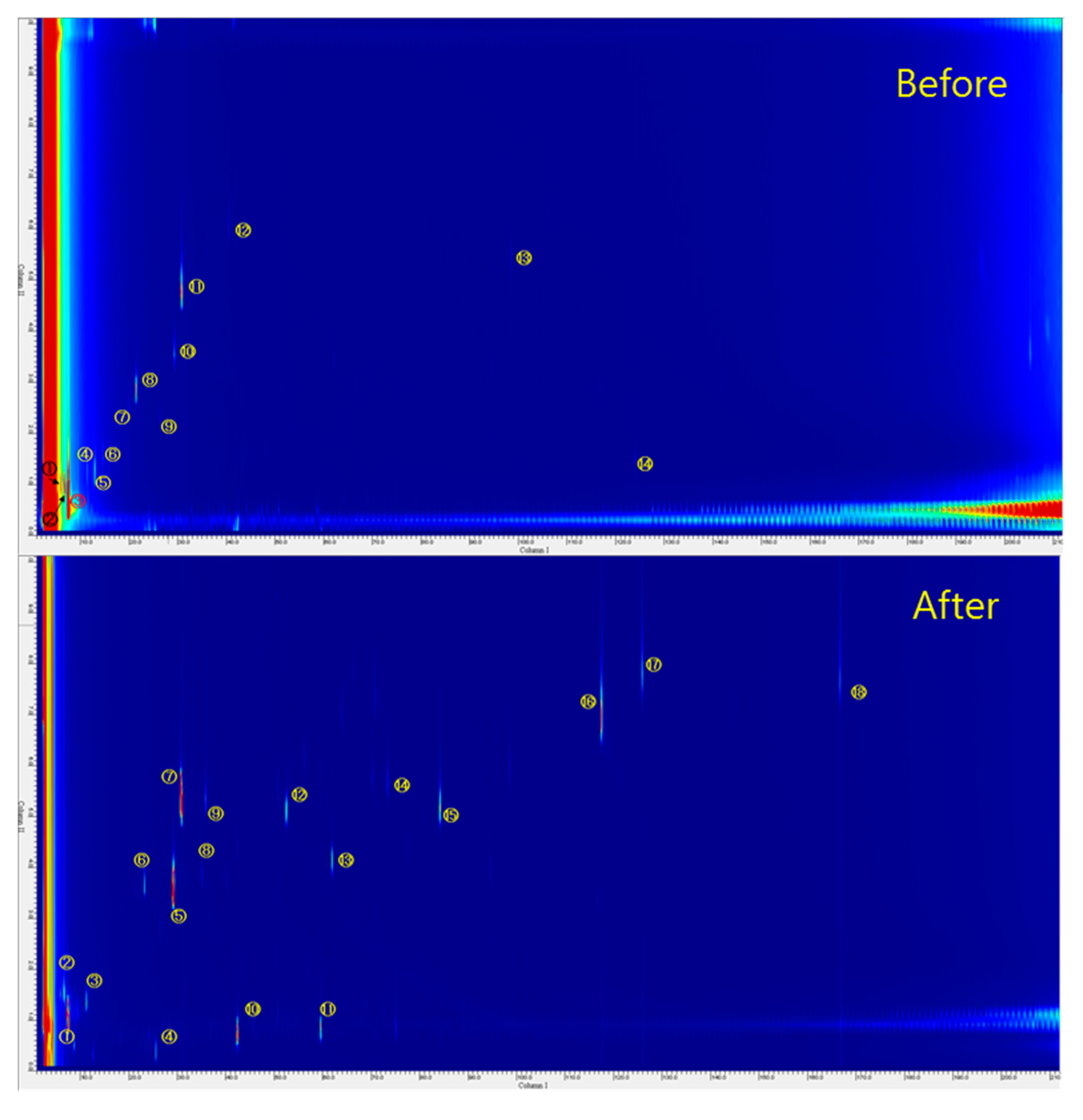

The results of 2D GC TOF-MS analysis before and after adsorption of 2% A@CAVF-H under a relative humidity (RH) of 40% are shown in Figure 4, with a summary of their molecular identifications provided in

Table 4. Detected chemical species from 2% of A@CACF-H before De-CH₃CHO test. Chemical species were extracted by the CDCl₃.

No.	Value	Name	Formula	Match Factor	CAS #	Molecular Weight
①	276194	2-Chloronicotinoitrile	C6H3ClN2	529	6602-54-6	138
②	4607653	Carbamoyl chloride, phenyl-	C7H6ClNO	711	2040-76-8	155
③	45761364	Aniline	C6H7N	845	62-53-3	93
④	985755	Phenylalanine, 4-amino-N-t-butyloxycarbonyl-, t-butyl ester	C18H28N2O4	512	0-00-0	336
⑤	1872067	Methanamine, N-(1-phenylethylidene)-	C9H11N	611	6907-71-7	133
⑥	868060	o-Chloroaniline	C6H6ClN	628	95-51-2	127
⑦	570027	m-Chloroaniline	C6H6ClN	617	108-42-9	127
⑧	2831315	Propanedinitrile, (ethoxymethylene)-	C6H6N2O	682	123-06-8	122
⑨	46303	1H-Pyrrole, 2-phenyl-	C10H9N	663	3042-22-6	143
⑩	1194857	Quinoline, 2-methyl-	C10H9N	837	91-63-4	143
⑪	4887046	Pyridine, 2-aminomethyl-6-methyl-	C7H10N2	790	6627-60-7	122
⑫	538737	Bis(2-chloroethyl)ethylamine	C6H13Cl2N	670	538-07-8	169
⑬	407290	Methanimidamide, N,N′-diphenyl-	C13H12N2	771	622-15-1	196
⑭	554214	9-Hexadecenoic acid	C16H30O2	752	2091-29-4	254

and

Table 5. Detected chemical species from 2% A@CACF-H after De-CH₃CHO test. Chemical species were extracted by the CDCl₃.

No.	Value	Name	Formula	Match Factor	CAS #	Molecular Weight
①	14217646	Aniline	C6H7N	828	62-53-3	93
②	5934255	Amfetamine	C9H13N	744	300-62-9	135
③	7638604	Benzaldehyde, 3-methyl-	C8H8O	869	620-23-5	120
④	5129038	Cyclohexasiloxane, dodecamethyl-	C12H36O6Si6	851	540-97-6	444
⑤	54896184	Quinoline, 2-methyl-	C10H9N	873	91-63-4	143
⑥	5541745	Isoquinoline	C9H7N	903	119-65-3	129
⑦	23662350	Formamide, N-phenyl-	C7H7NO	896	103-70-8	121
⑧	1943815	Glyoxylamide, N-phenyl-	C9H9NO2	842	32331-52-5	163
⑨	3061044	Acetamide, N-phenyl-	C8H9NO	889	103-84-4	135
⑩	29294004	Cycloheptasiloxane, tetradecamethyl-	C14H42O7Si7	881	107-50-6	518
⑪	988329	Cyclooctasiloxane, hexadecamethyl-	C16H48O8Si8	867	556-68-3	592
⑫	599084	4-Pyrrolylbenzaldehyde	C11H9NO	795	23351-05-5	171
⑬	8573484	Azobenzene	C12H10N2	887	103-33-3	182
⑭	2134871	Ethyl 2-anilinomethylenepropionate	C12H15NO2	724	0-00-0	205
⑮	8318584	Carbazole, 3,4-dimethyl-	C14H13N	874	18992-72-8	195
⑯	14102031	1H-Pyrazole-4-carboxaldehyde, 1,3-diphenyl-	C16H12N2O	771	21487-45-6	248
⑰	4912176	Troger’s base	C17H18N2	684	72151-03-2	250
⑱	2942095	2-Phenylamino-4,6-diphenylpyrimidine	C22H17N3	701	300358-58-1	323

. This detailed molecular information can be used to predict the reaction mechanisms that occur during the adsorption process. Based on the summarized molecular identifications, it may be speculated that the reaction between acetaldehyde and the amine functional group occurs via two reaction pathways.

First, acetic acid oxidized by the acetaldehyde may react with the amine functional group to form an amide species (⑦, ⑧, and ⑨ in Figure 4). In the case of aniline (Figure 4), a stronger aniline peak (No. 3) is observed before acetaldehyde removal compared to the other substances. This intensity decreased by more than 3 times, which was calculated by the GC-MS, showing aniline content reduction from 320 mg/L to 51 mg/L, comparing before and after the acetaldehyde removal test. In contrast, various produced amide species, such as N-phenyl-formamide, N-phenyl-glyoxylamide, and N-phenyl-acetamide, were detected after the acetaldehyde removal test.

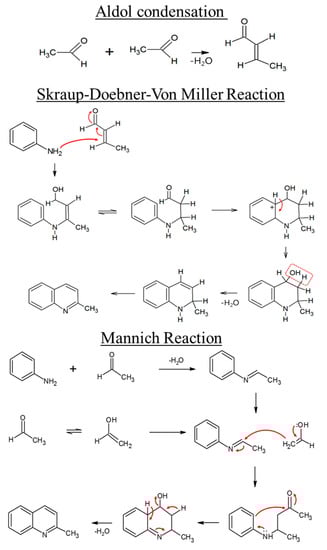

Second, 2-methyl-quinoline can be produced though a reaction between amine and the aldol condensates of acetaldehyde. The reaction pathway for the formation of 2-methyl-quinoline may follow the Skraup–Doebner–Von Miller or Mannich reactions (Figure 5) [36,37]. In the case of a Skraup–Doebner–Von Miller reaction, an aldol condensation of acetaldehydes is catalyzed by the supported amine, which usually occurs in the micropores. The formation of 2-methyl-quinoline through the Skraup–Doebner–Von Miller reaction [36,37] is shown in Figure 5. In the case of the Mannich reaction, the acetaldehyde reacts with aniline to form an imine structure. Some of the acetaldehyde converts to a more stable state of vinyl alcohol (CH₂=CH-OH). The quinoline formation reaction then occurs. Others can be suggested in terms of the N-species, both from the CACF-H itself and the column materials of the GC system. Therefore, the formation of amide species and 2-methyl-quinoline from acetaldehyde over the adsorbent can be described as the main behavior.

3.4. Acetaldehyde Removal Mechanisms

Based on the 2D-GC TOF-MS analyses, we may propose the following formation reaction mechanism for acetanilide (⑨ in Figure 4):

(1)

CH₃CHO_(g) → CH₃CHO_(AD) [Adsorption]

(2)

CH₃CHO_(AD) + ½O₂ → CH₃COOH [Oxidation]

(3)

2CH₃COOH → (CH₃CO)₂O + H₂O [Dehydration]

(4)

(CH₃CO)₂O + C₆H₅NH₂ → C₆H₅NCH₃CO − CH₃COOH

First, the acetaldehyde can be physically adsorbed onto the active sites in the A@CACF-H. The active sites with oxygen (“O”) and nitrogen (“N”) on the A@CACF-H are allowed to make a hydrogen bonding with hydrogen in the water vapor and with the acetaldehyde molecules. In general, the water vapor in air may occupy the pores of the carbon material, which tend to hinder gas removal. In this study, the concentration of acetaldehyde is 2 ppm, and so the number of acetaldehyde molecules is significantly lower than that of the H₂O molecules under a relative humidity of 40%. The acetaldehyde and H₂O molecules competitively adsorb onto the micropores of the carbon material. As a result, the active sites in the micropores of the carbon material are blocked by H₂O molecules. However, due to its hydrophilicity, acetaldehyde tends to be caught in moisture (the thin water film on the surface) that penetrates into the micropores. Then, it can be oxidized into acetic acid on the active sites in the micropores. This acetic acid from the micropores may then spill over the surface, and react with the functionalized amine to form amide structures such as N-phenyl-acetamide or acetanilide [38].

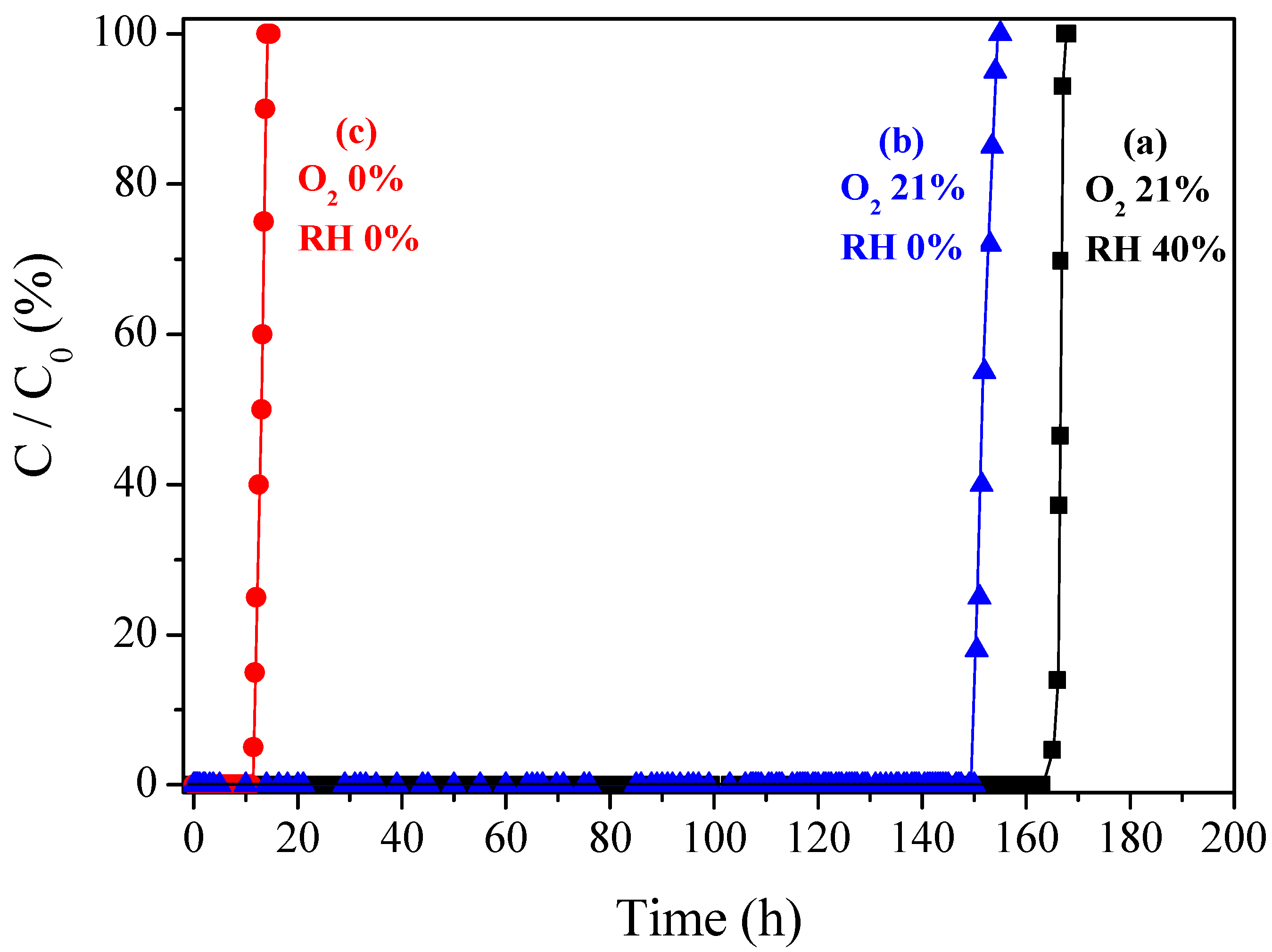

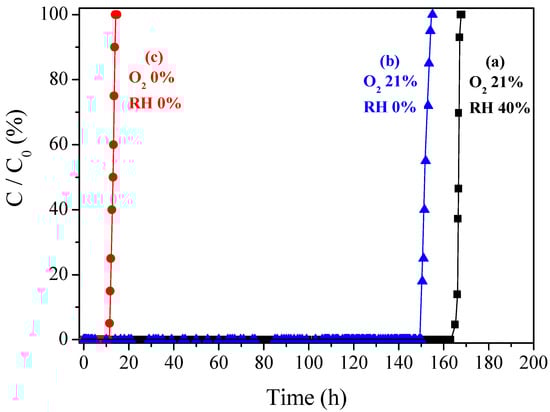

To verify the amide structure formation through the acetaldehyde-aniline reaction, the experimental conditions were changed from (a) O₂ 21% v/v under RH of 40%, to (b) O₂ 21% v/v under RH of 0%, and (c) O₂ 0% v/v under RH of 0%, as shown in Figure 6. Under the conditions of (c), the acetaldehyde-aniline reaction may not occur. A certain amount of the acetaldehyde was removed even without the O₂, indicating that a small amount of acetaldehyde can be captured by the functionalized amine. However, compared to the conditions with O₂ and/or H₂O, it is not affordable to effectively remove acetaldehyde without an oxidation reaction.

Hence, the dominant behavior of acetaldehyde adsorption over the adsorbent can be confirmed by the formation of amide species such as acetanilide. Generally, it has been speculated and reported, so far, that the chemical reaction between amine and aldehyde formed mainly imine species [33,36,37,39]. In this study, we attempted to confirm the detailed and objective mechanism of acetaldehyde adsorption, using the high resolution 2D TOF-MS over the surface functionalized (amine) microporous media. As a result, amide species can also be considered as the main intermediates during the adsorption of acetaldehyde over the media.

4. Conclusions

A cellulose-based ACF is proposed as the candidate for acetaldehyde removal under 40% humidity conditions. To improve acetaldehyde removal efficiency, the CACF was heat-treated at an optimal temperature of 1100 °C. Moreover, functionalization of the amine with aniline was used to drastically enhance the removal performance of the heat-treated adsorbent. Our results suggest that the main reaction pathway involves the formation of acetanilide (amide species) from the intermediates of acetic acid and aldol condensates, and also 2-methyl-quionoline through Skraup–Doebner–Von Miller and Mannich based reactions. These findings help to elucidate the processes underpinning acetaldehyde removal from ACFs, and provide a novel type of CACF together with a potential removal approach which may be adopted and applied in various settings in which polluting VOCs appear.
