The Gavorrano Monzogranite (Northern Apennines): An Updated Review of Host Rock Protoliths, Thermal Metamorphism and Tectonic Setting

1
Department of Earth and Geoenvironmental Sciences, University of Bari, 70125 Bari, Italy
2
CNR-IGG Pisa, Institute of Geosciences and Earth Resources, 56127 Pisa, Italy
3
Department of Physics and Geology, University of Perugia, 06123 Perugia, Italy
4
Department of Earth Sciences, University of Florence, 50121 Firenze, Italy
5
Tuscan Mining UNESCO Global Geopark, Parco Tecnologico Archeologico delle Colline Metallifere Grossetane, 58100 Gavorrano, Italy
6
Department of Physics, Earth and Environmental Sciences, University of Siena, 53100 Siena, Italy
*
Author to whom correspondence should be addressed.
Geosciences 2021, 11(3), 124; https://doi.org/10.3390/geosciences11030124
Submission received: 28 December 2020 / Revised: 22 February 2021 / Accepted: 1 March 2021 / Published: 8 March 2021

Abstract

:
We review and refine the geological setting of an area located nearby the Tyrrhenian seacoast, in the inner zone of the Northern Apennines (southern Tuscany), where a Neogene monzogranite body (estimated in about 3 km long, 1.5 km wide, and 0.7 km thick) emplaced during early Pliocene. This magmatic intrusion, known as the Gavorrano pluton, is partially exposed in a ridge bounded by regional faults delimiting broad structural depressions. A widespread circulation of geothermal fluids accompanied the cooling of the magmatic body and gave rise to an extensive Fe-ore deposit (mainly pyrite) exploited during the past century. The tectonic setting which favoured the emplacement and exhumation of the Gavorrano pluton is strongly debated with fallouts on the comprehension of the Neogene evolution of this sector of the inner Northern Apennines. Data from a new fieldwork dataset, integrated with information from the mining activity, have been integrated to refine the geological setting of the whole crustal sector where the Gavorrano monzogranite was emplaced and exhumed. Our review, implemented by new palynological, petrological and structural data pointed out that: (i) the age of the Palaeozoic phyllite (hosting rocks) is middle-late Permian, thus resulting younger than previously described (i.e., pre-Carboniferous); (ii) the conditions at which the metamorphic aureole developed are estimated at a temperature of c. 660 °C and at a depth lower than c. 6 km; (iii) the tectonic evolution which determined the emplacement and exhumation of the monzogranite is constrained in a transfer zone, in the frame of the extensional tectonics affecting the area continuously since Miocene.

1. Introduction

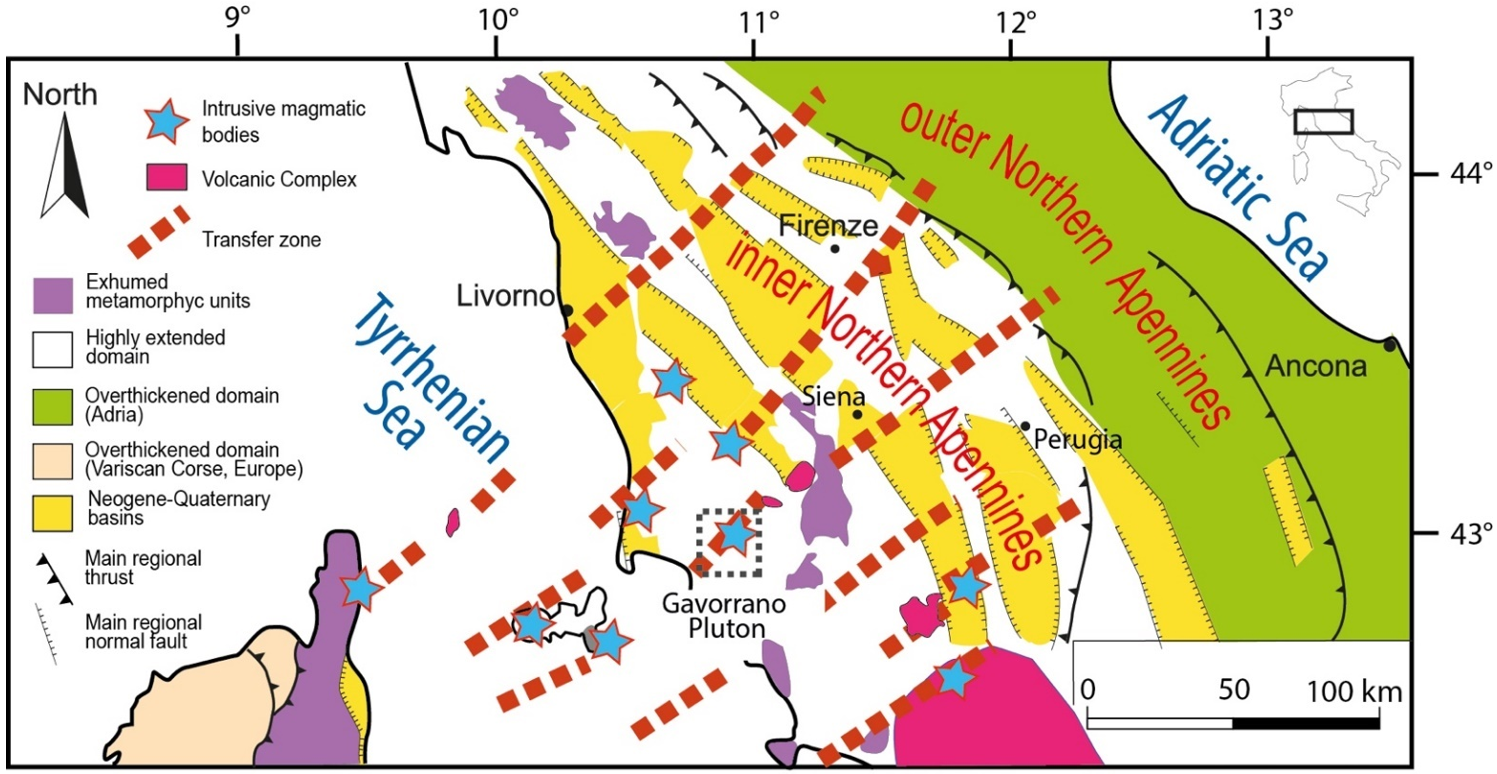

The inner Northern Apennines (i.e., northern Tyrrhenian Sea and southern Tuscany), after having experienced HP/LT metamorphism during late Oligocene-early Miocene [1,2,3] was affected by extension since Burdigalian [4]. The clearest evidence of this process is the opening of the Tyrrhenian Basin [5] and the present 20–26 and 30–50 km crustal and lithospheric thickness, respectively [6,7,8]. Extension favoured partial melting in the lower crust and in the mantle, thus generating crustal and hybrid magmas (Tuscan Magmatic Province: [9,10] for a review). Igneous activity and extensional tectonics migrated eastwards [11,12,13]: hence, the first magmatic evidence occurred during middle Miocene in Corsica (Sisco lamproite, 14 Ma), and then, in the Tuscan archipelago (Late Miocene-Pliocene) and southern Tuscany (Pliocene-Pleistocene), up to the presently cooling magmatic bodies [14,15,16,17,18]. These are producing relevant geothermal anomalies [19], as it is the case for the Monte Amiata [14,20] and Larderello [15,18,21] areas [22,23]. In the inner Northern Apennines (Figure 1), intrusive bodies, emplaced at <10 km depth, are partially exposed in the Tuscan Archipelago and southern Tuscany, where crustal uplift and extensional tectonics induced their exhumation ([24] with references therein).
The Gavorrano pluton is an example of this process [25]. Such a pluton is an about 3 km3 laccolith [26], dated at 4.9 Ma [27] and partially exposed few kms to the east of the Tyrrhenian seacoast (Figure 1). It consists of cordierite-bearing monzogranite [28] with references therein with K-feldspar phenocrysts (up to 10 cm long), intruded by tourmaline-rich microgranite, porphyritic and aplitic dykes [25]. This magmatic intrusion and its contact aureole were mined from the last decades of the 19th century up to the 1981, to exploit sulphide (mainly pyrite) ore deposit, mostly occurring at the boundary between the igneous and host rocks, and in fault zones [29]. Although numerous studies were dedicated to this pluton, with the aim to reconstruct genesis and setting of the ore deposits (e.g., [26,29,30,31]), contrasting interpretations still remain with regards to: (i) the nature and age of the quartzitic-phyllite hosting rocks, contrastingly referred to Permian [32] or pre-Carboniferous [33]; (ii) the thermal conditions across the contact aureole and the related P-T peak conditions in the contact aureole, pointing to significantly different emplacement depths (cfr. [25,26,34]); (iii) the tectonic evolution of the Gavorrano area that was explained in extensional (e.g., [25,29]), transtensional [35] or compressional framework [34,36]. The compressional setting was also taken into account by [37,38] to explain the emplacement of the Gavorrano pluton, assumed to be contemporaneous to Pliocene regional thrusts and associated roof-anticlines. In this scenario, these authors considered the Gavorrano pluton as a key example for explaining the pluton emplacement in a compressional scenario, basically active since the Cretaceous in the inner Northern Apennines and northern Tyrrhenian sea.
In this paper, the state of the art on these themes, the contrasting interpretations, and hypotheses are discussed in the frame of new datasets. As a main conclusion: (i) we document the Permian age of the quartzitic-phyllite hosting rocks; (ii) we point to a peak temperature of c. 660 °C at a maximum pressure of 150 MPa for the metamorphic conditions in the contact aureole; and iii) we reconstruct the deformation within that sector of a Neogene regional transfer zone, which controlled the emplacement and exhumation of the Gavorrano pluton in the extensional framework characterizing inner Northern Apennines.

2. Geological Outline

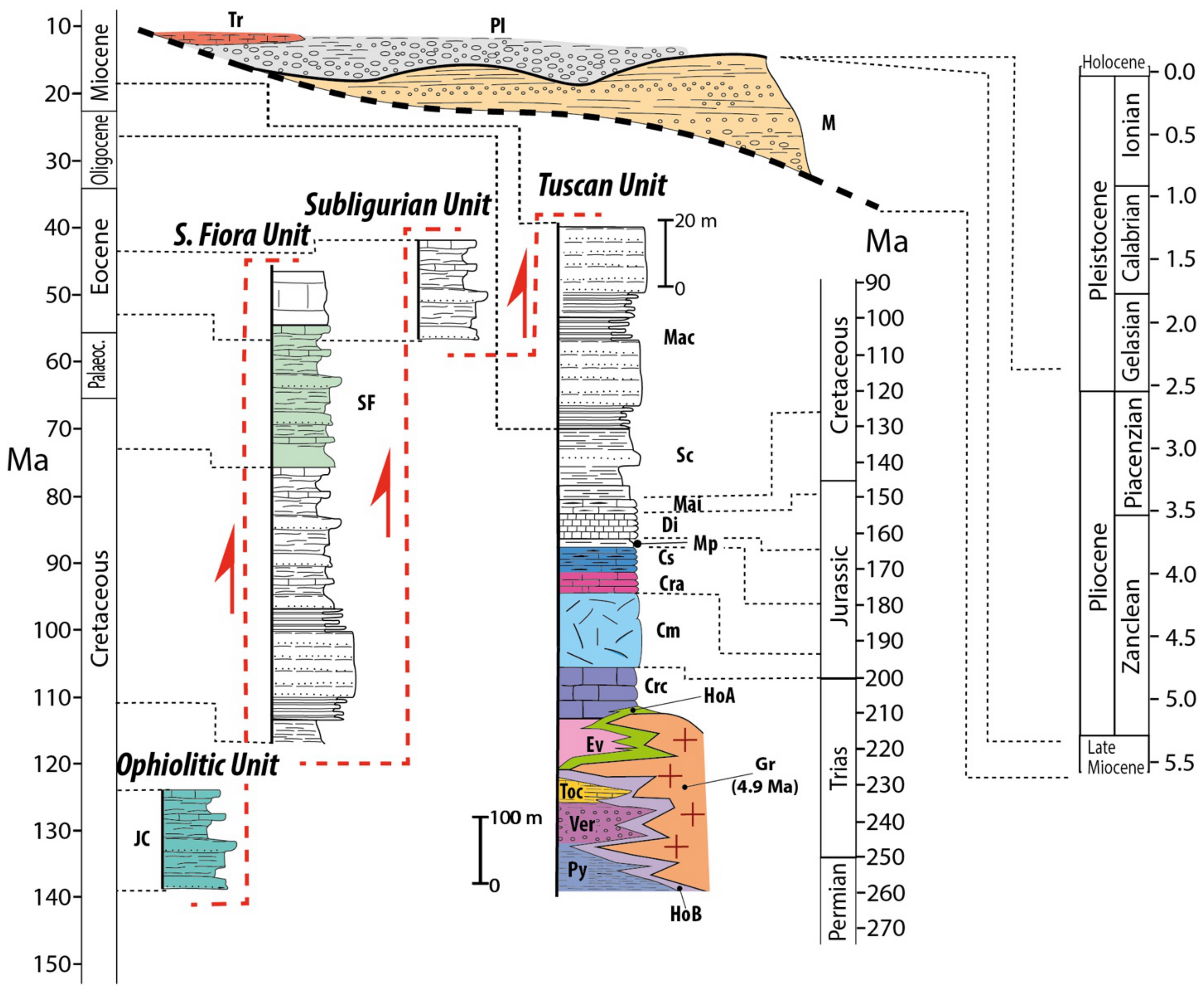

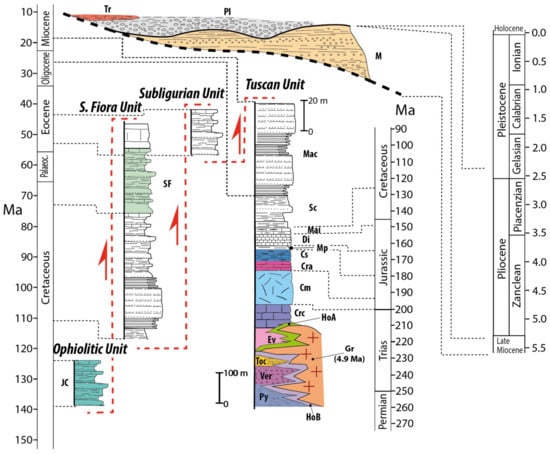

The Gavorrano pluton intruded the lower part of the Tuscan Unit, following the main foliations and lithological boundaries (Figure 2) in the Palaeozoic-Triassic quartzite and phyllite, Triassic metacarbonate and late Triassic evaporite successions [25,29,39]. These rocks experienced, therefore, LP-metamorphism making particularly problematic the age attribution of the quartzitic-phyllite hosting rocks, contrastingly referred to Permian [32] or pre-Carboniferous [33], with different fallouts on the palaeogeography and context in which the overlying Triassic succession took place.
The initial studies on the intrusive rocks were carried out by [40,41,42,43,44]. Marocchi [44] firstly described the Gavorrano granite as a magmatic complex formed by a porphyritic granite, a tourmaline-bearing microgranite and mica-bearing microgranite. Furthermore, Martelli [45] presented a geochemical and crystallographic study of both magmatic rocks and pyrite, hence describing, for the first time, the habitus and morphology of the pyrite and K-feldspar. However, the most complete paper dealing with the Gavorrano intrusion was published by [25], who defined the porphyritic granite as a quartz-monzonite, crossed by tourmaline-rich microgranite and aplitic dykes. Barberi et al. [46] implemented the study of the pluton, in the meantime dated at 4.9 Ma by K/Ar radiometric data [27].
The laccolithic shape of the magmatic intrusion was constrained by data from the underground mining activity [29] and finally defined by [47] as a body with a maximum length of 3 km, a width of 1.7 km and a thickness of 0.7 km.
The depth of the Gavorrano granite emplacement was estimated by [26] at a maximum value of 2–2.5 km, corresponding to a lithostatic pressure lower than 100 MPa. Differently, [47] indicate a maximum depth ranging between 4 and 5 km, corresponding to a lithostatic pressure lower than 200 MPa.
Magma cooling was accompanied by a significant hydrothermal process that led to pyrite ore deposits. Mining activity was carried out nearby the partially exposed monzogranite (Figure 3a,b).
Exploitation was encompassed between the end of nineteenth century and the last decades of the twentieth century, having produced about 25 million tons of pyrite [26]. Pyrite formed within a quartz-calcite gangue, with minor content of galena, sphalerite, chalcopyrite, fluorite, marcasite, barite, realgar and stibnite [26,29]. Three main pyrite bodies (named as Rigoloccio, Massa Boccheggiano and Valmaggiore) were distinguished, and exploited in an interconnected network of more than 30 km long tunnels belonging to five distinct mines [29]: Rigoloccio, Gavoranno, Ravi Marchi, Ravi Montecatini, Valmaggiore (Figure 3a). Several studies were addressed to the origin of the ore body and to its geometrical setting and attitude [26,29,30,31,43,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65]. On the basis of these results, two main contrasting models were proposed for the genesis of the ore deposit: (i) an epigenetic origin related to the emplacement and cooling of the magmatic intrusion (e.g., [25,26,29,49,51,52,55,60,65,66,67]) and (ii) a sedimentary/metamorphic origin (e.g., [61,62,68,69]). Geochemical and isotopic studies from [70,71,72,73,74,75,76] and [65] described the distribution of minor elements within the pyrite and sphalerite, as well as the chemistry of the igneous and hosting metamorphic rocks, thus providing information on the origin of the mineralization; accordingly, the origin of the sulfur is partly referred to the magmatic source and partly to the remobilization of sedimentary rocks, by means of geothermal fluids. These latter were strictly controlled by permeable volumes in fault zones, active during the geothermal circulation [29] and by lithological discontinuities hydraulically connected with the fault zones. Ore bodies are in fact located: (i) at the boundary between the monzogranite and hosting rocks (Figure 4); (ii) along the contact separating the Tuscan metamorphic unit from the overlying late Triassic evaporite [26,29] (Figure 3 and Figure 4); (iii) along normal faults juxtaposing sedimentary rocks with the magmatic intrusion (e.g., Monticello Fault, Figure 5).

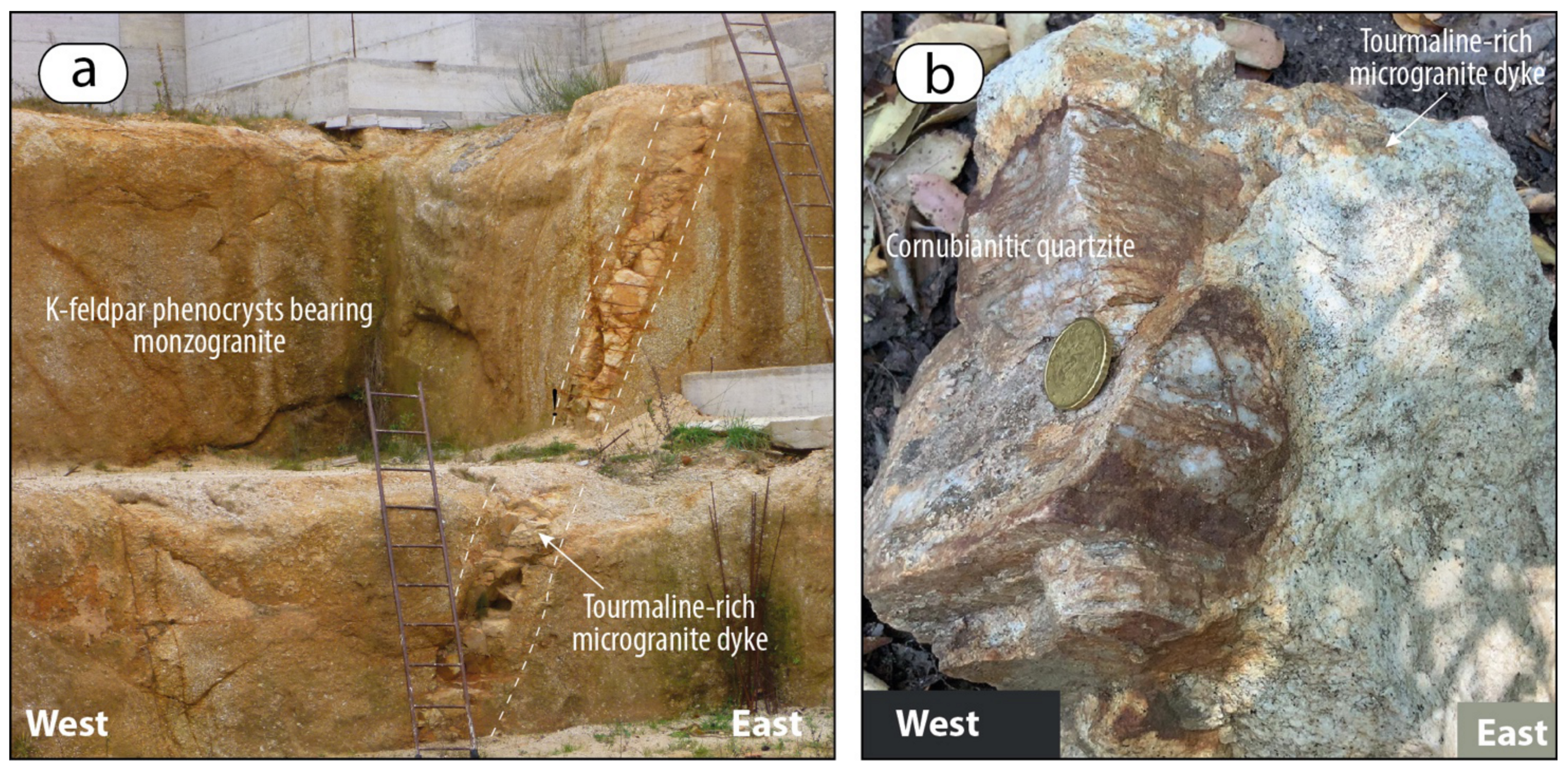

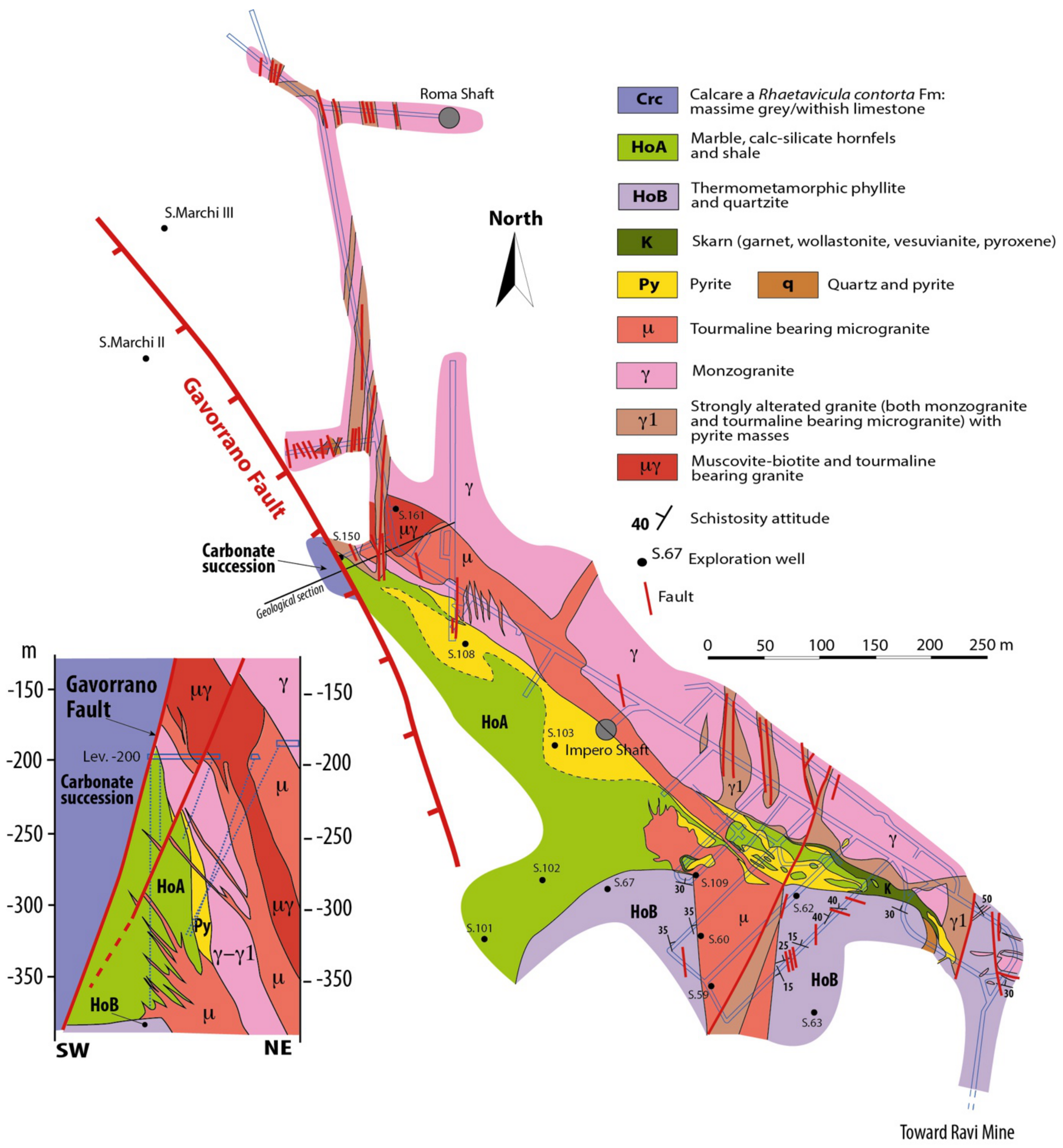

Today, the intrusive rocks are partially exposed at surface or were tunneled at shallow depth in tunnels dug during the mining activity (Figure 3a,b). Their exhumation was controlled by normal faults, well-constrained in terms of geometry and displacements by means of surface and mining data [26,29,35].

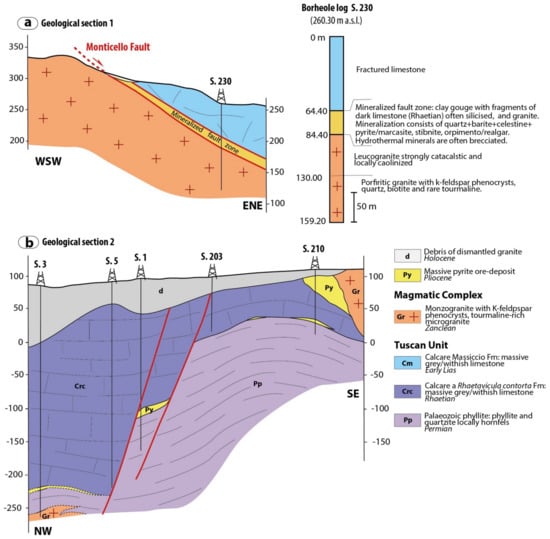

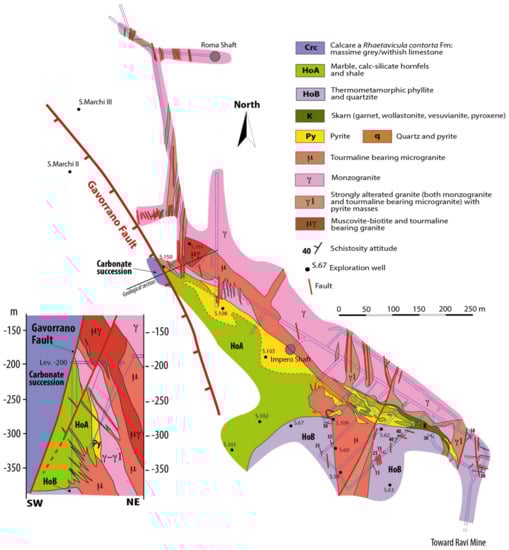

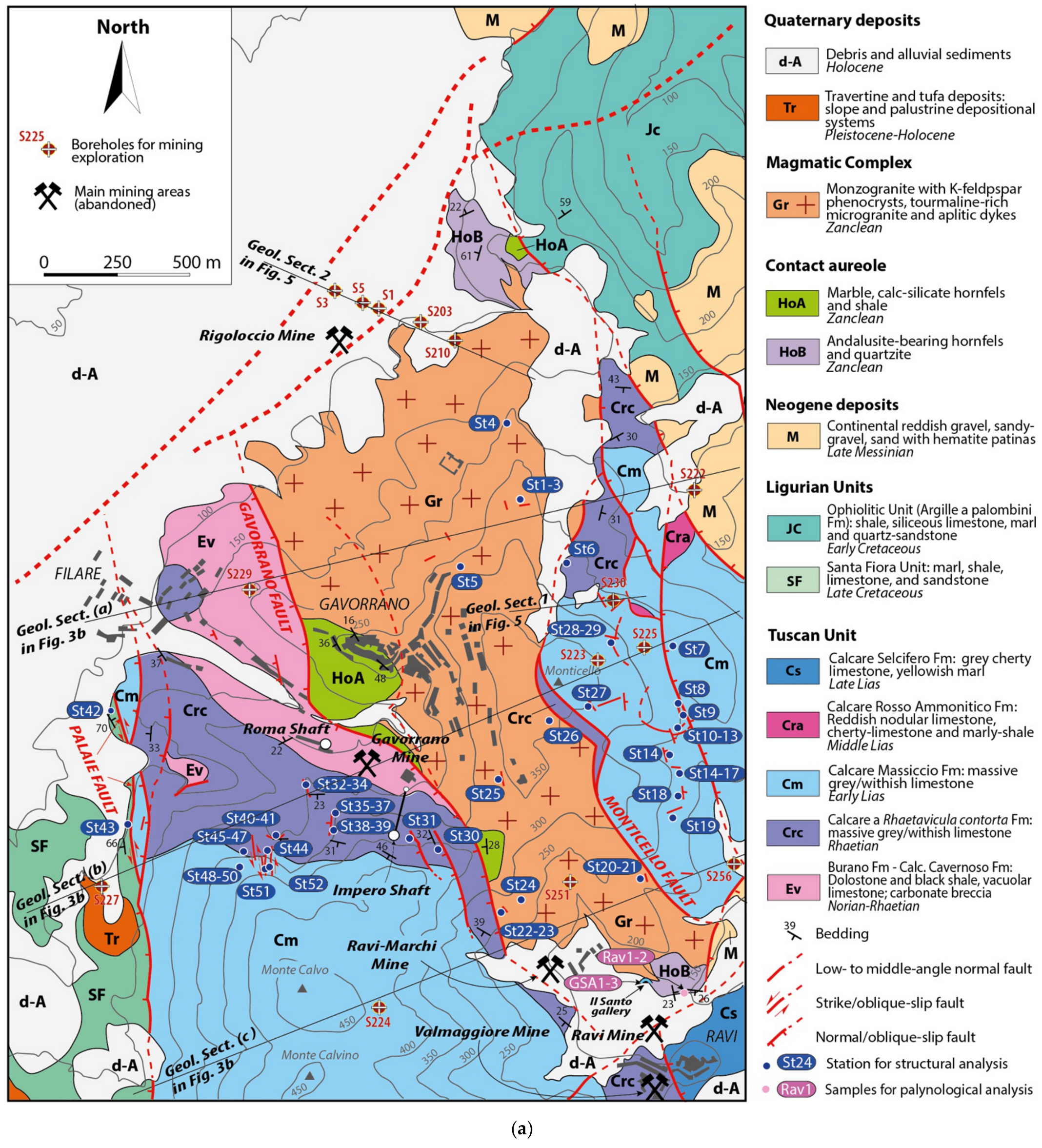

Main faults were named as Gavorrano (NNW-SSE striking) and Monticello (N-S striking) faults, delimiting the western and eastern margins of the pluton, respectively (Figure 3a,b). The Gavorrano Fault is described as a west dipping high angle normal fault (60–70°) and with an arcuate geometry [29]. Its total offset exceeds 600 m. The Monticello Fault is a middle-angle (35–50°) normal fault dipping to the east and is characterized by a total offset of about 1000 m [29]. Mining data highlight that the Gavorrano and Monticello Faults intersect each other in proximity of the Ravi village (Figure 3a). Both faults are mineralized although with different hydrothermal parageneses: the Gavorrano Fault hosts pyrite-ore bodies associated to minor content of galena, chalcopyrite and blend [29]. Differently, the Monticello Fault was mineralized by a hydrothermal mineral paragenesis made up of quartz, barite, celestine, pyrite/marcasite, stibnite, fluorite, orpiment/realgar (Figure 5).
The northern margin of the Gavorrano magmatic body is delimited by a SW-NE trending fault system, interpreted by some authors as the continuation of the Gavorrano Fault (e.g., [26,29]). Despite the significant role, this SW-NE trending fault is not mentioned by [34,36,38,47], although its occurrence is well documented by the mining data from the Rigoloccio mine (Figure 3 and Figure 5) and described in several previously published geological maps and structural sketches [26,29,35].

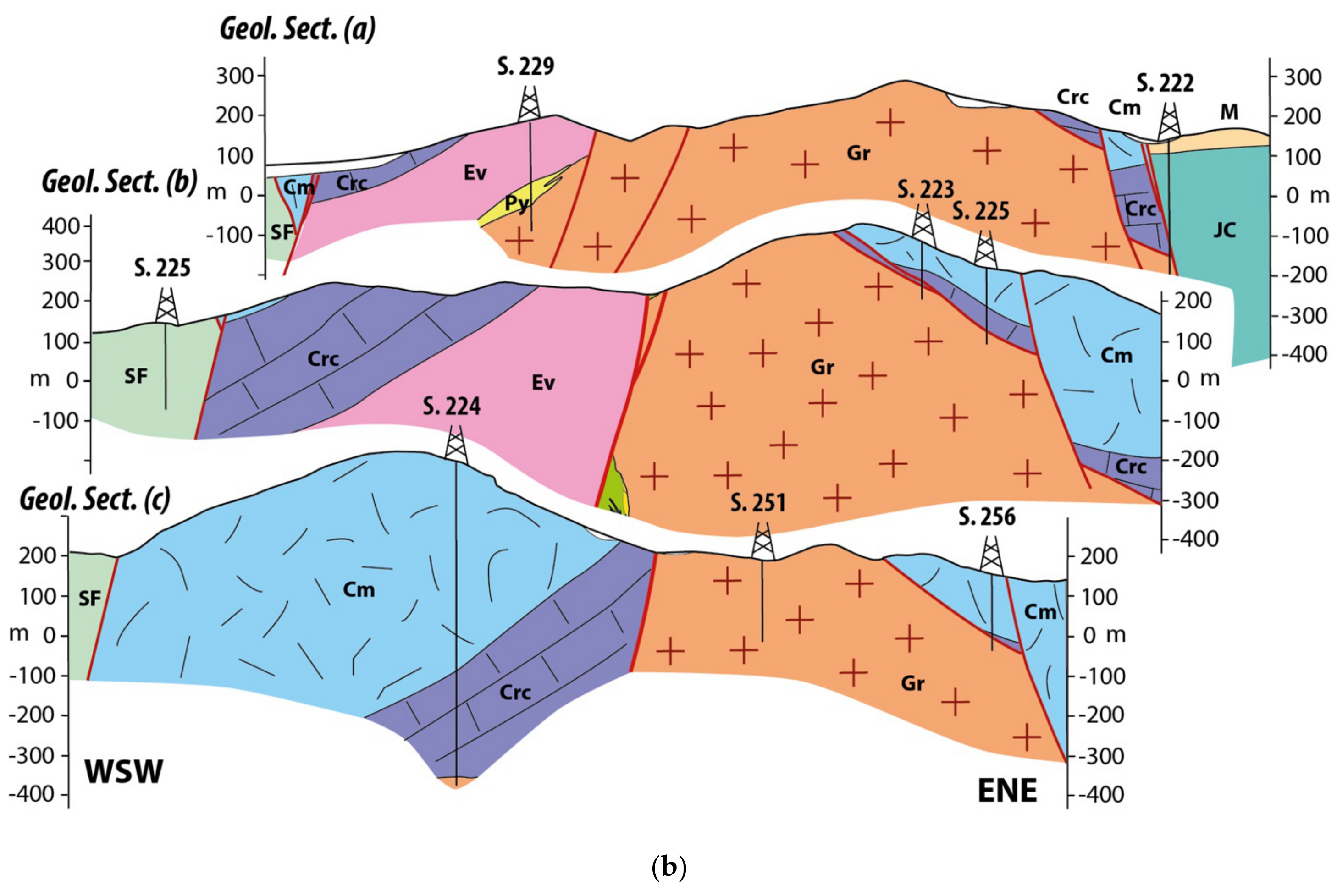

Another N-S striking fault, named as the Palaie Fault (Figure 3a), was considered associated to the Gavorrano Fault, being almost parallel to this latter (cf. [29] with references therein). This structure delimits the western slope of the Monte Calvo [29] and was not interested by mining exploration. Nevertheless, this fault and the fault system delimiting to the east the monzogranite was investigated by [35] who presented a structural and kinematic dataset documenting a dominant strike- to oblique-slip kinematics. On the other hand, [47] account for a normal component of the Palaie, Gavorrano, and Monticello Faults, whereas [34] hypothesize a reverse/transpressive kinematics at least for the Palaie Fault. This view was later implemented by [36] who reported two adjunctive NW-SE trending faults, up to 2 km long (named as the Monte Calvo and Rigoloccio Faults: Figure 2 in [36]), and interpreted as cartographic scale reverse faults.

3. Age of Hosting Rocks

Protoliths of the LP-metamorphic rocks forming the contact aureole, consisting of metacarbonate and metapelite, are referred to the Tuscan Unit [57]. Dallegno et al. [26], Lotti [49], De Launay and Gites [52], Lotti [43] interpreted the dominantly metacarbonate succession exposed in the NW side of the magmatic intrusion and exploited at depth, as a part of the Late Triassic succession (i.e., Burano and Calcare a Rhaetavicula contorta formations; black limestone, In [77]). Part of this succession, tunneled in the Gavorrano mine, was considered by [25] as the transition from the late Triassic carbonate/evaporite to the Triassic metasiliciclastic succession of the Verrucano Group, later defined as the Tocchi Fm [78,79], never documented before in the Gavorrano area. Marinelli [25], Lotti [49], De Wukerslooth [57], Lotti [43] referred the andalusite-bearing metapelite exposed north and south of the monzogranite (Figure 2), to the Palaeozoic succession underlining the late Triassic carbonate one. Marinelli [25], Arisi Rota and Vighi [29] considered this succession as part of the Filladi di Boccheggiano Fm, attributed to the Permian or pre-Sudetian by [32,33], respectively. Dallegno et al. [26] agreed with the interpretations of the previously mentioned authors about the interpretation of the outcrops exposed at south of the monzogranite, in proximity of the Ravi village (Figure 3a); furthermore, Dallegno et al. [26] proposed an alternative hypothesis regarding the northern exposure (at north of the Gavorrano village, Figure 3a) where the exposed pelitic hornfel and metaquartzite (mainly consisting of metasandstone and quartz-metaconglomerate) were related to the Triassic Verrucano Group [33,80], on the basis of their textural and compositional features, as well as the occurrence of tourmalinolite and red porphyry clasts. In order to better constrain the age of this discussed metapelite succession, we have analysed key samples from: (i) the exposures along the main road in proximity of the Ravi village, and (ii) the mining tunnel, named as Il Santo gallery, not so far from the previous exposure (Figure 3a). Since LP-metamorphism reasonably obliterated the fossil contents, making any age determination impossible, we applied the study of palynological content, a useful methodology due to the fact that the wall of sporomorphs is characterized by a sporopollenin, a biopolymer of complex and not-completely known structure very resistant up to high temperatures (e.g., [81,82,83,84,85]) and provide a good chronological resolution (e.g., [86]). We collected key samples of spotted black metapelite and phyllitic-quartzite with high organic matter content. In particular, 2 samples have been collected in the exposures at north of the Ravi village (Rav 1 and Rav 2) and 3 samples (GSA 1–3) have been collected in the Il Santo gallery belonging to the Ravi mine (Figure 3a). Samples were treated with HCl (37%) and HF (50%) to destroy the carbonate and siliciclastic component. Boiling HCl (30%) was then used to remove the insoluble fluorosilicate. The organic residue was sieved with a 20 mm filter. The yield of the sample was treated repeatedly with Schultz solution, due to strongly high degree of thermal alteration preventing the identification of black-colour (graphitized?) palynomorphs. Light microscope observations were made on palynological slides using a Leica DM1000 microscope with differential interference contrast technique in transmitted light. Images were captured using the digital camera connected to the microscope and strongly corrected for brightness and contrast and colour using the open-source Gimp software. Palynological slides are stored at the Sedimentary Organic Matter Laboratory of the Department of Physics and Geology, University of Perugia, Italy. Samples GSA1-3 resulted almost barren in terms of palynomorph content. The yield of the samples mainly consists of large opaque phytoclasts such as inertinite (ligneous fragments completely oxidised) and some indeterminate black organic microfossils. On the contrary, in the samples Rav1 and Rav2, despite the low preservation grade prevents the recognition of almost all microfloristic elements, some sporomorphs were identified (Figure 6).
These consist of taeniate bisaccate pollen grains as Distriatites insolitus, Hamiapollenites spp. and non taeniate as Alisporites sp. cf. splendens and Alisporites spp. Spores as Horriditriletes ramosus, Vallatisporites sp. cf. arcuatus, Thymospora opaqua, Densoisporites sp. and Kraeuselisporites sp. also occur in assemblage with the incertae sedis organic microfossil Reduviasporonites chalastus. This microflora association shows close similarities with the one yielded from other pre-Triassic successions cropping out in Tuscany (Arenarie di Poggio al Carpino, Arenarie del Monte Argentario and Farma formations; [87,88,89], as well as in the Elba Island (Rio Marina and Mt. Calamita formations; [86]) and attributed to the Guadalupian-Lopingian time interval (middle-late Permian). In Southern Alps, along the praeparvus Zone of Changxingian age (late Lopingian), [90] documented an analogous palynoflora also characterized by the occurrence of Alisporites sp. cf. splendens, Densoisporites sp., Kraeuselisporites sp. and Reduviasporonites chalastus. This incertae sedis organic microfossil relatively long range from Capitanian (late Guadalupian) to early Triassic and widespread occur in different countries as well as Australia, Greenland, South China (Meishan, GSSP of Permian-Triassic boundary), Russian Platform, UK, Austria, USA, South Africa and other (e.g., [91,92,93,94,95]). In the Guadalupian of Northern Gondwana regions (e.g., Turkey; Oman, Saudi Arabia, Iran, Pakistan) R. chalastus was documented in assemblage with Thymospora opaqua, Distriatites insolitus, Hamiapollenites spp., Kraeuselisporites sp. Densoisporites sp. (e.g., [96,97,98,99,100,101]). On the basis of sporomorphs stratigraphic range, the microfloristic assemblage from the analysed samples is attributed to Guadalupian. The presence of forms as Horriditriletes ramosus and Vallatisporites sp. cf. arcuatus occurring in the early Permian of both palaeotemperate (e.g., Norway; [102]; and palaeotropical latitudes (e.g., Oman and Saudi Arabia; [96]), is here interpreted as probably reworked contents from older metasediments.

4. The Contact Aureole

The emplacement of the Gavorrano pluton produced LP-metamorphism on the host rocks resulting in a narrow contact aureole with a thickness of 200–300 m [25,26]. LP-metamorphism superimposed on the regional metamorphism which affected the pre-evaporitic metamorphic “basement” mainly represented by the Palaeozoic-Triassic phyllitic-quartzite units (i.e., dominantly pelitic successions), and the late Triassic carbonate rocks, producing hornfelses with different mineral assemblages, as firstly described by [25]. Concerning the pelitic rocks, [25,26] document a mineralogical assemblage made up of quartz + muscovite + K-feldspar + andalusite and chlorite + biotite + cordierite in Mg and Fe-bearing phyllite. Differently, [47] describe quartz + plagioclase + K-feldspar + andalusite and blasts replaced by fine-grained white mica they interpret as relicts of cordierite. [25] also describes corundum and green spinel, replaced by biotite and plagioclase, found within xenoliths collected in the Gavorrano mine. Differently, in the carbonate rocks, calc-silicate hornfels, partially replaced by skarn, shows a mineral assemblage mainly formed by garnet + epidote + spinel + wollastonite + diopside + forsterite + scapolite + quartz + calcite + vesuvianite [25,26]. At depth, the contact between granite and hornfels was described at −50 m, −200 m and −250 m [26,46] and wollastonite + calcite + quartz and diopside + forsterite + calcite mineral assemblages, with local levels enriched of garnet + vesuvianite + scapolite, have been found [46]. In the deepest levels of the Gavorrano mine (−200 m depth b.s.l.), [26] document dolomitic marble characterised by centimetric calcite and dolomite crystals, intimately associated to calc-silicate hornfels. Similarly, at the contact with the monzogranite, the same authors describe 1–2 m thick mineral assemblages consisting of: i) diopside + garnet + dolomite + calcite approaching the hornfels, and ii) epidote + tremolite + diopside + scapolite + calcite + garnet approaching the monzogranite. Diopside + tremolite veins, classified as replacement skarn [103], have also been documented in veins that cut the hornfels; similarly, narrow bands of phlogopite + tremolite (± actinolite) composition have also been described at the boundary between hornfels and skarn. No data are available for the mineralogical assemblage of the pelitic rocks, at the depth where observations were carried out. LP-metamorphism was followed by a subsequent hydrothermal event which produced, among the Fe-ore deposit [26,29,65], the alteration of the forsterite and diopside into serpentine, tremolite, talc, and chlorite, and the formation of veins filled by quartz + adularia + epidote + sulphides± calcite ± albite ± tremolite indicating temperature of about 250–300 °C [26]. Speculation of maximum temperature of about 175 °C was proposed for the last hydrothermal circulation by [104] analysing goethite and clay minerals at the Rigoloccio Mine (Figure 3a), derived from the hydrothermal alteration of the monzogranite and pyrite body.
We have implemented the existing dataset by analysing key samples of pelitic and carbonate hornfels from some key outcrops nearby the Ravi mine (Figure 3a) and from underground. These latter samples have been collected at: (i) the level −50 m b.s.l. of the Gavorrano mine; (ii) samples collected in the mining dump and possibly coming from the level −200 m of the Gavorrano mine. On the whole, our data agree with those reported by the previous Authors and provide additional information on the pelitic hornfels, particularly from the deep part of the Gavorrano mine.
The analysed pelitic and semipelitic rocks grade from spotted schist to hornfels (Figure 7). A compositional layering is generally recognisable being highlighted by an alternation of quartz- and mica-rich levels. In several cases, an intense deformation is observed in the form of serrated microfolds and winged d-porphyroclast (Figure 7a). In the spotted schist, the mineral assemblage is typically made up of quartz + biotite + muscovite + andalusite + tourmaline. Tiny elliptical cloudy spots are observed, probably derived from original cordierite (Figure 7b,c). In the hornfels from the deep level of the Gavorrano mine, muscovite-out conditions were reached as testified by the presence of K-feldspars and locally of corundum. Quartz crystals display variable grains size and are commonly characterised by polygonal shapes. In some cases, quartz shows lobate grain boundaries suggesting that a dynamic recrystallization took place. Biotite flakes increase in abundance from spotted schist to hornfels where they show orange-brown colour when oriented parallel to the lower polarizer. Andalusite porphyroblasts commonly show euhedral habit, with elongated and square diamond shapes (Figure 7d–f). The latter, usually contain the cross-shaped dark inclusion pattern typical of chiastolite (Figure 7d,e) as also described by [25]. Corundum is abundant and well recognisable at microscope scale in the form of spots made up of isolated crystals or aggregates within the biotite-rich levels devoid of quartz (Figure 7g). It shows a polygonal shape and a corona made up of K-feldspar, rare muscovite ± rutile (Figure 7h,j). It often displays a pale blue colour typical of sapphire variety. Tourmaline is zoned with brown to cyan colours being of dravite type and is mostly found within biotite-rich levels (Figure 7k). Among the accessory phases, zircon and opaque minerals are always present, whereas rutile is found in corundum-bearing hornfels.
The analysed carbonate rocks collected in the Gavorrano mine (level—50m b.s.l.) consist of marbles with a variable grain size. In most cases, they contain olivine (Figure 8a,b) without diopside suggesting that they derive from carbonatic-silica-pure protolith. Locally, in the fine-grained type a polygonal fabric of calcite can be recognised, indicating a static recrystallization (Figure 8a). In some cases, olivine-rich levels show diffuse serpentinization, with few olivine relicts still present (Figure 8c,d), justified by [25,26] as the effect of a later hydrothermal fluid flowing through the thermal aureole.
Some considerations can be provided on the peak P-T conditions reached in the thermal aureole. In the pelitic hornfels, recording the maximum temperature in the contact aureole, muscovite-out conditions were reached through the reaction:
Ms + Qtz = And + Kfs + H2O
Alternatively, in silica-poor domains, the genesis of corundum could be promoted by reaction:
Ms = Crn + Kfs + H2O
After muscovite disappearance, corundum could be produced by reaction provided by Pattison and Harte [107]:
2 Bt + 15 Al2SiO5 = 9 Crn + 3 Crd + 2 Kfs + 0.5 H2O
In the analysed samples, there is no evidence for the simultaneous blastesis of corundum and cordierite. Thus, reaction (2) is preferred for the genesis of corundum.

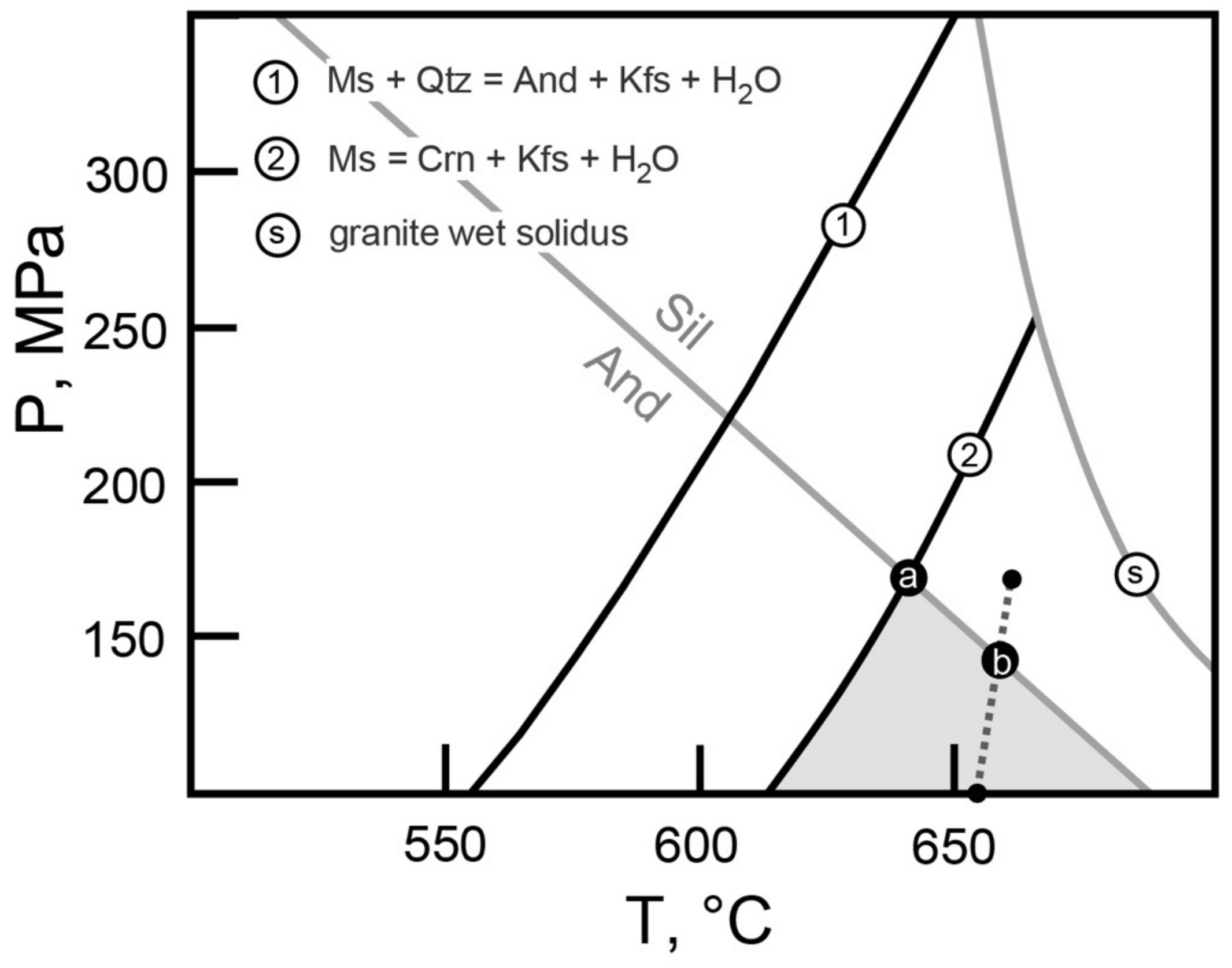

In order to constrain P-T conditions for the contact metamorphism, a look at a simple P-T grid is practical. The diagram in Figure 9, in addition to reaction curves (1) and (2), shows the wet solidus curve for granite and the andalusite—sillimanite equilibrium line. The absence in the hornfels of sillimanite and of microstructures indicative of partial melting indicate that the andalusite-sillimanite equilibrium line and the granite solidus curve were not crossed during the heating phase. On the other hand, the presence of corundum allows to constrain the metamorphic peak beyond reaction (2), within the grey area. A maximum limit for the pressure, provided by the intersection of reaction (2) with the andalusite-sillimanite equilibrium is of c. 170 MPa, corresponding to a temperature of c. 640 °C. At lower pressures, higher temperatures for the thermal peak are possible.
Quantitative estimates of the temperature were attempted by the Ti-in-biotite thermometer by Wu et al. [108]. This was calibrated for pelitic rocks containing a Ti-rich phase such as ilmenite or rutile at pressure higher of 100 MPa, thus being appropriate for the present case. On the basis of 7 biotite analyses of a corundum-bearing hornfels sample (Table A1), a mean value of c. 660 °C was obtained at a pressure of 170 MPa and of c. 650 °C at a pressure of 100 MPa. A check on the compatibility of these numerical results with the P-T extent of the grey area in the diagram of Figure 9, suggests a pressure value lower than c. 150 MPa, corresponding to a depth lower than c. 6 km, assuming an average density of 2650 kg/m3 for the upper crust. However, considering the error of the thermometer, this latter P limit should be verified through more refined petrological methods and/or geological constraints.

5. Structural and Kinematic Data

The geological setting was already reconstructed by the large amount of mining data as reported in several papers (e.g., [25,26,29,65]). Nevertheless, still contrasting hypotheses are provided by different authors on the tectonic evolution that accompanied the pluton emplacement and its exhumation (cf. [26,35,36,115]).
In order to contribute to this issue, existing mining documents and a new dataset of structural and kinematic data have been integrated. Figure 3a shows the location of the stations where the structural analysis has been carried out. The results are shown in the stereographic diagrams, reported in the Annex 1.
Both cartographic and outcrop-scale evidence highlight superposed faulting events that can be categorized In (i) low- to middle-angle (<50° of dipping value) normal faults, affecting both granite and the carbonate succession; (ii) high angle (>50° of dipping value) strike-slip faults coexisting with the low- to middle-angle normal faults; (iii) high angle normal faults displacing the previous formed structures (Figure 3a,b).

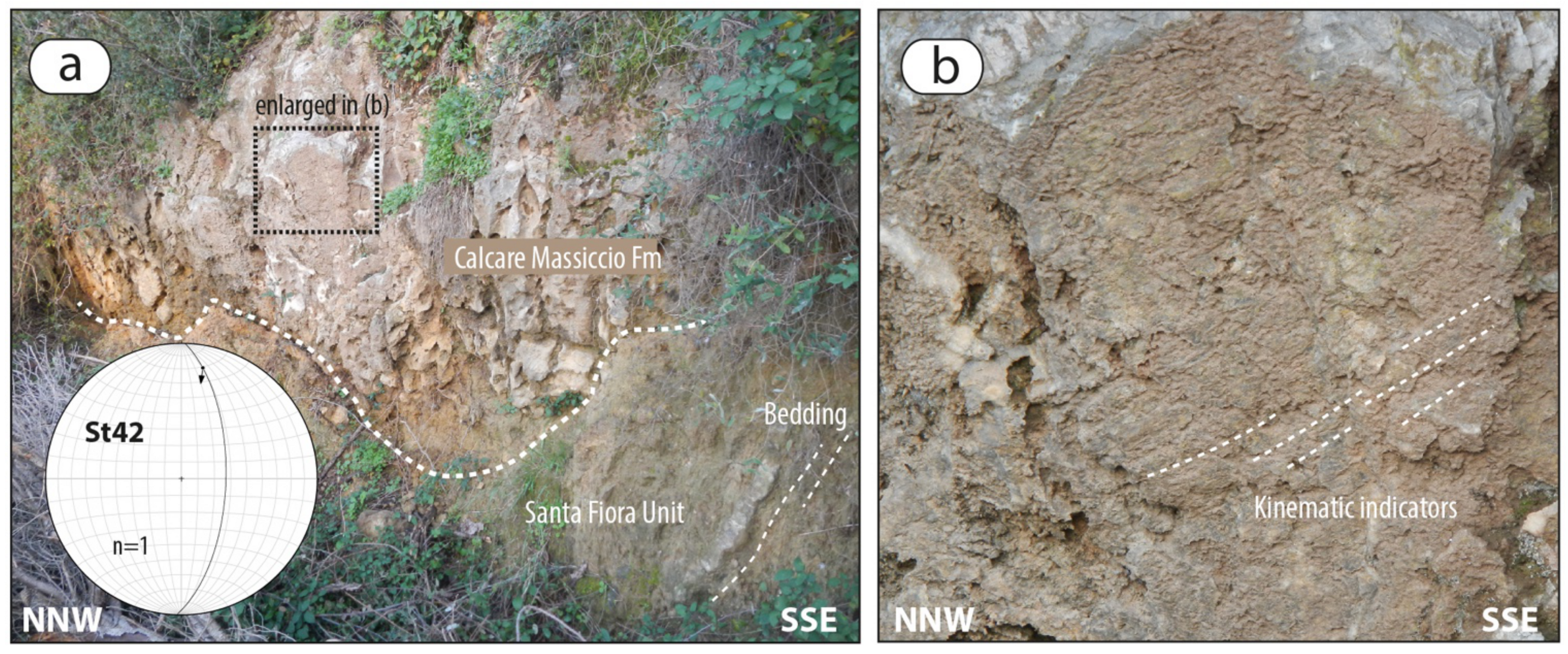

As it regards the low- to middle-angle faults, the best example is the Monticello Fault (Figure 3a and Figure 5), which decouples the monzogranite from the overlying sedimentary cover, by an almost ten-meter thick mineralized cataclastic zone, as it is well documented by the mining data (Figure 5a). Therefore, the consideration of the mining data changes the view of the Monticello Fault, previously interpreted as a high-angle normal fault, parallel to the Gavorrano Fault although dipping in the opposite direction and delimiting the monzogranite to the east [26,29,35,47].
By the new integration of data, the Monticello Fault assumes the role of an already existing fault decoupling the magmatic intrusion from the hosting rocks and contributing to the exhumation of the monzogranite. Such a structure was later affected by high-angle faults to which the Gavorrano Fault belongs (Figure 3a,b). It is worth to note that, on the basis on the mining data form the Ravi mine (located in the southern part of the Monticello fault), Marinelli [25] accounts for a shear zone, separating the magmatic intrusion from the hosting rocks, similarly to what is observed along the Monticello Fault.

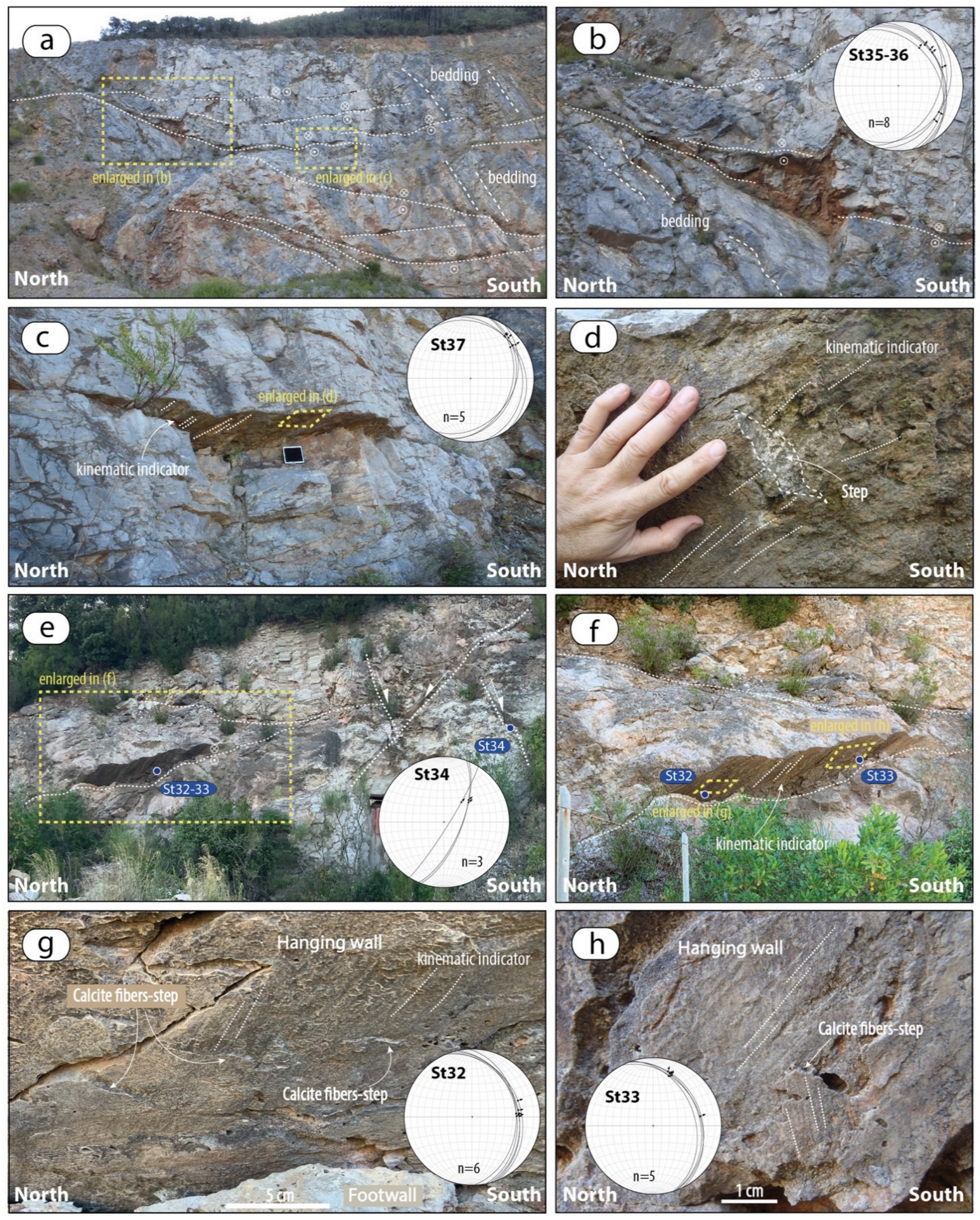

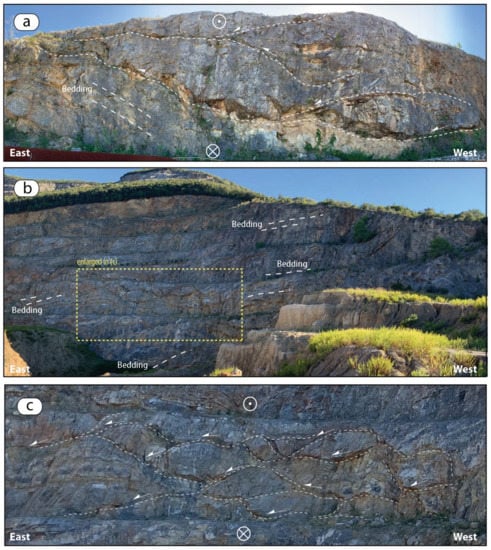

Low-angle faults affecting the carbonate succession (Figure 3a and Figure 10), also occur in the hanging wall of the Monticello Fault (Figure 3a). These are well-exposed in the abandoned quarries on the northern slope of the Monte Calvo area and are arranged in sub-parallel and anastomosed segments that define decameters-thick sheared and delaminated volumes with conjugated fault segments forming lozenge-shape geometries and meter-/decameter-scale extensional horses (Figure 11 and Figure 12). Fault segments are characterized by kinematic indicators consisting of calcite fibres and steps, indicating normal, mostly top-to-the E-NE sense of shear (Figure 11, Figure A1). All these data contrast with the kinematic interpretation proposed by [36], although conducted in the same outcrops (cfr. Figure 7a,b in [36]). These authors, in fact, support a top-to-the west reverse kinematics of these faults, notwithstanding the fact that kinematic indicators clearly indicate a normal movement (Figure 11b,f). Furthermore, it is worth to underline that this particular kinematics is in agreement with the data collected in the whole Gavorrano area (Figure A1) and with the geometrical setting of the low-angle faults, as visible in the quarry exposures (Figure 12).

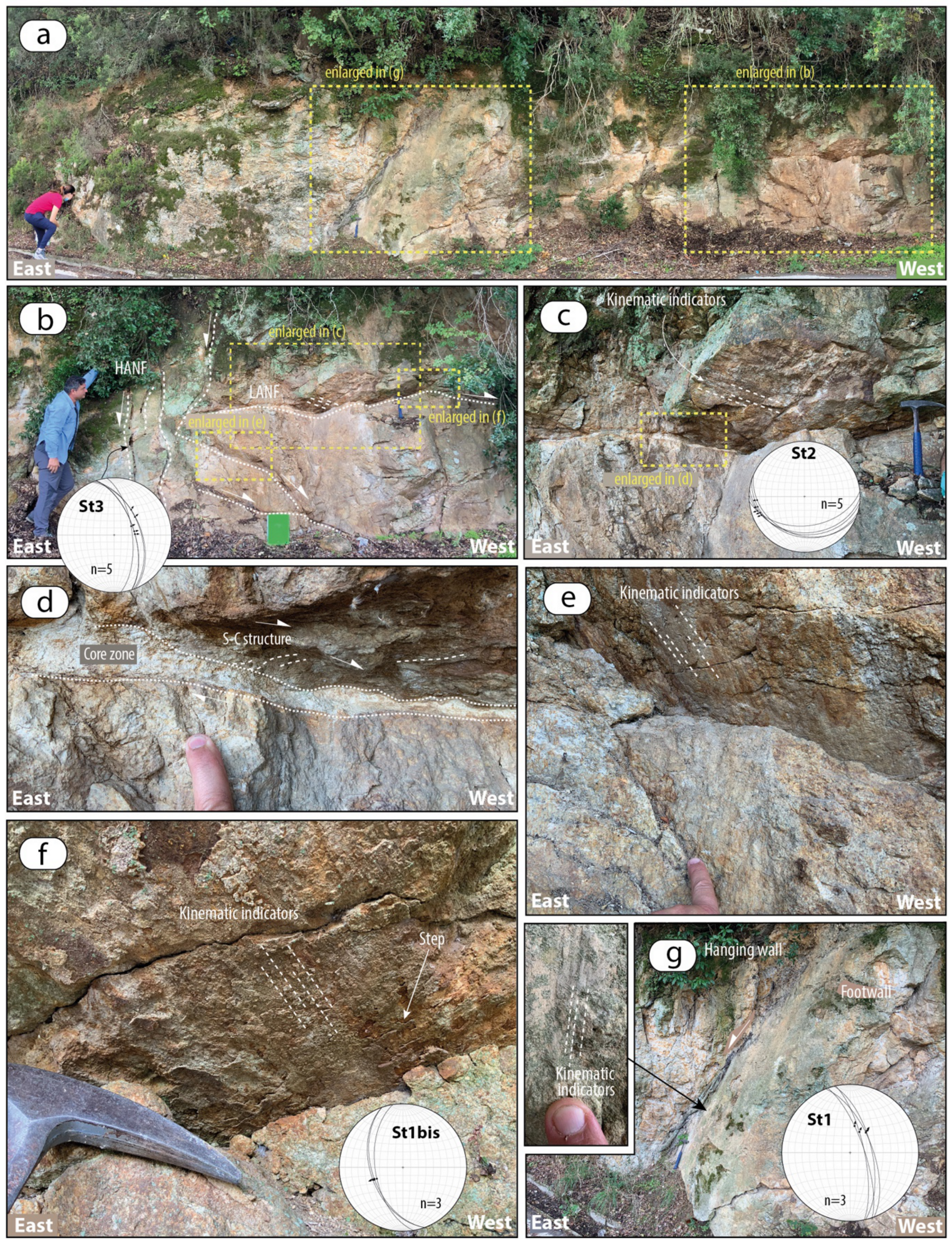

Low-angle faults affecting the monzogranite (Figure 13a,b) have also been recognized. Here, these show striated slip-surfaces (Figure 13c) bounded by a centimeter-thick core zone with ultra-comminuted grains (Figure 13d) and centimeters-thick level of foliated monzogranite, showing s-c structures, with a top-to-the west sense of shear (Figure 13e,f). Although faults exposure in granite are limited, their setting accounts for a lozenge-shaped geometry (Figure 13b), thus explaining the occurrence of both top to E-ENE (dominant) and top to W-WSW sense of shear on their slip planes, respectively.
Concerning the high angle faults, N-S and SW-NE strike-slip faults occur in the whole area (Figure 3a). The best exposures (especially for the N-S striking faults) were recognized in the quarries, north of the Monte Calvo (Figure 10) and in the western part of the study area (i.e., Palaie Fault, Figure 3a).

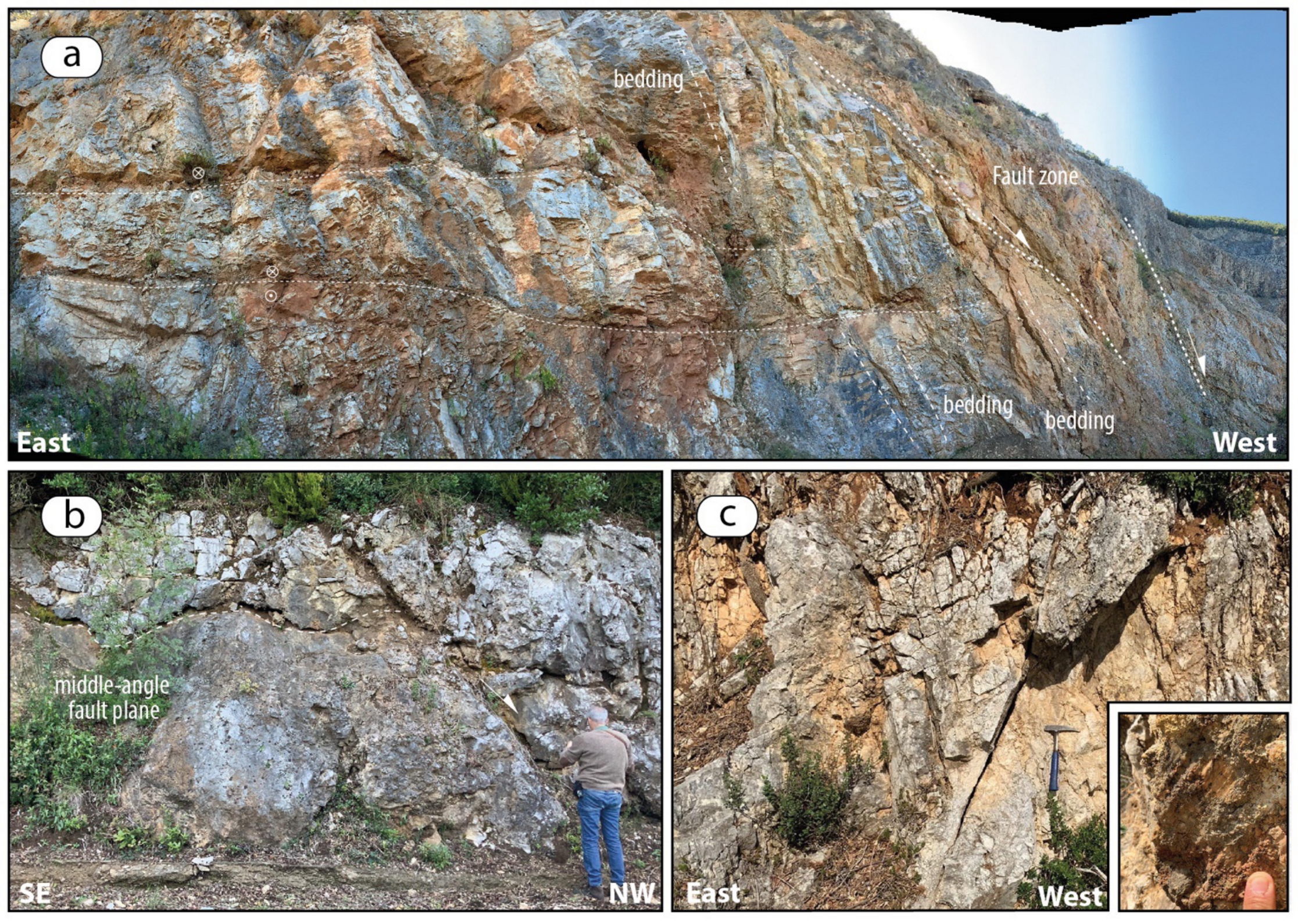

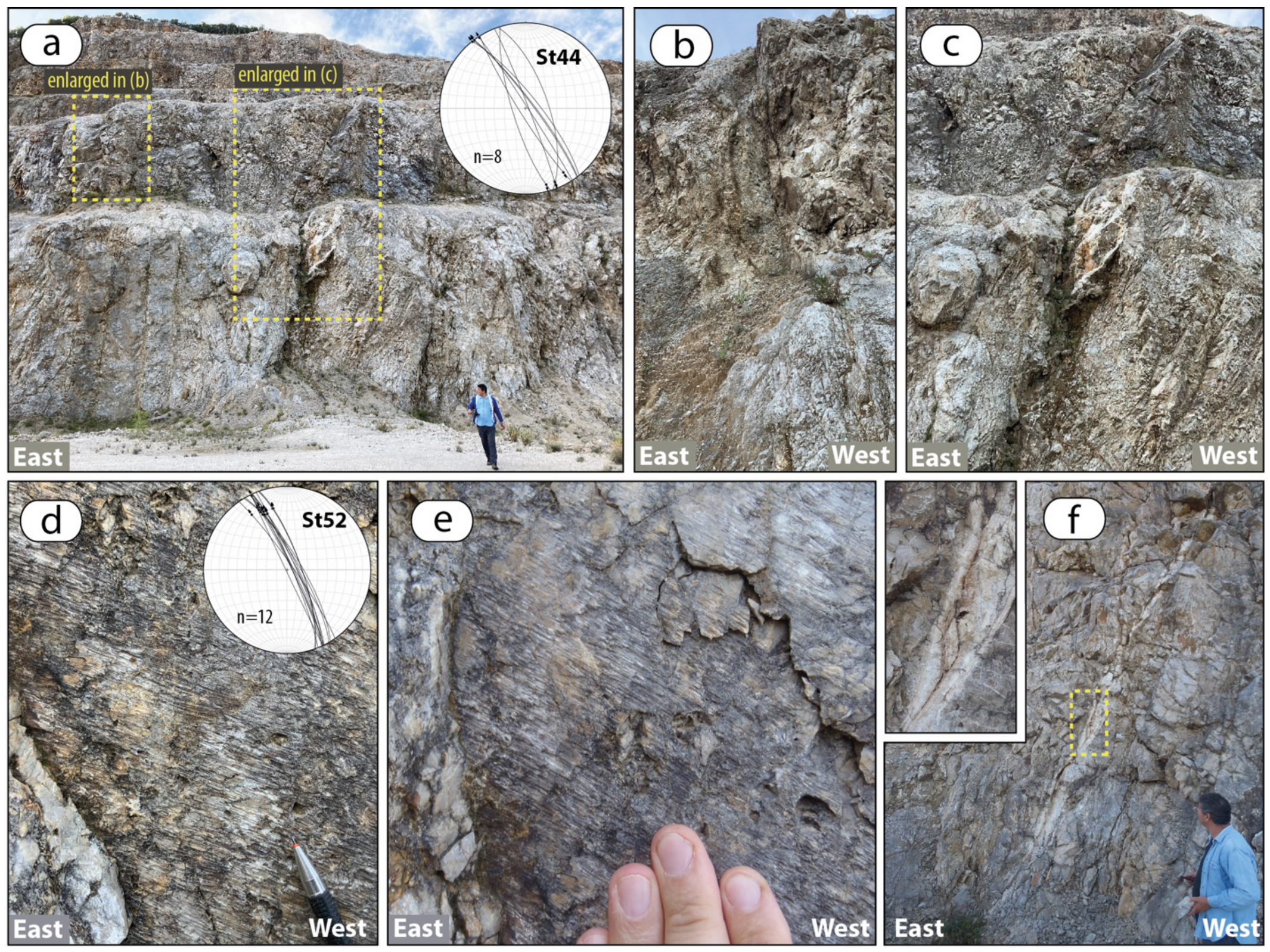

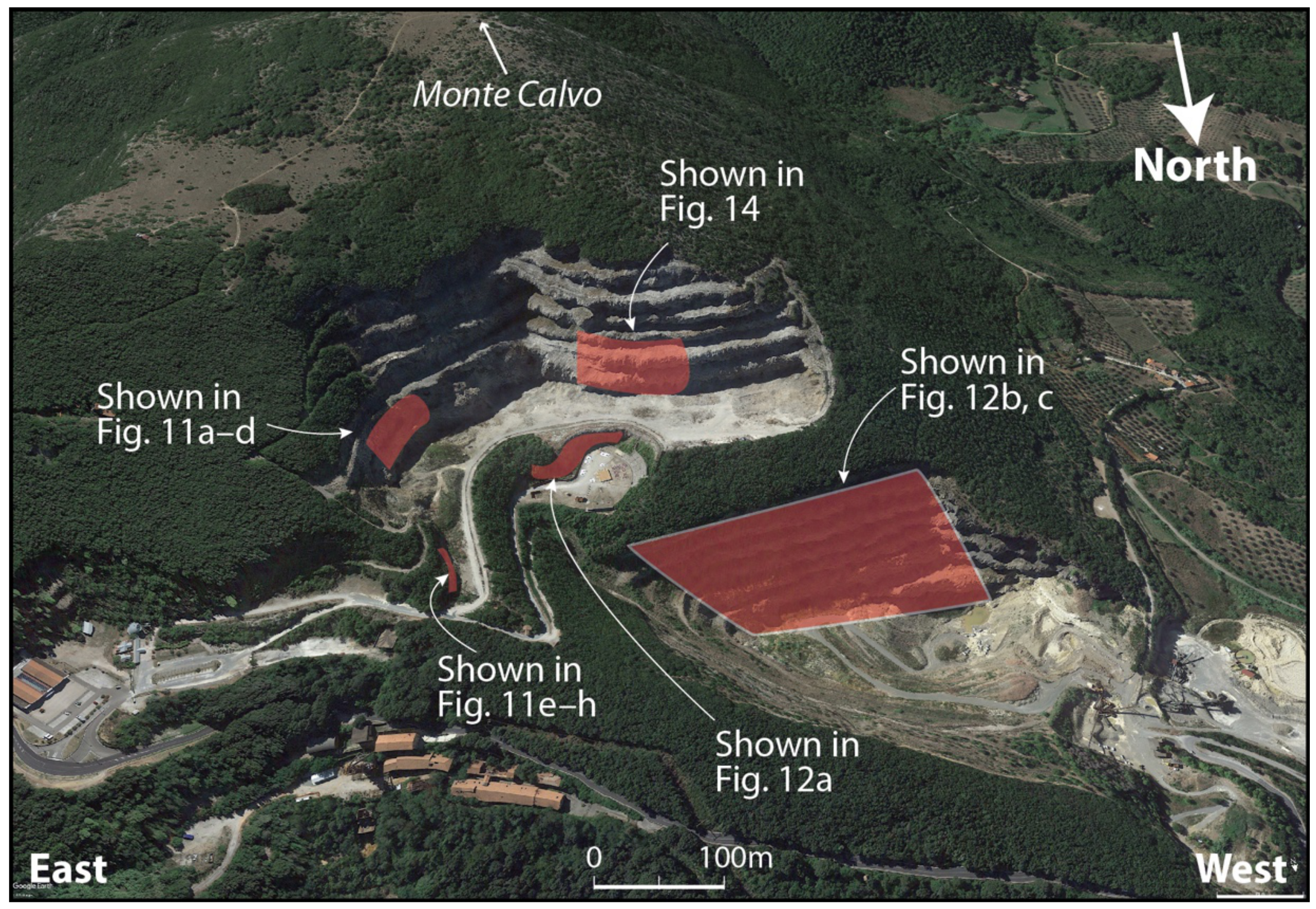

In the abandoned quarries, these faults define decameters-thick vertical brittle shear zones (Figure 14) formed by sub-parallel and conjugate fault planes (Figure 14a–c), surrounded by well-developed damage zones. Left-lateral strike to oblique-slip kinematics is then suggested by indicators locally preserved on the slip-surfaces and consisting of calcite slicken-fibres and steps (Figure 14d,e). In some cases, syn-kinematic cm- to dm-thick banded calcite veins formed along the fault planes, or in extensional jogs (Figure 14f).
This attests the role of such faults in controlling the hydrothermal fluid paths from the late magmatic events onwards, at least. This is in fact attested by the several S-N and SW-NE oriented microgranite dykes intruding both the monzogranite and the hosting rocks in fault zones, as documented in the outcrops (Figure 15) and by the underground mining data (Figure 4). Thus, a local strike-slip regime is supposed to have controlled the deformation in the Gavorrano area, and probably the pluton emplacement. Nevertheless, although the interplay between the low-angle normal faults and the S-N to SW-NE striking strike-slip faults has not been directly documented in the field, it is reasonable to assume that the transcurrent faults were contemporaneously active with the low-angle normal faults, since both fault systems are affected by syn-tectonic hydrothermal circulation. Their contemporaneity is also confirmed by the inversion of the kinematic data collected on fault-slip surfaces of both low-angle normal faults and strike-slip faults: it highlights a strong kinematic compatibility, as shown by the orientation of the main kinematic axes (Figure 16a–c). We can therefore assume that these faults were active under a common stress field: in this view, the low-angle normal faults developed as a consequence of the crustal thinning, having triggered magmatism and favoured the development of SW-NE striking km-thick sub-vertical brittle shear zone (i.e., transfer zone: [116,117,118]) of which the Gavorrano area is a part.
In the context of the deformation induced by a transfer zone, the N-S striking left-lateral and SW-NE striking right-lateral strike-slip faults are thus framed in the same setting, as indicated by their kinematic compatibility (Figure 16c,d). Consequently, those are interpreted as minor faults linking the SW-NE striking main structures, in a common left-lateral strike-slip shear zone.

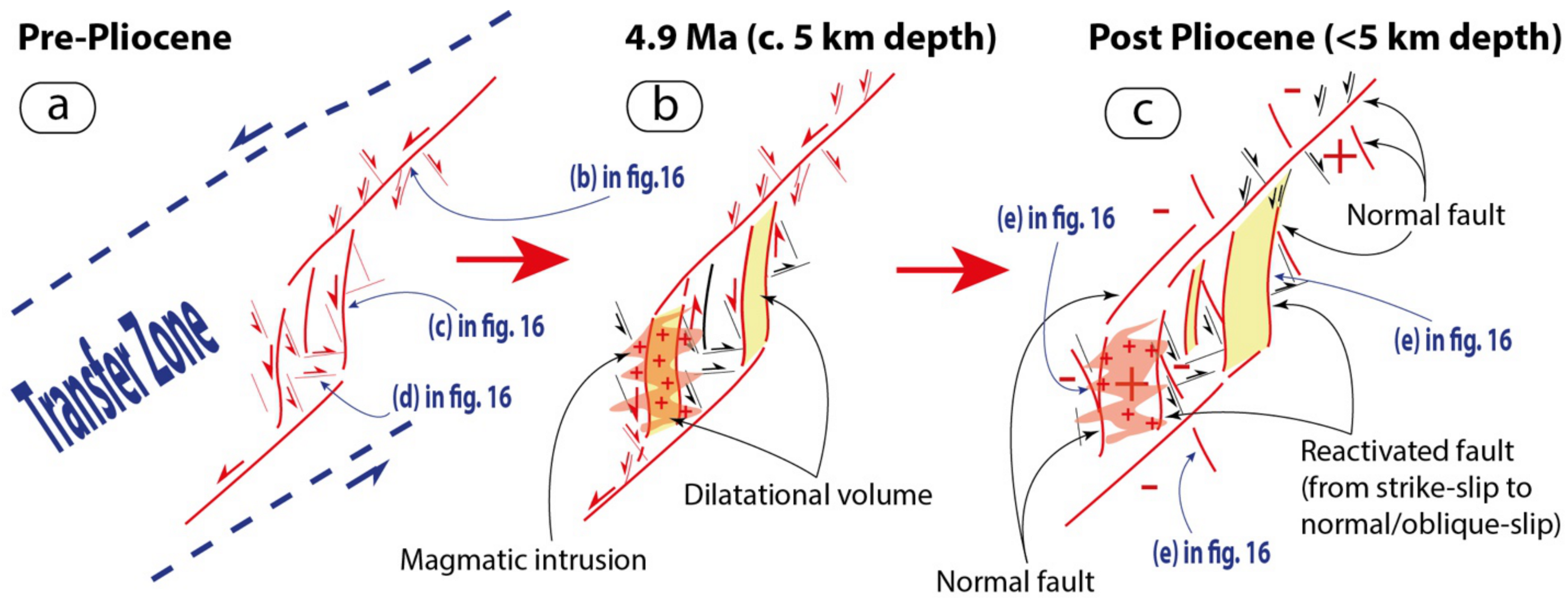

Concluding, we can depict a tectonic evolution where low-angle normal faults and strike-slip faults (N-S striking left-lateral strike-slip, SW-NE striking left- and right-lateral strike-slip faults) coexisted during the emplacement and exhumation of the monzogranite, as sketched in the conceptual model of Figure 17a,b.
The Palaie Fault (Figure 3a) has been described by several authors as a strike-slip fault [35] or a transpressive fault, by the kinematics reconstructed in a single outcrop [36]. Our data (Figure 18) highlight that what today is recognizable along the western slope of the Monte Calvo is the result of two superposed faulting events, at least: strike-slip fault segments are in fact preserved within lithons delimited by sub-parallel west-dipping normal faults (Figure 3a). In other words, the western slope of the Monte Calvo is delimited by a normal fault system partly reactivating and dissecting older N-S striking left-lateral strike-slip faults, thus determining lithons of which original attitude is reasonably modified. This can explain the singularity of the Palaie Fault, the single structure with visible kinematic indicators contrasting the general framework.
High angle normal faults, NNW-SSE and N-S striking are the youngest structures. These dissect the previous formed low-angle faults (Figure 19a,b) and are characterized by oblique-slip to normal movements (Figure 19c). Fault zones are with meters-thick damage zones (Figure 19a) where well-organized minor fractures affect both their hanging wall and footwall (Figure 19c). Kinematic indicators mainly consist of groove and mechanical striations developed on the fault surfaces.

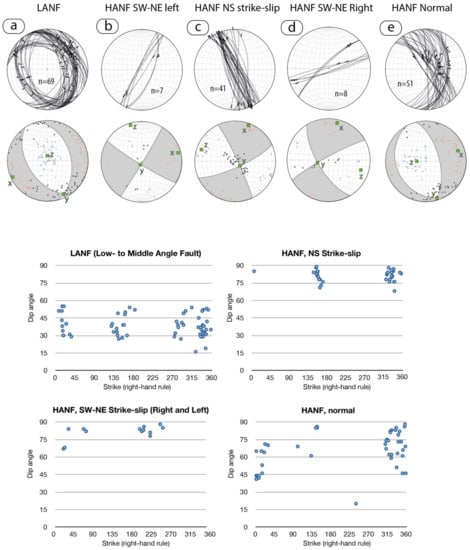

Inversion of kinematics data collected on the normal faults (Figure 16e) show a kinematic compatibility with the low-angle normal faults (Figure 16a), thus supporting a stable E-NE trending extensional regime from the emplacement of the monzogranite until its exhumation (Figure 17c).

6. Conclusive Remarks

On the basis of the new dataset integrated with the pre-existing data we can state the following points:
  • The laccolithic monzongranite emplaced within the upper part of the Tuscan metamorphic succession, at the base of the Late Triassic carbonate succession. The exposed contact aureole at north of Ravi village is referred to the phyllitic-quartzite succession, similar to part of that one exposed at north of the Gavorrano village, underlying the metasandstone and quartz-metaconglomerate of the Triassic Verrucano Group. The succession exposed in the Gavorrano village and neighbourhood is referred to a transitional succession (i.e., Tocchi Fm) interposed between the Verrucano and late Triassic evaporite. The Palaeozoic succession hosting the monzogranite has a middle-late Permian age and can be referred to the coeval successions documented in the surroundings (e.g., Poggio al Carpino Fm, Filladi di Boccheggiano and Quarziti del Torrente Mersino formations). The decimetres-thick quartz-metasandstone levels interbedded within black phyllite, recognised in the Il Santo gallery, make this succession similar to the Poggio al Carpino Fm. On the contrary, the dominant black phyllite exposed at surface better corresponds to the Filladi di Boccheggiano and Quarziti del Torrente Mersino formations.
  • The thermo-metamorphic paragenesis and Ti-in-biotite geothermometer point to a peak Temperature of c. 660 °C at a depth probably lower than 6 km. Dynamic recrystallisation of LP paragenesis suggests a syn-kinematic evolution of the contact aureole, in agreement with the active tectonic setting that assisted the magma emplacement, cooling and exhumation.
  • We do not confirm the occurrence of regional and/or cartographic scale reverse faults, or thrust-related roof-anticline triggering the magma emplacement and hosting the magmatic intrusion, since those previously proposed interpretations contrast with field data evidence. The pluton emplacement was coeval with coexisting strike-slip and extensional tectonics that continued also after the magma cooling and produced the exhumation of the magmatic system and of its contact aureole. The tectonic setting did not change through time: strike-slip and normal faults coexisted at least since the early Pliocene (age of the monzogranite emplacement). The Gavorrano pluton emplaced within a SW-NE trending sub-vertical strike-slip brittle shear zone (i.e., transfer zone) that accompanied the development of low-to middle-angle normal faults formed in a E-NE trending extensional setting. SW-NE striking strike-slip faults were mainly linked by NS striking strike-slip faults in releasing step-over zones, favouring the development of sub-vertical dilatational volumes with enough permeability to channel the magma from the deeper to upper crustal levels.

Author Contributions

Conceptualization, A.B.; methodology, A.B., A.C. (Alfredo Caggianelli), D.L., A.S., and M.Z.; software, A.B., A.C. (Alfredo Caggianelli), D.L., and M.Z.; validation, A.B. and D.L.; formal analysis, A.B., A.C. (Alfredo Caggianelli), D.L., A.S., and M.Z.; investigation, A.B., E.C., A.C. (Alfredo Caggianelli), D.L., and M.Z.; data curation, A.B., E.B., E.C., A.C. (Alfredo Caggianelli), A.C. (Alessandra Casini), D.L., A.S., and M.Z.; writing—A.B.; writing—review and editing, A.B., E.C., A.C. (Alfredo Caggianelli), A.C. (Alessandra Casini), D.L., A.S., and M.Z.; visualization, A.B.; project administration, A.B. and A.C. (Alessandra Casini); funding acquisition, A.B., D.L., and A.C. (Alessandra Casini). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by: (1) Department of Physics and Geology (University of Perugia) ‘REDAB—REDiscovering the Apennine Basement: a multidisciplinary correlation among the Northern Apennine Upper Paleozoic–Triassic successions (CAPEZBASE2017) (Amalia Spina and Enrico Capezzuoli); (2) European Community’s Seventh Framework Programme under grant agreement No. 608553 (Project IMAGE) (Domenico Liotta, Andrea Brogi, Martina Zucchi); (3) FFABR grants (financial support for the base-research activity) from the MIUR (Ministry of Education and University) (Andrea Brogi). (4) Department of Earth and Geoenvironmental Sciences (University of Bari), University Project: Cooling of intra-crustal magmatic bodies and geothermal fluids circulation: comparison between late Hercinian and Plio-Quaternary granitoids from Calabria and southern Tuscany (Alfredo Caggianelli).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Acknowledgments

We are indebted with Andrea Dini who supported us in discussing the evolution of the magmatic system and geological setting of the study area. We are grateful to the two anonymous reviewers for their helpful comments and valuable suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

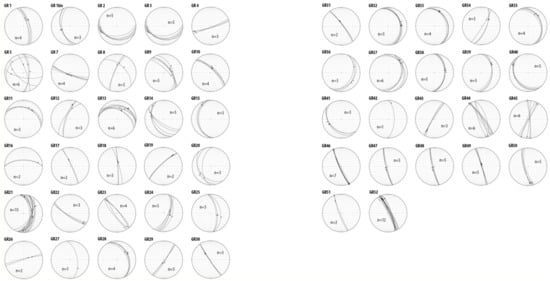

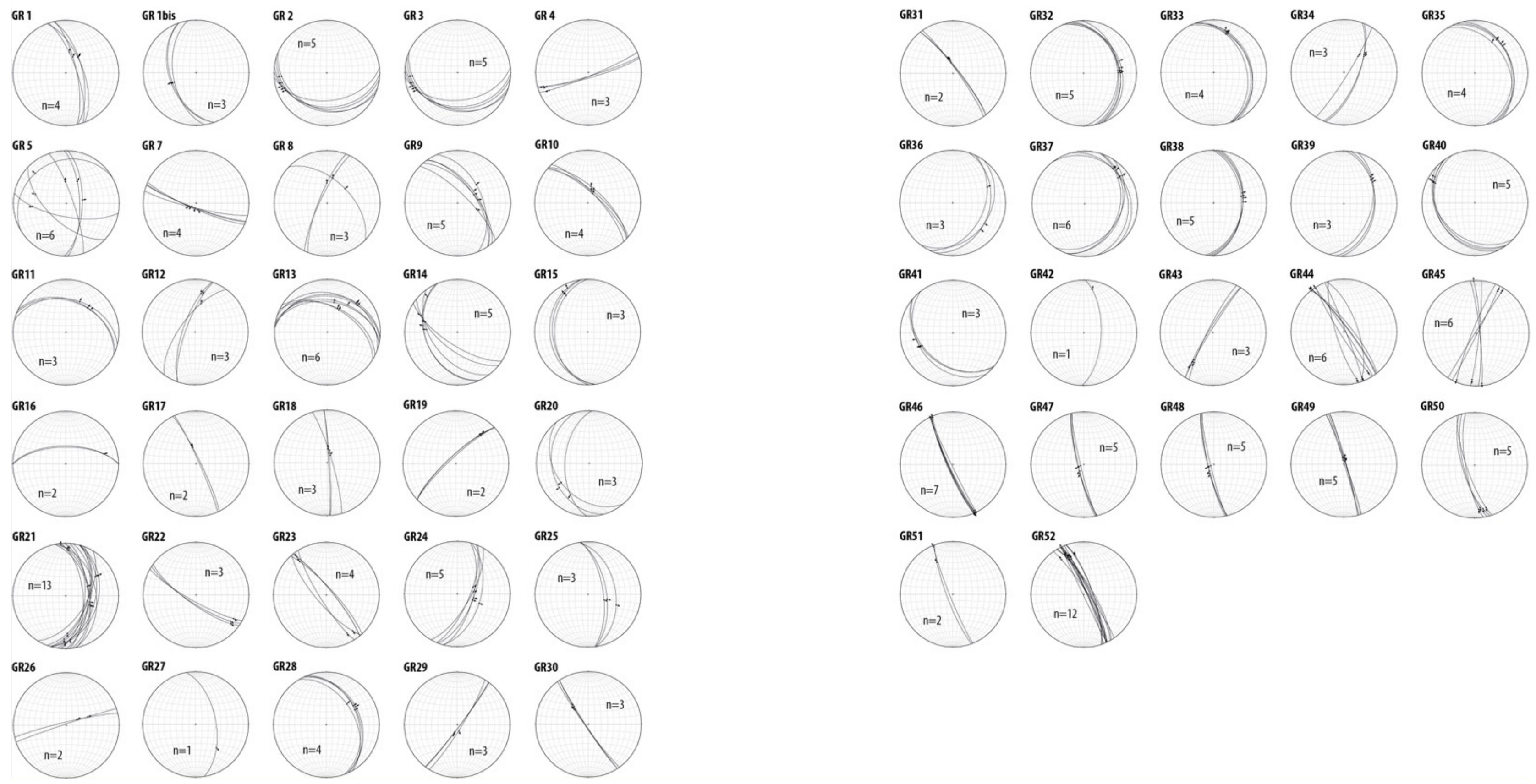

Figure A1. Structural stations: fault and striae from data collected on the indicated structural stations. Their location is indicated in the Figure 3a (lower hemisphere, equiareal diagram).
Figure A1. Structural stations: fault and striae from data collected on the indicated structural stations. Their location is indicated in the Figure 3a (lower hemisphere, equiareal diagram).
Geosciences 11 00124 g0a1
Table A1. Biotite analyses of corundum-bearing hornfels used for the application of the Ti-in-biotite geothermometer by [109]. Mineral formulae, calculated according to the method by [119].
Table A1. Biotite analyses of corundum-bearing hornfels used for the application of the Ti-in-biotite geothermometer by [109]. Mineral formulae, calculated according to the method by [119].
Bt 42Bt 43Bt 44Bt 45Bt 46Bt 47Bt 48
SiO233.2533.1934.2434.9833.6334.6435.57
TiO23.573.583.363.693.573.573.60
Al2O320.7820.5820.1120.6420.8620.9621.73
FeO17.4217.4217.9817.9117.3917.2715.88
MnO0.340.270.440.39 0.29
MgO8.368.368.518.798.188.628.87
Na2O0.180.23 0.180.320.300.18
K2O9.9210.1710.1010.2110.1410.089.93
Tot93.8293.8094.7496.7994.0995.7395.76
Si2.572.572.622.622.592.612.64
Ti0.210.210.190.210.210.200.20
AlIV1.431.431.381.381.411.391.36
AlVI0.460.450.440.440.480.470.55
Fe1.121.131.151.121.121.090.99
Mn0.020.020.030.02 0.02
Mg0.960.960.970.980.940.970.98
Na0.030.04 0.030.050.040.03
K0.981.000.990.970.990.970.94
∑cat7.787.817.777.777.797.767.69
∑O11.0011.0111.0011.0111.0211.0011.00
Fe3+0.030.060.040.050.110.100.16
Fe2+1.091.071.111.071.010.990.83
T, °C *657657641652668659679
* Temperature estimate by Ti-in-biotite geothermometer [109] at P = 150 MPa.
