Multi-Locus Phylogeny and Morphology Reveal Two New Species of Hypoxylon (Hypoxylaceae, Xylariales) from Motuo, China

An-Hong Zhu; Zi-Kun Song; Jun-Fang Wang; Hao-Wen Guan; Hai-Xia Ma

doi:10.3390/microorganisms12010072

,

and

¹

Institute of Tropical Bioscience and Biotechnology, Chinese Academy of Tropical Agricultural Sciences, Hainan Institute for Tropical Agricultural Resources, Haikou 571101, China

²

School of Ecology and Nature Conservation, Beijing Forestry University, Beijing 100083, China

³

Rubber Research Institute, Chinese Academy of Tropical Agricultural Sciences, Haikou 571101, China

⁴

College of Plant Protection, Jilin Agricultural University, Changchun 130118, China

Microorganisms2024, 12(1), 72;https://doi.org/10.3390/microorganisms12010072

This article belongs to the Section Systems Microbiology

Version Notes

Order Reprints

Abstract

Hypoxylaceous fungi are abundant in China, but their discovery and report are uneven in various provinces, with more fungi in Yunnan and Hainan and fewer fungi in Tibet. During the investigation of macro-fungi in Motuo county, Tibet Autonomous Region, we collected a number of xylarialean specimens. Six hypoxylaceous specimens growing on dead angiosperm were collected from the forests of Motuo county, and they were described and illustrated as two new species in Hypoxylon based on a combination of morphological characters and molecular evidence. Hypoxylon diperithecium was characterized by its bistratal perithecia, purple-brown stromatal granules, citrine to rust KOH-extractable pigments, and light brown to brown ascospores ellipsoid-inequilateral with conspicuous coil-like ornamentation. Hypoxylon tibeticum was distinct from other species by having pulvinate and applanate stromata, surface vinaceous, with orange granules, orange KOH-extractable pigments, and brown ascospores with inconspicuous ornamentation. The multi-gene phylogenetic analyses (ITS-LSU-RPB2-TUB) supported the two new taxa as separate lineages in the genus Hypoxylon. A key to all known Hypoxylon taxa from China is provided.

Keywords:

Ascomycota; multigene phylogeny; new species; taxonomy; Xylariales

1. Introduction

Motuo county, between 27°33′–29°55′ N and 93°45′–96°05′ E, is located in the southeastern Tibet Autonomous Region of southwestern China, and it covers an area of 34,000 square kilometers [,,]. The area enjoys the tropical monsoon rainforest and subtropical humid monsoon climate and is one of the most abundant regions of light, heat and water [,]. Its complex topography and diverse habitat abound with different kinds of biological resources, and the area has long been reputed as the “world’s biological gene bank”. There are extremely abundant animal and plant resources, and more than 3000 plant species, 850 genera and 230 families have been reported in the county (http://www.motuo.gov.cn/, accessed on 18 September 2023) [,,,,]. Due to severe climatic conditions and inconvenient transportation, few investigations and studies of macro-fungi diversity have been carried out in Motuo county. In the past, about 200 species of macro-fungi have been reported in Motuo county [,,,,,,,], among which four species are pyrenomycetous fungi []. In recent years, some new species and new records of pyrenomycetous fungi have been discovered in the area, e.g., Eutypella motuoensis Hai X. Ma & Z.E. Yang, Hypoxylon damuense Hai X. Ma, Z.K. Song & Y. Li, H. medogense Hai X. Ma, Z.K. Song & Y. Li, H. zangii Hai X. Ma, Z.K. Song & Y. Li, Annulohypoxylon leptascum (Speg.) Y.M. Ju, J.D. Rogers & H.M. Hsieh, Daldinia bambusicola Y.M. Ju, J.D. Rogers & F. San Martín, H. sublenormandii Suwann., Rodtong, Thienh. & Whalley, and so on [,,].

In order to further understand the diversity of macro-fungi in Motuo county, we carried out a field survey focusing on xylarialean fungi in September 2021. We collected a number of xylarialean specimens, including Annulohypoxylon, Daldinia, Diatrype, Eutypella, Neoeutypella, Hypoxylon, Jackrogersella, and Xylaria. Hypoxylon Bull. (Hypoxylaceae, Ascomycota) was established by Bulliard in 1791 and typified with H. fragiforme (Pers.) J. Kickx f. [,]. The type genus is the largest genera in the family Hypoxylaceae, with more than 200 species accepted [,,] and 1188 epithets in the Index Fungorum (http://www.indexfungorum.org/Names/Names.asp, accessed on 22 September 2023). Most taxa of the genus are mainly associated with angiosperm wood as saprotrophs and endophytes, and degrade cellulose and lignin, which play a key role in the substance circulation of a forest ecosystem [,,,,,]. Currently, the placement of Hypoxylon and related genera in Hypoxylaceae is confusing because many are polyphyletic [,,,,]. In order to further understand the species diversity and phylogeny of Hypoxylaceae, we carried out complete morphological and multi-gene phylogenetic studies on these specimens from Motuo county. In this study, two new species are introduced based on morphological and phylogenetic evidence.

2. Materials and Methods

2.1. Morphological Studies

The studied specimens were deposited at the Fungarium of the Institute of Tropical Bioscience and Biotechnology, Chinese Academy of Tropical Agricultural Sciences (FCATAS). Morphological observations and measurements in this study followed Ma et al. (2018) [] and Song et al. (2022) []. The morphology of stromata and perithecia were observed and measured by a VHX-6000 microscope (Osaka, Japan). Microscopic characteristics, measurements and photographs of the teleomorph were made from slide preparations of fresh stromata mounted in water, 10% KOH and Melzer’s reagent. Sections were observed at a magnification up to ×1000 by using an Olympus IX73 inverted fluorescence microscope (Olympus, Tokyo, Japan). The ornamentation of ascospores were observed with a scanning electron microscope (SEM) (Phenom Corporation, Rotterdam, The Netherlands). The colors were described based on the color-codes by Rayner (1970) []. The following abbreviations were used: KOH = 10% potassium hydroxide, n = number of measuring objects, M = average of sizes of all measuring objects.

2.2. DNA Extraction and Sequencing

Total genomic DNA was extracted from fresh stromata using a rapid plant genome extraction kit (Aidlab Biotechnologies, Beijing, China) following the manufacturer’s instructions. Four loci, including nrITS, nrLSU, RPB2, and beta-tubulin (TUB), were amplified and sequenced using primers pairs ITS4/ITS5 [], LR0R/LR5 [], fRPB2-7CR/fRPB2-5F [], and T1/T22 [], respectively. The PCR procedures for ITS, LSU, RPB2 and beta-tubulin followed Ma et al. (2022) [] in the phylogenetic analyses. Purification and sequencing were performed by the Beijing Genomics Institute (Shenzhen, China), and newly generated sequences were deposited in GenBank.

2.3. Phylogenetic Analysis

Phylogenetic analyses for Hypoxylon and related genera including Annulohypoxylon, Jackrogersella, Parahypoxylon, Pyrenopolyporus, Rhopalostroma and Thamnomyces were performed with maximum likelihood (ML) and Bayesian inference (BI) analyses based on the combined ITS-nrLSU-RPB2-TUB dataset (Table 1). Biscogniauxia nummularia (Bull.) Kuntze and Xylaria hypoxylon (L.) Grev. were used as outgroups [].

The sequences were aligned using the online MAFFT tool (http://mafft.cbrc.jp/alignment/server/, accessed on 23 August 2023), and edited using BioEdit 7.0.5.3 [] and ClustalX 1.83 []. Maximum likelihood (ML) analysis was conducted by raxmlGUI 2.0 using rapid bootstrapping with 1000 replicates, and GTRGAMMA+G as a substitution model []. Bayesian inference (BI) analysis was implemented in MrBayes 3.2.6 [] using jModelTest 2 to conduct model discrimination. Six simultaneous Markov chains were run for 4,000,000 generations, from which every 100th generation was sampled as a tree. Phylogenetic trees were viewed in FigTree 1.4.2.

Table 1. GenBank accession numbers of sequences used in phylogenetic analyses are presented.

Species Name	Specimen No.	Locality	GenBank Accession No.				References
Species Name	Specimen No.	Locality	ITS	LSU	RPB2	β-tubulin	References
Annulohypoxylon annulatum	CBS 140775	USA	KU604559	KY610418	KY624263	KX376353	[,,]
A. truncatum	CBS 140778	USA	KX376329	KY610419	KY624277	KX376352	[,]
Biscogniauxia nummularia	MUCL 51395	France	KY610382	KY610427	KY624236	KX271241	[]
Hypomontagnella barbarensis	STMA 14081	Argentina	MK131720	MK131718	MK135891	MK135893	[]
Hy. monticulosa	MUCL 54604	Guiana	KY610404	KY610487	KY624305	KX271273	[]
Hy. submonticulosa	CBS 115280	France	KC968923	KY610457	KY624226	KC977267	[,]
Hypoxylon addis	MUCL 52797	Ethiopia	KC968931	-	-	KC977287	[]
H. anthochroum	YMJ 9	Mexico	JN660819	-	-	AY951703	[]
H. aveirense	CMG 29	Portugal	MN053021	-	-	MN066636	[]
H. baihualingense	FCATAS 477	China	MG490190	-	-	MH790276	[]
H. baruense	UCH 9545	Panama	MN056428	-	-	MK908142	[]
H. begae	YMJ 215	USA	JN660820	-	-	AY951704	[]
H. bellicolor	UCH 9543	Panama	MN056425	-	-	MK908139	[]
H. brevisporum	YMJ 36	Puerto Rico	JN660821	-	-	AY951705	[]
H. carneum	MUCL 54177	France	KY610400	KY610480	KY624297	KX271270	[]
H. cercidicola	CBS 119009	France	KC968908	KY610444	KY624254	KX271270	[,]
H. chrysalidosporum	FCATAS 2710	China	OL467294	OL615106	OL584222	OL584229	[]
H. crocopeplum	CBS 119004	France	KC968907	KY610445	KY624255	KC977268	[]
H. cyclobalanopsidis	FCATAS 2714	China	OL467298	OL615108	OL584225	OL584232	[]
H. damuense	FCATAS 4207	China	ON075427	ON075433	ON093251	ON093245	[]
H. dieckmannii	YMJ 89041203	China	JN979413	-	-	AY951713	[]
H. diperithecium	FCATAS 4226	China	ON178671	ON350864	ON365561	ON365565	This study
H. diperithecium	FCATAS 4323	China	ON178672	ON350865	ON365562	ON365566	This study
H. duranii	YMJ 85	China	JN979414	-	-	AY951714	[]
H. erythrostroma	YMJ 90080602	China	JN979416	-	-	AY951716	[]
H. eurasiaticum	MUCL 57720	Iran	MW367851	-	MW373852	MW373861	[]
H. fendleri	DSM 107927	USA	MK287533	MK287545	MK287558	MK287571	[]
H. ferrugineum	CBS 141259	Austria	KX090079	-	-	KX090080	[]
H. fragiforme	MUCL 51264	Germany	KM186294	KM186295	KM186296	KM186293	[]
H. fraxinophilum	MUCL 54176	France	KC968938	-	-	KC977301	[]
H. fulvosulphureum	MFLUCC 13-0589	Thailand	KP401576	-	-	KP401584	[]
H. fuscum	CBS 113049	France	KY610401	KY610482	KY624299	KX271271	[]
H. gibriacense	MUCL 52698	Germany	KC968930	-	-	-	[]
H. greiderae	BRIP 72533	USA	NR 182619	OP598062	-	-	[]
H. griseobrunneum	CBS 331.73	India	KY610402	MH872399	KY624300	KC977303	[,,]
H. guilanense	MUCL 57726	Iran	MT214997	MT214992	MT212235	MT212239	[]
H. haematostroma	MUCL 53301	Martinique	KC968911	KY610484	KY624301	KC977291	[]
H. hainanense	FCATAS 2712	China	OL467296	OL616132	OL584224	OL584231	[]
H. hinnuleum	MUCL 3621	USA	MK287537	MK287549	MK287562	MK287575	[]
H. howeanum	MUCL 47599	Germany	AM749928	KY610448	KY624258	KC977277	[,,]
H. hypomiltum	MUCL 51845	Guadeloupe	KY610403	KY610449	KY624302	KX271249	[]
H. invadens	MUCL 51475	France	MT809133	MT809132	MT813037	MT813038	[]
H. investiens	CBS 118183	Malaysia	KC968925	KY610450	KY624259	KC977270	[,]
H. isabellinum	STMA 10247	Martinique	KC968935	-	-	KC977295	[]
H. jaklitschii	JF13037	Sri Lanka	KM610290	-	-	KM610304	[]
H. jecorinum	YMJ 39	Mexico	JN979429	-	-	AY951731	[]
H. jianfengense	FACATAS845	China	MW984546	MZ029707	MZ047260	MZ047264	[]
H. larissae	FACATAS844	China	MW984548	MZ029706	MZ047258	MZ047262	[]
H. laschii	MUCL 52796	Germany	JX658525	-	-	-	[]
H. lateripigmentum	MUCL 53304	Martinique	KC968933	KY610486	KY624304	KC977290	[,]
H. lenormandii	CBS 135869	Cameroon	KY610390	KY610453	KY624262	KM610295	[,]
H. liviae	CBS 115282	Norway	NR155154	-	-	KC977265	[]
H. lividicolor	YMJ 70	China	JN979432	-	-	AY951734	[]
H. lividipigmentum	YMJ 233	Mexico	JN979433	-	-	AY951735	[]
H. macrosporum	YMJ 47	Canada	JN979434	-	-	AY951736	[]
H. medogense	FCATAS 4061	China	ON075425	ON075431	ON093249	ON093243	[]
H. munkii	YMJ 90080403	China	JN979436	-	-	AY951738	[]
H. musceum	MUCL 53765	Guadeloupe	KC968926	KY610488	KY624306	KC977280	[,]
H. notatum	YMJ 250	USA	JQ009305	-	-	AY951739	[]
H. olivaceopigmentum	DSM 10792	USA	MK287530	MK287542	MK287555	MK287568	[]
H. perforatum	CBS 115281	France	KY610391	KY610455	KY624224	KX271250	[]
H. petriniae	CBS 114746	France	NR155185	KY610491	KY624279	KX271274	[]
H. pilgerianum	STMA 13455	Martinique	KY610412	-	KY624308	KY624315	[]
H. porphyreum	CBS 119022	France	KC968921	KY610456	KY624225	KC977264	[,]
H. pseudofendleri	MFLUCC 11-0639	Thailand	KU940156	KU863144	-	-	[]
H. pseudofuscum	18264	Germany	MW367857	MW367848	MW373858	MW373867	[]
H. pulicicidum	CBS 122622	Martinique	JX183075	KY610492	KY624280	JX183072	[,]
H. rickii	MUCL 53309	Martinique	KC968932	KY610416	KY624281	KC977288	[]
H. rubiginosum	MUCL 52887	Germany	KC477232	KY610469	KY624266	KY624311	[,]
H. rutilum	YMJ 181	France	-	-	-	AY951752	[]
H. samuelsii	MUCL 51843	Guadeloupe	KC968916	KY610466	KY624269	KC977286	[,]
H. shearii	YMJ 29	Mexico	EF026142	-	-	AY951753	[]
H. spegazzinianum	STMA 14082	Argentina	KU604573	-	-	KU604582	[]
H. sporistriatatunicum	UCH 9542	Panama	MN056426	-	-	MK908140	[]
H. subgilvum	YMJ 88113007	China	JQ009315	-	-	AY951755	[]
H. sublenormandii	JF 13026	Sri Lanka	KM610291	-	-	KM610303	[]
H. teeravasati	PUFD4	India	KY863509	MF385274	MG986895	MG986894	[]
H. texense	DSM 107933	USA	MK287536	MK287548	MK287561	MK287574	[]
H. tibeticum	FCATAS4022	China	OR654146	OR654303	ON254302	ON230084	This study
H. tibeticum	FCATAS4371	China	OR654263	OR654304	QQ303928	QQ303964	This study
H. tibeticum	FCATAS4212	China	OR654264	OR654305	ON254308	ON254275	This study
H. tibeticum	FCATAS4373	China	OR654265	OR654306	QQ303933	QQ303965	This study
H. ticinense	CBS 115271	France	JQ009317	KY610471	KY624272	AY951757	[,]
H. trugodes	MUCL 54794	Sri Lanka	KF234422	NG066380	KY624282	KF300548	[,]
H. ulmophilum	YMJ 350	Russia	JQ009320	-	-	AY951760	[]
H. vinosopulvinatum	YMJ 90080707	China	JQ009321	-	-	AY951761	[]
H. vogesiacum	CBS 115273	France	KC968920	KY610417	KY624283	KX271275	[]
H. wujiangense	GMBC0213	China	MT568854	MT568853	MT585802	MT572481	[]
H. wuzhishanense	FCATAS 2708	China	OL467292	OL615104	OL584220	OL584227	[]
H. zangii	FCATAS 6092	China	OQ316425	OQ348528	OQ303910	OQ303948	[]
Jackrogersella cohaerens	CBS 119126	Germany	KY610396	KY610497	KY624270	KY624314	[]
J. multiformis	CBS 119016	Germany	KC477234	KY610473	KY624290	KX271262	[,]
Parahypoxylon papillatum	ATCC 58729	USA	NR155153	KY610454	KY624223	KC977258	[,]
Pyrenopolyporus hunteri	MUCL 52673	Ivory Coast	KY610421	KY610472	KY624309	KU159530	[,]
Py.laminosus	MUCL 53305	Martinique	KC968934	KY610485	KY624303	KC977292	[,]
Py. nicaraguensis	CBS 117739	Burkina Faso	AM749922	KY610489	KY624307	KC977272	[,,]
Rhopalostroma angolense	CBS 126414	Ivory Coast	KY610420	KY610459	KY624228	KX271277	[]
Thamnomyces dendroidea	CBS 123578	FrenchGuiana	FN428831	KY610467	KY624232	KY624313	[,]
Xylaria hypoxylon	CBS 122620	Sweden	KY610407	KY610495	KY624231	KX271279	[]

Species in bold were derived from this study. “-” are not available.

3. Results

3.1. Phylogenetic Analysis

The phylogeny of Hypoxylon and related genera based on a combined ITS-nrLSU-RPB2-TUB dataset included 98 ITS, 64 nrLSU, 65 RPB2 and 95 TUB sequences from 97 specimens representing 93 taxa. There were 2852 character positions for ITS alignment, 3462 character positions for LSU alignment, 1288 character positions for RPB2 alignment, and 2225 character positions for TUB alignment. The dataset of four DNA loci had an aligned length of 3538 characters, of which 1520 characters were parsimony informative.

The topologies from BI and ML analyses are highly similar; the BI tree is shown in this study. Branches that received bootstrap support for maximum likelihood (ML) higher than or equal to 70% (ML-BS) and Bayesian posterior probabilities (BPP) higher than or equal to 0.95 (BPP) were showed in topologies. In phylogenetic analysis, the two new species were clearly separated from other sampled species of Hypoxylon. The two strains of H. diperithecium were closely related to H. anthochroum Berk. & Broome and H. griseobrunneum (B.S. Mehrotra) J. Fourn., Kuhnert & M. Stadler with high support (BS = 98, PP = 1.00, Figure 1), and four strains of H. tibeticum clustered with H. pseudofendleri D.Q. Dai, K.D. Hyde with high support (BS = 94, PP = 1.0, Figure 1).

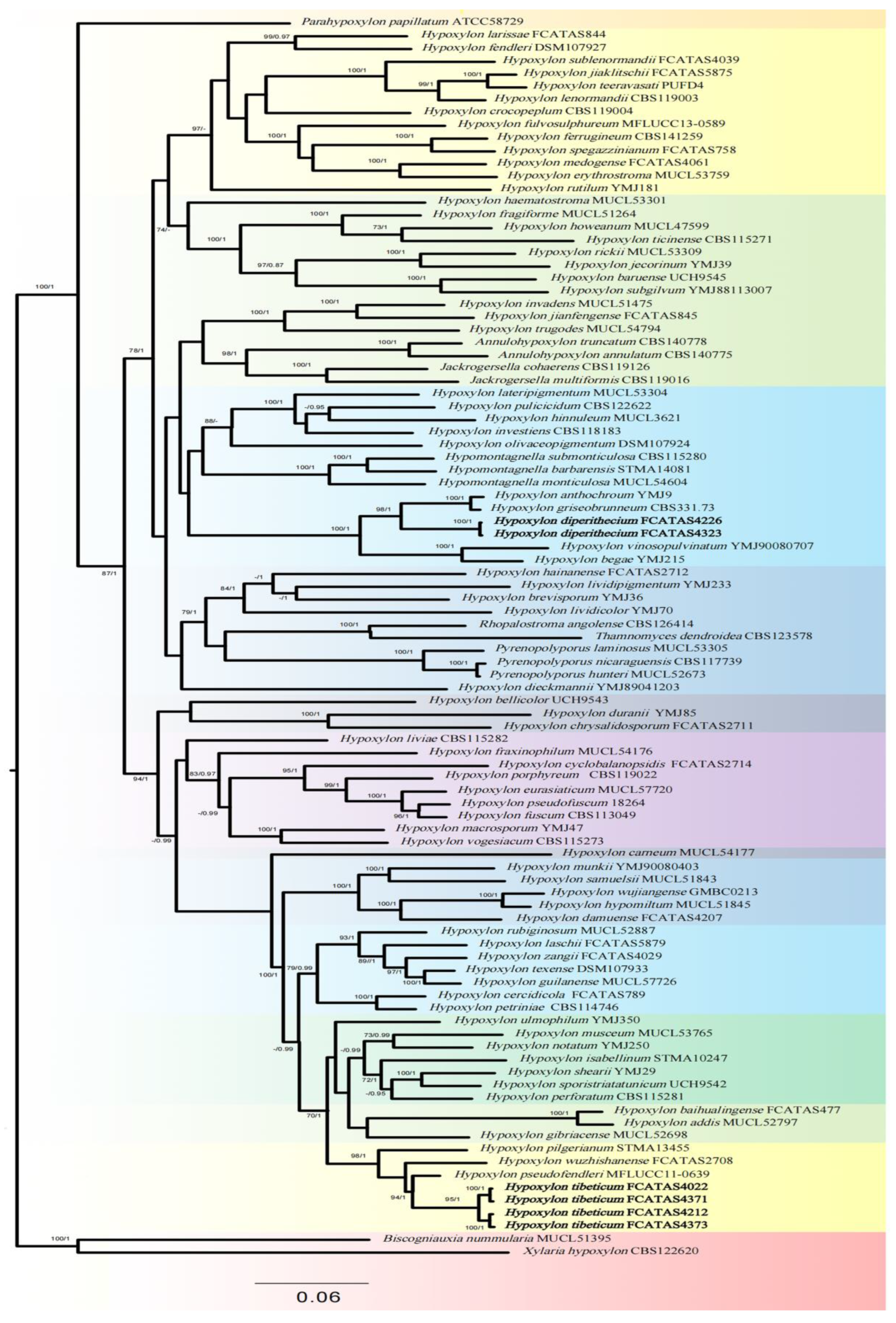

Figure 1. BI phylogenetic tree of the genus Hypoxylon inferred from multi-gene alignment of ITS-LSU-RPB2-TUB. ML bootstrap support (BS) ≥ 70% and Bayesian posterior probabilities (PP) ≥ 0.95 are given at the nodes in this order. New species in this study are indicated in bold.

3.2. Taxonomy

Hypoxylon diperithecium Hai X. Ma, Z.K. Song & A.H. Zhu, sp. nov., Figure 2.

Figure 2. Hypoxylon diperithecium (holotype, FCATAS 4226). (a,b). Stromata; (c,d). Stroma in vertical section showing the perithecia and tissue below the perithecial layer; (e,o). Ascus in water; (f,g). Ascospore in water; (h). Ascospores and germ slit; (i,j). Ascospore in 10% KOH; (k). Ascospores under SEM; (l). KOH-extractable pigments; (m). Apical apparatus; (n). Ascus in Melzer’s reagent. Scale bars: (a) = 1 mm; (b–d) = 200 μm; (e–j,m–o) = 10 μm; (k) = 5 μm.

MycoBank: MB850560

Diagnosis. Differs from H. griseobrunneum in its two layers of perithecia, smaller perithecia and asci with shorter stipes. Differs from H. subgilvum in its perithecial layer and color of KOH-extractable pigments and ascospores.

Etymology. The epithet diperithecium (Lat.) refers to the species has bistratal perithecia.

Holotype. China: Tibet Autonomous Region, Motuo County, Damu Township, Kabu Village, 29°38′42″ N, 95°37′44″ E, alt. 1280 m, saprobic on the bark of dead wood, 2 October 2021, Haixia Ma & Zikun Song, FCATAS 4226 (XZ226).

Teleomorph. Stromata pulvinate, 1.4–5 × 0.4–1.3 cm × 0.8–1.2 mm thick; with inconspicuous to conspicuous perithecial mounds; surface livid purple (81) to bay (6), exposing black subsurface layer when colored coating worn off; with purple-brown granules immediately beneath the surface and between perithecia; yielding citrine (13) to rust (39) KOH-extractable pigments; tissue below the perithecial layer dark brown, 0.1–0.7 mm thick. Perithecia ovoid to tubular, bilayer, black, 0.1–0.3 × 0.25–0.45 mm. Ostioles opening higher than the stromatal surface. Asci cylindrical with eight obliquely uniseriate ascospores, 78–139 µm total length, the spore-bearing portion 56–73 × 5.2–7.6 µm, and stipes 23–77 µm long, with amyloid apical apparatus bluing in Melzer’s reagent, discoid, 0.7–0.8 × 1.9–2.1 µm. Ascospores light brown to brown, unicellular, ellipsoid-inequilateral, with narrowly rounded ends, 9.2–11.6 × 4–5.7 µm (n = 60, M = 10.2 × 4.8 µm), with straight spore-length germ slit on the convex side; perispore dehiscent in 10% KOH, with conspicuous coil-like ornamentation in SEM; epispore smooth.

Additional specimens examined. China: Tibet Autonomous Region, Motuo County, Damu Township, Kabu Village, 29°37′45″ N, 95°37′50″ E, alt. 1300 m, saprobic on the bark of dead wood, 2 October 2021, Haixia Ma & Zikun Song, Col. XZ323 (FCATAS 4323).

Note. Some stromata of Hypoxylon diperithecium have two layers of perithecia visible, and the upper and the lower may be same species according to morphology of ascospore and perithecia; this feature is similar to H. subgilvum Berk. & Broome. Hypoxylon subgilvum has three stromatal layers with the basal layer an effete Biscogniauxia, and other two layers are considered the same species [,]. Morphologically, H. subgilvum can be distinguished from H. diperithecium by its orange red stromatal granules, KOH-extractable pigments orange, and brown to dark brown ascospores []. Moreover, molecular evidence supported H. diperithecium as a distinct species from H. subgilvum (Figure 1).

Although H. anthochroum and H. griseobrunneum were grouped with H. diperithecium (Figure 1), they differ from the new species proposed here because the former has only one layer of perithecia instead of two layers and has dull reddish brown or blackish granules immediately beneath surface and between perithecia, yielding isabelline (65), olivaceous (48), gray olivaceous (107), greenish olivaceous (90), or amber (47) KOH-extractable pigments []. While some stromata of H. griseobrunneum tend to develop multiple perithecial layers, it can be distinguished from H. diperithecium by having larger perithecia, with KOH-extractable pigments Fawn (87), and longer stipes of asci (76–86 µm) []. Therefore, H. diperithecium is proposed as a new species.

Hypoxylon tibeticum Hai X. Ma, Z.K. Song & A.H. Zhu, sp. nov., Figure 3.

Figure 3. Hypoxylon tibeticum (holotype, FCATAS 4226). (a,b). Stromata; (c). Stromatal surface; (d). Stroma in vertical section showing the perithecia and tissue below the perithecial layer; (e). KOH-extractable pigments; (f). Ascus in water; (g,h). Ascus and apical apparatus in Melzer’s reagent; (i–l). Ascus in water; (m–p). Ascospore in water; (q,r). Ascospores in 10% KOH; (s,t). Ascospores under SEM. Scale bars: (a,b,e) = 1 cm; (c,d) = 200 μm; (f) = 20 μm; (g–t) = 10 μm.

MycoBank: MB850558

Diagnosis. Differs from H pseudofendler in its smaller perithecia and slightly larger ascospores. Differs from H. wuzhishanense in its brown vinaceous stromatal surface with orange granules between perithecia and perispore dehiscent in KOH. Differs from H. pilgerianum in its larger ascospores.

Etymology. The epithet tibeticum (Lat.) refers to the locality (Tibet Autonomous Region) of the type specimens.

Holotype. China: Tibet Autonomous Region, Motuo County, Damu Township, Kabu Village, the large bend of Linduo, 29°27′51″ N, 95°26′39″ E, alt. 781 m, saprobic on the stems of dead bamboo, 24 September 2021, Haixia Ma & Zikun Song, FCATAS 4022 (XZ22).

Teleomorph. Stromata effused-pulvinate, applanate, 1.4–11.1 × 0.2–1.5 cm × 0.2–0.35 mm thick, irregularly elongate, often coalescent; surface brown vinaceous (84) or dark vinaceous (85), pruinose, with inconspicuous to slightly conspicuous perithecial mounds; with orange granules immediately beneath the surface and between perithecia; yielding orange (7) KOH-extractable pigments; the tissue beneath the perithecia dark brown, 0.05–0.15 mm thick. Perithecia spherical, black, 0.1–0.23 mm diam. Ostioles umbilicate, opening lower than the stromatal surface, mostly fringed with white material forming a disc. Asci cylindrical, with eight obliquely uniseriate ascospores, 75–101 µm total length, the spore-bearing portion 64–91 × 7.8–11.5 µm, and stipes 9–17 µm long, with amyloid apical apparatus bluing in Melzer’s reagent, discoid, 0.89–1.54 × 2.1–2.95 µm. Ascospores brown, unicellular, ellipsoid-inequilateral, with narrowly to broad rounded ends, 9.8–13 × 5.1–6.9 µm (n = 60, M = 11.34 × 6.21 µm), with straight spore-length germ slit on the convex side; perispore dehiscent in 10% KOH, with faint inconspicuous coil-like ornamentation in SEM; epispore smooth.

Additional specimens examined. China: Tibet Autonomous Region, Motuo County, Damu Township, Kabu Village, the large bend of Linduo, 29°27′51″ N, 95°26′39″ E, alt. 780 m, saprobic on the stems of dead bamboo, 24 September 2021, Haixia Ma & Zikun Song, FCATAS 4371 (XZ324); Kabu Village, 29°37′45″ N, 95°37′50″ E, alt. 1280 m, saprobic on dead bamboo, 2 October 2021, Haixia Ma & Zikun Song, FCATAS4212 (XZ212), FCATAC4373 (XZ326).

Note. Based on the phylogenetic analyses, four species of Hypoxylon growing on dead bamboo culms grouped together (Figure 1), including H. pilgerianum Henn., H. pseudofendleri D.Q. Dai & K.D. Hyde, H. wuzhishanense Hai X. Ma & Z.K. Song, and the new species H. tibeticum.

In the phylogenetic tree (Figure 1), H. tibeticum is the sister species of H. pseudofendleri from Thailand with strong support values (BS = 94, PP = 1). Morphologically, both H. tibeticum and H. pseudofendleri have effused-pulvinate and purplish-brown stromata, with orange granules beneath the surface and between perithecia. However, H pseudofendleri differs in its larger perithecia (0.5–0.85 × 0.35–0.5 mm), ostioles slightly higher than the stromatal surface, and slightly smaller ascospores (9–11.5 × 4.5–6.5 µm, M = 10.2 × 5.7 µm) []. Hypoxylon wuzhishanense from Hainan tropical rainforest of China has similar stromatal morphology and ascospores size, but it has rust (39), livid purple (81) to dark brick (60) stromatal surface, with yellowish-brown granules beneath the surface and between perithecia, and most of perispore indehiscent in 10% KOH []. Hypoxylon pilgerianum was first described from Brazil on culms of Chusquea []; subsequently, many specimens on culms of dead bamboo were found from China, Madagascar, Malaysia, Papua New Guinea, and Trinidad [,]. Hypoxylon pilgerianum s. Ju & Rogers is similar to H. tibeticum in stromatal morphology, but it differs in having shorter [8.5–12 (–13.5) μm] and narrower ascospores [4–5 (–5.5) μm] []. Moreover, the phylogenetic analyses (Figure 1) showed that they are different species.

Dichotomous key to Hypoxylon species from China

1. Stromata on bamboo ............................................................................................................ 2

1. Stromata on dicot wood ...................................................................................................... 4

2. Most perispore indehiscent in 10% KOH .............................................. H. wuzhishanense

2. Perispore dehiscent in 10% KOH ....................................................................................... 3

3. KOH-extractable pigments ochreous (44), honey (64) or amber (47); ascospores 8.5–12 (–13.5) × 4– 5 (–5.5) µm ............................................................................. H. pilgerianum

3. KOH-extractable pigments orange (7); ascospores 9.8–13 × 5.1–6.9 µ....... H. tibeticum

4. Stromatal surface dark cyan blue or olivaceous ............................................................... 5

4. Stromatal surface other colors.............................................................................................. 6

5. Stromatal surface dark cyan blue; ascospores 11.5–13.5 × 5–6 µm..............H. cyanescens

5. Stromatal surface olivaceous or isabelline; ascospores 9–13 × (4–) 4.5–6 µm .........................................................................................................................H. musceum

6. Ascospores equilateral or nearly equilateral ......................................................................7

6. Ascospores inequilateral ......................................................................................................16

7. Ostioles higher than the stromatal surface ........................................................................8

7. Ostioles lower than the stromatal surface .........................................................................9

8. Stromata glomerate to pulvinate, with very conspicuous perithecial mounds; KOH-extractable pigments isabelline (65) or hazel (88) ...........................................H. croceum

8. Stromata pulvinate, with inconspicuous perithecial mounds; KOH-extractable

pigments brick (59) ........................................................................................H. parksianum

9. Perispore dehiscent in 10% KOH............................................................... H. hypomiltum

9. Perispore indehiscent in 10% KOH.....................................................................................10

10. Perithecia tubular to long tubular........................................................................................ 11

10. Perithecia obovoid .................................................................................................................13

11. Stromatal surface fulvous (43), rust (39), sinna (8), ochreous (44), or apricot (42); KOH-extractable pigments orange (7) ...............................................................H. cinnabarinum

11. Stromatal surface sepia (63) or chestnut (40) ......................................................................12

12. KOH-extractable pigments greenish yellow (16), dull green (70), or dark green (21);

ascospores 6.5–9.5 (–10) × 3–4.5 µm ..................................................................H. investiens

12. KOH-extractable pigments livid violet (79), violaceous gray (113), or violet slate (99);

ascospores (10.5–) 11–16 × (4.5–) 5–6.5 µm .................................................H. sclerophaeum

13. Without apparent KOH-extractable pigments or dilute grayish sepia ..........................14

13. With KOH-extractable pigments .........................................................................................15

14. Without apparent KOH-extractable pigments or dilute grayish sepia (106); ascospores

6.5–10 (–11) × (3–) 3.5–4 µm ......................................................................... H. dieckmannii

14. Without apparent KOH-extractable pigments; ascospores (9.5–) 10.5–11.5 (–12.5) ×

4.5–6 µm .......................................................................................................... H. yunnanense

15. KOH-extractable pigments olivaceous (48), greenish olivaceous (90), gray olivaceous

(127), or olivaceous gray (121); ascospores (11.5–) 12–15 (–16) × 5.5–7 µm ......................

.....................................................................................................................H. fuscopurpureum

15. KOH-extractable pigments hazel (88); ascospores 7–8.5 × 4–4.5 µm.......... H. gilbertsonii

16. Stromata hemispherical to spherical .................................................................................17

16. Stromata pulvinate to effused-pulvinate...........................................................................23

17. Ascospore length up to 20 µm ..........................................................................................18

17. Ascospore length less than 20 µm.....................................................................................19

18. Ascospores 18–28 × 6–10 µm........................................................................... H. apiculatum

18. Ascospores 8–20 × 4–8 µm....................................................................................... H. fuccum

19. Perithecia tubular .................................................................................................................20

19. Perithecia spherical to obovoid ..........................................................................................21

20. Stromata with orange red granules, with KOH-extractable pigments orange (7) or

scarlet (5); ascospores 13.5–18 (–19) × 7–8 (–8.5) µm............................. H. haematostroma

20. Stromata with dark reddish brown or blackish granules, with KOH-extractable

pigments olivaceous (48), greenish olivaceous (90), isabelline (65), or dull green (70);

ascospores 8.5–18.5 × 4.5–8 (–8.5) µm........................................................ H. placentiforme

21. KOH-extractable pigments amber (47) with greenish yellow (16) tone, or greenish

yellow (16) with citrine (13) tone; ascospores (8–) 9–12 (–13) × 4–6 µm...... H. perforatum

21. KOH-extractable pigments orange (7) ..............................................................................22

22. Ascospores (10.5–) 11–15 × 5–6.5 (–7) µm, with straight germ slit................H. fragiforme

22. Ascospores 7–9.5 (–10) × 3–4.5 µm, with slight sigmoid germ slit ............H. howeianum

23. Ostioles at the same level or higher than the stromatal surface ....................................24

23. Ostioles lower than the stromatal surface .........................................................................29

24. Perithecia tubular, ascospores 6–7.5 × 3–3.5 µm.................................... H. lienhwacheense

24. Perithecia spherical to obovoid............................................................................................25

25. KOH-extractable pigments orange (7), scarlet (5) or amber (47) .....................................26

25. KOH-extractable pigments with other colors ....................................................................28

26. Stromata with red or scarlet granules; ascospores 7.5–9.5 × 3.5–4.5 µm........... H. rutilum

26. Stromata with orange granules ...........................................................................................27

27. Ascospores 8–10 × 3.5–4.5 µm.................................................................................. H. laschii

27. Ascospores 9.9–12.8 × 4.6–7 µm....................................................................... H. medogense

28. KOH-extractable pigments hazel (88), sienna (8), cinnamon (62), fulvous (43), umber

(9), or ochreous (44); ascospores 9.5–15 (–16) × 4–6.5 (–7) µm ................... H. lenormandii

28. KOH-extractable pigments pale vinaceous (85) to livid vinaceous (83) and vinaceous

purple (101); ascospores 6.1–9.6 × 3.2–5 µm .................................................. H. hainanense

29. Without apparent KOH-extractable pigments; ascospores (12–) 13–16 × 5–6 µm ..........

................................................................................................................ H. kretzschmarioides

29. With KOH-extractable pigments ........................................................................................30

30. Most ascospore length less than 8 µm ..............................................................................31

30. Most ascospore length more than 8 µm ...........................................................................33

31. KOH-extractable pigments olivaceous gray (12), greenish olivaceous (90), or gray

olivaceous (107); ascospores 5.5–8 × 2.5–3.5 µm ........................................ H. brevisporum

31. KOH-extractable pigments orange.......................................................................................32

32. Perithecia obovoid to tubular; ascospores (4.5–) 5–7 × 2.5–3.5 µm ....................................

.............................................................................................. H. subgilcum var. microsporum

32. Perithecia spherical to ovoid; ascospores 6.5–8.5 × 4–5 µm .......................... H. hubeiense

33. Asci with apical apparatus highly reduced or lacking, not bluing in Melzer’s reagent. ...

...................................................................................................................................................34

33. Asci with apical apparatus bluing in Melzer’s reagent.....................................................39

34. KOH-extractable pigments orange tone..............................................................................35

34. KOH-extractable pigments other colors..............................................................................37

35. Ascospores with inconspicuous coil-like ornamentation, (9–) 9.5–12 × 5–6 µm................

..............................................................................................................................H. cercidicola

35. Ascospores with conspicuous coil-like ornamentation.....................................................36

36. KOH-extractable pigments orange (7), sienna (8), or amber (47); ascospores 9.2–15.6 × 5.5–7.5 µm, with spore-length straight germ slit........................................H. baihualingense

36. KOH-extractable pigments luteous (12); ascospores 12–14 × 5.5–6.5 (–7) µm....H. shearii

37. Ascospores with inconspicuous coil-like ornamentation, (11–) 12–16 × (5.5–) 6–7.5 µm....

..................................................................................................................................H. notatum

37. Ascospores with conspicuous coil-like ornamentation...................................................38

38. Ascospores 8–10.6 (–11.1) × 4.1–6.3 (–7.1) µm, with conspicuously straight spore-length

germ slit..................................................................................................H. chrysalidosporum

38. Ascospores 11–15.2 × 5.1–7 µm, with more sigmoid to less straight spore-length germ

slit............................................................................................................H. cyclobalanopsidis

39. Ascospores with conspicuous coil-like ornamentation....................................................40

39. Ascospores smooth or with inconspicuous coil-like ornamentation..............................44

40. Most perispore indehiscent in 10% KOH; ascospores 8.2–10.5 × 4.1–5.5 µm. ....................

....................................................................................................................................H. damuense

40. Perispore dehiscent in 10% KOH..........................................................................................41

41. Ascospores with straight germ slit.......................................................................................42

41. Ascospores with straight to slightly sigmoid germ slit......................................................43

42. Perithecia bilayer; ascospores 9.2–11.6 × 4–5.7 µm..................................H. deperithecium

42. Perithecia monolayer; ascospores 10.3–13.6 × (4.2–) 4.7–6.1 µm................H. jianfengense

43. KOH-extractable pigments orange (7) or scarlet (5); ascospores (9) 9.5–12 × 4.5–5 µm.......

.....................................................................................................................................H. retpela

43. KOH-extractable pigments isabelline (65) or amber (47); ascospores 9.5–13 (–14.5) ×

4.5–6.5 µm..................................................................................................................H. duranii

44. Ascospore length up to 15 µm ...........................................................................................45

44. Ascospore length less than 15 µm .....................................................................................46

45. Stromatal surface cinnamon (62), fulvous (43), apricot (42), sienna (8), rust (39), or bay

(6); ascospores (9–) 9.5–15 (–17.5) × 4–7 (–7.5) µm.......................................H. crocopeplum

45. Stromatal surface rust (39), sienna (8), fulvous (43), or bay (6); ascospores 15.5–22.9 (–

23.6) × 7.3–10.6 µm...................................................................................................H. larissae

46. Ascospores with sigmoid germ slit......................................................................................47

46. Ascospores with straight, straight or slightly sigmoid germ slit.....................................48

47. KOH-extractable pigments orange (7); ascospores (8–) 9–12 × 4–5.5 µm..........H. fendleri

47. KOH-extractable pigments vinaceous purple (101); ascospores 9.5–12.5 × 5–6 µm...........

.................................................................................................................................H. fuscoides

48. Ascospores with straight germ slit.......................................................................................49

48. Ascospores with straight to slightly sigmoid germ slit......................................................53

49. KOH-extractable pigments orange tone .............................................................................50

49. KOH-extractable pigments other colors .............................................................................51

50. Stromata with orange granules; ascospores (10–) 10.5–11.5 (–12.5) × 5–6.5 µm..............

.......................................................................................................................................H. dengii

50. Stromata with yellowish brown or brown granules; ascospores (8–) 9–12 × 4–5.5 µm.......

...........................................................................................................................H. rubiginosum

51. Perithecia obovoid to tubular; ascospores 8–11 × 3.5–4.5 µm ...........................H. trugodes

51. Perithecia spherical, ovoid to obovoid................................................................................52

52. Stromatal surface brown vinaceous; ascospores 11–13 × 5–6 µm ...H. vinosopulvinatum

52. Stromatal surface livid red and vinaceous; ascospores 10.9–14.6 × 4.8–6.4 µm ..H. zangii

53. KOH-extractable pigments orange ......................................................................................54

53. KOH-extractable pigments other colors .............................................................................55

54. Asci with apical apparatus bluing to faintly bluing in Melzer’s iodine reagent, 0.3–1 µm high × 1.5–2.2 µm broad; ascospores 7–11 × 3.5–5 µm....................................H. subgilvum

54. Asci with apical apparatus bluing in Melzer’s iodine ragent, 0.2–0.5 µm high × 1–1.5 µm broad; ascospores 8–9.5 (–11) × 4–5 µm.........................................................H. jecorinum

55. Perithecia tubular; ascospores 11–12.5 × 4.5–5 µm........................................H. lividicolor

55. Perithecia subglobose or obovoid to tubular......................................................................56

56. Perithecia obovoid to tubular; ascospores 8.5–13.5 × 4–6 µm...................H. anthochroum

56. Perithecia subglobose; ascospores 8.5–10 × 4.5–6 µm................................H. wujiangensis

4. Discussion

Currently, the genus Hypoxylon is still considered a paraphyletic group in Hypoxylaceae based on a single-region (ITS sequences) or multi-locus phylogeny involving both protein-coding and rDNA genes [,,,]. In this study, two species of Hypoxylon from Tibet of China, H. diperithecium and H. tibeticum, are proposed as new species based on morphological features and multi-gene (ITS-LSU-RPB2-TUB) phylogenetic analyses. Fifty-five species of Hypoxylon have been reported and described in China [,,,,,], and this study expanded the numbers of Hypoxylon species to 57 around China. However, studies in China are still few and the relationships amongst Hypoxylon species remain unresolved. Therefore, more comprehensive studies on the diversity, phylogeny, and evolution of the genus Hypoxylon depend on more collections and data from poorly sampled areas. With the in-depth investigation of Hypoxylon in Tibet, an increasing number of new species and new records will be discovered, and the species diversity will be richer.

Author Contributions

A.-H.Z., Z.-K.S. and H.-X.M. prepared the samples; Z.-K.S. made morphological examinations and performed molecular sequencing; J.-F.W. and H.-W.G. performed phylogenetic analyses; A.-H.Z. and H.-X.M. wrote the manuscript; H.-X.M. conceived and supervised the work. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financed by the Central Public-interest Scientific Institution Basal Research Fund for Chinese Academy of Tropical Agricultural Sciences (No. 1630032022001), the National Natural Science Foundation of China (No. 31972848), the Collection, preservation, identification and evaluation of tropical crop germplasm resources in the remote tropical area (NONYNCBKFSXM2023-2025).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All sequences newly generated were deposited in GenBank (https://www.ncbi.nlm.nih.gov/genbank/ (accessed on 16 October 2023); Table 1). All new taxa were deposited in MycoBank (https://www.mycobank.org/ (accessed on 18 October 2023); MycoBank identifiers follow new taxa).

Acknowledgments

We gratefully acknowledge Zhen Liu (Motuo Forestry and Grassland Administration) and Zhu-Nian Wang, Qing-long Wang, Hu-Biao Yang, Shi-Song Xu (Tropical Crops Genetic Resources Institute, Chinese Academy of Tropical Agricultural Sciences) for help during field collections. Special thanks to Xiao-Wei Qin (Spice and Beverage Research Institute, Chinese Academy of Tropical Agricultural Sciences) and Xiao-Peng Wu (Analysis and Testing Center, Chinese Academy of Tropical Agricultural Sciences) for assistance in micrographs produced by SEM.

Conflicts of Interest

The authors declare no conflicts of interest.

References

Fu, D.F.; Song, Q.G.; Li, D.J. Analysis of forest vegetation biomass and carbon storage in Motuo county of Tibet. Hunan For. Sci. Technol. 2015, 42, 67–72. [Google Scholar] [CrossRef]
Peng, B.Z. Some problems of vertical zonation in MT. Namjagbarwa area. Acta Geogr. Sin. 1986, 41, 51–58. [Google Scholar]
Feng, M.; Zhu, R.J.; Zhao, G.F. Utilization of wild plant resources and development suggestions of agricultural industry in Motuo tropical area of Tibet. Chin. J. Trop. Agric. 2022, 42, 38–41. [Google Scholar] [CrossRef]
Chen, P.; Li, B. Analysis of water vapour transport characteristics and implications in Southeast Tibetan Plateau. South China Agric. 2018, 12, 124–125. [Google Scholar] [CrossRef]
Wang, J.; De, Q.; Dan, Z.; Wang, Y.; De, J.; Chen, G.Y. Characteristic and causal analysis of concentrated and frequently occurring intense rainfall in Tibet in 2012–2018. Meteorol. Sci. Technol. 2021, 49, 211–217. [Google Scholar] [CrossRef]
Wu, Z.Y. Flora of Tibet; Science Press: Beijing, China, 1983; Volume 1, 791p. [Google Scholar]
Wu, Z.Y. Flora of Tibet; Science Press: Beijing, China, 1985; Volume 2, 956p. [Google Scholar]
Wu, Z.Y. Flora of Tibet; Science Press: Beijing, China, 1986; Volume 3, 1046p. [Google Scholar]
Wu, Z.Y. Flora of Tibet; Science Press: Beijing, China, 1985; Volume 4, 1021p. [Google Scholar]
Wu, Z.Y. Flora of Tibet; Science Press: Beijing, China, 1987; Volume 5, 955p. [Google Scholar]
Wang, Y.C.; Zang, M.; Ma, Q.M.; Kong, H.Z.; Mao, X.L.; Qi, Z.T.; Sun, Z.M.; Shen, R.X.; Ying, J.Z.; Li, M.X.; et al. Fungi of Tibet; Science Press: Beijing, China, 1983; 224p. [Google Scholar]
Mao, X.L.; Jiang, C.P.; Ouzhu, C.W. Economic Fungi of Tibet; Science Press: Beijing, China, 1993; 651p. [Google Scholar]
Ge, Z.W.; Yang, Z.L.; Vellinga, E.C. The genus Macrolepiota (Agaricaceae, Basidiomycota) in China. Fungal Divers. 2010, 45, 81–98. [Google Scholar] [CrossRef]
Li, G.J.; Zhao, D.; Li, S.F.; Wen, H.A.; Liu, X.Z. Russula chiui and R. pseudopectinatoides, two new species from southwestern China supported by morphological and molecular evidence. Mycol. Prog. 2015, 14, 1–14. [Google Scholar] [CrossRef]
Wu, F.; Chen, J.J.; Ji, X.H.; Vlasák, J.; Dai, Y.C. Phylogeny and diversity of the morphologically similar polypore genera Rigidoporus, Physisporinus, Oxyporus, and Leucophellinus. Mycologia 2017, 109, 749–765. [Google Scholar] [CrossRef]
Song, J.; Sun, Y.F.; Ji, X.; Dai, Y.C.; Cui, B.K. Phylogeny and taxonomy of Laetiporus (Basidiomycota, Polyporales) with descriptions of two new species from western China. MycoKeys 2018, 37, 57–71. [Google Scholar] [CrossRef]
Wang, P.M.; Yang, Z.L. Two new taxa of the Auriscalpium vulgare species complex with substrate preferences. Mycol. Prog. 2019, 18, 641–652. [Google Scholar] [CrossRef]
Liu, S.; Chen, Y.Y.; Sun, Y.F.; He, X.L.; Song, C.G.; Si, J.; Liu, D.M.; Gates, G.; Cui, B.K. Systematic classification and phylogenetic relationships of the brown-rot fungi within the Polyporales. Fungal Divers. 2023, 118, 1–94. [Google Scholar] [CrossRef]
Song, Z.K.; Zhu, A.H.; Liu, Z.D.; Qu, Z.; Li, Y.; Ma, H.X. Three new species of Hypoxylon (Xylariales, Ascomycota) on a multigene phylogeny from Medog in Southwest China. J. Fungi 2022, 8, 500. [Google Scholar] [CrossRef] [PubMed]
Zhu, A.H.; Gao, Y.; Tang, K.; Song, Z.K.; Yang, Z.E.; Ma, H.X. Newly recorded species of Hypoxylaceae (Ascomycota) from Medog in China. Chin. J. Trop. Crops 2022, 43, 2268–2274. [Google Scholar] [CrossRef]
Ma, H.X.; Yang, Z.E.; Song, Z.K.; Qu, Z.; Li, Y.; Zhu, A.H. Taxonomic and phylogenetic contributions to Diatrypaceae from southeastern Tibet in China. Front. Microbiol. 2023, 14, 1073548. [Google Scholar] [CrossRef] [PubMed]
Miller, J.H. A Monograph of the World Species of Hypoxylon; University Georgia Press: Athens, Greece, 1961; 158p. [Google Scholar]
Ju, Y.M.; Rogers, J.D. A Revision of the Genus Hypoxylon; American Phytopathological Society Press: St. Paul, MN, USA, 1996; 365p. [Google Scholar]
Ma, H.X.; Qiu, J.Z.; Xu, B.; Li, Y. Two Hypoxylon species from Yunnan Province based on morphological and molecular characters. Phytotaxa 2018, 376, 27–36. [Google Scholar] [CrossRef]
Kuhnert, E.; Fournier, J.; Peršoh, D.; Luangsa-ard, J.J.; Stadler, M. New Hypoxylon species from Martinique and new evidence on the molecular phylogeny of Hypoxylon based on ITS rDNA and b-tubulin data. Fungal Divers. 2014, 64, 181–203. [Google Scholar] [CrossRef]
Wijayawardene, N.N.; Hyde, K.D.; Rajeshkumar, K.C.; Hawksworth, D.L.; Madrid, H.; Kirk, P.M.; Braun, U.; Singh, R.V.; Crous, P.W.; Kukwa, M.; et al. Notes for genera: Ascomycota. Fungal Divers. 2017, 86, 1–594. [Google Scholar] [CrossRef]
Hyde, K.D.; Norphanphoun, C.; Maharachchikumbura, S.S.N.; Bhat, D.J.; Jones, E.B.G.; Bundhun, D.; Chen, Y.J.; Bao, D.F.; Boonmee, S.; Calabon, M.S.; et al. Refined families of Sordariomycets. Mycosphere 2020, 11, 305–1059. [Google Scholar] [CrossRef]
Whalley, A.J.S. The Xylariaceae: Some ecological considerations. Sydowia 1985, 38, 369–382. [Google Scholar]
Rogers, J.D. Thoughts and musings on tropical Xylariaceae. Mycol. Res. 2000, 104, 1412–1420. [Google Scholar] [CrossRef]
U’Ren, J.M.; Miadlikowska, J.; Zimmerman, N.B.; Lutzoni, F.; Stajich, J.E.; Arnold, A.E. Contributions of North American endophytes to the phylogeny, ecology, and taxonomy of Xylariaceae (Sordariomycetes, Ascomycota). Mol. Phylogenet. Evol. 2016, 98, 210–232. [Google Scholar] [CrossRef] [PubMed]
Daranagama, D.A.; Hyde, K.D.; Sir, E.B.; Thambugala, K.M.; Tian, Q.; Samarakoon, M.C.; McKenzie, E.H.C.; Jayasiri, S.C.; Tibpromma, S.; Bhat, J.D.; et al. Towards a natural classification and backbone tree for Graphostromataceae, Hypoxylaceae, Lopadostomataceae and Xylariaceae. Fungal Divers. 2018, 88, 1–165. [Google Scholar] [CrossRef]
Helaly, S.E.; Thongbai, B.; Stadler, M. Diversity of biologically active secondary metabolites from endophytic and saprotrophic fungi of the ascomycete order Xylariales. Nat. Prod. Rep. 2018, 35, 992–1014. [Google Scholar] [CrossRef] [PubMed]
Hsieh, H.; Ju, Y.M.; Rogers, J.D. Molecular phylogeny of Hypoxylon and closely related genera. Mycologia 2005, 97, 844–865. [Google Scholar] [CrossRef] [PubMed]
Wendt, L.; Sir, E.B.; Kuhnert, E.; Heitkämper, S.; Lambert, C.; Hladki, A.I.; Romero, A.I.; Luangsaard, J.J.; Srikitikulchai, P.; Per, D.; et al. Resurrection and emendation of the Hypoxylaceae, recognised from a multigene phylogeny of the Xylariales. Mycol. Prog. 2018, 17, 115–154. [Google Scholar] [CrossRef]
Lambert, C.; Wendt, L.; Hladki, A.I.; Stadler, M.; Sir, E.B. Hypomontagnella (Hypoxylaceae): A new genus segregated from Hypoxylon by a polyphasic taxonomic approach. Mycol. Prog. 2019, 18, 187–201. [Google Scholar] [CrossRef]
Ma, H.X.; Song, Z.K.; Pan, X.Y.; Li, Y.; Yang, Z.E.; Qu, Z. Multi-gene phylogeny and taxonomy of Hypoxylon (Hypoxylaceae, Ascomycota) from China. Diversity 2022, 14, 37. [Google Scholar] [CrossRef]
Song, Z.K.; Pan, X.Y.; Li, C.T.; Ma, H.X.; Li, Y. Two new species of Hypoxylon (Hypoxylaceae) from China based on morphological and DNA sequence data analyses. Phytotaxa 2022, 538, 213–224. [Google Scholar] [CrossRef]
Rayner, R.W. A Mycological Colour Chart; Commonwealth Mycological Institute: London, UK, 1970. [Google Scholar]
White, T.J.; Bruns, T.D.; Lee, S.; Taylor, J.W. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics-science direct. PCR Protoc. 1990, 18, 315–322. [Google Scholar] [CrossRef]
Vilgalys, R.; Hester, M. Rapid genetic identification and mapping of enzymatically amplified ribosomal DNA from several Cryptococcus species. J. Bacteriol. 1990, 172, 4238–4246. [Google Scholar] [CrossRef]
Liu, Y.J.; Whelen, S.; Hall, B.D. Phylogenetic relationships among ascomycetes: Evidence from an RNA polymerse II subunit. Mol. Biol. Evol. 1999, 16, 1799–1808. [Google Scholar] [CrossRef] [PubMed]
O‘donnell, K.; Cigelnik, E. Two divergent intragenomic rDNA ITS2 types within a monophyletic lineage of the fungus Fusarium are nonorthologous. Mol. Phylogenet. Evol. 1997, 7, 103–116. [Google Scholar] [CrossRef] [PubMed]
Hall, T.A. Bioedit: A user-friendly biological sequence alignment editor and analysis program for windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar] [CrossRef]
Thompson, J.D.; Gibson, T.J.; Plewniak, F.; Franois, J.; Higgins, D.G. The CLUSTAL X windows interface: Flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res. 1997, 25, 4876–4882. [Google Scholar] [CrossRef] [PubMed]
Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Hőhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [PubMed]
Granmo, A.; Hammelev, D.; Knudsen, H.; Læssøe, T.; Whalley, A.J.S. The genera Biscogniauxia and Hypoxylon (Sphaeriales) in the Nordic countries. Opera Bot. 1989, 100, 59–84. [Google Scholar]
Kuhnert, E.; Sir, E.B.; Lambert, C.; Hyde, K.D.; Hladki, A.I.; Romero, A.I.; Rohde, M.; Stadler, M. Phylogenetic and chemotaxonomic resolution of the genus Annulohypoxylon (Xylariaceae) including four new species. Fungal Divers. 2017, 85, 1–43. [Google Scholar] [CrossRef]
Vicente, T.F.L.; Goncalves, M.F.M.; Brandão, C.; Fidalgo, C.; Alves, A. Diversity of fungi associated with macroalgae from an estuarine environment and description of Cladosporium rubrum sp. nov. and Hypoxylon aveirense sp. nov. Int. J. Syst. Evol. Micr. 2021, 71, 004630. [Google Scholar] [CrossRef]
Cedeño-Sanchez, M.; Wendt, L.; Stadler, M.; Mejía, L.C. Three new species of Hypoxylon and new records of Xylariales from Panama. Mycosphere 2020, 11, 1457–1476. [Google Scholar] [CrossRef]
Sir, E.B.; Becker, K.; Lambert, C.; Bills, G.F.; Kuhnert, E. Observations on Texas hypoxylons, including two new Hypoxylon species and widespread environmental isolates of the H. croceum complex identified by a polyphasic approach. Mycologia 2019, 11, 832–856. [Google Scholar] [CrossRef]
Daranagama, D.A.; Camporesi, E.; Tian, Q.; Liu, X.Z.; Chamyuang, S.; Stadler, M.; Hyde, K.D. Anthostomella is polyphyletic comprising several genera in Xylariaceae. Fungal Divers. 2015, 73, 203–238. [Google Scholar] [CrossRef]
Friebes, G.; Wendelin, I. Studies on Hypoxylon ferrugineum (Xylariaceae), a rarely reported species collected in the urban area of Graz (Austria). Ascomycete.org 2016, 8, 83–90. [Google Scholar]
Sir, E.B.; Kuhnert, E.; Surup, F.; Hyde, K.D.; Stadler, M. Discovery of new mitorubrin derivatives from Hypoxylon fulvosulphureum sp. nov. (Ascomycota, Xylariales). Mycol. Prog. 2015, 14, 28. [Google Scholar] [CrossRef]
Tan, Y.P.; Shivas, R.G. Index of Australian Fungi No. 1; Cardwell: Queensland, Australia, 2022. [Google Scholar]
Vu, D.; Groenewald, M.; Vries, M.; Gehrmann, T.; Stielow, B.; Eberhardt, U.; Al-Hatmi, A.; Groenewald, J.Z.; Cardinali, G.; Houbraken, J.; et al. Large-scale generation and analysis of filamentous fungal DNA barcodes boosts coverage for kingdom fungi and reveals thresholds for fungal species and higher taxon delimitation. Stud. Mycol. 2019, 92, 135–154. [Google Scholar] [CrossRef] [PubMed]
Pourmoghaddam, M.J.; Lambert, C.; Surup, F.; Khodaparast, S.A.; Krisai-Greilhuber, I.; Voglmayr, H.; Stadler, M. Discovery of a new species of the Hypoxylon rubiginosum complex from Iran and antagonistic activities of Hypoxylon spp. against the Ash Dieback pathogen, Hymenoscyphus fraxineus, in dual culture. MycoKeys 2020, 66, 105–133. [Google Scholar] [CrossRef] [PubMed]
Bitzer, J.; Læssøe, T.; Fournier, J.; Kummer, V.; Decock, C.; Tichy, H.V.; Piepenbring, M.; Peršoh, D.; Stadler, M. Affinities of Phylacia and the daldinoid Xylariaceae, inferred from chemotypes of cultures and ribosomal DNA sequences. Mycol. Res. 2008, 112, 251–270. [Google Scholar] [CrossRef] [PubMed]
Becker, K.; Lambert, C.; Wieschhaus, J.; Stadler, M. Phylogenetic assignment of the fungicolous Hypoxylon invadens (Ascomycota, Xylariales) and investigation of its secondary metabolites. Microorganisms 2020, 8, 1397. [Google Scholar] [CrossRef] [PubMed]
Stadler, M.; Læssøe, T.; Fournier, J.; Decock, C.; Schmieschek, B.; Tichy, H.V.; Peršoh, D. A polyphasic taxonomy of Daldinia (Xylariaceae). Stud. Mycol. 2014, 77, 1–143. [Google Scholar] [CrossRef]
Kuhnert, E.; Surup, F.; Sir, E.B.; Lambert, C.; Hyde, K.D.; Hladki, A.I.; Romero, A.I.; Stadler, M. Lenormandins A–G, new azaphilones from Hypoxylon lenormandii and Hypoxylon jaklitschii sp. nov., recognised by chemotaxonomic data. Fungal Divers. 2015, 71, 165–184. [Google Scholar] [CrossRef]
Dai, D.Q.; Phookamsak, R.; Wijayawardene, N.N.; Li, W.J.; Bhat, D.J.; Xu, J.C.; Taylor, J.E.; Hyde, K.D.; Chukeatirote, E. Bambusicolous fungi. Fungal Divers. 2017, 82, 1–105. [Google Scholar] [CrossRef]
Bills, G.F.; González-Menéndez, V.; Martín, J.; Platas, G.; Fournier, J.; Peršoh, D.; Stadler, M. Hypoxylon pulicicidum sp. nov. (Ascomycota, Xylariales), a pantropical insecticide-producing endophyte. PLoS ONE 2012, 7, e46687. [Google Scholar] [CrossRef] [PubMed]
Stadler, M.; Kuhnert, E.; Peršoh, D.; Fournier, J. The Xylariaceae as model example for a unified nomenclature following the “One Fungus-One Name” (1F1N) concept. Mycology 2013, 4, 5–21. [Google Scholar]
Sir, E.B.; Kuhnert, E.; Lambert, C.; Hladki, A.I.; Romero, A.I.; Stadler, M. New species and reports of Hypoxylon from Argentina recognized by a polyphasic approach. Mycol. Prog. 2016, 15, 42. [Google Scholar] [CrossRef]
Phookamsak, R.; Hyde, K.D.; Jeewon, R.; Bhat, D.J.; Jones, E.B.G.; Maharachchikumbura, S.S.N.; Raspé, O.; Karunarathna, S.C.; Wanasinghe, D.N.; Hongsanan, S.; et al. Fungal diversity notes 929–1035: Taxonomic and phylogenetic contributions on genera and species of fungi. Fungal Divers. 2019, 95, 1–273. [Google Scholar] [CrossRef]
Pi, Y.H.; Zhang, X.; Liu, L.L.; Long, Q.D.; Shen, X.C.; Kang, Y.Q.; Hyde, K.D.; Boonmee, S.; Kang, J.C.; Li, Q.R. Contributions to species of Xylariales in China—4 Hypoxylon wujiangensis sp. nov. Phytotaxa 2020, 455, 21–30. [Google Scholar] [CrossRef]
Stadler, M.; Fournier, J.; Laessøe, T.; Chlebicki, A.; Lechat, C.; Flessa, F.; Rambold, G.; Peršoh, D. Chemotaxonomic and phylogenetic studies of Thamnomyces (Xylariaceae). Mycoscience 2010, 51, 189–207. [Google Scholar] [CrossRef]
Fournier, J.; Lechat, C.; Courtecuisse, R. The genus Hypoxylon (Xylariaceae) in Guadeloupe and Martinique (French West Indies). Ascomycete.org 2016, 7, 145–212. [Google Scholar]
Hennings, P. Fungi Matogrossenses a Dr. R. Pilger collecti 1899. Beibl. Hedwig. 1900, 39, 134–139. [Google Scholar]
Sanchez-Ballesteros, J.; Gonzalez, V.; Salazar, O.; Acero, J.; Portal, M.A.; Julián, M.; Rubio, V.; Bill, G.F.; Polishook, J.D.; Platas, G.; et al. Phylogenetic study of Hypoxylon and related genera based on ribosomal ITS sequences. Mycologia 2000, 92, 964–977. [Google Scholar] [CrossRef]
Triebel, D.; Peršoh, D.; Wollweber, H.; Stadler, M. Phylogenetic relationships among Daldinia, Entonaema and Hypoxylon as inferred from ITS nrDNA analyses of Xylariales. Nova Hedwig. 2005, 80, 25–43. [Google Scholar] [CrossRef]
Cedeño-Sanchez, M.; Charria-Girón, E.; Lambert, C.; Luangsa-ard, J.J.; Decock, C.; Franke, R.; Brönstrup, M.; Stadler, M. Segregation of the genus Parahypoxylon (Hypoxylaceae, Xylariales) from Hypoxylon by a polyphasic taxonomic approach. MycoKeys 2023, 95, 131–162. [Google Scholar] [CrossRef] [PubMed]
Chi, S.Q.; Xu, J.; Lu, B.S. Three New Chinese Records of Hypoxylon. J. Fungal Res. 2016, 14, 218–221. [Google Scholar] [CrossRef]
Guo, L. Flora Fungorum Sinicorum. Volume 64. Annulohypoxylon, Hypoxylon, Rosellinia; Science Press: Beijing, China, 2022; 155p. [Google Scholar]

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
