# The Influence of the Initial Condition in the Transient Thermal Field Simulation Inside a Wall

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Objectives and Methods

#### 2.1. Measurement Experimental Test Setup

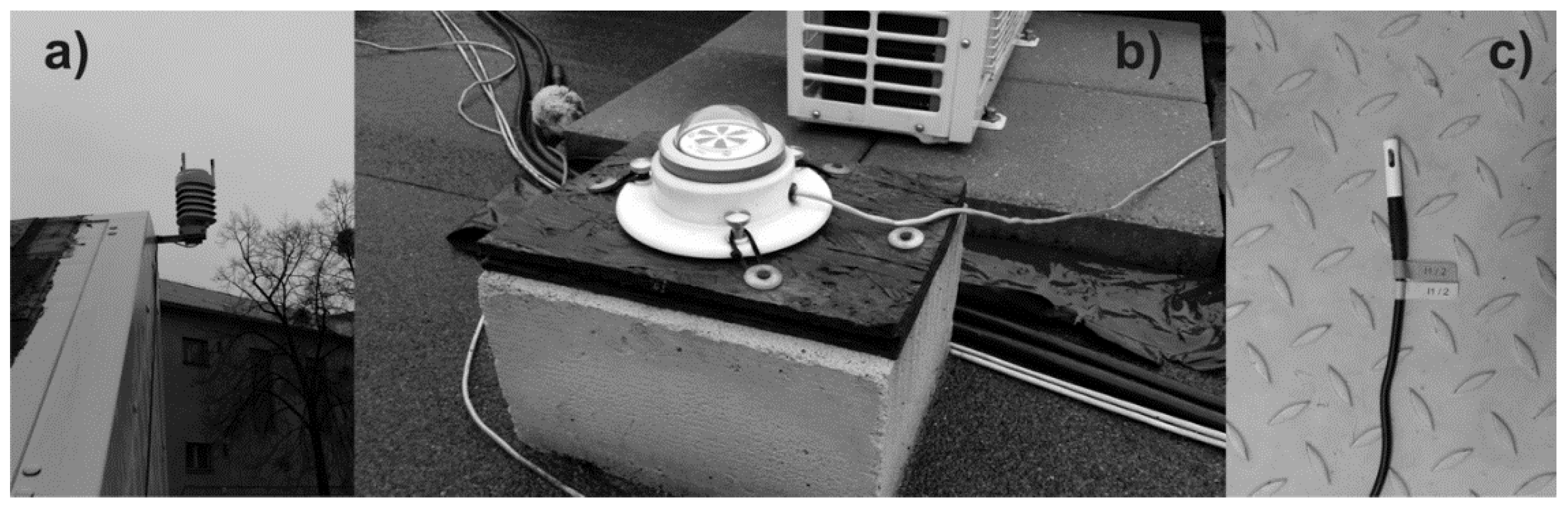

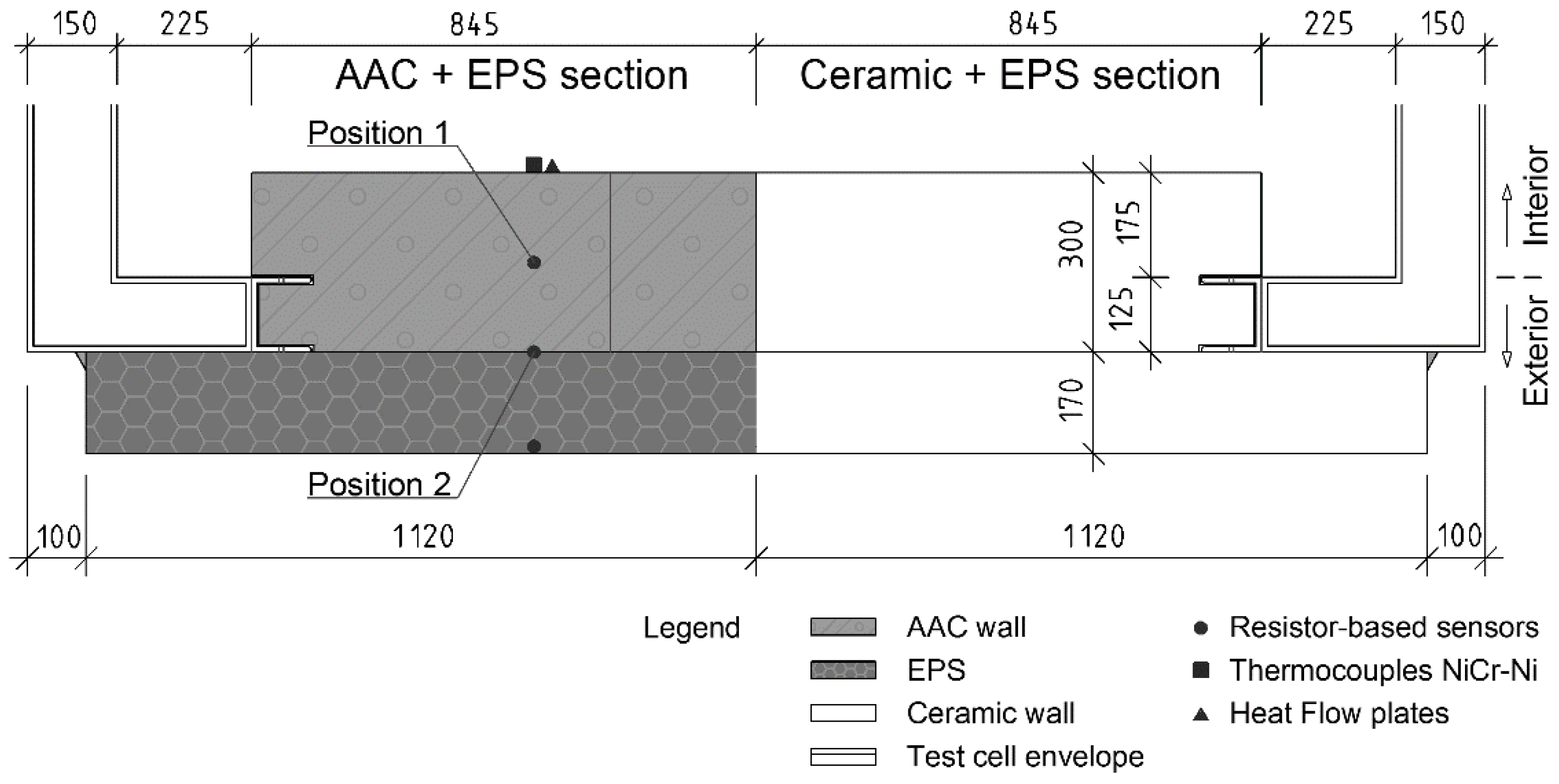

^{2}K)). The composition of the envelope wall can be seen in Figure 2 and Table 1. Results related to similar issues have been published in recent years in [30,31,32,33].

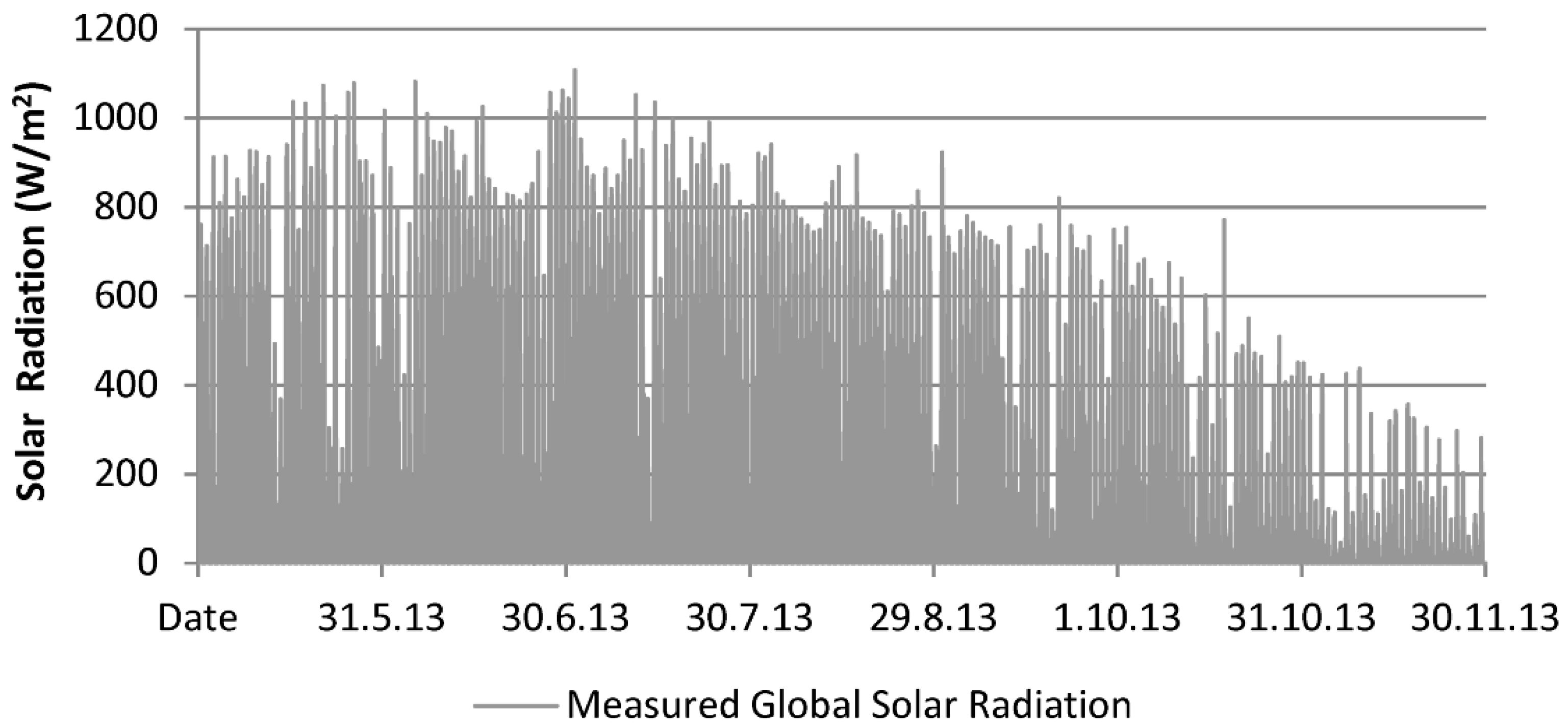

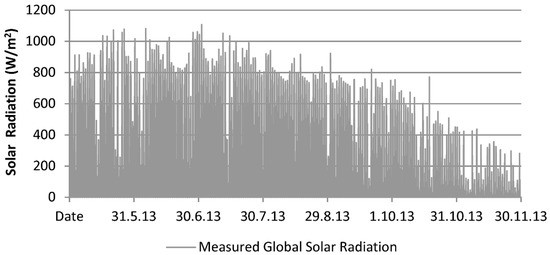

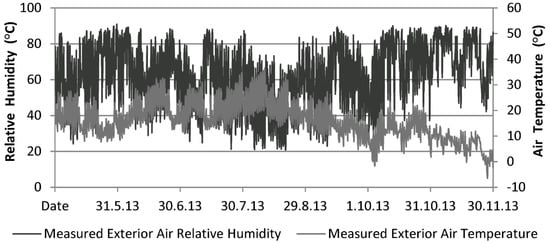

#### 2.2. Applicability of the Measured Data

#### 2.3. Transient Numerical Simulation

#### 2.4. Methodology for Determining Initial Temperature Conditions

- In the second case: in time t = 0, the steady state temperature is calculated from the air temperatures: Exterior air is −13 °C, and interior air is 20 °C (BC −13 °C).
- In the third case: in time t = 0, the steady state temperature is calculated from the air temperatures: Exterior air is −3.42 °C, and interior air is 20 °C (BC −3.42 °C).
- In the fourth case: in time t = 0, the steady state temperature is calculated from the current ambient temperatures, without using start-up pre-calculation (BC without start-up).
- In the fifth case: start-up pre-calculation is used (calculation before t = 0 h, with a duration of one day), (BC start-up).

#### 2.5. Structure Specimens: Material Parameters

#### 2.6. Boundary Conditions

## 3. Results and Discussion

#### 3.1. Numerical Experiment Results

_{e}, as shown in Figure 6). The boundary condition of interior temperature is a constant value of 20° over the presented time period (θ

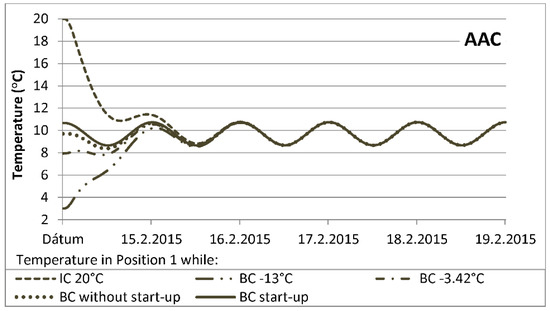

_{i}). Figure 9 shows sandstone; Figure 11 shows AAC; and Figure 14 shows AAC + EPS-simulated temperature profiles, after 0, 12 and 24 h. Temperature profiles are plotted to show their compliance with different IC considerations.

#### 3.2. Model Validation with a Full-Scale On-Site Experiment

#### 3.3. Discussion

## 4. Conclusions

- Building structures with a complicated geometry, e.g., analysis of thermal bridges (2D, 3D)
- Building structure made of different building materials (window/wall connection), e.g., protruding building structures (cornice, pilaster, balcony, etc.)
- Building structure containing innovative thermal insulations with small building thicknesses and low values of thermal conductivity (reflective and vacuum insulation).

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclatures

AAC | autoclaved aerated concrete |

EPS | expanded polystyrene |

HAM | heat-air-moisture |

ρ | bulk density, (kg/m^{3}) |

c | specific heat capacity J/(kg·K) |

λ | thermal conductivity W/(m·K) |

a | thermal diffusivity (m^{2}/s) |

q | heat flux (W/m^{2}) |

Zq | heat source (W/m^{3}) |

T | thermodynamic temperature (K) |

## References

- Li, Q.; Rao, J.; Fazio, P. Development of HAM tool for building envelope analysis. Build. Environ.
**2009**, 44, 1065–1673. [Google Scholar] [CrossRef] - Šikula, O.; Mohelníková, J.; Plášek, J. Thermal analysis of light pipes for insulated flat roofs. Energy Build.
**2014**, 85, 436–444. [Google Scholar] [CrossRef] - Huang, H.; Kato, S.; Hu, R.; Ishida, Y. Development of new indices to assess the contribution of moisture sources to indoor humidity and application to optimization design: Proposal of CRI (H) and a transient simulation for the prediction of indoor humidity. Build. Environ.
**2011**, 46, 1817–1826. [Google Scholar] [CrossRef] - Woloszyn, M.; Rode, C. Tools for Performance Simulation of Heat, Air and Moisture Conditions of Whole Buildings. Build. Simul.
**2008**, 1, 5–24. [Google Scholar] [CrossRef] - Chiwiacowsky, L.D.; de Campos Velho, H.F.; Preto, A.J.; Stephany, S. Identifying Initial Condition in Heat Conduction Transfer by a Genetic Algorithm: A Parallel Approach. In Proceedings of the 24th Iberian Latin-american Congress on Computational Methods in Engineering (CILAMCE-2003), Ouro Preto (MG), Brazil, 29–31 October 2003; pp. 1–15. [Google Scholar]
- Min, T.; Geng, B.; Ren, J. Inverse estimation of the initial condition for the heat equation. Int. J. Pure Appl. Math.
**2013**, 82, 581–593. [Google Scholar] [CrossRef] - Janssens, A.; Roels, S.; Vandaele, L. (Eds.) Full Scale Test Facilities for Evaluation of Energy and Hygrothermal Performances; International Workshop: Brussels, Belgium, 2011. [Google Scholar]
- Martin, K.; Campos-Celador, A.; Escudero, C.; Gómez, I.; Sala, J.M. Analysis of a thermal bridge in a guarded hot box testing facility. Energy Build.
**2012**, 50, 139–149. [Google Scholar] [CrossRef] - Chalfoun, N.V. Using energy simulation and real-time data monitoring to investigate thermal performance of exterior cavity walls. In Proceedings of the 12th Conference of International Building Performance Simulation Association, (BS2011), Sydney, Australia, 14–16 November 2011; pp. 1211–1216. [Google Scholar]
- Strachan, P.A.; Baker, P.H. Outdoor testing, analysis and modelling of building components. Build. Environ.
**2008**, 43, 127–128. [Google Scholar] [CrossRef] - Baker, P.H.; van Dijk, H.A.L. PASLINK and dynamic outdoor testing of building components. Build. Environ.
**2008**, 43, 143–151. [Google Scholar] [CrossRef] - Strachan, P.A.; Vandaele, L. Case studies of outdoor testing and analysis of building components. Build. Environ.
**2008**, 43, 129–142. [Google Scholar] [CrossRef] [Green Version] - Maivela, M.; Ferrantellia, A.; Kurnitski, J. Experimental determination of radiator, underfloor and air heating emission losses due to stratification and operative temperature variations. Energy Build.
**2018**, 166, 220–228. [Google Scholar] [CrossRef] - Ďurica, P.; Juráš, P.; Gašpierik, V.; Rybárik, J. Long-term Monitoring of Thermo-technical Properties of Lightweight Structures of External Walls Being Exposed to the Real Conditions. Procedia Eng.
**2015**, 111, 176–182. [Google Scholar] [CrossRef] - Kachkouch, S.; Benhamou, B.; Limam, K. Experimental Study of Roof’s Passive Cooling Techniques for Energy Efficient Buildings in Marrakech climate. In Proceedings of the 2017 International Renewable & Sustainable Energy Conference (IRESC’ 17), Tangier, Morocco, 4–7 December 2017. [Google Scholar]
- Desta, T.Z.; Langmans, J.; Roels, S. Experimental data set for validation of HAM transport models of building envelopes. Build. Environ.
**2011**, 46, 1038–1046. [Google Scholar] [CrossRef] - Jiménez, M.J.; Madsen, H. Models for describing the thermal characteristics of building components. Build. Environ.
**2008**, 43, 152–162. [Google Scholar] [CrossRef] - Goia, F.; Schlemminger, C.; Gustavsen, A. The ZEB Test Cell Laboratory. A facility for characterization of building envelope systems under real outdoor conditions. Energy Procedia
**2017**, 132, 531–536. [Google Scholar] [CrossRef] - WUFI Creating Weather Files. Fraunhofer Institute for Building Physics. Last Update 1 November 2018. Available online: http://www.wufi.de/frame_en_wetterdaten.html (accessed on 16 June 2011).
- Fokaides, P.A.; Kylili, A.; Kyriakides, I. Boundary Conditions Accuracy Effect on the Numerical Simulations of the Thermal Performance of Building Elements. Energies
**2018**, 11, 1520. [Google Scholar] [CrossRef] - Antonyova, A.; Korjenic, A.; Antony, P.; Korjenic, S.; Pavlušová, E.; Pavluš, M.; Bednar, T. Hygrothermal properties of building envelopes: Reliability of the effectiveness of energy saving. Energy Build.
**2013**, 57, 187–192. [Google Scholar] [CrossRef] - Katunský, D.; Zozulák, M.; Kondáš, K.; Šimiček, J. Numerical analysis and measurement results of a window sill. Adv. Mater. Res.
**2014**, 899, 147–150. [Google Scholar] [CrossRef] - Katunský, D.; Zozulák, M.; Vertaľ, M.; Šimiček, J. Experimentally Measured Boundary and Initial Conditions for Simulations. Adv. Mater. Res.
**2014**, 1041, 293–296. [Google Scholar] [CrossRef] - Physibel Software. User Manual for Physibel; Physibel Software: Maldegem, Belgium, 2017. [Google Scholar]
- Energy Performance of Buildings—Calculation of Energy Use for Space Heating and Cooling; Standard STN EN ISO 13790/NA/Z1; International Organization for Standardization (ISO): Geneva, Switzerland, 2012.
- Vertaľ, M.; Zozulák, M.; Vašková, A.; Korjenic, A. Hygrothermal initial condition for simulation process of green building structure. Energy Build.
**2018**, 167, 166–176. [Google Scholar] [CrossRef] - Vertaľ, M.; Vašková, A.; Korjenic, A.; Katunský, D. Fallstudie zum trocknungsverhalten von außenwandkonstruktionen aus porenbeton mit wärmedämmverbundsystem. Bauphysik
**2016**, 38, 378–388. [Google Scholar] [CrossRef] - Zozulák, M.; Vertaľ, M.; Katunský, D. Initial conditions determination for transient thermal field analysis. In CER Comparative European Research 2014; Sciemcee Publishing: London, UK, 2014; pp. 74–78. ISBN 978-0-9928772-24. [Google Scholar]
- Zozulák, M.; Katunský, D. Numerical and experimental determination of in-structure temperature profiles. Sel. Sci. Pap. J. Civ. Eng.
**2015**, 10, 65–72. [Google Scholar] [CrossRef] [Green Version] - Shu, L.; Xiao, R.; Wen, Z.; Tao, Y.; Liu, P. Impact of Boundary Conditions on a Groundwater Heat Pump System Design in a Shallow and Thin Aquifer near the River. Sustainability
**2017**, 9, 797. [Google Scholar] [CrossRef] - Sarbu, I.; Iosif, A. Numerical Simulation of the Laminar Forced Convective Heat Transfer between Two Concentric Cylinders. Computation
**2017**, 5, 25. [Google Scholar] [CrossRef] - Yu, M.; Li, W.; Dong, B.; Chen, C.; Wang, X. Simulation for the Effects of Well Pressure and Initial Temperature on Methane Hydrate Dissociation. Energies
**2018**, 11, 1179. [Google Scholar] [CrossRef] - Wang, Z.; Wei, Y.; Qian, Y. Numerical Study on Entropy Generation in Thermal Convection with Differentially Discrete Heat Boundary Conditions. Entropy
**2018**, 20, 351. [Google Scholar] [CrossRef]

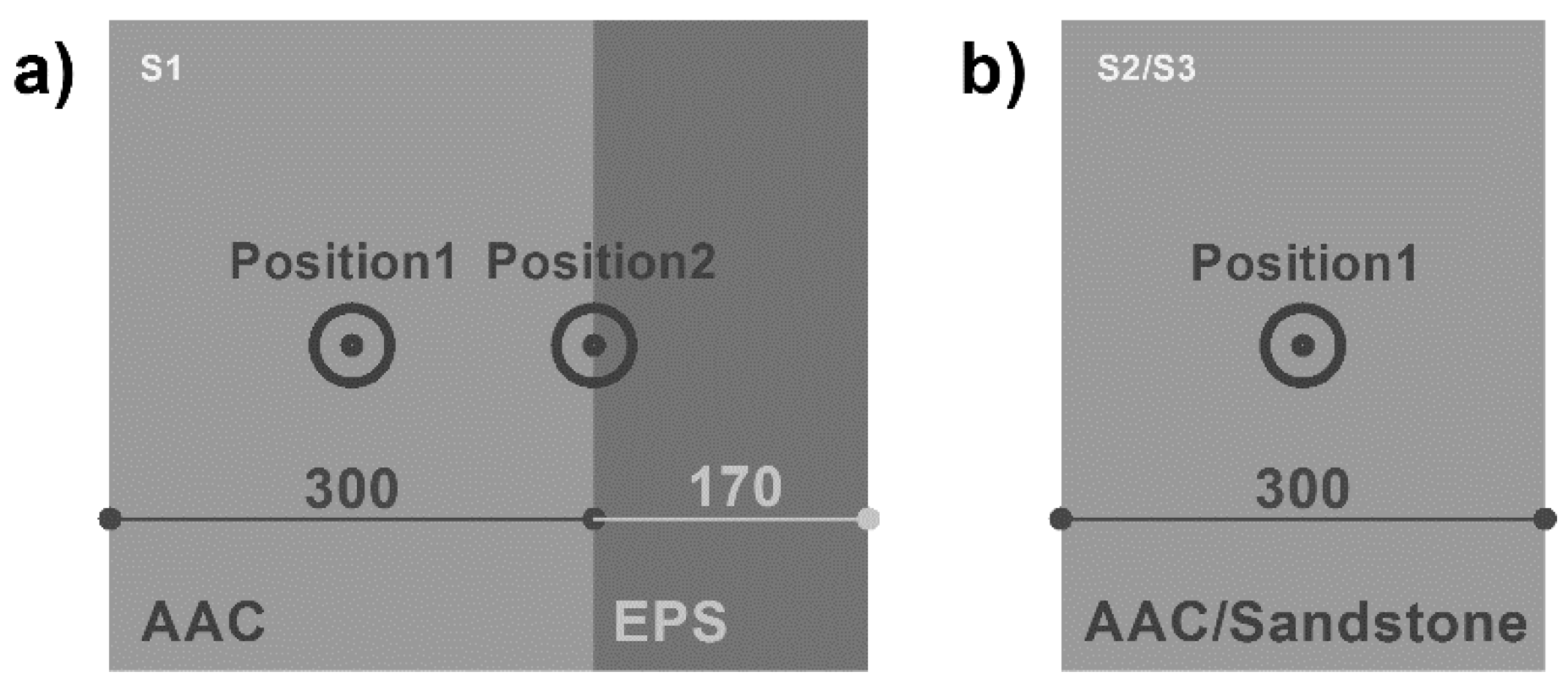

**Figure 5.**Sample structures, according to Table 2 (inside left). (

**a**) An external test cell wall; and (

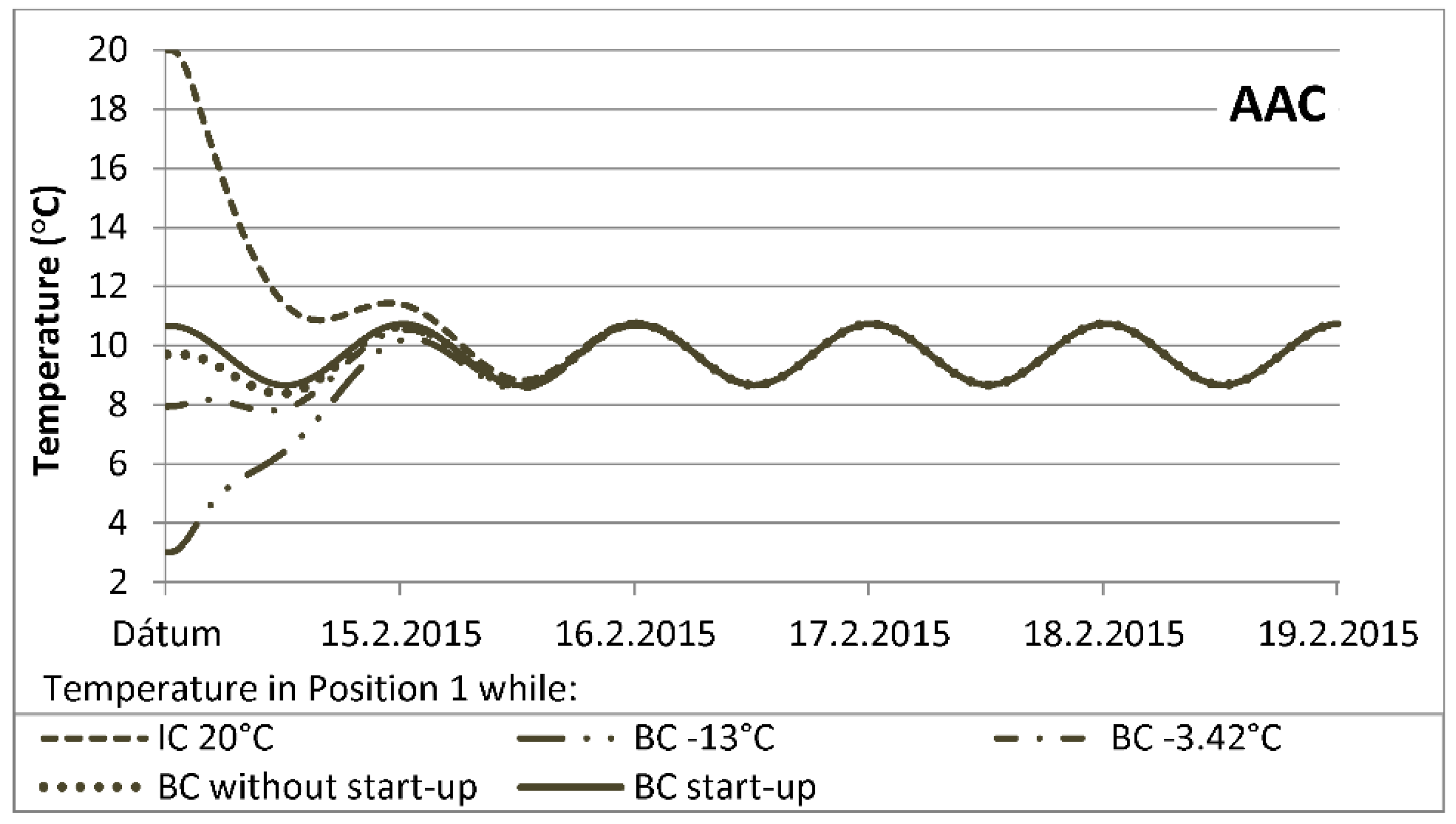

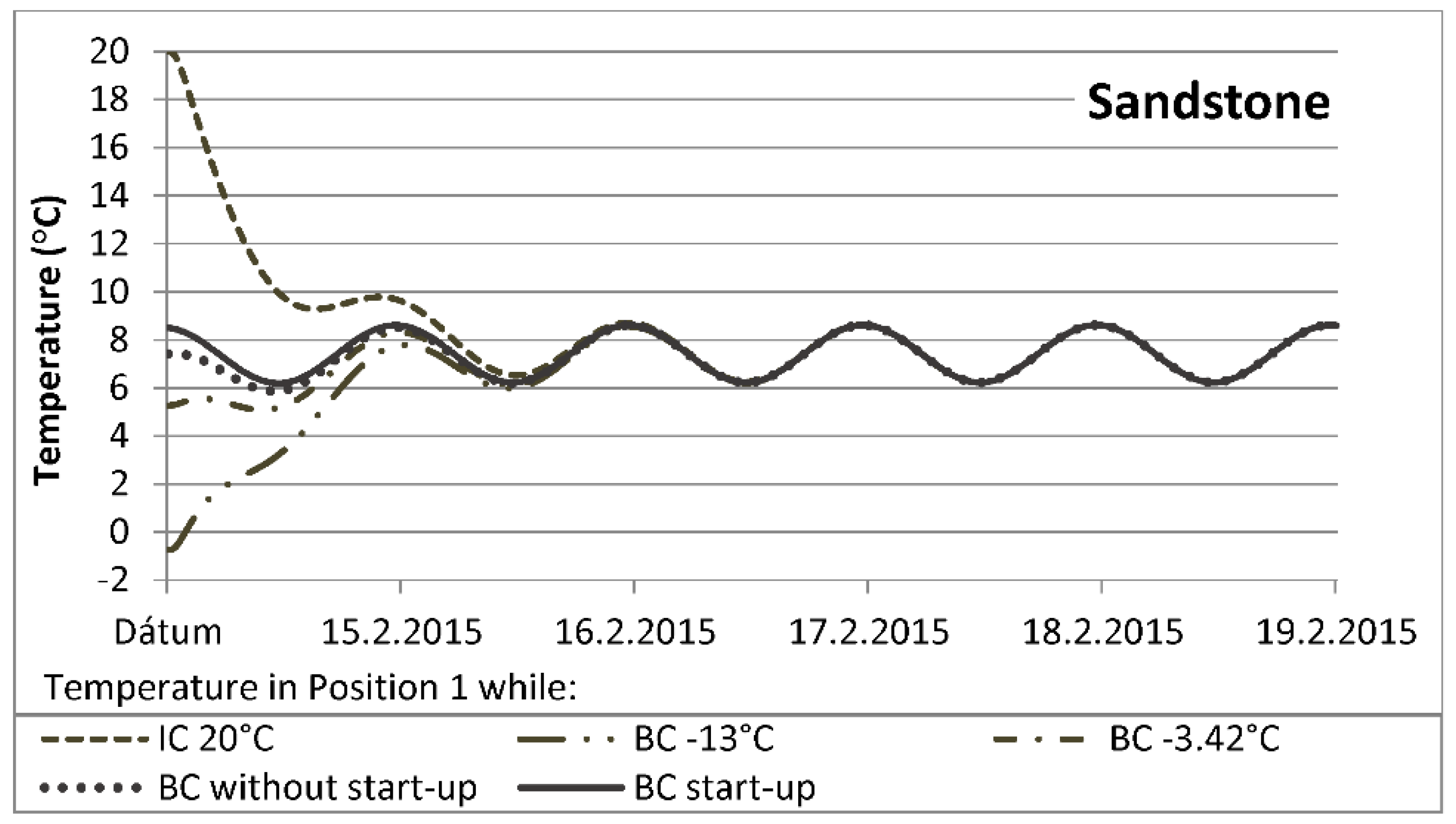

**b**) simple AAC and sandstone walls. The placement position for the plotted data are: the calculated temperatures in Figure 8 and Figure 10 in specimen S2/S3, in Figure 12 and Figure 13 in S1 and the measured temperatures in Figure 15, Figure 16 and Figure 17 in specimen S1.

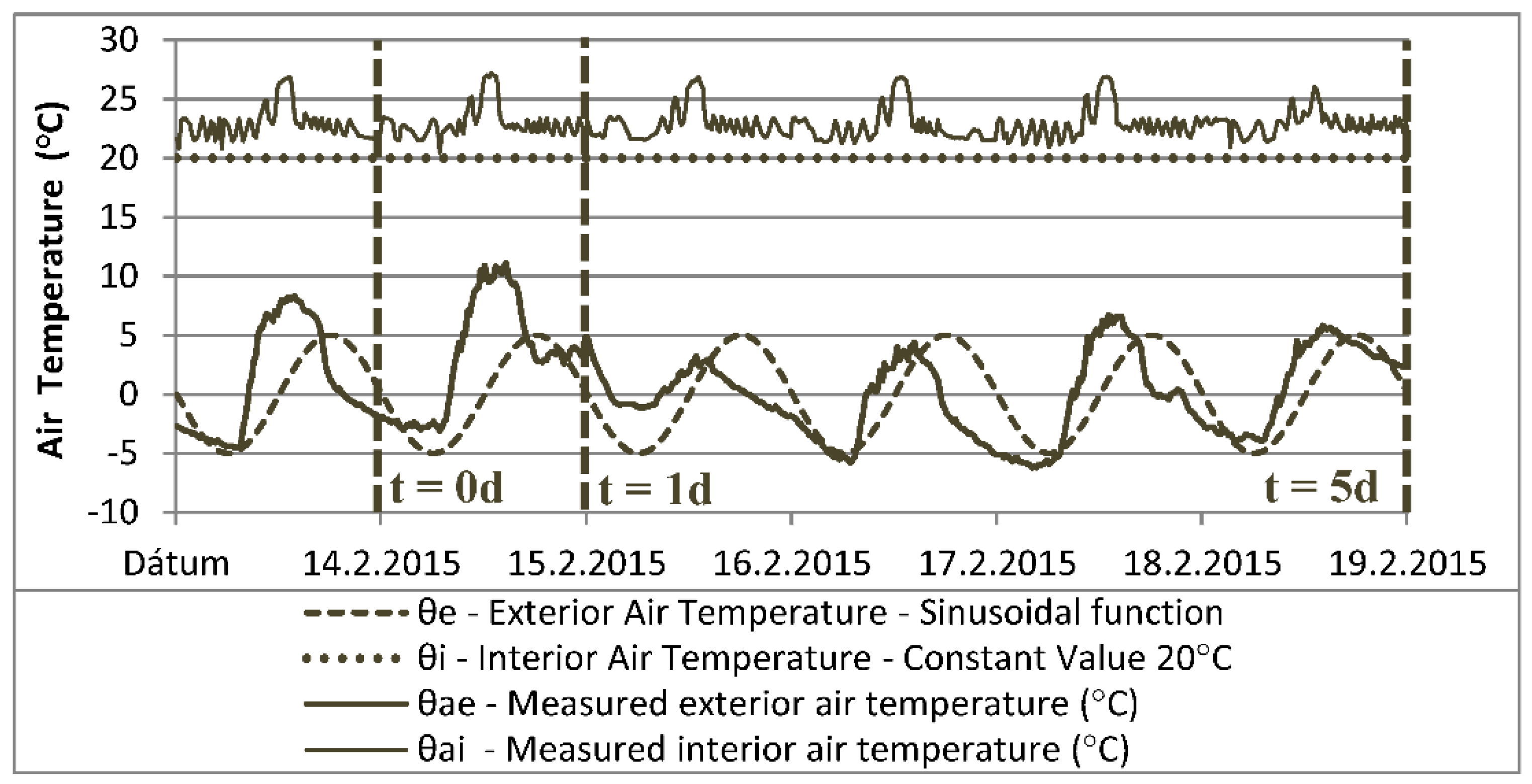

**Figure 6.**Measured, sinusoidal and constant ambient air temperature over the selected time period as the boundary condition used to determine the initial temperature conditions, as according to Section 2.4.

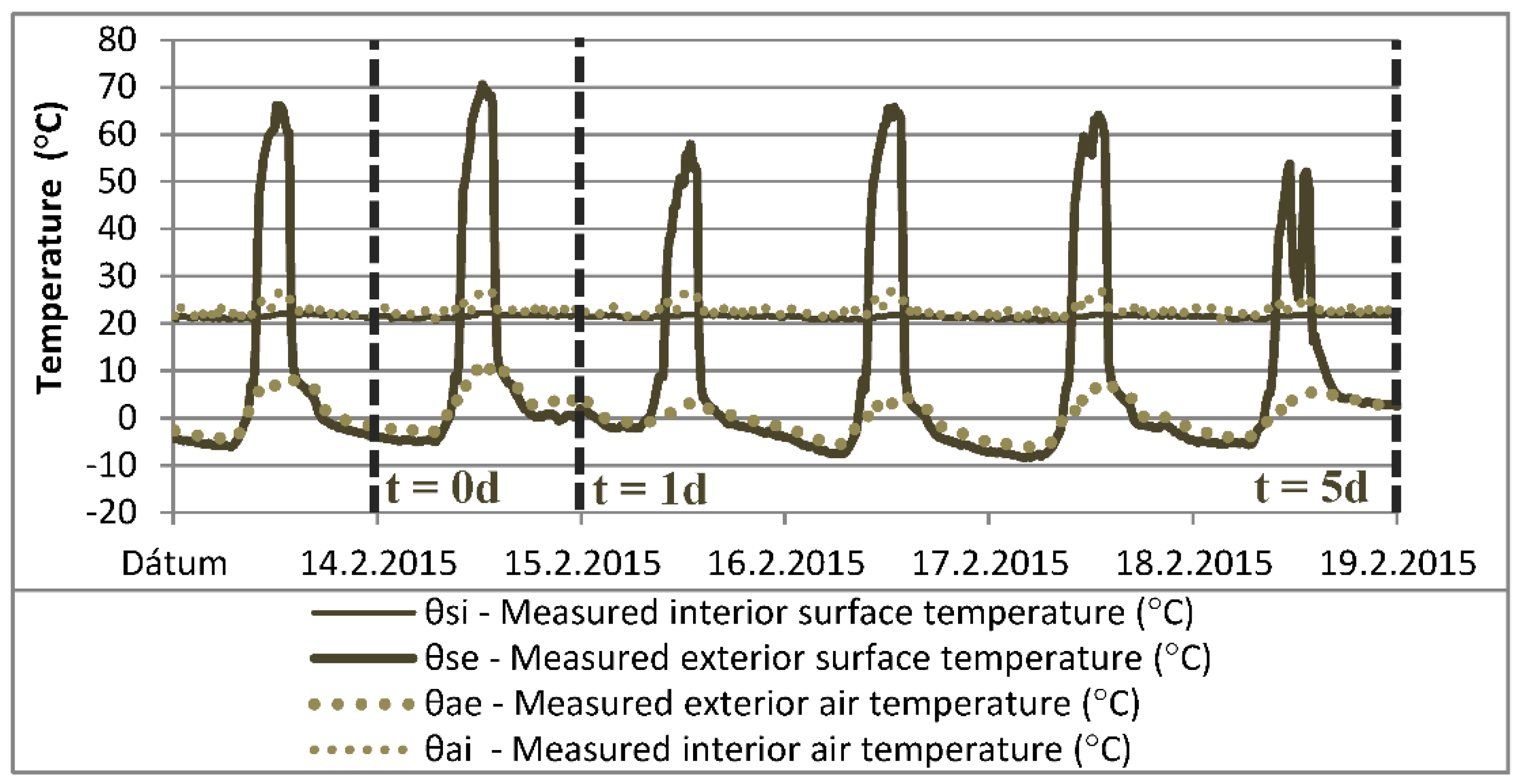

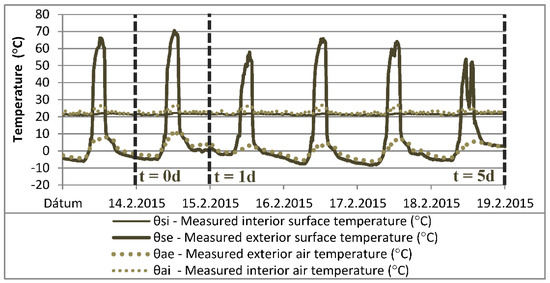

**Figure 7.**The measured temperature values of the interior and exterior surfaces for the analyzed interval (14 February 2015 to 19 February 2015).

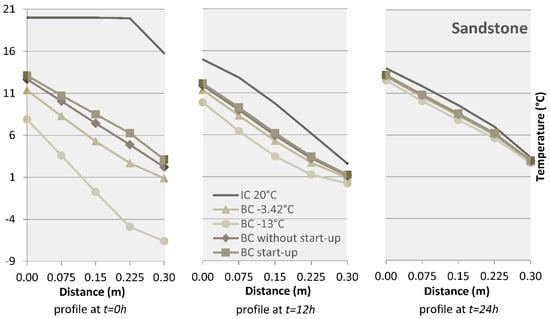

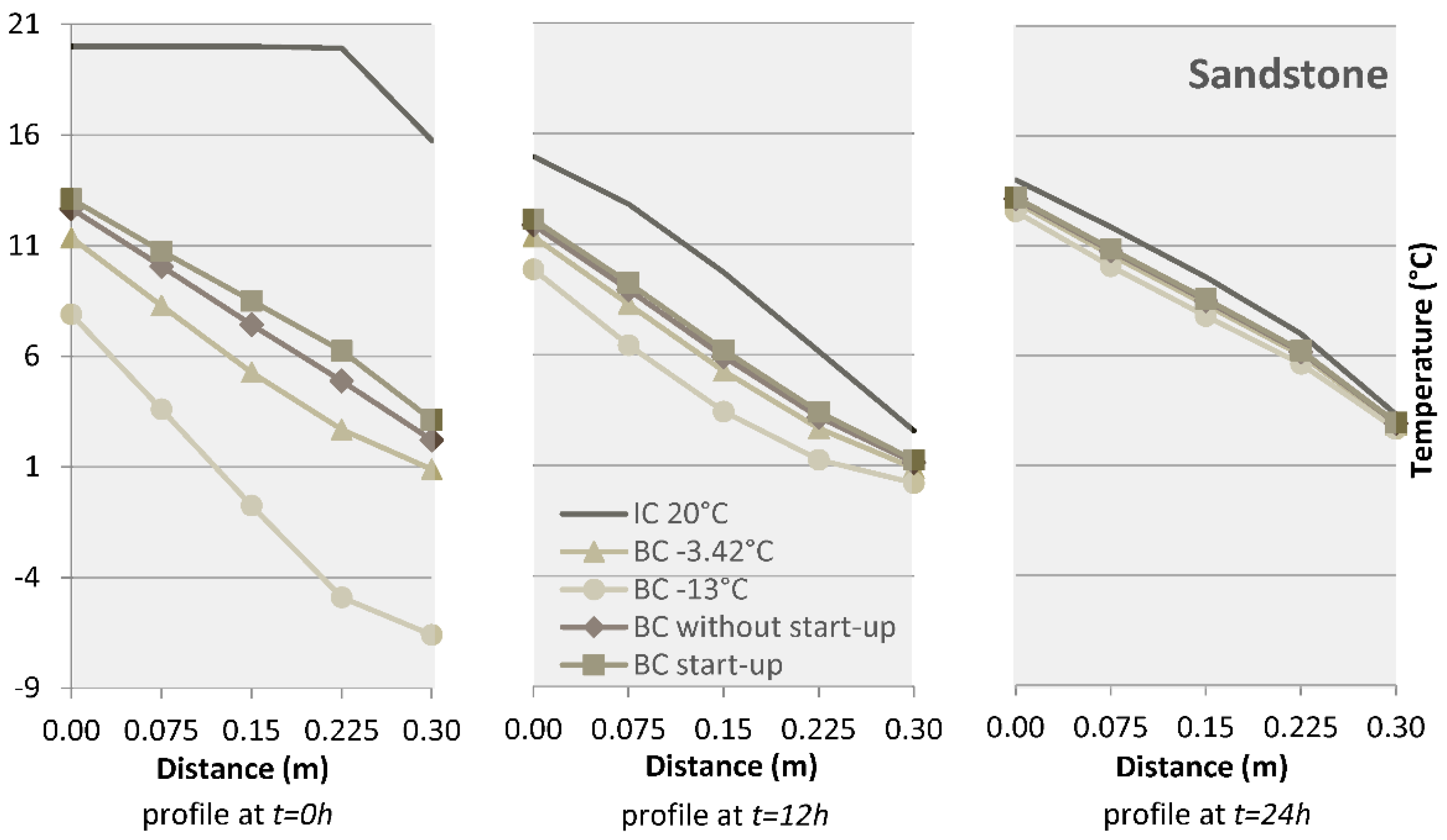

**Figure 9.**Temperature profile across the simple sandstone test wall at time t = 0 h, t = 12 h and t = 24 h for five cases under the initial condition. Abbreviations IC and BC refers to Section 2.4.

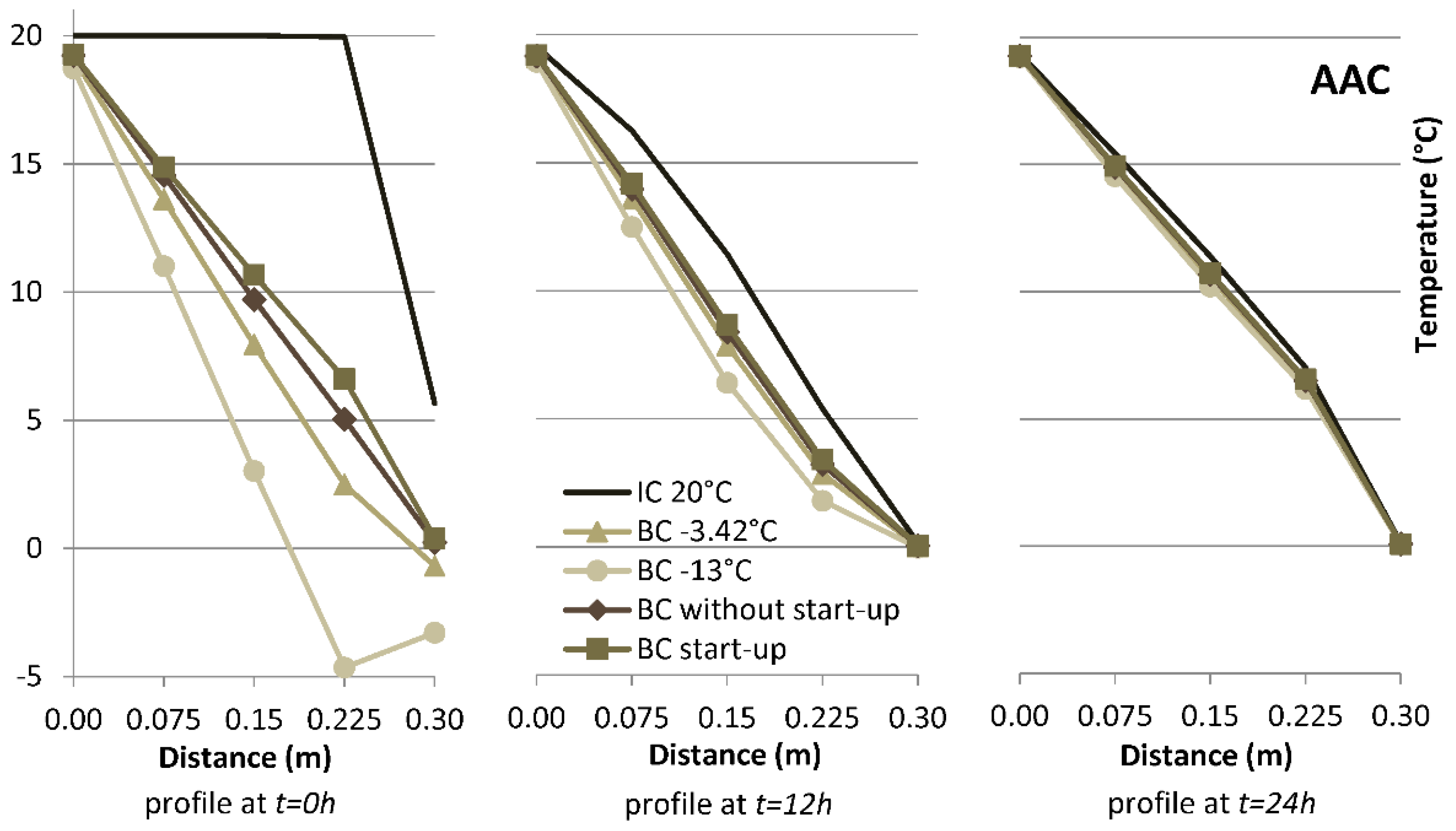

**Figure 11.**Temperature profile across the simple AAC test wall at time t = 0 h, t = 12 h and t = 24 h for five cases under the initial condition. Abbreviations IC and BC refers to Section 2.4.

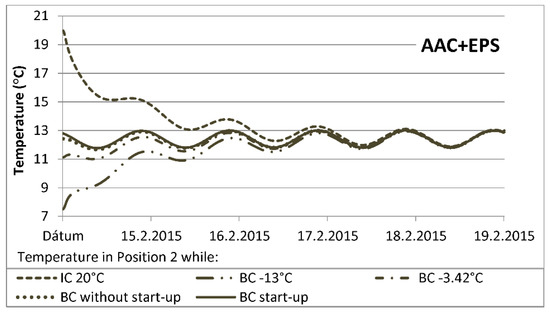

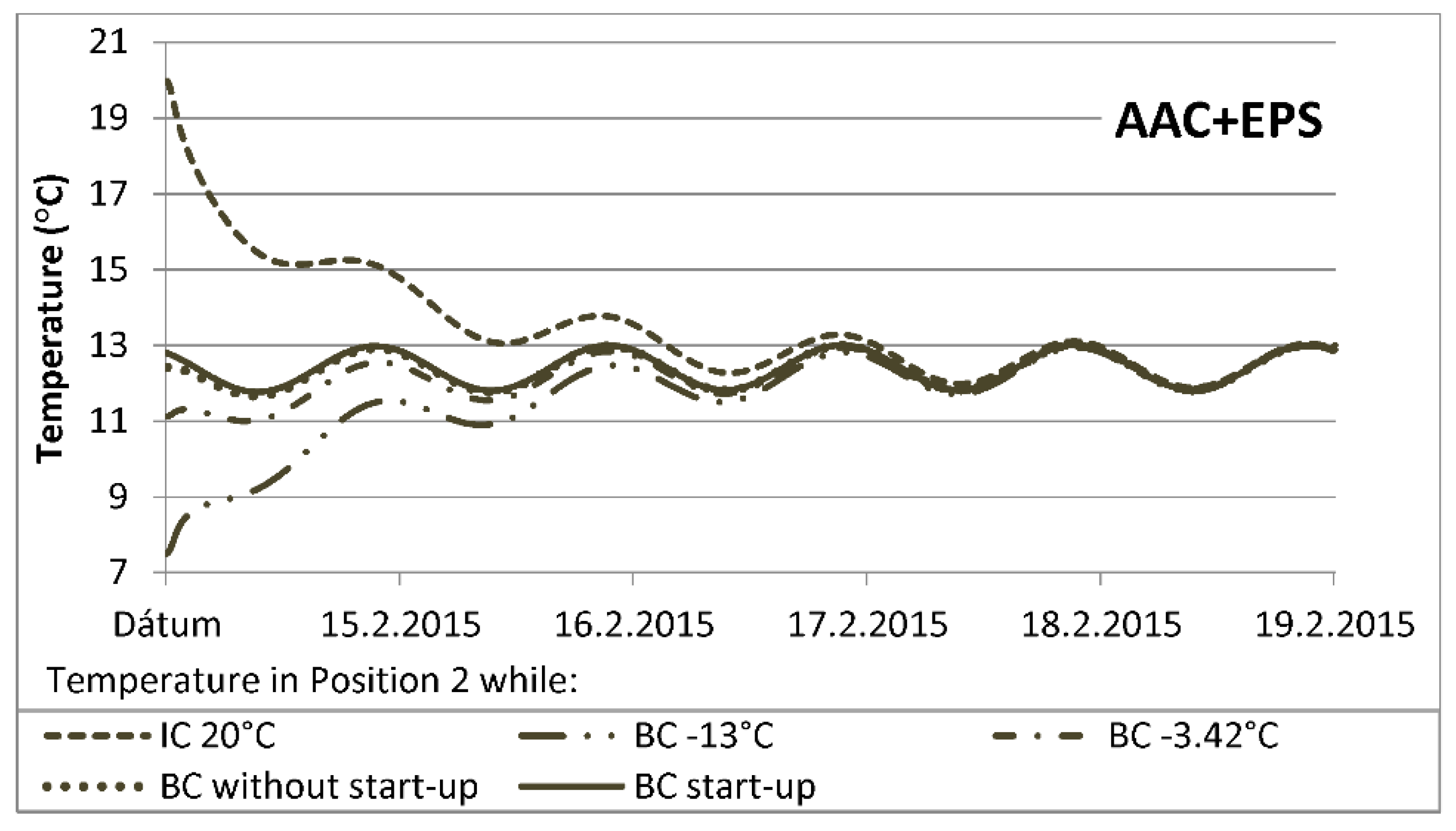

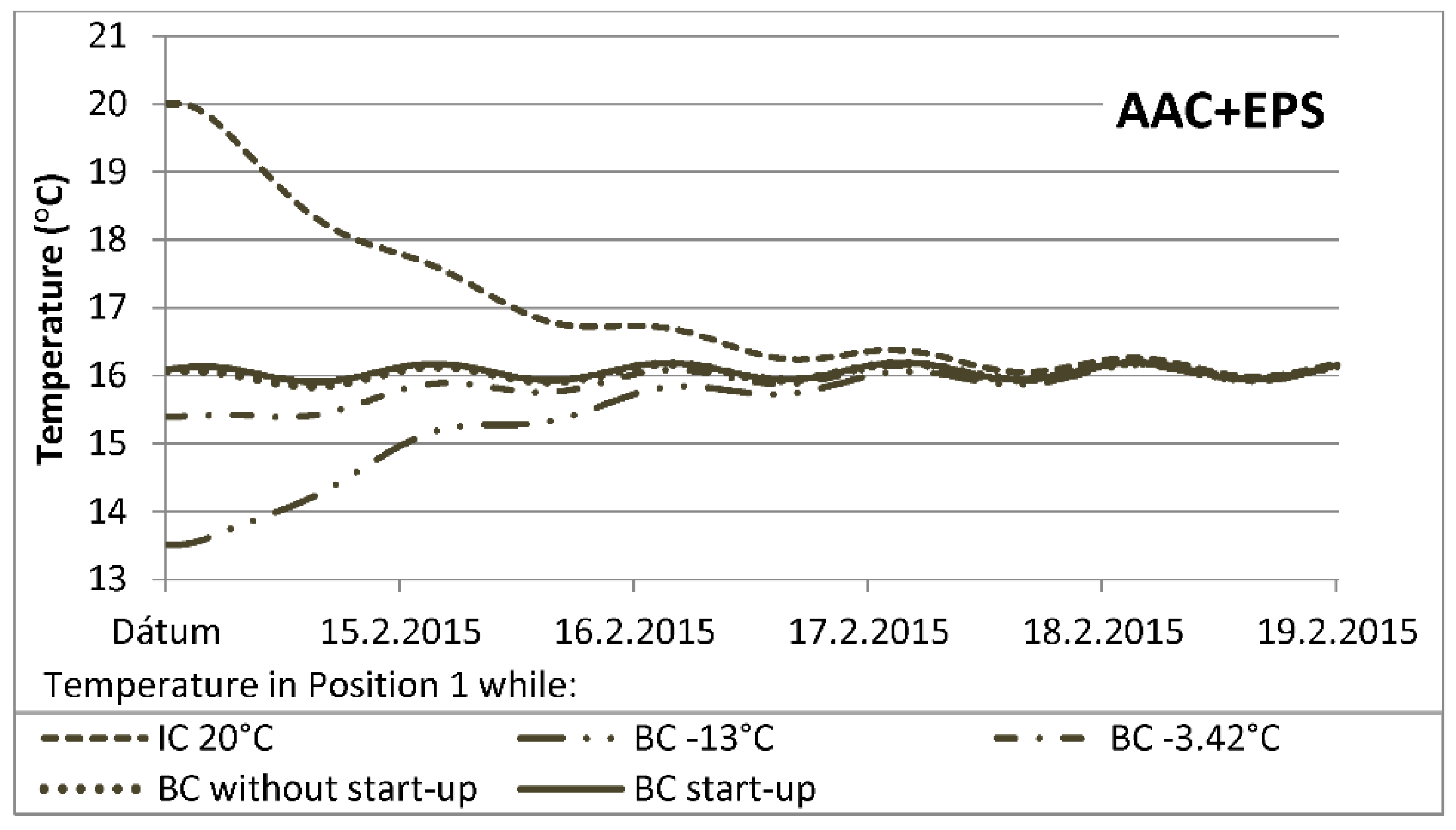

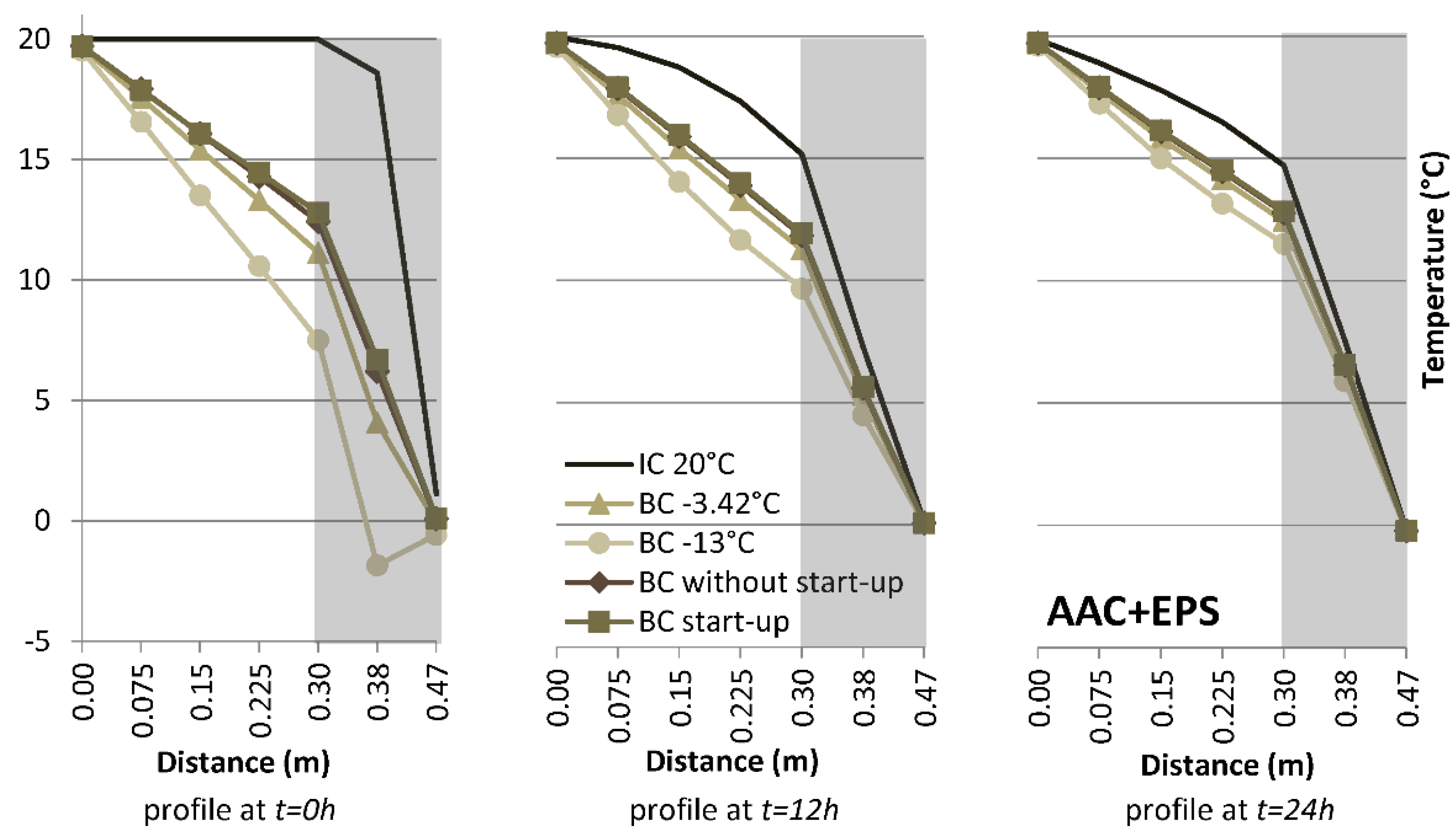

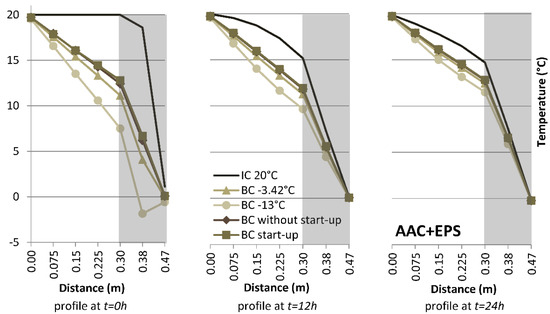

**Figure 14.**Temperature profile across the outdoor test cell wall (AAC + EPS) at time t = 0 h, t = 12 h and t = 24 h for five cases under the initial condition. Abbreviations IC and BC refers to Section 2.4.

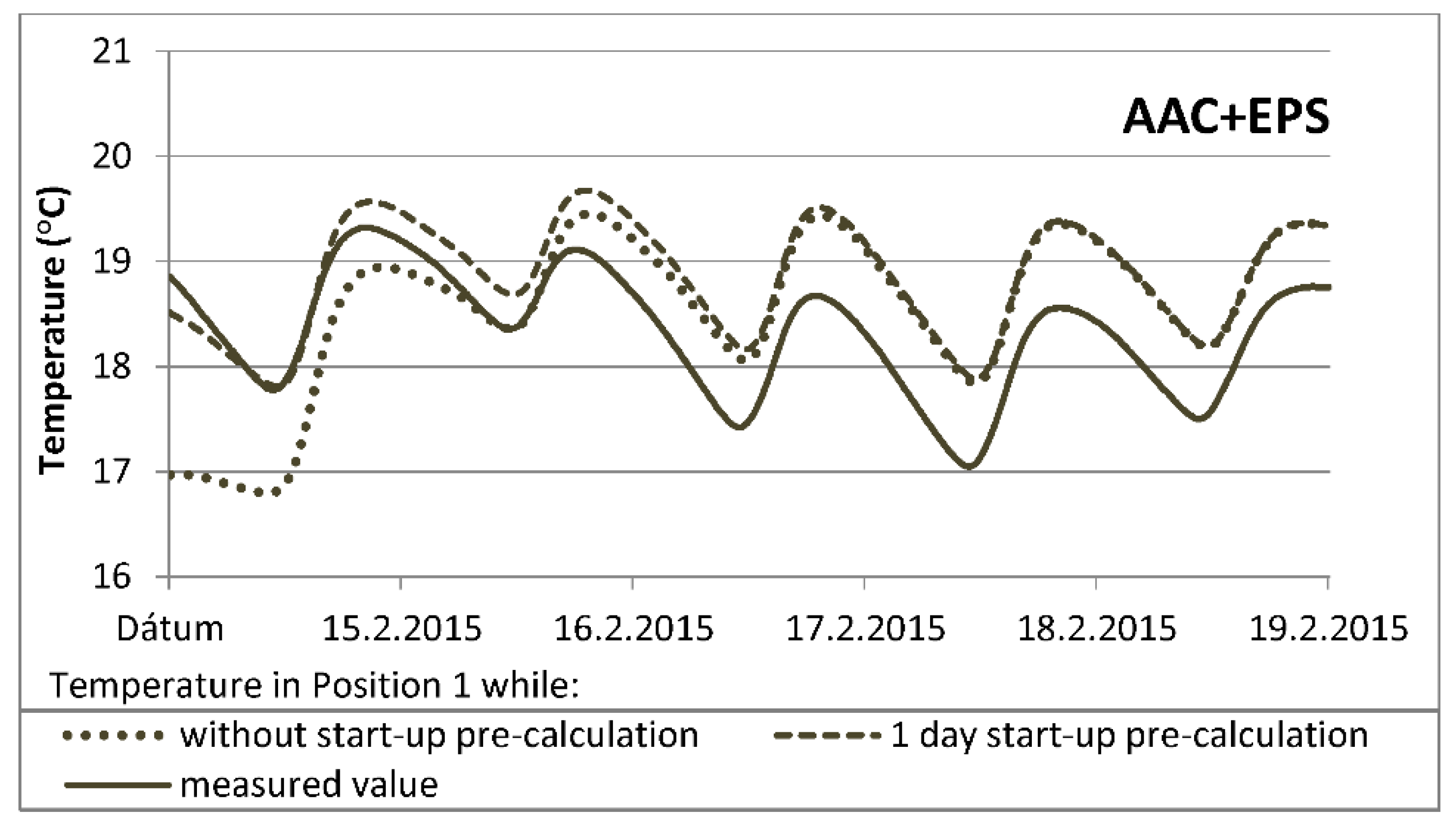

**Figure 15.**Plotted calculated and measured temperature courses in the outdoor test cell wall S1 in Position 1 during the chosen time period—with and without pre-calculation considerations.

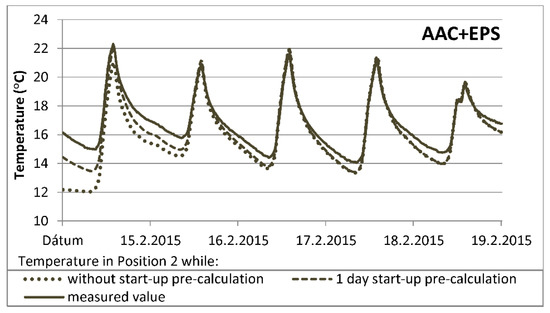

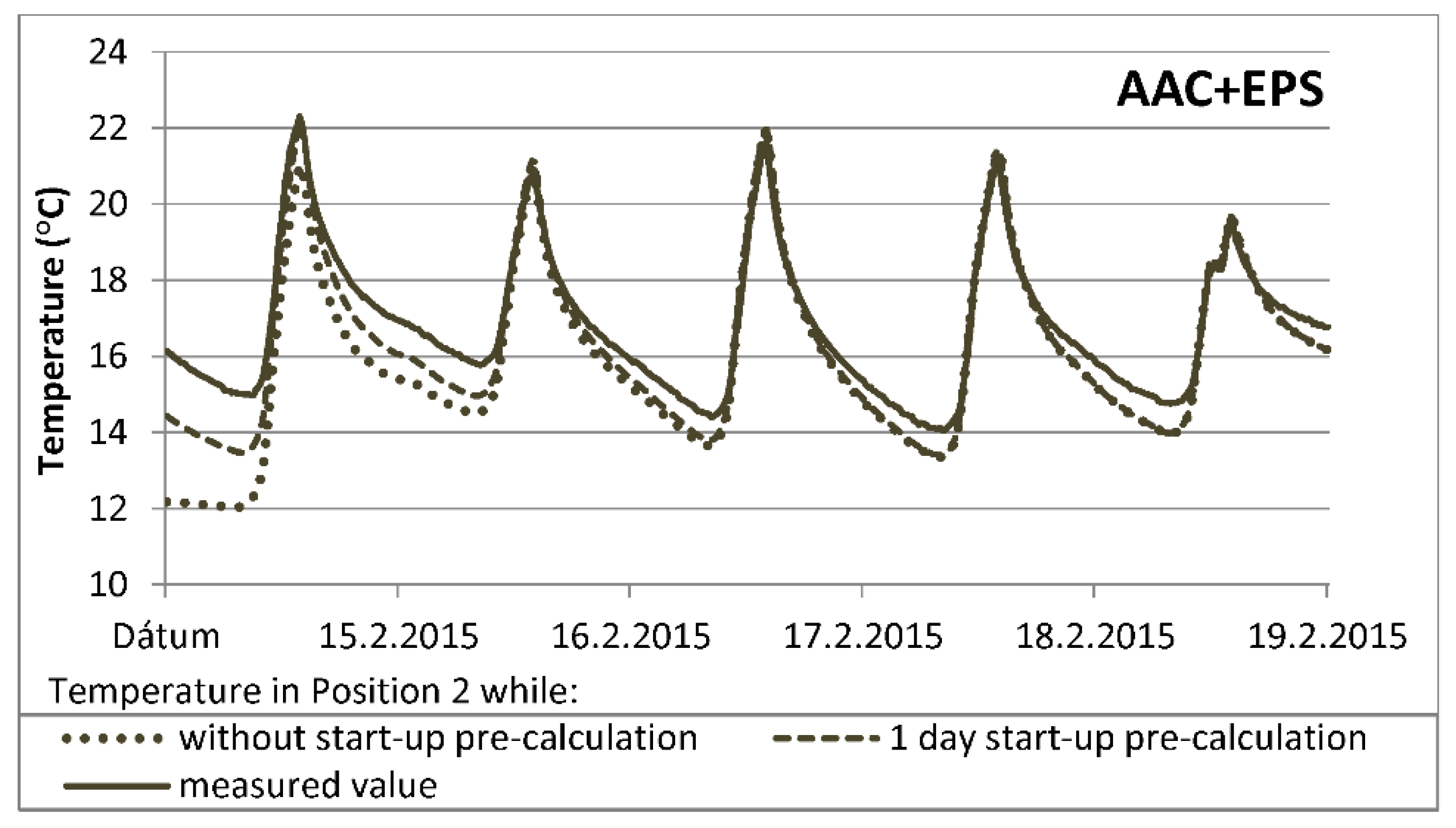

**Figure 16.**Plotted calculated and measured temperature courses in the outdoor test cell wall S1 in Position 2 during the chosen time period—with and without pre-calculation considerations.

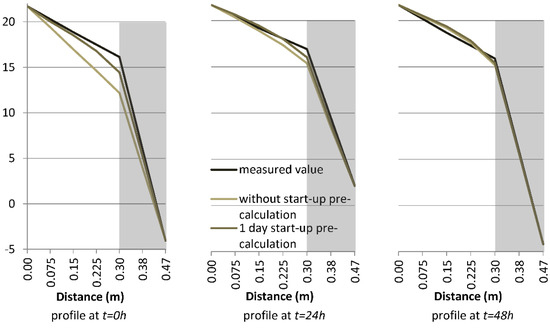

**Figure 17.**Temperature profile across the outdoor test cell wall S1 at t = 0 h, t = 24 h and t = 48—with and without pre-calculation considerations.

No. | Test-Wall Layer | d (m) | λ_{D} (W/(m·K)) | c (J/(kg·K)) | ρ (kg/m^{3}) |
---|---|---|---|---|---|

1 | AAC | 0.300 | 0.104 | 900 | 350 |

2 | Foam PUR | 0.010 | 0.040 | 800 | 35 |

3 | EPS polystyrene graphite | 0.170 | 0.033 | 920 | 16 |

4 | Adhesive mortar | 0.002 | 0.850 | 900 | 1300 |

5 | Primer basic paint | - | - | - | - |

6 | Silicone additive plaster | 0.002 | 0.700 | 900 | 1700 |

**Table 2.**Composition of the specimens (the layers are numbered from the inside in the direction of the heat flow) and physical properties of the material.

No. | Structure Specimens | Name of Layer | λ W/m·K | c J/kg·K | ρ kg/m ^{3} |
---|---|---|---|---|---|

S1 | Outdoor test cell wall (AAC + EPS) | AAC | 0.106 | 900 | 350 |

EPS | 0.035 | 920 | 16 | ||

S2 | Simple AAC wall | AAC | 0.106 | 900 | 350 |

S3 | Wall from sandstone | Sandstone | 1.700 | 840 | 2600 |
