Demand Response Technology Readiness Levels for Energy Management in Blocks of Buildings
- More efficient utilisation of network, generator and consumer assets
- Supporting the increased penetration of renewable energy on national energy grids
- Easing capacity constraints on distribution networks and facilitating the further uptake of distributed generation
- Reducing required generator margins and the costs of calling on traditional spinning reserve
- Improving environmental credentials by reducing emissions

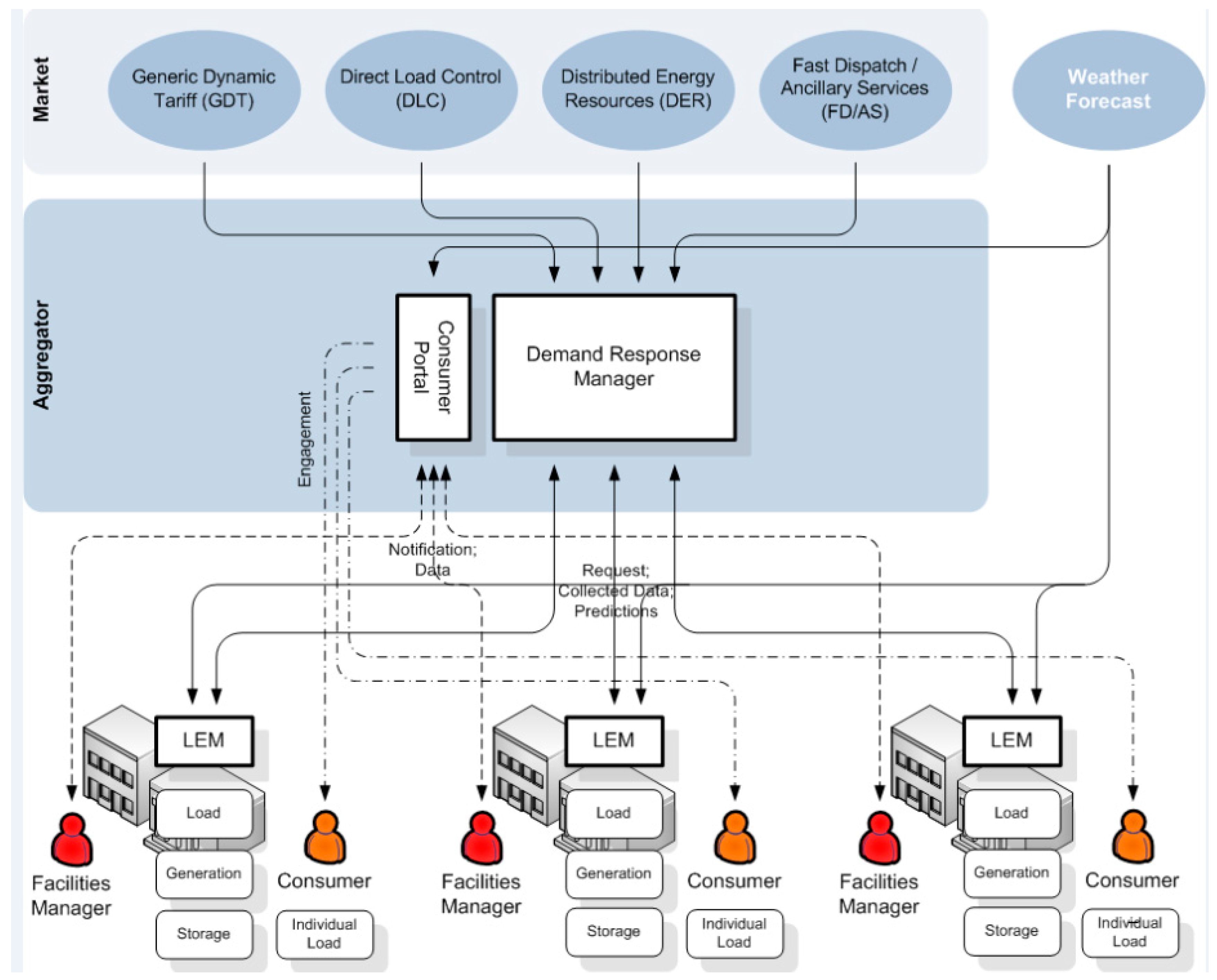

2. DR-BoB Demand Response Solution
3. Demand Response Technology Readiness Level
- Technology refers to the building/site energy and communication systems which include metering and telemetry, flexible load, local energy generation and energy storage plant etc.;
- Readiness refers to time, specifically it means ready for operations at the present time;
- Level refers to the extent of the capability of a block of buildings to take part in the DR-BoB energy management solution.
- Block of buildings refers to a group of buildings that may or may not be in proximity to each other if under common governance.
- DRTRL-0: no capability, which is defined as a building/site that does not have the technical capacity to enable the implementation of the DR-BoB solution;
- DRTRL-1: manual capability, which is defined as a building/site that has flexibility that can be controlled in a manual capacity by facility managers, or end consumers, making a direct intervention to apply control signals, typically based on a recommendation notification such as an email;
- DRTRL-2: partially automated capability, which is defined as a building/site that has the minimum technology required to partially enable some of the automated functioning of the DR-BoB energy management solution by directly responding to tele-command signals without manual intervention, but will still require manual intervention for some functionality;
- DRTRL-3: full capability, which is defined as a building/site that has the technologies required to fully enable all of the automated functioning of the DR-BoB energy management solution through tele-command signals, without requiring manual application of control.
- Consumption assets that can be deactivated for a short period by manual direct control without deleterious consequences;
- Wide Area Network (WAN) communications (dedicated network connection or relevant ports open in firewall for OpenVPN);
- Occupants with access to notification services such as email, twitter, intranet pop-ups etc.
- Automated energy metering at the building level (high frequency, <1 h) able to export data with low latency, <1 h;
- Controllable assets, either dispatchable behind the meter (BTM) generation or turn-down demand, whose schedule can be altered for a short period by without deleterious consequences;
- HVAC assets controlled by BMS accessible via an open or standard protocol;
- Automated, low-latency (<15 min), high-frequency (<half-hourly) asset-specific energy metering;
- HVAC assets under direct control via an open or standard or BMS protocol;
- Temperature sensors in areas served by HVAC assets under direct control.
- Energy storage assets (electrical, thermal).

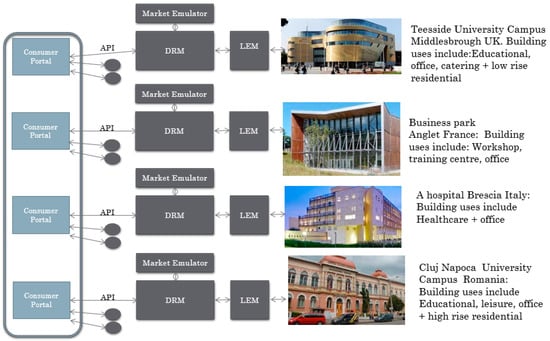

4. DRTRL Exemplified by the DR-BoB Project Demonstration Sites

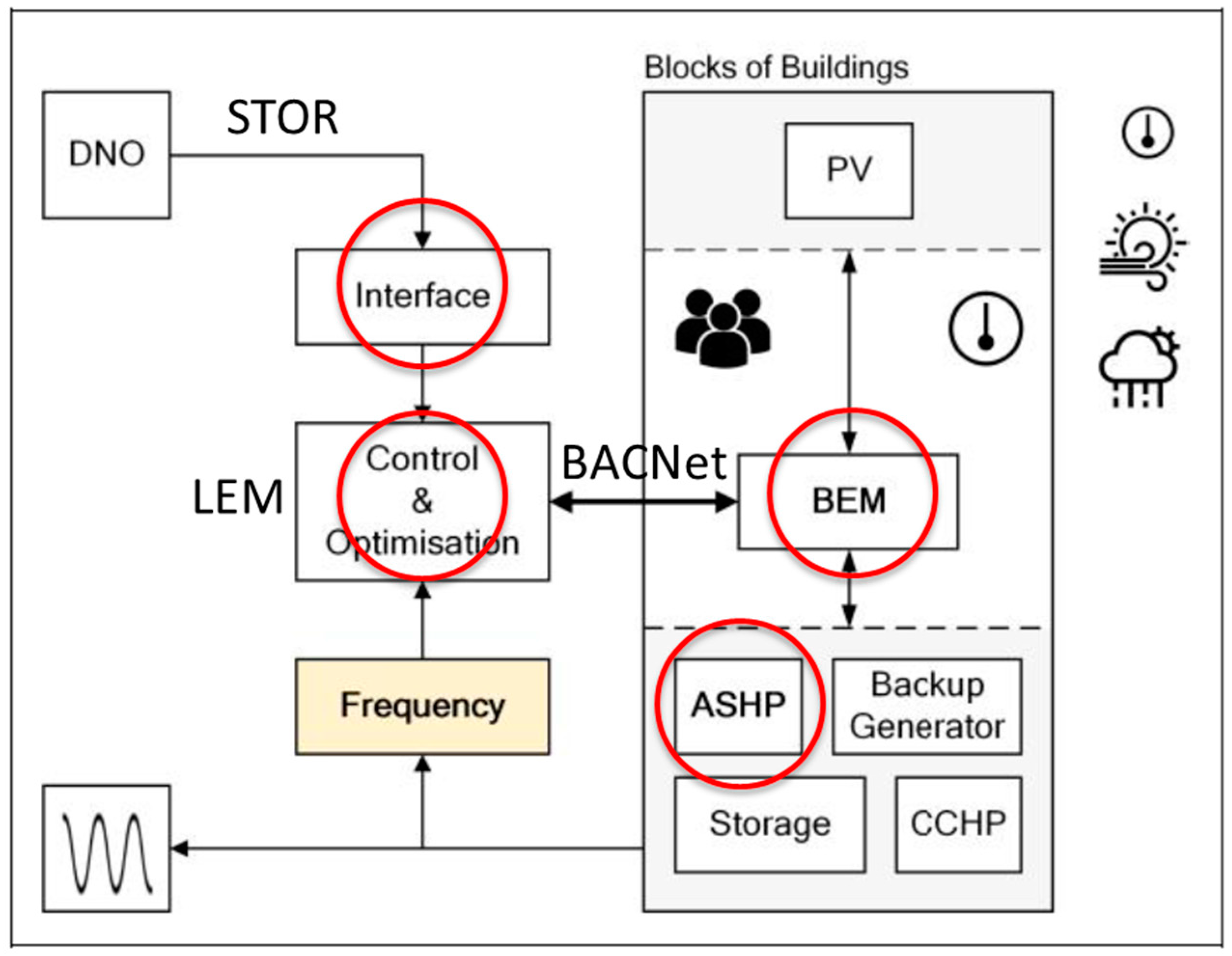

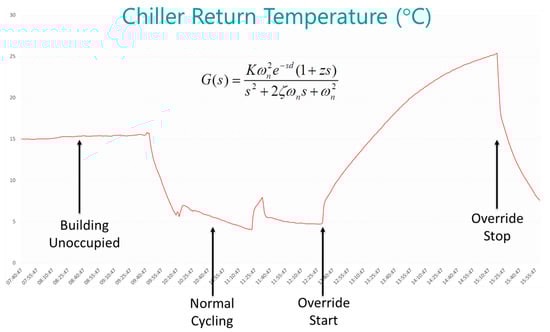

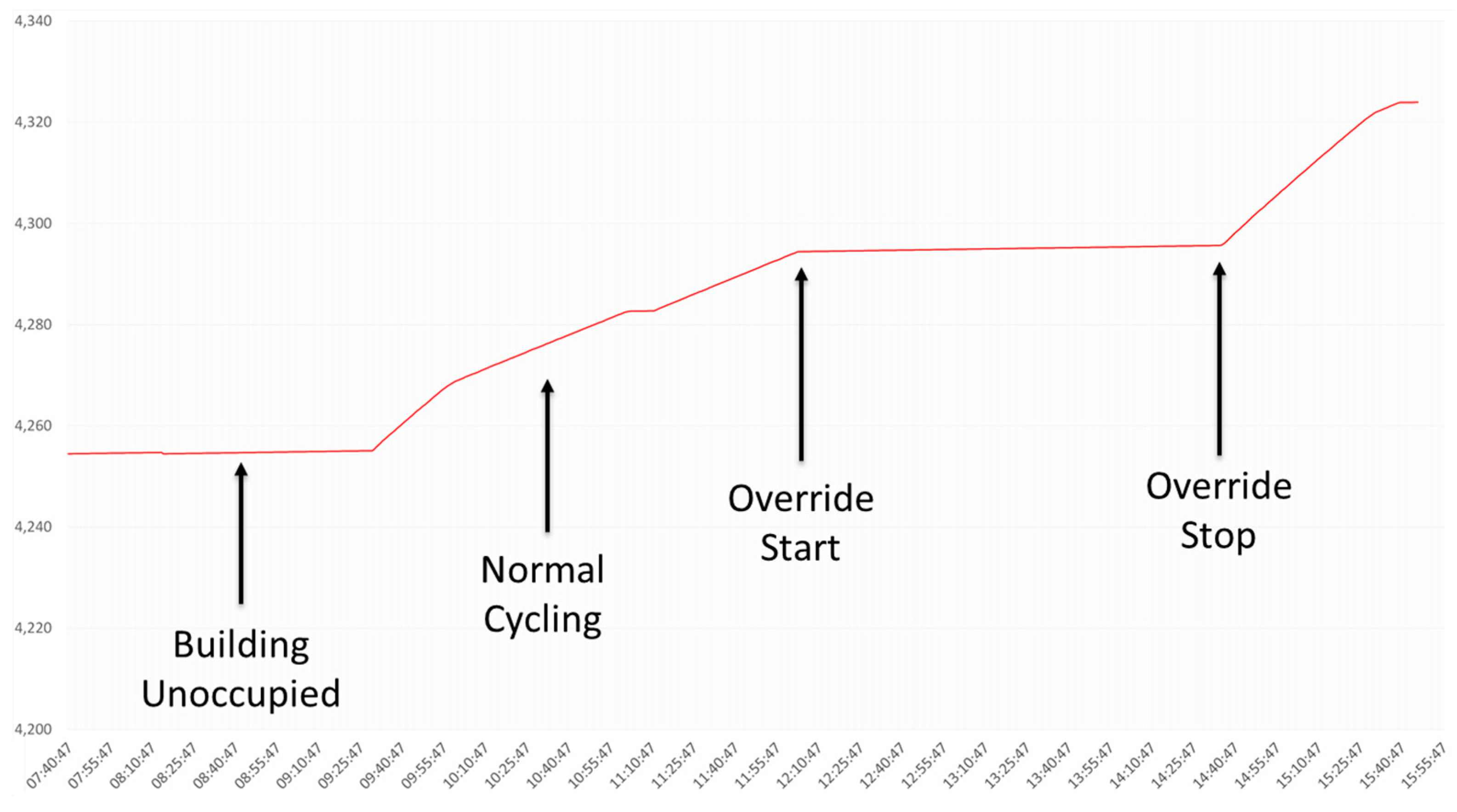

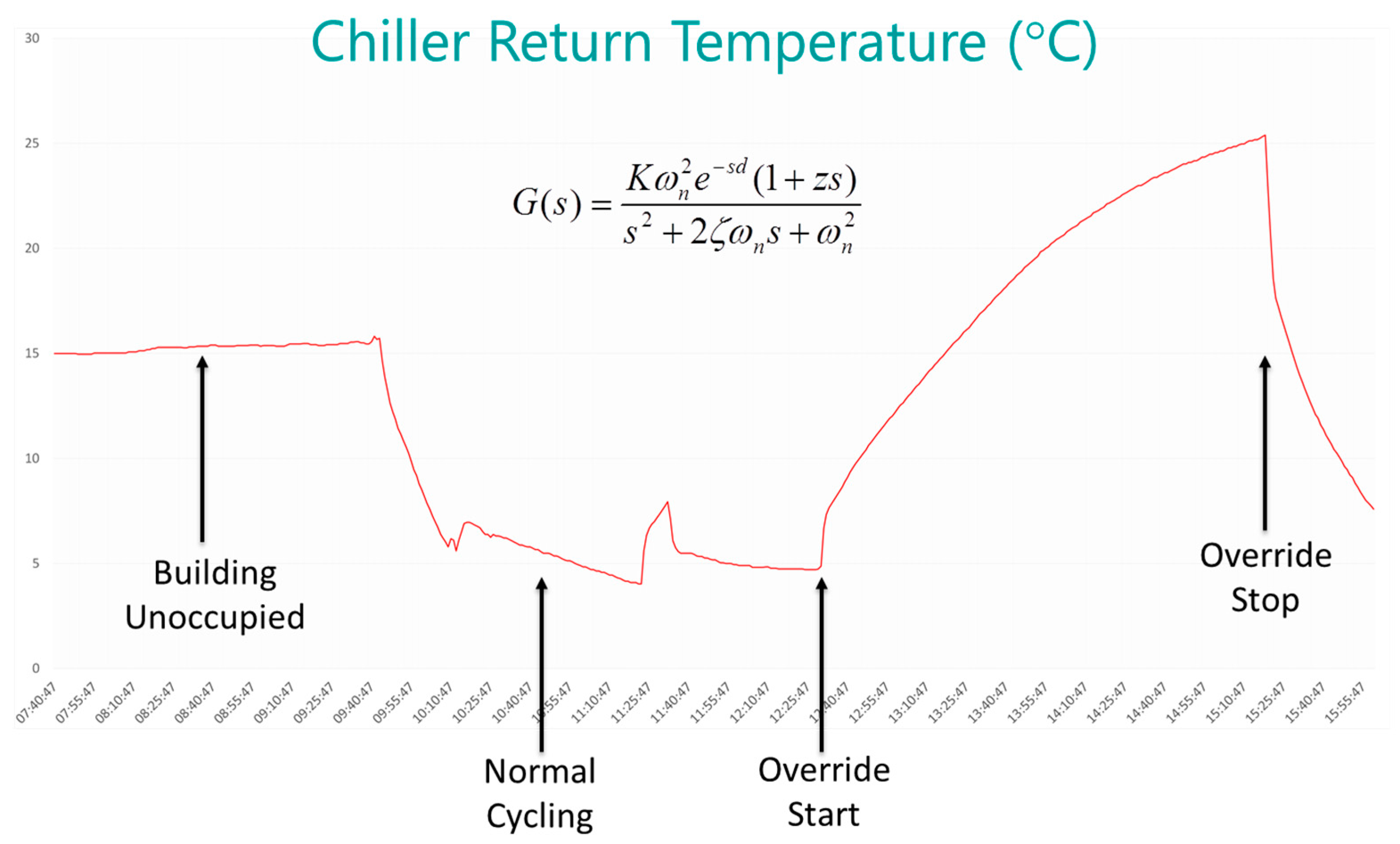

5. Case Study: DTRL-3 at UK Pilot Site
6. Discussion and Conclusions
Conflicts of Interest
- Taylor, J.A.; Dhople, S.V.; Callaway, D.S. Power systems without fuel. Renew. Sustain. Energy Rev. 2016, 57, 1322–1336. Available online: https://doi.org/10.1016/j.rser.2015.12.083 (accessed on 4 December 2017). [CrossRef]
- U.S. Department of Energy (DOE). Benefits of Demand Response in Electricity Markets and Recommendations for Achieving Them; A report to the United States Congress Pursuant to Section 1252 of the Energy Policy Act of 2005; U.S. Department of Energy (DOE): Washington, DC, USA, 2006. Available online: http://skycup.mcsp.net/Documents/Report_on_Demand_Response_2006.pdf (accessed on 25 April 2017).
- Liu, Z.; Wierman, A.; Chen, Y.; Razon, B.; Chen, N. Data center demand response: Avoiding the coincident peak via workload shifting and local generation. Perform. Eval. 2013, 70, 770–791. Available online: http://dx.doi.org/10.1016/j.peva.2013.08.014 (accessed on 26 April 2017). [CrossRef]
- Short, M.; Crosbie, T.; Dawood, M.; Dawood, N. Load forecasting and dispatch optimisation for decentralised co-generation plant with dual energy storage. Appl. Energy 2016, 186, 304–320. Available online: http://www.sciencedirect.com/science/article/pii/S0306261916305049 (accessed on 26 April 2017). [CrossRef]
- Energy and Climate Change Intelligence Unit. Overpowered: Has the UK Paid Over the Odds for Energy Security? Energy and Climate Change Intelligence Unit: London, UK, 2017; Available online: http://eciu.net/assets/ECIU_Overpowered.pdf (accessed on 26 April 2017).
- Zhao, P.; Henze, G.P.; Brandemuehl, M.J.; Cushing, V.J.; Plamp, S. Dynamic frequency regulation resources of commercial buildings through combined building system resources using a supervisory control methodology. Energy Build. 2016, 86, 137–150. Available online: https://doi.org/10.1016/j.enbuild.2014.09.078 (accessed on 4 December 2017). [CrossRef]
- Maa, L.; Liua, N.; Wangc, L.; Zhanga, J.; Leid, J.; Zenge, Z.; Wanga, C. Multi-party energy management for smart building cluster with PV systems using automatic demand response. Energy Build. 2016, 121, 11–21. [Google Scholar] [CrossRef]
- Crosbie, T.; Short, M.; Dawood, M.; Charlesworth, R. Demand response in blocks of buildings: Opportunities and requirements. Entrep. Sustain. Issues 2017, 4, 271–281. Available online: http://hdl.handle.net/10149/620589 (accessed on 26 July 2017). [CrossRef]
- Crosbie, T.; Vukovic, V.; Short, M.; Dawood, N.N.; Charlesworth, R.; Brodrick, P. Future demand response services for blocks of buildings. In Smart Grid Inspired Future Technologies, Proceedings of the First International Conference, SmartGIFT, Liverpool, UK, 19–20 May 2016; Hu, J., Leung, V.C.M., Yang, K., Zhang, Y., Gao, J., Yang, S., Eds.; Revised Selected Papers from the First International Conference, SmartGIFT; Springer: Berlin, Germany, 2016; Available online: http://hdl.handle.net/10149/620591 (accessed on 4 December 2017).
- Shi, Q.; Li, F.; Hu, Q.; Wang, Z. Dynamic demand control for system frequency regulation: Concept review, algorithm comparison, and future vision. Electr. Power Syst. Res. 2018, 154, 75–87. [Google Scholar] [CrossRef]
- Grünewald, P.; Torriti, J. Demand response from the non-domestic sector: Early UK experiences and future opportunities. Energy Policy 2013, 61, 423–429. Available online: http://www.sciencedirect.com/science/article/pii/S0301421513005363 (accessed on 4 December 2017). [CrossRef]
- Mankins, J.C. Technology readiness assessments: A retrospective. Acta Astronaut. 2009, 65, 1216–1223. Available online: http://doi.org/10.1016/j.actaastro.2009.03.058 (accessed on 26 April 2017). [CrossRef]
- Siemens. Siemens DRMS Demand Response Management System, version 2.0; 2013. Available online: http://w3.usa.siemens.com/smartgrid/us/en/demand-response/demand-response-management-system/Documents/DRMS_SellSheet_V2.pdf (accessed on 26 April 2017).
- IDEAS Project Deliverable D4.1: A Prototype Neighbourhood Energy Management Tool, 2015. Available online: http://www.ideasproject.eu/IDEAS_wordpress/wp-content/uploads/2015/09/IDEAS_D4.1_Synopsis.pdf (accessed on 26 April 2017).
- Verbeke, S.; Ma, Y.; Bogaert, S.; Van Tichelen, P. Support for Setting up a Smart Readiness Indicator for Buildings and Related Impact Assessment—Catalogue of Smart Ready Services Technical Working Document for Stakeholder Feedback. Study Accomplished under the Authority of the European Commission DG Energy; 2017/SEB/R/1610. 2017. Available online: https://smartreadinessindicator.eu/sites/smartreadinessindicator.eu/files/sri_for_buildings_stakeholder_meeting_170607_background_paper_final.pdf (accessed on 22 June 2017).
- SBA, Smart Building Alliance for Smart Cities June 2017 Manifesto. Available online: http://www.smartbuildingsalliance.org/catalog/ (accessed on 22 June 2017).
- Nice Côte d’Azur Chamber of Commerce and Industry. Recommendations for Buildings Smart Grids Ready: Guide for Project Owners 2016. Available online: http://www.cote-azur.cci.fr/content/download/34787/548226/version/1/file/Recommandations+pour+des+b%C3%A2timents+Smart+Grids+Ready_vdef.pdf (accessed on 22 June 2017). (In French).
- Keirstead, J.; Schulz, N.B. London and beyond: Taking a closer look at urban energy policy. Energy Policy 2010, 38, 4870–4879. Available online: http://www.sciencedirect.com/science/article/pii/S0301421509005400 (accessed on 30 August 2017). [CrossRef]
- Tan, Y.T.; Kirschen, D. Classification of Control for Demand-Side Participation 2017. Available online: http://www.ee.washington.edu/research/real/Library/Reports/Classification_of_Demand-Side_Controls.pdf (accessed on 4 December 2017).
- Greater London Authority. Sustainable Design and Construction. Supplementary Planning Guidance, 2014. Available online: https://www.london.gov.uk/sites/default/files/gla_migrate_files_destination/Sustainable%20Design%20%26%20Construction%20SPG.pdf (accessed on 26 August 2017).
- European Commission. Proposal for a Directive of the European Parliament and of the Council Amending Directive 2010/31/EU on the Energy Performance of Building, 2016. Available online: https://ec.europa.eu/energy/sites/ener/files/documents/1_en_act_part1_v10.pdf (accessed on 22 June 2017).
|Site & Building Use||Controllable Assets||Initial DRTRL||Implemented DRTRL|
|Teesside University, UK, Educational facilities, offices, catering & low rise residential||Chilled water system, fan coil units, electric vehicle (EV) charging stations, combined heat and power (CHP), backup generator & uninterruptible power supply (UPS)||1—Half hourly automated meters report to data server with one day delay. BMS with temperature sensors & assets accessible only over proprietary protocol.||3—Existing half hourly metering system upgraded to reduce latency to <15 min, BMS upgraded to enable direct control over standard (BACnet) protocol & data gathering from room temperature sensors.|
|Business Park, Anglet, France, Workshop, training centre, & offices||Microgrid, heat pumps, renewable energy systems (PV), electrical storage||1—Multiple metering systems & BMS within buildings. No metering of wood consumption. Open IP communication present but not configured.||3—Metering & BMS data export established & configured at high frequency (15 min). One additional meter required at carpentry workshop. Existing direct control hardware configured.|
|Fondazione Poliambulanza Hospital, Italy, healthcare & offices||Chilled water system, combined cooling, heat and power (CCHP), food carts, laptops||1—Metering system at building scale not asset scale. Low temporal resolution (daily). Sophisticated BMS with multiple assets & sensors.||2—Metering system upgraded to improve resolution to 15 min & reduce latency to <15 min. Hardware available for direct control but manual implementation at building manager’s request.|
|Technical University of Cluj-Napoca, Romania; Educational facilities, leisure, offices & high rise residential||Chilled water system, washing machines, swimming pool pumps||1—Isolated manual meters & control systems on assets.||2—Building Energy & Management System required to enable control over standard protocols & export of data at <15 min latency, 15 min resolution.|
