Experimental and Numerical Study on the Performance of Steel–Coarse Aggregate Reactive Powder Concrete Composite Beams with Uplift-Restricted and Slip-Permitted Connectors under Negative Bending Moment

Abstract

An innovative form of steel–concrete composite beam, the steel–coarse aggregate reactive powder concrete (CA-RPC) composite beam with uplift-restricted and slip-permitted (URSP) connectors, is introduced in this paper. The aim is to enhance the cracking resistance under negative bending moments, which is a difficult problem for traditional composite beams, and to make the cost lower than using ordinary reactive powder concrete (RPC). An experimental investigation of the behavior of six specimens of simply supported steel–CA-RPC composite beams with URSP connectors under negative bending moments is presented in this paper. The test results validated that the cracking load of steel–CA-RPC composite beams could be approximately three times that of the ordinary steel–concrete composite beams while the bearing capacity and stiffness are almost the same. A numerical model, using the concrete damaged plasticity (CDP) model to simulate the behavior of the CA-RPC material, was proposed and successfully calculated the overall load–displacement relationship of the composite beams with sufficient accuracy compared with the experimental results, and the distribution of cracks and the failure mode of the beams could also be captured by this model. Furthermore, a parametric analysis was carried out to find out how the application of prestress, CA-RPC, and URSP connectors could affect the cracking resistance of the composite beams, and the results indicated that using CA-RPC and prestress made the main contributions and that the usage of URSP could boost the effect of the other two factors. The plastic resistance moment of the beams was also compared with the calculation results using the methods introduced in Eurocode 4, and it was proved that the calculation results were lower than the experimental results by approximately 10%, which meant that the method was reliable for this kind of composite beam.

1. Introduction

Steel–concrete composite beams have been widely used in practice in the bridge industry due to their excellent mechanical properties, convenience of construction, and high economic efficiency [1].

Some existing studies have indicated that the cracking resistance of the ordinary type of steel–concrete composite beam under negative bending moments was insufficient [2,3,4]. In the research carried out by Su et al. [2], two specimens of steel–concrete composite box girder were tested under hogging moment, and the results indicated that the cracking load of the two beams were only 11.0% and 13.4% of their load-carrying capacity relatively. An experiment of a total of nine simply supported composite beams under negative bending moments was reported by Jiang et al. [3], and the results indicated that for every tested specimen, the first crack occurred at approximately 10–15% of failure load during the loading process. According to the study of Xu et al. [4], for the two specimens of ordinary steel–concrete composite tested under negative moment with ultimate loads of 143.7 kN and 161.0 kN, their cracking loads were only 21.1 kN and 26.0 kN, respectively. The ratios were, respectively, 14.7% and 16.1%. Therefore, under negative bending moments, the ordinary concrete slab of the composite beams is vulnerable to cracking due to high tensile stress in the concrete slab, which leads to a decline in the durability of the structure [5].

Increased thickness of the concrete slab and enhanced reinforcement are applied as ordinary measures to control the width of cracks within a safe threshold. However, these methods usually result in a sharp rise in the self-weight of the structure and construction cost, which may be unacceptable for engineering practice and obstruct the mass application of composite structures.

In order to improve the cracking resistance of steel–concrete composite beam, several alternative methods have been proposed, such as using ultra-high-performance concrete (UHPC) to increase the tensile strength of the concrete slab [4,6,7,8], applying prestress in the negative bending moment zone [9,10], and improving the connectors, which can reduce the tensile stress of the concrete slab [11,12,13,14,15].

This paper introduced an innovative form of steel–concrete composite beam, named the steel–coarse aggregate reactive powder concrete (CA-RPC) composite beam with uplifting-restricted slip-permitted (URSP) connectors, containing two leading-edge components, CA-PRC [16], and URSP connectors [11], which was expected to have high cracking-resisting performance under hogging moment combined with the application of prestress.

CA-RPC is a kind of high-performance concrete with a high modulus of elasticity, high cracking strength, low total shrinkage, and low creep [16,17]. Unlike ordinary RPC, which requires steam curing to achieve high performance [18], CA-RPC can obtain excellent material performance through conventional curing. Due to the addition of coarse aggregate components, its cost of manufacture is greatly reduced, and shrinkage is easier to control, which makes it suitable for large-scale application in the bridge industry [19].

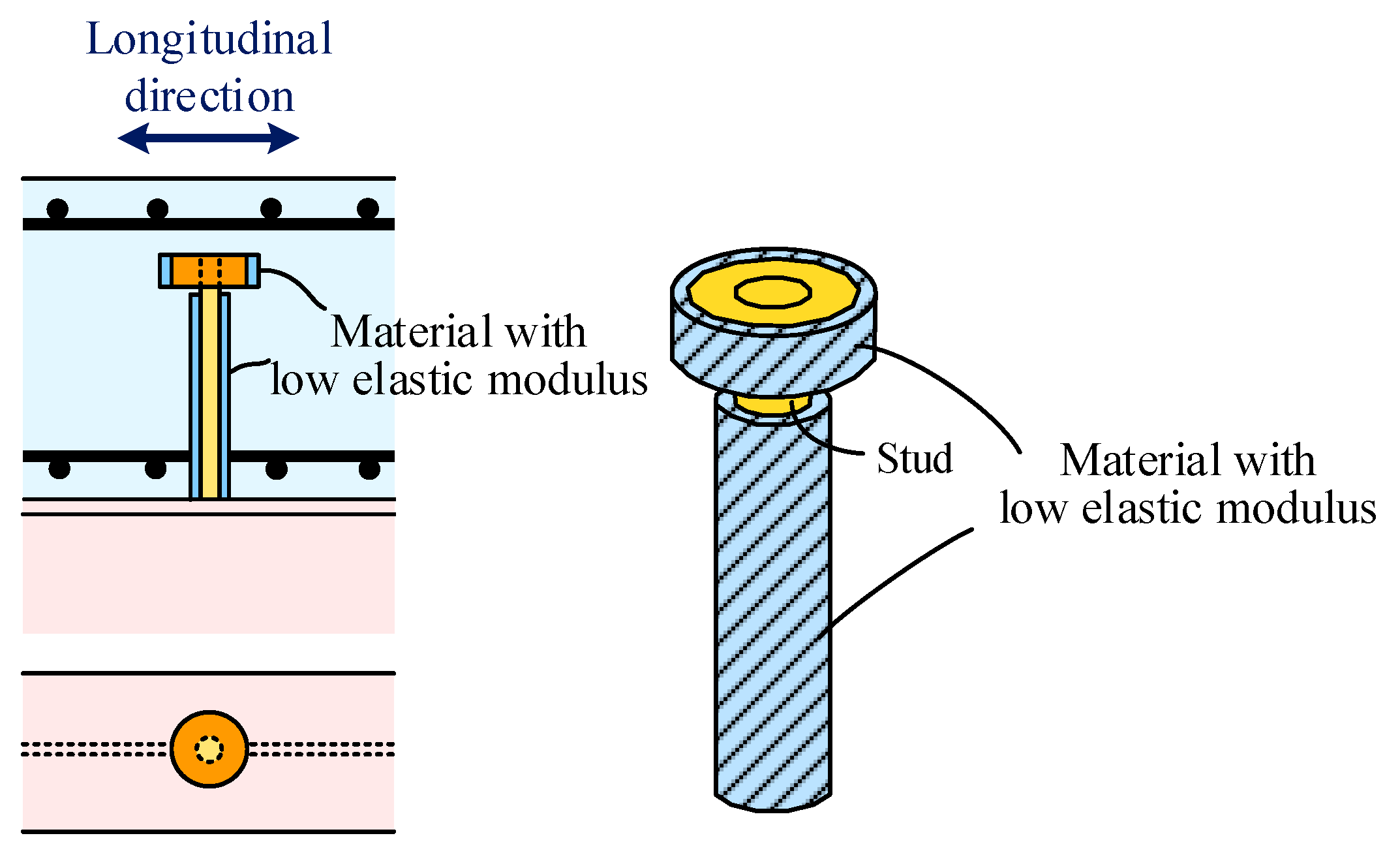

The concept of URSP connectors is to eliminate the shear resistance of the connectors while maintaining the uplift resistance, which allows the steel–concrete interface to slide freely without separation [10]. URSP connectors facilitate the release of tensile stress in the concrete slab so that its crack resistance can be greatly enhanced. The scheme of this type of connector is shown in Figure 1. Compared to ordinary studs, the material and installation methods are almost the same. The distinctive feature of URSP connectors is that they are wrapped with a material with a low elastic modulus, which can help release shear-resistant effects in any direction [12].

Figure 1. URSP connectors.

The purpose of this study is to investigate the overall mechanical performance of steel–CA-RPC composite beams with URSP connectors, as well as the crack resistance of the CA-RPC slab and the slip performance between steel and CA-RPC. Furthermore, corresponding modeling and calculation methods are proposed as a guideline for the design of this kind of composite beam in order to support actual engineering applications.

2. Experimental Program

2.1. Test Setup

The specimens designed for this experiment were all simply supported beams under negative bending moments. The loading device for the experiment is shown in Figure 2. A self-balancing frame and a 500-ton jack were selected, with one end using a roller support and the other using a triangular support to ensure that the specimens were simply supported. To prevent stress concentration in certain parts of the steel beam during upward loading, stiffeners were set at the loading point and the position of support.

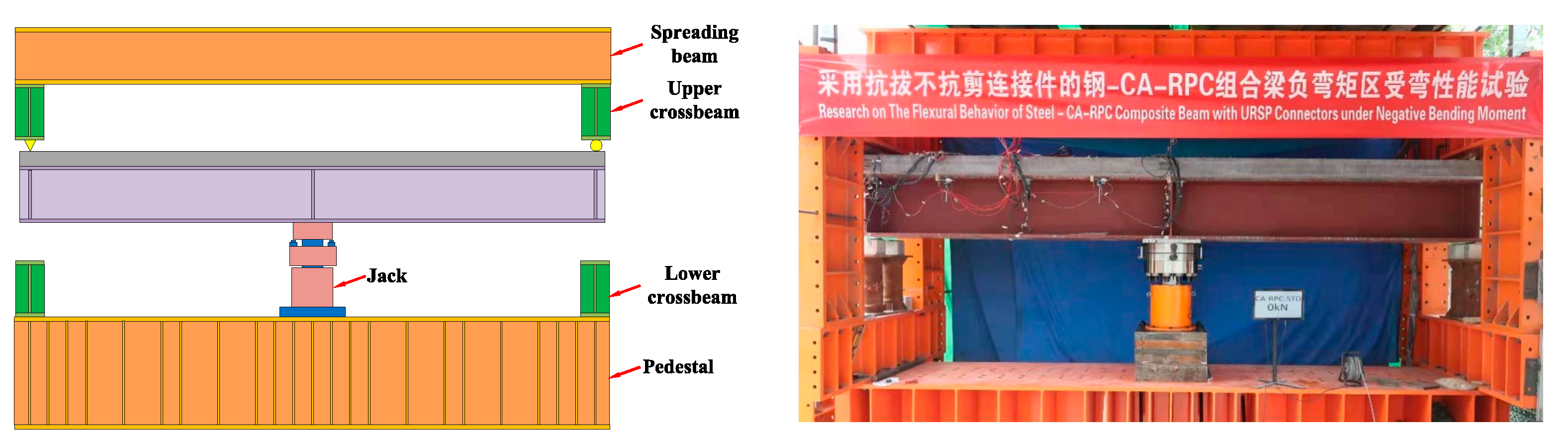

Figure 2. Test setup.

The loading process was divided into several stages, and the loading speed was controlled to prevent the specimens from brittle failure. In the early stages, loading was controlled by force, with each interval set at 50 kN. When the load reached 1/6 of the anticipated ultimate load (3000 kN), the load interval was adjusted to 100 kN. Crack-monitoring devices were used to measure the development of cracks during loading. Once a significant turning point in the load–deflection curve was observed, which meant the structure had entered the elastoplastic stage, loading was performed through displacement control until the structure failed.

2.2. Specimens and Materials

A total of 6 sets of steel–CA-RPC composite beams were designed, named CA-RPC-STD, CA-RPC-SR, CA-RPC-NPS, CA-RPC-NNS, CA-RPC-ER, and C50-NPS. All specimens were single-span simply supported beams.

The details of all specimens are listed in Table 1. In the CA-RPC-SR specimen, ordinary studs with a diameter of 22 mm were used in the whole area of the interface between steel and concrete. In the CA-RPC-ER specimen, URSP connectors were welded in the central area of the interface, and M22 bolt connectors were set at the edge. The C50-NPS, CA-RPC-NNS, CA-RPC-NPS, and CA-RPC-STD specimens used URSP connectors throughout the full length of the interface. The main dimensions of the steel beams and the concrete flanges were kept consistent in all specimens, shown in Figure 3. Figure 4 displayed the process of the constructions of the specimens.

Table 1. Details of the specimens.

Specimens	Type of Concrete	Prestress (kN)	Type of Connectors
CA-RPC-STD	CA-RPC	900	URSP
CA-RPC-NNS	CA-RPC	900	URSP, eliminating interfacial bonding
CA-RPC-NPS	CA-RPC	0	URSP
CA-RPC-ER	CA-RPC	0	URSP in the center, ordinary studs at the edges
CA-RPC-SR	CA-RPC	900	Ordinary studs
C50-NPS	C50	0	URSP

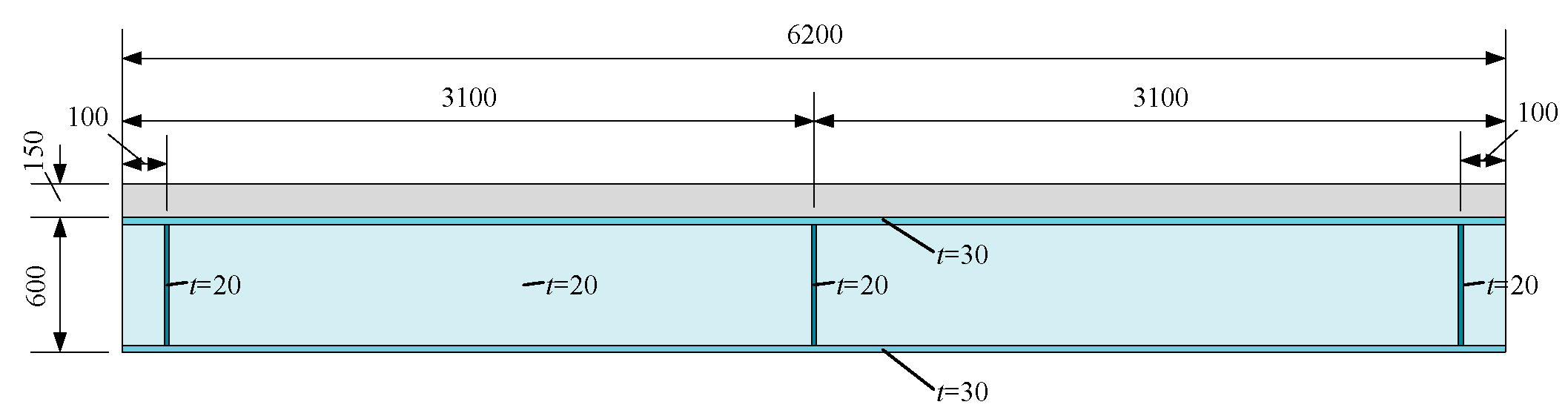

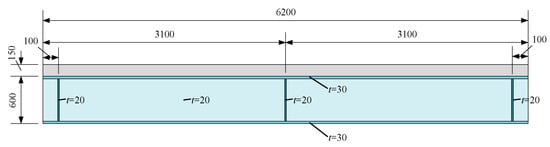

Figure 3. Standard specimen.

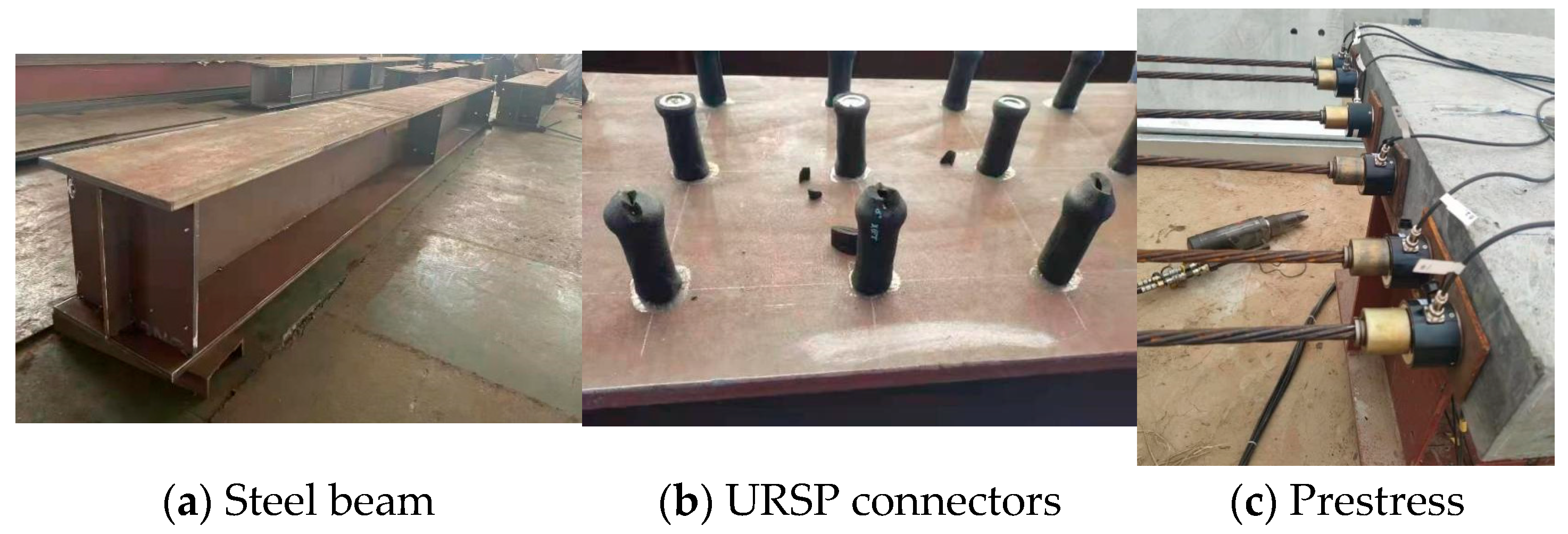

Figure 4. Construction procedure of the specimens.

The design purposes of the specimens with different parameters were as follows:

(1)

The standard specimen CA-RPC-STD used a CA-RPC slab and applied a post-tensioning prestress of 900 kN with URSP connectors. The aim of the design was to observe the ultimate flexural capacity, flexural stiffness, relative slip between steel and concrete, and crack development in the concrete flange under negative bending moments. This specimen served as the standard for comparison with the other ones.

(2)

The specimen CA-RPC-SR used conventional studs at the interface between the steel beam and the concrete slab, while the other parameters were the same as the standard specimen. By comparing this specimen with CA-RPC-STD, the effect of URSP connectors on the mechanical performance of the beam was expected to be found.

(3)

The specimen CA-RPC-NPS removed the prestress, while the other parameters were the same as the standard specimen. By comparing this specimen with CA-RPC-STD, the effect of prestress on the mechanical performance of the beam was expected to be found.

(4)

In the specimen CA-RPC-NNS, a plastic film was set at the interface between the steel beam and the concrete slab to eliminate the bonding of the two materials, while the other parts were the same as the standard specimen. By comparing this specimen with CA-RPC-STD, the effect of bonding at the interface on the mechanical performance of the beam was expected to be found.

(5)

The specimen CA-RPC-ER also removed the prestress, and conventional studs were set at both ends of the beam instead of a part of URSP connectors. The only difference between this specimen and CA-RPC-NPS was that conventional bolt connectors were set at both ends of the beam instead of a part of URSP connectors in order to find out whether the URSP connector could still work well when the slip was restricted at both ends of the beam, which is an ordinary condition for continuous beams.

The specimen C50-NPS used ordinary C50 concrete slabs without prestress, which was to be compared with CA-RPC-NPS to find out how CA-RPC affected the performance of the composite beam.

The steel beams of each specimen were constructed by Q355. During the fabrication of the steel beams, specimens used for material property testing were retained. The results of the material property tests are presented in Table 2.

Table 2. Results of the material property tests of steel.

No.	Position	Thickness (mm)	Width (mm)	Cross-Sectional Area (mm2)	Yield Load F (kN)	Yield Strength fy (MPa)	Ultimate Load Fu (kN)	Ultimate Strength fu (MPa)
1	Flange	30	20	600	190.8	318.1	281.7	469.5
2	Flange	30	20	600	227.6	379.3	314.3	523.9
3	Flange	30	20	600	231.9	386.5	313.8	523.0
Average value					216.8	361.3	303.3	505.5
4	Web	20	20	400	166.1	415.2	215.5	538.7
5	Web	20	20	400	169.3	423.2	220.7	551.8
6	Web	20	20	400	169.5	423.9	217.9	544.8
Average value					168.3	420.8	218.0	545.1

In all specimens, the type of both the longitudinal and transverse rebars were HRB400 with a diameter of 10 mm and a spacing of 100 mm. In the material property tests of rebar, the strain was measured by an extensometer. The results are presented in Table 3.

Table 3. Results of the material property tests of rebar.

Diameter (mm)	Type	No.	Yield Strength fy (MPa)	Ultimate Strength fu (MPa)	fu/fy
10	HRB400	1	414	594	1.44
		2	427	606	1.42
		3	417	598	1.44
		4	422	601	1.42
		5	423	606	1.43
		6	416	601	1.44
Average value			420	601	1.43

The CA-RPC material utilized in the experiment exhibited high strength; hence, cubic specimens with a side length of 100 mm were selected for the material property tests. The results for each group of concrete specimens are listed in Table 4.

Table 4. Results of the material property tests of CA-RPC.

Type	Compressive Strength Fcu (MPa)			Average Value of Compressive Strength fcu,m (MPa)	Tensile Strength fts (MPa)			Average Value of Tensile Strength fts,m (MPa)
CA-RPC	129.9	138.1	131.8	134.8	8.2	9.1	9.0	8.8
	143.0	139.6	126.4		8.9	8.8	8.7

2.3. Measurement Device

In this experiment, all specimens were subjected to static loading. The data required to be measured and recorded during the test primarily fell into three categories: force, displacement, and strain. These three types of data were measured, respectively, by load cells, displacement meters, and strain gauges. The arrangement of the measurement points was led by the following rules, as shown in Figure 5:

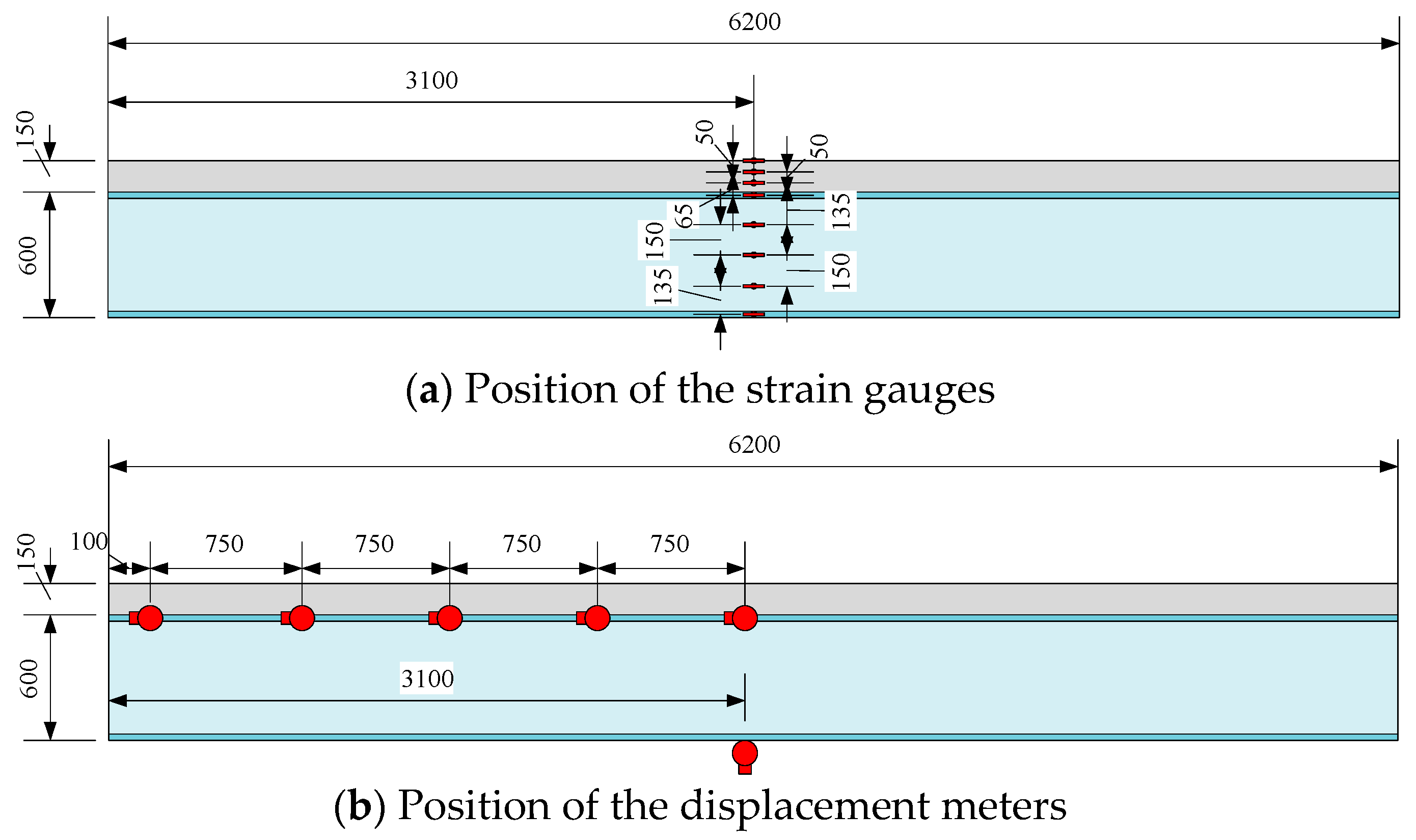

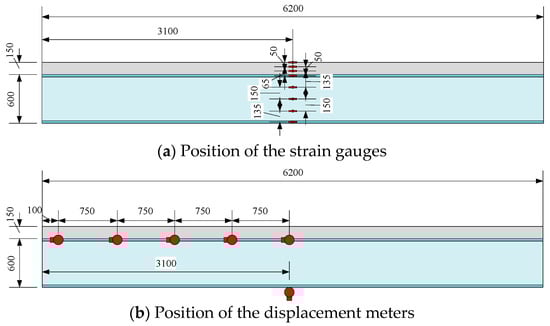

Figure 5. Arrangement of the measurement points.

(1)

A cross-section at the point of the maximum bending moment was selected to set the strain gauges. Additionally, a load cell was installed on the jack in order to monitor the magnitude of the applied load in real time.

(2)

A displacement meter was installed at the mid-span of the specimen to measure the deflection.

(3)

Several displacement meters were installed at the interface between the steel beam and the concrete slab along the longitudinal direction of the beam to measure the relative slip distribution.

3. Experimental Results

The phenomenon observed in the experiment of the various simply supported composite beam specimens under negative bending moments was relatively similar and could be divided into the following four stages: (1) elastic stage, at which the concrete slab surface exhibited no or only a few subtle cracks, and the load–displacement relationship was approximately linear; (2) yield stage, at which cracks began to develop significantly, and the load–displacement curve began to bend; (3) reaching the ultimate bearing capacity, the stage at which the specimen underwent significant deformation; and (4) buckling of the steel plates, the stage at which the reinforcement fractured and the bearing capacity gradually decreased.

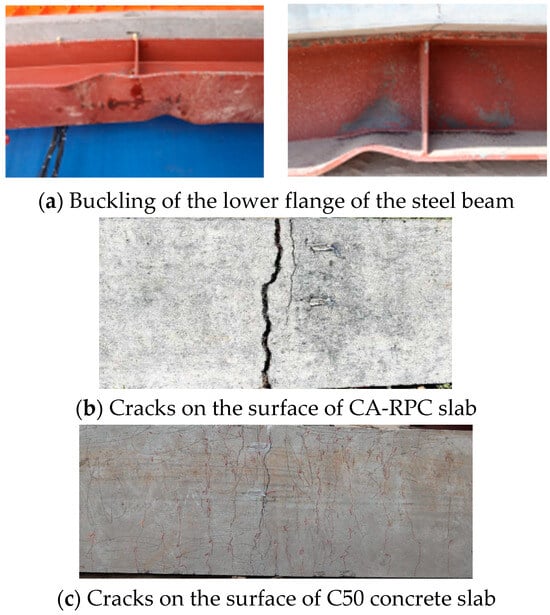

When the specimens completely failed, the web and the lower flange of the steel beam at the mid-span exhibited significant local buckling, while notable separation from the concrete slab could be demonstrated at the interface of the upper flange of the steel beam and the concrete slab, as shown in Figure 6a,b. There was only a single critical crack that appeared on the surfaces of the CA-RPC slab at the mid-span location with a relatively large width, whereas cracks on the surface of the C50 slab were uniformly distributed with a certain interval within the central 1/2 span, as depicted in Figure 6c and Figure 6d, respectively.

Figure 6. Failure mode.

3.1. Force–Displacement Curves

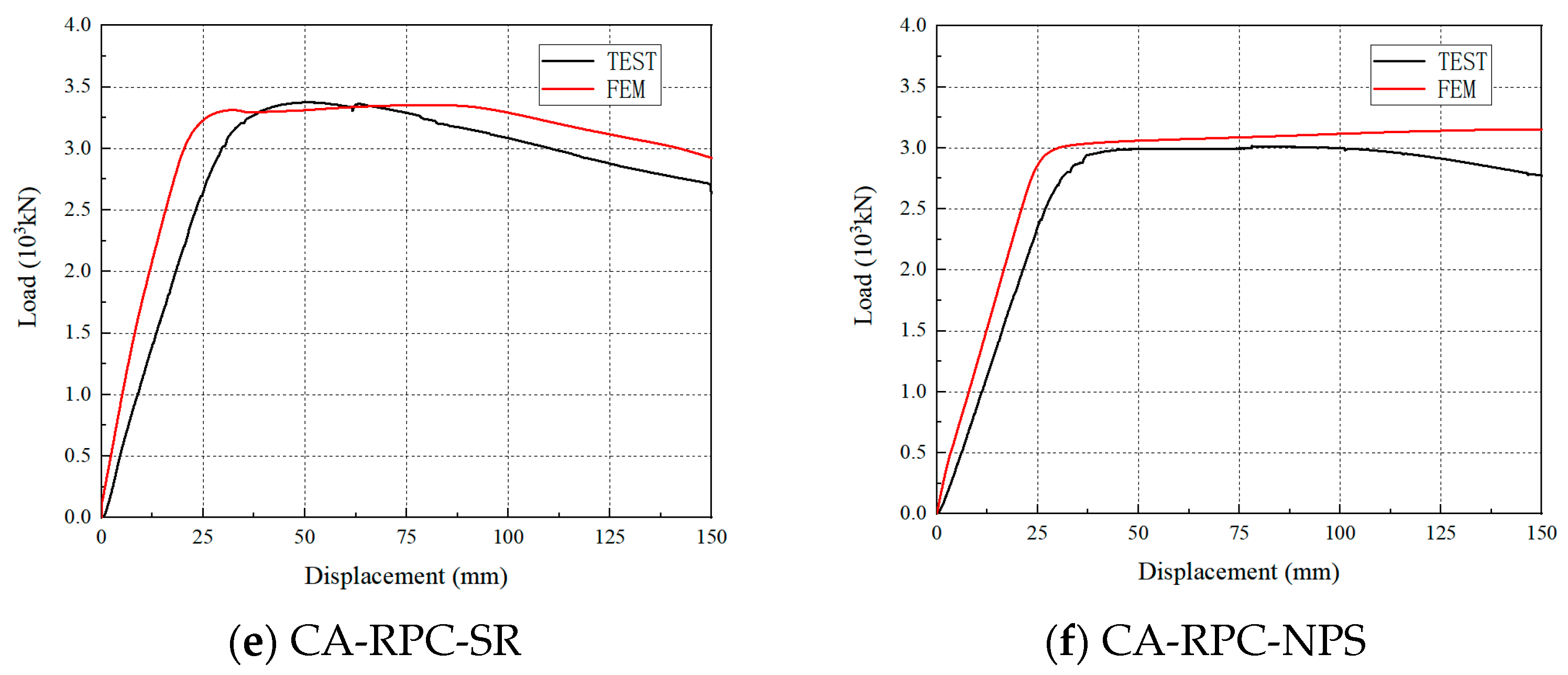

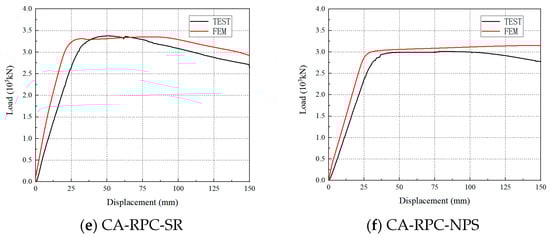

The load–displacement curves of the six specimens are shown in Figure 7 and share the following common characteristics:

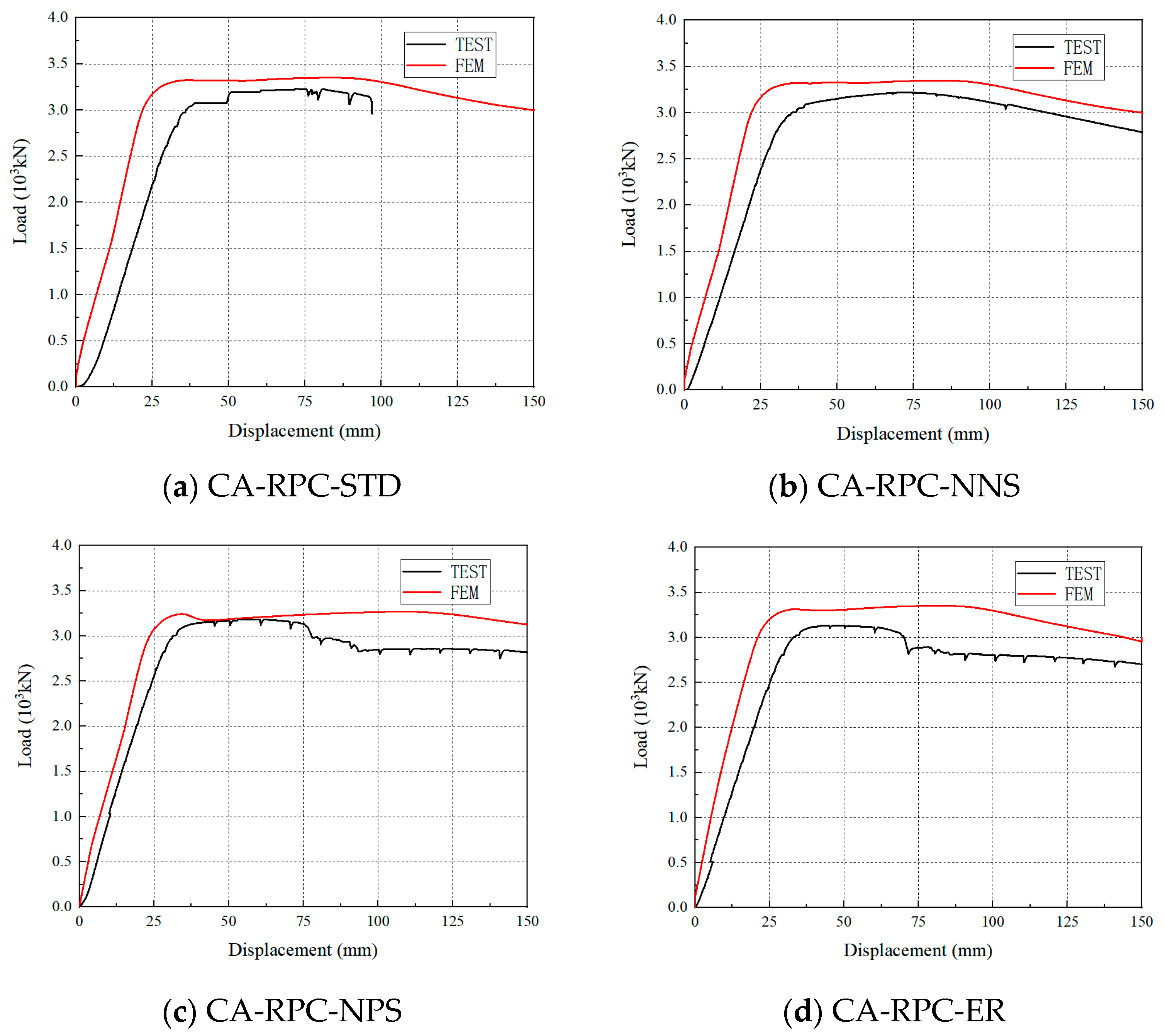

Figure 7. Force–displacement curves.

(1)

Elastic stage. The corresponding load of this stage is approximately 0 to 0.85 P_u. The load–displacement curve is approximately linear, and the overall stiffness remains essentially constant in this stage.

(2)

Elastoplastic stage. The corresponding load of this stage is approximately 0.85 to 1.0 P_u. After reaching the yield load (approximately 0.85 P_u), the overall stiffness of the specimen rapidly decreases to nearly zero, and the load–displacement curve enters a plastic plateau. The longitudinal tensile reinforcement and the lower flange of the steel beam yield almost at the same time.

(3)

Stage of load-bearing capacity decrease. Once the load reaches the ultimate load-bearing capacity P_u, the lower flange of the steel beam undergoes buckling. Subsequently, the load begins to decrease with a low slope, which means that the specimen demonstrates good ductility.

The key data measured during the loading process are presented in Table 5, and the meaning the parameters were provided in Figure 8. The yield load was represented by the measured load corresponding to the occurrence of yield strain of the lower flange of the steel beam.

Table 5. Key data of the experiment.

Name of the Specimen	Fcr (kN)	Fy (kN)	Pu (kN)	Pu/Fcr	Pu/Fy	wy (mm)	wu (mm)	wu/wy
C50-NPS	210.32	2750	3015	6.0	1.10	49.2	163.4	3.24
CA-RPC-ER	388.22	2546	3132	2.6	1.23	67.0	152.1	2.27
CA-RPC-NNS	838.62	2824	3219	1.1	1.14	40.2	160.1	3.98
CA-RPC-NPS	456.52	2652	3183	2.0	1.20	57.3	160.1	2.79
CA-RPC-SR	627.87	3127	3377	5.6	1.08	58.9	150.3	2.55
CA-RPC-STD	799.54	2485	3230	1.5	1.30	32.1	98.0	3.05

Note: F_cr = cracking load; F_y = yield load; P_u = ultimate load-bearing capacity; w_y = deflection corresponding to F_y; w_u = deflection corresponding to P_u.

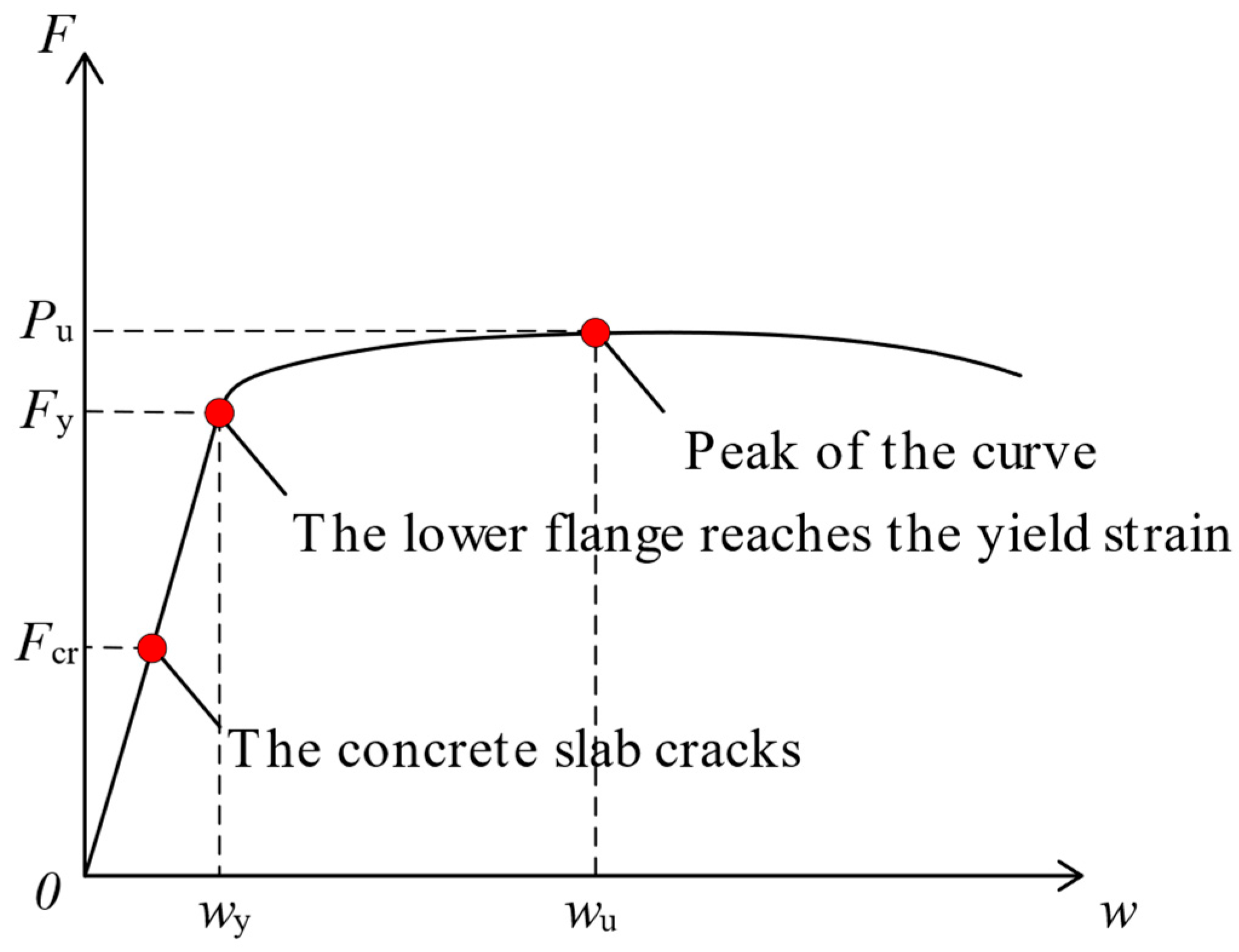

Figure 8. Definition of key parameter of force–displacement.

The comparison between CA-RPC-STD and CA-RPC-SR reveals that the use of URSP connectors results in a slight decrease of 4.5% of the ultimate load-bearing capacity yet increases the cracking load by 27.3%, which demonstrates the effect of the URSP connectors in improving the crack resistance.

Comparing CA-RPC-STD and CA-RPC-NPS, it can be indicated that the application of prestress has no significant impact on the load-bearing capacity of the component, since there was only a difference of 1.4% of P_u, but it does significantly enhance the cracking load by 75%.

The difference between CA-RPC-NPS and C50-NPS demonstrates that the use of CA-RPC, compared to ordinary concrete, significantly increases the cracking load by 280%, while the effects on the specimen’s load-bearing capacity can be ignored.

The contrast between CA-RPC-NNS and CA-RPC-STD implies that eliminating interfacial bonding can only slightly improve the specimen’s cracking resistance by 4.9% while having almost no impact on the stiffness and load-bearing capacity. Therefore, it can be indicated that the effect of interfacial bonding can be ignored in the process of design and calculation.

The comparison between CA-PRC-NPS and CA-RPC-ER shows that constraints at the ends of the negative moment zone, which is a common condition in continuous beams, lead to a decrease in the cracking load by 15%.

Comprehensively, the application of CA-RPC, URSP connectors, and prestress can make great contributions to the cracking resistance of the composite beam up to 298%, while the ultimate load-bearing capacity only slightly fluctuates within a range of ±8%. And every specimen has good ductility since w_u/w_y is larger than 2.

3.2. Cracking Patterns

Figure 9 depicts the distribution of cracks in the test specimens. When reaching the ultimate load, the specimen constructed with CA-RPC slabs exhibited a single critical crack in the mid-span, which was relatively wide, with few cracks observed in other areas. In contrast, the specimen constructed with ordinary C50 concrete slab displayed uniformly distributed cracks within a 1/4 span on either side of the mid-span, with a low average width.

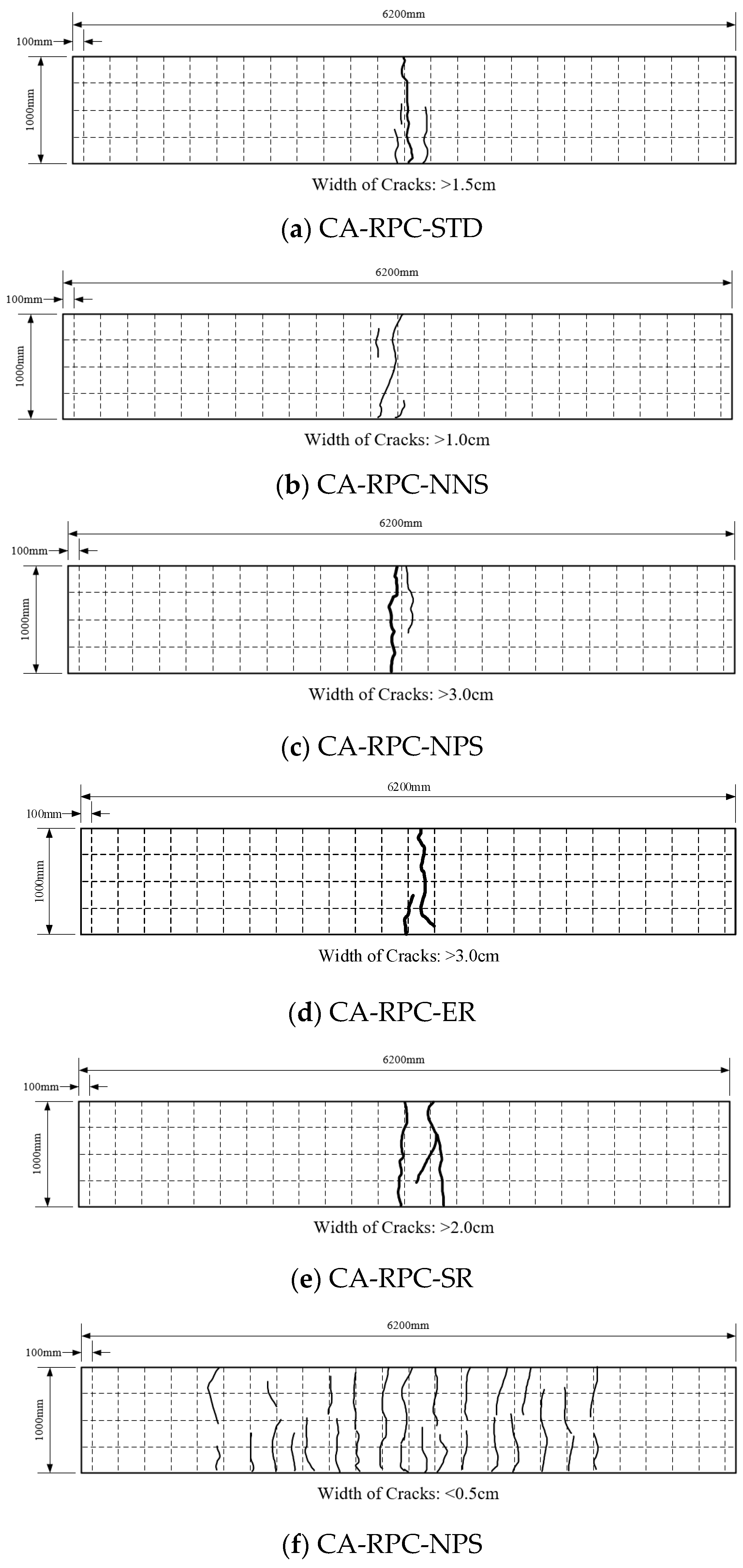

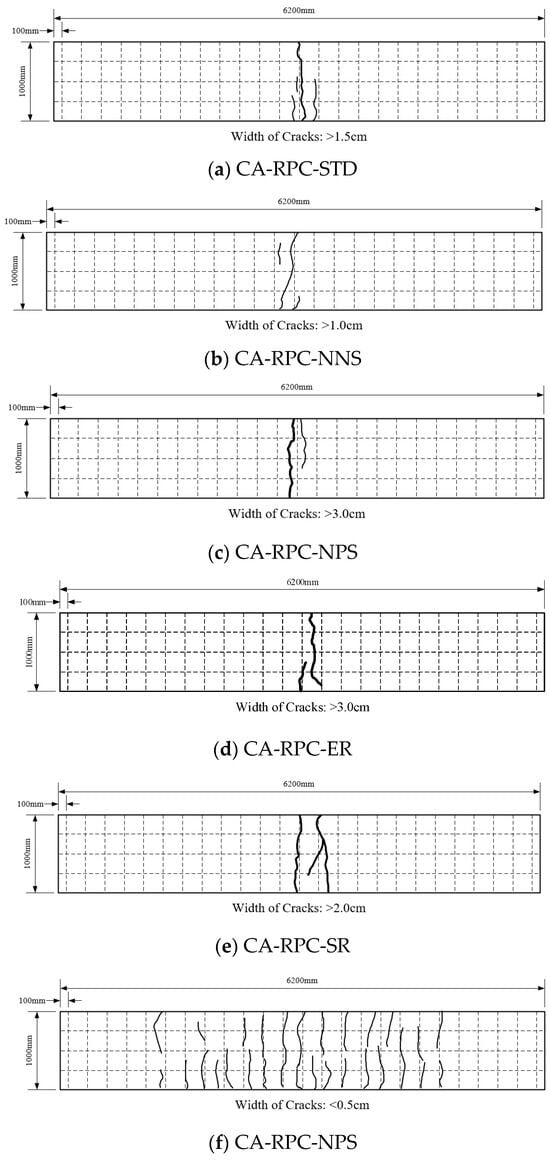

Figure 9. Distribution of cracks.

3.3. Strain of the Mid-Span Section

The strain distribution along the cross-section of each specimen at the mid-span under different load levels is shown in Figure 10. It can be observed that for specimens utilizing URSP connectors (CA-RPC-STD; CA-RPC-NPS; CA-RPC-NNS; and CA-RPC-ER), the distribution of strain did not conform to the plane section assumption. The CA-RPC slab and steel beam rotated along their respective neutral axes, which, to some extent, reduced the tensile strain at the top of the concrete. For specimens using ordinary connectors (CA-RPC-SR), the plane section assumption was followed under lower loads (0.25 P_u). However, as loading progressed, rapid crack development led to damage to the strain gauge set on the surface of the concrete slab, resulting in a lack of corresponding strain data. For ordinary concrete specimen C50-NPS, due to the same reason, concrete strain data are missing after the load grew to 0.5 P_u. The comparison between CA-RPC-STD and CA-RPC-NPS indicates that the addition of prestress has no significant impact on the strain distribution trend during the loading process.

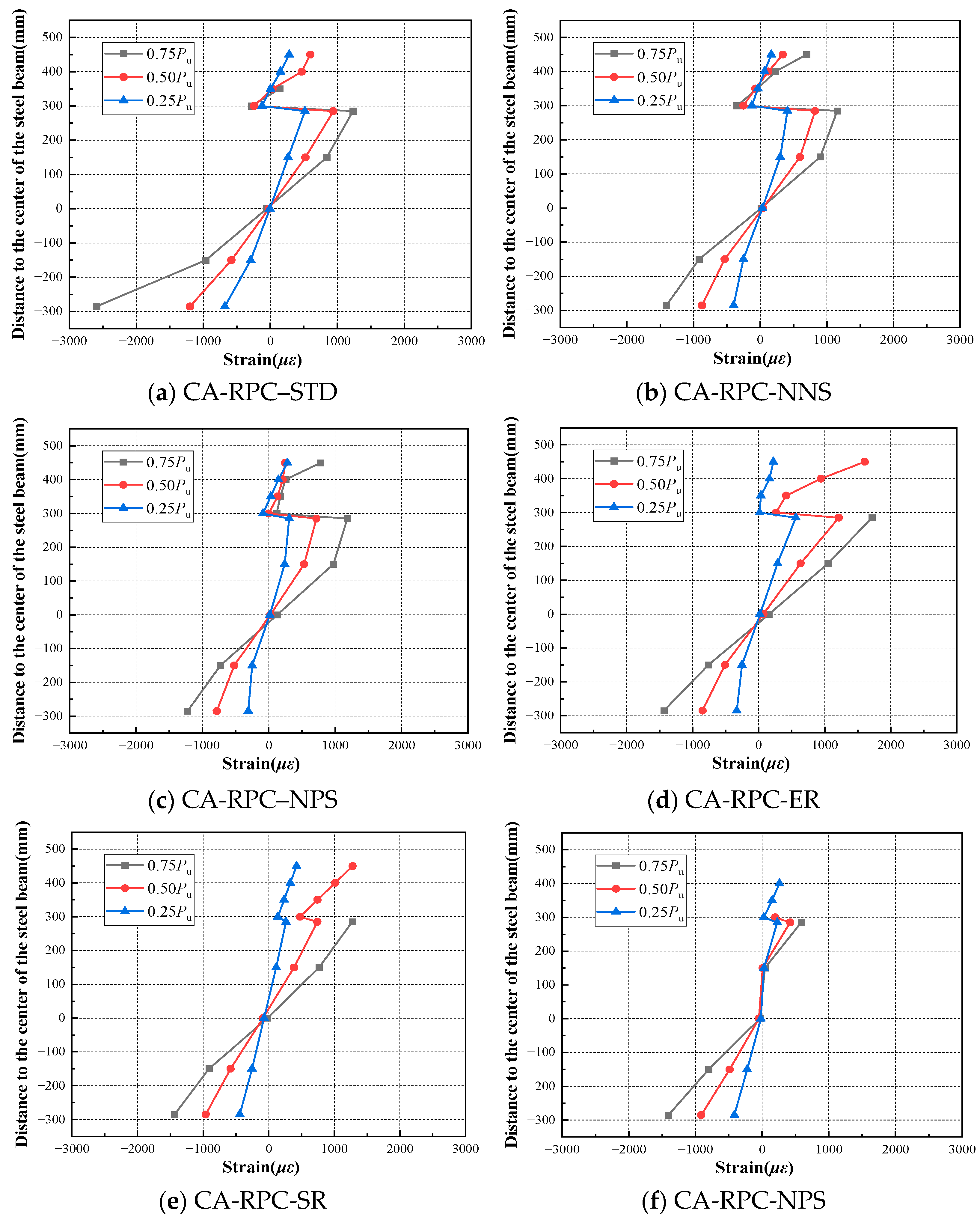

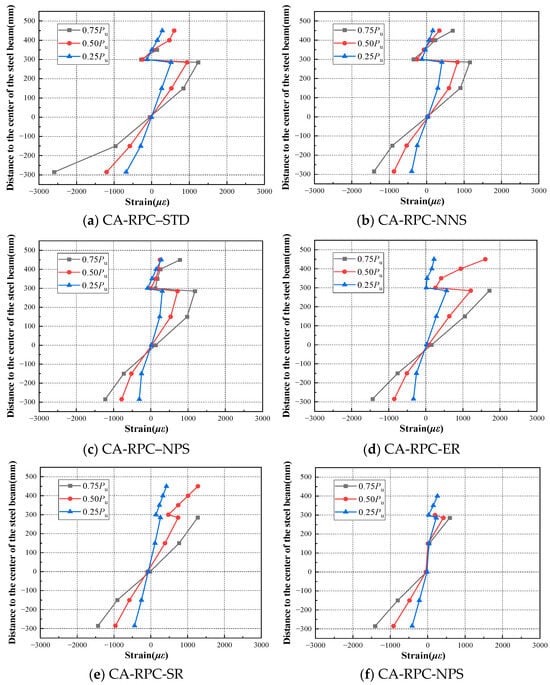

Figure 10. Strain distribution of the mid-span section.

3.4. Slip at the Steel–Concrete Interface

The distributions of slip at the steel–concrete interface along the beam length under various load levels for each specimen are illustrated in Figure 11. It can be observed that for specimens utilizing URSP connectors (CA-RPC-STD; CA-RPC-NPS; CA-RPC-NNS; CA-RPC-ER; and C50-NPS), the horizontal restraint at the interface was effectively released. During the loading process, the slip at the interface increased by an order of magnitude compared to the specimen using ordinary stud connectors (CA-RPC-SR). The comparison between CA-RPC-ER and CA-RPC-STD reveals that end constraints can significantly reduce the slip near the restricted locations. Similarly, comparing CA-RPC-NNS with CA-RPC-STD, it is indicated that eliminating the interfacial bonding can further amplify the slip effect. Furthermore, the contrast between C50-NPS and CA-RPC-NPS demonstrates that the material type of the concrete slab does not significantly affect the interfacial slip.

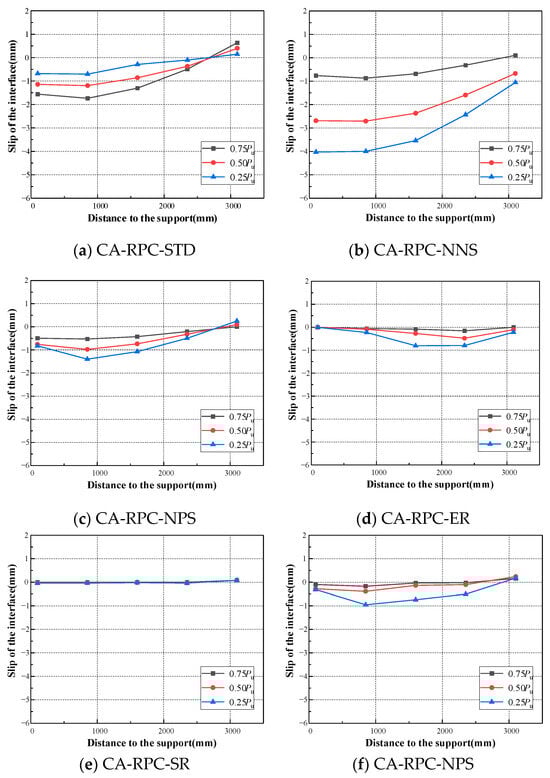

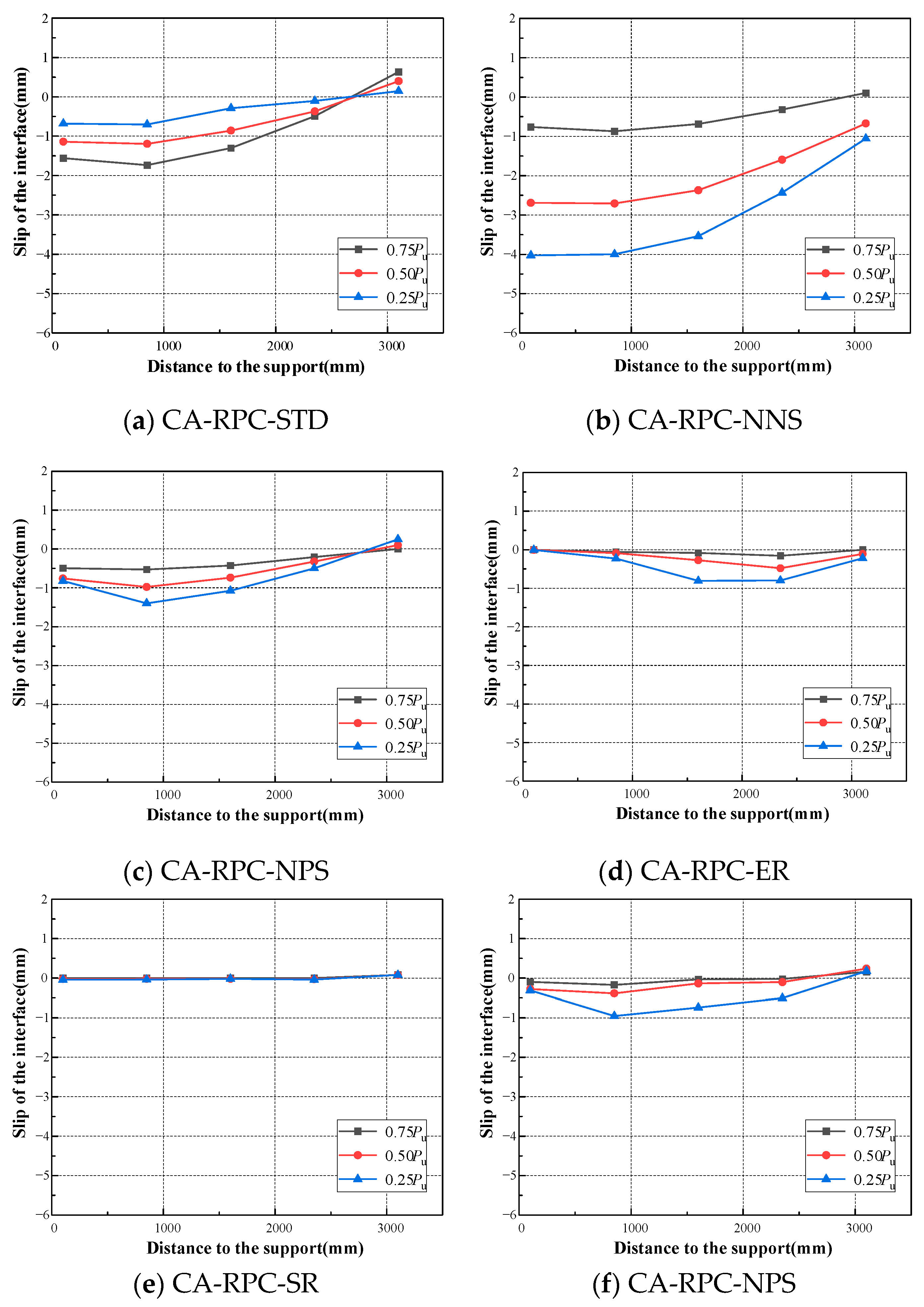

Figure 11. Distribution of slip at the interface between steel and concrete.

4. Numerical Model

Based on the experimental results, the composite beam was modeled in the general-purpose finite element analysis software Abaqus/CAE 2020. The model contained four primary materials: concrete (CA-RPC or C50), steel, regular rebar, and prestressed tendon.

The concrete slab was established by solid elements (shown in Figure 12a), while the longitudinal and transverse steel reinforcement meshes were represented by truss elements, which were embedded in the concrete elements (shown in Figure 12b).

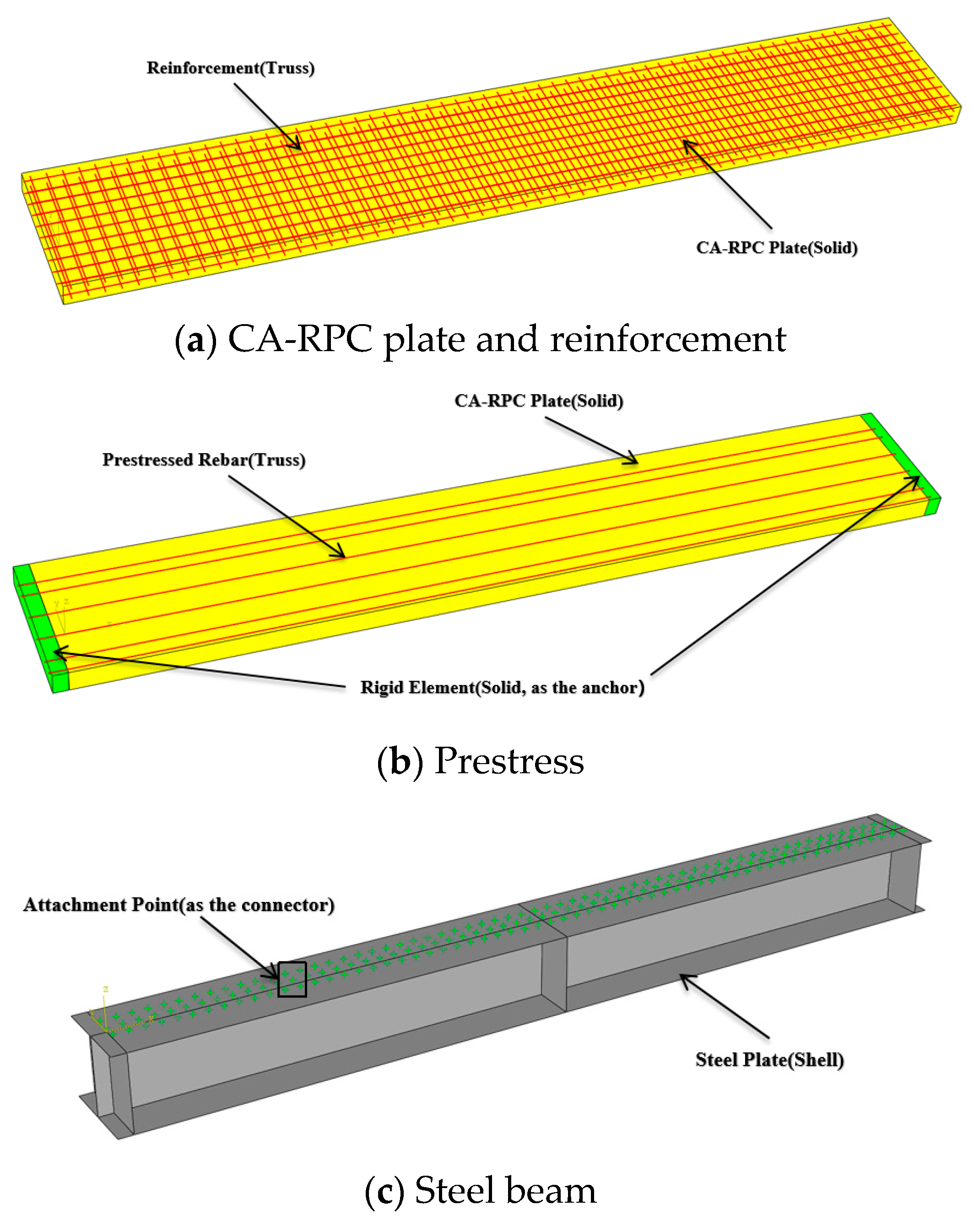

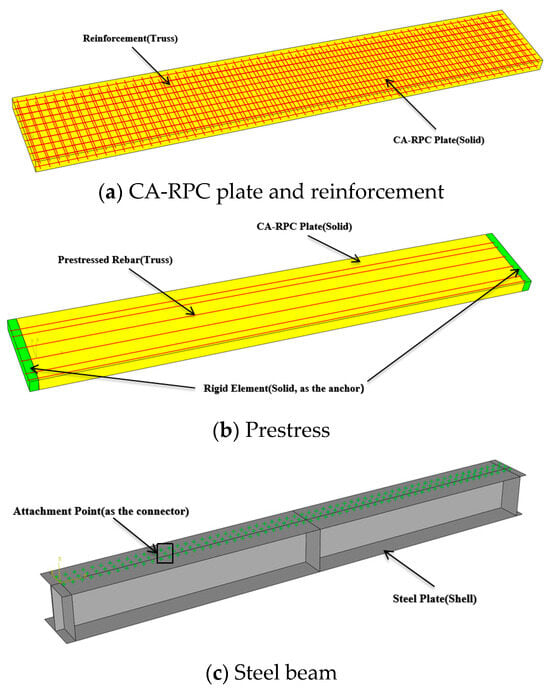

Figure 12. Numerical model.

To build the steel beam, plate elements were utilized (shown in Figure 12c), with the upper and lower flanges, the web, and the stiffeners modeled according to actual dimensions and locations. Attachment points were added on the top surface of the steel beam based on the actual arrangement of connectors, and fastener constraints were set up, defining their influence radius as the radius of the ordinary studs or URSP connectors, which was 11 mm. Furthermore, in order to simplify the calculation, based on the main stress characteristics of the connectors in the tests, the three rotational degrees of freedom of the fastener constraint were fixed, while the translational degrees of freedom were set to slot type, only allowing displacement in the longitudinal direction of the beam. The vertical direction represented the separation between the concrete slab and the steel beam, and constraining its degrees of freedom could achieve the “uplift restricted” effect.

The prestressed tendons were represented by truss elements and embedded in the rigid solid elements established at both ends of the concrete slab (simulating the prestress anchors). The prestress is simulated by applying initial tensile stress to the prestressed tendon elements.

4.1. Material Models

The CA-RPC material was simulated using the Concrete Plastic Damage (CDP) model [20,21,22], and the key parameters required was listed in Table 6. Based on existing research, the uniaxial compression stress–strain curve for CA-RPC (as shown in Figure 13a) could be determined by Equations (1) and (2) [23,24], for which the peak compressive stress f₀ was determined by material property tests. The elastic modulus E was taken as 44 GPa. The steel fiber volume fraction V_f was 2.5%, and the ultimate compressive stress σ_u was 15.48 + 7.61V_f. The ultimate compressive strain, ε_u, was 0.035.

$$\begin{gathered} \sigma =f_0\left[{\displaystyle \frac{\beta \left(\frac{\epsilon }{{\epsilon }_0}\right)}{\beta -1+{\left(\frac{\epsilon }{{\epsilon }_0}\right)}^{\beta }}}\right]. \\ \beta ={\displaystyle \frac{1}{1-\frac{f_0}{{\epsilon }_{0}E}}}. \end{gathered}$$

(1)

where f₀ represents the peak compressive stress; ε₀ represents the peak compressive strain; and E represents the elastic modulus of CA-RPC.

$$\sigma =\left\{\begin{array}{l}m(\epsilon -{\epsilon }_0)+f_0({\epsilon }_0<\epsilon <{\epsilon }_{\mathrm{ip}})\\ n(\epsilon -{\epsilon }_{\mathrm{ip}})+{\sigma }_{\mathrm{ip}}({\epsilon }_{\mathrm{ip}}<\epsilon <{\epsilon }_u)\end{array}\right..$$

(2)

where σ_ip represents the stress corresponding to the turning point of the softening segment; ε_ip represents the strain corresponding to the turning point of the softening segment; ε_u represents the ultimate compressive strain; and m and n represent the slopes of the corresponding linear descent stage.

Table 6. Parameters of material in CDP model.

Parameters	Value
Dilation Angle	30°
Eccentricity	0.1
fb0/fc0	1.05
Kc	2/3
Viscosity Parameter	0.0001
Poisson’s Ratio	0.2

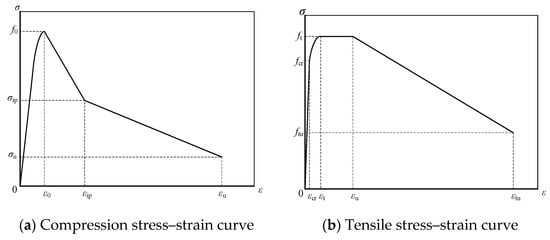

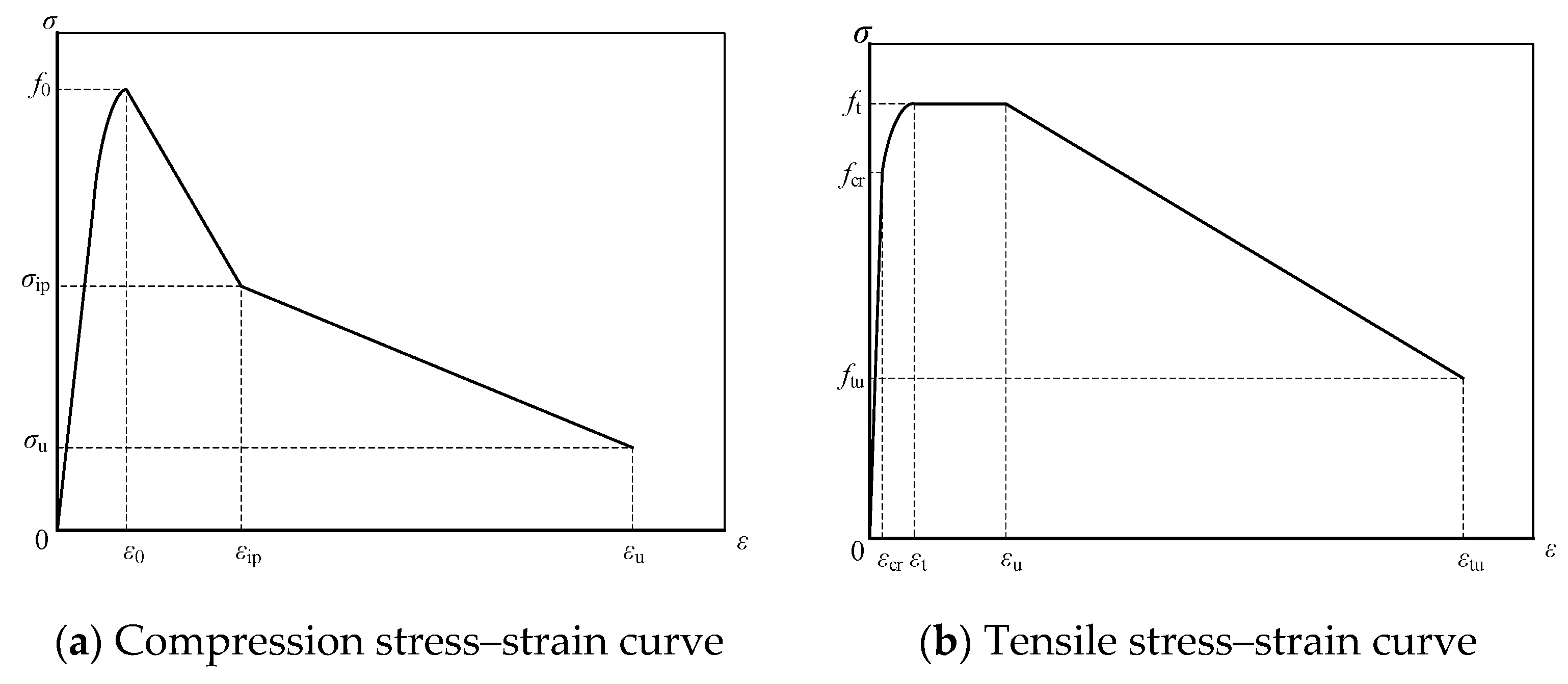

Figure 13. Stress–-strain curve of CA-RPC.

The uniaxial tensile stress–strain curve (as shown in Figure 13b) could be determined by Equation (3) [25], for which the peak tensile stress f_t was determined by material property tests. ε_cr was the crack strain, which was set as 2 × 10⁻⁴, and ε_t was the peak tensile strain, whose value equaled to 6.4ε_cr. ε_u was the tensile strain corresponding to the start of the softening segment, taken as 25ε_cr. f_um and ε_um were the residual tensile stress and ultimate tensile strain, respectively, with f_um = 0.34f_t and ε_um = 2 × 10⁻².

$$\sigma =\left\{\begin{array}{l}E\epsilon (0<\epsilon <{\epsilon }_{\mathrm{cr}})\\ f_t-{\displaystyle \frac{f_t-f_{\mathrm{cr}}}{({\epsilon }_t-{\epsilon }_{\mathrm{cr}}{)}^2}}(\epsilon -{\epsilon }_t{)}^2({\epsilon }_{\mathrm{cr}}<\epsilon <{\epsilon }_t)\\ f_t({\epsilon }_t<\epsilon <{\epsilon }_u)\\ f_t{\displaystyle \frac{{\epsilon }_{\mathrm{um}}-\epsilon }{{\epsilon }_{\mathrm{um}}-{\epsilon }_u}}+f_{\mathrm{um}}{\displaystyle \frac{\epsilon -{\epsilon }_u}{{\epsilon }_{\mathrm{um}}-{\epsilon }_u}}({\epsilon }_u<\epsilon <{\epsilon }_{\mathrm{um}})\end{array}\right..$$

(3)

where ε_cr represents the crack strain; f_cr represents the initial crack tensile stress related to ε_cr; f_t represents the peak tensile stress; ε_t represents the peak tensile strain; ε_u represents the tensile strain corresponding to the start of the softening segment; f_um represents the residual tensile stress; and ε_um represents the ultimate tensile strain.

The constitutive law of steel and rebar can be found in Figure 14. The yield stress of steel or rebar, denoted as f_y, was measured through the material property tests. The elastic modulus E_s was taken as 200 GPa, and the yield strain ε_y was calculated as f_y/E_s. Taking into account material hardening, the hardening segment adopted a quadratic parabolic form, with the strain at the peak set at k₂ε_y (k₂ = 120) and the stress at k₃f_y (k₃ = 1.2).

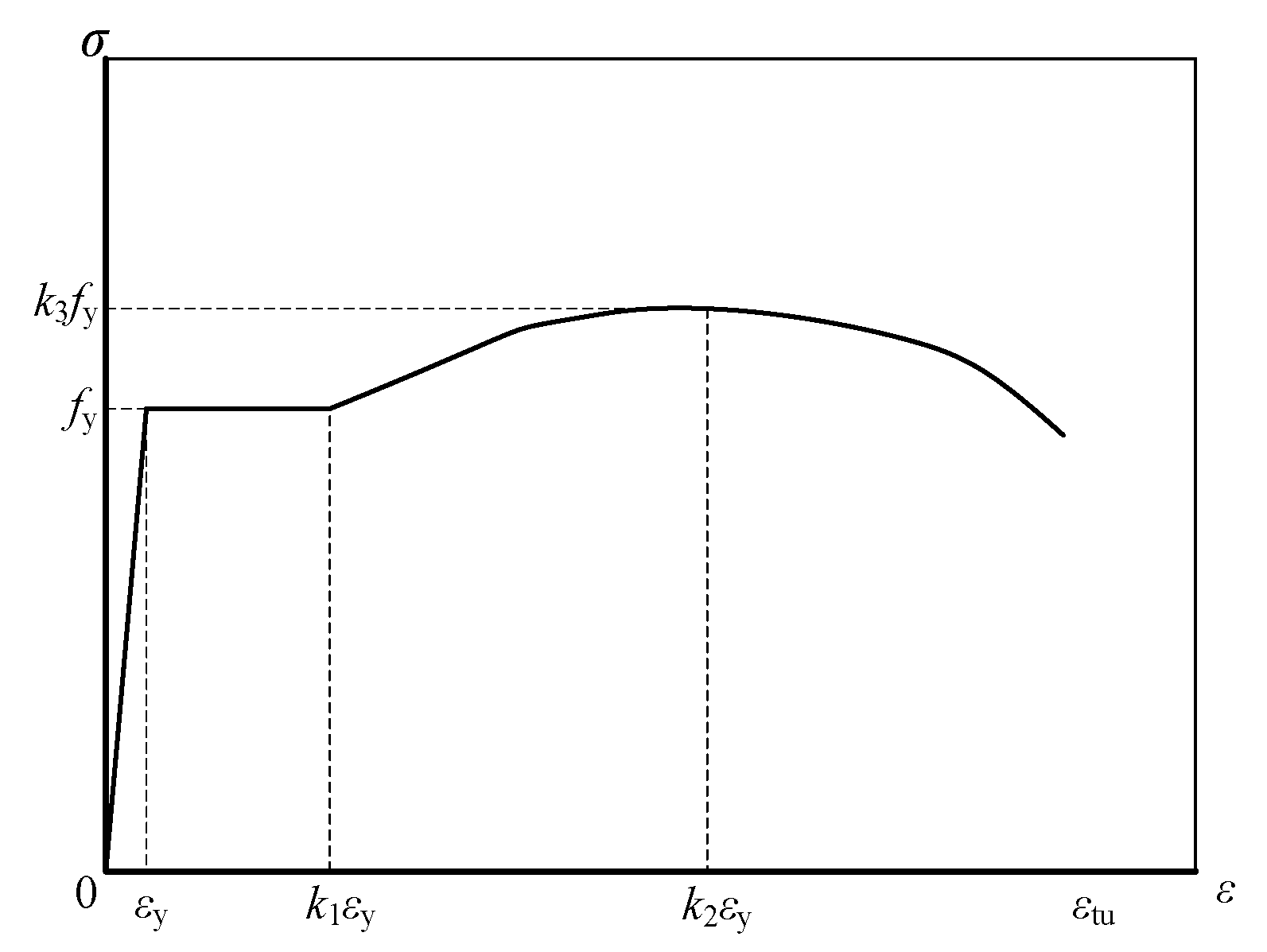

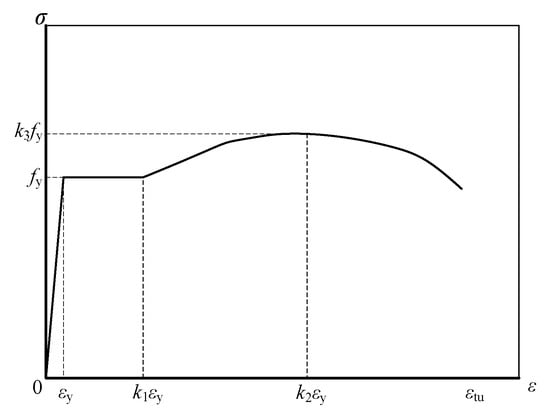

Figure 14. Stress–strain curve of steel (or rebar).

URSP connectors or ordinary studs were simulated by slot-type fastener constraints, allowing relative displacement along the interface in accordance with a preset shear–slip curve, as illustrated in Figure 15. The curve was determined by Equation (4) [26,27], while contact was employed for the remaining areas [28] in order to prevent the concrete slab and the upper flange of the steel beam from interference in the vertical direction, which might result in a mistake of displacement and transmission of force. The contact was defined as rigid face-to-face contact with finite sliding.

$$\begin{gathered} V=\left\{\begin{array}{cc}\delta k_0& \delta \le {\delta }_0\\ {\delta }_0{k}_0& {\delta }_0<\delta \le {\displaystyle \frac{t_s}{3}}\\ {\delta }_0{k}_0+V_u{\left[1-e^{-\left(\delta -{\displaystyle \frac{t_s}{3}}\right)}\right]}^{0.558}\le V_u& {\displaystyle \frac{t_s}{3}}<\delta \le {\delta }_u\\ V_u\left[1-{\displaystyle \frac{\delta -{\delta }_u}{20\left({\delta }_f-{\delta }_u\right)}}\right]& {\delta }_u<\delta <{\delta }_f\end{array}\right. \\ {V}_u=0.43A_s\sqrt{E_c{f}_c}\le 0.7A_s\gamma f \\ {\displaystyle \frac{{\delta }_u}{d_s}}=0.41-0.0030f_c+{\displaystyle \frac{t_s}{3d_s}} \\ {\displaystyle \frac{{\delta }_f}{d_s}}=0.45-0.0021f_c+{\displaystyle \frac{t_s}{3d_s}} \end{gathered}$$

(4)

where δ₀ represents the maximum slip restrained by the interfacial bonding effect; k₀ represents the stiffness of the interfacial bonding effect; V_u represents the ultimate shear capacity of the stud; t_s represents the thickness of the material with a low elastic modulus; δ_u represents the slip corresponding to V_u; δ_f represents the ultimate slip; d_s represents the diameter of the stud; A_s represents the section area of the stud; and f represents the yield stress of the stud.

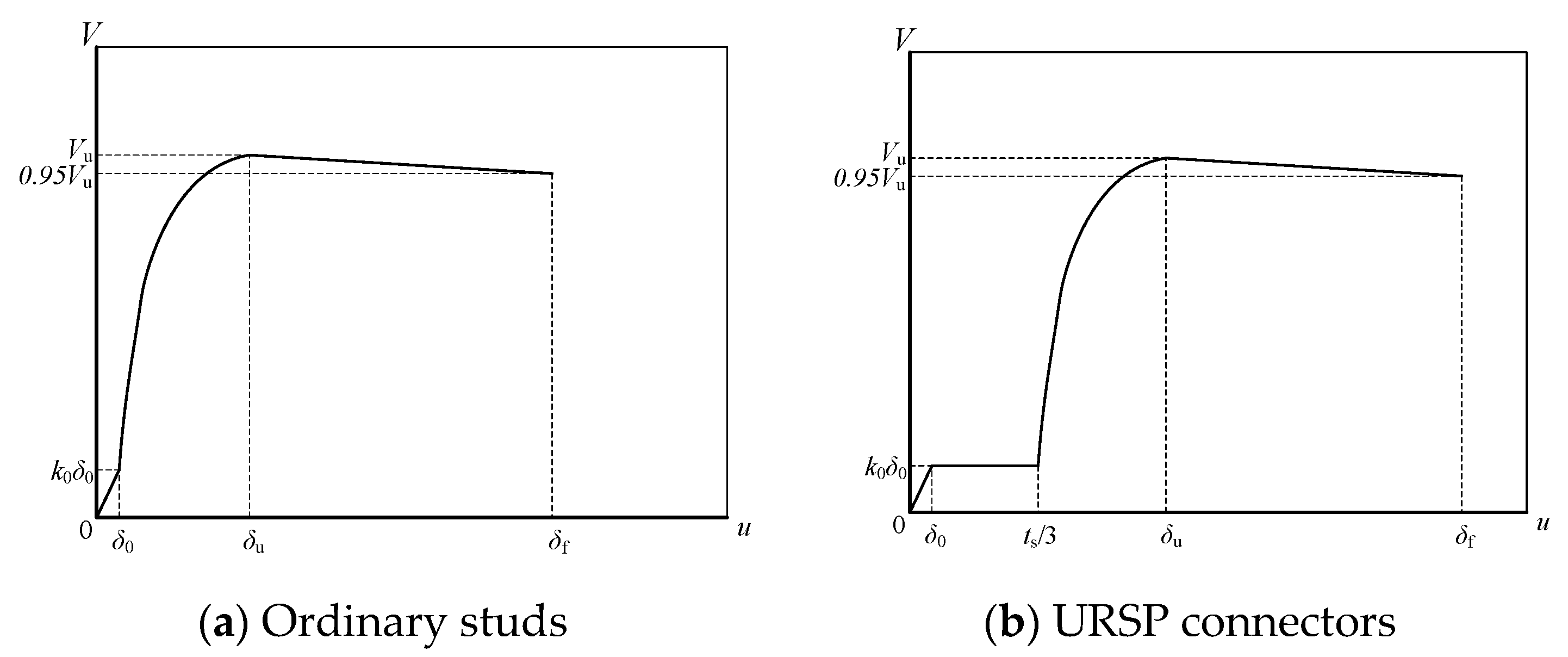

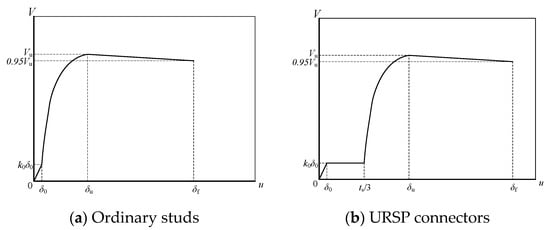

Figure 15. Shear–slip curves of connectors.

4.2. Force–Displacement Relationship

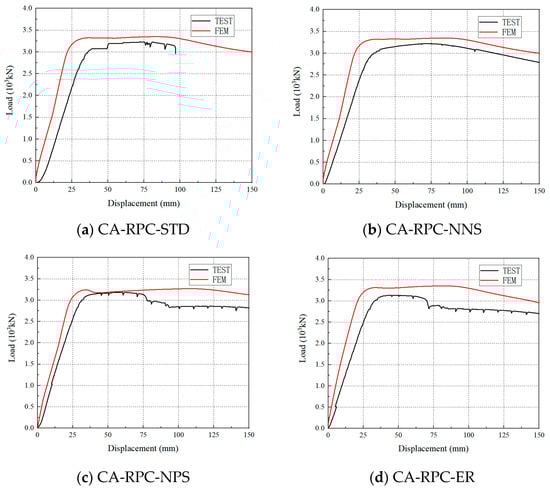

The load–displacement curves predicted by the finite element model are illustrated in Figure 7. It is evident that the results of finite element modeling can coincide well with the experimental data. Comparing the curves of the simulation of each specimen, the trends of the force–displacement relationship are essentially identical, with minimal differences in stiffness during the elastic stage. The use of URSP connectors results in a slight decrease in the ultimate load compared to the model using ordinary studs.

4.3. Cracking Load

Table 7 lists the cracking load obtained by the finite element models. The cracking load defined in the FEM is determined by the load related to when the maximum principle tensile strain of the concrete elements reaches the crack strain (2 × 10⁻⁴). The data can accord with the experimental results and prove that the application of URSP connectors, prestress, and CA-RPC is beneficial to increasing the cracking resistance of the composite beam.

Table 7. Cracking load of the specimens.

Name of the Specimen	Fcr, FEM (kN)	Fcr, test (kN)	Fcr, FEM to Fcr, test Ratio
C50-NPS	238.37	210.32	1.13
CA-RPC-ER	434.25	388.22	1.12
CA-RPC-NNS	854.74	838.62	1.02
CA-RPC-NPS	504.45	456.52	1.10
CA-RPC-SR	747.16	727.87	1.03
CA-RPC-STD	841.16	799.54	1.05

4.4. Failure Mode

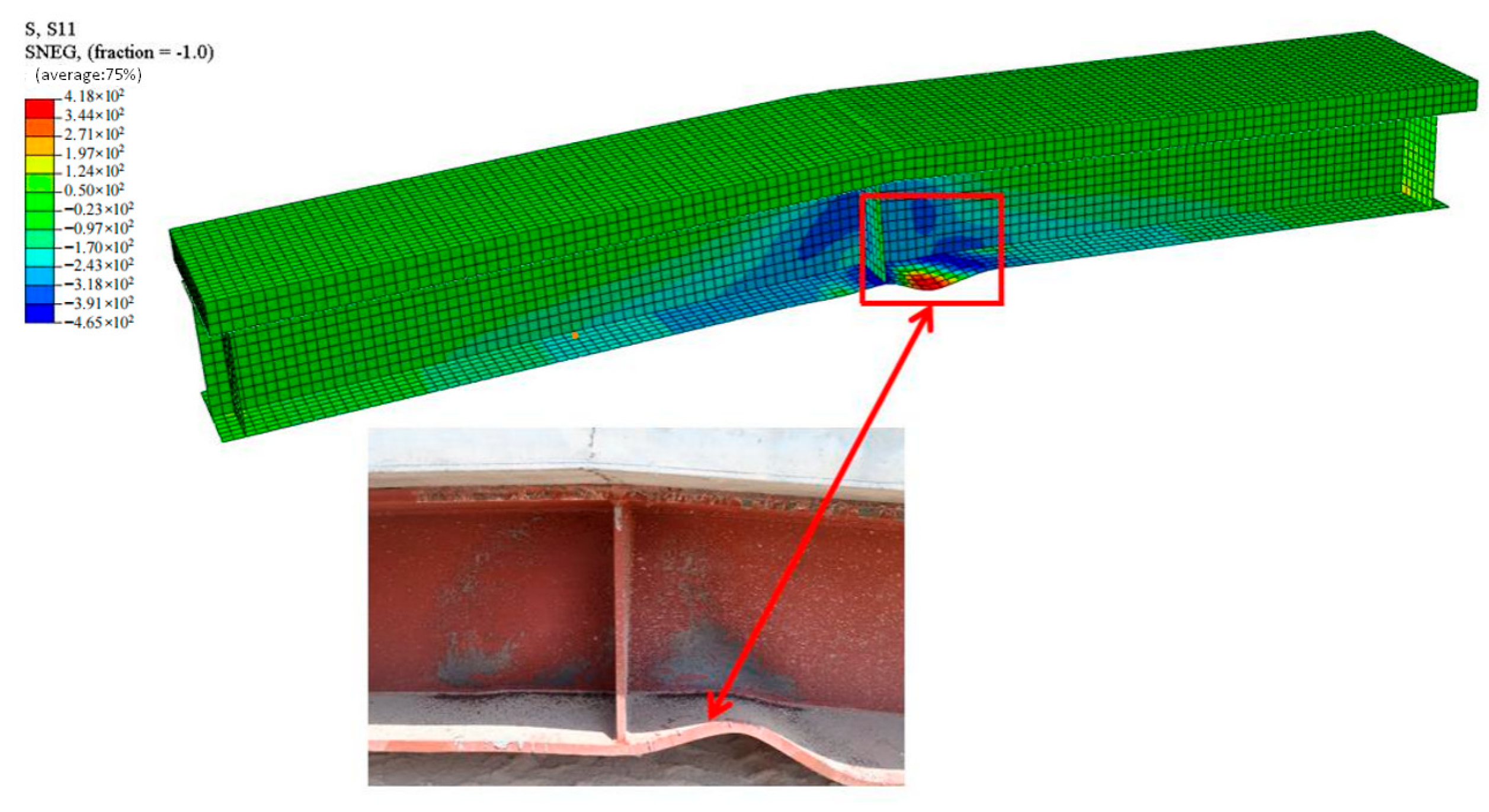

As shown in Figure 16, the buckling of the lower flange of the steel beam plate could be depicted when the finite element model reached the ultimate load, which was consistent with the experimental observation.

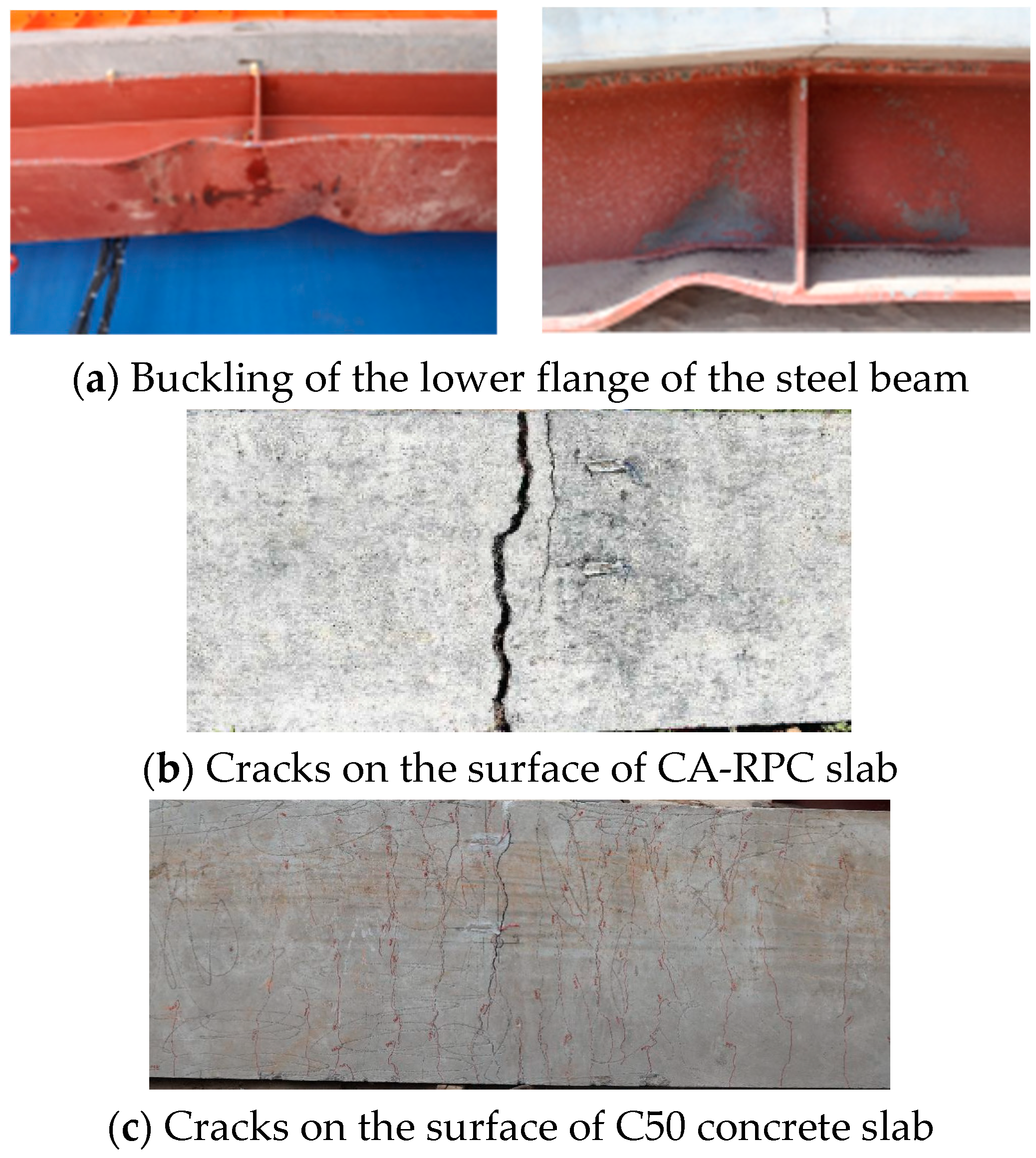

Figure 16. Deformation of the steel beam.

As illustrated in Figure 17a, the distribution of the cracking strain on the top surface of the CA-RPC slab was presented when the finite element model reached the ultimate bearing capacity. The figure demonstrated that the cracking in the CA-RPC slab was concentrated at the mid-span, with no cracking occurring in other positions, which was consistent with experimental results.

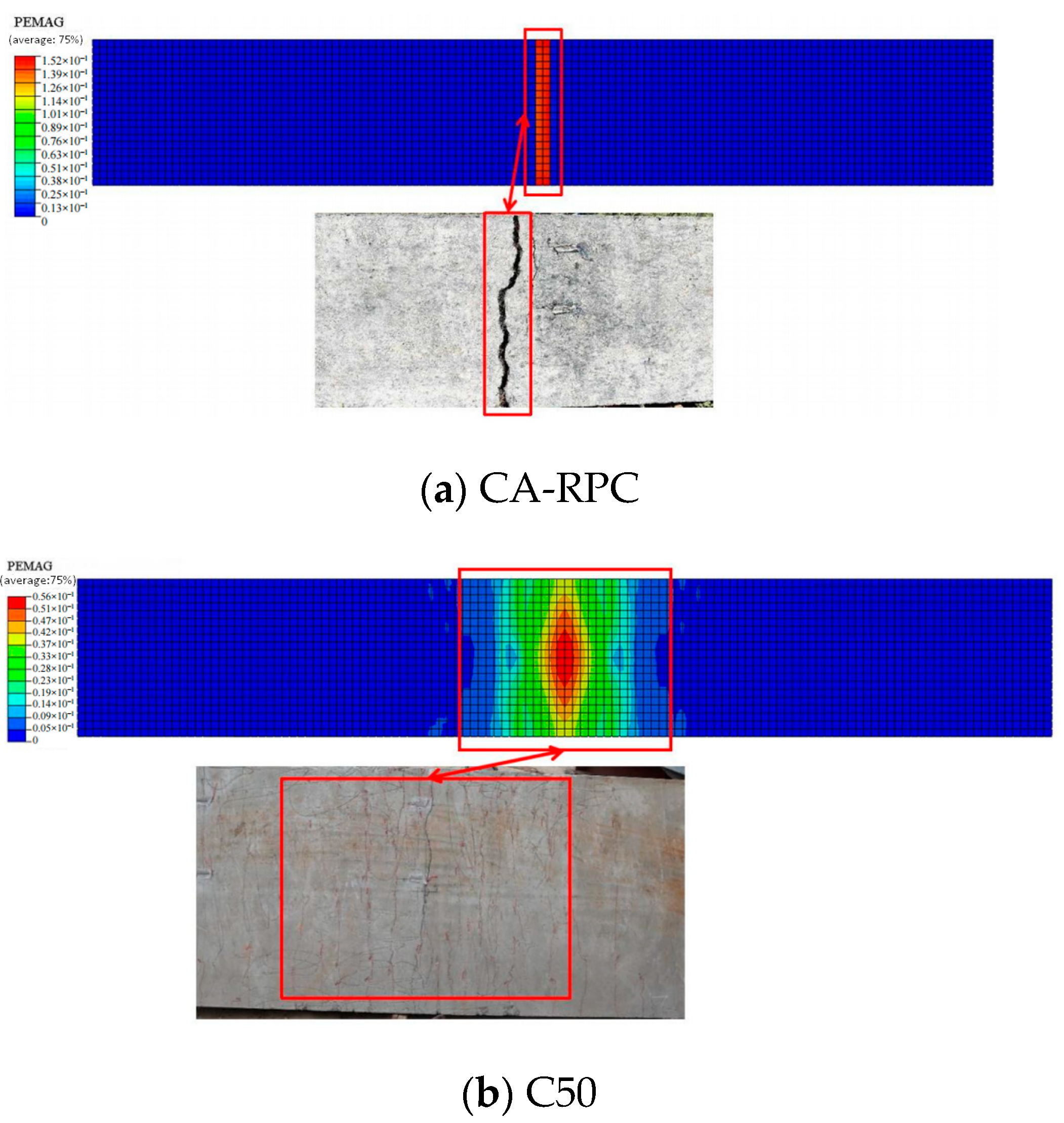

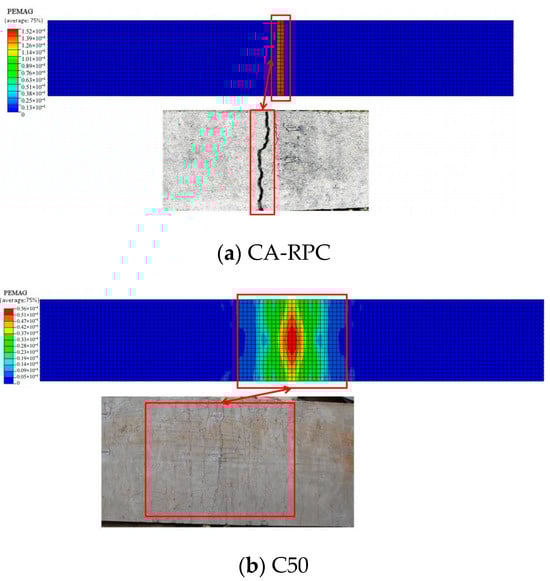

Figure 17. Distribution of cracking of the numerical model.

As shown in Figure 17b, the distribution of strain due to cracking on the top surface of the C50 slab was depicted when the finite element model load reached the ultimate load. From the figure, it was evident that the cracking in the C50 slab was uniformly distributed within a certain range near the mid-span, which could be in accord with the experimental results.

4.5. Parameter Analysis

To find out the effect of the application of CA-RPC, URSP connectors, and prestress on the cracking resistance, eight sets of FE models were established based on the model of CA-RPC-STD, and the changes in the parameters of each model are listed in Table 8.

Table 8. Set of the models in the parameter analysis.

Name of the Model	Concrete Material	Prestress (kN)	Type of Connectors
CR-9-U	CA-RPC	900	URSP connectors
CR-0-U	CA-RPC	0	URSP connectors
CR-9-S	CA-RPC	900	Ordinary studs
CR-0-S	CA-RPC	0	Ordinary studs
C-9-U	C50	900	URSP connectors
C-0-U	C50	0	URSP connectors
C-9-S	C50	900	Ordinary studs
C-0-S	C50	0	Ordinary studs

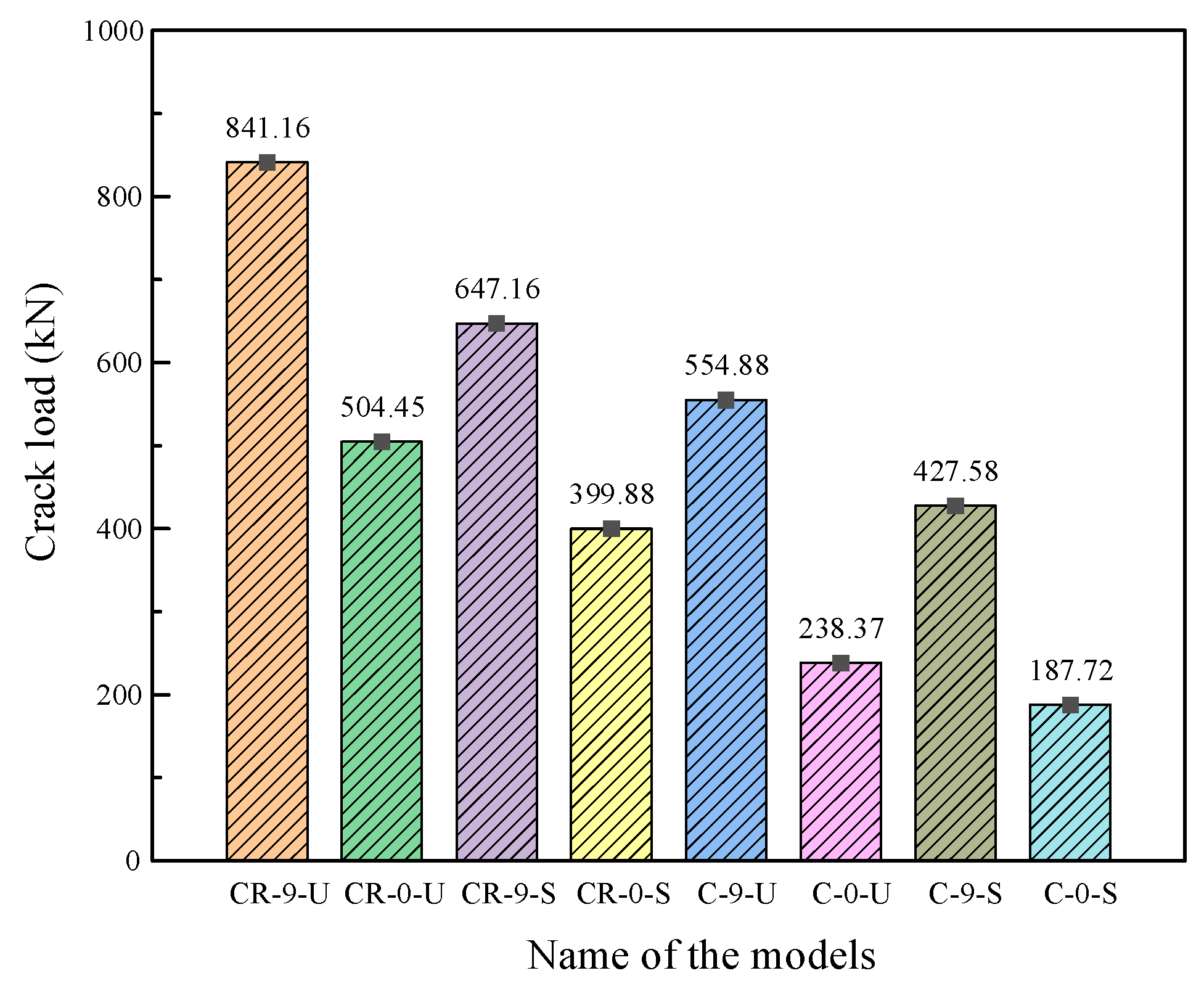

The crack load of each model is shown in Figure 18 It is indicated that prestress played the most important role in enhancing the cracking resistance, with an increase in the crack load of 336.7 kN (66.7%) comparing CR-9-U with CR-0-U, 247.3 kN (61.8%) comparing CR-9-S with CR-0-S, 316.51 kN (132.8%) comparing C-9-U with C-0-U, and 239.9 kN (127.8%) comparing C-9-S with C-0-S. Further, it should be pointed out that using URSP connectors could boost the effect of prestress, while this effect might be independent of the change in the concrete material.

Figure 18. Results of the parameter analysis.

Comparing CR-0-U with CR-0-S (or C-0-U with C-0-S), it was evident that the application of URSP connectors could effectively release a part of tensile stress in the concrete slab, which resulted in an increase of 104.57 kN (26.2%) for CR-0-U (or 50.65 kN (27.0%) for C-0-U). However, such an effect was relatively minor.

Comparing CR-0-U with C-0-U, CR-0-S with C-0-S, CR-9-U with C-9-U, and CR-0-U with C-0-U, the increase in the crack load was, respectively, 286.28 kN (51.6%), 266.08 kN (111.6%), 219.58 kN (51.4%), and 212.16 kN (113.0%). It seemed that the effect of using the CA-RPC material instead of C50 ordinary concrete also benefited the cracking resistance to a great extent, and using URSP connectors could also enhance the effect of CA-RPC.

4.6. Calculation of Ultimate Strength by Eurocode 4

In the design of composite beams, the plastic resistance moment (M_pl,Rd) is a crucial technical parameter. The experimental results presented in this paper indicated that for the steel–CA-RPC composite beams with URSP connectors, M_pl,Rd is essentially consistent with that of composite beams with ordinary studs in the negative moment zone.

A potential reason is that when the beam reaches the ultimate load, the slip capacity of the URSP connectors has been exhausted. Under such a condition, the shear transfer performance at the interface of the composite beams with URSP connectors is essentially identical to that of beams with ordinary studs.

Meanwhile, when the composite beams reach their ultimate bending-bearing capacity, the CA-RPC slabs at the mid-span have already completely cracked and ceased to work, which can be considered to make no contribution to the bending resistance of the composite beam. Therefore, the ultimate bending-bearing capacity is just similar to that of the beams using ordinary concrete.

Therefore, M_pl,Rd of steel–CA-RPC composite beams with URSP connectors under the hogging bending moment can be calculated by the methods for the conventional composite beam provided in Eurocode 4 [29] (shown in Figure 19).

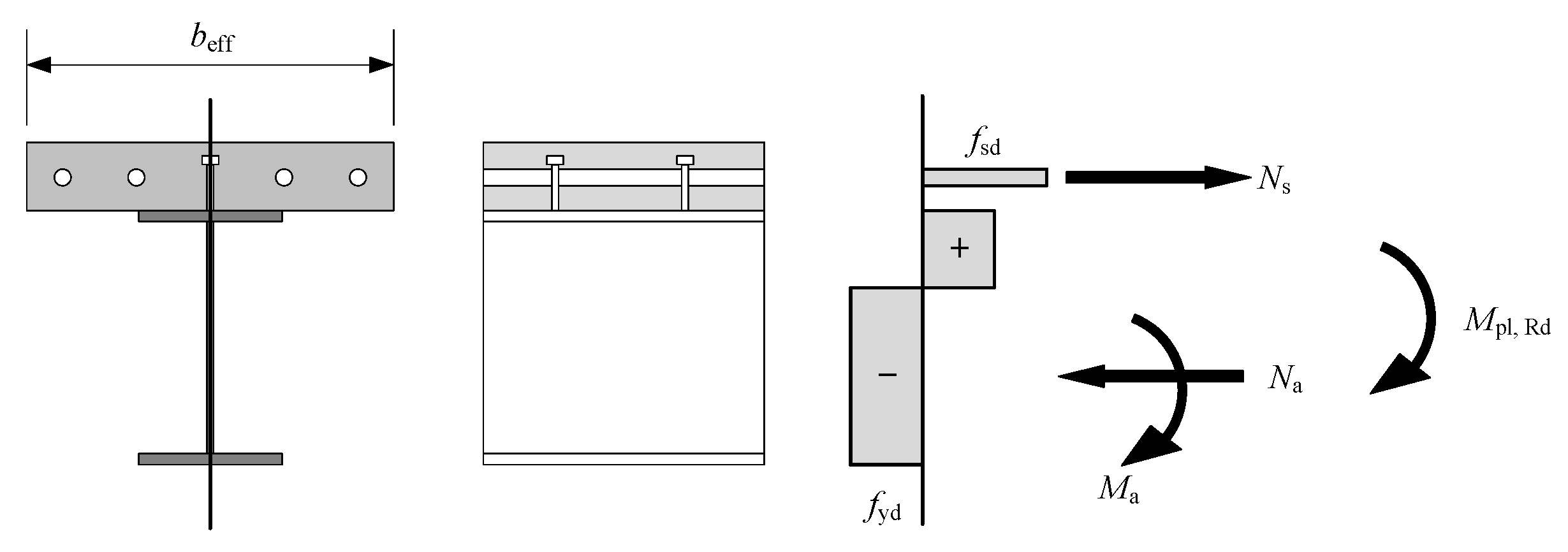

Figure 19. Calculation of plastic resistance moment for a composite beam under hogging bending.

Comparing the calculation results of the composite beams mentioned in this paper with the experimental data, as listed in Table 9, it can be proved that the calculated bending-bearing capacity results are essentially consistent with the experimental values and are more conservative.

Table 9. Comparison of plastic resistance moment between calculation and experiment results.

Name of the Specimen	Experimental Results Mexp (kN·m)	Calculation Results Mcal (kN·m)	Mcal to Mexp Ratio
C50-STD	4522.4	4288.0	0.948
CA-RPC-ER	4698.0	4288.0	0.913
CA-RPC-NNS	4828.5	4288.0	0.888
CA-RPC-NPS	4774.2	4288.0	0.898
CA-RPC-SR	5065.1	4288.0	0.847
CA-RPC-STD	4845.7	4288.0	0.885
Average value			0.897

5. Conclusions

The main subject of this study is to investigate the structural mechanism of steel–CA-RPC composite beams with URSP connectors. Six simply supported beam specimens were designed, fabricated, and subjected to negative moment tests. The study examined the impact of different connectors on the performance of composite beams in terms of crack resistance, cross-sectional strain distribution, and interfacial slip. Based on the experimental results and existing research findings, numerical simulations were conducted on the test specimens. From the experimental results and the finite element modeling, the following conclusions can be drawn:

(1)

In the experiment, under negative bending moments, the utilization of CA-RPC materials, URSP connectors, and prestress all could enhance the cracking load of the beams. In addition, the combination of CA-RPC and URSP connectors would not cause a sharp increase in the cost and the difficulty of construction, which would be an optimized selection for the bridge industry.

(2)

The results of the strain distribution of the section at the mid-span of the beams indicated that with the use of URSP connectors instead of ordinary studs, there was a large slip at the interface of the two materials. Neutral axes were generated in the steel beam and the concrete slab, which could effectively reduce the tensile strain in the concrete. The measurement of interfacial slip also indicated that the application of URSP connectors allowed for greater slip at the interface.

(3)

By setting appropriate parameters, such as material constitutive properties and connection conditions, the numerical models could achieve computational results that are consistent with the experiment with enough accuracy. The models also show good simulation of the phenomenon observed in the experiment, so they can serve as a foundation for parameter analysis in subsequent research.

(4)

A parameter analysis of the FEM was carried out to study the influence of the application of the CA-RPC material, URSP connectors, and prestress on the cracking resistance of the composite beams, and it was indicated that using the CA-RPC material and prestress made great contributions, and the usage of URSP connectors could enhance the effect of the other two factors.

(5)

According to the experimental results and existing research, suggestions were proposed for the calculation method of the bearing capacity of steel–CA-RPC composite beams with URSP connectors. The computational results obtained by using the methods proposed in Eurocode 4 coincided with the experimental data and were more conservative.

In summary, the steel–CA-RPC composite beams with URSP connectors, rather than ordinary studs, exhibit almost no change in bending stiffness and ultimate load-bearing capacity, while there is a significant improvement in crack resistance under the action of negative bending moments, with a relatively lower cost than using ordinary UHPC.
