# Design and Non-Linear Modeling of New Wind Girder Used for Bolted Tanks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Procedures for the Evaluation of Tank Buckling Capacity

- Plastic limit state;
- Cyclic plasticity limit state;
- Buckling limit state;
- Fatigue limit state.

#### 1.2. Description of Wind Girders

#### 1.3. Possibilities of New Girders Design

## 2. Materials and Methods

#### 2.1. Design of New Wind Girder

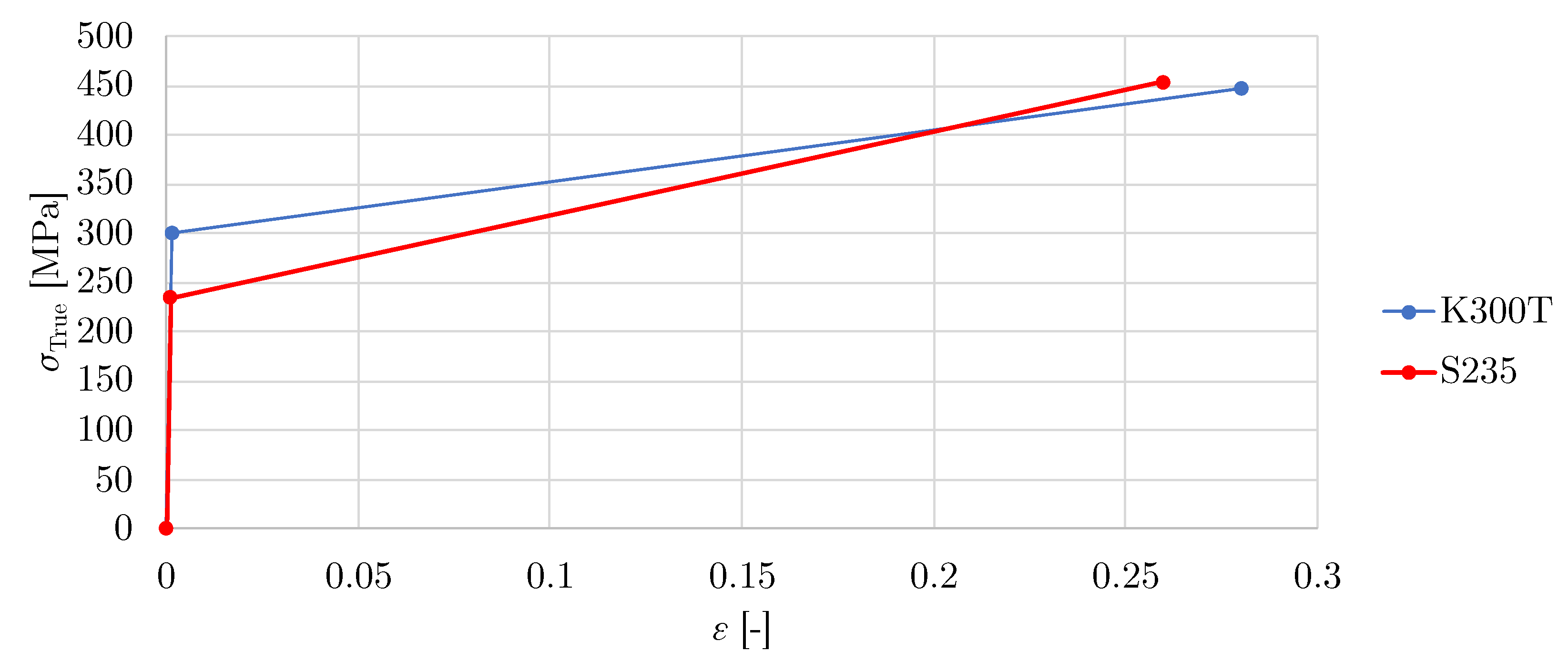

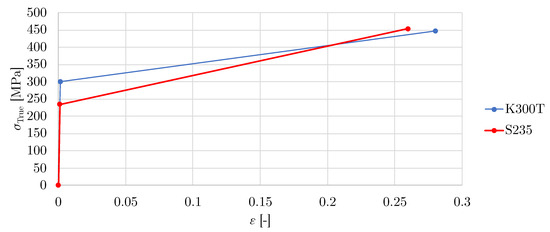

#### 2.2. Design of Non-Linear Numerical Model

#### 2.3. Analytical Models According to European Standards

#### 2.4. Parametric Study

## 3. Results

#### 3.1. Application of New Wind Girder to Low-Height Tanks

#### 3.2. Application of New Wind Girders to Middle-Height Tanks

#### 3.3. Application of New Wind Girders to High Tanks

#### 3.4. Comparison of Results Obtained from LBA and GMNIA with Analytical Models

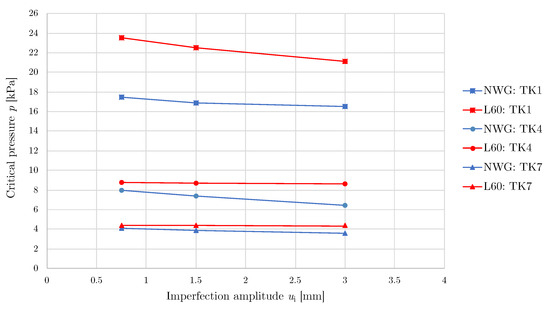

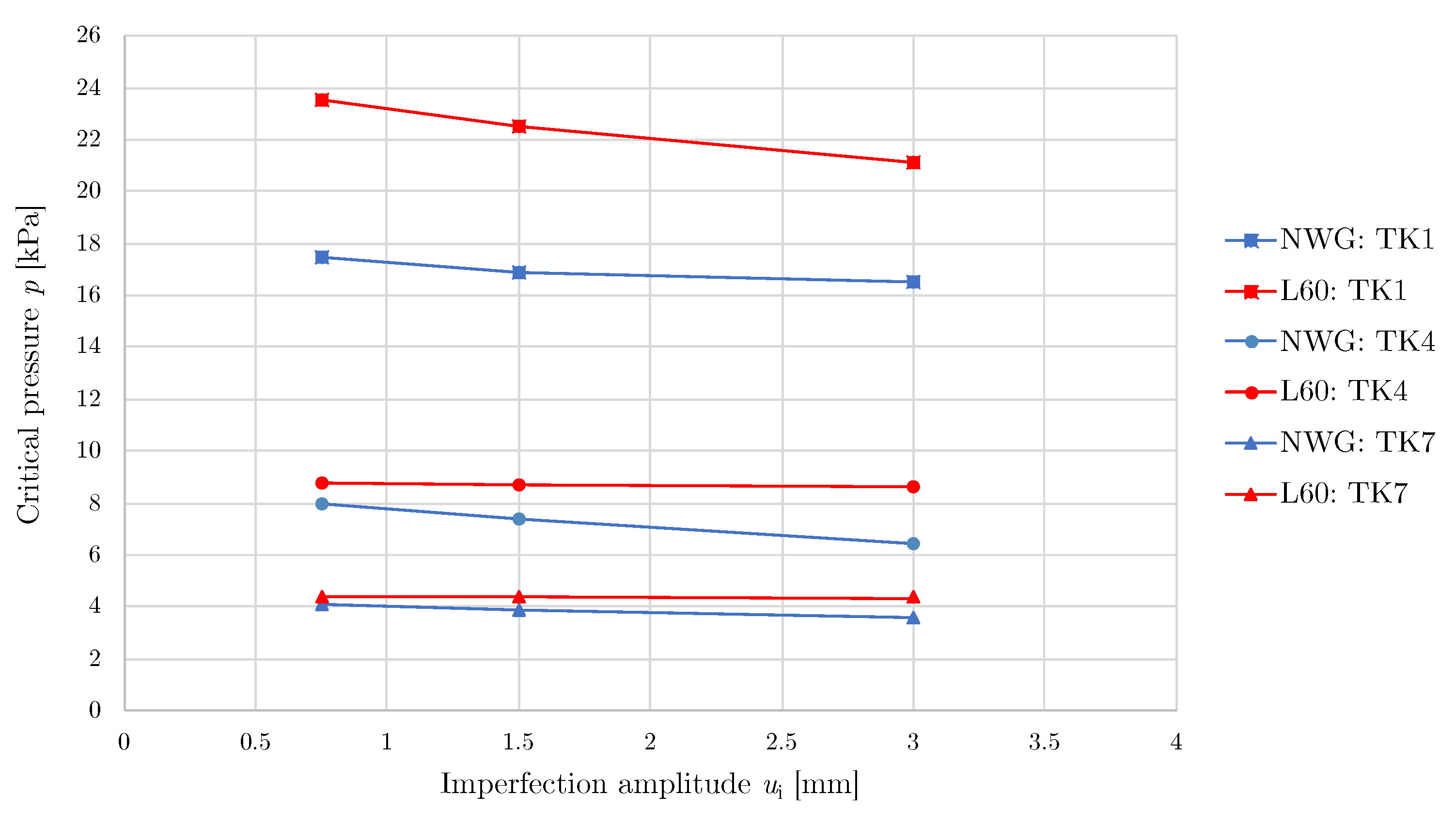

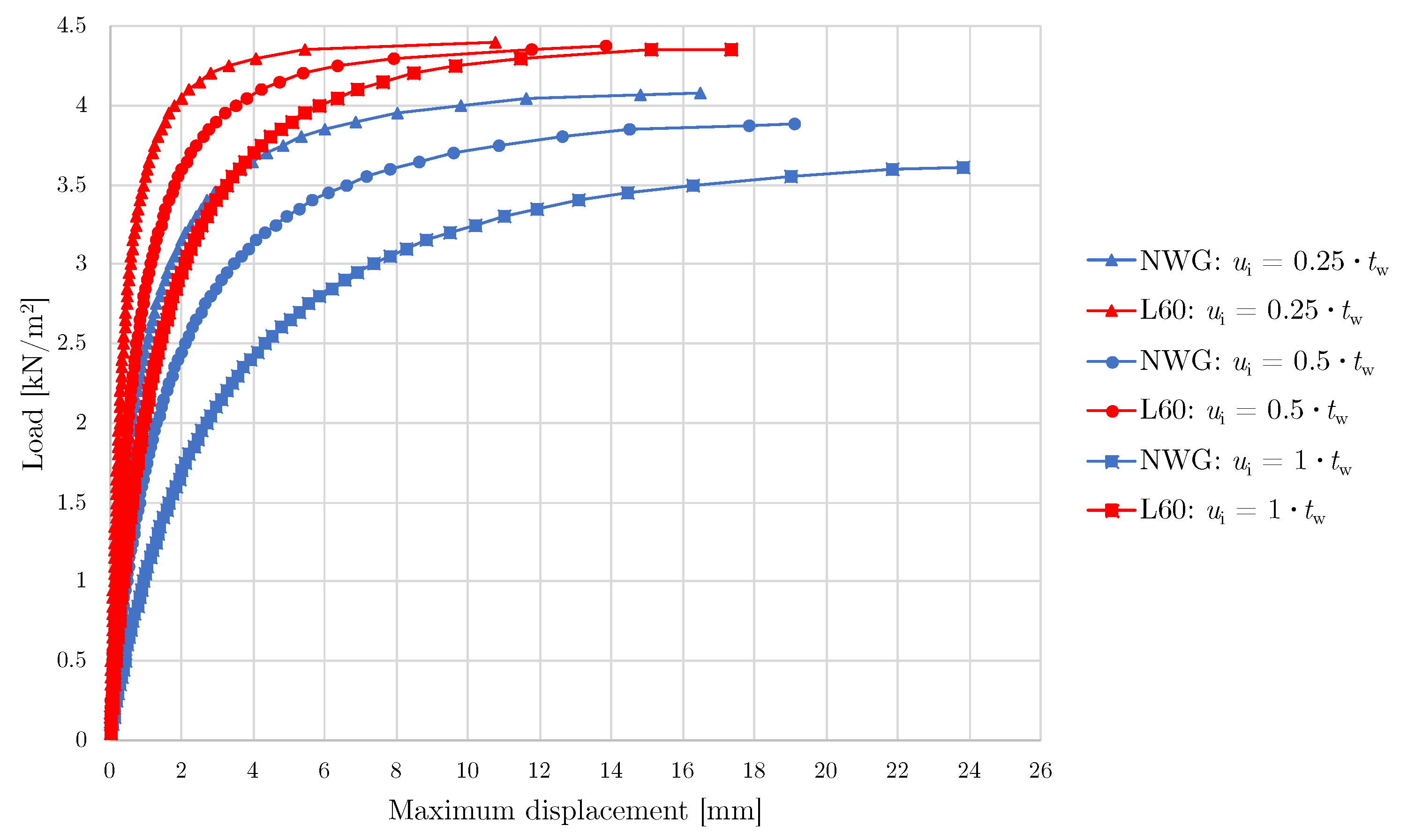

#### 3.5. Geometrical Imperfection Study

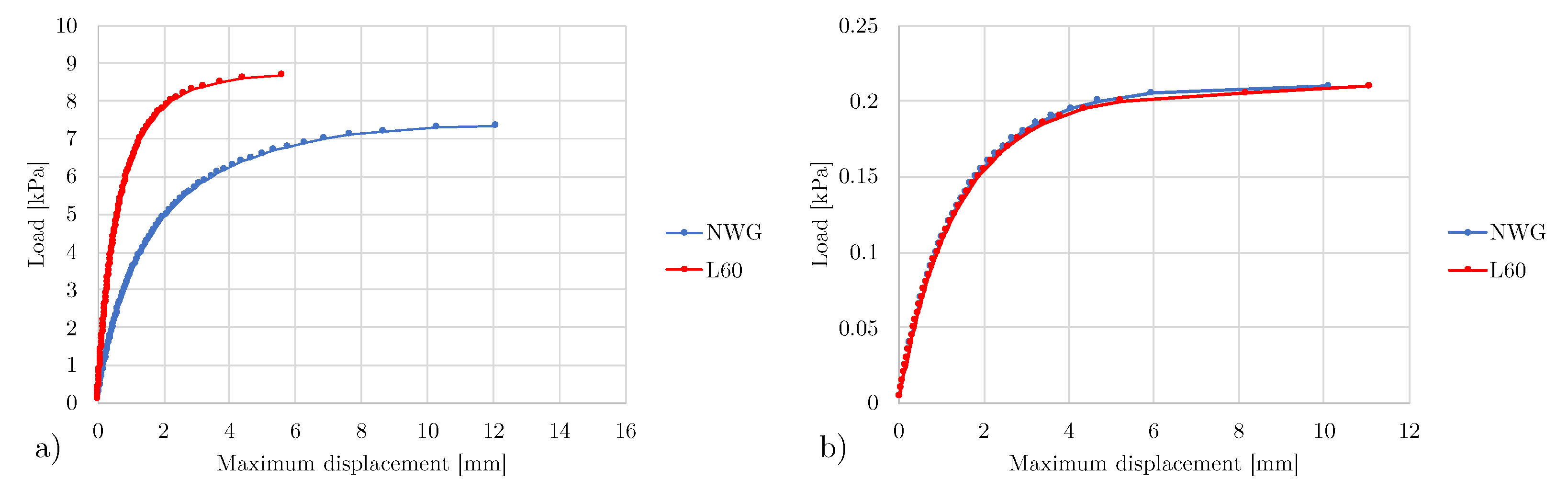

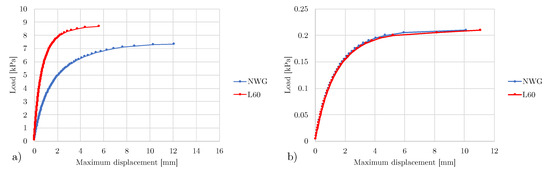

#### 3.6. Evaluation of NWG Results

## 4. Discussion

## 5. Conclusions

- The cross-section of NWG segments is very simple and can be easily produced by common manufacturers.
- Although the total mass of NWG is slightly higher than for L60, due to the obtained results, NWG could be compared with the larger cross-section profiles usually used for tanks with larger diameters and possibly replace them.
- Although the total mass of NWG is slightly higher than for L60, the total price should be less because of the simpler cross-section and therefore lower material prices.
- The geometry is designed so that NWG can be used for different tank curvatures and stiffness requirements. By modifying the basic dimensions of segments, the stiffness is increased and overall buckling capacity is also increased.
- Because NWG is composed of simple segments with various curvatures, it is convenient for storage and assembly.
- An important difference of NWG compared to conventional girders is the variable moment of inertia around the circumference of the tank, which requires a more detailed assessment using GMNIA.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

3D | Three-dimensional |

FEM | Finite element method |

FSI | Fluid-structure interaction |

GMNA | Geometrically and materially non-linear analysis |

GMNIA | Geometrically and materially non-linear analysis with imperfections |

GNA | Geometrically non-linear elastic analysis |

GNIA | Geometrically non-linear elastic analysis with imperfections |

K300T | KOSMALT E 300 T |

L60 | Round-edged equal leg steel angle bar |

EN 10056-1 - L60 × 60 × 6 - EN 10025-2 - S235JR | |

LBA | Linear elastic bifurcation analysis |

MA | Modal analysis |

MNA | Materially non-linear analysis |

NWG | New wind girder |

P-segment | Plate segment of new wind girder |

S235 | S235JR EN 10025-2 |

TK | TANK |

V-segment | V-shape segment of new wind grider |

## References

- Uematsu, Y.; Yamaguchi, T.; Yasunaga, J. Effects of wind girders on the buckling of open-topped storage tanks under quasi-static wind loading. Thin-Walled Struct.
**2018**, 124, 1–12. [Google Scholar] [CrossRef] - Zhao, Y.; Lin, Y. Buckling of cylindrical open-topped steel tanks under wind load. Thin-Walled Struct.
**2014**, 79, 83–94. [Google Scholar] [CrossRef] - Shokrzadeh, A.R.; Sohrabi, M.R. Buckling of ground based steel tanks subjected to wind and vacuum pressures considering uniform internal and external corrosion. Thin-Walled Struct.
**2016**, 108, 333–350. [Google Scholar] [CrossRef] - Jaca, R.C.; Godoy, L.A. Wind buckling of metal tanks during their construction. Thin-Walled Struct.
**2010**, 48, 453–459. [Google Scholar] [CrossRef] - EN 1993-4-2; Eurocode 3: Design of Steel Structures—Part 4-2: Tanks. The European Committee for Standardization: Brussels, Belgium, 2008.
- EN 1991-4; Eurocode 1: Actions on structures—Part 4: Silos and Tanks. The European Committee for Standardization: Brussels, Belgium, 2018.
- AWWA D103-09; Factory-Coated Bolted Carbon Steel Tanks for Water Storage. American Water Works Association: Denver, CO, USA, 2009.
- EN 1991-1-4; Eurocode 1: Actions on Structures—Part 1-4: General Actions—Wind Loads. The European Committee for Standardization: Brussels, Belgium, 2020.
- Burgos, C.A.; Batista-Abreu, J.C.; Calabró, H.D.; Jaca, R.C.; Godoy, L.A. Buckling estimates for oil storage tanks: Effect of simplified modeling of the roof and wind girder. Thin-Walled Struct.
**2015**, 91, 29–37. [Google Scholar] [CrossRef] - Jawad, M. Theory and Design of Plate and Shell Structures; Springer Science & Business Media: New York, NY, USA, 2012. [Google Scholar]
- EN 1993-1-6; Eurocode 3: Design of Steel Structures—Part 1-6: Strength and Stability of Shell Structures. The European Committee for Standardization: Brussels, Belgium, 2008.
- Kminek, T.; Marsalek, P.; Karasek, T. Analysis of steel tanks for water storage using shell elements. AIP Conf. Proc.
**2019**, 2116, 320007. [Google Scholar] - Elkholy, S.A.; Elsayed, A.A.; El-Ariss, B.; Sadek, S.A. Optimal finite element modelling for modal analysis of liquid storage circular tanks. Int. J. Struct. Eng.
**2014**, 5, 207–241. [Google Scholar] [CrossRef] - Mazuch, T.; Horacek, J.; Trnka, J.; Veselỳ, J. Natural modes and frequencies of a thin clamped–free steel cylindrical storage tank partially filled with water: Fem and measurement. J. Sound Vib.
**1996**, 193, 669–690. [Google Scholar] [CrossRef] - Pan, J.; Liang, S. A study on the buckling behavior of in-service large open-topped oil-storage tanks. Structures
**2021**, 29, 211–224. [Google Scholar] [CrossRef] - Chen, L.; Rotter, J.M. Buckling of anchored cylindrical shells of uniform thickness under wind load. Eng. Struct.
**2012**, 41, 199–208. [Google Scholar] [CrossRef] - Cao, Q.S.; Zhao, Y. Buckling design of large steel silos with various slendernesses. J. Zhejiang Univ. Sci. A
**2017**, 18, 282–305. [Google Scholar] [CrossRef] - Zhao, Y.; Cao, Q.S.; Su, L. Buckling design of large circular steel silos subject to wind pressure. Thin-Walled Struct.
**2013**, 73, 337–349. [Google Scholar] [CrossRef] - Maraveas, C.; Balokas, G.A.; Tsavdaridis, K.D. Numerical evaluation on shell buckling of empty thin-walled steel tanks under wind load according to current American and European design codes. Thin-Walled Struct.
**2015**, 95, 152–160. [Google Scholar] [CrossRef] - Chiang, Y.C.; Guzey, S. Dynamic analysis of aboveground open-top steel tanks subjected to wind loading. Eng. Struct.
**2019**, 198, 109496. [Google Scholar] [CrossRef] - Alam, M.M.; Zhou, Y. Strouhal numbers, forces and flow structures around two tandem cylinders of different diameters. J. Fluids Struct.
**2008**, 24, 505–526. [Google Scholar] [CrossRef] - Ellingsen, Ø.M.; Amandolese, X.; Flamand, O.; Hémon, P. Twin Strouhal numbers in pressure loading of circular cylinder at high Reynolds numbers. J. Fluids Struct.
**2022**, 115, 103782. [Google Scholar] [CrossRef] - Godoy, L.A. Buckling of vertical oil storage steel tanks: Review of static buckling studies. Thin-Walled Struct.
**2016**, 103, 1–21. [Google Scholar] [CrossRef] - Burgos, C.A.; Jaca, R.C.; Lassig, J.L.; Godoy, L.A. Wind buckling of tanks with conical roof considering shielding by another tank. Thin-Walled Struct.
**2014**, 84, 226–240. [Google Scholar] [CrossRef] - Pan, J.; Liang, S. Buckling analysis of open-topped steel tanks under external pressure. SN Appl. Sci.
**2020**, 2, 535. [Google Scholar] [CrossRef] - ISO 28765:2016; Vitreous and Porcelain Enamels—Design of Bolted Steel Tanks for the Storage or Treatment of Water or Municipal or Industrial Effluents and Sludges. International Organization for Standardization: Geneva, Switzerland, 2016.
- Bu, F.; Qian, C. On the rational design of the top wind girder of large storage tanks. Thin-Walled Struct.
**2016**, 99, 91–96. [Google Scholar] [CrossRef] - Bu, F.; Qian, C. A rational design approach of intermediate wind girders on large storage tanks. Thin-Walled Struct.
**2015**, 92, 76–81. [Google Scholar] [CrossRef] - Lewandowski, M.J.; Gajewski, M.; Gizejowski, M. Numerical analysis of influence of intermediate stiffeners setting on the stability behaviour of thin-walled steel tank shell. Thin-Walled Struct.
**2015**, 90, 119–127. [Google Scholar] [CrossRef] - Zeybek, Ö.; Topkaya, C. Stiffness requirements for wind girders in open-top cylindrical steel tanks. Thin-Walled Struct.
**2022**, 176, 109353. [Google Scholar] [CrossRef] - Drahorad, L. Analysis of Steel Tank Supports for Liquid Storage. Master’s Thesis, VSB-Technical University of Ostrava, Ostrava, Czech Republic, 2021. [Google Scholar]
- EN 10056-1; Structural Steel Equal and Unequal Leg Angles—Part 1: Dimensions. The European Comittee for Standardization: Brussels, Belgium, 2017.
- EN 10025-2; Hot Rolled Products of Structural Steels—Part 2: Technology Delivery Conditions for Non-Alloy Structural Steels. The European Comittee for Standardization: Brussels, Belgium, 2020.
- Portela, G.; Godoy, L. Wind pressures and buckling of cylindrical steel tanks with a conical roof. J. Constr. Steel Res.
**2005**, 61, 786–807. [Google Scholar] [CrossRef] - Horyl, P.; Snuparek, R.; Marsalek, P. Behaviour of frictional joints in steel arch yielding supports. Arch. Min. Sci.
**2014**, 59, 781–792. [Google Scholar] [CrossRef] - Lesnak, M.; Marsalek, P.; Horyl, P.; Pistora, J. Load-Bearing Capacity Modelling and Testing of Single-Stranded Wire Rope. Acta Montan. Slovaca
**2020**, 25, 192–200. [Google Scholar] - Rybansky, D.; Sotola, M.; Marsalek, P.; Poruba, Z.; Fusek, M. Study of Optimal Cam Design of Dual-Axle Spring-Loaded Camming Device. Materials
**2021**, 14, 1940. [Google Scholar] [CrossRef] [PubMed] - Hroncek, J.; Marsalek, P.; Rybansky, D.; Sotola, M.; Drahorad, L.; Lesnak, M.; Fusek, M. Simplified Numerical Model for Determining Load-Bearing Capacity of Steel-Wire Ropes. Materials
**2023**, 16, 3756. [Google Scholar] [CrossRef] - Rybansky, D.; Marsalek, P.; Sotola, M.; Hroncek, J.; Drahorad, L.; Kusnir, O.; Prokop, J. Design and Behavior of Lightweight Flexible Structure with Spatial Pattern Reducing Contact Surface Fraction. Polymers
**2023**, 15, 3896. [Google Scholar] [CrossRef] - EN 1993-1-1; Eurocode 3: Design of Steel Structures—Part 1-1: General Rules and Rules for Buildings. The European Committee for Standardization: Brussels, Belgium, 2011.
- U. S. Steel Kosice, s.r.o. Steel for Enameling. 2023. Available online: https://www.usske.sk/sk/produkty/ocel-valcovana-za-tepla/ocel-pre-smaltovanie (accessed on 27 July 2023).
- The Scientific and Technical Center for Building (CSTB). Jules Verne Climatic Wind Tunnel. 2023. Available online: https://www.cstb.fr/en/test-facilities/jules-verne-climatic-wind-tunnel (accessed on 13 October 2023).
- Spritzer, J.; Guzey, S. Nonlinear numerical evaluation of large open-top aboveground steel welded liquid storage tanks excited by seismic loads. Thin-Walled Struct.
**2017**, 119, 662–676. [Google Scholar] [CrossRef] - Compagnoni, M.E.; Curadelli, O. Experimental and numerical study of the response of cylindrical steel tanks under seismic excitation. Int. J. Civ. Eng.
**2018**, 16, 793–805. [Google Scholar] [CrossRef] - Phan, H.N.; Paolacci, F.; Mongabure, P. Nonlinear finite element analysis of unanchored steel liquid storage tanks subjected to seismic loadings. In Proceedings of the Pressure Vessels and Piping Conference, Waikoloa, HI, USA, 16–20 July 2017; Volume 58035. [Google Scholar]
- Panchal, V.; Jangid, R. Seismic response of liquid storage steel tanks with variable frequency pendulum isolator. KSCE J. Civ. Eng.
**2011**, 15, 1041–1055. [Google Scholar] [CrossRef] - Zeybek, Ö.; Topkaya, C.; Rotter, J.M. Stress resultants for wind girders in open-top cylindrical steel tanks. Eng. Struct.
**2019**, 196, 109347. [Google Scholar] [CrossRef]

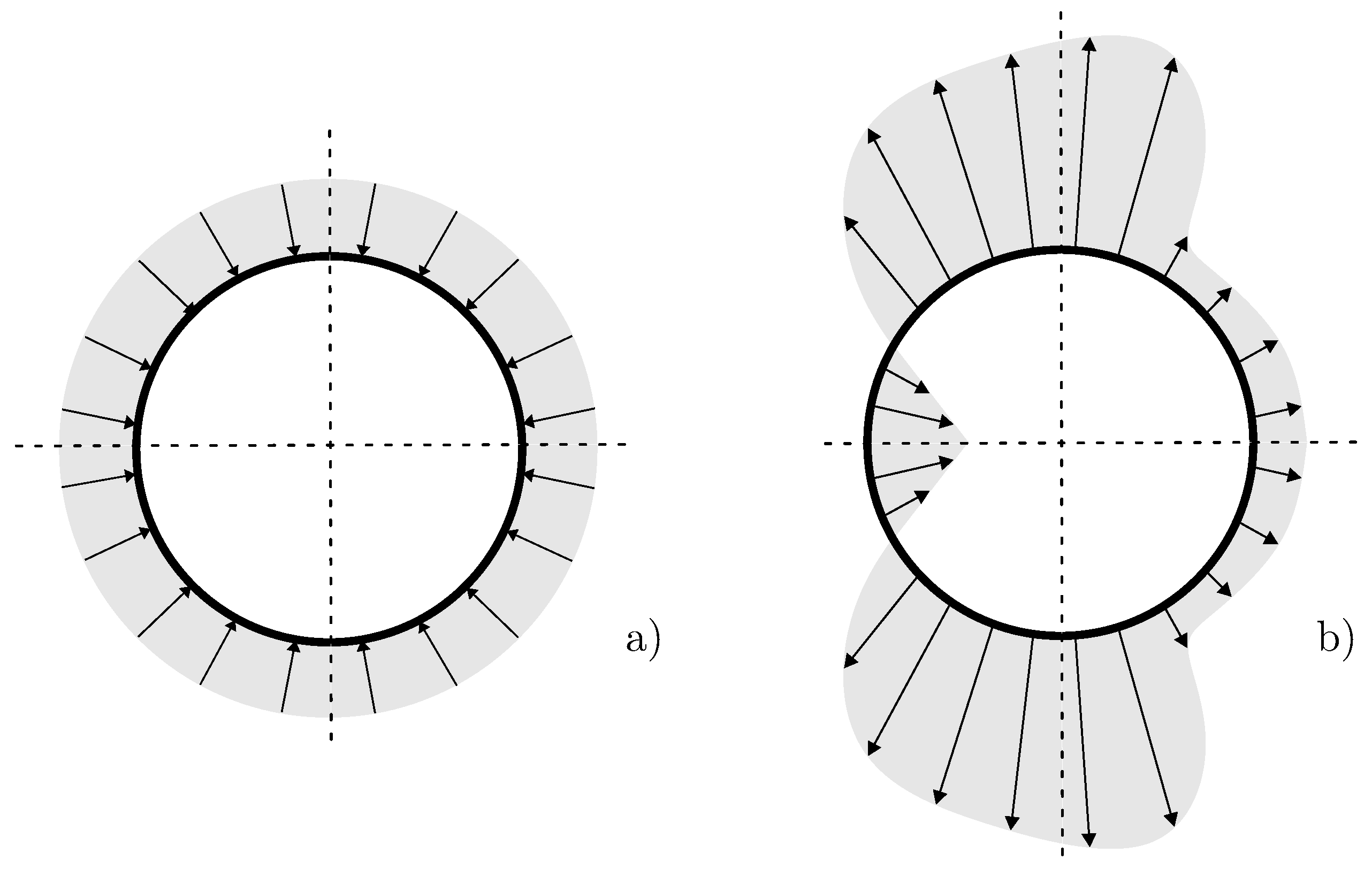

**Figure 1.**Scheme of pressure distribution of wind around the tank circumference: (

**a**) idealized; (

**b**) real.

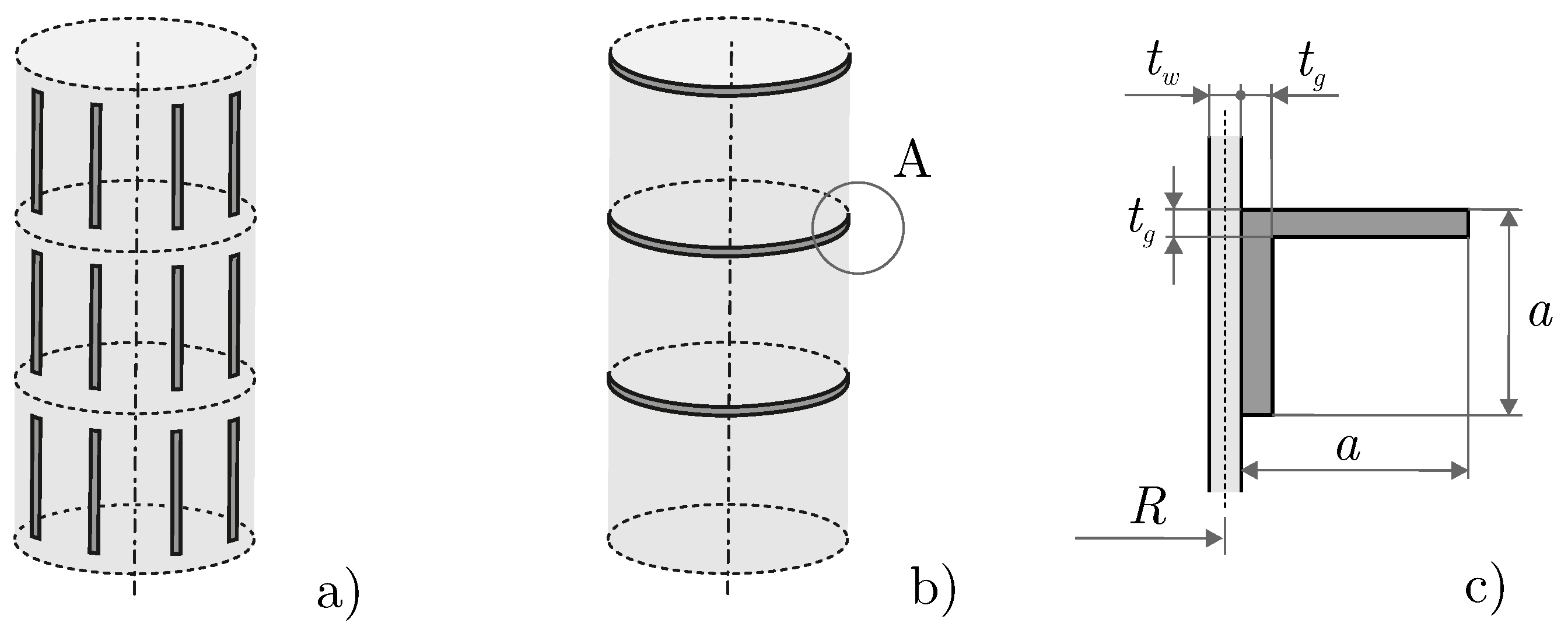

**Figure 2.**Types of conventional stiffeners: (

**a**) vertical stiffeners; (

**b**) horizontal girders; (

**c**) detail A of horizontal girder.

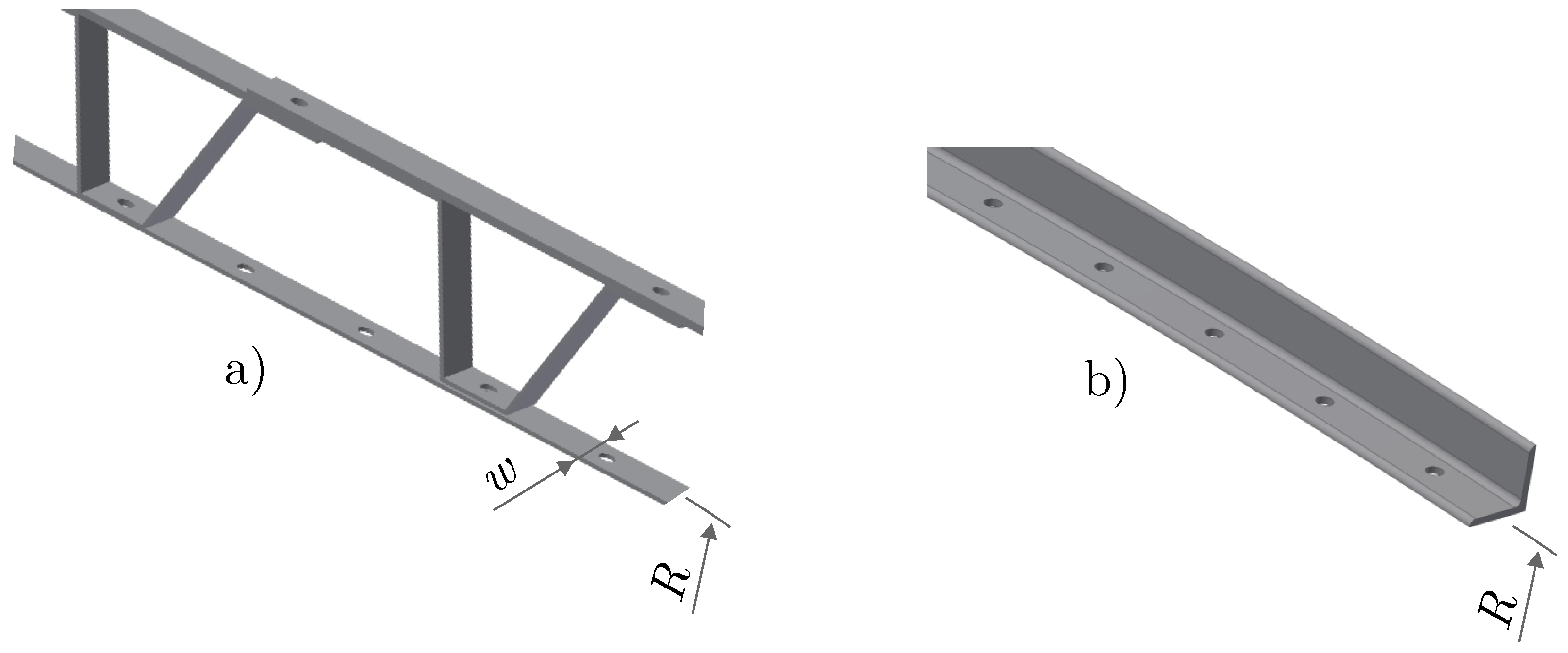

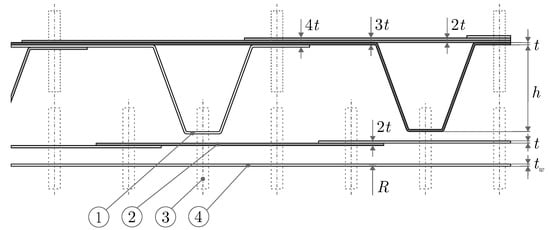

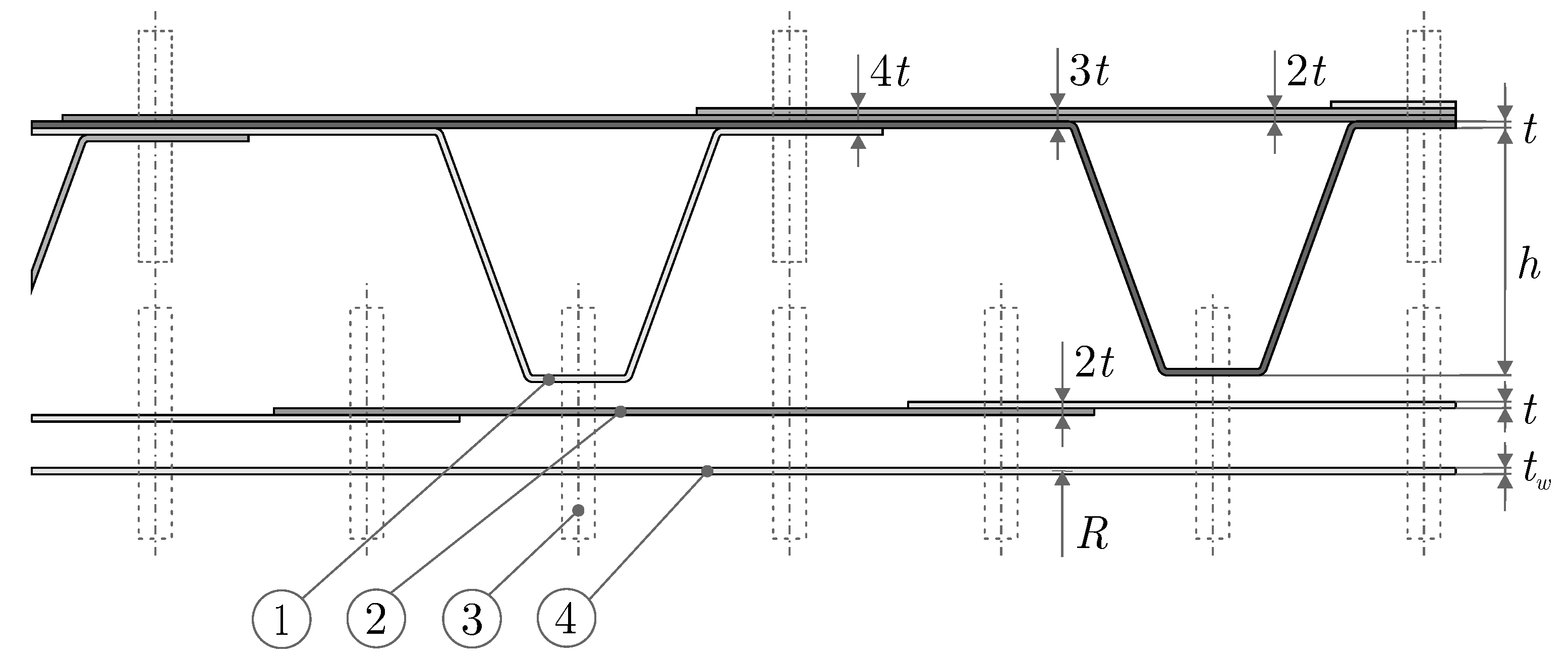

**Figure 4.**Shape of designed segments forming NWG: Item 1—V-segment; Item 2—P-segment; Item 3—bolted connection; Item 4—tank wall.

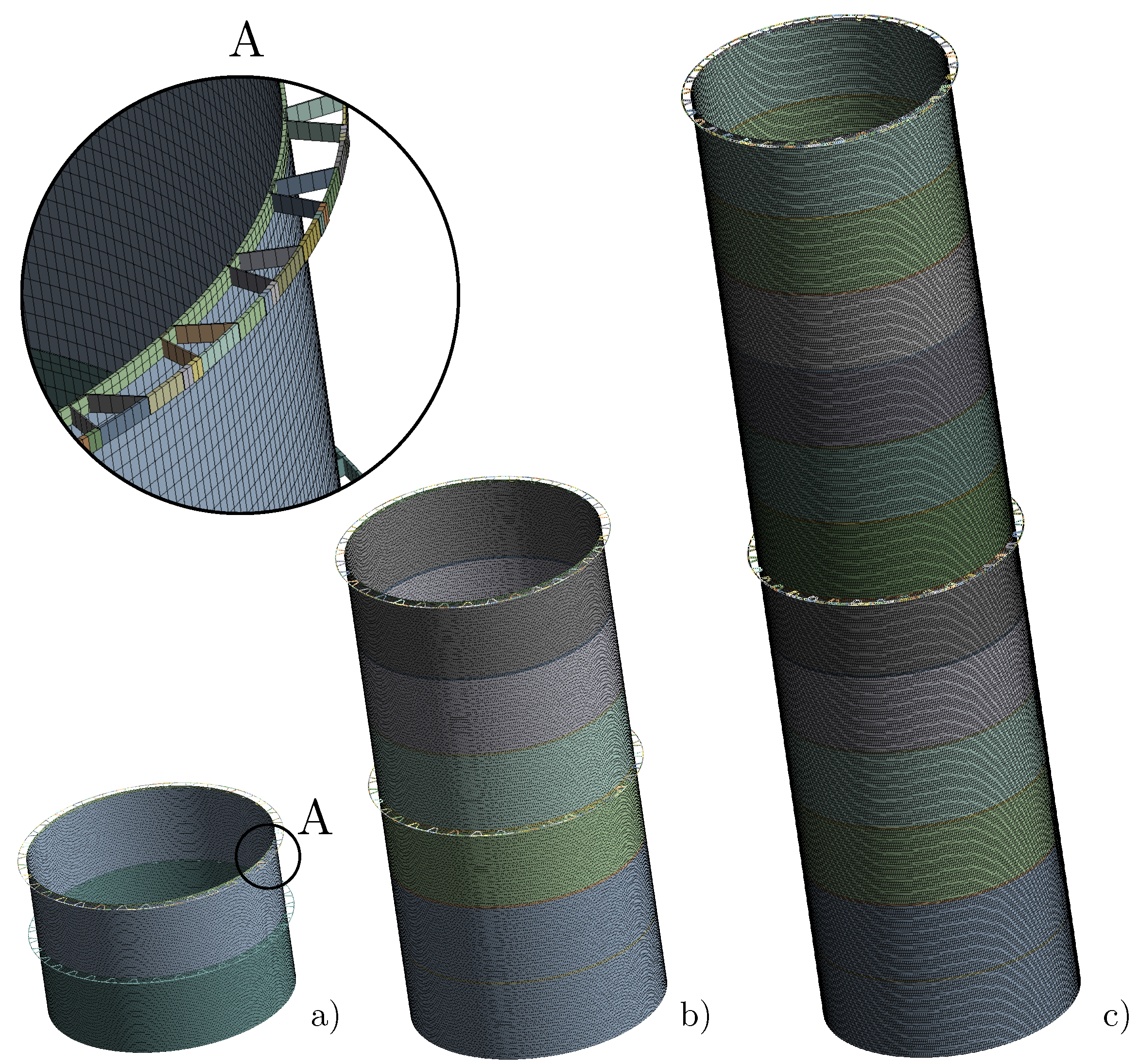

**Figure 5.**Finite element meshes for variants with NWG and diameter D = 4.3 m: (

**a**) low-height tank; (

**b**) middle-height tank; (

**c**) high tank.

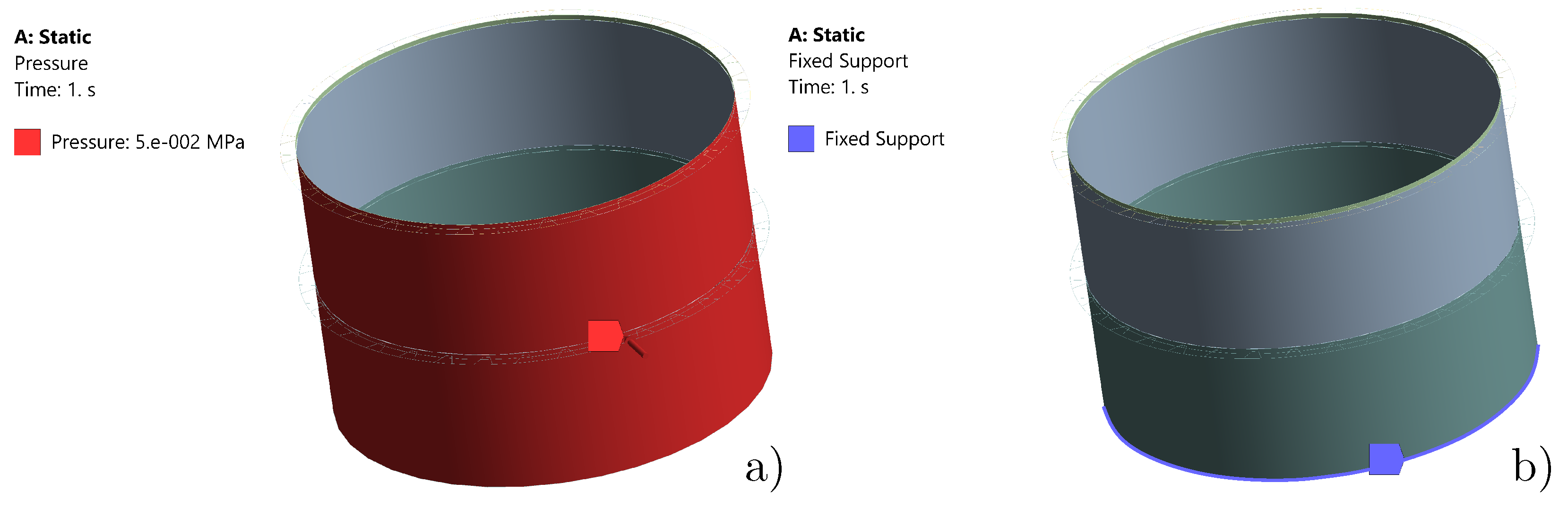

**Figure 7.**Applied boundary conditions illustrated on the variant with NWG and diameter D = 4.3 m: (

**a**) uniform pressure; and (

**b**) fixed support.

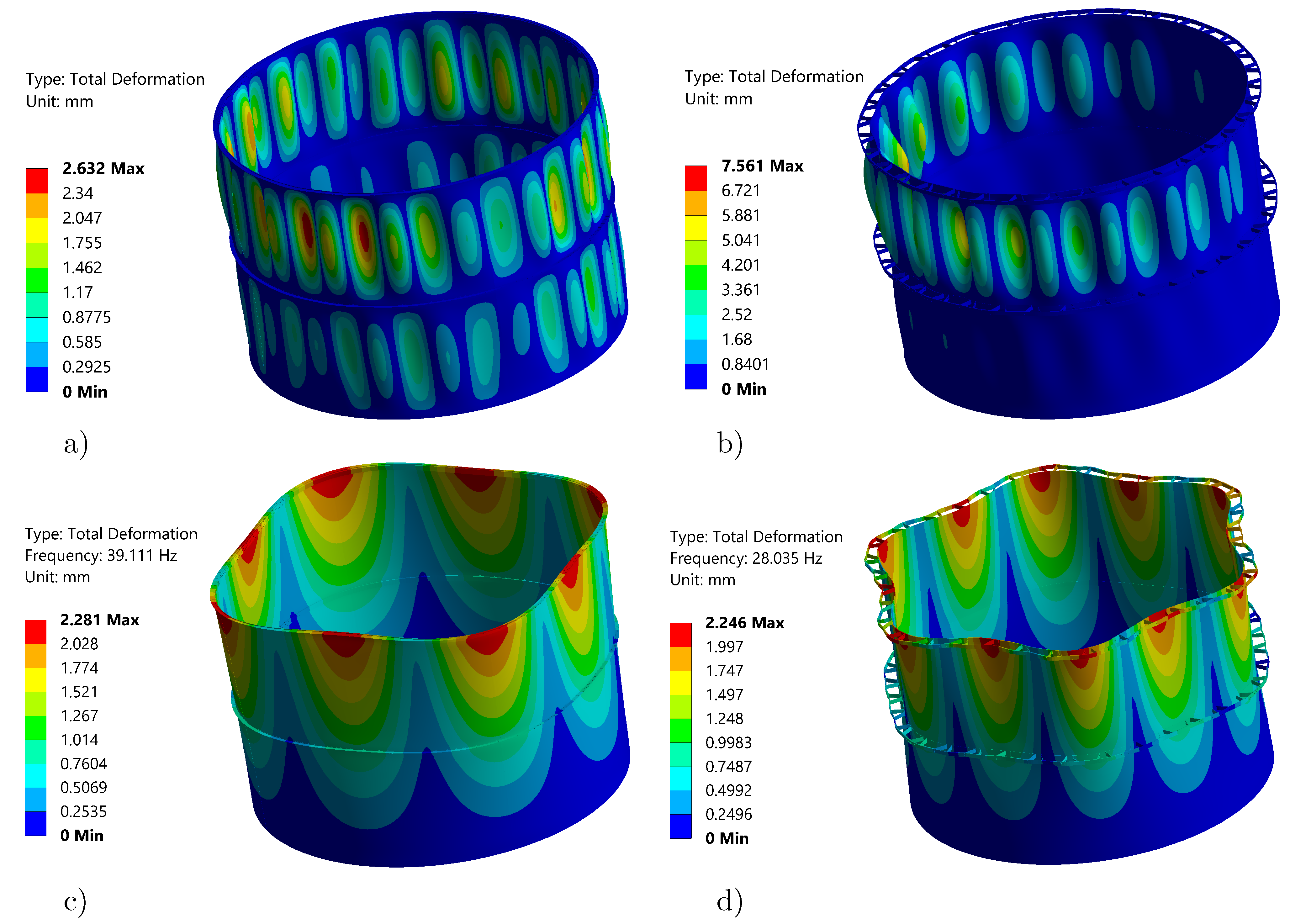

**Figure 8.**Tank TK1–shape under critical pressure from GMNIA: (

**a**) L60; (

**b**) NWG; first mode shape from MAl; (

**c**) L60; (

**d**) NWG.

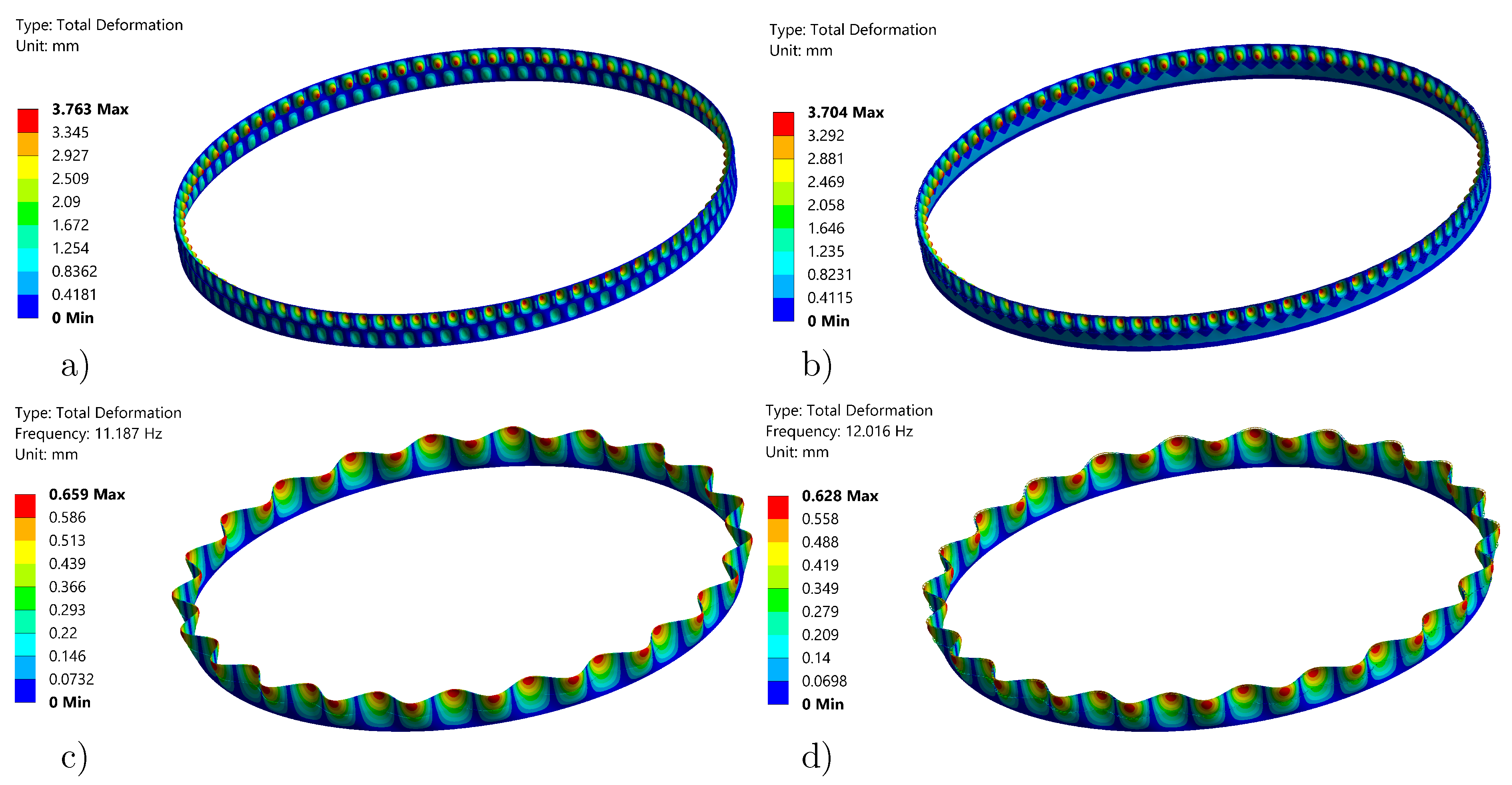

**Figure 9.**Tank TK3–shape under critical pressure from GMNIA: (

**a**) L60; (

**b**) NWG; first mode shape from MA; (

**c**) L60; (

**d**) NWG.

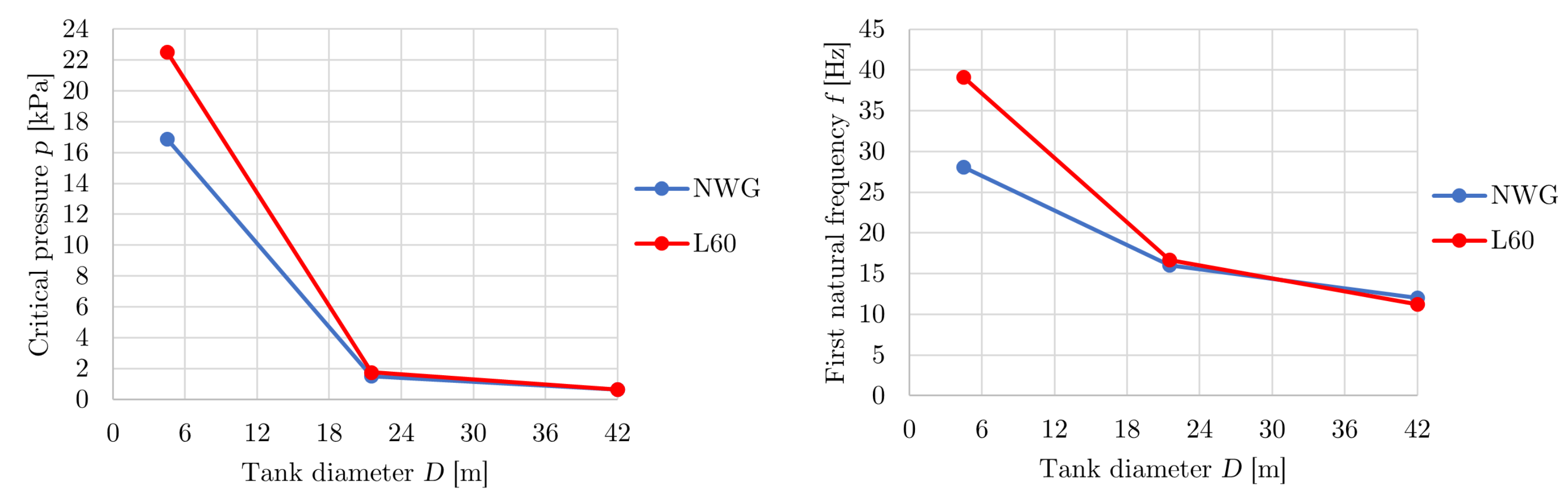

**Figure 10.**Comparison of low-height tanks: on the left is critical pressure, and on the right is first natural frequency.

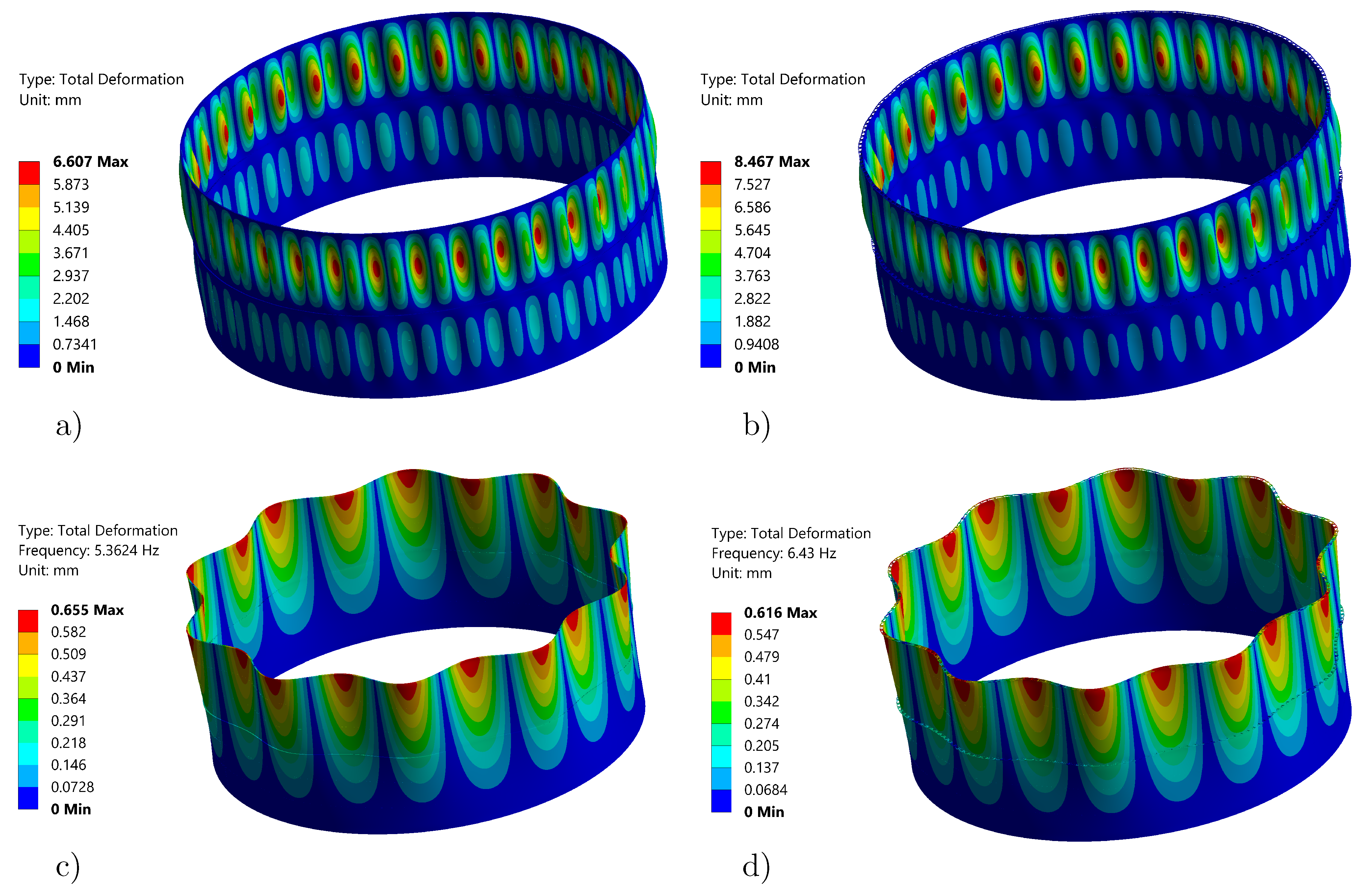

**Figure 11.**Tank TK5—shape under critical pressure from GMNIA: (

**a**) L60; (

**b**) NWG; first mode shape from MA; (

**c**) L60; (

**d**) NWG.

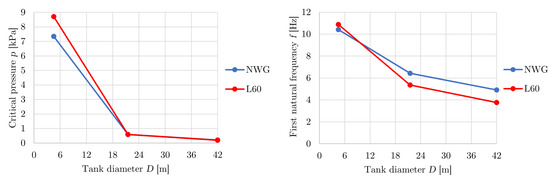

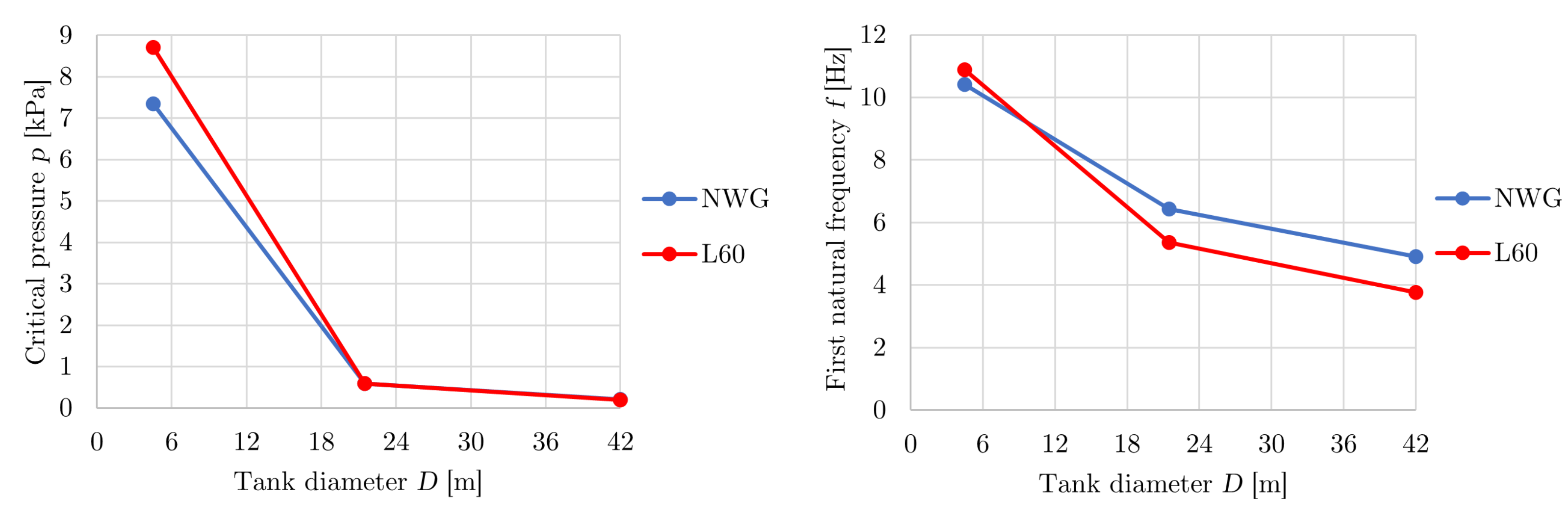

**Figure 12.**Comparison of middle-height tanks: on the left is critical pressure, and on the right is first natural frequency.

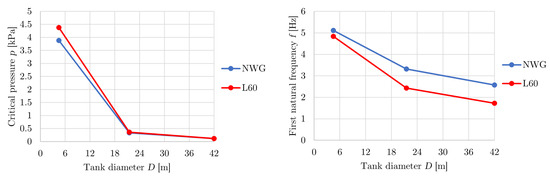

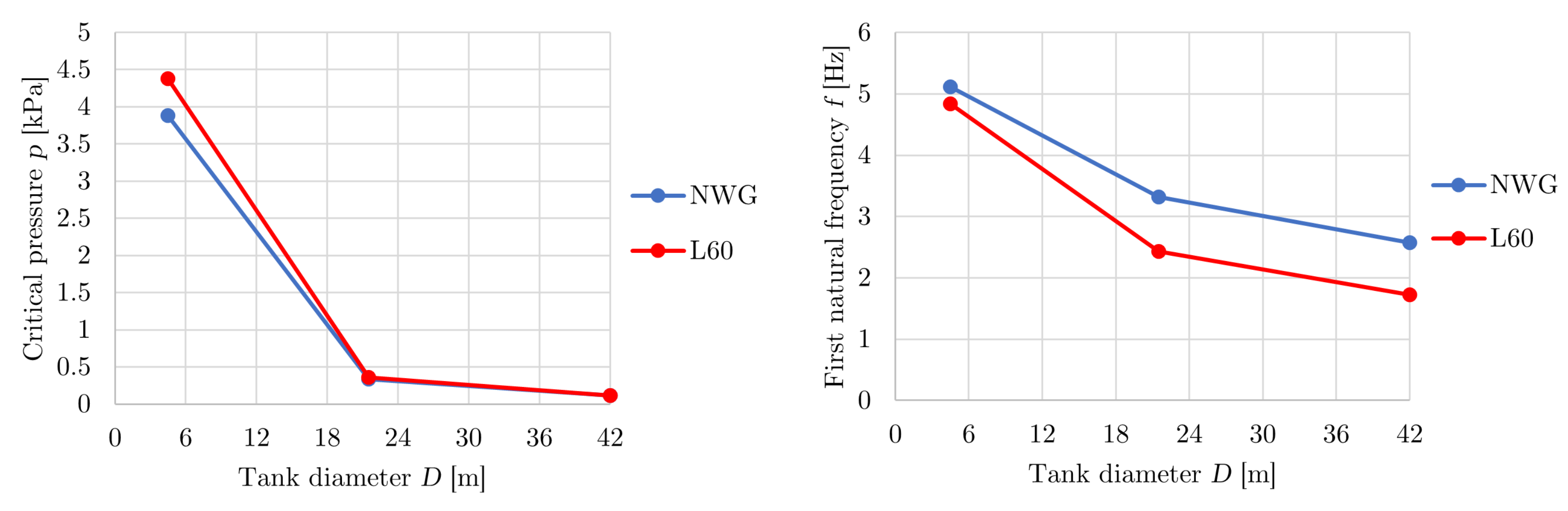

**Figure 13.**Comparison of high tanks: on the left is critical pressure, and on the right is first natural frequency.

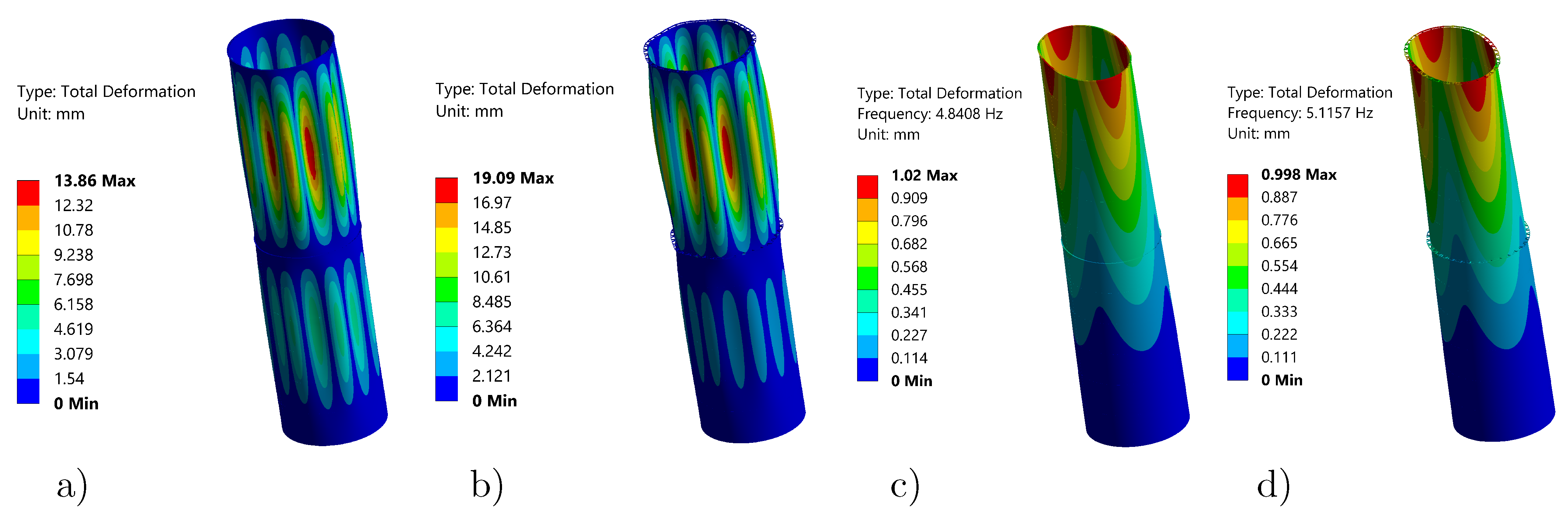

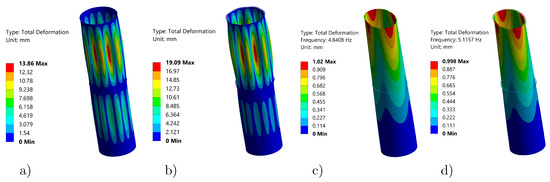

**Figure 14.**Tank TK7—shape under critical pressure from GMNIA: (

**a**) L60; (

**b**) NWG; first mode shape from MA; (

**c**) L60; (

**d**) NWG.

Type of Tank Analysis | Shell Theory |
---|---|

Linear elastic shell analysis (LA) | Linear bending and stretching |

Linear elastic bifurcation analysis (LBA) | Linear bending and stretching |

Geometrically non-linear elastic analysis (GNA) | Non-linear |

Materially non-linear analysis (MNA) | Linear |

Geometrically and materially non-linear analysis (GMNA) | Non-linear |

Geometrically non-linear elastic analysis with imperfections (GNIA) | Non-linear |

Geometrically and materially non-linear analysis with imperfections (GMNIA) | Non-linear |

Thickness t | Height h | Width w |
---|---|---|

4 mm | 150 mm | 50 mm |

Tank Wall | Girders | |
---|---|---|

Steel grade | K300T | S235 |

Young’s modulus E | 210,000 MPa | 210,000 MPa |

Poisson’s ratio $\mu $ | 0.30 | 0.30 |

Yield stress ${\sigma}_{y}$ | 300 MPa | 235 MPa |

Elongation $\delta $ | 28% | 26% |

Ultimate stress ${\sigma}_{ult}$ | 360 MPa | 235 MPa |

Tangent modulus ${E}_{T}$ | 531 MPa | 844 MPa |

Variant Label | D (m) | H (m) | ${\mathit{t}}_{\mathit{w}}$ (m) | Volume (m^{3}) | Number of Nodes (-) | Number of Elements (-) | Number of Segments (-) |
---|---|---|---|---|---|---|---|

TK1 | 4.3 | 2.9 | 0.003 | 42 | 28,900 | 26,800 | 70 |

TK2 | 21.4 | 2.9 | 0.003 | 1043 | 143,900 | 133,400 | 350 |

TK3 | 42.0 | 2.9 | 0.003 | 4018 | 208,900 | 189,100 | 686 |

TK4 | 4.3 | 8.6 | 0.003 | 125 | 78,700 | 76,600 | 70 |

TK5 | 21.4 | 8.6 | 0.003 | 3093 | 392,600 | 382,500 | 350 |

TK6 | 42.0 | 8.6 | 0.003 | 11,915 | 549,900 | 530,100 | 686 |

TK7 | 4.3 | 17.2 | 0.003 | 250 | 153,300 | 151,300 | 70 |

TK8 | 21.4 | 17.2 | 0.003 | 6187 | 417,400 | 407,300 | 350 |

TK9 | 42.0 | 17.2 | 0.003 | 23,830 | 598,700 | 578,800 | 686 |

Variant | D | ${\mathit{p}}_{\mathit{L}60}$ | ${\mathit{f}}_{\mathit{L}60}$ | ${\mathit{p}}_{\mathit{NWG}}$ | ${\mathit{f}}_{\mathit{NWG}}$ | $\frac{{\mathit{p}}_{\mathit{NWG}}-{\mathit{p}}_{\mathit{L}60}}{{\mathit{p}}_{\mathit{L}60}}$ | $\frac{{\mathit{f}}_{\mathit{NWG}}-{\mathit{f}}_{\mathit{L}60}}{{\mathit{f}}_{\mathit{L}60}}$ | ${\mathit{\sigma}}_{\mathit{L}60,\mathit{w}}$ | ${\mathit{\sigma}}_{\mathit{NWG},\mathit{w}}$ | ${\mathit{\sigma}}_{\mathit{L}60,\mathit{G}}$ | ${\mathit{\sigma}}_{\mathit{NWG},\mathit{G}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|

Label | (m) | (kPa) | (Hz) | (kPa) | (Hz) | (%) | (%) | (MPa) | (MPa) | (MPa) | (MPa) |

TK1 | 4.3 | 22.500 | 39.111 | 16.850 | 28.035 | −25.111 | −28.321 | 67 | 139 | 15 | 62 |

TK2 | 21.4 | 1.750 | 16.640 | 1.500 | 16.038 | −14.286 | −3.614 | 16 | 31 | 6 | 17 |

TK3 | 42.0 | 0.640 | 11.187 | 0.650 | 12.016 | 1.563 | 7.404 | 18 | 19 | 5 | 14 |

Variant | D | ${\mathit{p}}_{\mathit{L}60}$ | ${\mathit{f}}_{\mathit{L}60}$ | ${\mathit{p}}_{\mathit{NWG}}$ | ${\mathit{f}}_{\mathit{NWG}}$ | $\frac{{\mathit{p}}_{\mathit{NWG}}-{\mathit{p}}_{\mathit{L}60}}{{\mathit{p}}_{\mathit{L}60}}$ | $\frac{{\mathit{f}}_{\mathit{NWG}}-{\mathit{f}}_{\mathit{L}60}}{{\mathit{f}}_{\mathit{L}60}}$ | ${\mathit{\sigma}}_{\mathit{L}60,\mathit{w}}$ | ${\mathit{\sigma}}_{\mathit{NWG},\mathit{w}}$ | ${\mathit{\sigma}}_{\mathit{L}60,\mathit{G}}$ | ${\mathit{\sigma}}_{\mathit{NWG},\mathit{G}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|

Label | (m) | (kPa) | (Hz) | (kPa) | (Hz) | (%) | (%) | (MPa) | (MPa) | (MPa) | (MPa) |

TK4 | 4.3 | 8.700 | 10.874 | 7.350 | 10.407 | −15.517 | −4.295 | 96 | 128 | 12 | 94 |

TK5 | 21.4 | 0.585 | 5.362 | 0.594 | 6.430 | 1.496 | 19.909 | 29 | 34 | 5 | 17 |

TK6 | 42.0 | 0.200 | 3.762 | 0.205 | 4.905 | 2.500 | 30.382 | 16 | 17 | 3 | 8 |

Variant | D | ${\mathit{p}}_{\mathit{L}60}$ | ${\mathit{f}}_{\mathit{L}60}$ | ${\mathit{p}}_{\mathit{NWG}}$ | ${\mathit{f}}_{\mathit{NWG}}$ | $\frac{{\mathit{p}}_{\mathit{NWG}}-{\mathit{p}}_{\mathit{L}60}}{{\mathit{p}}_{\mathit{L}60}}$ | $\frac{{\mathit{f}}_{\mathit{NWG}}-{\mathit{f}}_{\mathit{L}60}}{{\mathit{f}}_{\mathit{L}60}}$ | ${\mathit{\sigma}}_{\mathit{L}60,\mathit{w}}$ | ${\mathit{\sigma}}_{\mathit{NWG},\mathit{w}}$ | ${\mathit{\sigma}}_{\mathit{L}60,\mathit{G}}$ | ${\mathit{\sigma}}_{\mathit{NWG},\mathit{G}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|

Label | (m) | (kPa) | (Hz) | (kPa) | (Hz) | (%) | (%) | (MPa) | (MPa) | (MPa) | (MPa) |

TK7 | 4.3 | 4.375 | 4.841 | 3.883 | 5.116 | −11.249 | 5.679 | 114 | 122 | 19 | 119 |

TK8 | 21.4 | 0.360 | 2.426 | 0.333 | 3.317 | −7.639 | 36.709 | 28 | 36 | 5 | 19 |

TK9 | 42.0 | 0.112 | 1.721 | 0.114 | 2.569 | 1.786 | 49.288 | 14 | 15 | 3 | 8 |

Variant | D | ${\mathit{p}}_{\mathit{LBA},\mathit{L}60}$ | ${\mathit{p}}_{\mathit{GMNIA},\mathit{L}60}$ | $\frac{{\mathit{p}}_{\mathit{G}\mathit{M}\mathit{N}\mathit{I}\mathit{A},\mathit{L}60}}{{\mathit{p}}_{\mathit{L}\mathit{B}\mathit{A},\mathit{L}60}}$ | ${\mathit{p}}_{\mathit{LBA},\mathit{NWG}}$ | ${\mathit{p}}_{\mathit{GMNIA},\mathit{NWG}}$ | $\frac{{\mathit{p}}_{\mathit{G}\mathit{M}\mathit{N}\mathit{I}\mathit{A},\mathit{N}\mathit{W}\mathit{G}}}{{\mathit{p}}_{\mathit{L}\mathit{B}\mathit{A},\mathit{N}\mathit{W}\mathit{G}}}$ | ${\mathit{p}}_{\mathit{Eurocode}}$ | ${\mathit{p}}_{\mathit{ISO}}$ |
---|---|---|---|---|---|---|---|---|---|

Label | (m) | (kPa) | (kPa) | (kPa) | (kPa) | (kPa) | (kPa) | ||

TK1 | 4.3 | 25.835 | 22.500 | 0.871 | 25.572 | 16.850 | 0.659 | 14.404 | 19.717 |

TK2 | 21.4 | 2.613 | 1.750 | 0.670 | 2.637 | 1.500 | 0.569 | 1.297 | 1.776 |

TK3 | 42.0 | 1.065 | 0.640 | 0.601 | 1.082 | 0.650 | 0.601 | 0.471 | 0.646 |

TK4 | 4.3 | 9.110 | 8.700 | 0.955 | 8.973 | 7.350 | 0.819 | 4.790 | 6.557 |

TK5 | 21.4 | 0.839 | 0.585 | 0.697 | 0.845 | 0.594 | 0.703 | 0.431 | 0.591 |

TK6 | 42.0 | 0.312 | 0.200 | 0.640 | 0.317 | 0.205 | 0.647 | 0.156 | 0.215 |

TK7 | 4.3 | 4.470 | 4.375 | 0.979 | 4.374 | 3.883 | 0.888 | 2.395 | 3.279 |

TK8 | 21.4 | 0.408 | 0.360 | 0.883 | 0.409 | 0.333 | 0.812 | 0.215 | 0.295 |

TK9 | 42.0 | 0.150 | 0.112 | 0.748 | 0.151 | 0.114 | 0.754 | 0.078 | 0.107 |

TK1 | TK4 | TK7 | ||||
---|---|---|---|---|---|---|

$\mathit{u}{}_{\mathit{i}}$ | ${\mathit{P}}_{\mathit{L}\mathbf{60}}$ (kPa) | ${\mathit{P}}_{\mathit{NWG}}$ (kPa) | ${\mathit{P}}_{\mathit{L}\mathbf{60}}$ (kPa) | ${\mathit{P}}_{\mathit{NWG}}$ (kPa) | ${\mathit{P}}_{\mathit{L}\mathbf{60}}$ (kPa) | ${\mathit{P}}_{\mathit{NWG}}$ (kPa) |

$0.25\xb7{t}_{w}=0.75$ mm | 23.500 | 17.500 | 8.800 | 7.970 | 4.400 | 4.076 |

$0.50\xb7{t}_{w}=1.50$ mm | 22.500 | 16.850 | 8.700 | 7.350 | 4.375 | 3.884 |

$1.00\xb7{t}_{w}=3.00$ mm | 21.088 | 16.500 | 8.600 | 6.448 | 4.359 | 3.609 |

Conventional Girders | New Design of Girders |
---|---|

In some cases difficult to produce | Easier production |

Difficult adaptation to the tank | Easy adaptation to various tank sizes |

Need to select from available standardized profiles | Easy to change stiffness |

Uniform cross-section | Variable cross-section |

Lower mass | Larger mass (18% more compared to L60) |

Part of Girder | L60 | NWG |
---|---|---|

Mass per length of girders (kg/m) | 6.39 | 7.55 |
