Next Article in Journal
Thermomechanical Fatigue of Lost Foam Cast Al–Si Cylinder Heads—Assessment of Crack Origin Based on the Evaluation of Pore Distribution
Next Article in Special Issue
Lubrication Analysis of Micro-Dimple Textured Die Surface by Direct Observation of Contact Interface in Sheet Metal Forming
Previous Article in Journal
Relationship between Al-Ni intermetallic Phases and Bond Strength in Roll Bonded Steel-Aluminum Composites with Nickel Interlayers
Previous Article in Special Issue
Review on Advances in Metal Micro-Tube Forming
Open AccessArticle

Formability Analysis and Oxidation Layer Effects in Dieless Drawing of Stainless Steel Wires

Department of Mechanical and Electro-Mechanical Engineering, National Sun Yat-sen University, No.70 Lianhai Rd., Gushan Dist., Kaohsiung City 804, Taiwan
*
Author to whom correspondence should be addressed.
Metals 2019, 9(8), 828; https://doi.org/10.3390/met9080828
Received: 14 June 2019 / Revised: 16 July 2019 / Accepted: 22 July 2019 / Published: 25 July 2019
(This article belongs to the Special Issue Metal Micro-forming)

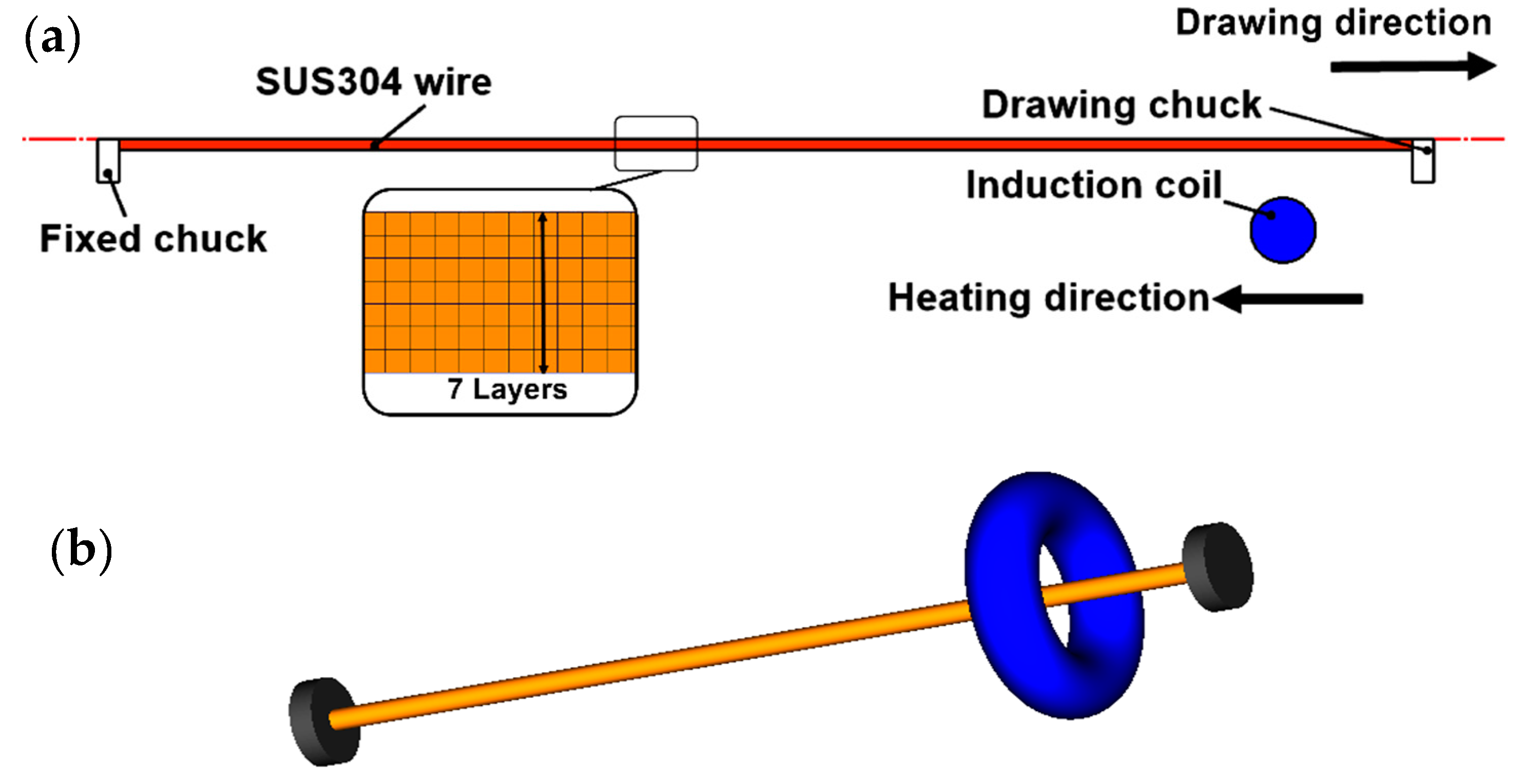

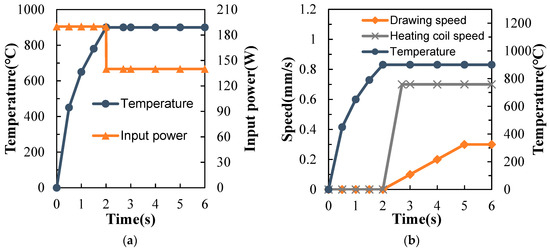

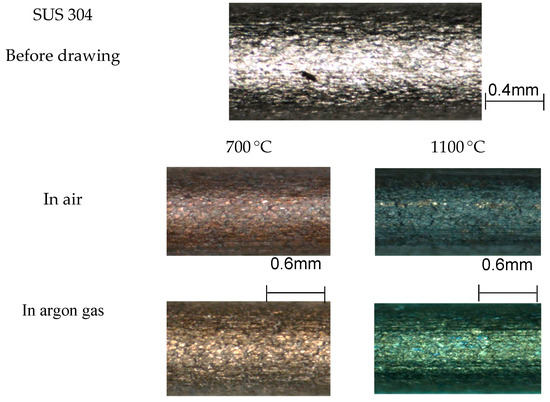

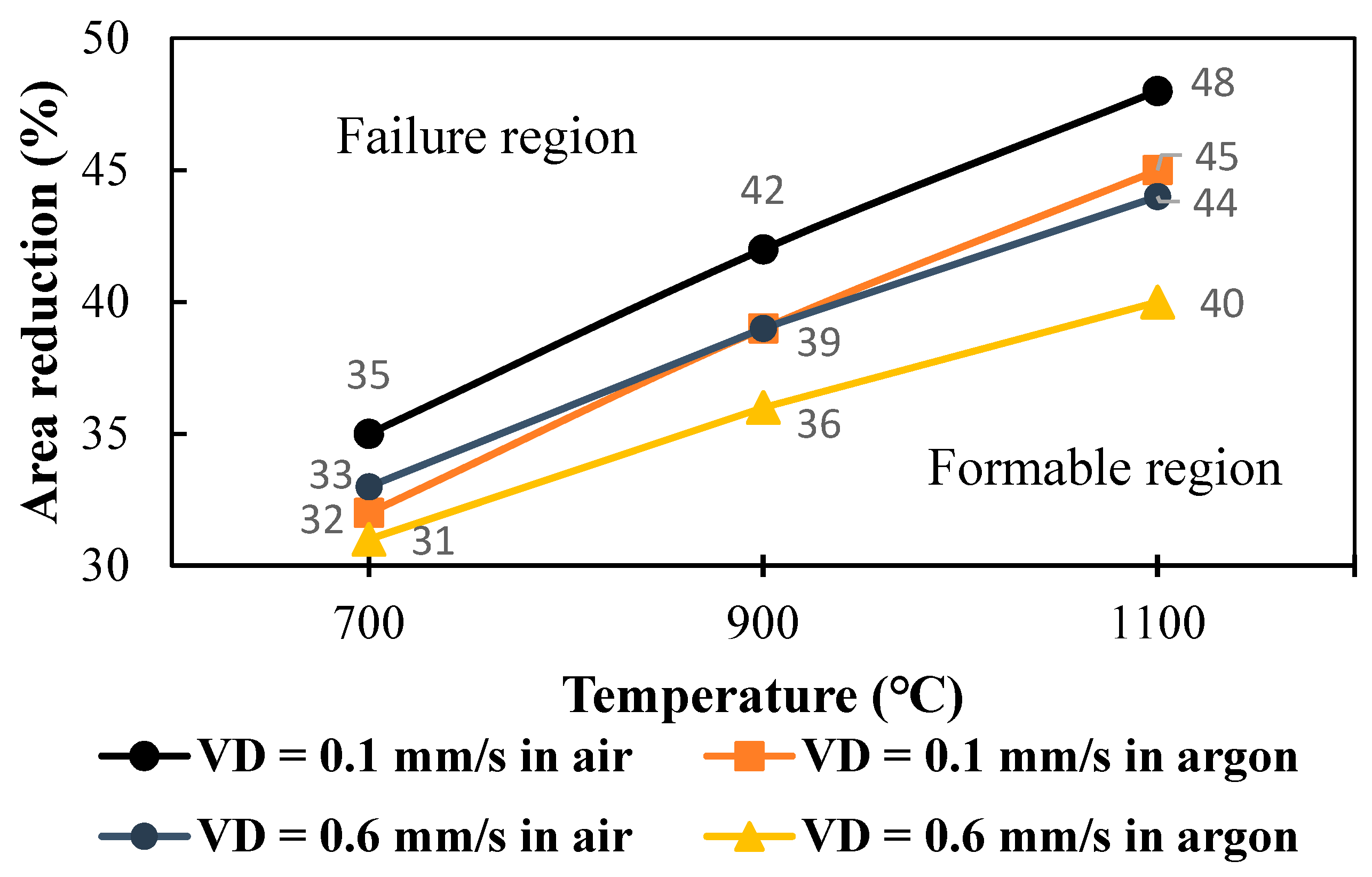

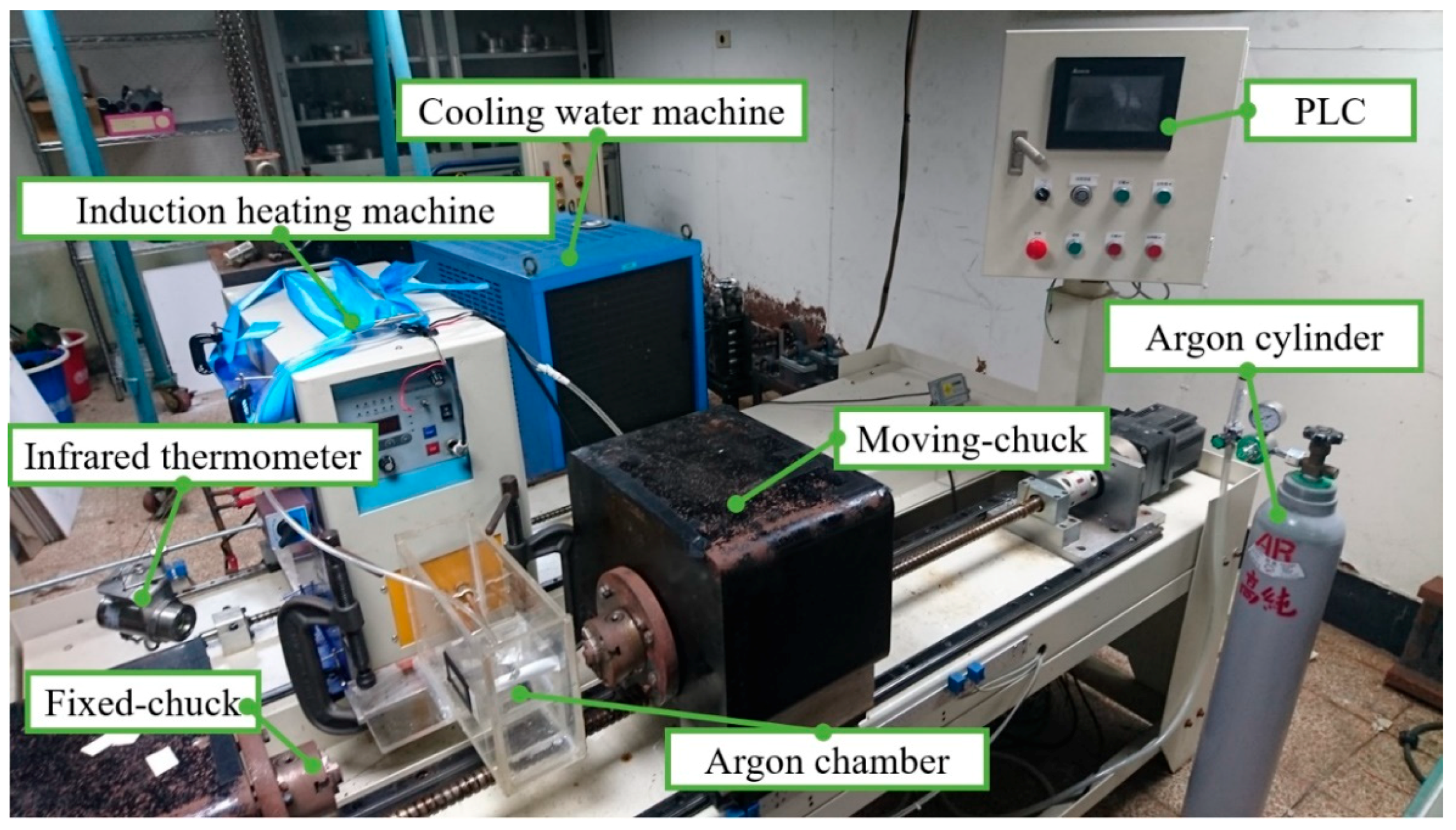

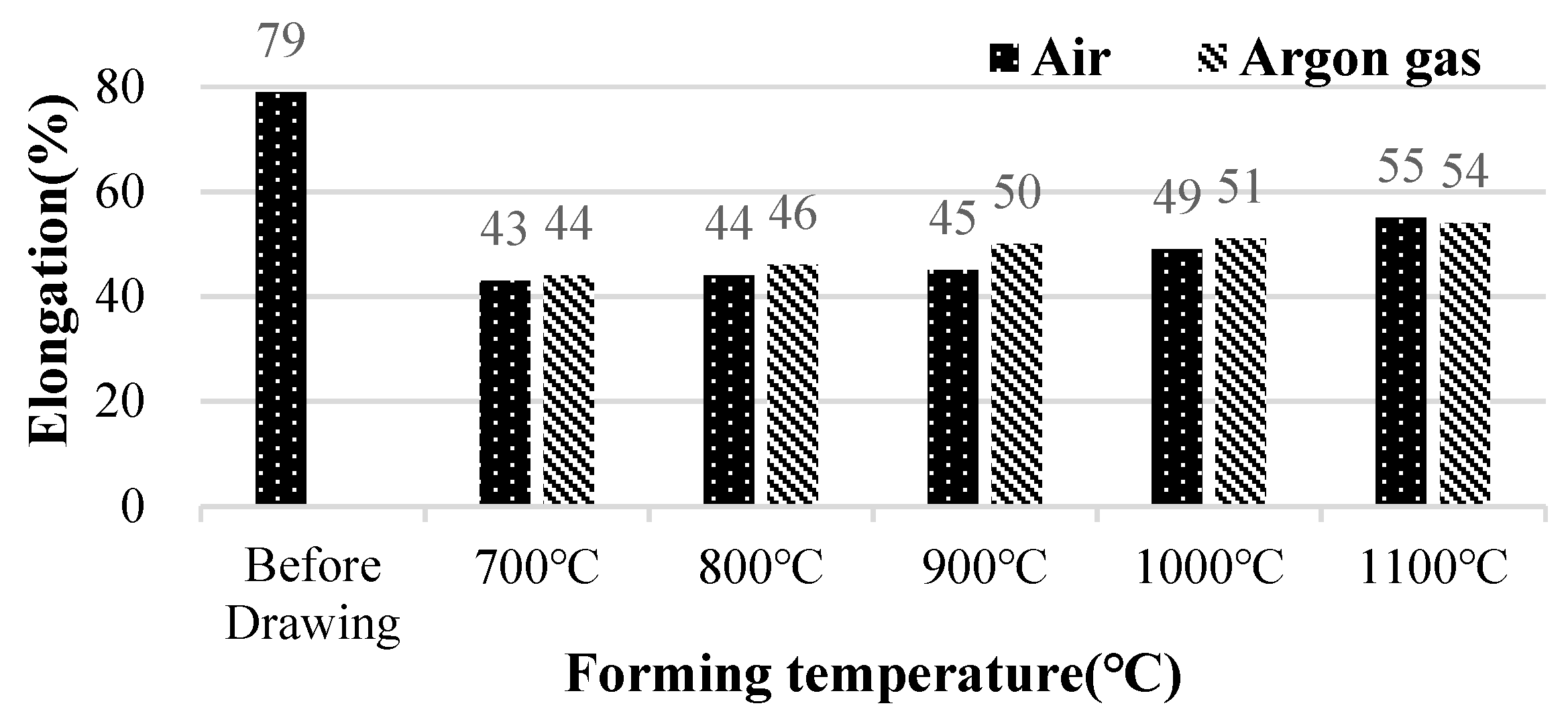

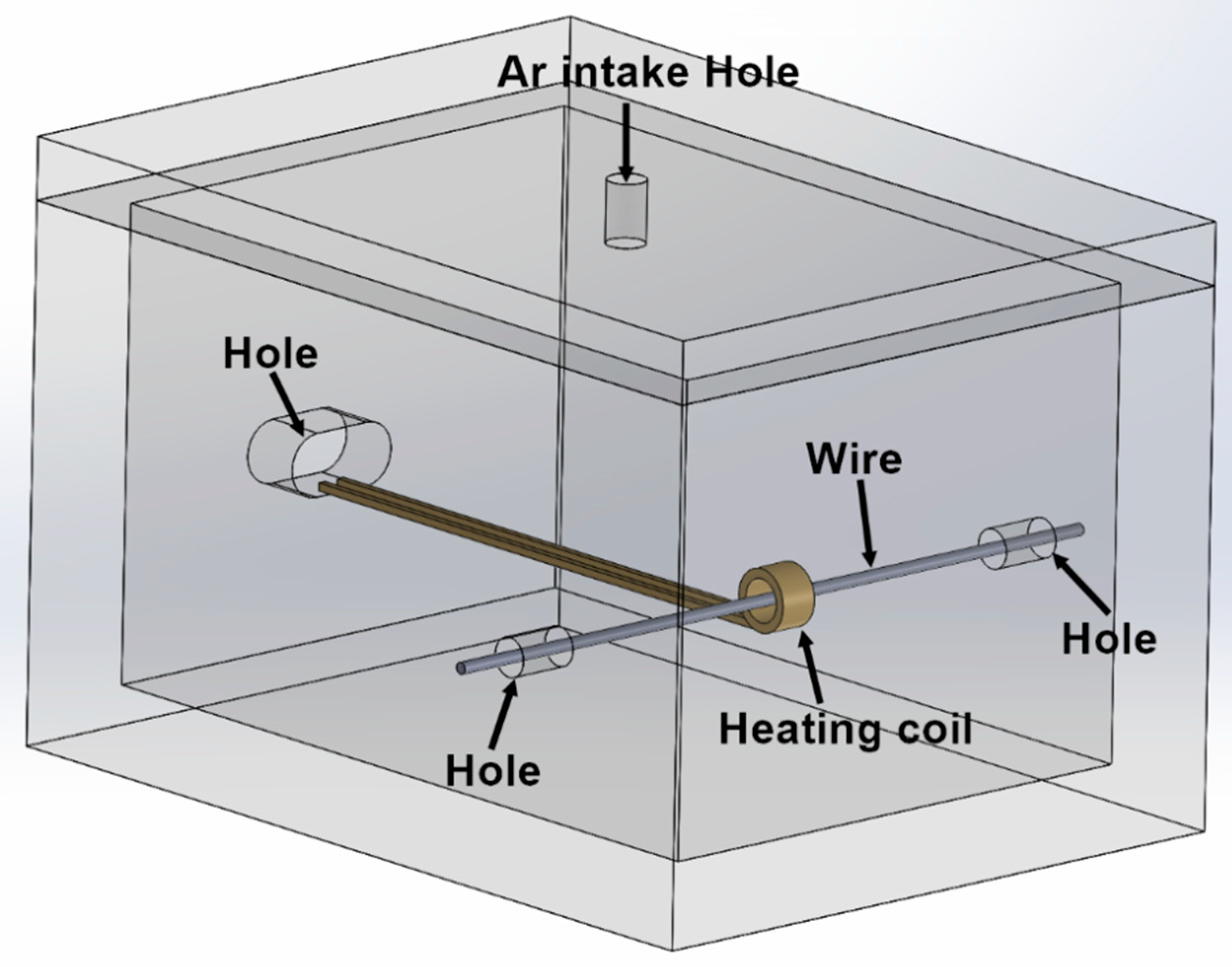

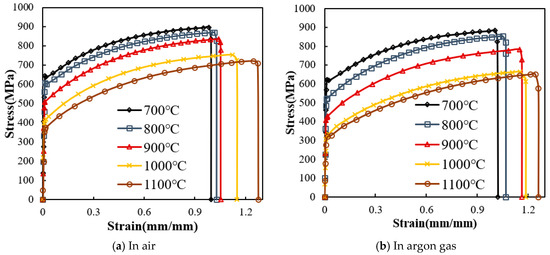

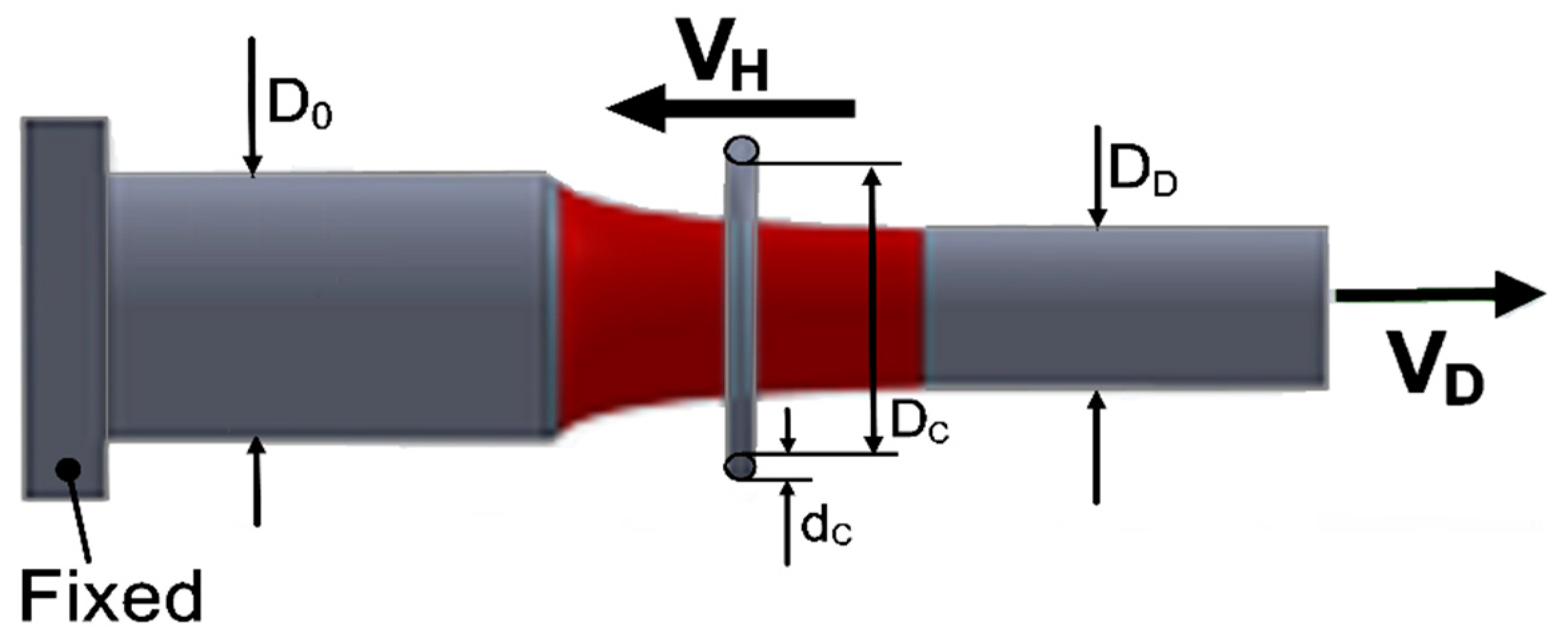

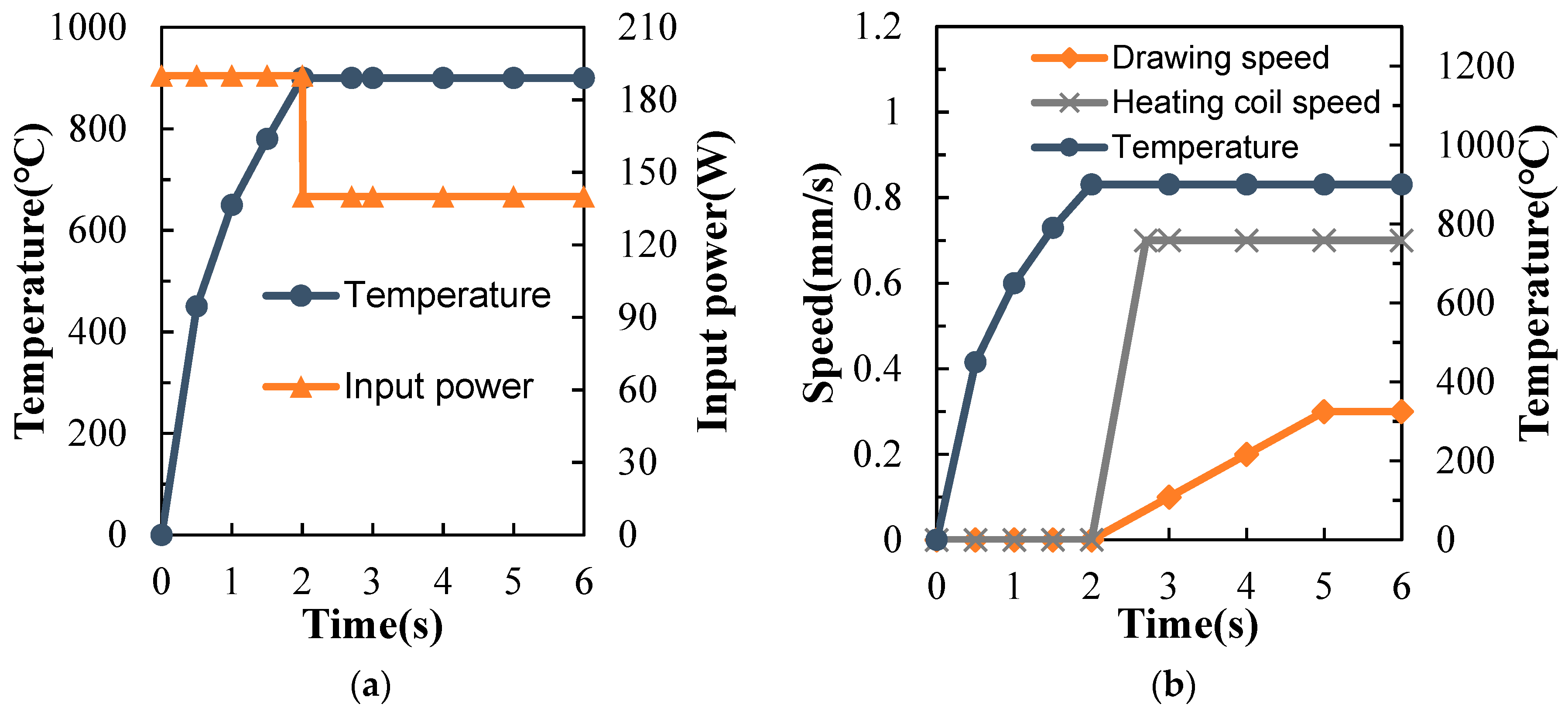

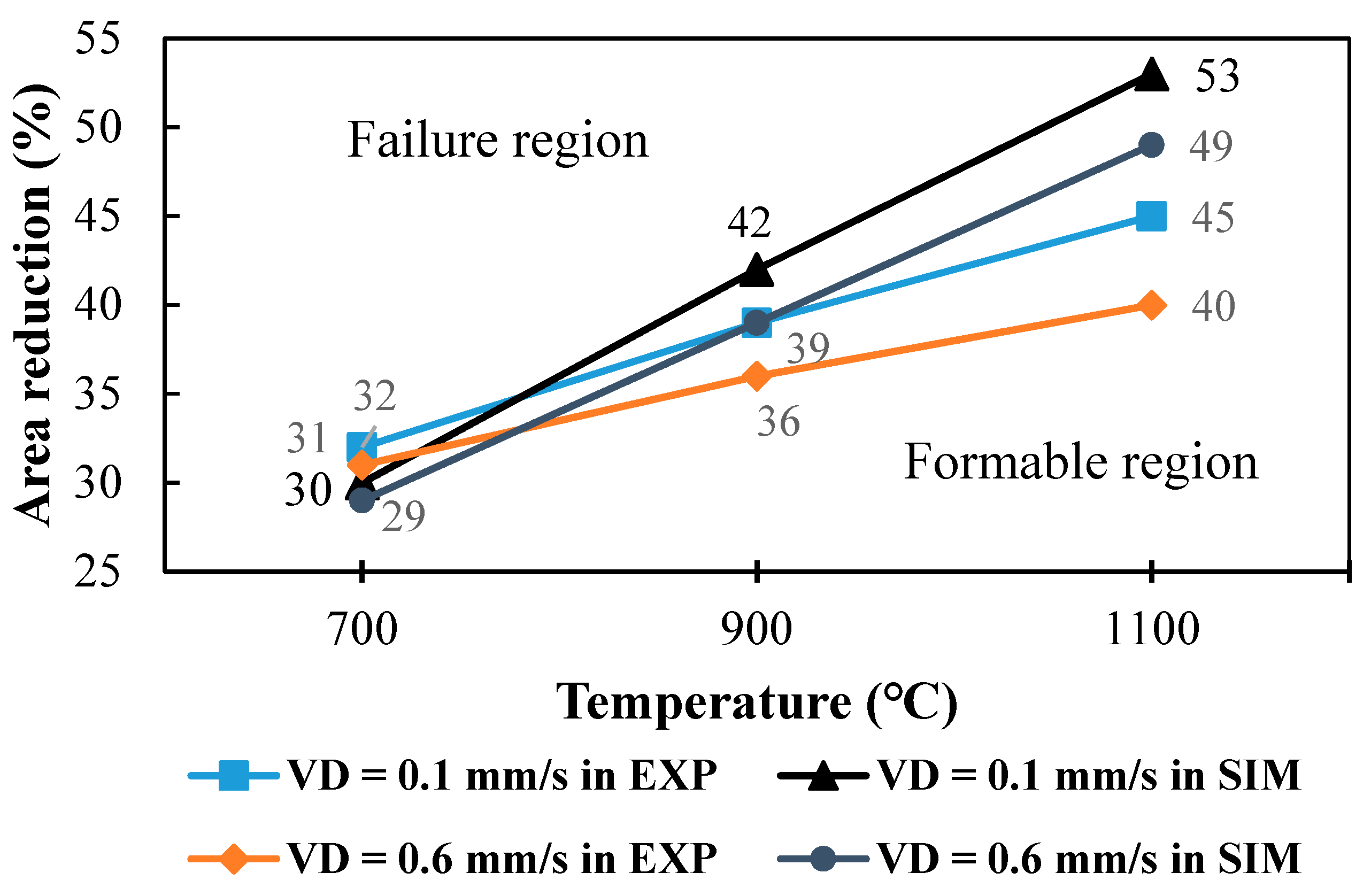

In this study, dieless drawing experiments of stainless steel SUS304 wires of 1 mm in diameter were carried out using a self-developed dieless drawing machine. In order to prevent oxidation, argon gas was applied to a self-designed chamber during dieless drawing processes. The effects of the forming temperature and the oxide layer on the mechanical properties of the drawn SUS304 stainless wires obtained by tensile tests are discussed in this paper. A finite element model considering the high frequency induction heating mode in the finite element software DEFORM2D was developed to conduct the heat transfer analysis and the formability analysis of the drawn products in dieless drawing of stainless steel wires. The effects of the drawing speed and forming temperature on the maximal reachable area reductions are discussed. Through the comparisons of the maximal reachable area reduction between the finite element simulations and experiments, the finite element modelling for dieless drawing processes was validated. View Full-Text
Keywords: dieless drawing; SUS304 stainless steel wires; oxide layer; finite element simulation dieless drawing; SUS304 stainless steel wires; oxide layer; finite element simulation
Show Figures

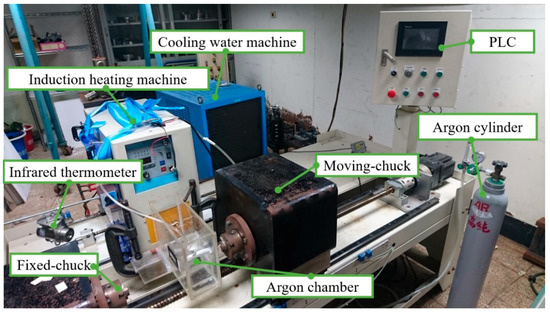

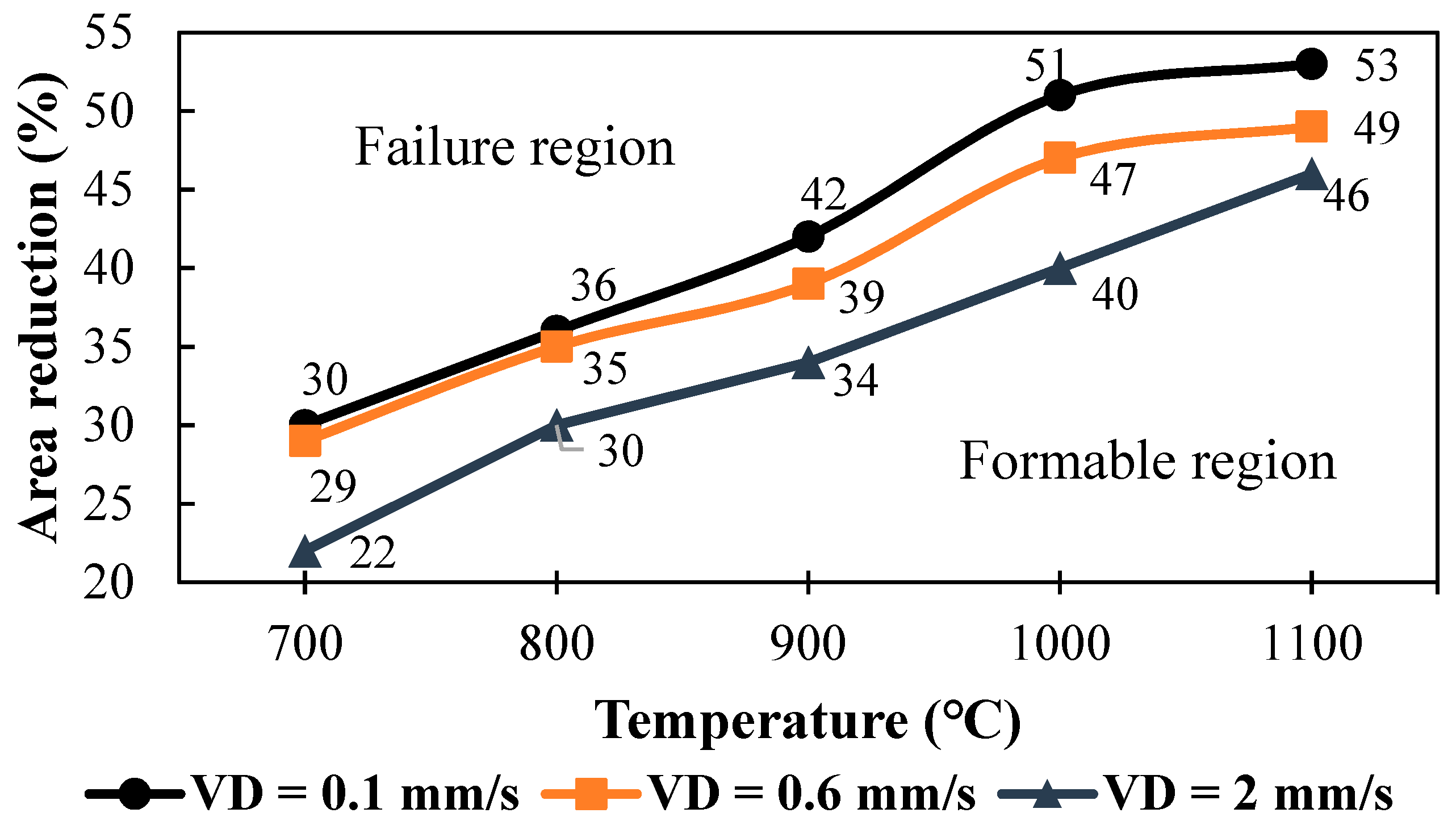

Figure 1

MDPI and ACS Style

Hwang, Y.-M.; Liu, H.-H. Formability Analysis and Oxidation Layer Effects in Dieless Drawing of Stainless Steel Wires. Metals 2019, 9, 828.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
