Ab Initio Study of the Combined Effects of Alloying Elements and H on Grain Boundary Cohesion in Ferritic Steels

Abstract

Hydrogen enhanced decohesion is expected to play a major role in ferritic steels, especially at grain boundaries. Here, we address the effects of some common alloying elements C, V, Cr, and Mn on the H segregation behaviour and the decohesion mechanism at a $\Sigma 5(310)\left[001\right]$ ${36.9}^{\circ }$ grain boundary in bcc Fe using spin polarized density functional theory calculations. We find that V, Cr, and Mn enhance grain boundary cohesion. Furthermore, all elements have an influence on the segregation energies of the interstitial elements as well as on these elements’ impact on grain boundary cohesion. V slightly promotes segregation of the cohesion enhancing element C. However, none of the elements increase the cohesion enhancing effect of C and reduce the detrimental effect of H on interfacial cohesion at the same time. At an interface which is co-segregated with C, H, and a substitutional element, C and H show only weak interaction, and the highest work of separation is obtained when the substitute is Mn.

1. Introduction

Hydrogen being one of the most abundantly available elements is also one of the most complicated to understand. It could be the answer to the present-day energy crisis, if one could design reliable H storage materials or reduce H embrittlement (HE) of the plasma facing materials in nuclear fusion reactors. However, despite being investigated for more than 140 years [1], H embrittlement continues to be a major source of environmental degradation in structural alloys. H is a major reactant with solids because of its strong chemical activity and high lattice mobility as a result of its small size, which in turn results in high diffusivity.

The most promising approach to attempt to prevent hydrogen embrittlement is thus to influence the diffusivity of H in microstructures of iron and iron alloys [2]. Sufficiently strongly trapped hydrogen might not harm steel, as long as the accumulated hydrogen does not trigger an embrittlement mechanism of its own. For instance, grain boundaries (GBs) are likely trapping sites for H [3,4] but are also prone to suffer from hydrogen enhanced decohesion (HEDE) [5]. Both the segregation tendency of H to grain boundaries and the effect of H on GB cohesion can be influenced by alloying elements [6,7]. In the study at hand, we investigate the co-segregation of H and typical alloying elements in ferritic steels, C, V, Cr, and Mn to shed some light on their combined effects on grain boundary embrittlement. We perform quasi-static ab initio density functional theory (DFT) calculations to obtain accurate segregation energies and mechanical quantities, which can serve as input for transport- or micromechanical models.

C is known to segregate to defects and grain boundaries due to an increased solubility at higher strain fields [8]. e.g., at dislocations, or a beneficial combination of excess volume and bond lengths at grain boundaries [9]. C also acts as a cohesion enhancing element in bcc metals [10,11]. Tahir et al. [6] investigated the physical properties of a $\Sigma 5$ symmetrical tilt GB in bcc Fe with C and H impurities through ab initio calculations, finding that C enhances the grain boundary cohesion and theoretical strength, while H does not have an important detrimental effect on its own. According to this, it can be inferred that the reason for the embrittlement is the substitution of strengthening elements, such as C, by H.

Cr has been studied in $\alpha$-Fe and reported to segregate to and enhance grain boundary cohesion of $\Sigma$ 5(210) and $\Sigma$ 3(111) GBs [12,13]. The co-segregation of Cr and H was investigated in the $\Sigma$ 3(111) GB, where Cr was found to deter the segregation of H and suppress the H-induced embrittlement [7,14]. In $\gamma$-Fe, Cr is cohesion enhancing at the $\Sigma$ 11(11$\overline{3}$)[1$\overline{1}$0] GB, due to strengthening chemical effects [15,16]. Similarly, V has a cohesion enhancing effect on the same $\Sigma$11 GB [16,17]. Studies of the $\Sigma$ 3(111)[1$\overline{1}$0] bcc Fe GB indicated that V also has a cohesion enhancing effect [18], and, in the Fe-V-H system, it was found that there is no interaction between H and V at the GB, meaning that the presence of V does not affect the segregation of H to the grain boundary [19]. Mn alone was found to be embrittling at the $\Sigma 3(111)\left[1\overline{1}0\right]$ [20] and $\gamma$-Fe $\Sigma 11(11\overline{3})\left[1\overline{1}0\right]$ [16] GBs.

It seems that Mn is causing an increase in solubility [21,22] and mobility [21] of interstitial H in Mn-containing Fe alloys. Counts et al. [23] studied H–H interactions in the presence of 3d solute atoms in bcc Fe and found that H-solute defect complexes can contain two H atoms for Cr and V and contain four H atoms for Mn with H binding most strongly to Mn and least to Cr. A strong attraction between C and Mn was observed in bcc FeMn alloys [24] and at a $\Sigma 3(111)$ GB in bcc Fe [25] and an austenitic Fe–C–Mn alloy [26]. In this work, we confirm the C–Mn attraction in the bulk, but we find that C prefers to segregate away from Mn at the $\Sigma 5$ GB in bcc Fe. This indicates that C–Mn interaction is not necessarily the same at different GBs and in the bulk.

While the individual interactions between either H or C with typical alloying elements and the consequences for segregation and cohesion at grain boundaries have been studied in some detail, not much is known about the effect of these alloying elements on the co-segregation of H and C. State-of-the-art thermodynamic models of segregation in multicomponent systems ignore the interaction between interstitial segregants [27]. In this work, we confirm that this is a good approximation for the system Fe–X–C–H (with X = Cr, V, Mn), but that the interaction between X and the interstitial element can be significant.

This paper is structured as follows: Section 2 describes the construction of the supercell used for ab initio calculations and the procedure and formulae used in calculating the energies and mechanical properties. In Section 3, we present our findings and we discuss and conclude our work in Section 4 and Section 5.

2. Methodology

2.1. Technical Details

We used the VASP software package [28,29,30,31] for the DFT calculations. The Perdew–Burke– Ernzerhof (PBE)-GGA [32] functional was used to account for the exchange and correlation effects, and the projector augmented-wave (PAW) [33] method was employed to describe the core–valence interaction. Spin-polarized calculations were performed to account for the magnetism of V, Cr, Fe and Mn. A plane-wave basis with a cut-off energy of 400 eV and an 8 × 4 × 2 k-point mesh generated using the Monkhorst–Pack method [34] is used to sample the Brillouin Zone for all supercells. The convergence between a 8 × 4 × 2 and 16 × 4 × 2 sampling was tested for the cell${}_{\left[001\right]}$ supercell (see below), and the difference in solution energy of C in the presence of V was found to be less than 1 meV/atom. The convergence criteria for the electronic iteration is set to ${10}^{-6}$ eV, and the atoms are relaxed until the maximum force component on each atom is less than ${10}^{-2}$ eV/Å. The first-order Methfessel–Paxton method [35] was used for the Fermi-surface smearing with a smearing width of 0.1 eV.

2.2. Simulation Cell

We study the alloying effects at a $\Sigma 5(310)\left[001\right]$ ${36.9}^{\circ }$ symmetrical tilt grain boundary (STGB) in $\alpha$-Fe. To this end, a 40-atom supercell (in the following named cell${}_{\left[001\right]}$) was constructed, which contains 20 (310)-layers parallel to the GB and two crystallographic planes (=one periodic unit) along the [001] tilt axis. There are two GBs due to periodic boundary conditions. This cell size allows substitution of Fe in the (310) plane in steps of 50%. To further investigate the effect of concentration of the alloying elements, case studies were carried out with an 80-atom supercell (in the following named cell${}_{2\left[001\right]}$) of the $\Sigma 5$ STGB containing four crystallographic planes (=two periodic units) along the [001] tilt axis. This supercell size enables substitution of Fe in steps of 25% in the (310) plane. The two cells are shown in Figure 1. The cells were optimized with respect to translations parallel to and expansion perpendicular to the grain boundary, while allowing relaxations of atomic positions. For the larger cell, this was already done in a previous study [6]. The convergence with respect to the number of layers separating the two GBs was tested again in the presence of a substitutional Mn atom and found to be sufficient within an accuracy in the GB energy of 34 mJ/m${}^2$.

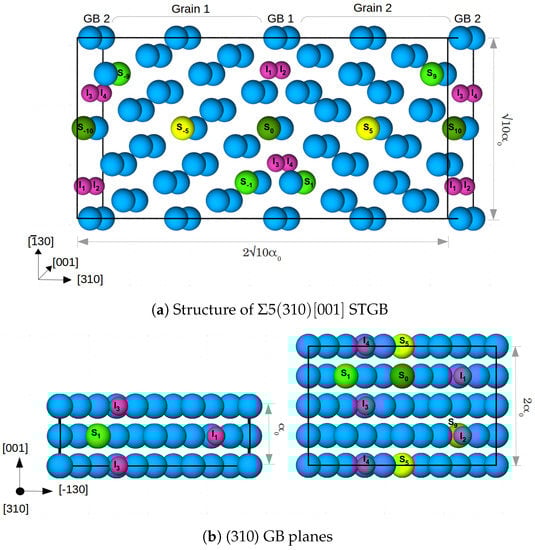

Figure 1 shows the segregation sites for the alloying/impurity atoms at each GB that were considered in this study. Each alloying element is placed at each GB/in each grain to maintain the symmetry of the cell. Substitutional sites are labelled with S and a number which marks the distance from the GB in the center (GB1). Note that, in cell${}_{\left[001\right]},$ the atoms on positions S${}_1$ are restricted to form columns along the [001] direction, while in the larger cell there is the option to occupy alternating or diagonally opposite sites along [−130], as shown in Figure 1b. In a previous study [9], the latter case (sites S${}_{-1}$/S${}_{-9}$ and S${}_1$/S${}_9$) was found to be energetically more favourable for Mn. Thus, we added the corresponding configuration of Mn atoms in cell${}_{2\left[001\right]}$ to estimate the influence of supercell size and atomistic configuration on the segregation energy of the considered alloying elements.

I${}_1$ to I${}_4$ are the four segregation sites at each GB for the interstitial atoms H and C in cell${}_{2\left[001\right]}$, while I${}_1$ and I${}_3$ are the two sites present in cell${}_{\left[001\right]}$. These sites are in the center of capped trigonal prisms, which form the structural units (SUs) of the $\Sigma$5 (310) STGB [6,9]. In both supercells, a 100% occupation of the SUs corresponds to an area density of 0.078 C and/or H atoms per m${}^2$ in the GB plane. Segregation sites I${}_3$ and I${}_4$ (I${}_1$ and I${}_2$) have a (no) substitutional alloying element at one of the corners of the trigonal prism. After determining the most likely positions for the substitutional elements (see Section 3.1.1), the most favorable segregation sites for C and H at these grain boundaries were obtained by testing all resulting nonequivalent configurations (a total of 65).

Rigid grain shifts with subsequent relaxation of the atomic positions were performed to determine the change in excess volume (expansion along [310]) and translation state along the tilt axis [001] induced by Mn, Cr and V. The results are shown in

Table 1. Effect of alloying elements on GB properties. The excess length and the shift along the tilt axis (columns five and six) are expressed with respect to the values at the pure Fe GB (first row).

System	Segregation Sites	Excess Length [Å]	Shift${}_{\left[001\right]}$ [Å]	${\mathit{\gamma }}_{\mathit{GB}}$ [${\mathbf{J}/\mathbf{m}}^2$]	${\mathit{\gamma }}_{\mathit{seg}}$ [eV/Atom]
Fe	-	0.31	0.43	1.55	-
Fe + V	S${}_0$	+0.08	+0.12	1.47	−0.16
	S${}_{-1}$	+0.06	+0.01	1.47	−0.15
Fe + Cr	S${}_0$	+0.09	+0.10	1.45	−0.18
	S${}_{-1}$	+0.05	−0.03	1.40	−0.27
Fe + Mn (cell${}_{\left[001\right]}$)	S${}_0$	+0.11	−0.02	1.36	−0.33
	S${}_{-1}$	+0.09	−0.25	1.27	−0.48
Fe + Mn (cell${}_{2\left[001\right]}$)	S${}_0$	+0.00	+0.00	1.59	0.12
	S${}_{-1}$	+0.09	−0.07	1.40	−0.48
	S${}_{-1}$, S${}_1$	+0.07	−0.32	1.21	−0.55

w.r.t the pure Fe STGB. To study segregation of C and H in the presence of V, Cr or Mn, C and H were then added to the such optimized supercells with a substitutional element. These cells were further optimized by rigid grain shifts in order to account for excess volume at the GB, induced by the interstitials.

For the reference configurations in the Fe bulk, a bulk supercell with the same number of atoms and oriented in the same directions as the GB supercell was optimized in the same way.

2.3. Grain Boundary and Segregation Energies

After optimization, the energy of the GB is calculated as

$${\gamma }_{GB}=\frac{E_{GB}^{xFe+yS+zI}-(E_{Bulk}^{xFe+yS}+z{\mu }_I)}{2A}.$$

(1)

$E_{GB}^{xFe+yS+zI}$ is the total energy of the GB containing x Fe atoms, y substitutional atoms (Cr, V, or Mn) and z interstitial C or H atoms. $E_{Bulk}^{xFe+yS}$ is the energy of x Fe atoms and y substitutional atoms in the bulk slab, and $z{\mu }_I$ is the reference energy of the z interstitial impurities: ${\mu }_C$ = −9.120 eV/atom in the diamond phase and ${\mu }_H$ = −3.385 eV/atom in a H${}_2$-molecule [6].

The segregation energy of a substitutional alloying element to the GB is calculated as

$${\gamma }_{seg}=E_{sol}^{GB}-E_{sol}^{Bulk},$$

(2)

where the solution energies per atom of substitutional alloying element S at the GB or in bulk ($E_{sol}^{GB/Bulk}$) are calculated as follows:

$$E_{sol}^{GB/Bulk}=\frac{(E_{GB/Bulk}^{xFe+yS}+y{\mu }_{Fe})-(E_{GB/Bulk}^{(x+y)Fe}+y{\mu }_S)}{y}.$$

(3)

$y{\mu }_{Fe}$ is the chemical potential of y ferromagnetic bcc Fe atoms added to conserve the number of Fe atoms, and $y{\mu }_S$ is the chemical potential of the same number of substitutional atoms in their respective ground states. The reference energies for the non-magnetic bcc metals are ${\mu }_{Cr}$ = −9.630 eV/atom for Cr and ${\mu }_V$ = −9.079 eV/atom for V, and the one for cubic, non-magnetic $\alpha$-Mn is ${\mu }_{Mn}$ = −9.153 eV/atom. The solution energy per atom of z interstitial elements at (two) Mn/Cr/V pre-segregated GBs and in the bulk alloy are defined as

$$E_{sol}^{GB/Bulk}=\frac{E_{GB/Bulk}^{(xFe+yS)+zI}-(E_{GB/Bulk}^{(xFe+yS)}+z{\mu }_I)}{z}.$$

(4)

2.4. Work of Separation and Theoretical Strength

The work of separation (WoS) is the energy which is required to separate the GB into two free surfaces (FS),

$$WoS=\frac{2E_{FS}-E_{GB}}{2A},$$

(5)

where $E_{FS}$ is the total energy of the FS slab with half the number of substitutional or interstitial impurity atoms (and Fe atoms) as that of GB, $E_{GB}$ is the total energy of the GB with S and/or I. The FS slab is created by cleaving the GB supercell at the GB plane and separating GB1 and Grain2 (from Figure 1) into two free surfaces, allowing only atomic positions to relax.

The thermodynamic theory of Rice and Wang [36] relates the segregation behaviour of solutes to their effect on grain boundary cohesion. According to their model, the difference in bonding energies of a solute at a grain boundary and at the corresponding free surface is a measure of the reduction or the enhancement of cohesion that this solute causes at the interface. In other words, elements that segregate more strongly to a free surface than to the grain boundary have an embrittling effect. This can easily be seen by re-arranging the terms in the bonding energy difference to represent the difference in work of separation with and without the impurity. This difference is thus also often called strengthening energy $\Delta E_{SE}$,

$$\Delta E_{SE}=\frac{n}{2A}\left[{\gamma }_{seg}^{FS}-{\gamma }_{seg}^{GB}\right]=Wo{S}^{(S/I)}-Wo{S}^{ref},$$

(6)

where n is the total number of segregating atoms, y or z. A positive/negative value of $\Delta E_{SE}$ means that a solute strengthens/weakens the GB. Note that the reference structure to calculate $Wo{S}^{ref}$ for substitutional elements is different from that for interstitial elements. To see the influence of the substitutional alloying elements, the $Wo{S}^{ref}$ is that of the pure Fe STGB, while, for the investigation of the effect of C and H, it is that of the Fe STGB with a substitutional alloying element.

To gain more insight into the nature of the cohesion enhancing/embrittling effect, we separated the change in WoS into two parts—chemical contribution $\Delta E_{SE}^c$ and mechanical contribution $\Delta E_{SE}^m$, as described in [37,38]. $\Delta E_{SE}^c$ is the direct interaction between the solute and host atoms and is defined as the energy needed to remove the solute while not permitting the host atoms to relax. It is the difference between the WoS of a relaxed GB structure with solute atoms and the same GB in which the solute atoms are removed without any subsequent relaxation of the atomic positions,

$$\Delta E_{SE}^c=Wo{S}^{(S/I)}-Wo{S}_{rigid}^{\square }.$$

(7)

The □ represents either the vacant interstitial site or the substitutional site now replaced by an Fe atom without further relaxation. The remaining part of $\Delta E_{SE}$ is the elastic or mechanical contribution of the host–host interaction induced by the impurity. It is characterized by the relaxation of the host metal lattice to accommodate the impurity atoms and can be obtained via

$$\Delta E_{SE}^m=Wo{S}^{\square }-Wo{S}_{relaxed}^{pureGB}.$$

(8)

Ab initio uni-axial tensile tests were performed by increasing the length along [310] via step-wise rigid separation of the two grains, where the separation between the two grains was inserted between GB2 and Grain1 and GB1 and Grain2. This type of rigid body separation requires the same force (or stress) as mode I fracture [39]. The supercells were compressed and expanded along [310] up to the free surface energy, and the universal binding energy relationship (UBER) [40] was fitted to the data. The critical stress for fracture (fracture stress ${\sigma }_f$) is the first derivative at the displacement at the point of inflection (where the curvature is zero) [6,39,41].

3. Results

3.1. Segregation

3.1.1. Segregation of V, Cr, and Mn to the GB

All the grain boundary and segregation energies are listed in Table 1. It can be observed that Mn decreases the GB energy and is also more strongly attracted to the GB than Cr and V. From both ${\gamma }_{seg}$ and the decrease in ${\gamma }_{GB}$, we find that Cr and V at 5 at% do not show a clear preference for the GB plane or the layer next to it, while Mn has a strong preference for S${}_{-1}$. Note that, for Mn at 5 at.% in cell${}_{2\left[001\right]}$, the energy can be further lowered by placing Mn in diagonally opposite sites S${}_{-1}$ and S${}_1$ at GB1, and at S${}_{-9}$ and S${}_9$ at GB2 instead of a column-wise configuration.

Both S${}_0$ and S${}_{-1}$ sites were considered for Cr and V for all further studies with C and H. Only the site S${}_{-1}$ was considered for 2.5 at.% Mn and the sites S${}_{-1}$/S${}_1$ for 5 at.% Mn.

3.1.2. Segregation of C and H to the GB Segregated with V, Cr, and Mn

The grain boundary energy was calculated for different occupations of available interstitial sites by C and H atoms, using Equation (1). It can be seen in Figure 2 that the energy of the Fe STGB is reduced in the presence of C by 58–65%, depending on the substitutional alloying element (compare black and dark grey bars). H lowers the energy of the GB by 17–20%. Since the reduction of the GB energy is higher for C occupation, it can be inferred that C is more attracted to the GB than H. The substitutional atoms add to the reduction in GB energy in the presence of C and H, Mn lowering it the most in all cases. The precise values are summarized in

Table A1. Grain boundary (${\gamma }_{GB}$) and segregation energy (${\gamma }_{seg}$) of the Fe STGB with V, Cr, and Mn with different occupation of interstitial C and H atoms at the GB.

S	Segregation Site	Occupation Interstitial Sites [%]	Fe + S + C		Fe + S + C
			${\mathit{\gamma }}_{\mathit{GB}}$ [J/m${}^2$]	${\mathit{\gamma }}_{\mathit{seg}}^{\mathit{C}}$ [eV/Atom]	${\mathit{\gamma }}_{\mathit{GB}}$ [J/m${}^2$]	${\mathit{\gamma }}_{\mathit{seg}}^{\mathit{H}}$ [eV/Atom]
V	S${}_0$	50	0.92	−1.97	1.33	−0.44
		100	0.40	−1.97	1.23	−0.41
	S${}_1$	50	0.98	−1.89	1.32	−0.47
		100	0.50	−1.89	1.18	−0.45
Cr	S${}_0$	50	0.93	−1.67	1.33	−0.54
		100	0.53	−1.73	1.27	−0.49
	S${}_1$	50	0.98	−1.59	1.26	−0.56
		100	0.53	−1.73	1.12	−0.56
Mn (cell${}_{\left[001\right]}$)	S${}_1$	50	0.77	−1.33	1.10	−0.51
		100	0.45	−1.45	0.97	−0.55
Mn 2.5 at.% (cell${}_{2\left[001\right]}$)	S${}_1$	25	1.09	−1.72	1.33	−0.53
		50	0.81	−1.54	1.25	−0.49
		75	0.65	−1.38	1.19	−0.46
		100	0.52	−1.25	1.10	−0.45
Mn 5 at.% (cell${}_{2\left[001\right]}$)	S${}_1$	25	0.89	−1.66	1.13	−0.57
		100	0.49	−1.08	0.91	−0.46

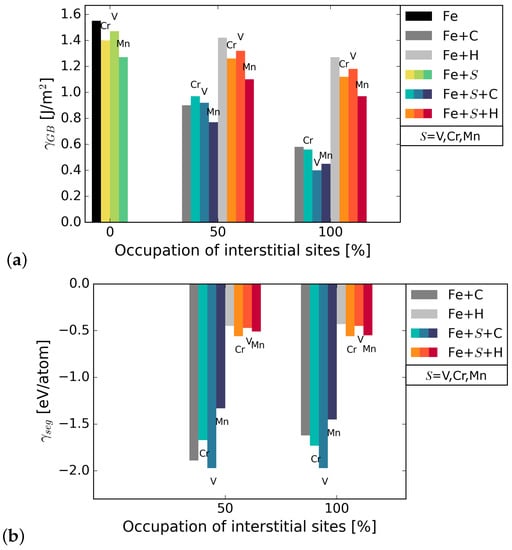

in Appendix A. The energies in Figure 2 represent the most favourable configurations among the different nonequivalent possibilities (see Section 2.2). In cell${}_{\left[001\right]}$, it was found that the solution energy of H is lower in site I${}_3$, the SU with substitutional element in S${}_{-1}$, by 13 meV/atom for S = V, 24 meV/atom with Cr, and 29 meV/atom with Mn. C segregates to site I${}_3$ for V in S${}_{-1}$; however, the segregation energy is lower by only 8 meV/atom than for I${}_1$. When Cr and Mn are at S${}_{-1}$, C prefers site I${}_1$ by 72 meV/atom and by 232 meV/atom, respectively. The grain boundary and segregation energies of C and H for a GB with 2.5 at.% Mn are shown in Figure 3. In the case of 2.5 at.% of Mn, the segregation energy for a single H or C atom (25% coverage) to the SU with Mn, i.e., site I${}_3$, is lower by 28 meV/atom (H) and higher by 180 meV/atom (C) than for I${}_1$. This indicates a strong preference of C for a SU of only Fe atoms instead of Cr or Mn, while H always prefers the SU with a substitutional alloying element at one of its corners.

3.1.3. Co-Segregation of C and H

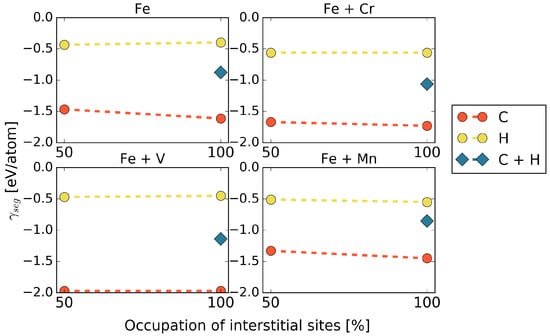

Co-segregation is considered for full coverage with interstitial elements, 50% of the SUs by C and 50% of SUs by H atoms. The segregation energies were calculated according to Equation (4) and are shown in Figure 4.

In general, it is observed that co-segregation of C and H does not exhibit a lower segregation energy than that of C alone, but an average value between those of C and H. This means that, at least from a thermodynamic point of view, we always expect an excess of C at the grain boundary. Segregation of H, however, could be stronger for kinetic reasons, which are out of the scope of this study. The only exception that we found was co-segregation in the presence of Mn in cell${}_{2\left[001\right]}$. Here, a combination of C and H at the grain boundary is favored in a different configuration from what would be expected from the results of C or H only (see

Table 2. Configuration and concentration dependence of co-segregation energies of C and H in the presence of Mn.

Structure	Occupation of SUs	Segregation Sites		${\mathit{\gamma }}_{\mathit{seg}}$ [eV/Atom]
		C	H
cell${}_{2\left[001\right]}$ 2.5 at.% Mn	75%	I${}_1$	I${}_3$, I${}_4$	−1.18
		I${}_1$ − I${}_3$	-	−1.38
		-	I${}_1$, I${}_3$, I${}_4$	−0.46
	100%	I${}_1$, I${}_3$	I${}_2$, I${}_4$	−1.18
		I${}_1$ − I${}_4$	-	−1.25
		-	I${}_1$ − I${}_4$	−0.45
cell${}_{2\left[001\right]}$ 5.0 at.% Mn	100%	I${}_1$, I${}_3$	I${}_2$, I${}_4$	−1.36
		I${}_1$ − I${}_4$	-	−1.08
		-	I${}_1$ − I${}_4$	−0.46
cell${}_{\left[001\right]}$ 5.0 at.% Mn	100%	I${}_1$	I${}_3$	−0.85
		I${}_1$, I${}_3$	-	−1.45
		-	I${}_1$, I${}_3$	−0.55

), namely in terms of an alternating C-H arrangement along the [001] axis rather than a C-C / H–H alignment. For the higher Mn content of 5.0 at.%, this configuration has a lower segregation energy than a full occupation of the interface with either H or even C showing that the arrangement of Mn at the GB matters.

3.2. Mechanical Properties: Work of Separation and Fracture Stress

3.2.1. Influence of Substitutional Alloying Elements

Table 3. Effect of alloying elements on GB cohesion. Listed are the total work of separation (WoS), the change due to the alloying element, $\Delta E_{SE}$, the chemical and mechanical contribution to the latter, and the fracture stress ${\sigma }_f$.

System	Segregation Sites	WoS	$\Delta {\mathit{E}}_{\mathit{SE}}$	$\Delta {\mathit{E}}_{\mathit{SE}}^{\mathit{c}}$	$\Delta {\mathit{E}}_{\mathit{SE}}^{\mathit{m}}$	${\mathit{\sigma }}_{\mathit{f}}$
		[J/m${}^2$]	[J/m${}^2$]	[J/m${}^2$]	[J/m${}^2$]	[GPa]
Fe		3.48
Fe + V	S${}_0$	3.82	0.34	0.34	0.00	24.7
	S${}_{-1}$	3.72	0.24	0.25	−0.01	23.6
Fe + Cr	S${}_0$	3.75	0.27	0.27	0.00	24.2
	S${}_{-1}$	3.77	0.29	0.30	−0.01	23.8
Fe + Mn (cell${}_{1\left[001\right]}$)	S${}_0$	3.72	0.24	−0.06	0.30	23.7
	S${}_{-1}$	3.85	0.37	0.10	0.27	24.1
Fe + Mn (cell${}_{2\left[001\right]}$)	S${}_{-1}$	3.61	0.13	−0.20	0.33	24.6
	S${}_{-1}$, S${}_1$	3.82	0.34	0.09	0.25	26.1

shows the WoS, change in strengthening energy (calculated using Equation (6)), and the chemical, $\Delta E_{SE}^c$, and mechanical, $\Delta E_{SE}^m$, contributions to the WoS as calculated from Equations (7) and (8), respectively, as well as the fracture stress.

All alloying elements have a positive effect on cohesion at the $\Sigma$5 GB, as can be seen in the increase in WoS, and accordingly in the positive strengthening energy $\Delta E_{SE}$.

The chemical and mechanical contributions to the strengthening energy as seen in Table 3 show that the cohesion enhancing effect of V and Cr is more or less completely due to the chemical interaction between host and alloying element, while for Mn the mechanical contribution dominates. This is in agreement with the observation that Mn causes the largest change in the translation state of the grain boundary (see Table 1).

3.2.2. Influence of C and H on Grain Boundary Cohesion

Figure 5 summarizes the work of separation and fracture stress with and without interstitial and substitutional elements. It can be seen that there is a net cohesion enhancing effect in the presence of C and all substitutional alloying elements at all concentrations. The increase is not as substantial for C at the GB with Cr and Mn as that of C at the GB with V, or even at the pure Fe STGB (black squares). This indicates a detrimental interaction between C and Mn, and C and Cr. H generally lowers the work of separation by 10 to 15%. All substitutional elements increase this effect—the decrease in WoS follows a steeper slope. The interplay between interstitial and substitutional atoms is analyzed further by calculating the different contributions to the strengthening energy.

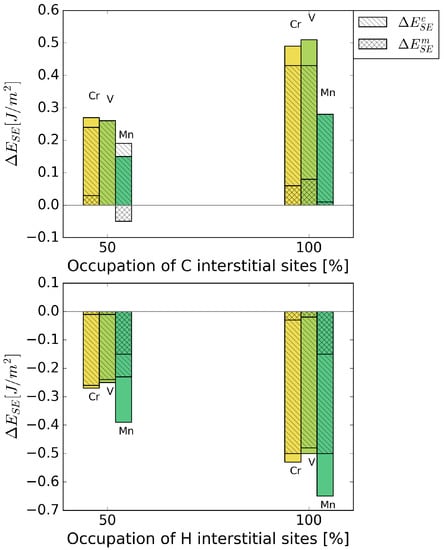

Figure 6 shows the strengthening energy divided into mechanical and chemical contributions. C has a positive chemical and mechanical contribution, where the chemical contribution clearly dominates. This is due to a re-distribution of bonding charge density into bonds across the interface [6]. For H, both contributions have a detrimental effect in the presence of all alloying elements. Mostly, it is again the chemical contribution that dominates the strengthening energy, as it can be expected for small interstitial elements.

Figure 5 also shows the mechanical properties for a 50/50 occupation of the SUs with C and H. As with the segregation energies, we find that WoS and fracture stress are the average of that in the presence of only C and only H, confirming that there is no strong interaction between H and C at the interface. Nevertheless, if the C-segregated grain boundary is considered as the reference state, such a co-segregation significantly weakens the grain boundary.

4. Discussion

All the substitutional alloying elements, V, Cr, and Mn lower the grain boundary energy. Thus, one should expect them to be present at the $\Sigma$5 or comparable grain boundaries. Irrespective of concentration, Mn shows the strongest tendency to segregate to the GB followed by Cr and V. All of them increase the cohesion at the GB as seen from the WoS shown in Table 3.

The interstitial elements C and H lower the grain boundary energy further from that lowered by the presence of V, Cr, and Mn. C lowers the energy approximately down to 40% of the original value of the pure Fe STGB, and H to 75%, if both elements are considered independently. This is reflected also in the strongly negative segregation energies. Judging by the segregation energies of C, Cr and Mn slightly reduce C segregation compared to the pure Fe STGB, while V is neutral. At higher concentrations, V is beneficial for C segregation. This is in agreement with the site preference of C:Step wise addition of C shows that C has a strong preference to segregate away from Mn followed by Cr, while there is a small energy gain if C segregates to the SU with V.

H weakly prefers to segregate to the SU with a substitutional alloying element in all cases. The reduction of segregation energy by the alloying elements represents an increased trapping strength of the grain boundary, thus providing a possibility to reduce the H diffusivity in steel microstructures. Unfortunately, the effect comes along with the detrimental influence of H on grain boundary cohesion, as discussed below. The site-preference of H could be due to an increase in volume and decrease in electronic density caused by V, Cr, and Mn (with a lower number of valence electrons) as H was shown to prefer sites with low electron density in bcc [3] as well as fcc Fe, where H also dissolves next to Mn, instead [21]. Mn has the largest impact on the structure of the $\Sigma$5 STGB, increasing the excess volume and reducing the shift along the [001] axis. This changes the SU from a distorted, rather close packed one to a more regular, open trigonal prism, which then provides the most attractive environment for H. The picture changes in the case of 5 at.% Mn at the interface, if the Mn atoms are placed in segregation sites S${}_{\pm 1}$. Using cell${}_{2\left[001\right]}$, we can probe more different configurations of H and C than in cell${}_{\left[001\right]}$. In this case, the lowest energy is obtained when one of each kind of interstitial atom has an Mn nearest neighbor, while the other is in a structural unit with only Fe at the corners. This symptom of a ternary Mn–C–H interaction deserves further attention in the future, especially since this configuration clearly promotes C-H co-segregation, as shown by the average segregation energy of −1.36 eV per atom, which is lower than the one of −1.08 eV per atom for C only.

Increasing the concentration of C increases the strength and the work of separation. This is true for the STGB with V, Cr, and Mn. The consequences, however, are less pronounced in case of Mn. When the GB is fully saturated with C, the WoS approaches that of a the Fe+C STGB without any substitutional element, but saturated with C and the additional positive effect of Mn on grain boundary cohesion is lost. The WoS is highest for the GB with C and V, although the initial increase in the WoS due to V is the lowest. The known increase in strength of the Fe STGB with increasing C concentration is not enhanced significantly by any of the substitutional alloying elements.

H reduces the work of separation in the case of V, Cr, and Mn to a lower value than it does in pure Fe. None of the elements have a significant effect on the change in fracture stress with increasing H concentration.

With a combination of H and C at the GB, WoS and fracture stress are the average of that in the presence of only C and only H (see Figure 5). This confirms that, at least at an area density of 0.078 m${}^{-2}$, there is no interaction of C and H within the GB plane that either promotes or weakens the influence of the individual elements. This simplifies thermodynamic modelling of segregation of these light elements [27], at least for this alloy. However, the site preference shows that, in the case of additional substitutional elements in the alloy, the interaction between the interstitial and substitutional atoms has to be taken into account. The individual behaviour of C and H also has consequences for multiscale modelling of fracture along grain boundaries by means of atomistically informed continuum models. As suggested in Tahir et al. [42] and Tahir et al. [6], traction–separation laws can be derived from ab initio data, for use, e.g., in cohesive zone models [39]. In the case of H and C, the influence of the interstitial elements could be taken into account by simply scaling the peak stress and the work of separation with the concentration of the elements. Interestingly, the value for WoS and ${\sigma }_f$ of the GB with both interstitial elements, C and H, is highest for Mn and lowest for V (at least at a C to H ratio of 1:1 at a fully covered grain boundary).

5. Conclusions

We have carried out an exemplary investigation of the combined segregation of substitutional (Cr, V, Mn) and interstitial (C) alloying elements and impurities (H) at the $\Sigma$5 (310)[001] symmetrical tilt grain boundary (STGB) in bcc Fe to see if any of these elements promote or suppress H segregation and embrittlement. The segregation energies that were obtained can serve as input for transport or thermodynamic models to predict the elements’ distribution in a steel microstructure, and the work of separation and fracture stress serve to formulate traction–separation laws for mechanical modelling of such microstructures.

Compared to pure Fe, the substitutional elements alone have a weak, but beneficial effect in the sense that they lower the grain boundary energy and increase the work of separation. Their influence on the fracture stress to cleave the grain boundary, however, is negligible.

Both C and H have negative segregation energies at the pure Fe STGB, implying that both elements segregate to the grain boundary. On average, the values of the segregation energy for C are three to four times that of H, indicating that the grain boundary should be enriched mainly with C. This leads to an increased work of separation and strength compared to the Fe grain boundary. If substitutional elements are added, V promotes C segregation by lowering its segregation energy. On the other hand, Mn lowers the segregation energy of H and increases the one of C. In both cases, the maximum change in segregation energies is around 20%; C is still predominantly attracted to the grain boundary.

If a mixture of C and H occurs, e.g., due to kinetic reasons, or due to C being bound in carbides and dislocations, the presence of C reduces the detrimental effect of H significantly. However, both the work of separation and the grain boundary strength are strongly reduced by an addition of hydrogen to the grain boundary, if the C-segregated state is taken as reference. Concerning the influence of substitutional elements, the beneficial (detrimental) effect of V (Mn) is somewhat counterbalanced by the fact that a co-segregated GB with both C and H has the highest work of separation and fracture stress with Mn at the boundary, and the lowest with V.

Furthermore, the results for the mechanical properties of the grain boundary with co-segregated elements C and H show that there is no significant change in interaction between the two elements at the GB compared to the bulk. Thus, their effects can be treated as additive, which is advantageous for multi-scale modeling approaches. In contrast, the site-preference of the interstitial elements in the presence of the substitutional ones shows that there is an interaction of the interstitial with the substitutional elements, which should be taken into account. At least, in the case of Mn, even a three-body Mn–H–C interaction could be detected, which should be investigated by high-throughput variations of the atomic positions in even larger systems in the future.
