A Kinetic Study on the Preparation of AlNi Alloys by Aluminothermic Reduction of NiO Powders

Abstract

In this work, the experimental results obtained during the preparation of Al-Ni and Al-Ni-Mg alloys using the aluminothermic reduction of NiO by submerged powder injection, assisted with mechanical agitation are presented and discussed. The analyzed variables were melt temperature, agitation speed, and initial magnesium concentration in the molten alloy. For some of the experiments performed, it was found that the Ni concentration increased from 0 to about 3 wt-% after 90 min of treatment at constant temperature and constant agitation speed. In order to determine the values of the kinetic parameters of interest, such as the activation energy and the rate constants, the values of the results obtained were fitted to the kinetic formulae available. Moreover, the kinetics of the reaction were found to be governed by the diffusion of Al and Mg to the NiO boundary layer, where MgAl₂O₄ or Al₂O₃ were formed as the main reaction products. Finally, from a thermodynamic study of the system, the main reactions that took place are explained.

1. Introduction

Aluminum-nickel alloys are widely used in the manufacturing of parts for the automotive industry, particularly those with a high nickel content, around 3 wt-%, and in cutting tools with TiAl because of their high resistance and low corrosion [1,2,3,4]. It is expected that in the upcoming years, the production of this type of alloy will increase worldwide, to reach a level of production higher than 400,000 tons per year. The possibility of preparing Al-Ni and Al-Ni-Mg alloys from the aluminothermic reduction of NiO has been proposed, using the submerged injection of powders as a technique for incorporating the nickel oxide particles.

In this sense, the first applications of the aluminothermic reduction of oxides were in the preparation of molten iron streams for filling the enclosures of exposed surfaces, where the slag rich in Al₂O₃ could be separated easily because of its lower density relative to that of iron [5]. Currently, an aluminothermic reduction is used for the preparation of aluminum master alloys, such as Al-Sr-Mg, Al-Ce-Mg, Al-Zn, Al-Mn, Al-Zr, Al-Mg-Fe-Cr, Al-Li, and so on. [6,7,8,9,10,11,12,13,14,15]. Nowadays, aluminothermic reduction is the most common practice used in the production of both kinds of products, pure metals or alloys [16,17,18,19]. However, only recently has the understanding of the kinetics of reaction been addressed for the systems of reaction, as every system is quite different.

The reduction reaction of nickel oxide by molten aluminum has a considerably negative value for the standard Gibbs free energy of reaction at operating temperatures, as is shown by the next reaction:

$$3\mathrm{MO}+2\mathrm{Al}={\mathrm{Al}}_2{\mathrm{O}}_3+3\mathrm{M}$$

(1)

In the specific case of NiO, it is possible to accelerate the reduction reaction of nickel oxide with magnesium, thereby increasing its concentration in the molten aluminum during the aluminothermic process. In this case, the aluminothermic reaction occurring at 1073 K could be as follows:

$$2\mathrm{Al}+\mathrm{Mg}+4\mathrm{NiO}={\mathrm{MgAl}}_2{\mathrm{O}}_4+4\mathrm{Ni},\Delta {G^{°}}_{1073 \mathrm{K}}=-869.48 \mathrm{kJ}$$

(2)

Magnesium enhances the reaction rate, not only through its effect on the chemical reactivity of the molten bath, but also through its effect on the surface tension of molten aluminum, improving the wettability between the NiO particles and the molten aluminum solution [20].

On the other hand, it is broadly known that in the last 30 years, a lot of polluting waste from secondary spent batteries has been generated, of which NiO and nickel hydroxide (NiOH) are the main components. As such, it is attractive to investigate the aluminothermic reduction rate of NiO to formulate and propose alternatives for the use of materials that come from the recycling industry, and that can have a high added value, such as the preparation of Al-Ni or Al-Ni-Mg type alloys. In this sense, the main purpose of this paper is to present and discuss the results of an investigation aimed at understanding the role of temperature, initial magnesium concentration in molten aluminum, and the degree of agitation during the preparation of Al-Ni and Al-Ni-Mg alloys using a submerged powder injection of NiO powders, assisted by mechanical agitation. The results mainly focus on measuring the reaction rate and values of some of the kinetic parameters of interest, such as the rate constants and activation energy values of the process, where describing the mechanism of the reaction is of paramount importance.

2. Materials and Methods

A 70 KW Power Track 75–30 electromagnetic medium frequency induction furnace, equipped with a silicon carbide crucible with a capacity of 10 kg of molten aluminum, was used as the melting unit. The powder injection equipment, whose scheme is presented in Figure 1, allowed for the continuous and controlled feeding of the solid material (NiO) through an inert carrier gas, which in this investigation, was high purity argon (99.99%). The design of the powder injection equipment used for the tests basically consisted of a pressurized chamber, inside which was a cylindrical container to deposit the reactive powder. This container was provided with a worm on the inside, which was rotated by an electric motor connected to a voltage controller located on the control board. This allowed us to vary the speed of rotation of the worm, and therefore, control the speed of the feeding of the powder.

The mixture of powder/gas falls directly into a funnel that connected the feeding line to the outlet lance of the pressurized system, being dragged thereto by means of the carrier gas. In this way, a powder/gas mixture is conducted towards the melting unit, where it is injected inside the molten metal through a graphite lance. This lance is located at a depth of 85% of the height of the molten metal. The location of the injection lance with respect to the geometry of the furnace, plays a very important role in the reaction kinetics, facilitating the discharge of the powder, therefore assuring its contact with the molten metal solution. The dimensions of this lance were as follows: length, 50 cm; external diameter, 5.08 cm; and diameter of the internal hole, 3.54 cm. To promote a better agitation inside the furnace, a graphite agitator was built, which was assembled to a mechanical drill and placed in the center of the bath; in this way, the agitation was constant and vigorous, as, in addition to the agitator and the gas injected, the Eddy electromagnetic waves generated by the induction coil helped to reach a greater efficiency in the mixing conditions. An insulating lid was attached to the furnace to minimize the inlet of air to the furnace. This stage had an entry for the mechanical agitator and another for the injection lance.

Once the lid and the agitator were placed, the temperature and the revolutions per minute were adjusted while the lance was inserted in the molten aluminum to later adjust the powder feeding speed, thus initiating the treatment. We conducted 27 experiments, where the effects of temperature, percentage of magnesium in the alloy, and agitation speed in the molten bath were investigated. The operational parameters and their values were selected from preliminary works [8,9,10,11,12], where the kinetics of the aluminothermic reactions have been studied, not only for attaining reliable reaction efficiencies, but also to avoid metal losses during treatment. Initially, a factorial design was proposed to reduce the experimental errors. The factorial design was comprised of three factors and three levels, as is shown in

Table 1. Parameters and levels of the initial experimental design.

Factors	Level
	1	2	3
Temperature (K)	1023	1073	1123
Mg (wt-%)	0	2	3
Agitation (rpm)	50	100	300

. The number of experiments was performed according to the data in Table 1 and Equation (3).

$$N=a \times b \times c \times n$$

(3)

where N = numbers of experiments; a = 3 (factor A levels) A level; b = 3 (factor B levels) B level; c = 3 (factor C levels) C level; and n = 1 (number of replicas).

According to this, the total number of experiments (E_i) is shown in

Table 2. Design of total experiments (E_i,j,k). i—temperature (K); j—initial Mg concentration (wt-%); k—agitation speed (rpm).

E1 1023,0,50	E2 1023,0,100	E3 1023,0,300	E4 1073,2,50	E5 1073,2,100
E6 1073,2,300	E7 1073,3,50	E8 1073,3,100	E9 1073,3,300	E10 1073,0,50
E11 1073,0,100	E12 1073,0,300	E13 1073,2,50	E14 1073,2,100	E15 1073,2,300
E16 1073,3,50	E17 1073,3,100	E18 1073,3,300	E19 1123,0,50	E20 1123,0,100
E21 1123,0,300	E22 1123,2,50	E23 1123,2,100	E24 1123,2,300	E25 1123,3,50
E26 1123,3,100	E27 1123,3,30

. To calculate the number of reagents to be injected, the amount of aluminum, the nickel amount released from NiO, and the stoichiometry given by Reaction (2) were considered. Therefore, the amount of theoretical NiO that could feasibly be added to the molten bath was calculated as 250 g, also by considering the magnesium concentration in the corresponding trial tests that required it. The target Ni concentration was 3 wt-%. The parameters that remained constant were the initial quantity of molten aluminum, 5 kg; powder injection rate, 250 g min⁻¹ of NiO; argon injection rate, 5 L min⁻¹; and particle size of the NiO powders, to the order of a 4 μm average.

Samples from the molten bath were taken every 10 min, attaining up to 90 min of treatment. These samples were poured into a metallic mold and marked accordingly for chemical analysis determinations and microscopic observations, using both optical and scanning electron microscopy (SEM). The response variables were the actual nickel and magnesium concentrations, and the amount of Ni or Ni-Mg rich phases as a function of the injection time. A chemical analysis was carried out using the spark emission spectrometry technique. The chemical composition of the aluminum alloy is given in

Table 3. Chemical composition of the aluminum alloy (wt-%).

Element	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Sn	Ti	Al
wt-%	0.013	0.48	0.025	0.012	0.089	0.0012	0.0003	0.021	0.013	0.0012	99.34

, while the chemical composition of the NiO powders is given

Table 4. Chemical composition of the NiO powders (wt-%).

Element	Ni	Co	Fe	Cu	Zn	Mn	Mg	Ca	Na	S	O
wt-%	76.39	0.02	0.005	0.001	0.007	0.02	0.01	0.009	0.004	0.06	23.45

.

At the end of each experiment, the samples from the produced slags were taken for characterization by X-ray diffraction. To determine the Standard Gibbs free energy of reaction, the software HSC [21] was used, while for the drawing diagrams of the phase stability as a function of the temperature of the reaction, the software Factsage Chemistry Software was used [22].

3. Results and Discussion

3.1. Experimental Results

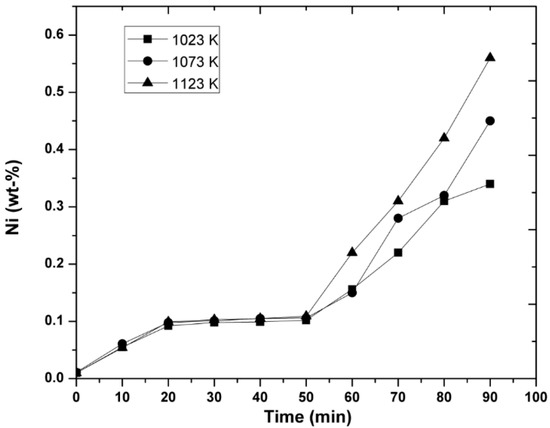

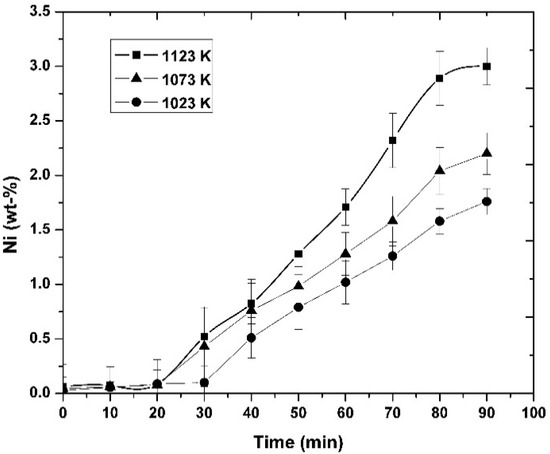

Figure 2 and Figure 3 show that the Ni concentration increased in the molten alloys as a function of the injection time for the temperatures and initial magnesium concentrations indicated, at the agitation speed of 300 rpm. From these graphs, the nickel concentration reached the highest value at higher magnesium concentrations, at the temperature of 1123 K.

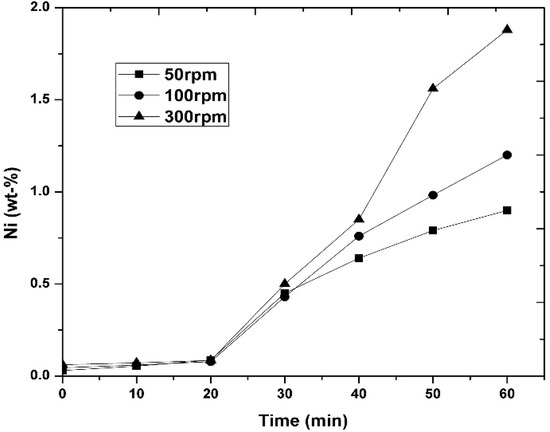

Figure 4 shows the increase in the Ni concentration as a function of the injection time for the agitation speeds considered, at the constant initial Mg concentration and temperature indicated. From this figure, it can be observed how the agitation speed plays an important role in the aluminothermic reduction of the NiO particles, which was due to the improved mass transfer conditions attained at higher values of this parameter. Indirectly, it also indicated the diffusive nature of the process taking place.

From the explanations of Guedes et al. [23], the increase in the nickel concentration as a function of the injection time, as shown in Figure 2 and Figure 3, can be explained as follows. When magnesium is not present in the molten alloy, a layer of Al₂O₃ is formed at the beginning of the NiO reduction reaction. The growth of this layer minimizes the contact between the molten aluminum and the reaction front, acting as a barrier between both the aluminum and nickel oxide, which prevents the reaction given by Equation (2) to be completed. However, the Al₂O₃ layer is not completely impervious, thus having some porosity through which the aluminum can diffuse to the boundary layer, where it reaches the surface of the NiO particles. Magnesium improves the reaction rate in two ways. At 973 K, it reduces the surface tension of the molten aluminum from 0.91 (with no Mg present) to 0.66 N m⁻¹ for a magnesium concentration equal to 1 wt-% [24]. This facilitates the wettability of the NiO particles in the molten phase. On the other hand, Mg increases the reactivity of the bath, because this element also reduces the NiO to 973 K, according to Reaction (2), where the greater negative value of its Gibbs free energy indicates the spontaneity of this reaction.

During their experiments on the synthesis of the Al/Al₂O₃ composites, Pai and Ray [25] found that MgO could be formed from the reduction of Al₂O₃ by the magnesium contained in the alloy. This reduction reaction can also occur in the case of the NiO reduction reaction given by Equation (2). In turn, MgO and Al₂O₃ can react during solidification to form MgAl₂O₄ as the final reaction product, according to the following reaction between pure compounds, whose ΔG° is calculated at 1073 K.

$$\mathrm{MgO}+{\mathrm{Al}}_2{\mathrm{O}}_3\to {\mathrm{MgAl}}_2{\mathrm{O}}_4,\Delta {G^{°}}_{1073 \mathrm{K}}=-92.02 \mathrm{kJ}$$

(4)

The successive formation of MgO and Al₂O₃ causes expansion and contraction during the reaction, which results in breaking the crystals into numerous smaller crystals, thus producing the porosity required for the diffusion of aluminum, magnesium onwards, or nickel backwards.

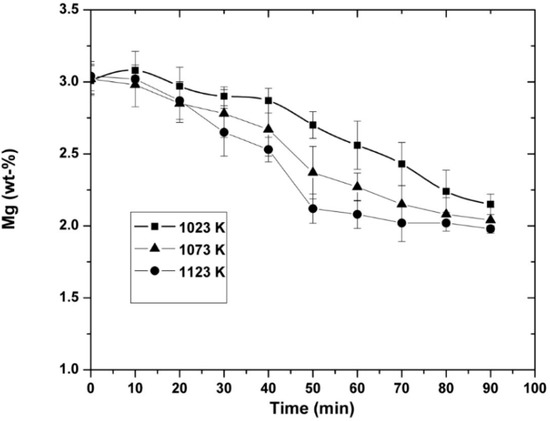

Figure 5 shows the variation in the magnesium concentration as a function of the NiO injection time, and the concentration of magnesium decreased continuously during the injection, reaching the lower value of 1.98 wt-% at the end of the experiments for the given conditions established.

The micrographs in Figure 6 show the evolution of the microstructure of the aluminothermic reduction reaction of the NiO powders as a function of the indicated injection times from samples obtained at 1123 K, at a constant agitation speed of 300 rpm. In these micrographs, it was observed that the amount of the nickel-rich intermetallic phase increased as the treatment time increased, therefore the amount of nickel incorporated in the molten alloy increased with increasing time.

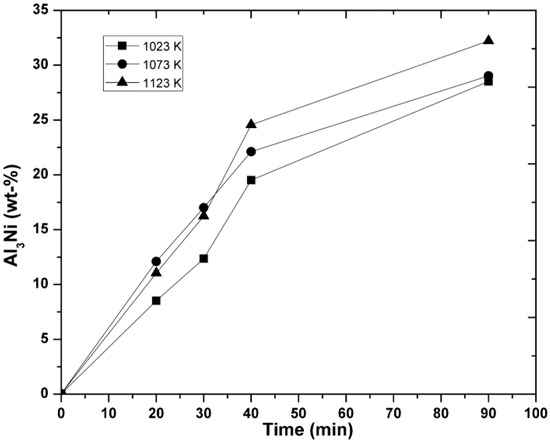

Figure 7 shows the increase in the amount of Ni-rich intermetallic phase as a function of the injection time, hence, the amount of nickel incorporated was increased in the molten alloy by the aluminothermic reduction reaction of the NiO powders.

The micrographs in Figure 8 show the evolution of the thickness of the layers of the NiO particles reacted as a function of the reaction time, taken from the molten metal at a temperature of 1123 K for an agitation speed of 300 rpm. After 30 min, the particle remained unreacted (Figure 8a), and after 40 min of addition, it began to form an Al₂O₃ layer around the NiO particle (Figure 8b). This layer grew progressively until the reaction stopped because of a change in the mechanism that controls the reaction (Figure 8c,d). After 70 min of contact (Figure 8e), the Al₂O₃ layer began to disappear. In the micrographs, it can be seen that after 90 min of reaction, the Al₂O₃ layer completely disappeared, leaving only the solid particle and the Al₃Ni intermetallic particles around them.

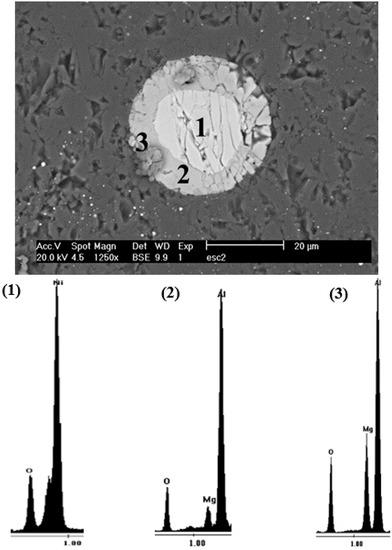

The particle shown in Figure 8d was analyzed separately by energy dispersion spectroscopy in the SEM, and the corresponding energy dispersive X-ray spectroscopy (EDS) patterns, together with the micrographs showing the microareas from where they were obtained, are shown in Figure 9. The microanalysis measurements show that the nucleus of NiO was surrounded by an Mg and Al-rich phase, marked as (2) and (3). The semi-quantitative chemical composition of the layer of the reaction product, as shown in

Table 5. EDS chemical analysis of the partially reacted NiO particle shown in Figure 8d.

Particle	wt-%
	Ni	O	Al	Mg
1	67.51	32.49	0	0
2	0	25.76	72.14	2.1
3	0	31.45	49.79	18.76

, was observed as the phase formed was spinel (MgAl₂O₄). These EDS results suggest that the NiO was reduced by aluminum and magnesium, forming intermediate reaction products such as the spinel phase, while the Ni-rich phase corresponded to Al₃Ni [26].

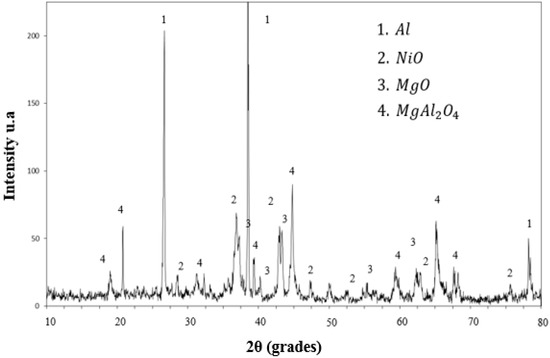

Figure 10 shows the X-ray powder diffraction (XRD) pattern corresponding to the slag obtained after the end of experiment E27, where there was the presence of MgO, MgAl₂O₄, aluminum, and NiO. The aluminum came from the molten alloy, as the sample was taken from a pasty area formed between the slag and molten aluminum.

The MgO and MgAl₂O₄ in the slag suggests that both aluminum and magnesium reduced the nickel oxide by a metallothermic mechanism. The NiO came from the partially reacted particles. The analysis of the slag helped to corroborate that the main aluminothermic reduction reaction was that given by Equation (2), where the Ni was obtained from NiO dissolved in the molten alloy to solidify as Al₃Ni particles, which are shown in Figure 5.

3.2. Thermodynamic Consideration for the Al-NiO-Mg System

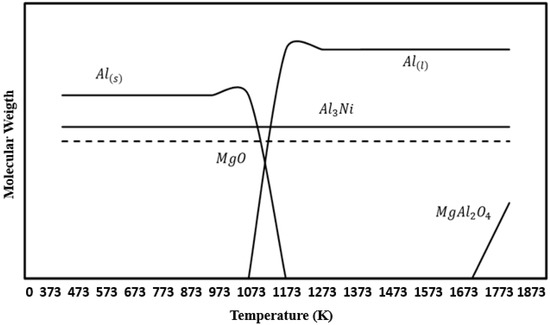

The aluminum alloys obtained in this work contained between 2 to 3 wt-% of both Mg and Ni, therefore, a thermodynamic explanation would help to understand the expected results. During the aluminothermic reduction process, the Al, Mg, and NiO species are involved, and react to obtain different reaction products. The software FactSage allowed us to consider ideal solutions for the Al-Mg-Ni system in the solid and liquid states. The reactants that were introduced into the software were Al, Mg, and Ni as pure species. The balance of the system was computerized for the temperature range from 373 to 1273 K, where the activities considered for Al, Ni, and Mg were equal to 1. Figure 11 shows the results of the software in the Al-Mg-Ni equilibrium system. The phases that were present below the melting temperature of aluminum were Al(s), MgO, and Al₃Ni in their stable forms, while at temperatures higher than 933 K, the Al and Mg were in a liquid state. These results define the reactions involved during the reduction of NiO powders by Al-Mg(l). The formation of MgO is thermodynamically feasible from room temperature up to the melting temperature of aluminum. However, the diagram drawn by the software was preliminary as the kinetic conditions change continuously during the reaction.

The reactions are presented and the values of ΔG° at 1123 K were obtained from the software, expressed per mole of oxygen.

$$4/3\mathrm{Al}+{\mathrm{O}}_2=2/3{\mathrm{Al}}_2{\mathrm{O}}_3,{G^{°}}_{1123 \mathrm{K}}=-882.46 \mathrm{kJ}$$

(5)

Reaction (5) can occur between aluminum and oxygen from the environment with pressures of 1 atm and elevated temperatures, forming Al₂O₃. The next reaction can occur between Al₂O₃ with magnesium and oxygen to form the spinel MgAl₂O₄, which is possible with amounts higher than 0.05% Mg.

$${\mathrm{Al}}_2{\mathrm{O}}_3+\mathrm{Mg}+1/2{\mathrm{O}}_2={\mathrm{MgAl}}_2{\mathrm{O}}_4,\Delta {G^{°}}_{1123 \mathrm{K}}=-1036.56 \mathrm{kJ}$$

(6)

Reactions (5) and (6) must be produced at the aluminum/slag interface, forming a protective layer of aluminum and magnesium oxides in the molten bath.

The reaction between Al and NiO to form Al₂O₃ while releasing Ni is quite possible because of the action masses law, as aluminum is the element present in greater quantity in the system. The reaction is that given by Equation (1). However, the graphs in Figure 2 show that in the experiments performed with pure aluminum, the concentration of nickel attained was rather low. It was shown that Al₂O₃ [27] in a wide range of temperatures was not wettable by aluminum, because it has a contact angle value >90.5° [28].

Therefore, it is necessary to decrease the contact angle of Al₂O₃ by molten aluminum. According to the literature [29], one way to change the contact angle is to lower the surface energy of molten aluminum by adding Mg, as this is one of the elements that has this effect.

In the experiments that were carried out, it was observed that the magnesium content decreased with the increased time, as is shown in Figure 5. This was attributed not only to the effect of this element on the contact angle, but also to the high reactivity that magnesium possesses, according to the following reaction:

$$\mathrm{NiO}+\mathrm{Mg}=\mathrm{MgO}+\mathrm{Ni},\Delta {G^{°}}_{1123 \mathrm{K}}=-342.83 \mathrm{kJ}$$

(7)

The global chemical reaction taking place is that given by Equation (2). The following reaction is possible because of the greater chemical reactivity of Mg than Al:

$${\mathrm{Al}}_2{\mathrm{O}}_3+3\mathrm{Mg}=3\mathrm{MgO}+2\mathrm{Al},\Delta {G^{°}}_{1123 \mathrm{K}}=-117.69 \mathrm{kJ}$$

(8)

The formation of MgO, a phase present in the slag produced in this work for aluminum alloys with initial Mg concentrations above 2 wt-%, proceeded from the following reaction:

$$2\mathrm{Mg}+{\mathrm{O}}_2=2\mathrm{MgO},\Delta {G^{°}}_{1123 \mathrm{K}}=-970.09 \mathrm{kJ}$$

(9)

In turn, Al₂O₃ and MgO react according to Equation (4) to form the so-called spinel, MgAl₂O₄.

All of the reaction products described by the reactions given by Equations (1), (2), (4), (5), or (7)–(9) were found in the slags obtained from the NiO reduction process studied in this work.

3.3. Kinetic Measurements

The experimental evidence strongly indicated that the reaction rate in the studied process was controlled by the diffusion of chemical species, mainly Al or Mg, to the boundary layer, where they reacted with NiO. Consequently, the experimental information obtained at each temperature, for alloys with and without magnesium, was analyzed using the kinetic formulas presented by Brown [30]. However, to adapt to the experimental information of the available kinetic models, it was assumed that the observed nickel concentration corresponded to that of the complete reaction, and therefore, the final reacted fraction was equal to 1. First of all, it is necessary to state that for the present case, the reaction rate is defined as the ratio of the reacted fraction (α) against time (t), given by the following:

$$reaction rate= \frac{d\alpha }{dt}$$

(10)

As an associated magnitude to the progress of the aluminothermic reaction, α is numerically equal to the reacted fraction attained in a given period, called actual time. Therefore, reacted fraction, in our case α_Ni, is given by next equation:

$${\alpha }_{Ni}=\frac{w_o-w_i}{w_o-w_f}$$

(11)

where w_o, w_i, and w_f are the Ni concentrations measured in the alloy at the beginning of the injection time, the actual concentration, and the final concentration, respectively.

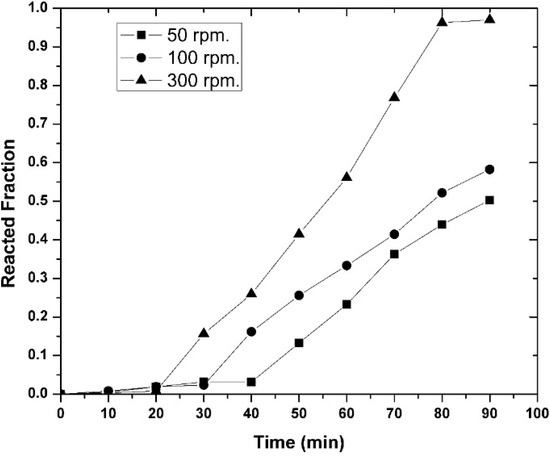

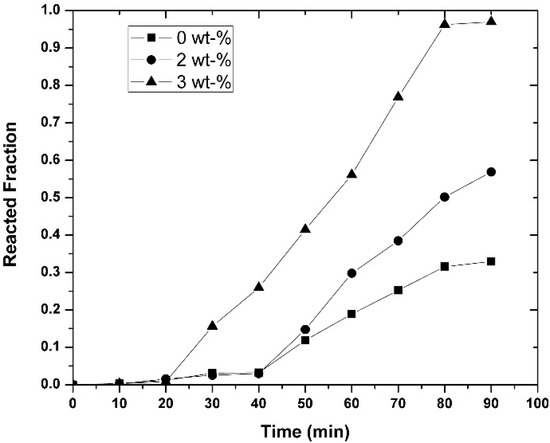

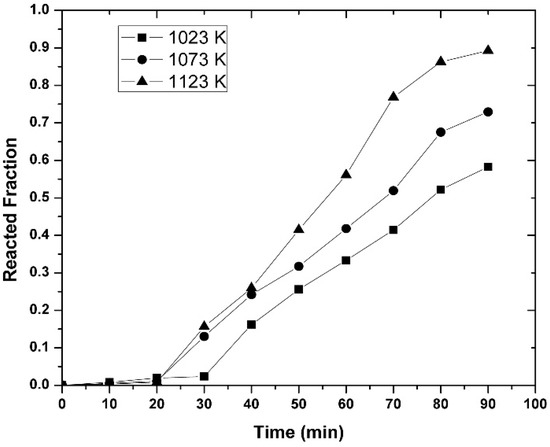

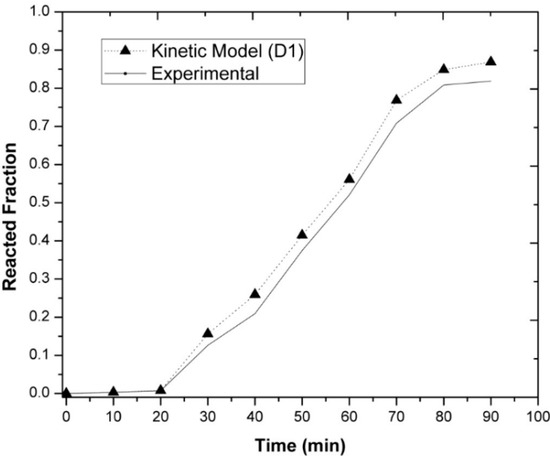

Figure 12, Figure 13 and Figure 14 show the change in the reacted fraction as a function of time, for the different set of parameters studied, resulted from the application of Equation (11) to the experimental results obtained. In general, it can be observed from these graphs that the aluminothermic reduction reaction was not completed for any value of the parameters studied (i.e., temperature, initial magnesium concentration, or agitation speed), owing to the diffusive nature of the reaction, as it will be explained later.

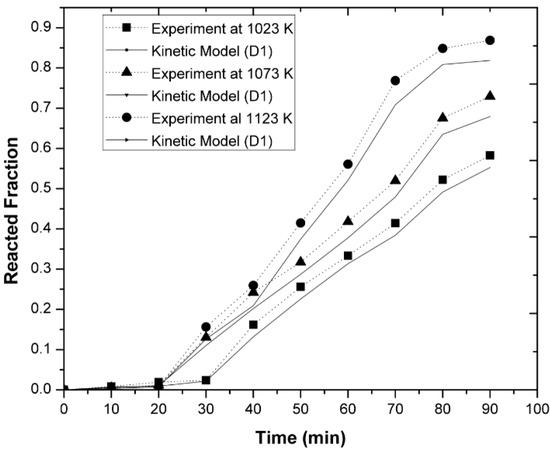

In this sense, it was found that the kinetic information was well suited for the diffusion model equation (D1), as shown in Figure 15, which corresponded to the experiments where alloys with magnesium were used at an agitation speed of 300 rpm. In turn, Figure 16 shows the experimental results at different temperatures. The equation of the model is as follows:

$$\left(1-\alpha \right)ln\left(1-\alpha \right)+\alpha$$

(12)

where α is the reacted fraction.

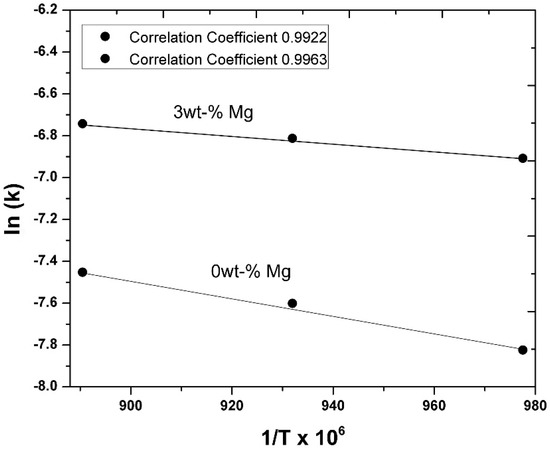

The linear regression of ln (k) against 1/T was plotted to obtain the values of the activation energy and the rate constants using the Arrhenius equation given below:

$$k=k_0{e}^{-E/RT}$$

(13)

where E is the activation energy (J mol⁻¹), and R is the universal gas constant (8.314 J mol⁻¹ K). Figure 17 shows the linear dependence of a graph of ln (k) against 1/T for the aluminothermic reduction of NiO for alloys with magnesium (a) and without magnesium (b). From the slope values of these graphs, the values of the activation energies were determined as E = 35.75 KJ mol⁻¹ for the alloys without magnesium and E = 15.80 KJ mol⁻¹ for the alloys with an initial magnesium concentration of 3 wt-% Mg.

From the values of the kinetic parameters determined in this section, it can be stated that, as expected, the higher values of the rate constants indicated that the reaction rate was improved by the presence of magnesium in the alloys, at least initially. This occurred because, for reaction times greater than 70 min, the reaction tends to stop. According to the observations in the micrographs of the partially reacted particles, it can be stated that this occurred through the formation of a thin layer of reaction products around the NiO particles. In addition, the activation energy for the aluminothermic reduction reaction of the NiO particles when using alloys with 3 wt-% by weight of magnesium, was lower than that of the experiments when no Mg was added.

3.4. Mechanism of Reaction

Regarding the reaction mechanisms that operate during the aluminothermic reduction reaction of NiO powders, the most precise explanation is that given by Zhong et al. [31], who stated that the formation of MgAl₂O₄ depends strongly on the initial concentration of magnesium, as has been previously established thermodynamically and has been experimentally proven in this work. Therefore, for initial magnesium concentrations of around 1 wt-%, the stable phase is MgAl₂O₄. Mcleod and Gabryel [32] established that the presence of MgO occurred because of the high initial concentration of magnesium (>3 wt-%). However, this concentration was easily reached at the NiO interface, especially in the initial stages after the addition of the particles, which ensured the formation of a significant amount of MgO. On the other hand, most of the MgO was consumed by the MgAl₂O₄ formation reaction given by Equation (4). Molins et al. [33] studied the interfacial reaction between a molten AlMg alloy and Al₂O₃ fibers, where it was shown that the MgO nuclei remained small and formed thin layers of ~10 μm thick. Therefore, the diffusion of magnesium occurred through the grain boundaries of the MgO particles by means of an infiltration mechanism. The growth process of the MgO layers continued until the grains around the matrix/reaction zone interface were large enough to close the intergranular spaces. The Gibbs free energy reaction of Equation (2) indicated that the reduction of NiO by aluminum occurred because Al can diffuse through the spaces left by the backwards diffusion of Ni. The diffusion of nickel occurred through the grain boundaries of MgO and Al₂O₃, dissolving in the molten aluminum when it reached the outer interface. Upon solidification, the nickel was rejected from the solid solution, forming Al₃Ni crystals around the partially reacted NiO particles. When the stoichiometric amounts of MgO and Al₂O₃ formed and equilibrium conditions occurred, the reaction given by Equation (2) was carried out. In this way, the formation of MgO and Al₂O₃ and the interdiffusion of Al, Mg, and Ni occurred simultaneously. After the magnesium concentration in the molten alloy fell below 1.98 wt-%, the aluminum continued to react with the NiO cores to form additional Al₂O₃ at a constant growth rate controlled by the diffusion of the aluminum through the layers of the reaction products. On the other hand, the small amount of MgO that could be formed by the magnesium reaction with NiO was dissolved in the Al₂O₃ phase. The reactions between the molten aluminum and magnesium dissolved with solid NiO require the diffusion of the atoms, although the diffusion of oxygen is negligible due to its large ionic size.

Therefore, the interdiffusion of magnesium and aluminum is kinetically possible through the network in the NiO structure of the O atoms, or through the nickel that results from the decomposition of the NiO. When the magnesium atoms occupy the interstitial sites within the NiO network, the position of the oxygen atoms must be adjusted to maintain electrical neutrality and to decrease the distortion energy of the network. Such reactions were given by the following:

$${\mathrm{Mg}}^0-2{\mathrm{e}}^{-}={\mathrm{Mg}}^{+2}$$

(14)

$$2\left({\mathrm{Al}}^0-3{\mathrm{e}}^0\right)=2{\mathrm{Al}}^{+3}$$

(15)

$$4\left({\mathrm{Ni}}^{+3}-3{\mathrm{e}}^{-}\right)=4{\mathrm{Ni}}^0$$

(16)

The result is a change in the crystalline structure. The process involved in this phenomenon is governed by the values of the chemical potential of the partial reactions given, in this case, by Reactions (1) and (2). As MgAl₂O₄ is the final reaction product at room temperature, the reaction given by the global Equation (2) can be accepted, as this reaction satisfies the described mechanism. A necessary kinetic condition for the diffusion of chemical species is that the porosity remains in the layers of the reaction products. For similar reduction chemical reactions in molten aluminum, Zhong et al. [31] determined that the formation of MgO on SiO₂ particles involved a volume contraction of 13.6%, while the formation of MgAl₂O₄ on SiO₂ particles caused a volume contraction of 27%. Due to these changes in volume, the newly formed phases instantly broke their junctions with the original particles and transformed into thousands of small crystals. This transformation produces the necessary voids for the diffusion of the chemical species. However, for the last stages of the reduction process, the reduction mechanism changed abruptly, as the concentration of magnesium in the reaction interface decreased to below 1.98 wt-%. At this time, the MgO that was formed dissolved in Al₂O₃. Then, these Al₂O₃ crystals grew continuously until they reached a micrometric size, which resulted in the blocking of spaces for diffusion and the chemical reaction begins to stop. In this last stage, the efficiency of the reaction decreased sharply. The above explanations are important from the technological point of view, as unreacted NiO particles can be trapped in the molten metal as inclusions, and thus also affect the efficiency of the reaction. Of course, the kinetics of the reaction can be accelerated by further decreasing the size of the NiO particles or imposing the mixing conditions in the turbulent flow regime by using Reynolds numbers above 4.5 × 10³ to break the layers of the reaction products once they have formed [34].

Figure 18 shows a schematic representation of the proposed mechanism of reaction, which described the different stages and the reactions among the participant chemical species, corresponding to a situation where the temperature was constant at 1123 K, initial magnesium concentration was constant at 3 wt-%, and agitation speed is constant at 300 rpm.

4. Conclusions

• The aluminothermic reduction of NiO was studied at a laboratory scale by means of the powder injection technique, assisted by mechanical agitation, and achieved an increase in the nickel concentration in the solidified alloys of up to 3 wt-% for some of the experiments carried out.
• It was observed that increasing the temperature favored the increase in the nickel concentration, because the mechanisms that govern the kinetics of the process, diffusion to the boundary layer, diffusion inside the layers of reaction products, and chemical reaction, were thermally activated. Increasing the mixing conditions by increasing the stirring speed of the molten bath using mechanical agitators at the velocity of 300 rpm promoted a greater agitation, therefore improving the efficiency of the reaction.
• Increasing the initial magnesium concentration in the molten alloy allowed the Ni concentration to increase in the alloys, as was thermodynamically and experimentally demonstrated.
• The experimentally obtained values of the Ni concentration as a function of time for different values of the parameters investigated (temperature, agitation speed, or initial Mg concentration) were adjusted to the kinetic equation of the diffusion model, which adjusted reasonably well. This allowed us to determine the values of some kinetic parameters of interest. On the other hand, the activation energy of the processes based on the Arrhenius equation was determined to be 15.80 KJ mol⁻¹ for alloys containing an initial amount of 3 wt-% Mg.
• With respect to the reaction mechanism, it was found that the step that controlled the overall chemical reaction was the diffusion of the Al and Mg atoms to the boundary layer, where they reacted with NiO particles, releasing Ni and forming Al₂O₃ and MgO as the reaction products. In turn, these compounds formed MgAl₂O₄ during cooling. The formation and breaking of MgAl₂O₄ into many crystals ensured the porosity required for the diffusion of the chemical species involved.
