Next Article in Journal
Formation of Bimetallic Fe/Au Submicron Particles with Ultrasonic Spray Pyrolysis
Previous Article in Journal
Enhancing the Hardness and Compressive Response of Magnesium Using Complex Composition Alloy Reinforcement
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle

A Method Based on Semi-Solid Forming for Eliminating Coarse Dendrites and Shrinkage Porosity of H13 Tool Steel

1
Shenyang National Laboratory for Materials Science, Institute of Metal Research, Chinese Academy of Sciences, 72 Wenhua Road, Shenyang 110016, China
2
University of Chinese Academy of Sciences, 19 Yuquan Road, Beijing 100049, China
3
Key Laboratory of Nuclear Materials and Safety Assessment, Institute of Metal Research, Chinese Academy of Sciences, 72 Wenhua Road, Shenyang 110016, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(4), 277; https://doi.org/10.3390/met8040277
Received: 6 April 2018 / Revised: 13 April 2018 / Accepted: 16 April 2018 / Published: 18 April 2018
  |
PDF [37576 KB, uploaded 3 May 2018]
  |

Abstract

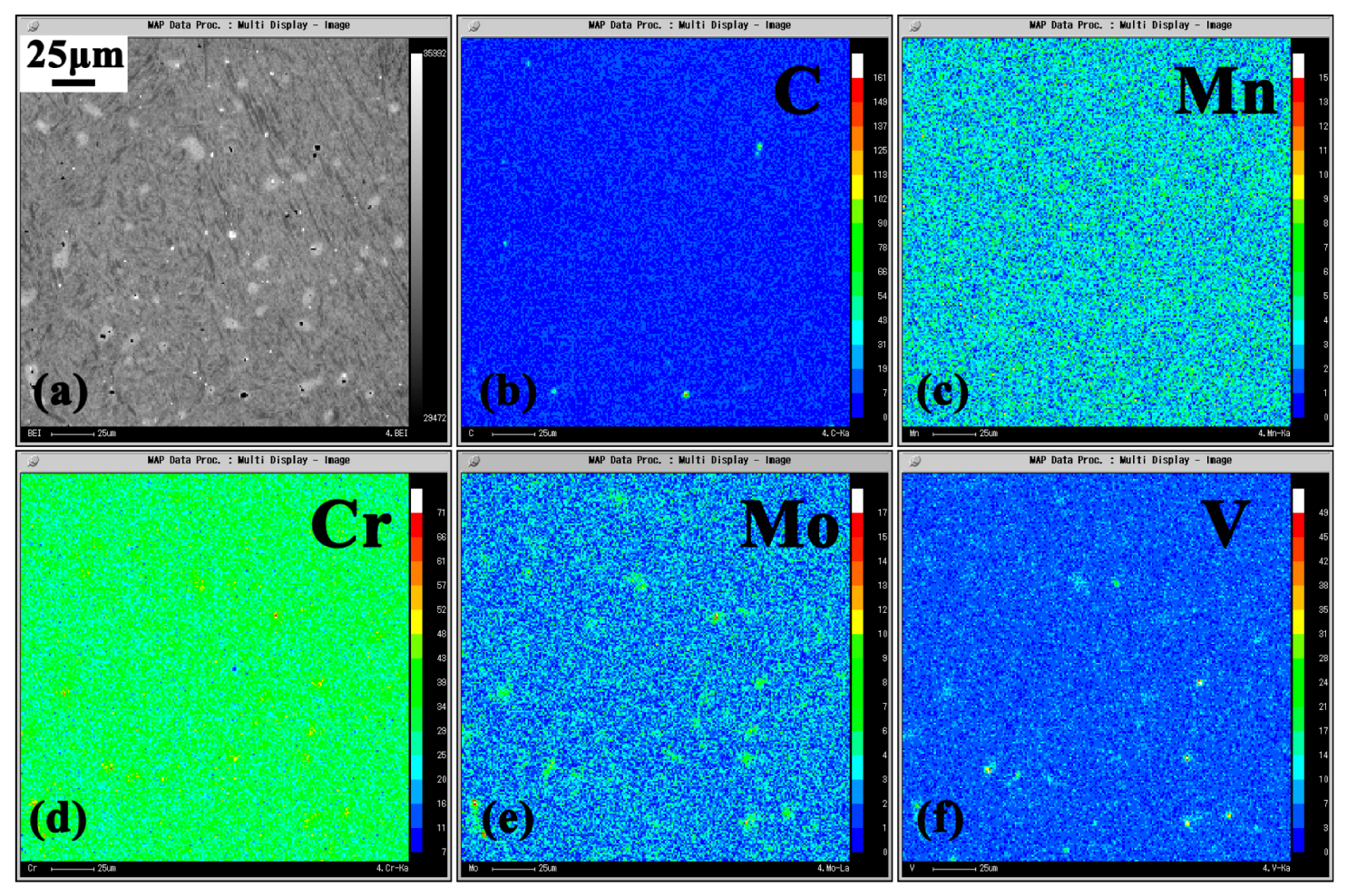

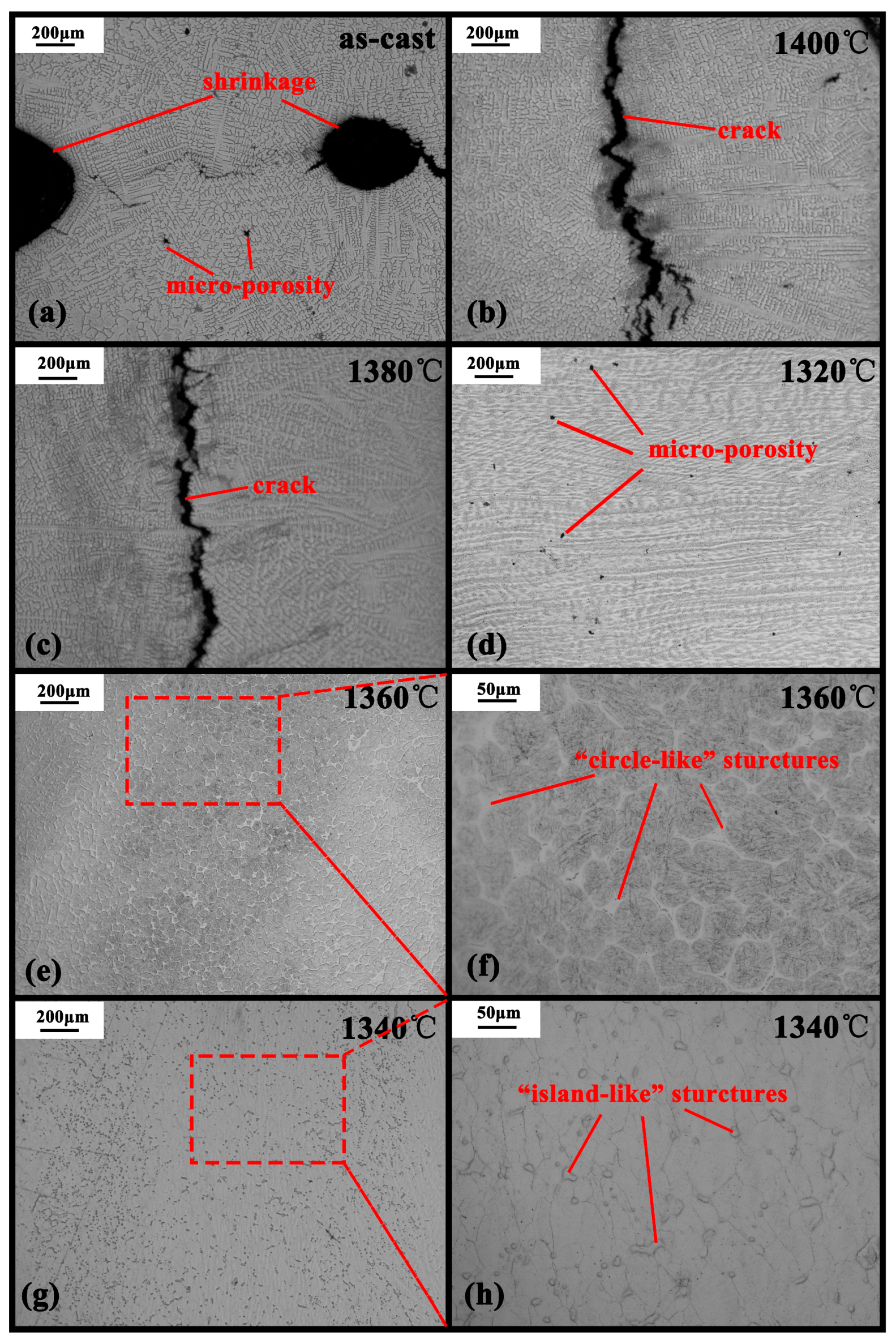

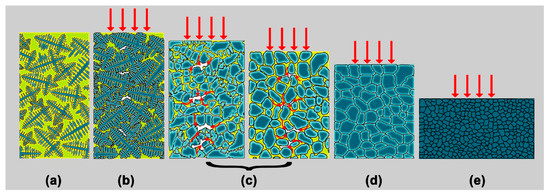

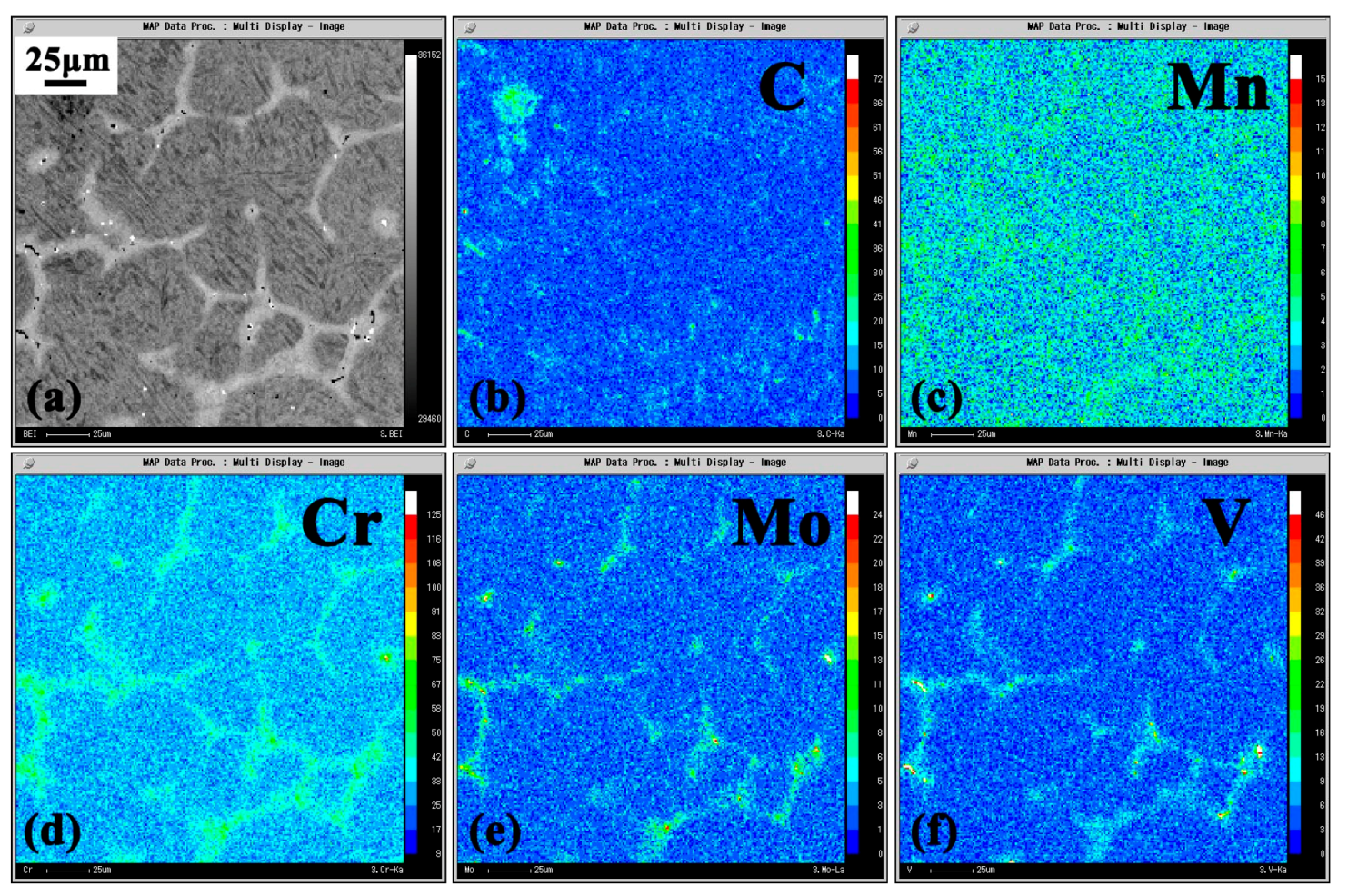

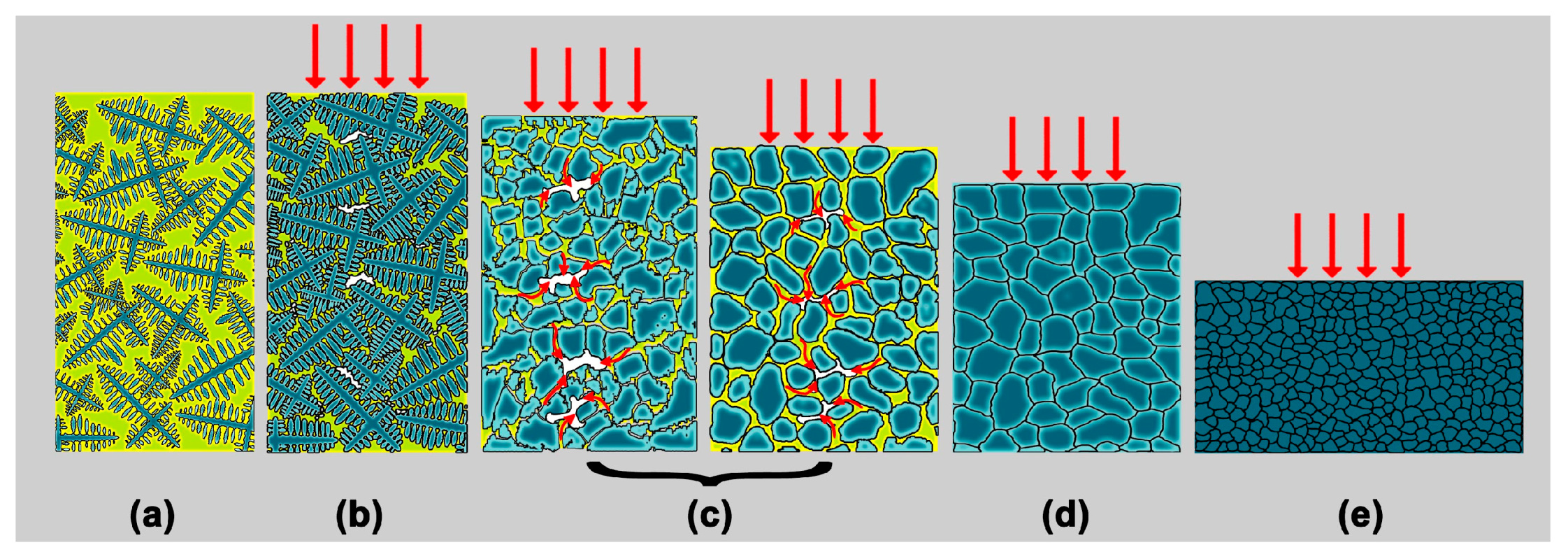

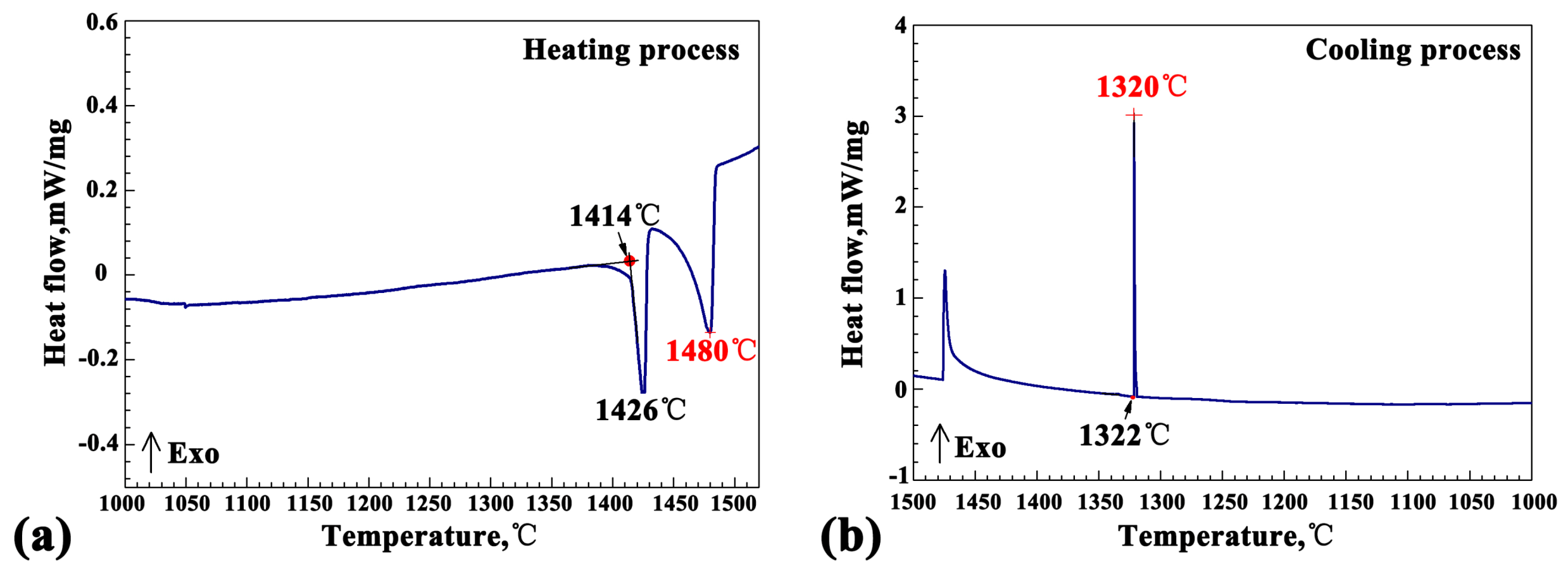

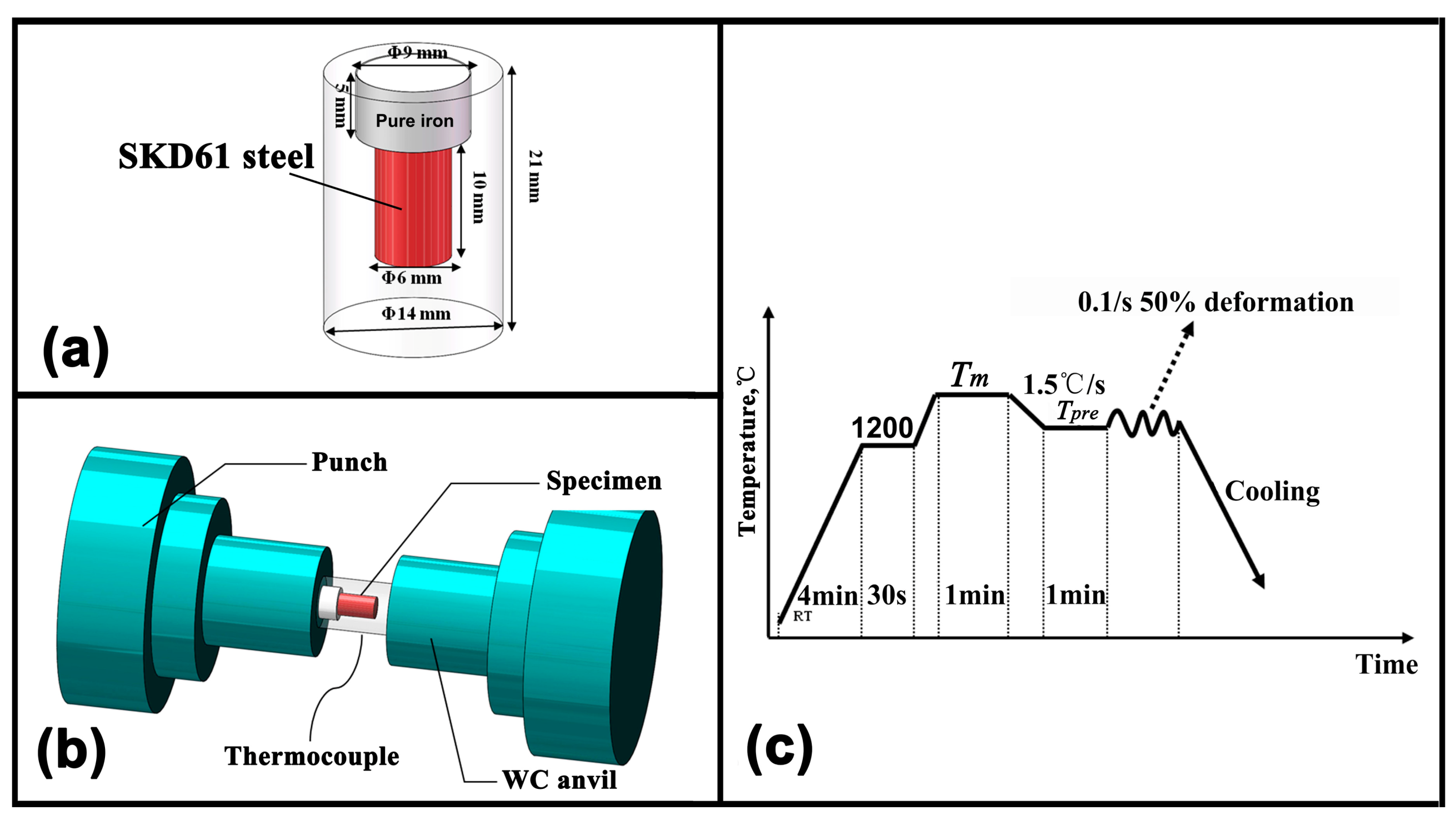

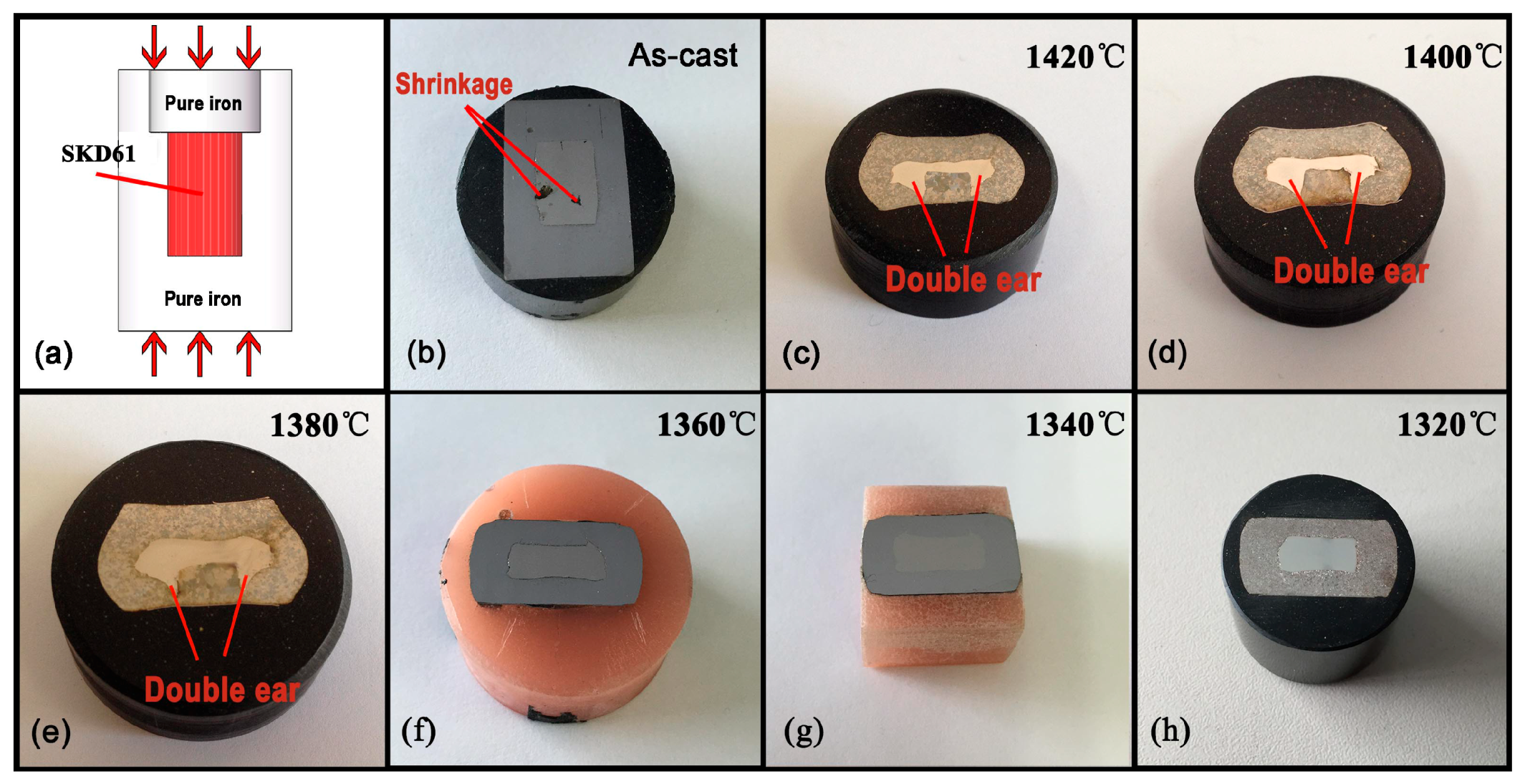

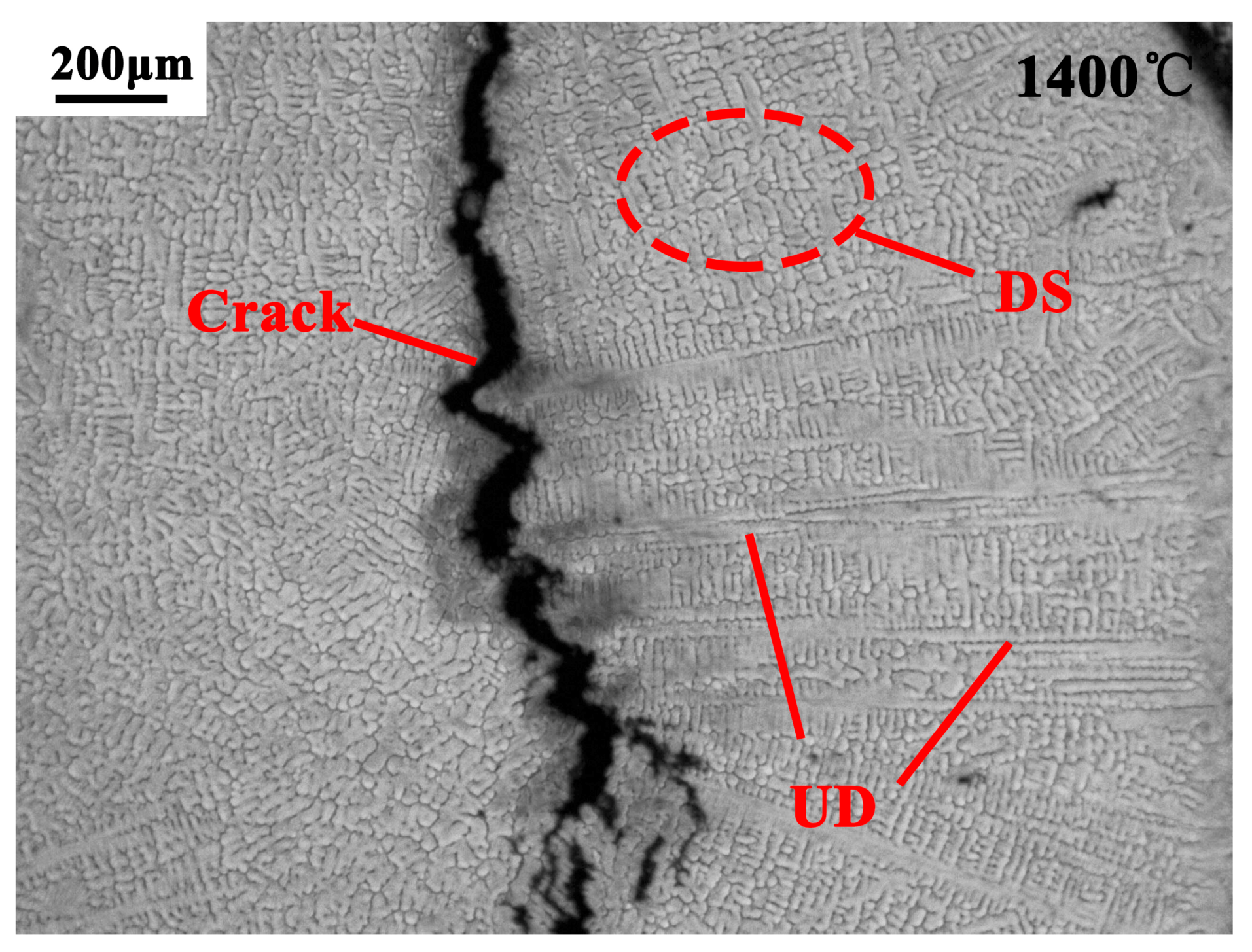

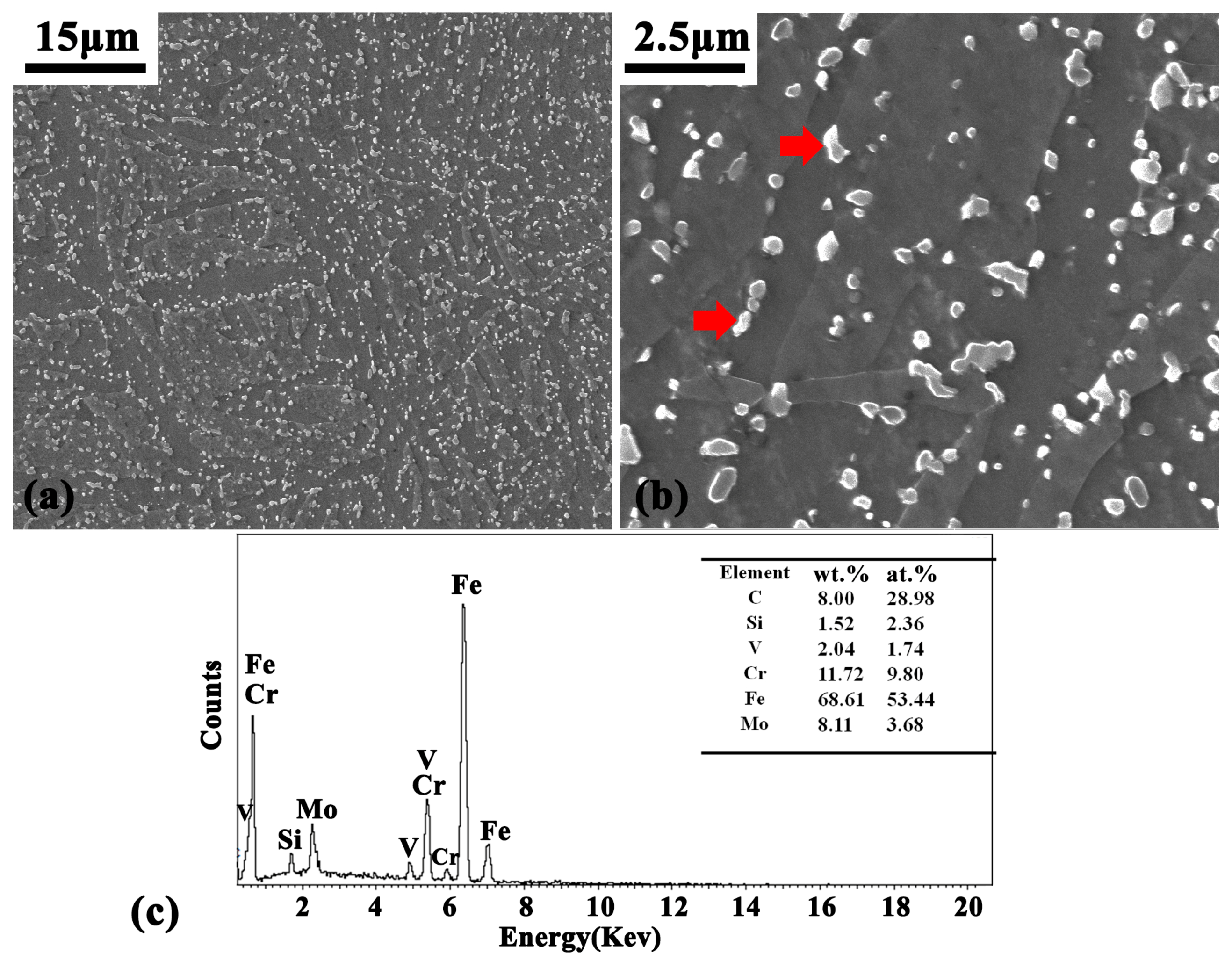

A method called forging solidifying metal (FSM), which is applied for eliminating coarse dendrites and shrinkage porosity defects of ferrous alloys was proposed based on semi-solid forming technology (SSF). To verify its feasibility, the effects of liquid fraction (FL) on the microstructure of the deformed H13 steel were investigated experimentally. The coarse dendrites structure still existed and cracks appeared when the 0.1/s 50% FSM method was carried out at ~20% FL. What is significantly different from that is, the elimination of the coarse dendrites structure and shrinkage porosity defects became more significant, when this method was conducted at the end of solidification (FL < 10%). The microstructure of H13 steel was significantly refined and also became dense in such condition. View Full-Text
Keywords: SSF; FL; H13 steel; grain refinement; shrinkage porosity SSF; FL; H13 steel; grain refinement; shrinkage porosity
Figures

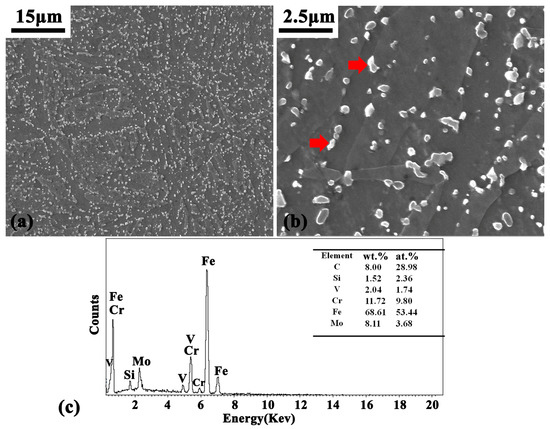

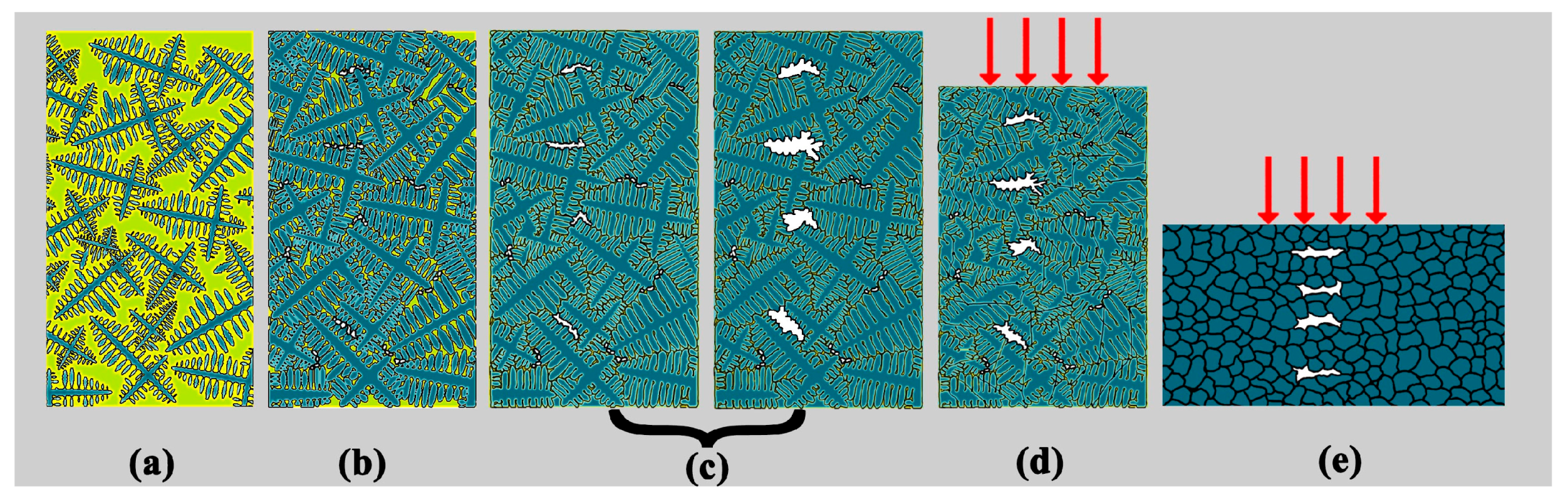

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Guo, Y.; Liu, W.; Sun, M.; Xu, B.; Li, D. A Method Based on Semi-Solid Forming for Eliminating Coarse Dendrites and Shrinkage Porosity of H13 Tool Steel. Metals 2018, 8, 277.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
