Next Article in Journal
High Speed Finish Turning of Inconel 718 Using PCBN Tools under Dry Conditions
Next Article in Special Issue
Template-Assisted Fabrication of Nanostructured Tin (β-Sn) Arrays for Bulk Microelectronic Packaging Devices
Previous Article in Journal
An Energetic Approach to Predict the Effect of Shot Peening-Based Surface Treatments
Previous Article in Special Issue
Exothermic Reaction Kinetics in High Energy Density Al-Ni with Nanoscale Multilayers Synthesized by Cryomilling
Open AccessArticle

Mechanical Properties of ARMCO® Iron after Large and Severe Plastic Deformation—Application Potential for Precursors to Ultrafine Grained Microstructures

Physical Metallurgy Division, TU Darmstadt, Alarich-Weiss-Str. 2, 64287 Darmstadt, Germany
Metals 2018, 8(3), 191; https://doi.org/10.3390/met8030191
Received: 22 December 2017 / Revised: 19 February 2018 / Accepted: 14 March 2018 / Published: 17 March 2018
(This article belongs to the Special Issue Synthesis and Properties of Bulk Nanostructured Metallic Materials)

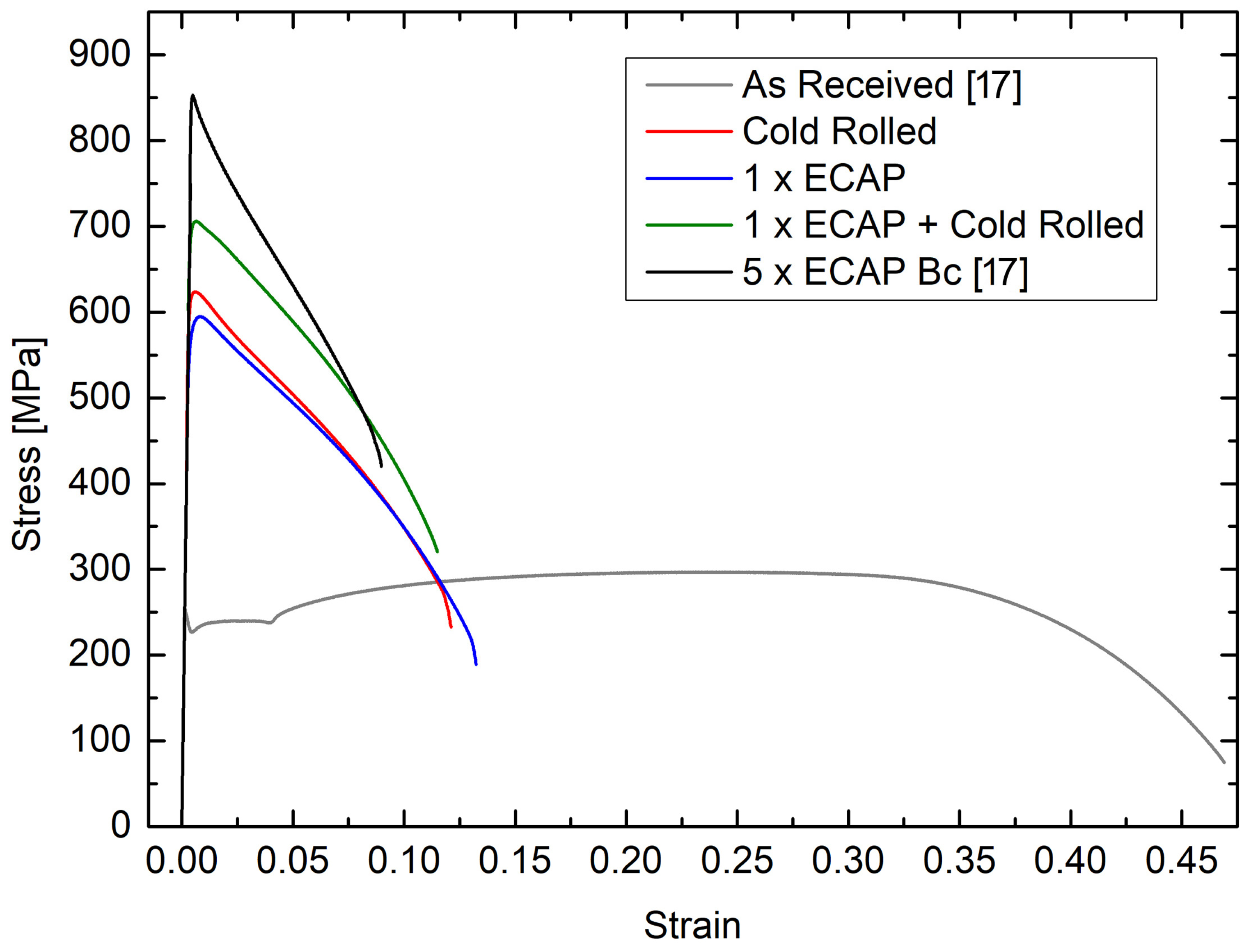

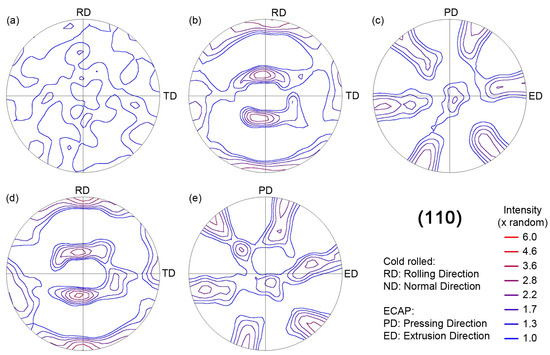

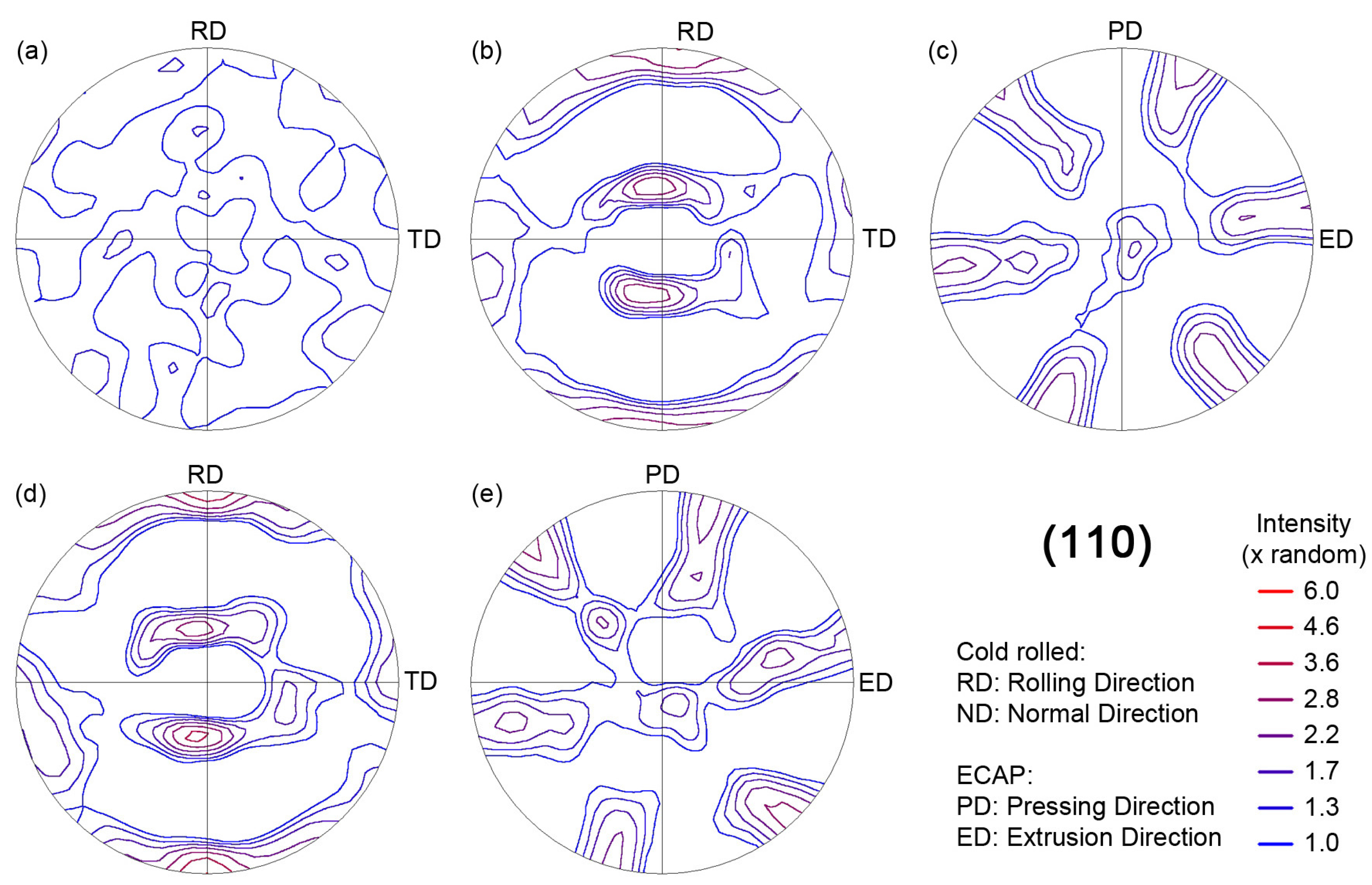

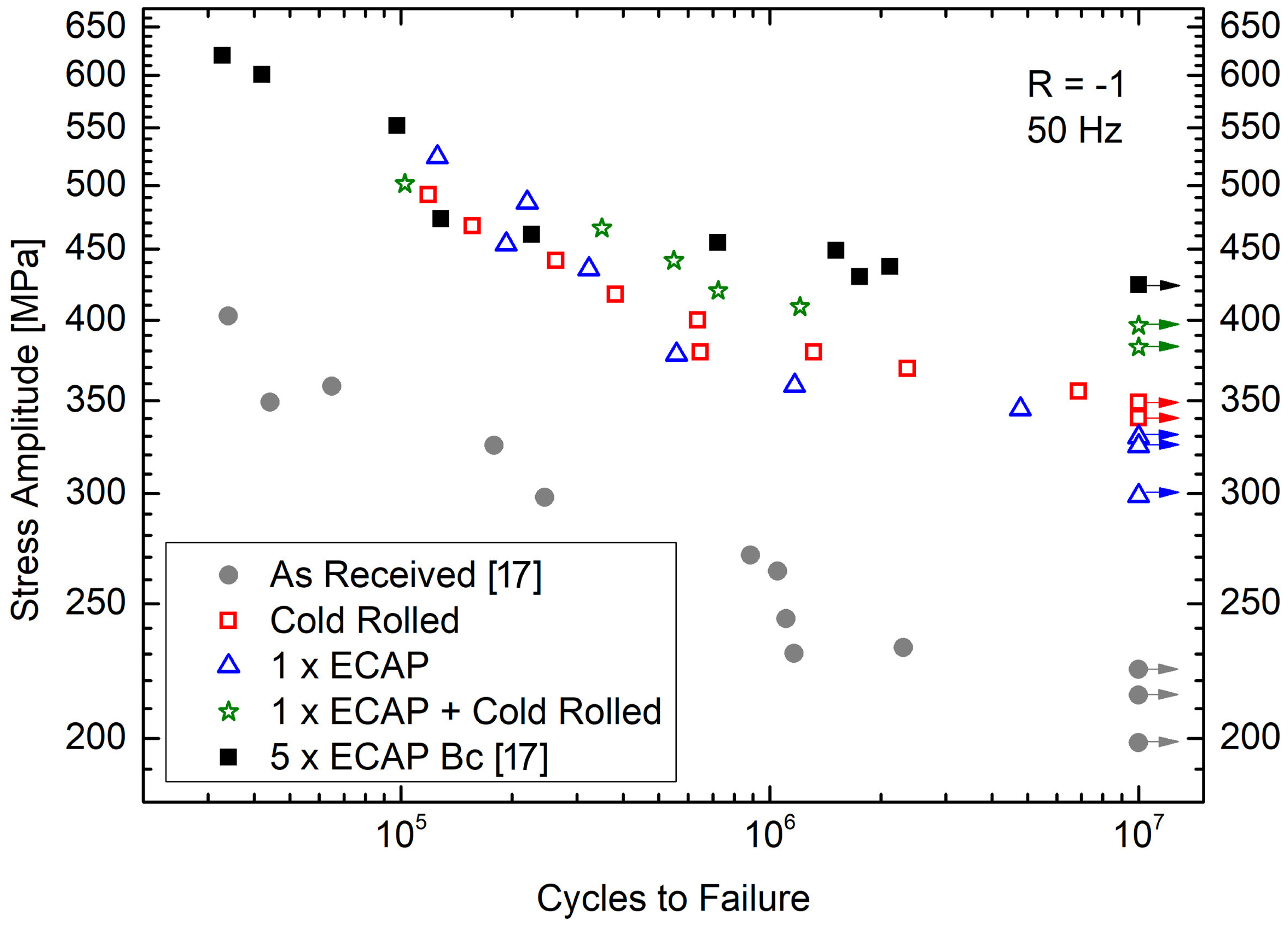

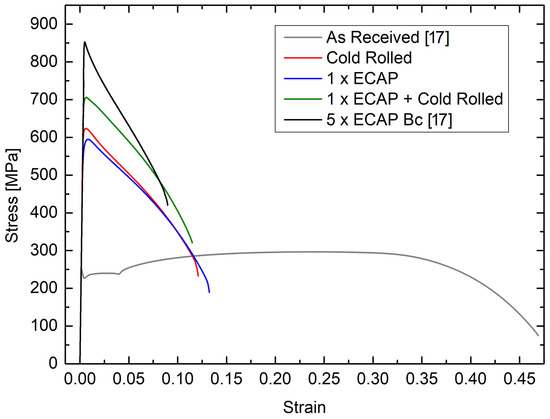

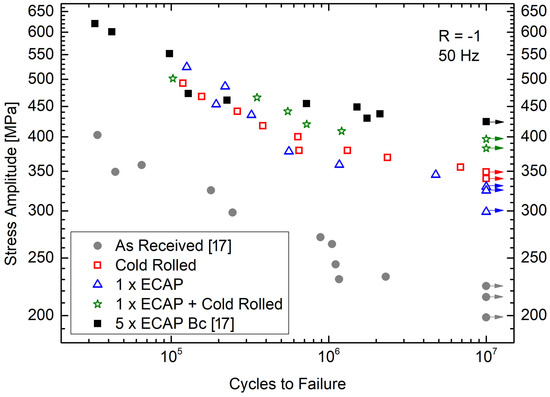

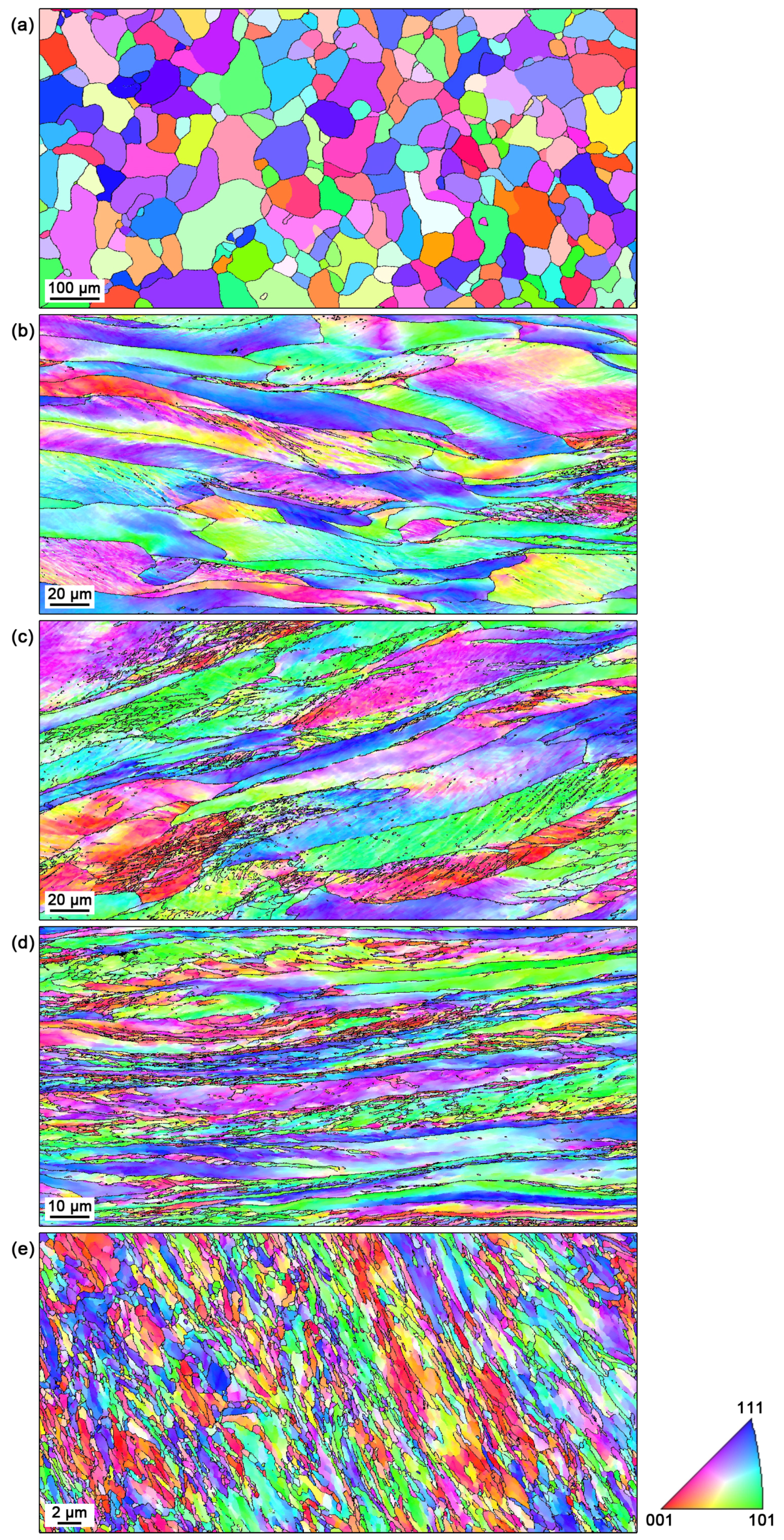

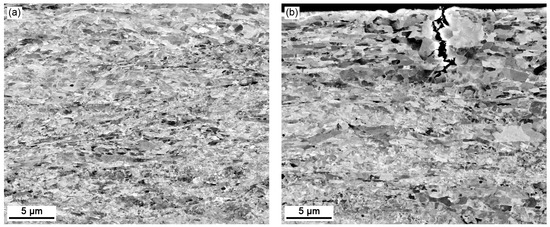

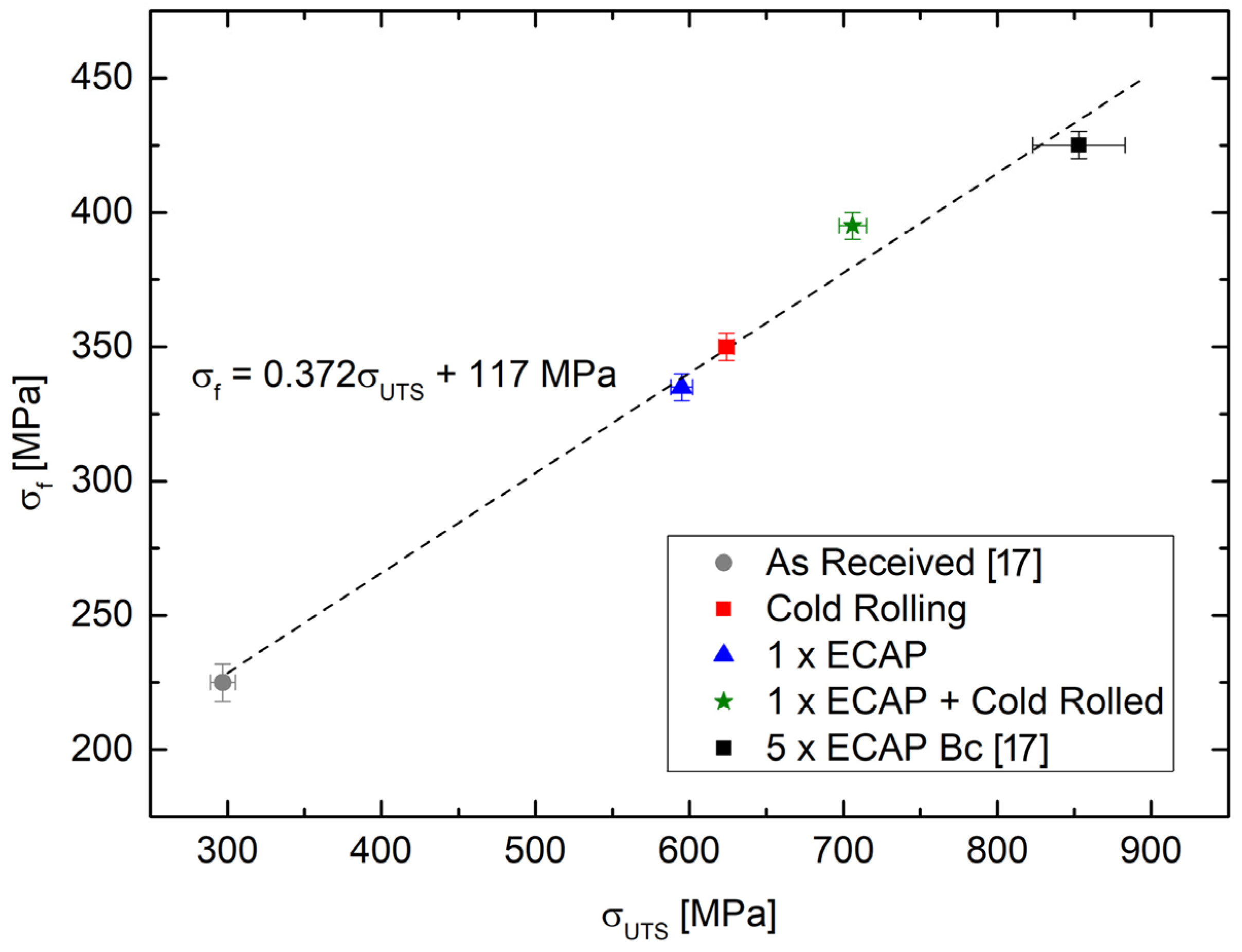

Ultrafine grained (UFG) metals processed by severe plastic deformation (SPD) are well known for their outstanding mechanical properties, yet, current applications are very limited mostly due to the elaborate processing. The present work investigates the microstructures and mechanical properties of precursors to UFG microstructures that evolve at strains below the levels required for UFG microstructures, which implies less processing effort. ARMCO® iron is subjected to a single pass of equal channel angular pressing (ECAP), cold rolling, as well as a combination of both processes and compared to strain–free samples and a UFG reference condition subjected to five ECAP passes. All conditions are characterized regarding their microstructures and mechanical properties using electron backscatter diffraction, tensile tests, and rotating bending fatigue test. The precursor states show intermediate properties in between those of the strain-free and the UFG reference condition. Compared to the processing effort, the difference in properties between precursors and UFG reference is relatively small. Especially a combination of a single ECAP pass followed by cold rolling is a good compromise in terms of processing effort and mechanical properties with an endurance limit being less than 10% lower as compared to the UFG reference condition. View Full-Text
Keywords: fatigue; severe plastic deformation; UFG microstructures; ECAP; rolling fatigue; severe plastic deformation; UFG microstructures; ECAP; rolling
Show Figures

Figure 1

MDPI and ACS Style

Bruder, E. Mechanical Properties of ARMCO® Iron after Large and Severe Plastic Deformation—Application Potential for Precursors to Ultrafine Grained Microstructures. Metals 2018, 8, 191.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
