Next Article in Journal
Electrical Resistivity Measurement of Carbon Anodes Using the Van der Pauw Method
Next Article in Special Issue
The Fabrication of All-Solid-State Lithium-Ion Batteries via Spark Plasma Sintering
Previous Article in Journal
Effects of Post-Sinter Processing on an Al–Zn–Mg–Cu Powder Metallurgy Alloy
Open AccessArticle

Influence of Powder Surface Contamination in the Ni-Based Superalloy Alloy718 Fabricated by Selective Laser Melting and Hot Isostatic Pressing

Department of Mechanical Engineering, Tokyo Metropolitan University, 1-1 Minami-Osawa, Hachioji-Shi, Tokyo 192-0397, Japan
*
Author to whom correspondence should be addressed.
Metals 2017, 7(9), 367; https://doi.org/10.3390/met7090367
Received: 9 May 2017 / Revised: 5 September 2017 / Accepted: 7 September 2017 / Published: 13 September 2017
(This article belongs to the Special Issue Powder Synthesis and Processing)

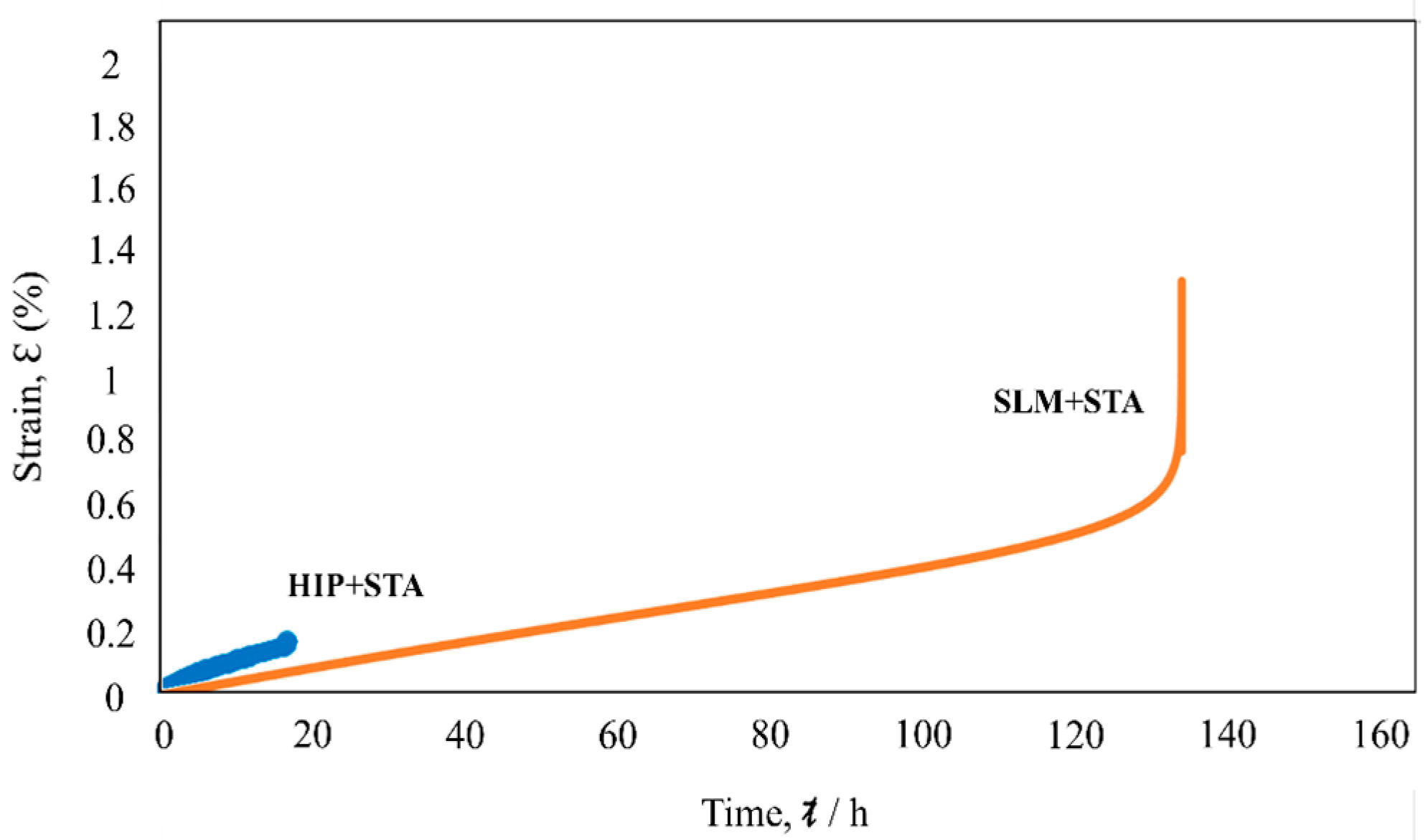

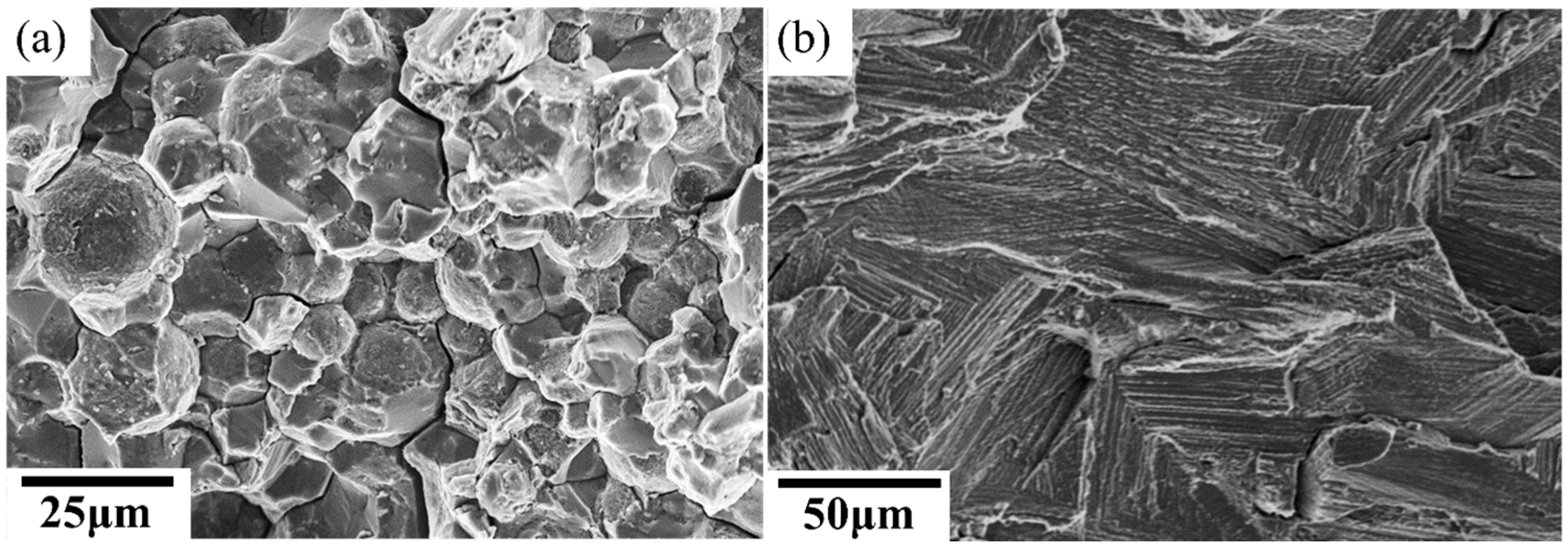

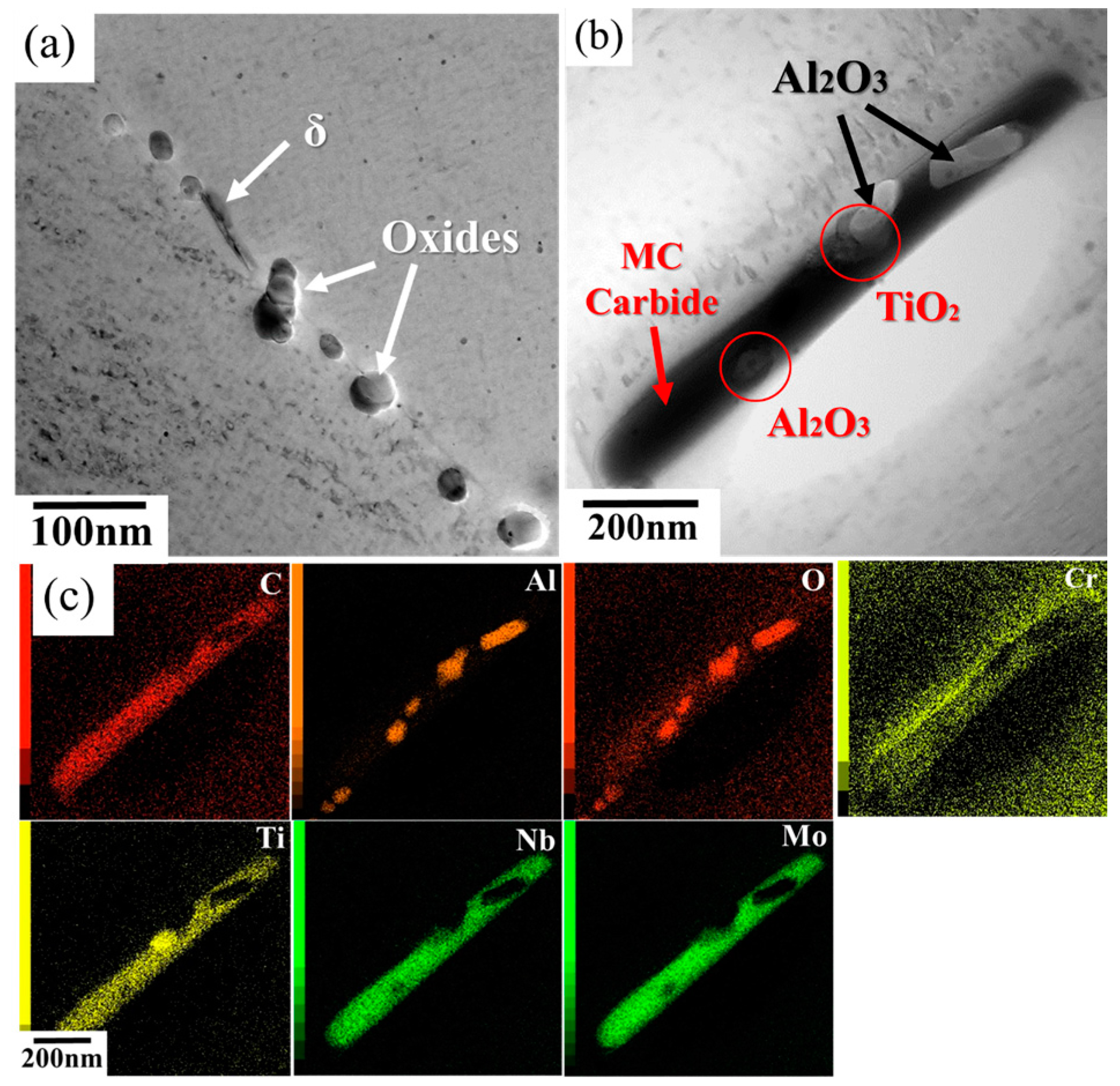

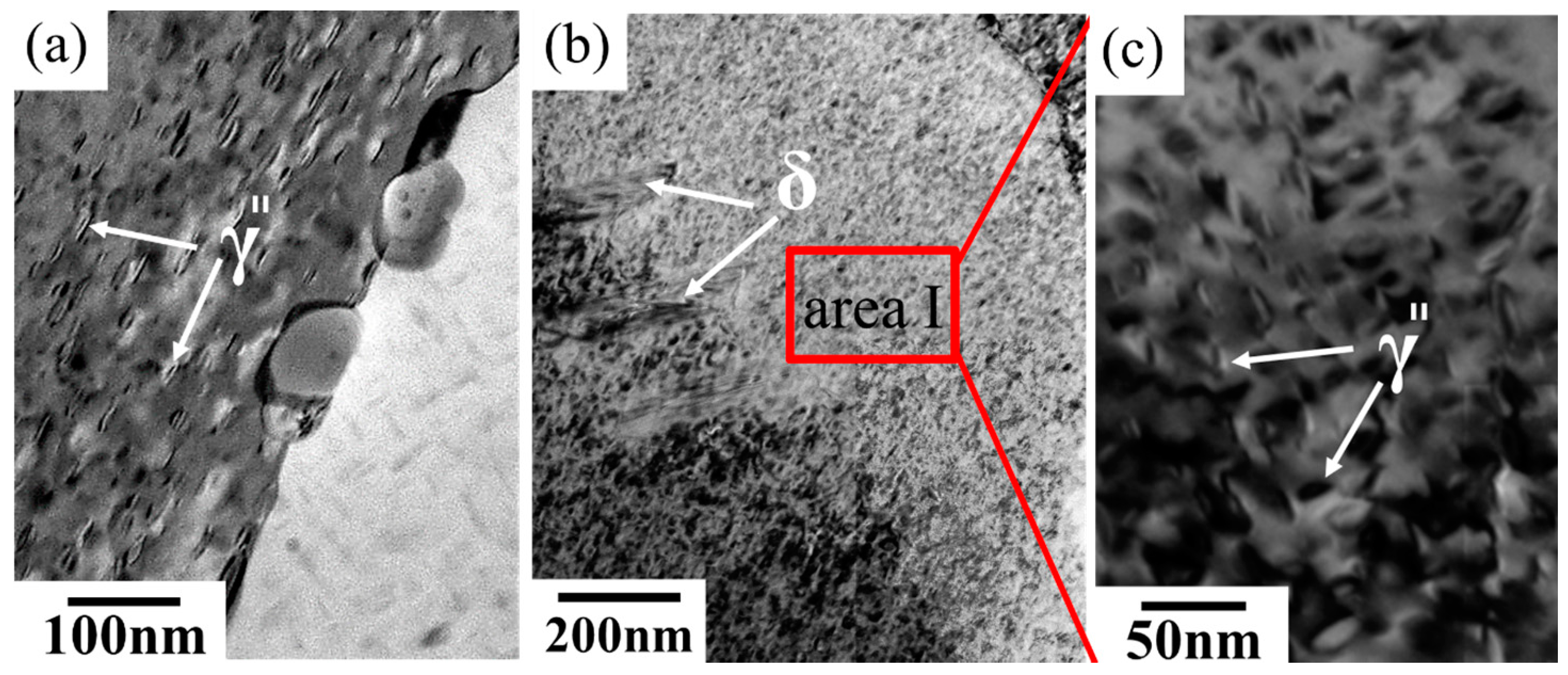

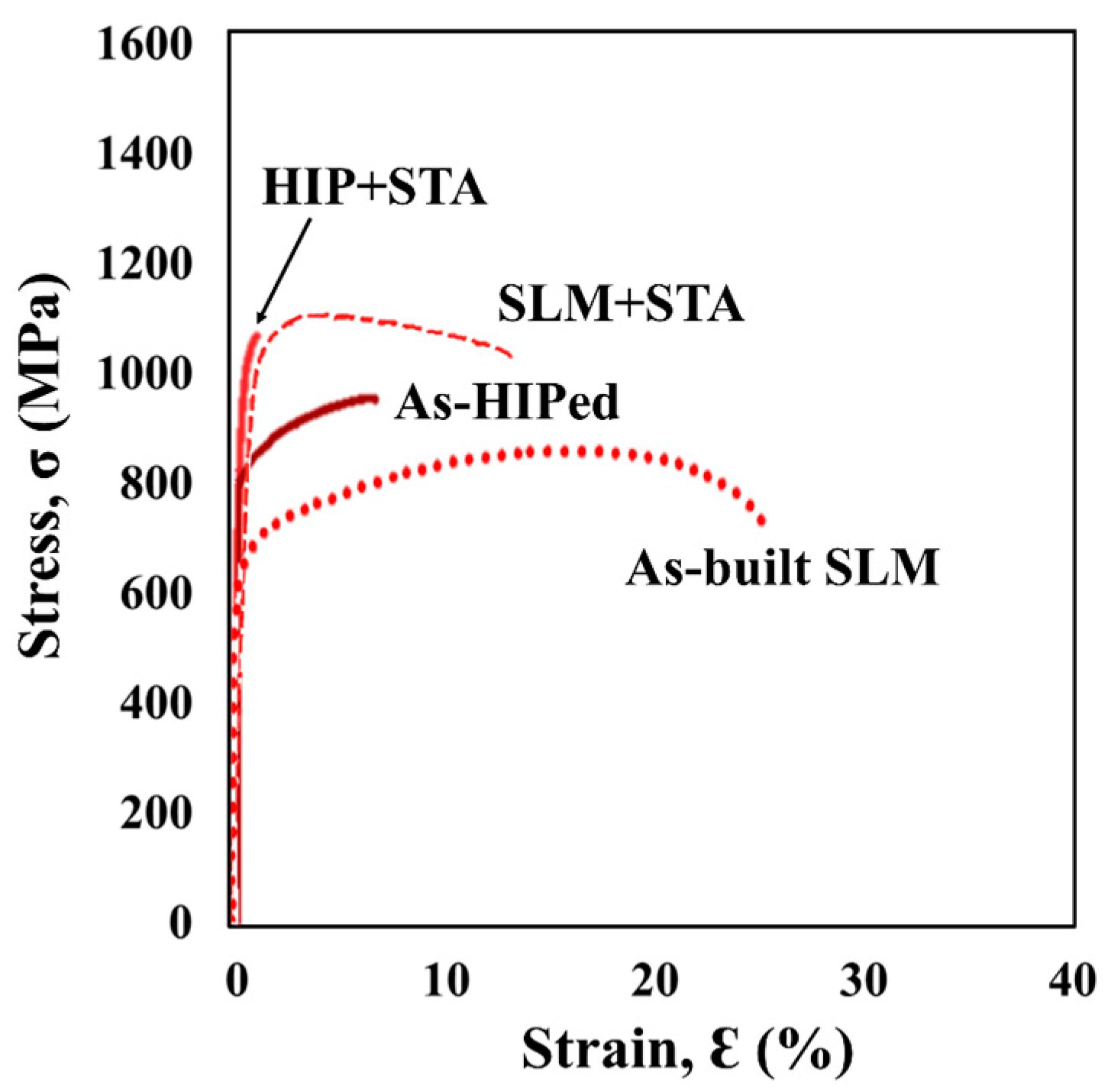

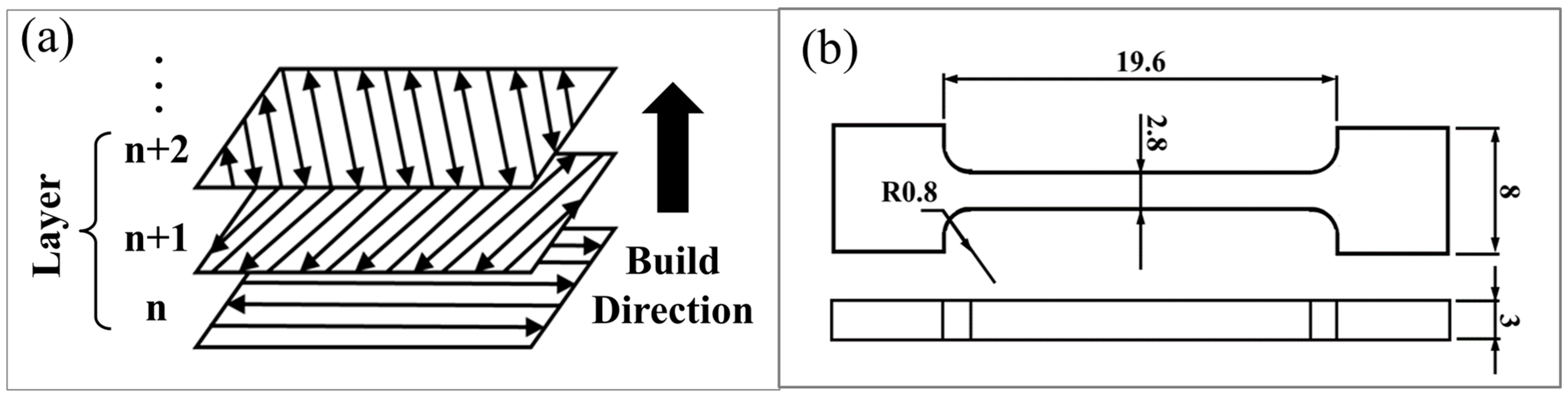

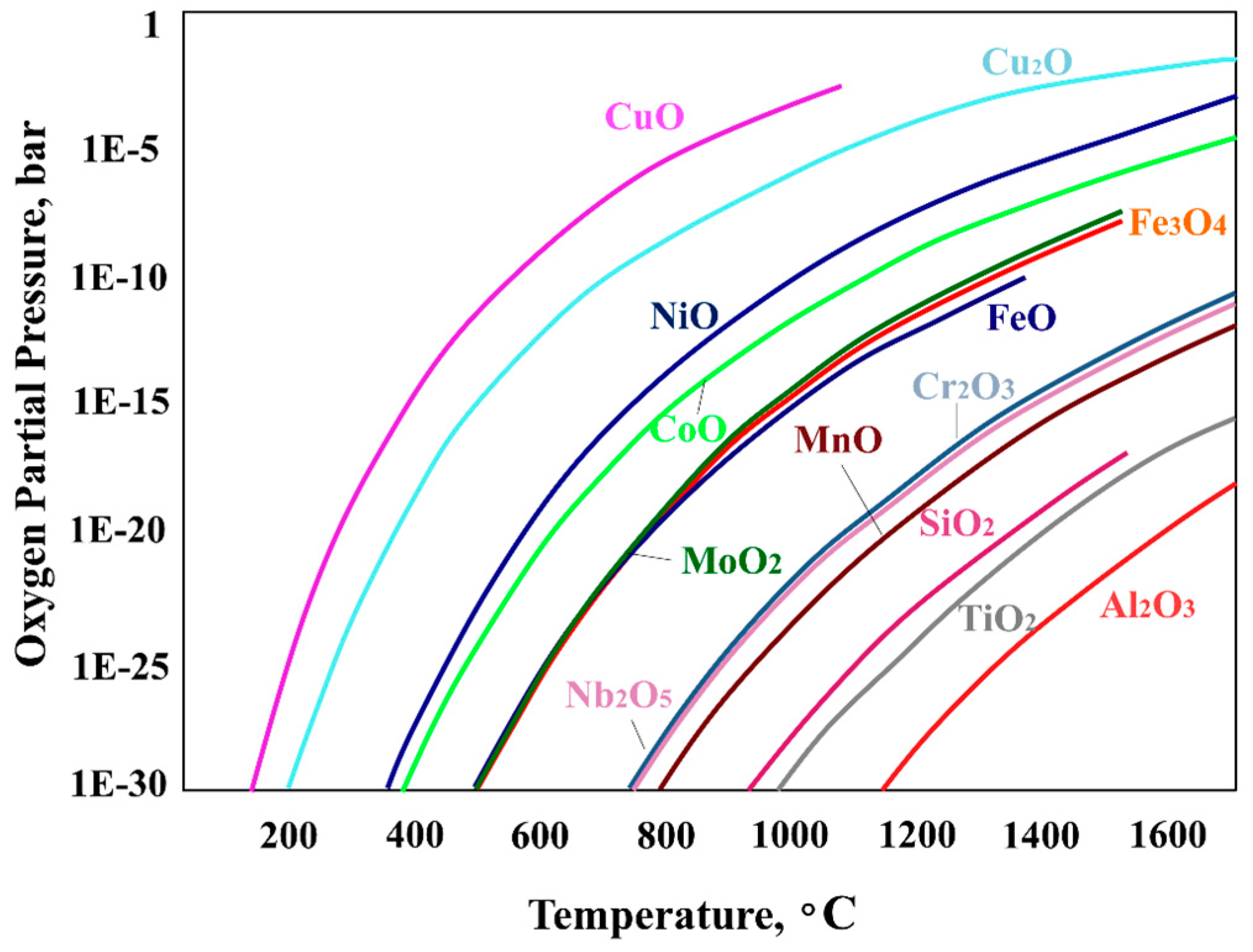

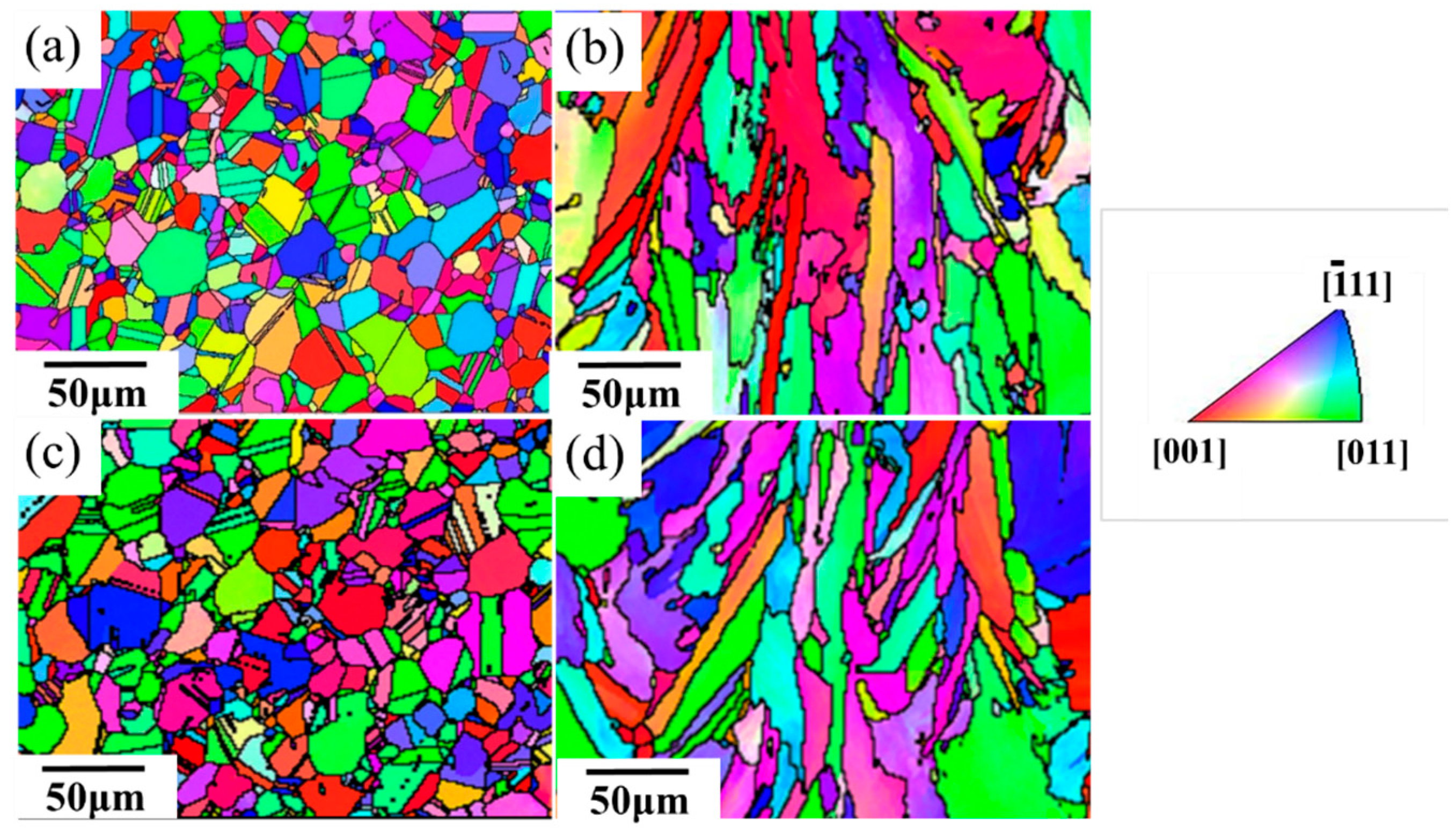

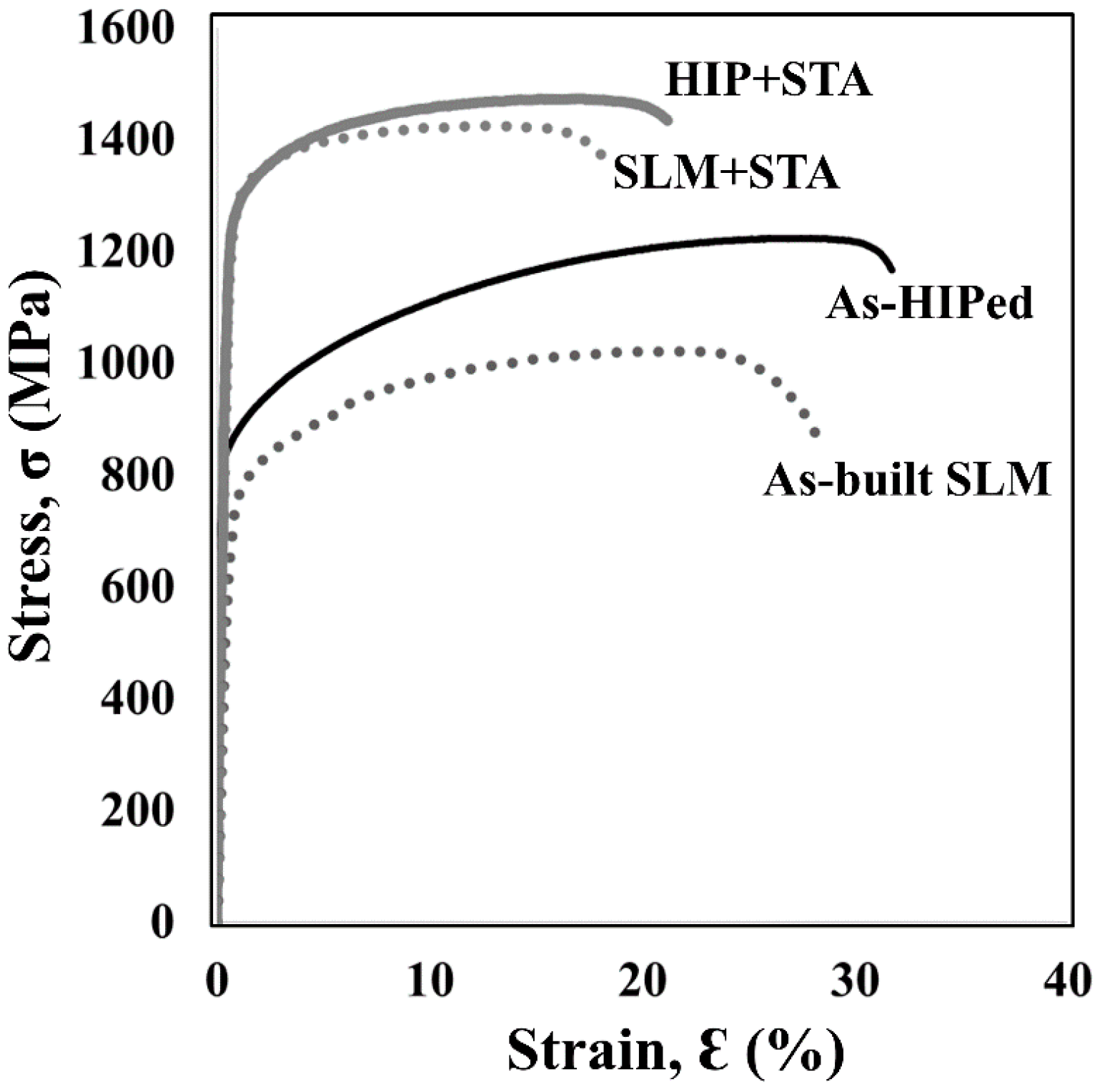

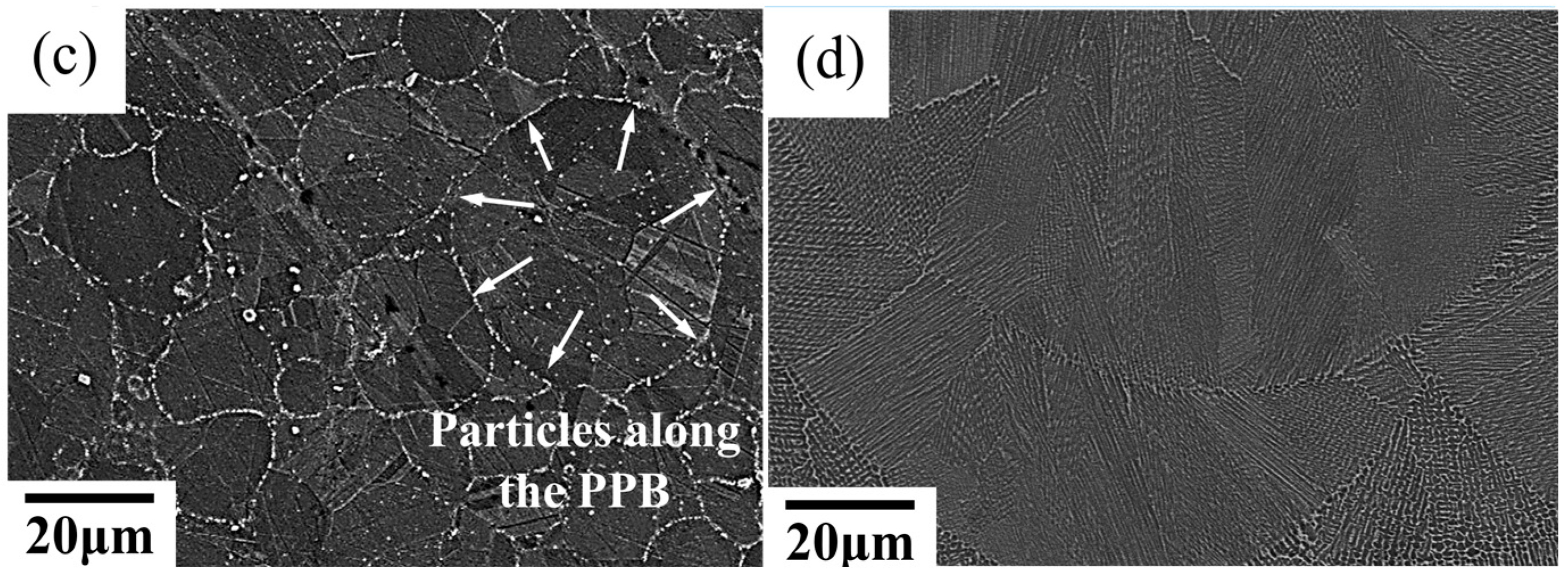

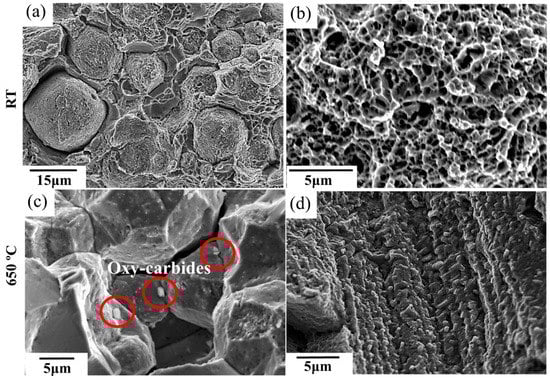

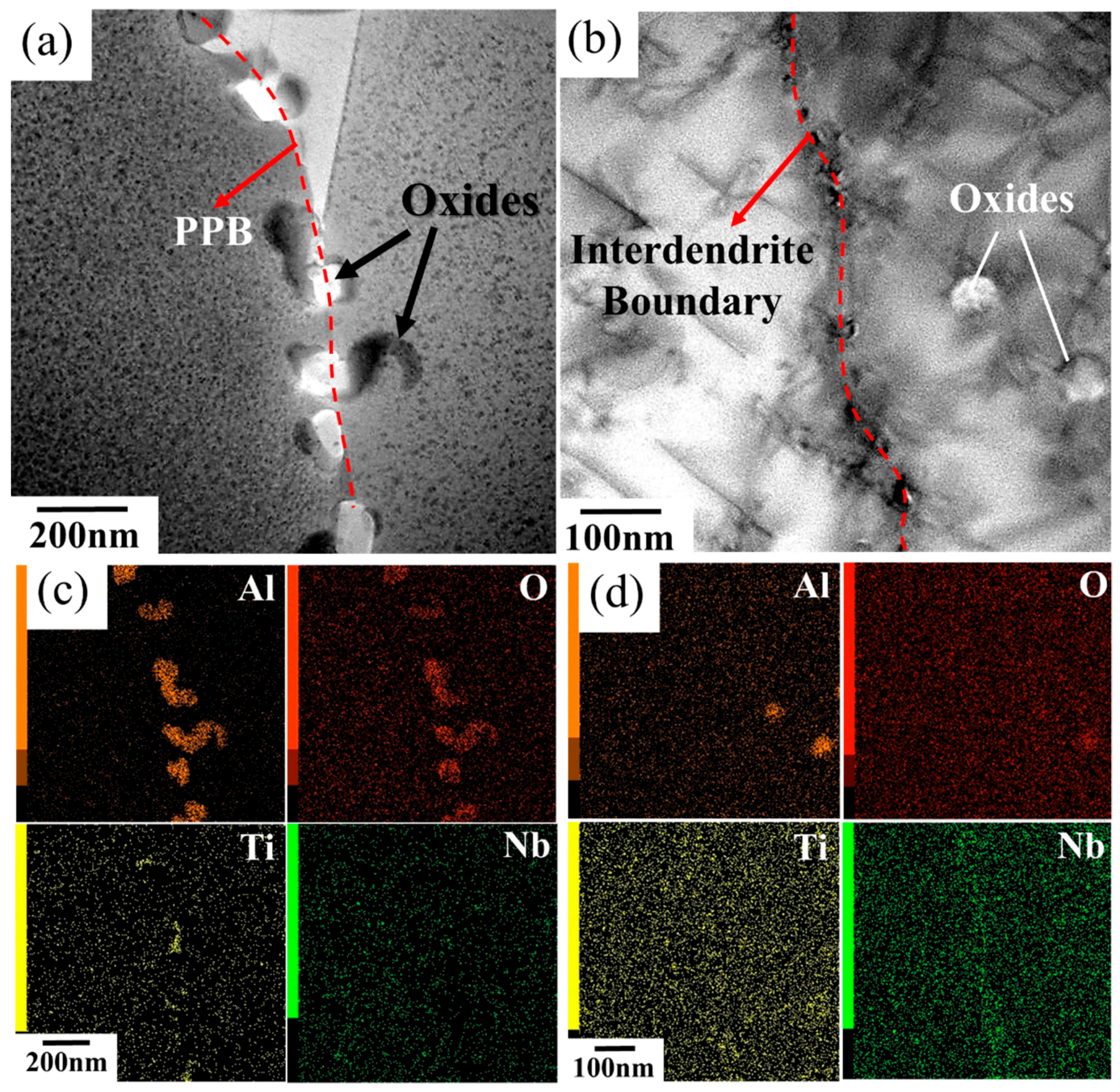

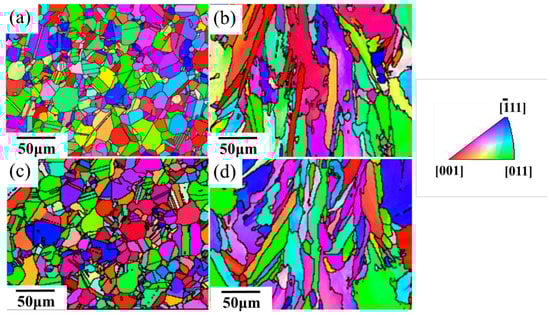

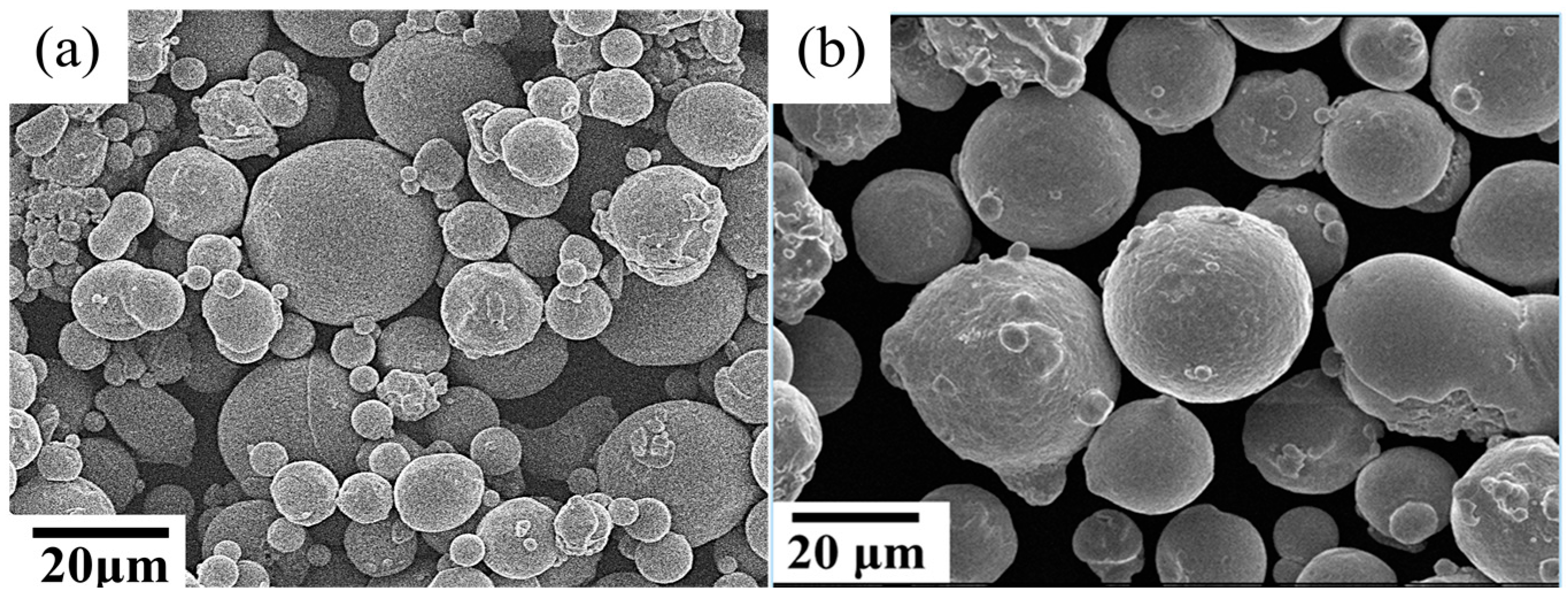

The aim of this study was to gain a deep understanding of the microstructure-mechanical relationship between solid-state sintering and full-melting processes. The IN718 superalloy was fabricated by hot isostatic pressing (HIP) and selective laser melting (SLM). Continuous precipitates were clearly localized along the prior particle boundary (PPB) in the HIP materials, while SLM materials showed a microstructure free of PPB. The mechanical properties of specimens that underwent SLM + solution treatment and aging were comparable to those of conventional wrought specimens both at room temperature and 650 °C. However, a drop was observed in the ductility of HIP material at 650 °C. The brittle particles along the PPB were found to affect the HIP materials’ creep life and ductility during solid-state sintering. View Full-Text
Keywords: superalloy; surface contamination; prior particle boundary; hot isostatic pressing; selective laser melting superalloy; surface contamination; prior particle boundary; hot isostatic pressing; selective laser melting
Show Figures

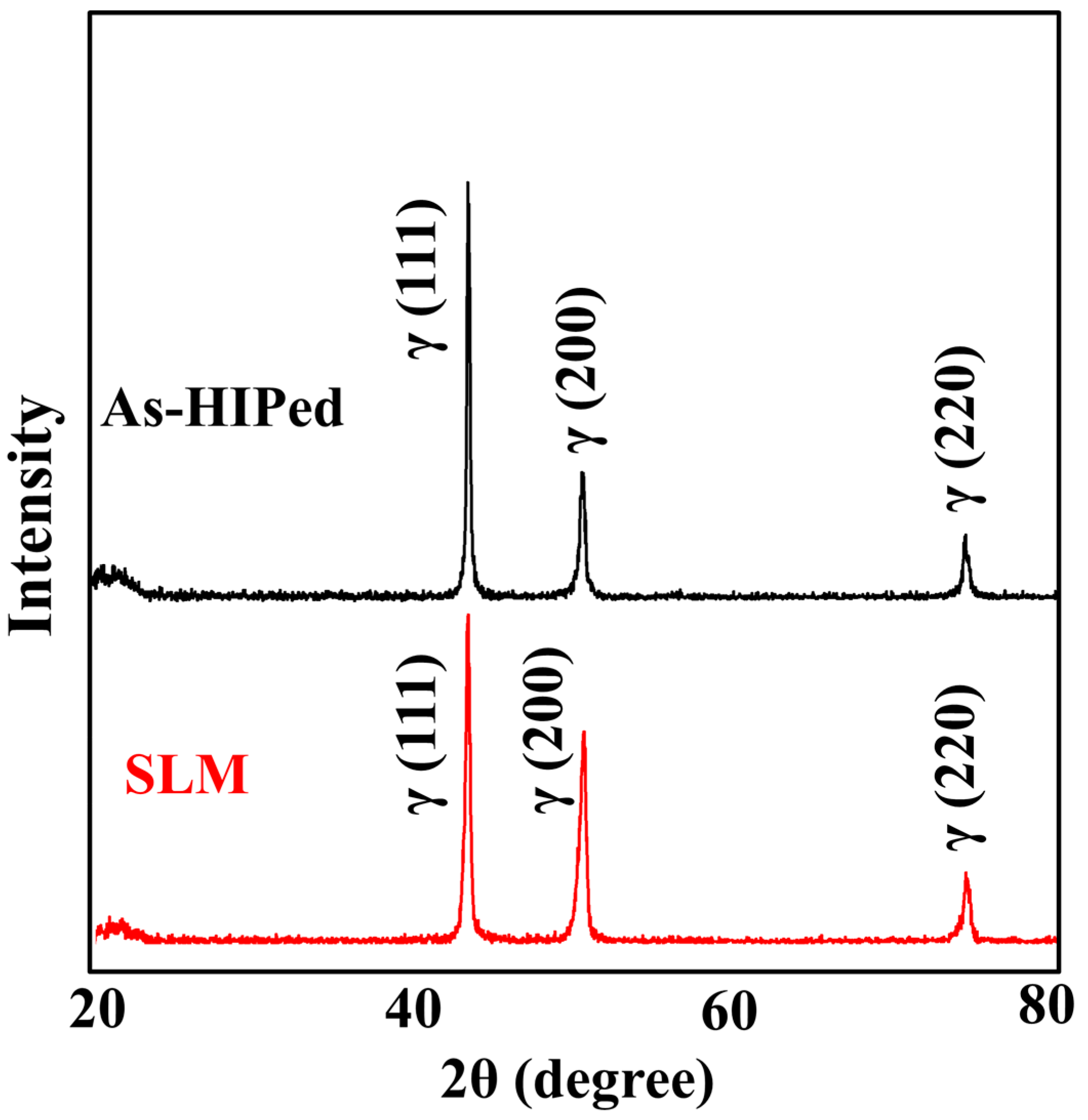

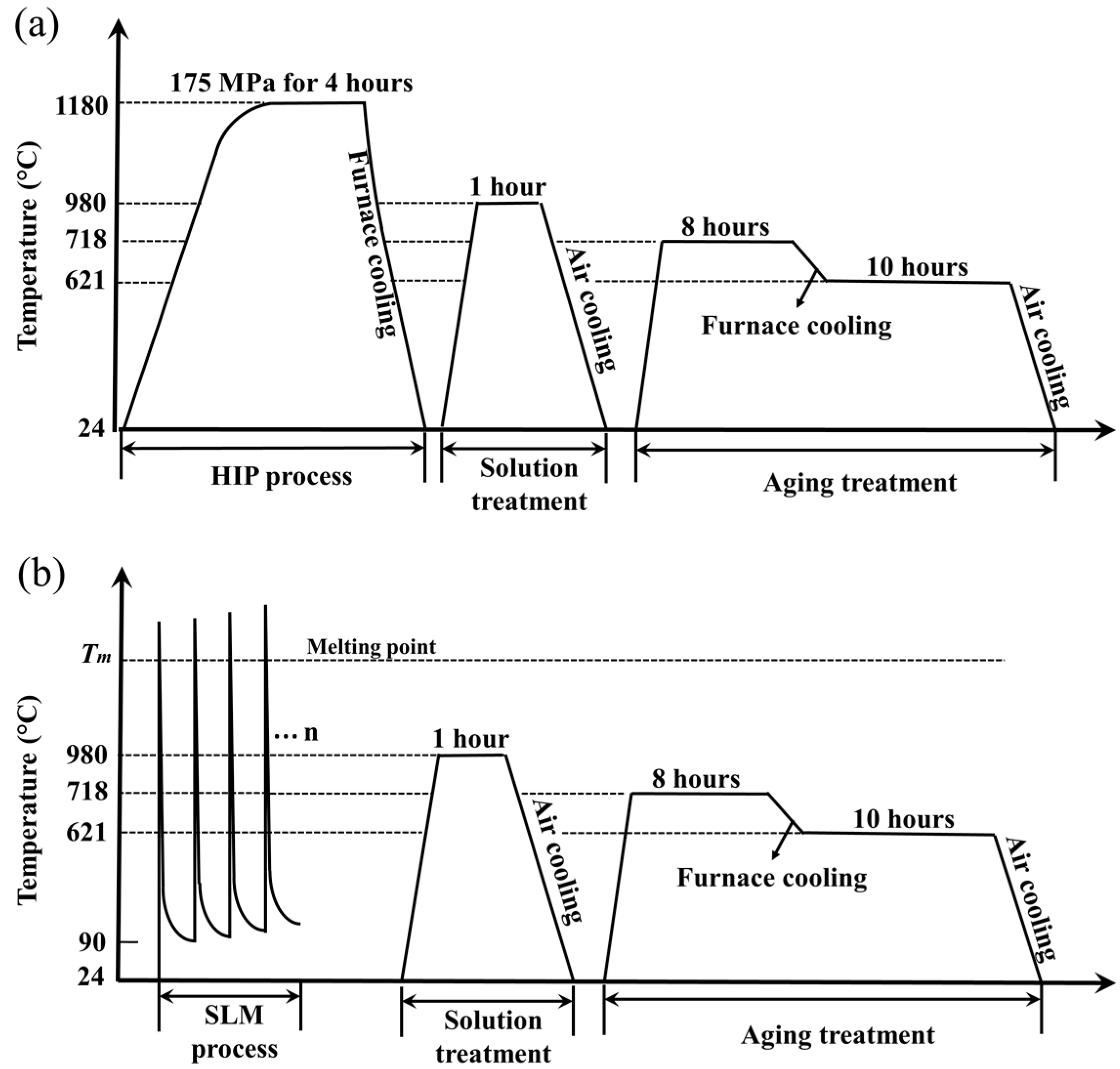

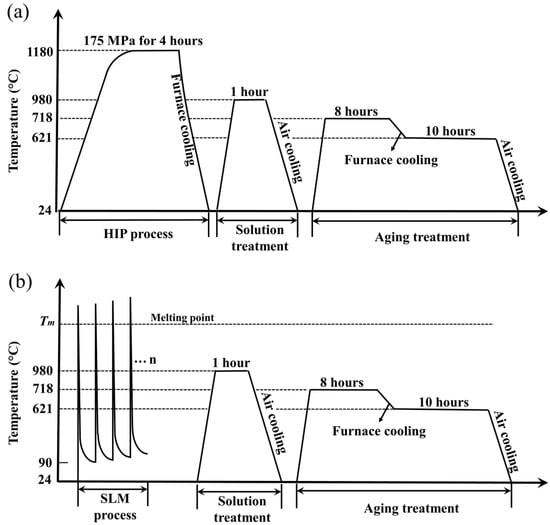

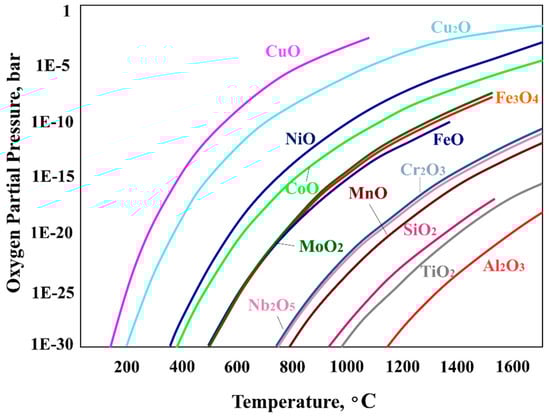

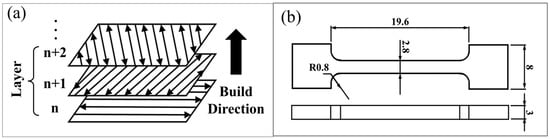

Figure 1

MDPI and ACS Style

Kuo, Y.-L.; Kakehi, K. Influence of Powder Surface Contamination in the Ni-Based Superalloy Alloy718 Fabricated by Selective Laser Melting and Hot Isostatic Pressing. Metals 2017, 7, 367.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
