Next Article in Journal
Synthesis and Structural Analysis of Copper-Zirconium Oxide
Next Article in Special Issue
Enhanced Age Strengthening of Mg-Nd-Zn-Zr Alloy via Pre-Stretching
Previous Article in Journal
Leaching Kinetics of Zinc from Metal Oxide Varistors (MOVs) with Sulfuric Acid
Previous Article in Special Issue
Impurity Antimony-Induced Creep Property Deterioration and Its Suppression by Rare Earth Ceriumfor a 9Cr-1Mo Ferritic Heat-Resistant Steel
Open AccessArticle

Effect of Titanium on the Microstructure and Mechanical Properties of High-Carbon Martensitic Stainless Steel 8Cr13MoV

State Key Laboratory of Advanced Metallurgy, University of Science and Technology Beijing, Beijing 1000083, China
*
Author to whom correspondence should be addressed.
Academic Editor: Soran Birosca
Metals 2016, 6(8), 193; https://doi.org/10.3390/met6080193
Received: 20 May 2016 / Revised: 16 August 2016 / Accepted: 17 August 2016 / Published: 22 August 2016
(This article belongs to the Special Issue Process-Structure-Property Relationships in Metals)

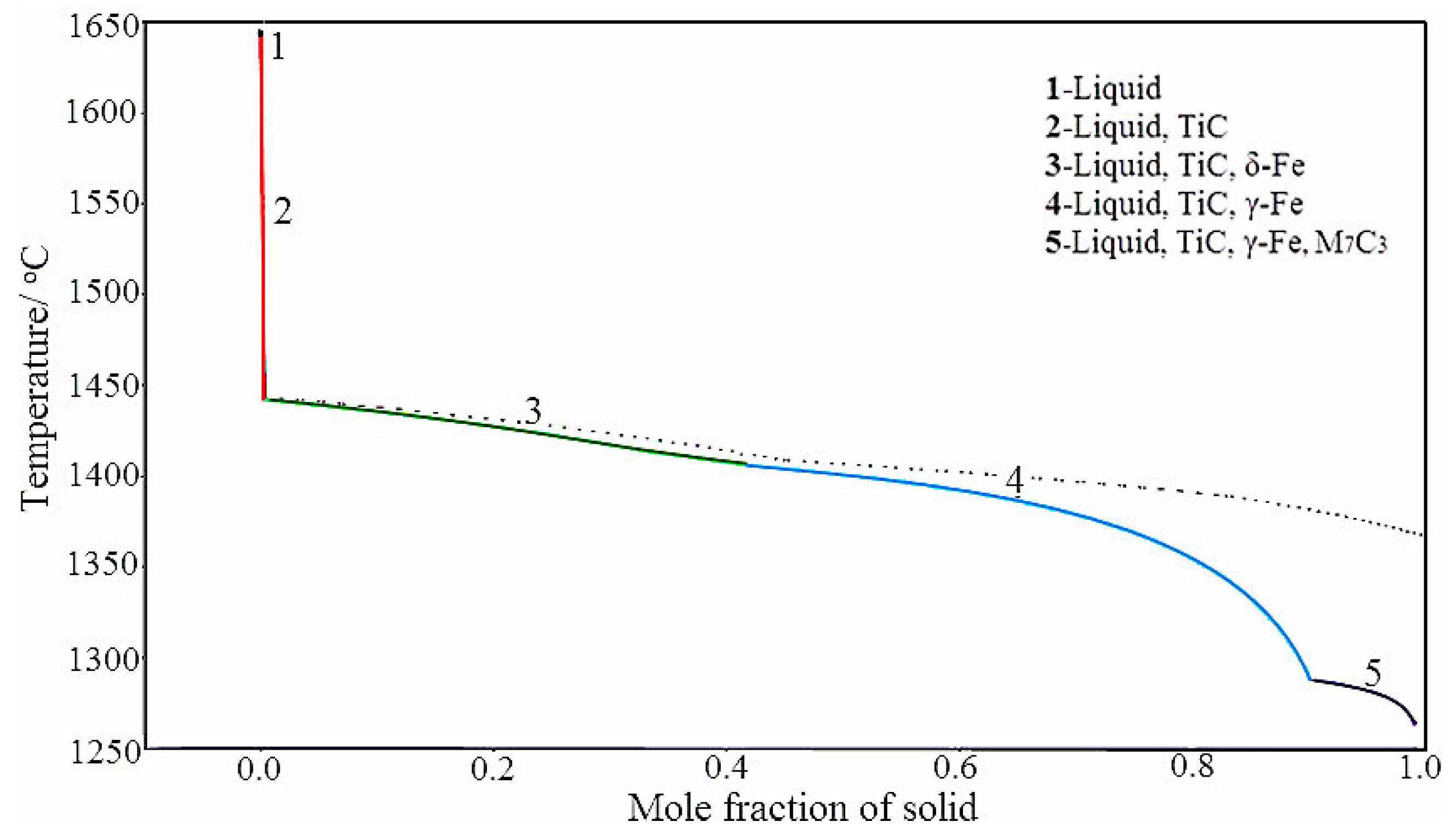

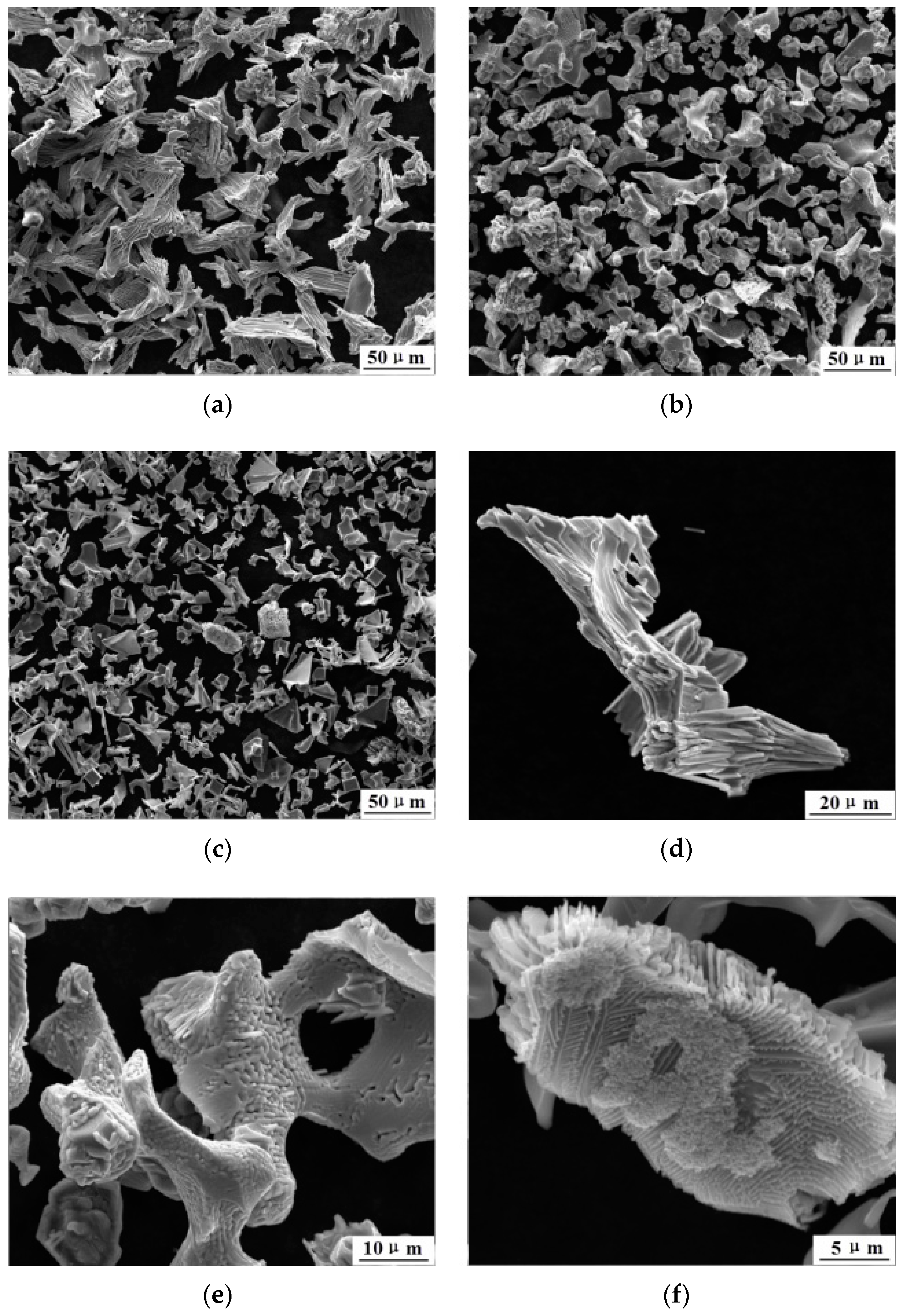

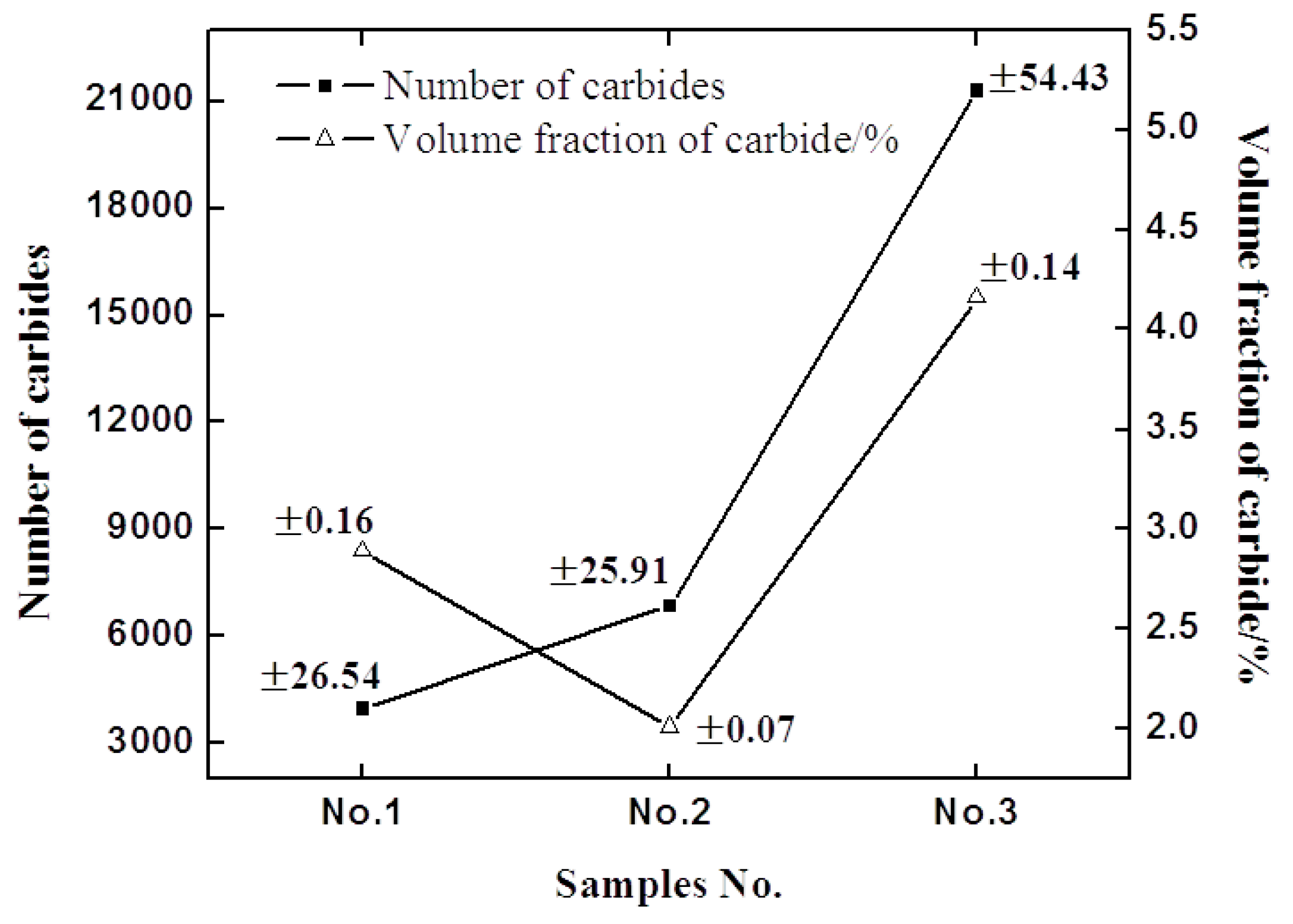

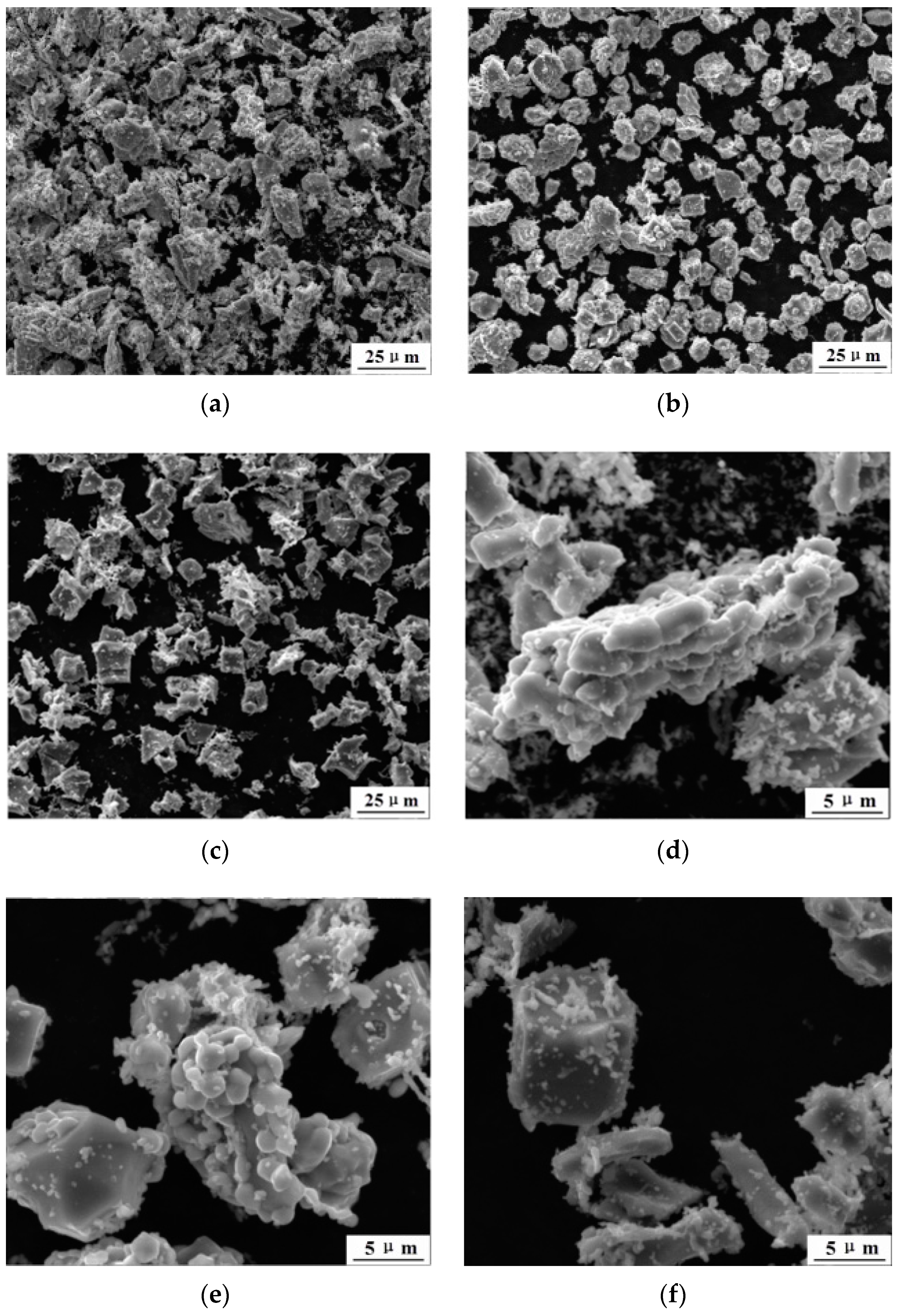

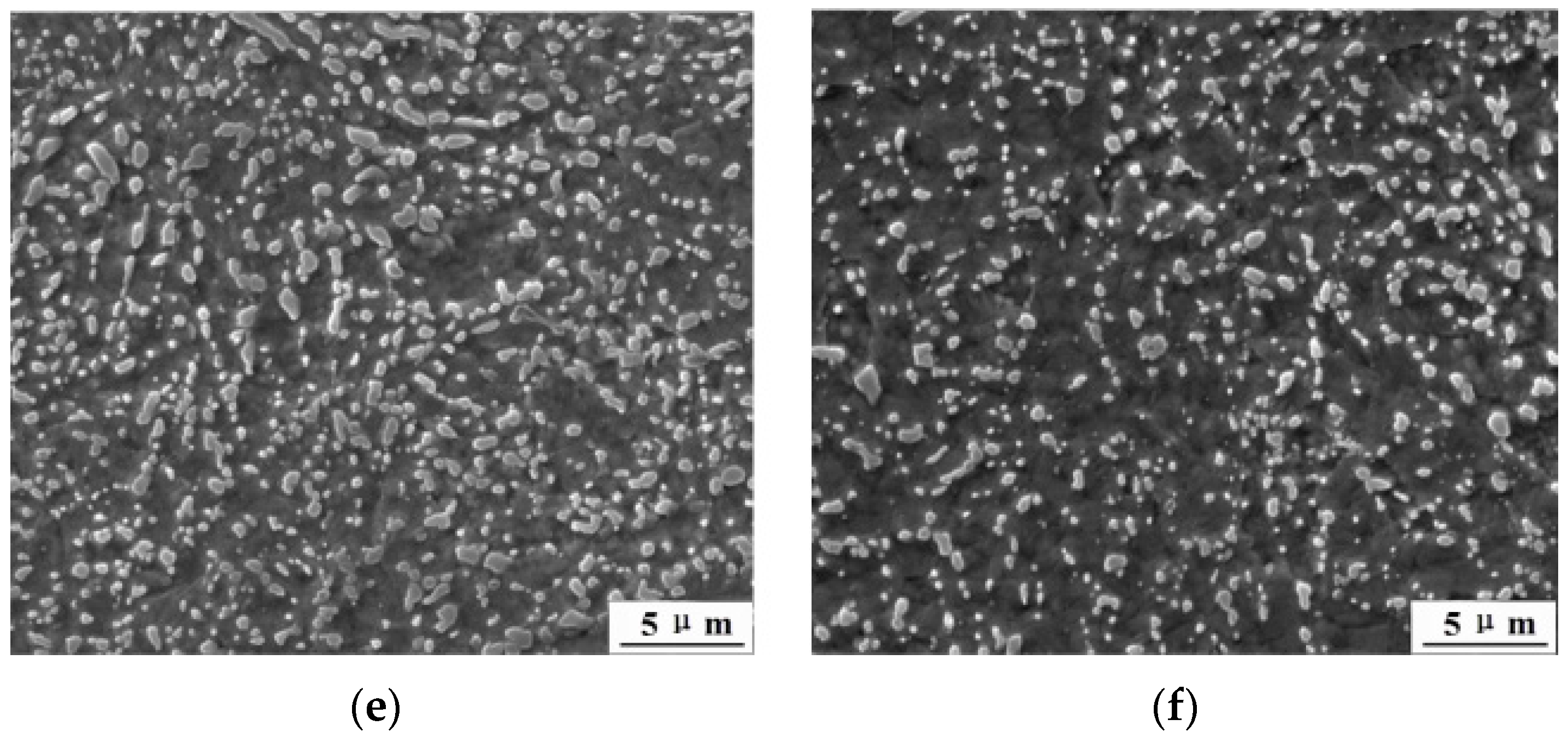

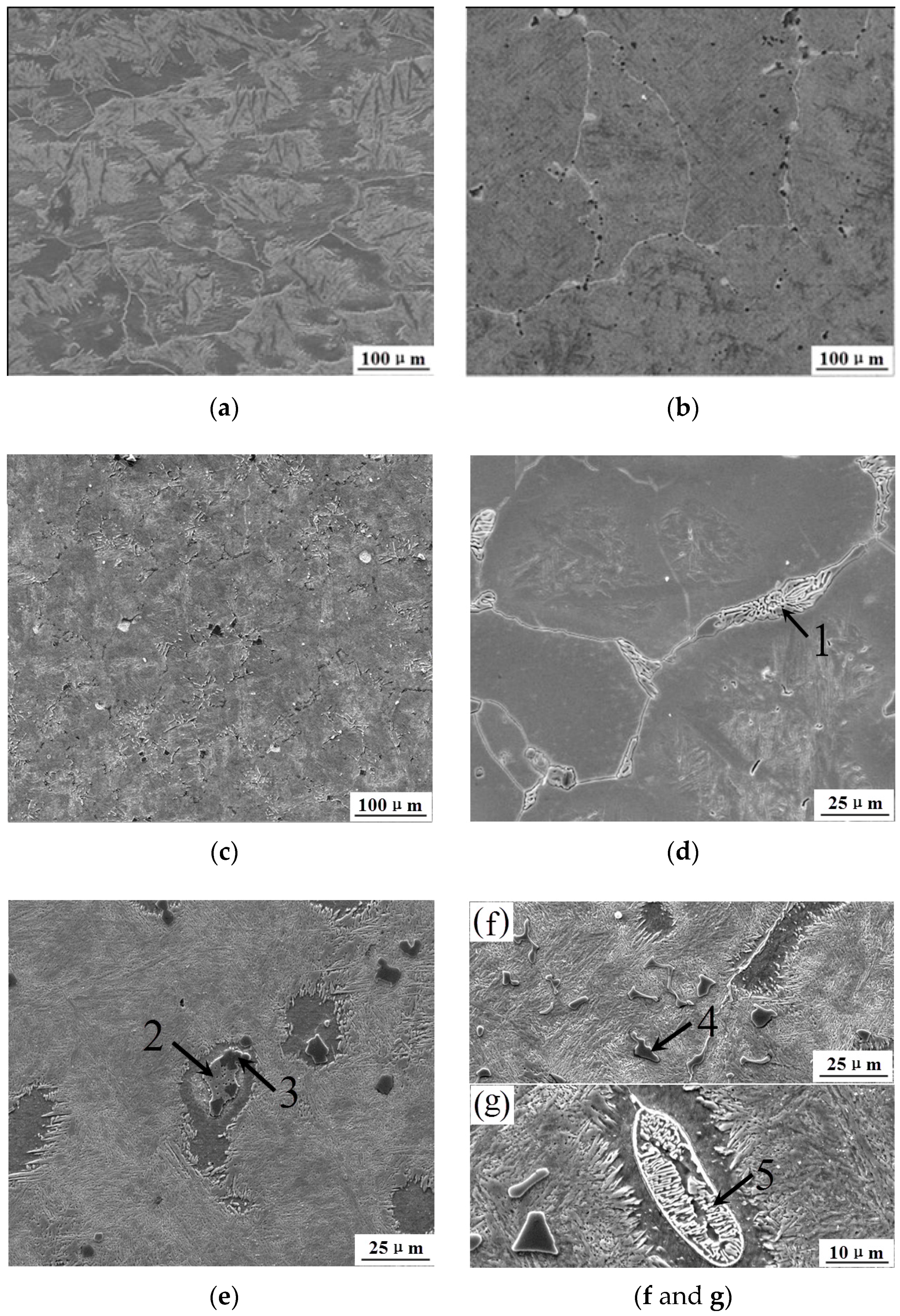

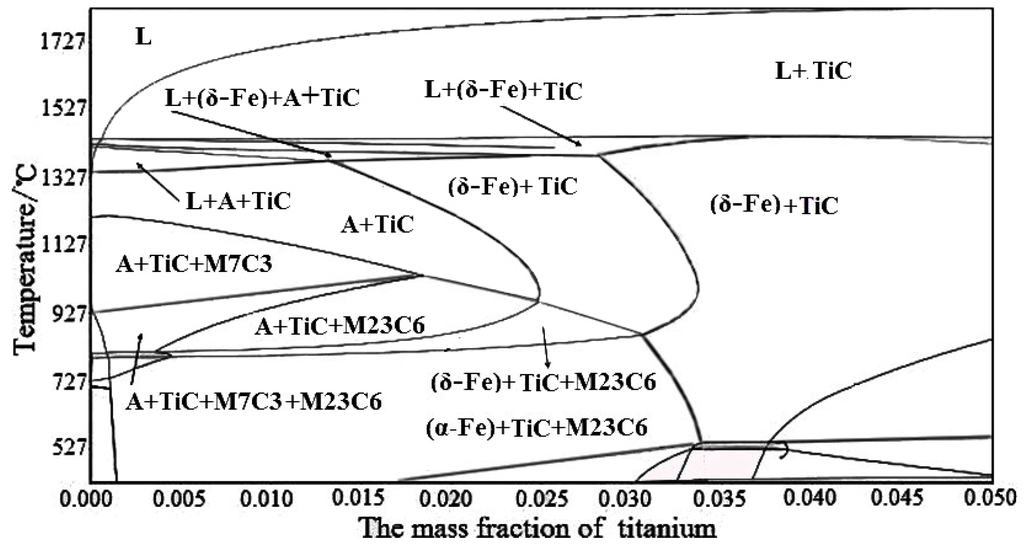

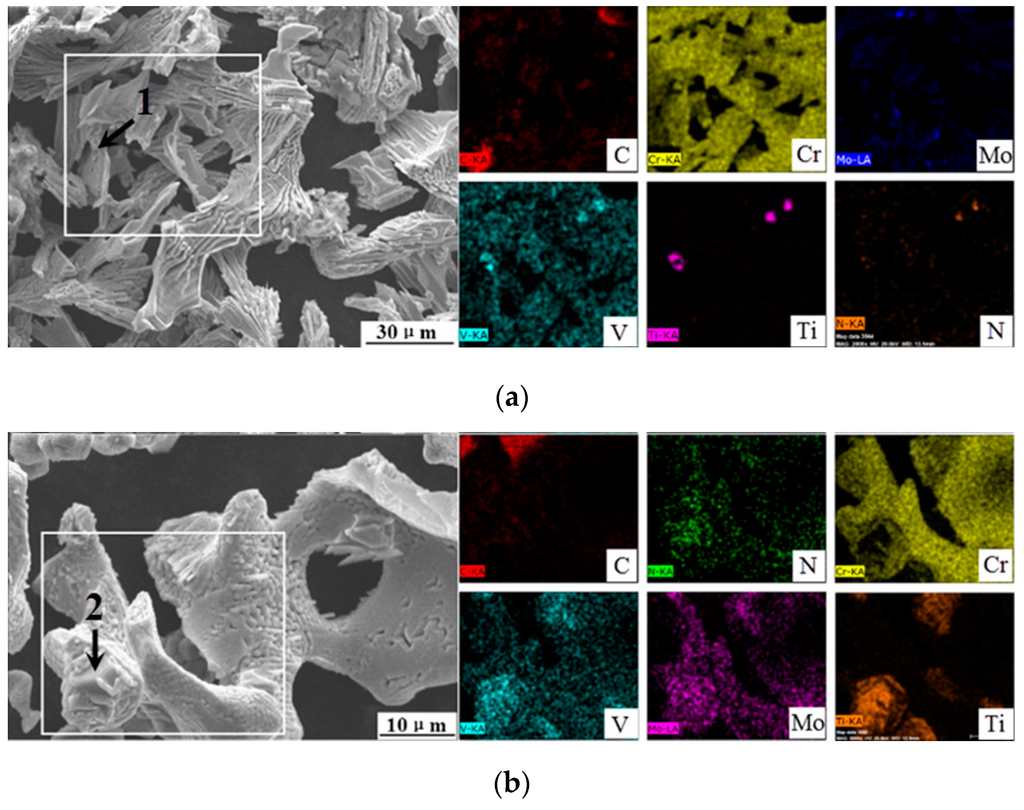

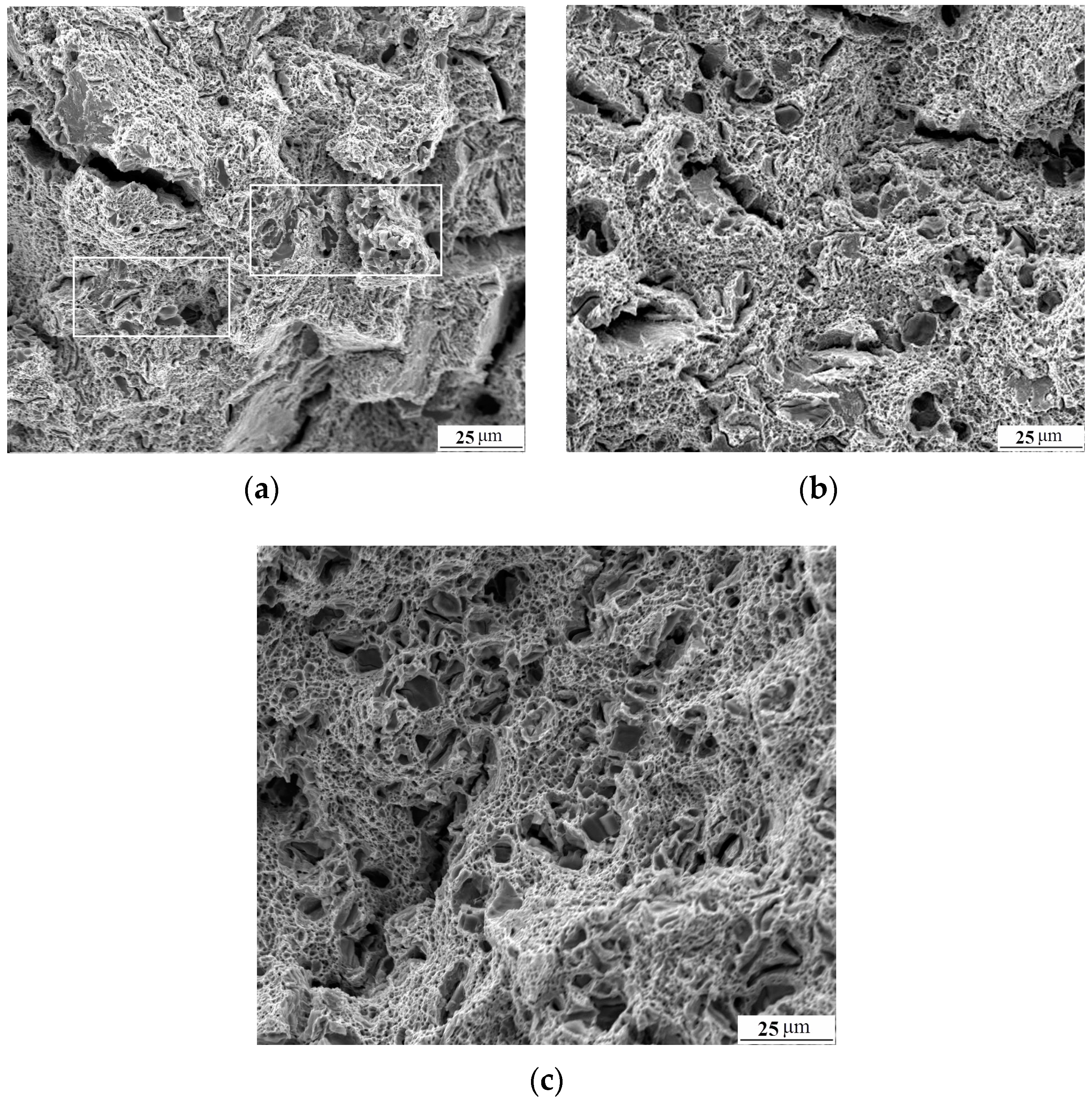

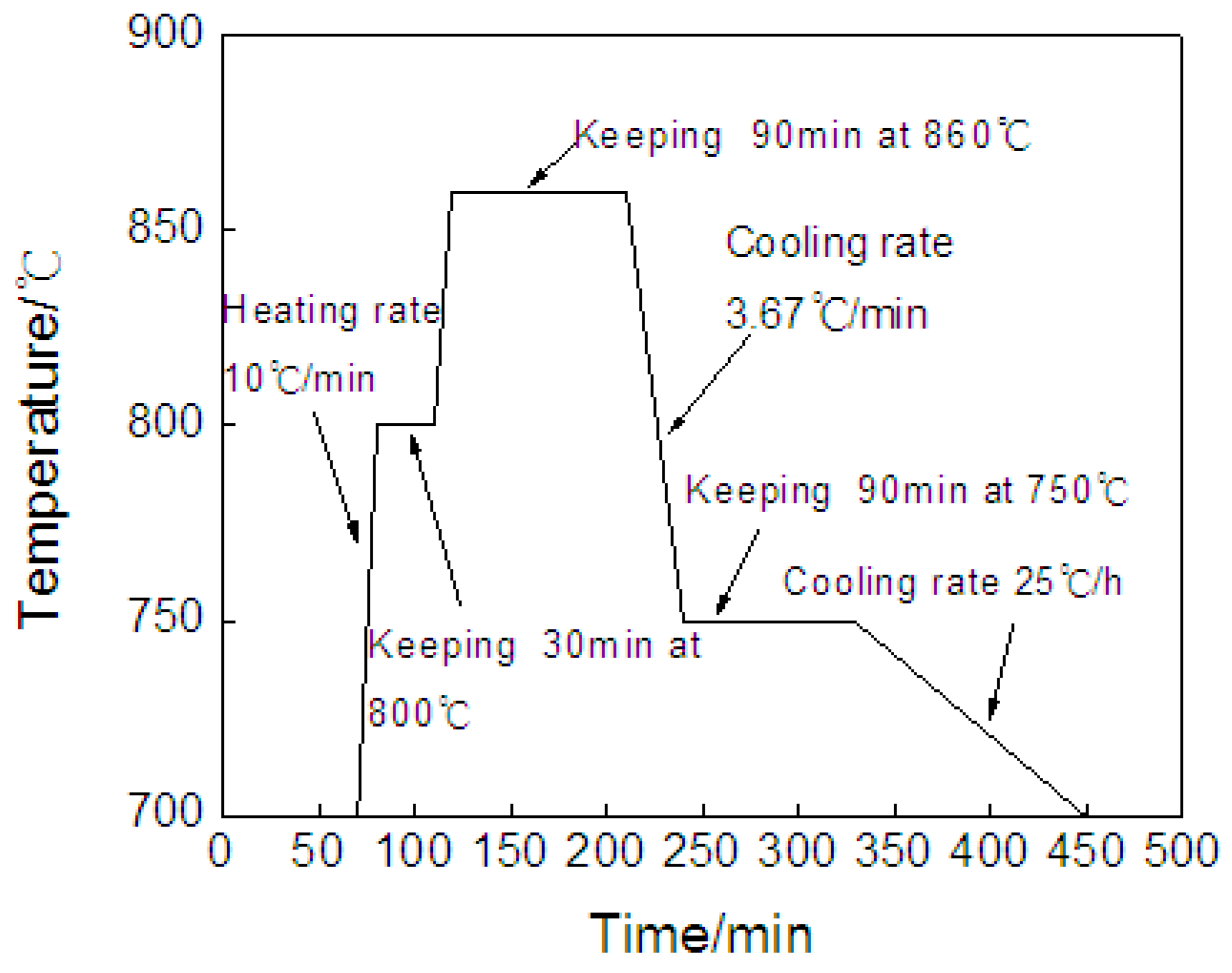

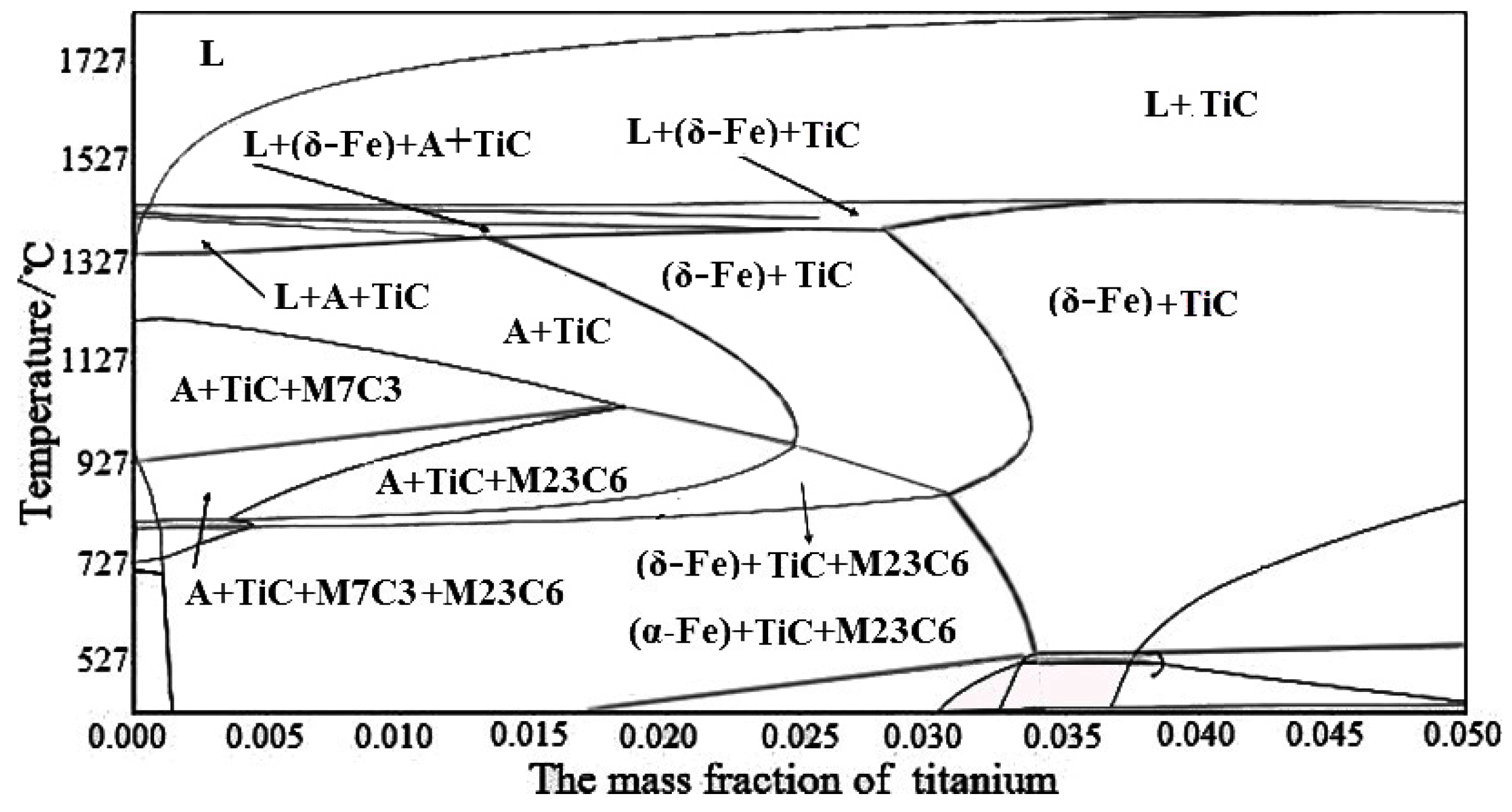

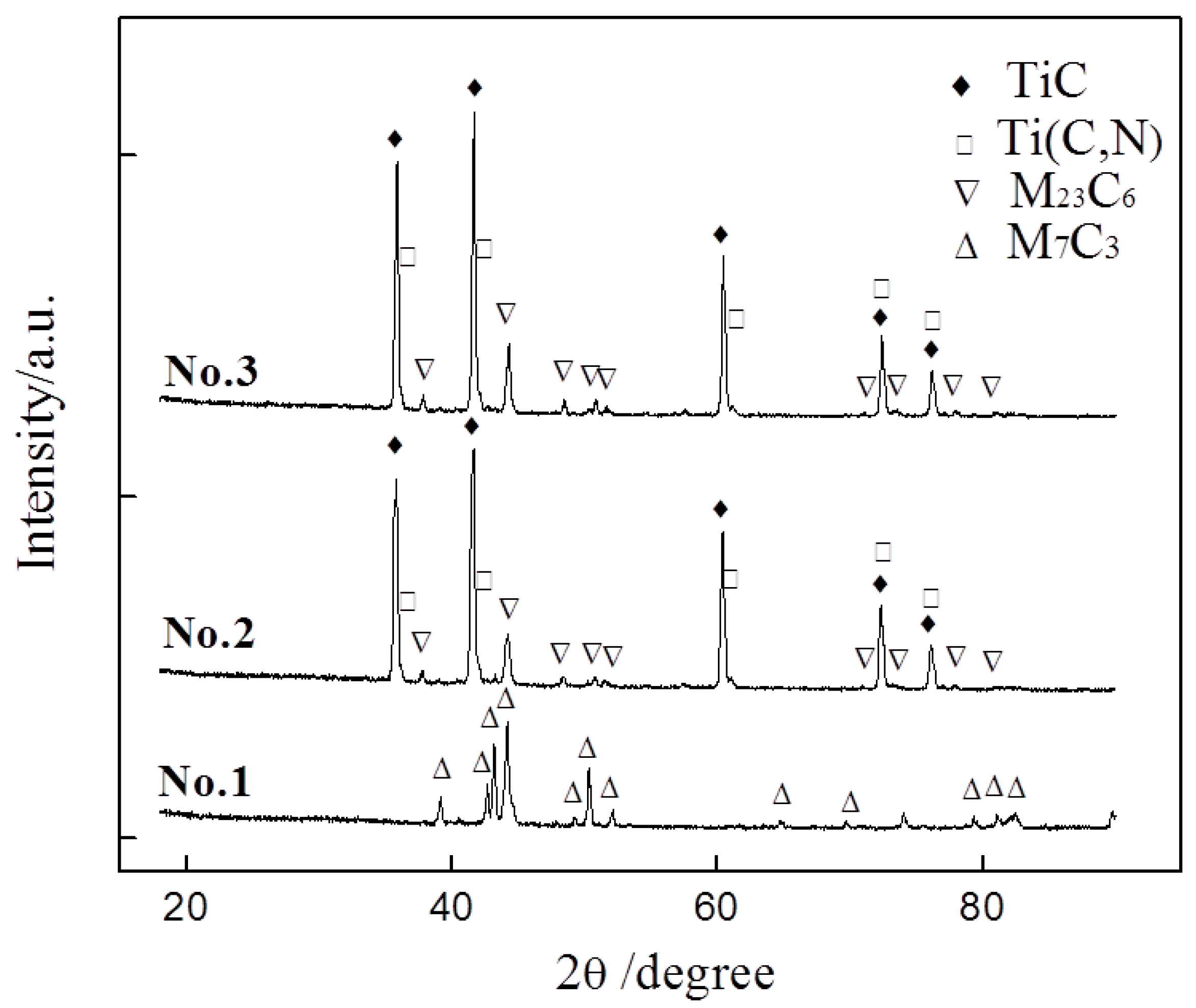

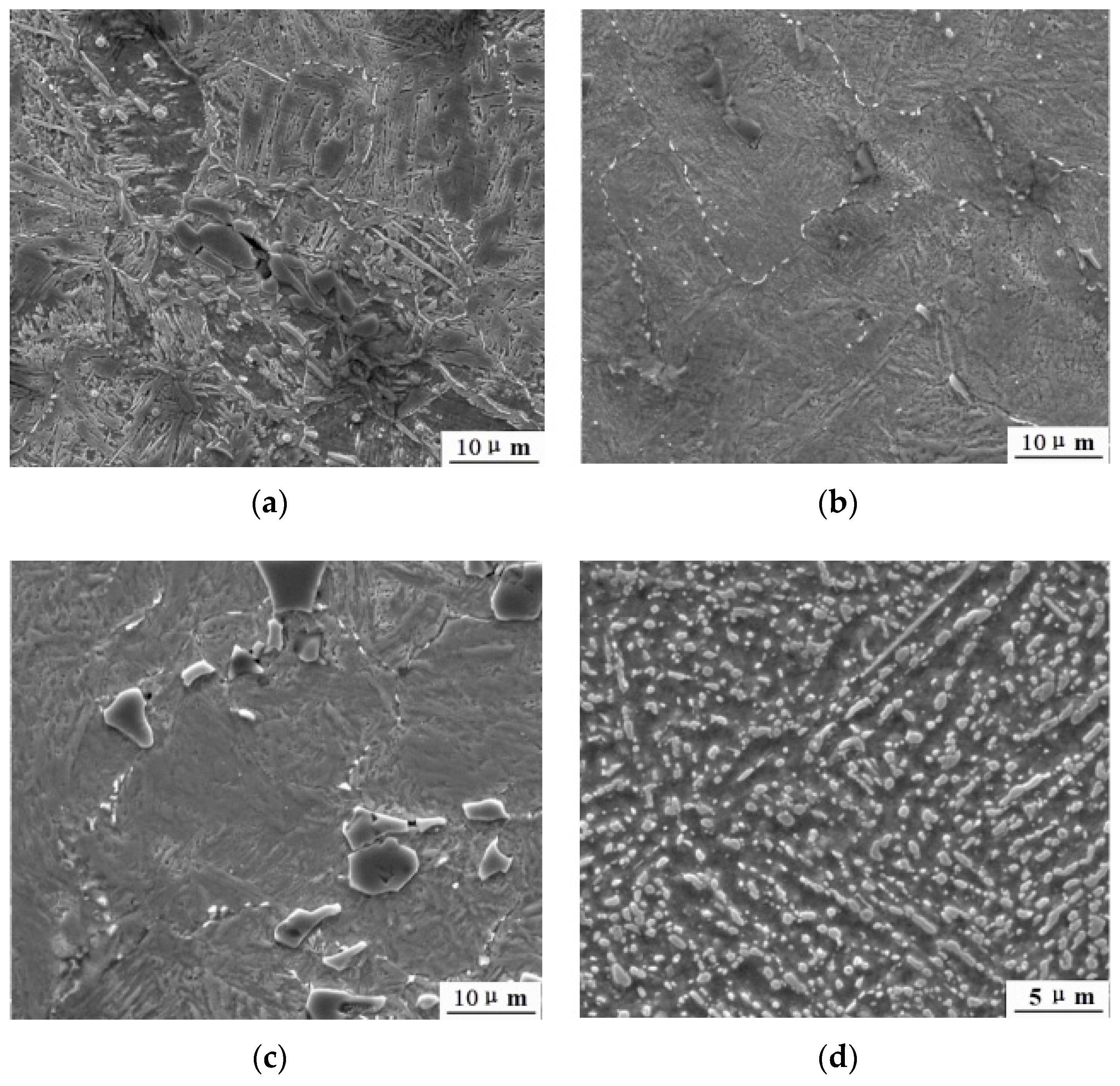

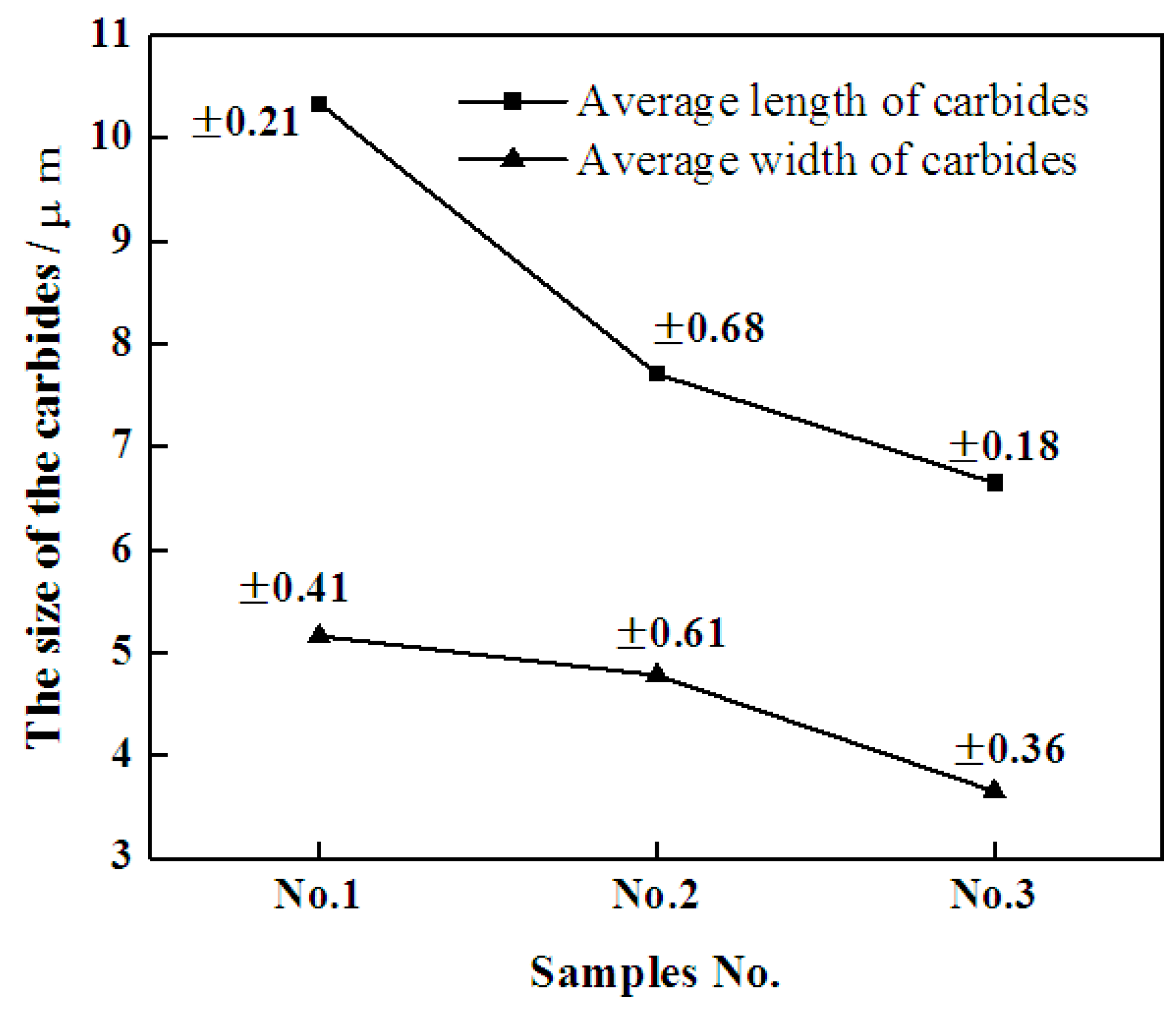

The effect of titanium on the carbides and mechanical properties of martensitic stainless steel 8Cr13MoV was studied. The results showed that TiCs not only acted as nucleation sites for δ-Fe and eutectic carbides, leading to the refinement of the microstructure, but also inhibited the formation of eutectic carbides M7C3. The addition of titanium in steel also promoted the transformation of M7C3-type to M23C6-type carbides, and consequently more carbides could be dissolved into the matrix during hot processing as demonstrated by the determination of extracted carbides from the steel matrix. Meanwhile, titanium suppressed the precipitation of secondary carbides during annealing. The appropriate amount of titanium addition decreased the size and fraction of primary carbides in the as-cast ingot, and improved the mechanical properties of the annealed steel. View Full-Text
Keywords: carbide; mechanical property; high-carbon martensitic stainless steel; titanium carbide; mechanical property; high-carbon martensitic stainless steel; titanium
Show Figures

Graphical abstract

MDPI and ACS Style

Yu, W.-T.; Li, J.; Shi, C.-B.; Zhu, Q.-T. Effect of Titanium on the Microstructure and Mechanical Properties of High-Carbon Martensitic Stainless Steel 8Cr13MoV. Metals 2016, 6, 193.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
