Synthesis and Structural Analysis of Copper-Zirconium Oxide

Abstract

A new copper–zirconium oxide was synthesized at ambient pressure in air during a thermal treatment. Its crystal structure was analyzed using X-ray Powder Diffraction, and the atomic ratio between copper and zirconium was found performing a Rietveld analysis. An accurate analysis, also comparing this new compound with others present in the literature and which present a similar structure, enables us to characterize the new mixed oxide well. Scanning electron microscopy and thermogravimetric analyses were also performed in order to completely characterize this new material, which is interesting both from an academic point of view for its crystal structure and from an industrial one due to the formation of copper–zirconium-based shape memory alloys during thermal treatment.

1. Introduction

Zirconium dioxide has been extensively studied, and it is still under analysis for its very important and useful chemical and physical properties [1,2,3,4]. A large number of attempts were made mixing this oxide with other elements, especially from the transition periods: cerium [5,6], scandium [7], vanadium [8], hafnium [9], etc. Until now, only a few mixed metal oxides containing both zirconium and copper were reported in the literature, though none of them were provided along with a complete structural characterization [10,11]—specifically the cubic and tetragonal phases, which are more interesting from an application point of view and which could have been analyzed by a better method than the monoclinic analysis.

During a thermodiffractometric study of a copper–zirconium alloy [12,13,14,15], we observed the formation of an oxide on the surface of the Cu₁₀Zr₇ sample. The experimental conditions in which the oxide was synthesized were the following: starting from room temperature (RT), the temperature was increased in 50 K steps until 1373 K (in air). After each step, an X-ray measurement—taken 10 min from the stabilization of the temperature—was performed. A change in the composition of the sample was observed starting at 923 K. Analyzing the last diffractogram (recorded at 1373 K) we noticed that a mixed metal oxide containing copper and zirconium, isomorphous to the crystal structure of monoclinic zirconia, was probably present. Copper(I) oxide was not present, except in a small amount, which we took into account during the structural analysis; however, we could not separate it in the Energy Dispersive Spectroscopy EDS analysis.

We were interested in a thorough characterization of this new monoclinic zirconia phase because of its possible presence in copper-zirconium shape memory alloys (SMAs) after heat treatments. Understanding this phase means understanding its contribution to the physical properties of that class of alloys. For this reason, we decided to combine the X-ray data with the data obtained by Scanning Electron Microscopy (SEM) and Thermogravimetry coupled with Differential Thermal Analysis (TG/DTA).

2. Materials and Methods

High-purity Zr and Cu metals were melted in a vacuum arc furnace with a non-consumable tungsten electrode. The nominal atomic composition of the chosen alloy was Cu₅₈.₈Zr_41.2 (at %). The furnace was equipped with a water-cooled copper crucible in order to avoid the contamination of the liquid pool. The material was melted in an inert atmosphere (argon at 400 mbar) to minimize the oxidation, and the obtained button ingot was re-melted six times, being flipped over after each melting step in order to ensure homogeneity of the chemical composition. The sample was subjected to grinding in an agate mortar in order to produce the powder; later, the powder was heated up to 1100 °C (1373 K). The morphology of the powder was analyzed utilizing a LEO 1430 scanning electron microscope (SEM) from Oxford Instruments (Abingdon-on-Thames, UK). In addition, high temperature differential thermal analysis (HTDTA) was also performed using a Q600TA TG-DTA system from TA Instruments (New Castle, DE, USA), on a small sample (about 10 mg) in a temperature range of 200–1100 °C (473–1373 K) at a 20 °C (K)/min heating rate in order to check the oxidation. Diffraction data (CuKα, k = 1.5418 Å) were collected using a θ:θ vertical scan Panalitycal X’Pert PRO diffractometer (Almelo, The Netherlands) equipped with parallel (Soller) slits (0.04 rad) and a RTMS (Real Time Multiple Strip) detector. The generator was operated at 40 kV and 30 mA. Slits used: divergence 0.5°; the scan was performed in the 5°–50° 2θ range.

3. Results and Discussion

First, the product was observed utilizing X-ray Powder Diffraction (XRD) for microstructural characterization, and SEM for a morphological and compositional characterization. Figure 1 shows the XRD patterns of the initial Cu₁₀Zr₇ phase at room temperature, and of the product obtained after heating up to 1373 K: it is evident that the heating produces a compound having characteristic peaks, which are the subject of investigation in this work.

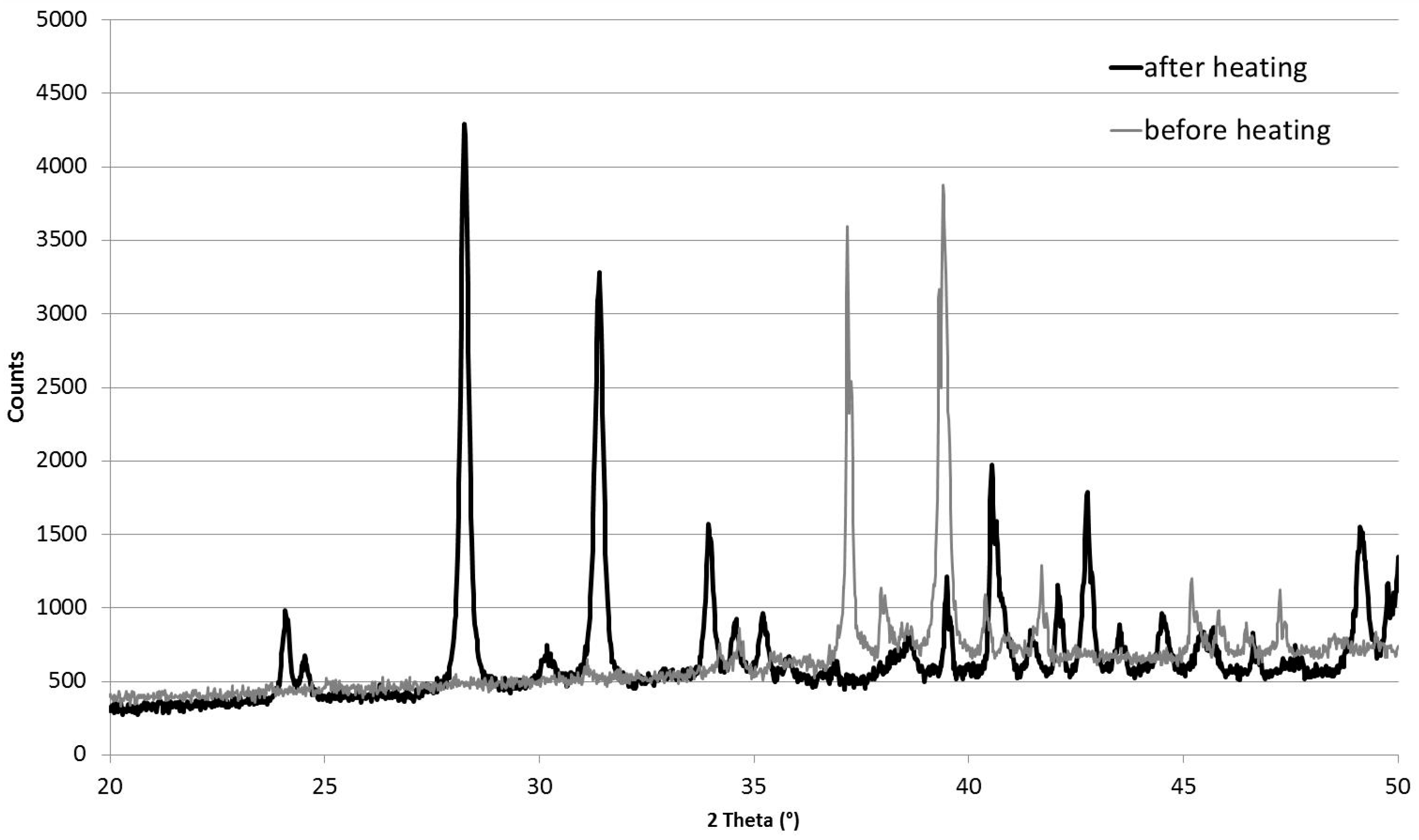

Figure 1. X-ray powder diffraction (XRD) diffractogram of the Cu₁₀Zr₇ sample before and after heating up to 1373 K.

The Secondary Electrons (SE) mode enabled us to observe how the surface of each single grain was attacked by oxygen, forming an almost 10 μm-thick layer of oxide (estimated from lateral view of SEM observation). It is clearly visible how the grain tends to flake, separating the oxide layer from the bulk grain (see Figure 2).

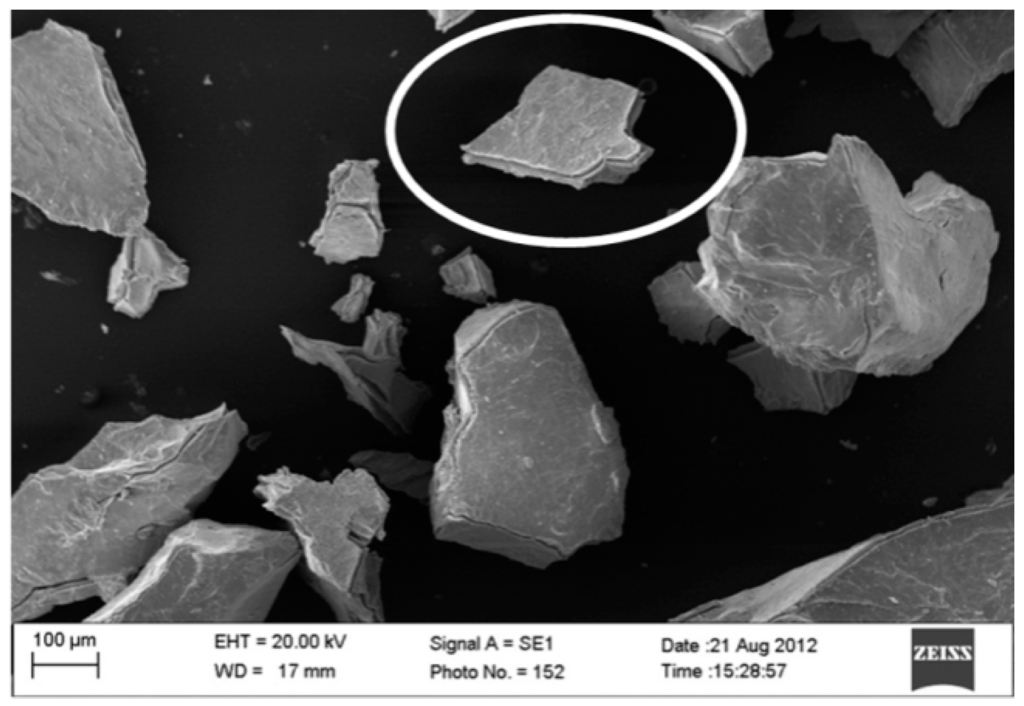

Figure 2. Scanning electron microscopy (SEM) image of powder grains of different size are shown. Each of them present the Cu₁₀Zr₇ compound, showing the characterizing micrometric oxide layer.

On the other hand, the Back-Scattered Electrons (BSE) mode enabled us to determine a sort of confirmation of the Cu/Zr ratio: the chemical composition of the oxide was predominantly Zr-based (as expected), because of the higher reactivity of Zr with O than Cu. The chemical composition, calculated on the basis of EDS analysis, is the following: Cu_11.6Zr_27.5O_60.9 (at %). For the high reactivity of Zr with O, TG/DTA analysis was performed on small sample of Cu₁₀Zr₇ intermetallic (about 10 mg in weight) till 1373 K (the same temperature reached during the X-ray analysis). Figure 3 shows the weight gained, which can be divided into two parts, as a function of the temperature: the first one with a gain rate of about 8.2 × 10⁻⁴ %/K in the temperature range [473; 1023 K] and the second one of about 4.6 × 10⁻³ %/K in the temperature range [1023; 1373 K].

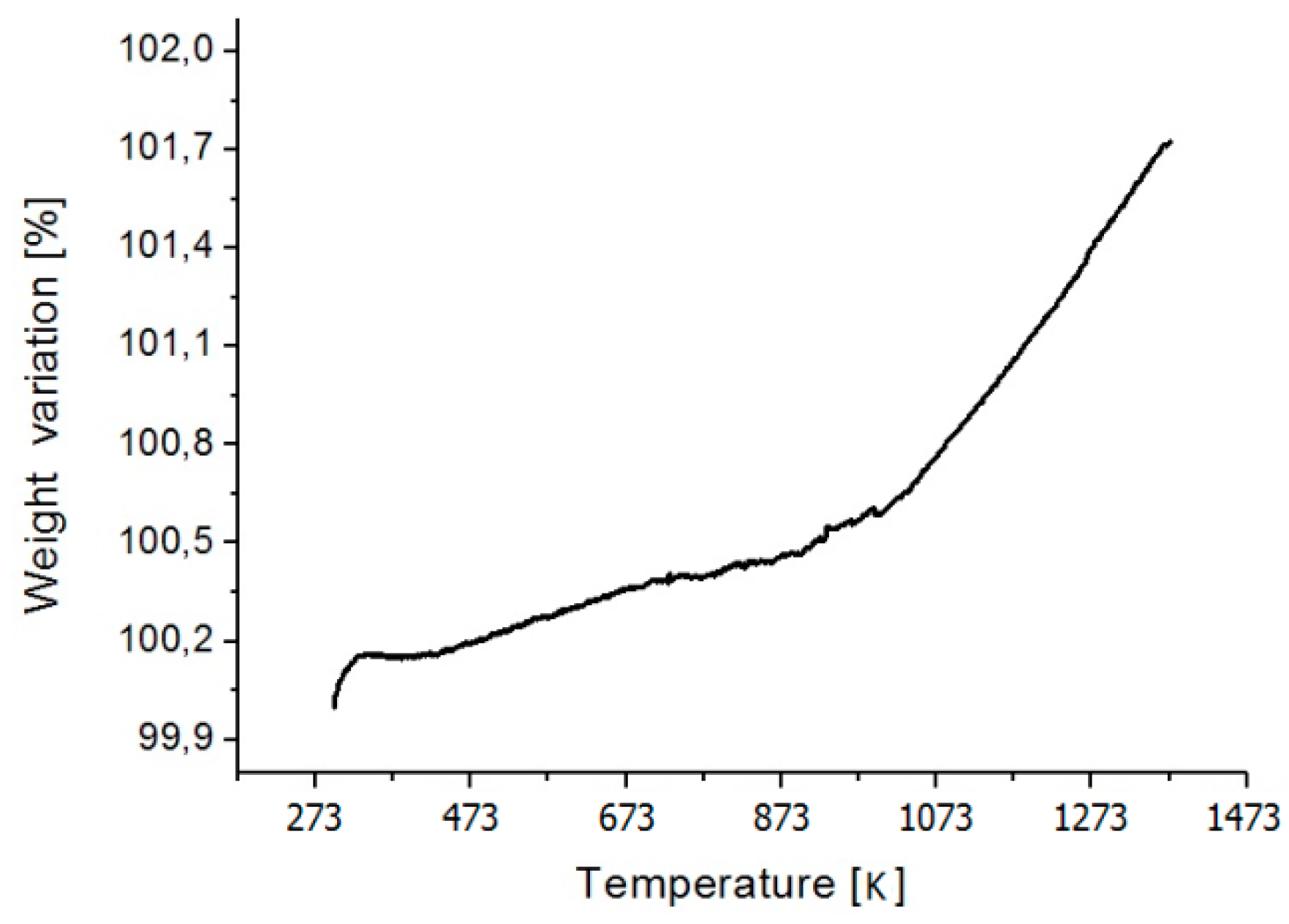

Figure 3. TG/DTA (thermogravimetry coupled with differential thermal analysis) scan of Cu₁₀Zr₇ intermetallic, showing the rate of oxide formation upon heating.

All the XRD diffractograms (recorded during the thermal analysis) were analyzed, and the one recorded at 1373 K was chosen as the most significant. After a quick qualitative analysis, the presence of some peaks belonging to secondary unknown phases was shown, but their presence can be neglected in order to obtain information on the new oxide found. The sample was cooled to room temperature, and a new diffractogram was recorded in order to confirm the stability of the new compound. Performing a LeBail refinement (where the extra peaks are taken in account but neglected in the real refinement), it was observed that the compound had the same cell and space group of the monoclinic zirconia [P2₁/c; a = 5.185(1); b = 5.216(2); c = 5.375(2); β = 98.86(3)]; after, a Rietveld refinement was carried out to assess the real copper/zirconium ratio and confirm the crystal structure. Performing the Rietveld refinement (with the TOPAS [16] software), imposing the monoclinic ZrO₂ structure without copper substitution, we obtained a high value of agreement coefficient (R_wp = 0.287), which means a bad correlation between the calculated and the real structure. We repeated the refinement substituting a part of Zr atoms with Cu atoms. Checking the agreement coefficient (R_wp = 0.082) and analyzing the output data from the refinement, it was possible to determine the Zr/Cu ratio (8.09), which means that the mixed-metal oxide has the formula Cu_0.11Zr_0.89O₂. The atomic positions and cell parameters were refined, obtaining the output data summarized in Table 1 and Table 2. In Table 1, a brief comparison with the crystal structure of the standard ZrO₂ is made in order to highlight the differences in cell parameters and density. Figure 4 indicates the agreement between experimental and calculated data after the Rietveld refinement. The copper content measured by EDS is overestimated with respect to the one obtained by XRD. The reason for this disagreement depends on the different penetration depths of the two techniques: X-rays can penetrate only the surface layer, while EDS can also observe the underlying matrix.

Table 1. Crystal data and data analysis parameters for the Cu/Zr oxide and a comparison with the ZrO₂ structure (Refinement agreement indices and 2θ range are the minimum and the maximum values from different certified laboratories).

Formula	Cu0.11Zr0.89O2	ZrO2 [17]
fw (g·mol−1)	120.18	-
System	Monoclinic	Monoclinic
Space Group	P21/c	P21/c
a (Å)	5.1843 (6)	5.1460
b (Å)	5.2164 (9)	5.2116
c (Å)	5.3734 (9)	5.3130
Mean error	±0.0009	-
β (°)	98.842 (4)	99.222
V (Å3)	143.59 (2)	143.6
Z	4	4
d (g·cm−3)	4.86	5.82
2θ range (°)	5–120	7–162
Rp	0.061	0.031–0.136
Rwp	0.082	0.039–0.187
RBragg	4.79	2.0–16.1

Table 2. Fractional atomic coordinates and occupancies.

Atom	X	Y	Z	Occ.
Cu	0.2899	0.0428	0.2187	0.11
Zr	0.2899	0.0428	0.2187	0.89
O1	0.0552	0.3123	0.3615	1
O2	0.4078	0.7448	0.5408	1

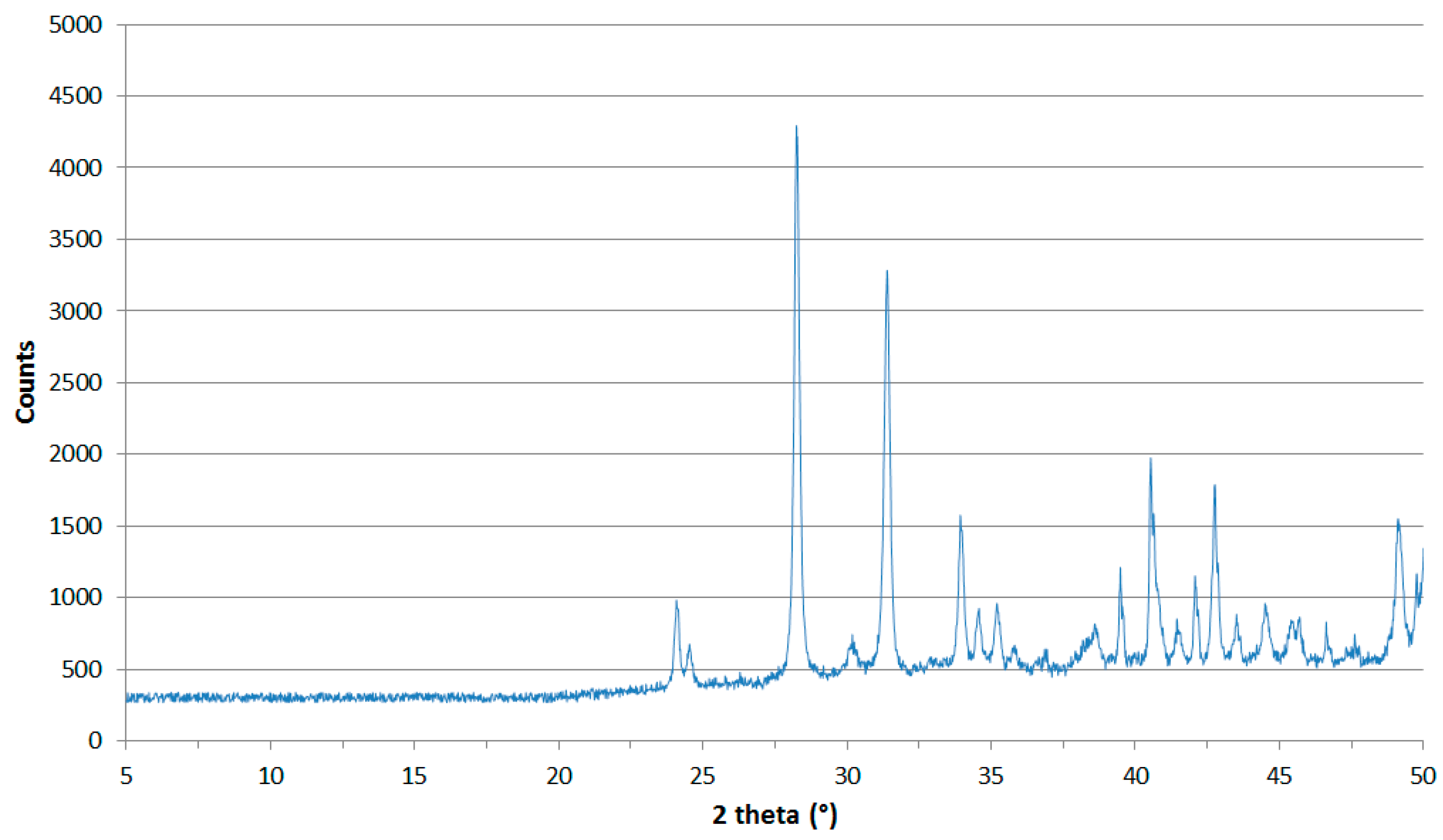

Figure 4. Rietveld refinement, shown in the range 5°–50° 2θ.

4. Conclusions

From the Rietveld refinement, a good structural characterization of this new stable mixed metal oxide, Cu_0.11Zr_0.89O₂, was performed. It is of particular interest in studying the compositional modification in copper-zirconium alloys during heating treatment. In this work, we perform a thermal analysis starting from Cu₁₀Zr₇, a minor phase present in CuZr alloys. We are interested in carrying out further investigations on other copper-zirconium phases present in copper-zirconium SMAs, in order to fully characterize that class of compounds. Further work may require the study of the secondary unknown phases in order to evaluate the diffusion process of copper atoms in the ceramic matrix, thus discovering the formation mechanism of the CuZr oxides.
