Numerical Simulation and Experimental Verification of Nickel-Based Superalloy Disc-Shaped Parts Formed by Semi-Solid Thixoforming

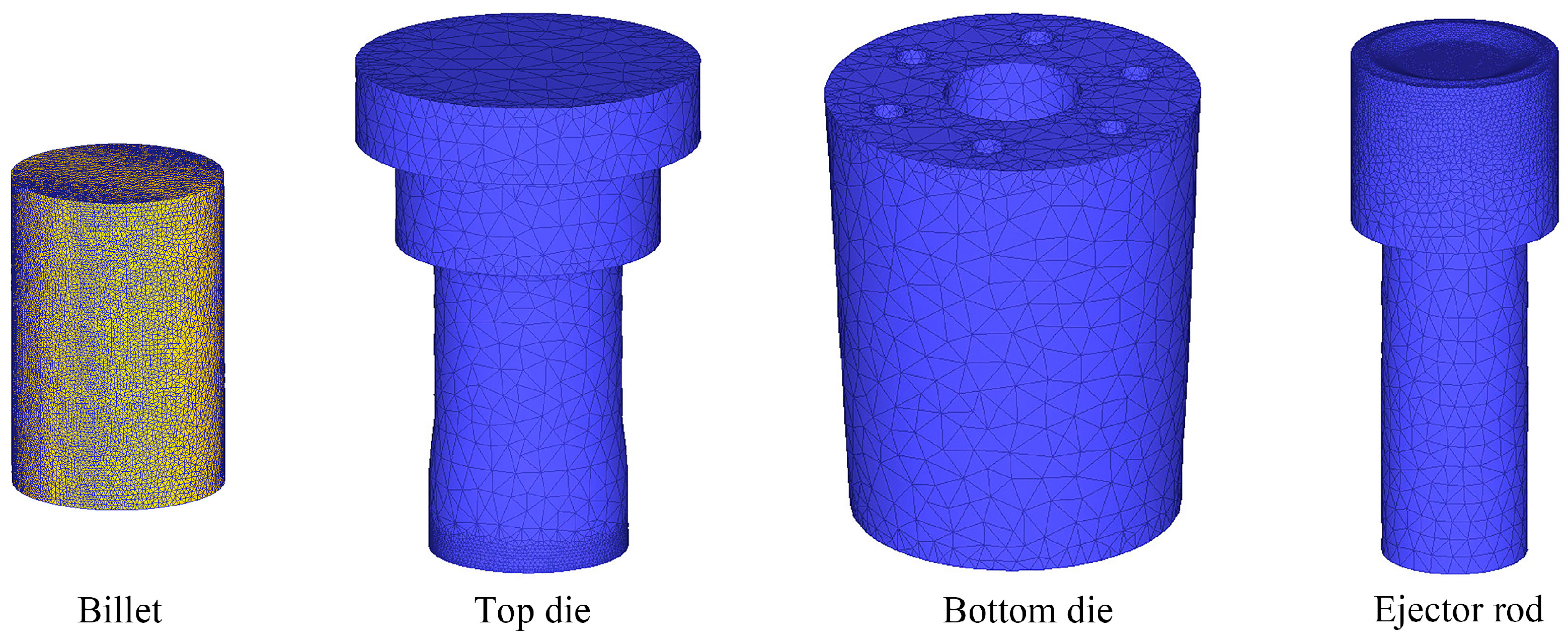

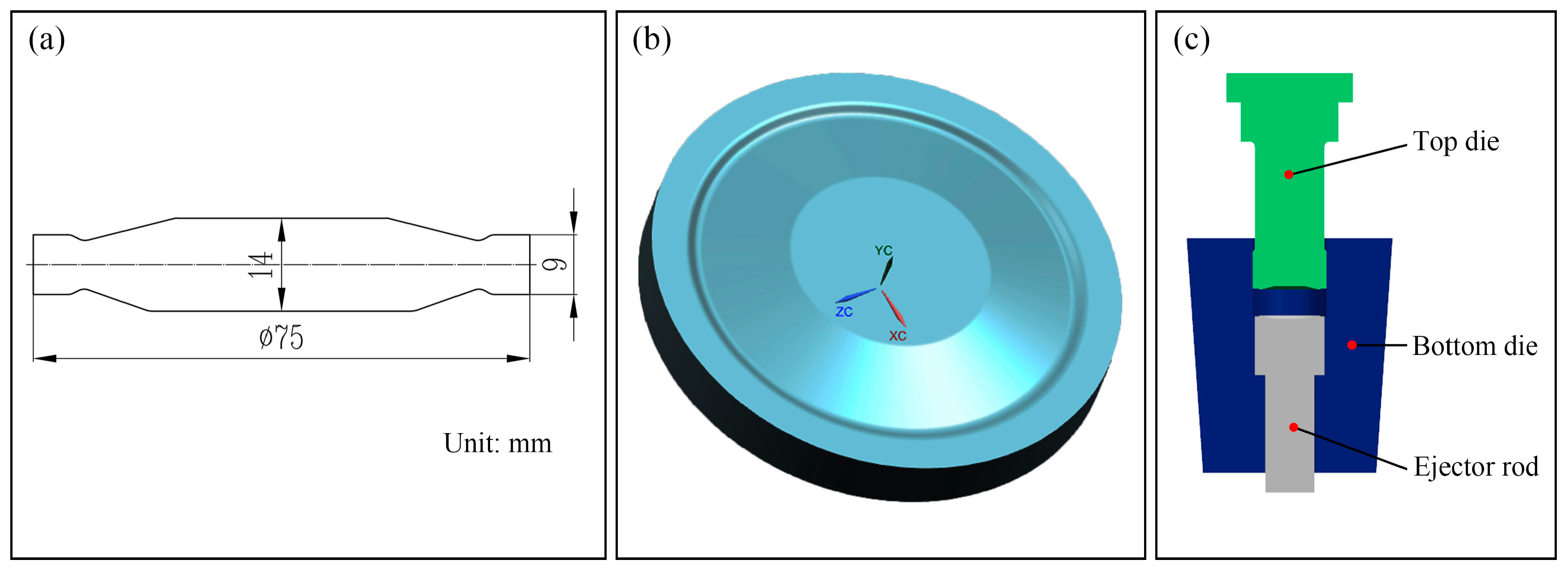

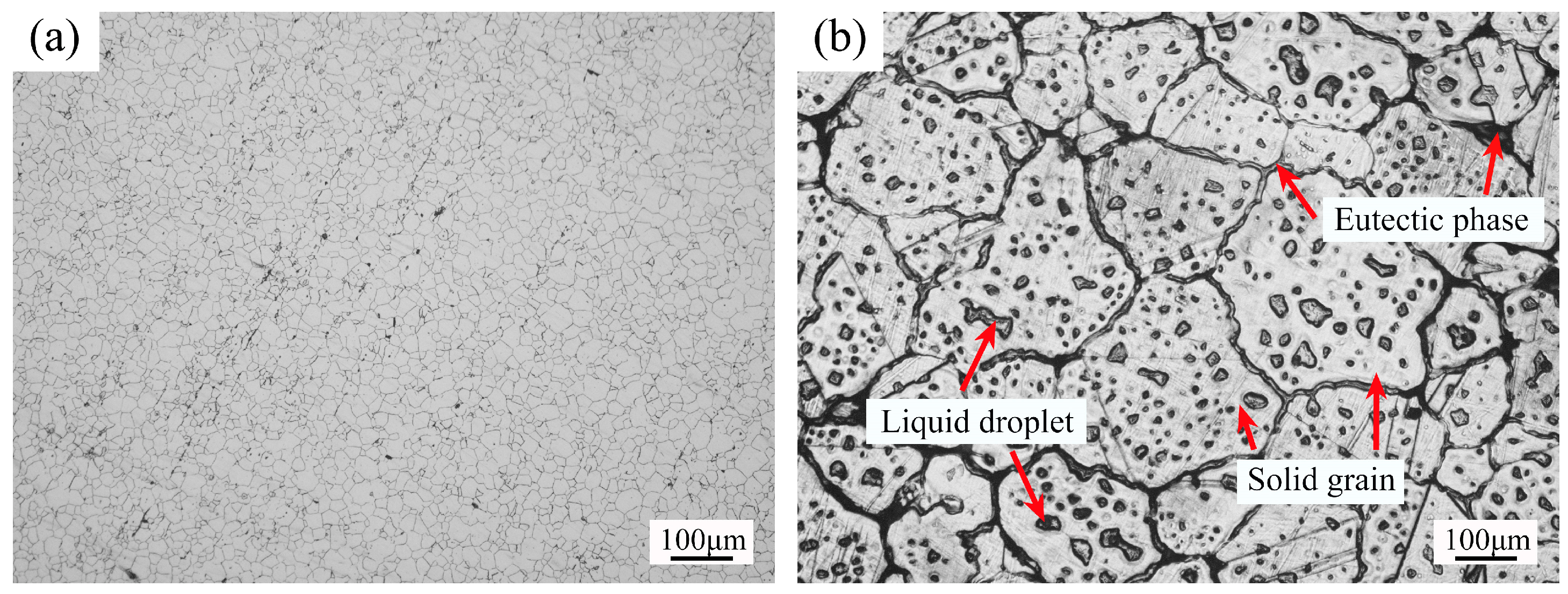

2. Pretreatment of Numerical Simulation of Semi-Solid Thixoforming
- Transfer process: This process simulated the transfer of the billet from the heating furnace to the mold cavity after heating. In the actual experiment, there was a transfer process after the billet was heated. During the transfer process, the billet transferred heat to air. Therefore, this process should not be ignored. In this work, the transfer time was set to 2 s, the air temperature was 25 °C, and the heat transfer coefficient was 0.02 kW/(m2·K).

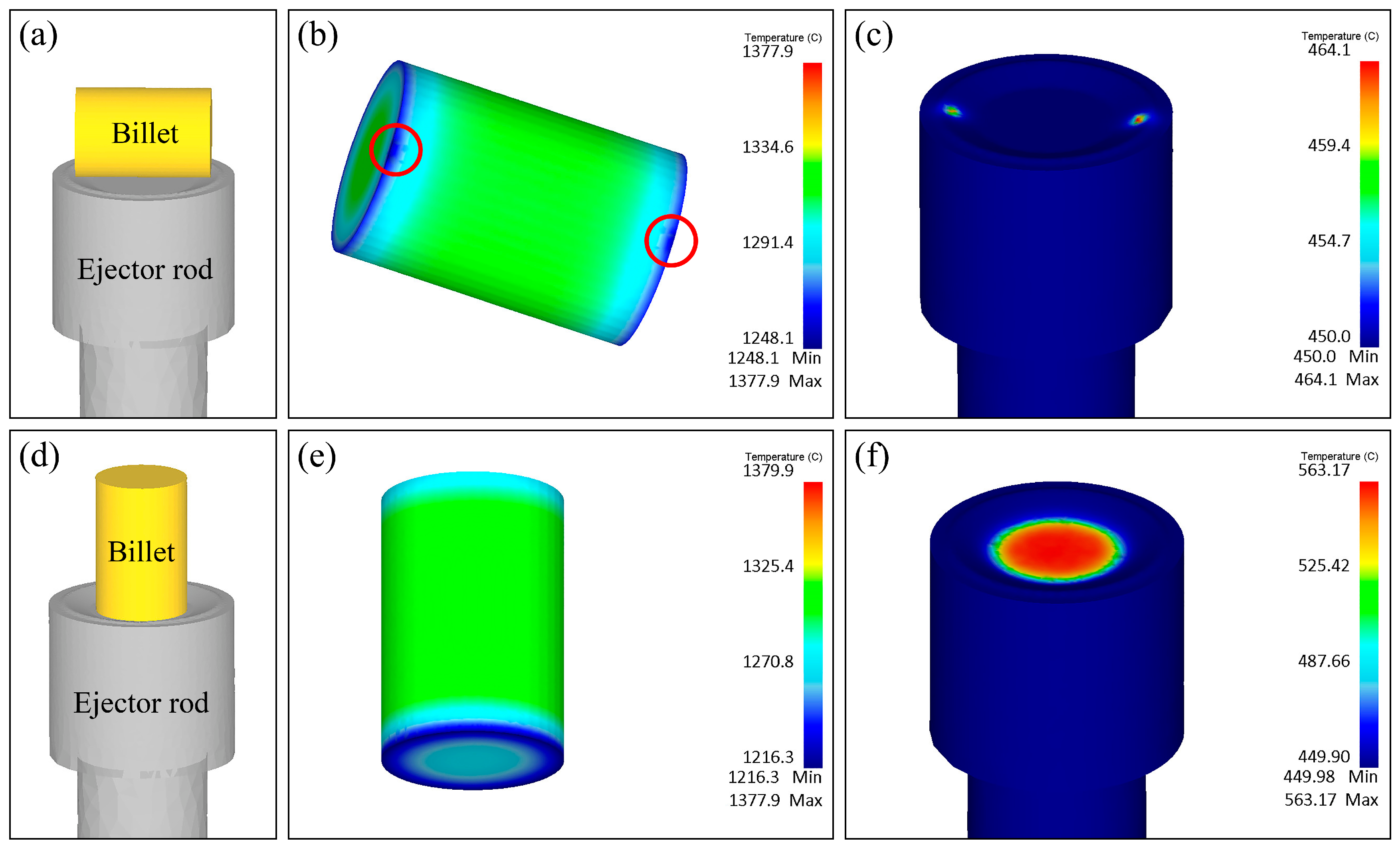

- Contact process: This step simulated the process that the billet stayed in the die cavity before being extruded. In this process, the billet directly contacted the upper surface of the ejector rod for heat transfer. The contact time was set to 2 s, and the heat transfer coefficient was 1 kW/(m2·K).
- Thixoforming process: The billet was compressed under the pressure of the top die and then filled the entire mold cavity. In this step, the friction coefficient between the die and billet was set to 0.3, the temperature of the top die was 400 °C, the temperature of the bottom die, the ejector rod temperature was 450 °C, and the heat transfer coefficient was 11 kW/(m2·K).
3. Results and Discussion

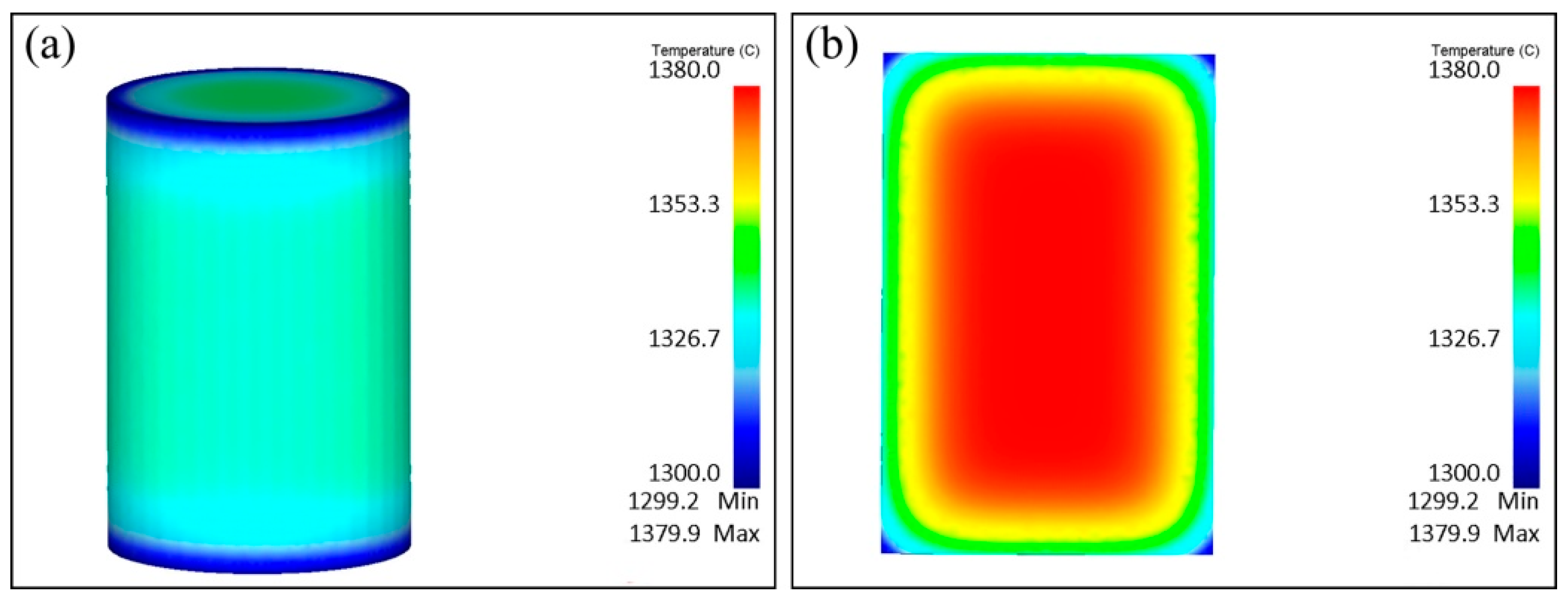

3.1. The Process of Heat Transfer between the Billet and Air
3.2. The Process of Heat Transfer between the Billet and the Ejector Rod
3.3. Numerical Simulation of the Semi-Solid Thixoforming Process

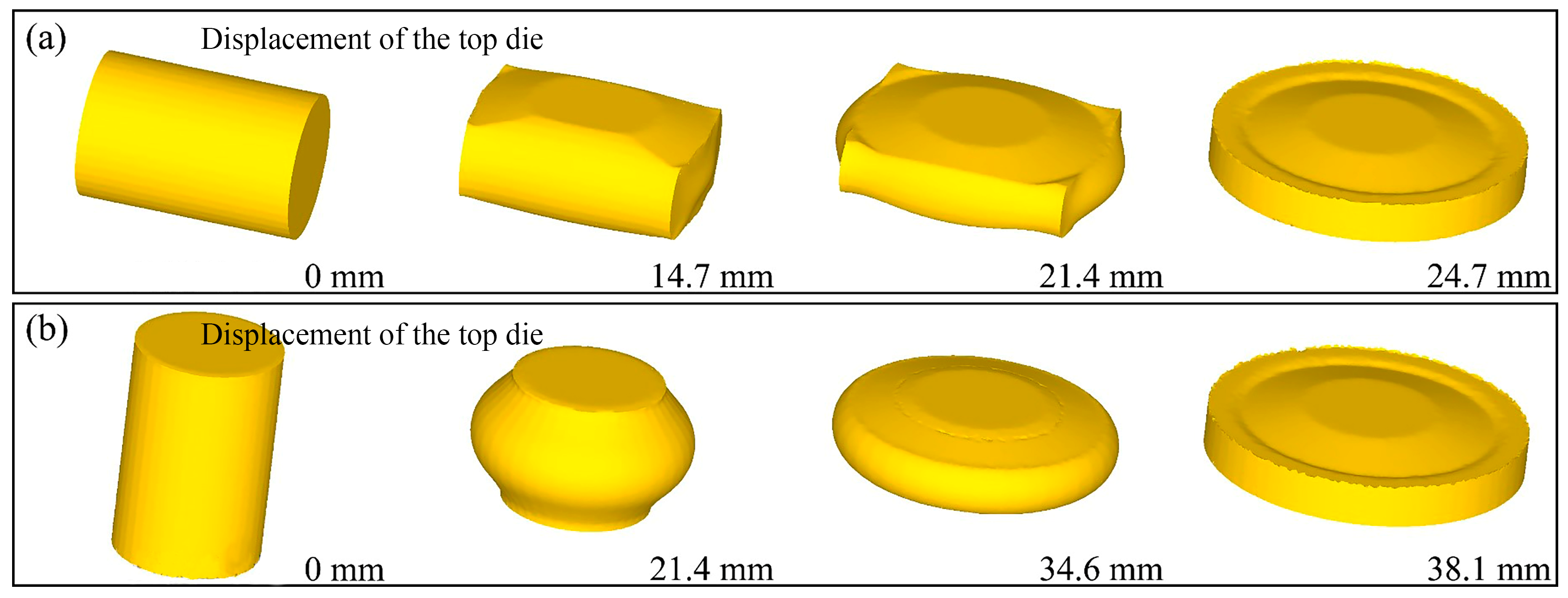

3.3.1. The Effect of Billet Placement Mode on the Results of Numerical Simulation of Thixoforming

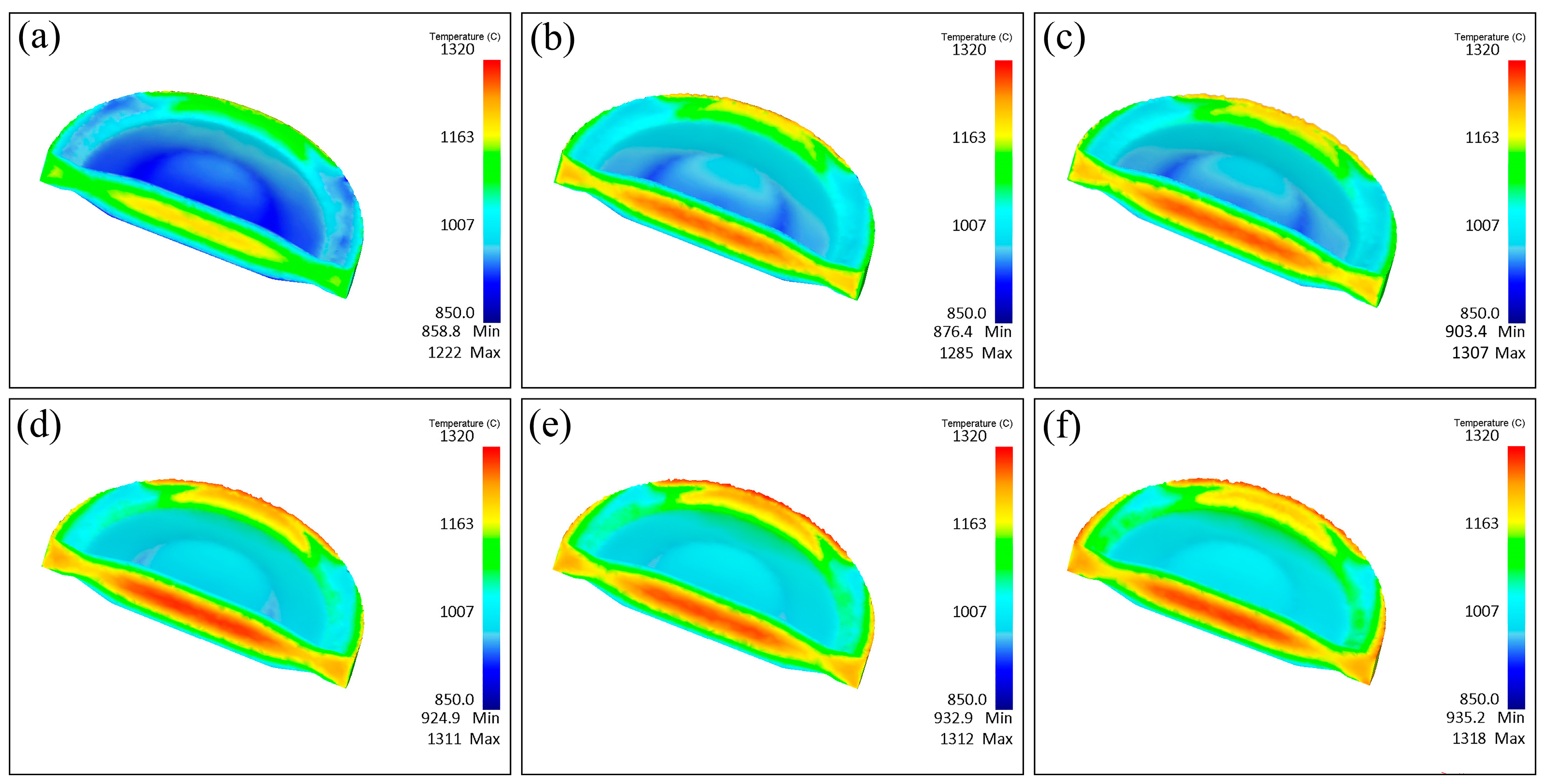

3.3.2. The Effect of Billet Temperature on the Results of Numerical Simulation of Thixoforming

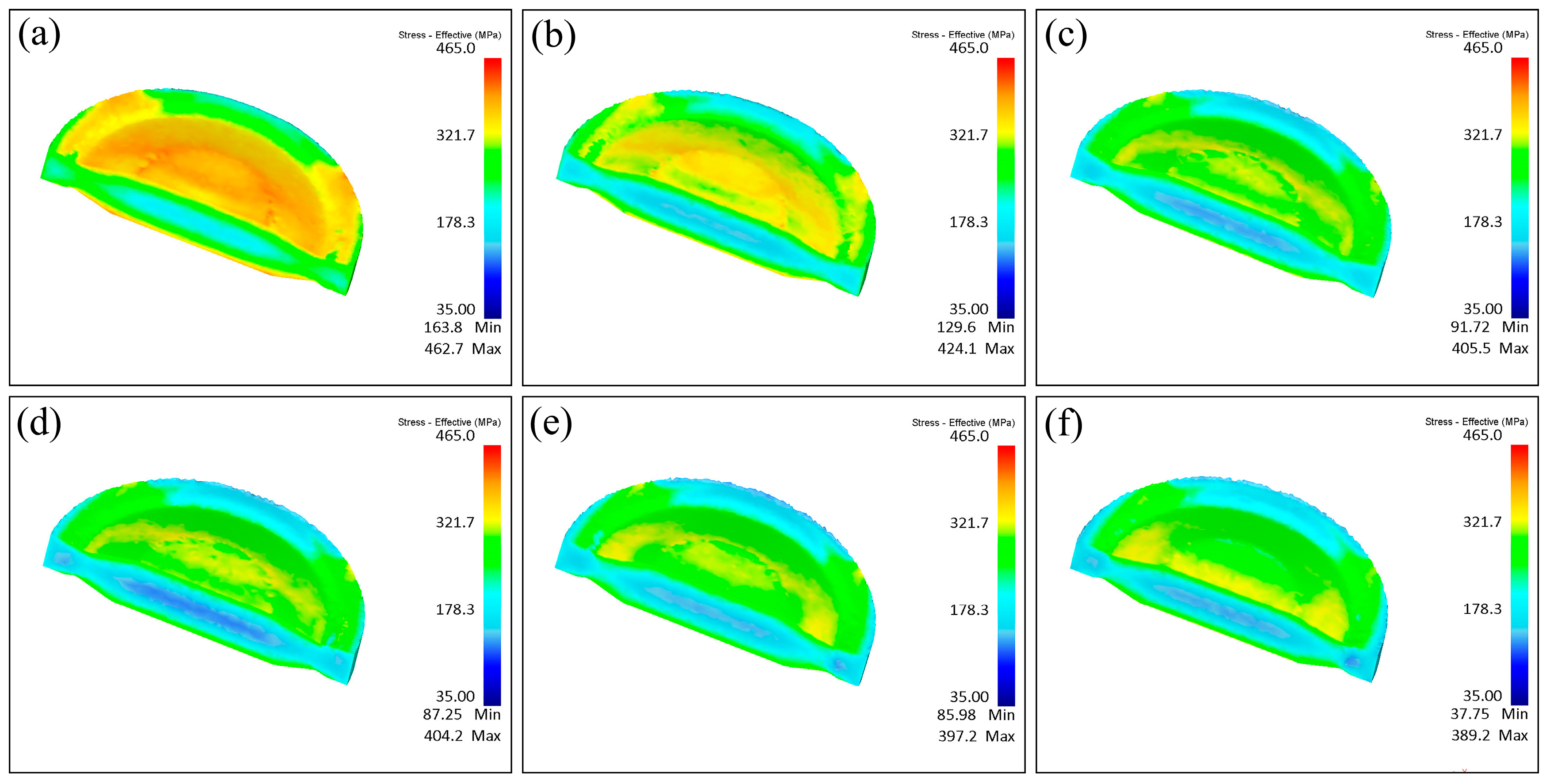

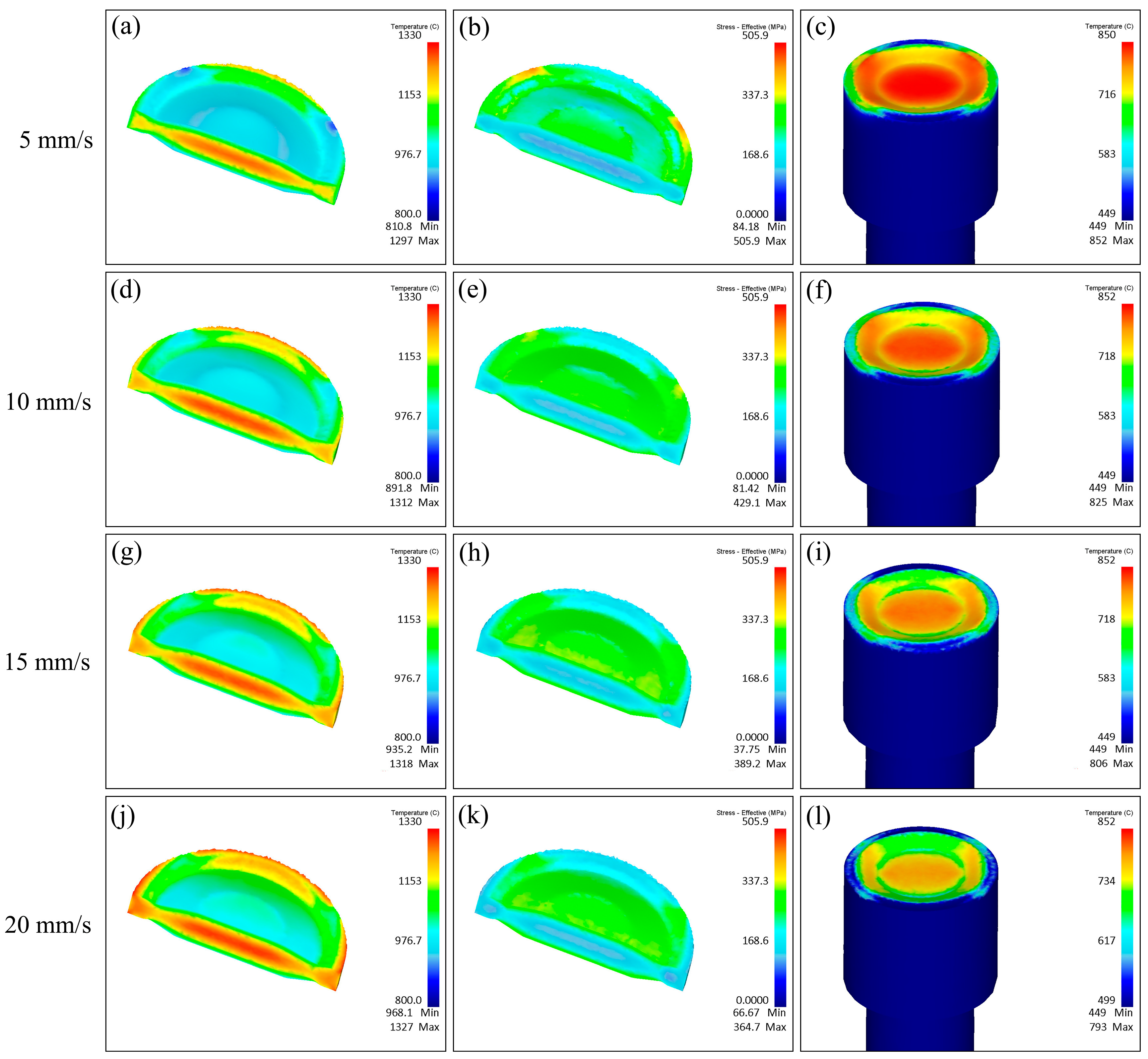

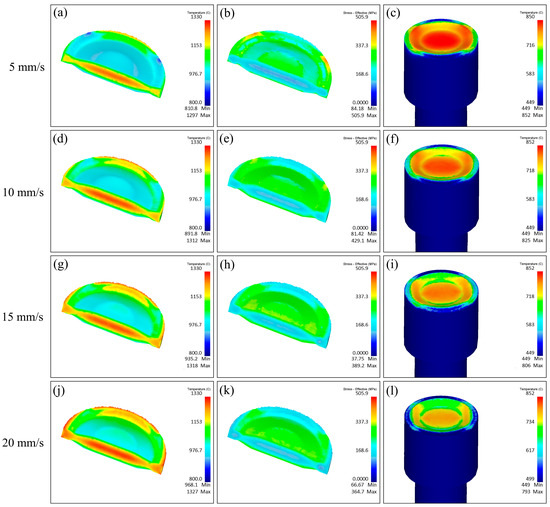

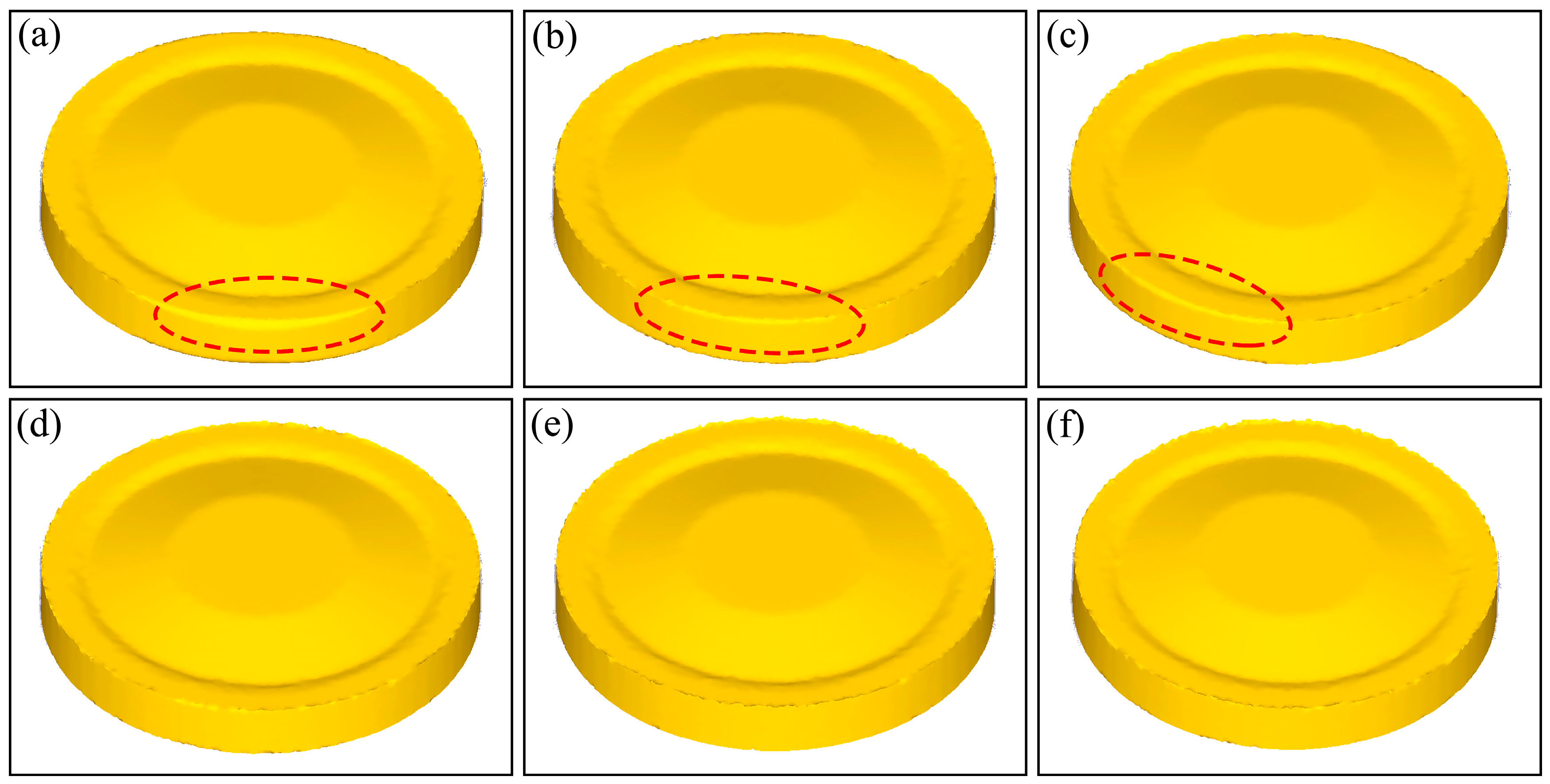

3.3.3. The Effect of Extrusion Velocity on the Results of Numerical Simulation of Thixoforming
3.4. Experimental Verification of the Semi-Solid Thixoforming

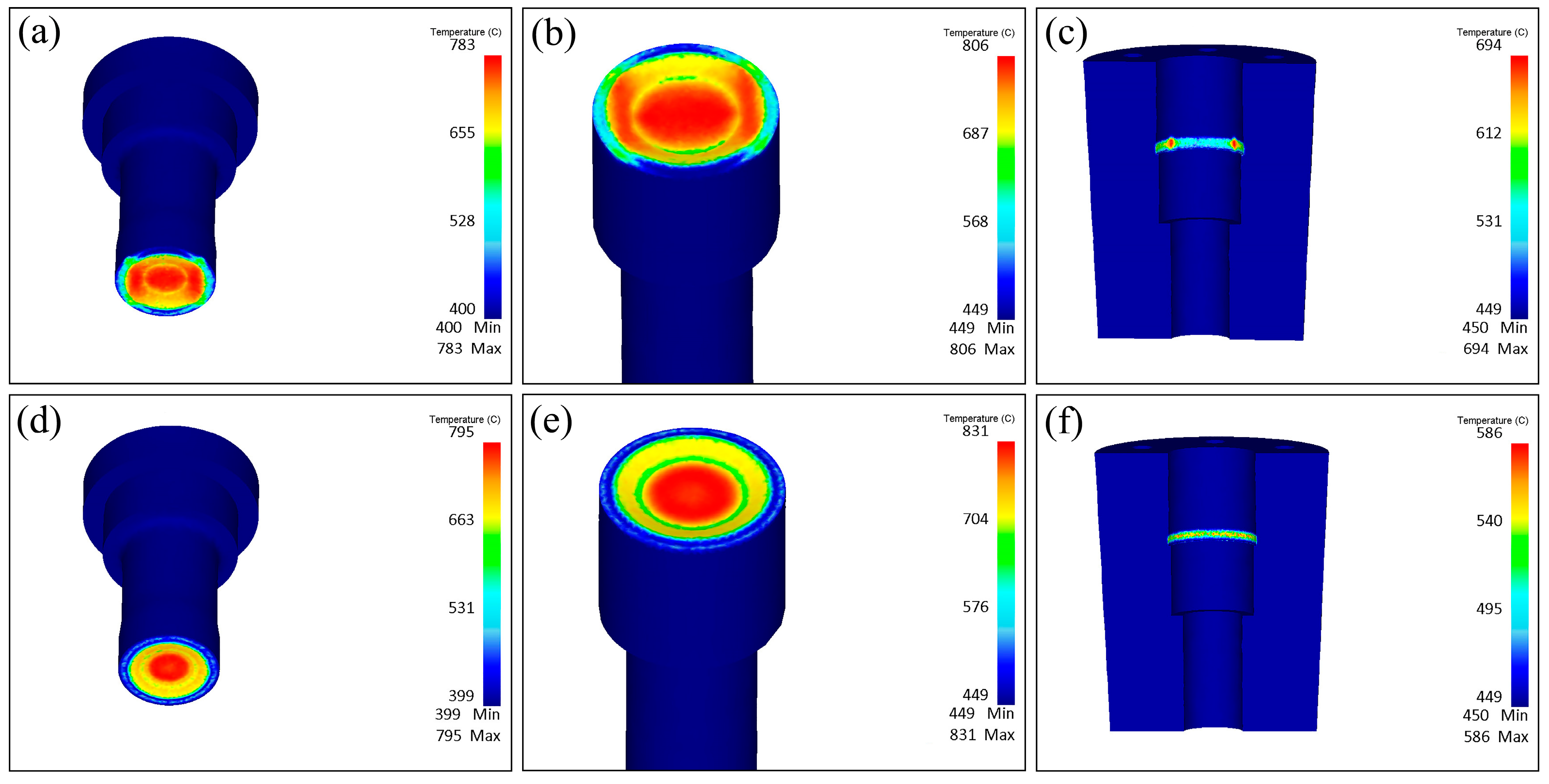

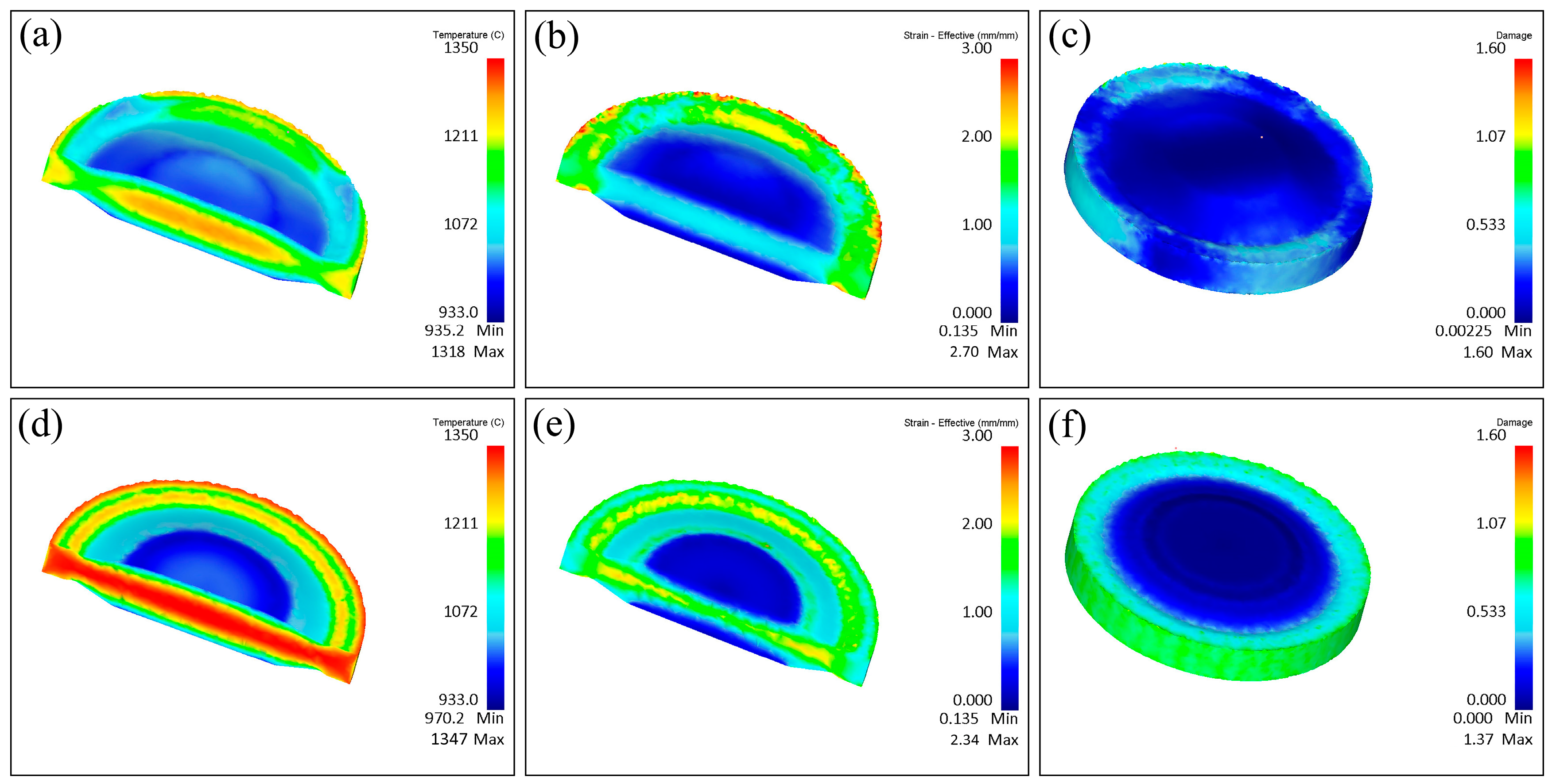

- The billet placement mode has a great influence on the numerical simulation results of thixoforming. Compared with the billet placed vertically, when the billet was placed horizontally, the temperature of the dies after forming was lower, the thermal damage to the dies was reduced, and the possibility of defect of the formed parts was lower. Therefore, the horizontal placement of the billet was more conducive to thixoforming.
- The higher the billet temperature was, the better the alloy-filling was. The faster the extrusion velocity was, the better the thixoforming effect was. However, high billet temperature affected the strength and stiffness of the die, and the high extrusion velocity easily led to the separation of solid and liquid phases of semi-solid billets. Therefore, it is necessary to comprehensively consider each parameter and make a reasonable choice in the actual experiment.

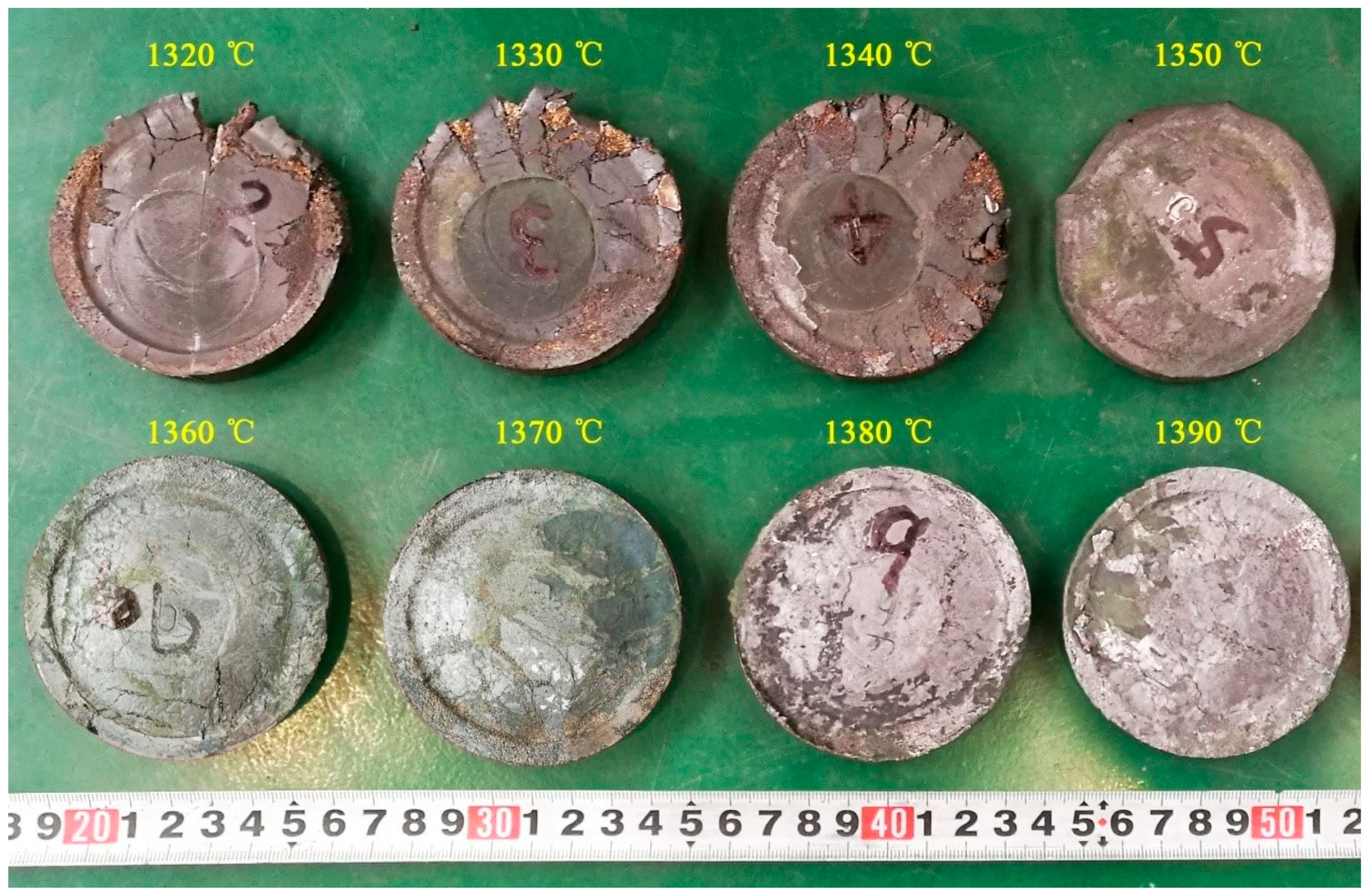

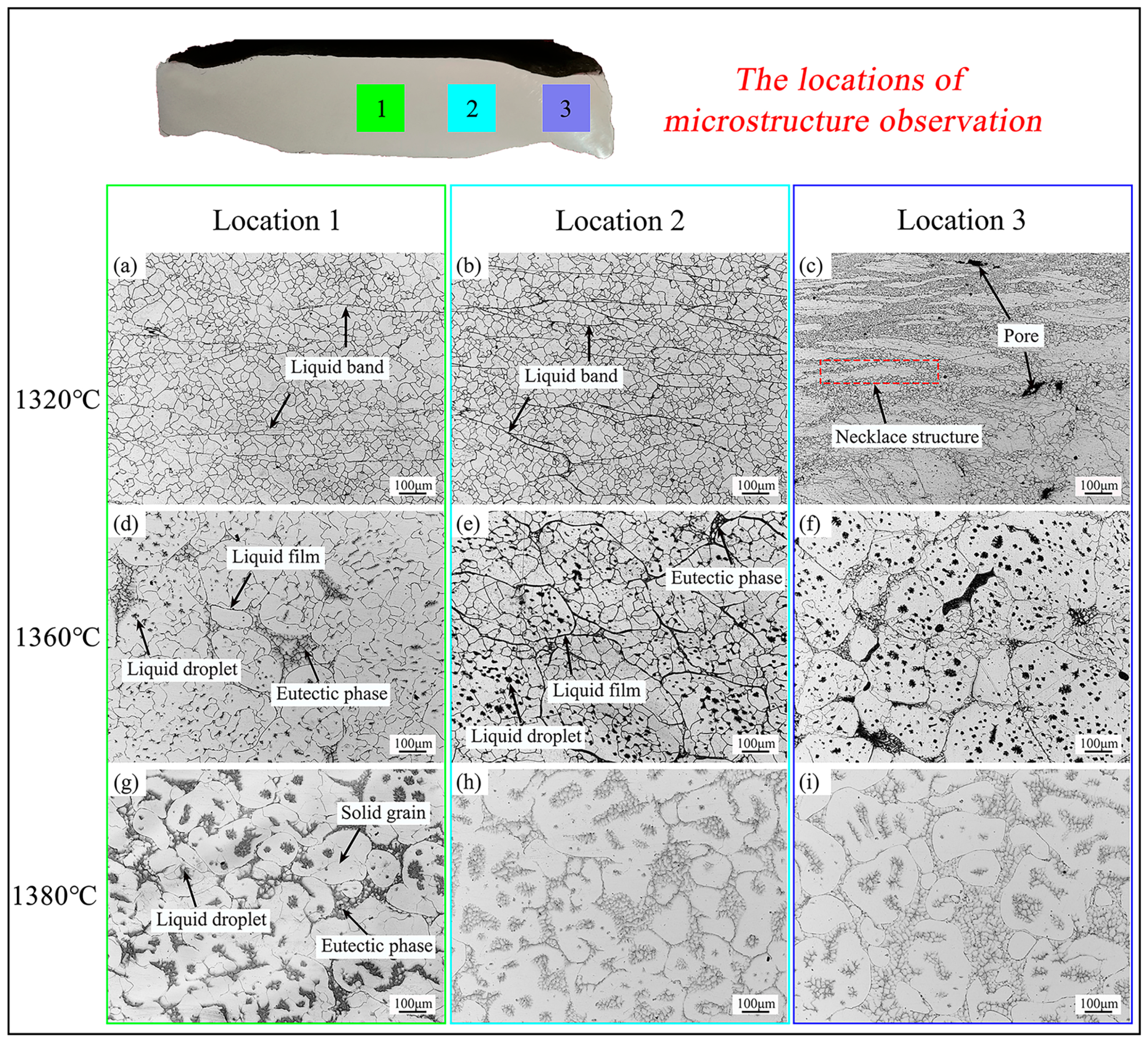

- The thixoforming experimental results show that when the billet temperature was lower than 1350 °C, the outer edge of the formed part was not filled completely. When the billet temperature was higher than 1360 °C, the formed parts were completely filled and had good surface qualities. The liquid fraction in the microstructure of formed parts increased with the increase of heating temperature. The liquid fraction at the edge of the formed part was higher than that in the center.
- The results of the numerical simulation optimized the process parameters for the thixoforming experiment, and the experimental results verified the accuracy of the numerical simulation.
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
- Brown, S.B.; Flemings, M.C. Net-shape forming via semi-solid processing. Adv. Mater. Process. 1993, 143, 36–40. [Google Scholar]
- Atkinson, H.V. Semisolid processing of metallic materials. Mater. Sci. Technol. 2010, 26, 1401–1413. [Google Scholar] [CrossRef]
- Wang, L.; Zhang, Z.; Luo, Y.; Xiao, Y.; Tan, F.; Liu, K. Understanding the influencing mechanism of CNTs on the microstructures and wear characterization of semi-solid stir casting Al-Cu-Mg-Si alloys. Metals 2022, 12, 2171. [Google Scholar] [CrossRef]
- Hao, J.; Yu, B.; Bian, J.; Zheng, L.; Nie, S.; Li, R. Comparison of the semisolid squeeze casting and gravity casting process on the precipitation behavior and mechanical properties of the Al-Si-Cu-Mg alloy. Mater. Charact. 2021, 180, 111404. [Google Scholar] [CrossRef]
- Wang, Y.; Liang, X.; Zeng, L.; Wu, H.; Li, H. The microstructure evolution of Al-5Ce alloy prepared by strain-induced melt activation during semi-solid isothermal treatment process. Mater. Lett. 2022, 326, 132948. [Google Scholar] [CrossRef]
- Kim, D.H.; Kim, J.H.; Kobayashi, E. Enhanced mechanical properties of Al-Si-Cu-Mg(-Fe) alloys by a deformation-semisolid extrusion process. Mater. Sci. Eng. A 2021, 825, 141667. [Google Scholar] [CrossRef]
- Cao, L.; Ma, G.; Tang, C. Effects of isothermal process parameters on semisolid microstructure of Mg-8%Al-1%Si alloy. Trans. Nonferrous Met. Soc. 2012, 22, 2364–2369. [Google Scholar] [CrossRef]
- Li, G.; Qu, W.; Luo, M.; Cheng, L.; Guo, C.; Li, X.; Xu, Z.; Hu, X.; Li, D.; Lu, H. Semi-solid processing of aluminum and magnesium alloys: Status, opportunity, and challenge in China. Trans. Nonferrous Met. Soc. 2021, 31, 3255–3280. [Google Scholar] [CrossRef]
- Nie, S.; Gao, B.; Wang, X.; Cao, Z.; Guo, E.; Wang, T. The influence of holding time on the microstructure evolution of Mg–10Zn–6.8Gd–4Y alloy during semi-solid isothermal heat treatment. Metals 2019, 9, 420. [Google Scholar] [CrossRef]
- Zeng, Q.; Zhang, Y.; Li, K.; Zhuang, Y.; Li, J.; Yang, Y.; Yin, D. High-ductility fine-grained Mg-1.92Zn-0.34Y alloy fabricated by semisolid and then hot extrusion. J. Magnes. Alloys 2023, 11, 533–542. [Google Scholar] [CrossRef]
- Chen, Y.; Yuan, Z.; Zhan, H.; Zhao, Y.; Song, X.; Wang, G.; Gu, Y. Unexpected dynamic recrystallization behavior of Ti-7Cu alloy in semi-solid state. J. Alloys Compd. 2017, 712, 468–476. [Google Scholar] [CrossRef]
- Freitas, C.C.D.; Campo, K.N.; Caram, R. Thixoforming of titanium: The microstructure and processability of semisolid Ti-Cu-Fe alloys. Vacuum 2020, 180, 109567. [Google Scholar] [CrossRef]
- Zhao, D.; Chen, Y.; Jiang, C.; Li, Y.; Zhao, Q.; Xu, Y.; Zhan, H.; Wan, M.; Zhao, Y. Morphological evolution of Ti2Cu in Ti-13Cu-Al alloy after cooling from semi-solid state. J. Alloys Compd. 2020, 848, 156639. [Google Scholar] [CrossRef]
- Liu, W.; Cao, Y.; Guo, Y.; Sun, M.; Xu, B.; Li, D. Solidification microstructure of Cr4Mo4V steel forged in the semi-solid state. J. Mater. Sci. Technol. 2020, 38, 170–182. [Google Scholar] [CrossRef]
- Wang, Y.; Bi, S.; Song, R.; Yanagimoto, J.; Taylor, T. Extremely high temperature carbide precipitation induced intragranular acicular ferrite transformation of M2 steel during semi-solid cooling. Mater. Lett. 2022, 310, 131516. [Google Scholar] [CrossRef]
- Aba-perea, P.E.; Becker, E. Measurement and modeling of thermal evolution during induction heating and thixoforming of low carbon steel. J. Mater. Process. Technol. 2020, 283, 116717. [Google Scholar] [CrossRef]
- Guan, R.; Zhao, Z.; Chao, R.; Lian, C.; Wen, J. Simulation of temperature field and metal flow during continuous semisolid extending extrusion process of 6201 alloy tube. Trans. Nonferrous Met. Soc. 2012, 22, 1182–1189. [Google Scholar] [CrossRef]
- Koeune, R.; Ponthot, J.P. A one phase thermomechanical model for the numerical simulation of semi-solid material behavior. Application to thixoforming. Int. J. Plasticity 2014, 58, 120–153. [Google Scholar] [CrossRef]
- Zhu, G.; Xu, J.; Zhang, Z.; Liu, G. Numerical simulation of die filling behavior of AZ91D in the semisolid process. China Foundry 2010, 7, 127–131. [Google Scholar]
- Seo, P.K.; Kim, H.C.; Kang, C.G. Numerical integration design process to development of suspension parts by semi-solid die casting process. J. Mater. Process. Technol. 2007, 183, 18–32. [Google Scholar] [CrossRef]
- Ma, Z.; Zhang, H.; Fu, H.; Yang, Y.; Wang, J.; Du, M.; Zhang, H. Insights into the rheological modeling of semi-solid metals: Theoretical and simulation study. J. Mater. Sci. Technol. 2022, 100, 182–192. [Google Scholar] [CrossRef]
- Lin, B.; Fan, T.; Li, H.; Zhao, Y.; Zhang, W.; Liu, K. Microstructure and high temperature tensile properties of Al-Si-Cu-Mn-Fe alloys prepared by semi-solid thixoforming. Trans. Nonferrous Met. Soc. 2021, 31, 2232–2249. [Google Scholar] [CrossRef]
- Rassili, A.; Atkinson, H.V. A review on steel thixoforming. Trans. Nonferrous Met. Soc. 2010, 20, s1048–s1054. [Google Scholar] [CrossRef]
- Pierret, J.C.; Rassili, A.; Vaneetveld, G.; Lecomte-Beckers, J. Stability of steel thixoforming process. Trans. Nonferrous Met. Soc. 2010, 20, s937–s942. [Google Scholar] [CrossRef]
- Wang, P.; Cui, J.; Lu, G. Semi-solid thixoforming simulation of Al-Cu-Mn-Ti alloy parts via AnyCasting. J. Mater. Sci. Technol. 2007, 3, 75–78. [Google Scholar]
- Tong, J.; Ding, X.; Wang, M.; Yagi, K.; Zheng, Y.; Feng, Q. Assessment of service induced degradation of microstructure and properties in turbine blades made of GH4037 alloy. J. Alloys Compd. 2016, 657, 777–786. [Google Scholar] [CrossRef]
- Jiang, J.; Xiao, G.; Wang, Y.; Liu, Y.; Zhang, Y. High temperature deformation behavior and microstructure evolution of wrought nickel-based superalloy GH4037 in solid and semi-solid states. Trans. Nonferrous Met. Soc. 2020, 30, 710–726. [Google Scholar] [CrossRef]
- Chen, G.; Chen, Q.; Qin, J.; Du, Z. Effect of compound loading on microstructures and mechanical properties of 7075 aluminum alloy after severe thixoformation. J. Mater. Process. Technol. 2016, 229, 467–474. [Google Scholar] [CrossRef]
|Billet Placement Mode|
