Article

Structure and Properties of Ti-Al-Ta and Ti-Al-Cr Cladding Layers Fabricated on Titanium

1
Research Laboratory of Physical and Chemical Technologies and Functional Materials, Materials Science Department, Novosibirsk State Technical University, Karl Marks Str. 20, 630073 Novosibirsk, Russia
2
Laboratory of Industrial Accelerators, Budker Institute of Nuclear Physics of Siberian Branch, Russian Academy of Sciences, Lavrentiev Avenue 11, 630090 Novosibirsk, Russia
3
Helmholtz Zentrum Hereon, Institute of Materials Physics, Max-Planck-Straße 1, 21502 Geesthacht, Germany
*
Author to whom correspondence should be addressed.
Academic Editors: Maciej Motyka, Thomas Niendorf and Frank Czerwinski
Metals 2021, 11(7), 1139; https://doi.org/10.3390/met11071139
Received: 22 June 2021 / Revised: 16 July 2021 / Accepted: 16 July 2021 / Published: 19 July 2021
(This article belongs to the Special Issue Microstructure and Mechanical Properties of Ti-Based Alloys)

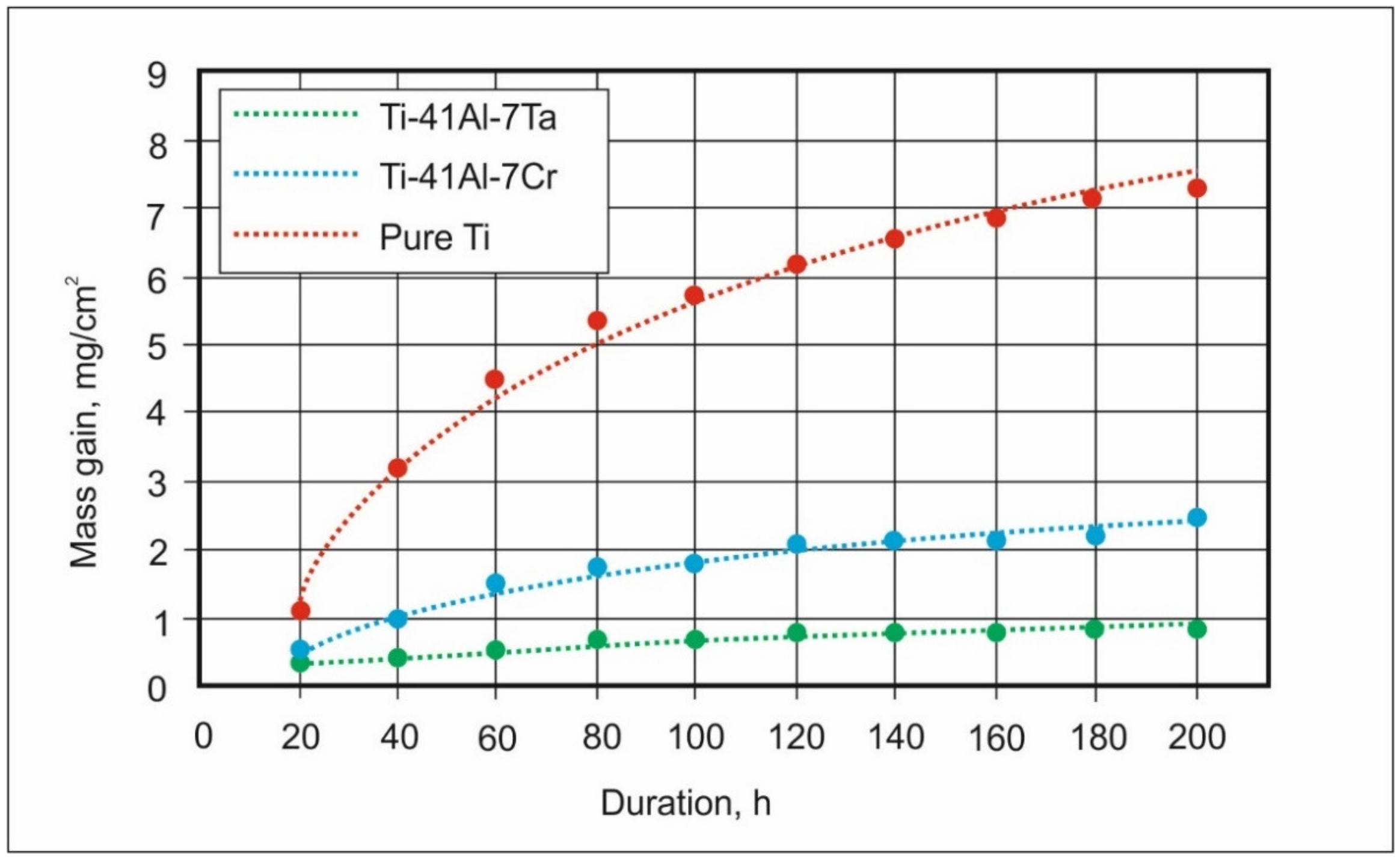

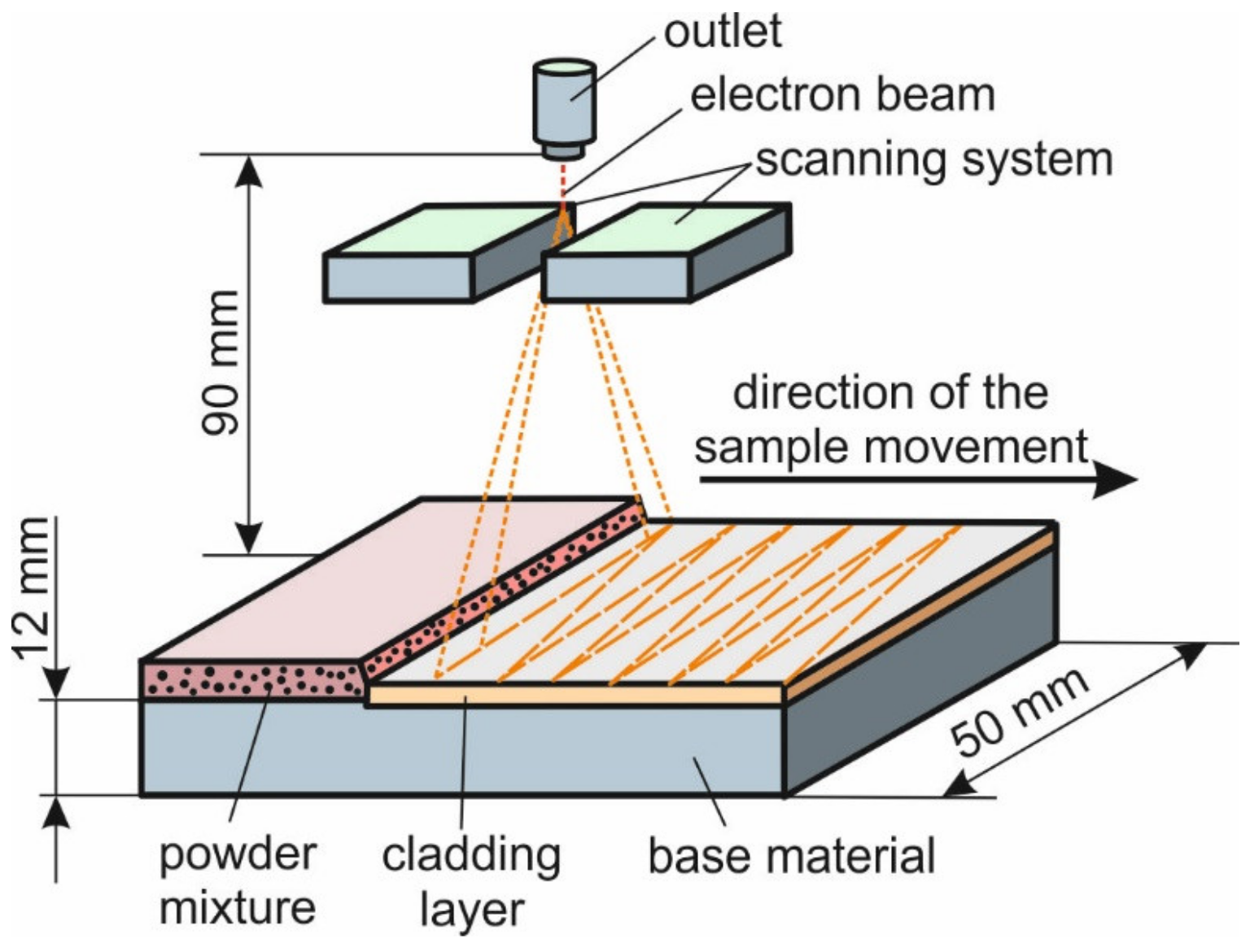

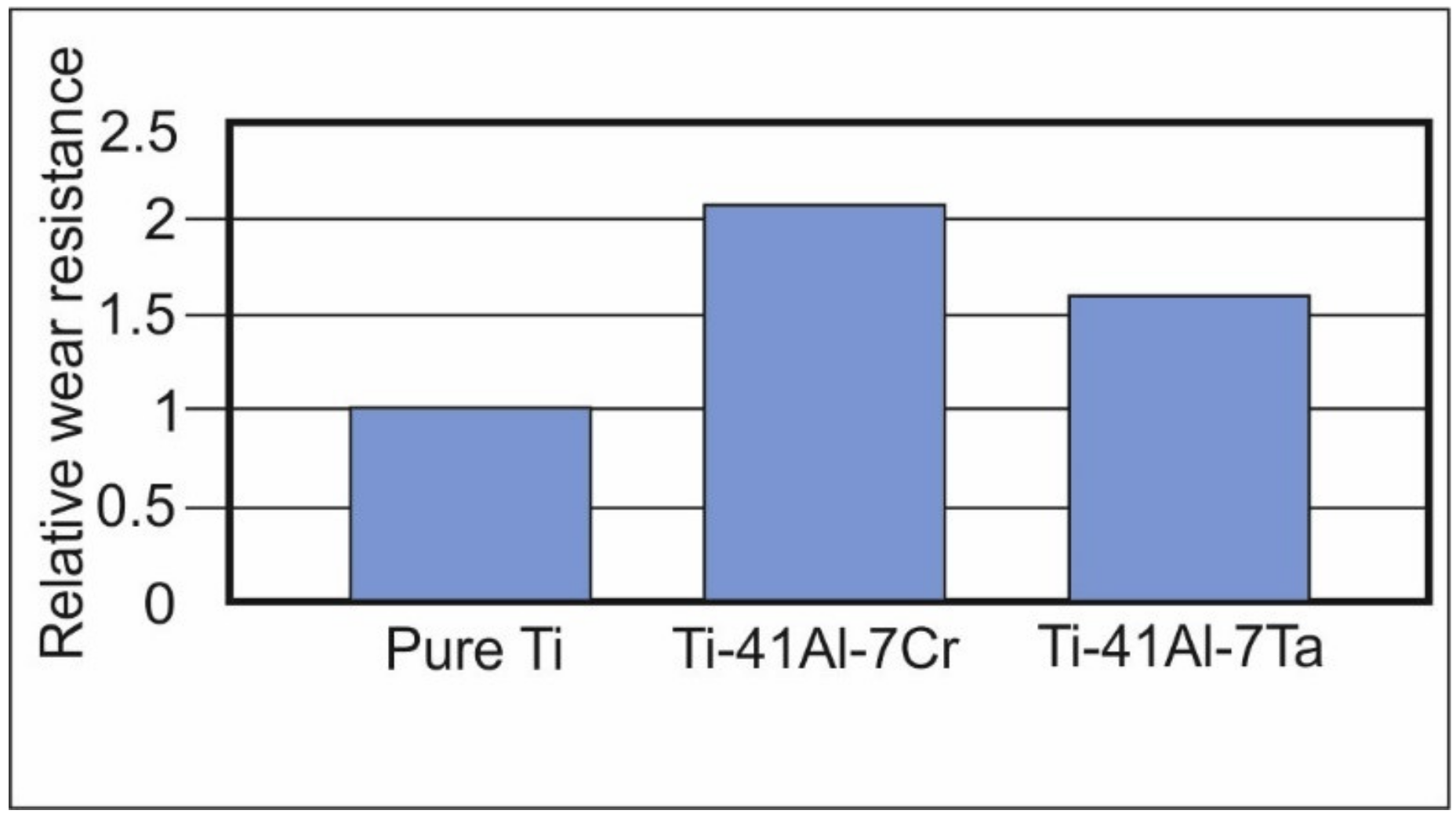

Being one of the most high-demand structural materials, titanium has several disadvantages, including low resistance to high-temperature oxidation and wear. The properties of titanium and its alloys can be improved by applying protective intermetallic coatings. In this study, 2 mm thick Ti-Al-Ta and Ti-Al-Cr layers were obtained on titanium workpieces by a non-vacuum electron-beam cladding. The microstructure and phase compositions of the samples were different for various alloying elements. The Cr-containing layer consisted of α2, γ, and B2 phases, while the Ta-containing layer additionally consisted of ω′ phase (P3¯m1). At the same atomic concentrations of aluminum and an alloying element in both layers, the volume fraction of the B2/ω phase in the Ti-41Al-7Ta alloy was significantly lower than in the Ti-41Al-7Cr alloy, and the amount of γ phase was higher. The Ti-41Al-7Cr layer had the highest wear resistance (2.1 times higher than that of titanium). The maximum oxidation resistance (8 times higher compared to titanium) was observed for the Ti-41Al-7Ta layer. View Full-Text
Keywords: non-vacuum electron beam cladding; titanium aluminides; ω-phase; oxidation; wear non-vacuum electron beam cladding; titanium aluminides; ω-phase; oxidation; wear
