1. Introduction
The economically and ecologically fueled demand for more efficiency requires steadily increasing operating temperatures in gas turbines and aero-engines. To fulfill these demands on high-temperature resistant Ni-based superalloys used in the hottest parts of these energy conversion systems, the used materials have to be constantly improved. With increasing temperatures, diffusion-controlled processes begin to gain considerable influence on the mechanical properties of Ni-based superalloys under creep load [
1,
2,
3,
4,
5,
6]. Especially in a high-temperature and low-stress creep regime, slow diffusing refractory elements such as Re, W, and Mo are used to increase creep strength [
4,
7,
8,
9,
10,
11,
12,
13,
14]. However, at lower temperatures other elements such as Ta exhibit higher strengthening contributions than those slow diffusing elements due to more pronounced solid solution hardening effects [
3,
15,
16,
17].
The theory on strengthening in diluted solid solutions was already described by Fleischer [
18] and enhanced by Labusch [
19], which correlates the concentration of a solute with the resulting strength increase through a solid solution hardening coefficient. Mishima et al. [
15] have investigated the solid solution hardening of different transition metals in Ni, including W, Mo, and Ta. From the data, Roth et al. [
20] have determined the solid solution hardening coefficients of W, Mo, and Ta to 1.5 GPa/at.%
2/3, 1.6 GPa/at.%
2/3, and 1.8 GPa/at.%
2/3. Furthermore, the solid solution hardening coefficient for Re was interpolated with the data from [
15] to 1.5 GPa/at.%
2/3 [
21]. However, as these solid solution hardening coefficients were determined at 77 K, where the solutes can be assumed to be static objects, the hardening potential of these solutes in Ni should be lower at higher temperatures where the mobility of the solutes is higher [
22,
23]. This was already observed by Fleischmann et al. [
7], who investigated the solid solution hardening potential of Re, W, and Mo in single-phase, single-crystalline Ni-alloys consisting of the unordered γ phase. They showed that Re has a 60% higher solid solution hardening efficiency than W and Mo at 980 °C in γ/γ′ two-phase, Ni-based superalloys, which is largely due to a significantly lower diffusion coefficient and does not correspond to the aforementioned solid solution coefficients [
24,
25]. Rettig et al. [
26] have further clarified the efficacy of Re, W, and Mo as solid solution hardening elements at 980 °C by deriving an equation for only the γ matrix from the data of [
7]. In this equation, the efficacy of Re is 2.44 times higher and the efficacy of W is 1.22 times higher than that of Mo.
Giese et al. [
27] have also connected the creep strength to the diffusivity of solution hardening elements in creep experiments at 1100 °C of experimental Ni-base superalloys of the Astra2 series with different solid solution hardening elements. A quite similar approach to that of Giese et al. [
27] was chosen by Ru et al. [
12], who found a direct relationship between the creep rupture life of Ni-based superalloys with different contents of Re and Mo to the inverse diffusion coefficient.
However, as the creep strength is influenced with increasing temperature by the solid solution hardening effect as well as the diffusivity of the alloying element, the assessment of the hardening capability of solutes in Ni-based superalloys is still largely empirical. This was studied broadly by ur Rehman et al. [
3] for the solutes Re, Ta, and W in Ni single crystals by strain rate jump tests from 800 °C to 1200 °C at strain rates between 10
−3 and 10
−5. They confirmed that if the strain rate is low enough and the temperature is high enough, the solute Re leads to a higher solid solution hardening contribution than Ta. However, in [
3] the frequently used solid solution hardening alloying element Mo was not considered. Furthermore, the solid solution behavior of the solutes in Ni at lower strain rates, where the influence of the diffusion should be more pronounced, was also not considered.
To contribute to the clarification of the correlation between diffusivity and solid solution hardening of solutes in Ni, the influence of the solutes Mo, Re, Ta, and W on the creep behavior of Ni has been investigated by creep experiments on binary Ni-alloys with a 20 MPa creep load between 1000 °C and 1100 °C. The aim was to study whether there is a direct correlation between the diffusion coefficient of the solute and the resulting creep strength.
3. Results

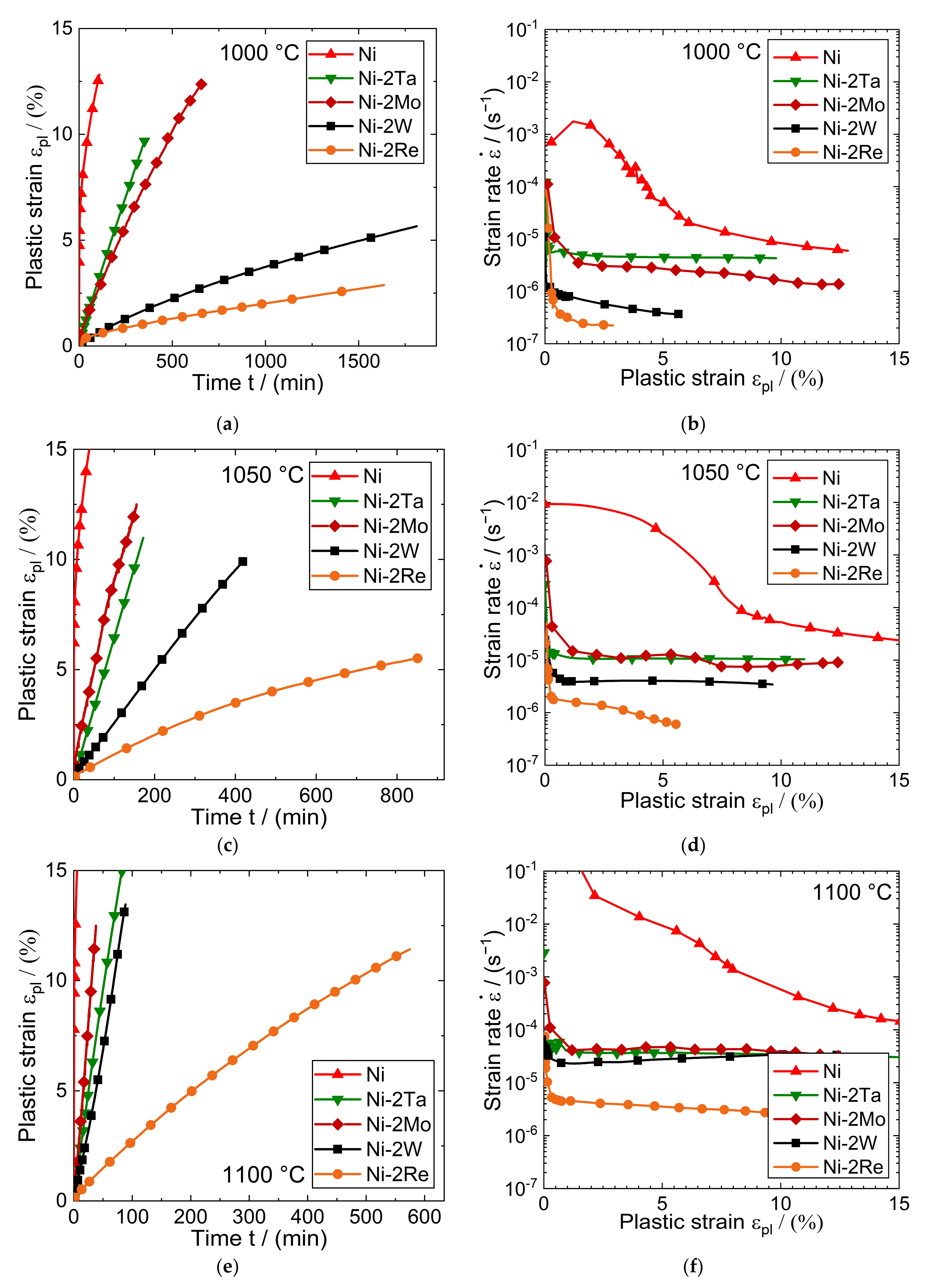

The creep curves of single crystalline pure Ni and binary Ni-2X alloys (X = Ta, W, Re, Mo) are illustrated in
Figure 1 for the temperatures of 1000 °C, 1050 °C, and 1100 °C. The strain rate over the plastic strain (
Figure 1a,c,e), as well as the corresponding plastic strain over time (
Figure 1b,d,f), is shown. As expected, all alloying elements led to an increased creep strength compared to pure Ni. Ni-2Re revealed the highest creep strength of all four alloys at all investigated temperatures. Ni-2W showed the second highest creep strength of the investigated binary alloys, but with an increased difference in creep strength with increased temperature compared to Ni-2Re. Ni-2Mo and Ni-2Ta show quite similar creep strengths at all temperatures. However, at 1000 °C Ni-2Mo exhibits a slightly higher creep strength than Ni-2Ta.
Furthermore, pure Ni shows a very high primary creep regime, which is clearly noticeable in the strain’s rate–strain and strain–time curves. As reported in a previous study [
3], the yield stress of Ni at 1000 °C is lower than 20 MPa, whereas the yield strength of Ni-2Ta, Ni-2W, and Ni-2Re is higher than 20 MPa. This explains the very high initial strain rate of pure Ni at 1000 °C, 1050 °C, and 1100 °C. Due to the lower yield strength of pure Ni, a significant amount of plastic deformation at relatively high strain rates took place at the beginning of the creep experiment until a certain dislocation density was formed. Then, the strain rate decreased until a steady state of dislocation generation and dislocation annihilation was reached.
In most cases, a steady state creep rate could be observed during the creep tests. In experiments with a longer experiment duration, a continuous decrease in creep rate could be noticed. This is particularly evident for the Ni-2Re alloy creep at 1050 °C. This indicates that oxidation had a considerable influence at these high temperatures at longer experiment durations, despite the coating with sodium water glass (Na2SiO3). It seems that the protective layer loses its function after some time at very high temperatures and then the creep rate decreases. The increase in creep strength could be due to the increase in the cross section or a supportive effect of the oxide layer.

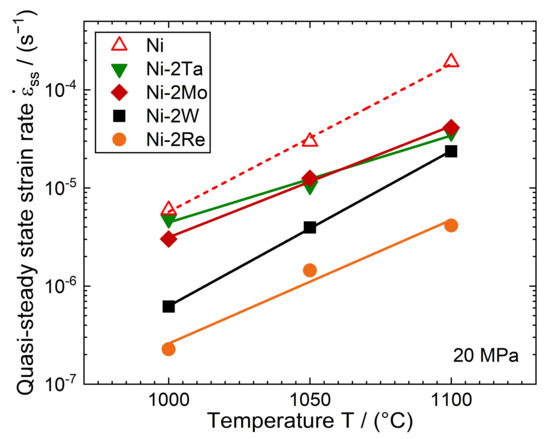

A steady state strain rate for each alloy at the three testing temperatures could not be determined. Therefore, the creep strain at 2% plastic strain was used for further evaluation of creep properties for the Ni solid solutions, as the oxidative influence should be negligible at these lower strains. Since the strain rate reached a plateau and did not show large variations before decreasing due to oxidation, the strain rate at 2% plastic strain should not differ greatly from the steady state creep rate. Due to the pronounced plastic deformation in the beginning of the creep experiments of pure Ni, the strain rate at 13% plastic strain of Ni was taken as a quasi-steady state creep rate. The strain rate at 2% plastic strain of the single crystalline Ni-2X alloys (X = Ta, W, Re, Mo) and the strain rate at 13% plastic strain for pure Ni is shown in
Figure 2 for the different testing temperatures.
Similarly to
Figure 1, Ni-2Re shows the highest creep strength, followed by Ni-2W, Ni-2Mo, and Ni-2Ta with similar creep strengths. As expected, pure Ni shows the lowest creep strength. The strain rate of Ni-2Re is about one order of magnitude lower than that of Ni-2Ta. Due to the double logarithmic plot, the data of each alloy can be linearly fitted, which shows an exponential correlation between the temperature and the quasi-steady state creep rates. The slope of the linear fit lines of the different binary alloys and pure Ni differ slightly from each other in some cases. However, this could be due to the lack of a steady state creep rate in some experiments as a result of oxidation.
The creep experiments were conducted at high temperatures above 1000 °C (~0.7 T
m) where the influence of diffusion-controlled processes is decisive. Additionally, as the stress was quite low, the dislocation motion during creep deformation in solid solutions was carried by thermally assisted processes such as diffusion-controlled climb [
29,
30].
Furthermore, due to the increased diffusional mobility of the solutes, they can no longer be assumed as immobile obstacles [
22,
23]. This leads to changes in the solute dislocation interactions. With increasing temperature and diffusion, the solutes can form Cottrell atmospheres in the stress field of the dislocations. Depending on the diffusion and dislocation velocity, the Cottrell clouds can be dragged with the dislocations and slow down the dislocation movement [
22,
23].

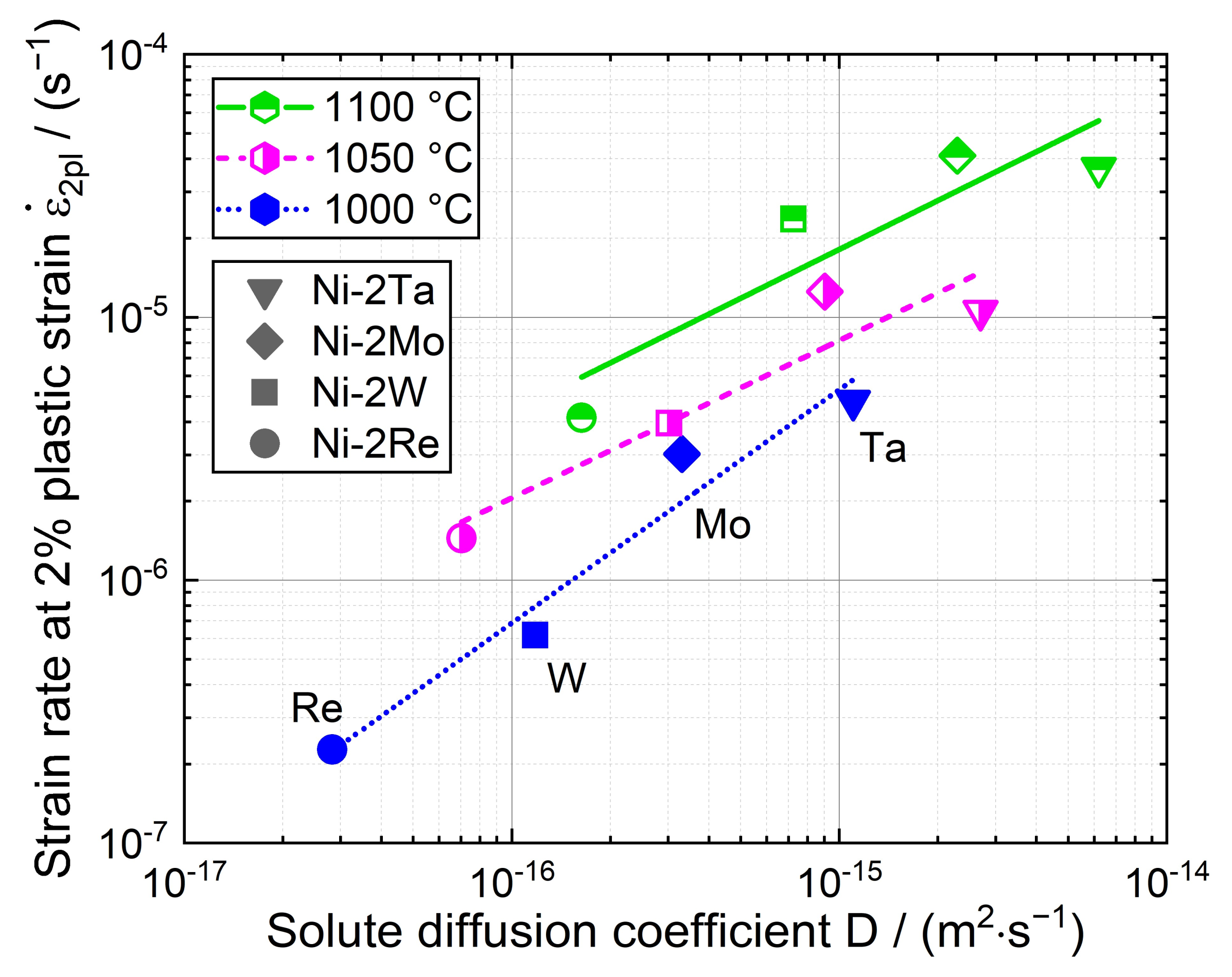

However, as the deformation at high temperatures strongly depends on diffusional processes, the strain rate at 2% plastic strain was plotted over the solute diffusion coefficient for Ta, W, and Re from [
24] and that for Mo from [
25], as shown in
Figure 3.
Author Contributions
Conceptualization, S.N., M.G., D.M. and H.u.R.; methodology, S.N. and H.u.R.; formal analysis, S.N., L.H. and H.u.R.; investigation, L.H. and H.u.R.; resources, M.G.; writing—original draft preparation, L.H.; writing—review and editing, L.H., S.N, D.M. and M.G.; visualization, L.H.; supervision, S.N. and M.G.; project administration, M.G.; funding acquisition, M.G. All authors have read and agreed to the published version of the manuscript.
Funding
The authors acknowledge funding by the Deutsche Forschungsgemeinschaft (DFG) through projects A6 and Z01 of the collaborative research center SFB/TR 103 “From Atoms to Turbine Blades—a Scientific Approach for Developing the Next Generation of Single Crystal Superalloys.”
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The research data are available from the corresponding author on reasonable request.
Acknowledgments
The authors are grateful to Oliver Horst from the Ruhr-Universität Bochum for orienting the single crystals and for the creep specimen manufacturing.
Conflicts of Interest
The authors declare no conflict of interest.
