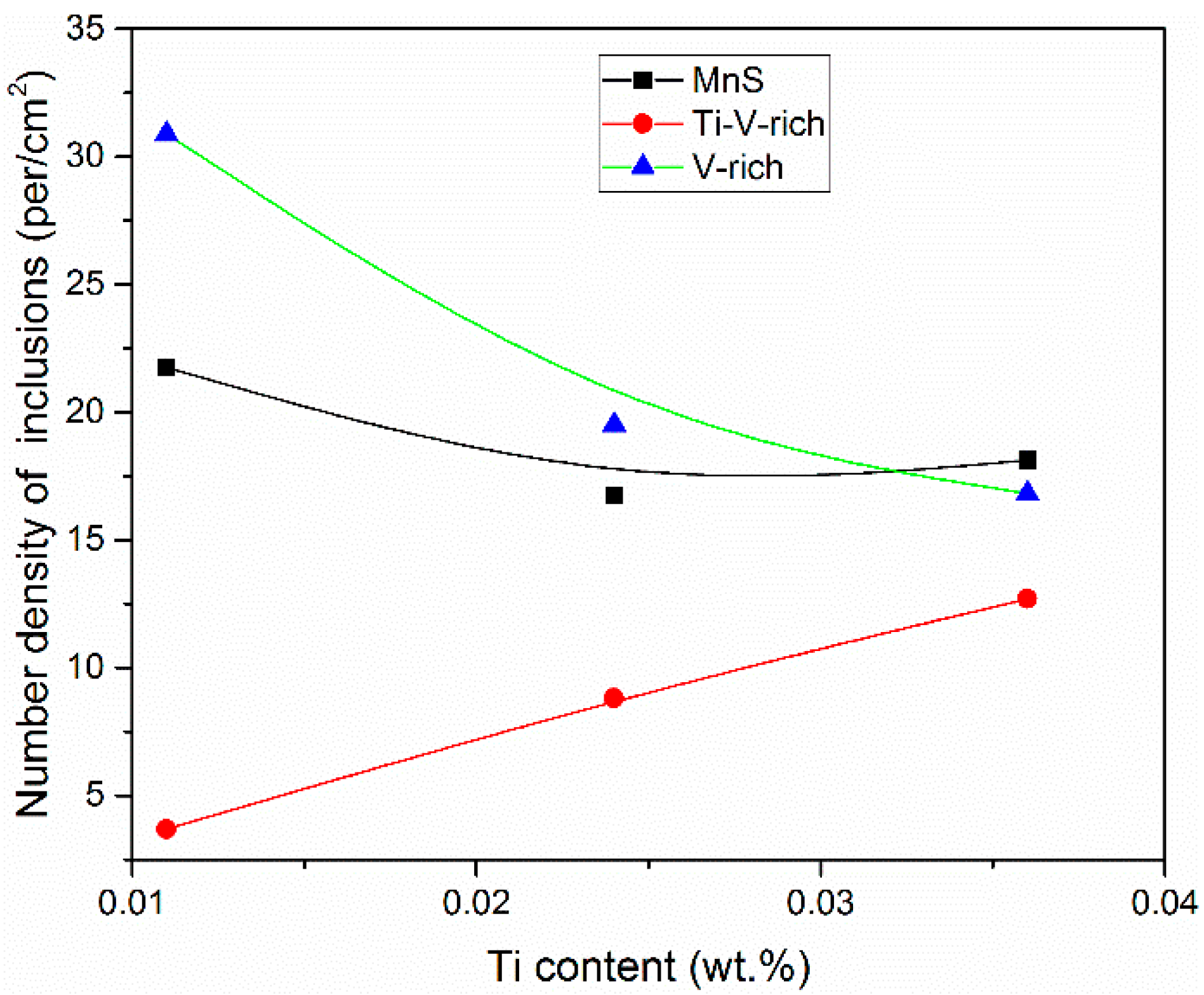

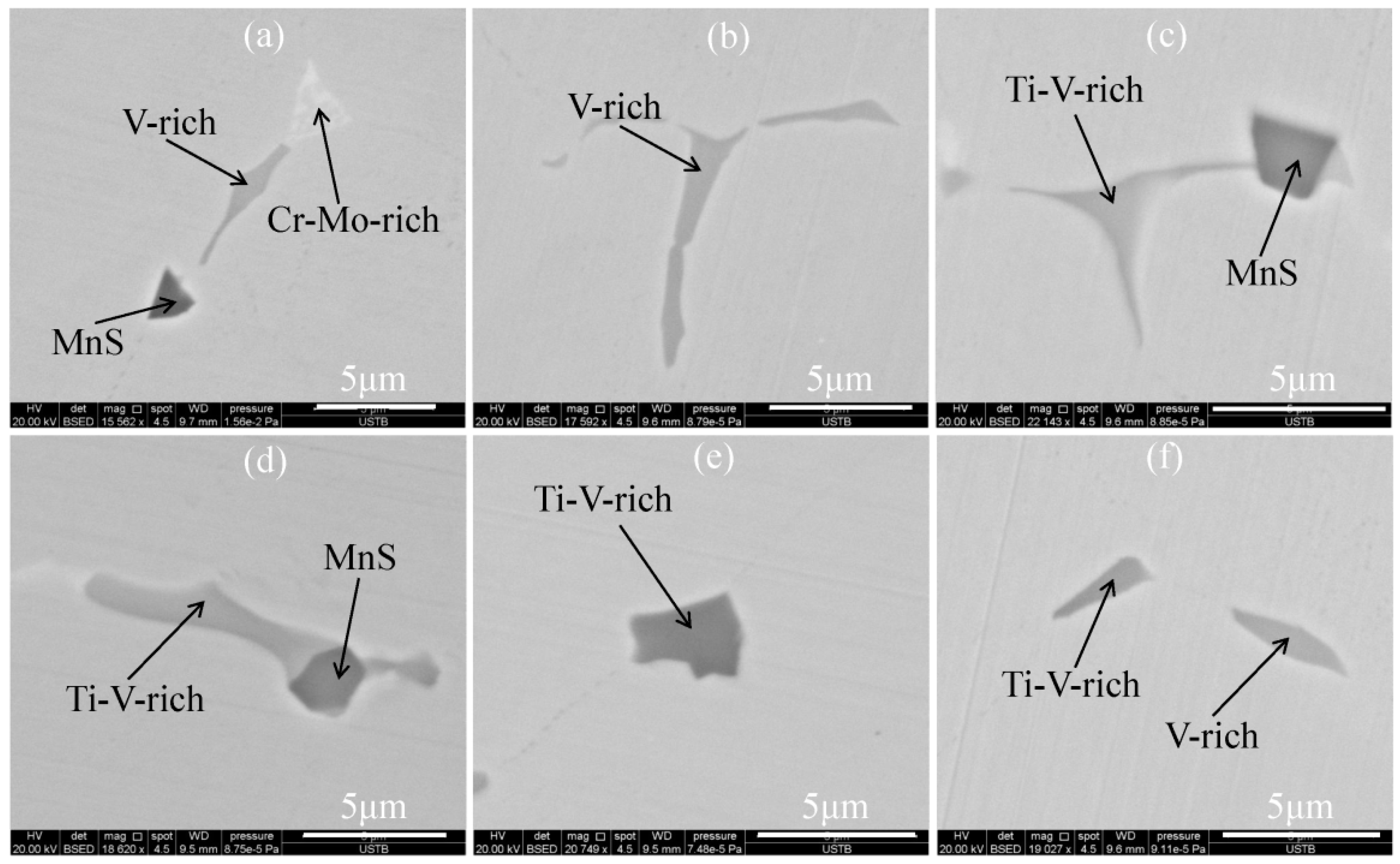

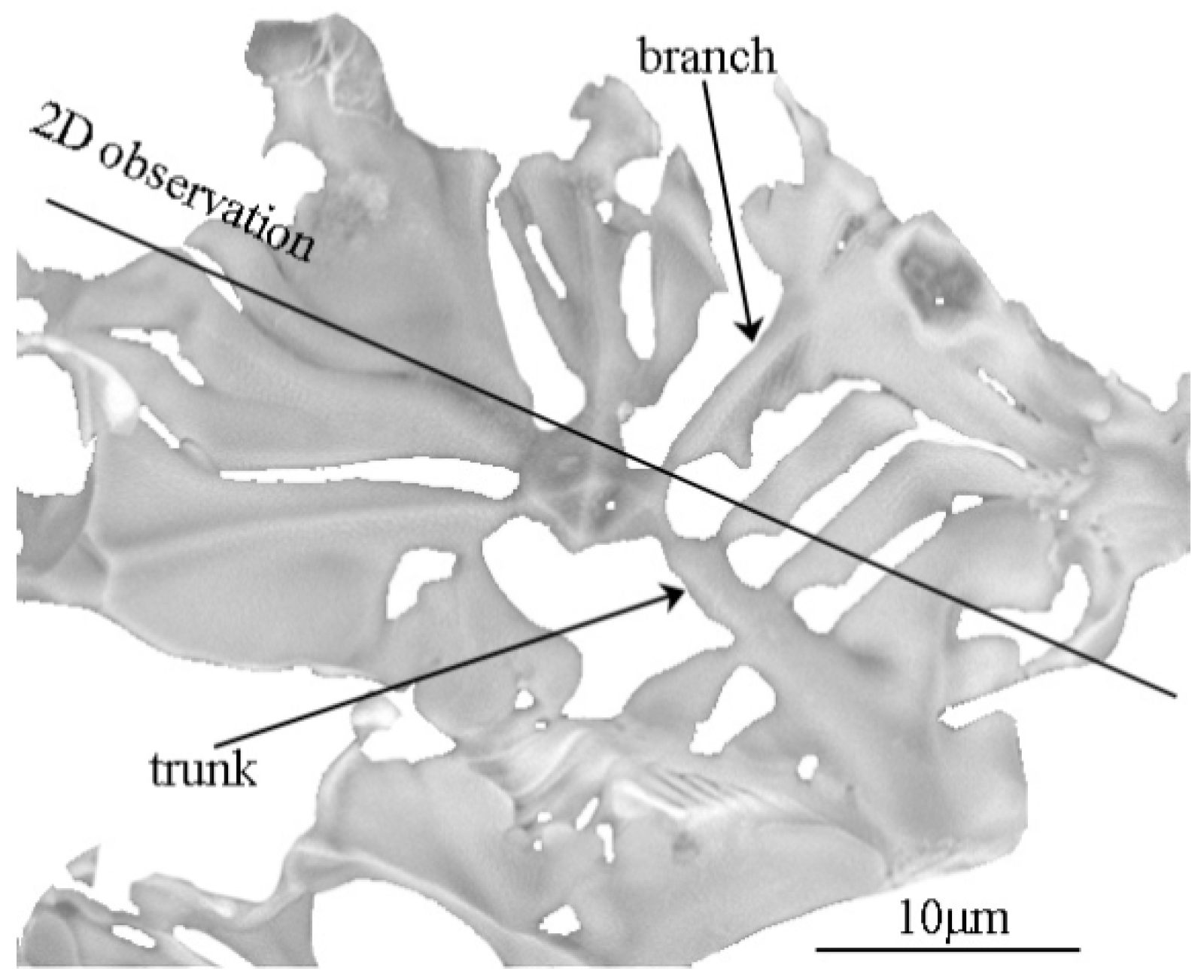

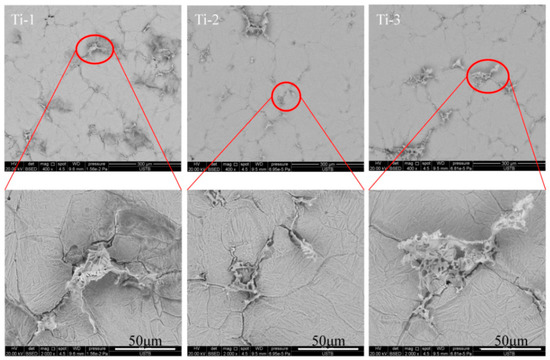

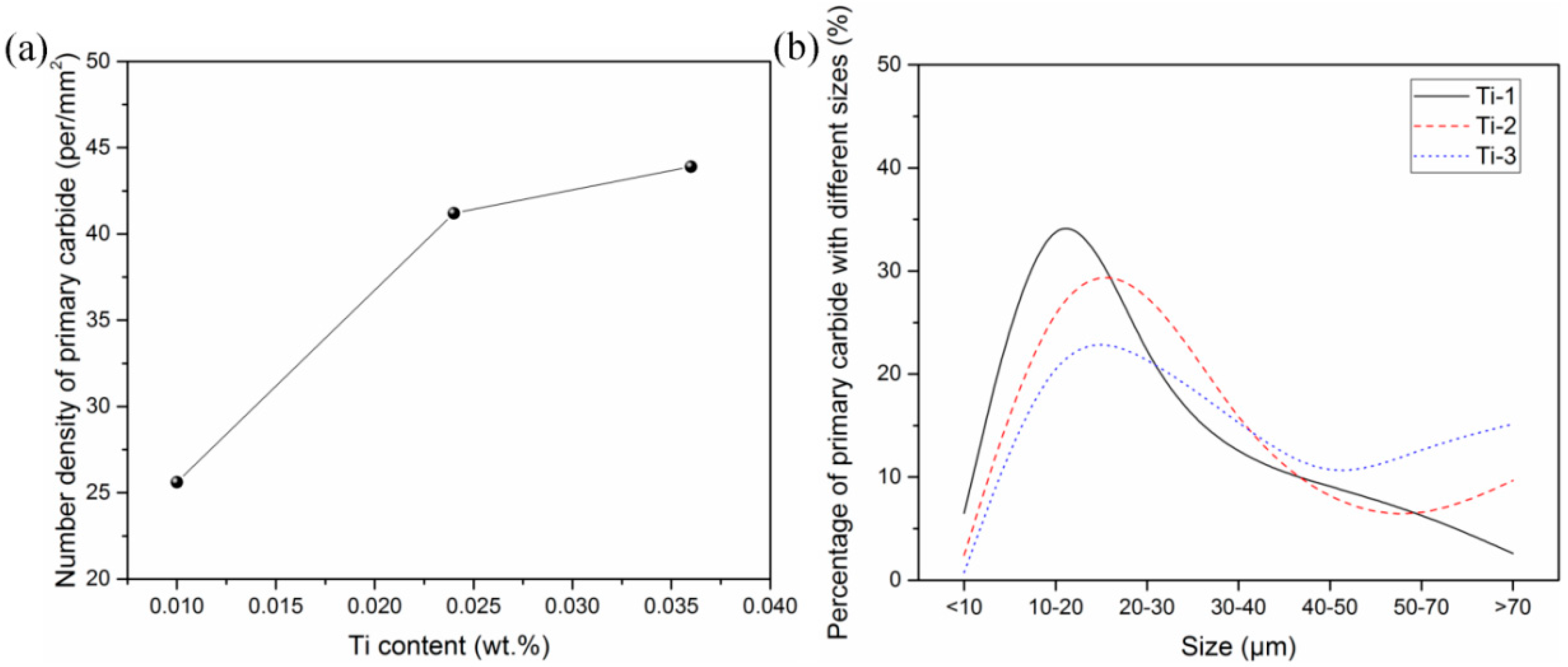

The Ti element plays a role in pinning grain boundaries but also has a good binding ability to C and N, forming large primary carbides. Therefore, the effect of Ti content on primary carbides’ behavior in H13 ingots was comprehensively studied. A non-aqueous electrolysis method was used to determine the three-dimensional (3D) characteristics of primary carbides. We found a great difference between the two-dimensional (2D) and the three-dimensional characteristics of primary carbides. When performing 2D analyses, the density of the primary carbides appeared high, while their size was small. The actual characteristics of primary carbides can be obtained only by 3D observation. The primary carbide showed a typical dendritic structure, whose center consisted of Ti–V-rich carbide wrapped by V-rich carbide. As the Ti content increased, the size of the primary carbide increased from 24.9 μm to 41.3 μm, and the number density increases from 25.6 per/mm2
to 43.9 per/mm2

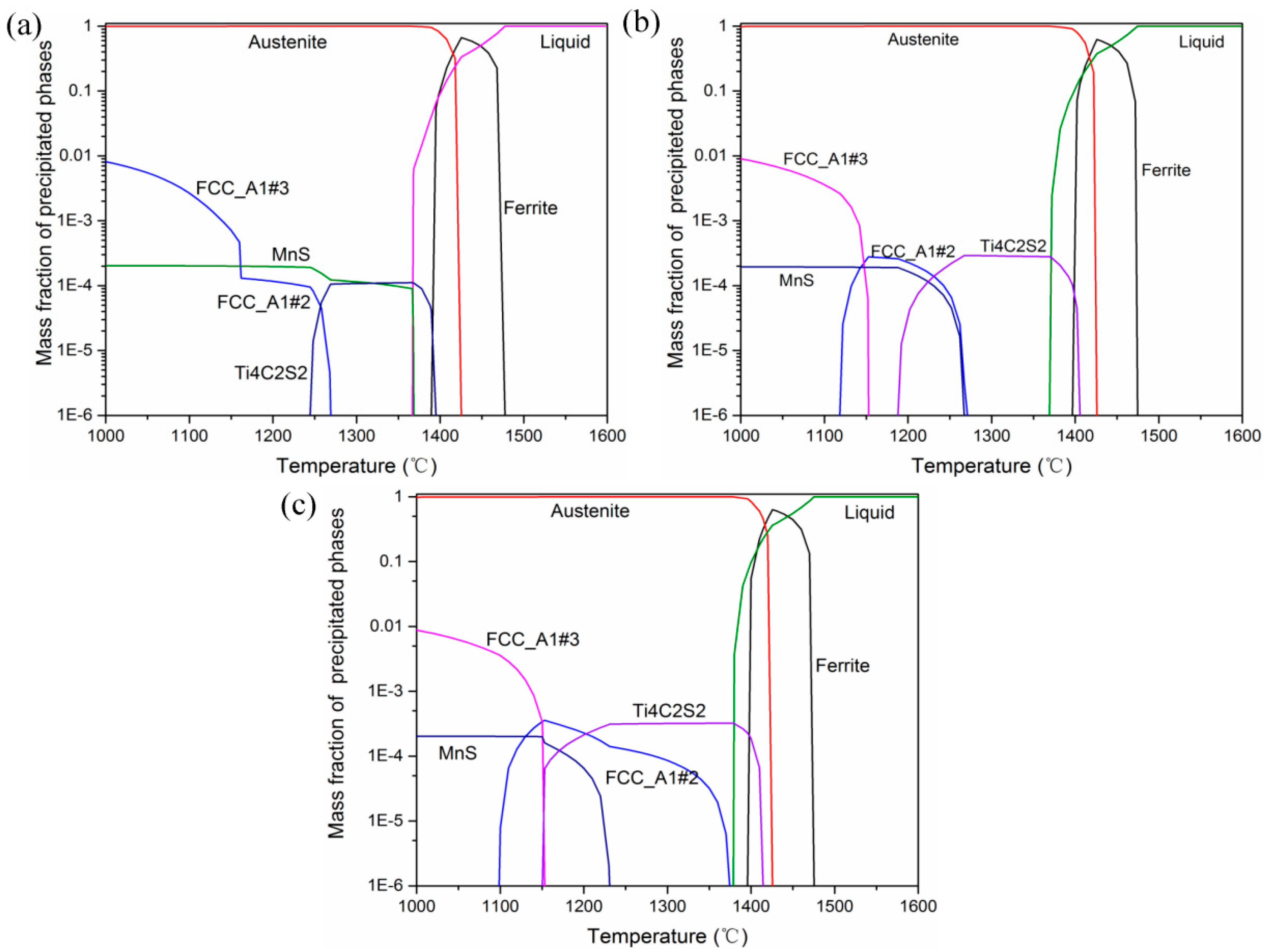

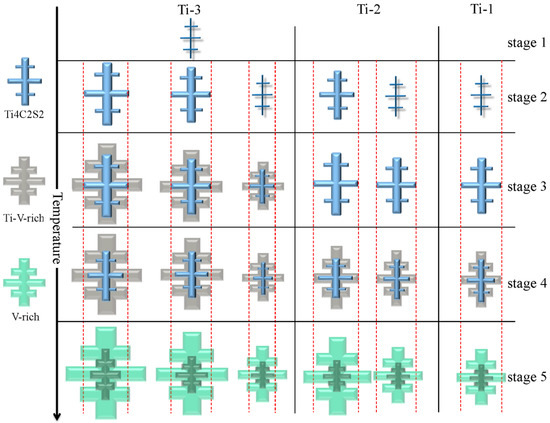

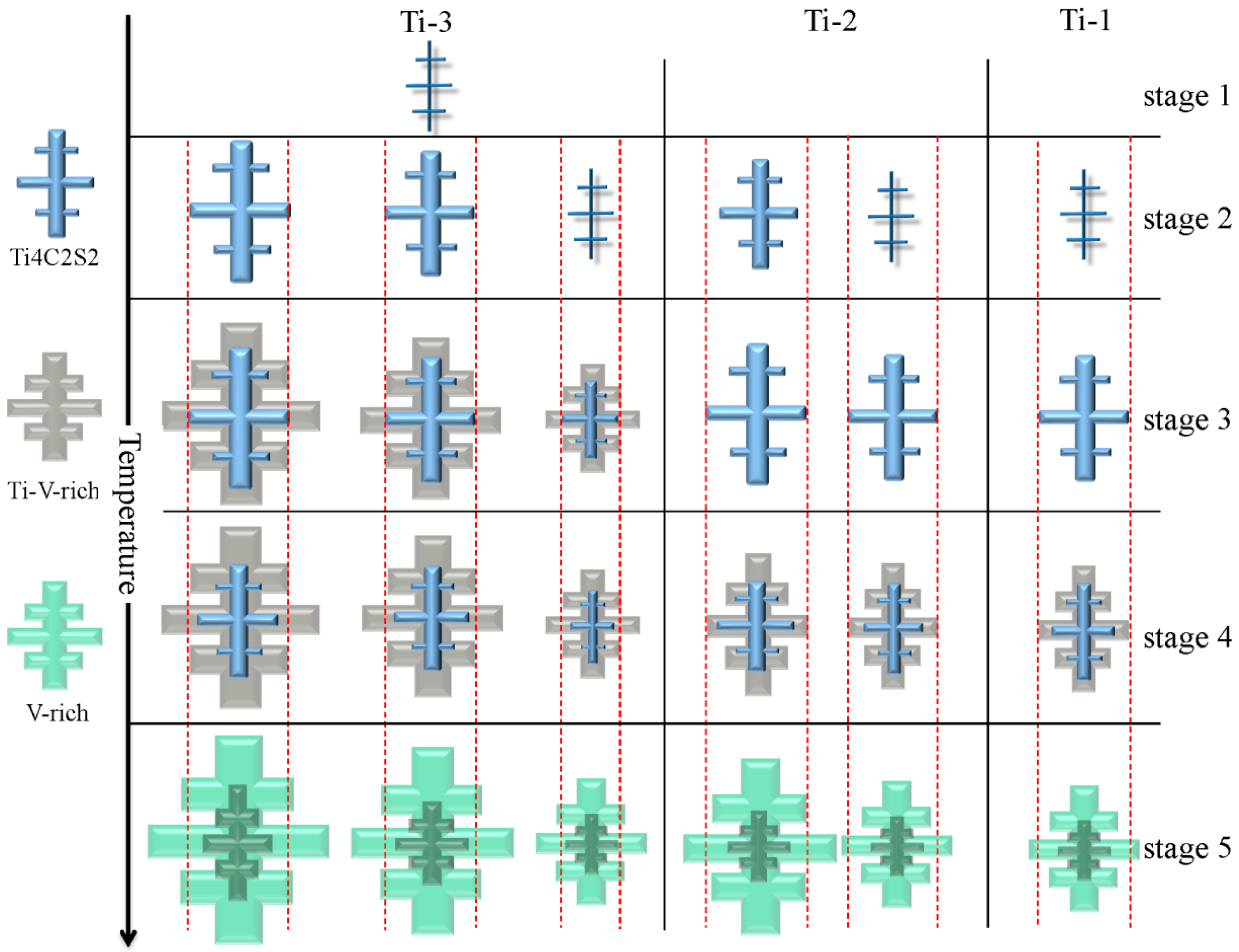

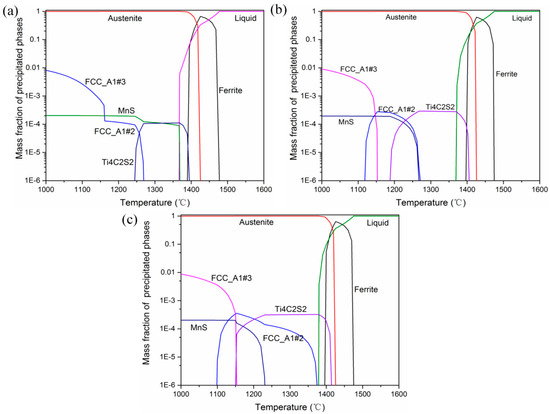

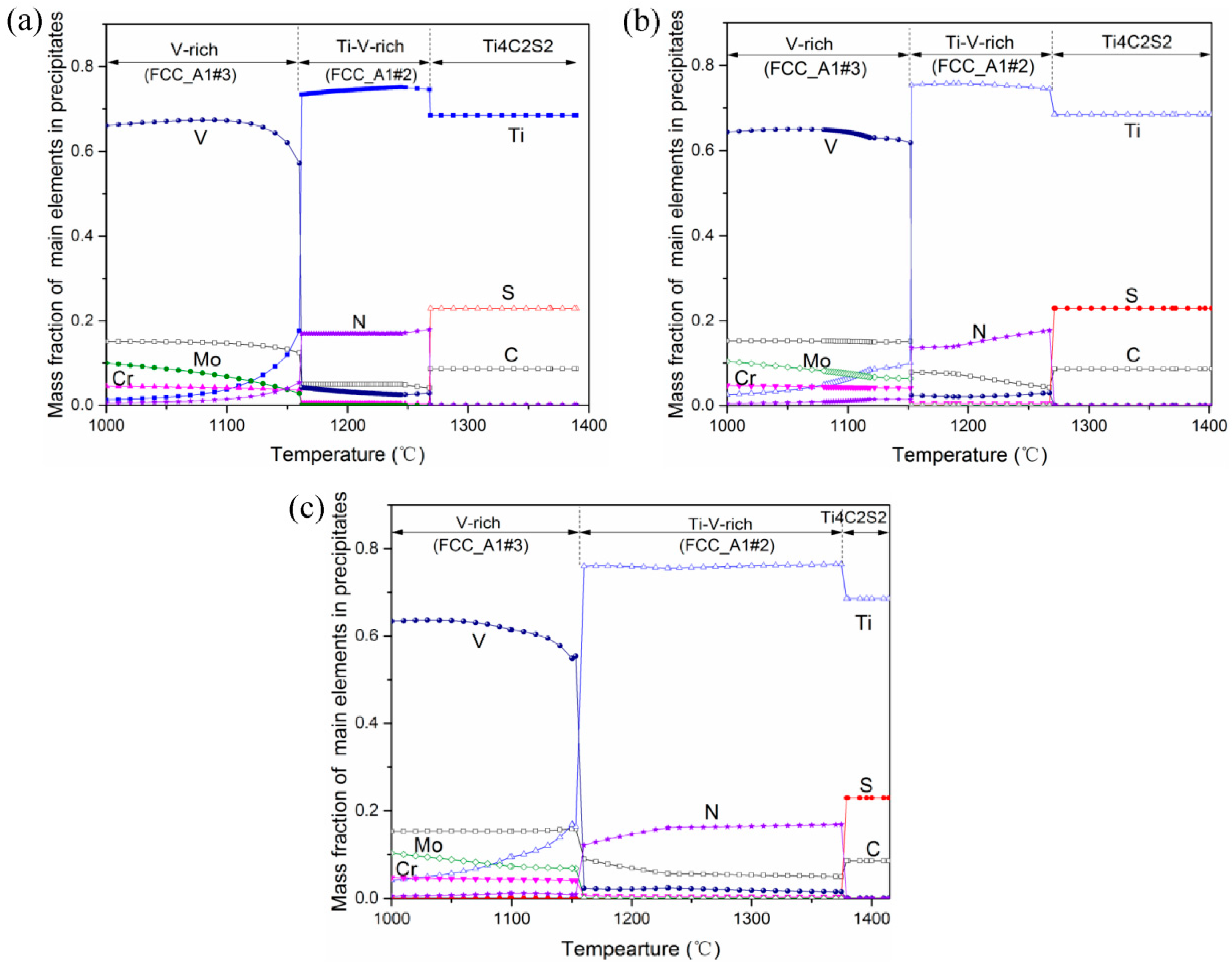

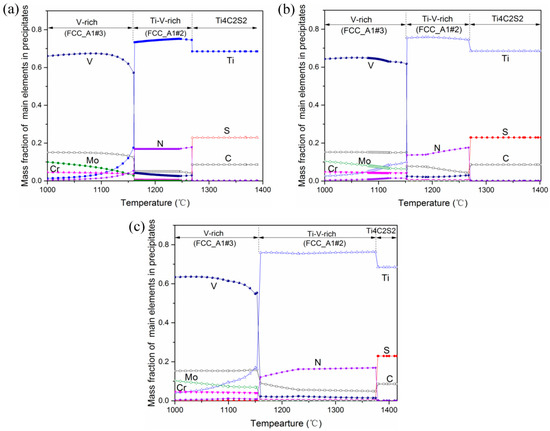

. The Ti4C2S2 phase precipitated first, then changed into Ti–V-rich carbide, and finally further partly transformed into V-rich carbide. The addition of elemental Ti promoted the precipitation and transformation of primary carbides, resulting in an increase of the number density and size.
