Next Article in Journal
Synthesis and Characterization of Thermoelectric Co2XSn (X = Zr, Hf) Heusler Alloys
Previous Article in Journal
A Physics-Based Mean-Field Model for Ferrite Recovery and Recrystallization
Previous Article in Special Issue
Influence of Boron Addition on the Microstructure and the Corrosion Resistance of CoCrMo Alloy
Open AccessArticle

Electrochemical Investigation of the Effect of Process Parameters on the Corrosion Behavior of Aluminum-Cladded Pressure Vessel Steel Using a Friction Stir Diffusion Cladding Process

1
Mechanical Engineering Department, King Fahd University of Petroleum and Minerals (KFUPM), 31261 Dhahran, Saudi Arabia
2
Center of Research Excellence in Corrosion, King Fahd University of Petroleum & Minerals (KFUPM), 31261 Dhahran, Saudi Arabia
*
Author to whom correspondence should be addressed.
Metals 2020, 10(5), 623; https://doi.org/10.3390/met10050623
Received: 10 April 2020 / Revised: 7 May 2020 / Accepted: 9 May 2020 / Published: 11 May 2020
(This article belongs to the Special Issue The Electrochemical and Corrosion Behaviour of Structural Materials)

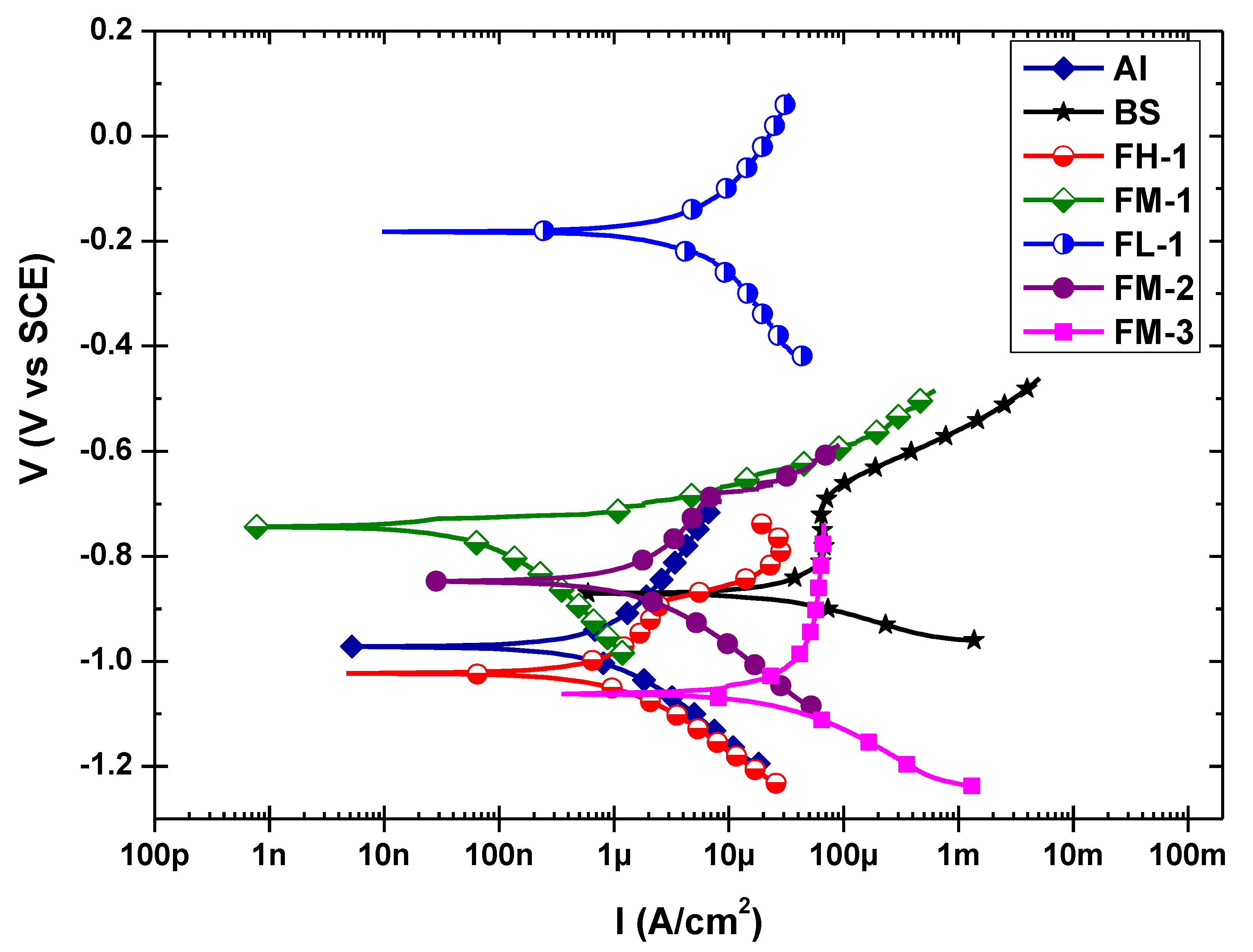

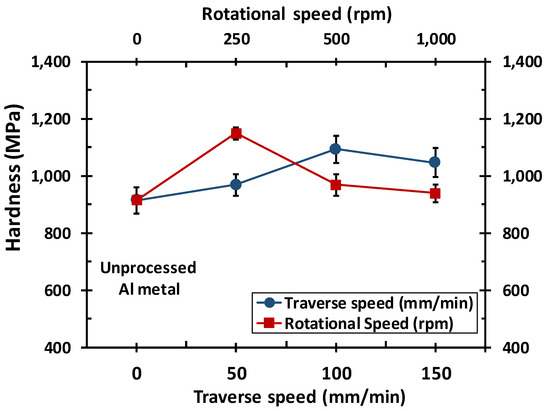

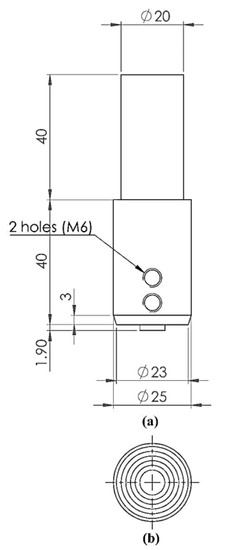

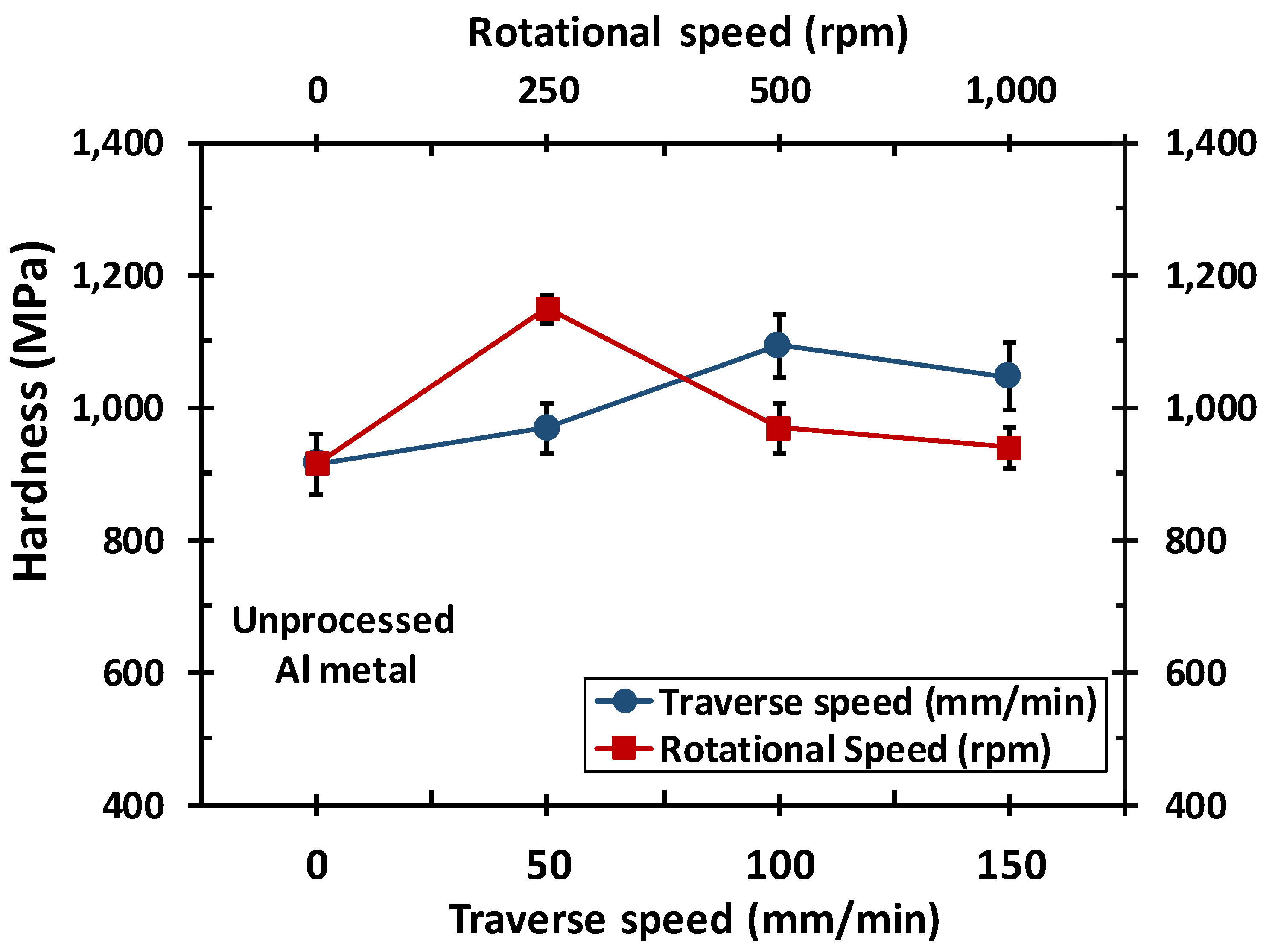

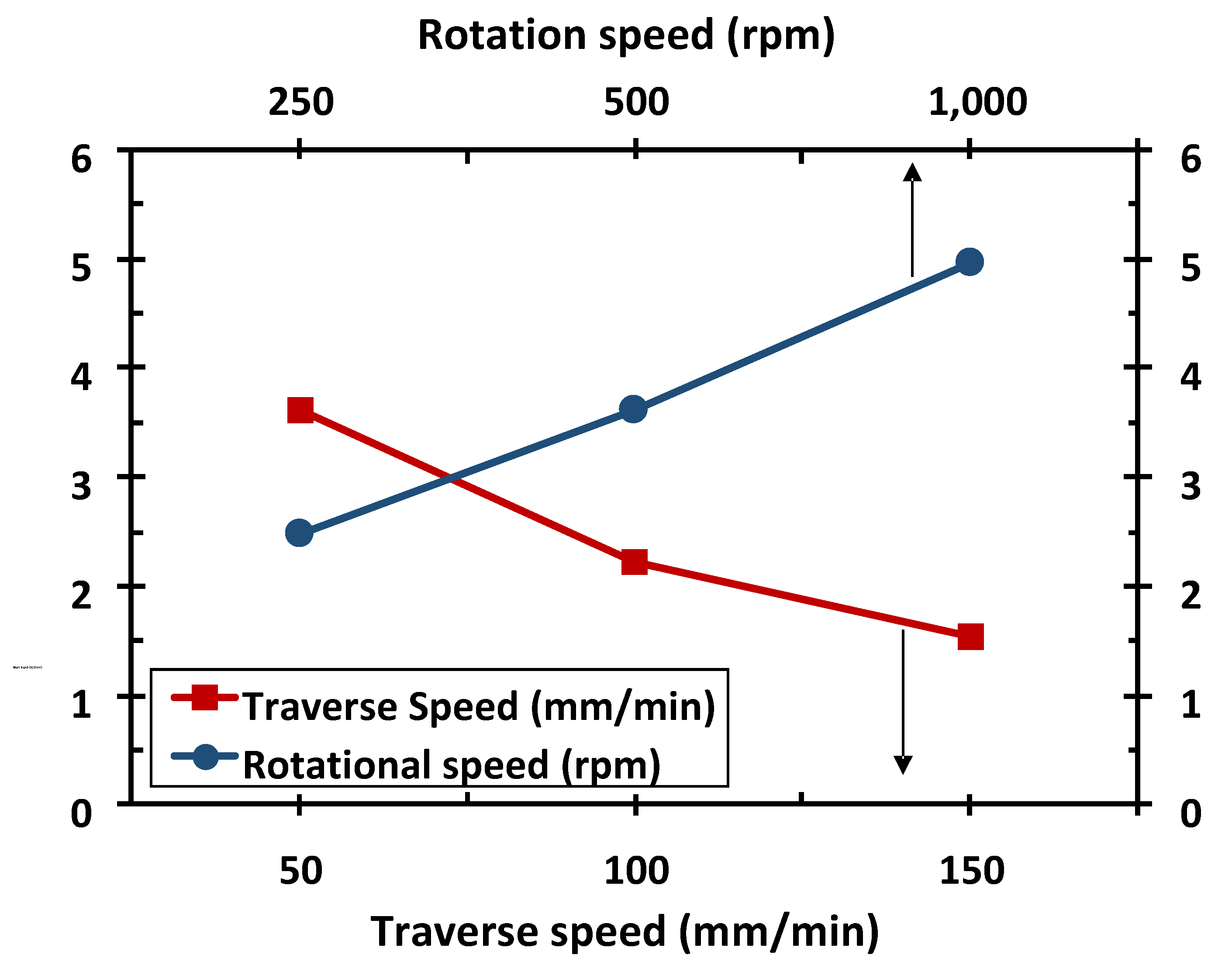

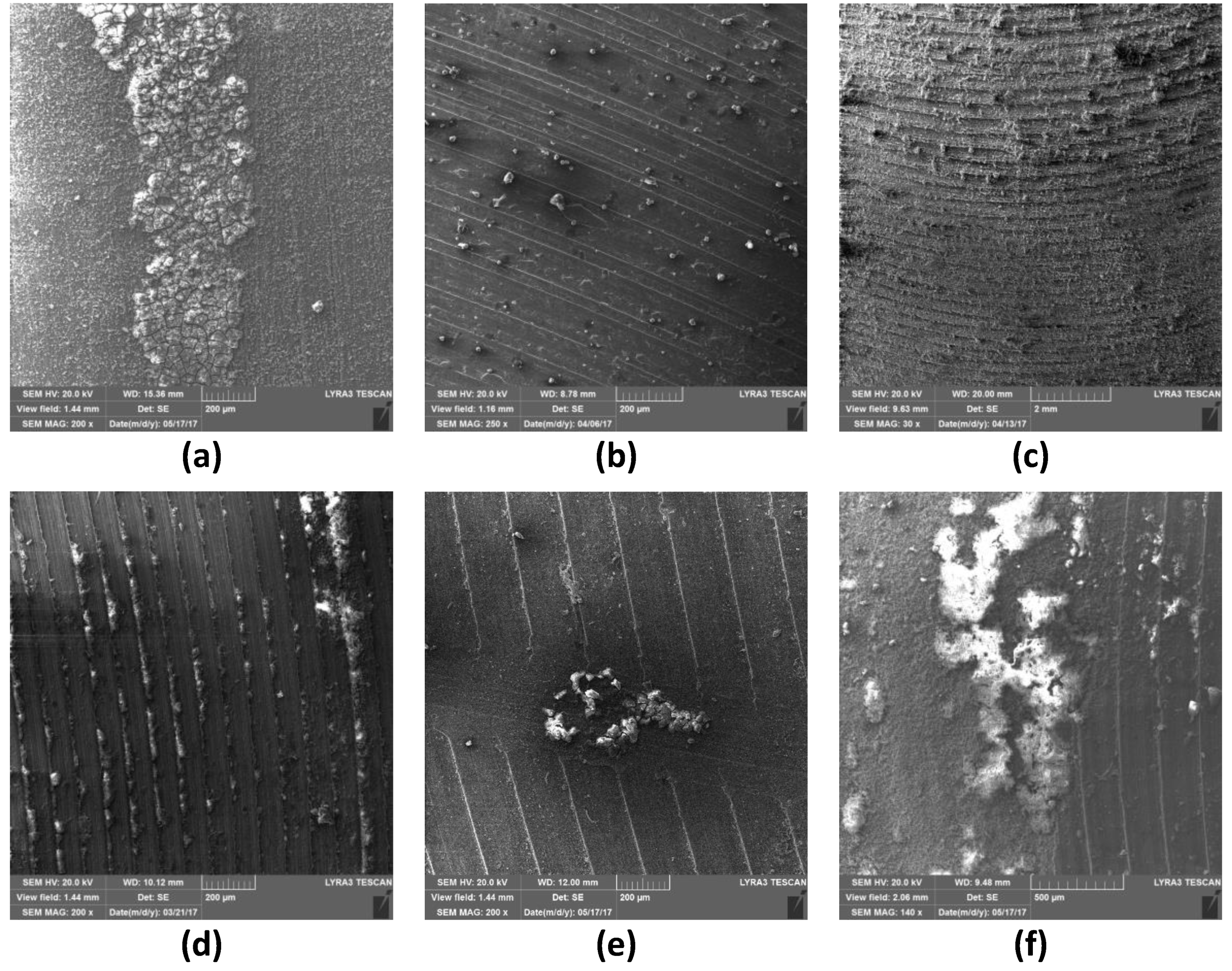

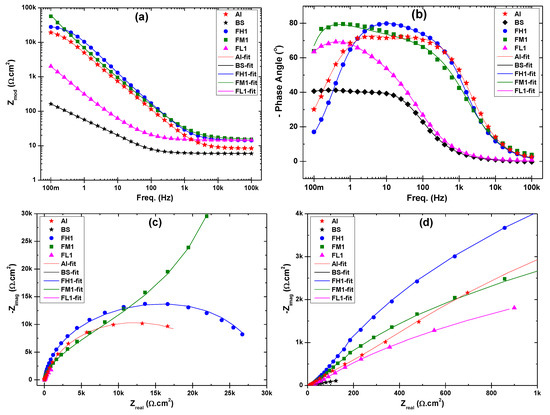

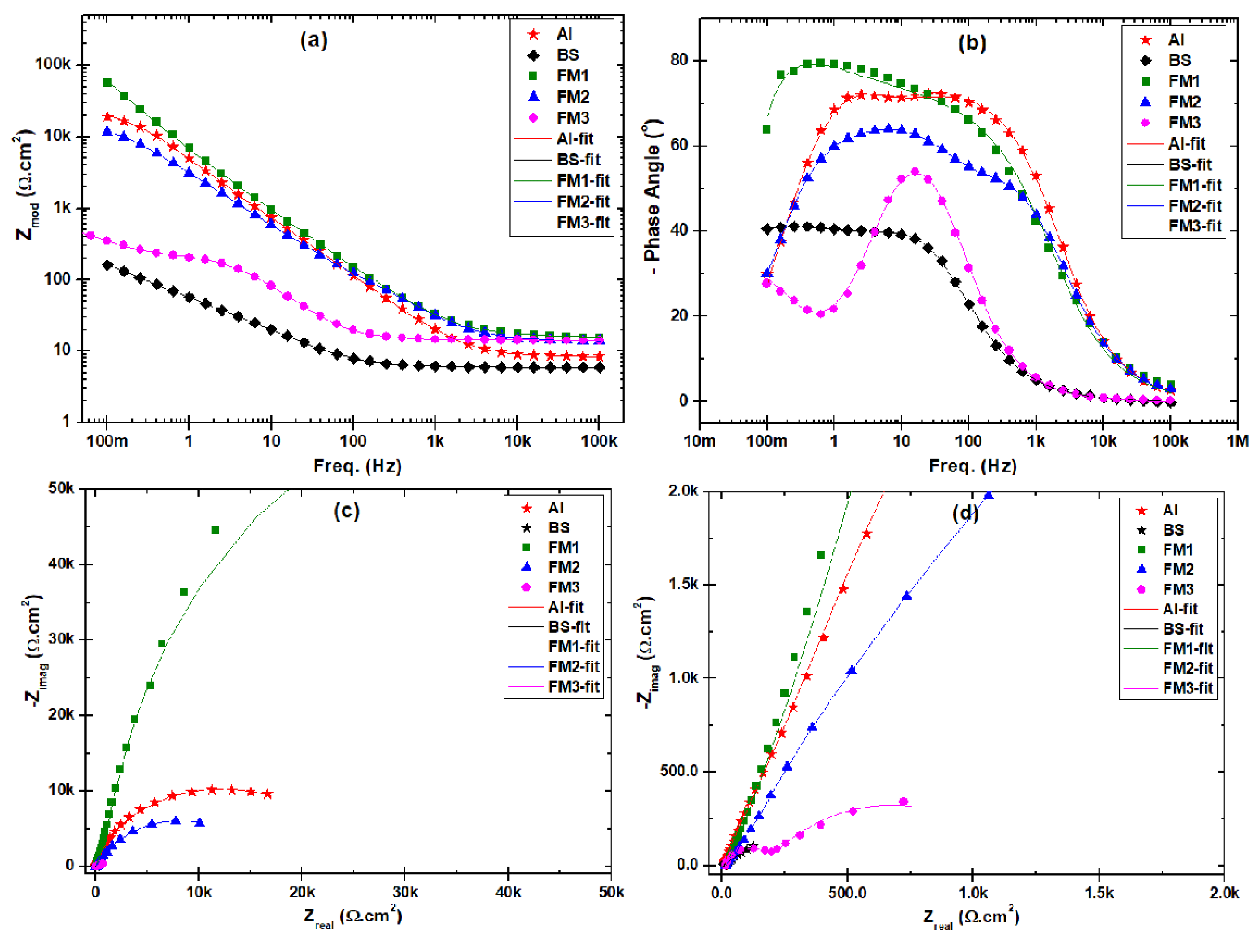

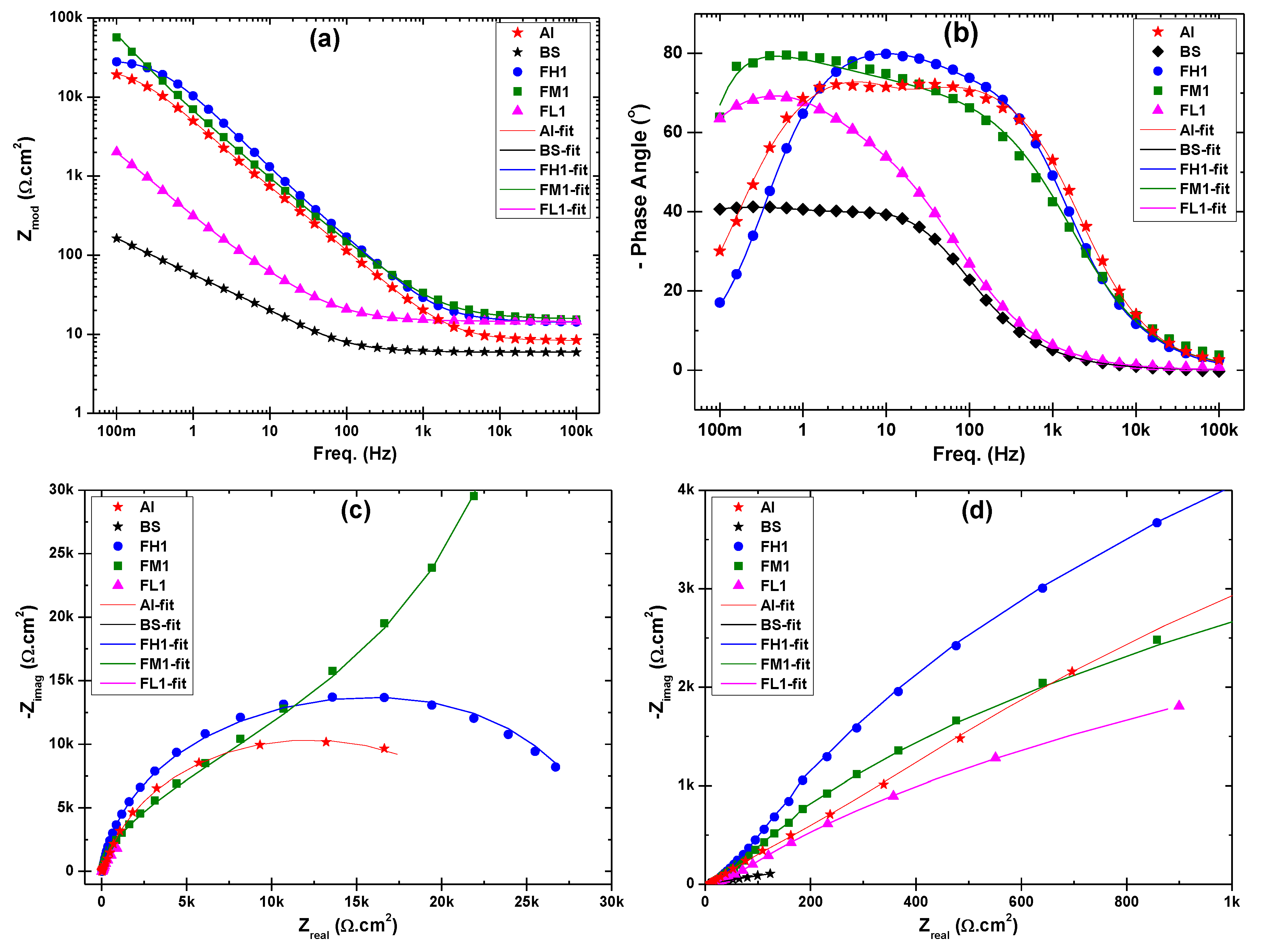

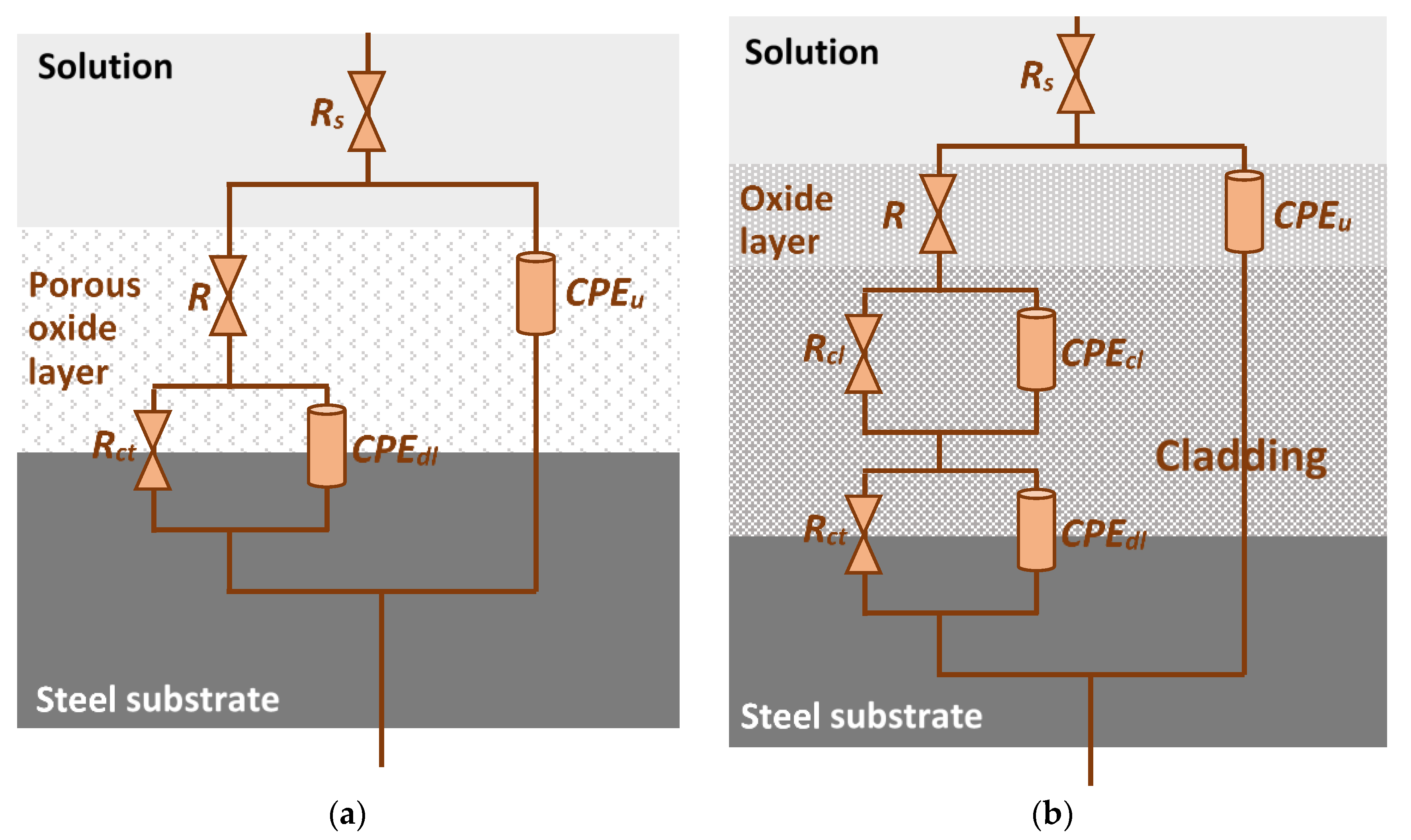

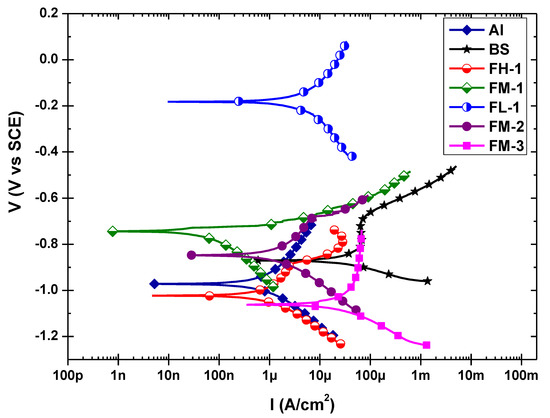

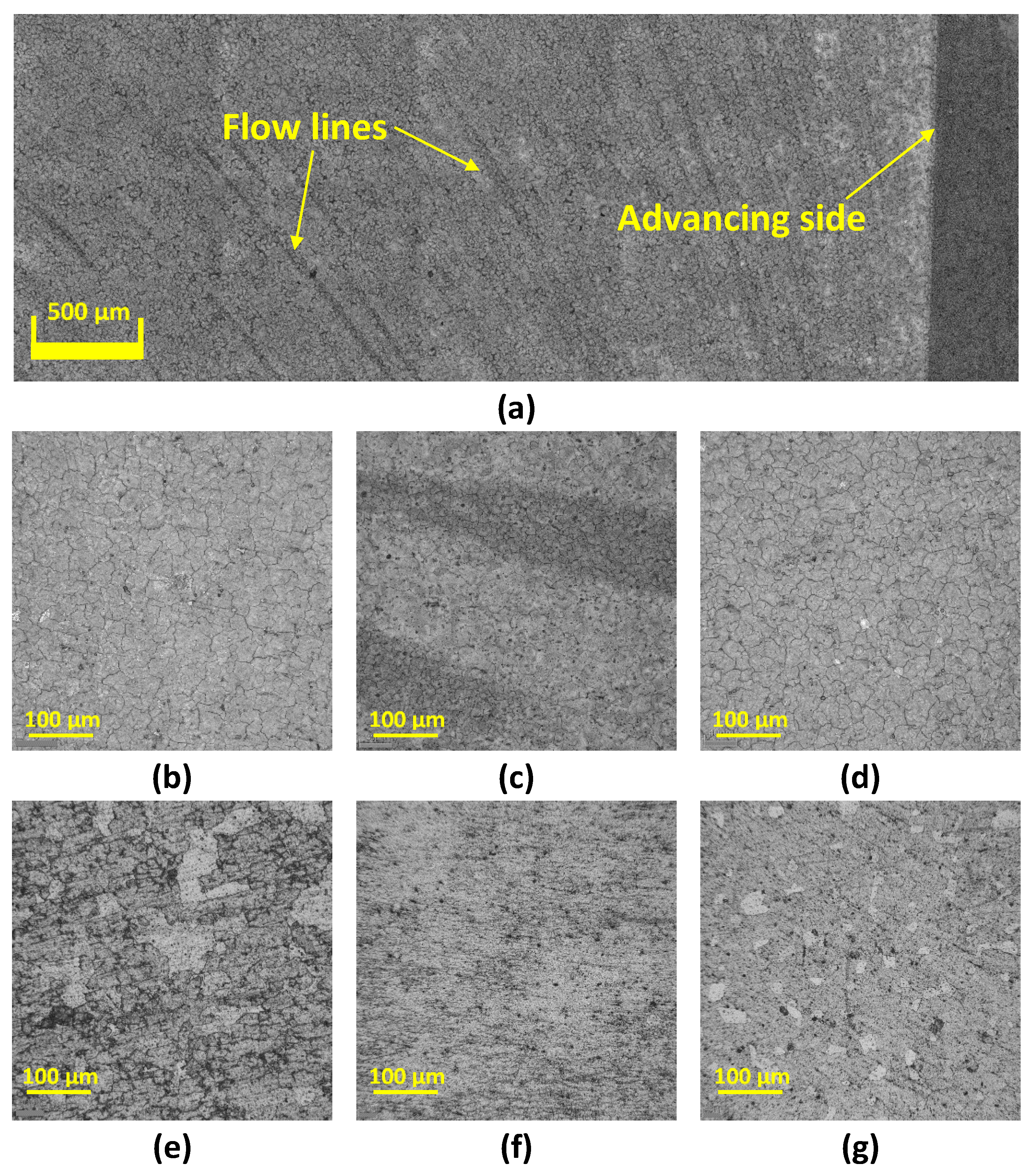

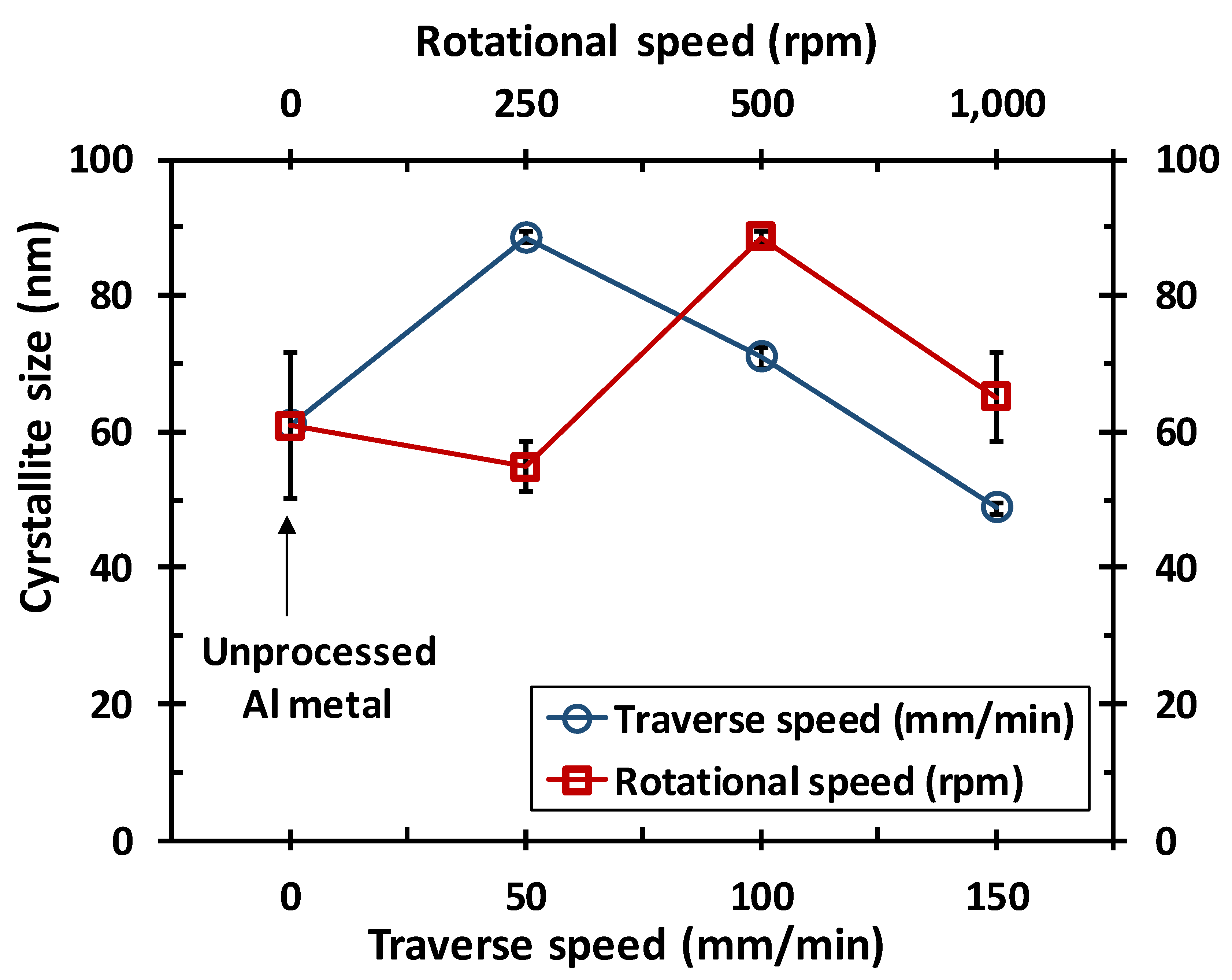

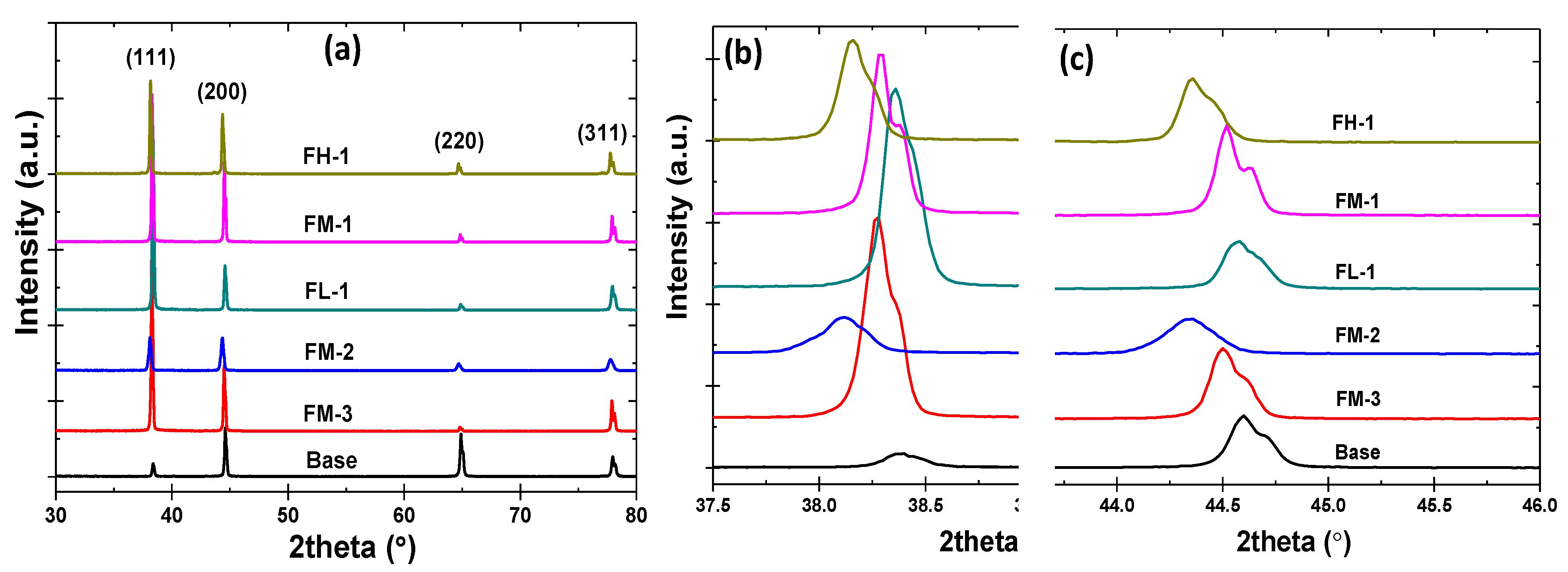

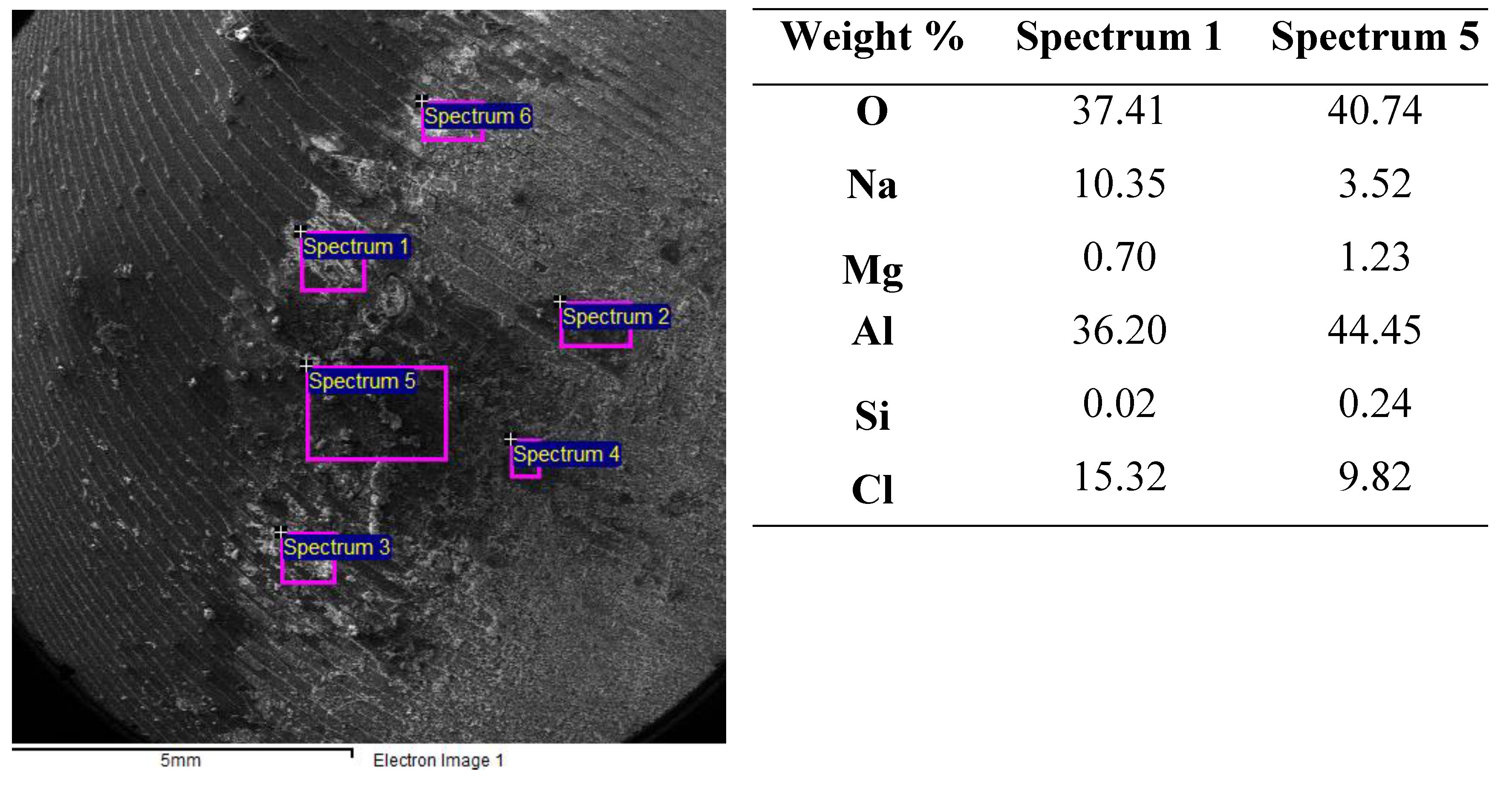

Surface cladding and coatings are commonly used to protect structures against corrosion in corrosive environments. In this paper, electrochemical properties of friction stir diffusion cladded ASTM A516-70 with corrosion-resistant aluminum alloy grade 5052 are studied. The effect of process parameters, tool rotational and traverse speeds on the corrosion behavior of produced cladded steels was comparatively assessed. Electrochemical analyses revealed that the cladded steel sample provided good corrosion protection performance in comparison with the un-cladded steel substrate following an immersion test of up to 21 days in 3.5% NaCl medium. Increasing the tool traverse speed was found to negatively affect the corrosion resistance. Optimum parameters for the selected cladding system were found to be a 500 rpm tool rotational speed, and a 50 mm/min tool traverse speed for protection against general corrosion. Meanwhile, higher traverse speed demonstrated stable passivation behavior and, therefore, lower propensity for pitting localized corrosion. Post characterization of the exposed area indicated that tool shoulder marks were favorable spots for the accumulation of corrosion products. View Full-Text
Keywords: friction stir welding; cladding; corrosion; pressure vessel steel; electrochemical impedance spectroscopy friction stir welding; cladding; corrosion; pressure vessel steel; electrochemical impedance spectroscopy
Show Figures

Figure 1

MDPI and ACS Style

Al-Badour, F.A.; Adesina, A.Y.; Ibrahim, A.B.; Suleiman, R.K.; Merah, N.; Sorour, A.A. Electrochemical Investigation of the Effect of Process Parameters on the Corrosion Behavior of Aluminum-Cladded Pressure Vessel Steel Using a Friction Stir Diffusion Cladding Process. Metals 2020, 10, 623.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
