Next Article in Journal
Ab Initio Calculations on Elastic Properties of IF Steel Matrix Phase at High Temperature Based on Lattice Expansion Theory
Previous Article in Journal
Effects of Microstructure, Mechanical and Physical Properties on Machinability of Graphite Cast Irons
Open AccessArticle

Influence of Martensite Deformation on Cu Precipitation Strengthening

COMTES FHT a.s., Prumyslova 995, 334 41 Dobrany, Czech Republic
*
Author to whom correspondence should be addressed.
Metals 2020, 10(2), 282; https://doi.org/10.3390/met10020282
Received: 31 December 2019 / Revised: 14 February 2020 / Accepted: 15 February 2020 / Published: 21 February 2020

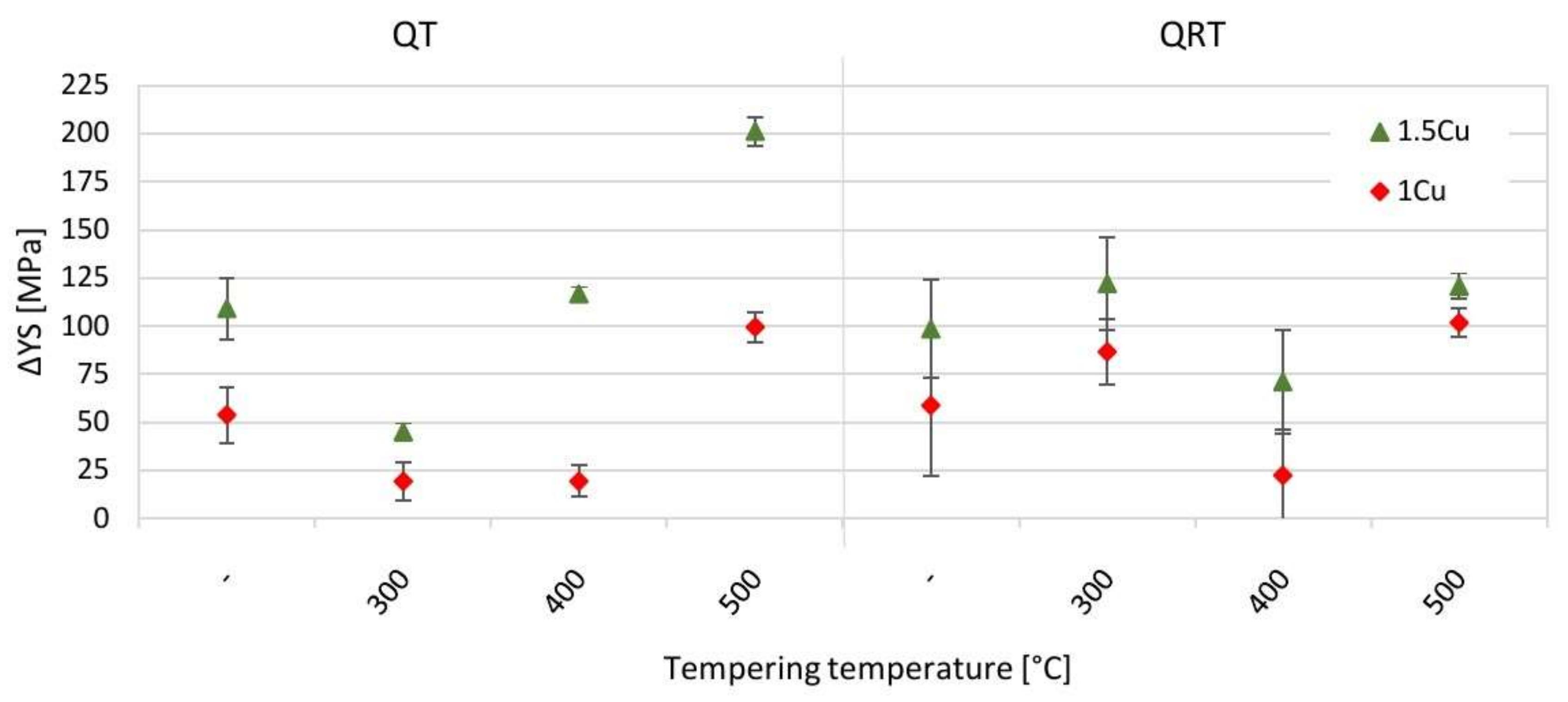

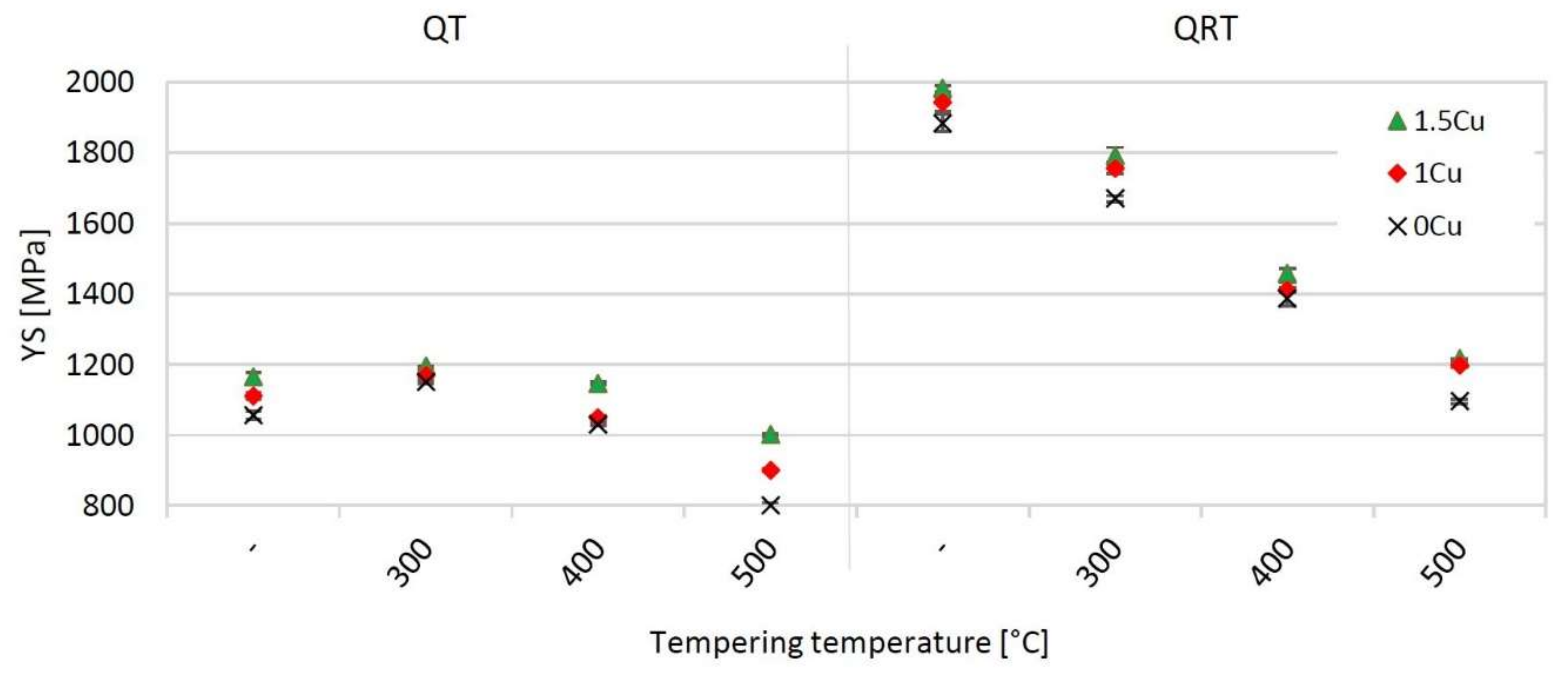

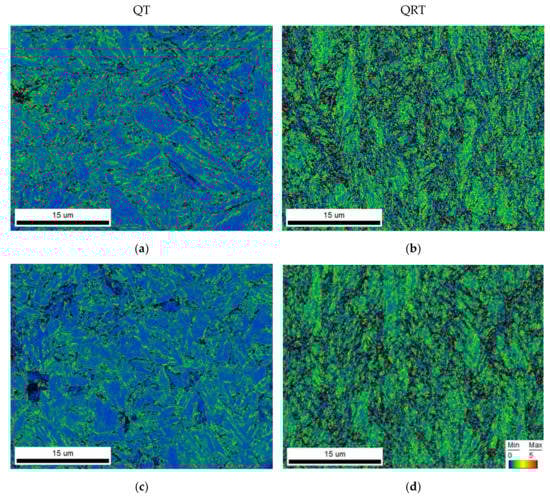

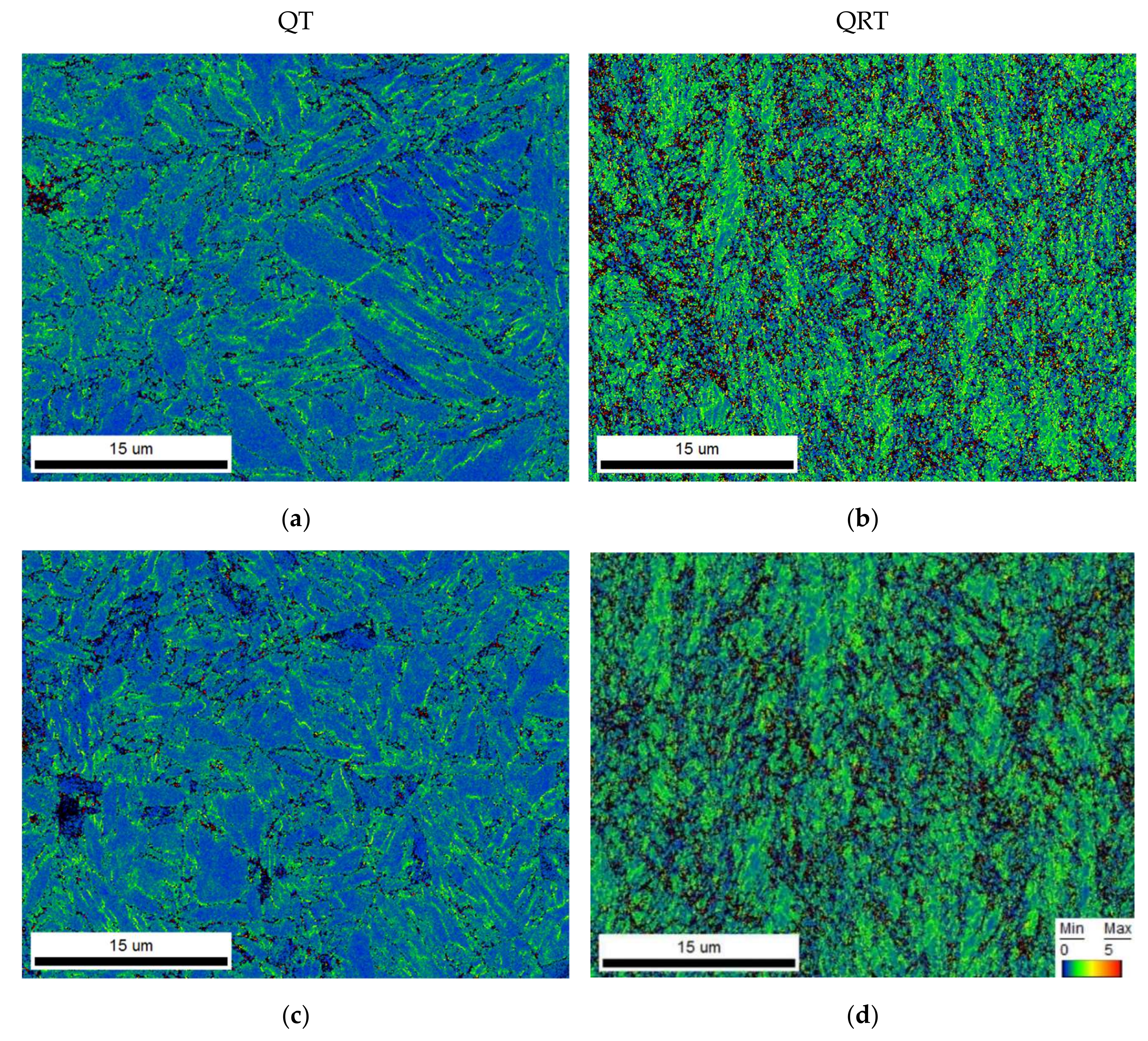

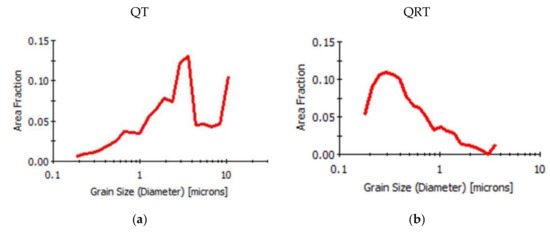

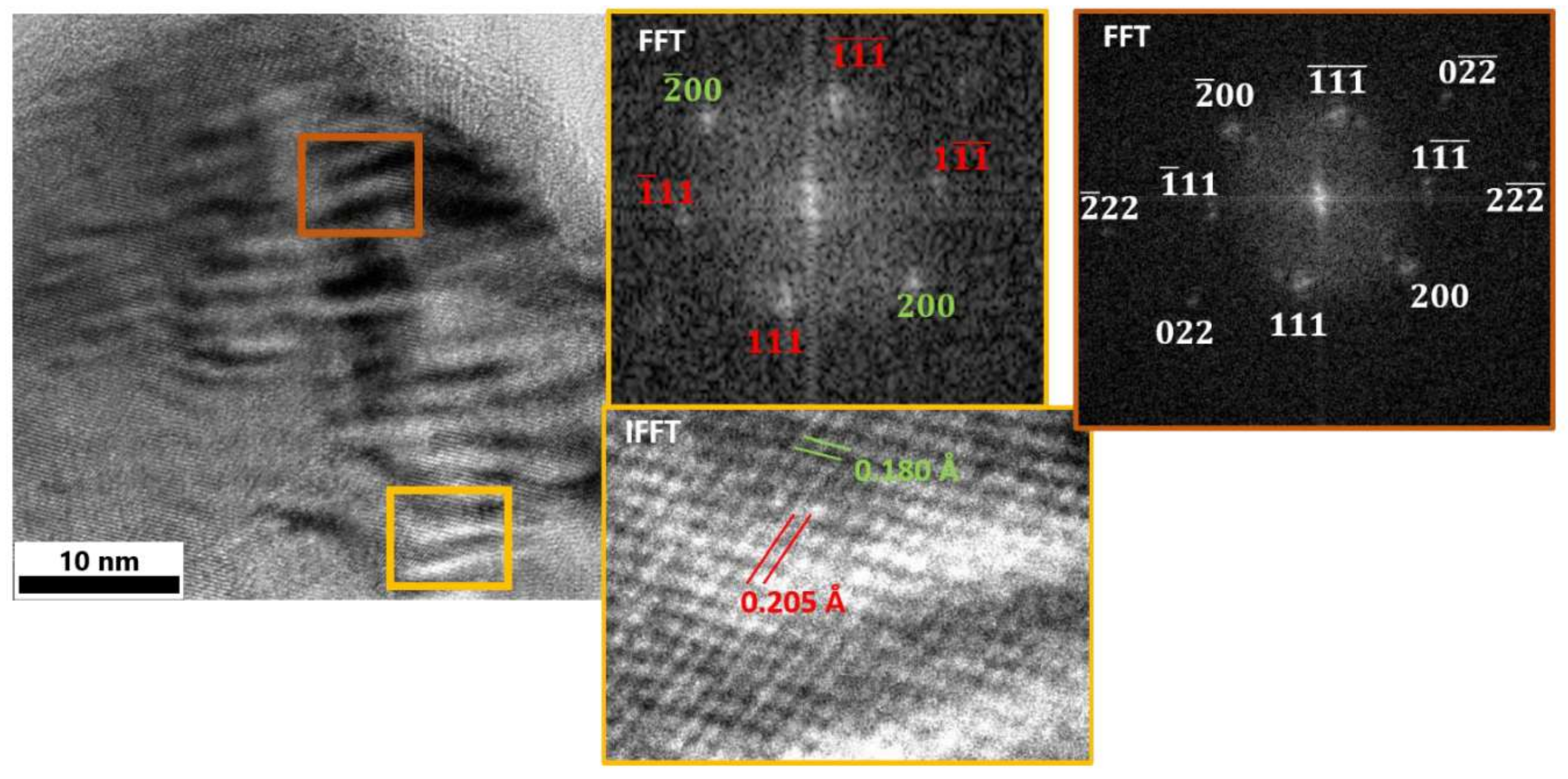

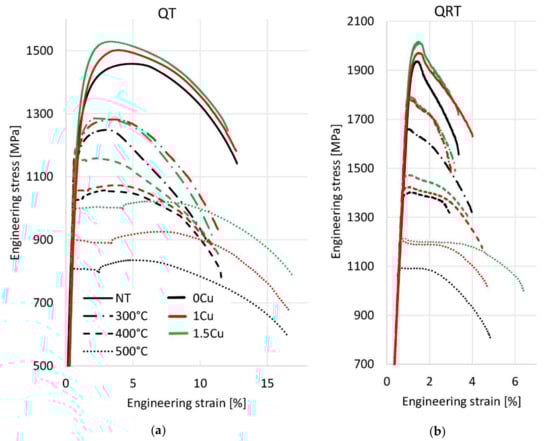

Cu precipitation strengthening was compared in steels after treatments with and without cold rolling. A 0.2% C steel containing up to 1.5% Cu was quenched and tempered. Cu precipitation took place during tempering and increased its yield strength (YS). Quenched and tempered samples were compared with samples where cold rolling was performed between quenching and tempering. They exhibited significantly different mechanical properties. In addition, Cu alloying influenced the properties of each group of samples in different ways. The quenched and tempered samples exhibited behavior that is typical of precipitation hardening. Cu caused yield strength to increase with tempering temperature and time. The cold rolling of martensite reduced the maximal Cu-related strengthening and also eliminated its time and temperature dependence. View Full-Text
Keywords: low carbon steel; copper precipitation; deformed martensite; precipitation strengthening low carbon steel; copper precipitation; deformed martensite; precipitation strengthening
Show Figures

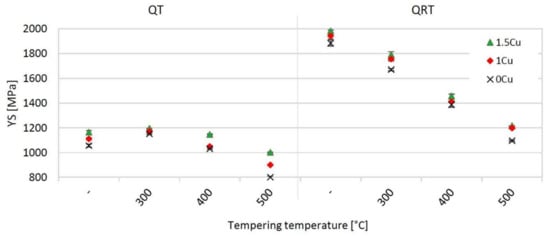

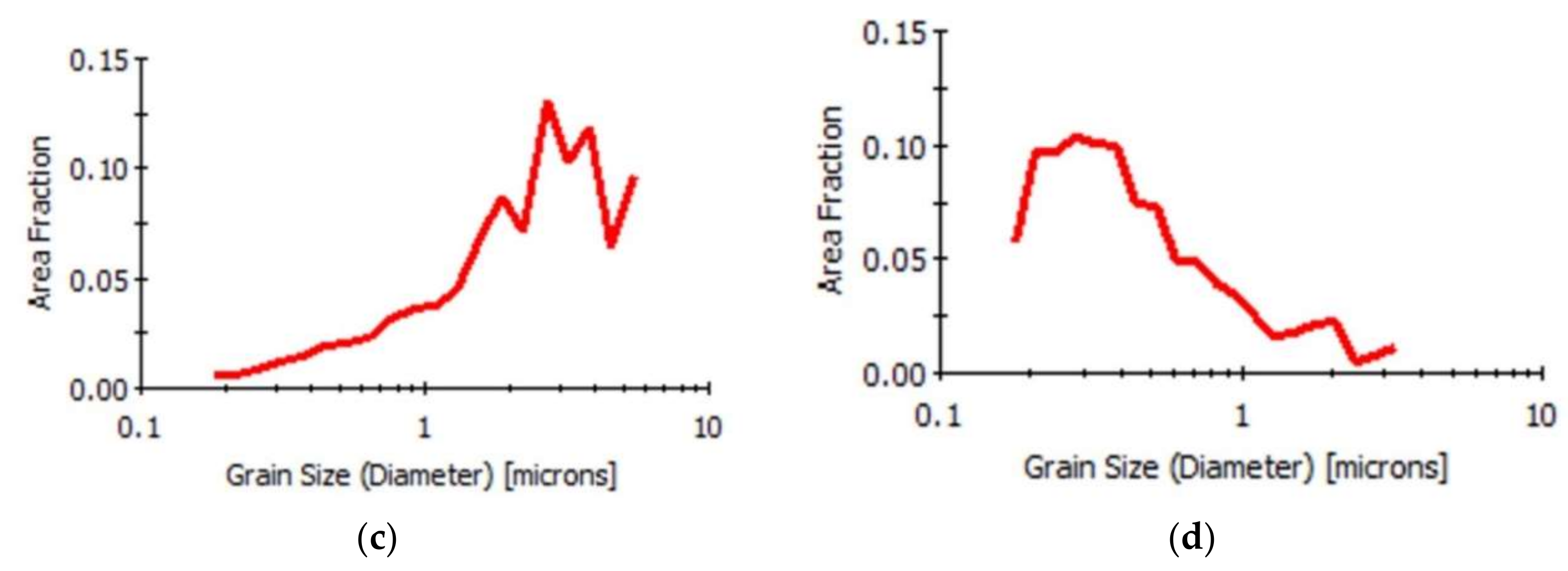

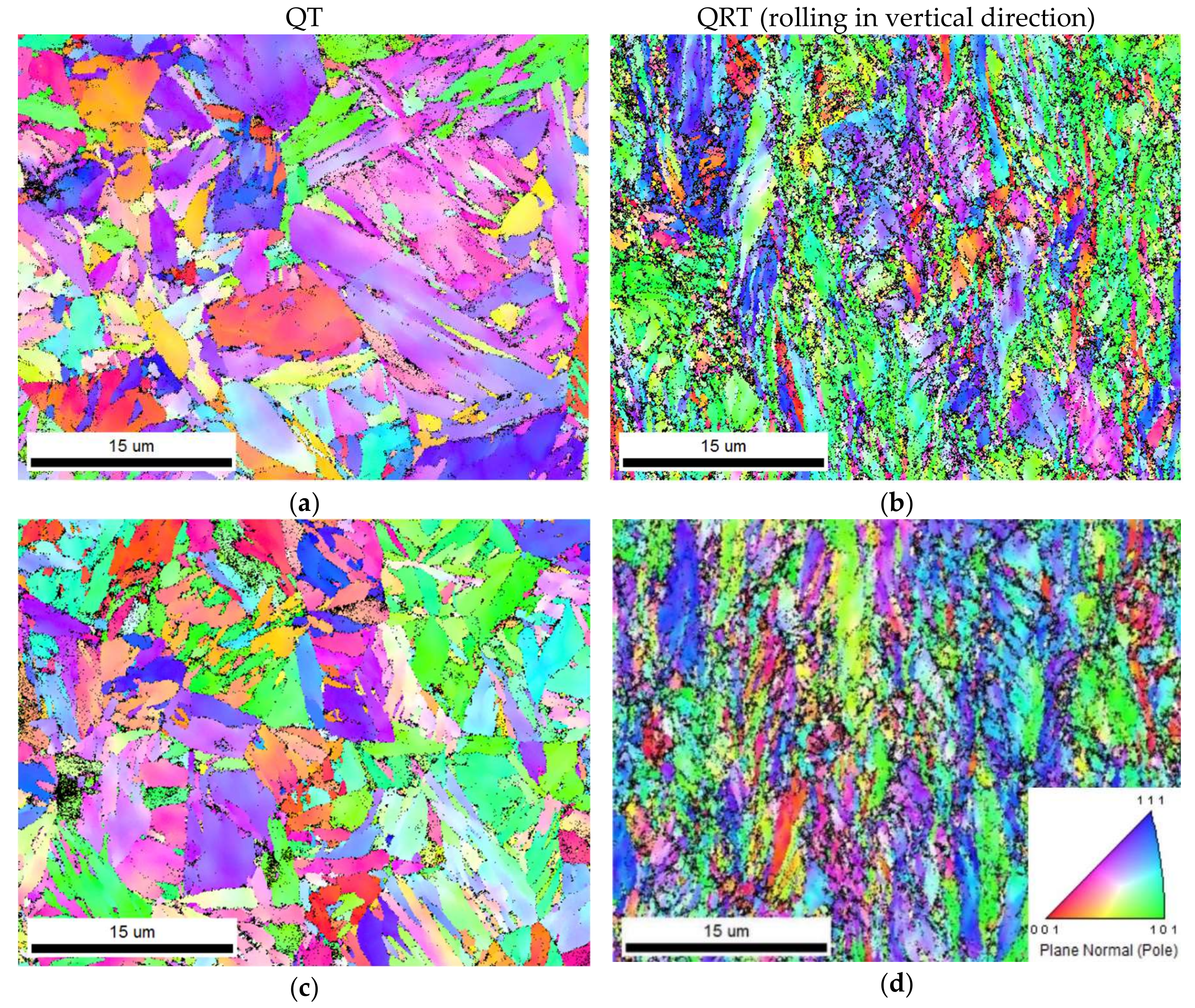

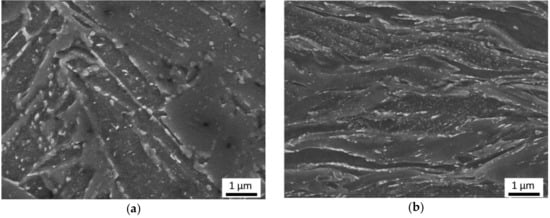

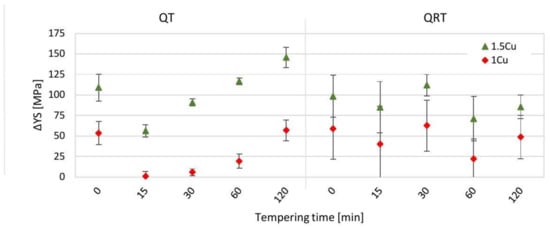

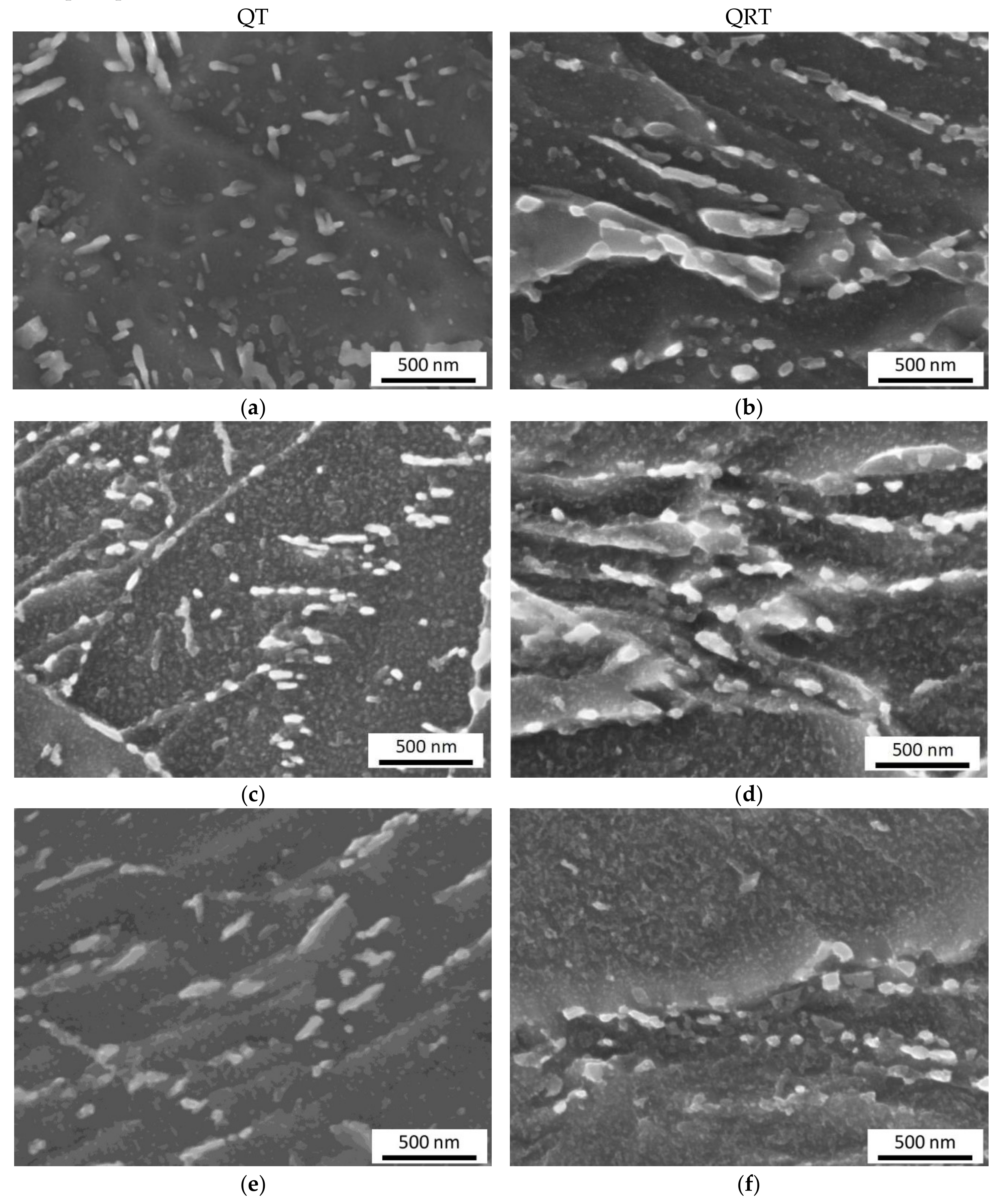

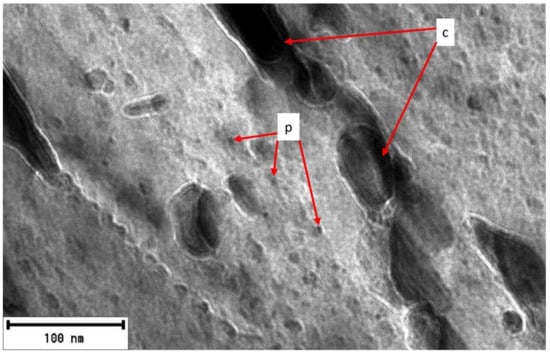

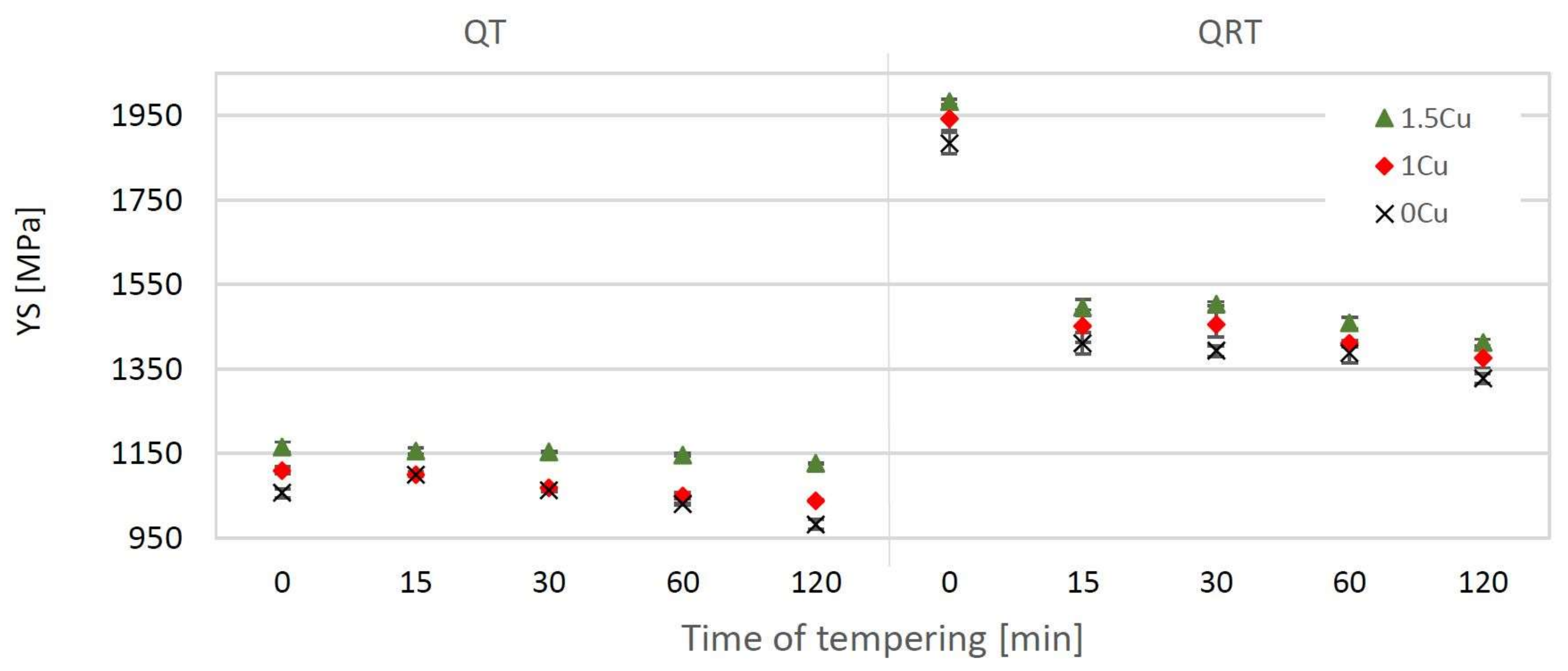

Figure 1

MDPI and ACS Style

Dlouhy, J.; Podany, P.; Džugan, J. Influence of Martensite Deformation on Cu Precipitation Strengthening. Metals 2020, 10, 282. https://doi.org/10.3390/met10020282

AMA Style

Dlouhy J, Podany P, Džugan J. Influence of Martensite Deformation on Cu Precipitation Strengthening. Metals. 2020; 10(2):282. https://doi.org/10.3390/met10020282

Chicago/Turabian Style

Dlouhy, Jaromir; Podany, Pavel; Džugan, Ján. 2020. "Influence of Martensite Deformation on Cu Precipitation Strengthening" Metals 10, no. 2: 282. https://doi.org/10.3390/met10020282

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
