Hybrid Phosphate-Alumina Iron-Based Core-Shell Soft Magnetic Composites Fabricated by Sol-Gel Method and Ball Milling Method

Abstract

Novel Fe-based soft magnetic composites (SMCs) with hybrid phosphate-alumina layers were prepared by both sol–gel and ball-milling methods. The effects of the fabrication methods and the addition of Al₂O₃ particles on the microstructure and the soft magnetic performance of SMCs were studied. The formation of the hybrid phosphate-Al₂O₃ shell not only leads to the decrease of the total core loss, but also results in the reduction of the permeability and saturation magnetization. However, the degree of decrease caused by the different methods were not identical. The sample with 8% Al₂O₃ prepared by the sol–gel method showed the best magnetic performance, exhibiting a high-amplitude permeability (μ_a) of 85.14 and a low total core loss (Ps) of 202.3 W/kg at 50 mT and 100 kHz. The hysteresis loss factor and the eddy current loss factor were obtained by loss separation. The results showed that the samples with the same Al₂O₃ content prepared by different methods exhibited almost the same total core loss. However, the contribution of the hysteresis loss and the eddy current loss showed an obvious difference in behavior because of the change of the particle shapes and the refinement of the particle size during the ball-milling process.

1. Introduction

The eddy currents which appear in ferromagnetic materials are caused by the magnetization in an alternating current (AC) magnetic field as a consequence of Faraday’s law. The ferromagnetic materials that were magnetized in an AC magnetic field would internally-generate the eddy current, a long-existing barrier that limited the applications of the devices at medium to high frequency because of the increase in eddy current loss and the reduction of the permeability [1,2].

Owing to their superior properties, including high permeability, high-frequency stability, 3D isotropy magnetic field, high productivity and, especially, the high electrical resistivity, iron-based soft magnetic composites (SMCs) with a special core–shell structure [3] have attracted broad academic interest and investigations in order to satisfy the requirements of applications in power electronics, transformers and electric motors at medium to high frequency [4,5]. The iron-based SMCs are conventionally prepared by coating insulating materials onto the pure iron matrix to block the path of closed-current loops and the compaction and annealing process [6]. Therefore, the selection of appropriate insulating materials with high electric resistivity and good adhesive strength is vital to minimize the eddy current loss of the SMC cores [7].

The coating layers can be divided into two principal types: organic materials and inorganic materials. Organic materials such as silicon resin [8] and epoxy [9] are the most popular insulating compounds due to their high electric resistivity and good flexibility. However, the application of organic materials in insulating layers is restricted due to their low thermal stability, which may not permit high-temperature heat treatment to eliminate the internal stress that is introduced during the preparation process. Thus, inorganic materials, including phosphates [10], oxides such as SiO₂, Al₂O₃, ZrO₂, Fe₃O₄ [11,12,13] and ferrites such as Ni-Zn ferrites and Mn-Zn ferrites [14,15], have gained greater attention and are increasingly considered as promising insulating materials because of their superior electrical resistance and temperature resistance. Peng et al. [15] fabricated Mn-Zn ferrite-coated iron-based composite particles by a co-precipitation method and studied the soft magnetic properties of the composites. Wu et al. [16] prepared Fe/SiO₂ composite particles via a reverse micro-emulsion method and investigated the effects of the addition amounts of SiO₂ and the heat-treatment temperatures on the permeability and the total core loss of the composites. Though the above composite particles [15,16] have been fabricated, it was difficult to ensure the homogeneity of the coatings to be applied in industrialization. In addition, the insulating layer is easily peeled off because of the poor adhesiveness to the matrix, which would result in the direct contact between core particles. In comparison to the oxides and nano-ferrites, phosphates show the advantage of better adhesiveness to the iron matrix, good homogeneity of coatings and the potential of industrialization because of the simple preparation process and more limited equipment required. However, a previous paper [17] has reported that the phosphate coatings would crystalize or decompose at a relatively high temperature (above 500 °C), dramatically decreasing the electric resistivity. Huang et al. [18] investigated the effect of annealing temperatures on the composition and the magnetic properties of the phosphate-coated SMCs; their results showed that phosphate coatings degrade into iron phosphide after annealing at 600 °C, and the magnetic properties worsened as a result. Owing to the high bond energy of the Al-O covalent bond, Al₂O₃ possess high electrical resistivity and high temperature resistance. However, neither the single phosphate coating nor the alumina could satisfy the requirement of the application at high frequency. Therefore, hybrid phosphate–alumina iron-based soft magnetic composites are promising to effectively reduce the total core loss to broaden the frequency of industrial applications.

Owing to the advantages such as low equipment requirements, easy operation and economic efficiency, the mechanical milling method and the sol–gel method are two of the most widely used methods to prepare SMCs. In this work, novel hybrid phosphate–alumina iron-based SMCs were fabricated first by phosphating and then by coating with Al₂O₃ via two methods, namely sol–gel and mechanical milling. The hybrid-coated SMCs retained relatively high permeability and showed very low core loss. The effects of the Al₂O₃ content and the different preparation methods on the soft magnetic properties of the composites were studied in detail.

2. Preparation and Characterization

Gas-atomized iron powders with a particle size ranging from 75 μm to 250 μm were conducted to achieve the desired size ratio, annealed at 700 °C for some time, twice cleaned in absolute ethyl alcohol, and dried at 60 °C for five hours before the passivation. Then, 50 g iron powders were mixed with a certain amount of ethanol-diluted orthophosphate acid with a concentration of 0.01 g/mL, and the mixture were stirred in a solution of 65 °C until the solvent completely evaporated to obtain the phosphate-coated particles.

The sol–gel method and the ball-milling method were used to prepare Fe @ phosphate particles to obtain powders with the hybrid coating. A certain amount of aluminum oxides were dissolved in 100 mL of ethanol and was magnetically stirred at room temperature for 1 h to obtain the aluminum sol. Then, some as-prepared Fe/phosphate powders were dispersed in the solution using a spiral mixer for 15 min. A mixture of distilled water and ethanol (1:3 (V/V)) was added dropwise, acetic acid was added to adjust the pH value to around four, and the mixture was continuously stirred for 1.5 h. Subsequently, the suspension was separated and washed with ethanol three times and dried. Finally, the powders were calcinated at 600 °C for 2 h under a nitrogen atmosphere.

As for the ball-milling method, the weight ratio of ball to powders was set to 10:1 and a mixture of the as-prepared Fe/phosphate powders and the α-Al₂O₃ nanoparticles with the weight percent of 2 wt%–8 wt% were carried out at a speed of 200 rpm for 30 min. All of the above powders were mixed with the lubricant of Zinc stearate (0.5 wt%) and were pressed at an uniaxial pressure of 800 MPa at room temperature to obtain the ring-shaped compacts with an external diameter of 20 mm, an inside diameter of 12 mm and height of approximately 3.4 mm.

An X-ray diffractometer using Cu-Kα radiation was used to analyze the phases of the samples. The morphology and composition of the powders were detected by a scanning electron microscopy (SEM, Nova NanoSEM 450, FEI, USA) equipped with an energy-dispersive X-ray Spectroscope (EDS, Ultra, EDAX, USA), whose resolutions were 1.0 nm at 15 kV and 0.8 nm at 30 kV. All of the SEM images were magnified 1000 times and a metallographic analyzer produced by a Shanghai optical instruments factory was used to characterize the microstructure. The soft magnetic properties of the ring-shaped compacts were determined by a hysteresis looper (MATS 2010SA) at a frequency ranging from 5 kHz to 100 kHz and a magnetic excitation level of 0.05 T; the uncertainty of measured μ_a and total loss were less than 3% and 5%, respectively. The vibrating sample magnetometer (VSM) was conducted to measure the saturation magnetization of the compacts; the accuracy and repeatability were less than 1% and 5%, respectively.

3. Results and Discussion

3.1. SMCs with Single Phosphate Coating

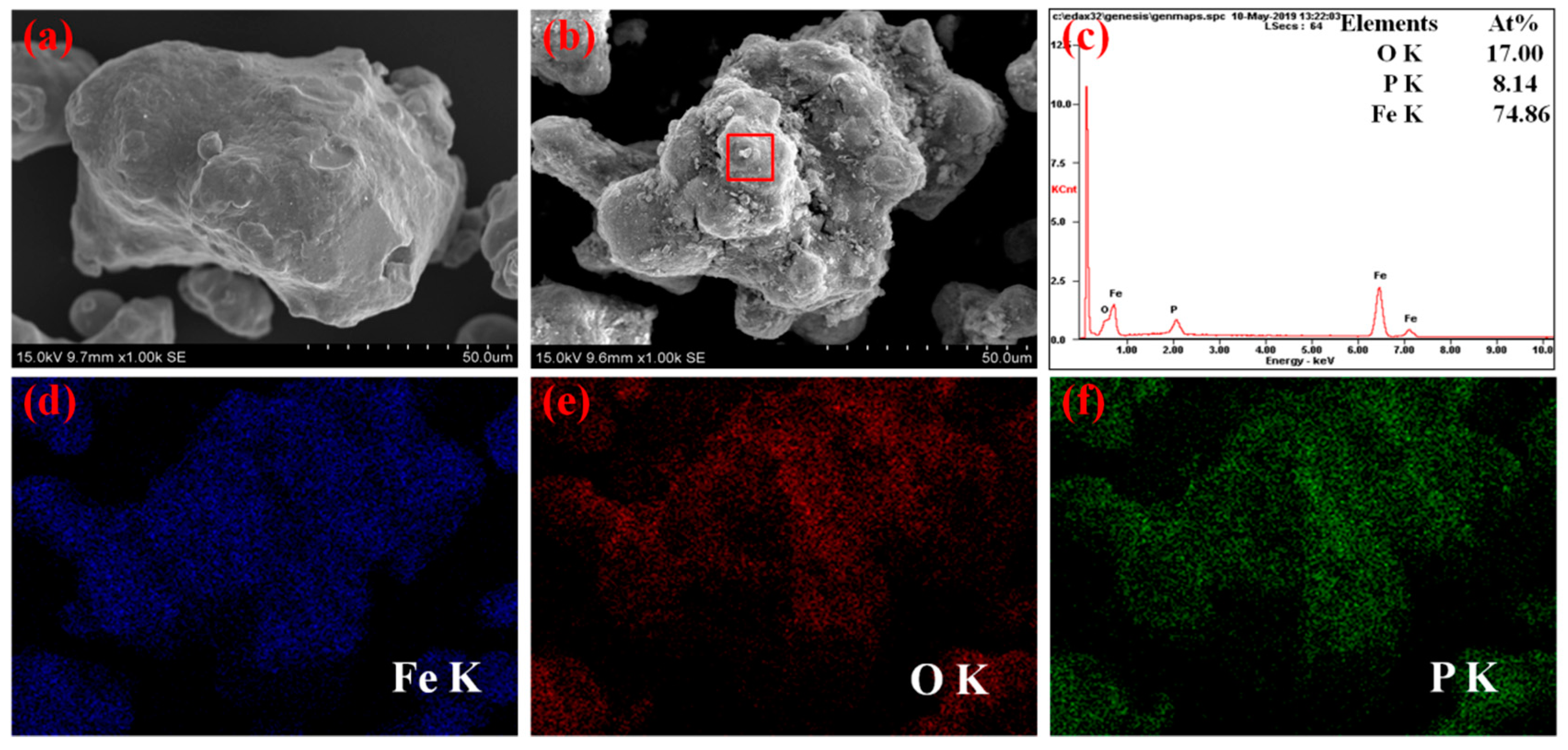

Figure 1 shows the SEM images of the raw iron powders, the phosphated powders, and the EDS (energy disperse spectrum) analysis and maps of the phosphated powders. Results suggest that the coated powders keep the same irregular shape and only show a rougher surface than the raw iron powders. Figure 1c, which displays the EDS analysis of the selected area of the phosphated iron particle, indicates the existence of Fe, O and P on the surface of the phosphated particles. In addition, the EDS maps show that the iron, oxygen and phosphate elements distribute on the surface of the coated powders. Therefore, it can be concluded that the phosphate insulating layers were formed during the phosphating process.

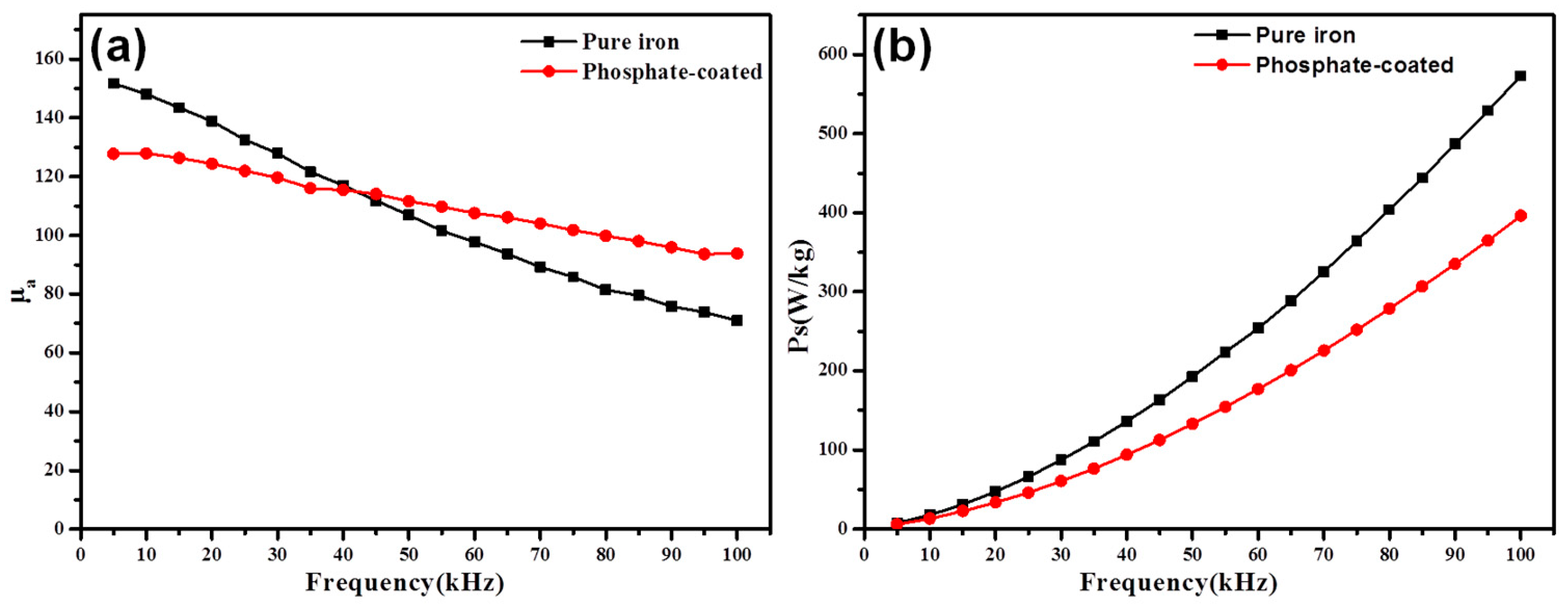

Figure 2 reveals the influence of the phosphating on the permeability and the total core loss of the compacts at 50 mT external magnetic field. The permeability of the as-coated sample is 127.7 at 5 kHz and is not as high as that of the pure iron sample due to the magnetic dilution effect of the non-magnetic materials [19]. The presence of non-magnetic phosphate between the magnetic cores plays the same role as air gaps, which would create a demagnetizing field in the entire magnetic circuit, resulting in lower permeability at low frequency. However, owing to the greater frequency stability, the permeability of the coated sample is superior to that of the pure iron sample at 100 kHz. At high frequency, the phosphate with strong resistivity leads to a lower eddy current. The increased eddy current caused by the high-frequency AC field in the pure iron sample circulates in the opposite direction to the applied field, which results in the decrease of the excited magnetic field and permeability [17,20].

The total core loss of the as-coated sample (shown in Figure 2b) is approximately two thirds of the pure iron sample at 100 kHz. This can be explained by the blocking effect of the phosphate insulation layer on the inter-particle eddy current loss, which is the main contributor to the total core loss at high frequency.

3.2. SMCs with Hybrid Phosphate–Alumina Coating

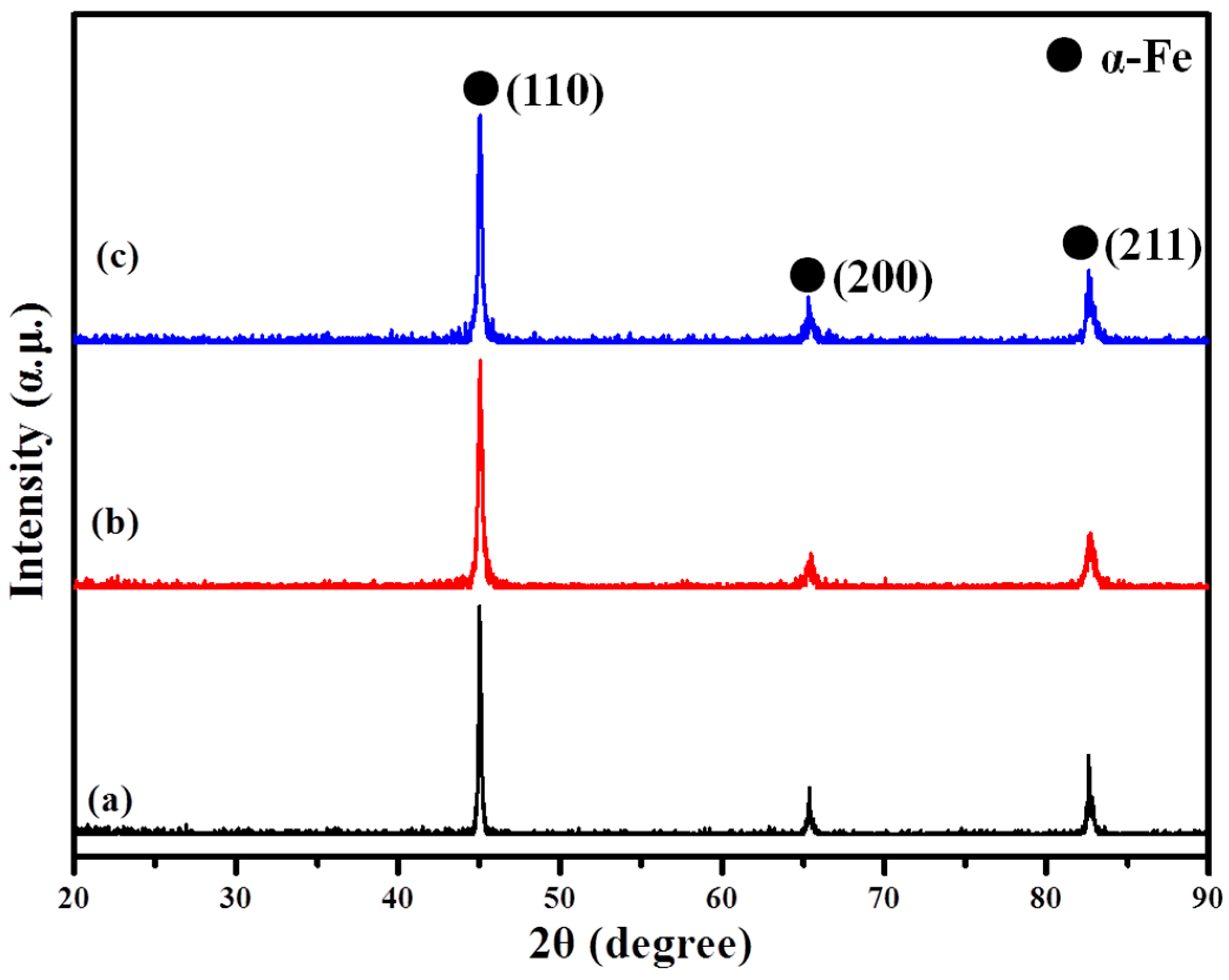

The XRD patterns of the pure iron particles and the hybrid-coated particles are displayed in Figure 3. The diffraction peaks at 2θ = 44.667°, 65.000° and 82.366° correspond to the (110), (200) and (211) planes of the α-Fe phase (JCPDS 06-0696). The XRD patterns of the coated powders are not obviously different from those of the original. Only the diffraction peak intensity of the α-Fe phases of the hybrid-coated powders via the ball-milling method decreases slightly and no other diffraction peaks could be observed. This could be explained primarily by the possibility that the content of the phosphate layer is too small to be detected, or that the phosphate layer is amorphous [18]. Previous research has reported that amorphous Al₂O₃ would transfer to δ-Al₂O₃, θ-Al₂O₃ and α-Al₂O₃ at 750 °C, 1000 °C, 1100 °C, respectively [21]. Therefore, preparing the Al₂O₃ particles by the sol–gel method and calcining at 600 °C could only obtain amorphous Al₂O₃. As for the ball-milling method, the broadening of the α-Fe peak may be due to the small crystallites and their lattice distortions [22]. The grain refinement and the plastic deformation during the ball-milling process would also decrease the intensity of the diffraction peaks.

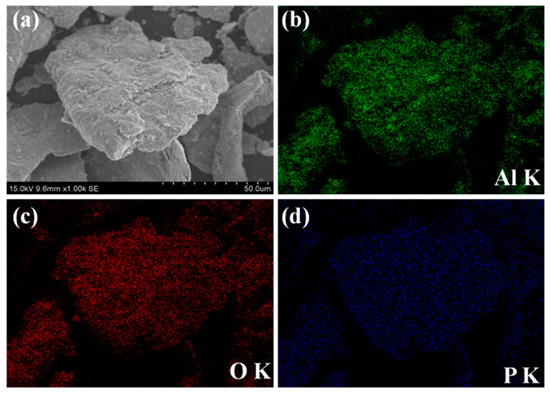

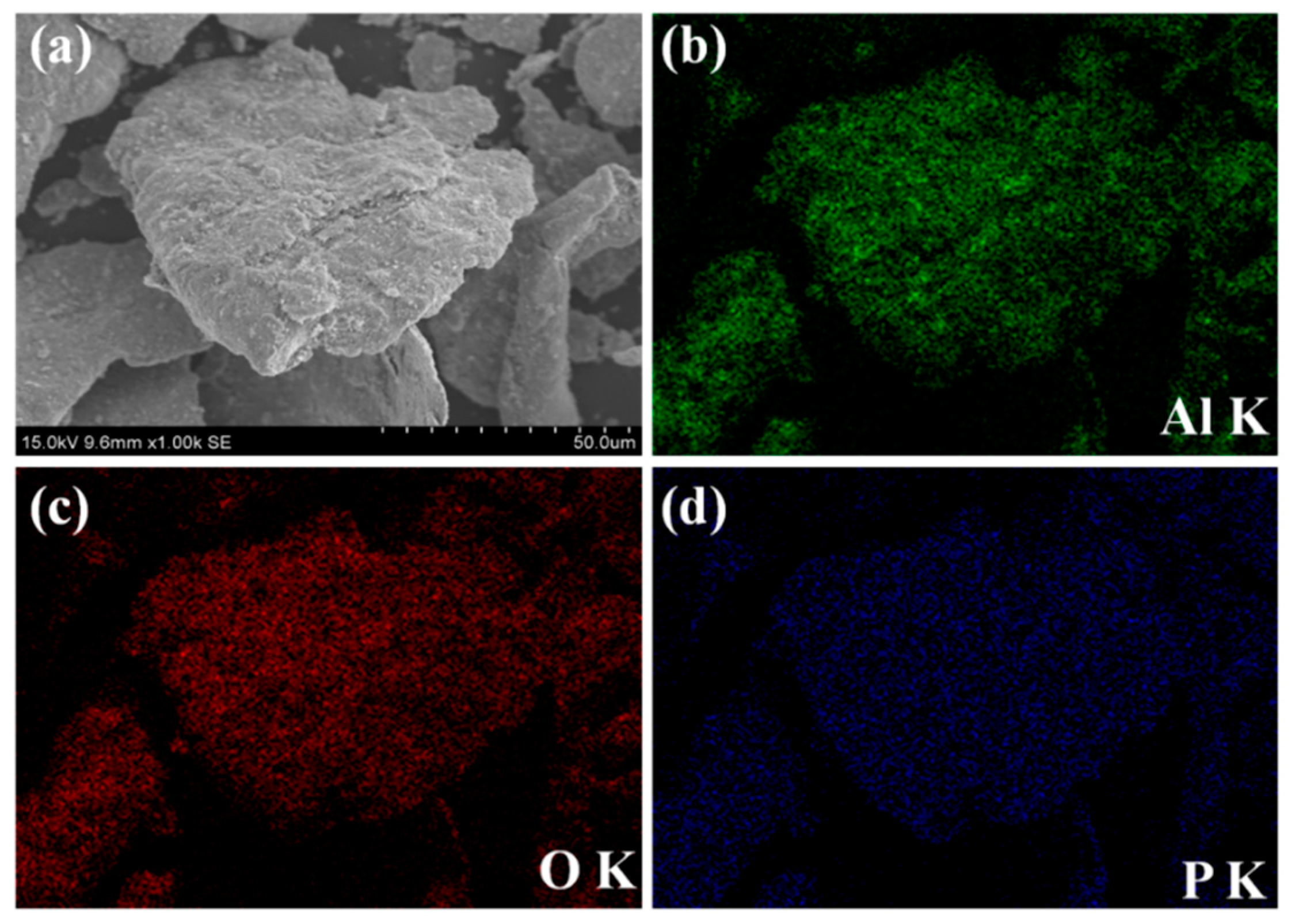

SEM images and EDS maps of the hybrid-coated powders via ball milling are exhibited in Figure 4. A change of the particle shape from the irregular shape to a flake shape after the ball-milling process could be observed in Figure 4a and Figure 2a. Traces of aluminum, oxygen and phosphorus are uniformly detected on the particle surface in the EDS maps (Figure 4b–d), suggesting the formation of the core–shell structured Fe @ phosphate @ Al₂O₃ SMCs.

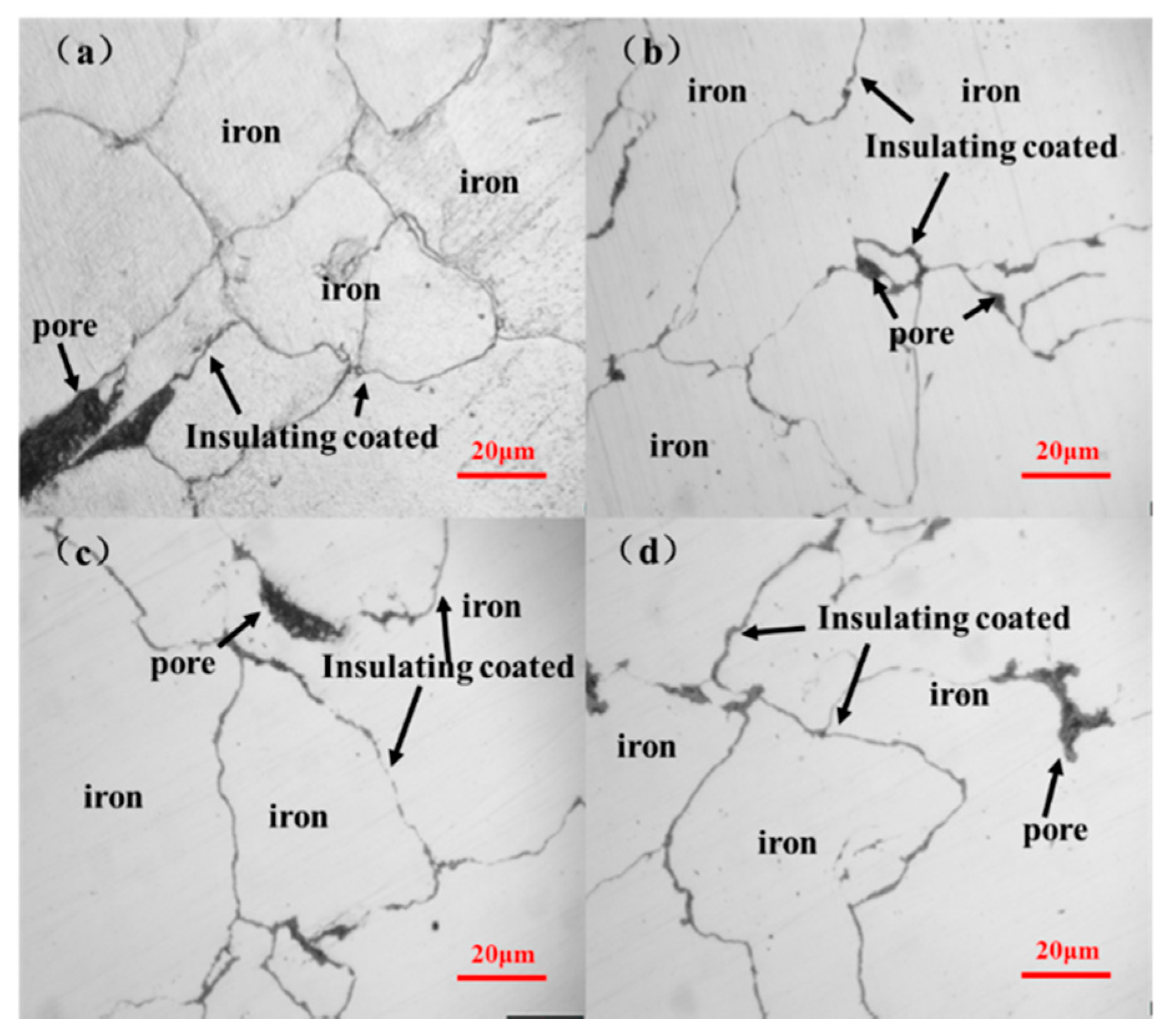

Figure 5a–d indicates that increasing the Al₂O₃ content results in thicker and more uniform insulating layers. No obvious insulating layers could be seen with the addition of 2% Al₂O₃. Insulating layers were evident with additional amounts of 6% Al₂O₃, but some parts of the matrix particles still contacted directly. Further increasing the additional amount of Al₂O₃ to 8% leads to complete insulating layers. However, more pores could be observed with the increasing Al₂O₃ content.

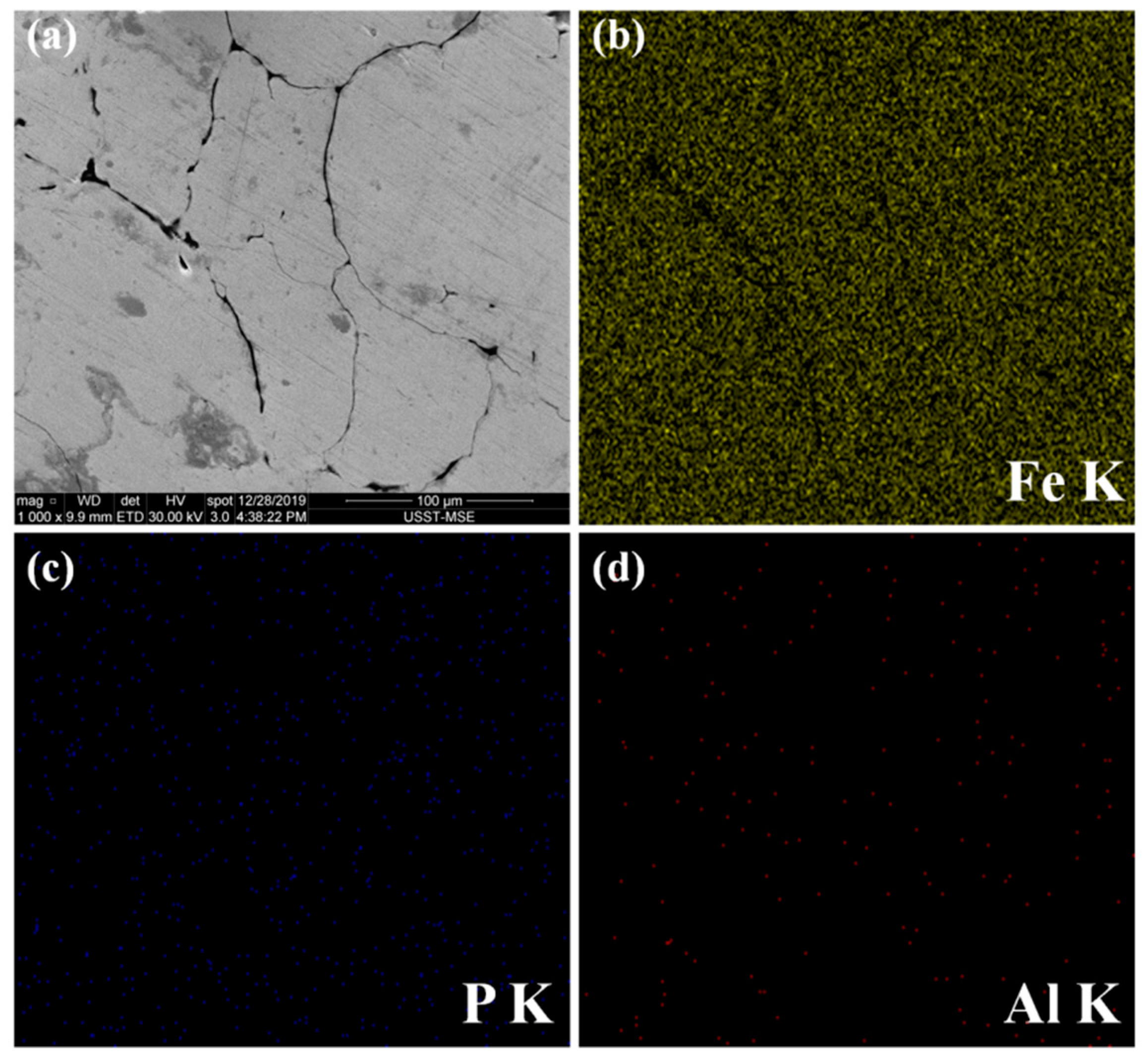

To further analyze the microstructure: the SEM (scanning electron microscopy) images of the polished surface of the Fe @ phosphate @ Al₂O₃ SMC compact were characterized. In addition, the EDS maps were shown to verify the microstructure (Figure 6). The iron matrix particles were firmly encapsulated by a thin coating with a core–shell structure via the ball-milling method. the fact that the P and Al elements only distributed around the matrix powder and the Fe element distributed in almost the whole visual area could strongly prove the nature of the composite interface microstructure.

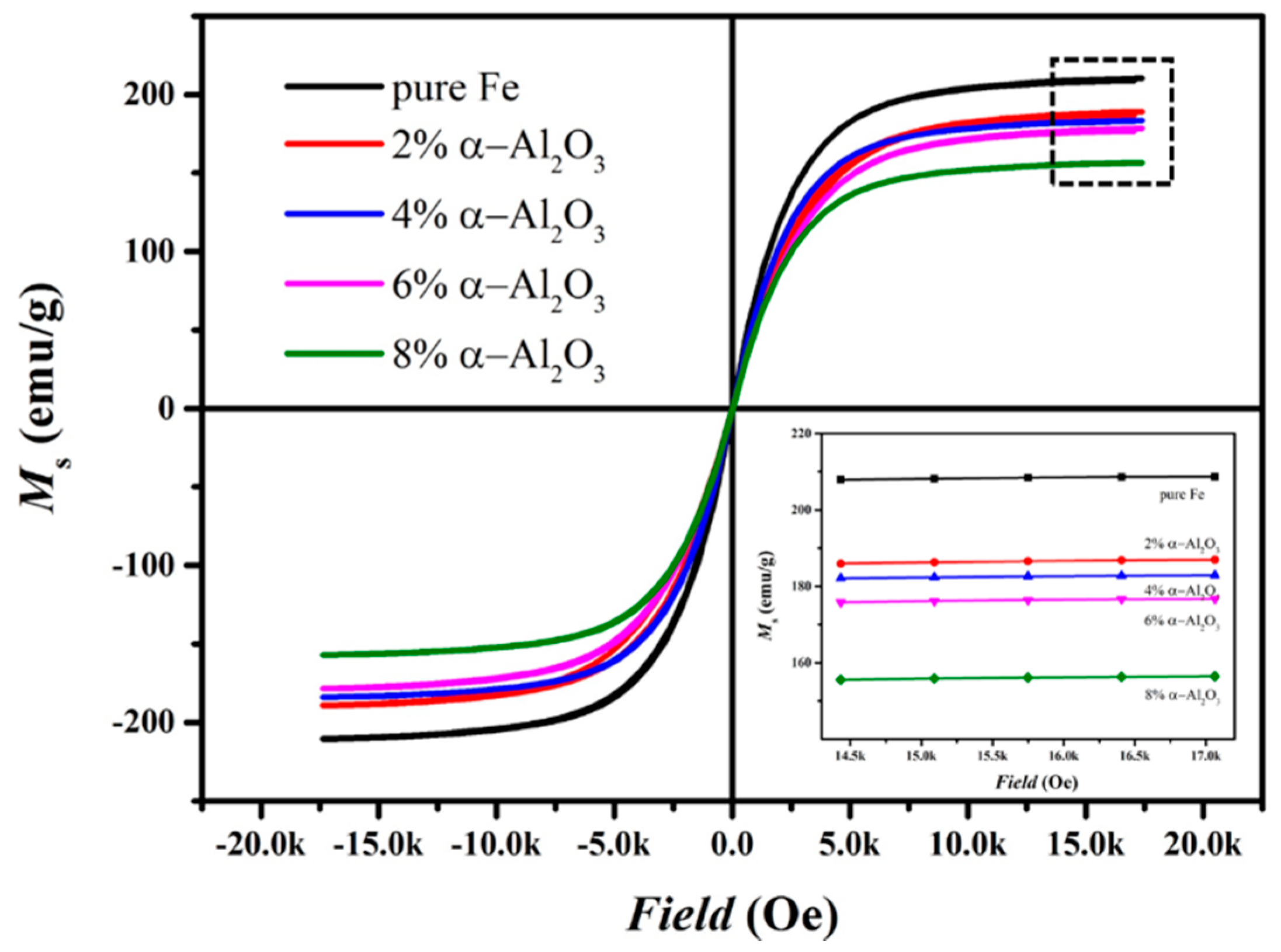

Figure 7 reveals the hysteresis loops of the matrix iron particles and the hybrid-coated particles prepared by the ball-milling method with the various additional amounts of Al₂O₃. The saturated magnetization of raw pure iron is approximately 205 emu/g. All the hybrid-coated powders display excellent properties of saturated magnetization of approximately 160 emu/g to 190 emu/g. It is widely accepted that the saturated magnetization mainly depends on the composition and the purity of the materials [1], and that introducing non-magnetic phosphate and α-Al₂O₃ would dilute the percentage of magnetic phases and reduce the Ms as a result. The decreasing trend of the saturated magnetization in Figure 7 is due to the increasing content of Al₂O₃ in insulating layers.

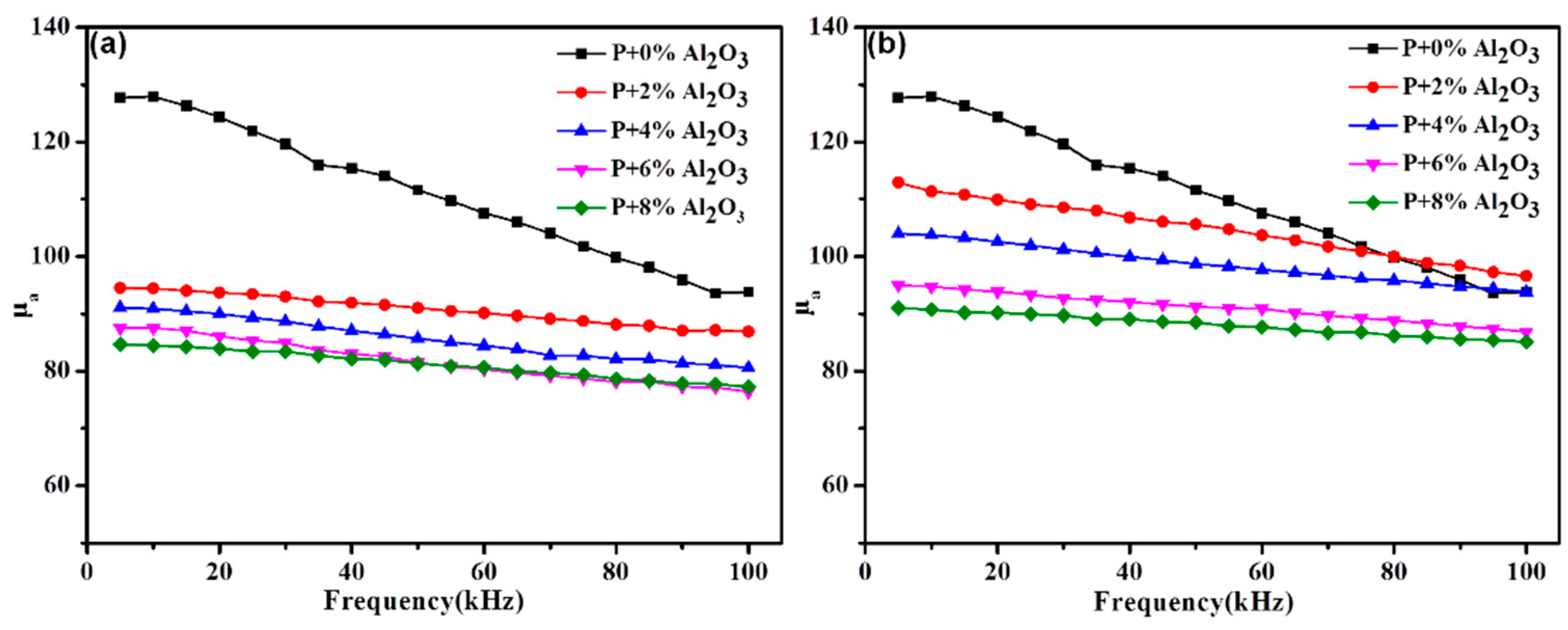

Figure 8 reveals the amplitude permeability as a function of frequency of the samples prepared by the ball-milling method (Figure 8a) and the sol–gel method (Figure 8b) with the same additional amount of Al₂O₃. The amplitude permeability of the hybrid-coated SMCs prepared by both methods exhibit excellent frequency stability at the measured frequency, which could be attributed to the better integrity of the insulation layers shown in Figure 5. Increasing the content of Al₂O₃ causes a tendency of permeability decrement, and the permeability of the samples with 8% Al₂O₃ reach 77.24 (ball milling method) and 85.14 (sol-gel method), respectively, at 100 kHz, which are ~82.4% and ~90% of that of phosphate-coated powders (93.7). The results could be explained by the following reasons. On the one hand, the permeability has a positive correlation with the Ms and the magnetism would be diluted by the non-magnetic Al₂O_3, as shown in Figure 6. On the other hand, a higher porosity with an increasing Al₂O₃ content could be concluded from Figure 5. The decreasing magnetic permeability is usually attributed to the inter-particle gap effect, as a source of the demagnetizing field [1]. As a result, the density of the SMCs reduces and results in the decreasing of the permeability.

The difference of the permeability caused by the fabrication technique could mainly be attributed to the grain size. As it is accepted that the magnetization is mainly down to the movement and the rotation of the domain walls, the required energy of the domain wall movement is less than that of the domain wall rotation. As the grain size decreases, the number of domain walls decreases and the contribution of the domain wall rotation to the magnetization is greater than that of the domain wall movement [22]. The effect of the ball-milling process is to decrease the grain size; therefore, the permeability of the SMCs fabricated by this method is not as high as that prepared by the sol–gel method.

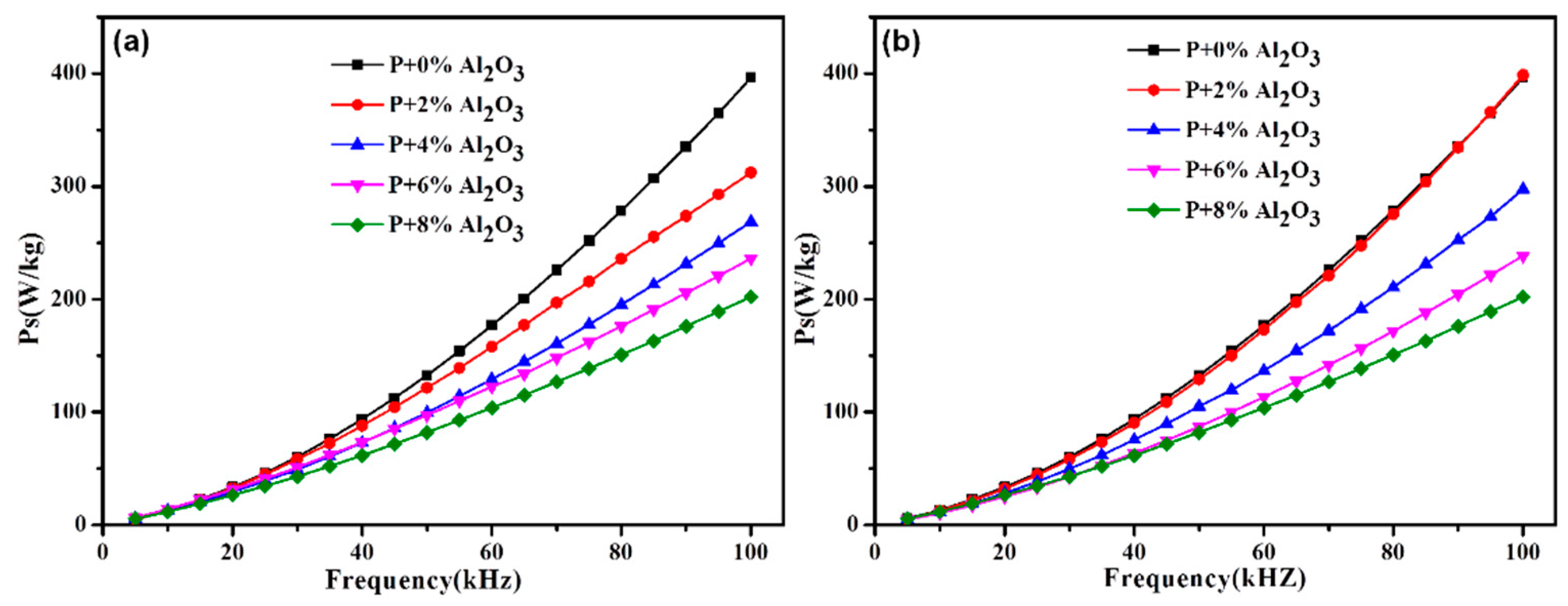

Figure 9 depicts the influence of the Al₂O₃ content on the total core loss of the SMCs samples prepared by the different methods. It can be seen that the effect of the preparation methods on the total core loss is slight. Compared with the phosphate-coated samples, the total core loss of hybrid-coated samples decreases by ~49% (202.3 at 100 kHz by the sol–gel method) and ~47% (210.8 at 100 kHz by the ball-milling method) with 8% Al₂O₃. To further explore the effects of the Al₂O₃ content and the fabrication methods on the total core loss of SMCs samples, the total core loss curves were investigated by the loss separation method. The total core loss (P_t) at a weak field and a relatively low frequency could be separated and written as [4,23]:

$$P_{\mathrm{tol}}=P_{\mathrm{h}}+P_{\mathrm{e}}\approx K_{\mathrm{h}}f+K_{\mathrm{e}}{f}^2$$

(1)

where f is the frequency, the constant K_h and K_e are the hysteresis loss factor and the eddy current loss factor, respectively. K_h and K_e are obtained based on Equation (1) from the curves of the total core loss and the loss-separation fitting.

Table 1. K_h, K_e and their standard error of samples with various content of Al₂O₃ by different methods.

Content of Al2O3 (%)	Kh (Sol-Gel)	Standard Error	Kh (Ball Milling)	Standard Error	Ke (Sol-Gel)	Standard Error (10−4)	Ke (Ball Milling)	Standard Error (10−4)
0	1.4924	0.05382	1.4924	0.05382	0.02547	4.979	0.02547	4.979
2	1.2677	0.03233	1.3307	0.04673	0.02764	2.990	0.01841	9.737
4	1.3128	0.02956	1.3841	0.03153	0.01706	2.735	0.01453	2.917
6	1.1807	0.02567	1.4550	0.02317	0.01248	2.375	0.00902	2/143
8	1.3268	0.02202	1.5068	0.02202	0.00731	2.037	0.00631	2.037

displays the K_h, K_e and the standard error of the samples with different additional amounts of the Al₂O₃ fabricated by different methods. The K_h shows a slight increasing trend with the elevated Al₂O₃ amount, which is attributed to the higher porosity, as shown in Fig. 5. However, the K_e exhibits an opposite, decreasing trend. The K_e of the sample with 8% Al₂O₃ is only one-quarter of that of the phosphate-coated sample. The K_h and K_e of samples prepared by the ball-milling method is higher and lower, respectively, than that of samples by the sol–gel method at the same Al₂O₃ content.

Density, particle size and residual stress play important roles in hysteresis loss [24]. The influence of the ball-milling process on particles could be divided into two parts: particle size and particle shape. Figure 2a and Figure 4a suggest that the morphology of the particles transforms from irregular shape to flake shape after the ball-milling process, which deteriorates the compressibility of the powders and results in the lower density and higher porosity. In addition, the smaller particles in the compacts which were caused by the impact effect of balls on particles shows more unfavorable surfaces and defects. Owing to the pinning effect of these defects, the hysteresis loss of the samples prepared by the ball-milling method is higher than that of the samples prepared by the sol–gel method.

As for the eddy current loss factor (K_e), it is dominated by the electric resistivity, which could by elevated by increasing the intrinsic resistivity, defects, residual stress and porosity or by decreasing the particle size [24]. Coating an insulating Al₂O₃ layer on the phosphate iron powders directly increases the intrinsic resistivity, and the electric resistivity is positively correlated to the Al₂O₃ content. However, the increased number of the pores and grain boundaries and the reduced particle size which resulted from the ball-milling process account for the different K_e of various SMC samples. Therefore, compared to the sample prepared by the sol–gel method, the contribution of the eddy current loss to the total core loss for the sample prepared by the ball milling is smaller.

4. Conclusions

Novel hybrid phosphate–alumina iron-based soft magnetic composites (SMCs) were successfully fabricated by both the sol–gel method and the ball-milling method. The hybrid insulating layers effectively enhanced the frequency stability of the permeability and reduced the total core loss in the SMCs. The SMCs prepared by both methods retained above 85% of the permeability and showed only approximately 50% of the total core loss of the phosphated samples prepared under the same process conditions. The loss separation results show that the contribution of the P_h and the P_e to the total core loss is inverse. The hysteresis loss in the samples prepared by the ball-milling method is greater than that prepared by the sol–gel method. These results suggest that the hybrid phosphate–alumina coating is promising, and can be used to obtain high-performance SMCs for electromagnetic devices at high frequency.
