Effects of Listening to Preferred versus Non-Preferred Music on Repeated Wingate Anaerobic Test Performance
Previous Article in Journal
Effect of Jump Direction on Joint Kinetics of Take-Off Legs in Double-Leg Rebound Jumps
Open AccessArticle

Using A Soft Conformable Foot Sensor to Measure Changes in Foot Strike Angle During Running

1
Department of Health and Exercise Science, Appalachian State University, Boone, NC 28608, USA
2
Department of Human Physiology, University of Oregon, Eugene, OR 97403, USA
*
Author to whom correspondence should be addressed.
Sports 2019, 7(8), 184; https://doi.org/10.3390/sports7080184
Received: 25 June 2019 / Revised: 23 July 2019 / Accepted: 26 July 2019 / Published: 29 July 2019

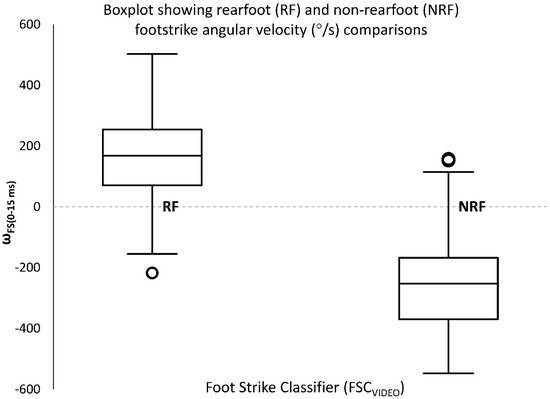

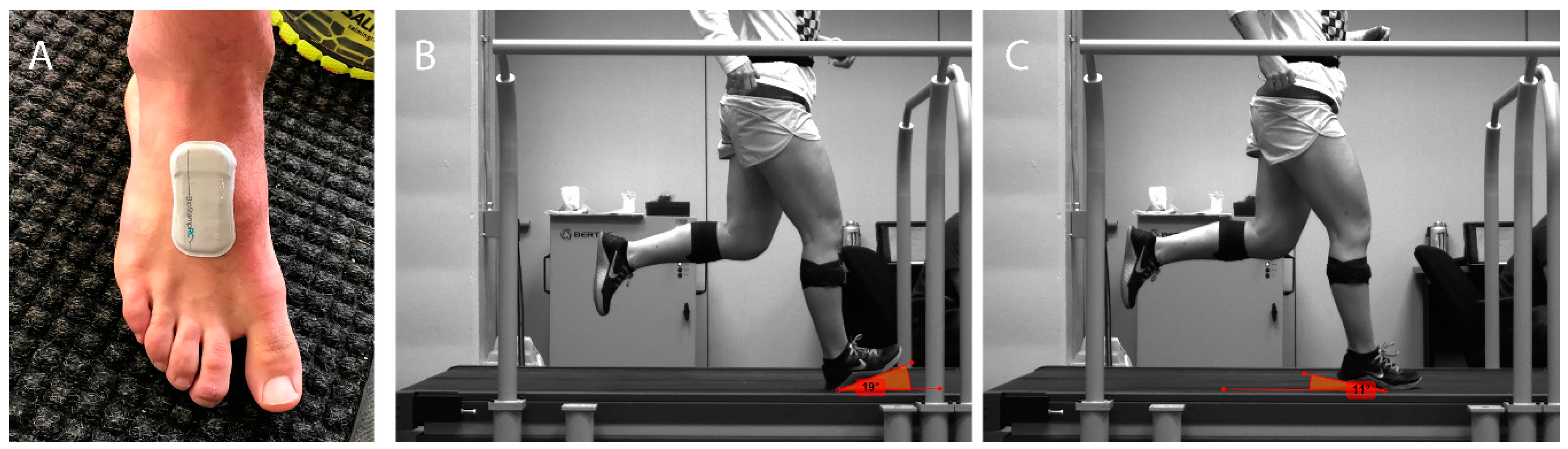

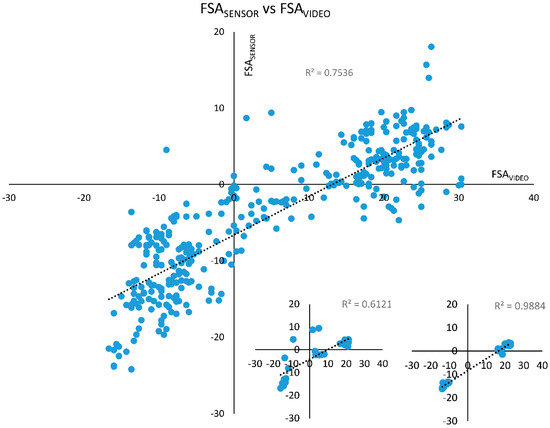

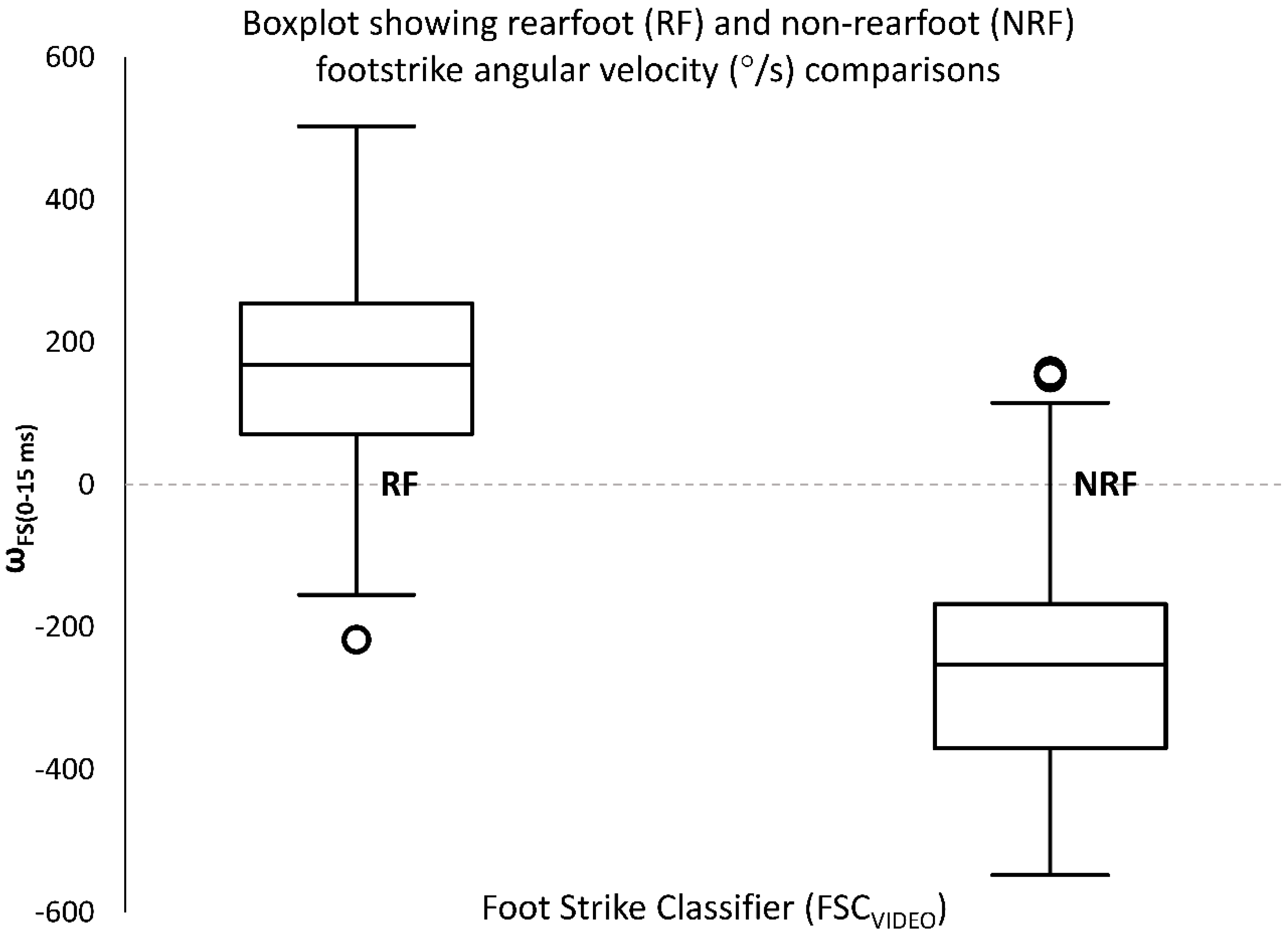

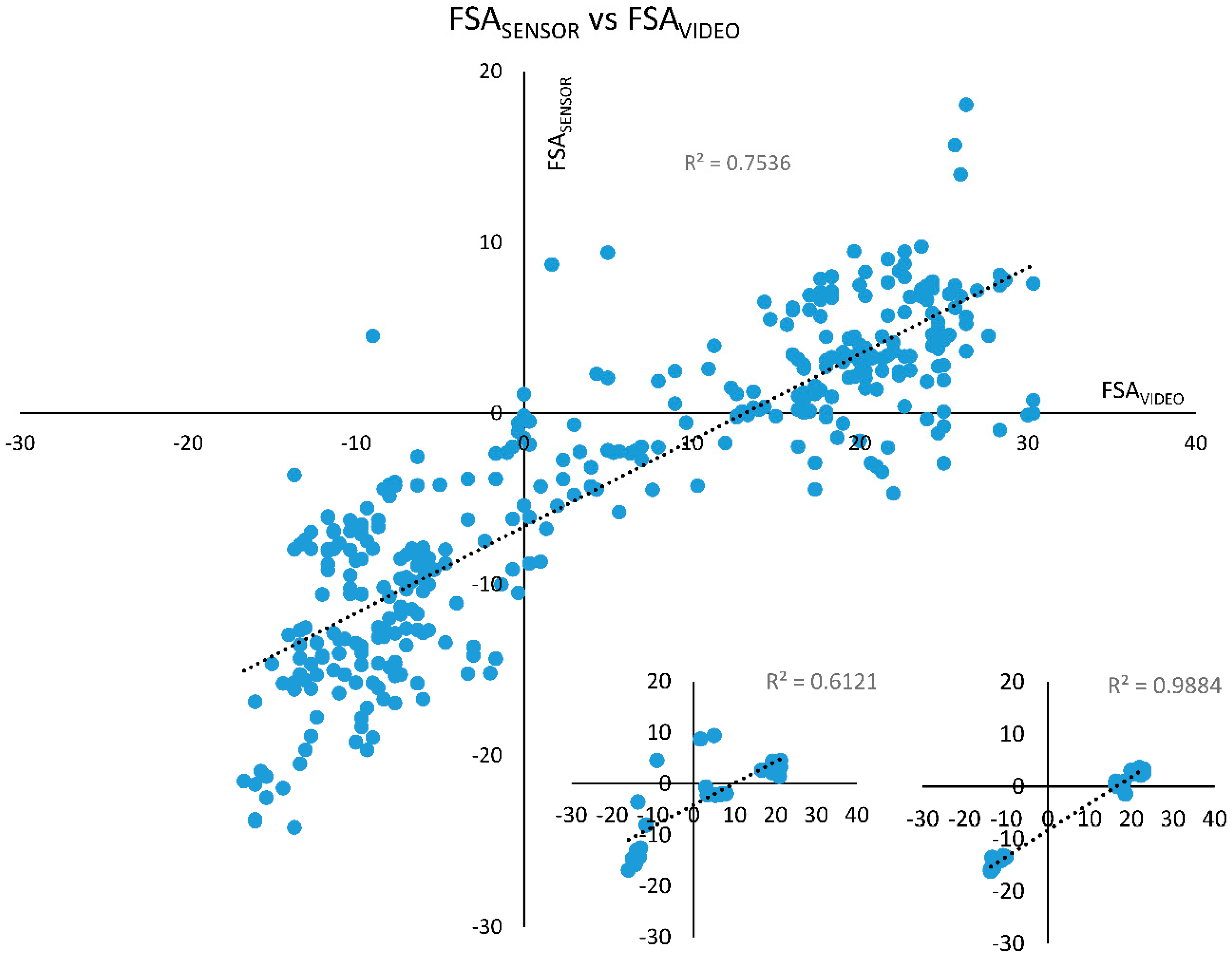

The potential association between running foot strike analysis and performance and injury metrics has created the need for reliable methods to quantify foot strike pattern outside the laboratory. Small, wireless inertial measurement units (IMUs) allow for unrestricted movement of the participants. Current IMU methods to measure foot strike pattern places small, rigid accelerometers and/or gyroscopes on the heel cap or on the instep of the shoe. The purpose of this study was to validate a thin, conformable IMU sensor placed directly on the dorsal foot surface to determine foot strike angles and pattern. Participants (n = 12) ran on a treadmill with different foot strike patterns while videography and sensor data were captured. Sensor measures were compared against traditional 2D video analysis techniques and the results showed that the sensor was able to accurately (92.2% success) distinguish between rearfoot and non-rearfoot foot strikes using an angular velocity cut-off value of 0°/s. There was also a strong and significant correlation between sensor determined foot strike angle and foot strike angle determined from videography analysis (r = 0.868, p < 0.001), although linear regression analysis showed that the sensor underestimated the foot strike angle. Conformable sensors with the ability to attach directly to the human skin could improve the tracking of human dynamics and should be further explored. View Full-Text
Keywords: foot strike pattern; running; sensor; inertial measurement unit foot strike pattern; running; sensor; inertial measurement unit
Show Figures

Figure 1

MDPI and ACS Style

van Werkhoven, H.; Farina, K.A.; Langley, M.H. Using A Soft Conformable Foot Sensor to Measure Changes in Foot Strike Angle During Running. Sports 2019, 7, 184.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
