Electrostatic Insect Sweeper for Eliminating Whiteflies Colonizing Host Plants: A Complementary Pest Control Device in An Electric Field Screen-Guarded Greenhouse

Plant Center, Institute of Advanced Technology, Kinki University, Wakayama 644-0025, Japan
Laboratory of Phytoprotection Science and Technology, Faculty of Agriculture, Kinki University, Nara 631-8505, Japan
Pharmaceutical Research and Technology Institute, Kinki University, Osaka 577-8502, Japan
Research Institute of Environment, Agriculture and Fisheries, Osaka Prefecture, Osaka 583-0862, Japan
Research and Development Division, Kagome Co., Ltd., Tochigi 329-2762, Japan
Technical Development Unit, Panasonic Environmental Systems and Engineering Co., Ltd., Osaka 564-0062, Japan
Author to whom correspondence should be addressed.
Academic Editor: Andrew G. S. Cuthbertson
Insects 2015, 6(2), 442-454;
Received: 16 February 2015 / Revised: 30 April 2015 / Accepted: 5 May 2015 / Published: 12 May 2015
(This article belongs to the Special Issue Pest Control in Glasshouses)

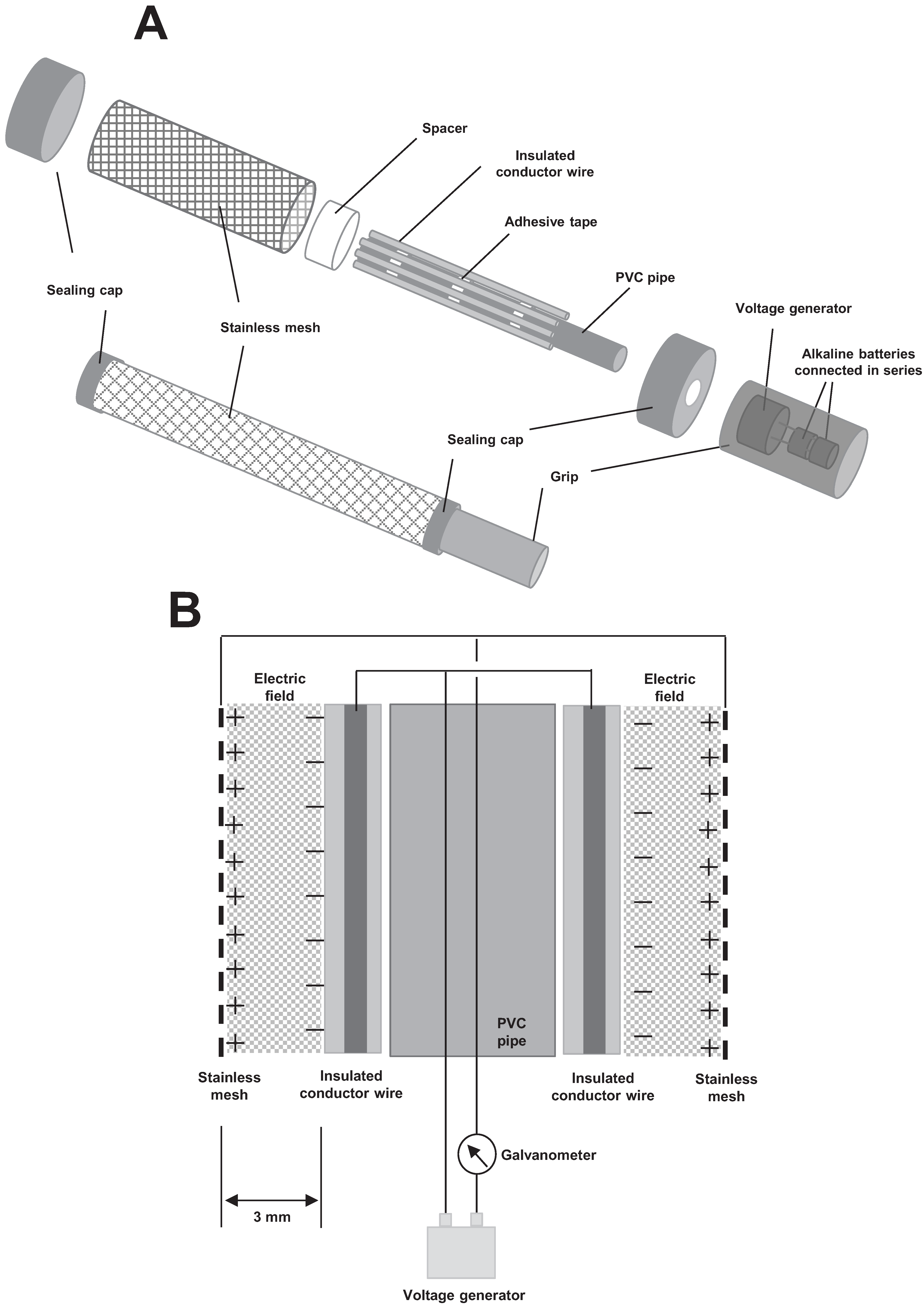

Our greenhouse tomatoes have suffered from attacks by viruliferous whiteflies Bemisia tabaci (Gennadius) (Hemiptera: Aleyrodidae) over the last 10 years. The fundamental countermeasure was the application of an electric field screen to the greenhouse windows to prevent their entry. However, while the protection was effective, it was incomplete, because of the lack of a guard at the greenhouse entrance area; in fact, the pests entered from the entrance door when workers entered and exited. To address this, we developed a portable electrostatic insect sweeper as a supplementary technique to the screen. In this sweeper, eight insulated conductor wires (ICWs) were arranged at constant intervals along a polyvinylchloride (PVC) pipe and covered with a cylindrical stainless net. The ICWs and metal net were linked to a DC voltage generator (operated by 3-V alkaline batteries) inside the grip and oppositely electrified to generate an electric field between them. Whiteflies on the plants were attracted to the sweeper that was gently slid along the leaves. This apparatus was easy to operate on-site in a greenhouse and enabled capture of the whiteflies detected during the routine care of the tomato plants. Using this apparatus, we caught all whiteflies that invaded the non-guarded entrance door and minimized the appearance and spread of the viral disease in tomato plants in the greenhouse. View Full-Text
Keywords: TYLCV; greenhouse pests; physical pest control TYLCV; greenhouse pests; physical pest control
Show Figures

Figure 1

MDPI and ACS Style

Takikawa, Y.; Matsuda, Y.; Kakutani, K.; Nonomura, T.; Kusakari, S.-I.; Okada, K.; Kimbara, J.; Osamura, K.; Toyoda, H. Electrostatic Insect Sweeper for Eliminating Whiteflies Colonizing Host Plants: A Complementary Pest Control Device in An Electric Field Screen-Guarded Greenhouse. Insects 2015, 6, 442-454.
