Article

Exogenous Calcium Suppresses the Oviposition Choices of Frankliniella occidentalis (Thysanoptera: Thripidae) and Promotes the Attraction of Orius similis (Hemiptera: Anthocoridae) by Altering Volatile Blend Emissions in Kidney Bean Plants

by
Wan-Qing Huang
1,†,
Guang Zeng
2,†,
Jun-Rui Zhi
1,*,
Xin-Yue Qiu
1 and
Zhen-Juan Yin
1
1
Guizhou Provincial Key Laboratory for Agricultural Pest Management in the Mountainous Region, Institute of Entomology, Guizhou University, Guiyang 550025, China
2
Department of Resources and Environment, Moutai Institute, Renhuai 564507, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Insects 2022, 13(12), 1127; https://doi.org/10.3390/insects13121127
Submission received: 9 November 2022 / Revised: 3 December 2022 / Accepted: 5 December 2022 / Published: 6 December 2022
(This article belongs to the Section Insect Physiology, Reproduction and Development)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

The western flower thrips, Frankliniella occidentalis (Pergande) (Thysanoptera: Thripidae) is an economically damaging invasive pest that is difficult to control due to their resistance to insecticides. Utilizing plant-induced defense responses is a new strategy to increase plant resistance to F. occidentalis. A growing number of studies have shown that calcium plays an important role in enhancing plant resistance to pest-induced stresses. In this study, we found that exogenous calcium treatment could alter the composition of volatile compounds in kidney bean plants, repelling F. occidentalis while attracting its natural enemy, Orius similis Zheng (Hemiptera: Anthocoridae), and reducing the oviposition preference choice of F. occidentalis. This study provides a theoretical basis for the control of F. occidentalis.

Abstract

Frankliniella occidentalis is a destructive pest of horticultural plants, while Orius similis is a natural enemy of thrips. It has been demonstrated that exogenous calcium could induce plant defenses against herbivore attack. We examined whether CaCl2 supplementation altered the volatile emissions of kidney bean plants, which influence the oviposition preference of F. occidentalis. We also assessed the influence of volatile cues on O. similis. Using Y-tube olfactometer tests, we found that exogenous CaCl2 treatment inhibited the selectivity of F. occidentalis but attracted O. similis. In addition, CaCl2 treatment reduced the oviposition preference of F. occidentalis. Gas chromatography–mass spectrometry analyses revealed that CaCl2 treatment altered the number and relative abundance of the volatile compounds in kidney bean plants and that (E)-2-hexen-1-ol, 1-octen-3-ol, β-lonone, and (E,E)-2,4-hexadienal might be potential olfactory cues. Furthermore, the results of the six-arm olfactometer test indicated that 1-octen-3-ol (10−2 μL/μL), β-lonone (10−2 μL/μL), and (E,E)-2,4-hexadienal (10−3 μL/μL) repelled F. occidentalis but attracted O. similis. Overall, our results suggested that exogenous CaCl2 treatment induced defense responses in kidney bean plants, suggesting that CaCl2 supplementation may be a promising strategy to enhance the biological control of F. occidentalis.

1. Introduction

Calcium is an essential nutrient for plant growth and development, as well as a secondary messenger in plant cells [1,2,3]. Accumulating evidence has shown that calcium plays an important role in improving plant resistance to abiotic and biotic stresses [4,5]. Supplementation with the appropriate concentrations of exogenous calcium improves plant resistance to abiotic stresses, including salt stress, drought, extreme temperatures, and heavy metals [6,7,8,9,10,11]. In addition, exogenously supplemented calcium can regulate the resistance of plants to biotic stresses. Calcium supplementation can induce different chemical reactions in plants to activate defense enzymes, such as lipoxygenase, polyphenol oxidase, and phenylamine ammonia lyase, thereby enhancing plant resistance to pests [12,13]. In poinsettia, calcium treatment significantly reduces the survival rate of Bemisia tabaci (Gennadius) (Hemiptera: Aleyrodidae) and prolongs its development time, thus reducing damage to the plants [14]. The treatment of rice plants with exogenous calcium enhances their resistance to Nilaparvata lugens (Stål) (Hemiptera: Delphacidae) and reduces its survival rate [13]. Similarly, the treatment of wheat plants with exogenous calcium prolongs the development time of aphids and reduces their feeding rate [11].
Plants defend themselves against herbivorous insects via various constitutive and induced defense mechanisms, and these defense mechanisms are mediated mainly by external stimuli or exogenous substances [15,16]. Responses to external stimuli or exogenous substances include the accumulation of defensive compounds and the release of volatile organic compounds (VOCs). VOCs play an important role as signals in plant defense to regulate the behavioral responses of herbivores and natural enemies [17,18,19].
Growing evidence has indicated that exogenous biotic and abiotic elicitors trigger plant defensive responses and alter the composition of VOCs to increase the repulsion of herbivores and the attraction of their predators [20,21,22,23,24,25]. For example, when plants are attacked by herbivorous insects, they release various volatile compounds, which are known as herbivore-induced plant volatiles (HIPVs) [26,27]. HIPVs not only poison or repel herbivorous insects in direct defense but also provide plants with indirect defense by attracting natural enemies of the pests. Therefore, HIPVs are considered signal substances of tritrophic interaction [22,28,29,30]. Several studies have also reported that abiotic elicitors, such as copper, (Z)-3-hexenol, and silicon, can trigger plants to produce larger quantities of induced volatile compounds [24,25,31,32].
Frankliniella occidentalis (Pergande) (Thysanoptera: Thripidae) is a native species in the western part of North America [33]. As an economically damaging invasive pest, F. occidentalis not only causes direct damage by feeding and laying eggs in plants but also spreads a variety of plant viruses, thereby posing a serious threat to vegetables and ornamental flowers [34]. F. occidentalis has spread to several regions in mainland China [35], and the pest has proven difficult to control. Although F. occidentalis is controlled using insecticides, its resistance to insecticides is a long-term threat [36,37]. Hence, a combination of more diverse strategies is needed to manage F. occidentalis [38,39]. Utilizing plant-induced defenses against F. occidentalis may represent an alternative approach for crop protection, while being environmentally and natural enemy friendly [37].
Orius (Hemiptera: Anthocoridae) is a genus of omnivorous predators that prey on the eggs of various lepidoptera and small insect pests, such as thrips, aphids, and mites [40,41,42]. Several Orius species are commercially produced as biocontrol agents to protect various crops worldwide [41,43]. In China, Orius similis Zheng is widely distributed as a dominant species in southern farmlands [44,45]. It is mainly used for controlling thrips due to its high fertility, high predation and wide predation range, and proven efficacy as a biological control agent of F. occidentalis [45,46,47]. Studies have shown that O. similis locates its prey by means of olfactory cues emitted by prey-infested plants [42,48].
Previous studies have shown that exogenous calcium supplementation significantly increases defense enzyme activity in kidney bean plants, as well as reducing the choice of F. occidentalis [12,49]. However, the effect of calcium treatment on the production of volatiles in kidney bean plants, and the potential effect on the indirect defense of F. occidentalis, remain unclear. We hypothesized that calcium-treated kidney bean plants have altered volatile proportional compositions, which enhance the repulsion of F. occidentalis and the attraction of natural enemies. Therefore, in this study, our objectives are to investigate the impacts of calcium supplementation on: (i) the behavioral responses of F. occidentalis and its natural enemy, O. similis, and the oviposition preference of F. occidentalis; (ii) potential alterations in plant volatile emissions; and (iii) the responses of thrips and O. similis to identified plant volatile compounds. The outcomes of this study will further clarify the role of calcium as an inducing factor in the control of F. occidentalis and may help in the development of effective environmentally friendly strategies for sustainable management of F. occidentalis.

2. Materials and Methods

2.1. Plants

Healthy seeds of kidney bean plants (Phaseolus vulgaris L.) ‘Daoxiaomei’ were obtained from the Shenyang Xinjia Food Sales Co., LtD. Liaoning Province, China. Seeds sterilized with 10% H2O2 for 15 min and then rinsed with sterile distilled water. After a day of presoaking, seeds were transferred into plastic pot (Model: WGLL-125BE, Taisite Instrument Co., Ltd. Tianjin, China) (1 seed per planter; diameter, 12 cm; height, 15 cm) with nutrient soil, which has been autoclaved at 150 °C. All plants were placed in an environment chamber at 25 °C for 14 h using a 10-h light/dull photoperiod and 75% ± 5% relative humidity (RH). In the above conditions, plants were watered every day in order to maintain soil moisture. No pesticide was applied during the growth period. Plants with three leaves at day 22 were used for the following trials.

2.2. Test Insects

F. occidentalis populations were collected from kidney bean plants at the experimental farm of Guizhou University in Guiyang, China, in June 2018. Shaking the flowers and upper leaves of the kidney bean plant to make the thrips fall into the insect box (20.6 × 13.4 × 9.3 cm) with kidney bean pods. Firstly, preliminarily determined the thrips species according to morphology and body color by the naked eye, then these thrips were kept to rear for one generation, and other thrips were killed. Then, 30 female adults were randomly chosen among these thrips for slide specimen according to the method of Zhang et al. [50] by maceration, washing, dehydration, mounting, and desiccation. The thrips was identified under the microscope according to the methods of Wang et al. [51]. After accurate identifying the thrips was F. occidentalis, the western flower thrips were continuously reared in the laboratory for more than 50 generations. Slide specimens were deposited in the Institute of Entomology, Guizhou University. Thrips were kept in a climate chamber with kidney bean pods as the food source under the same conditions described above.
O. similis populations were obtained from vegetable fields at the experimental farm of Guizhou University in Guiyang, China. The species was identified according to the external genitals by the method of Zhang et al. [52]. They were raised in a plastic case (30 cm long, 23 cm wide, and 18 cm high) and a climate chamber under the conditions as same as above. O. similis populations were provided with adequate numbers of F. occidentalis 2nd instar larvae and Sitotroga cerealella (Olivier) (Lepidoptera: Gelechiidae) eggs in a ratio of 1 to 1, and food was changed daily. S. cerealella eggs were purchased from the Shandong Academy of Agricultural Sciences, Shandong, China.

2.3. Plant Treatment Settings

Healthy and consistent kidney bean plants were selected for the following treatments. Four different treatments were applied to plants: CaCl2, H2O (control), Western flower thrips (WFT)+CaCl2, and WTF+H2O. In the CaCl2 group, 15 mL of 20 mM CaCl2 solution were sprayed on an entire kidney bean plant (labeled CaCl2 treatment). Control plants were sprayed with the same volume of distilled water (labeled H2O treatment). Twenty larvae of second-instar F. occidentalis were inoculated on the leaves of kidney bean plants in the WFT group’s 1 day after being sprayed with either H2O or CaCl2. After thrips had infested for 24 h, the treated kidney bean plants (labeled H2O+WFT and CaCl2+WFT) were used for the following experiments. All treatments were performed in a climatic chamber under the conditions described above.

2.4. Y-Tube Olfactometer Bioassays

The olfactory responses of thrips were tested using a Y-tube olfactometer as described by Cao et al. [53]. 2–3 days old adult female thrips were starved for 4 h before the application of the treatments. A total of 10 treatment combinations were compared: (1) clean air versus H2O; (2) clean air versus H2O+WFT; (3) clean air versus CaCl2; (4) clean air versus CaCl2+WFT; (5) H2O versus H2O+WFT; (6) H2O versus CaCl2; (7) H2O versus CaCl2+WFT; (8) WFT versus CaCl2; (9) H2O+WFT versus CaCl2+WFT; (10) CaCl2 versus CaCl2+WFT. For each comparison, 100 female thrips were tested. The flow rate was set at 300 mL/min. All bioassays were performed between 9:00 am and 6:00 pm under the following conditions: 25 °C ± 2 °C, 75 °C ± 5% RH, and 1000 lux illumination. Kidney bean plants were replaced for every 10 individuals tested. During the test, a 15-W fluorescent lamp was placed directly above the Y-olfactory instrument for balanced illumination to reduce the influence of natural light changes on the tropism test.
The olfactory response test was repeated with the same parameters for 2–3 days old female adults O. similis, except that for each comparison, 60 females were tested.

2.5. Free Choice Test for Oviposition Preference of F. occidentalis

In this experiment, a plant treated with calcium and a plant treated with water (the treatment was same with 2.3) were placed in a square cage (200 mesh, 50 × 50 × 50 cm), with a spacing of 30 cm between the centers of two pots. The soil surfaces were covered with aluminum foil to avoid the influence of volatile compounds on the selection of F. occidentalis. A total of 50 adult female thrips (5 days old) were put inside a tube, then the tube was placed on the ground halfway between the H2O-treated pot and the calcium-treated pot. Thrips were allowed to choose between the two plants to lay their eggs. After 48 h, the adult thrips were removed, and each plant was transferred to a clean insect-free transparent bucket. The number of hatched larvae on the plants was observed and recorded every 12 h under dissecting microscope until no larvae were present. Finally, the number of hatched larvae on each treated plant was counted and estimated as the number of eggs laid [54]. The experiment was conducted in a climate chamber using the conditions described above. The test was replicated 10 times at the same time.

2.6. Analysis of Plant Volatiles

Kidney bean plant volatiles from the H2O, H2O+WFT, CaCl2, and CaCl2+WFT plants were collected and analyzed as described by Cao et al. [53]. One kidney bean leaf (2.5 g) excised from the plant was put into a triangular glass bottle (25 mL), and the mouth was sealed with a parafilm membrane. The manual sample injector of the solid phase microextraction instrument fiber head was inserted into the bottle (2 cm, ~50/30 μm DVB/CAR/PDMS StableFlex). After headspace extraction at 80 °C for 60 min, remove the extraction head and immediately insert it into the sample inlet of the gas chromatograph (at 250 °C), and then thermally analyze the sample. The chromatographic column was HP-5 MS (60 m × 0.25 mm × 0.25 μm) elastic Shi Ying capillary column, the initial temperature was 40 °C (retention time was 2 min), the temperature was raised to 180 °C at 10 °C/min, and then to 310 °C at 10 °C/min, and the running time was 55 min. The mass spectra of compounds were compared with those in databases (Nist 20 and Wiley 275), and the relative mass fraction of each chemical component was determined using the peak area normalization method. The test was replicated three biological replicates per one treatment, and one bean plant for one replicate.

2.7. Volatiles Identified with Test Chemicals

The changes in compounds may affect the behavioral responses of the thrips and predatory bug. By gas chromatography–mass spectrometry (GC–MS) analysis, the compounds had significant alterations in the proportional composition among different treatments would be chosen for further test. The effect of different concentrations of chosen compounds on thrips and predatory bug would be tested using a six-armed olfactometer bioassay.
Mineral oil (Aladdin, Shanghai, China) solutions of (E)-2-hexen-1-ol, β-lonone (Aladdin, Shanghai, China; chemical purity 97%), 1-octen-3-ol (Aladdin, Shanghai, China; chemical purity 98%), and (E,E)-2,4-hexadienal (Aladdin, Shanghai, China; chemical purity 95%) were prepared (10−5, 10−4, 10−3, 10−2, and 10−1 μL/μL) [55]. Solutions were stored at 4 °C until testing.

2.8. Olfactory Assay with Synthetic Standards

Following the method described by Cao et al. [55], a six-arm olfactometer was used to evaluate the behavioral responses of adult F. occidentalis to different doses of (E)-2-hexen-1-ol, 1-octen-3-ol, β-lonone, and (E,E)-2,4-hexadienal respectively. The olfactometer was consisted of a central chamber with six arms, each of which was connected to a glass tube that extended forth at an equal distance and at an identical angle (60°). Each arm was attached to a pear-shaped glass bottle carrying an odor source or control through Teflon tubing. In each experiment, 25 uL was used for each of 5 chemical solutions and, mineral oil was used as the control. The solutions were absorbed onto a disk of filter paper with a diameter of 2.0 cm to serve as the odor source and control, respectively. To direct the odor source to thrips, set the airflow of each arm to 200 mL/min. Prior to the experiment, F. occidentalis (2–3 day old females) were starved for 4 h, partitioned into gatherings (200 individuals per group), and imported into the central chamber using a funnel. Insects that entered one arm of the olfactometer within 20 min were considered to have pursued a specific scent, while thrips that entered no arm within this time were considered non-choice. Five replications were performed for each treatment. The arms were cleaned with 75% ethanol and dried and were rotated (60°) after each test. The six-arm bioassay was conducted from 10:00 a.m. to 18:00 p.m. The chamber was illuminated with a 15 W fluorescent lamp which was 40 cm above central chamber.
The olfactory response test was repeated in the same manner for O. similis, except that for each comparison, 40 females were tested per group.

2.9. Statistical Analyses

All statistical analyses were performed using the SPSS version 22.0 (SPSS Inc., Chicago, IL, USA). Y-tube olfactory response and oviposition choice test data were analyzed using a χ2 goodness-of-fit test (** p < 0.01, * p < 0.05). Plant volatile analysis and six-arm olfactometer test data were analyzed using one-way ANOVA and Tukey’s honestly significant difference test (p < 0.05).

3. Results

3.1. Y-Tube Olfactometer Bioassays

The results of the Y-tube olfactometer bioassay showed that F. occidentalis had significantly different responses to the different plant treatments (Figure 1). When F. occidentalis adults were presented with the choice of kidney bean plants or clean air, thrips showed no significant preferences for H2O (χ2 = 1.458, df = 1, p = 0.227), H2O+WFT (χ2 = 1.756, df = 1, p = 0.185), CaCl2 (χ2 = 1.301, df = 1, p = 0.254), or CaCl2+WFT (χ2 = 1.330, df = 1, p = 0.249) and clean air. F. occidentalis significantly preferred volatiles from H2O compared with H2O+WFT (χ2 = 4.056, df = 1, p = 0.044) and CaCl2+WFT (χ2 = 12.298, df = 1, p < 0.01), but there was no significant difference between H2O and CaCl2 (χ2 = 1.301, df = 1, p = 0.254). When F. occidentalis was presented with choices among different treatments, thrips showed significantly lower preferences for CaCl2+WFT than for H2O+WFT (χ2 = 6.080, df = 1, p = 0.014). Thrips showed no significant preferences in the other pairings of the different treatments, such as H2O+WFT versus CaCl2 (χ2 = 0.762, df = 1, p = 0.383) and CaCl2 versus CaCl2+WFT (χ2 = 2.528, df = 1, p = 0.112).
O. similis adults showed significantly different responses to different plant treatments (Figure 1). When O. similis adults were presented with the choice of different treatments of kidney bean plants or clean air, they showed a significant preference only to the CaCl2+WFT-treated plants (χ2 = 5.667, df = 1, p = 0.017). There was no significant difference between clear air with H2O (χ2 = 0.176, df = 1, p = 0.674), H2O+WFT (χ2 = 0.925, df = 1, p = 0.336), and CaCl2 (χ2 = 0.510, df = 1, p = 0.475). When O. similis was presented with choices among different treatments, they showed significant preferences for H2O+WFT (χ2 = 4.571, df = 1, p = 0.033) and CaCl2+WFT (χ2 = 5.786, df = 1, p = 0.016) compared with H2O alone. CaCl2+WFT was more attractive to O. similis than H2O+WFT (χ2 = 4.091, df = 1, p = 0.043). There was no significant different between the H2O and CaCl2 treatments (χ2 = 0.891, df = 1, p = 0.345). In the other pairings, such as H2O+WFT versus CaCl2 (χ2 = 1.231, df = 1, p = 0.267) and CaCl2 versus CaCl2+WFT (χ2 = 2.469, df = 1, p = 0.116), O. similis showed no significant preferences.

3.2. Free Choice Test for Oviposition Preference of F. occidentalis

The average number of F. occidentalis larvae hatched on calcium-treated kidney bean plants was 22.8 thrips, which was significantly lower than that on control plants (34.1 thrips, 33.1% reduction) (Figure 2; χ2 = 22.441, df = 1, N = 10, p < 0.01).

3.3. Component Analysis of Volatile from Kidney Bean Plant

The types and composition of volatiles differed among the treatment groups. A total of 55 volatile compounds were detected among all treated kidney bean plants. Among them, 35 compounds were detected in the H2O treatment group, 40 in each of the CaCl2 and H2O+WFT treatment groups, and 42 in the CaCl2+WFT treatment group (Table 1).
In plants that received the H2O treatment, the component with the highest relative content was 3-hexen-1-ol (28.79% ± 2.02%), which also showed the highest content in the other three treatments. The content of 3-hexen-1-ol in the plants that received the CaCl2 treatment was significantly lower than that in the H2O and H2O+WFT treatments (F = 5.850, p < 0.05), and there was no significant difference compared with the CaCl2+WFT treatment. (E)-2-hexen-1-ol (15.59% ± 0.89%) had the second highest content in the H2O+WFT treatment, and the content of (E)-2-hexen-1-ol in the H2O+WFT treatment was higher than that in the CaCl2 and CaCl2+WFT treatments (F = 30.360, p < 0.05). The content of 1-octen-3-ol in the H2O and H2O+WFT treatments was not significantly different and was higher than that in the CaCl2 and CaCl2+WFT treatments (F = 25.447, p < 0.05). The content of (E)-2-hexenal was higher than 10% in all four treatments, and there was no significant difference among them (F = 0.333, p > 0.05) (Table 1). The content of β-lonone was the second highest in the CaCl2-treated plants and higher than that in the plants treated with the other three treatments (F = 72.324, p < 0.05). (E,E)-2,4-hexadienal was highest in the CaCl2- and CaCl2+WFT-treated plants (F = 15.408, p < 0.05). GC–MS analysis suggested that calcium treatment caused a significant alteration in the proportional composition of (E)-2-hexen-1-ol, 1-octen-3-ol, β-lonone and (E,E)-2,4-hexadienal.

3.4. Six-Arm Olfactometer Test

In the six-arm olfactory test, (E)-2-hexen-1-ol (F = 21.268, p < 0.01), 1-octen-3-ol (F = 6.744, p < 0.01), β-lonone (F = 24.265, p < 0.01), and (E,E)-2,4-hexadienal (F = 49.488, p < 0.01) showed significant effects on the behavior of F. occidentalis at six concentrations. The 10−1 μL/μL concentration of (E)-2-hexen-1-ol had the greatest repellent effect on F. occidentalis, while the 10−5 μL/μL concentration was attractive to thrips. A significant repellent effect on F. occidentalis was observed for 1-octen-3-ol at a concentration of 10−2 μL/μL. 10−1 and 10−2 μL/μL β-lonone had significant repellent effect. A significant repellent effect of (E,E)-2,4-hexadienal was observed at concentration of 10−1 to 10−4 μL/μL, while an attractive effect was observed at the concentration of 10−5 μL/μL (Figure 3).
O. similis also showed significant responses to different concentrations of the following four volatile compounds: (E)-2-hexen-1-ol (F = 18.643, p < 0.01), 1-octen-3-ol (F = 27.942, p < 0.01), β-lonone (F = 94.089, p < 0.01), and (E,E)-2,4-hexadienal (F = 9.368, p < 0.01). Among them, the 10−3 μL/μL concentration of (E)-2-hexen-1-ol had significant attractive effect on O. similis, while the 10−1 and 10−5 μL/μL concentrations had repellent effects. The 10−2 and 10−3 μL/μL concentrations of 1-octen-3-ol had significant attractive effect on O. similis. Meanwhile, O. similis showed a preference for the 10−2 and 10−3 μL/μL concentrations of β-lonone. O. similis also showed preference for the 10−3 and 10−5 μL/μL concentrations of (E,E)-2,4-hexadienal. Other concentrations of the compounds did not affect the behavioral responses of O. similis (Figure 4).

4. Discussion

Calcium has been shown to enhance plant defenses; however, a full understanding of calcium-induced plant defenses requires the determination of the effects of calcium induction on volatile compounds in plants. Because plants, as sessile organisms, cannot avoid contact with herbivores, they produce organic compounds that interfere with herbivore behavior to directly defend themselves [56,57]. For indirect defense, HIPVs are generated to serve as chemical signals for plants to attract predatory or parasitic enemies of herbivores [58,59].
In the Y-tube olfactory experiment, F. occidentalis was significantly less attracted to H2O+WFT- and CaCl2+WFT-treated plants compared with control plants, and CaCl2+WFT-treated plants were significantly less attractive than H2O+WFT-treated plants, which arose from the altered VOC composition. Previous research has shown that kidney bean plants release HIPVs when infected by thrips, which inhibit the selection of F. occidentalis [48]. It has been widely reported that HIPVs affect the behavioral responses of herbivores. For example, after the larvae of Chilo suppressalis (Walker) (Lepidoptera: Crambidae) fed on rice plants, the volatiles released from the plants could significantly repel its adults [57]. Cabbage infested with Spodoptera litura (Fabricius) (Lepidoptera: Noctuidae) released volatiles to inhibit the selection of S. litura larvae [60]. The results of the present study revealed that calcium treatment increased the repellent effect of HIPVs on F. occidentalis. Our previous study has also shown that the application of exogenous calcium to kidney bean plants reduces the selectivity of F. occidentalis [49]. However, the mechanisms involved remain unclear. Similar findings were found for other exogenous inducers of plant defenses. For example, de Oliveira et al. [61] found that Rhopalosiphum padi (Linnaeus) (Hemiptera: Aphididae) preferred constitutive volatiles from control wheat over those emitted by Si-treated wheat plants. Likewise, the application of potassium on soybean led to lower selectivity of soybean aphids compared with control plants [62].
Plant defense responses are not only direct, but they also can likewise work in a roundabout way through the trophic level of herbivore predators [29]. The response of O. similis to calcium-treated kidney bean plants was different from that of F. occidentalis. Compared with control plants, O. similis significantly preferred H2O+WFT- and CaCl2+WFT-treated kidney bean plants, especially CaCl2+WFT-treated plants. CaCl2+WFT-treated plants were significantly attractive than H2O +WFT-treated plants. Interestingly, O. similis showed no preference for volatiles from calcium-treated plants in the absence of thrips infection. This may have been because attracting natural enemies in the absence of a pest population could be counterproductive and compromise biocontrol [63]. Notably, O. similis populations were more attracted to plants experiencing thrips infestation if those plants were treated with calcium; this behavior was noted as a result of altered HIPV composition. The attraction of natural enemies to HIPVs is universal [27]. Our previous research indicated that kidney bean plants released HIPVs that could attract O. similis when infected by thrips [48]. Our results showed that calcium treatment enhanced the attraction of O. similis to HIPVs. Similarly, (Z)-3-hexenol treatment promoted the attraction of the parasitic wasp Encarsia formosa (Gahan) (Hymenoptera: Aphelinidae) to its host plant by altering the composition of the HIPVs produced by B. tabaci infection [32]. Furthermore, silicon treatment promoted the attraction of Phytoseiulus persimilis (Athias-Henriot) (Acari: Phytoseiidae), a natural enemy of Tetranychus urticae (Koch) (Acari: Tetranychidae), to host plants by altering the composition of HIPVs produced by T. urticae infection [25].
Meanwhile, in the experiment of F. occidentalis oviposition selection, it was found that the egg number was significantly reduced in calcium-treated plants (22.8) compared with H2O-treated plants (34.1). Such reduced oviposition suggested that calcium-treated plants might lower suitability for F. occidentalis. In nature, female insects seek out healthy hosts and more suitable host plants to lay their eggs in order to improve the survival of their offspring, and this process is often carried out by female adults who rely on their sense of smell to recognize special odorous substances emitted by host plants [64,65]. The application of exogenous calcium to kidney bean plants may alter their volatile composition, decreasing the number of thrips on the plants and thus strengthening the continuous control of F. occidentalis. In addition, plant secondary metabolites and nutritional status variation may also affect the oviposition preference [66,67], but these factors remain to be investigated in the present study.
GC–MS analysis revealed the number of volatile compounds collected from kidney bean plants of the four different treatment groups. The most abundant volatile compounds were found in plants treated with CaCl2+WFT (42 components), followed by those treated with H2O+WFT, CaCl2, and H2O (40, 40, and 35 compounds, respectively). Furthermore, the relative abundance of volatile compounds in the volatile profiles of kidney bean plants differed among the treatment groups. Our study suggested that the CaCl2, WFT, and CaCl2+WFT treatments increased the number of compound species and altered the relative abundance of plant volatiles. These differences, along with different behavioral responses exhibited by F. occidentalis and O. similis to different treatments, suggested the high plasticity of the olfactory systems of these insects in detecting suitable host and prey substrates [53]. However, calcium treatment alone does not lead to changes in the behavioral responses of F. occidentalis and O. similis, indicating that CaCl2-mediated plant defense has initiation effects [11,68]. Similar results have been reported in studies using other exogenous inducers, such as silicon and (Z)-3-hexenol, in which treated plants exhibited enhanced defense mechanisms upon infestation with herbivorous B. tabaci or T. urticae [25,32].
In our study, calcium treatment led to changes in the content of several compounds, among them, the percentages of (E)-2-hexen-1-ol and 1-octen-3-ol were significantly decreased, while the percentages of β-lonone and (E,E)-2,4-hexadienal were significantly increased. In other studies, (E)-2-hexen-1-ol and 1-octen-3-ol have been identified as pest HIPVs, and their increased emissions attract natural enemies of herbivores [69,70]. This finding was contradictory to that of the present study. However, a small number of studies have shown that plants treated with exogenous substances reduced their volatile emissions, causing the enhancement of the attractiveness of natural enemies. For example, the composition of volatiles in silicon-treated rice plants infested with Cnaphalocrocis medinalis (Guenee) (Lepidoptera: Pyralidae) was altered, with the content of α-bergamotene, β-sesquiohellandrene, and hexanal 2-ethyl being reduced; however, the attraction of the natural enemies Trathala flavo-orbitalis (Cameron) (Hymenoptera: Ichneumonidae) and Microplitis mediator (Haliday) (Hymenoptera: Braconidae) was enhanced [59], it has been suggested that this is a function of overall HIPV quality rather than any specific volatile compound [71]. Therefore, we speculated that the altered ratio of compounds in volatile blends was key to the enhanced repellence of herbivorous insects and the attraction of predators. Although the underlying mechanisms and causes of such altered emissions are unclear, we offer possible explanations. The application of exogenous calcium promoted the transduction of signals pathway, including jasmonic acid (JA) and salicylic acid (SA), causing to alter the composition of HIPVs involved in JA or SA [2,5,11,72,73]. Thus, it may attract natural predators and repel herbivorous insects.
When selecting host plants, insects frequently employ certain compounds as cues to locate the plants [64,74]. Therefore, we conducted further behavioral response verification of the volatile components that were significantly altered in calcium treatment kidney bean plants using a six-armed olfactory assay, and found that the different concentrations of (E)-2-hexen-1-ol, 1-octen-3-ol, β-lonone, and (E,E)-2,4-hexadienal had different effects on F. occidentalis. (E)-2-hexen-1-ol and (E,E)-2,4-hexadienal compounds showed a repellent effect at higher concentrations and attractant effects at low concentrations. This concentration effect has been similarly observed in previous studies on the repellency of single volatiles; for example, the higher concentrations of 2-phenylethyl acetate acted as a repellent for F. occidentalis, but it acted as an attractant at the lower concentrations [75]. Similarly, the higher concentrations of 3-methyl-1-butanol acted as a repellent for Plodia interpunctella (Hübner) (Lepidoptera: Pyralidae), but its lower concentrations acted as a lure [76]. This result is attributable to the behavioral responses of herbivores, which depend on the concentration of volatiles [77]. Meanwhile, the concentration effect could also be seen in O. similis. Combining the repellent effect on thrips and attraction effect on O. similis, 1-octen-3-ol (10−2 μL/μL), β-lonone (10−2 μL/μL), and (E,E)-2, 4-hexadienal (10−3 μL/μL) could be used in biological control against thrips. However, the behavioral responses of insects are not only influenced by individual compounds and concentrations but also by their proportions in a mixture [78]. Thus, it has been suggested that the concentration and ratio of key compounds may influence the attraction of insects [79]. Therefore, the repellent and attraction functions of these volatile compounds should be further evaluated in future studies.

5. Conclusions

Our findings revealed that calcium treatment significantly altered the composition of HIPVs in kidney bean plants, affected the oviposition preference of F. occidentalis, and attracted the natural enemy of F. occidentalis, i.e., O. similis. These elements could play roles in the top–down control of F. occidentalis. Our results suggested (E)-2-hexen-1-ol, 1-octen-3-ol, β-lonone, and (E,E)-2,4-hexadienal might be potential olfactory cues, but their effects require further evaluation via extensive behavioral bioassay testing using different doses and combinations of these volatile compounds.

Author Contributions

Conceptualization, W.-Q.H. and J.-R.Z.; methodology and software, W.-Q.H. and G.Z.; validation, J.-R.Z. and W.-Q.H.; formal analysis, W.-Q.H. and G.Z.; investigation, W.-Q.H. and Z.-J.Y.; resources, Z.-J.Y.; data curation, W.-Q.H. and X.-Y.Q.; writing—original draft preparation, W.-Q.H.; writing—review and editing, W.-Q.H., G.Z., X.-Y.Q. and J.-R.Z.; visualization, J.-R.Z.; funding acquisition, J.-R.Z.; conducted the experiments W.-Q.H. and Z.-J.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Innovation Group Project of the Education Department in Guizhou Province (Qian KY [2021] 011), and the National Natural Science Foundation of China (NSFC) (31660516).

Data Availability Statement

Data is available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Allen, G.J.; Chu, S.P.; Harrington, C.L.; Schumacher, K.; Hoffmann, T.; Tang, Y.Y.; Grill, E.; Schroeder, J.I. A defined range of guard cell calcium oscillation parameters encodes stomatal movements. Nature 2001, 411, 1053–1057. [Google Scholar] [CrossRef] [PubMed]
  2. Tang, R.J.; Wang, C.; Li, K.; Luan, S. The CBL–CIPK calcium signaling network: Unified paradigm from 20 years of discoveries. Trends Plant Sci. 2020, 25, 604–617. [Google Scholar] [CrossRef] [PubMed]
  3. Tian, W.; Wang, C.; Gao, Q.; Li, L.; Luan, S. Calcium spikes, waves and oscillations in plant development and biotic interactions. Nat. Plants 2020, 6, 750–759. [Google Scholar] [CrossRef] [PubMed]
  4. Vincent, T.R.; Avramova, M.; Canham, J.; Higgins, P.; Bilkey, N.; Mugford, S.T.; Pitino, M.; Toyota, M.; Gilroy, S.; Miller, A.J.; et al. Interplay of plasma membrane and vacuolar ion channels, together with BAK1, elicits rapid cytosolic calcium elevations in Arabidopsis during aphid feeding. Plant Cell 2017, 29, 1460–1479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Debona, D.; Cruz, M.F.A.; Rodrigues, F.A. Calcium-triggered accumulation of defense-related transcripts enhances wheat resistance to leaf blast. Trop. Plant Pathol. 2017, 42, 309–314. [Google Scholar] [CrossRef]
  6. Larkindale, J.; Knight, M.R. Protection against heat stress-induced oxidative damage in Arabidopsis involves calcium, abscisic acid, ethylene, and salicylic acid. Plant Physiol. 2002, 128, 682–695. [Google Scholar] [CrossRef]
  7. Rahman, A.; Mostofa, M.G.; Nahar, K.; Hasanuzzaman, M.; Fujita, M. Exogenous calcium alleviates cadmium-induced oxidative stress in rice (Oryza sativa L.) seedlings by regulating the antioxidant defense and glyoxalase systems. Braz. J. Bot. 2016, 39, 393–407. [Google Scholar] [CrossRef]
  8. Khan, A.; Anwar, Y.; Hasan, M.M.; Iqbal, A.; Ali, M.; Alharby, H.F.; Hakeem, K.R.; Hasanuzzaman, M. Attenuation of drought stress in Brassica seedlings with exogenous application of Ca and H2O2. Plants 2017, 6, 20. [Google Scholar] [CrossRef]
  9. Tahjib-Ul-Arif, M.; Roy, P.R.; Al Mamun Sohag, A.; Afrin, S.; Rady, M.M.; Hossain, M.A. Exogenous calcium supplementation improves salinity tolerance in BRRI dhan28; a salt-susceptible high-yielding Oryza sativa cultivar. J. Crop. Sci. Biotechnol. 2018, 21, 383–394. [Google Scholar] [CrossRef]
  10. Silveira, N.M.; Ribeiro, R.V.; Prataviera, P.J.; Pissolato, M.D.; Pieretti, J.C.; Seabra, A.B.; Machado, E.C. Germination and initial growth of common bean plants under water deficit as affected by seed treatment with S-nitrosoglutathione and calcium chloride. Theor. Exp. Plant Physiol. 2020, 32, 49–62. [Google Scholar] [CrossRef]
  11. Wang, J.; Song, J.; Wu, X.B.; Deng, Q.Q.; Zhu, Z.Y.; Ren, M.J.; Zeng, R.S. Seed priming with calcium chloride enhances wheat resistance against wheat aphid Schizaphis graminum Rondani. Pest Manag. Sci. 2021, 77, 4709–4718. [Google Scholar] [CrossRef]
  12. Zeng, G.; Zhi, J.R.; Ye, M.; Yue, W.B.; Song, J. Inductive effects of exogenous calcium on the defense of kidney bean plants against Frankliniella occidentalis (Thysanoptera: Thripidae). Arthropod-Plant Interact. 2020, 14, 473–480. [Google Scholar] [CrossRef]
  13. Wu, X.B.; Deng, Q.Q.; Song, J.; Wang, J.; Ye, M. Effects of seed soaking with different concentrations of calcium chloride on rice defense enzyme activities and resistance to Nilaparvata lugens (Hemiptera; Delphacidae). Acta Entomol. Sin. 2022, 65, 84–93. [Google Scholar]
  14. Huang, J.; Zhang, J.; Yu, Y.M.; Liu, J.X.; Li, M.J.; Zhu, K.Y. Effects of calcium fertilizer on the development, survival, and feeding of B-biotype Bemisia tabaci on Euphorbia pulcherrima. Chin. J. Appl. Ecol. 2012, 23, 2521–2528. [Google Scholar]
  15. Mithöfer, A.; Boland, W. Plant defense against herbivores: Chemical aspects. Annu. Rev. Plant Biol. 2012, 63, 431–450. [Google Scholar] [CrossRef] [Green Version]
  16. Lou, Y.G.; Hu, L.F.; Li, J.C. Herbivore-induced defenses in rice and their potential application in rice planthopper management. In Rice Planthoppers; Zhejiang University Press: Hangzhou, China, 2015; pp. 91–115. [Google Scholar]
  17. Schuman, M.C.; Baldwin, I.T. The layers of plant responses to insect herbivores. Annu. Rev. Entomol. 2016, 61, 373–394. [Google Scholar] [CrossRef]
  18. Conchou, L.; Lucas, P.; Meslin, C.; Proffit, M.; Staudt, M.; Renou, M. Insect odor scapes: From plant volatiles to natural olfactory scenes. Front. Physiol. 2019, 10, 972. [Google Scholar] [CrossRef]
  19. Lin, T.T.; Vrieling, K.; Laplanche, D.; Klinkhamer, P.G.; Lou, Y.G.; Bekooy, L.; Degen, T.; Bustos, S.C.; Turlings, T.C.J.; Desurmont, G.A. Evolutionary changes in an invasive plant support the defensive role of plant volatiles. Curr. Biol. 2021, 31, 3450–3456.e5. [Google Scholar] [CrossRef]
  20. Becker, C.; Desneux, N.; Monticelli, L.; Fernandez, X.; Michel, T.; Lavoir, A.V. Effects of abiotic factors on HIPV-mediated interactions between plants and parasitoids. BioMed Res. Int. 2015, 2015, 342982. [Google Scholar] [CrossRef] [Green Version]
  21. Patt, J.M.; Robbins, P.S.; Niedz, R.; McCollum, G.; Alessandro, R. Exogenous application of the plant signalers methyl jasmonate and salicylic acid induces changes in volatile emissions from citrus foliage and influences the aggregation behavior of Asian citrus psyllid (Diaphorina citri), vector of Huang long Bing. PLoS ONE 2018, 13, e0193724. [Google Scholar] [CrossRef] [Green Version]
  22. Turlings, T.C.; Erb, M. Tritrophic interactions mediated by herbivore-induced plant volatiles: Mechanisms, ecological relevance, and application potential. Annu. Rev. Entomol. 2018, 63, 433–452. [Google Scholar] [CrossRef] [PubMed]
  23. Sharifi, R.; Lee, S.M.; Ryu, C.M. Microbe-induced plant volatiles. New Phytol. 2018, 220, 684–691. [Google Scholar] [CrossRef] [PubMed]
  24. Lin, T.; Zhu, G.Q.; He, W.C.; Xie, J.L.; Li, S.J.; Han, S.; Li, S.Y.; Yang, C.L.; Liu, Y.G.; Zhu, T.H. Soil cadmium stress reduced host plant odor selection and oviposition preference of leaf herbivores through the changes in leaf volatile emissions. Sci. Total Environ. 2022, 814, 152728. [Google Scholar] [CrossRef] [PubMed]
  25. Islam, T.; Moore, B.D.; Johnson, S.N. Silicon suppresses a ubiquitous mite herbivore and promotes natural enemy attraction by altering plant volatile blends. J. Pest Sci. 2022, 95, 423–434. [Google Scholar] [CrossRef]
  26. Colazza, S.; McElfresh, J.S.; Millar, J.G. Identification of volatile synomones, induced by Nezara viridula feeding and oviposition on bean spp., that attract the egg parasitoid Trissolcus basalis. J. Chem. Ecol. 2004, 30, 945–964. [Google Scholar] [CrossRef]
  27. Dicke, M. Behavioural and community ecology of plants that cry for help. Plant Cell Environ. 2009, 32, 654–665. [Google Scholar] [CrossRef]
  28. Gols, R. Direct and indirect chemical defences against insects in a multitrophic framework. Plant Cell Environ. 2014, 37, 1741–1752. [Google Scholar] [CrossRef] [Green Version]
  29. Aljbory, Z.; Chen, M.S. Indirect plant defense against insect herbivores: A review. Insect Sci. 2018, 25, 2–23. [Google Scholar] [CrossRef]
  30. Paudel Timilsena, B.; Seidl-Adams, I.; Tumlinson, J.H. Herbivore-specific plant volatiles prime neighboring plants for nonspecific defense responses. Plant Cell Environ. 2020, 43, 787–800. [Google Scholar] [CrossRef]
  31. Winter, T.R.; Borkowski, L.; Zeier, J.; Rostás, M. Heavy metal stress can prime for herbivore-induced plant volatile emission. Plant Cell Environ. 2012, 35, 1287–1298. [Google Scholar] [CrossRef]
  32. Yang, F.B.; Zhang, Q.H.; Yao, Q.X.; Chen, G.; Tong, H.; Zhang, J.M.; Li, C.R.; Su, Q.; Zhang, Y.J. Direct and indirect plant defenses induced by (Z)-3-hexenol in tomato against whitefly attack. J. Pest Sci. 2020, 93, 1243–1254. [Google Scholar] [CrossRef]
  33. Kirk, W.D.J.; Terry, L.I. The spread of the western flower thrips Frankliniella occidentalis (Pergande). Agric. For. Entomol. 2003, 5, 301–310. [Google Scholar] [CrossRef]
  34. Reitz, S.R. Biology and ecology of the western flower thrips (Thysanoptera: Thripidae): The making of a pest. Fla. Entomol. 2009, 92, 7–13. [Google Scholar] [CrossRef]
  35. Zhang, B.; Qian, W.Q.; Qiao, X.; Xi, Y.; Wan, F.H. Invasion biology, ecology, and management of Frankliniella occidentalis in China. Arch. Insect Biochem. Physiol. 2019, 102, e21613. [Google Scholar] [CrossRef]
  36. Gao, Y.L.; Lei, Z.R.; Reitz, S.R. Western flower thrips resistance to insecticides: Detection, mechanisms and management strategies. Pest Manag. Sci. 2012, 68, 1111–1121. [Google Scholar] [CrossRef]
  37. Steenbergen, M.; Abd-el-Haliem, A.; Bleeker, P.; Dicke, M.; Escobar-Bravo, R.; Cheng, G.; Haring, M.A.; Kant, M.R.; Kappers, I.; Kilinkhamer, P.G.L.; et al. Thrips advisor: Exploiting thrips-induced defences to combat pests on crops. J. Exp. Bot. 2018, 69, 1837–1848. [Google Scholar] [CrossRef]
  38. Mouden, S.; Sarmiento, K.F.; Klinkhamer, P.G.; Leiss, K.A. Integrated pest management in western flower thrips: Past, present and future. Pest Manag. Sci. 2017, 73, 813–822. [Google Scholar] [CrossRef] [Green Version]
  39. Mouden, S.; Leiss, K.A. Host plant resistance to thrips (Thysanoptera: Thripidae)–current state of art and future research avenues. Curr. Opin. Insect Sci. 2021, 45, 28–34. [Google Scholar] [CrossRef]
  40. Sun, M.; Zhi, J.R.; Mo, L.F. Control effect of Orius similis on Frankliniella occidentalis of cut rose. J. Henan Agric. Sci. 2012, 41, 95–98. [Google Scholar]
  41. Traczyk, E.; Funderburk, J.; Martini, X. Foraging behavior responses of Orius insidiosus to thrips cues. Entomol. Exp. Appl. 2020, 168, 716–722. [Google Scholar] [CrossRef]
  42. Zeng, G.; Zhi, J.R.; Zhang, C.R.; Zhang, T.; Ye, J.Q.; Zhou, L.; Ye, M. Orius similis (Hemiptera: Anthocoridae): A promising candidate predator of Spodoptera frugiperda (Lepidoptera: Noctuidae). J. Econ. Entomol. 2021, 114, 582–589. [Google Scholar] [CrossRef] [PubMed]
  43. Van Lenteren, J.C.; Bolckmans, K.; Köhl, J.; Ravensberg, W.J.; Urbaneja, A. Biological control using invertebrates and microorganisms: Plenty of new opportunities. BioControl 2018, 63, 39–59. [Google Scholar] [CrossRef] [Green Version]
  44. Lei, C.L. Biological Control of Pectinophora Gossypiella (Saunders), 1st ed.; Science Publishing House Press: Beijing, China, 1997. [Google Scholar]
  45. Zhou, X.M.; Lei, C.L. Utilization efficiency and functional response of Orius similis Zheng (Hemiptera: Anthocoridae) to different preys. Acta Ecol. Sin. 2002, 22, 2085–2090. [Google Scholar]
  46. Tatemoto, S.; Shimoda, T. Olfactory responses of the predatory mites (Neoseiulus cucumeris) and insects (Orius strigicollis) to two different plant species infested with onion thrips (Thrips tabaci). J. Chem. Ecol. 2008, 34, 605–613. [Google Scholar] [CrossRef] [PubMed]
  47. Zhi, J.R.; Zheng, S.S.; Zhang, C.R.; Liu, F.J. The predation of Orius similis to Frankliniella occidentalis and Aphis craccivora. Chin. J. Appl. Entomol. 2011, 48, 573–578. [Google Scholar]
  48. Li, S.X.; Zhi, J.R.; Zeng, G.; Wen, J.; Lü, Z.Y. Behavioral responses Frankliniella occidengalis and Orius similis to kidney bean vola-tiles induced by exogenous jasmonic acid. Chin. J. Appl. Entomol. 2016, 53, 1065–1076. [Google Scholar]
  49. Zeng, G.; Zhi, J.R.; Ye, M.; Xie, W.; Zhang, T.; Li, D.Y.; Liu, L.; Wu, X.B.; Cao, Y. Life table and preference choice of Frankliniella occidentalis (Thysanoptera: Thripidae) for kidney bean plants treated by exogenous calcium. Insects 2021, 12, 838. [Google Scholar] [CrossRef]
  50. Zhang, H.R.; Okajima, S.; Mound, L.A. Collecting and slide preparation methods of thrips. Chin. Bull. Entomol. 2006, 43, 725–728. [Google Scholar]
  51. Wang, Z.; Mound, L.A.; Tong, X.L. Frankliniella species from China, with nomenclatural changes and illustrated key (Thysanoptera, Thripidae). ZooKeys 2019, 873, 43–53. [Google Scholar] [CrossRef]
  52. Zhang, J.; Zhi, J.R.; Yang, C.Y.; Li, S.X. Investigation and identification of farmland Orius wolff in Guizhou Province. J. Mt. Agric. Biol. 2015, 34, 36–40. [Google Scholar]
  53. Cao, Y.; Li, C.; Yang, H.; Li, J.; Li, S.; Wang, Y.; Gao, Y. Laboratory and field investigation on the orientation of Frankliniella occidentalis (Thysanoptera: Thripidae) to more suitable host plants driven by volatiles and component analysis of volatiles. Pest Manag. Sci. 2019, 75, 598–606. [Google Scholar] [CrossRef]
  54. Chen, Y.H.; Wang, Y.S.; Li, L.; Yang, C.; Zhang, J.P.; Chen, J. Selective and olfactory repones of Frankliniella occidentalis to different host plants. Plant Prot. 2021, 47, 122–126. [Google Scholar]
  55. Cao, Y.; Wang, J.; Germinara, G.S.; Wang, L.J.; Yang, H.; Gao, Y.L.; Li, C. Behavioral responses of Thrips hawaiiensis (Thysanoptera: Thripidae) to volatile compounds identified from Gardenia jasminoides Ellis (Gentianales: Rubiaceae). Insects 2020, 11, 408. [Google Scholar] [CrossRef]
  56. Bi, J.L.; Felton, G.W. Foliar oxidative stress and insect herbivory: Primary compounds, secondary metabolites, and reactive oxygen species as components of induced resistance. J. Chem. Ecol. 1995, 21, 1511–1530. [Google Scholar] [CrossRef]
  57. Jiao, Y.Y.; Hu, X.Y.; Peng, Y.F.; Wu, K.M.; Romeis, J.; Li, Y.H. Bt rice plants may protect neighbouring non-Bt rice plants against the striped stem borer, Chilo suppressalis. Proc. R. Soc. B Biol. Sci. 2018, 285, 20181283. [Google Scholar] [CrossRef]
  58. Kessler, A.; Baldwin, I.T. Defensive function of herbivore-induced plant volatile emissions in nature. Science 2001, 291, 2141–2144. [Google Scholar] [CrossRef]
  59. Liu, J.; Zhu, J.W.; Zhang, P.J.; Han, L.W.; Reynolds, O.L.; Zeng, R.; Wu, J.H.; Shao, Y.; Gurr, G.M. Silicon supplementation alters the composition of herbivore induced plant volatiles and enhances attraction of parasitoids to infested rice plants. Front. Plant Sci. 2017, 8, 1265. [Google Scholar] [CrossRef] [Green Version]
  60. Du, Y.W.; Shi, X.B.; Zhao, L.C.; Yuan, G.G.; Zhao, W.W.; Huang, G.H.; Chen, G. Chinese cabbage changes its release of volatiles to defend against Spodoptera litura. Insects 2022, 13, 73. [Google Scholar] [CrossRef]
  61. De Oliveira, R.S.; Peñaflor, M.F.G.; Gonçalves, F.G.; Sampaio, M.V.; Korndörfer, A.P.; Silva, W.D.; Bento, J.M.S. Silicon-induced changes in plant volatiles reduce attractiveness of wheat to the bird cherry-oat aphid Rhopalosiphum padi and attract the parasitoid Lysiphlebus testaceipes. PLoS ONE 2020, 15, e0231005. [Google Scholar] [CrossRef]
  62. Myers, S.W.; Gratton, C.; Wolkowski, R.P.; Hogg, D.B.; Wedberg, J.L. Effect of soil potassium availability on soybean aphid (Hemiptera: Aphididae) population dynamics and soybean yield. J. Econ. Entomol. 2005, 98, 113–120. [Google Scholar] [CrossRef]
  63. Kaplan, I. Attracting carnivorous arthropods with plant volatiles: The future of biocontrol or playing with fire? Biol. Control. 2012, 60, 77–89. [Google Scholar] [CrossRef]
  64. Bruce, T.J.A.; Wadhams, L.J.; Woodcock, C.M. Insect host location: A volatile situation. Trends Plant Sci. 2005, 10, 269–274. [Google Scholar] [CrossRef] [PubMed]
  65. Zhang, J.; Raza, S.A.K.; Wei, Z.Q.; Keesey, I.W.; Parker, A.L.; Feistel, F.; Chen, J.Y.; Cassau, S.; Fandino, R.A.; Grosse, W.E.; et al. Competing beetles attract egg laying in a hawkmoth. Curr. Biol. 2022, 32, 861–869.e8. [Google Scholar] [CrossRef] [PubMed]
  66. Wheeler, G.S.; Ordung, K.M. Secondary metabolite variation affects the oviposition preference but has little effect on the performance of Boreioglycaspis melaleucae: A biological control agent of Melaleuca quinquenervia. Biol. Control. 2005, 35, 115–123. [Google Scholar] [CrossRef]
  67. Clark, K.E.; Hartley, S.E.; Brennan, R.M.; MacKenzie, K.; Johnson, S.N. Oviposition and feeding behaviour by the vine weevil Otiorhynchus sulcatus on red raspberry: Effects of cultivars and plant nutritional status. Agric. For. Entomol. 2012, 14, 157–163. [Google Scholar] [CrossRef]
  68. Mauch-Mani, B.; Baccelli, I.; Luna, E.; Flors, V. Defense priming: An adaptive part of induced resistance. Annu. Rev. Plant Biol. 2017, 68, 485–512. [Google Scholar] [CrossRef] [Green Version]
  69. Mitra, S.; Karmakar, A.; Das, S.; Barik, A. Attraction of the potential biocontrol agent Altica cyanea by volatile compounds of three species of Ludwigia weeds from rice fields. Entomol. Exp. Appl. 2020, 168, 91–104. [Google Scholar] [CrossRef] [Green Version]
  70. Sendel, S.; Bocianowski, J.; Buszewski, B.; Piesik, M.; Mayhew, C.A.; Piesik, D. Volatile organic compounds released by wheat as a result of striped shield bug feeding and insect behaviour. J. Appl. Entomol. 2022, 146, 710–724. [Google Scholar] [CrossRef]
  71. Van Wijk, M.; De Bruijn, P.J.A.; Sabelis, M.W. Predatory mite attraction to herbivore-induced plant odors is not a consequence of attraction to individual herbivore-induced plant volatiles. J. Chem. Ecol. 2008, 34, 791–803. [Google Scholar] [CrossRef]
  72. Ozawa, R.; Arimura, G.I.; Takabayashi, J.; Shimoda, T.; Nishioka, T. Involvement of jasmonate-and salicylate-related signaling pathways for the production of specific herbivore-induced volatiles in plants. Plant Cell Physiol. 2000, 41, 391–398. [Google Scholar] [CrossRef] [Green Version]
  73. Matschi, S.; Hake, K.; Herde, M.; Hause, B.; Romeis, T. The calciumdependent protein kinase CPK28 regulates development by inducing growth phase-specific, spatially restricted alterations in jasmonic acid levels independent of defense responses in Arabidopsis. Plant Cell 2015, 27, 591–606. [Google Scholar] [CrossRef] [Green Version]
  74. Bruce, T.J.A.; Pickett, J.A. Perception of plant volatile blends by herbivorous insects–finding the right mix. Phytochem 2011, 72, 1605–1611. [Google Scholar] [CrossRef]
  75. Avellaneda, J.; Díaz, M.; Coy-Barrera, E.; Rodríguez, D.; Osorio, C. Rose volatile compounds allow the design of new control strategies for the western flower thrips (Frankliniella occidentalis). J. Pest Sci. 2021, 94, 129–142. [Google Scholar] [CrossRef]
  76. Būda, V.; Apšegaitė, V.; Blažytė-Čereškienė, L.; Butkienė, R.; Nedveckytė, I.; Pečiulytė, D. Response of moth Plodia interpunctella to volatiles of fungus-infected and uninfected wheat grain. J. Stored Prod. Res. 2016, 69, 152–158. [Google Scholar] [CrossRef]
  77. Deletre, E.; Schatz, B.; Bourguet, D.; Chandre, F.; Williams, L.; Ratnadass, A.; Martin, T. Prospects for repellent in pest control: Current developments and future challenges. Chemoecology 2016, 26, 127–142. [Google Scholar] [CrossRef]
  78. Najar-Rodriguez, A.J.; Galizia, C.G.; Stierle, J.; Dorn, S. Behavioral and neurophysiological responses of an insect to changing ratios of constituents in host plant-derived volatile mixtures. J. Exp. Biol. 2010, 213, 3388–3397. [Google Scholar] [CrossRef] [Green Version]
  79. Cha, D.H.; Linn, C.E.; Teal, P.E.A.; Zhang, A.; Roelofs, W.L.; Loeb, G.M. Eavesdropping on plant volatiles by a specialist moth: Significance of ratio and concentration. PLoS ONE 2011, 6, e17033. [Google Scholar] [CrossRef]
Insects 13 01127 g001 550

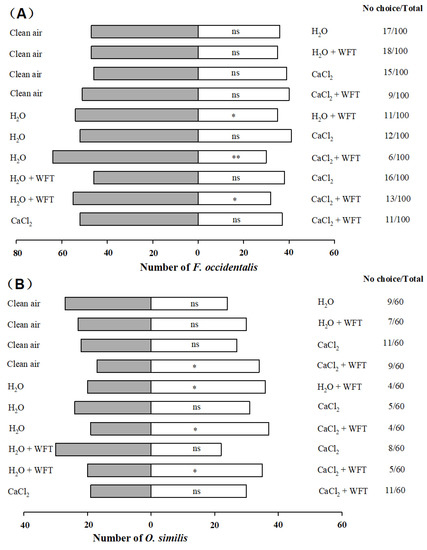

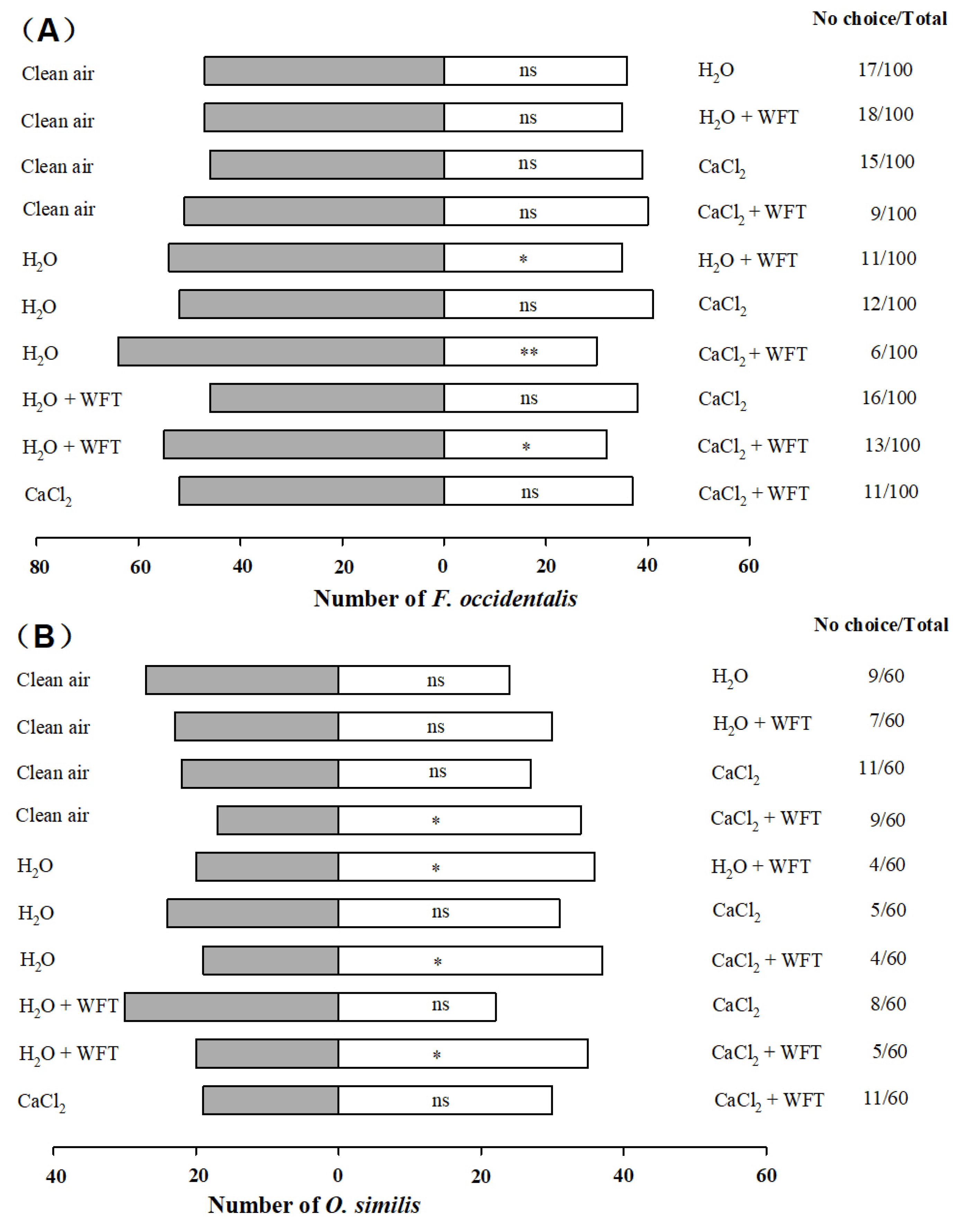

Figure 1. Olfactory responses of F. occidentalis (A) and O. similis (B) to volatiles from five test sources. Asterisks indicate significant differences based on χ2 test (** p < 0.01, * p < 0.05). “ns” represents no significant difference (p > 0.05).
Figure 1. Olfactory responses of F. occidentalis (A) and O. similis (B) to volatiles from five test sources. Asterisks indicate significant differences based on χ2 test (** p < 0.01, * p < 0.05). “ns” represents no significant difference (p > 0.05).
Insects 13 01127 g001
Insects 13 01127 g002 550

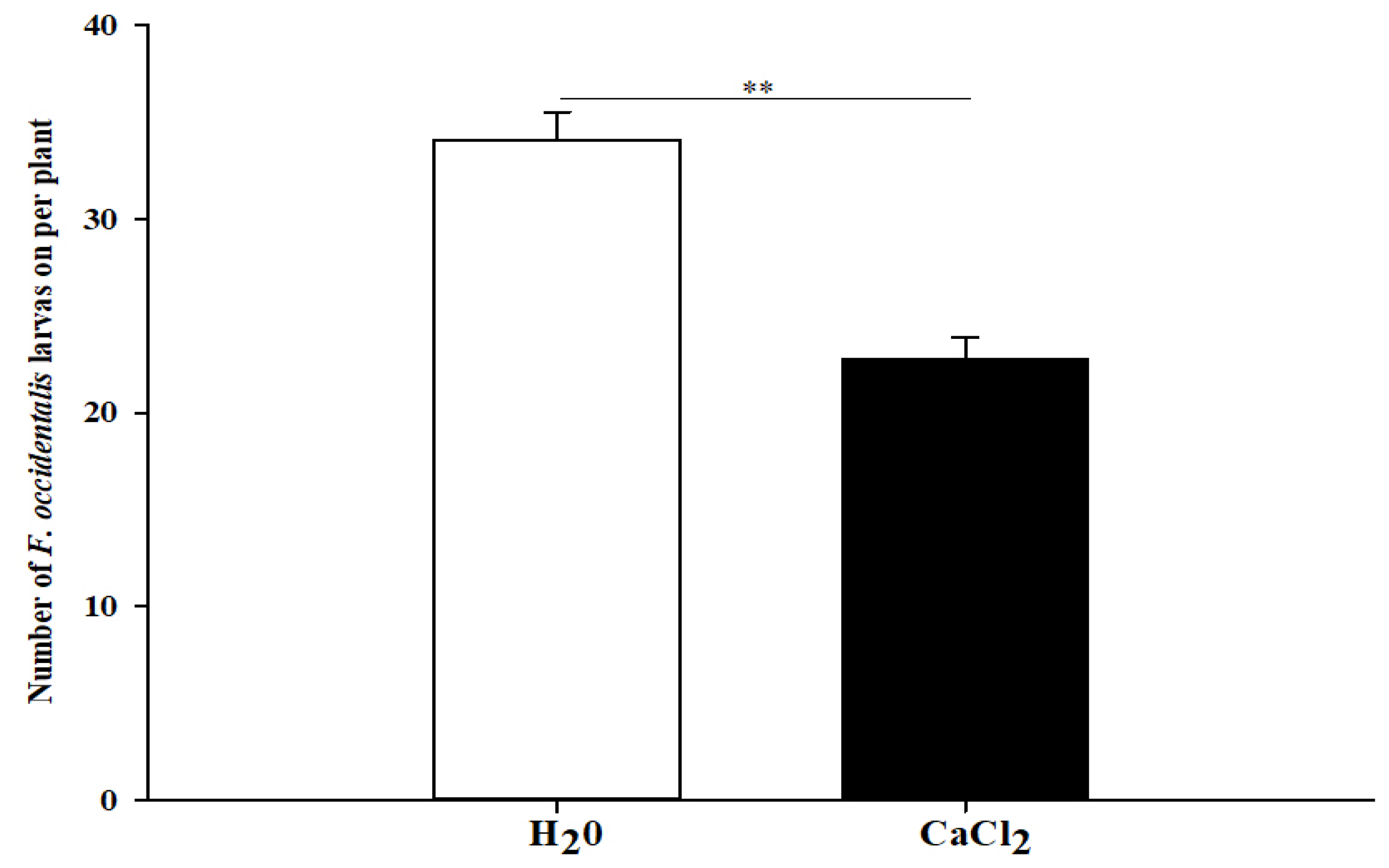

Figure 2. Means (±SE) represent the number of F. occidentalis larvae on H2O and exogenous calcium-treated kidney bean plants 48 h after oviposition of female F. occidentalis. ** indicate high significant difference at 1% level.
Figure 2. Means (±SE) represent the number of F. occidentalis larvae on H2O and exogenous calcium-treated kidney bean plants 48 h after oviposition of female F. occidentalis. ** indicate high significant difference at 1% level.
Insects 13 01127 g002
Insects 13 01127 g003 550

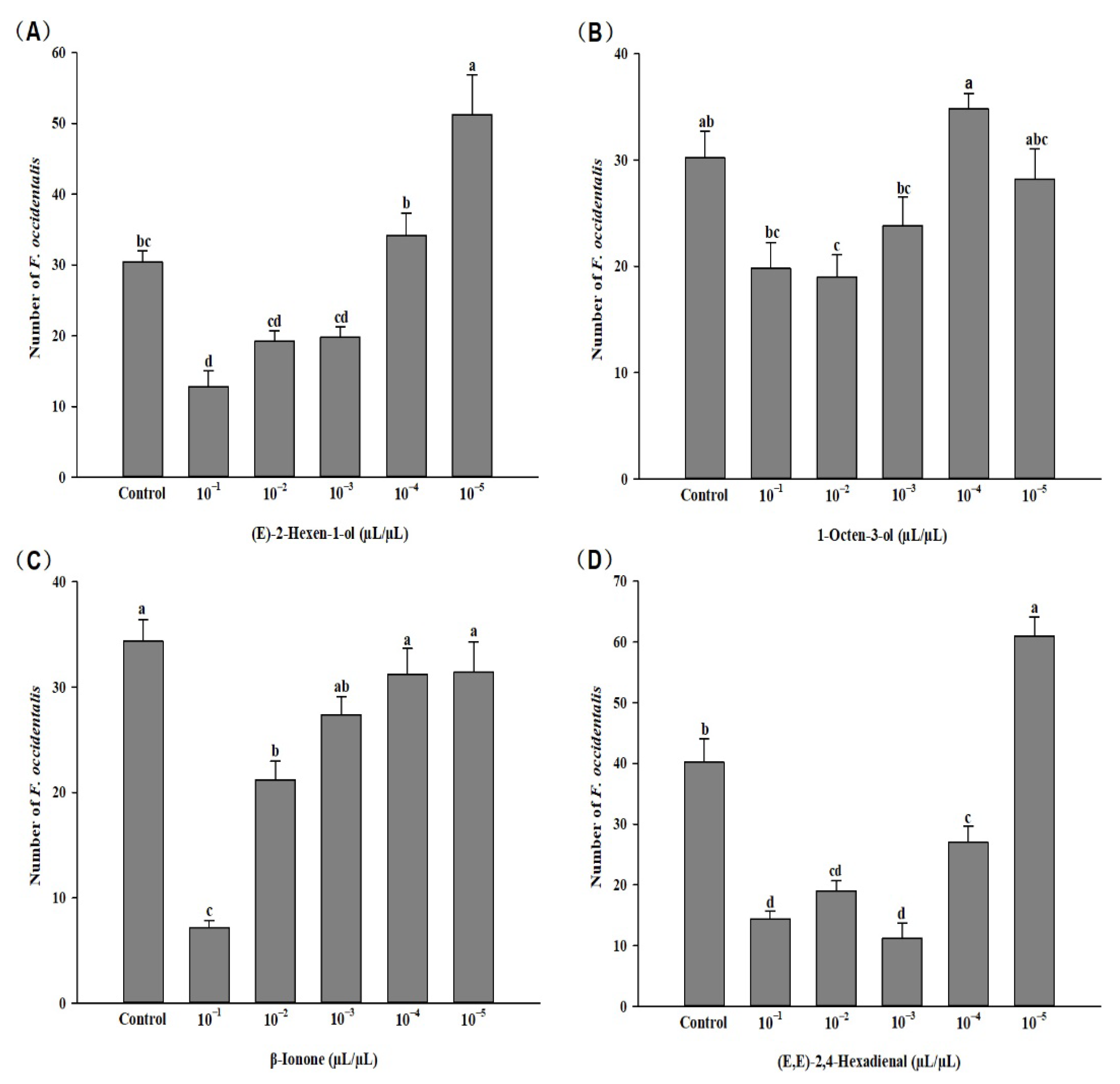

Figure 3. Response of female F. occidentalis adults to volatile compounds at different concentrations. Letters on bars indicate significant differences (Tukey’s test, p < 0.05).
Figure 3. Response of female F. occidentalis adults to volatile compounds at different concentrations. Letters on bars indicate significant differences (Tukey’s test, p < 0.05).
Insects 13 01127 g003
Insects 13 01127 g004 550

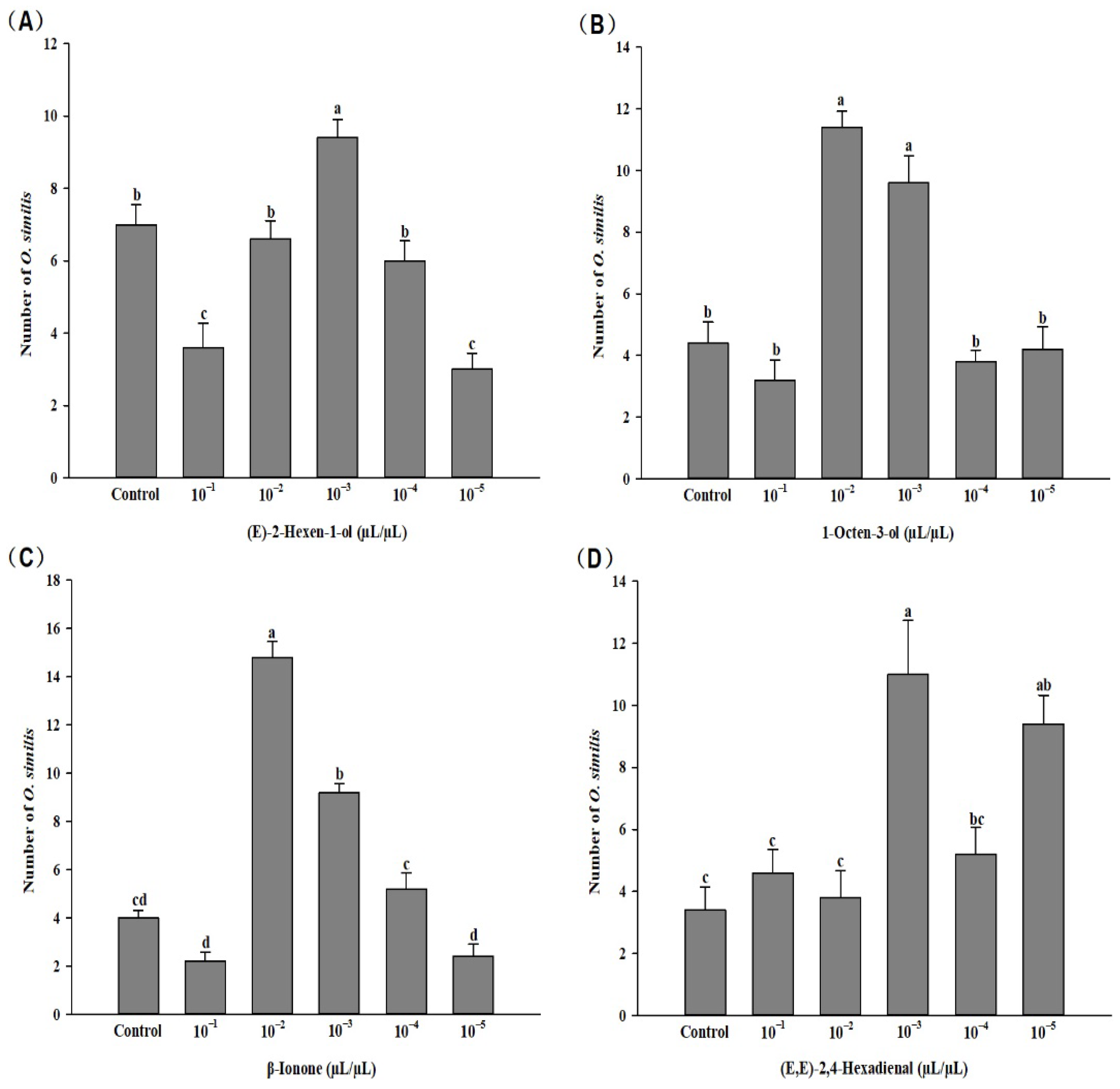

Figure 4. Response of female O. similis adults to volatile compounds of different concentrations. Letters on bars indicate significant differences (Tukey’s test, p < 0.05).
Figure 4. Response of female O. similis adults to volatile compounds of different concentrations. Letters on bars indicate significant differences (Tukey’s test, p < 0.05).
Insects 13 01127 g004
Table
Table 1. Volatile components of kidney bean plants after four different treatments.
Table 1. Volatile components of kidney bean plants after four different treatments.
Sn CompoundsContent (%)
H2OCaCl2H2O+WFTCaCl2+WFT
1   3-hexen-1-ol28.79 ± 2.02 a19.24 ± 1.18 b27.50 ± 2.51 a23.51 ± 0.99 ab
2   (E)-2-hexen-1-ol15.59 ± 0.89 a11.66 ± 1.16 b17.99 ± 0.54 a8.01 ± 0.35 c
3   1-octen-3-ol12.74 ± 0.57 a8.01 ± 0.35 b12.31 ± 0.49 a7.86 ± 0.65 b
4   (E)-2-hexenal11.40 ± 1.86 a13.58 ± 1.07 a13.07 ± 1.19 a12.63 ± 2.10 a
5   1-hexanol6.16 ± 0.61 a4.90 ± 0.51 a4.95 ± 0.55 a4.90 ± 0.36 a
6   β-lonone2.47 ± 0.90 c15.80 ± 0.82 a2.69 ± 0.66 c10.59 ± 0.64 b
7   1-penten-3-ol1.19 ± 0.27 a0.36 ± 0.07 b1.25 ± 0.15 a0.32 ± 0.04 b
8   Pentadecanal–0.48 ± 0.18 b0.73 ± 0.14 b2.65 ± 0.63 a
9   β-cyclocitral0.83 ± 0.03 c1.73 ± 0.03 a0.98 ± 0.26 bc1.63 ± 0.12 ab
10 (Z)-3-hexenyl butanoate0.98 ± 0.56 a0.24 ± 0.04 a0.52 ± 0.06 a1.31 ± 0.43 a
11 (E,E)-2,4-heptadienal0.98 ± 0.13 ab2.07 ± 0.31 a0.65 ± 0.13 b1.80 ± 0.34 a
12 3-pentanone0.47 ± 0.12 a0.16 ± 0.01 b0.41 ± 0.01 ab0.13 ± 0.02 b
13 1-pentanol0.33 ± 0.19 a–0.30 ± 0.12 a–
14 (E)-2-hexen-1-ol, acetate0.64 ± 0.07 a0.30 ± 0.03 b0.38 ± 0.03 ab0.44 ± 0.10 ab
15 Nonanal0.43 ± 0.10 a0.51 ± 0.01 a0.43 ± 0.04 a0.52 ± 0.02 a
16 α-lonone0.37 ± 0.13 c1.79 ± 0.18 a0.83 ± 0.40 ab1.32 ± 0.15 ab
17 2-ethyl-furan0.29 ± 0.09 a0.24 ± 0.03 a0.35 ± 0.05 a0.18 ± 0.02 a
18 (E,E)-2,4-hexadienal0.78 ± 0.52 b3.95 ± 0.69 a0.44 ± 0.17 b3.33 ± 0.22 a
19 3-octanone0.44 ± 0.06 a0.26 ± 0.03 a0.36 ± 0.03 a0.46 ± 0.12 a
20 2,5-octanedione0.47 ± 0.25 a0.62 ± 0.14 a0.42 ± 0.20 a0.35 ± 0.15 a
21 2-ethyl-1-hexanol0.31 ± 0.03 a0.11 ± 0.01 b0.24 ± 0.03 a–
22 Cis-3-hexenyl butyrate0.34 ± 0.11 b0.15 ± 0.01 b0.20 ± 0.01 b0.67 ± 0.03 a
23 Pentadecane––0.19 ± 0.04 b0.73 ± 0.06 a
24 (E,E)-3,5-octadien-2-one––0.23 ± 0.08 a0.22 ± 0.02 a
25 Tetradecane0.13 ± 0.03 c0.44 ± 0.01 b0.26 ± 0.08 bc0.77 ± 0.06 a
26 2-methyl-6-hepten-1-ol0.22 ± 0.03 a–0.20 ± 0.01 a–
27 β-cyclohomocitral0.16 ± 0.01 b0.51 ± 0.03 a0.21 ± 0.05 b0.36 ± 0.04 a
28 Benzeneacetaldehyde0.13 ± 0.02 b0.20 ± 0.01 ab0.13 ± 0.02 b0.27 ± 0.02 a
29 Hexadecane–––0.10 ± 0.06
30 Cis-3-hexenyl Cis-3-hexenoate––0.16 ± 0.03 b0.58 ± 0.10 a
31 3-ethylbenzaldehyde0.12 ± 0.04 b0.62 ± 0.04 a0.13 ± 0.03 b0.47 ± 0.07 a
32 (4H)-benzofuranone, 5,6,7,7a-tetrahydro-4,4,7a-trimethyl-,(R)-–0.66 ± 0.06 a–0.42 ± 0.05 b
33 2,2,6-trimethylcyclohexanone0.10 ± 0.02 a–0.10 ± 0.02 a–
34 Benzaldehyde0.15 ± 0.02 b0.33 ± 0.02 a–0.31 ± 0.02 a
35 2,6-di-tert-butylbenzoquinone0.12 ± 0.04 b0.28 ± 0.02 a–0.27 ± 0.02 a
36 (E,E)-2,6-nonadienal0.13 ± 0.06 a0.15 ± 0.03 a0.10 ± 0.04 a0.18 ± 0.03 a
37 Tridecane–0.13 ± 0.02 ab–0.21 ± 0.03 a
38 Decanal–0.26 ± 0.04 a–0.19 ± 0.01 a
39 (E)-geranylacetone–0.24 ± 0.03 a–0.21 ± 0.04 b
40 Butanoic acid, hexyl ester–––0.13 ± 0.02 a
41 Perhydrofarnesyl acetone–0.13 ± 0.02––
42 Hexadecanoic acid, methyl ester–0.20 ± 0.04 a–0.11 ± 0.02 a
43 (Z)-3-hexen-1-ol, acetate4.37 ± 1.70 a0.68 ± 0.03 a1.22 ± 0.75 a2.64 ± 0.72 a
44 Lauryl acetate–––0.24 ± 0.12
45 (E)-2-penten-1-ol––0.24 ± 0.03–
46 (Z)-2-penten-1-ol––0.57 ± 0.17–
47 Linalool––0.11 ± 0.05–
48 3-methyl-butanal0.19 ± 0.03 a–0.21 ± 0.01a–
49 1-nonanol0.14 ± 0.01 a0.20 ± 0.03 a0.21 ± 0.04 a–
50 Hexanal0.14 ± 0.01 a0.20 ± 0.03 a0.21 ± 0.04 a–
51 1-heptanol––0.13 ± 0.00–
52 3-hexenal–0.34 ± 0.01 a–0.35 ± 0.06 a
53 (E)-3-hexen-1-ol–––0.37 ± 0.02
54 1-tetradecene–0.38 ± 0.01––
55 (Z)-2-penten-1-ol0.74 ± 0.21 a0.46 ± 0.02 a–0.34 ± 0.04 a
The data in the table are presented as mean ± standard error, and lower-case letters indicate significant differences among different concentrations and compounds (Tukey’s test, p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huang, W.-Q.; Zeng, G.; Zhi, J.-R.; Qiu, X.-Y.; Yin, Z.-J. Exogenous Calcium Suppresses the Oviposition Choices of Frankliniella occidentalis (Thysanoptera: Thripidae) and Promotes the Attraction of Orius similis (Hemiptera: Anthocoridae) by Altering Volatile Blend Emissions in Kidney Bean Plants. Insects 2022, 13, 1127. https://doi.org/10.3390/insects13121127

AMA Style

Huang W-Q, Zeng G, Zhi J-R, Qiu X-Y, Yin Z-J. Exogenous Calcium Suppresses the Oviposition Choices of Frankliniella occidentalis (Thysanoptera: Thripidae) and Promotes the Attraction of Orius similis (Hemiptera: Anthocoridae) by Altering Volatile Blend Emissions in Kidney Bean Plants. Insects. 2022; 13(12):1127. https://doi.org/10.3390/insects13121127

Chicago/Turabian Style

Huang, Wan-Qing, Guang Zeng, Jun-Rui Zhi, Xin-Yue Qiu, and Zhen-Juan Yin. 2022. "Exogenous Calcium Suppresses the Oviposition Choices of Frankliniella occidentalis (Thysanoptera: Thripidae) and Promotes the Attraction of Orius similis (Hemiptera: Anthocoridae) by Altering Volatile Blend Emissions in Kidney Bean Plants" Insects 13, no. 12: 1127. https://doi.org/10.3390/insects13121127

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
