Systematic Review

Diagnostic Performance of Magnetic Resonance Imaging for Parathyroid Localization of Primary Hyperparathyroidism: A Systematic Review

by
Max H. M. C. Scheepers
1,†,
Zaid Al-Difaie
1,†,
Lloyd Brandts
2,
Andrea Peeters
2,
Bjorn Winkens
3,
Mahdi Al-Taher
4,
Sanne M. E. Engelen
4,
Tim Lubbers
1,4,
Bas Havekes
5,6,
Nicole D. Bouvy
4,* and
Alida A. Postma
7
1
GROW School for Oncology and Developmental Biology, Maastricht University, 6229 ER Maastricht, The Netherlands
2
Department of Clinical Epidemiology and Medical Technology Assessment, Maastricht University Medical Centre, 6202 AZ Maastricht, The Netherlands
3
Department of Methodology and Statistics, CAPHRI, Maastricht University Medical Centre, 6229 HX Maastricht, The Netherlands
4
Department of Surgery, Maastricht University Medical Center, 6202 AZ Maastricht, The Netherlands
5
Department of Internal Medicine, Division of Endocrinology and Metabolic Disease, Maastricht University Medical Center, 6202 AZ Maastricht, The Netherlands
6
NUTRIM School of Nutrition and Translational Research in Metabolism, Maastricht University, 6229 ER Maastricht, The Netherlands
7
Department of Radiology and Nuclear Medicine, School for Mental Health and Sciences (MHENS), Maastricht University Medical Center, 6202 AZ Maastricht, The Netherlands
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Diagnostics 2024, 14(1), 25; https://doi.org/10.3390/diagnostics14010025
Submission received: 20 November 2023 / Revised: 18 December 2023 / Accepted: 20 December 2023 / Published: 22 December 2023
(This article belongs to the Special Issue Machine Extractable Knowledge from the Shape of Anatomical Structures)
Browse Figure
Review Reports Versions Notes

Abstract

:
Accurate preoperative localization is crucial for successful minimally invasive parathyroidectomy in primary hyperparathyroidism (PHPT). Preoperative localization can be challenging in patients with recurrent and/or multigland disease (MGD). This has led clinicians to investigate multiple imaging techniques, most of which are associated with radiation exposure. Magnetic resonance imaging (MRI) offers ionizing radiation-free and accurate imaging, making it an attractive alternative imaging modality. The objective of this systematic review is to provide an overview of the diagnostic performance of MRI in the localization of PHPT. PubMed and Embase libraries were searched from 1 January 2000 to 31 March 2023. Studies were included that investigated MRI techniques for the localization of PHPT. The exclusion criteria were (1) secondary/tertiary hyperparathyroidism, (2) studies that provided no diagnostic performance values, (3) studies published before 2000, and (4) studies using 0.5 Tesla MRI scanners. Twenty-four articles were included in the systematic review, with a total of 1127 patients with PHPT. In 14 studies investigating conventional MRI for PHPT localization, sensitivities varied between 39.1% and 94.3%. When employing more advanced MRI protocols like 4D MRI for PHPT localization in 11 studies, sensitivities ranged from 55.6% to 100%. The combination of MR imaging with functional techniques such as 18F-FCH-PET/MRI yielded the highest diagnostic accuracy, with sensitivities ranging from 84.2% to 100% in five studies. Despite the limitations of the available evidence, the results of this review indicate that the combination of MR imaging with functional imaging techniques such as 18F-FCH-PET/MRI yielded the highest diagnostic accuracy. Further research on emerging MR imaging modalities, such as 4D MRI and PET/MRI, is warranted, as MRI exposes patients to minimal or no ionizing radiation compared to other imaging modalities.

1. Introduction

The definitive treatment of primary hyperparathyroidism (PHPT) requires surgical resection of hyperfunctioning parathyroid glands [1,2]. Accurate preoperative localization of parathyroid lesions is crucial to achieving a successful minimally invasive parathyroidectomy [3,4]. Traditionally, preoperative localization has been performed with ultrasonography (US) and/or sestamibi scintigraphy (MIBI), which, in most PHPT cases, has a high diagnostic accuracy. However, in patients with multigland disease (MGD), e.g., multiple adenomas or four-gland hyperplasia, and recurrent disease, these imaging modalities can be inaccurate [5,6,7]. The incidence of MGD is reported to be up to 15–20% of PHPT cases [8,9]. Negative or inconclusive pre-operative imaging may necessitate bilateral neck exploration to find the parathyroid lesion, which increases the risk of perioperative complications such as transient/permanent hypoparathyroidism and recurrent laryngeal nerve injury [10,11,12].
This has led clinicians to investigate and utilize other emerging imaging techniques. CT has been studied extensively for the localization of PHPT [4,13,14]. One option, 4D-CT, is an innovative CT technique that uses multiple phases of contrast-enhanced scanning to visualize the unique perfusion characteristics of parathyroid lesions [15]. Several studies have found a superior diagnostic accuracy of 4D-CT compared to US and MIBI [15,16,17,18,19]. However, a drawback of 4D-CT is the relatively high radiation exposure that results from the multiple scanning phases [20]. This has raised concerns regarding a possible increased risk of thyroid cancer, particularly in younger patients [20]. Alternatively, radiolabeled choline positron emission tomography CT is emerging as a highly promising imaging modality in the localization of PHPT [21,22,23,24]. Radiolabeled PET imaging has mainly been investigated in combination with CT, and most studies revealed a superior diagnostic accuracy of 18F-Flourocholine-PET/CT (18F-FCH-PET/CT) compared to US and MIBI [21,22,23,24]. An added advantage of choline PET-CT is that it exposes patients to similar or less ionizing radiation than MIBI [25].
Magnetic resonance imaging (MRI) offers ionizing radiation-free and accurate imaging, making it an attractive alternative to CT and MIBI. Due to recent advancements, including the use of 3T magnets and dynamic contrast-enhanced MRI (4D MRI) protocols, diagnostic accuracies have improved and acquisition times have been reduced [26,27]. Using 4D MRI, radiologists are now able to utilize multiple post-contrast phases to assess the unique contrast perfusion characteristics of parathyroid lesions, similar to 4D-CT [27]. Unlike 4D-CT, 4D MRI eliminates the need for ionizing radiation exposure, enabling additional post-contrast phase scans and improving perfusion analysis. Moreover, the integration of PET techniques with MRI, known as PET/MRI, could offer additional advantages compared to choline PET-CT [24,28]. This additional advantage is attributed to a further reduction in radiation exposure and optimal soft-tissue contrast in the neck [29,30,31].
To the best of our knowledge, there is currently no systematic review on the diagnostic performance of MRI in the localization of PHPT. The aim of this systematic review is to provide an overview of the diagnostic accuracy of several MR-imaging techniques for the localization of PHPT.

2. Materials and Methods

2.1. Search Strategy

On 31 March 2023, an electronic search was performed in the PubMed and Embase databases. Keywords, including hyperparathyroidism, parathyroid glands, adenoma, magnetic resonance imaging, sensitivity, and specificity, were used as search terms, combined using AND/OR operators. The full search strategy can be found in Table S1. This study followed the reporting guidelines of the Preferred Reporting Items for Systematic Reviews and Meta-analyses (PRISMA) [32]. The protocol was not registered, as it is not obligatory, according to the PRISMA statement.
A total of 473 articles were found. After removal of duplicates, 372 articles were screened for eligibility by reading the title and abstract. A total of 153 articles were screened independently for eligibility by 2 reviewers (M.H.M.C.S. and Z.A) who read the full text. Any discrepancies were resolved in a consensus meeting. Diagnostic studies were included that investigated any MRI technique for PHPT localization. The exclusion criteria were (1) secondary/tertiary hyperparathyroidism, (2) studies that did not provide diagnostic performance values, (3) studies published before 2001, and (4) studies using 0.5 Tesla (0.5T) magnet MRI scanners (1.5 T and 3 T have become the accepted standard of MRI scanners worldwide [33,34]).
Two independent reviewers (M.H.M.C.S. and Z.A.) collected the following information and compiled it into tables based on the included articles: initial surgery for PHPT or surgery for recurrent/persistent PHPT, number of patients with single gland disease (SGD) and multigland disease (MGD), type of (PET/) MRI scanner, reference test, sensitivity, specificity, negative predictive value (NPV), positive predictive value (PPV), and accuracy. Furthermore, the definition used for the diagnostic values calculated in the included studies was gathered. Lesion-based sensitivity refers to the proportion of actual parathyroid adenomas that are correctly identified as positive by the diagnostic test. True positive (for lesion-based) is defined as correct localization on MRI, where the resected specimen was confirmed to be a parathyroid adenoma by pathology reports. Therefore, lesion-based sensitivity was based on the pathology reports. Patient-based sensitivity refers to the proportion of patients with true positive results out of all the patients who actually have parathyroid adenomas. True positive (for patient-based) is defined as correct localization on MRI, which led to curation after resection of the localized adenomas. Therefore, patient-based sensitivity was based on the MRI-guided surgery results.
In this systematic review, a study was deemed a head-to-head comparative study if it investigated two distinct imaging modalities for localizing primary hyperparathyroidism (PHPT) in the same group of patients. This implies that each patient underwent both imaging modalities, and the results were subsequently validated by the same pathology report.

2.2. Risk of Bias Assessment

Risk of bias was assessed by the Quality Assessment of Diagnostic Studies 2 tool (QUADAS-2) [35]. Assessment was performed independently by 2 reviewers (M.H.M.C.S. and Z.A). Any discrepancies were resolved in a consensus meeting. The QUADAS-2 tool can be found in Table S2.
We opted not to conduct a meta-analysis in this study due to the amount of heterogeneity in the imaging protocols employed across the included studies. The variations in imaging techniques and protocols among the selected studies precluded the possibility of pooling the data for a meaningful quantitative analysis.

3. Results

The literature search identified 24 publications [26,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58] that met the inclusion criteria for the systematic review. Figure 1 shows the flow diagram of the identification, screening, eligibility, and selection process. The included studies investigated 4D MRI (n = 7) [26,36,41,44,49,50,52], conventional MRI (n  = 9) [37,38,42,43,51,54,55,56,58], 18F-Flourocholine-PET/MRI (18F-FCH-PET/MRI) (n = 2) [46,57], both 4D- and conventional MRI (n = 3) [40,48,53], 18F-FCH-PET/MRI and conventional MRI (n = 2) [39,45], and 18F-FCH-PET/MRI and 4D MRI (n = 1) [47], with a total of 1127 patients with PHPT across all studies. A total of 11 studies were retrospective studies [36,39,40,43,45,48,49,53,54,55,56], and 13 were prospective studies [26,37,38,41,42,44,46,47,50,51,52,57,58]. Study characteristics are summarized in Table 1.
Twenty studies included only patients who underwent initial surgery for PHPT [26,36,37,38,39,41,42,44,45,46,47,48,49,50,51,52,53,54,55,58], two studies included only recurrent PHPT patients with prior (para-) thyroid surgery [40,43], and two studies included both [48,57]. All studies used histopathological analysis for diagnostic confirmation of parathyroid lesions. The definition of a surgical cure varied among studies, with both an adequate decrease in intra-operative parathyroid hormone (IOPTH) and serum calcium/PTH normalization during follow-up used as criteria for defining a cure. Furthermore, the duration of postoperative follow-up to assess the normalization of serum calcium or PTH also varied.
Twenty-two studies used comparative imaging modalities such as ultrasound, MIBI, or 4D-CT [26,36,37,38,39,40,42,43,44,45,46,47,48,50,51,52,53,54,55,56,57,58]. Of these 22 studies, 3 studies used MRI as a second-line imaging modality after negative or discordant US and/or MIBI [36,39,47], and 2 studies investigated MRI as both a first-line and second-line imaging modality [45,57]. Two studies did not include comparative imaging modalities [41,49]. A total of 13 studies used a 1.5 T (PET-) MRI scanner [36,37,38,40,42,43,45,50,51,52,54,55,58], 10 studies used a 3.0 T (PET-) MRI scanner [26,39,41,44,46,47,49,53,56,57], and 1 study used both a 1.5 T and 3.0 T (PET-) MRI scanner [48]. All five studies that investigated PET/MRI used 18F-fluorocholine (18F-FCH) as the radioactive tracer [39,45,46,47,57].
Scanning protocols differed considerably between studies. In studies investigating 4D MRI, scanning protocols differed with regard to the amount of post-contrast phases and temporal resolution. Furthermore, MRI was performed by using a variety of techniques to obtain enhanced fat suppression, faster image acquisition, and reduced motion artifacts. For 18F-FCH-PET/MRI, the activity of 18F-FCH and the timing of image acquisition after the administration of 18F-FCH also varied. An overview of the reported scanning protocols and techniques is provided in Table 1.

3.1. Conventional MRI

Fourteen studies investigated conventional MRI for PHPT localization, with sensitivities ranging between 39.1% and 94.3% [37,38,39,40,42,43,45,48,51,53,54,55,56,58] (Table 2). Of the fourteen studies, two studies investigated conventional MRI for recurrent PHPT patients with prior parathyroid surgery with sensitivities of 82.0% and 76.9% [43,48]. Five studies reported specificity values of conventional MRI investigations, with specificities ranging from 50.0 to 100% [38,39,40,45,56].

3.2. 4D MRI

Eleven studies investigated 4D MRI and showed sensitivities ranging from 55.6% to 100% [26,36,40,41,44,47,48,49,50,52,53] (Table 2). Of these studies, nine investigated 4D MRI as a first-line imaging modality, with sensitivities varying from 64.0% to 100% [26,40,41,44,48,49,50,52,53]. The sensitivity of 4D MRI as second-line imaging after negative or discordant US and/or MIBI was investigated in two studies with reported sensitivities of 84.0% and 55.6% [36,47]. The sensitivity of 4D MRI in patients with recurrent PHPT with prior parathyroid surgery was investigated in two studies, with reported sensitivities of 93.3% and 90.1% [40,48]. A total of three MRI studies provided separate diagnostic values for patients with only MGD, with reported sensitivities ranging from 67.0% to 100% [26,41,49]. In a head-to-head comparative study, 4D MRI and 4D-CT were assessed as first-line imaging modalities, both demonstrating an identical sensitivity of 96.7% [52]. In a separate study, 4D MRI and 4D-CT were evaluated as second-line imaging modalities after negative or discordant US and MIBI. The sensitivity of 4D MRI was found to be 84.0%, while 4D-CT exhibited a sensitivity of 52.9%, although it is worth noting that not all patients underwent both imaging modalities [36]. Five studies reported specificity values of 4D MRI, with specificities varying from 66.0 to 100% [26,36,40,49,52]. Additionally, in five studies, the total 4D MRI scan time was less than 3 min [26,41,44,49,50].

3.3. 18F-FCH-PET/MRI

Five studies investigated 18F-FCH-PET/MRI, with sensitivities ranging between 84.2% and 100% [39,45,46,47,57] (Table 2). One study investigated 18F-FCH-PET/MRI as a first-line imaging modality, revealing a sensitivity of 84.2% [46]. Two studies investigated 18F-FCH-PET/MRI as a second-line imaging modality, with reported sensitivities of 100% and 90.0% [39,47]. Two studies utilized 18F-FCH-PET/MRI both as a first-line and second-line imaging modality, revealing a sensitivity of 100% and 88.9% [45,57]. Three studies reported specificity values of PET/MRI investigations, with specificities ranging from 96.0 to 100% [39,45,57]. The administered activity of 18F-FCH differed between studies and ranged from 93.8 to 350.0 MBq.
An overview of all diagnostic values reported in the included studies is available in Table 3.

3.4. Quality Assessment

The results and interpretation of the quality assessment using the QUADAS-2 tool are shown in Table S3. In most studies, an unclear or high risk of bias was found. Common sources of bias in these studies are selection bias, unclear reporting of blinding, absence of clinical follow-up to determine definitive curation, and use of different reference standards. Regarding the patient selection, a total of eight studies had a high risk of bias [37,40,45,48,49,51,54,55]. The main cause contributing to the high risk of bias regarding patient selection was the diversity among patients due to the presence of concomitant thyroid diseases (such as goiters) and a history of neck surgery. Furthermore, a total of 11 studies [36,38,41,42,43,44,46,50,52,53,58] had an unclear risk of bias with regard to patient selection due to a failure of reporting characteristics that may have influenced the diagnostic accuracy of the imaging modalities, such as the size of resected parathyroid adenomas, presence of concomitant diseases, and/or the presence of MGD in study groups. Regarding the index test, 12 studies [36,38,39,42,43,45,48,49,51,52,54,55] had an unclear risk of bias due to several causes, including inadequate reporting of blinding of radiologists. Regarding the reference test, three studies had a high risk of bias due to the utilization of different reference standards and the absence of clinical follow-up to determine the definitive curation [39,44,54]. The risk of bias was lowest for the flow and timing criterion, with only one study having a high risk of bias [39]. No major concerns were found regarding the applicability of the patient selection, index test, and reference test to the research question.

4. Discussion

This systematic review has provided an overview of studies that investigated the diagnostic accuracy of MRI in the localization of PHPT. The included studies used different MR imaging protocols, which can be categorized into three distinct groups: conventional MRI, 4D MRI, and PET/MRI. Conventional MRI showed sensitivities for PHPT localization ranging from 39.1% to 94.3%. More advanced MRI protocols, such as 4D MRI, demonstrated sensitivities between 55.6% and 100% for PHPT localization. Combining MR imaging with functional imaging techniques, like 18F-FCH-PET/MRI, yielded the highest overall diagnostic accuracy, with sensitivities ranging from 84.2% to 100%.
Fourteen of the studies included in this systematic review investigated the use of conventional MRI for localizing PHPT. The sensitivities observed in these studies ranged widely, spanning from 39.1% to 94.3%. Comparatively, a prior meta-analysis unveiled a pooled sensitivity of 83% for MIBI scintigraphy and 80% for ultrasound (US) imaging [59]. These results suggest that conventional MRI may not offer superior diagnostic accuracy when compared to MIBI and US. In a study by Hofer et al. [45], a sensitivity of 39.1% for conventional MRI was reported for the localization of PHPT. However, within the same study, when PET and MRI images were combined, the sensitivity increased significantly to 100%. As a result, the authors suggest that merging images from both modalities can enhance the precision of the anatomical localization [45]. Therefore, incorporating a PET/MRI protocol may be a more accurate imaging modality for the localization of PHPT.
Eleven of the included studies reported sensitivity rates of 4D MRI, which varied across a wide range, from 55.6% to a maximum of 100%. In nine of these studies, 4D MRI was used as a first-line imaging modality, achieving sensitivities within the range of 64% to 100% [26,40,41,44,48,49,50,52,53]. In comparison to 4D MRI, a recent meta-analysis compared 4D-CT and MIBI and found a sensitivity of 81.0% for 4D-CT and 65.0% for MIBI [16]. One of the included 4D MRI studies conducted a head-to-head comparison of 4D MRI and 4D-CT as first-line imaging modalities, revealing an identical sensitivity of 96.7% for both imaging modalities [52]. In another study included in this research, 4D MRI and 4D-CT were compared as second-line imaging modalities after negative or discordant US and MIBI. The sensitivity of 4D MRI was 84.0% compared to 52.9% for 4D-CT, although not all patients underwent both imaging modalities [36]. In previous research, it has been suggested that a higher number of post-contrast phases may result in a higher diagnostic accuracy [41,60]. One of the advantages of 4D MRI is that the number of post-contrast phases is not restricted by ionizing radiation, unlike 4D-CT, where every additional post-contrast phase adds to the total radiation exposure. Therefore, 4D MRI is able to analyze more post-contrast phases, which provides a more detailed analysis of the perfusion characteristics of parathyroid lesions [27]. One of the studies included in this review reported a rather low sensitivity of 55.6% when employing 4D MRI for the localization of PHPT. Notably, this study had a small sample size of only 10 patients who received 4D MRI scans with just two phases. These MRI scans were conducted following inconclusive ultrasound and/or MIBI results, potentially impacting the sensitivity compared to larger first-line imaging studies [47].
Five studies investigated the diagnostic accuracy of 18F-FCH-PET/MRI. These studies revealed an excellent diagnostic performance of 18F-FCH-PET/MRI for the localization of PHPT, with sensitivities ranging between 84.2% and 100% [39,45,46,47,57]. A recent network meta-analysis found that choline-PET-CT had the best diagnostic performance for localization of PHPT [61]. However, as the authors acknowledged, PET/MRI and PET-CT were not analyzed separately; PET/MRI studies were grouped with PET-CT studies. In four out of five studies in this systematic review, PET/MRI was used as a secondary imaging modality after initial US and/or MIBI scans yielded inconclusive or negative results. In these instances, localizing parathyroid glands is more challenging compared to patients who undergo imaging without prior inconclusive results. Furthermore, the use of 18F-FCH-PET/MRI would result in lower radiation exposure compared with 18F-FCH-PET-CT, making it a favorable alternative imaging modality, provided it offers similar diagnostic values.
In the re-operative setting where accurate preoperative localization is especially important, the sensitivity of traditional imaging modalities such as US and MIBI is reported to be as low as 52% and 54%, respectively [62]. In this review, two studies investigated 4D MRI and MIBI in patients with recurrent PHPT, demonstrating a superior diagnostic performance for 4D MRI, with reported sensitivities of 90.1% and 93.3%. [40,48]. In comparison, in a recent meta-analysis of 4D-CT, a pooled analysis of three studies revealed a sensitivity of 81% for 4D-CT in patients with recurrent PHPT [16].
Pre-operative imaging techniques generally have a lower diagnostic performance in patients with MGD compared to patients with SGD. This is primarily because solitary adenomas in SGD tend to be larger and, as a result, are more easily detectable than hyperplastic glands in MGD patients [63]. Three MRI studies provided separate diagnostic values for patients with MGD only, with sensitivities ranging from 67% to 100%. In patients with MGD, the literature reports the sensitivity of MIBI to be 44%, and a recent meta-analysis of 4D-CT found a sensitivity of 60% for the localization of MGD [16,64]. The observed sensitivities for MRI in MGD patients in this systematic review show promising results. However, more research is required to establish a more accurate estimate of the diagnostic accuracy of MRI in the detection of MGD compared to SGD. In studies with a large portion of MGD patients, the diagnostic accuracy of the imaging modality becomes lower, as MGD tends to be more difficult to correctly localize. Several studies in our paper included both SGD and MGD patients in their total cohort, although in varying proportions. Consequently, direct comparisons of sensitivities across studies become more challenging.
Overall, the decision on whether to use MRI for the preoperative localization of PHPT depends on the specific patient, the experience of the radiologists, costs, availability, and the individual institution’s imaging protocols [63,65]. The cost of (PET-) MRI can vary between health systems and scanners, and the difference with (PET-) CT may only be marginal in some institutions [30,66]. It is also important to note that the availability of (PET-) MRI scanners and 3T MRI scanners with multi-coil technology may be limited [48,67]. Cost-effectiveness studies regarding the costs of performing FCH PET/MRI for parathyroid localization are lacking. Given the superior sensitivity of FCH PET/MRI compared to both US and MIBI, it is imperative to conduct cost-effectiveness analyses to assess the viability of employing FCH PET/MRI for the detection of abnormal parathyroid glands.
The current literature has various limitations. Firstly, eleven of the studies employed a retrospective design with relatively small sample sizes. Additionally, most studies exhibited an unclear or high risk of bias. The majority of studies did not report specificity values. The specificity of a preoperative imaging modality is an essential parameter that may determine the success of a minimally invasive parathyroidectomy. Furthermore, there was inconsistency in sensitivity definitions among studies, with some utilizing patient-based sensitivity while others used lesion-based sensitivity. Most studies did not provide information on the curation rate, making it unclear whether surgical resection guided by MRI localization resulted in the cure of PHPT. This systematic review did not involve a meta-analysis due to considerable heterogeneity in the imaging protocols, making it unfeasible to pool the data in a meaningful quantitative analysis [68,69].

5. Conclusions

Recent technological advancements have enabled accurate and fast MR imaging. Despite the limitations of the available evidence, the results of this review indicate that the combination of MR imaging with functional techniques such as 18F-FCH-PET/MRI yielded the highest diagnostic accuracy. Further research on emerging MR imaging modalities, such as 4D MRI and PET/MRI, is warranted, as MRI exposes patients to minimal or no ionizing radiation compared to other imaging modalities.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics14010025/s1, Table S1: Full electronic search strategy performed in the PubMed and Embase databases. Table S2: QUADAS-2 assessment tool. Table S3: Quality assessment using QUADAS-2 tool: Summary and separate outcome of risk of bias and concerns regarding applicability for included studies.

Author Contributions

Conceptualization, M.H.M.C.S., Z.A.-D., L.B., A.P., T.L., S.M.E.E., N.D.B. and A.A.P.; Data curation, M.H.M.C.S., Z.A.-D., L.B., A.P. and A.A.P.; Formal analysis, M.H.M.C.S., Z.A.-D., L.B., A.P. and B.W.; Investigation, M.H.M.C.S., Z.A.-D., L.B., A.P., B.W., S.M.E.E., B.H., N.D.B. and A.A.P.; Methodology, M.H.M.C.S., Z.A.-D., L.B., A.P., B.W., M.A.-T., S.M.E.E., T.L., B.H., N.D.B. and A.A.P.; Project administration, M.H.M.C.S. and Z.A.-D.; Resources, M.H.M.C.S., Z.A.-D., N.D.B. and A.A.P.; Software, M.H.M.C.S., Z.A.-D. and B.W.; Supervision, L.B., A.P., B.W., M.A.-T., T.L., S.M.E.E., N.D.B. and A.A.P.; Validation, M.H.M.C.S., Z.A.-D., L.B., A.P., T.L., S.M.E.E., B.H., N.D.B. and A.A.P.; Visualization, M.H.M.C.S., Z.A.-D., L.B., A.P., T.L., S.M.E.E., B.H., N.D.B. and A.A.P.; Writing—original draft, M.H.M.C.S., Z.A.-D., L.B., A.P. and A.A.P.; Writing—review and editing, M.H.M.C.S., Z.A.-D., L.B., A.P., M.A.-T., T.L., S.M.E.E., T.L., B.H., N.D.B. and A.A.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets produced or examined in the course of this study have been incorporated into the published article.

Conflicts of Interest

Z.-Al-Difaie has no conflict of interest to disclose. M. Scheepers has no conflict of interest to disclose. L. Brandts has no conflict of interest to disclose. A. Peeters has no conflict of interest to disclose. B. Winkens has no conflict of interest to disclose. M. Al-Taher has no conflict of interest to disclose. S. Engelen has no conflict of interest to disclose. T. Lubbers has no conflict of interest to disclose. B. Havekes has no conflict of interest to disclose. N.D. Bouvy has no conflict of interest to disclose. A.A. Postma: Institutional Grant Siemens Healthineer Bayer Healthcare.

References

  1. das Neves, M.C.; Santos, R.O.; Ohe, M.N. Surgery for primary hyperparathyroidism. Arch. Endocrinol. Metab. 2022, 66, 678–688. [Google Scholar] [CrossRef] [PubMed]
  2. Bilezikian, J.P.; Silverberg, S.J.; Bandeira, F.; Cetani, F.; Chandran, M.; Cusano, N.E.; Ebeling, P.R.; Formenti, A.M.; Frost, M.; Gosnell, J.; et al. Management of Primary Hyperparathyroidism. J. Bone Miner. Res. 2022, 37, 2391–2403. [Google Scholar] [CrossRef] [PubMed]
  3. Park, H.S.; Hong, N.; Jeong, J.J.; Yun, M.; Rhee, Y. Update on Preoperative Parathyroid Localization in Primary Hyperparathyroidism. Endocrinol. Metab. 2022, 37, 744–755. [Google Scholar] [CrossRef] [PubMed]
  4. LeBlanc, R.A.; Isaac, A.; Abele, J.; Biron, V.L.; Côté, D.W.J.; Hearn, M.; O’Connell, D.A.; Seikaly, H.; Harris, J.R. Validation of a novel method for localization of parathyroid adenomas using SPECT/CT. J. Otolaryngol. Head. Neck Surg. 2018, 47, 65. [Google Scholar] [CrossRef] [PubMed]
  5. Kluijfhout, W.P.; Pasternak, J.D.; Beninato, T.; Drake, F.T.; Gosnell, J.E.; Shen, W.T.; Duh, Q.-Y.; Allen, I.E.; Vriens, M.R.; de Keizer, B.; et al. Diagnostic performance of computed tomography for parathyroid adenoma localization; a systematic review and meta-analysis. Eur. J. Radiol. 2017, 88, 117–128. [Google Scholar] [CrossRef] [PubMed]
  6. Cron, D.C.; Kapeles, S.R.; Andraska, E.A.; Kwon, S.T.; Kirk, P.S.; McNeish, B.L.; Lee, C.S.; Hughes, D.T. Predictors of operative failure in parathyroidectomy for primary hyperparathyroidism. Am. J. Surg. 2017, 214, 509–514. [Google Scholar] [CrossRef]
  7. Al-Difaie, Z.; Scheepers, M.; Engelen, S.M.E.; Havekes, B.; Bouvy, N.D.; Postma, A.A. Diagnostic Value of Four-Dimensional Dynamic Computed Tomography for Primary Hyperparathyroidism in Patients with Low Baseline Parathyroid Hormone Levels. Diagnostics 2023, 13, 2621. [Google Scholar] [CrossRef] [PubMed]
  8. Morris, M.A.; Saboury, B.; Ahlman, M.; Malayeri, A.A.; Jones, E.C.; Chen, C.C.; Millo, C. Parathyroid Imaging: Past, Present, and Future. Front. Endocrinol. 2022, 12, 760419. [Google Scholar] [CrossRef]
  9. Bilezikian, J.P.; Bandeira, L.; Khan, A.; Cusano, N.E. Hyperparathyroidism. Lancet 2018, 391, 168–178. [Google Scholar] [CrossRef]
  10. Hindié, E.; Schwartz, P.; Avram, A.M.; Imperiale, A.; Sebag, F.; Taïeb, D. Primary Hyperparathyroidism: Defining the Appropriate Preoperative Imaging Algorithm. J. Nucl. Med. 2021, 62, 3s–12s. [Google Scholar] [CrossRef]
  11. Phitayakorn, R.; McHenry, C.R. Incidence and location of ectopic abnormal parathyroid glands. Am. J. Surg. 2006, 191, 418–423. [Google Scholar] [CrossRef] [PubMed]
  12. Roy, M.; Mazeh, H.; Chen, H.; Sippel, R.S. Incidence and localization of ectopic parathyroid adenomas in previously unexplored patients. World J. Surg. 2013, 37, 102–106. [Google Scholar] [CrossRef] [PubMed]
  13. Bahl, M. Preoperative Parathyroid Imaging: Trends in Utilization and Comparative Accuracy of Sonography, Scintigraphy, and 4-Dimensional Computed Tomography. J. Comput. Assist. Tomogr. 2019, 43, 264–268. [Google Scholar] [CrossRef] [PubMed]
  14. Roskies, M.; Liu, X.; Hier, M.P.; Payne, R.J.; Mlynarek, A.; Forest, V.; Levental, M.; Forghani, R. 3-phase dual-energy CT scan as a feasible salvage imaging modality for the identification of non-localizing parathyroid adenomas: A prospective study. J. Otolaryngol. Head. Neck Surg. 2015, 44, 44. [Google Scholar] [CrossRef] [PubMed]
  15. Rodgers, S.E.; Hunter, G.J.; Hamberg, L.M.; Schellingerhout, D.; Doherty, D.B.; Ayers, G.D.; Shapiro, S.E.; Edeiken, B.S.; Truong, M.T.; Evans, D.B.; et al. Improved preoperative planning for directed parathyroidectomy with 4-dimensional computed tomography. Surgery 2006, 140, 932–941. [Google Scholar] [CrossRef] [PubMed]
  16. Kattar, N.; Migneron, M.; Debakey, M.S.; Haidari, M.; Pou, A.M.; McCoul, E.D. Advanced Computed Tomographic Localization Techniques for Primary Hyperparathyroidism: A Systematic Review and Meta-analysis. JAMA Otolaryngol. Head Neck Surg. 2022, 148, 448–456. [Google Scholar] [CrossRef] [PubMed]
  17. Kelly, H.R.; Hamberg, L.M.; Hunter, G.J. 4D-CT for preoperative localization of abnormal parathyroid glands in patients with hyperparathyroidism: Accuracy and ability to stratify patients by unilateral versus bilateral disease in surgery-naive and re-exploration patients. AJNR Am. J. Neuroradiol. 2014, 35, 176–181. [Google Scholar] [CrossRef] [PubMed]
  18. Suh, Y.J.; Choi, J.Y.; Kim, S.J.; Chun, I.K.; Yun, T.J.; Lee, K.E.; Kim, J.H.; Cheon, G.J.; Youn, Y.K. Comparison of 4D CT, ultrasonography, and 99mTc sestamibi SPECT/CT in localizing single-gland primary hyperparathyroidism. Otolaryngol. Head. Neck Surg. 2015, 152, 438–443. [Google Scholar] [CrossRef]
  19. Tian, Y.; Tanny, S.T.; Einsiedel, P.; Lichtenstein, M.; Stella, D.L.; Phal, P.M.; Miller, J.A. Four-Dimensional Computed Tomography: Clinical Impact for Patients with Primary Hyperparathyroidism. Ann. Surg. Oncol. 2018, 25, 117–121. [Google Scholar] [CrossRef]
  20. Mahajan, A.; Starker, L.F.; Ghita, M.; Udelsman, R.; Brink, J.A.; Carling, T. Parathyroid four-dimensional computed tomography: Evaluation of radiation dose exposure during preoperative localization of parathyroid tumors in primary hyperparathyroidism. World J. Surg. 2012, 36, 1335–1339. [Google Scholar] [CrossRef]
  21. Lezaic, L.; Rep, S.; Sever, M.J.; Kocjan, T.; Hocevar, M.; Fettich, J. 18F-Fluorocholine PET/CT for localization of hyperfunctioning parathyroid tissue in primary hyperparathyroidism: A pilot study. Eur. J. Nucl. Med. Mol. Imaging 2014, 41, 2083–2089. [Google Scholar] [CrossRef] [PubMed]
  22. Manyalich-Blasi, M.; Domínguez-Garijo, P.; Saavedra-Pérez, D.; Sánchez-Izquierdo, N.; Casanueva Eliceiry, S.; Perissinotti, A.; Mora Porta, M.; de Hollanda, A.; Hanzu, F.A.; López-Boado Serrat, M.A.; et al. Comparison of [(18)F]fluorocholine PET/CT with [(99)mTc]sestamibi and ultrasonography to detect parathyroid lesions in primary hyperparathyroidism: A prospective study. Gland. Surg. 2022, 11, 1764–1771. [Google Scholar] [CrossRef] [PubMed]
  23. Thanseer, N.; Bhadada, S.K.; Sood, A.; Mittal, B.R.; Behera, A.; Gorla, A.K.R.; Kalathoorakathu, R.R.; Singh, P.; Dahiya, D.; Saikia, U.N.; et al. Comparative Effectiveness of Ultrasonography, 99mTc-Sestamibi, and 18F-Fluorocholine PET/CT in Detecting Parathyroid Adenomas in Patients With Primary Hyperparathyroidism. Clin. Nucl. Med. 2017, 42, e491–e497. [Google Scholar] [CrossRef] [PubMed]
  24. Evangelista, L.; Ravelli, I.; Magnani, F.; Iacobone, M.; Giraudo, C.; Camozzi, V.; Spimpolo, A.; Cecchin, D. (18)F-choline PET/CT and PET/MRI in primary and recurrent hyperparathyroidism: A systematic review of the literature. Ann. Nucl. Med. 2020, 34, 601–619. [Google Scholar] [CrossRef] [PubMed]
  25. Rep, S.; Hocevar, M.; Vaupotic, J.; Zdesar, U.; Zaletel, K.; Lezaic, L. (18)F-choline PET/CT for parathyroid scintigraphy: Significantly lower radiation exposure of patients in comparison to conventional nuclear medicine imaging approaches. J. Radiol. Prot. 2018, 38, 343–356. [Google Scholar] [CrossRef] [PubMed]
  26. Argirò, R.; Diacinti, D.; Sacconi, B.; Iannarelli, A.; Diacinti, D.; Cipriani, C.; Pisani, D.; Romagnoli, E.; Biffoni, M.; Di Gioia, C.; et al. Diagnostic accuracy of 3T magnetic resonance imaging in the preoperative localisation of parathyroid adenomas: Comparison with ultrasound and 99mTc-sestamibi scans. Eur. Radiol. 2018, 28, 4900–4908. [Google Scholar] [CrossRef] [PubMed]
  27. Nael, K.; Hur, J.; Bauer, A.; Khan, R.; Sepahdari, A.; Inampudi, R.; Guerrero, M. Dynamic 4D MRI for Characterization of Parathyroid Adenomas: Multiparametric Analysis. Am. J. Neuroradiol. 2015, 36, 2147–2152. [Google Scholar] [CrossRef] [PubMed]
  28. Kogan, F.; Fan, A.P.; Gold, G.E. Potential of PET-MRI for imaging of non-oncologic musculoskeletal disease. Quant. Imaging Med. Surg. 2016, 6, 756–771. [Google Scholar] [CrossRef]
  29. Petranović Ovčariček, P.; Giovanella, L.; Carrió Gasset, I.; Hindié, E.; Huellner, M.W.; Luster, M.; Piccardo, A.; Weber, T.; Talbot, J.-N.; Verburg, F.A. The EANM practice guidelines for parathyroid imaging. Eur. J. Nucl. Med. Mol. Imaging 2021, 48, 2801–2822. [Google Scholar] [CrossRef]
  30. Ehman, E.C.; Johnson, G.B.; Villanueva-Meyer, J.E.; Cha, S.; Leynes, A.P.; Larson, P.E.Z.; Hope, T.A. PET/MRI: Where might it replace PET/CT? J. Magn. Reson. Imaging 2017, 46, 1247–1262. [Google Scholar] [CrossRef]
  31. Fraum, T.J.; Fowler, K.J.; McConathy, J. PET/MRI: Emerging Clinical Applications in Oncology. Acad. Radiol. 2016, 23, 220–236. [Google Scholar] [CrossRef] [PubMed]
  32. Liberati, A.; Altman, D.G.; Tetzlaff, J.; Mulrow, C.; Gøtzsche, P.C.; Ioannidis, J.P.; Clarke, M.; Devereaux, P.J.; Kleijnen, J.; Moher, D. The PRISMA statement for reporting systematic reviews and meta-analyses of studies that evaluate healthcare interventions: Explanation and elaboration. BMJ 2009, 339, b2700. [Google Scholar] [CrossRef] [PubMed]
  33. Wood, R.; Bassett, K.; Foerster, V.; Spry, C.; Tong, L. CADTH Optimal Use Reports. In 1.5 Tesla Magnetic Resonance Imaging Scanners Compared with 3.0 Tesla Magnetic Resonance Imaging Scanners: Systematic Review of Clinical Effectiveness: Pilot Project; Canadian Agency for Drugs and Technologies in Health: Ottawa, ON, Canada, 2011. [Google Scholar]
  34. Wong, S.; Steinbach, L.; Zhao, J.; Stehling, C.; Ma, C.B.; Link, T.M. Comparative study of imaging at 3.0 T versus 1.5 T of the knee. Skelet. Radiol. 2009, 38, 761–769. [Google Scholar] [CrossRef] [PubMed]
  35. Whiting, P.F.; Rutjes, A.W.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M. QUADAS-2: A revised tool for the quality assessment of diagnostic accuracy studies. Ann. Intern. Med. 2011, 155, 529–536. [Google Scholar] [CrossRef] [PubMed]
  36. Acar, N.; Haciyanli, M.; Coskun, M.; Erdogan, N.K.; Celik, S.C.; Haciyanli, S.G.; Gur, E.O. Diagnostic value of four-dimensional computed tomography and four-dimensional magnetic resonance imaging in primary hyperparathyroidism when first-line imaging was inadequate. Ann. R. Coll. Surg. Engl. 2020, 102, 294–299. [Google Scholar] [CrossRef] [PubMed]
  37. Agha, A.; Hornung, M.; Rennert, J.; Uller, W.; Lighvani, H.; Schlitt, H.J.; Jung, E.M. Contrast-enhanced ultrasonography for localization of pathologic glands in patients with primary hyperparathyroidism. Surgery 2012, 151, 580–586. [Google Scholar] [CrossRef] [PubMed]
  38. Akbaba, G.; Berker, D.; Isik, S.; Aydin, Y.; Ciliz, D.; Peksoy, I.; Ozuguz, U.; Tutuncu, Y.A.; Guler, S. A comparative study of pre-operative imaging methods in patients with primary hyperparathyroidism: Ultrasonography, 99mTc sestamibi, single photon emission computed tomography, and magnetic resonance imaging. J. Endocrinol. Investig. 2012, 35, 359–364. [Google Scholar] [CrossRef]
  39. Araz, M.; Nak, D.; Soydal, Ç.; Peker, E.; Erden, İ.; Küçük, N. Detectability of 18F-choline PET/MR in primary hyperparathyroidism. Eur. Arch. Otorhinolaryngol. 2022, 279, 2583–2589. [Google Scholar] [CrossRef]
  40. Aschenbach, R.; Tuda, S.; Lamster, E.; Meyer, A.; Roediger, H.; Stier, A.; Conrad, E.; Basche, S.; Klisch, J.; Vogl, T.J. Dynamic magnetic resonance angiography for localization of hyperfunctioning parathyroid glands in the reoperative neck. Eur. J. Radiol. 2012, 81, 3371–3377. [Google Scholar] [CrossRef]
  41. Becker, J.L.; Patel, V.; Johnson, K.J.; Guerrero, M.; Klein, R.R.; Ranvier, G.F.; Owen, R.P.; Pawha, P.; Nael, K. 4D-Dynamic Contrast-Enhanced MRI for Preoperative Localization in Patients with Primary Hyperparathyroidism. AJNR Am. J. Neuroradiol. 2020, 41, 522–528. [Google Scholar] [CrossRef]
  42. Cakal, E.; Cakir, E.; Dilli, A.; Colak, N.; Unsal, I.; Aslan, M.S.; Karbek, B.; Ozbek, M.; Kilic, M.; Delibasi, T.; et al. Parathyroid adenoma screening efficacies of different imaging tools and factors affecting the success rates. Clin. Imaging 2012, 36, 688–694. [Google Scholar] [CrossRef] [PubMed]
  43. Gotway, M.B.; Reddy, G.P.; Webb, W.R.; Morita, E.T.; Clark, O.H.; Higgins, C.B. Comparison between MR imaging and 99mTc MIBI scintigraphy in the evaluation of recurrent of persistent hyperparathyroidism. Radiology 2001, 218, 783–790. [Google Scholar] [CrossRef] [PubMed]
  44. Grayev, A.M.; Gentry, L.R.; Hartman, M.J.; Chen, H.; Perlman, S.B.; Reeder, S.B. Presurgical localization of parathyroid adenomas with magnetic resonance imaging at 3.0 T: An adjunct method to supplement traditional imaging. Ann. Surg. Oncol. 2012, 19, 981–989. [Google Scholar] [CrossRef] [PubMed]
  45. Hofer, T.; Kronbichler, J.; Huber, H.; Hergan, B.; Kaiser, B.; Shamiyeh, A.; Fellner, F.; Gabriel, M. 18F-Choline PET/CT, MRI, and Software-Based Image Fusion Analysis in Patients With Primary Hyperparathyroidism. Clin. Nucl. Med. 2021, 46, 710–716. [Google Scholar] [CrossRef] [PubMed]
  46. Khafif, A.; Masalha, M.; Landsberg, R.; Domachevsky, L.; Bernstine, H.; Groshar, D.; Azoulay, O.; Lockman, Y. The role of F18-fluorocholine positron emission tomography/magnetic resonance imaging in localizing parathyroid adenomas. Eur. Arch. Otorhinolaryngol. 2019, 276, 1509–1516. [Google Scholar] [CrossRef] [PubMed]
  47. Kluijfhout, W.P.; Pasternak, J.D.; Gosnell, J.E.; Shen, W.T.; Duh, Q.Y.; Vriens, M.R.; de Keizer, B.; Hope, T.A.; Glastonbury, C.M.; Pampaloni, M.H.; et al. (18)F Fluorocholine PET/MR Imaging in Patients with Primary Hyperparathyroidism and Inconclusive Conventional Imaging: A Prospective Pilot Study. Radiology 2017, 284, 460–467. [Google Scholar] [CrossRef] [PubMed]
  48. Kluijfhout, W.P.; Venkatesh, S.; Beninato, T.; Vriens, M.R.; Duh, Q.Y.; Wilson, D.M.; Hope, T.A.; Suh, I. Performance of magnetic resonance imaging in the evaluation of first-time and reoperative primary hyperparathyroidism. Surgery 2016, 160, 747–754. [Google Scholar] [CrossRef] [PubMed]
  49. Memeh, K.O.; Palacios, J.E.; Khan, R.; Guerrero, M.A. Pre-operative localization of parathyroid adenoma: Performance of 4D MRI parathyroid protocol. Endocr. Pract. 2019, 25, 361–365. [Google Scholar] [CrossRef]
  50. Merchavy, S.; Luckman, J.; Guindy, M.; Segev, Y.; Khafif, A. 4D MRI for the Localization of Parathyroid Adenoma: A Novel Method in Evolution. Otolaryngol. Head. Neck Surg. 2016, 154, 446–448. [Google Scholar] [CrossRef]
  51. Michel, L.; Dupont, M.; Rosière, A.; Merlan, V.; Lacrosse, M.; Donckier, J.E. The rationale for performing MR imaging before surgery for primary hyperparathyroidism. Acta Chir. Belg. 2013, 113, 112–122. [Google Scholar] [CrossRef]
  52. Murugan, N.; Kandasamy, D.; Sharma, R.; Goyal, A.; Gupta, A.K.; Tandon, N.; Gupta, N.; Goswami, R.; Vurthaluru, S.; Damle, N.; et al. Comparison of 4DMRI and 4DCT for the preoperative evaluation of patients with primary hyperparathyroidism. Eur. J. Radiol. 2021, 138, 109625. [Google Scholar] [CrossRef] [PubMed]
  53. Ozturk, M.; Polat, A.V.; Celenk, C.; Elmali, M.; Kir, S.; Polat, C. The diagnostic value of 4D MRI at 3T for the localization of parathyroid adenomas. Eur. J. Radiol. 2019, 112, 207–213. [Google Scholar] [CrossRef] [PubMed]
  54. Saeed, S.; Yao, M.; Philip, B.; Blend, M. Localizing hyperfunctioning parathyroid tissue: MRI or nuclear study or both? Clin. Imaging 2006, 30, 257–265. [Google Scholar] [CrossRef] [PubMed]
  55. Sekiyama, K.; Akakura, K.; Mikami, K.; Mizoguchi, K.; Tobe, T.; Nakano, K.; Numata, T.; Konno, A.; Ito, H. Usefulness of diagnostic imaging in primary hyperparathyroidism. Int. J. Urol. 2003, 10, 7–11, discussion 2. [Google Scholar] [CrossRef] [PubMed]
  56. Bijnens, J.; Van den Bruel, A.; Vander Poorten, V.; Goethals, I.; Van Schandevyl, S.; Dick, C.; De Geeter, F. Retrospective real-life study on preoperative imaging for minimally invasive parathyroidectomy in primary hyperparathyroidism. Sci. Rep. 2022, 12, 17427. [Google Scholar] [CrossRef] [PubMed]
  57. Graves, C.E.; Hope, T.A.; Kim, J.; Pampaloni, M.H.; Kluijfhout, W.; Seib, C.D.; Gosnell, J.E.; Shen, W.T.; Roman, S.A.; Sosa, J.A.; et al. Superior sensitivity of (18)F-fluorocholine: PET localization in primary hyperparathyroidism. Surgery 2022, 171, 47–54. [Google Scholar] [CrossRef] [PubMed]
  58. Ruf, J.; Lopez Hänninen, E.; Steinmüller, T.; Rohlfing, T.; Bertram, H.; Gutberlet, M.; Lemke, A.J.; Felix, R.; Amthauer, H. Preoperative localization of parathyroid glands. Use of MRI, scintigraphy, and image fusion. Nuklearmedizin 2004, 43, 85–90. [Google Scholar]
  59. Nafisi Moghadam, R.; Amlelshahbaz, A.P.; Namiranian, N.; Sobhan-Ardekani, M.; Emami-Meybodi, M.; Dehghan, A.; Rahmanian, M.; Razavi-Ratki, S.K. Comparative Diagnostic Performance of Ultrasonography and 99mTc-Sestamibi Scintigraphy for Parathyroid Adenoma in Primary Hyperparathyroidism; Systematic Review and Meta-Analysis. Asian Pac. J. Cancer Prev. 2017, 18, 3195–3200. [Google Scholar] [CrossRef]
  60. Gulati, S.; Chumber, S.; Puri, G.; Spalkit, S.; Damle, N.A.; Das, C.J. Multi-modality parathyroid imaging: A shifting paradigm. World J. Radiol. 2023, 15, 69–82. [Google Scholar] [CrossRef]
  61. Lee, S.-W.; Shim, S.R.; Jeong, S.Y.; Kim, S.-J. Direct Comparison of Preoperative Imaging Modalities for Localization of Primary Hyperparathyroidism: A Systematic Review and Network Meta-analysis. JAMA Otolaryngol. Head Neck Surg. 2021, 147, 692–706. [Google Scholar] [CrossRef]
  62. Parikh, A.M.; Grogan, R.H.; Morón, F.E. Localization of Parathyroid Disease in Reoperative Patients with Primary Hyperparathyroidism. Int. J. Endocrinol. 2020, 2020, 9649564. [Google Scholar] [CrossRef] [PubMed]
  63. Tay, D.; Das, J.P.; Yeh, R. Preoperative Localization for Primary Hyperparathyroidism: A Clinical Review. Biomedicines 2021, 9, 390. [Google Scholar] [CrossRef] [PubMed]
  64. Ruda, J.M.; Hollenbeak, C.S.; Stack, B.C. A systematic review of the diagnosis and treatment of primary hyperparathyroidism from 1995 to 2003. Otolaryngol. Head Neck Surg. 2005, 132, 359–372. [Google Scholar] [CrossRef] [PubMed]
  65. Yeh, R.; Tay, Y.D.; Tabacco, G.; Dercle, L.; Kuo, J.H.; Bandeira, L.; McManus, C.; Leung, D.K.; Lee, J.A.; Bilezikian, J.P. Diagnostic Performance of 4D CT and Sestamibi SPECT/CT in Localizing Parathyroid Adenomas in Primary Hyperparathyroidism. Radiology 2019, 291, 469–476. [Google Scholar] [CrossRef] [PubMed]
  66. Mayerhoefer, M.E.; Prosch, H.; Beer, L.; Tamandl, D.; Beyer, T.; Hoeller, C.; Berzaczy, D.; Raderer, M.; Preusser, M.; Hochmair, M.; et al. PET/MRI versus PET/CT in oncology: A prospective single-center study of 330 examinations focusing on implications for patient management and cost considerations. Eur. J. Nucl. Med. Mol. Imaging 2020, 47, 51–60. [Google Scholar] [CrossRef] [PubMed]
  67. Nensa, F.; Beiderwellen, K.; Heusch, P.; Wetter, A. Clinical applications of PET/MRI: Current status and future perspectives. Diagn. Interv. Radiol. 2014, 20, 438–447. [Google Scholar] [CrossRef]
  68. Greco, T.; Zangrillo, A.; Biondi-Zoccai, G.; Landoni, G. Meta-analysis: Pitfalls and hints. Heart Lung Vessel. 2013, 5, 219–225. [Google Scholar] [PubMed]
  69. Ng, T.T.; McGory, M.L.; Ko, C.Y.; Maggard, M.A. Meta-analysis in surgery: Methods and limitations. Arch. Surg. 2006, 141, 1125–1130, discussion 31. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 14 00025 g001

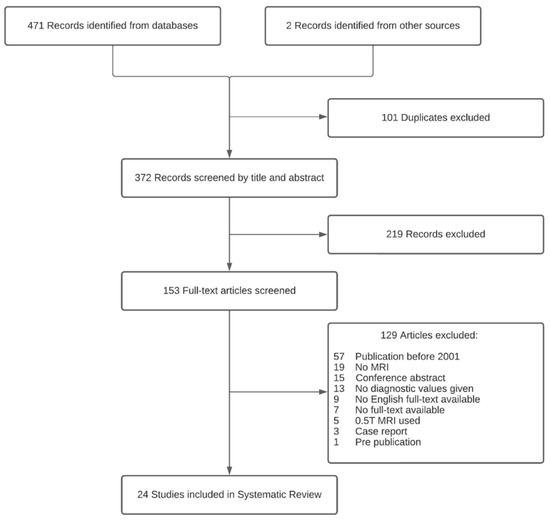

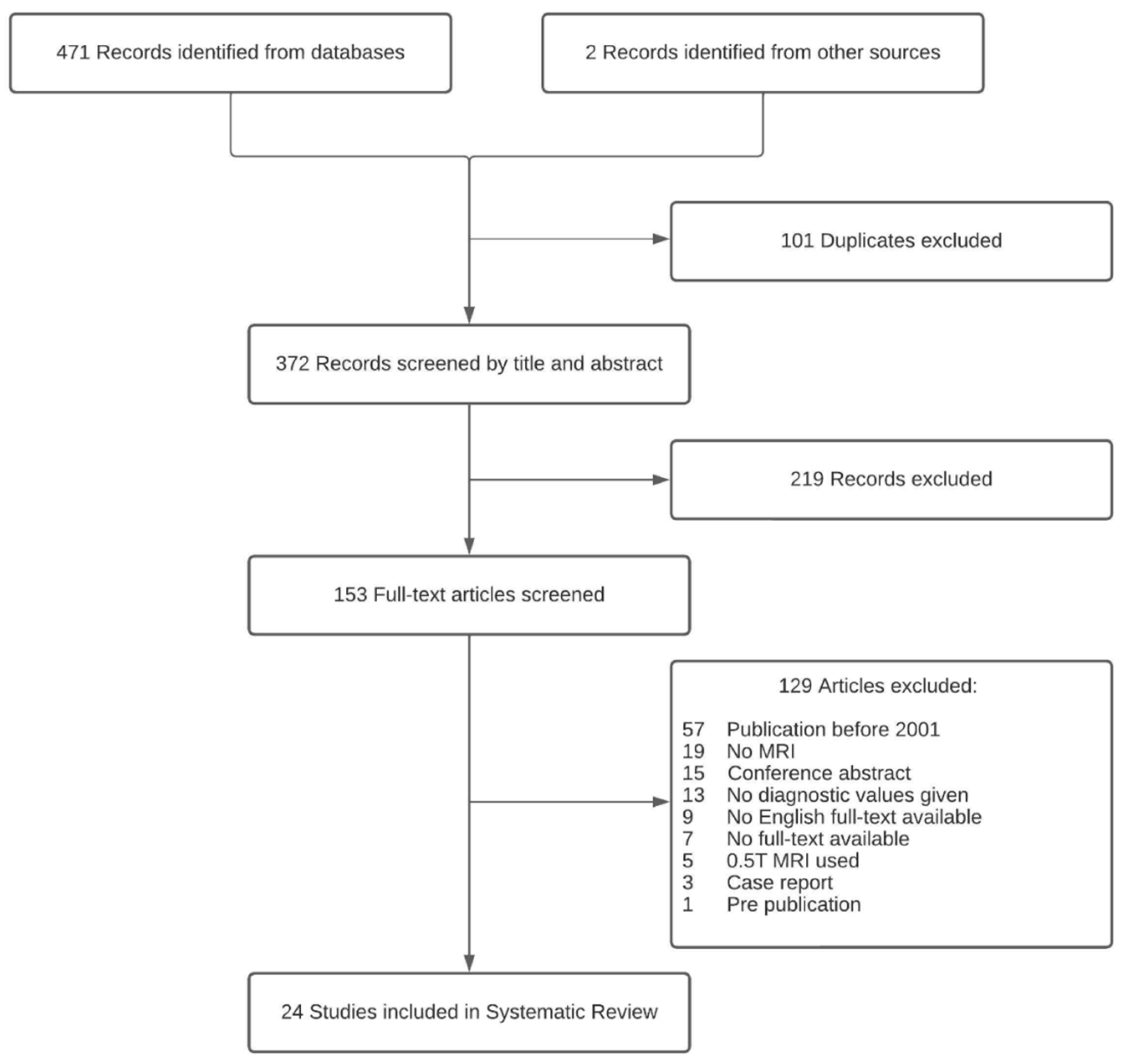

Figure 1. Flowchart: identification, screening, eligibility, and selection process.
Figure 1. Flowchart: identification, screening, eligibility, and selection process.
Diagnostics 14 00025 g001
Table 1. Characteristics of all studies included in the qualitative analysis.
Table 1. Characteristics of all studies included in the qualitative analysis.
StudyStudy DesignIndicationNo. of PatientsSGD/MGDMRI
Technique		4D MRI Post-Contrast
Phases		4D MRI
Temporal Resolution
(Seconds)		MRI Sequence Techniques18F-FCH PET Protocol and
18F-FCH Activity
(MBq)		MRI
Scanner
Agha et al.,
2012 [37] 		ProspectivePHPT3029/1Conventional MRI (CE) NRNRTSE
STIR
BLADE		NR1.5 T Magnetom Symphony (Siemens©)
Akbaba et al.,
2011 [38] 		ProspectivePHPT9492/2Conventional MRI (NC)NRNRFSE
STIR
Respiratory compensation		NR1.5 T Signa (General Electric©)
Bijnens et al., 2022 [56]RetrospectivePHPT10497/5Conventional MRI (CE)NRNRNRNR3 T Ingenia or Ingenia Elition (Philips©)
Cakal et al.,
2012 [42]		ProspectivePHPT3938/1Conventional MRI (NC)NRNRSTIRNR1.5 T Achieva (Philips©)
Gotway et al.,
2001 [44]		RetrospectiveRecurrent/persistent
PHPT		119NRConventional MRI (CE)NRNRFSENR1.5 T Signa (General Electric©)
Michel et al., 2013 [51]ProspectivePHPT58NRConventional MRI (NC)NR STIRNR1.5T Magnetom Symphony (Siemens©)
Ruf et al., 2004 [58]ProspectivePHPT1716/1Conventional MRI (CE)NRNRNRNR1.5 T Magnetom SP63 (Siemens©)
Saeed et al.,
2006 [54]		RetrospectivePHPT26NRConventional MRI (CE)NR FSENR1.5 T Signa (General Electric©)
Sekiyama et al., 2003 [55]RetrospectivePHPT7564/11Conventional MRI (CE)NRNRSTIRNR1.5 T Sigma Horizon (General Electric©)
Aschenbach et al.,
2012 [40]		RetrospectiveRecurrent/persistent PHPT3030/04D MRI
and
Conventional MRI (NC)		10 6FSE
STIR		NR1.5 T Signa
Excite II (General Electric©)
Kluijfhout et al., 2016 [48]RetrospectivePHPT + recurrent/
persistent PHPT		125114/94D MRI
and
Conventional MRI (CE)		4 NRFSENR1.5 T and 3.0 T
Scanner not specified
Ozturk et al.,
2019 [53]		RetrospectivePHPT4140/14D MRI
and
Conventional MRI (NC)		8 15TSE
STIR
Dixon
VIBE		NR3 T
Ingenia (Philips©)
Acar et al.,
2020 [37]		RetrospectivePHPT
undetected a		2524/14D MRI NR 13NRNR1.5 T Avanto (Siemens©)
Argiro et al.,
2018 [26]		ProspectivePHPT5649/84D MRI 618IDEAL
FSE 		NR3 T Discovery MR 750 (General Electric©)
Becker et al.,
2020 [41]		ProspectivePHPT 5437/174D MRI 24 6Dual-echo for Dixon fat suppression
TWIST
CAIPIRINHA		NR3T Magnetom Skyra MR (Siemens©)
Grayev et al.,
2012 [44]		ProspectivePHPT2524/14D MRI 205.4FSE
SPGR
TRICKS
IDEAL		NR3T Twin Speed V12.0 and V14.0
(General Electric©)
Memeh et al.,
2019 [49]		RetrospectivePHPT2618/84D MRI NRNRTWIST
CAIPIRINHA
DIXON		NR3T Skyra (Siemens©)
Merchavy et al.,
2016 [50]		Prospective PHPT11NR4D MRI 1013TSE
MEDIC
TWIST
STIR
VIBE		NR1.5-T Espree (Siemens©)
Murugan et al.,
2021 [52]		ProspectivePHPT4841/74D MRI NRNRTSE
BTFE
DIXON		NR1.5 T Achieva (Philips©)
Hofer et al., 2020 [45]RetrospectivePHPT
+
PHPT
undetected a		4238/418F-FCH-PET-fusion-
(4D-) MRI (CE)
and
Conventional MRI		NRNRSTIRSingle acquisition: 60 min
Activity: 250–350		1.5 T Avanto (Siemens©)
Khafif et al., 2019 [46]ProspectivePHPT 1919/018F-FCH PET/(4D)-MRI206DIXON
VIBE		Dynamic: 16 min
Activity:
93.75		3.0 T PET/MRI, Biograph mMR (Siemens©)
Kluijfhout et al., 2017 [47]ProspectivePHPT
undetected a		108/218F-FCH-PET/(4D)-MRI NR12FSE, IDEAL, STIRDynamic: 40 min
Activity:
188		3.0 T PET/MR (General Electric©)
Araz et al.,
2021 [39] 		RetrospectivePHPT
undetected a		36NR18F-FCH-PET/MRI
(NC)		NRNRTSE
STIR		Single acquisition: 45–60 min
Dynamic: 20 min
Activity: 100		3.0 T Signa PET/MR (General Electric©)
Graves et al., 2022 [57]ProspectivePHPT + Recurrent/persistent PHPT + undetected a101NR18F-FCH-PET/MRI
(NC)		NRNRNRSingle Acquisition: 20–60 min
Activity: 148–259		3.0 T PET/MRI (General Electric©)
Abbreviations: 4D MRI: dynamic-enhanced magnetic resonance imaging, 18F-FCH; 18F-fluorocholine, CAIPIRINHA: Controlled Aliasing in Parallel Imaging Results in Higher Acceleration, FSE; fast-spin echo, IDEAL; iterative decomposition of water and fat with echo asymmetry and least-squares estimation, MBq: megabecquerel, MGD: multigland disease, MEDIC: Multiple Echo Data Image Combination, NR: not reported, PET; positron emission tomography, PHPT: primary hyperparathyroidism, SGD: single-gland disease, SPGR: spoiled gradient recalled echo, STIR; Short-TI Inversion Recovery, T; Tesla, TSE; turbo spin echo, TRICKS; Time-Resolved Imaging of Contrast Kinetics, TWIST: Time-Resolved Angiography With Stochastic Trajectories, CE: contrast-enhanced, NC: non-contrast. a Undetected: after negative US and/or 99mTc-sestamibi.
Table 2. Reported sensitivities of all studied imaging modalities in the included studies.
Table 2. Reported sensitivities of all studied imaging modalities in the included studies.
Lesion-Based Sensitivity
StudyIndicationConventional MRI (%)4D MRI (%)PET/MRI (%)US (%)Sestamibi (%)4D-CT (%)Choline PET/CT (%)
Agha et al.,
2012 [37] 		PHPT71.0 (22/31)NRNR74.2 (23/31)
100 b (31/31)		81.0 (25/31)
NR		NRNR
Akbaba et al.,
2011 [38] 		PHPT63.8 (60/94)NRNR87.2 (82/94)75.5 (71/94)NRNR
Bijnens et al., 2022 [56] PHPT60.0 (12/20)NRNR75.0 (104/139)57.0 (55/97)90.0 (30/33)NR
Cakal et al.,
2012 [42] 		PHPT66.7 (26/39)NRNR89.7 (35/39)71.8 (28/39)NRNR
Gotway et al.,
2001 [43] 		Recurrent/persistent
PHPT		82.0 (107/30)NRNRNR85.0 (110/130)NRNR
Ruf et al., 2004 [58] PHPT71.0 (10/14)NRNRNR86.0 (12/14)NRNR
Sekiyama et al., 2003 [55] PHPT73.0 (43/59) NRNR70.0 (40/63)78.0 (21/27)NRNR
Kluijfhout et al., 2016 [48] PHPT +
recurrent/
persistent PHPT		Total:
81.1 (77/95)
PHPT:
76.9 (20/26)
Recurrent PHPT:
82.4 (56/68)		Total:
78.8 (35/45)
PHPT:
65.2 (15/23)
Recurrent PHPT:
90.1 (20/22)		NRTotal:
51.1 (67/131)
PHPT:
45.7 (21/46)
Recurrent PHPT:
54.1 (46/85)		Total:
68.8 c (86/125)
PHPT:
60.0 c (21/35)
Recurrent PHPT:
74.2 c (66/89)		NRNR
Ozturk et al.,
2019 [53] 		PHPTNR90.5 (38/42)NR76.2 (32/42)71.4 (30/42)NRNR
Acar et al.,
2020 [36] 		PHPT
undetected a		NR84.0 (21/25)NRNRNR52.9 (9/17)NR
Argiro et al.,
2018 [26] 		PHPTNR97.8 (45/46)
MGD: 100 (8/8)		NR89.1 (41/46)83.6 (38/46)NRNR
Becker et al.,
2020 [41] 		PHPTNR83.3 (70/84)
SGD: 92.0 (34/37)
MGD: 77 (36/47)		NRNRNRNRNR
Grayev et al.,
2012 [44] 		PHPTNR64.0 (16/25)NR88.9 (8/9)72.0 (18/25)NRNR
Memeh et al.,
2019 [49] 		PHPTNRSGD: 100 (14/14)
MGD: 67.0 (8/12)		NRNRNRNRNR
Murugan et al.,
2021 [52] 		PHPTNR96.7 (59/61)NRNRNR96.7 (59/61)NR
Hofer et al., 2020 [45] PHPT + PHPT
undectected a		39.1 (18/46)NR100 (46/46)NRNRNR93.5 (43/46)
Michel et al., 2013 [51] PHPT94.3 (53/56)NRNRNR88.0 (47/54)NRNR
Saeed et al.,
2006 [54] 		PHPT73.0 (19/26)NRNRNR65.4 (17/26)NRNR
Aschenbach et al.,
2012 [40] 		Recurrent/persistent PHPT63.3 (19/30)93.3 (28/30)NRNR80.0 (24/30)NRNR
Merchavy et al.,
2016 [50] 		PHPTNR91.0 (10/11)NR91.0 (10/11)91.0 (10/11)NRNR
Kluijfhout et al., 2017 [47] PHPT
undetected a		NR55.6 (5/9)90.0 (9/10)NRNRNRNR
Araz et al.,
2021 [39] 		PHPT
undetected a		80.0 (24/30)NR100 (30/30)NRNRNRNR
Graves et al., 2022 [57] PHPT + recurrent/persistent PHPT + undetected a NRNR88.9 (64/72)37.1 (26/70)27.5 (19/69)NRNR
Khafif et al., 2019 [46] PHPT NRNR84.0 (16/19)84.0 (16/19)74.0 (14/19)NRNR
Abbreviations: 4D MRI: dynamic-enhanced magnetic resonance imaging, PHPT; primary hypeparathyroidism, 4D-CT; dynamic contrast-enhanced computed tomography, NR: not reported, MRI: magnetic resonance imaging, PET/CT; positron emission computed tomography, US: ultrasound, SGD: single-gland disease, MGD: multigland disease. a Undetected: After negative US and/or 99mTc-sestamibi, b CEUS: Contrast-Enhanced Ultrasound, c Patients were studied either using planar imaging or single-photon emission CT (SPECT) imaging.
Table 3. All reported diagnostic values of included MRI studies.
Table 3. All reported diagnostic values of included MRI studies.
Lesion-Based
StudyType of MRI ProtocolSens %Spec %NPV %PPV %Accuracy %
Agha et al.,
2012 [37] 		Conventional MRI71.0 (22/31)NRNRNRNR
Akbaba et al.,
2011 [38] 		Conventional MRI63.8 (60/94)50.0 (2/4)5.5 (2/36)96.8 (60/62)63.3 (62/98)
Bijnens et al., 2022 [56] Conventional MRI60.0 (12/20)83.3 (5/6)NRNRNR
Cakal et al.,
2012 [42] 		Conventional MRI66.7 (26/39)NRNR100 (26/26)NR
Gotway et al.,
2001 [43] 		Conventional MRI82.3 (107/130)NRNR89.2 (116/130)NR
Ruf et al., 2004 [58] Conventional MRI71.0 (10/14)NRNRNRNR
Sekiyama et al., 2003 [55] Conventional MRI72.9 (43/59)NRNRNRNR
Kluijfhout et al., 2016 [48] Conventional MRI
4D MRI		81.1 (77/95)
78.8 (35/45)		NR
NR		NR
NR		84.6 (77/91)
87.5 (35/40)		NR
NR
Ozturk et al.,
2019 [53] 		Conventional MRI
4D MRI		81.0 (34/42)
90.5 (38/42)		NR
NR		NR
NR		87.2/91.9
95.0 (38/40)		NR
NR
Acar et al.,
2020 [36] 		4D MRI84.0 (21/25)97.4 (73/75) 94.8
(73/77)		91.3
(21/23)		94.0
(21/25)
Argiro et al.,
2018 [26] 		4D MRI97.8 (45/46)97.5 (118/121)99.2 (/118/119)93.7 (45/48)NR
Becker et al.,
2020 [41] 		4D MRIOverall—83.3 (70/84)
SGD—92.0 (34/37)
MGD—77.0 (36/47)		NRNRNR NR
Grayev et al.,
2012 [44] 		4D MRI64.0 (16/25)NRNR67.0 (16/24)NR
Memeh et al.,
2019 [49] 		4D MRI100 (14/14)66.0 (8/12)NRNR84.6 (22/26)
Murugan et al.,
2021 [52] 		4D MRI96.7 (59/61)66.6 (2/3)50.0 (2/4)98.3 (59/60)95.2 (58/61)
Hofer et al., 2020 [45] Conventional MRI
PET/MRI		39.1 (18/46)
100 (46/46)		89.3 (109/122)
100 (122/122)		79.6 (109/137)
100 (122/122)		58.1 (19/32)
100 (46/46)		75.6 (92/122)
100 (122/122)
Patient-Based
StudyType of MRI protocolSens %Spec %NPV %PPV %Accuracy %
Michel et al., 2013 [51] Conventional MRI94.3 (53/56)NRNR96.2 (53/55)NR
Saeed et al.,
2006 [54] 		Conventional MRI73.1 (19/26)NRNR95.0 (19/20)NR
Aschenbach et al.,
2012 [40] 		Conventional MRI
4D MRI		63.3 (19/30)
93.3 (28/30)		100 (30/30)
100 (30/30)		NRNRNR
Merchavy et al.,
2016 [50] 		4D MRI91.0 (10/11)NRNRNRNR
Kluijfhout et al., 2017 [47] PET/MRI
4D MRI		90.0 (9/10)
55.6 (5/9)		NR
NR		NR
NR		100 (10/10)
NR		NR
NR
Araz et al., 2021 [39]PET/MRI
Conventional MRI		100 (30/30)
80.0 (24/30)		100 (30/30)
50.0 (4/8)		100 (30/30)
64.0 (7/11)		100 (30/30)
70.0 (21/30)		100 (30/30)
68.0 (23/34)
Graves et al., 2022 [57] PET/MRI88.9 (64/72)96.0 (97/101)NRNRNR
Khafif et al., 2019 [46] PET/MRI84.2 (16/19)NRNRNRNR
Abbreviations: 4D MRI: dynamic-enhanced magnetic resonance imaging, NR: not reported, MRI: magnetic resonance imaging, SGD: single-gland disease, and MGD: multigland disease.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Scheepers, M.H.M.C.; Al-Difaie, Z.; Brandts, L.; Peeters, A.; Winkens, B.; Al-Taher, M.; Engelen, S.M.E.; Lubbers, T.; Havekes, B.; Bouvy, N.D.; et al. Diagnostic Performance of Magnetic Resonance Imaging for Parathyroid Localization of Primary Hyperparathyroidism: A Systematic Review. Diagnostics 2024, 14, 25. https://doi.org/10.3390/diagnostics14010025

AMA Style

Scheepers MHMC, Al-Difaie Z, Brandts L, Peeters A, Winkens B, Al-Taher M, Engelen SME, Lubbers T, Havekes B, Bouvy ND, et al. Diagnostic Performance of Magnetic Resonance Imaging for Parathyroid Localization of Primary Hyperparathyroidism: A Systematic Review. Diagnostics. 2024; 14(1):25. https://doi.org/10.3390/diagnostics14010025

Chicago/Turabian Style

Scheepers, Max H. M. C., Zaid Al-Difaie, Lloyd Brandts, Andrea Peeters, Bjorn Winkens, Mahdi Al-Taher, Sanne M. E. Engelen, Tim Lubbers, Bas Havekes, Nicole D. Bouvy, and et al. 2024. "Diagnostic Performance of Magnetic Resonance Imaging for Parathyroid Localization of Primary Hyperparathyroidism: A Systematic Review" Diagnostics 14, no. 1: 25. https://doi.org/10.3390/diagnostics14010025

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
