Review

Multiple Testing, Cut-Point Optimization, and Signs of Publication Bias in Prognostic FDG–PET Imaging Studies of Head and Neck and Lung Cancer: A Review and Meta-Analysis

by
Malene M. Clausen
1,2,*,
Ivan R. Vogelius
2,3,
Andreas Kjær
1 and
Søren M. Bentzen
3
1
Department of Clinical Physiology, Nuclear Medicine & PET and Cluster for Molecular Imaging, Copenhagen University Hospital, Rigshospitalet and University of Copenhagen, 2100 Copenhagen, Denmark
2
Department of Oncology, Copenhagen University Hospital, Rigshospitalet, 2100 Copenhagen, Denmark
3
Division of Biostatistics and Bioinformatics, University of Maryland School of Medicine, Baltimore, MD 21201, USA
*
Author to whom correspondence should be addressed.
Diagnostics 2020, 10(12), 1030; https://doi.org/10.3390/diagnostics10121030
Submission received: 19 October 2020 / Revised: 25 November 2020 / Accepted: 29 November 2020 / Published: 1 December 2020
(This article belongs to the Section Medical Imaging and Theranostics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Positron emission tomography (PET) imaging with 2-deoxy-2-[18F]-fluorodeoxyglucose (FDG) was proposed as prognostic marker in radiotherapy. Various uptake metrics and cut points were used, potentially leading to inflated effect estimates. Here, we performed a meta-analysis and systematic review of the prognostic value of pretreatment FDG–PET in head and neck squamous cell carcinoma (HNSCC) and non-small cell lung cancer (NSCLC), with tests for publication bias. Hazard ratio (HR) for overall survival (OS), disease free survival (DFS), and local control was extracted or derived from the 57 studies included. Test for publication bias was performed, and the number of statistical tests and cut-point optimizations were registered. Eggers regression related to correlation of SUVmax with OS/DFS yielded p = 0.08/p = 0.02 for HNSCC and p < 0.001/p = 0.014 for NSCLC. No outcomes showed significant correlation with SUVmax, when adjusting for publication bias effect, whereas all four showed a correlation in the conventional meta-analysis. The number of statistical tests and cut points were high with no indication of improvement over time. Our analysis showed significant evidence of publication bias leading to inflated estimates of the prognostic value of SUVmax. We suggest that improved management of these complexities, including predefined statistical analysis plans, are critical for a reliable assessment of FDG–PET.

1. Introduction

Positron emission tomography (PET) offers a non-invasive method to assess functional biological characteristics of a tumor in an individual patient with cancer. A number of positron emitting tracers were developed to study various aspects of tumor biology [1,2,3,4,5,6,7]. However, clinical practice in cancer PET imaging is still dominated by very few tracers, with 2-deoxy-2-[18F]-fluorodeoxyglucose (FDG) being the clinical workhorse for most tumor sites. FDG–PET imaging is primarily used for staging purposes, as a supplement to anatomical images, but advances in the availability of PET imaging led to an increased interest in the feasibility of PET guided radiotherapy planning [8]. Several studies investigated the prognostic value of FDG–PET, and dose escalation to PET-positive areas within the tumor is one of the potential strategies for increasing effect of radiotherapy [9,10,11,12].
Despite the widespread use of FDG, only few prospective studies exist for this tracer—the value of FDG as prognostic factor was mainly tested in retrospective cohort studies, for example [13]. There are major limitations with this approach of evidence-generation in medicine. For example, the lack of prospective clinical studies with study registration, formalized sample size estimation and a predefined statistical analysis plans. All of this leads to a risk of “fishing expeditions” with a high risk of false positive findings, exaggerated effect sizes, and subsequent publication bias. Multiple testing is a well-described contributor to false positive findings; when comparisons are made for several subgroups or multiple variables, without adjustment of the type I error rate (false positives).
Searching for a standardized uptake value (SUV) cut-point for dichotomization of the patient group into a poor vs. good prognosis group, which minimizes the p-value when comparing outcome in the resulting groups, is an approach frequently used in imaging studies. This “optimization” approach invalidates a simple interpretation of the resulting p-value and is associated with a substantial increase in the rate of type I errors [14,15]. Deciding before the start of analyses to use the median SUV as a cut-point, is unbiased. However, in many cases this might not be a biologically meaningful way to classify patients into prognostic subgroups.
In the current study, we reviewed the methodology of published studies of the prognostic value of FDG in head and neck squamous cell carcinoma (HNSCC) and non-small cell lung cancer (NSCLC), and assessed the evidence of publication bias. We included studies where patients received radiotherapy (RT), possibly in combination with other treatment modalities. The Hazard Ratio (HR) for overall survival (OS), disease free survival (DFS), or local control (LC) were considered as outcomes, and analyzed as a function of FDG uptake metrics.

2. Materials and Methods

2.1. Search Strategy and Eligibility Criteria for Studies

Published reports on the prognostic value of pretreatment FDG–PET in two common tumors, HNSCC and NSCLC, were included.
We searched PubMed for published reports using the following search strings with ‘human’ filter:
HNSCC: (FDG OR “18-F”) AND (“Head and neck” OR “HNSCC” OR “SCCHN”) AND (radiotherapy OR chemoradi* OR radio* OR chemo-radi*) NOT review
NSCLC: (FDG OR “18-F”) AND (“non-small cell lung cancer” OR “NSCLC”) AND (radiotherapy OR chemoradi* OR radio* OR chemo-radi*) NOT review
In addition, manual screening of the selected articles, reviews, and meta-analyses were used to complement the search. The final date of the search was 1 November 2018, and we did not restrict publication date prior to this date. In this analysis, only articles in English were included. Studies reporting the HR for OS, DFS or LC, versus SUVmax or SUVpeak, were included. The primary treatment was required to include RT, but studies with mixed cohorts including RT, chemoradiotherapy, and surgery were also allowed. However, studies with only few patients receiving RT were excluded [16]. No restrictions on the study design were used. Where multiple reports with overlapping patient cohorts were available, only data from the largest study were included.

2.2. Data Extraction

Data were extracted for each study by MMC and entered into the meta-analysis software Review Manager (RevMan) software version 5.3 [17]. There was no attempt to obtain unpublished data. Data were analyzed by MMC and IRV. The HR for OS, DFS, and LC for each trial was extracted or derived from the available data. An HR above 1 implied a survival benefit for lower SUVmax. Both the HR and its confidence interval (CI) were required from each study for inclusion in the meta-analysis. Data from multivariate (MVA) were prioritized over univariate (UVA) analysis, when both were reported.
If the HR with CI was not stated in a report, one of two methods were used for its estimation. If the HR was given with a p-value, but without the CI, we assumed a normal distribution of the logarithm of the HR and estimated the CI by first finding the z-parameter of the normal distribution pertaining to the reported p-value. We then calculated the standard error of the ln(HR) estimate as S ln ( HR ) = ln ( HR ) z .
A number of studies did not report an HR, but only a p-value, together with the outcome at one or more specified points in time, in most cases in the form of a plot of Kaplan–Meier curves. In these cases, we estimated the HR from the relationship R ( t ) = ln ( p 2 ( t ) ) ln ( p 1 ( t ) ) , where p1 is the Kaplan–Meier estimate for low SUVmax at time t and p2 is the estimate for high SUVmax. When possible, we sampled the ratio at multiple time-points, ranging from the first time an event occurred in both groups to the end of follow-up, and averaged the resulting HR(t) estimates. The CI was then calculated from the p-value as explained above. The methodology was previously described in more detail [18]. Variances were then calculated and used as study weights in meta-analysis, using RevMan [17].
Assessment of publication bias was made visually by ordering the studies in forest plots according to variance and by funnel plots. We did not systematically assess the risk of bias in the individual studies. The risk of bias across studies was assessed using the so-called Egger–Var method as a formal test for publication bias [19]. We performed quantitative assessment using the Egger’s method as follows. For each endpoint and comparison, a linear fit of log HR versus standard error of the study estimate was performed to assess if the included studies effect size depended on study precision. Formally, the regression equation was
ln ( HR i ) = α + β ∗ SE i + ε i ,
weighted by the inverse variance of each study. Here, α and β were the fitting parameters, SEi was the standard error of lnHR of the ith study, and ε was the residual error assumed to have a normal distribution. If β was different from zero at the 95% confidence level, it was concluded that the effect size estimates depended on the study precision—a clear indication of publication bias. α in Equation (1) was the extrapolation to zero SE and was used to estimate a publication bias corrected value of ln(HR).
Turning to the assessment of the number of statistical tests and the use of cut-point optimization, the assessment was made independently by MMC and IRV and disagreements were resolved by a consensus meeting. Only statistical tests related to the association of an imaging metric on one side and oncological outcome or baseline characteristics on the other, were counted. When the same question was addressed in univariate and multivariate analysis, the corresponding p-value was only counted once. Similarly, it was only counted once if it was part of a rational model building procedure, including forward or backwards elimination. In cases where a large number of multivariate models with a functional image metric were examined, outside of a model building procedure, the multivariate tests were included in the assessment of a number of statistical tests that were investigated, e.g., Schwartz et al. [20].

3. Results

The study selection process for this analysis is presented in Figure 1. Of the 930 studies identified by the initial search, 57 were analyzable. A total of 178 full text articles were screened, and 133 of these were excluded, as data were not assessable (not reporting HR, univariate log-rank test without p-value, no cut-point for SUV). In other words, 25.3% of the screened full text reports were included. Twelve studies were added from manual cross-referencing of articles, reviews, and browsing for a total of 57 included studies; 27 studies in patients with HNSCC [20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46], and 30 studies in NSCLC [47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76].
Study characteristics are summarized in Table 1 and Table 2 for HNSCC and NSCLC, respectively. The vast majority of studies were retrospective analyses—20 studies of HNSCC (74%) and 26 studies of NSCLC (87%). The included studies comprised a total of 5102 patients—1704 patients in the HNSCC group and 3398 in the NSCLC group. The median study size was 74. The NSCLC studies were generally larger, with a median study sample size of 95 patients compared to 58 in the HNSCC group. Twenty-seven studies did not perform MVA for DFS or OS, which were the primary endpoints of this analysis. A few studies reported no events until long follow-up, which gave rise to additional uncertainty in the HR estimate [54,68]. One study reported no events in the low-uptake group, giving rise to an infinite HR estimate, and the study had to be excluded [77]. A single study was excluded due to problems with interpretation of the KM plots [78].
The patient cohorts in both the HNSCC and NSCLC group were quite heterogeneous with respect to stage, treatment, and follow-up time.
Figure 2 and Figure 3 display the forest plots for SUVmax as a predictor of DFS and OS for HNSCC and NSCLC, respectively, with the studies ordered according to inverse variance from top to bottom. There was a trend for HR to decrease with decreasing variance, and publication bias is therefore suspected. The HR estimate from the pooled analysis is shown by the diamond-shaped mark, and it favored low SUV. However, this should be interpreted with caution due to the suspicion of publication bias. The same trend was observed for LC (Supplemental Figure S1). The data entered in RevMan and HR for UVA and MVA for all studies are listed in the Supplemental Table S1.
When Eggers regression was applied, neither OS nor DFS appeared to be significantly associated with FDG uptake in neither HNSCC or NSCLC. The regression slopes were significantly greater than zero in three of the four cases: DFS for HNSCC (p = 0.02) and both OS (p < 0.001) and DFS (p = 0.014) for NSCLC. See the supplement for details and the associated plots (Supplemental Figure S2).
Figure 4 shows a plot of the number of patients, number of statistical tests, and number of cut-point optimizations against the year of publication. Unfortunately, there is little sign of a consistent improvement in study characteristics, i.e., number of statistical tests, number of cut-point analyses, and size of study population over time. For HNSCC studies, there was a statistically significant increase in the number of cut-point optimizations versus time (Spearman rho = 0.5, p = 0.02), while there was no significant increase in the number of patients for later studies and data were also in accordance with no change in the number of tests performed (Figure 4A). Data for the NSCLC studies are shown in Figure 4B, where the Spearman rank correlation coefficients were statistically in agreement with no change over time, in either the number of patients, number of cut-points, or number of tests performed (p > 0.27 for all coefficients).
Power calculations were not performed in any of the included studies, and only three studies mention or adjust for multiple testing [27,33,60].

4. Discussion

Publication bias is a well-known problem, enriching the literature with false/true positive studies that will not be balanced by other studies with negative findings that are more likely to remain unpublished. This in turn will inflate the effect size estimated from an intervention or the discriminatory power of a diagnostic test. The inflated effect sizes from individual studies will carry over to a meta-analysis [79], thus reducing the value of the meta-analysis in evidence-based medicine. Indeed, our systematic analysis of prognostic studies of FDG uptake found statistically significant evidence of publication bias. Small studies are at particular risk of inflated effect-size bias [80] and it is thus a concern that the median study size was only 58 and 95 patients in published HNSCC and NSCLC studies, respectively. The TRIPOD reporting guidelines [81], attempts to address the problem by requiring a sample size justification in reporting, but this is not provided in any of the studies included here. Additionally, it might be argued that the general reporting guidelines of TRIPOD, albeit relevant, are not sufficiently specific for adequate reporting of image-based prognostic studies. In particular, it is an important concern that a large number of possible predictors can be extracted from a PET scan—SUVmax, SUVpeak, SUVmean, MTV, and TLG, just to name a few. Multiple comparisons, post-hoc search for positive associations and scanning for ‘optimal’ cut-off values separating the low and the high uptake groups, increase the risk of false positive findings [82], as also discussed by Vesselle et al., in the context of FDG prognostication [73].
A limitation of our study was that we did not have access to individual patient data, which led to the exclusion of some reports. Most of the included studies were conducted as retrospective studies (80.7%), without a predefined data analysis plan. While this might be defendable in the explorative setting, it increases the risk of overestimating the effect size if the cohort studies are not followed by controlled trials or studies with pre-specified protocols. In particular, with FDG, we would argue that we are beyond the exploratory phase and should perform larger studies with predefined protocols, to unequivocally reveal the prognostic or predictive role of FDG uptake in cancers that are common in the two sites studied in the present work. With the high number of correlations that are testable in image-based prognostication, it appears prudent to require predefined research protocols and, perhaps, publication of raw data to allow independent validation of findings, regardless of the chosen cut-point or predictor. It is possible that a functional imaging specific extension to the TRIPOD or REMARK guidelines could be of use. When published studies perform tens of comparisons and multiple cut-point optimizations in datasets of less than 100 patients, and without correction for multiple comparisons, the field is bound to be dominated by false or exaggerated correlations, which will ultimately harm patients if applied in clinical decision making and harm a promising field of research by misusing resources.
It is a substantial challenge to accommodate cross-study synthesis of data in meta-analysis at the same time as allowing the individual authors to appropriately handle the coding of image metrics in their study. Decisions to use continuous coding of SUV, logarithmic transformation, or a limited number of cut-points are all fair (if performed correctly), but hampers the ability to perform a meta-analysis. It appears to us that the complexity of these analyses implies that publication of the raw modeling data is a necessity for meaningful synthesis of data. We believe that the observations of the current study imply that such a synthesis is necessary for real progress.

5. Conclusions

Functional imaging with FDG or other tracers remains a promising tool for prognostication, prediction, and treatment selection for cancer patients. However, the current study points to issues limiting the interpretation, including inadequate sample sizes, lack of predefined analysis plans, lack of correction for multiple testing, and post-hoc cut-point optimizations. These issues result in a high risk of inflated effect sizes or false positive correlations that must be addressed to avoid leading the field astray.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4418/10/12/1030/s1. Figure S1: Forest plots for LC in HNSCC and NSCLC. Figure S2: Eggers regression versus meta-analysis. Table S1: Data extracted from the included studies.

Author Contributions

Literature search, M.M.C.; Conceptualization, M.M.C., I.R.V., A.K., and S.M.B.; methodology, M.M.C., I.R.V., S.M.B.; formal analysis, M.M.C. and I.R.V.; data curation, M.M.C. and I.R.V.; writing—original draft preparation, M.M.C.; writing—review and editing, I.R.V. and S.M.B., A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

I.R.V. reports research and treatment contracts with Varian Medical Systems, Brainlab, and Viewray, outside the submitted work and payable to institution.

References

  1. Young, H.; Baum, R.; Cremerius, U.; Herholz, K.; Hoekstra, O.; Lammertsma, A.A.; Pruim, J.; Price, P. Measurement of Clinical and Subclinical Tumour Response Using [18F]-Fluorodeoxyglucose and Positron Emission Tomography: Review and 1999 Eortc Recommendations. European Organization for Research and Treatment of Cancer (Eortc) Pet Study Group. Eur. J. Cancer 1999, 35, 1773–1782. [Google Scholar] [CrossRef]
  2. Yang, D.J.; Wallace, S.; Cherif, A.; Li, C.; Gretzer, M.B.; Kim, E.E.; Podoloff, D.A. Development of F-18-Labeled Fluoroerythronitroimidazole as a Pet Agent for Imaging Tumor Hypoxia. Radiology 1995, 194, 795–800. [Google Scholar] [CrossRef] [PubMed]
  3. Shields, A.F.; Grierson, J.R.; Dohmen, B.M.; Machulla, H.J.; Stayanoff, J.C.; Lawhorn-Crews, J.M.; Obradovich, J.E.; Muzik, O.; Mangner, T.J. Imaging Proliferation in Vivo with [F-18]Flt and Positron Emission Tomography. Nat. Med. 1998, 4, 1334–1346. [Google Scholar] [CrossRef] [PubMed]
  4. Fujibayashi, Y.; Taniuchi, H.; Yonekura, Y.; Ohtani, H.; Konishi, J.; Yokoyama, A. Copper-62-Atsm: A New Hypoxia Imaging Agent with High Permeability and Low Redox Potential. J. Nucl. Med. 1997, 38, 1155–1160. [Google Scholar]
  5. Weber, W.A.; Wester, H.J.; Grosu, A.L.; Herz, M.; Dzewas, B.; Feldmann, H.J.; Molls, M.; Stocklin, G.; Schwaiger, M. O-(2-[18F]Fluoroethyl)-L-Tyrosine and L-[Methyl-11c]Methionine Uptake in Brain Tumours: Initial Results of a Comparative Study. Eur. J. Nucl. Med. 2000, 27, 542–549. [Google Scholar] [CrossRef]
  6. Panebianco, V.; Sciarra, A.; Lisi, D.; Galati, F.; Buonocore, V.; Catalano, C.; Gentile, V.; Laghi, A.; Passariello, R. Prostate Cancer: 1hmrs-Dcemr at 3t Versus [(18)F]Choline Pet/Ct in the Detection of Local Prostate Cancer Recurrence in Men with Biochemical Progression after Radical Retropubic Prostatectomy (Rrp). Eur. J. Radiol. 2012, 81, 700–708. [Google Scholar] [CrossRef]
  7. Kurdziel, K.A.; Shih, J.H.; Apolo, A.B.; Lindenberg, L.; Mena, E.; McKinney, Y.Y.; Adler, S.S.; Turkbey, B.; Dahut, W.; Gulley, J.L.; et al. The Kinetics and Reproducibility of 18F-Sodium Fluoride for Oncology Using Current Pet Camera Technology. J. Nucl. Med. 2012, 53, 1175–1184. [Google Scholar] [CrossRef] [Green Version]
  8. Das, S.K.; Ten Haken, R.K. Functional and molecular image guidance in radiotherapy treatment planning optimization. Semin. Radiat. Oncol. 2011, 21, 111–118. [Google Scholar] [CrossRef] [Green Version]
  9. Wanet, M.; Delor, A.; Hanin, F.X.; Ghaye, B.; Van Maanen, A.; Remouchamps, V.; Clermont, C.; Goossens, S.; Lee, J.A.; Janssens, G.; et al. An individualized radiation dose escalation trial in non-small cell lung cancer based on FDG-PET imaging. Strahlenther. Onkol. 2017, 193, 812–822. [Google Scholar] [CrossRef]
  10. van Diessen, J.; De Ruysscher, D.; Sonke, J.J.; Damen, E.; Sikorska, K.; Reymen, B.; van Elmpt, W.; Westman, G.; Fredberg Persson, G.; Dieleman, E.; et al. The acute and late toxicity results of a randomized phase II dose-escalation trial in non-small cell lung cancer (PET-boost trial). Radiother. Oncol. 2019, 131, 166–173. [Google Scholar] [CrossRef]
  11. Differding, S.; Sterpin, E.; Janssens, G.; Hanin, F.X.; Lee, J.A.; Gregoire, V. Methodology for adaptive and robust FDG-PET escalated dose painting by numbers in head and neck tumors. Acta Oncol. 2016, 55, 217–225. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Rasmussen, J.H.; Hakansson, K.; Vogelius, I.R.; Aznar, M.C.; Fischer, B.M.; Friborg, J.; Loft, A.; Kristensen, C.A.; Bentzen, S.M.; Specht, L. Phase I trial of 18F-Fludeoxyglucose based radiation dose painting with concomitant cisplatin in head and neck cancer. Radiother. Oncol. 2016, 120, 76–80. [Google Scholar] [CrossRef] [PubMed]
  13. Xie, P.; Li, M.; Zhao, H.; Sun, X.; Fu, Z.; Yu, J. 18F-FDG PET or PET-CT to evaluate prognosis for head and neck cancer: A meta-analysis. J. Cancer Res. Clin. Oncol. 2011, 137, 1085–1093. [Google Scholar] [CrossRef] [PubMed]
  14. Faraggi, D.; Simon, R. A simulation study of cross-validation for selecting an optimal cutpoint in univariate survival analysis. Stat. Med. 1996, 15, 2203–2213. [Google Scholar] [CrossRef]
  15. Hilsenbeck, S.G.; Clark, G.M.; McGuire, W.L. Why do so many prognostic factors fail to pan out? Breast Cancer Res. Treat. 1992, 22, 197–206. [Google Scholar] [CrossRef]
  16. Nguyen, X.C.; Lee, W.W.; Chung, J.H.; Park, S.Y.; Sung, S.W.; Kim, Y.K.; So, Y.; Lee, D.S.; Chung, J.K.; Lee, M.C.; et al. FDG uptake, glucose transporter type 1, and Ki-67 expressions in non-small-cell lung cancer: Correlations and prognostic values. Eur. J. Radiol. 2007, 62, 214–219. [Google Scholar] [CrossRef]
  17. Review Manager (RevMan) [Computer Program]; The Nordic Cochrane Centre, The Cochrane Collaboration: Copenhagen, Switzerland, 2012.
  18. Diez, P.; Vogelius, I.S.; Bentzen, S.M. A new method for synthesizing radiation dose-response data from multiple trials applied to prostate cancer. Int. J. Radiat. Oncol. Biol. Phys. 2010, 77, 1066–1071. [Google Scholar] [CrossRef] [Green Version]
  19. Moreno, S.G.; Sutton, A.J.; Ades, A.E.; Stanley, T.D.; Abrams, K.R.; Peters, J.L.; Cooper, N.J. Assessment of regression-based methods to adjust for publication bias through a comprehensive simulation study. BMC Med. Res. Methodol. 2009, 9, 2. [Google Scholar] [CrossRef] [Green Version]
  20. Schwartz, D.; Rajendran, J.; Yueh, B.; Coltrera, M.; LeBlanc, M.; Eary, J.; Krohn, K. FDG-PET prediction of head and neck squamous cell cancer outcomes. Arch. Otolaryngol. Head Neck Surg. 2004, 130, 1361–1367. [Google Scholar] [CrossRef] [Green Version]
  21. Akagunduz, O.O.; Savas, R.; Yalman, D.; Kocacelebi, K.; Esassolak, M. Can adaptive threshold-based metabolic tumor volume (MTV) and lean body mass corrected standard uptake value (SUL) predict prognosis in head and neck cancer patients treated with definitive radiotherapy/chemoradiotherapy? Nucl. Med. Biol. 2015, 42, 899–904. [Google Scholar] [CrossRef]
  22. Allal, A.S.; Slosman, D.O.; Kebdani, T.; Allaoua, M.; Lehmann, W.; Dulguerov, P. Prediction of outcome in head-and-neck cancer patients using the standardized uptake value of 2-[18F]fluoro-2-deoxy-D-glucose. Int. J. Radiat. Oncol. Biol. Phys. 2004, 59, 1295–1300. [Google Scholar] [CrossRef] [Green Version]
  23. Baschnagel, A.M.; Wobb, J.L.; Dilworth, J.T.; Williams, L.; Eskandari, M.; Wu, D.; Pruetz, B.L.; Wilson, G.D. The association of (18)F-FDG PET and glucose metabolism biomarkers GLUT1 and HK2 in p16 positive and negative head and neck squamous cell carcinomas. Radiother. Oncol. 2015, 117, 118–124. [Google Scholar] [CrossRef] [PubMed]
  24. Brun, E.; Kjellén, E.; Tennvall, J.; Ohlsson, T.; Sandell, A.; Perfekt, R.; Wennerberg, J.; Strand, S. FDG PET studies during treatment: Prediction of therapy outcome in head and neck squamous cell carcinoma. Head Neck 2002, 24, 127–135. [Google Scholar] [CrossRef] [PubMed]
  25. Cacicedo, J.; Fernandez, I.; Del Hoyo, O.; Navarro, A.; Gomez-Iturriaga, A.; Pijoan, J.I.; Martinez-Indart, L.; Escudero, J.; Gomez-Suarez, J.; de Zarate, R.O.; et al. Prognostic value of maximum standardized uptake value measured by pretreatment 18F-FDG PET/CT in locally advanced head and neck squamous cell carcinoma. Clin. Transl. Oncol. 2017, 19, 1337–1349. [Google Scholar] [CrossRef] [PubMed]
  26. Chan, S.C.; Cheng, N.M.; Hsieh, C.H.; Ng, S.H.; Lin, C.Y.; Yen, T.C.; Hsu, C.L.; Wan, H.M.; Liao, C.T.; Chang, K.P.; et al. Multiparametric imaging using (18)F-FDG PET/CT heterogeneity parameters and functional MRI techniques: Prognostic significance in patients with primary advanced oropharyngeal or hypopharyngeal squamous cell carcinoma treated with chemoradiotherapy. Oncotarget 2017, 8, 62606–62621. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Chung, M.K.; Jeong, H.S.; Park, S.G.; Jang, J.Y.; Son, Y.I.; Choi, J.Y.; Hyun, S.H.; Park, K.; Ahn, M.J.; Ahn, Y.C.; et al. Metabolic tumor volume of [18F]-fluorodeoxyglucose positron emission tomography/computed tomography predicts short-term outcome to radiotherapy with or without chemotherapy in pharyngeal cancer. Clin. Cancer Res. 2009, 15, 5861–5868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Halfpenny, W.; Hain, S.; Biassoni, L.; Maisey, M.; Sherman, J.; McGurk, M. FDG-PET. A possible prognostic factor in head and neck cancer. Br. J. Cancer 2002, 86, 512–516. [Google Scholar] [CrossRef]
  29. Higgins, K.A.; Hoang, J.K.; Roach, M.C.; Chino, J.; Yoo, D.S.; Turkington, T.G.; Brizel, D.M. Analysis of pretreatment FDG-PET SUV parameters in head-and-neck cancer: Tumor SUVmean has superior prognostic value. Int. J. Radiat. Oncol. Biol. Phys. 2012, 82, 548–553. [Google Scholar] [CrossRef]
  30. Kim, S.Y.; Roh, J.L.; Kim, M.R.; Kim, J.S.; Choi, S.H.; Nam, S.Y.; Lee, S.W.; Kim, S.B. Use of 18F-FDG PET for primary treatment strategy in patients with squamous cell carcinoma of the oropharynx. J. Nucl. Med. 2007, 48, 752–757. [Google Scholar] [CrossRef] [Green Version]
  31. Kitajima, K.; Suenaga, Y.; Kanda, T.; Miyawaki, D.; Yoshida, K.; Ejima, Y.; Sasaki, R.; Komatsu, H.; Saito, M.; Otsuki, N.; et al. Prognostic value of FDG PET imaging in patients with laryngeal cancer. PLoS ONE 2014, 9, e96999. [Google Scholar] [CrossRef] [Green Version]
  32. Komar, G.; Lehtio, K.; Seppanen, M.; Eskola, O.; Levola, H.; Lindholm, P.; Sipila, H.; Seppala, J.; Grenman, R.; Solin, O.; et al. Prognostic value of tumour blood flow, [18F]EF5 and [18F]FDG PET/CT imaging in patients with head and neck cancer treated with radiochemotherapy. Eur. J. Nucl. Med. Mol. Imaging 2014, 41, 2042–2050. [Google Scholar] [CrossRef] [PubMed]
  33. Koyasu, S.; Nakamoto, Y.; Kikuchi, M.; Suzuki, K.; Hayashida, K.; Itoh, K.; Togashi, K. Prognostic value of pretreatment 18F-FDG PET/CT parameters including visual evaluation in patients with head and neck squamous cell carcinoma. AJR Am. J. Roentgenol. 2014, 202, 851–858. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Kunkel, M.; Reichert, T.E.; Benz, P.; Lehr, H.A.; Jeong, J.H.; Wieand, S.; Bartenstein, P.; Wagner, W.; Whiteside, T.L. Overexpression of Glut-1 and increased glucose metabolism in tumors are associated with a poor prognosis in patients with oral squamous cell carcinoma. Cancer 2003, 97, 1015–1024. [Google Scholar] [CrossRef] [PubMed]
  35. Liao, C.T.; Chang, J.T.; Wang, H.M.; Ng, S.H.; Hsueh, C.; Lee, L.Y.; Lin, C.H.; Chen, I.H.; Huang, S.F.; Cheng, A.J.; et al. Pretreatment primary tumor SUVmax measured by FDG-PET and pathologic tumor depth predict for poor outcomes in patients with oral cavity squamous cell carcinoma and pathologically positive lymph nodes. Int. J. Radiat. Oncol. Biol. Phys. 2009, 73, 764–771. [Google Scholar] [CrossRef] [PubMed]
  36. Machtay, M.; Natwa, M.; Andrel, J.; Hyslop, T.; Anne, P.R.; Lavarino, J.; Intenzo, C.M.; Keane, W. Pretreatment FDG-PET standardized uptake value as a prognostic factor for outcome in head and neck cancer. Head Neck 2009, 31, 195–201. [Google Scholar] [CrossRef]
  37. Minn, H.; Lapela, M.; Klemi, P.; Grénman, R.; Leskinen, S.; Lindholm, P.; Bergman, J.; Eronen, E.; Haaparanta, M.; Joensuu, H. Prediction of survival with fluorine-18-fluorodeoxyglucose and PET in head and neck cancer. J. Nucl. Med. 1997, 38, 1907–1911. [Google Scholar]
  38. Moon, S.H.; Choi, J.Y.; Lee, H.J.; Son, Y.I.; Baek, C.H.; Ahn, Y.C.; Ahn, M.J.; Park, K.; Kim, B.T. Prognostic value of volume-based positron emission tomography/computed tomography in patients with nasopharyngeal carcinoma treated with concurrent chemoradiotherapy. Clin. Exp. Otorhinolaryngol. 2015, 8, 142–148. [Google Scholar] [CrossRef]
  39. Ng, S.H.; Liao, C.T.; Lin, C.Y.; Chan, S.C.; Lin, Y.C.; Yen, T.C.; Chang, J.T.; Ko, S.F.; Fan, K.H.; Wang, H.M.; et al. Dynamic contrast-enhanced MRI, diffusion-weighted MRI and (18)F-FDG PET/CT for the prediction of survival in oropharyngeal or hypopharyngeal squamous cell carcinoma treated with chemoradiation. Eur. Radiol. 2016, 26, 4162–4172. [Google Scholar] [CrossRef] [PubMed]
  40. Preda, L.; Conte, G.; Bonello, L.; Giannitto, C.; Travaini, L.L.; Raimondi, S.; Summers, P.E.; Mohssen, A.; Alterio, D.; Cossu Rocca, M.; et al. Combining standardized uptake value of FDG-PET and apparent diffusion coefficient of DW-MRI improves risk stratification in head and neck squamous cell carcinoma. Eur. Radiol. 2016, 26, 4432–4441. [Google Scholar] [CrossRef]
  41. Roh, J.L.; Pae, K.H.; Choi, S.H.; Kim, J.S.; Lee, S.; Kim, S.B.; Nam, S.Y.; Kim, S.Y. 2-[18F]-Fluoro-2-deoxy-D-glucose positron emission tomography as guidance for primary treatment in patients with advanced-stage resectable squamous cell carcinoma of the larynx and hypopharynx. Eur. J. Surg. Oncol. 2007, 33, 790–795. [Google Scholar] [CrossRef]
  42. Schwartz, D.L.; Harris, J.; Yao, M.; Rosenthal, D.I.; Opanowski, A.; Levering, A.; Ang, K.K.; Trotti, A.M.; Garden, A.S.; Jones, C.U.; et al. Metabolic tumor volume as a prognostic imaging-based biomarker for head-and-neck cancer: Pilot results from Radiation Therapy Oncology Group protocol 0522. Int. J. Radiat. Oncol. Biol. Phys. 2015, 91, 721–729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Suzuki, H.; Kato, K.; Fujimoto, Y.; Itoh, Y.; Hiramatsu, M.; Naganawa, S.; Hasegawa, Y.; Nakashima, T. Prognostic value of (18)F-fluorodeoxyglucose uptake before treatment for pharyngeal cancer. Ann. Nucl. Med. 2014, 28, 356–362. [Google Scholar] [CrossRef] [PubMed]
  44. Suzuki-Shibata, S.; Yamamoto, Y.; Yoshida, T.; Mizoguchi, N.; Nonaka, T.; Kubota, A.; Narimatsu, H.; Miyagi, Y.; Kobayashi, T.; Kaneta, T.; et al. Prognostic value of volumetric FDG PET/CT parameters in patients with oral tongue squamous cell carcinoma who were treated by superselective intra-arterial chemoradiotherapy. Jpn. J. Radiol. 2017, 35, 740–747. [Google Scholar] [CrossRef] [PubMed]
  45. Torizuka, T.; Tanizaki, Y.; Kanno, T.; Futatsubashi, M.; Naitou, K.; Ueda, Y.; Ouchi, Y. Prognostic value of 18F-FDG PET in patients with head and neck squamous cell cancer. AJR Am. J. Roentgenol. 2009, 192, W156–W160. [Google Scholar] [CrossRef] [PubMed]
  46. Xie, P.; Yue, J.B.; Fu, Z.; Feng, R.; Yu, J.M. Prognostic value of 18F-FDG PET/CT before and after radiotherapy for locally advanced nasopharyngeal carcinoma. Ann. Oncol. 2010, 21, 1078–1082. [Google Scholar] [CrossRef]
  47. Ahuja, V.; Coleman, R.; Herndon, J.; Patz, E. The prognostic significance of fluorodeoxyglucose positron emission tomography imaging for patients with non-small cell lung carcinoma. Cancer 1998, 83, 918–924. [Google Scholar] [CrossRef]
  48. Aoki, M.; Akimoto, H.; Sato, M.; Hirose, K.; Kawaguchi, H.; Hatayama, Y.; Seino, H.; Kakehata, S.; Tsushima, F.; Fujita, H.; et al. Impact of pretreatment whole-tumor perfusion computed tomography and 18F-fluorodeoxyglucose positron emission tomography/computed tomography measurements on local control of non-small cell lung cancer treated with stereotactic body radiotherapy. J. Radiat. Res. 2016, 57, 533–540. [Google Scholar] [CrossRef]
  49. Borst, G.R.; Belderbos, J.S.; Boellaard, R.; Comans, E.F.; De Jaeger, K.; Lammertsma, A.A.; Lebesque, J.V. Standardised FDG uptake: A prognostic factor for inoperable non-small cell lung cancer. Eur. J. Cancer 2005, 41, 1533–1541. [Google Scholar] [CrossRef]
  50. Carvalho, S.; Leijenaar, R.T.; Velazquez, E.R.; Oberije, C.; Parmar, C.; van Elmpt, W.; Reymen, B.; Troost, E.G.; Oellers, M.; Dekker, A.; et al. Prognostic value of metabolic metrics extracted from baseline positron emission tomography images in non-small cell lung cancer. Acta Oncol. 2013, 52, 1398–1404. [Google Scholar] [CrossRef] [Green Version]
  51. Cerfolio, R.J.; Bryant, A.S.; Ohja, B.; Bartolucci, A.A. The maximum standardized uptake values on positron emission tomography of a non-small cell lung cancer predict stage, recurrence, and survival. J. Thorac. Cardiovasc. Surg. 2005, 130, 151–159. [Google Scholar] [CrossRef] [Green Version]
  52. Chen, H.; Chiu, N.; Su, W.; Guo, H.; Lee, B. Prognostic value of whole-body total lesion glycolysis at pretreatment FDG PET/CT in non-small cell lung cancer. Radiology 2012, 264, 559–566. [Google Scholar] [CrossRef] [PubMed]
  53. Clarke, K.; Taremi, M.; Dahele, M.; Freeman, M.; Fung, S.; Franks, K.; Bezjak, A.; Brade, A.; Cho, J.; Hope, A.; et al. Stereotactic body radiotherapy (SBRT) for non-small cell lung cancer (NSCLC): Is FDG-PET a predictor of outcome? Radiother. Oncol. 2012, 104, 62–66. [Google Scholar] [CrossRef] [PubMed]
  54. Hamamoto, Y.; Sugawara, Y.; Inoue, T.; Kataoka, M.; Ochi, T.; Takahashi, T.; Sakai, S. Relationship between pretreatment FDG uptake and local control after stereotactic body radiotherapy in stage I non-small-cell lung cancer: The preliminary results. Jpn. J. Clin. Oncol. 2011, 41, 543–547. [Google Scholar] [CrossRef] [PubMed]
  55. Hofheinz, F.; Hoff, J.; Steffen, I.G.; Lougovski, A.; Ego, K.; Amthauer, H.; Apostolova, I. Comparative evaluation of SUV, tumor-to-blood standard uptake ratio (SUR), and dual time point measurements for assessment of the metabolic uptake rate in FDG PET. EJNMMI Res. 2016, 6, 53. [Google Scholar] [CrossRef] [Green Version]
  56. Horne, Z.D.; Clump, D.A.; Vargo, J.A.; Shah, S.; Beriwal, S.; Burton, S.A.; Quinn, A.E.; Schuchert, M.J.; Landreneau, R.J.; Christie, N.A.; et al. Pretreatment SUVmax predicts progression-free survival in early-stage non-small cell lung cancer treated with stereotactic body radiation therapy. Radiat. Oncol. 2014, 9, 41. [Google Scholar] [CrossRef] [Green Version]
  57. Hyun, S.H.; Ahn, H.K.; Ahn, M.J.; Ahn, Y.C.; Kim, J.; Shim, Y.M.; Choi, J.Y. Volume-Based Assessment With 18F-FDG PET/CT Improves Outcome Prediction for Patients With Stage IIIA-N2 Non-Small Cell Lung Cancer. AJR Am. J. Roentgenol. 2015, 205, 623–628. [Google Scholar] [CrossRef]
  58. Imamura, Y.; Azuma, K.; Kurata, S.; Hattori, S.; Sasada, T.; Kinoshita, T.; Okamoto, M.; Kawayama, T.; Kaida, H.; Ishibashi, M.; et al. Prognostic value of SUVmax measurements obtained by FDG-PET in patients with non-small cell lung cancer receiving chemotherapy. Lung Cancer 2011, 71, 49–54. [Google Scholar] [CrossRef]
  59. Jiang, X.E.; Xu, T.; Wei, Q.; Li, P.; Gomez, D.R.; Court, L.E.; Liao, Z. DNA repair capacity correlates with standardized uptake values from (18)F-fluorodeoxyglucose positron emission tomography/CT in patients with advanced non-small-cell lung cancer. Chronic Dis. Transl. Med. 2018, 4, 109–116. [Google Scholar] [CrossRef]
  60. Kohutek, Z.A.; Wu, A.J.; Zhang, Z.; Foster, A.; Din, S.U.; Yorke, E.D.; Downey, R.; Rosenzweig, K.E.; Weber, W.A.; Rimner, A. FDG-PET maximum standardized uptake value is prognostic for recurrence and survival after stereotactic body radiotherapy for non-small cell lung cancer. Lung Cancer 2015, 89, 115–120. [Google Scholar] [CrossRef] [Green Version]
  61. Lee, H.Y.; Lee, K.S.; Park, J.; Han, J.; Kim, B.T.; Kwon, O.J.; Ahn, Y.C.; Ahn, M.J.; Park, K.; Kim, J.; et al. Baseline SUVmax at PET-CT in stage IIIA non-small-cell lung cancer patients undergoing surgery after neoadjuvant therapy: Prognostic implication focused on histopathologic subtypes. Acad. Radiol. 2012, 19, 440–445. [Google Scholar] [CrossRef]
  62. Nair, V.J.; MacRae, R.; Sirisegaram, A.; Pantarotto, J.R. Pretreatment [18F]-fluoro-2-deoxy-glucose positron emission tomography maximum standardized uptake value as predictor of distant metastasis in early-stage non-small cell lung cancer treated with definitive radiation therapy: Rethinking the role of positron emission tomography in personalizing treatment based on risk status. Int. J. Radiat. Oncol. Biol. Phys. 2014, 88, 312–318. [Google Scholar] [CrossRef] [PubMed]
  63. Nawara, C.; Rendl, G.; Wurstbauer, K.; Lackner, B.; Rettenbacher, L.; Datz, L.; Studnicka, M.; Sedlmayer, F.; Pirich, C. The impact of PET and PET/CT on treatment planning and prognosis of patients with NSCLC treated with radiation therapy. Q. J. Nucl. Med. Mol. Imaging 2012, 56, 191–201. [Google Scholar] [PubMed]
  64. Pyka, T.; Bundschuh, R.A.; Andratschke, N.; Mayer, B.; Specht, H.M.; Papp, L.; Zsoter, N.; Essler, M. Textural features in pre-treatment [F18]-FDG-PET/CT are correlated with risk of local recurrence and disease-specific survival in early stage NSCLC patients receiving primary stereotactic radiation therapy. Radiat. Oncol. 2015, 10, 100. [Google Scholar] [CrossRef] [Green Version]
  65. Sasaki, R.; Komaki, R.; Macapinlac, H.; Erasmus, J.; Allen, P.; Forster, K.; Putnam, J.B.; Herbst, R.S.; Moran, C.A.; Podoloff, D.A.; et al. [18F]fluorodeoxyglucose uptake by positron emission tomography predicts outcome of non-small-cell lung cancer. J. Clin. Oncol. 2005, 23, 1136–1143. [Google Scholar] [CrossRef] [PubMed]
  66. Shirai, K.; Abe, T.; Saitoh, J.I.; Mizukami, T.; Irie, D.; Takakusagi, Y.; Shiba, S.; Okano, N.; Ebara, T.; Ohno, T.; et al. Maximum standardized uptake value on FDG-PET predicts survival in stage I non-small cell lung cancer following carbon ion radiotherapy. Oncol. Lett. 2017, 13, 4420–4426. [Google Scholar] [CrossRef] [Green Version]
  67. Sugawara, Y.; Quint, L.; Iannettoni, M.; Orringer, M.; Russo, J.; Recker, B.; Saran, P.; Wahl, R. Does the FDG uptake of primary non-small cell lung cancer predict prognosis?: A work in progress. Clin. Positron Imaging 1999, 2, 111–118. [Google Scholar] [CrossRef]
  68. Takeda, A.; Yokosuka, N.; Ohashi, T.; Kunieda, E.; Fujii, H.; Aoki, Y.; Sanuki, N.; Koike, N.; Ozawa, Y. The maximum standardized uptake value (SUVmax) on FDG-PET is a strong predictor of local recurrence for localized non-small-cell lung cancer after stereotactic body radiotherapy (SBRT). Radiother. Oncol. 2011, 101, 291–297. [Google Scholar] [CrossRef]
  69. Takeda, A.; Sanuki, N.; Fujii, H.; Yokosuka, N.; Nishimura, S.; Aoki, Y.; Oku, Y.; Ozawa, Y.; Kunieda, E. Maximum standardized uptake value on FDG-PET is a strong predictor of overall and disease-free survival for non-small-cell lung cancer patients after stereotactic body radiotherapy. J. Thorac. Oncol. 2014, 9, 65–73. [Google Scholar] [CrossRef] [Green Version]
  70. Takeda, K.; Takanami, K.; Shirata, Y.; Yamamoto, T.; Takahashi, N.; Ito, K.; Takase, K.; Jingu, K. Clinical utility of texture analysis of 18F-FDG PET/CT in patients with Stage I lung cancer treated with stereotactic body radiotherapy. J. Radiat. Res. 2017, 58, 862–869. [Google Scholar] [CrossRef] [Green Version]
  71. Ulger, S.; Demirci, N.Y.; Eroglu, F.N.; Cengiz, H.H.; Tunc, M.; Tatci, E.; Yilmaz, U.; Cetin, E.; Avci, E.; Cengiz, M. High FDG uptake predicts poorer survival in locally advanced nonsmall cell lung cancer patients undergoing curative radiotherapy, independently of tumor size. J. Cancer Res. Clin. Oncol. 2014, 140, 495–502. [Google Scholar] [CrossRef]
  72. Vansteenkiste, J.; Stroobants, S.; Dupont, P.; De Leyn, P.; Verbeken, E.; Deneffe, G.; Mortelmans, L.; Demedts, M. Prognostic importance of the standardized uptake value on 18F-Fluoro-2-deoxy-glucose-positron emission tomography scan in non-small-cell lung cancer: An analysis of 125 cases. J. Clin. Oncol. 1999, 17, 3201–3206. [Google Scholar] [CrossRef] [PubMed]
  73. Vesselle, H.; Freeman, J.D.; Wiens, L.; Stern, J.; Nguyen, H.Q.; Hawes, S.E.; Bastian, P.; Salskov, A.; Vallieres, E.; Wood, D.E. Fluorodeoxyglucose uptake of primary non-small cell lung cancer at positron emission tomography: New contrary data on prognostic role. Clin. Cancer Res. 2007, 13, 3255–3263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Vu, C.C.; Matthews, R.; Kim, B.; Franceschi, D.; Bilfinger, T.V.; Moore, W.H. Prognostic value of metabolic tumor volume and total lesion glycolysis from 18F-FDG PET/CT in patients undergoing stereotactic body radiation therapy for stage I non-small-cell lung cancer. Nucl. Med. Commun. 2013, 34, 959–963. [Google Scholar] [CrossRef] [PubMed]
  75. Xiang, Z.L.; Erasmus, J.; Komaki, R.; Cox, J.D.; Chang, J.Y. FDG uptake correlates with recurrence and survival after treatment of unresectable stage III non-small cell lung cancer with high-dose proton therapy and chemotherapy. Radiat. Oncol. 2012, 7, 144. [Google Scholar] [CrossRef] [Green Version]
  76. Yilmaz, U.; Batum, O.; Koparal, H.; Ozbilek, E.; Kirakli, E. Prognostic value of primary tumor SUVmax on pre-treatment (18)F-FDG PET/CT imaging in patients with stage iii non-small cell lung cancer. Rev. Esp. Med. Nucl. Imagen Mol. 2018. [Google Scholar] [CrossRef]
  77. Port, J.L.; Andrade, R.S.; Levin, M.A.; Korst, R.J.; Lee, P.C.; Becker, D.E.; Altorki, N.K. Positron emission tomographic scanning in the diagnosis and staging of non-small cell lung cancer 2 cm in size or less. J. Thorac. Cardiovasc. Surg. 2005, 130, 1611–1615. [Google Scholar] [CrossRef] [Green Version]
  78. Kim, S.; Oh, S.; Kim, J.S.; Kim, Y.K.; Kim, K.H.; Oh, D.H.; Lee, D.H.; Jeong, W.J.; Jung, Y.H. Prognostic value of FDG PET/CT during radiotherapy in head and neck cancer patients. Radiat. Oncol. J. 2018, 36, 95–102. [Google Scholar] [CrossRef]
  79. Turner, E.H.; Matthews, A.M.; Linardatos, E.; Tell, R.A.; Rosenthal, R. Selective publication of antidepressant trials and its influence on apparent efficacy. N. Engl. J. Med. 2008, 358, 252–260. [Google Scholar] [CrossRef] [Green Version]
  80. Button, K.S.; Ioannidis, J.P.; Mokrysz, C.; Nosek, B.A.; Flint, J.; Robinson, E.S.; Munafo, M.R. Power failure: Why small sample size undermines the reliability of neuroscience. Nat. Rev. Neurosci. 2013, 14, 365–376. [Google Scholar] [CrossRef] [Green Version]
  81. Collins, G.S.; Reitsma, J.B.; Altman, D.G.; Moons, K.G. Transparent reporting of a multivariable prediction model for individual prognosis or diagnosis (TRIPOD): The TRIPOD Statement. BMC Med. 2015, 13, 1. [Google Scholar] [CrossRef] [Green Version]
  82. Royston, P.; Altman, D.G.; Sauerbrei, W. Dichotomizing continuous predictors in multiple regression: A bad idea. Stat. Med. 2006, 25, 127–141. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 10 01030 g001 550

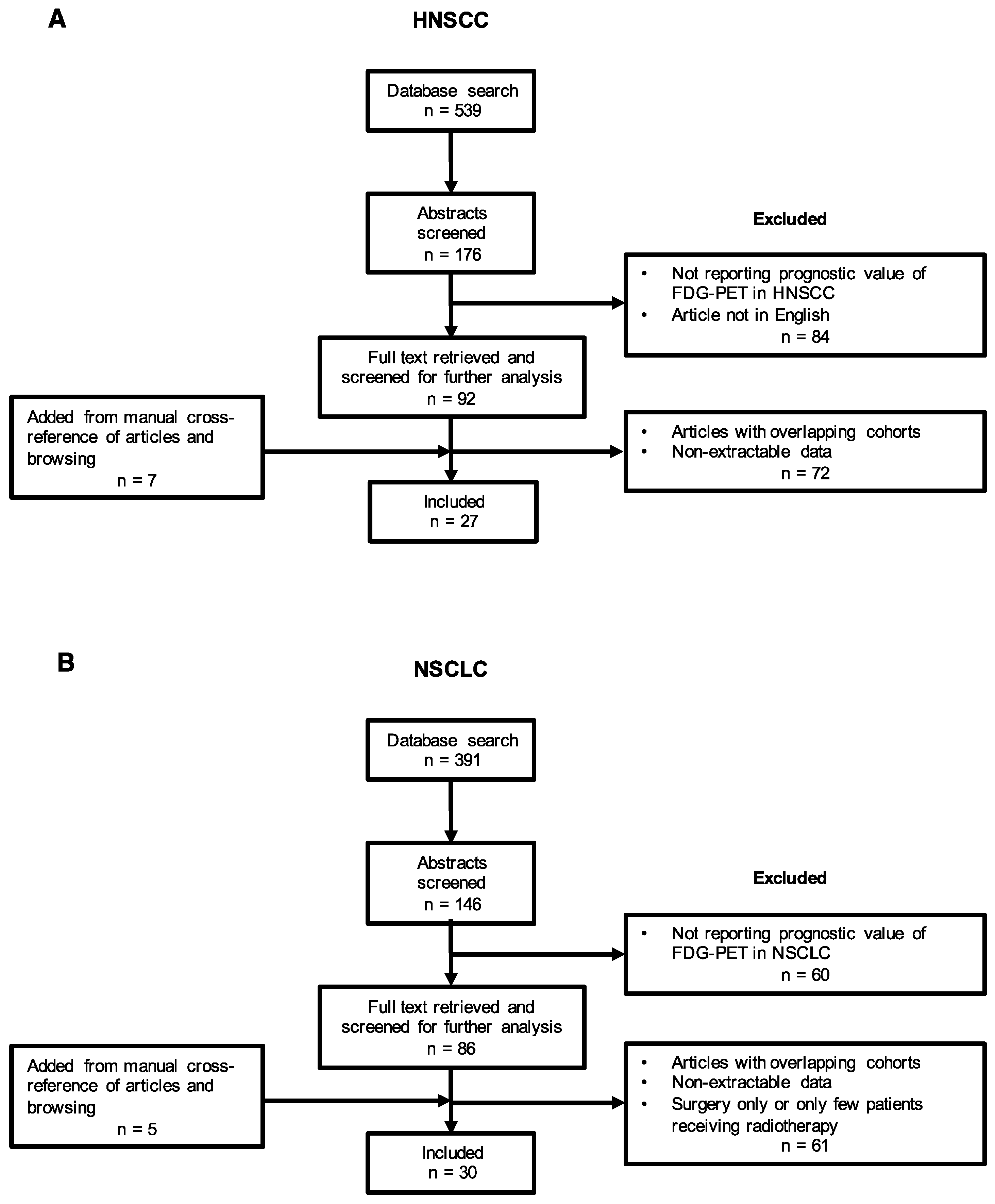

Figure 1. Flow diagram of the study selection process for the meta-analysis (A: HNSCC, B: NSCLC).
Figure 1. Flow diagram of the study selection process for the meta-analysis (A: HNSCC, B: NSCLC).
Diagnostics 10 01030 g001
Diagnostics 10 01030 g002 550

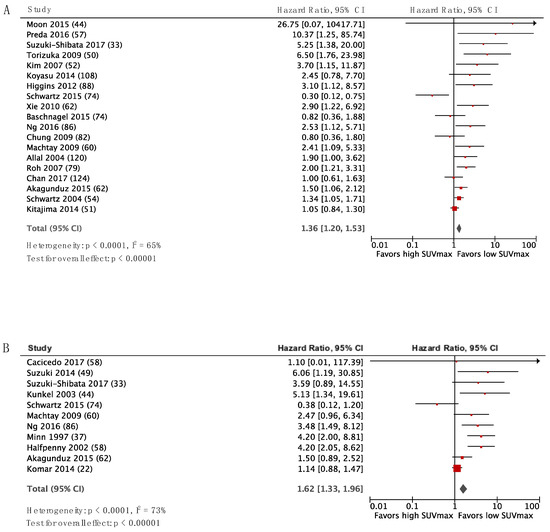

Figure 2. Forest plots for SUVmax as a predictor of DFS (A) and OS (B) in HNSCC. The number of patients included in each study is specified in parenthesis.
Figure 2. Forest plots for SUVmax as a predictor of DFS (A) and OS (B) in HNSCC. The number of patients included in each study is specified in parenthesis.
Diagnostics 10 01030 g002
Diagnostics 10 01030 g003 550

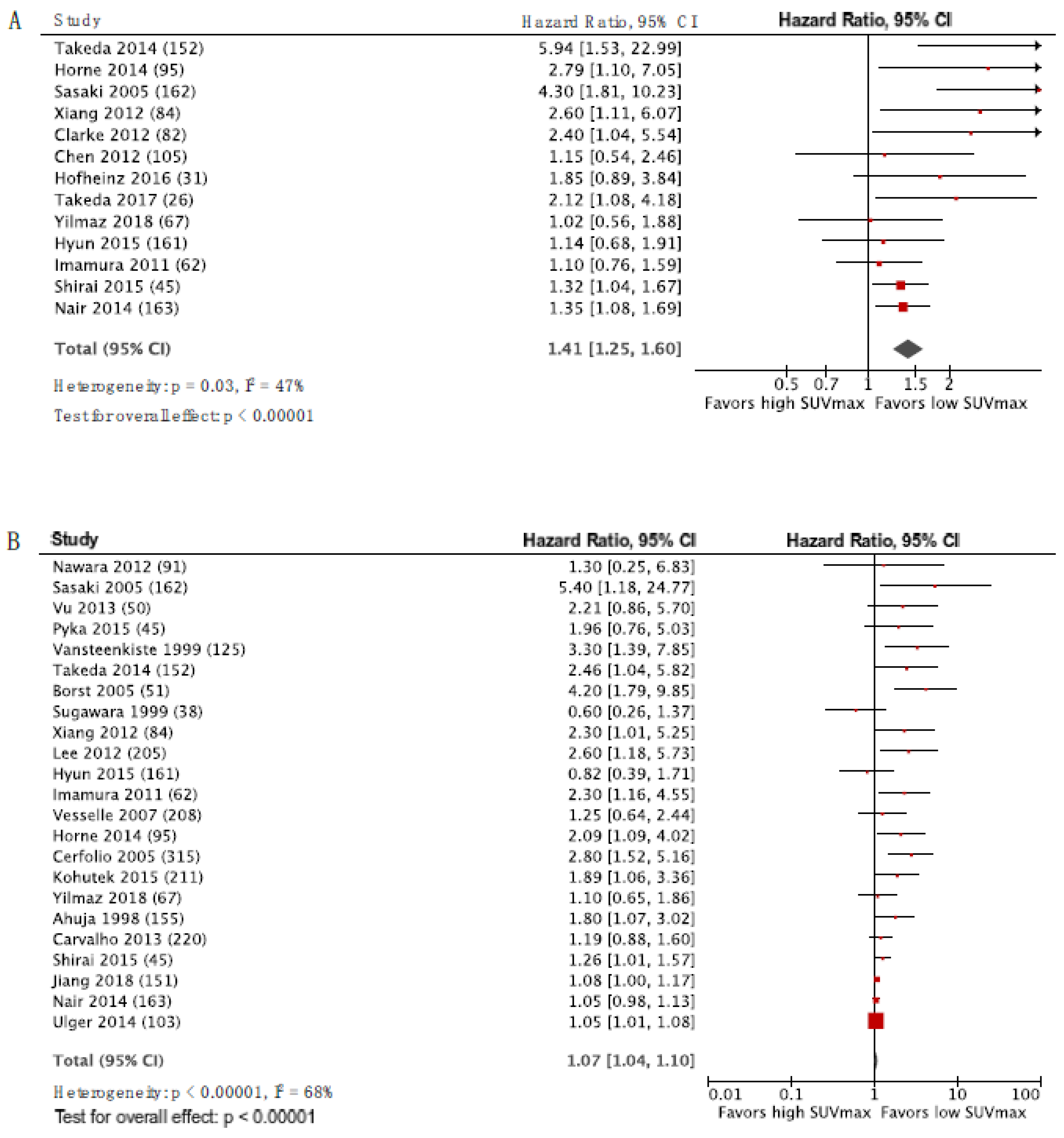

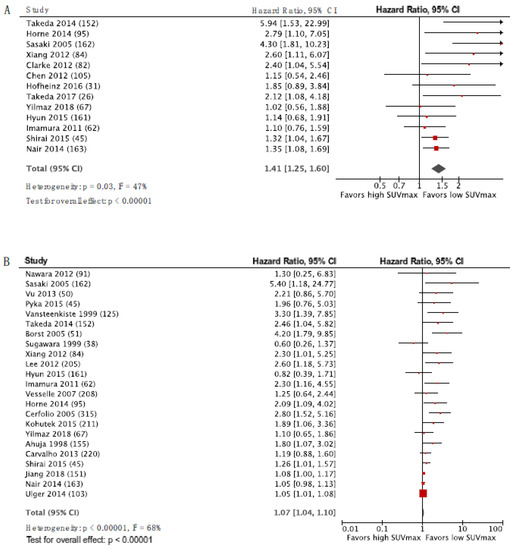

Figure 3. Forest plots for SUVmax as a predictor of DFS (A) and OS (B) in NSCLC. The number of patients included in each study is specified in parenthesis.
Figure 3. Forest plots for SUVmax as a predictor of DFS (A) and OS (B) in NSCLC. The number of patients included in each study is specified in parenthesis.
Diagnostics 10 01030 g003
Diagnostics 10 01030 g004 550

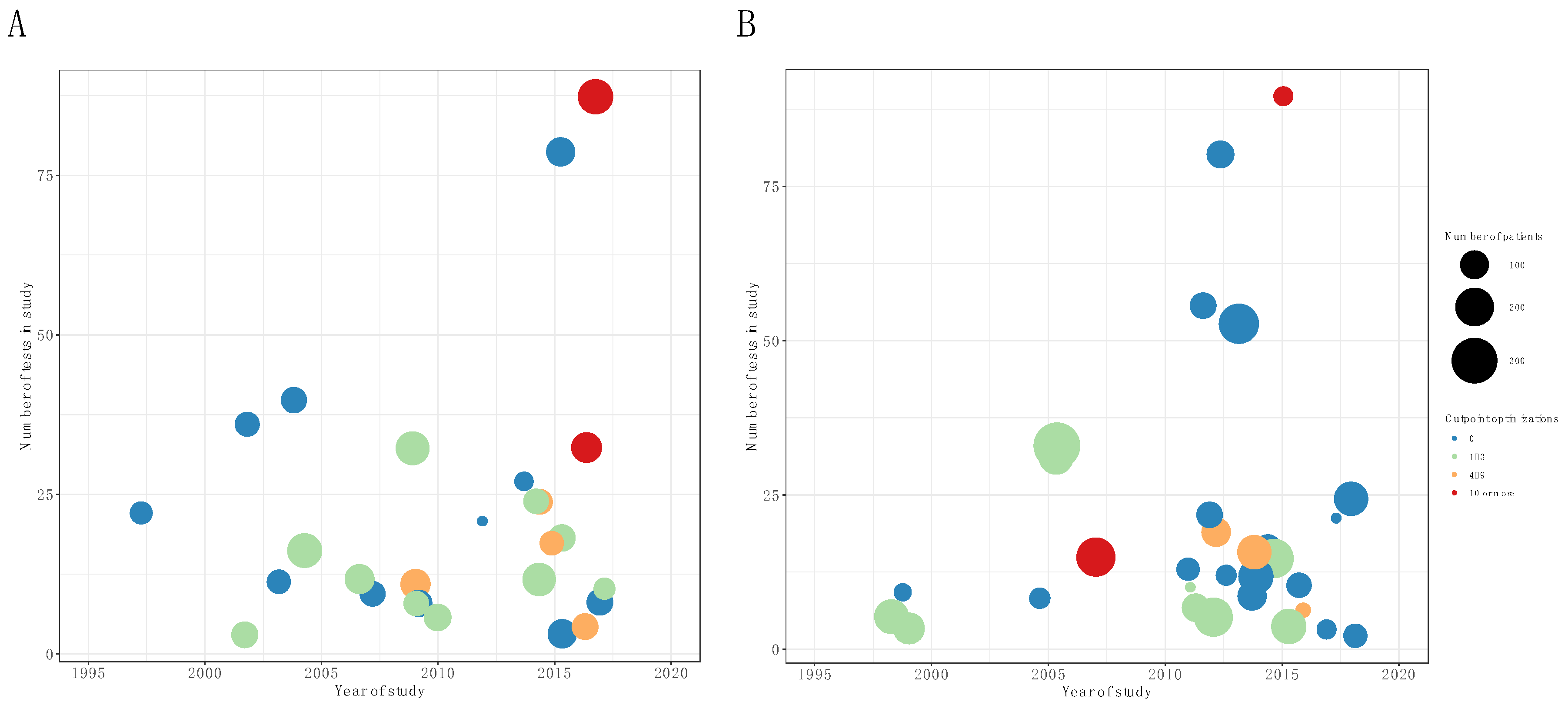

Figure 4. Bubble plot of number of patients included in study versus year of publication for HNSCC (A) and NSCLC (B). Bubble size is proportional to number of statistical tests counted in paper (large is problematic) and color denotes the number of cut-point optimization performed (the fewer the better).
Figure 4. Bubble plot of number of patients included in study versus year of publication for HNSCC (A) and NSCLC (B). Bubble size is proportional to number of statistical tests counted in paper (large is problematic) and color denotes the number of cut-point optimization performed (the fewer the better).
Diagnostics 10 01030 g004
Table
Table 1. Characteristics of HNSCC studies included in the meta-analysis.
Table 1. Characteristics of HNSCC studies included in the meta-analysis.
AuthorYearTumor TypePatientsEndpointsMVA *Uptake MetricCut-Off ValueSUV ThresholdReconstruction AlgorithmTreatmentStageMedian Follow Up TimeData Extraction
Akagunduz et al.2015HN62LRFS, DFS, OSNoSUVmax, SULmax, MTV10.15 (SUL)Fitted-RT/CRT 18 monthsKM
Allal et al. 2004HNSCC120LC, DFS, OSYesSUVmax4.76
3.5		Median
Fitted		-RT +/− CT, surgery +/− RTI-IV48 monthsHR
Baschnagel et al.2015HNSCC74LC, LRC, DFSYesSUVmax13.8Median-CRTT1-T4, N0-N335 monthsHR
Brun et al.2002HNSCC47CR, LRC, OSNoSUV, MR9.0 MedianIterative MLRT, CRTII-IV3.3 yearsHR
Cacicedo et al. 2017HNSCC58DFS, LRC, DMFS, OSYesSUVmax11.85 (SUV-T), 5.4 (SUV-N)Median-Surgery + RT, RT +/− CTIII-IVB31 monthsKM
Chan et al.2017OHSCC124OS, RFSYesSUVmax, SUVmean, MTV, TLG, entropy, contrast, busyness, complexity14.22 OSEMCRTIII-IV28.7 monthsHR
Chung et al.2009SCC82CR, DFSYesMTV, SUV > 2.510.0 MedianOSEMRT, CRTI-IV34.8 monthsHR
Halfpenny et al. 2002HNSCC58SurvivalYesSUVpeak10.0FittedFBPSurgery, +/−RTI-IV39 monthsHR
Higgins et al.2012HNSCC8DFS, LRC, DMFS, OSNoSUVmax, SUV mean, TLG15.4MedianOSEMRT, CRTIII-IV (97%)15 monthsKM
Kim et al. 2007OSCC52LC, DFS, OSYesSUVmax6.0 Median-Surgery +/− RT/CRTI-IV36 monthsHR
Kitajima et al. 2014Laryngeal51PFS, LC, NPFS, DMFSYesSUVmax4.6FittedRAMLART +/− CT, surgery +/− CRT 48.6 monthsKM
Komar et al. 2014HNSCC22OSNoSUVmax, MATV11.74Median-Surgery +/− CRT, RTI-IV41 monthsKM
Koyasu et al. 2014SCC108DFSYesSUVmax, MTV, TLG10.0Fitted3D iterativeRT +/− CT, surgery +/− RTI-IV36.4 monthsHR
Kunkel et al. 2003OSCC44OSYesSUVpeak5.6 Median-RT (preop.) + surgeryI-IV38 monthsHR
Liao et al. 2009OSCC109LC, DFS, DSS, OSNoSUVmax19.3MedianML, OSEMSurgery + RT/CRTIII-IV39 monthsHR
Machtay et al.2009HNSCC60DFS, OSYesSUVmax9.0 Literature-RT, CRT, surgery + CRT/RTI-IV-HR
Minn et al. 1997HNSCC37OSNoSUVlean, MR9.0Median-RT +/− surgeryII-IV43 monthsHR
Moon et al. 2015NPC44DFSYesSUVmax, SUVmean, TLG, MTV7.8FittedOSEMCRTII-IVB40 monthsHR
Ng et al. 2016OHSCC86PFS, OSYesSUVmax, SUVmean, TLG, MTV19.44Fitted-CRTIII-IVB28 monthsHR
Preda et al. 2016HNSCC57DFSYesSUVmax5.75FittedOSEMSurgery + RT +/− CT, RT + CTT1-T4, N0-N221.3 monthsHR
Roh et al. 2007SCC 79DFS, LC, OSNoSUVmax8.0Fitted-Surgery +/− RT or RT +/− CTIII-IV36 monthsKM
Schwartz et al. 2004HNSCC54LRFS, DFS, OSNoSUVmax9.0MedianFBPRT +/− CT, surgery +/− RTI-IV17.5 monthsKM
Schwartz et al. 2015HNSCC74PFS, OSNoSUVmax, MTV15.07Median-CRT III-IV4.2 yearsHR
Suzuki et al. 2014OPSCC + HPSCC49OSYesSUVmax8.0FittedOSEMSurgery + RT +/− CT, RT + CTI-IV33 monthsHR
Suzuki-Shibata et al.2017OTSCC33PFS, OSYesSUVmax, MTV15.7FittedFORE-OSEMCRTII-IVA36 monthsHR
Torizuka et al. 2009HNSCC50LC, DFSNoSUVpeak, SUV cont. variable7.0FittedOSEMRT, CRT, surgery +/− CRTI-IV15 monthsKM
Xie et al. 2010NPC62OS, DFSNoSUVmax8.0Fitted-CRTIII-IVB61 monthsKM
* Performed multivariate analysis (MVA) in regards to the endpoints analyzed in this study: DFS and OS. Studies listed with author in italic are performed as prospective studies. Other studies are retrospective studies. HNSCC: head and neck squamous cell carcinoma, HN: head and neck cancer, LRFS: local recurrence free survival, DFS: disease free survival, OS: overall survival, SUV: standardized uptake value, SUL: lean body mass corrected standardized uptake value, MTV: metabolic tumor volume, RT: radiotherapy, CRT: chemoradiotherapy, KM: Kaplan-Meier, LC: local control, HR: hazard ratio, LRC: locoregional control, CR: complete response, ML: maximum likelihood, DMFS: distant metastasis free survival, CT: chemotherapy, OHSCC: oropharyngeal or hypopharyngeal squamous cell carcinoma, RFS: recurrence free survival, TLG: total lesion glycolysis, OSEM: ordered-subset expectation maximum, SCC: squamous cell carcinoma, FBP: filtered back projection, OSCC: oral squamous cell carcinoma, PFS: progression free survival, NPFS: nodal progression free survival, RAMLA: row-action maximum-likelihood algorithm, MATV: metabolically active tumor volume, DSS: disease-specific survival, MR: metabolic rate, NPC: nasopharyngeal carcinoma, OPSCC: oropharyngeal squamous cell carcinoma, HPSCC: hypopharyngeal squamous cell carcinoma, OTSCC: oral tongue squamous cell carcinoma, and FORE-OSEM: Fourier rebinning- ordered-subset expectation maximum.
Table
Table 2. Characteristics of NSCLC studies included in the meta-analysis.
Table 2. Characteristics of NSCLC studies included in the meta-analysis.
AuthorYearTumor TypePatientsEndpointsMVA *Uptake MetricCut-Off ValueSUV ThresholdReconstruction AlgorithmTreatmentStageMedian Follow Up Time Data Extraction
Ahuja et al. 1998NSCLC155OSYesSUVpeak (SUR) 80% of max10.0Fitted-Surgery, RT, CRTI-IV20.9 monthsHR
Aoki et al. 2016NSCLC74LCYesSUVmax, AID 4.0Literature-SBRTI24.5 monthsHR
Borst et al. 2005NSCLC51DSS, OSNoSUVmax, SUV cont. variable15.0 MedianOSEMCRTI-III17 monthsKM
Carvalho et al. 2013NSCLC220OSNoMTV, SUVmax, SUV10.12MedianOSEMRT, CRTI-IIIB1.47 yearsKM
Cerfolio et al. 2005NSCLC315OS, DFSYesSUVmax10.0 MedianIterativeSurgery +/− CRTI-IV26 monthsHR
Chen et al. 2012NSCLC105PFS, OSYesTLG, MTV, SUVmax15.0FittedOSEMSurgery, CT, RT or CRTI-IV3.1 yearsHR
Clarke et al.2012NSCLC82OS, RFS, DFS, CSS, RR, LR, DMNoSUVmax4.75 Median-SBRTI2 yearsKM
Hamamoto et al. 2011NSCLC26LFFNoSUVmax5.0 Fitted-SBRTI21 monthsKM
Hofheinz et al. 2016NSCLC31PFS, OSNoSUV, SURtc, Kslope7.6FittedPSF + TOFCRT and/or surgeryT1-4N0-3M0-HR
Horne et al. 2014NSCLC95LC, PFS, OSYesSUVmax5.0Literature-SBRTIA-IB16.33 monthsHR
Huyn et al. 2015NSCLC161DFS, OSYesSUVmax, MTV14.0FittedOSEMSurgery +/− CT and/or RTIIIA-N220 monthsHR
Imamura et al. 2011NSCLC62OS, PFSNoSUVmax6.0Median3D-RAMLACT or CRTIIB-IV464 daysKM
Jiang et al. 2018NSCLC151OSNoSUVmax13.8Median-CRT, RT, CTI-IV10 yearsHR
Kohutek et al. 2015NSCLC211OSYesSUVmax, GTV3.0FittedOSEMSBRTT1-2N0M025.2 monthsHR
Lee et al. 2012NSCLC205OSYesSUVmax13.0 FittedIterativeNeoadj. CRT, + surgeryIIIA1.6 yearsHR
Nair et al. 2014NSCLC163PFS, OS, LRFS, DMFSYesSUVmax7.0Median-RT, SBRTT1-2N0M016 monthsKM
Nawara et al. 2012NSCLC91OSNoSUVmax, SUVmean7.0MedianIterativeRT +/− induction CTI-IIIB-KM
Pyka et al. 2015NSCLC45DSS, OSYesSUVmax, SUVmean, MTV, COV, entropy, coarseness, contrast, correlation11.2 (OS), 12.3 (DSS)FittedOSEMSBRTT1-2N0M021.4 monthsKM
Sasaki et al. 2005NSCLC162OS, DFSYesSUVmax5.0 FittedIterativeSurgery +/− RT or RT/CRTI-IIIB17 monthsHR
Shirai et al. 2017NSCLC45LC, PFS, OSNoSUVmax5.5Median-C-ion RTI28.9 monthsKM
Sugawara et al. 1999NSCLC38OSNoSUVlean8.72MedianHanning filterSurgery, CRTI-IV26.5 monthsKM
Takeda et al. 2011NSCLC95LCNoSUVmax6.0 FittedDRAMASBRTIA-IIIB16 monthsKM
Takeda et al. 2014NSCLC152OS, DFS. LC, RC, DMC, CSSYesSUVmax3.35 (LC), 3.64 (RC), 2.47 (DMC, DFS), 2.55 (CSS, OS) FittedRAMLASBRTT1-2N0M025.3 monthsHR
Takeda et al. 2017NSCLC26LC, PFS, OSNoSUV, MTV, TLG, entropy, dissimilarity, HILAE, zone percentage8.18MedianOSEMSBRTT1-2N0M036 monthsKM
Ulger et al. 2014NSCLC103OS, RFS, DFSYesSUVmax10.7Median-3D-CRTIIIA-IIIB22.63 monthsHR
Vansteenkiste et al. 1999NSCLC125OSYesSUVmax7.0 Fitted-Surgery +/− induction CT, RT +/− induction CTI-IIIB19 months (mean)HR
Vesselle et al. 2007NSCLC208OS, DFSYesSUVmax7.0 FittedHanning filterSurgery +/− neoadj. Or adjuvant therapy I-IV37 monthsHR
Vu et al. 2013NSCLC 50OS, RFSNoSUVmax, TLG, MTV6.43Median-SBRTI25.1 monthsHR
Xiang et al. 2012NSCLC84LRFS, DMFS, PFS, OSYesSUVmax14.2Median-High dose proton + CTIII19.2 monthsHR
Yilmaz et al. 2018NSCLC67PFS, OSYesSUVmax15.0Median-CRTIII20.7 monthsHR
* Performed multivariate analysis (MVA) in regards to the endpoints analyzed in this study: DFS and OS. Studies listed with author in italic are performed as prospective studies. Other studies are retrospective studies. NSCLC: non-small cell lung cancer, OS: overall survival, SUV: standardized uptake value, SUR: standardized uptake ratio, RT: radiotherapy, CRT: chemoradiotherapy, HR: hazard ratio, LC: local control, AID: average iodine density, SBRT: stereotactic body radiation therapy, DSS: disease-specific survival, OSEM: ordered-subset expectation maximum, KM: Kaplan-Meier, MTV: metabolic tumor volume, DFS: disease free survival, PFS: progression free survival, TLG: total lesion glycolysis, CT: chemotherapy, RFS: recurrence-free survival, CSS: cause-specific survival, RR: regional relapse, LR: local relapse, DM: distant metastasis, LFF: local failure free rate, PSF: point spread function, TOF: time of flight, RAMLA: row-action maximum-likelihood algorithm, GTV: gross tumor volume, LRFS: local recurrence-free survival, DMFS: distant metastasis free survival, COV: coefficient of variation, DRAMA: dynamic row-action expectation maximization algorithm, RC: regional control, DMC: distant metastasis control, HILAE: high-intensity large-area emphasis, and 3D-CRT: three-dimensional conformal radiotherapy.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Clausen, M.M.; Vogelius, I.R.; Kjær, A.; Bentzen, S.M. Multiple Testing, Cut-Point Optimization, and Signs of Publication Bias in Prognostic FDG–PET Imaging Studies of Head and Neck and Lung Cancer: A Review and Meta-Analysis. Diagnostics 2020, 10, 1030. https://doi.org/10.3390/diagnostics10121030

AMA Style

Clausen MM, Vogelius IR, Kjær A, Bentzen SM. Multiple Testing, Cut-Point Optimization, and Signs of Publication Bias in Prognostic FDG–PET Imaging Studies of Head and Neck and Lung Cancer: A Review and Meta-Analysis. Diagnostics. 2020; 10(12):1030. https://doi.org/10.3390/diagnostics10121030

Chicago/Turabian Style

Clausen, Malene M., Ivan R. Vogelius, Andreas Kjær, and Søren M. Bentzen. 2020. "Multiple Testing, Cut-Point Optimization, and Signs of Publication Bias in Prognostic FDG–PET Imaging Studies of Head and Neck and Lung Cancer: A Review and Meta-Analysis" Diagnostics 10, no. 12: 1030. https://doi.org/10.3390/diagnostics10121030

APA Style

Clausen, M. M., Vogelius, I. R., Kjær, A., & Bentzen, S. M. (2020). Multiple Testing, Cut-Point Optimization, and Signs of Publication Bias in Prognostic FDG–PET Imaging Studies of Head and Neck and Lung Cancer: A Review and Meta-Analysis. Diagnostics, 10(12), 1030. https://doi.org/10.3390/diagnostics10121030

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
