Criteria for Assessing Exposure to Biomechanical Risk Factors: A Research-to-Practice Guide—Part 2: Upper Limbs
Abstract
:1. Introduction
2. Methods Selected for the In-Depth, Second-Level Analysis of Manual Activities
2.1. Manual Work Requiring Speed, Continuity of Movement, and Use of Force
- -
- The observation of a trained operator;
- -
- The judgment of the worker involved in the manual operation using a subjective perception scale, such as the Borg scale;
- -
- The use of force-measuring instruments;
- -
- Surface electromyographic techniques;
- -
- The use of biomechanical equipment or models.
2.2. Work with the Arms Above the Shoulders
2.3. Localized Fatigue in the Upper Extremities
3. Correspondence Between Numerical Indexes of Biomechanical Load and Other Workload and Risk Assessment Classification Models
3.1. Manual Material Handling of Vertical Loads (MMHv): Correspondence Between Lift Index (LI), DOT Classification, and BS 8800
3.2. Manual Work Requiring Speed and Continuity of Movement and Use of Force: Correspondence Adopted Between Manual Activity Level, DOT Classification, and BS 8800
4. Postures
Static Postures of the Lower Limbs
5. Calculation of Work Task Duration
6. Risk Assessment Weighting According to Exposure Duration
- -
- Small reductions in weekly hours compared to the maximum (40 h) are unlikely to significantly reduce the risk;
- -
- Below a few hours per week, the risk is probably completely absent, due to the large recovery time available, and therefore the starting risk category (very low) must be attributed to a time above that threshold.
7. Limitations and Future Directions
8. Conclusions
Funding
Conflicts of Interest
References
- Waters, T.R.; Putz-Anderson, V.; Garg, A. Applications Manual for the Revised NIOSH Lifting Equation; NIOSH: Washington, DC, USA, 1994. [Google Scholar]
- Graziosi, F.; Bonfiglioli, R.; Decataldo, F.; Violante, F.S. Criteria for Assessing Exposure to Biomechanical Risk Factors: A Research-to-Practice Guide—Part 1: General Issues and Manual Material Handling. Life 2024, 14, 1398. [Google Scholar] [CrossRef] [PubMed]
- Waris, P.; Kuorinka, I.; Kurppa, K.; Luopajärvi, T.; Virolainen, M.; Pesonen, K.; Nummi, J.; Kukkonen, R. Epidemiologic Screening of Occupational Neck and Upper Limb Disorders. Methods and Criteria. Scand. J. Work Environ. Health 1979, 5, 25–38. [Google Scholar] [CrossRef] [PubMed]
- Bernard, B.P.; Putz-Anderson, V.; Susan Burt Libby, L.; Cole, M.E.; Fairfield-Estill Lawrence Fine, C.J.; Katharyn Grant, D.A.; Gjessing Lynn Jenkins Joseph Hurrell, C.J., Jr.; Nelson, N.; Pfirman Robert Roberts Diana Stetson, D.; Haring-Sweeney, M.; et al. Musculoskeletal Disorders and Workplace Factors a Critical Review of Epidemiologic Evidence for Work-Related Musculoskeletal Disorders of the Neck, Upper Extremity, and Low Back; CDC: Canberra, Australia, 1997. [Google Scholar]
- Hagberg, M.; Violante, F.S.; Bonfiglioli, R.; Descatha, A.; Gold, J.; Evanoff, B.; Sluiter, J.K. Prevention of Musculoskeletal Disorders in Workers: Classification and Health Surveillance—Statements of the Scientific Committee on Musculoskeletal Disorders of the International Commission on Occupational Health. BMC Musculoskelet. Disord. 2012, 13, 109. [Google Scholar] [CrossRef] [PubMed]
- Crawford, J.O.; Davis, A. Work-Related Musculoskeletal Disorders: Why Are They Still So Prevalent? Evidence from a Literature Review; EU-OSHA: Bilbao, Spain, 2020. [Google Scholar]
- Takala, E.P.; Pehkonen, I.; Forsman, M.; Hansson, G.Å.; Mathiassen, S.E.; Neumann, W.P.; Sjøgaard, G.; Veiersted, K.B.; Westgaard, R.H.; Winkel, J. Systematic Evaluation of Observational Methods Assessing Biomechanical Exposures at Work. Scand. J. Work Environ. Health 2010, 36, 3–24. [Google Scholar] [CrossRef]
- McAtamney, L.; Nigel Corlett, E. RULA: A Survey Method for the Investigation of Work-Related Upper Limb Disorders. Appl. Ergon. 1993, 24, 91–99. [Google Scholar] [CrossRef]
- Chaffin, D.B.; Andersson, G.B.; Martin, B.J. Occupational Biomechanics; John Wiley & Sons: Hoboken, NJ, USA, 2006; Volume 360. [Google Scholar]
- Borg, G. Borg’s Perceived Exertion and Pain Scales; Human Kinetics: Champaign, IL, USA, 1998; Volume 120. [Google Scholar]
- Park, J.; Han, B.; Park, J.S.; Park, E.J.; Kim, Y. Nonstandard Workers and Differential Occupational Safety and Health Vulnerabilities. Am. J. Ind. Med. 2019, 62, 701–715. [Google Scholar] [CrossRef]
- Hurley, J.; Litardi, C. The Changing Structure of Employment in the EU: Annual Review 2023; European Foundation for the Improvement of Living and Working Conditions: Dublin, Ireland, 2024. [Google Scholar] [CrossRef]
- TLVs and BEIs-ACGIH Portal. 2024. Available online: https://portal.acgih.org/s/ (accessed on 3 September 2024).
- ISO 11228-3:2007-Ergonomics—Manual Handling—Part 3: Handling of Low Loads at High Frequency. Available online: https://www.iso.org/standard/26522.html (accessed on 6 September 2024).
- Latko, W.A.; Armstrong, T.J.; Franzblau, A.; Ulin, S.S.; Werner, R.A.; Albers, J.W. Cross-Sectional Study of the Relationship Between Repetitive Work and the Prevalence of Upper Limb Musculoskeletal Disorders. Am. J. Ind. Med. 1999, 36, 248–259. [Google Scholar] [CrossRef]
- Drinkaus, P.; Sesek, R.; Bloswick, D.S.; Mann, C.; Bernard, T. Job Level Risk Assessment Using Task Level ACGIH Hand Activity Level TLV Scores: A Pilot Study. Int. J. Occup. Saf. Ergon. 2005, 11, 263–281. [Google Scholar] [CrossRef]
- Franzblau, A.; Armstrong, T.J.; Werner, R.A.; Ulin, S.S. A Cross-Sectional Assessment of the ACGIH TLV for Hand Activity Level. J. Occup. Rehabil. 2005, 15, 57–67. [Google Scholar] [CrossRef]
- Spielholz, P.; Bao, S.; Howard, N.; Silverstein, B.; Fan, J.; Smith, C.; Salazar, C. Reliability and Validity Assessment of the Hand Activity Level Threshold Limit Value and Strain Index Using Expert Ratings of Mono-Task Jobs. J. Occup. Environ. Hyg. 2008, 5, 250–275. [Google Scholar] [CrossRef]
- Gell, N.; Werner, R.A.; Franzblau, A.; Ulin, S.S.; Armstrong, T.J. A Longitudinal Study of Industrial and Clerical Workers: Incidence of Carpal Tunnel Syndrome and Assessment of Risk Factors. J. Occup. Rehabil. 2005, 15, 47–55. [Google Scholar] [CrossRef] [PubMed]
- Werner, R.A.; Franzblau, A.; Gell, N.; Hartigan, A.G.; Ebersole, M.; Armstrong, T.J. Incidence of Carpal Tunnel Syndrome among Automobile Assembly Workers and Assessment of Risk Factors. J. Occup. Environ. Med. 2005, 47, 1044–1050. [Google Scholar] [CrossRef] [PubMed]
- Garg, A.; Kapellusch, J.; Hegmann, K.; Wertsch, J.; Merryweather, A.; Deckow-Schaefer, G.; Malloy, E.J. The Strain Index (SI) and Threshold Limit Value (TLV) for Hand Activity Level (HAL): Risk of Carpal Tunnelsyndrome (CTS) in a Prospective Cohort. Ergonomics 2012, 55, 396–414. [Google Scholar] [CrossRef] [PubMed]
- Bonfiglioli, R.; Mattioli, S.; Armstrong, T.J.; Graziosi, F.; Marinelli, F.; Farioli, A.; Violante, F.S. Validation of the ACGIH TLV for Hand Activity Level in the OCTOPUS Cohort: A Two-Year Longitudinal Study of Carpal Tunnel Syndrome. Scand. J. Work Environ. Health 2013, 39, 155–163. [Google Scholar] [CrossRef] [PubMed]
- Kapellusch, J.M.; Garg, A.; Boda, S.; Hegmann, K.T.; Moore, J.S.; Thiese, M.S.; Merryweather, A.; Tomich, S.; Foster, J.C.; Bloswick, D.; et al. Association between Lifting and Use of Medication for Low Back Pain: Results from the Backworks Prospective Cohort Study. J. Occup. Environ. Med. 2014, 56, 867–877. [Google Scholar] [CrossRef]
- Violante, F.S.; Farioli, A.; Graziosi, F.; Marinelli, F.; Curti, S.; Armstrong, T.J.; Mattioli, S.; Bonfiglioli, R. Carpal Tunnel Syndrome and Manual Work: The OCTOPUS Cohort, Results of a Ten-Year Longitudinal Study. Scand. J. Work 2016, 42, 280–290. [Google Scholar] [CrossRef]
- Dahlqvist, C.; Arvidsson, I.; Löfqvist, L.; Gremark Simonsen, J. Consistency between the ACGIH TLV for Hand Activity and Proposed Action Levels for Wrist Velocity and Forearm Muscular Load Based on Objective Measurements: An Example from the Assembly Industry. Int. J. Occup. Saf. Ergon. 2024, 30, 927–935. [Google Scholar] [CrossRef]
- Yung, M.; Dale, A.M.; Kapellusch, J.; Bao, S.; Harris-Adamson, C.; Meyers, A.R.; Hegmann, K.T.; Rempel, D.; Evanoff, B.A. Modeling the Effect of the 2018 Revised ACGIH® Hand Activity Threshold Limit Value® (TLV) at Reducing Risk for Carpal Tunnel Syndrome. J. Occup. Environ. Hyg. 2019, 16, 628–633. [Google Scholar] [CrossRef]
- Latko, W.A.; Armstrong, T.J.; Foulke, J.A.; Herrin, G.D.; Rabourn, R.A.; Ulin, S.S. Development and Evaluation of an Observational Method for Assessing Repetition in Hand Tasks. Am. Ind. Hyg. Assoc. J. 1997, 58, 278–285. [Google Scholar] [CrossRef]
- Ebersole, M.L.; Armstrong, T.J. Analysis of an Observational Rating Scale for Repetition, Posture, and Force in Selected Manufacturing Settings. Hum. Factors 2006, 48, 487–498. [Google Scholar] [CrossRef]
- Bao, S.; Howard, N.; Spielholz, P.; Silverstein, B. Quantifying Repetitive Hand Activity for Epidemiological Research on Musculoskeletal Disorders–Part II: Comparison of Different Methods of Measuring Force Level and Repetitiveness. Ergonomics 2006, 49, 381–392. [Google Scholar] [CrossRef] [PubMed]
- Wurzelbacher, S.; Burt, S.; Crombie, K.; Ramsey, J.; Luo, L.; Allee, S.; Jin, Y. A Comparison of Assessment Methods of Hand Activity and Force for Use in Calculating the ACGIH® Hand Activity Level (HAL) TLV®. J. Occup. Environ. Hyg. 2010, 7, 407–416. [Google Scholar] [CrossRef] [PubMed]
- Rempel, D.; Potvin, J. A Design Tool to Estimate Maximum Acceptable Manual Arm Forces for Above-Shoulder Work. Ergonomics 2022, 65, 1338–1351. [Google Scholar] [CrossRef] [PubMed]
- Snook, S.H.; Ciriello, V.M. The Design of Manual Handling Tasks: Revised Tables of Maximum Acceptable Weights and Forces. Ergonomics 1991, 34, 1197–1213. [Google Scholar] [CrossRef] [PubMed]
- Potvin, J.R.; Ciriello, V.M.; Snook, S.H.; Maynard, W.S.; Brogmus, G.E. The Liberty Mutual Manual Materials Handling (LM-MMH) Equations. Ergonomics 2021, 64, 955–970. [Google Scholar] [CrossRef]
- Potvin, J.R. Predicting Maximum Acceptable Efforts for Repetitive Tasks: An Equation Based on Duty Cycle. Hum. Factors 2012, 54, 175–188. [Google Scholar] [CrossRef]
- Abdel-Malek, D.M.; Foley, R.C.A.; Wakeely, F.; Graham, J.D.; La Delfa, N.J. Exploring Localized Muscle Fatigue Responses at Current Upper-Extremity Ergonomics Threshold Limit Values. Hum. Factors 2022, 64, 385–400. [Google Scholar] [CrossRef]
- Gillette, J.C.; Stephenson, M.L. Electromyographic Assessment of a Shoulder Support Exoskeleton During On-Site Job Tasks. IISE Trans. Occup. Ergon. Hum. Factors 2019, 7, 302–310. [Google Scholar] [CrossRef]
- Hobson, J.; Smedley, J. Fitness for Work: The Medical Aspects; Oxford University Press: Cary, NC, USA, 2019; Volume 864. [Google Scholar]
- Occupational Health and Safety Management Systems—Guide, Rupert Heygate-Browne, British Standard 8800:2004; ISBN 0 580 43987 9. Available online: https://img.antpedia.com/standard/files/pdfs_ora/20230612/bs/BS/BS%2008800-2004.pdf (accessed on 3 September 2024).
- Fox, R.R.; Lu, M.L.; Occhipinti, E.; Jaeger, M. Understanding Outcome Metrics of the Revised NIOSH Lifting Equation. Appl. Ergon. 2019, 81, 102897. [Google Scholar] [CrossRef]
- ISO 11228-1:2021-Ergonomics—Manual Handling—Part 1: Lifting, Lowering and Carrying. Available online: https://www.iso.org/standard/76820.html (accessed on 6 September 2024).
- Assessment, U.E.N.C. for E. ACGIH: 2018 TLVs and BEIs. 2018. Available online: https://www.acgih.org/science/ (accessed on 3 September 2024).
- ISO 11226:2000; Ergonomics—Evaluation of Static Working Postures, 1st ed. ISO: Geneva, Switzerland, 2000.
- Chengalur, S.N.; Rodgers, S.H.; Bernard, T.E. Kodak´s Ergonomic Design for People at Work; John Wiley & Sons: Hoboken, NJ, USA, 2004; Volume 681. [Google Scholar]
- Longpré, H.S.; Acker, S.M.; Maly, M.R. Muscle Activation and Knee Biomechanics during Squatting and Lunging after Lower Extremity Fatigue in Healthy Young Women. J. Electromyogr. Kinesiol. 2015, 25, 40–46. [Google Scholar] [CrossRef]
- Hale, R.; Hausselle, J.G.; Gonzalez, R.V. A Preliminary Study on the Differences in Male and Female Muscle Force Distribution Patterns during Squatting and Lunging Maneuvers. Comput. Biol. Med. 2014, 52, 57–65. [Google Scholar] [CrossRef] [PubMed]
- Benavides, F.G.; Benach, J.; Diez-Roux, A.V.; Roman, C. How Do Types of Employment Relate to Health Indicators? Findings from the Second European Survey on Working Conditions. J. Epidemiol. Community Health (1978) 2000, 54, 494–501. [Google Scholar] [CrossRef] [PubMed]
- Bonfiglioli, R.; Mattioli, S.; Fiorentini, C.; Graziosi, F.; Curti, S.; Violante, F.S. Relationship between Repetitive Work and the Prevalence of Carpal Tunnel Syndrome in Part-Time and Full-Time Female Supermarket Cashiers: A Quasi-Experimental Study. Int. Arch. Occup. Environ. Health 2007, 80, 248–253. [Google Scholar] [CrossRef] [PubMed]
- Krause, N.; Ragland, D.R.; Fisher, J.M.; Syme, S.L. Psychosocial Job Factors, Physical Workload, and Incidence of Work-Related Spinal Injury: A 5-Year Prospective Study of Urban Transit Operators. Spine 1998, 23, 2507–2516. [Google Scholar] [CrossRef]
- Krause, N.; Rugulies, R.; Ragland, D.R.; Syme, S.L. Physical Workload, Ergonomic Problems, and Incidence of Low Back Injury: A 7.5-Year Prospective Study of San Francisco Transit Operators. Am. J. Ind. Med. 2004, 46, 570–585. [Google Scholar] [CrossRef]
- Alamgir, H.; Yu, S.; Chavoshi, N.; Ngan, K. Occupational Injury among Full-Time, Part-Time and Casual Health Care Workers. Occup. Med. 2008, 58, 348–354. [Google Scholar] [CrossRef]
- Violante, F.S.; Graziosi, F.; Caraballo-Arias, Y.; Decataldo, F.; Bonfiglioli, R. Influence of Weekly Working Hours on Musculoskeletal Disorder Risk Associated with Biomechanical Factors. IISE Trans. Occup. Ergon. Hum. Factors 2025, in press. [Google Scholar]
LI (NIOSH) | Task Classification (Dictionary of Occupational Titles/Fitness for Work) |
---|---|
0–1 (Level considered irrelevant) | ML—Very light work Maximum O2 consumption: up to 2 MET. MMHv up to 160 min/day: weights of less than 4.5 kg. MMHv over 160 min/day: negligible weights. |
1.1–1.5 (First quarter of the interval 1–3) | L—Light Work Maximum O2 consumption: 2–3 METs. MMHv up to 160 min/day to: weights less than 9 kg. MMHv over 160 min/day: weights of less than 4.5 kg. |
1.6–2 (Second quarter of the interval 1–3) | M—Medium Job Maximum O2 consumption: 4–5 METs. MMHv up to 160 min/day: weights between 9 and 23 kg. MMHv over 160 min/day: weights between 4.5 and 11.5 kg. |
2.1–2.9 (Upper half of the interval 1–3) | H—Intense work Maximum O2 consumption: 6–8 MET. MMHv up to 160 min/day: weights between 23 and 45 kg. MMHv over 160 min/day: weights between 11.5 and 23 kg. |
3 or more (Level involving significant biomechanical load) | V—Very intense work Maximum O2 consumption: over 8 MET. MMHv up to 160 min/day: weights greater than 45 kg. MMHv over 160 min/day: weights of 23 kg or more. |
LI | Risk Category (Assessment of Tolerability) BS 8800 Table E4 | Tolerability: Indications of Necessary Actions and Their Timing BS 8800 Table E5 |
---|---|---|
0–1 (level considered irrelevant) | Very Low (Acceptable) | This level of risk is considered acceptable. No other action is necessary, except the monitoring of the situation (and any prevention and protection measures adopted). |
1.1–1.5 (First quarter of the interval 1–3) | Low (Risk to be controlled to be tolerable or acceptable) | No further prevention and protection measures are necessary unless they can be implemented with very limited costs (in terms of time, money, effort). Actions to reduce the level of risk have low priority. It is necessary to monitor the situation (and any prevention and protection measures adopted). |
1.6–2 (Second quarter of the interval 1–3) | Medium (Risk to be controlled to be tolerable or acceptable) | Where possible, risk prevention and protection measures should be implemented, down to a tolerable or acceptable level, but the cost should be taken into account. Prevention and protection measures must be implemented within a well-defined period. Monitoring of prevention and protection measures is necessary to ensure they are maintained over time, particularly when the level of risk is associated with harmful consequences. |
2.1–2.9 (Upper half of the interval 1–3) | High (Risk to be controlled to be tolerable or acceptable) | Reduce risk. Risk reduction measures should be implemented urgently, indicating a well-defined implementation timeframe. It may be necessary to suspend or limit the activity, or temporarily adopt equivalent risk prevention and protection measures, pending the completion of the reduction measures. The monitoring of prevention and protection measures is necessary to ensure they are maintained over time, particularly when the level of risk is associated with harmful consequences. |
3 or more (Level considered at risk for most workers) | Very High (Not acceptable) | A substantial improvement in risk control is needed to reduce it to a tolerable or acceptable level. Work activities should be stopped until risk control measures are implemented and the risk is reduced. If the risk cannot be reduced, work must be inhibited. |

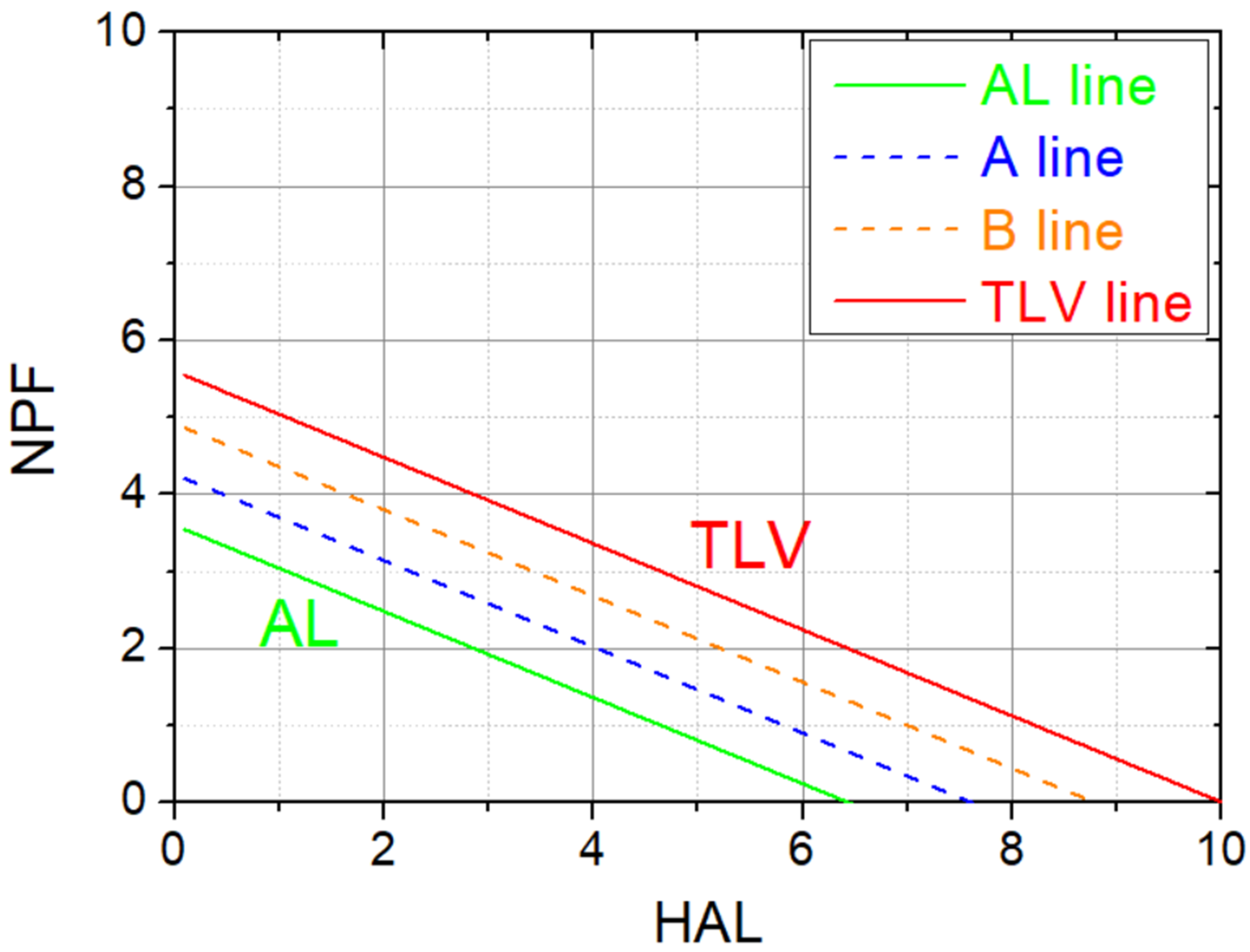

Hand Activity Level | Task Classification |
---|---|
NPFESP ≤ NPFFAL (below action level) | ML—Very light work |
NPFFAL < NPFESP ≤ NPFA (between action level and TLV) | L—Light work |
NPFA < NPFESP ≤ NPFB (between action level and TLV) | M—Medium job |
NPFB < NPFESP ≤ NPFTLV (between action level and TLV) | H—Intense work |
NPFESP > NPFTLV (above TLV) | V—Very intense work |
Manual Activity Level | Risk Category (Assessment of Tolerability) BS 8800 Table E4 | Tolerability: Indications of Necessary Actions and Their Timing BS 8800 Table E5 |
---|---|---|
NPFESP ≤ NPFAL (below action level) | Very low (acceptable) | This level of risk is considered acceptable. No other action is necessary, except the monitoring of the situation (and any prevention and protection measures adopted). |
NPFAL < NPFESP ≤ NPFA (between action level and TLV) | Low (risk to be controlled to be tolerable or acceptable) | No further prevention and protection measures are necessary unless they can be implemented with very limited costs (in terms of time, money, effort). Actions to reduce the level of risk have low priority. It is necessary to monitor the situation (and any prevention and protection measures adopted). |
NPFA < NPFESP ≤ NPFB (between action level and TLV) | Medium (risk to be controlled to be tolerable or acceptable) | Where possible, risk prevention and protection measures should be implemented, down to a tolerable or acceptable level, but the cost should be taken into account. Prevention and protection measures deemed necessary must be implemented within a well-defined period. Monitoring of prevention and protection measures is necessary to ensure that they are maintained over time, particularly when the level of risk is associated with harmful consequences. |
NPFB < NPFESP ≤ NPFTLV (between action level and TLV) | High (risk to be controlled to be tolerable or acceptable) | Reduce risk. Risk reduction measures should be implemented urgently by indicating a well-defined implementation timeframe. It may be necessary to suspend or limit the activity, or temporarily adopt equivalent risk prevention and protection measures, pending the completion of the reduction measures. The monitoring of prevention and protection measures is necessary to ensure that they are maintained over time, particularly when the level of risk is associated with harmful consequences. |
NPFESP > NPFTLV (above TLV) | Very high (not acceptable) | A substantial improvement in risk control is needed so as to reduce it to a level of tolerability or acceptability. Work activities should be stopped until risk control measures are implemented and the risk is reduced. If the risk cannot be reduced, work must be inhibited. |
