Pore Connectivity Characterization of Lacustrine Shales in Changling Fault Depression, Songliao Basin, China: Insights into the Effects of Mineral Compositions on Connected Pores

1
State Key Laboratory of Petroleum Resources and Prospecting, China University of Petroleum, Beijing 102249, China
2
Unconventional Natural Gas Research Institute, China University of Petroleum, Beijing 102249, China
*
Author to whom correspondence should be addressed.
Minerals 2019, 9(3), 198; https://doi.org/10.3390/min9030198
Received: 22 February 2019 / Revised: 14 March 2019 / Accepted: 22 March 2019 / Published: 26 March 2019
(This article belongs to the Special Issue Nanomineralogy)
  |
PDF [3807 KB, uploaded 26 March 2019]
  |

Abstract

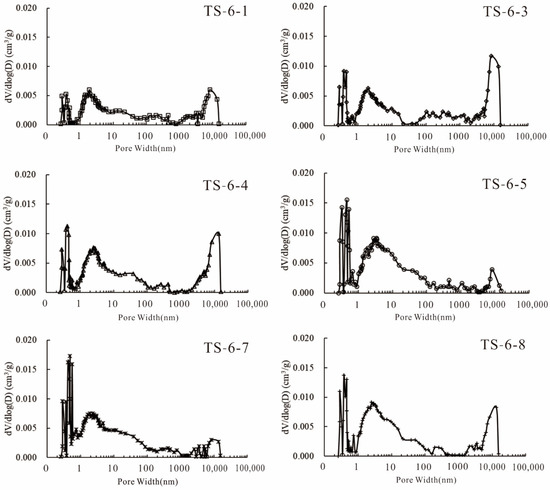

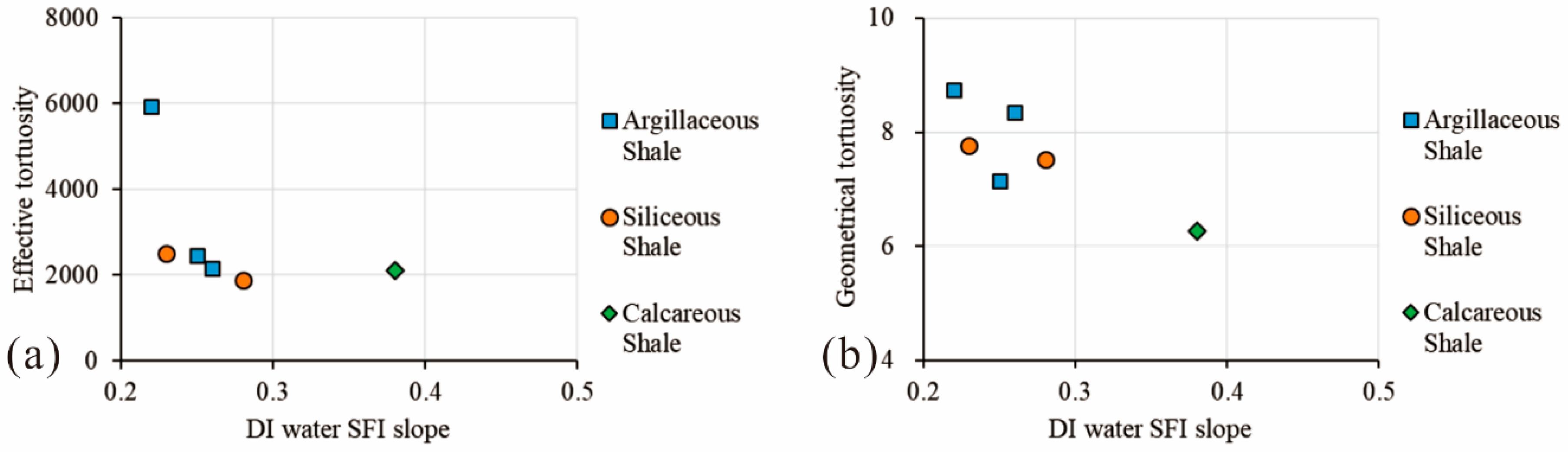

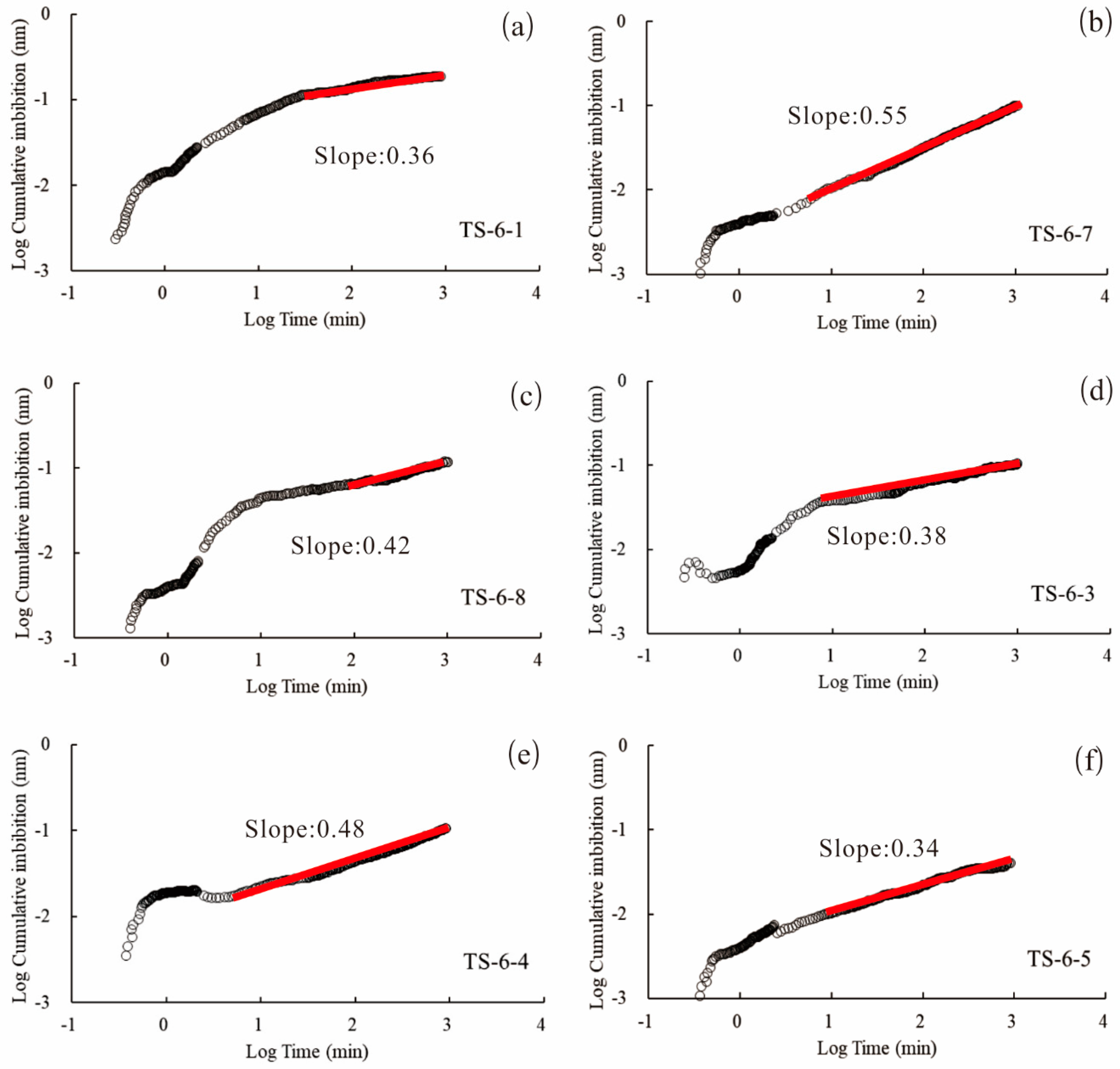

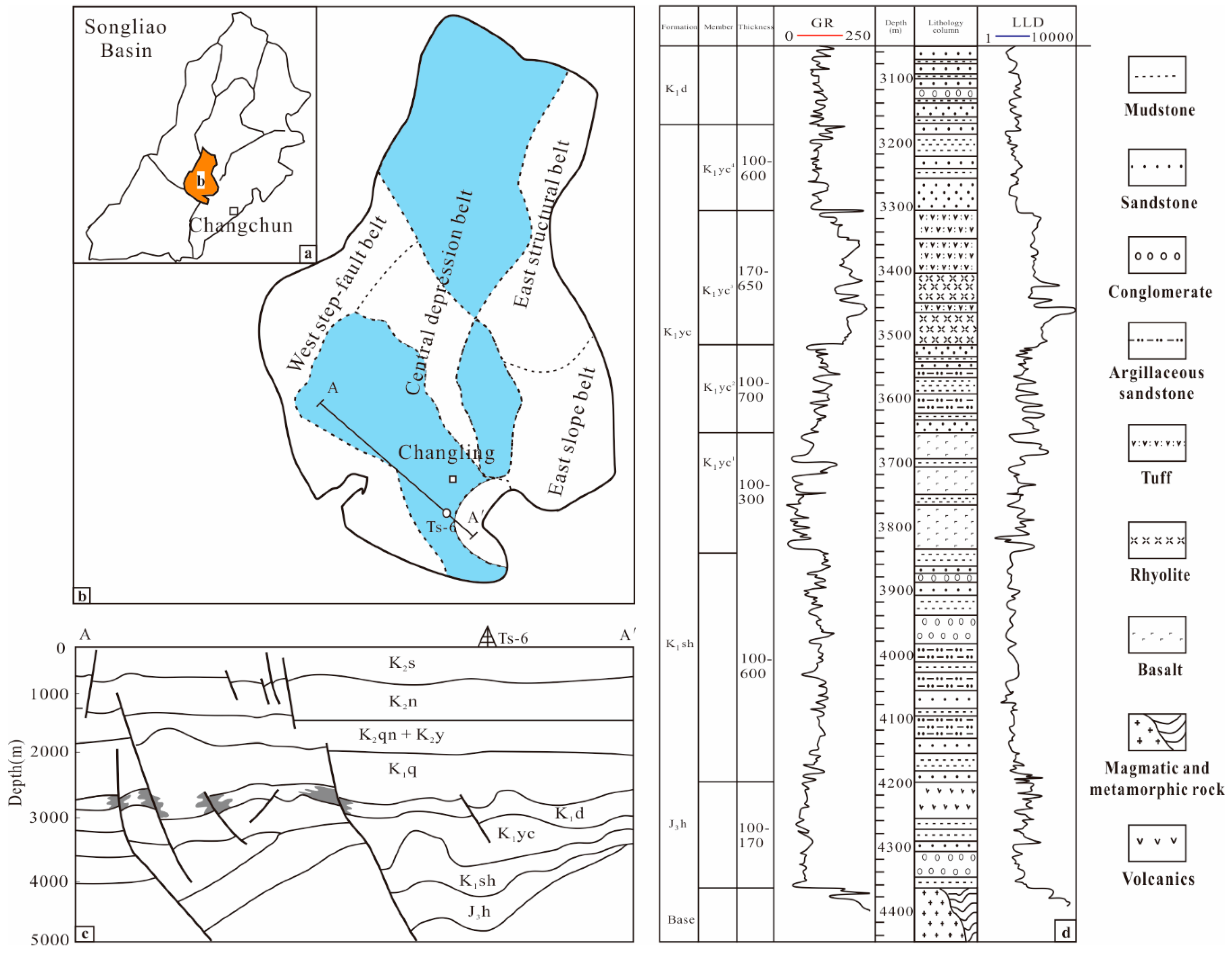

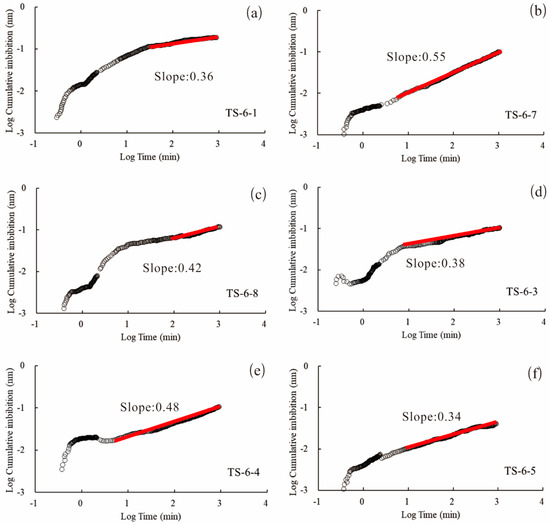

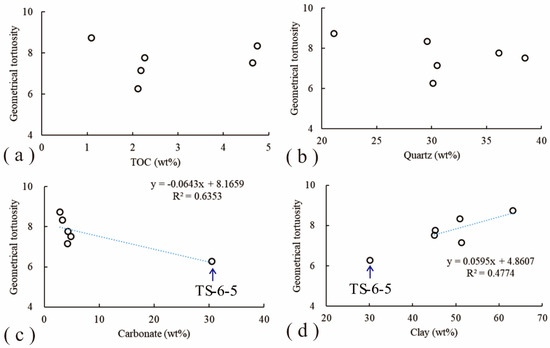

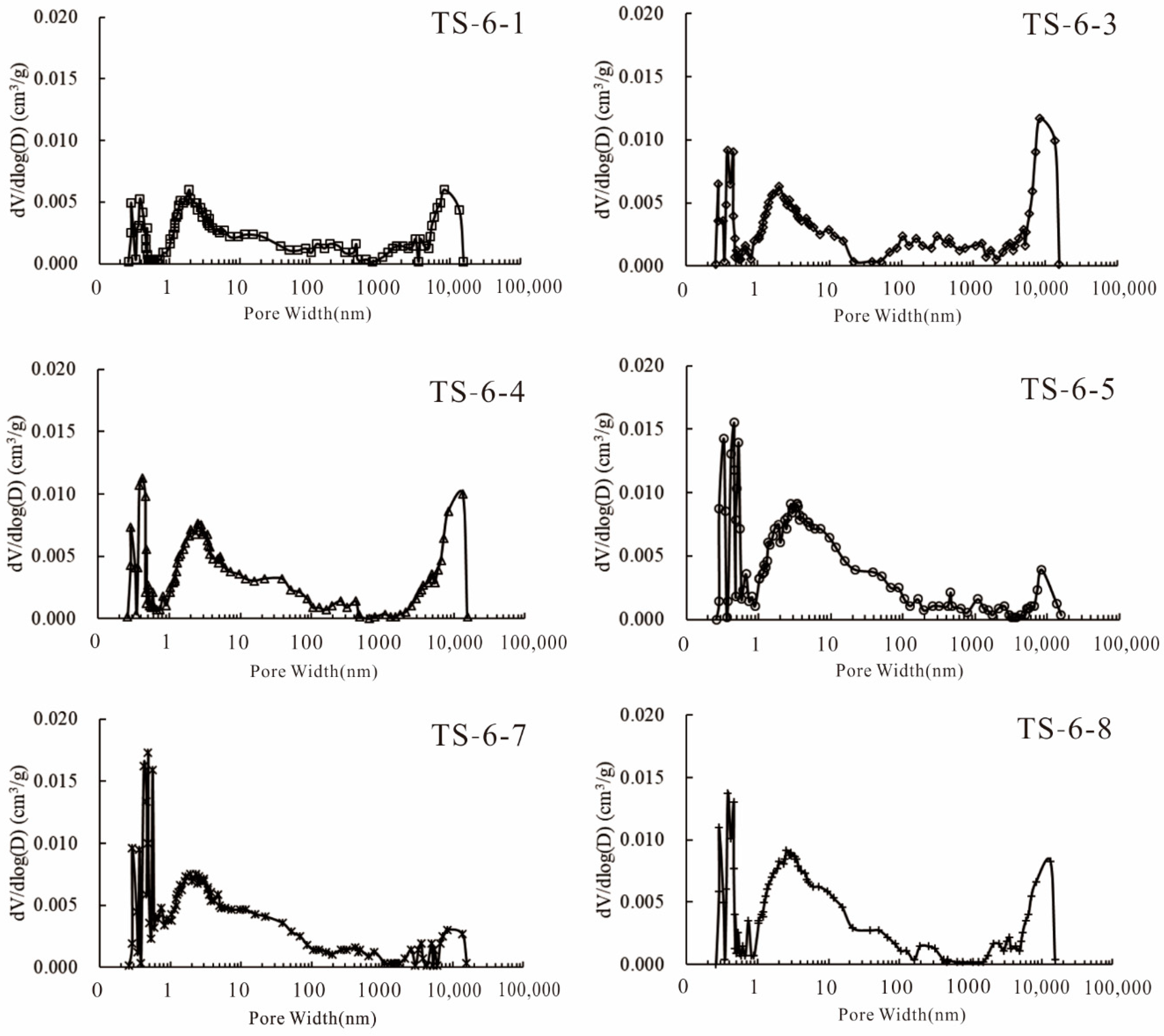

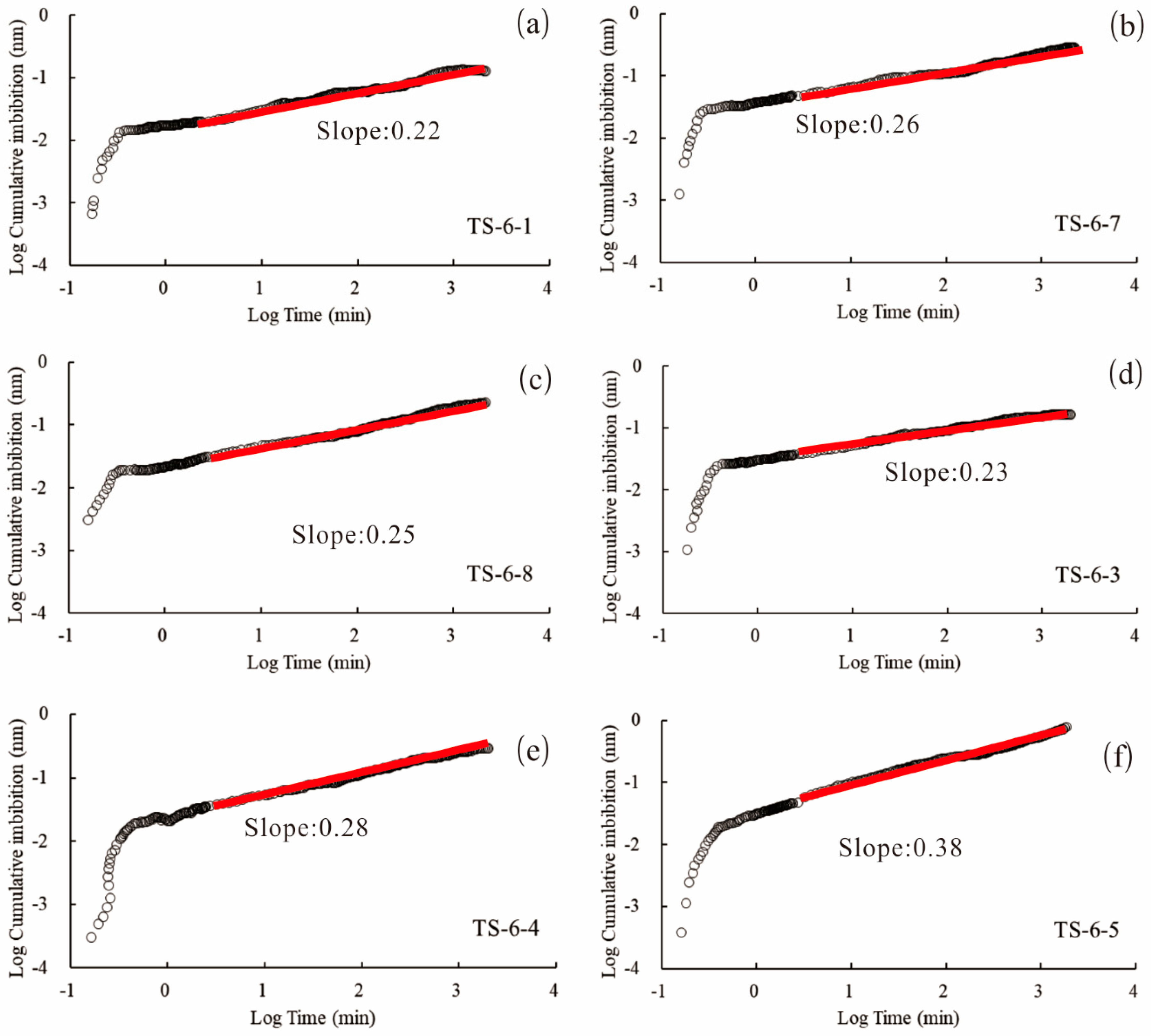

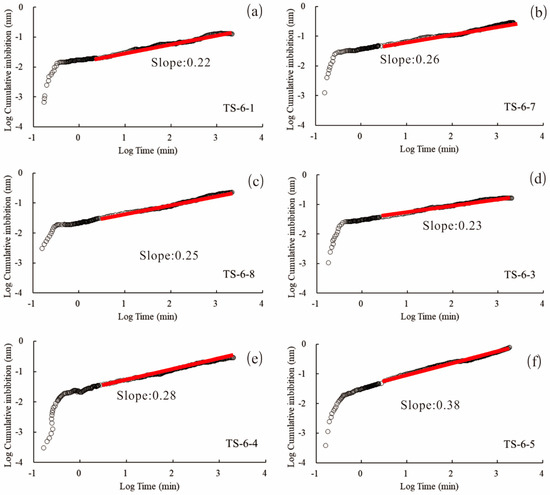

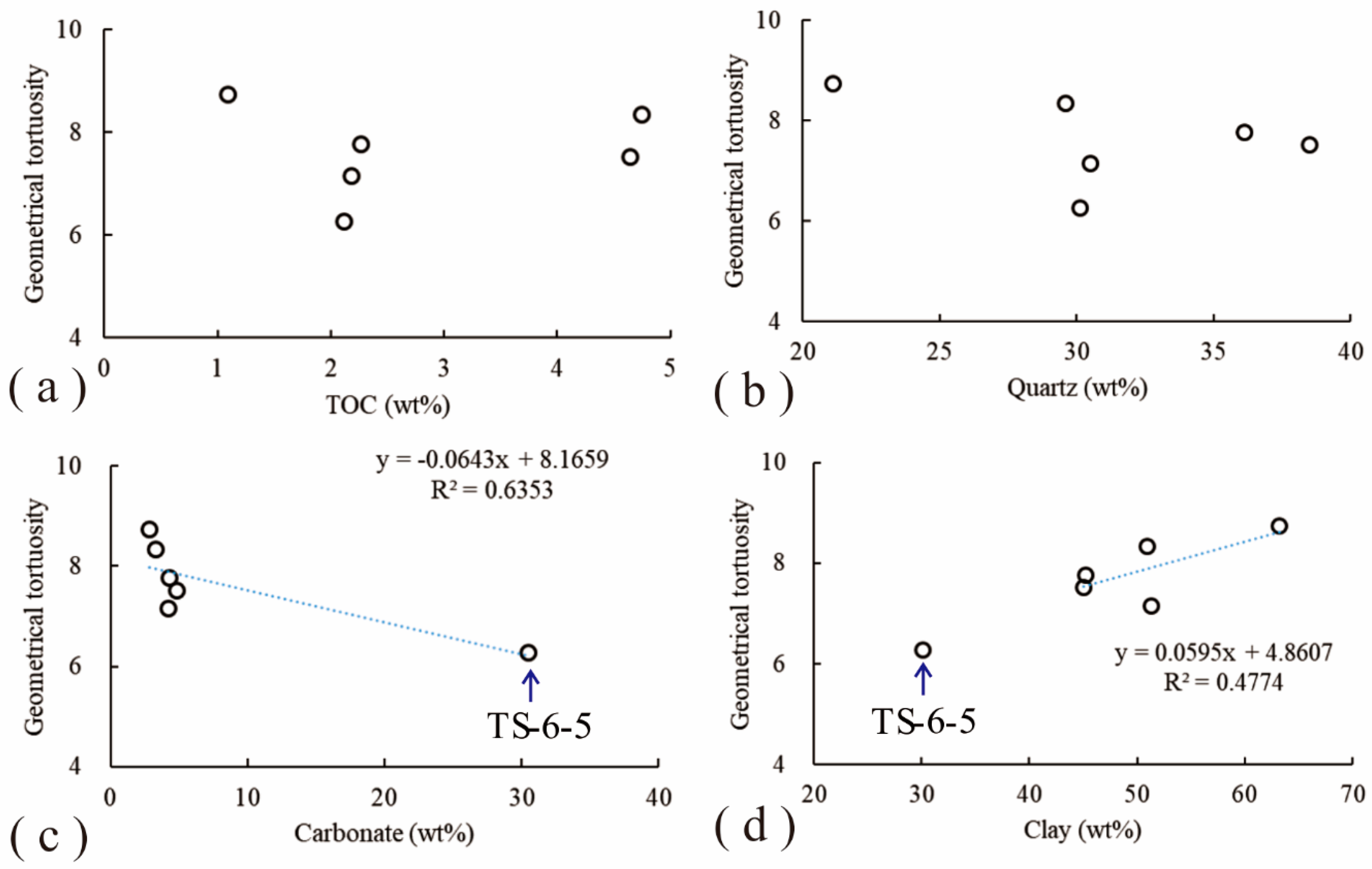

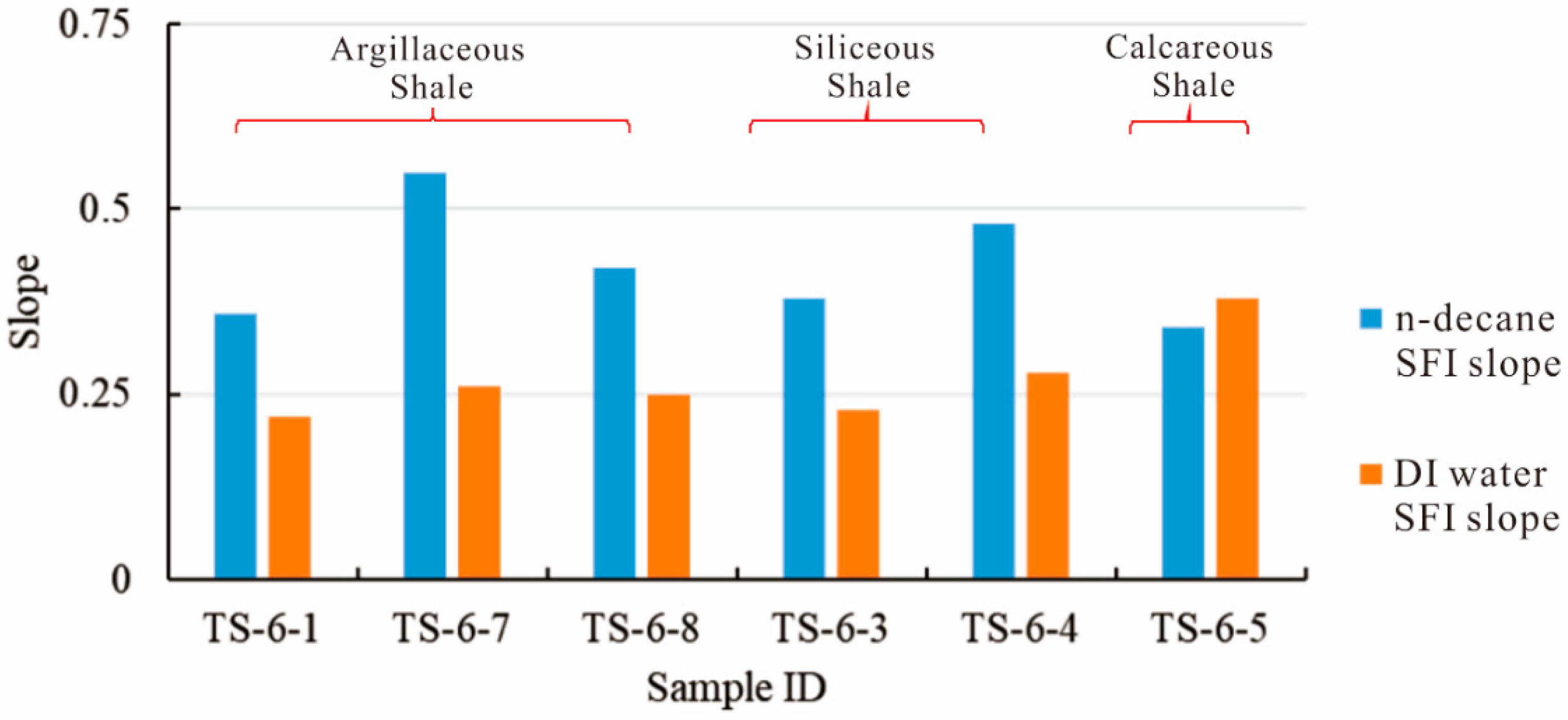

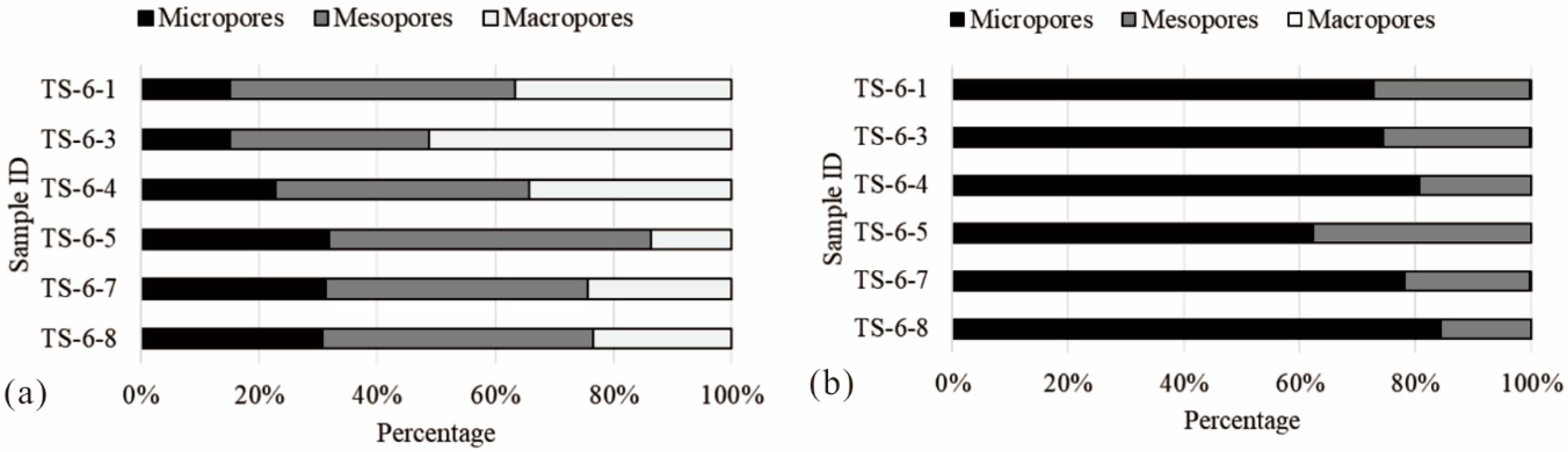

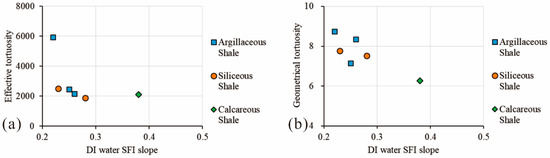

Pore connectivity of lacustrine shales was inadequately documented in previous papers. In this work, lacustrine shales from the lower Cretaceous Shahezi Formation in the Changling Fault Depression (CFD) were investigated using field emission scanning electron microscopy (FE-SEM), mercury intrusion capillary pressure (MICP), low pressure gas (CO2 and N2) sorption (LPGA) and spontaneous fluid imbibition (SFI) experiments. The results show that pores observed from FE-SEM images are primarily interparticle (interP) pores in clay minerals and organic matter (OM) pores. The dominant pore width obtained from LPGA and MICP data is in the range of 0.3–0.7 nm and 3–20 nm. The slopes of n-decane and deionized (DI) water SFI are in the range of 0.34–0.55 and 0.22–0.38, respectively, suggesting a mixed wetting nature and better-connected hydrophobic pores than hydrophilic pores in the Shahezi shales. Low pore connectivity is identified by the dominant nano-size pore widths (0.3–20 nm), low DI water SFI slopes (around 0.25), high geometric tortuosity (4.75–8.89) and effective tortuosity (1212–6122). Pore connectivity follows the order of calcareous shale > argillaceous shale > siliceous shale. The connected pores of Shahezi shales is mainly affected by the high abundance and coexistence of OM pores and clay, carbonate minerals host pores. View Full-Text
Keywords: lacustrine shales; pore networks; pore connectivity; spontaneous fluid imbibition; Shahezi shales; Changling Fault Depression lacustrine shales; pore networks; pore connectivity; spontaneous fluid imbibition; Shahezi shales; Changling Fault Depression
Figures

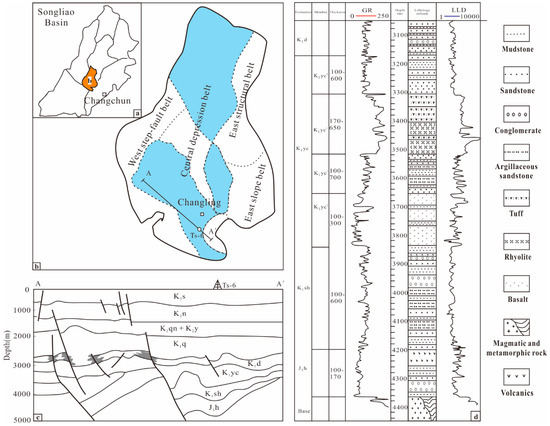

Figure 1
