Transformation of Vanadium-Bearing Titanomagnetite Concentrate in Additive-Free Roasting and Alkaline-Pressure Leaching for Extracting Vanadium (V)
Abstract
:1. Introduction
2. Thermodynamic Criteria for Roasting
ΔG°r = −10.987 kJ/mol at 1100 K
ΔG°r = −13.204 kJ/mol at 1100 K
3. Materials and Methods
3.1. Raw Materials
3.2. Experimental
4. Results and Discussion
4.1. Mineral Analysis

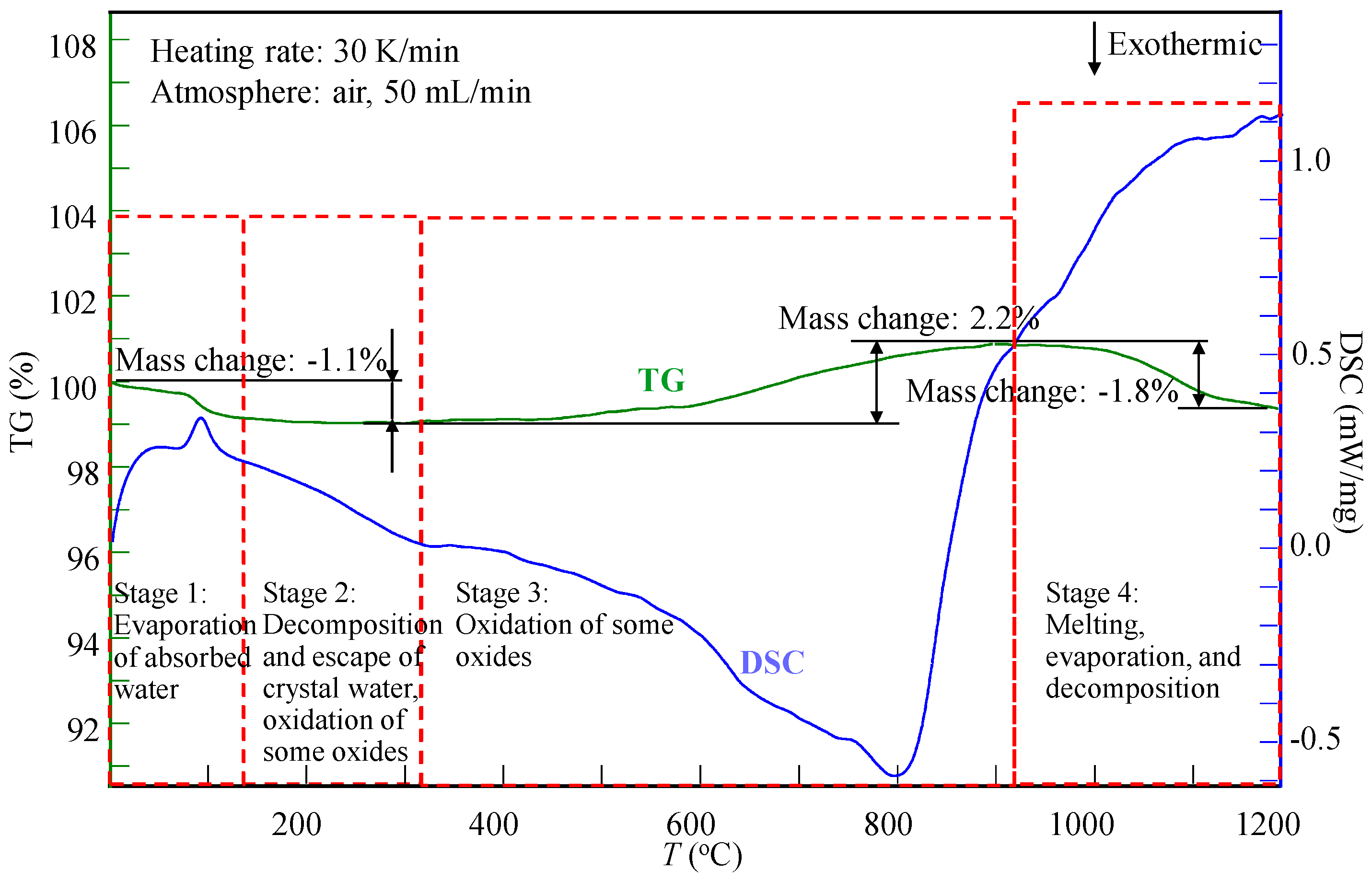

4.2. TG-DSC Analysis
TDec. = 460 °C, TBoi. = 550 °C;
ΔG°r = −74.028 kJ/mol, ΔG°r = −75.890 kJ/mol at 1100 K (Extrapolated data);
ΔH°r = 149.026 kJ/mol, ΔH°r = 166.00 kJ/mol at 1100 K (Extrapolated data)
4.3. Vanadium Loss and Vanadium Leaching Efficiency
4.4. Transformation Reactions Analyses in Roasting
ΔG°r = −137.521 kJ/mol O2 at 1300 K
ΔG°r = −156.521 kJ/mol O2 at 1300 K
ΔG°r = −108.968 kJ/mol O2 at 1300 K
ΔG°r = −178.176 kJ/mol O2 at 900 K
ΔG°r = −215.877 kJ/mol O2 at 900 K, ΔG°r = −184.979 kJ/mol O2 at 1100 K
ΔG°r = −128.231 kJ/mol O2 at 1300 K
ΔG°r = −6.221 kJ/mol at 900 K, ΔG°r = −1.044 kJ/mol at 1100 K
5. Conclusions

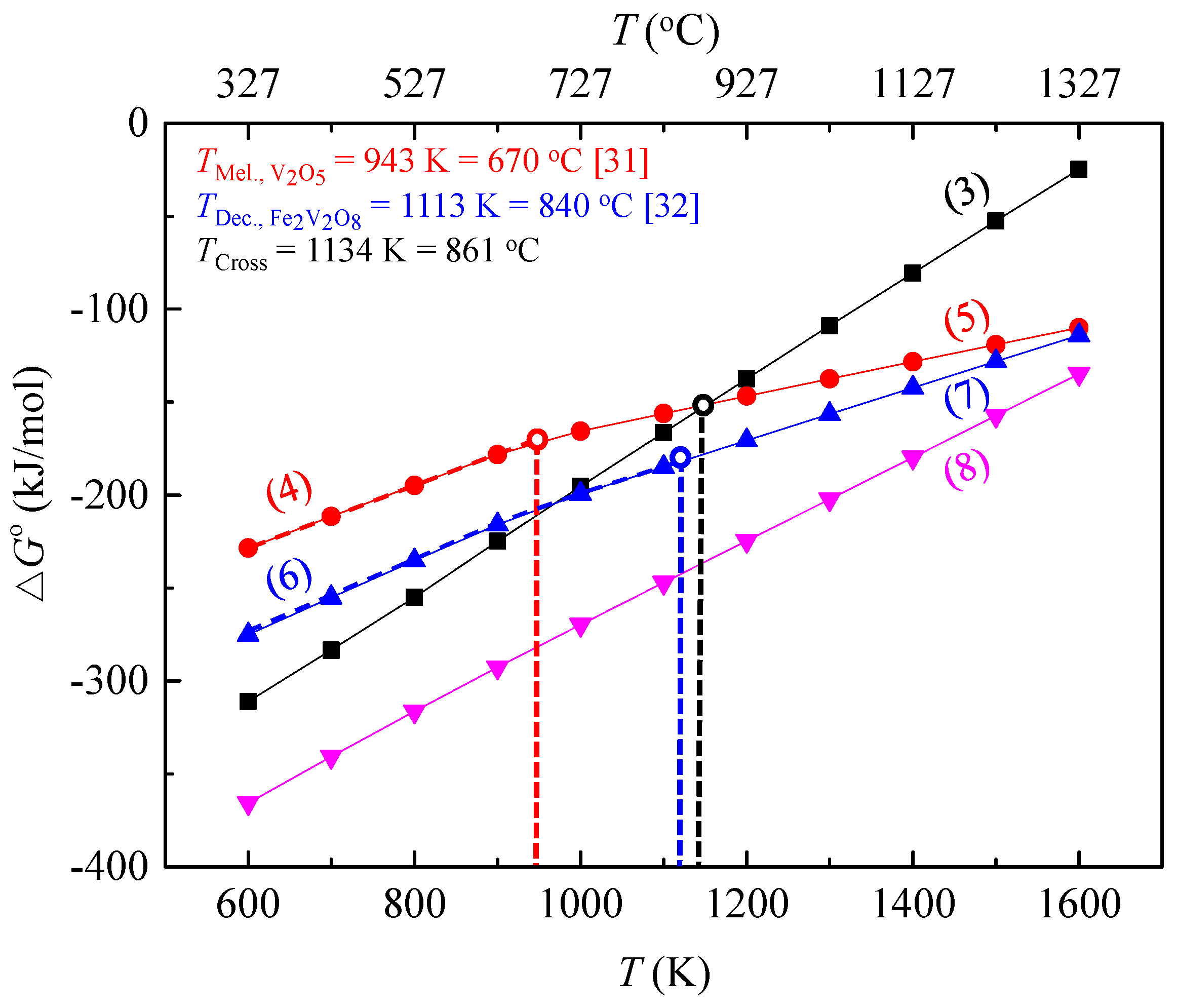

- Thermodynamic analyses show that oxidation of V2O3 would happen in the roasting experiment over the range of 327–1327 °C and vanadium-iron spinel phase (FeV2O4) can be oxidized more easily than magnetite (Fe3O4) when the temperature is higher than 861 °C.

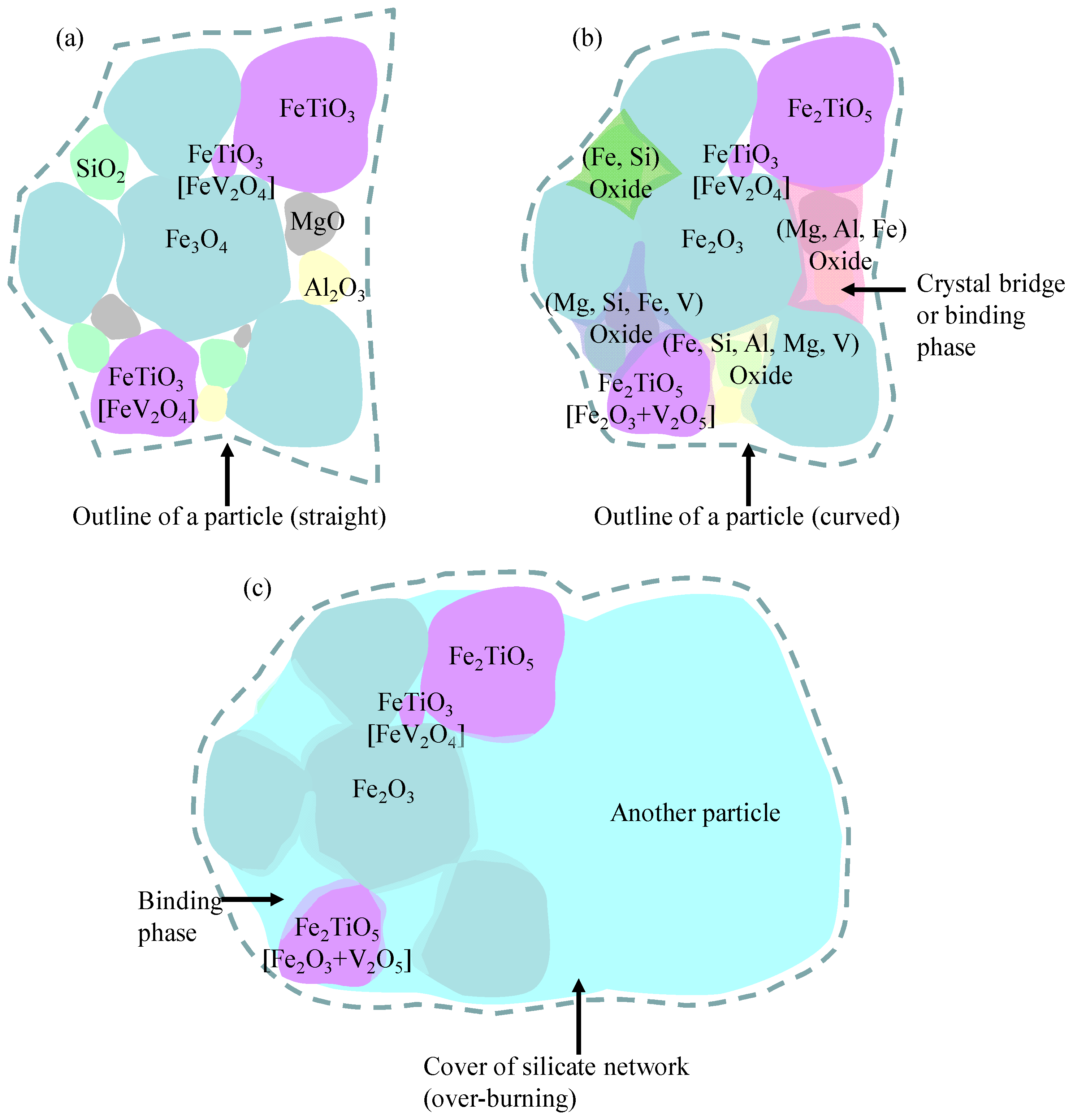

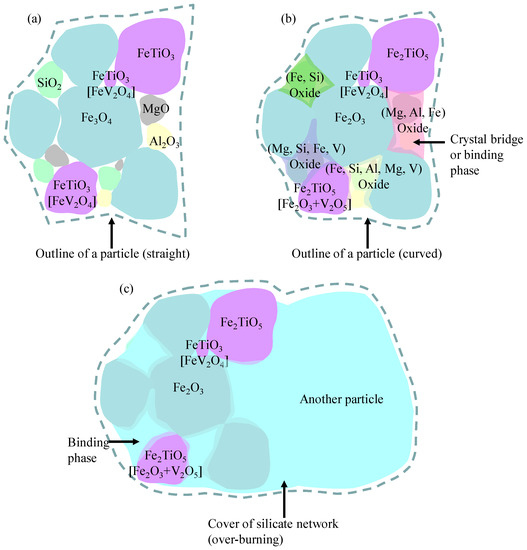

- The compounds (V2O5, Fe2Al4Si5O18, and Fe2SiO4) with low melting temperature were generated at low temperature and melted at elevated temperature; liquids were generated due to some chemical reactions or phase transformation reaction (Fe2V2O4(s) → Fe2O3(s) + liquid) happened at elevated temperature; main phases of Fe2O3 and Fe2TiO5 are connected and sintered with the binding phases of the compounds with low melting temperature or the mixtures with low liquidus temperature.

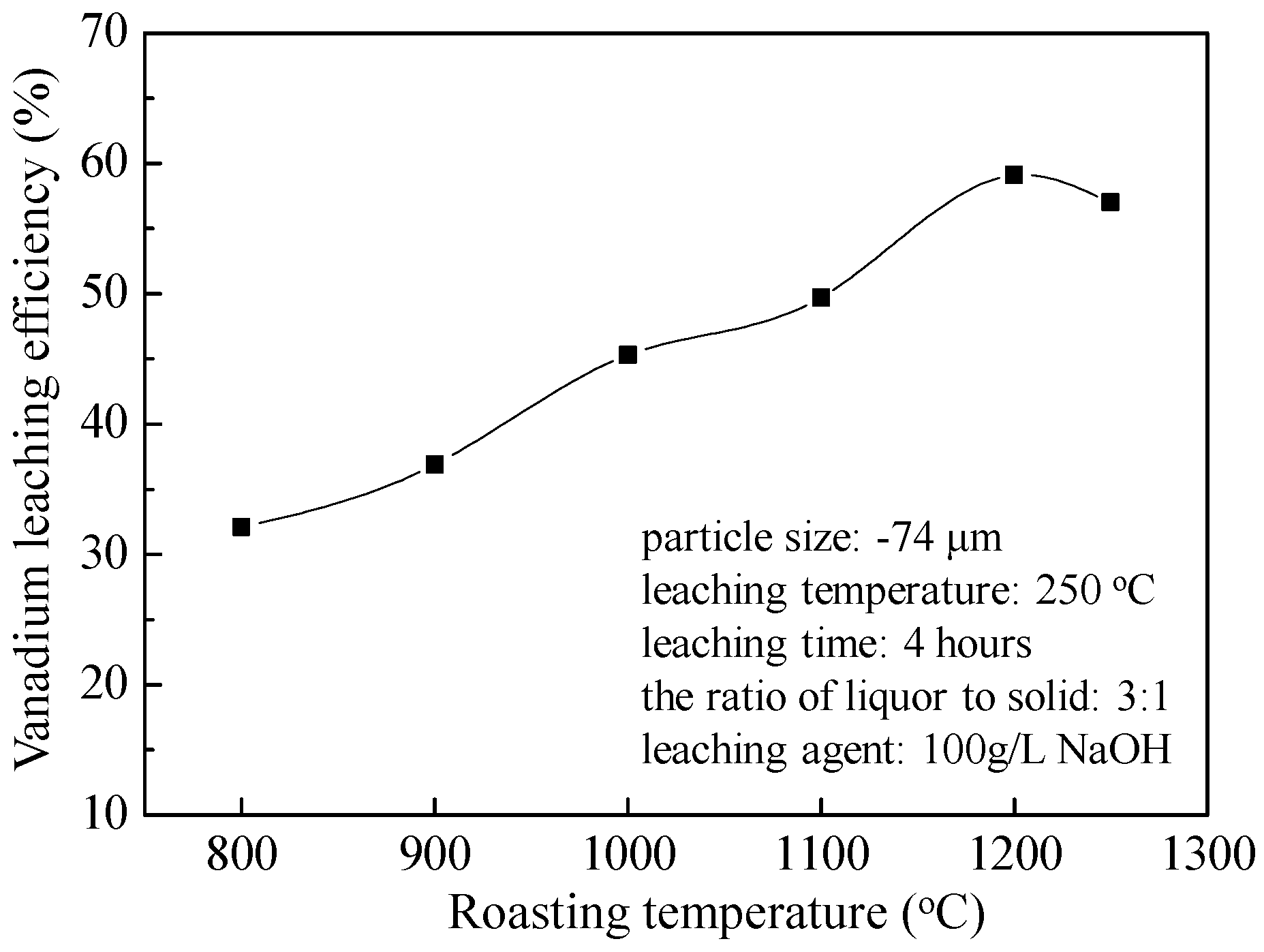

- Higher roasting temperature is beneficial for improving the vanadium leaching efficiency. However, over-burning causes some vanadium oxide wrapped by silicate network and reductions in the vanadium leaching efficiency from 59.1% at Troa. = 1200 °C to 57% at Troa. = 1250 °C (250 °C of leaching temperature with high pressure of 1.3 MPa, 4 h of leaching time, 3:1 of the ratio of liquor to solid, and 100 g/L NaOH as leaching agent).
