Carbonaceous Materials in the Fault Zone of the Longmenshan Fault Belt: 1. Signatures within the Deep Wenchuan Earthquake Fault Zone and Their Implications

by
Li-Wei Kuo
1,*,
Jyh-Rou Huang
2,
Jiann-Neng Fang
3,
Jialiang Si
4,
Haibing Li
4 and
Sheng-Rong Song
5
1
Department of Earth Sciences, National Central University, Taoyuan 320, Taiwan
2
Department of Earth Sciences, National Taiwan Normal University, Taipei 106, Taiwan
3
National Taiwan Museum, Taipei 100, Taiwan
4
Institute of Geology, Chinese Academy of Geological Sciences, Beijing 100037, China
5
Department of Geosciences, National Taiwan University, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(9), 385; https://doi.org/10.3390/min8090385
Submission received: 22 June 2018 / Revised: 3 September 2018 / Accepted: 3 September 2018 / Published: 4 September 2018
(This article belongs to the Special Issue Mineralogy of Natural Graphite)
Browse Figures
Versions Notes

Abstract

Graphitization of carbonaceous materials (CM) has been experimentally demonstrated as potential evidence of seismic slip within a fault gouge. The southern segment of the Longmenshan fault, a CM-rich-gouge fault, accommodated coseismic slip during the 2008 Mw 7.9 Wenchuan earthquake and potentially preserves a record of processes that occurred on the fault during the slip event. Here, we present a multi-technique characterization of CM within the active fault zone of the Longmenshan fault from the Wenchuan earthquake Fault Scientific Drilling-1. By contrast with field observations, graphite is pervasively and only distributed in the gouge zone, while heterogeneously crystallized CM are present in the surrounding breccia. The composite dataset that is presented, which includes the localized graphite layer along the 2008 Wenchuan earthquake principal slip zone, demonstrates that graphite is widely distributed within the active fault zone. The widespread occurrence of graphite, a seismic slip indicator, reveals that surface rupturing events commonly occur along the Longmenshan fault and are characteristic of this tectonically active region.

1. Introduction

Graphitization is a progressive and irreversible transformation from disordered carbonaceous materials (CM) into stable ordered graphite and can occur under a wide variety of conditions (e.g., [1]). Current studies propose that graphitization of CM is facilitated with confining pressure, burial time, temperature, fluid, and shear stress/strain [2,3,4,5,6]. In particular, increasing temperature on CM has been commonly suggested to cluster carbon atoms and grow graphite [7], and the associated characteristics of CM are widely utilized to estimate the maximum temperatures achieved in sedimentary and metamorphic rocks [6,8]. Because CM are also a common constituent within fault rocks, it seems likely that the stable structure of carbon and its relevant graphitization among different fault components (e.g., damage zone and fault core) can be studied to gain insights into faulting mechanisms [9].
The NE–SW trending Longmenshan thrust fault ruptured on 12 May 2008 in a devastating Mw 7.9 earthquake near Wenchuan in SE Tibet, producing a 240 km-long Yingxiu–Beichuan surface rupture and an 80 km-long Guanxian–Anxian surface rupture, respectively (Figure 1a) [10]. Both field observations and the Wenchuan earthquake Fault Scientific Drilling project-1 (WFSD-1) along the Yingxiu–Beichuan surface rupture reported the presence of CM within the active fault zone of the southern Longmenshan fault, presumably derived from the Triassic Xujiahe formation sedimentary rocks (coal-bearing sandstone) [11,12,13,14,15]. Therefore, this provides a unique opportunity to link seismic fault motions and the relevant gouge graphitization by integrating the evidence of CM from the field and laboratory.
Kouketsu et al. [15] characterized the naturally and experimentally deformed (at slip rates of 0.1–2.1 m/s and normal stresses of 0.6–2.1 MPa) CM-bearing gouge of the surface outcrop of the southern Longmenshan fault, and suggested that graphite was likely formed extremely locally or not formed during the seismic fault motion because of the lack of the evidence of graphitization processes adjacent to surrounding rocks. Kuo et al. [16], however, conducted rock friction experiments on the CM-rich fault gouge of the WFSD-1 (at a slip rate of 3 m/s and normal stresses of 5–25 MPa) and characterized experimentally deformed products, suggesting that gouge graphitization processes likely occurred within the active fault zone of the Longmenshan fault during the 2008 Mw 7.9 Wenchuan earthquake. In addition, on the basis of the extended experimental conditions (at slip rates of 0.0003 to 3 m/s, a normal stress of 8.5 MPa, and room-humidity and water-damped conditions), Kuo et al. [17] experimentally demonstrated that graphitization of CM can be induced by high-temperature pulses associated to seismic slip. The geological records of the active fault zone of the Longmenshan fault from the surface outcrop show the absence of graphite [15], but those from the active fault zone of the WFSD-1 remain largely unknown, and so other evidence and the associated graphitization for seismic slip must be determined and developed.
Here, we present a detailed characterization of graphitization of CM within the Longmenshan fault recovered from the WFSD-1. The CM-rich gouges were found in the fault core including the recognized 2008 Wenchuan principal slip zone (PSZ) [16,17]. By means of micro-Raman spectroscopy and transmission electron microscopy (TEM), we establish a reference graphitization of a CM data set of the recent-event slipping fault zone, address the geological record of the fault-relevant graphitization, discuss the differential graphitization from surface outcrop to deep depth and, by extension, present an application of these data for studies of exhumed CM-bearing fault segments in tectonically active regions without determined earthquake records.

2. Materials and Methods

The WFSD-1 drilled to a depth of 1201.1 m around 40 km north-east of the epicentral area (Figure 1a) and passed through the boundary of the Neoproterozoic Pengguan complex (diorite, porphyrite, volcanic rocks and pyroclastics) and the Triassic Xujiahe Formation sedimentary rocks (coal-bearing sandstone) at a depth of 585.7 m in total width of 19.8 m, broadly marking the location of the Longmenshan fault zone (Figure 1b) [11]. The structural analysis of the recovered borehole materials indicated that the Longmenshan fault contains a narrow “fault core” surrounded by a broad “damage zone” mainly within the Xujiahe Formation [11,18]. The current description of the WFSD-1 fault core shows a number of recurring elements such as one or several slip surfaces, fractures, fault rocks (e.g., gouge and breccia), and lenses of protolith of fault rock [11]. On the basis of both geological and geophysical observations of the WFSD-1, the PSZ accommodated coseismic displacement during the 2008 Wenchuan earthquake was proposed at the depth of 590 m (Figure 1c) [11,12,16,19].
The detailed phyllosilicate data of the WFSD-1 has been established by analyzing 139 samples within the boundary of the Pengguan complex and Xujiahe formation. In particular, the clay-size fraction (<2 micrometers) from 82 samples that were 1 cm-thick was sequentially analyzed across the active fault zone of the Longmenshan fault, including 17 samples from the hanging wall damage zone, 43 samples within the fault core, and 22 samples from the foot wall damage zone [12]. Because of the presence of smeared CM within these samples [12], here we characterize the CM of the active fault zone by taking advantage of analyzing the 70 clay-size fraction samples collected from collected from the CM-rich gouge at 1-cm intervals, and integrate twelve samples reported in Kuo et al. [17]. Although Salver-Disma et al. [20] demonstrated that the structure of CM can be damaged by mechanical grinding after duration of more than 20 h, damage on CM by gentle crushing during short sample preparation (less than 20 min) can be likely ignored in our case.
We directly obtained the Raman spectra of CM from clay-size fraction samples deposited on glass slides with a Horiba Jobin Yvon ultraviolet–visible (UV–VIS) Labram HR Micro-Raman spectrometer (HORIBA, Kyoto, Japan) at the National Taiwan Museum. We performed Raman experiments with an excitation beam of wavelength of 532 nm and a laser power of 5 mW without neutral density filters, and focused in the 1100–1800 cm−1 region of the Raman spectrum which includes the first-order bands of CM: the G (from 1575 cm−1–1592 cm−1), the D1 (from 1330 cm−1–1336 cm−1) and the D3 (from 1490 cm−1–1525 cm−1) bands (Figure 2a inset). In Raman spectroscopy, the sharpness of peak of the D1 (defect) band and the G (graphite) band is widely utilized to quantify the degree of the graphitization process [5,6]. Therefore, we utilized the commercial software PeakFit 4.12 (Systat Software, Inc., San Jose, CA, USA) for fitting peaks of both G and D1 bands with the pseudo-Voigt function (Gaussian–Lorentzian linear combination) [21,22], and calculated the following parameters: peak intensity (maximum of height), peak width (at half maximum of height), and peak position (frequency, cm−1) (Figure 2a inset) [17]. Ten measurements per sample were conducted on different sample spots, and each spot was measured with three integration times of 5 s. The spectral parameters (G and D1) of each sample were determined as the on-average values of 10 Raman analyses. The spectrum of Raman analysis was calibrated with a Si-waver prior to each set of measurement. The curve-fitting in our study is likely influenced by an individual operator and might be processed with a standardized curving-fitting procedure as suggested by Lünsdorf [23,24] in the future.
To determine crystal structures and chemical composition of CM derived from different fault components, we analyzed the breccia and gouge samples collected from depths of 588.70 m and 589.23 m, respectively. The clay-size fraction samples were disaggregated in ethanol and deposited on a Cu supporting grid for TEM. We performed TEM equipped with an energy dispersive X-ray spectrometer (TEM-EDX) analysis in the FEI Tecnai G2 T20 TEM and Philips Tecnai F30 Field Emission Gun TEM (Thermo Fisher, Waltham, MA, USA) with accelerating voltages of the electron beam which were 200 KV and 300 KV, respectively. Selected-area electron diffraction (SAED) patterns were taken using the selected-area aperture to obtain the electron diffraction pattern of CM.

3. Results

In this study we use two indicative parameters of CM introduced in Kuo et al. [17]: (1) the D1/G width ratio versus D1/G intensity ratio (Figure 2a), and (2) the D1 and G widths (normalized by the average D1 and G widths of the breccia) versus their peak position (Figure 2b). The gouge samples, compared to the breccia samples, have a widely distributed cluster of D1/G intensity ratio and D1/G width ratio (Figure 2a; Table 1). Importantly, the gouge and breccia samples have similar D1 band position and peak width ratio, but most of the G band of the gouge has higher frequency and smaller peak width ratio (Figure 2b; Table 1). Integrated with the reported phyllosilicate mineral (the abundance of smectite; [12], a summary diagram with the indicative parameters of CM is shown in Figure 3. The occurrence and characterization of the CM are discussed below.
The CM of the breccia samples, showing essentially the presence of strong diffuse rings in the corresponding electron diffraction patterns, sometimes intimately mixed with crystallized spots, are confirmed as poorly crystalline (Figure 4a,b and Figure 5). Although the strong diffuse rings resembling crystallized spots are also presenting in the CM of the gouge samples (Figure 4c and Figure 5), the presence of perfectly well-ordered carbon-built grains, likely suggesting the transformation of CM into graphite (Figure 4d and Figure 5), is only obtained in the gouge samples.

4. Discussion and Conclusions

Kuo et al. [17] carried out rock friction experiments on the CM-rich gouge of WFSD-1 at a normal stress of 8.5 Mpa and at both sub-seismic (0.0003 m/s) and seismic (3 m/s) slip rates under room-humidity and water-damped conditions to investigate graphitization of CM. Amorphous CM are composed of two types of the electronic configuration of the carbon atoms: sp3 (diamond-like) and sp2 (graphite-like). Graphitization of CM is the conversion of the sp2-bond from sp3-bond and turned into graphite as the end product [25]. The D1/G peak intensity ratio is proposed to be inversely proportional to the average size of the sp2 clusters from conversion of sp3 bonds [25]. Kuo et al. [17] characterized the experimentally deformed CM-rich gouge of the WFSD-1, showing the G band shifts toward higher frequencies in both the gouges sheared at sub-seismic and seismic slip rates. This suggests that bulk shear strain triggers the transformation of sp2-bond carbon from sp3-bond carbon in the amorphous carbon network because of re-hybridization of interacting dangling bonds of carbon [26]. Therefore, Kuo et al. [17] suggested that graphitization of CM was attributed to bulk shear strain associated with a decreasing D1/G peak intensity ratio plus the G band peak position shifting towards higher frequency.
In addition, increasing temperature could facilitate the ordering phase of sp2 and result in the formation of graphite [7], characterizing a smaller G band peak width [5]. Kuo et al. [17] estimated high temperatures (up to 300 °C) was achieved during frictional sliding at seismic slip rates and room-humidity conditions, accompanying the observed small width ratio of G bands and the presence of graphite. By contrast, water vaporization likely buffered the temperature increase (limited to less than 200 °C) and impeded the formation of graphite in the water-dampened experiments at seismic slip rates [27]. Therefore, Kuo et al. [17] suggested that transient high temperature pulses form graphite, showing a decreasing G band peak width ratio.
Similarly, our gouge samples, characterized by decreasing D1/G peak intensity ratio (Figure 2a; the Raman parameters and its interpretation are shown in grey color in Figure 2b) plus shift of G band peak position towards higher frequency (Figure 2b), showed the conversion of sp3-bond carbon (diamond-like carbon) into sp2-bond carbon (graphite-like carbon) and were likely graphitized by strain [3,23]. In addition, the smaller G peak width ratio of the gouge samples (Figure 2b), representing the increasingly crystallized CM (Figure 4d), was presumably derived from frictional heating produced by the seismic slip [17].
On the basis of the experimental conditions at which graphite forms [17], this suggests that the formation of graphite requires a certain amount of energy (strain and temperature) and at specific conditions, instead of high temperatures as suggested dominant parameters [6,8]. For instance, graphite was formed with the friction power density >4 MW/m2 [17] under water-deficient conditions, while at the same conditions the CM remain disordered with the friction power density ~0.15 MW/m2 [15,16]. In addition, integrated observation of the surface outcrop (the absence of graphite; [15]) and our results (the presence of graphite) suggest that frictional heat resulted from seismic slip can be efficiently generated at depth (e.g., higher effective normal stresses) and sufficiently triggers the graphitization of CM. Similar variation of frictional heating resulted from seismic slip along depth was observed in the Taiwan Chelungpu fault Drilling Project (TCDP) for the 1999 Chi-Chi Mw 7.6 earthquake: evidence of frictional heating derived from seismic slip was not found in the surface rupture of the Chelungpu fault [28,29], but was clearly obtained from the TCDP (e.g., [30,31,32,33,34]). Therefore, the state of gouge graphitization in our case, due to the stable structure of graphite, could be reliable evidence of ancient seismic faulting, if not due to precipitation from percolating thermal fluid [35]. It is notable that graphite within fault zones might be mechanically modified into relatively disorder graphite by brittle processes [36]. Indeed, findings from rock friction experiments suggest that graphitisation of CM in fault zones is a complex process [17,34,36].
Geological observation and rock friction experiments evidence that localization of slip and strain during an individual coseismic event forms a thin PSZ in depth ranging from a few hundred micrometers to a centimeter in thickness [37] and triggers physico-chemical processes [38], as was documented in the case in the nearby Mw 7.9 Wenchuan earthquake (e.g., graphitization within the ~200 μm-thick PSZ at the depth of 590 m; [16]). We integrated those features of the Wenchuan PSZ with the obtained microstructural and mineralogical characteristics of the CM-rich gouge from our study (Figure 3): localized shear strain seems to be heterogeneously distributed within the gouge zone because of the presence of widely distributed clusters of the D1/G intensity ratio (Figure 2a), presumably resulting from multiple seismic slips (Figure 2b and Figure 4d). Coincidentally, the recognized PSZ corresponding to the 2008 Mw 7.9 Wenchuan earthquake [11,12] has almost the smallest values of D1/G intensity ratio and G band peak width ratio and a high-frequency shifting of G band within the active fault zone (Figure 3). If so, dozens of similar characteristics of approximately 1 cm-scale gouge zones are observed within the gouge zone of the WFSD-1, likely illustrating the occurrence of multiple previous slip events like the 2008 Mw 7.9 Wenchuan earthquake.
CM and graphite, derived from the conversion of sp3-bond carbon into sp2-bond carbon and the formation of graphite, have been demonstrated as lubricants [39,40,41]. Although fault slip within the gouge zone in a single earthquake resulting in graphitization of CM may be only at local patches or at asperity contacts along a fault surface, the formation of graphitic CM within the gouge zone would likely reduce the fault’s resistance to slip [40] and facilitate the development of PSZs which is considered a precursor for future earthquake slip [42]. That may provide a plausible interpretation for the evidence of multiple seismic slips recorded within the CM-rich gouge of the WFSD-1. However, we are unable to distinguish the thickness of CM-rich gouge deformed by the single coseismic event and further estimate the event numbers with the observed cumulative deformation evidence. Further systematic rock friction experiments on the CM-rich gouge are required to decipher fault slip behaviors and the associated microstructural evolution of the graphitized CM-rich gouge.
In summary, compared to the breccia samples (less deformed during earthquakes), the graphitization of CM of the WFSD-1 gouge is commonly characterized by a decreasing D1/G peak intensity ratio, a shift of G band peak position towards higher frequency, and a smaller G peak width ratio. The graphitization of CM, as suggested from the rock friction experiments by Kuo et al. [17], was attributed to bulk shear strain and transient frictional heating; the latter is associated with the smaller G peak width ratio in Raman spectra and results in the formation of graphite. Importantly, the pervasive occurrence of the graphite within the active fault zone may represent multiple seismic slip records as the consequence of rapid coseismic faulting and may act as precursors for future earthquake slip in the tectonically active Longmenshan fault belt.

Author Contributions

L.-W.K. wrote the paper; L.-W.K. conceived the present idea and planned the experiments; J.-R.H. conducted the experiments; L.-W.K., and J.-R.H. analyzed the data; J.-N.F., J.S., S.-R.S., and H.L. contributed materials and analysis tools; E.-C.Y. took part to the discussion. L.-W.K. coordinated the study.

Funding

This research used materials provided by the “WFSD” of the National Science and Technology Planning Project. Part of this work was supported by the National Science Foundation of China (41572192, 41330211, 41520104006) to Haibing Li, and Taiwan ROC (Republic of China) Ministry of Science and Technology (MOST 105-2628-M-008-002-MY3) and NCU grants to Li-Wei Kuo.

Acknowledgments

We thank the two anonymous reviewers, and Editor Chen for their positive and constructive comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Buseck, P.R.; Beyssac, O. From organic matter to graphite: Graphitization. Elements 2014, 10, 421–426. [Google Scholar] [CrossRef]
  2. Rouzaud, J.-N.; Oberlin, A. Structure, microtexture, and optical properties of anthracene and saccharose-based carbons. Carbon 1989, 27, 517–529. [Google Scholar] [CrossRef]
  3. Ross, J.V.; Bustin, R.M. The role of strain energy in creep graphitization of anthracite. Nature 1990, 343, 58–60. [Google Scholar] [CrossRef]
  4. Bustin, R.M.; Ross, J.V.; Rouzaud, J.-N. Mechanisms of graphite formation from kerogen: Experimental evidence. Int. J. Coal Geol. 1995, 28, 1–36. [Google Scholar] [CrossRef]
  5. Beyssac, O.; Rouzaud, J.N.; Goffé, B.; Brunet, F.; Chopin, C. Graphitization in a high-pressure, low-temperature metamorphic gradient: A Raman microspectroscopy and HRTEM study. Contrib. Mineral. Petrol. 2002, 143, 19–31. [Google Scholar] [CrossRef]
  6. Beyssac, O.; Goffé, B.; Petitet, J.P.; Froigneux, E.; Moreau, M.; Rouzaud, J.N. On the characterization of disordered and heterogeneous carbonaceous materials by Raman spectroscopy. Spectroc. Acta Part A 2003, 59, 2267–2276. [Google Scholar] [CrossRef]
  7. Thomas, P.; Delbe, K.; Himmel, D.; Mansot, J.L.; Cadore, F.; Guerin, K. Tribological properties of low-temperature graphite fluorides. Influence of the structure on the lubricating performances. J. Phys. Chem. Solids 2006, 67, 1095–1099. [Google Scholar] [CrossRef]
  8. Barker, C.E.; Goldstein, R.H. Fluid-inclusion technique for determining maximum temperature in calcite and its comparison to the vitrinite reflectance geothermometer. Geology 1990, 18, 1003–1006. [Google Scholar] [CrossRef]
  9. Oohashi, K.; Hirose, T.; Kobayashi, K.; Shimamoto, T. The occurrence of graphite-bearing fault rocks in the Atotsugawa fault system, Japan: Origins and implications for fault creep. J. Struct. Geol. 2012, 38, 39–50. [Google Scholar] [CrossRef]
  10. Xu, X.; Wen, W.; Yu, G.; Klinger, Y.; Hubbard, J.; Shaw, J. Coseismic reverse- and oblique-slip surface faulting generated by the 2008 Mw7.9 Wenchuan earthquake, China. Geology 2009, 37, 515–518. [Google Scholar] [CrossRef]
  11. Li, H.; Wang, H.; Xu, Z.; Si, J.; Pei, J.; Li, T.; Huang, Y.; Song, S.-R.; Kuo, L.-W.; Sun, Z.; et al. Characteristics of the fault-related rocks, fault zones and the principal slip zone in the Wenchuan earthquake Fault Scientific Drilling Hole-1 (WFSD-1). Tectonophysics 2013, 584, 23–42. [Google Scholar] [CrossRef]
  12. Si, J.; Li, H.; Kuo, L.-W.; Pei, J.; Song, S.-R.; Wang, H. Clay mineral anomalies in the Yingxiu-Beichuan fault zone from the WFSD-1 drilling core and its implication for the faulting mechanism during the 2008 Wenchuan earthquake (Mw 7.9). Tectonophysics 2014, 619–620, 171–178. [Google Scholar] [CrossRef]
  13. Wang, H.; Li, H.; Si, J.; Sun, Z.; Huan, Y. Internal structures of the Wenchuan earthquake fault zone, revealed by surface outcrop and WFSD-1 drilling core investigation. Tectonophysics 2014, 619–620, 101–114. [Google Scholar] [CrossRef]
  14. Wang, Y.; Ma, S.; Shimamoto, T.; Yao, L.; Chen, J.; Yang, X.; He, H.; Dang, J.; Hou, L.; Togo, T. Internal structures and high-velocity frictional properties of Longmenshan fault zone at Shenxigou activated during the 2008 Wenchuan earthquake. Earth Sci. 2014, 27, 499–528. [Google Scholar] [CrossRef]
  15. Kouketsu, Y.; Shimizu, I.; Wang, Y.; Yao, L.; Ma, S.; Shimamoto, T. Raman spectra of carbonaceous materials in a fault zone in the Longmenshan thrust belt, China; comparisonswith those of sedimentary and metamorphic rocks. Tectonophysics 2017, 699, 129–145. [Google Scholar] [CrossRef]
  16. Kuo, L.-W.; Li, H.; Smith, S.A.F.; Di Toro, G.; Suppe, J.; Song, S.-R.; Nielsen, S.; Sheu, H.-S.; Si, J. Gouge graphitization and dynamic fault weakening during the 2008 Mw 7.9 Wenchuan earthquake. Geology 2014, 42, 47–50. [Google Scholar] [CrossRef]
  17. Kuo, L.-W.; Di Felice, F.; Spagnuolo, E.; Di Toro, G.; Song, S.-R.; Aretusini, S.; Li, H.; Suppe, J.; Si, J.; Wen, C.-Y. Fault gouge graphitization as evidence of past seismic slip. Geology 2017, 45, 979–982. [Google Scholar] [CrossRef]
  18. Li, H.; Xu, Z.; Niu, Y.; Kong, G.; Huang, Y.; Wang, H.; Si, J.; Sun, Z.; Pei, Z.; Gong, Z.; et al. Structural and physical property characterization in the Wenchuan earthquake Fault Scientific Drilling project-hole 1 (WFSD-1). Tectonophysics 2014, 619–620, 86–100. [Google Scholar] [CrossRef]
  19. Xue, L.; Li, H.; Brodsky, E.E.; Xu, Z.; Kano, Y.; Wang, H.; Mori, J.J.; Si, J.; Pei, J.; Zhang, W.; et al. Continuous permeability measurements record healing inside the Wenchuan earthquake fault zone. Science 2013, 340, 1555–1559. [Google Scholar] [CrossRef] [PubMed]
  20. Salver-Disma, F.; Tarascon, J.M.; Clinard, C.; Rouzaud, J.N. Transmission electron microscopy studies on carbon materials prepared by mechanical milling. Carbon 1995, 37, 1941–1959. [Google Scholar] [CrossRef]
  21. Sadezky, A.; Muckenhuber, H.; Grothe, H.; Niessner, R.; Poschl, U. Raman microspectroscopy of soot and related carbonaceous materials: Spectral analysis and structural information. Carbon 2005, 43, 1731–1742. [Google Scholar] [CrossRef]
  22. Furuichi, H.; Ujiie, K.; Kouketsu, Y.; Saito, T.; Tsutsumi, A.; Wallis, S. Vitrinite reflectance and Raman spectra of carbonaceous material as indicators of frictional heating on faults: Constraints from friction experiments. Earth Planet. Sci. Lett. 2015, 424, 191–200. [Google Scholar] [CrossRef]
  23. Lunsdorf, N.K.; Dunkl, I.; Schmidt, B.; Rantitsch, G.; von Eynatten, H. Towards a higher comparability of geothermometric data obtained by Raman spectroscopy of carbonaceous material. Part 1: Evaluation of biasing factors. Geostand. Geoanal. Res. 2014, 38, 73–94. [Google Scholar] [CrossRef]
  24. Lunsdorf, N.K.; Dunkl, I.; Schmidt, B.; Rantitsch, G.; von Eynatten, H. Towards a higher comparability of geothermometric data obtained by Raman spectroscopy of carbonaceous material. Part 2: A revised geothermometer. Geostand. Geoanal. Res. 2017, 41, 593–612. [Google Scholar] [CrossRef]
  25. Ferrari, A.C.; Robertson, J. Interpretation of Raman spectra of disordered and amorphous carbon. Phys. Rev. B: Condens. Matter Mater. Phys. 2000, 61, 14095–14107. [Google Scholar] [CrossRef]
  26. Pastewka, L.; Moser, S.; Gumbsch, P.; Moseler, M. Anisotropic mechanical amorphization drives wear in diamond. Nat. Mater. 2011, 10, 34–38. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, J.; Niemeijer, A.; Yao, L.; Ma, S. Water vaporization promotes coseismic fluid pressurization and buffers temperature rise. Geophys. Res. Lett. 2017, 44, 2177–2185. [Google Scholar] [CrossRef]
  28. Heermance, R.; Shipton, Z.K.; Evans, J.P. Fault structure control on fault slip and ground motion during the 1999 rupture of the Chelungpu Fault, Taiwan. Seismol. Soc. 2003, 93, 1034–1050. [Google Scholar] [CrossRef]
  29. Isaacs, A.J.; Evans, J.P.; Song, S.-R.; Kolesar, P.T. Structural, mineralogical, and geochemical characterization of the Chelungpu Thrust Fault, Taiwan. Terr. Atmos. Ocean. Sci. 2007, 18, 183–221. [Google Scholar] [CrossRef]
  30. Hirono, T.; Ikehara, M.; Otsuki, K.; Mishima, T.; Sakaguchi, M.; Soh, W.; Omori, M.; Lin, W.; Yeh, E.-C.; Tanikawa, W.; et al. Evidence of frictional melting within disk-shaped black materials discovered from the Taiwan Chelungpu fault system. Geophys. Res. Lett. 2006, 33, L19311. [Google Scholar] [CrossRef]
  31. Kano, Y.; Mori, J.; Fujio, R.; Ito, H.; Yanagidani, T.; Nakao, S.; Ma, K.F. Heat signature on the Chelungpu fault associated with the 1999 Chi-Chi, Taiwan earthquake. Geophys. Res. Lett. 2006, 33, L14306. [Google Scholar] [CrossRef]
  32. Kuo, L.-W.; Song, S.-R.; Yeh, E.-C.; Chen, H.-F. Clay mineral anomalies in the fault zone of the Chelungpu Fault, Taiwan, and their implications. Geophys. Res. Lett. 2009, 36, L18306. [Google Scholar] [CrossRef]
  33. Kuo, L.-W.; Song, Y.F.; Yang, C.M.; Song, S.-R.; Wang, C.C.; Dong, J.J.; Suppe, J.; Shimamoto, T. Ultrafine spherical quartz formation during seismic fault slip: Natural and experimental evidence and its implications. Tectonophysics 2015, 664, 98–108. [Google Scholar] [CrossRef]
  34. Chou, Y.-M.; Song, S.-R.; Aubourg, C.; Lee, T.-Q.; Boullier, A.-M.; Song, Y.-F.; Yeh, E.C.; Kuo, L.-W.; Wang, C.-Y. An earthquake slip zone is a magnetic recorder. Geology 2012, 40, 551–554. [Google Scholar] [CrossRef]
  35. Rumble, D. Hydrothermal graphitic carbon. Element 2014, 10, 427–433. [Google Scholar] [CrossRef]
  36. Kirilova, M.; Toy, V.; Rooney, J.S.; Giorgetti, C.; Gordon, K.C.; Collettini, C.; Takeshita, T. Structural disorder of graphite and implications for graphite thermometry. Solid Earth 2017, 9, 223–231. [Google Scholar] [CrossRef]
  37. Sibson, R.H. Thickness of the seismic slip zone. Seismol. Soc. 2003, 93, 1169–1178. [Google Scholar] [CrossRef]
  38. Di Toro, G.; Han, R.; Hirose, T.; De Paola, N.; Nielsen, S.; Mizoguchi, K.; Ferri, F.; Cocco, M.; Shimamoto, T. Fault lubrication during earthquakes. Nature 2011, 471, 494–498. [Google Scholar] [CrossRef] [PubMed]
  39. Kumar, N.; Dash, S.; Tyagi, A.K.; Raj, B. Super low to high friction of turbostratic graphite under various atmospheric test conditions. Tribol. Int. 2011, 22, 1969–1978. [Google Scholar] [CrossRef]
  40. Oohashi, K.; Hirose, T.; Shimamoto, T. Graphite as a lubricating agent in fault zones: An insight from low- to high-velocity friction experiments on a mixed graphite-quartz gouge. J. Geophys. Res. 2013, 118, 2067–2084. [Google Scholar] [CrossRef]
  41. Ma, T.-B.; Wang, L.-F.; Hu, Y.-Z.; Li, X.; Wang, H. A shear localization mechanism for lubricity of amorphous carbon materials. Sci. Rep. 2014, 4, 3662. [Google Scholar] [CrossRef] [PubMed]
  42. Ikari, M.J. Principle slip zone: Precursors but not recorders of earthquake slip. Geology 2015, 43, 955–958. [Google Scholar] [CrossRef]
Minerals 08 00385 g001

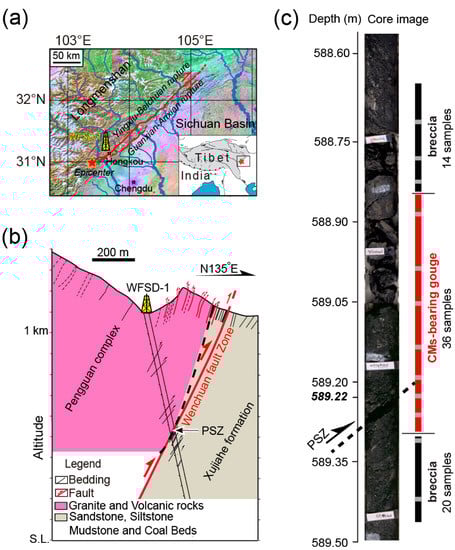

Figure 1. Geological setting of the 2008 Mw 7.9 Wenchuan earthquake, China, and location of the Wenchuan earthquake Fault Scientific Drilling project-1 (WFSD-1) drilling site, marking the major fault zone. (a) The 240 km-long Yingxiu–Beichuan surface rupture and the 80 km-long Guanxian–Anxian surface rupture associated with the Mw 7.9 earthquake along the margin of the Longmenshan fault belt, and the location of WFSD-1 drilling site. Red star represents epicenter of the main shock. Inset is a schematic plot of the Tibetan Plateau. (b) An E135° W cross section of the WFSD-1 showing the Wenchuan fault zone and surrounding formations encountered in the borehole [11]. The arrow indicating the principal slip zone active during the 2008 mainshock was identified in the borehole at 589.22 m depth and the images of fault core samples of the WFSD-1 was enlarged in the right panel as (c). (c) The core image exhibiting major portions of the Longmenshan fault along the borehole of WFSD-1 including breccia and gouge. Grey rectangles showing the location of samples analyzed by Kuo et al. [17].
Figure 1. Geological setting of the 2008 Mw 7.9 Wenchuan earthquake, China, and location of the Wenchuan earthquake Fault Scientific Drilling project-1 (WFSD-1) drilling site, marking the major fault zone. (a) The 240 km-long Yingxiu–Beichuan surface rupture and the 80 km-long Guanxian–Anxian surface rupture associated with the Mw 7.9 earthquake along the margin of the Longmenshan fault belt, and the location of WFSD-1 drilling site. Red star represents epicenter of the main shock. Inset is a schematic plot of the Tibetan Plateau. (b) An E135° W cross section of the WFSD-1 showing the Wenchuan fault zone and surrounding formations encountered in the borehole [11]. The arrow indicating the principal slip zone active during the 2008 mainshock was identified in the borehole at 589.22 m depth and the images of fault core samples of the WFSD-1 was enlarged in the right panel as (c). (c) The core image exhibiting major portions of the Longmenshan fault along the borehole of WFSD-1 including breccia and gouge. Grey rectangles showing the location of samples analyzed by Kuo et al. [17].
Minerals 08 00385 g001
Minerals 08 00385 g002

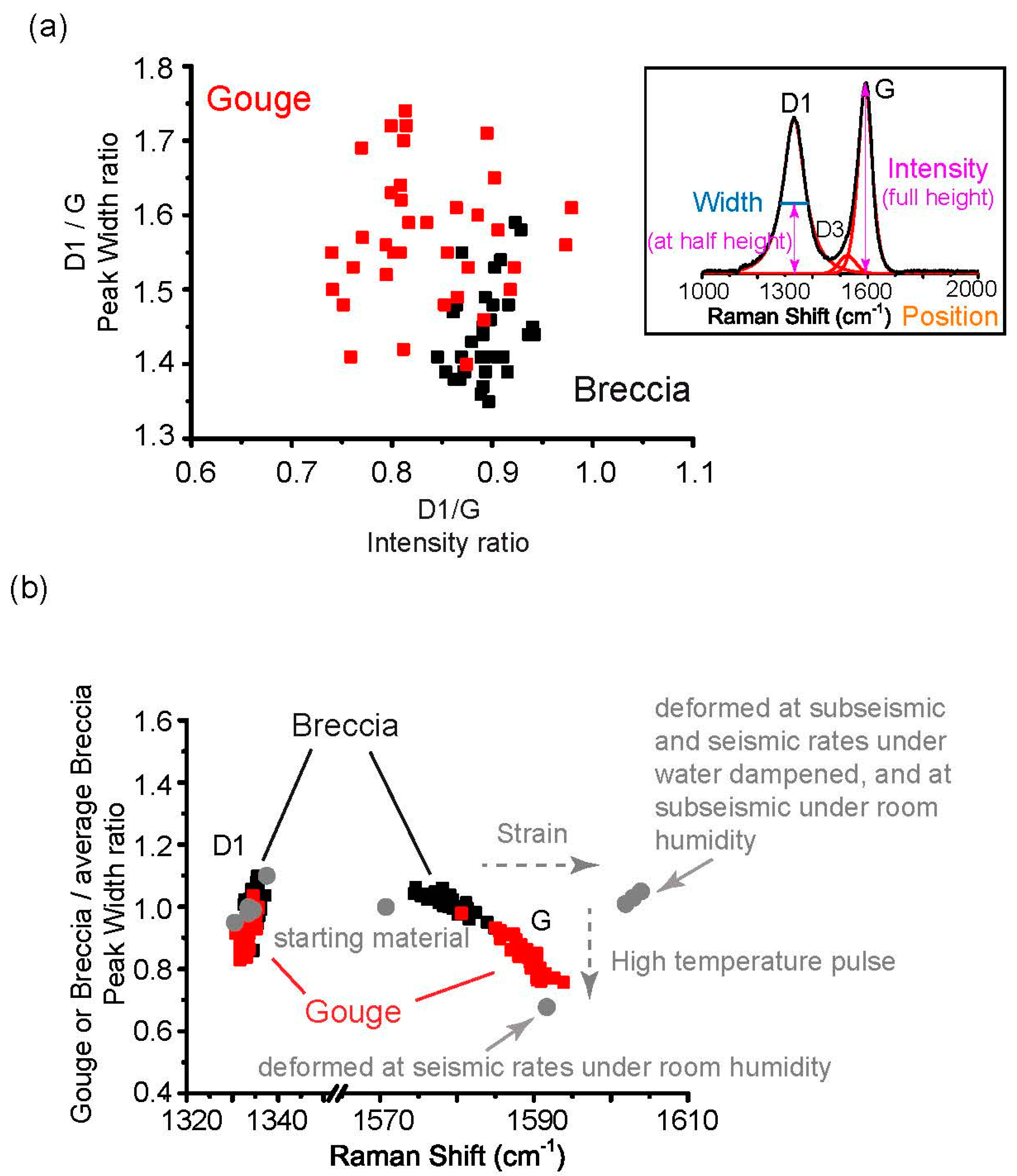

Figure 2. Raman spectra of WFSD-1 samples. (a) D1/G peak width ratio versus D1/G intensity ratio. The inset shows a representative first-order region of Raman spectrum and defines the indicative parameters derived from the relevant spectrum decomposition (width, intensity, peak position, etc.). (b) D1 or G peaks width of gouge over average breccia peak width versus D1 and G band peak position. Grey circles representing the experimental results obtained from Kuo et al. [17], and the grey dashed arrows showing the variation of Raman spectra after rock friction experiments under varied ambient conditions and slip rates, attributing to strain and high temperature pulses.
Figure 2. Raman spectra of WFSD-1 samples. (a) D1/G peak width ratio versus D1/G intensity ratio. The inset shows a representative first-order region of Raman spectrum and defines the indicative parameters derived from the relevant spectrum decomposition (width, intensity, peak position, etc.). (b) D1 or G peaks width of gouge over average breccia peak width versus D1 and G band peak position. Grey circles representing the experimental results obtained from Kuo et al. [17], and the grey dashed arrows showing the variation of Raman spectra after rock friction experiments under varied ambient conditions and slip rates, attributing to strain and high temperature pulses.
Minerals 08 00385 g002
Minerals 08 00385 g003

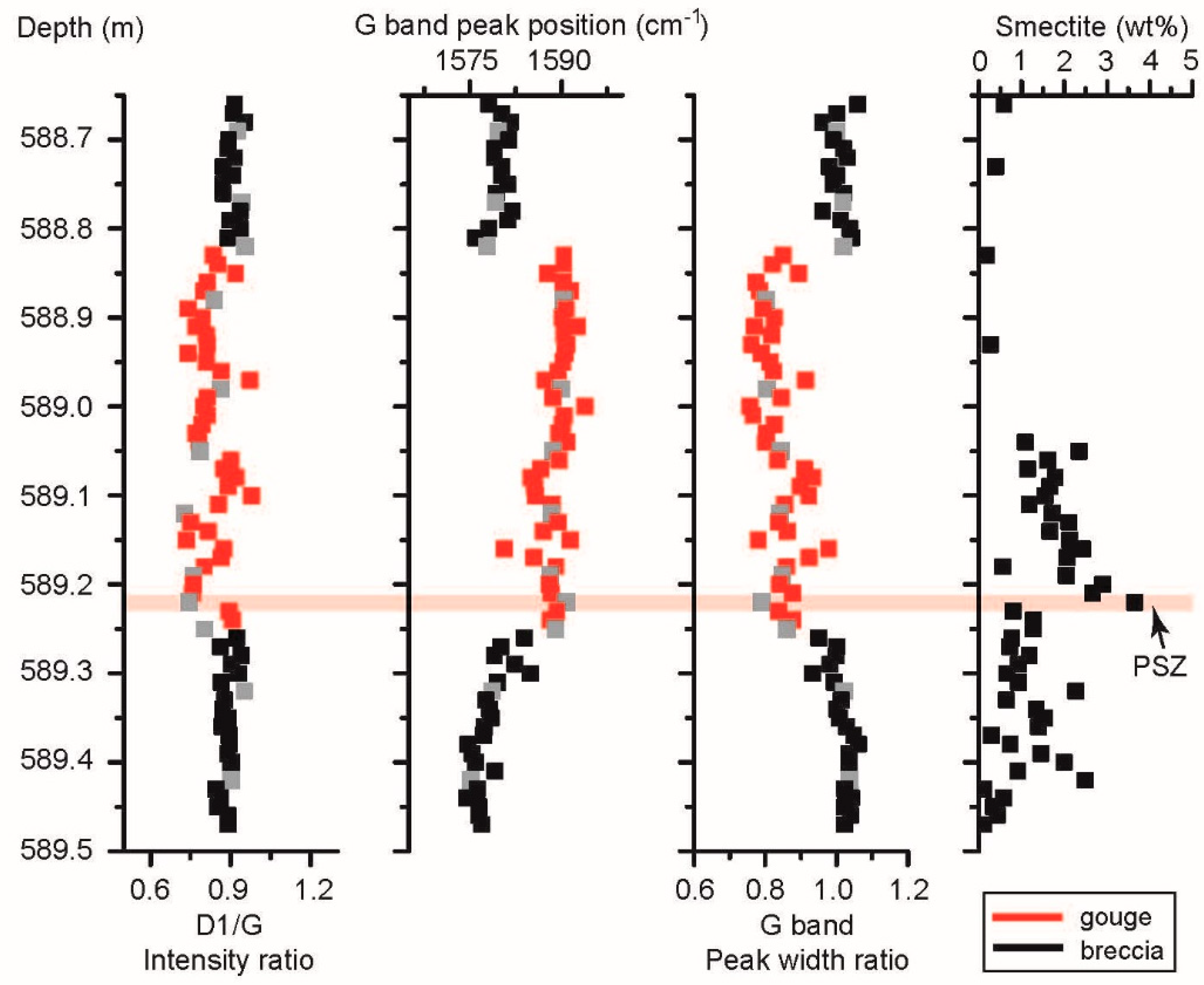

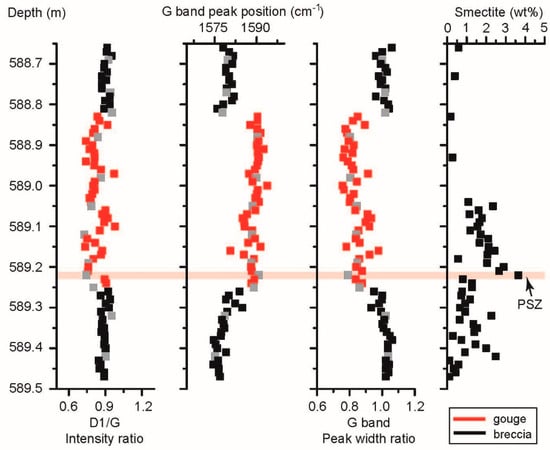

Figure 3. Raman spectra of WFSD-1 samples across the Wenchuan fault zone, including the recognized 2008 Mw 7.9 Wenchun principal slip zone (PSZ). Grey rectangles representing the location of analyzed samples by Kuo et al. [17]. The reported phyllosilicate mineral (the abundance of smectite; [12] Si et al., 2014) is integrated in the right panel, showing the location of the PSZ.
Figure 3. Raman spectra of WFSD-1 samples across the Wenchuan fault zone, including the recognized 2008 Mw 7.9 Wenchun principal slip zone (PSZ). Grey rectangles representing the location of analyzed samples by Kuo et al. [17]. The reported phyllosilicate mineral (the abundance of smectite; [12] Si et al., 2014) is integrated in the right panel, showing the location of the PSZ.
Minerals 08 00385 g003
Minerals 08 00385 g004
Figure 4. Microstructures of carbonaceous materials of both breccia (at the depth of 588.70 m) and gouge (at the depth of 589.23 m). (a,b) Poorly ordered carbon grains (see selected-area electron diffraction (SAED) patterns) within the breccia samples (transmission electron microscope (TEM) images). (c,d) poorly ordered to well crystallized carbon grains (see SAED patterns) within the gouge samples (TEM images).
Figure 4. Microstructures of carbonaceous materials of both breccia (at the depth of 588.70 m) and gouge (at the depth of 589.23 m). (a,b) Poorly ordered carbon grains (see selected-area electron diffraction (SAED) patterns) within the breccia samples (transmission electron microscope (TEM) images). (c,d) poorly ordered to well crystallized carbon grains (see SAED patterns) within the gouge samples (TEM images).
Minerals 08 00385 g004
Minerals 08 00385 g005aMinerals 08 00385 g005b

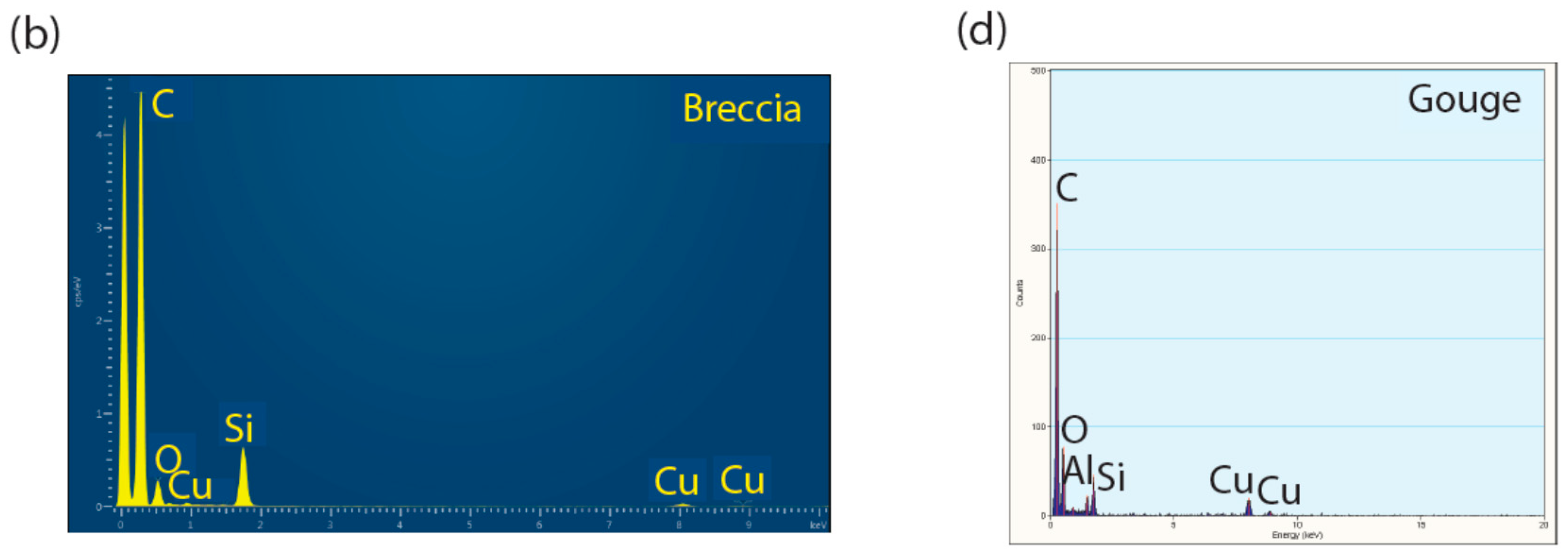

Figure 5. TEM energy-dispersive X-ray spectroscopy (TEM-EDX) analyses on breccia samples and gouge samples. (a,b) TEM-EDX of the breccia samples showing that the selected-area electron diffraction (SAED; Figure 4a,b in the main text) is on-average composed of carbon (91.2 and 95.07 wt%, respectively) as the dominant element, whereas sub-elements are copper (0.98 and 0.49 wt%, respectively) (TEM grid), silicon (4.9 and 4.4 wt%, respectively) and aluminum (2.92 and 0.04 wt%, respectively). (c,d) TEM-EDX of the gouge samples showing that the SAED (Figure 4c,d in the main text) comprises of on-average carbon (87 and 93 wt%, respectively) as the dominant element, whereas sub-elements are oxygen (8 and 4.9 wt%, respectively), silicon (2.5 and 0.6 wt%, respectively), and aluminum (2.5 and 1.5 wt%, respectively).
Figure 5. TEM energy-dispersive X-ray spectroscopy (TEM-EDX) analyses on breccia samples and gouge samples. (a,b) TEM-EDX of the breccia samples showing that the selected-area electron diffraction (SAED; Figure 4a,b in the main text) is on-average composed of carbon (91.2 and 95.07 wt%, respectively) as the dominant element, whereas sub-elements are copper (0.98 and 0.49 wt%, respectively) (TEM grid), silicon (4.9 and 4.4 wt%, respectively) and aluminum (2.92 and 0.04 wt%, respectively). (c,d) TEM-EDX of the gouge samples showing that the SAED (Figure 4c,d in the main text) comprises of on-average carbon (87 and 93 wt%, respectively) as the dominant element, whereas sub-elements are oxygen (8 and 4.9 wt%, respectively), silicon (2.5 and 0.6 wt%, respectively), and aluminum (2.5 and 1.5 wt%, respectively).
Minerals 08 00385 g005aMinerals 08 00385 g005b
Table 1. Results of spectra decomposition along the depths for breccia and gouge of the active Wenchuan earthquake fault zone from the WFSD-1.
Table 1. Results of spectra decomposition along the depths for breccia and gouge of the active Wenchuan earthquake fault zone from the WFSD-1.
TypeDepth (m)D1/G intensity
(Error Estimate ±0.06)		D1/G Width Ratio
(Error Estimate ±0.09)		Peak Position (cm−1)Gouge or Breccia/
Average Breccia
D1GD1G
Breccia588.660.921.48133615781.11.1
Breccia588.670.911.41133515801.01.0
Breccia588.680.951.28133515820.91.0
Breccia588.700.891.49133715811.01.0
Breccia588.710.891.37133615791.01.0
Breccia588.720.911.39133615791.01.0
Breccia588.730.871.39133515800.91.0
Breccia588.740.911.54133515801.11.0
Breccia588.750.871.55133615811.11.0
Breccia588.760.871.39133415791.01.0
Breccia588.770.941.44133515791.01.0
Breccia588.790.901.46133615811.01.0
Breccia588.800.941.44133615781.01.0
Breccia588.810.891.36133415761.01.0
Gouge588.830.831.59133415900.950.85
Gouge588.840.851.48133315900.850.82
Gouge588.850.921.5133415880.940.89
Gouge588.860.811.7133115900.920.77
Gouge588.870.801.63133315910.890.79
Gouge588.890.741.5133215910.830.79
Gouge588.900.791.52133315900.870.82
Gouge588.910.771.69133315930.910.77
Gouge588.920.811.62133315900.930.82
Gouge588.930.811.72133115910.910.76
Gouge588.940.741.55133215910.850.79
Gouge588.950.811.64133315900.930.81
Gouge588.960.861.61133415890.920.82
Gouge588.970.971.56133615871.000.91
Gouge588.990.811.42133315890.840.85
Gouge589.000.801.72133415940.910.76
Gouge589.010.811.74133215900.930.77
Gouge589.020.791.56133315900.900.82
Gouge589.030.771.57133215900.880.80
Gouge589.040.891.6133315910.900.80
Gouge589.060.901.65133515900.960.83
Gouge589.070.881.53133515870.970.91
Gouge589.080.921.53133415851.000.93
Gouge589.090.891.46133415860.910.90
Gouge589.100.981.61133415861.040.92
Gouge589.110.851.55133315880.930.85
Gouge589.130.751.48133315890.860.84
Gouge589.140.821.59133215870.950.86
Gouge589.150.811.55133215910.840.78
Gouge589.160.871.4133315810.960.98
Gouge589.170.871.49133415850.960.92
Gouge589.180.801.55133415890.930.86
Gouge589.200.761.53133315880.900.84
Gouge589.210.761.41133415880.860.88
Gouge589.230.891.71133415891.000.84
Gouge589.240.911.58133515880.970.88
Breccia589.260.921.59133415841.061.0
Breccia589.270.861.47133515801.031.0
Breccia589.280.941.45133415791.011.0
Breccia589.290.901.53133615821.051.0
Breccia589.300.931.58133415851.020.9
Breccia589.310.861.48133415791.021.0
Breccia589.330.881.43133515781.011.0
Breccia589.340.871.41133415780.991.0
Breccia589.350.891.41133415780.991.0
Breccia589.360.871.38133515770.991.0
Breccia589.370.891.39133515771.021.0
Breccia589.380.901.35133315751.001.1
Breccia589.390.891.41133315751.021.0
Breccia589.400.901.41133415761.021.0
Breccia589.410.901.48133615791.071.0
Breccia589.430.851.41133415761.011.0
Breccia589.440.861.38133315741.011.0
Breccia589.450.851.39133315760.991.0
Breccia589.460.891.45133415771.051.0
Breccia589.470.891.44133415771.031.0
