Next Article in Journal
Mining-Related Selenium Contamination in Alaska, and the State of Current Knowledge
Next Article in Special Issue
Possible Involvement of Permian Phosphoria Formation Oil as a Source of REE and Other Metals Associated with Complex U-V Mineralization in the Northern Bighorn Basin?
Previous Article in Journal
Effect of CaF2/CaO Composite Additive on Roasting of Vanadium-Bearing Stone Coal and Acid Leaching Kinetics
Previous Article in Special Issue
Influence of Temperature on the Formation of Ag Complexed in a S2O32−–O2 System
Open AccessArticle

Recycling Y and Eu from Waste Fluorescent Powder and High Temperature Solid-State Synthesis of Y2O3:Eu Phosphors

1
School of Resources and Environmental Engineering, Wuhan University of Technology, Wuhan 430070, China
2
School of Chemistry and Life Science, Hubei University of Education, Wuhan 430205, China
*
Author to whom correspondence should be addressed.
Academic Editor: Radostina G. Atanassova
Minerals 2017, 7(3), 44; https://doi.org/10.3390/min7030044
Received: 11 January 2017 / Revised: 15 March 2017 / Accepted: 15 March 2017 / Published: 20 March 2017
(This article belongs to the Special Issue Mineral Resources and the Environment)

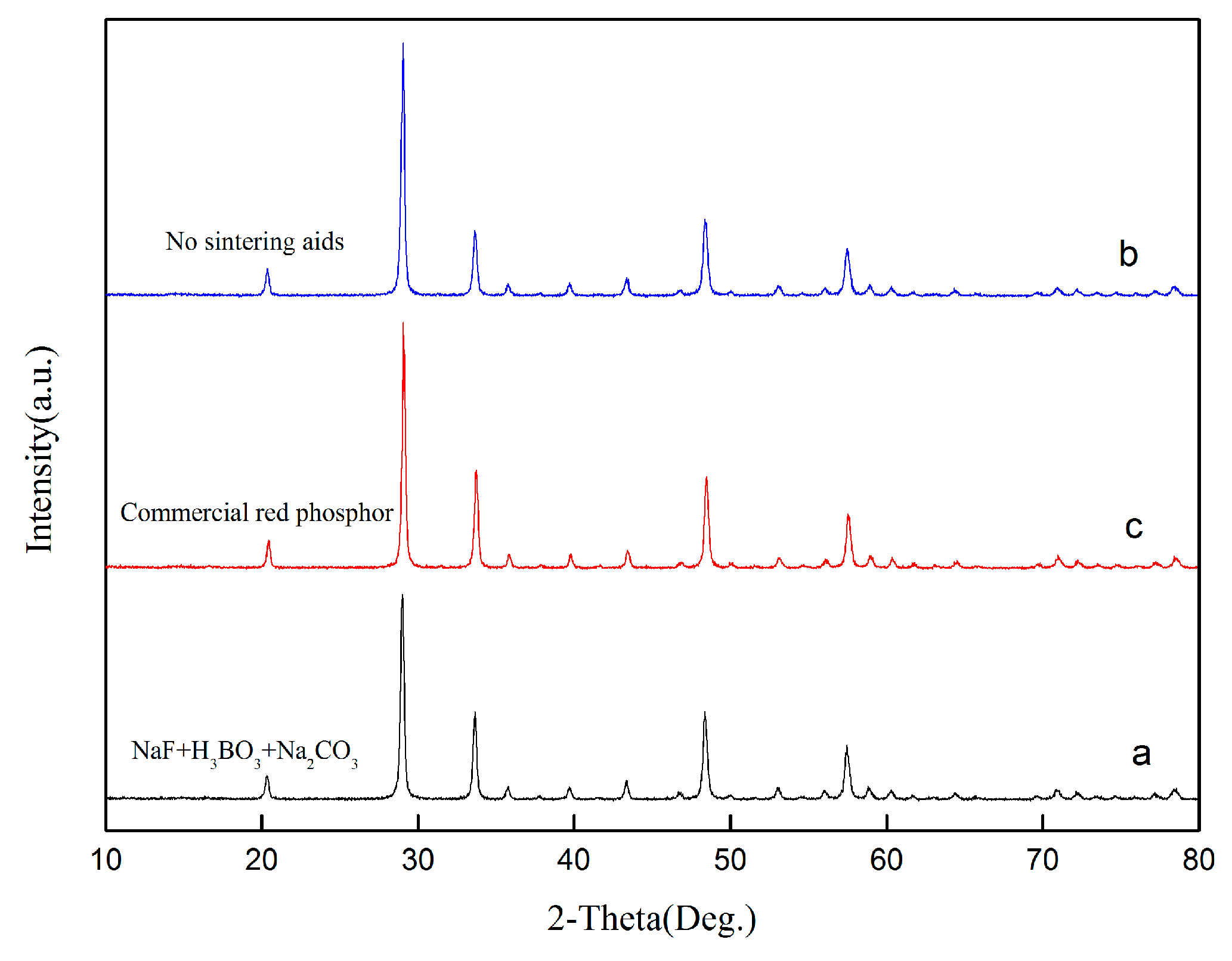

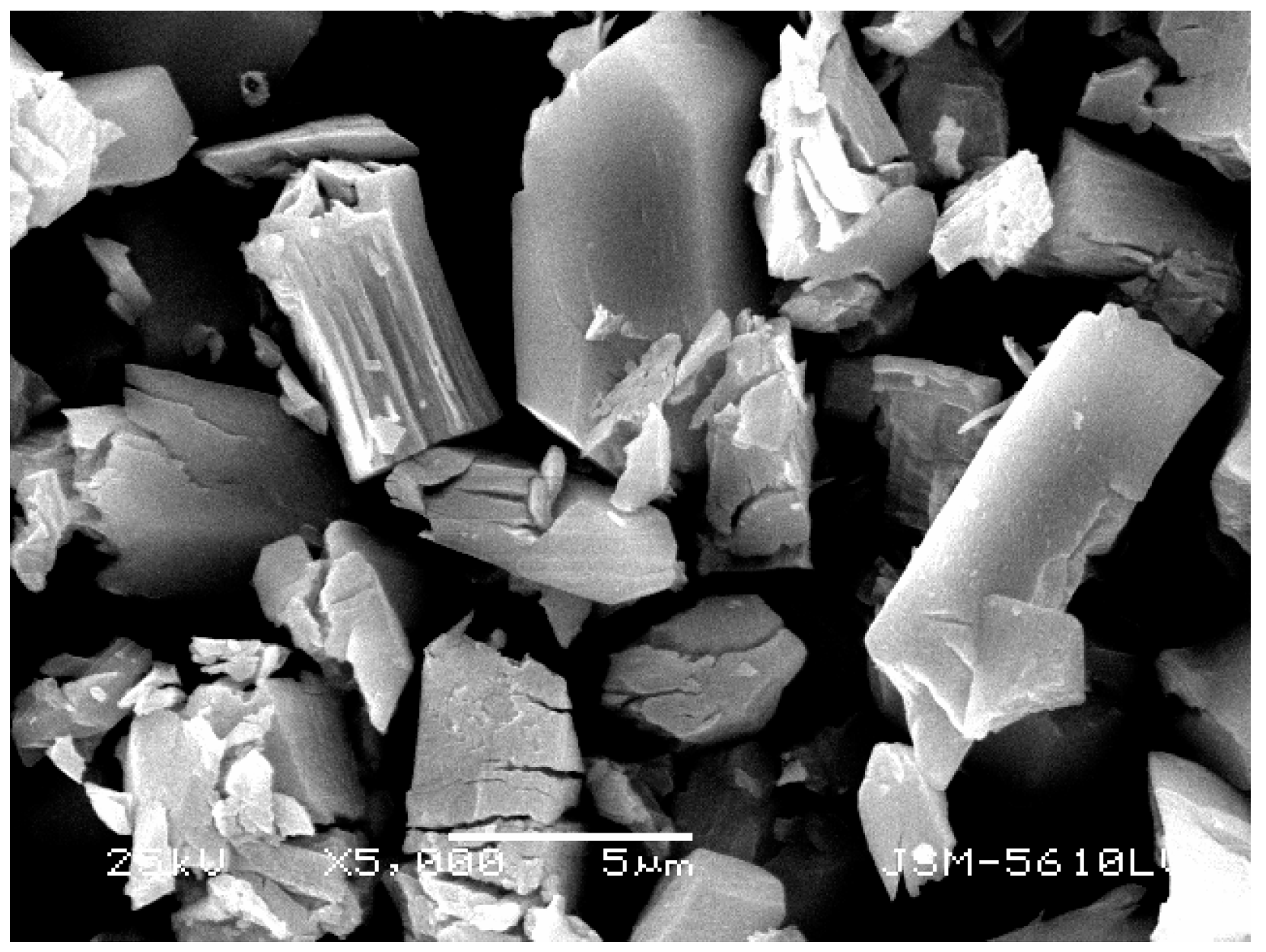

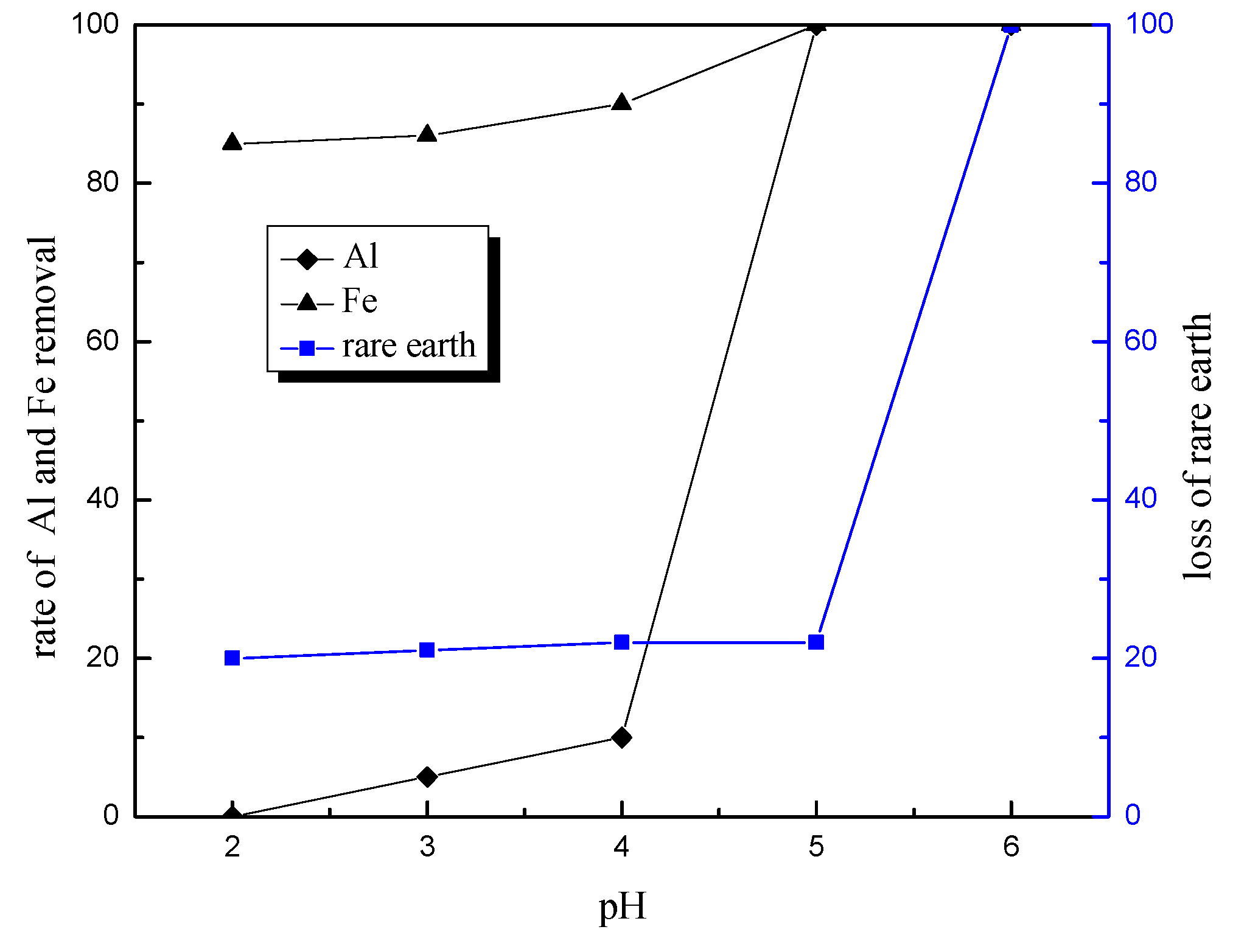

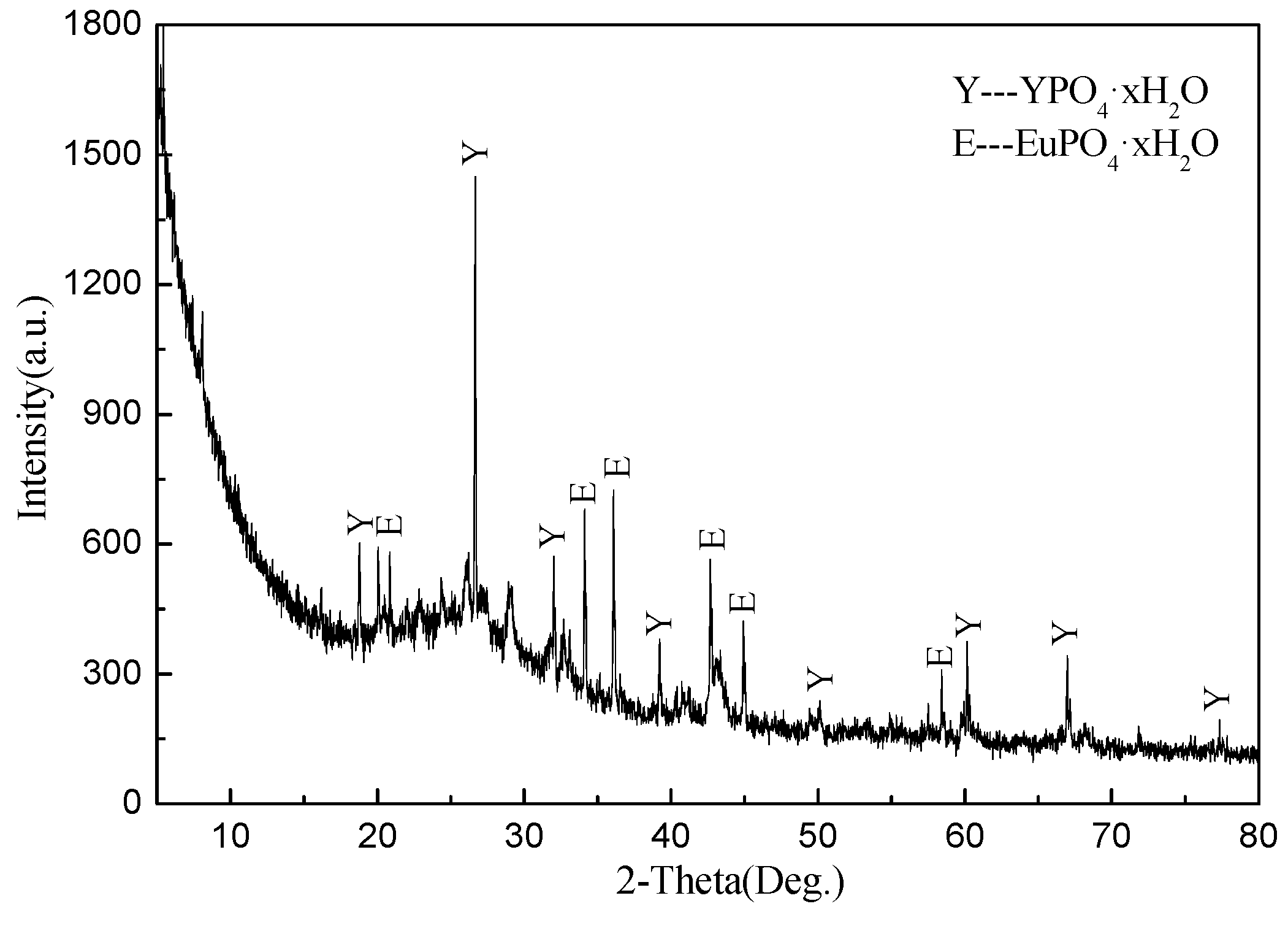

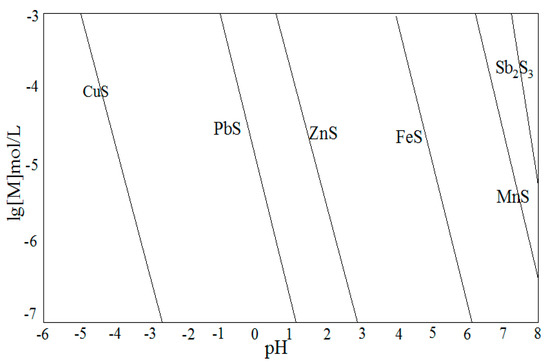

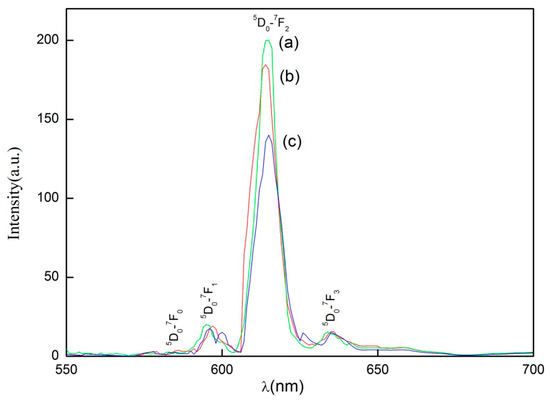

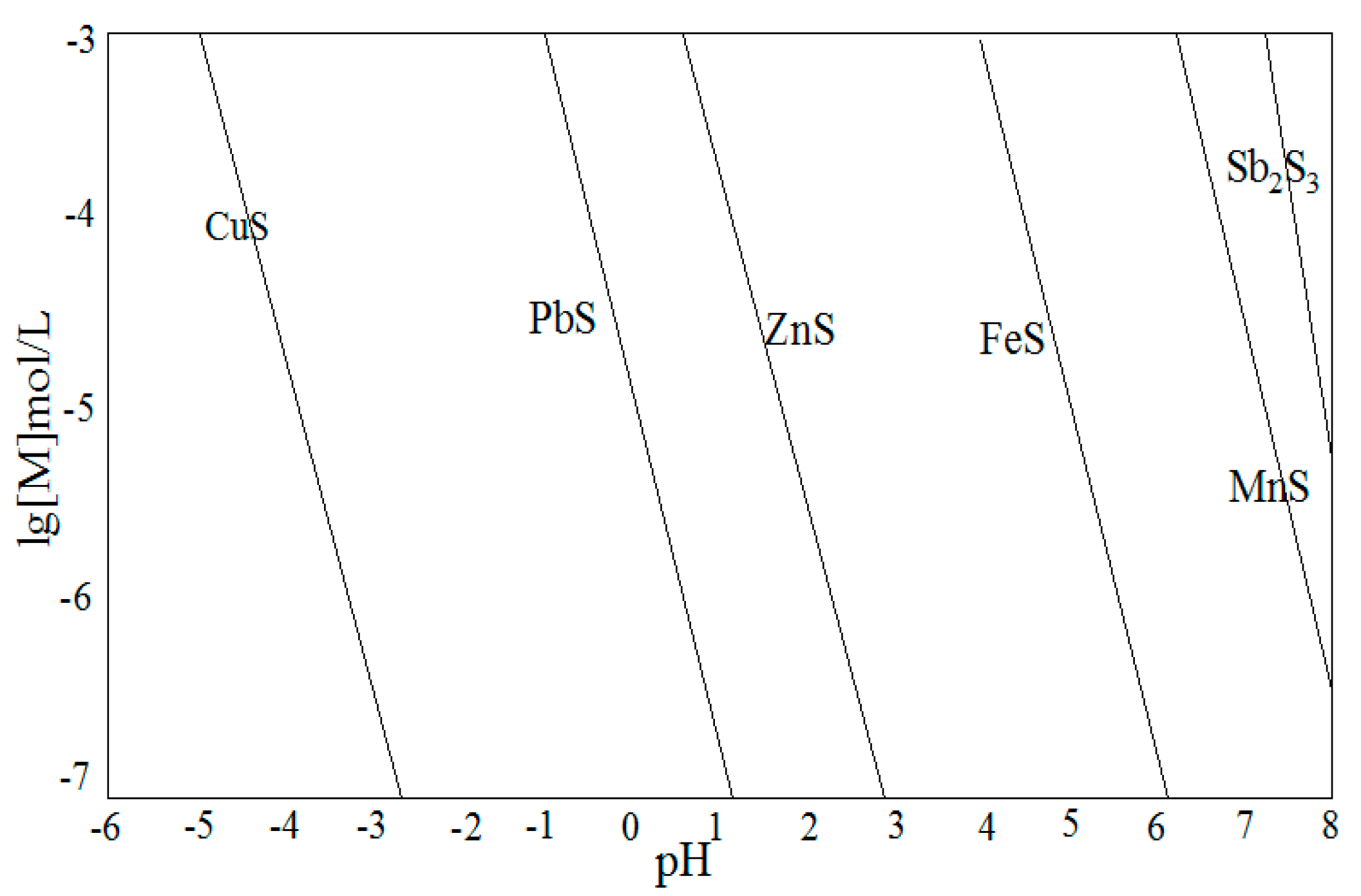

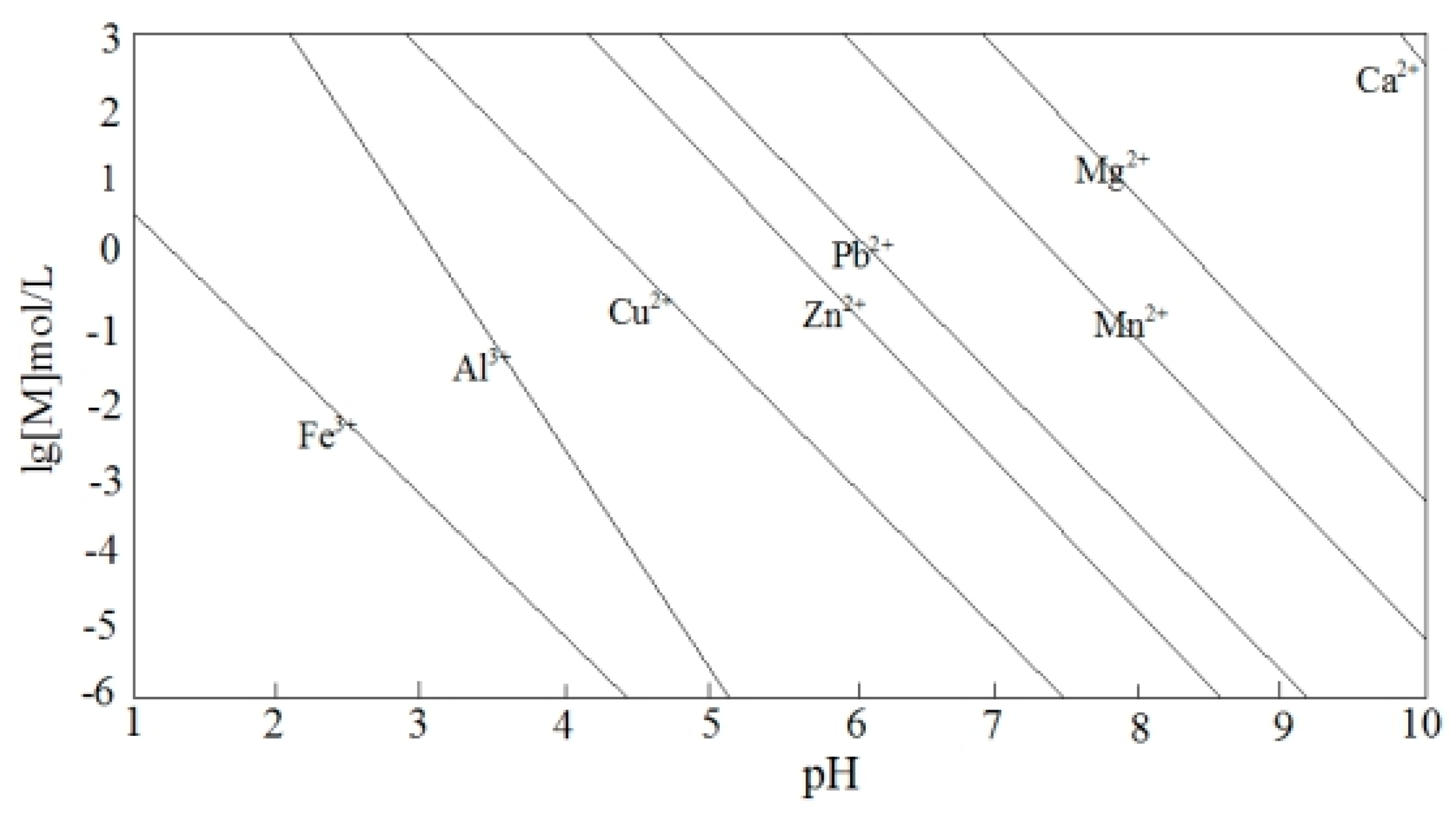

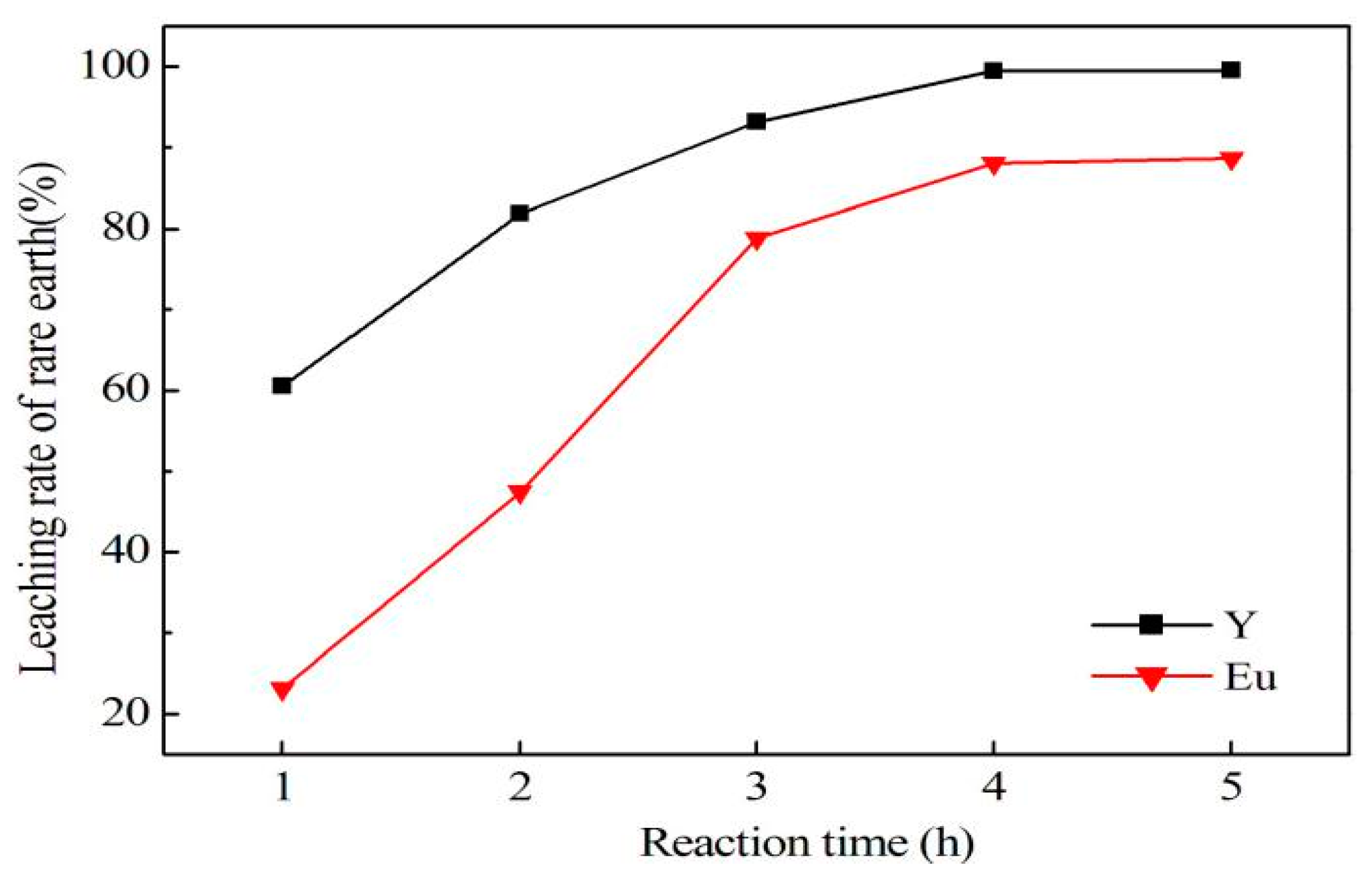

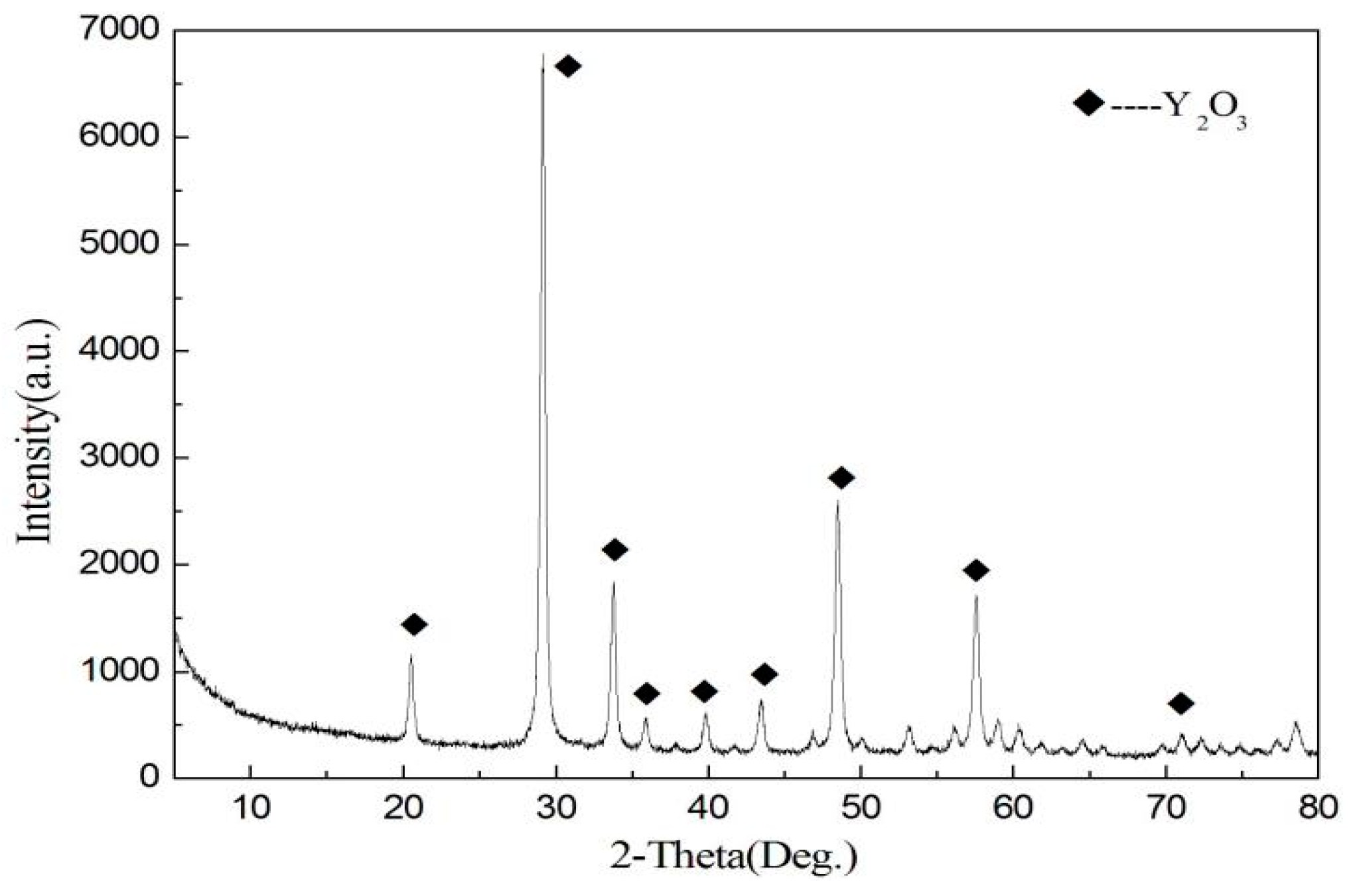

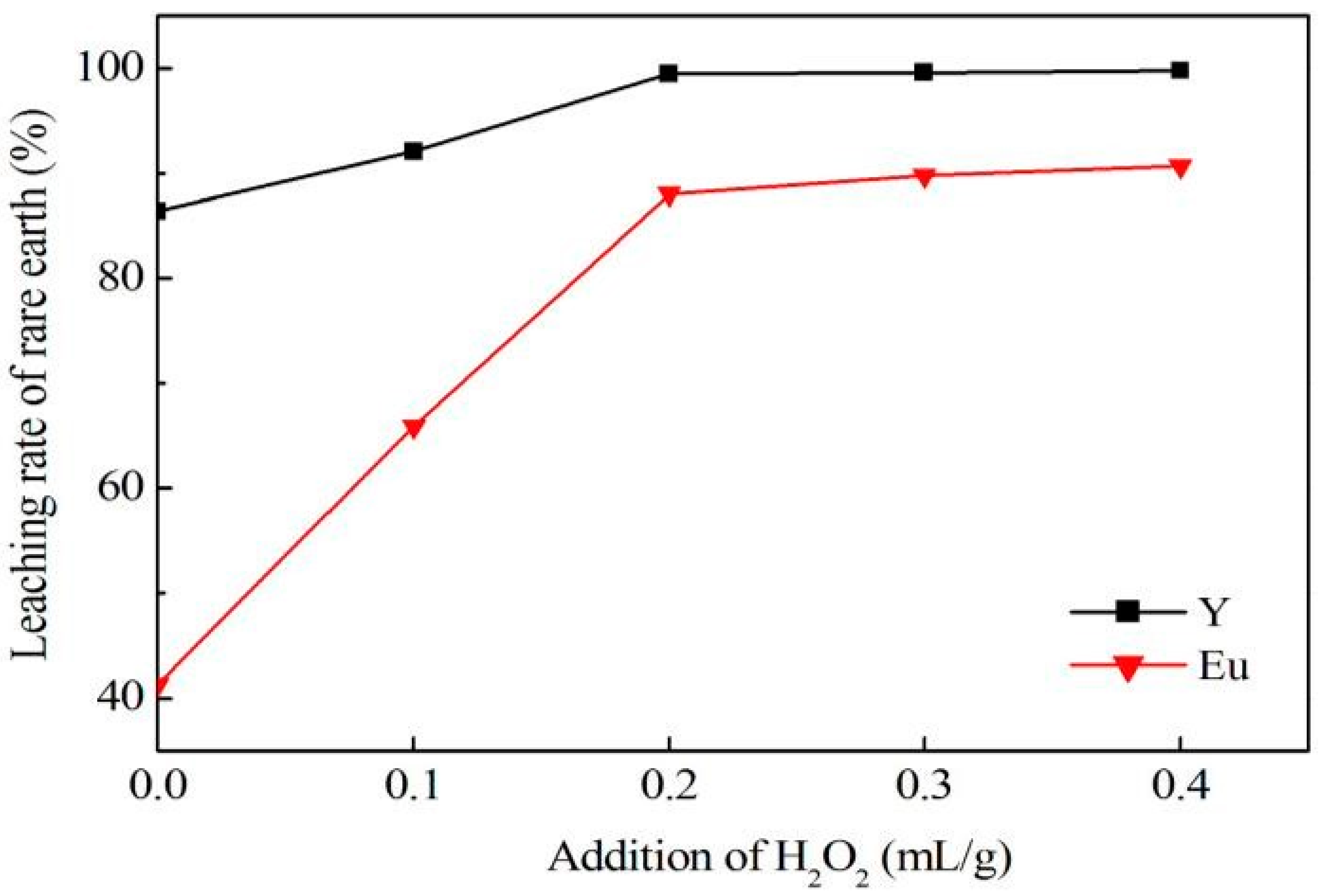

Y2O3:Eu were prepared through precursors synthesized by leaching tests, removing impurities, enrichment of Y and Eu from residual purified liquors, annealing treatment, and high temperature solid-state reaction method, which is the most suitable for large-scale production. The analysis of product shows that the purity is 99.42%. The resultant powders were characterized by X-ray diffraction (XRD), differential thermal analysis (TG-DTA), scanning electron microscope (SEM), and photoluminescence (PL). Compared with the commercial phosphors, the XRD spectrum of the product samples revealed the synthesized particles to have a pure cubic Y2O3:Eu structure without any impurities in the crystalline phase. On the morphology, the Y2O3:Eu particles synthesized by a combustion and high temperature solid state process with sintering aids, were large and uniform. For luminescence property, the emission intensity of Y2O3:Eu phosphors synthesized by combustion process and high temperature solid state process with sintering aids were higher than those without sintering aids, at 1400 °C. View Full-Text
Keywords: waste fluorescent powder; leaching; impurities removal; synthesis; Y2O3:Eu particles waste fluorescent powder; leaching; impurities removal; synthesis; Y2O3:Eu particles
Show Figures

Figure 1

MDPI and ACS Style

Chen, X.; Liu, N.; Mei, G.; Yu, M. Recycling Y and Eu from Waste Fluorescent Powder and High Temperature Solid-State Synthesis of Y2O3:Eu Phosphors. Minerals 2017, 7, 44.

AMA Style

Chen X, Liu N, Mei G, Yu M. Recycling Y and Eu from Waste Fluorescent Powder and High Temperature Solid-State Synthesis of Y2O3:Eu Phosphors. Minerals. 2017; 7(3):44.

Chicago/Turabian Style

Chen, Xiaodong; Liu, Nian; Mei, Guangjun; Yu, Mingming. 2017. "Recycling Y and Eu from Waste Fluorescent Powder and High Temperature Solid-State Synthesis of Y2O3:Eu Phosphors" Minerals 7, no. 3: 44.

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
