# Potential of Phase-Amplitude-Based Multi-Scale Full Waveform Inversion with Total-Variation Regularization for Seismic Imaging of Deep-Seated Ores

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Review of Full Waveform Inversion

## 3. PAFWI with Total-Variation Regularization

## 4. Numerical Test

#### 4.1. The PAFWI Adjoint Sources

#### 4.2. Ore-Hosting Model Test

#### 4.3. TV Parameter Test

#### 4.4. Noise Testing

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

## Appendix B

## Appendix C

## References

- Malehmir, A.; Schmelzbach, C.; Bongajum, E.; Bellefleur, G.; Juhlin, C.; Tryggvason, A. 3D constraints on a possible deep > 2.5 km massive sulphide mineralization from 2D crooked-line seismic reflection data in the Kristineberg mining area, northern Sweden. Tectonophysics
**2009**, 479, 223–240. [Google Scholar] [CrossRef] - Malehmir, A.; Dahlin, P.; Lundberg, E.; Juhlin, C.; Sjöström, H.; Högdahl, K. Reflection seismic investigations in the Dannemora area, central Sweden: Insights into the geometry of polyphase deformation zones and magnetite-skarn deposits. J. Geophys. Res. Solid Earth
**2011**, 116, B11307. [Google Scholar] [CrossRef] - Malehmir, A.; Durrheim, R.; Bellefleur, G.; Urosevic, M.; Juhlin, C.; White, D.J.; Milkereit, B.; Campbell, G. Seismic methods in mineral exploration and mine planning: A general overview of past and present case histories and a look into the future. Seismic methods for mineral exploration. Geophysics
**2012**, 77, WC173–WC190. [Google Scholar] [CrossRef][Green Version] - Place, J.; Malehmir, A.; Högdahl, K.; Juhlin, C.; Nilsson, K.P. Seismic characterization of the Grangesberg iron deposit and its mining-induced structures, central Sweden. Interpret. J. Subsurf. Charact.
**2015**, 3, Sy41–Sy56. [Google Scholar] - Malehmir, A.; Wang, S.; Lamminen, J.; Brodic, B.; Bastani, M.; Vaittinen, K.; Juhlin, C.; Place, J. Delineating structures controlling sandstone-hosted base-metal deposits using high-resolution multicomponent seismic and radio-magnetotelluric methods: A case study from Northern Sweden. Geophys. Prospect.
**2015**, 63, 774–797. [Google Scholar] [CrossRef] - Malehmir, A.; Donoso, G.; Markovic, M.; Maries, G.; Araujo, V. Smart Exploration: From legacy data to state-of-the-art data acquisition and imaging. First Break
**2019**, 37, 71–74. [Google Scholar] [CrossRef] - Singh, B.; Malinowski, M.; Hloušek, F.; Koivisto, E.; Heinonen, S.; Hellwig, O.; Buske, S.; Chamarczuk, M.; Juurela, S. Sparse 3D Seismic Imaging in the Kylylahti Mine Area, Eastern Finland: Comparison of Time Versus Depth Approach. Minerals
**2019**, 9, 305. [Google Scholar] [CrossRef][Green Version] - Bräunig, L.; Buske, S.; Malehmir, A.; Bäckström, E.; Schön, M.; Marsden, P. Seismic depth imaging of iron-oxide deposits and their host rocks in the Ludvika mining area of central Sweden. Geophys. Prospect.
**2020**, 68, 24–43. [Google Scholar] [CrossRef][Green Version] - Lailly, P.; Bednar, J. The seismic inverse problems as a sequence of before stack migration. In Proceedings of the Conference on Inverse Scattering Theory and Application, Society of Industrial and Applied Mathematics, Tulsa, OK, USA, 16–18 May 1983; pp. 206–220. [Google Scholar]
- Tarantola, A. Inversion of seismic reflection data in the acoustic approximation. Geophysics
**1984**, 49, 1259–1266. [Google Scholar] [CrossRef] - Plessix, R.E. A review of the adjoint-state method for computing the gradient of a functional with geophysical applications. Geophys. J. Int.
**2006**, 167, 495–503. [Google Scholar] [CrossRef] - Pratt, R.G.; Shin, C.; Hicks, G.J. Gauss-Newton and full Newton methods in frequency-space seismic waveform inversion. Geophys. J. Int.
**1998**, 133, 341–362. [Google Scholar] [CrossRef] - Alkhalifah, T. Full Waveform Inversion in an Anisotropic World: Where are the Parameters Hiding? EAGE Publication: London, UK, 2016; ISBN 9789462822023. [Google Scholar]
- Sun, H.-Y.; Han, L.-G.; Han, M.; Wang, Z.-Q. Elastic full waveform inversion based on visibility analysis and energy compensation for metallic deposit exploration. Chin. J. Geophys.
**2015**, 58, 4605–4616. [Google Scholar] - Mao, B.; Han, L.; Hu, Y.; Zhang, P. Low-frequency seismic data reconstruction based similarity phenomenon for metal mine full waveform inversion in frequency domain. Chin. J. Geophys.
**2019**, 62, 4010–4019. [Google Scholar] - Xing, Z.; Han, L.; Hu, Y.; Zhang, X.; Yin, Y. Full waveform inversion based on normalized energy spectrum objective function. Chin. J. Geophys.
**2019**, 62, 2645–2659. [Google Scholar] - Singh, B.; Górszczyk, A.; Malehmir, A.; Hlousek, F.; Buske, S.; Sito, L.; Marsden, P. 3D Velocity Model Building in Hardrock Environment Using FWI: A Case Study from Blötberget Mine, Sweden. In Proceedings of the NSG2020 3rd Conference on Geophysics for Mineral Exploration and Mining, Belgrade, Srbija, 30 August–3 September 2020; pp. 1–5. [Google Scholar]
- Zhang, F.; Zhang, P.; Xu, Z.; Gong, X.; Han, L. Multisource Seismic Full Waveform Inversion of Metal Ore Bodies. Minerals
**2022**, 12, 4. [Google Scholar] [CrossRef] - Shin, C.; Cha, Y.H. Waveform inversion in the Laplace domain. Geophys. J. Int.
**2008**, 173, 922–931. [Google Scholar] [CrossRef][Green Version] - Virieux, J.; Operto, S. An overview of full-waveform inversion in exploration geophysics. Geophysics
**2009**, 74, WCC127–WCC152. [Google Scholar] [CrossRef] - Hu, Y.; Han, L.; Xu, Z.; Zhang, F.; Zeng, J. Adaptive multi-step full waveform inversion based on waveform mode decomposition. J. App. Geophys.
**2017**, 139, 195–210. [Google Scholar] [CrossRef] - Warner, M.; Guasch, L. Adaptive waveform inversion: Theory. Geophysics
**2016**, 81, R429–R445. [Google Scholar] [CrossRef][Green Version] - Chi, B.X.; Dong, L.G.; Liu, Y.Z. Full waveform inversion method using envelope objective function without low frequency data. J. Appl. Geophy.
**2014**, 109, 36–46. [Google Scholar] [CrossRef] - Wu, R.S.; Luo, J.R.; Wu, B.Y. Seismic envelope inversion and modulation signal model. Geophysics
**2014**, 79, WA13–WA24. [Google Scholar] [CrossRef] - Wu, R.; Chen, G. New Fréchet derivative for envelope data and multi-scale envelope inversion. In Proceedings of the 79th EAGE Conference and Exhibition, Paris, France, 12–15 June 2017. [Google Scholar]
- Wu, R.-S.; Chen, G.-X. Multi-scale seismic envelope inversion using a direct envelope Fréchet derivative for strong-nonlinear full waveform inversion. arXiv
**2018**, arXiv:1808.05275. [Google Scholar] - Zhang, P.; Han, L.; Zhang, F.; Feng, Q.; Chen, X. Wavefield Decomposition-Based Direct Envelope Inversion and Structure-Guided Perturbation Decomposition for Salt Building. Minerals
**2021**, 11, 919. [Google Scholar] [CrossRef] - Fichtner, A.B.; Kennett, L.N.; Igel, H.; Bunge, H. Theoretical background for continental- and global-scale full-waveform inversion in the time-frequency domain. Geophys. J. Int.
**2008**, 175, 665–685. [Google Scholar] [CrossRef][Green Version] - Bozdağ, E.J.; Trampert, T.J. Misfit functions for full waveform inversion based on instantaneous phase and envelope measurements. Geophys. J. Int.
**2011**, 185, 845–870. [Google Scholar] [CrossRef] - Choi, Y.; Alkhalifah, T. Unwrapped phase inversion with an exponential damping. Geophysics
**2015**, 80, 251–264. [Google Scholar] [CrossRef][Green Version] - Luo, J.; Wu, R.-S.; Gao, F. Time-domain full waveform inversion using instantaneous phase information with damping. J. Geophys. Eng.
**2018**, 15, 1032. [Google Scholar] [CrossRef][Green Version] - Hu, Y.; Wu, R.-S.; Han, L.-G.; Zhang, P. Joint Multiscale Direct Envelope Inversion of Phase and Amplitude in the Time–Frequency Domain. IEEE Trans. Geosci. Rem. Sen.
**2019**, 57, 5108–5120. [Google Scholar] [CrossRef] - Hu, Y.; Han, L.; Wu, R.; Xu, Y. Multi-scale time-frequency domain full waveform inversion with a weighted local correlation-phase misfit function. J. Geophys. Eng.
**2019**, 16, 1017–1031. [Google Scholar] [CrossRef][Green Version] - Hu, Y.; Wu, R.S.; Huang, X.; Long, Y.; Xu, Y.; Han, L.G. Phase-amplitude-based polarized direct envelope inversion in the time-frequency domain. Geophysics
**2022**, 87, R245–R260. [Google Scholar] [CrossRef] - Bednar, J.B.; Shin, C.; Pyun, S. Comparison of waveform inversion, part 2: Phase approach. Geophys. Prosp.
**2007**, 55, 465–475. [Google Scholar] [CrossRef] - Van Leeuwen, T.; Mulder, W.A. A correlation-based misfit criterion for wave-equation traveltime tomography. Geophys. J. Int.
**2010**, 182, 1383–1394. [Google Scholar] [CrossRef][Green Version] - Liu, Y.; Teng, J.; Xu, T.; Wang, Y.; Liu, Q.; Badal, J. Robust time-domain full waveform inversion with normalized zero-lag cross-correlation objective function. Geophys. J. Int.
**2016**, 209, 106–122. [Google Scholar] [CrossRef][Green Version] - Oh, J.-W.; Alkhalifah, T. Full waveform inversion using envelope-based global correlation norm. Geophys. J. Int.
**2018**, 213, 815–823. [Google Scholar] [CrossRef][Green Version] - Zhang, Z.; Alkhalifah, T.; Wu, Z.; Liu, Y.; He, B.; Oh, J. Normalized nonzero-lag crosscorrelation elastic full-waveform inversion. Geophysics
**2018**, 84, R15–R24. [Google Scholar] - Hu, Y.; Chen, T.; Fu, L.-Y.; Wu, R.-S.; Xu, Y.; Han, L.; Huang, X. A 2-D Local Correlative Misfit for Least-Squares Reverse Time Migration With Sparsity Promotion. IEEE Trans. Geosci. Rem. Sens.
**2022**, 60, 5911913. [Google Scholar] [CrossRef] - Zhu, H.; Fomel, S. Building good starting models for full-waveform inversion using adaptive matching filtering misfit. Geophysics
**2016**, 81, U61–U72. [Google Scholar] [CrossRef] - Sun, B.; Alkhalifah, T. Adaptive Traveltime Inversion. Geophysics
**2019**, 84, U13–U29. [Google Scholar] [CrossRef] - Sun, B.; Alkhalifah, T.A. Joint Minimization of the Mean and Information Entropy of the Matching Filter Distribution for a Robust Misfit Function in Full-Waveform Inversion. IEEE Trans. Geosci. Rem. Sens.
**2020**, 58, 4704–4720. [Google Scholar] [CrossRef][Green Version] - Kalita, M.; Kazei, V.; Choi, Y.; Alkhalifah, T. Regularized full-waveform inversion with automated salt-flooding. Geophysics
**2019**, 84, R569–R582. [Google Scholar] [CrossRef][Green Version] - Lian, Y.; Lv, Q.; Han, L.; Zhao, J. The Research of Seismic Modeling in Complex Metal Ore Region-Take Luzong Luohe-NiheDabaozhuang Deposits for an Example. Acta Geol. Sin.
**2011**, 85, 887–899. [Google Scholar]

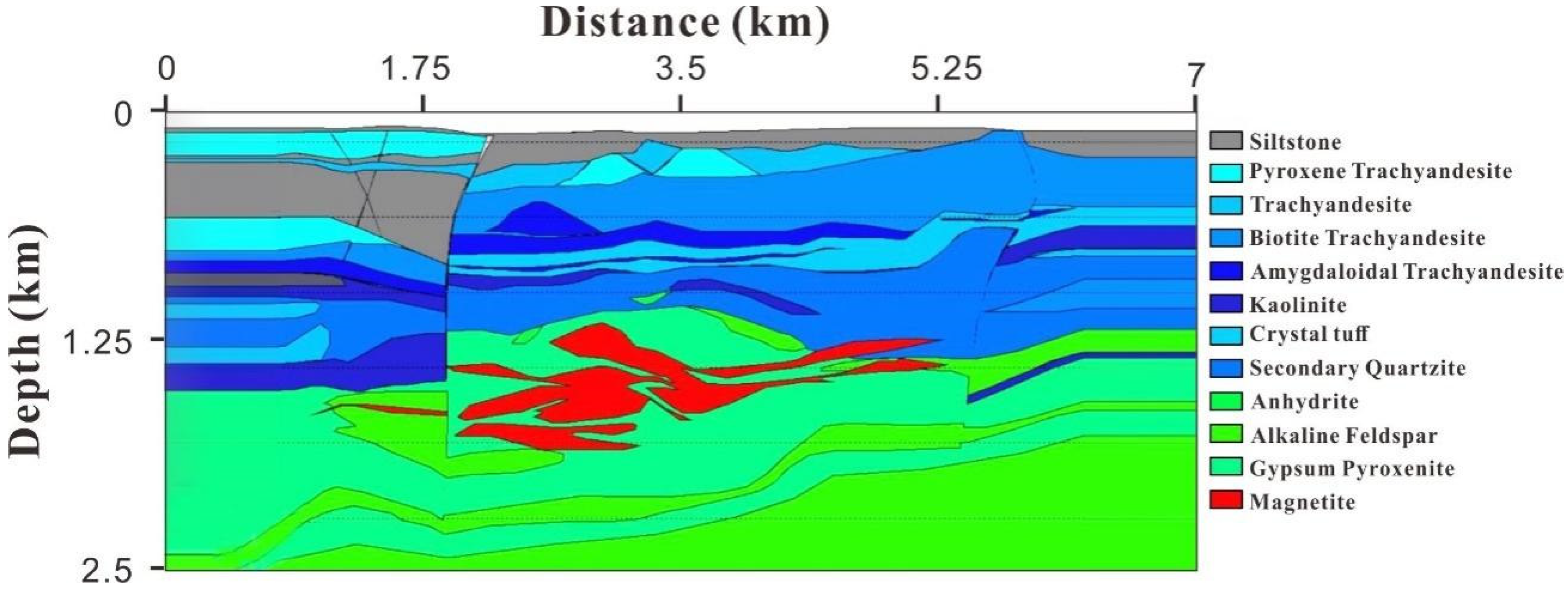

**Figure 1.**A complex ore-hosting velocity model which is modified from a geological model in the Luzong Basin, China (Sun et al., 2015 [14]).

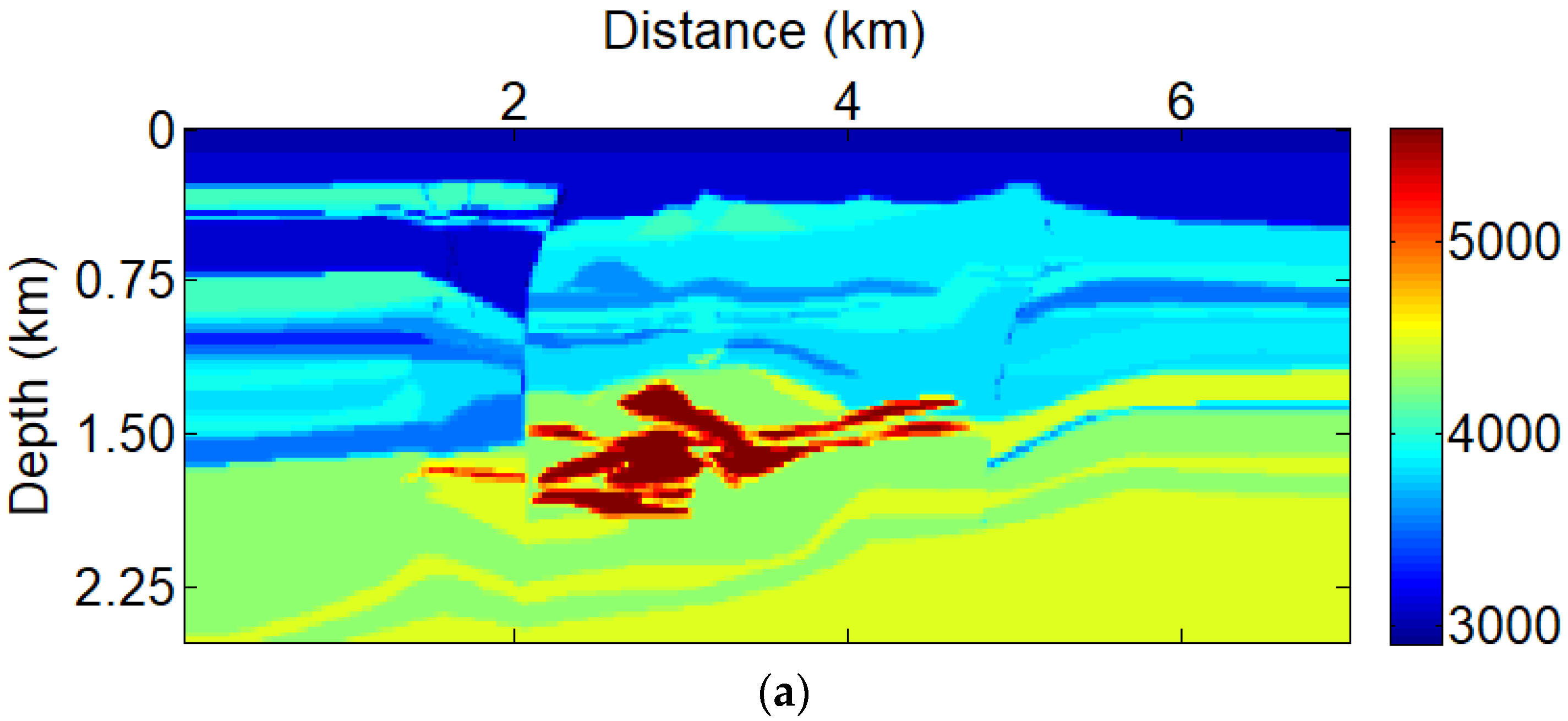

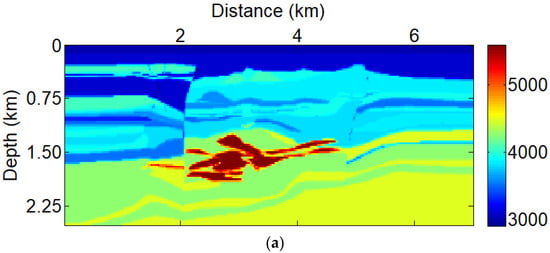

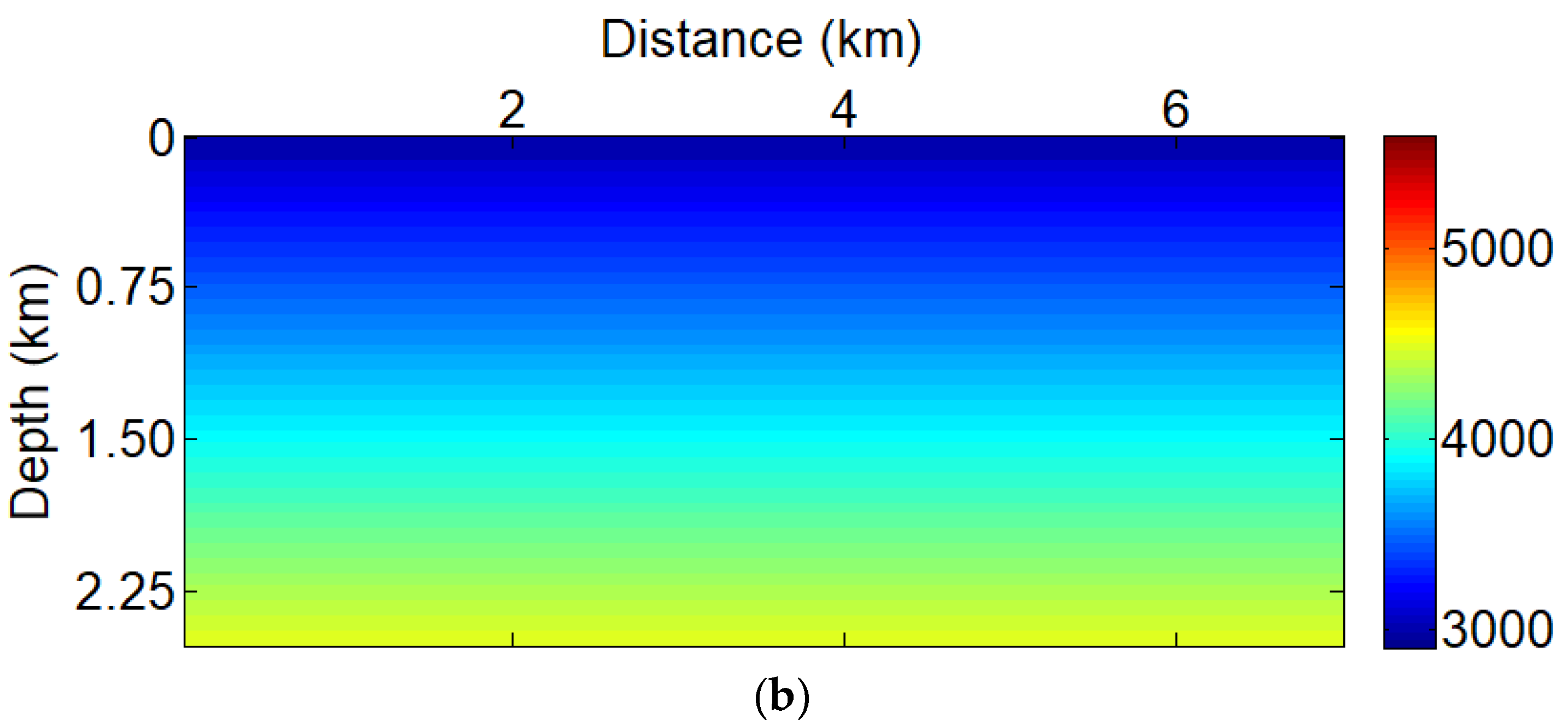

**Figure 2.**Velocity model consists of multiple ore bodies; (

**a**) Ore-hosting velocity model; (

**b**) Initial velocity model.

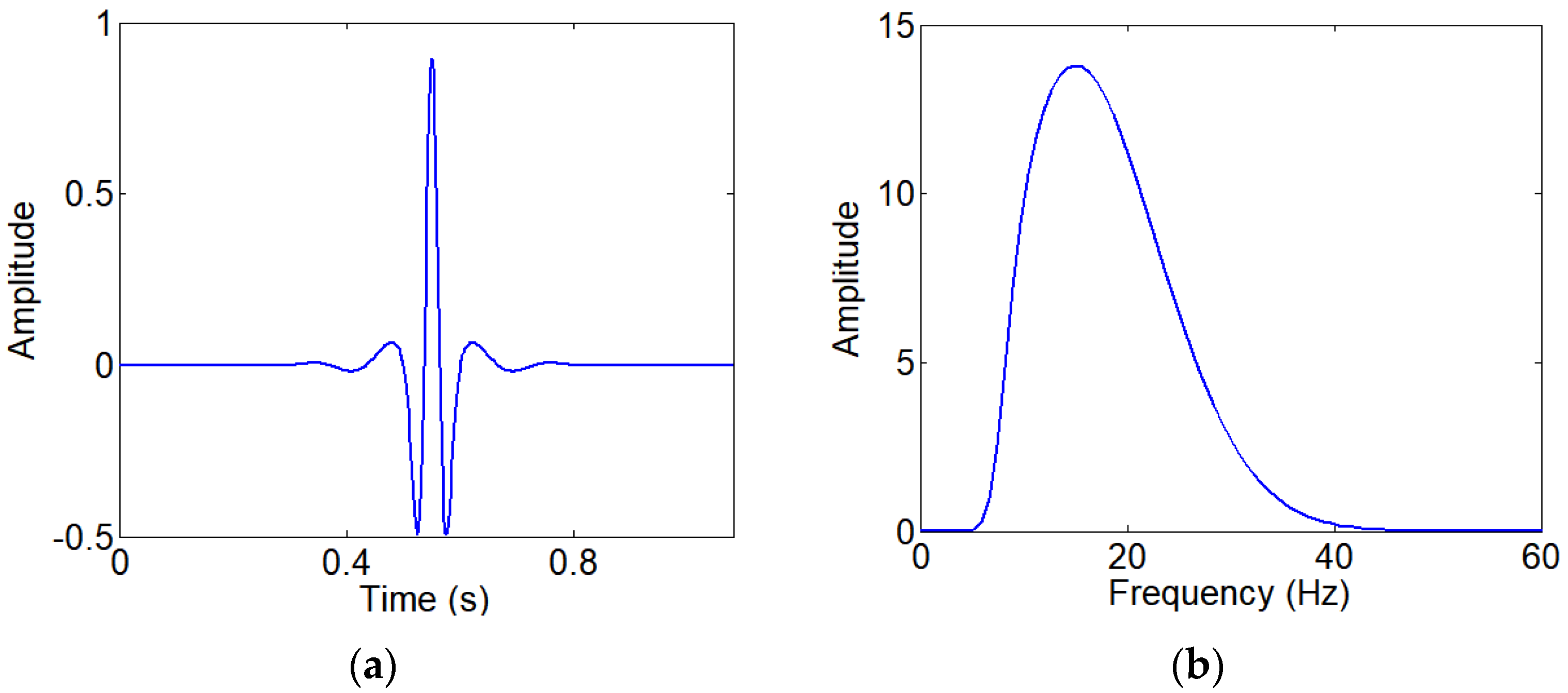

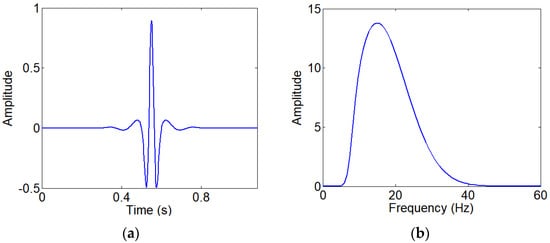

**Figure 3.**Seismic source function; (

**a**) A low-cut 6 Hz Ricker wavelet; (

**b**) The spectrum of the low-cut Ricker wavelet.

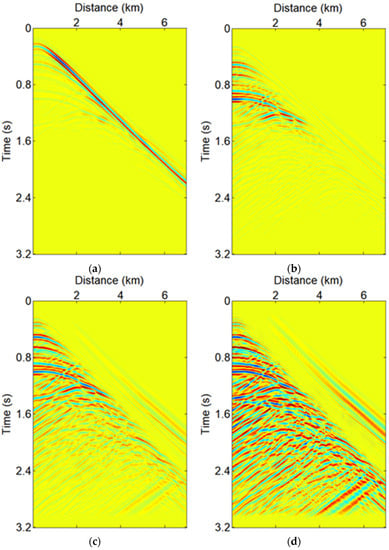

**Figure 4.**Adjoint sources with different amplitude factors; (

**a**) p = 1, which is the traditional FWI method; (

**b**) p = 0.6; (

**c**) p = 0.3; (

**d**) p = 0.

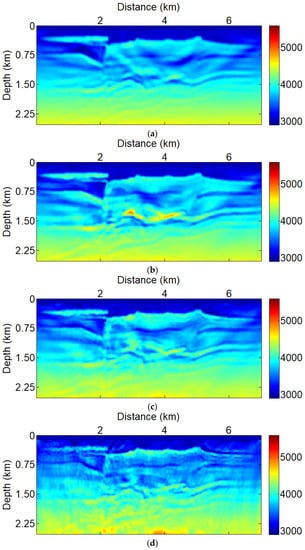

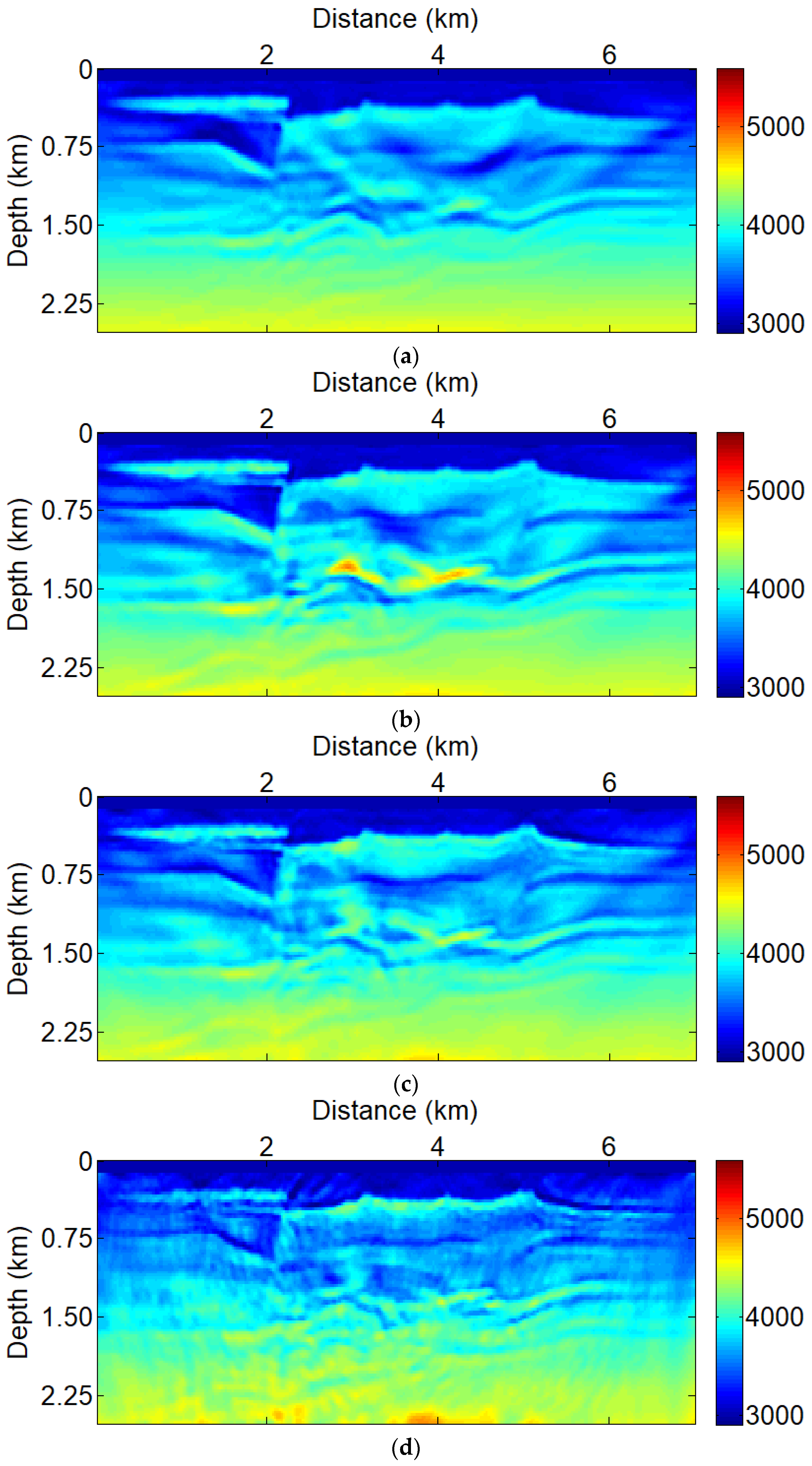

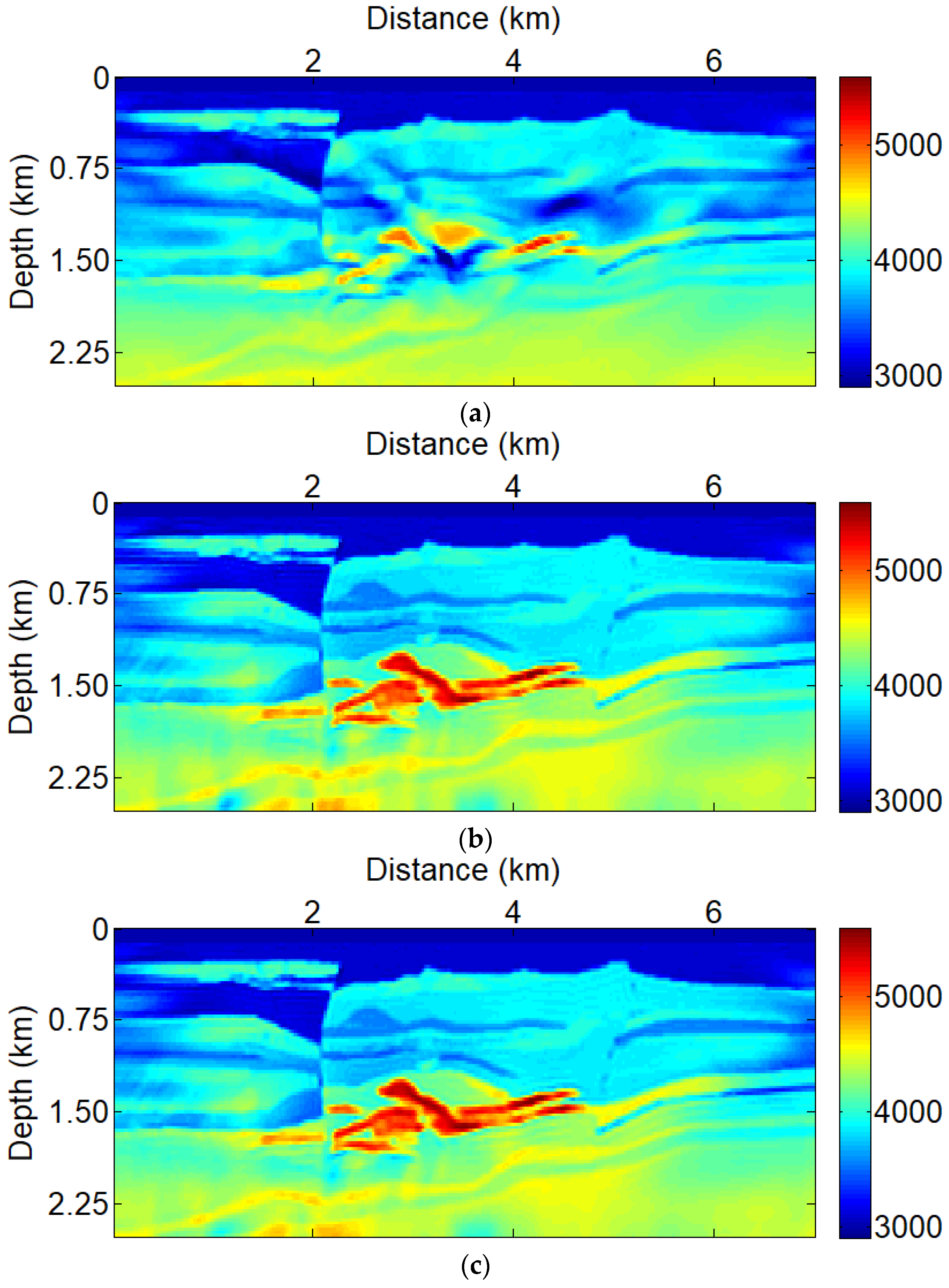

**Figure 5.**The TV-PAFWI results with different amplitude factors of (

**a**) p = 1 which is the TV-FWI method; (

**b**) p = 0.6; (

**c**) p = 0.3; (

**d**) p = 0, for the low frequency data and ${\lambda}_{TV}=0.3$.

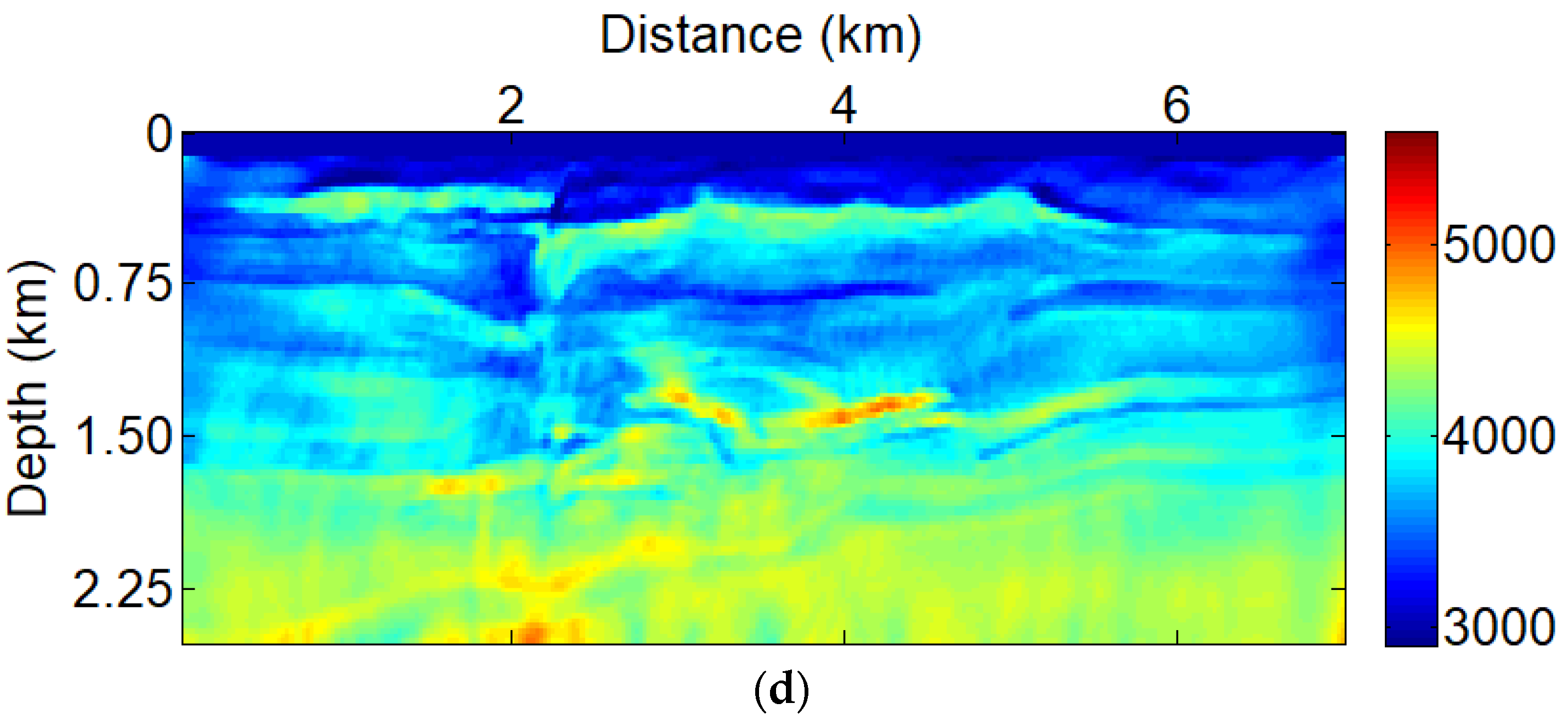

**Figure 6.**TV-PAFWI + FWI with high frequency data (6–20 Hz), using the models shown in Figure 5a–d as the initial models with amplitude factors are (

**a**) p = 1, which is the TV-FWI method; (

**b**) p = 0.6; (

**c**) p = 0.3; (

**d**) p = 0.

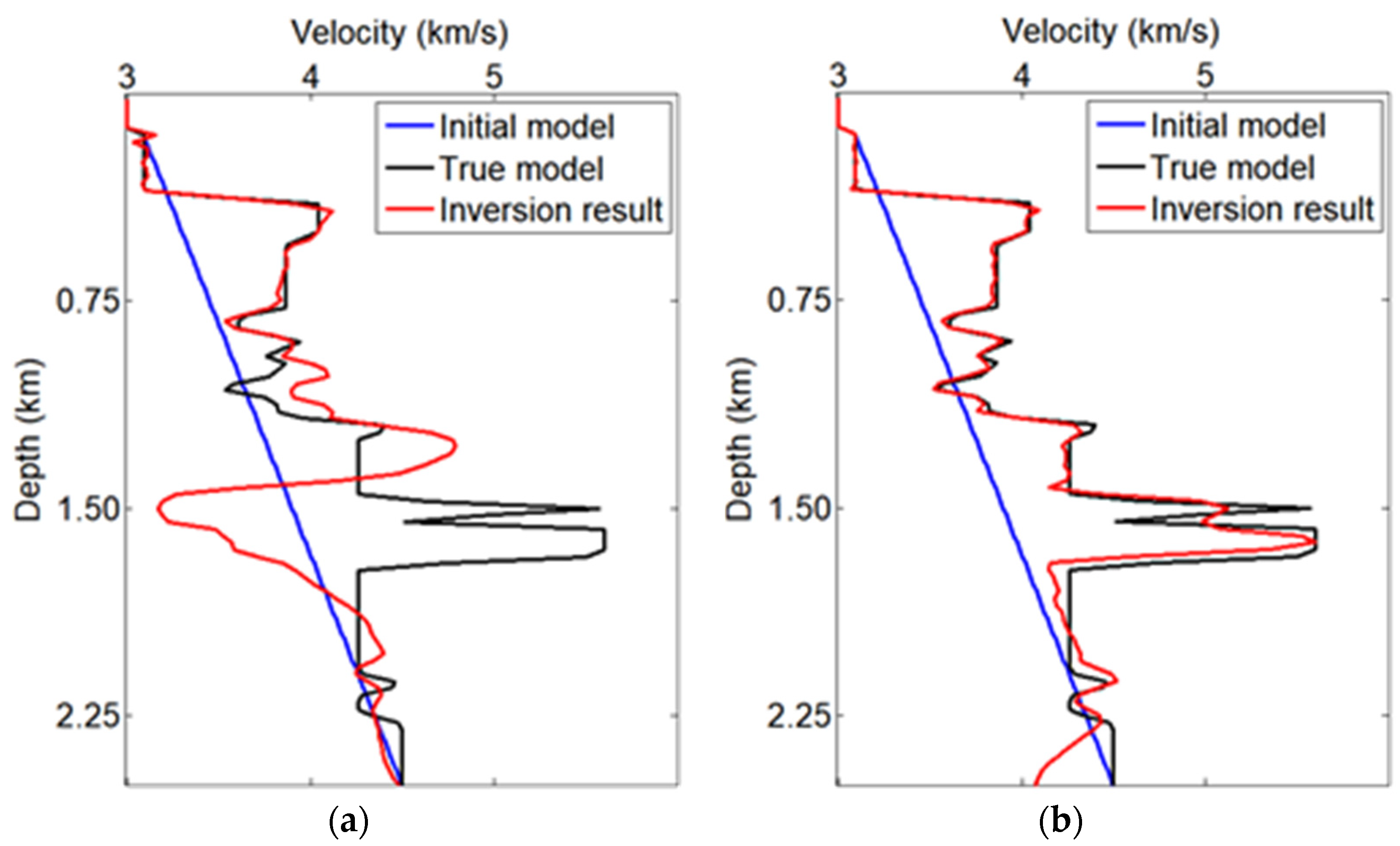

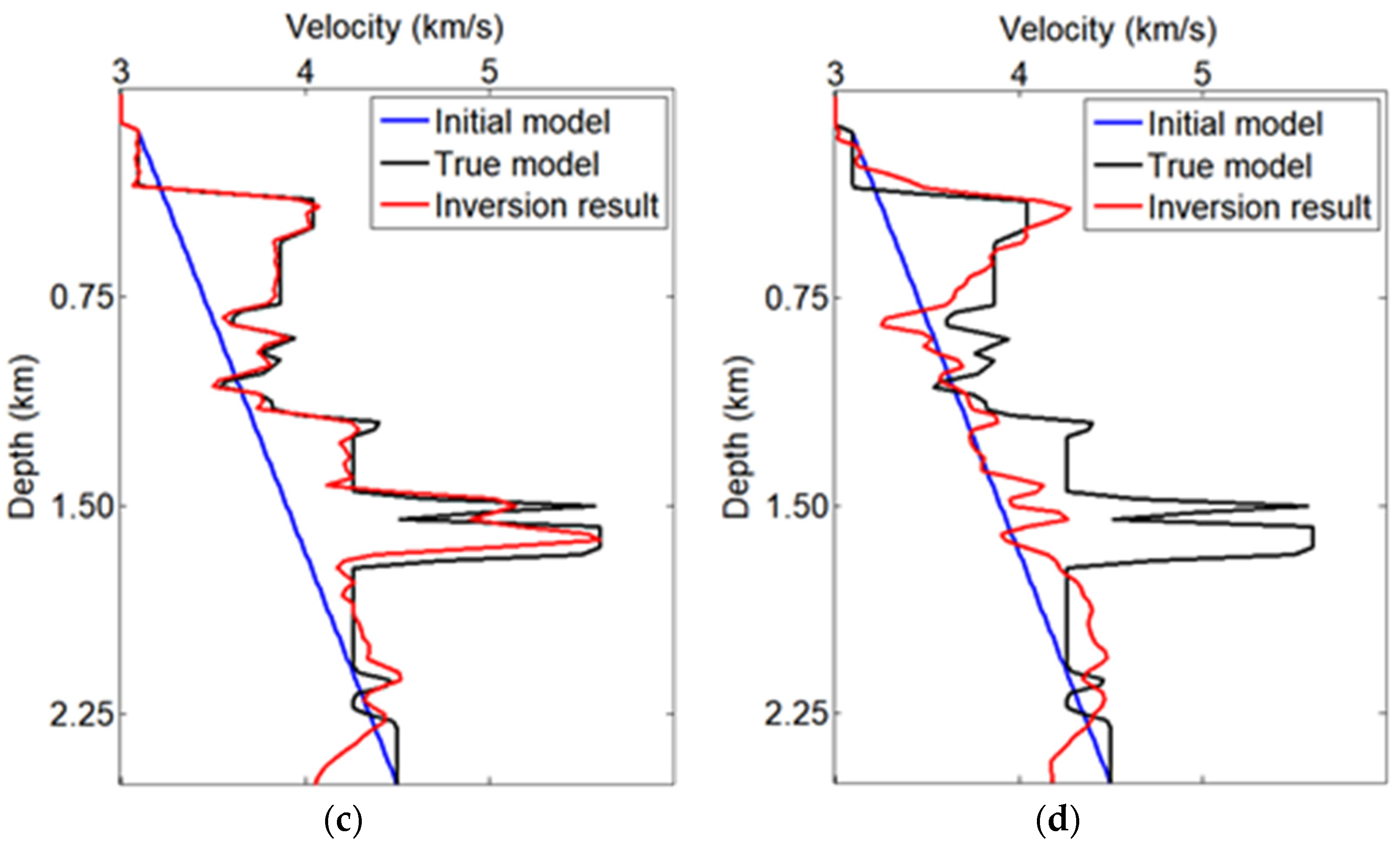

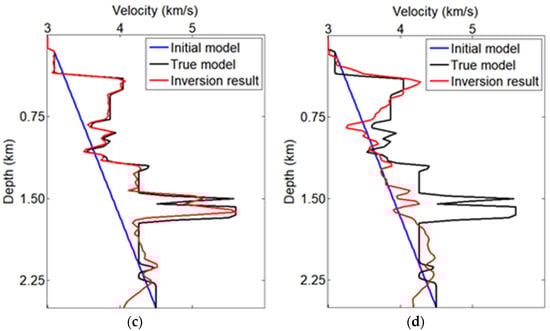

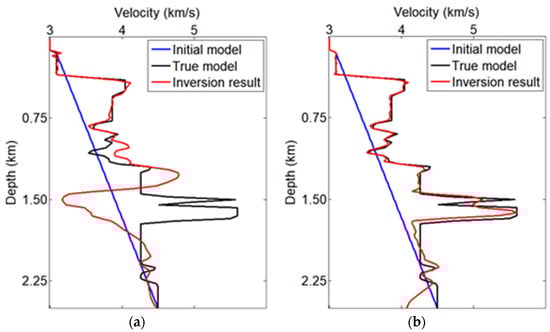

**Figure 7.**The TV-PAFWI velocity profiles (at 3.5 km in the ore-hosting velocity model in Figure 6a–d, respectively), with different amplitude factors are (

**a**) p = 1, which is the TV-FWI method; (

**b**) p = 0.6; (

**c**) p = 0.3; (

**d**) p = 0.

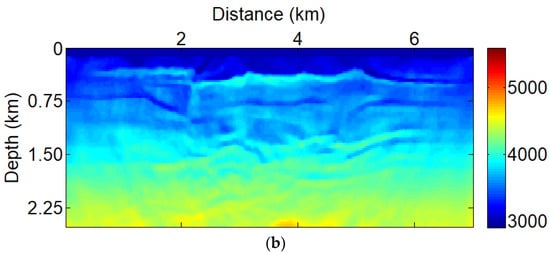

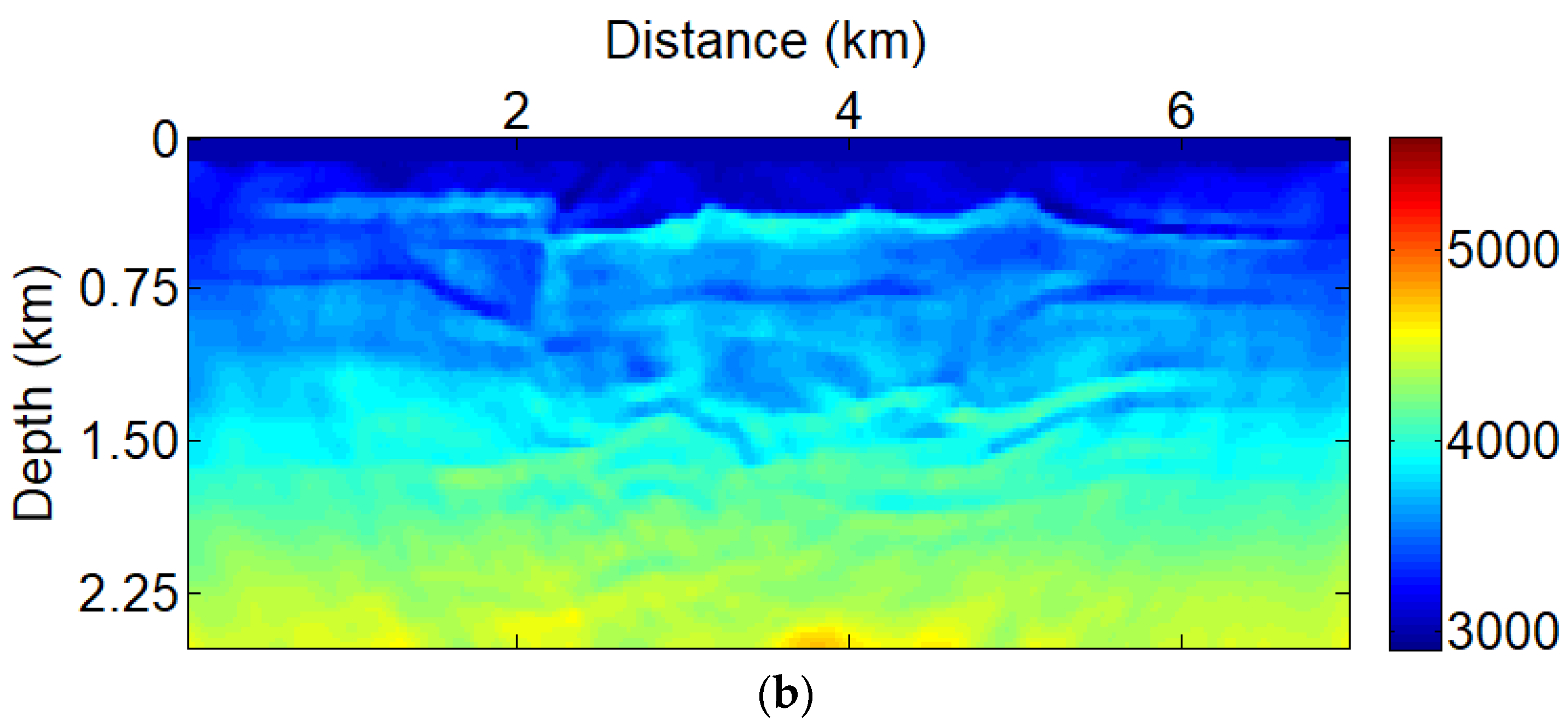

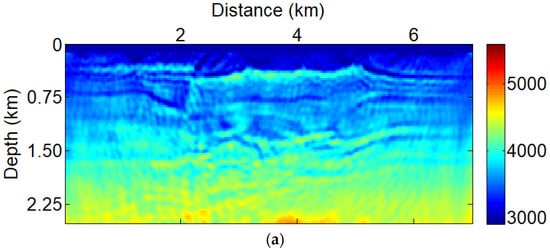

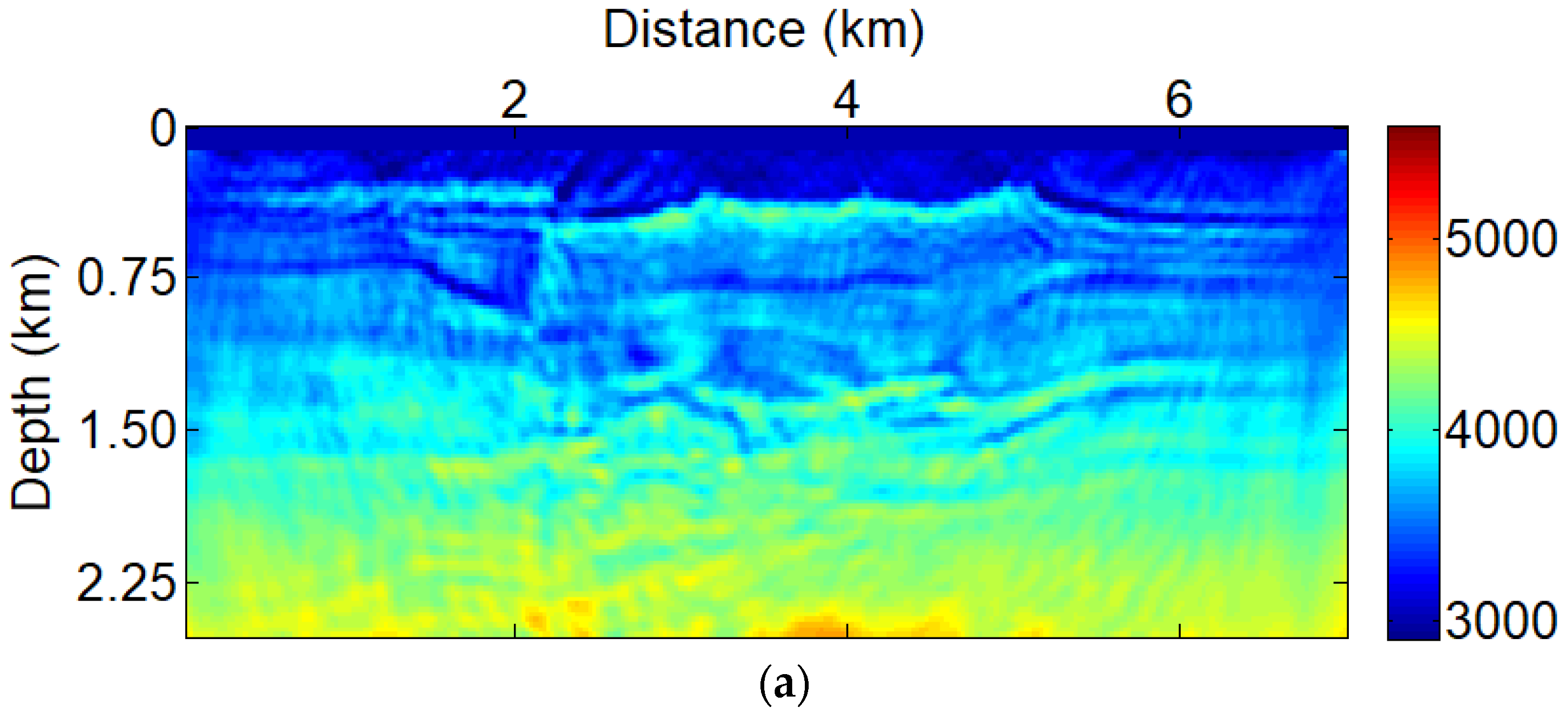

**Figure 8.**TV-PAFWI with low frequency data (6–12 Hz) and amplitude factor (p = 0) also with different TV parameters (

**a**) ${\lambda}_{TV}=0$; (

**b**) ${\lambda}_{TV}=1$.

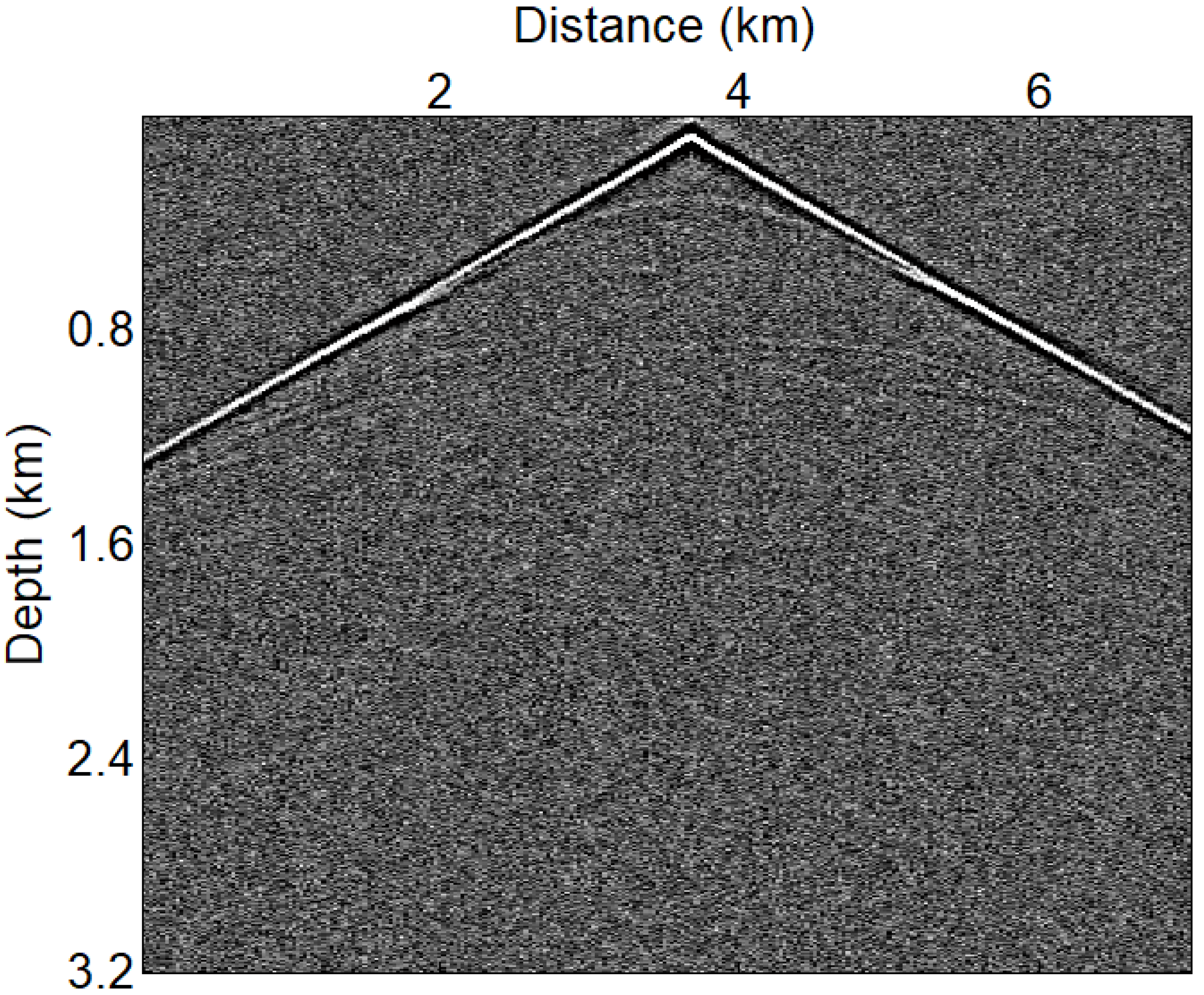

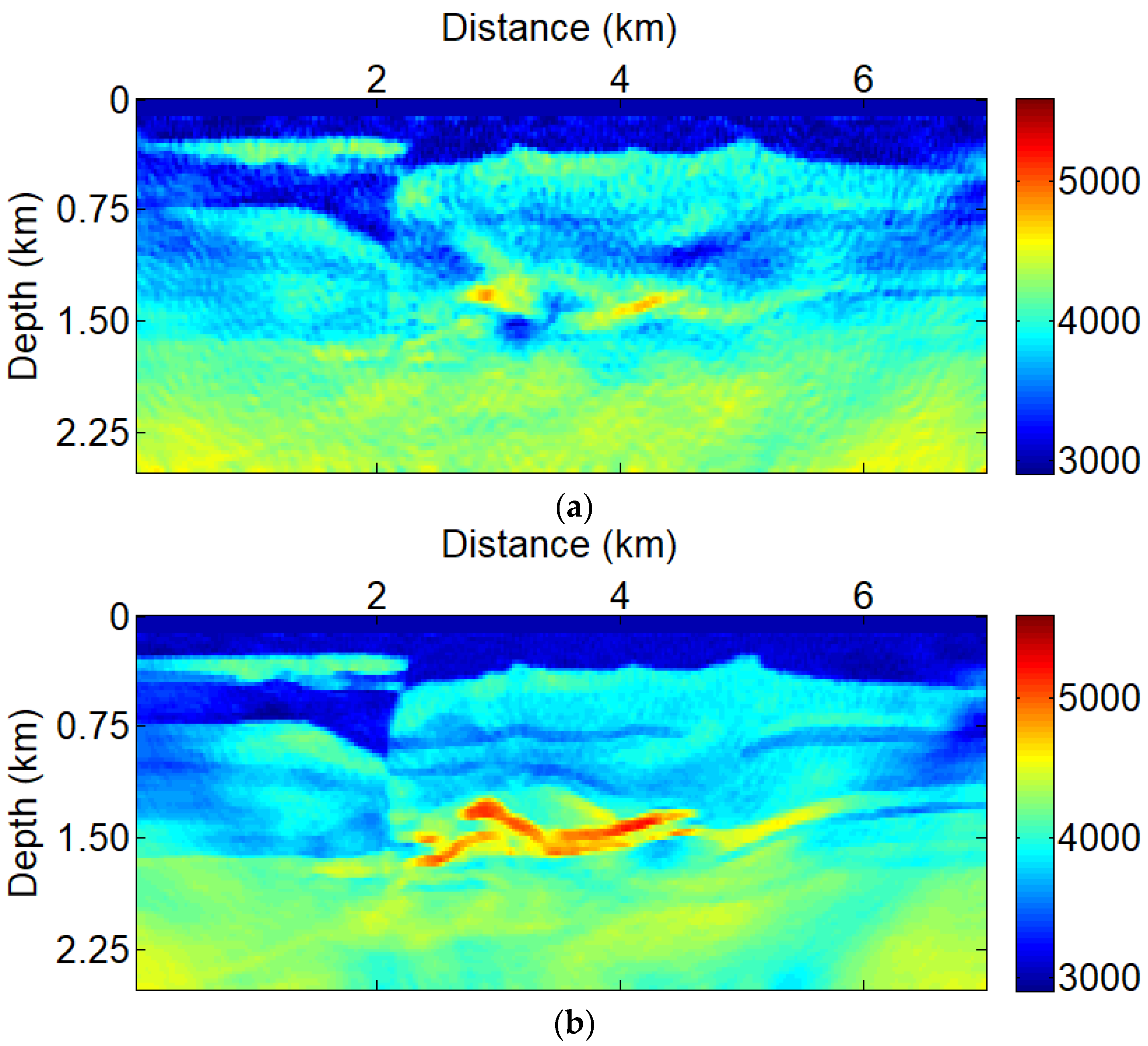

**Figure 10.**TV-PAFWI with amplitude factor (p = 0), also with different TV parameters (
