Influence of Titaniferous Phases on Tungsten Mineralizing Processes at the Giant Sisson Brook W-Mo Deposit, New Brunswick, Canada: Mineral-Chemical and Geochronological Assessment

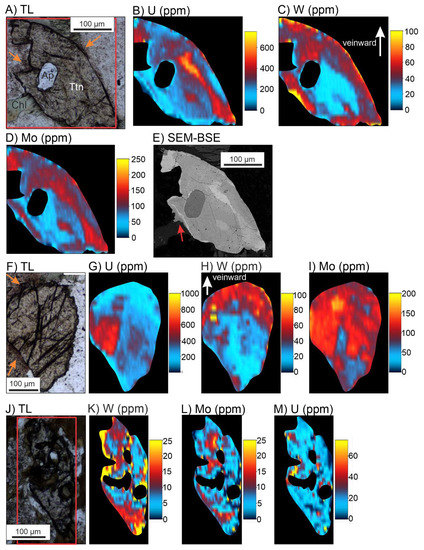

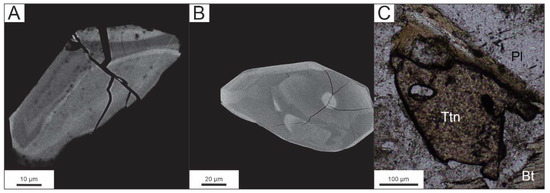

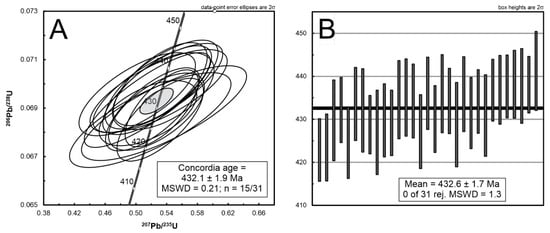

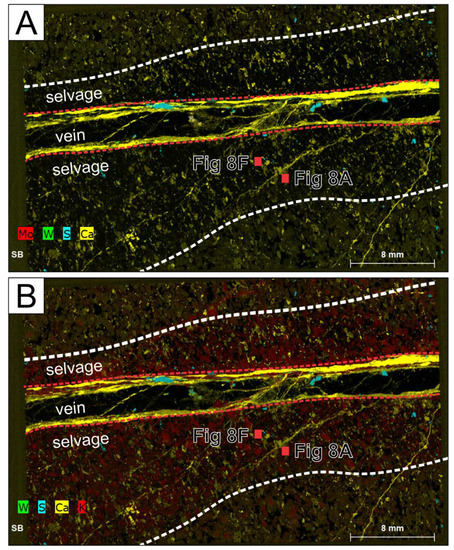

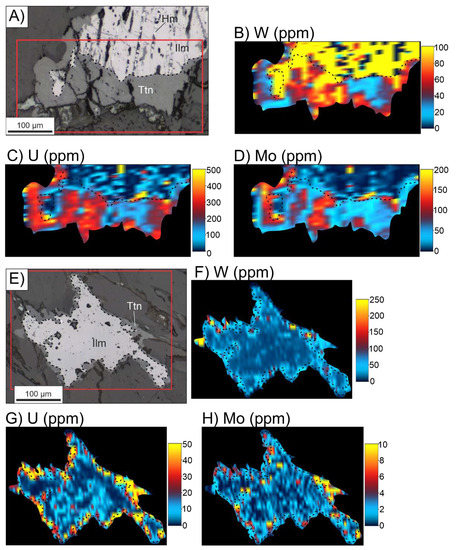

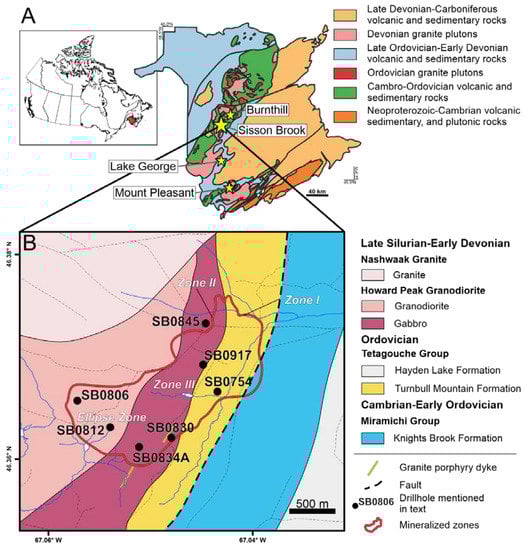

The Sisson Brook deposit is a low-grade, large-tonnage W-Mo deposit with notable Cu located in west-central New Brunswick, Canada, and is one of several W-Mo deposits in New Brunswick associated with fluids sourced from granitic plutons emplaced during the Devonian Acadian Orogeny. The younger Devonian-aged stockwork and replacement scheelite-wolframite-molybdenite (and chalcopyrite) mineralization straddles the faulted boundary between Cambro-Ordovician metasedimentary rocks with Ordovician felsic volcaniclastic rocks and the Middle Silurian Howard Peak Granodiorite, with dioritic and gabbroic phases. U-Pb dating of magmatic titanite in the host dioritic phase of the Howard Peak Granodiorite using LA ICP-MS resulted in a ²⁰⁴Pb-corrected concordant age of 432.1 ± 1.9 Ma. Petrologic examination of selected mineralization combined with elemental mapping of vein selvages using micro-XRF and metasomatic titanite and ilmenite grains using LA ICP-MS indicates that saturation of titaniferous phases influenced the distribution of scheelite versus wolframite mineralization by altering the aFe/aCa ratio in mineralizing fluids. Ilmenite saturation in Ti-rich host rocks lowered the relative aFe/aCa and led to the formation of scheelite over wolframite. Altered magmatic titanite and hydrothermal titanite also show increased W and Mo concentrations due to interaction with and/or saturation from mineralizing fluids. View Full-Text
